Blodgett SC-E User Manual

SC-7E and SC-10E

BLODGETT OVEN COMPANY

ELECTRIC CONVECTION S TEAMER

INSTALLATION – OPERATION – MAINTENANCE

44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone [phone] Fax: [phone]

www.blodgett.com

S00058 Rev B (7/10)

1

Adequate clearances must be maintained for servicing and proper operation.

Intended for commercial use only. Not for household use.

IMPORTANT NOTES FOR INSTALLATION AND OPERATION

This is the safety alert symbol. It is used to alert you to potential personal
injury hazards. Obey all safety messages that follow this symbol to avoid
possible injury or death.

WARNING: Improper installation, operation, adjustment, alteration,
service or maintenance can cause property damage, injury or death. Read
the installation, operating and maintenance instructions thoroughly before
installing, operating or servicing this equipment.

This manual should be retained for future reference.

2

TABLE OF CONTENTS

DESCRIPTION PAGE

1.0 Service Connections ............................................................................................. 4

2.0 Installation Instructions ........................................................................................... 5

3.0 Operation ............................................................................................................. 9

4.0 Cleaning .............................................................................................................. 13

5.0 Maintenance ...................................................................................................... 15

6.0 Troubleshooting.................................................................................................... 16

7.0 Service ................................................................................................................ 17

3

1.0 SERVICE CONNECTIONS

28 [711]

6 [152]

1.5 [38]

1 [25]

5 [127]

2.62 [67]

16.62 [422]

58.75 [1492] SC-7E

88.5 [1740] SC-10E

SC-7E

SC-10E

19.88 [505]

19.5 [495]

2.19 [56]2.19 [56]

REAR FLANGED FOOT DETAIL

7/16" [11mm] HOLES

ON 2.5 [63] B.C.

2 EQUALLY SPACED
Ø

C

ELECTRICAL CONNECTION: 1-1/8" hole for electrical connection. Rating to be as specified on data plate.
DRAIN: 1"IPS to open floor drain. No solid connection. Use copper only, 24" length before open air gap opening (No bends or elbows).
GENERATOR WATER: 3/8" O.D. tubing at 25-50 PSI (170-345 kPa)
CONDENSING WATER: 3/8" O.D. tubing at 25-50 PSI (170-345 kPa)

WATER QUALITY STATE M ENT

WATER QUALITY IS THE MAJOR FACTOR AFFECTING THE PERFORMANCE OF YOUR APPLIANCE. IF YOU ARE UNSURE OF WATER
QUALITY, CONSULT A LOCAL WATER TREATMENT SPECIALIST AND HAVE THE WATER ANALYZED. YOUR WATER SUPPLY MUST BE

TOTAL DISSOLVED SOLIDS
TOTAL ALKALINITY
SILICA
CHLORIDE
pH FACTOR

WATER WHICH FAILS TO MEET THESE STANDARDS SHOULD BE TREATED BY INSTALLATION OF A WATER CONDITIONER.
FAILURE OR MALFUNCTION OF THIS APPLIANCE DUE TO POOR WATER QUALITY IS NOT COVERED UNDER WARRANTY.

LESS THAN 60 PPM
LESS THAN 20 PPM
LESS THAN 13 PPM
LESS THAN 1.5 PPM

7.0-8.5

WITHIN THESE GENERAL GUIDE LINES:

9 [229]

16.75 [425]

33 [838]

1.38 [35]

24 [610]

1.12 [29]

27.38 [695]

1/2-NPT DELIME INLET

27.69 [703]

2.19 [56]

3.94 [100]

3 [76]

1.75 [45]

ELECTRICAL CHARACTERISTICS

SC-7E

MODEL

SC-10E

208V

66.6

48.6

63

45.9

57.8

42.1

36.5

26.6 21.1

28.9

kW

17.5

24 - Std 3

3

PHASE

220V 240V 380V 480V

AMPS PER LINE

83.3 78.7 72.2 45.6 36.130 - Opt 3

4

2.0 INSTALLATION INSTRUCTIONS

This steamer was inspected before leaving the factory. The transportation company
assumes full responsibility for safe delivery upon acceptance of the shipment.
Immediately after unpacking the steamer, check for possible damage. If the steamer is
found to be damaged after unpacking, save the packaging material and contact the
carrier within 15 days of delivery.

Prior to installation, verify that the electrical service agrees with the specifications on the
machine data plate which is located on the left side panel.

LOCATION

Allow space for plumbing and electrical connections. Minimum clearances are 3" (76
mm) on the sides and 6" (152 mm) on the back for proper air circulation. Allow adequate
access for operating and servicing the steamer, 36" (915 mm) at the front of the steamer
and 15" (381 mm) above the steamer.

LEVELING AND ANCHORING

1. Using a spirit level or pan of water in the bottom of the steamer, adjust the leveling
feet to level the steamer front-to-back and side-to-side.

2. Mark hole locations on the floor through the anchoring holes provided in the flanged
adjustable feet. Remove the steamer and drill holes at marked locations on the floor.
Insert proper anchoring devices.

3. Set steamer back in proper position.

4. Install bolts through anchoring holes and into anchors to secure the steamer to the
floor. Seal bolts and flanged feet with Silastic.

5. After the drain is connected, check for level by pouring water onto the floor of the
compartment. All water should drain through the opening at the back of the
compartment cavity.

5

ELECTRICAL CONNECTION

WARNING: Electrical grounding connections must comply with
applicable portions of the National Electrical code and/or other local
electric codes.

WARNING: Disconnect the power supply to the appliance before
cleaning or servicing.

Make electrical connection through the 1-1/8" (29 mm) diameter hole provided using 3/4"
(19mm) trade size conduit. Refer to the wiring diagram located inside the right side
panel. Use 90°C minimum insulated wire.

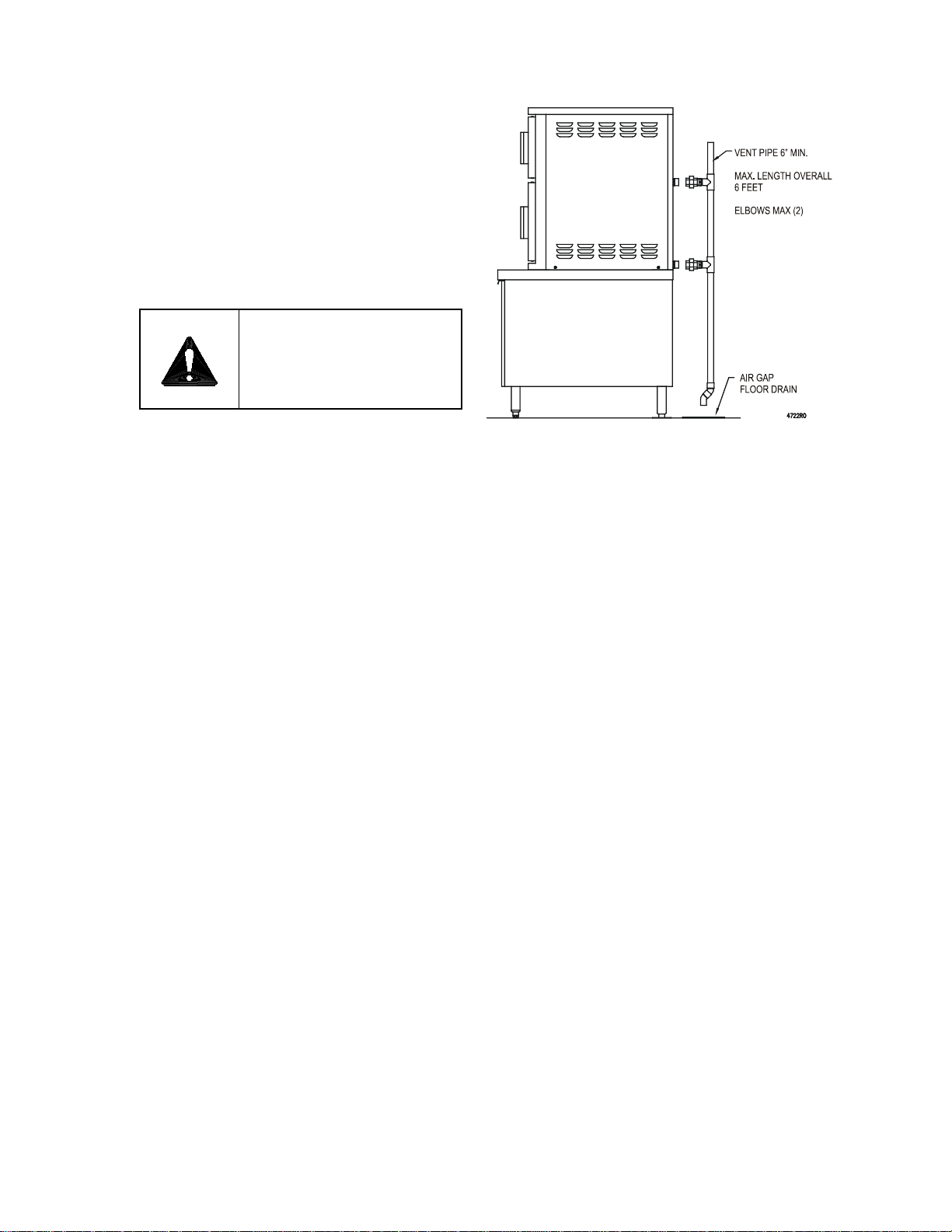

PLUMBING CONNECTIONS

WARNING: Plumbing connections must comply with applicable
sanitary, safety, and plumbing codes.

The water supply inlets are provided with 3/8" (10 mm) compression fittings for 3/8" O.D.
copper tubing. The water supply line pressure should be 25 - 50 psi (170 - 345 kPa) for
each line. The water supply to the generator tank is separate from the water supply to
the cooling system where steam is condensed before entering the drain line.

Install line strainers (not provided). A manual shutoff valve for each supply line must be
provided convenient to the steamer.

We recommend treated water feeding the boiler inlet supply, and untreated water
feeding the cooling system inlet. Hook-ups are labeled on the back of the steamer.

6
