Blodgett CB24G-10K User Manual

Project

Item No.

Quantity

 Model CB24G-6K (one 6 gallon direct steam kettle on a 24” gas boiler

base)

 Model CB24G-10K (one 10 gallon direct steam kettle on a 24” gas boiler

base)

KETTLES

 Water resistant, 304 stainless steel construction
 316 stainless steel interior cooking surface for corrosion resistance
 2/3 jacketed, hemispherical design on bottom for superior heat circulation
 Tilt mechanism permits kettle to tilt forward past 90° to empty
 Tubular stainless steel legs containing steam control valve and conden-

sate return pipes

 Reversible operating handle with heat proof knob

GAS BOILER BASE

 Gas operated steam boiler rated at 15 PSI (103 kPa) operating on

115VAC, 1 phase, 60 Hz rated at 140,000 BTU

 Full perimeter painted angle iron frame
 Reinforced counter and boiler mountings
 Stainless steel exterior
 Hinged door(s) with magnetic latch
 6” (152 mm) stainless steel legs with adjustable bullet feet on front and

adjustable flanged feet on rear

 Thermostatically controlled drain box
 All piping is confined within cabinet
 Automatic water level control
 Automatic boiler blowdown
 Pressure gauge
 Water gauge glass
 Pressure control with pressure safety control
 Safety relief valve
 Cathodic protector
 On/Off switch with indicator light
 Electronic ignition
 Split water lines
 CSD-1 secondary low water cut off

STANDARD FEATURES

 Deck mount hot and cold faucet with riser
 3"(76mm) deep sinks with splash guards and grates
 Startup inspection service by factory autorized service agent
 One year parts and labor warranty*

* For all international markets, contact your local distributor

BLODGETT

www.blodgett.com

44 Lakeside Avenue, Burlington, VT 05401 • Phone: [phone] • Fax: [phone]

OPTIONS AND ACCESSORIES

(AT ADDITIONAL CHARGE)

 Power Increase

 200,000 BTU boiler
 250,000 BTU boiler in a 36” wide cabinet
 300,000 BTU boiler in a 36” wide cabinet

 Etched kettle markings

 Gallon markings

 Litre markings
 36” wide cabinet for 140,000 and 200,000 models
 Front flanged feet
 Correctional package
 Stainless steel back panel
 208-240 VAC specify voltage
 One year extended warranty

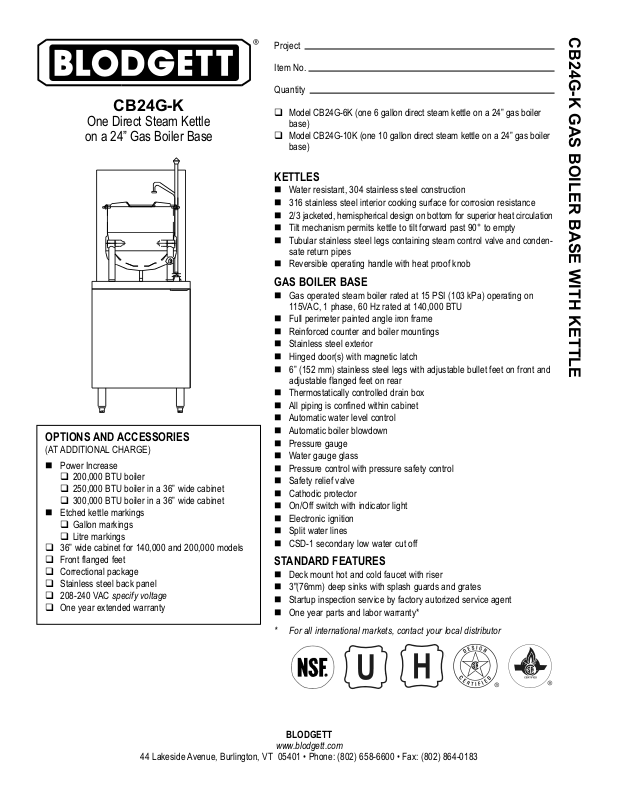

CB24G-K

One Direct Steam Kettle

on a 24” Gas Boiler Base

CB24G-K GAS BOILER BASE WITH KETTLE

BLODGETT

www.blodgett.com 44 Lakeside Avenue, Burlington, VT 05401 • Phone: [phone] • Fax: [phone]

CB24G-K

SHORT FORM SPECIFICATIONS

Provide Blodgett model CB24G-6K (6 pan) one 6 gallon direct steam kettle or model CB24G-10K (6 pan) one 10 gallon direct steam kettle on a 140,000 BTU gas boiler base base.
The kettles shall have a double wall interior to form a steam jacket around the lower 2/3 of the kettle. The bottom of the kettle shall be of hemispherical design for superior heat circula-

tion. Steam control valve mounted in leg. The tubular stainless steel mounting legs shall have the steam supply and condensate return pipes completely concealed within the leg meme­bers. The sealed stainless steel tilt mechanism bearings shall permit the kettle to tilt forward 90° for complete emptying. A removeable operating handle with heat proof knob shall be
mounted on the left or right. Unit shall have a single support leg with nylon insert. Construction shall be all welded satin finish 304 stainless steel with a 316 stainless steel liner.

The boiler shall be suitable for operation at any pressure from 5-11 PSI (34-76 kPa) and operate on 115 VAC. Boiler shall be mounted in cabinet base. Polished stainless steel cabinet
base shall be of modular design to match other Blodgett steam equipment. Unit shall have 6” (152mm) stainless steel legs and adjustable bullet feet, reinforced stainless steel counter top
and hinged doors with magnetic latches. All piping shall be confined within the cabinet. Unit shall be automatically filled with water and brought to pressure when power switch is turned
on. Cold water condenser shall automatically condense exhausted steam in water before releasing it to drain. Boiler controls shall include automatic water level, pressure gauge, water
gauge glass, pressure control with pressure safety control, safety relief valve, cathodic protector and CSD-1 secondary low water cut off.

Unit shall have a hot and cold water faucet with control valves, 5" (152 mm) deep sink with drain and two splash guards.
Kettles and boiler shall be ASME code stamped and National Board registered. Provide options and accessories as indicated.

Printed in U.S.A. NOTE: FOR COMMERCIAL USE ONLY

NOTE: The company reserves the right to make substitutions of components without prior notice.

APPROVAL/STAMP

P/N S00104 Rev B (12/09)

WATER SUPPLY:

Water quality is a major factor affecting the performance of your steamer. If you are
unsure of water quality, consult a local water treatment specialist and have the water
analyzed. Your water supply must be within these general guidelines:

Total dissolved solids: Less than 60 PPM Total alkalinity: Less than 20 PPM
Silica: Less than 13 PPM Chlorine: Less than 1.5 PPM
pH Factor: 7.0 - 8.5

Water which fails to meet these standards should be treated by installation of a water
conditioner. Failure or malfunction of this steamer due to poor water quality is not cov-

ered under warranty.

WATER & DRAIN CONNECTIONS:

Drain 2” (51mm) IPS piped to open floor drain. No solid connection.

24” length before open air opening (no bends or elbows)
Cold Water 3/8” (10mm) tubing at 25-50 PSI (170-345 kPa)
Steam Take Off 3/4” IPS optional to operate adjacent equipment
Appliance is to be installed with backflow protection in accordance with Federal, State or

Local codes.

GAS SUPPLY:

3/4" IPS supply line required

Minimum Inlet Pressure:

Natural 7.0" W.C. static to unit
Propane 11.0" W.C. static to unit

POWER SUPPLY:

Unless otherwise specified, field wire electrical con­nection to be 120VAC, single phase, 60 Hz with
grounding wire.

PRODUCT CLEARANCE

Right and Left side 3” (76mm)
Rear 6” (152mm)

SHIPPING INFORMATION:

Approx. Weight:

CB24G-6K 450 lbs. (204 kg)
CB24G-10K 470 lbs. (213 kg)
