BCP & BCM
COMBI OVENS
REPLACEMENT PARTS LIST
EFFECTIVE FEBRUARY 9, 2012
The Company reserves the right to make substitution in the event that items specied are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.
44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: (802) 658-6600 Fax: (802) 860-3732
Superseding All Previous Parts Lists.
BLODGETT OVEN COMPANY
www.blodgett.com
P/N 60870 Rev A
SERIAL NUMBER LOCATION / KEY:
IMPORTANT: When ordering parts, please provide the model,
voltage or gas type and serial number of the oven. The identication
plate is located on the right side of the oven.
SERIAL NUMBER IDENTIFICATION CODE:
ELECTRIC MODELS
W/STEAM GENERATOR
61E - AL
101E - AM
102E - AN
202E - AR
SERIAL NUMBER EXAMPLE
THE FOLLOWING EXAMPLE IS FOR A BCP-101E OR BCM-101E
BOILERLESS
ELECTRIC MODELS
61E - AO
101E - AV
102E - AY
202E - AZ
0612 AM 1820112
06/12 = MONTH & YEAR
BOILERLESS
GAS MODELS
61G - AS
101G - AT
102G - AU
202G - AW
AM = LETTER CODE FOR MODEL NAME
1820101 = FACTORY SEQUENCE
TO OBTAIN LITERATURE:
Email: literature@blodgett.com
or visit
www.blodgett.com
FEBRUARY 9, 2012 2 BCP & BCM COMBI OVENS
TABLE OF CONTENTS
DOORS ...............................................................................4
DOOR GLASS ........................................................................ 6
SENSOR FOR RIGHT & LEFT HINGED OVEN DOOR ................................... 7
DOOR HANDLE .......................................................................8
DRIP SLIDE ...........................................................................9
DRIP TRAY .......................................................................... 10
EXTERIOR PANELS ................................................................. 12
REAR PANEL - PASSTHROUGH OVENS .............................................. 13
MOTOR & ELEMENTS ............................................................... 14
FILTER HOUSING ................................................................... 16
INTERIOR LIGHTS ................................................................... 18
DAMPER WITH MOTOR EXHAUST ................................................... 19
BCM CONTROL ..................................................................... 20
BCP CONTROL ...................................................................... 21
CORE TEMPERATURE PROBE ....................................................... 22
DELIMING ........................................................................... 23
STEAM GENERATOR ................................................................ 24
ELECTRICAL COMPONENTS ........................................................ 28
HEAT EXCHANGER .................................................................. 30
GAS COMPONENTS ................................................................. 31
DRAFT HOOD & TOP PANEL ......................................................... 32
SOLENOID VALVES & WATER INLET ................................................. 33
HANDSHOWER ..................................................................... 34
COMBIWASH ........................................................................ 35
OPTIONAL CONDENSATE HOOD .................................................... 40
OPTIONAL FAT SEPARATOR ......................................................... 43
STACKING KITS ..................................................................... 44
FEBRUARY 9, 2012 3 BCP & BCM COMBI OVENS
OVEN DOORS
FOR MODELS 61, 101 AND 201
8
6
10
1
11
15
12
9
2
16
4
3
13
22
15
13
14
9
3
6
1
2
20
8
18
15
22
17
7
14
5
LEFT HAND DOOR RIGHT HAND DOOR
Ref. Part
No. No. Description
1 60000 Bushing
2 60001 Washer for hinge
3 60044 Screw FHR M5 x 10
4 60052 Screw M5 x 10
5 60055 Screw, set M6 x 20
6 60056 Screw M6 x 20
7 60089 Washer, spring 6mm
8 60098 Spring for hinge
9 60174 Cover plate
10 60176 Hinge bushing, top, LH
11 60177 Hinge bushing, bottom, LH
12 60178 Bush for hinge, LH
13 60181 Cover for hinge, LH
14 60182 Cover for hinge, RH
4
21
7
5
Ref. Part
No. No. Description
15 60185 Stopper, rubber
16 60421 Hinge top/bottom, LH
17 60177 Hinge bushing, bottom, RH
18 60179 Hinge bushing, top, RH
19 60180 Bushing for hinge, RH
20 60434 Hinge upper RH
21 60435 Hinge lower RH
22 60439 Oven door, size 61 oven
22 60460 Oven door, size 61 passthrough oven
22 60436 Oven door, size 101 oven
22 60459 Oven door, size 101 passthrough oven
22 60444 Oven door, size 102 oven
22 60458 Oven door, size 202 oven
19
FEBRUARY 9, 2012 4 BCP & BCM COMBI OVENS
OVEN DOORS
FOR MODEL 202 ROLL-IN OVENS
8
18
12
17
11
2
6
10
1
15
19
3
5
16
17
11
2
6
8
18
1
10
13
20
3
5
13
14
9
4
7
LEFT HAND DOOR RIGHT HAND DOOR
Ref. Part
No. No. Description
1 60000 Bushing
2 60001 Washer for hinge
3 60871 Prole for oven door
4 60044 Screw M5 x 10
5 60046 Screw FRH M5 x 12
6 60052 Screw M5 x 10
7 60055 Screw, set M6 x 20
8 60056 Screw M6 x 20
9 60089 Washer, spring 6mm
10 60098 Spring for hinge
16
14
15
4
9
7
Ref. Part
No. No. Description
11 60174 Cover plate
12 60177 Hinge bushing, bottom
13 60179 Hinge bushing, top, RH
14 60180 Bushing for hinge, RH
15 60181 Cover for hinge, LH
16 60182 Cover for hinge, RH
17 60185 Stopper, rubber
18 60434 Hinge upper RH
19 60435 Hinge lower RH
12
19
FEBRUARY 9, 2012 5 BCP & BCM COMBI OVENS
DOOR GLASS
8
4
5
6
7
2
10
1
3
EXTERIOR VIEW
Ref. Part
No. No. Description
1 60036 Screw PH 2.5 x 4.5
2 60081 Rubber washer Ø14/Ø7x5mm
3 60186 Plastic screw for exterior glass
4 60190 Insert for handle
5 60501 Glass exterior, assy black, size 61 ovens
5 60499 Glass exterior, assy black, size 101 ovens
5 60502 Glass exterior, assy black, size 201 ovens
5 60504 Glass exterior, assy black, size 202 ovens
6 16470 Blodgett nameplate
7 60056 Screw M6 x 20
9
INTERIOR VIEW
Ref. Part
No. No. Description
8 60165 Door seal, size 61 ovens
8 60167 Door seal, size 101 ovens
8 60168 Door seal, size 201 ovens
8 60872 Door seal, size 202 ovens
9 60191 Hinge bracket
10 60467 Glass interior complete, size 61 ovens
10 60466 Glass interior complete, size 101 ovens
10 60480 Glass interior complete, size 102 ovens
10 60496 Glass interior complete, size 202 ovens
FEBRUARY 9, 2012 6 BCP & BCM COMBI OVENS
SENSOR FOR RIGHT & LEFT HINGED OVEN DOOR
3
2
1
Ref. Part
No. No. Description
1 60051 Screw, M5 x 6
2 60574 Sensor for pass through door
3 60575 Sensor for door
FEBRUARY 9, 2012 7 BCP & BCM COMBI OVENS
DOOR HANDLE
13
12
10
8
9
5
1
2
4
3
6
7
11
15
14
Ref. Part
No. No. Description
1 60045 Screw, set M5 x 12
2 60059 Screw M6 x 20 Inset
3 60084 Washer 5mm
4 60085 Washer, spring 5mm5
5 60422 Spring for closing device
6 60423 Mounting bracket for catch
7 60424 Catch 2-step VCII
8 60425 Housing for handle
9 60426 Spring retainer
10 60427 Cylinder for handle
11 60852 Spring for handle
12 60432 0-ring Ø25x2 NBR
13 60873 Handle
14 60500 Handle assy. MIDD
15 60823 Catch 2-step VCII assy LH
15 60850 Catch 2-step VCII assy RH
FEBRUARY 9, 2012 8 BCP & BCM COMBI OVENS
1
DRIP SLIDE
1
DRIP SLIDE
STANDARD OVENS
8
3
6
7
5
DRIP SLIDE
PASSTHROUGH OVENS
8
3
6
7
5
4
2
Ref. Part
No. No. Description
1 60044 Screw M5 x 10
2 60068 Nut M3
3 60070 Spacer
4 60086 Washer 3mm
5 60105 Spring
6 60142 Rubber plug Ø9.1
7 60175 Spring for drip slide
7 60184 Spring for drip slide, PassThrough
8 60438 Drip slide 1/1
8 60445 Drip slide 2/1
8 60497 Drip slide 1/1 assy
8 60498 Drip slide 1/1 PassThrough assy
4
2
FEBRUARY 9, 2012 9 BCP & BCM COMBI OVENS
DRIP TRAY
STANDARD OVENS
11
1
9
7
4
6
8
14
5
13
2
10
3
12
Ref. Part
No. No. Description
1 60004 Spring for drip tray
2 60008 Hose clamp for drip pan
3 60020 Drain with 1 branch
4 60021 Nozzle complete
5 60044 Screw M5 x 10
6 60058 Screw, set M5 x 25
7 60065 Plug 3/8" inside hexagon
8 60084 Washer 5mm
9 60094 Cable clamp Ø17.8
10 60334 Condensing Sensor
11 60463 Drip tray 1/1 GN
12 60465 Drip tray 1/1 GN P/T
13 60542 Drain 1/1 welded
14 60187 Hose for drain Drip tray
FEBRUARY 9, 2012 10 BCP & BCM COMBI OVENS
2
DRIP TRAY
PASSTHROUGH OVENS
6
13
3
12
8
5
9
10
11
Ref. Part
No. No. Description
1 60003 Tube for trip tray
2 60004 Spring for drip tray
3 60020 Drain with 1 branch
4 60040 Screw M4 x 8
5 60101 Clip 17-20mm
6 60110 Y-branch, plastic Ø14
7 60114 Plug 1/4" inside hexagon
8 60139 Lead-in Ø14/Ø20x1.5
9 60433 Suspension for drip tray PassThrough
10 60463 Drip tray 1/1 GN
11 60465 Drip tray 1/1 GN P/T
12 60188 Hose for drain Y-branch
13 60189 Hose for drain drip tray PT - customer side
4
7
1
FEBRUARY 9, 2012 11 BCP & BCM COMBI OVENS
2
EXTERIOR PANELS
7
3
8
9
10
6
5
DETAIL A
1
SEE DETAIL A
Ref. Part
No. No. Description
1 60047 Screw, set M5 x 16
2 60049 Screw M5 x 30
3 60057 Screw M5 x 16
4 60080 Nut M10 Clips
5 60085 Washer, spring 5mm
6 60087 Washer 5mm
7 60375 Top panel, w/2 exhaust valves for 61 & 101
7 60384 Top panel, w/2 exhaust valves, fatvent
for 61 & 101
7 60386 Top panel, w/2 exhaust valves for 102 & 202
7 60395 Top panel, w/2 exhaust valves for stacked
models
4
11
2
1
Ref. Part
No. No. Description
8 60378 Rear panel for size 61 ovens
8 60376 Rear panel for size 101 ovens
8 60382 Rear panel for size 201 ovens
8 60397 Rear panel for size 202 ovens
9 60380 Side panel RH and LH for size 61 ovens
9 60377 Side panel RH and LH for size 101 ovens
9 60385 Side panel RH and LH for size 102 ovens
9 60398 Side panel RH and LH for size 202 ovens
10 60602 Connecting piece for stand
11 60874 Foot coupling
12 60064 Allen screw CH M4x10 A2 for 202 ovens
13 60124 Fan motor
FEBRUARY 9, 2012 12 BCP & BCM COMBI OVENS
REAR PANEL
PASSTHROUGH OVENS
3
6
2
Ref. Part
No. No. Description
1 60042 Screw, set M5 x 6
2 60043 Screw, set M5 x 10
3 60084 Washer 5mm
4 60085 Washer, spring 5mm
5 60403 Cover 101 PassThrough
6 60410 Front panel 61 PassThrough
6 60404 Front panel 101 PassThrough
2
5
3
4
1
FEBRUARY 9, 2012 13 BCP & BCM COMBI OVENS
MOTOR & ELEMENTS
61, 101 & 102 ELECTRIC OVENS
22
21
19
5
9
20
16
17
15
6
13
12
3
11
1
18
23
25
2
10
24
7
14
26
4
Ref. Part
No. No. Description
1 60013 Support for shaft gasket
2 60015 Bolt M8 x 45
3 60034 Screw FRH M4 x 12
4 60045 Screw, set M5 x 12
5 60055 Screw, set M6 x 20
6 60063 Screw, set M10 x 20
7 60078 Nut M8
8 60084 Washer 5mm
9 60085 Washer, spring 5mm
10 60091 Washer 8mm
11 60092 Washer Ø10.5 x 20
12 60104 Sealing ring Ø17
13 60116 Nozzle, elbow (angular)
14 60123 Fan motor 3x200-240 V
15 60126 Fan wheel reversing, straight blades
16 60158 Distance tube for lter housing
17 60159 Distance tube for lter housing
18 60215 Bracket for thermoswitch
19 60216 Gasket for ring heating element
8
Ref. Part
No. No. Description
20 60221 Ring heating element Ø400, 208V, 9 kW
20 60875 Ring heating element Ø400, 240V, 9 kW
20 60233 Ring heating element Ø400, 480V, 9 kW
21 60666 Ring heating element Ø470, 208V, 9 kW
for 101 & 102 ovens
21 60876 Ring heating element Ø470, 240V, 9 kW
for 101 & 102 ovens
21 60234 Ring heating element Ø470, 400V, 9 kW
for 101 & 102 ovens
22 60223 Ring heating element Ø540, 208V, 9 kW
for 101 & 102 ovens
22 60877 Ring heating element Ø540, 240V, 9 kW
for 101 & 102 ovens
22 60235 Ring heating element Ø540, 400V, 9 kW
for 101 & 102 ovens
23 60323 Temperature sensor air 350°C
24 60878 Cover for insulation, 61 ovens
24 60366 Cover for insulation, 101 ovens
24 60879 Cover for insulation, 102 ovens
25 60573 Thermoswitch 350°C
FEBRUARY 9, 2012 14 BCP & BCM COMBI OVENS
MOTOR & ELEMENTS
202 ELECTRIC OVENS
21
13
2
15
19
16
5
18
11
3
22
7
23
10
25
24
14
17
20
8
4
9
Ref. Part
No. No. Description
1 60013 Support for shaft gasket
2 60015 Bolt M8 x 45
3 60034 Screw FRH M4 x 12
4 60045 Screw, set M5 x 12
5 60055 Screw, set M6 x 20
6 60063 Screw, set M10 x 20
7 60078 Nut M8
8 60084 Washer 5mm
9 60085 Washer, spring 5mm
10 60091 Washer 8mm
11 60092 Washer Ø10.5 x 20
12 60104 Sealing ring Ø17
13 60116 Nozzle, elbow (angular)
14 60122 Motor, reversing 3x400-480 V
15 60126 Fan wheel reversing, straight blades
12
6
1
Ref. Part
No. No. Description
16 60158 Distance tube for lter housing
17 60159 Distance tube for lter housing
18 60216 Gasket for ring heating element
19 60221 Ring heating element, Ø400, 208V, 9 kW
19 60875 Ring heating element, Ø400, 240V, 9 kW
19 60233 Ring heating element, Ø400, 480V, 9 kW
20 60666 Ring heating element, Ø470, 208V, 9 kW
20 60876 Ring heating element, Ø470, 240V, 9 kW
20 60234 Ring heating element, Ø470, 480V, 9 kW
21 60223 Ring heating element, Ø540, 208V, 9 kW
21 60877 Ring heating element, Ø540, 240V, 9 kW
21 60235 Ring heating element, Ø540, 480V, 9 kW
22 60323 Temperature sensor air 350°C
23 60368 Cover for insulation
24 60573 Thermoswitch 350°C
FEBRUARY 9, 2012 15 BCP & BCM COMBI OVENS
FILTER HOUSING
61, 101 & 102 OVENS
6
9
1
10
3
2
5
4
11
SEE DETAIL A
DETAIL A
7
8
Ref. Part
No. No. Description
1 60055 Screw, set M6 x 20
2 60072 Nut M5
3 60074 Nut M6
4 60084 Washer 5mm
5 60085 Washer, spring 5mm
6 60088 Washer 6mm
7 60095 Lock pin
8 60096 Clip for lock pin
9 60151 Filter housing for size 61 ovens
9 60147 Filter housing for size 101 ovens
9 60149 Filter housing for size 102 ovens
10 60153 Upper cover plate for size 61 and 101 ovens
10 60006 Upper cover plate for size 102 ovens
11 60161 Stop plate for lter housing for size 61 and 101 ovens
11 60017 Stop plate for lter housing for size 102 ovens
FEBRUARY 9, 2012 16 BCP & BCM COMBI OVENS
FILTER HOUSING
202 OVENS
14
8
5
17
15
12
10
3
2
9
1
13
11
Ref. Part
No. No. Description
1 60007 Flap for reinforcement B/BM 1.20
2 60044 Screw M5 x 10
3 60055 Screw, set M6 x 20
4 60072 Nut M5
5 60074 Nut M6
6 60085 Washer, spring 5mm
7 60087 Washer 5mm
8 60088 Washer 6mm
9 60089 Washer, spring 6mm
10 60090 Washer 6mm
11 60095 Washer 6mm
12 60096 Clip for lock pin
13 60363 Filter housing
14 60006 Cover plate, upper
15 60364 Flap for reinforcement
16 60017 Stop plate for lter housing
17 60373 Reinforcement, interior
16
4
6
7
FEBRUARY 9, 2012 17 BCP & BCM COMBI OVENS
SEE DETAIL A
INTERIOR LIGHTS
10
11
3
12
4
5
SEE DETAIL
6
8
1
9
Ref. Part
No. No. Description
1 60005 Lamp housing halogen
2 60037 Screw CH M3 x 6
3 60041 Screw M4 x 12
4 60072 Nut M5
5 60085 Washer, spring 5mm
6 60087 Washer 5mm
7 60135 Halogen lamp 12V 10W G4
8 60136 Socket with 450mm wire
9 60137 Porcelain connector
10 60156 Gasket for lamp housing
11 60157 Flange for hole for lamp housing
12 60164 Lamp Glass, Halogen, with gasket
7
2
FEBRUARY 9, 2012 18 BCP & BCM COMBI OVENS
DAMPER W/MOTOR EXHAUST
5
11
6
10
3
13
7
8
2
1
4
Ref. Part
No. No. Description
1 60039 Screw CH M4 x 5
2 60082 Washer 4mm
3 60087 Washer 5mm
4 60108 Hose silicon Ø6/Ø8
5 60146 Differential Pressure Transmitter 0-3mbar
6 60880 Bracket for differential pressure transmitter
7 60220 Exhaust motor
8 60245 Transition piece for CombiOptima
9 60881 Differential Pressure Transmitter 0-3mbar
10 60882 Vibration absorber
11 60883 Air damper
12 60541 Exhaust for damper motor welded
13 60563 Nut M5 A2 w/ange, serrated
12
9
FEBRUARY 9, 2012 19 BCP & BCM COMBI OVENS
BCM CONTROL
12
17
19
1
6
5
20
18
2
11
4
8
7
3
10
9
15
13
16
14
Ref. Part
No. No. Description
1 60033 Screw M3 x 10
2 60068 Nut M3
3 60071 Distance tube M3 x 12
4 60077 Nut M5
5 60087 Washer 5mm
6 60088 Washer 6mm
7 60820 Computer B/C/K, S/N 4
7 60336 Computer B/C/K electric & gas, S/N 5
8 60337 Shaft, lead-in Ø6
9 60338 Shaft, coupling Ø6/Ø6
10 60341 Encoder
11 60342 Plastic brace for turnknob
Ref. Part
No. No. Description
12 60344 Turn switch
13 60884 Latch, female
14 60885 Latch, male
15 60886 Front panel, size 61 ovens
15 60887 Front panel, size 101 ovens
15 60888 Front panel, size 102 ovens
15 60889 Front panel, size 202 ovens
16 60890 Filter
17 60582 Buzzer
18 60891 Intermediate plate for display BCM
19 60892 Gasket, BCM
20 60600 Abutment plate w/operation panel BCM
FEBRUARY 9, 2012 20 BCP & BCM COMBI OVENS
BCP CONTROL
9
11
15
16
1
12
14
4
13
2
5
3
10
7
8
Ref. Part
No. No. Description
1 60032 Screw M3 x 6
2 60071 Distance tube M3 x 12
3 60077 Nut M5
4 60087 Washer 5mm
5 60589 CPU BCP TFT Display
6 60343 USB connector, chassis mounted
7 60884 Latch, female
8 60885 Latch, male
9 60886 Front panel, size 61 ovens
9 60887 Front panel, size 101 ovens
9 60888 Front panel, size 102 ovens
9 60889 Front panel, size 202 ovens
6
Ref. Part
No. No. Description
10 60890 Filter
11 60582 Buzzer
12 60587 Display for BCP TFT 5.7"
13 60591 Stay bolt brass M3x18 with threaded pin
14 60893 Intermediate plate for display BCP
15 60894 Gasket, BCP
15 60601 Abutment plate w/operation panel BCP
FEBRUARY 9, 2012 21 BCP & BCM COMBI OVENS
CORE TEMPERATURE PROBE
4
8
5
1
7
3
6
2
Ref. Part
No. No. Description
1 60002 Cover
2 60066 Screw, M5 x 12 A2
3 60895 Rubber plug, Ø9.5 x Ø6.4 black
4 60896 Rubber plug, Ø20 x Ø14.9 black
5 60897 Bracket for core temp. probe
6 60898 Cable for core temp. probe (cable support)
7 60583 Core temperature probef for size 61 ovens
7 60584 Core temperature probef for size 101, 102 and 202 ovens
8 60899 Socket for core temp. probe, 500 mm assy.
FEBRUARY 9, 2012 22 BCP & BCM COMBI OVENS
13
DELIMING
16
15
8
2
9
5
4
6
7
10
11
12
1
14
Ref. Part
No. No. Description
1 60034 Screw FRH M4 x 12
2 60037 Screw CH M3 x 6
3 60900 Nut M4
4 60083 Washer, spring 4mm
5 60901 Washer, spring 3mm
6 60902 Washer 4mm
7 60824 Hose pump, 24 VDC
8 60139 Lead-in Ø14/Ø20x1.5
Ref. Part
No. No. Description
9 60903 Level sensor, mechanical SSF22
10 60904 Bracket for sensor
11 60563 Nut M5 A2 w/ange, serrated
12 60905 Suspension bracket for delime pump
13 60906 Lead-in, Ø7/Ø14x1.5
14 60907 Suction lter
15 60908 T-piece PP Ø10xØ10xØ6
16 60118 Silicone hose Ø8x12 mm transparent
FEBRUARY 9, 2012 23 BCP & BCM COMBI OVENS
13

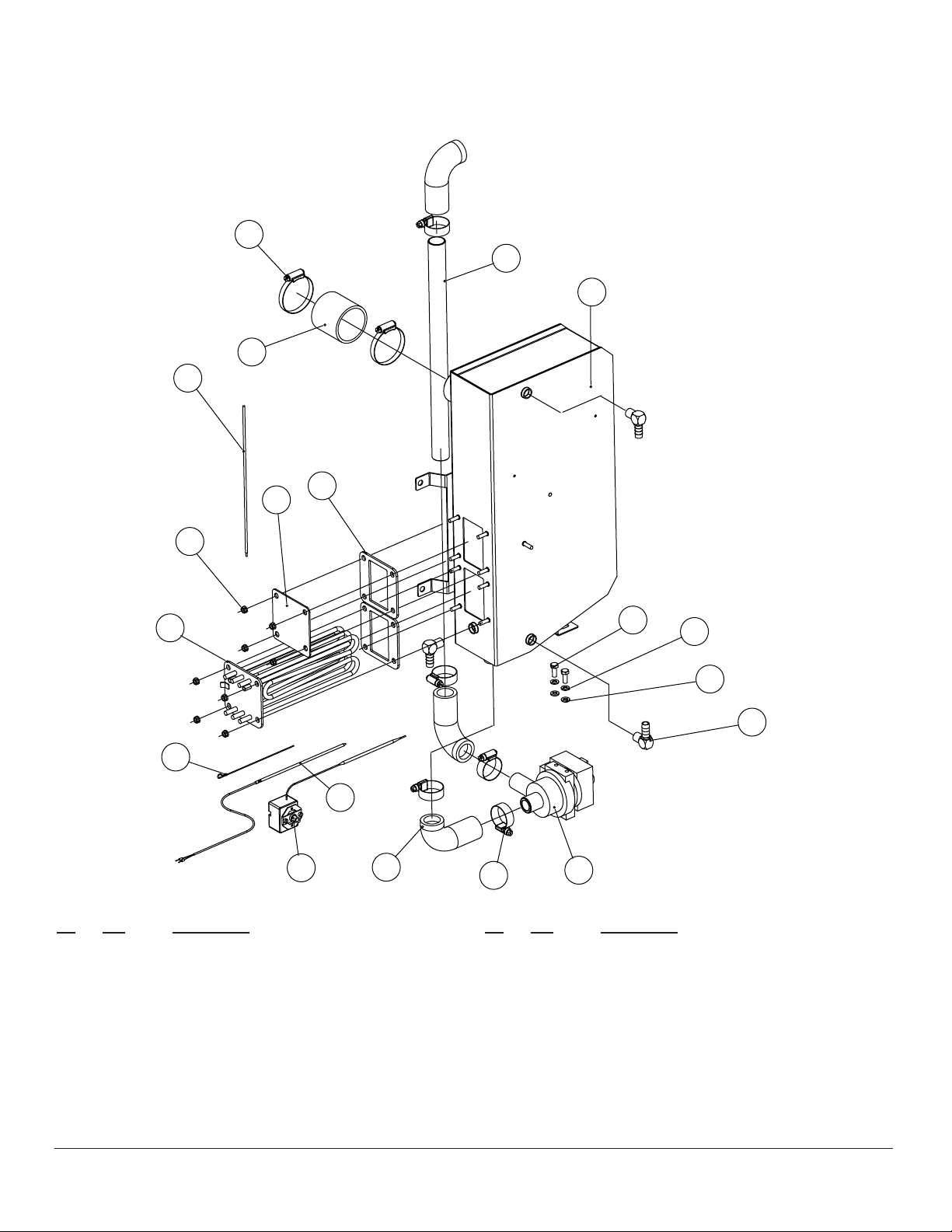

STEAM GENERATOR
61 OVENS
5
15
18
16
8
9
17
11
10
12
19
Ref. Part
No. No. Description
1 60054 Screw, set M6 x 16
2 60088 Washer 6mm
3 60089 Washer, spring 6mm
4 60909 Hose clamp, Ø17-38mm
5 60910 Hose clamp, Ø40-64mm
6 60113 Hose nipple, elbow Ø10x1/4"
7 60209 Drain pump with bush
8 60210 Gasket for heating element
9 60212 Locking pin
14
1
3
2
6
4
Ref. Part
No. No. Description
10 60237 Heating element, steam generator, 208V, 9 kW
10 60236 Heating element, steam generator, 240V, 9 kW
10 60240 Heating element, steam generator, 480V, 9 kW
12 60324 Sensor for steam generator
13 60325 Ground connection for steam generator 9kW
14 60515 Hose for drain pump
15 60516 Exhaust tube 9-18 kW
16 60518 Hose steam generator L=50
17 60563 Nut M5 A2 w/ange, serrated
18 60565 Steam generator 7.5-15 kW
19 60572 Thermoswitch 140°C
7
FEBRUARY 9, 2012 24 BCP & BCM COMBI OVENS
STEAM GENERATOR
101 OVENS
16
12
10
15
8
11
5
14
17
3
1
2
6
9
18
Ref. Part
No. No. Description
1 60054 Screw, set M6 x 16
2 60088 Washer 6mm
3 60089 Washer, spring 6mm
4 60909 Hose clamp, Ø17-38mm
5 60910 Hose clamp, Ø46-64mm
6 60113 Hose nipple, elbow Ø10x1/4"
7 60209 Drain pump with bush
8 60210 Gasket for heating element
9 60212 Locking pin
13
4
Ref. Part
No. No. Description
10 60237 Heating element, steam generator, 208V, 9 kW
10 60236 Heating element, steam generator, 240V, 9 kW
10 60240 Heating element, steam generator, 480V, 9 kW
11 60324 Sensor for steam generator
12 60326 Ground connection for steam generator 18kW
13 60515 Hose for drain pump
14 60516 Exhaust tube 9-18 kW
15 60518 Hose steam generator L=50
16 60563 Nut M5 A2 w/ange, serrated
17 60565 Steam generator 7.5-15 kW
18 60572 Thermoswitch 140°C
7
FEBRUARY 9, 2012 25 BCP & BCM COMBI OVENS
13
STEAM GENERATOR
102 OVENS
19
15
5
16
9
11
17
18
12
1
2
10
6
14
3
20
Ref. Part
No. No. Description
1 60054 Screw, set M6 x 16
2 60088 Washer 6mm
3 60089 Washer, spring 6mm
4 60909 Hose clamp, Ø18-37mm
5 60910 Hose clamp, Ø46-64mm
6 60113 Hose nipple, elbow Ø10x1/4"
7 60193 Hose for drain pump
8 60209 Drain pump with bush
9 60210 Gasket for heating element
10 60212 Locking pin
11 60237 Heating element, steam generator, 208V, 9 kW
7
Ref. Part
No. No. Description
11 60236 Heating element, steam generator, 240V, 9 kW
11 60240 Heating element, steam generator, 480V, 9 kW
12 60324 Sensor for steam generator
13 60327 Ground connection for steam generator 27kW
14 60515 Hose for drain pump
15 60518 Hose steam generator L=50
16 60524 Exhaust tube 27 kW
17 60563 Nut M5 A2 w/ange, serrated
18 60564 Bracket for Drain pump
19 60566 Steam generator 22.5 kW welded
20 60572 Thermoswitch 140°C
4
8
FEBRUARY 9, 2012 26 BCP & BCM COMBI OVENS
STEAM GENERATOR
202 OVENS
5
19
13
17
10
11
15
9
16
12
1
18
3
6
14
20
4
2
8
7
Ref. Part
No. No. Description
1 60054 Screw, set M6 x 16
2 60088 Washer 6mm
3 60089 Washer, spring 6mm
4 60909 Hose clamp, Ø18-37mm
5 60910 Hose clamp, Ø46-64mm
6 60113 Hose nipple, elbow Ø10x1/4"
7 60193 Hose for drain pump
8 60209 Drain pump with bush
9 60210 Gasket for heating element
10 60212 Locking pin
11 60237 Heating element, steam generator, 208V, 9 kW
Ref. Part
No. No. Description
11 60236 Heating element, steam generator, 240V, 9 kW
11 60240 Heating element, steam generator, 480V, 9 kW
12 60324 Sensor for steam generator
13 60328 Ground connection for steam generator 36kW
14 60515 Hose for drain pump
15 60518 Hose steam generator L=50
16 60525 Exhaust tube 36 kW
17 60563 Nut M5 A2 w/ange, serrated
18 60564 Bracket for Drain pump
19 60567 Steam generator 30 kW welded
20 60572 Thermoswitch 140°C
FEBRUARY 9, 2012 27 BCP & BCM COMBI OVENS
ELECTRICAL COMPONENTS
ELECTRIC OVENS
32
31
4
2
20
6
24
5
28
1
27
33
25
7
29
8
10
12
23
15
14
22
19
18
17
11
13
21
16
DETAIL A
30
26
SEE DETAIL A
3
Ref. Part
No. No. Description
1 60032 Screw M3 x 6
2 60043 Screw, set M5 x 10
3 60060 Screw, set M6 x 75
4 60071 Distance tube M3 x 12
5 60084 Washer 5mm
6 60085 Washer, spring 5mm
7 60124 Fan motor
8 60128 Contactor A26-40-00 24V 50/60Hz
8 60129 Contactor A30 24V 50/60Hz
9 60585 Transformer 208-240V
9 60911 Transformer 480V
10 60261 Jumper
11 60262 End stop, 6mm
12 60265 End plate for Terminal 2.5Q, 4-pole
13 60266 End plate for Terminal 4Q, 2-pole
14 60268 End plate for Terminal 4Q, 4-pole
15 60276 Terminal, 2,5Q, 4-pole, blue
16 60277 Terminal, 4Q, 2-pole, grey
9
Ref. Part
No. No. Description
17 60279 Terminal, 4Q, 2-pole, yellow/green
18 60281 Terminal, 4Q, 4-pole, grey
19 60330 Frequency changer 0,37kW
20 60309 Thermoswitch
21 60313 Scarf joint 4Q 32A
22 60317 Fuse carrier
23 60320 Terminal, 4-conductor, for fuse carrier
24 60321 Cooling plate for solid state relay for 61
24 60322 Cooling plate for solid state relay for
101,102, & 102
27 60569 Retaining bracket for console
28 60578 Transformer 230/24-11 5V VCII
29 60579 Solid state relay 2x50A
31 60581 Retainer for circuit board
32 60586 Console for DIN slide welded
33 60588 Thermo-switch circuit, printbord 4 inputs
34 60591 Stay bolt brass M3x18 with threaded pin
35 60593 Console welded
FEBRUARY 9, 2012 28 BCP & BCM COMBI OVENS
ELECTRICAL COMPONENTS
GAS OVENS
29
28
3
2
5
4
25
1
30
31
24
6
7
14
27
13
15
8
10
23
16
22
12
20
19
18
9
11
21
17
DETAIL A
26
Ref. Part
No. No. Description
1 60032 Screw M3 x 6
2 60043 Screw, set M5 x 10
3 60071 Distance tube M3 x 12
4 60084 Washer 5mm
5 60085 Washer, spring 5mm
6 60124 Fan motor
7 60127 Contactor A16 24V 50/60Hz
8 60261 Jumper
9 60262 End stop, 6mm
10 60265 End plate for Terminal 2.5Q, 4-pole
11 60266 End plate for Terminal 4Q, 2-pole
12 60268 End plate for Terminal 4Q, 4-pole
13 60274 Terminal, 2.5Q, 2-pole, gray
14 60912 Terminal, 2.5Q, 2-pole, blue
15 60913 Terminal, 2.5Q, 2-pole, yellow/green
SEE DETAIL A
Ref. Part
No. No. Description
16 60276 Terminal, 2,5Q, 4-pole, blue
17 60277 Terminal, 4Q, 2-pole, grey
18 60279 Terminal, 4Q, 2-pole, yellow/green
19 60281 Terminal, 4Q, 4-pole, grey
20 60307 Frequency changer 0,75kW
21 60313 Scarf joint 4Q 32A
22 60317 Fuse carrier
23 60320 Terminal, 4-conductor, for fuse carrier
24 60569 Retaining bracket for console
25 60581 Retainer for circuit board
26 60585 Transformer 208-240
27 60586 Console for DIN slide welded
28 60591 Stay bolt brass M3x18 with threaded pin
29 60592 Computer I/O gas
30 60593 Console welded
31 60630 Ignition module CCA-H4035B
FEBRUARY 9, 2012 29 BCP & BCM COMBI OVENS
3

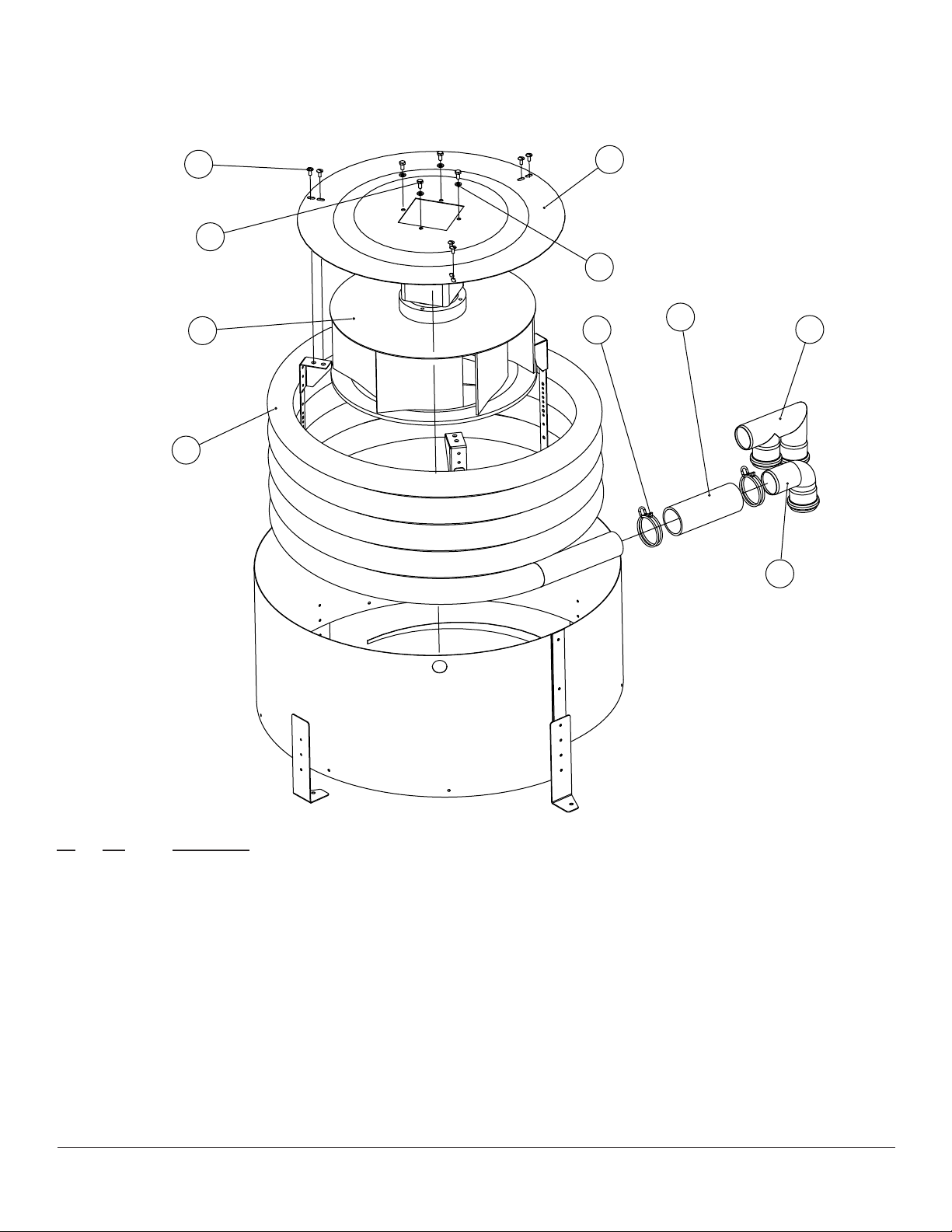

HEAT EXCHANGER
GAS OVENS
2
9
1
7
10
4
2
12
Ref. Part
No. No. Description
1 60038 Screw CH M4 x 4 A2, straight slot
2 60047 Screw, set M5 x 16
3 60084 Washer 5mm
4 60563 Nut M5 A2 w/ange, serrated
5 60617 Gasket, inside
6 60618 Gasket for pre-mix burner
7 60629 Electrode 9 kW
7 60619 Electrode 18-27 kW
6
11
8
5
Ref. Part
No. No. Description
8 60621 Retainer for burner
9 60622 Retainer for oven chamber roof, Ø50
10 60623 Gasket for oven chamber roof, Ø50
11 60637 Pre-mix burner 61, welded
11 60639 Pre-mix burner 27 kW, welded
12 60914 Heat exchanger 61, welded
12 60635 Heat exchanger 101, welded
FEBRUARY 9, 2012 30 BCP & BCM COMBI OVENS
GAS COMPONENTS
GAS OVENS
4
7
13
8
6
15
12
Ref. Part
No. No. Description
1 60064 Allen screw CH M4x10 A2
2 60066 Screw, M5 x 12 A2
3 60067 Allen Screw, CH M4 x 25 A2
4 60371 Cover, insulation, 61 gas
4 60369 Cover, insulation, 101 gas
5 60539 Plastic clip for solenoid valve
6 60563 Nut M5 A2 w/ange, serrated
7 60915 Bracket for DIN rail, gas
8 60620 Gasket for gas-air control unit
9 60624 Manifold, two connections, gas
2
9
5
17
1
19
3
14
18
16
11
10
Ref. Part
No. No. Description
10 60625 Cover ange, gas, manifold
11 60626 O-ring, Ø21.89 x 2.62
12 60630 Ignition module CCA-H4035B
13 60631 Differential pressure sensitive switch, AA-C2-4-1
14 60632 Ventilation hose Ø46/Ø40, black
15 60638 Adapter, welded
16 60643 Gas-air control unit, 9 kW
17 60107 Hose plastic Ø6 / Ø9mm
18 60642 Gas hose, ½" x 500
19 60916 Bracket for suction hose
FEBRUARY 9, 2012 31 BCP & BCM COMBI OVENS
DRAFT HOOD & TOP PANEL
GAS OVENS
5
1
2
4
Ref. Part
No. No. Description
1 60044 Screw M5 x 10
2 60401 Oven top panel for 61
2 60399 Oven top panel for 101
2 60400 Oven top panel for 201
2 60402 Oven top panel for 202
3 60627 Sleeve for vent tube, Ø44.5
4 60633 Bottom plate for ventilation
5 60640 Hot-air safety device, Ø125
3
FEBRUARY 9, 2012 32 BCP & BCM COMBI OVENS
SOLENOID VALVES
8
2
4
3
10
Ref. Part
No. No. Description
1 60130 Pressure sensitive switch, break,
1-10 bar 1/8" outside
2 60917 Solenoid valve, 1 way
3 60828 Solenoid valve, 2 way w/1 spool
4 60827 Solenoid valve, 2 way w/2 spools
5 60825 Solenoid valve, 3 way w/2 spools
7
1
6
5
9
Ref. Part
No. No. Description
6 60826 Solenoid valve, 4 way w/3 spools
7 60526 Hose Ø10x17 mm 15 NL
8 60533 Hose clamp Ø17.3 mm
9 60535 Manifold 3/4" - 2 valves
10 60539 Plastic clip for solenoid valve
9
3
Ref. Part
No. No. Description
1 60066 Screw, M5 x 12 A2
2 60918 Water lter, 3/4"
3 60919 Hose 3/4" elbow
4 60920 Suspension elbow
WATER INLET
7
6
2
Ref. Part
No. No. Description
5 60921 Adapter 3/4" RG-3/4" GHT
6 60922 Connector 3/4 x 3/4 in male/male
7 60923 Adapter 3/4" RG-3/4" GHT
1
4
5
FEBRUARY 9, 2012 33 BCP & BCM COMBI OVENS
4
HANDSHOWER
7
6
5
Ref. Part
No. No. Description
1 60047 Screw, set M5 x 16
2 60087 Washer 5mm
3 60085 Washer, spring 5mm
4 60121 Hand shower
5 60533 Hose clamp Ø17.3 mm
6 60514 Hand shower
7 60562 Threaded branch with hose for roll-up hose
3
2
1
FEBRUARY 9, 2012 34 BCP & BCM COMBI OVENS
COMBIWASH
6
12
2
8
15
5
9
13
7
14
10
16
11
Ref. Part
No. No. Description
1 60050 Screw, set M4 x 8
2 60062 Screw, set M6 x 8
3 60082 Washer 4mm
4 60083 Washer, spring 4mm
5 60089 Washer, spring 6mm
6 60090 Washer 6mm
7 60099 Bearing Ø6xØ8x10
8 60144 Gasket for motor bearing
9 60196 Bearing ange
10 60197 Spring retainer
1
Ref. Part
No. No. Description
11 60198 Locking strip
12 60200 Washer, copper Ø12.5xØ27x1.5
13 60201 Screwed connection for bearing shaft
14 60208 Nozzle arm complete
15 60545 Tube for CombiWash for 61
15 60544 Tube for CombiWash for 101
15 60549 Tube for CombiWash for 102
15 60560 Tube for CombiWash for 202
16 60199 Compression spring 0.9N
17 60924 Washing rotor, complete
3
4
FEBRUARY 9, 2012 35 BCP & BCM COMBI OVENS
PUMPS & SOLENOID VALVES FOR COMBIWASH
19
10
5
4
26
2
13
9
12
14
21
16
15
11
6
23
20
8
24
22
25
17
18
1
Ref. Part
No. No. Description
1 60009 Suction tube
2 60045 Screw, set M5 x 12
3 60079 Nut M5 Clips
4 60084 Washer 5mm
5 60085 Washer, spring 5mm
6 60088 Washer 6mm
7 60097 Locking ring Ø6 stainless
8 60102 Clip 13.8mm
9 60111 T-part Ø6
10 60112 Quick action coupling Ø6x1/8"
11 60113 Hose nipple, elbow Ø10x1/4"
12 60115 Cross 1/4"
13 60117 Lightning tting 90° 1/8 Ø6
3
7
Ref. Part
No. No. Description
14 60139 Lead-in Ø14/Ø20x1.5
15 60141 Lead-in Ø16/Ø22x1.5
16 60194 Pump for detergent/rinse aid, 24 V
17 60204 Screw cap for oven detergent
18 60205 Screw cap for rinsing agent
19 60517 Bracket for pumps for detergent
20 60526 Hose Ø10x17 mm 15 NL
21 60533 Hose clamp Ø17.3 mm
22 60540 Y-branch
23 60570 Console for pump for detergent
24 60010 Suction hose, red, for detergent
25 60011 Suction hose, blue, for rinse aid
26 60106 Tube Nylon Ø6mm
FEBRUARY 9, 2012 36 BCP & BCM COMBI OVENS
QUICK CONNECT & HOSE KIT FOR COMBIWASH
2
8
9
5
6
3
7
Ref. Part
No. No. Description
1 60009 Suction tube
2 60561 Quick coupling kit CombiWash
3 60088 Washer 6mm
4 60097 Locking ring Ø6 stainless
5 60102 Clip 13.8mm
6 60205 Screw cap for rinsing agent
7 60204 Screw cap for oven detergent
8 60010 Suction hose, red, for detergent
9 60011 Suction hose, blue, for rinse aid
4
1
FEBRUARY 9, 2012 37 BCP & BCM COMBI OVENS
COMBIWASH CANISTER STORAGE
7
8
9
Ref. Part
No. No. Description
4
3
6
5
2
1
1 60012 Bracket for suspension of CombiWash canisters
2 60023 Holder for CombiWash canisters
3 60054 Screw, set M6 x 16
4 60074 Nut M6
5 60089 Washer, spring 6mm
6 60090 Washer 6mm
7 60352 Tray for CombiWash canisters
8 60360 Trolley for canisters, foldable
9 60361 Bracket for trolley
FEBRUARY 9, 2012 38 BCP & BCM COMBI OVENS
OPTIONAL COMBIWASH BOOSTER PUMP
3
10
6
13
11
12
5
8
17
2
18
4
15
16
14
Ref. Part
No. No. Description
1 60027 Plate for pump
2 60028 Cover for pump
3 60042 Screw, set M5 x 6
4 60044 Screw M5 x 10
5 60047 Screw, set M5 x 16
6 60058 Screw, set M5 x 25
7 60072 Nut M5
8 60084 Washer 5mm
9 60085 Washer, spring 5mm
1
9
7
Ref. Part
No. No. Description
10 60093 Cable clamp
11 60119 Reduction nipple 1x1/2
12 60120 Hexagon nipple 1/2"
13 60125 Booster pump
14 60131 DIN-base, S411
15 60132 Pin relay 24V
16 60138 Cable socket for ground
17 60139 Lead-in Ø14/Ø20x1.5
18 60140 Membrane grommet Ø47
FEBRUARY 9, 2012 39 BCP & BCM COMBI OVENS
OPTIONAL CONDENSATE HOOD
ELECTRIC 61, 101 AND 102 OVENS ONLY
9
4
1
10
11
5
13
3
12
8
14
Ref. Part
No. No. Description
1 60018 Fat lter for extraction hood for 61 & 101
1 60359 Fat lter for extraction hood for 102
2 60022 Tube
3 60044 Screw M5 x 10
4 60046 Screw FRH M5 x 12
5 60048 Screw M5 x 25
6 60069 Nut M3
7 60086 Washer 3mm
8 60143 Hose silicone Ø12x3
9 60355 Front part for extraction hood for 61 & 101
9 60358 Front part for extraction hood for 102
7
6
Ref. Part
No. No. Description
10 60603 Top panel for extraction hood for 61 & 101
10 60608 Top panel for extraction hood for 102
11 60604 Top panel for condensing extraction hood
for 61 & 101
11 60609 Top panel for condensing extraction hood
for 102
12 60605 Rear plate for extraction hood for 61 & 101
12 60607 Rear plate for extraction hood for 102
13 60610 Extraction Hood for 61 & 101
13 60611 Extraction Hood for 102
14 60612 Welded front plate for extraction hood
for 61 & 101
14 60614 Welded front plate for extraction hood for 102
2
FEBRUARY 9, 2012 40 BCP & BCM COMBI OVENS
OPTIONAL CONDENSATE HOOD - CONDENSER
ELECTRIC 61, 101 AND 102 OVENS ONLY
9
2
7
3
4
5
8
6
10
1
Ref. Part
No. No. Description
1 60031 Elbow Ø50x90°
2 60046 Screw FRH M5 x 12
3 60053 Screw, set M6 x 12
4 60088 Washer 6mm
5 60100 Hose clamp Ø58-61 mm
6 60192 Hose L=155
7 60241 Fan motor for extraction hood
8 60354 Air shield for motor
9 60356 Spiral tube Ø50x600x4500
10 60556 Tube for exhaust condensing on stacked ovens
60616 Mounting kit for extraction hood with condensation
FEBRUARY 9, 2012 41 BCP & BCM COMBI OVENS
WATER SEAL FOR OPTIONAL CONDENSER HOOD
4
1
ELECTRIC 61, 101 AND 102
SINGLE OVENS ONLY
2
ELECTRIC 61-61 AND
61-101 OVENS ONLY
1
2
6
5
3
5
Ref. Part
No. No. Description
1 60035 Screw FRH M4 x8
2 60103 O-ring Ø49.2x5.7
3 60109 Nipple Ø6x1/4
4 60195 Gasket for water seal
5 60206 Container for water seal
6 60207 Cover for water seal
3
4
Ref. Part
No. No. Description
1 60035 Screw FRH M4 x8
2 60103 O-ring Ø49.2x5.7
3 60538 Gasket for siphon CombiPlus
4 60557 Housing for siphon welded
5 60558 Cover for container welded
FEBRUARY 9, 2012 42 BCP & BCM COMBI OVENS
OPTIONAL FAT SEPARATOR
6
10
1
7
2
9
7
8
5
4
9
7
Ref. Part
No. No. Description
1 60014 Elbow 87,5° for fat
2 60016 Bracket for fat
3 60024 Suspension bracket for fat container
4 60025 Plug for fat
5 60026 Pipe for drain for fat
6 60029 Container for 61 and 101 100mm
6 60030 Container for 61 and 101 150mm
7 60045 Screw, set M5 x 12
8 60073 Nut M5
9 60087 Washer 5mm
10 60559 Cover for fat container, Ø50/Ø50
3
FEBRUARY 9, 2012 43 BCP & BCM COMBI OVENS
STACKING KITS
5
10
3
8
4
17
2
16
11
6
19
14
1
13
15
1
12
7
9
18
Ref. Part
No. No. Description
1 60044 Screw M5 x 10
2 60047 Screw, set M5 x 16
3 60048 Screw M5 x 25
4 60084 Washer 5mm
5 60085 Washer, spring 5mm
6 60103 O-ring Ø49.2x5.7
7 60374 Adapter RH
8 60383 Adapter LH
9 60395 Roof 1/1 w/2 exhaust valves, stacked ovens
10 60396 Adapter front
Ref. Part
No. No. Description
11 60527 Exhaust tube 61 top oven
12 60529 Cover for tubing 61-101
13 60536 Cover for housing for exhaust
14 60537 Gasket
15 60543 Housing for exhaust stacked ovens, welded
16 60552 Exhaust tube for top panel, welded
17 60553 Connector for exhaust welded
18 60554 Exhaust tube 61 lower
18 60555 Exhaust tube 101 lower
19 60606 Cover for exhaust stacked ovens
FEBRUARY 9, 2012 44 BCP & BCM COMBI OVENS
Loading...
