BCM, BCP & BCT
COMBI OVEN
REPLACEMENT PARTS LIST
EFFECTIVE NOVEMBER 23, 2015
The Company reserves the right to make substitution in the event that items specied are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.
44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: (802) 658-6600 Fax: (802) 860-3732
Superseding All Previous Parts Lists.
BLODGETT OVEN COMPANY
www.blodgett.com
P/N 60870 Rev M
SERIAL NUMBER LOCATION KEY:
IMPORTANT: When ordering parts, please provide the model,
voltage or gas type and serial number of the oven. The identication
plate is located on the right side of the oven.
SERIAL NUMBER IDENTIFICATION CODE:
ELECTRIC MODELS
W/STEAM GENERATOR
61E - AL
62E - AI
101E - AM
102E - AN
202E - AR
BOILERLESS
ELECTRIC MODELS
61E - AO
62E - BV
101E - AV
102E - AY
202E - AZ
BOILERLESS
GAS MODELs
61G - AS
62G - BY
101G - AT
102G - AU
202G - AW
SERIAL NUMBER EXAMPLE:
THE FOLLOWING EXAMPLE IS FOR A BCT-101E, BCP-101E OR BCM-101E
0612 AM 1820112
06/12 = MONTH & YEAR
AM = LETTER CODE FOR MODEL NAME
1820101 = FACTORY SEQUENCE
TO OBTAIN LITERATURE
Email: literature@blodgett.com
or visit
www.blodgett.com
NOVEMBER 23, 2015 2 BCM & BCP & BCT COMBI OVENS
TABLE OF CONTENTS
Glass exterior ....................................... 4
Glass interior with door seal .......................... 5
Left door ........................................... 6
Right door .......................................... 7
Left door - 202 roll-in ovens .......................... 8
Right door - 202 roll-in ovens ......................... 9
Door hinge reversal kit .............................. 10
Sensor for left and right hand hinged doors ........... 11
Handle for oven door ............................... 12
Drip slide - standard & passthrough ovens ............ 13
Drip tray / drip tray, deep, without drain / drain ........ 14
Drip tray / drip tray deep, without drain, passthrough .. 15
Exterior components ............................... 16
Rear panel - passthrough ovens ..................... 17
Interior lights ....................................... 18
Motor, heating elements ............................ 19
Combiwash ........................................ 37
Combiwash pumps and solenoid valves .............. 38
Combiwash canister storage ........................ 39
Optional extraction hood ............................ 40
Condenser for extraction hood - baking models ....... 41
Condenser for extraction hood - cooking models ...... 42
Water seal for condenser ........................... 43
Booster pump, Combiwash ......................... 44
Optional fat separator .............................. 45
Interceptor trays ................................... 46
Racks ............................................. 47
Roll-in racks ....................................... 48
Stacking kit, 61-61 & 61-101 ........................ 49
Stacking kit, 62-62 & 62-102 ........................ 50
Complete stacking kits (includes stand) .............. 51
Stands for double ovens ............................ 51
Motor, heating elements - 202 ovens ................. 20
Filter Housing ...................................... 21
Filter housing - 202 ovens .......................... 22
Damper with motor & exhaust ....................... 23

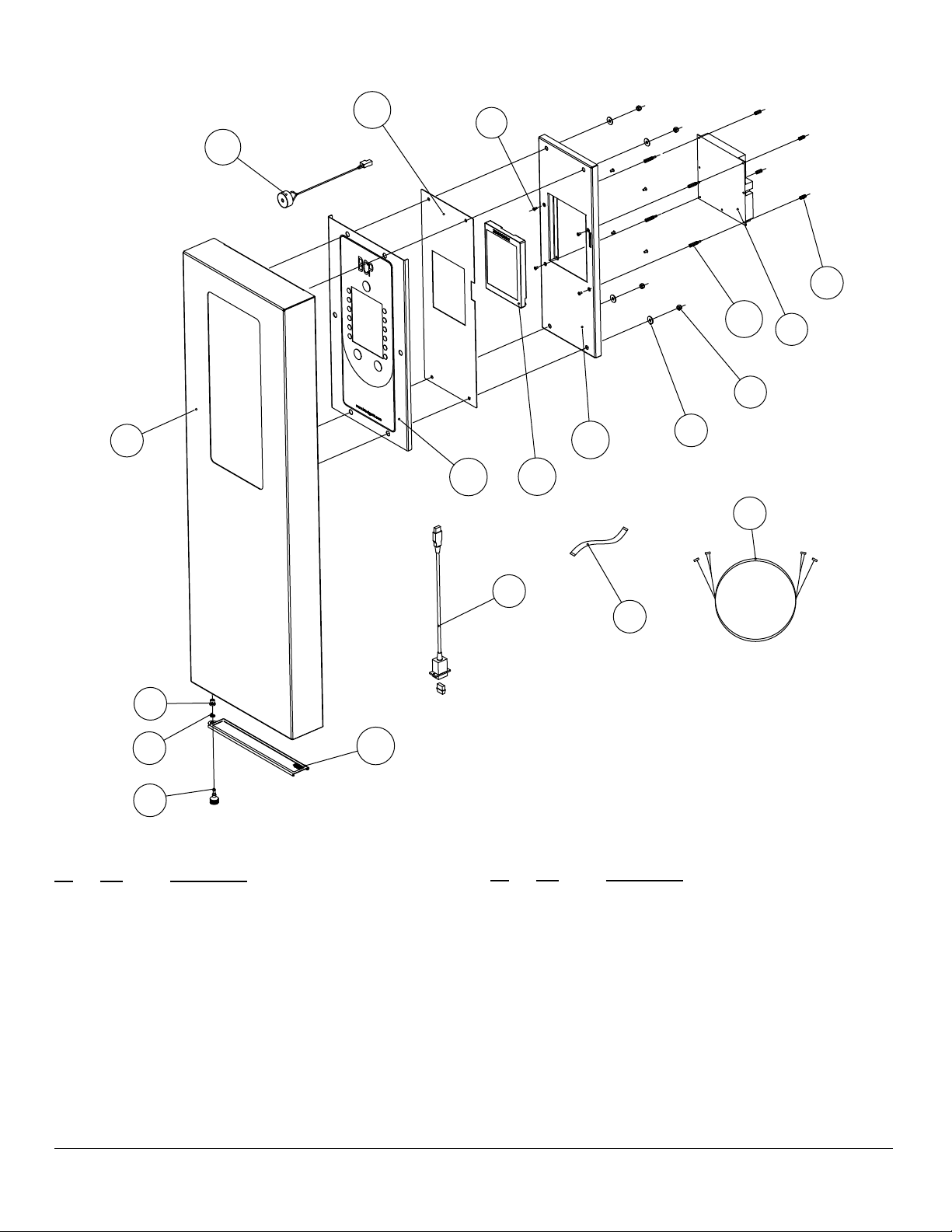

BCM control ....................................... 24
BCM-SE control.................................... 25

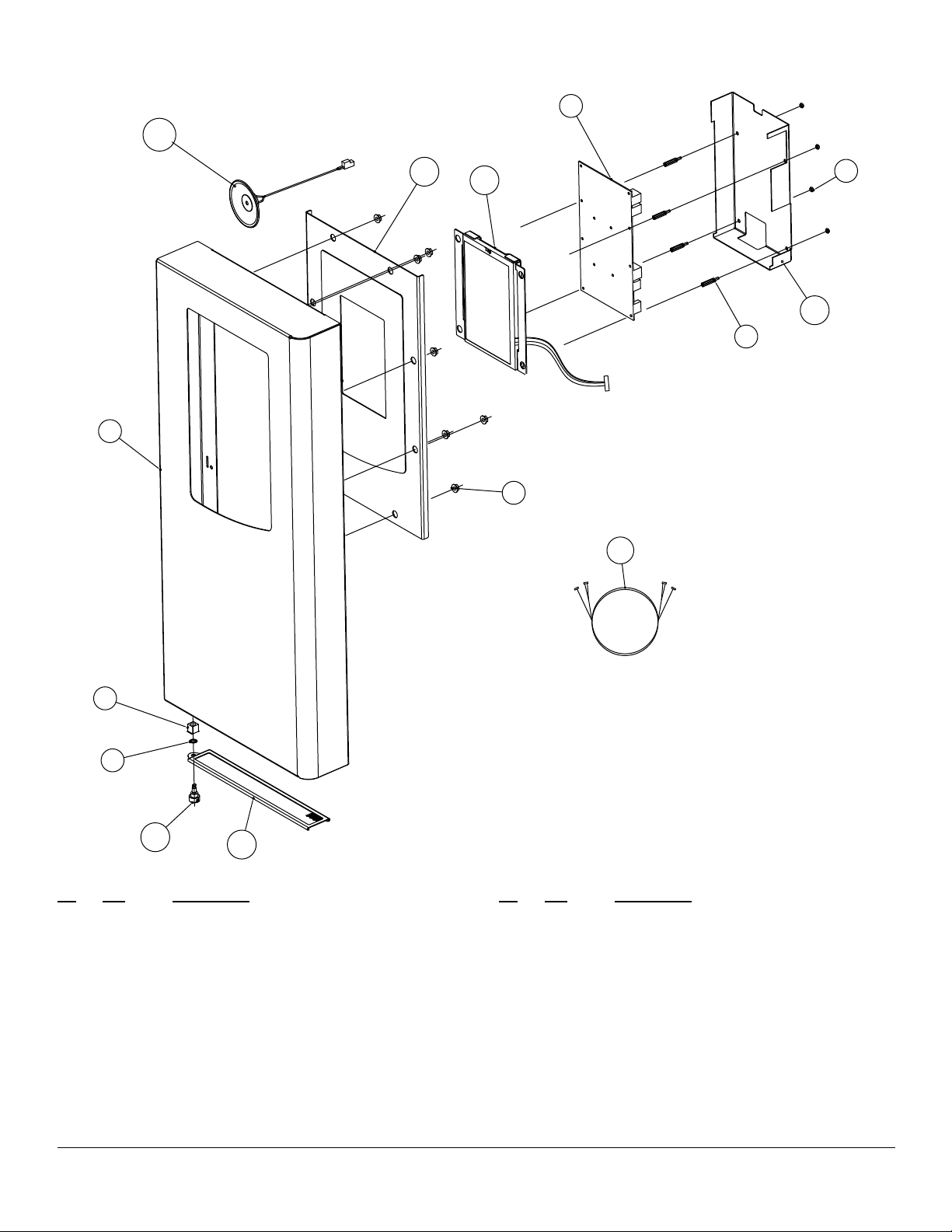

BCP control ....................................... 26
BCT-SE control .................................... 27
Core temperature probe, 3 point ..................... 28

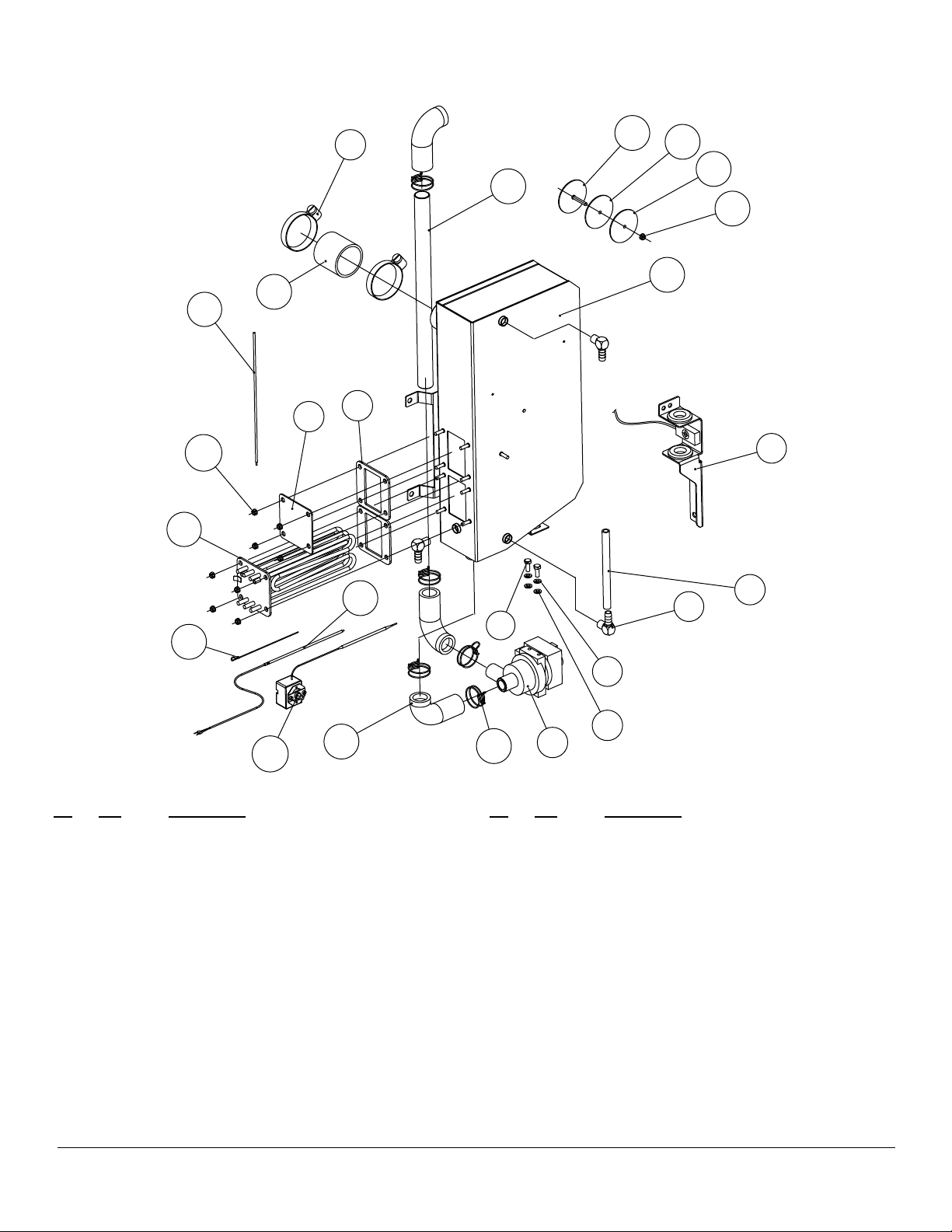

Steam generator - 61 ovens ......................... 29

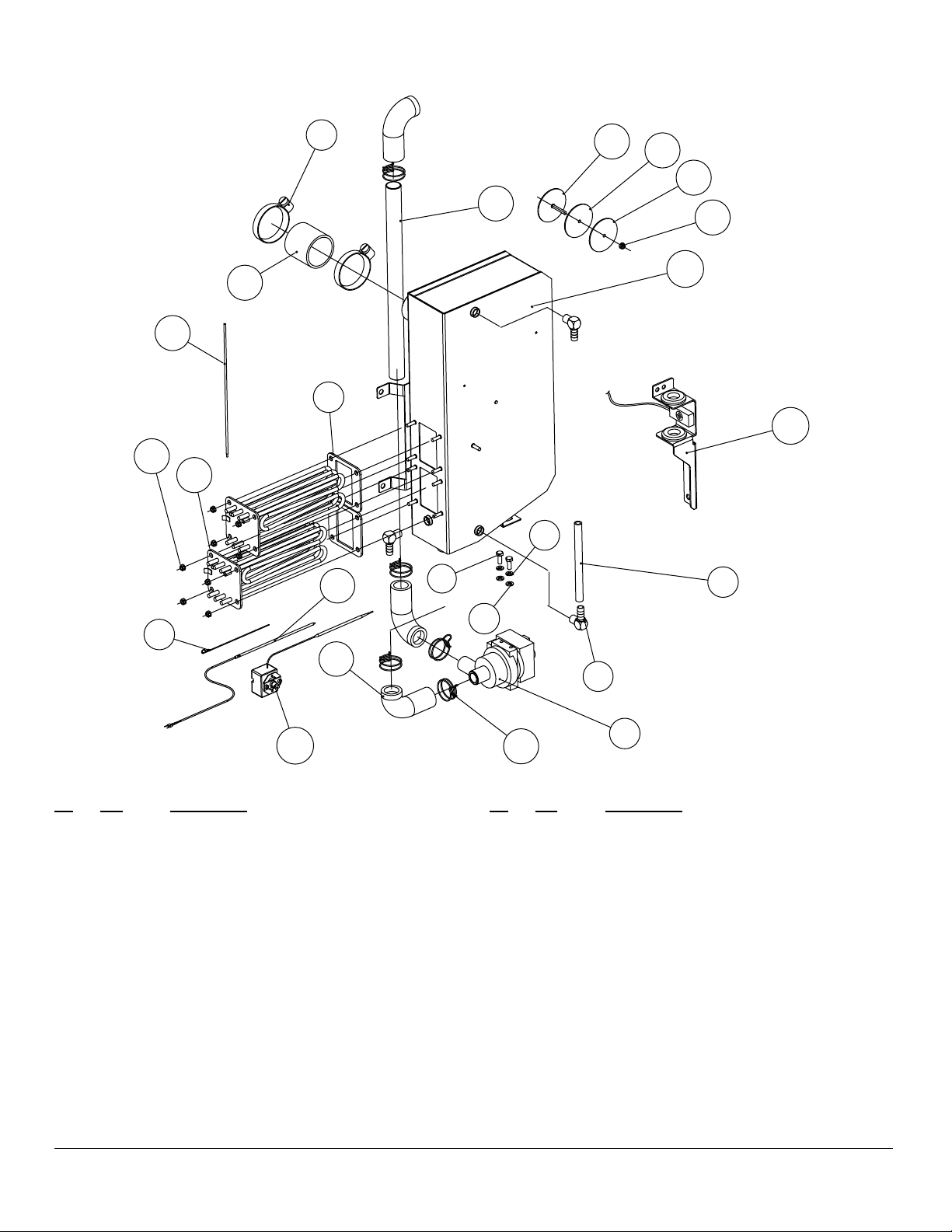

Steam generator - 62 & 101 ovens ................... 30

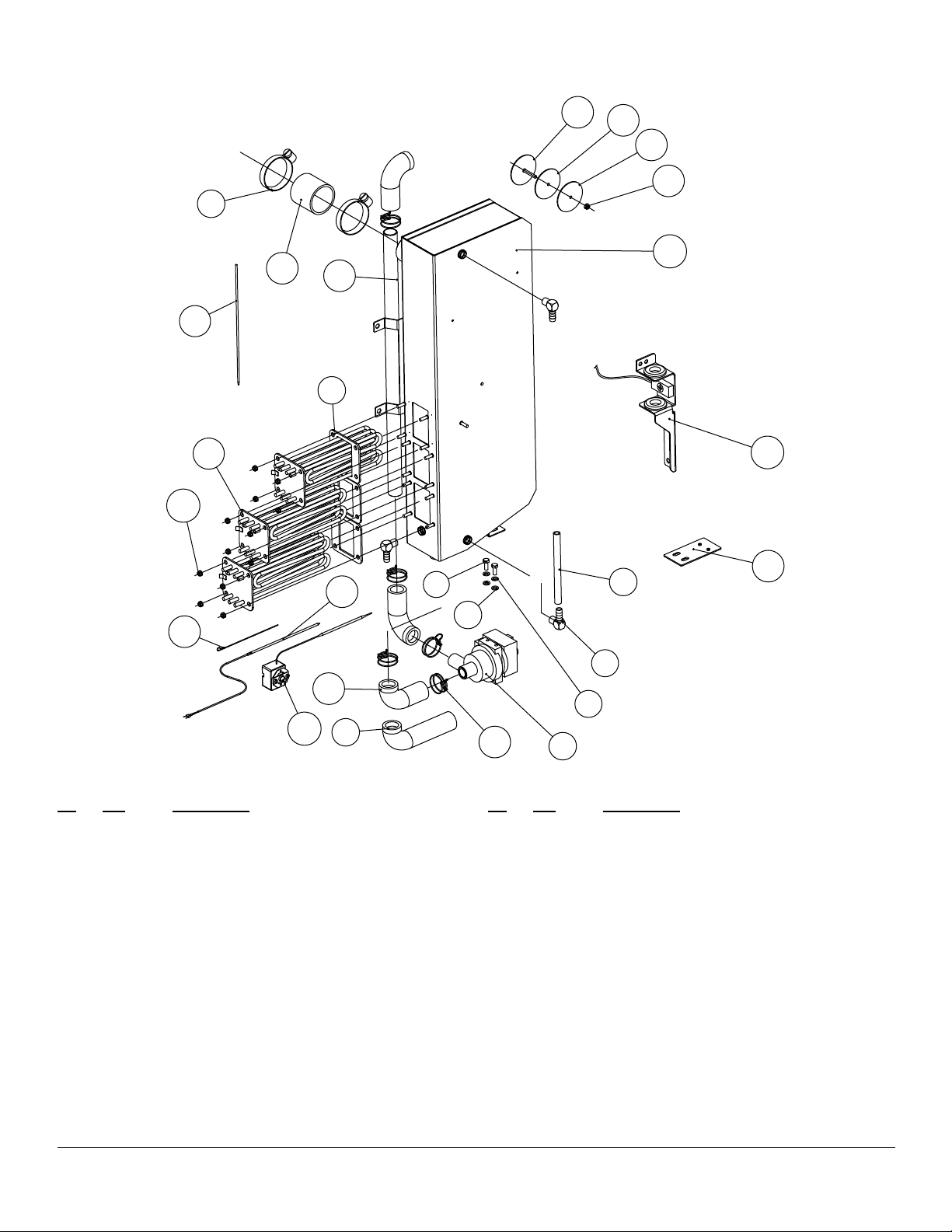

Steam generator - 102 ovens ....................... 31
Steam generator - 202 ovens ....................... 32
Deliming .......................................... 33
Electrical components .............................. 34
Solenoid valves .................................... 35
Stands for single ovens ............................. 52
Gas, heating coil ................................... 53
Gas components, insulation ......................... 54
Venilation - gas ovens .............................. 55
Electrical components - gas ovens ................... 56
Water/gas inlet ..................................... 35
Hand shower ...................................... 36
NOVEMBER 23, 2015 3 BCM & BCP & BCT COMBI OVENS
GLASS EXTERIOR
6
2
4
Ref. Part
No. No. Description
1 60036 Screw PH 2.5 x 4.5
2 60081 Rubber washer Ø14/Ø7x5mm
3 60186 Plastic screw for exterior glass
4 60190 Insert for handle
5 61401 Glass exterior 61 assy black
5 61402 Glass exterior 101 assy black
5 61403 Glass exterior 62 assy black
5 61769 Glass exterior 102 assy black
5 60504 Glass exterior 202 assy black RI
6 61261 Blodgett nameplate
60485 Glass exterior 61 assy curved
61255 Glass exterior 62 assy curved
60487 Glass exterior 101 assy curved
60492 Glass exterior 102 assy curved
60501 Glass exterior 61 assy at
60499 Glass exterior 101 assy at
60502 Glass exterior 102 assy at
60504 Glass exterior 202 assy at
1
3
5
NOVEMBER 23, 2015 4 BCM & BCP & BCT COMBI OVENS
1
GLASS INTERIOR WITH DOOR SEAL
2
4
3
Ref. Part
No. No. Description
1 60056 Screw M6 x 20
2 61162 Door seal 61
2 61163 Door seal 101
2 61164 Door seal 62
2 61165 Door seal 102
2 60872 Door seal 202
3 60191 Hinge bracket
4 60467 Glass interior 61 complete
4 60466 Glass interior 101 complete
4 61259 Glass interior 62 complete
4 60480 Glass interior 102 complete
4 60496 Glass interior 202 complete
NOVEMBER 23, 2015 5 BCM & BCP & BCT COMBI OVENS
LEFT DOOR
6
6
8
10
1
2
16
4
3
13
15
17
9
15
Ref. Part
No. No. Description
1 6000 Bush
2 60001 Washer for hinge
3 60044 Screw FRH M5 x 10
4 60052 Screw M5 x 10
5 60055 Screw, set M6 x 20
6 60056 Screw M6 x 20
7 60089 Washer spring 6mm
8 60098 Spring for hinge
9 60174 Cover plate
10 60176 Hinge bush, top, LH
11 60177 Hinge bush, bottom
12 60178 Bush for hinge, LH
11
12
7
14
5
16
Ref. Part
No. No. Description
12 60178 Bush for hinge, LH
13 60181 Cover for hinge, LH
14 60182 Cover for hinge, RH
15 60185 Stopper, rubber
16 60421 Hinge top/bottom
17 60439 Oven door 61
18 60460 Oven door 61, PassThrough
18 60436 Oven door 101
18 60459 Oven door 101, PassThrough
18 61266 Oven door 62
18 60444 Oven door 102
18 60458 Oven door 202
NOVEMBER 23, 2015 6 BCM & BCP & BCT COMBI OVENS
RIGHT DOOR
13
14
9
3
6
1
2
6
16
8
11
15
18
10
4
17
7
Ref. Part
No. No. Description
1 60000 Bush
2 60001 Washer for hinge
3 60044 Screw FRH M5 x 10
4 60052 Screw M5 x 10
5 60055 Screw, set M6 x 20
6 60056 Screw M6 x 20
7 60089 Washer spring 6mm
8 60098 Spring for hinge
9 60174 Cover plate
10 60177 Hinge bush, bottom
11 60179 Hinge bush, top, RH
12 60180 Bush for hinge, RH
5
Ref. Part
No. No. Description
13 60181 Cover for hinge, LH
14 60182 Cover for hinge, RH
15 60185 Stopper, rubber
16 60434 Hinge upper RH
17 60435 Hinge lower RH
18 60439 Oven door 61
18 60460 Oven door 61, PassThrough
18 60436 Oven door 101
18 60459 Oven door 101, PassThrough
18 61266 Oven door 62
18 60444 Oven door 102
18 60458 Oven door 202
12
NOVEMBER 23, 2015 7 BCM & BCP & BCT COMBI OVENS
LEFT DOOR - 202 ROLL-IN OVENS
17
18
12
8
2
1
10
8
6
15
11
21
19
3
20
13
14
9
7
Ref. Part
No. No. Description
1 60000 Bush
2 60001 Washer for hinge
3 60871 Prole for oven door 202 roll-in
4 60044 Screw FRH M5 x 10
5 60046 Screw FRH M5 x 12
6 60052 Screw M5 x 10
7 60055 Screw, set M6 x 20
8 60056 Screw M6 x 20
9 M0417 Washer spring 6mm
10 60098 Spring for hinge
11 60174 Cover plate
5
16
4
22
Ref. Part
No. No. Description
12 60176 Hinge bush, top, LH
13 60177 Hinge bush, bottom
14 60178 Bush for hinge, LH
15 60181 Cover for hinge, LH
16 60182 Cover for hinge, RH
17 60185 Stopper, rubber
18 60421 Hinge top/bottom
19 61268 Bracket f seal RI 202
20 61270 Seal 202 RI
21 60458 Oven door 202 roll-in welded
22 61272 Bracket for magnet 202
NOVEMBER 23, 2015 8 BCM & BCP & BCT COMBI OVENS
RIGHT DOOR - 202 ROLL-IN OVENS
17
21
16
11
2
8
8
18
1
10
6
13
22
3
20
23
15
4
Ref. Part
No. No. Description
1 60000 Bush
2 60001 Washer for hinge
3 60871 Prole for oven door 2.20 roll-in
4 60044 Screw FRH M5 x 10
5 60046 Screw FRH M5 x 12
6 60052 Screw M5 x 10
7 60055 Screw, set M6 x 20
8 60056 Screw M6 x 20
9 M0417 Washer spring 6mm
10 60098 Spring for hinge
11 60174 Cover plate
5
12
14
19
9
7
Ref. Part
No. No. Description
12 60177 Hinge bush, bottom
13 60179 Hinge bush, top, RH
14 60180 Bush for hinge, RH
15 60181 Cover for hinge, LH
16 60182 Cover for hinge, RH
17 60185 Stopper, rubber
18 60434 Hinge upper RH
19 60435 Hinge lower RH
20 61268 Bracket f seal RI 2.20
21 61270 Seal 2.20 RI
22 60458 Oven door 2.20 roll-in welded
23 61272 Bracket for magnet 2.20
NOVEMBER 23, 2015 9 BCM & BCP & BCT COMBI OVENS
1
DOOR HINGE REVERSAL KIT
6
5
7
5
1
3
4
2
5
RIGHT HAND TO LEFT HAND HINGE
Ref. Part
No. No. Description
1 60176 Hinge bush, top, LH
2 60178 Bush for hinge, LH
3 61273 Cover plate
4 60362 Logo for insert
5 60421 Hinge top/bottom
6 60419 Kit for changing ovendoor from
RH-hinged to LH-hinged
3
4
6
2
LEFT HAND TO RIGHT HAND HINGE
Ref. Part
No. No. Description
1 60179 Hinge bush, top, RH
2 60180 Bush for hinge, RH
3 61273 Cover plate
4 60362 Logo for insert
5 60434 Hinge upper RH
6 61459 Hinge top right hand hinged, d.d.
7 60420 Kit for changing ovendoor from
LH-hinged to RH-hinged
NOVEMBER 23, 2015 10 BCM & BCP & BCT COMBI OVENS
SENSOR FOR LEFT AND RIGHT HAND HINGED DOORS
3
2
1
Ref. Part
No. No. Description
1 60051 Screw, M5 x 6
2 60574 Sensor for door Pass Through
3 60575 Sensor for door
NOVEMBER 23, 2015 11 BCM & BCP & BCT COMBI OVENS
HANDLE FOR OVEN DOOR
1
2
3
4
Ref. Part
No. No. Description
1 61274 Handle for VCI &VCII w. catch (R+L) cpl.
2 61275 Spring for handle VCI & VCII (R+L) cpl.
3 60429 Cover plate for catch
4 60422 Spring for closing device
61627 Handle (202)
61640 Catch (202)
NOVEMBER 23, 2015 12 BCM & BCP & BCT COMBI OVENS
DRIP SLIDE - STANDARD & PASSTHROUGH OVENS
8
3
6
1
5
2
STANDARD DRIP SLIDE
7
4
9
1
9
8
3
6
7
5
4
2
DRIP SLIDE - PASSTHROUGH OVENS
10
Ref. Part
No. No. Description
1 60044 Screw M5 x 10
2 60068 Nut M3
3 60070 Spacer
4 60086 Washer 3mm
5 60105 Spring
6 60142 Rubber plug Ø9.1
7 60175 Spring for drip slide
8 60438 Drip slide 1/1
8 60445 Drip slide 2/1
60497 Drip slide 1/1 kpl
61276 Drip slide 2/1 kpl
Ref. Part
No. No. Description
1 60044 Screw M5 x 10
2 60068 Nut M3
3 60070 Spacer
4 60086 Washer 3mm
5 60105 Spring
6 60142 Rubber plug Ø9.1
7 60184 Spring for drip slide P/T
8 60438 Drip slide 1/1 welded
60498 Drip slide 1/1 kpl
PassThrough
NOVEMBER 23, 2015 13 BCM & BCP & BCT COMBI OVENS
DRIP TRAY / DRIP TRAY, DEEP, WITHOUT DRAIN / DRAIN
7
19
11
12
1
9
4
6
8
14
5
15
13
2
18
17
16
10
3
Ref. Part
No. No. Description
1 60004 Spring for drip tray
2 60008 Hose clamp for drip pan
3 60020 Drain with 1 branch
4 61277 Nozzle complete
5 60066 Screew, M5 x12 A2 serrated
6 60058 Screw, set M5 x 25
8 60084 Washer 5mm
9 60094 Cable clamp Ø17.8
10 60334 Condensing Sensor
Ref. Part
No. No. Description
11 60463 Drip tray 1/1 GN
11 60464 Drip tray 2/1 GN
12 60465 Drip tray 1/1 GN P/T
13 60542 Drain 1/1
13 61278 Drain 2/1
14 60187 Hose for drain Drip tray
15 60103 O-ring Ø50
NOVEMBER 23, 2015 14 BCM & BCP & BCT COMBI OVENS
DRIP TRAY / DRIP TRAY DEEP, WITHOUT DRAIN, PASSTHROUGH
14
6
13
3
12
2
10
11
Ref. Part
No. No. Description
1 60003 Tube for trip tray
2 60005 Spring for drip tray
3 60020 Drain with 1 branch
4 60040 Screw M4 x 8
5 60533 Hose clamp 17,3mm
6 60110 Y-branch, plastic Ø14
7 60114 Plug 1/4" inside hexagon
8 60139 Lead-in Ø14/Ø20x1.5
9 60433 Suspension for drip tray PassThrough
10 60463 Drip tray 1/1 GN
11 60465 Drip tray 1/1 GN P/T
12 60188 Hose for drain Y-branch
13 60189 Hose for drain drip tray PT - costomer side
14 60103 O-ring Ø50
8
1
5
7
4
5
9
NOVEMBER 23, 2015 15 BCM & BCP & BCT COMBI OVENS
9
EXTERIOR COMPONENTS
7
3
8
10
1
DETAIL A
SEE DETAIL A
Ref. Part
No. No. Description
1 60066 Screw, M5 x12 A2 serrated
2 60049 Screw M5x30
3 60057 Screw M5x16
4 60080 Nut M10 Clips
7 60375 Roof 1/1 w/2 exhaust valves
7 60384 Roof 1/1 w/2 valves, fatvent.
7 60386 Roof 2/1 w/2 exhaust valves
7 60395 Roof 1/1 w/2 valves Combiplus
8 60378 Rear plate 61
8 60376 Rear plate 101
8 61279 Rear plate 62
8 60382 Rear plate 102
8 60397 Rear plate 202
4
2
12
11
Ref. Part
No. No. Description
9 60380 Side plate RH and LH 61
9 60377 Side plate RH and LH 101
9 61280 Side plate RH and LH 62
9 60385 Side plate RH and LH 102
9 60398 Side plate RH and LH 202
10 60602 Connecting piece for stand
11 60874 Foot cpl
12 60768 Heat shield 61
12 60769 Heat shield 101
12 61281 Heat shield 62
12 60770 Heat shield 102
12 60767 Heat shield 202
NOVEMBER 23, 2015 16 BCM & BCP & BCT COMBI OVENS
REAR PANEL - PASSTHROUGH OVENS
3
6
2
Ref. Part
No. No. Description
1 60042 Screw, set M5 x 6
2 60043 Screw, set M5 x 10
3 60084 Washer 5mm
4 60085 Washer, spring 5mm
5 60403 Cover 101 PassThrough
6 60410 Front panel 61 PassThrough
6 60404 Front panel 101 PassThrough
2
5
3
4
1
NOVEMBER 23, 2015 17 BCM & BCP & BCT COMBI OVENS
INTERIOR LIGHTS
8
6
3
SEE DETAIL A
4
5
9
2
DETAIL A
1
7
Ref. Part
No. No. Description
1 61282 Lamp housing halogen
2 60041 Screw M4 x 12
3 60072 Nut M5
4 60085 Washer, spring 5mm
5 60087 Washer 5mm
6 61283 Halogen lamp 12V 10W G4 450°C
7 60137 Porcelain connector
8 61096 Gasket for lamp housing
9 60164 Lamp Glass, Halogen, with gasket
NOVEMBER 23, 2015 18 BCM & BCP & BCT COMBI OVENS
MOTOR, HEATING ELEMENTS
16
12
22
21
19
17
9
5
8
20
4
15
6
2
13
11
1
23
3
30
28
10
24
26
29
7
25
27
14
Ref. Part
No. No. Description
1 61284 Gasket for motor
2 60015 Bolt M8 x 45
3 61285 Hose nipple, elbow Ø10x1/8"
4 60066 Screw, set M5 x 12
5 60053 Screw, set M6 x 12
6 60063 Screw, set M10 x 20
7 60078 Nut M8
8 60084 Washer, 5mm
9 60085 Washer, spring 5mm
10 60091 Washer 8mm
11 60092 Washer Ø10.5 x 20
12 60089 Washer, 6mm
13 60116 Nozzle, elbow (angular)
14 60123 Fan motor 3x200-240 V
15 60126 Fan wheel reversing, straight blades
16 60158 Distance tube for lter housing
17 60159 Distance tube for lter housing
19 60216 Gasket for ring heating element, 61, 101
19 61286 Gasket for ring heating element, 62
19 60216 Gasket for ring heating element, 102
20 60221 Ring heating element, Ø400 208V 9kW, 61, 101, 102
20 60875 Ring heating element, Ø400 240V 9kW, 61, 101, 102
20 61287 Ring heating element, Ø400 254V 9kW, 61, 101, 102
20 61288 Ring heating element, Ø400 277V 9kW, 61, 101, 102
20 61289 Ring heating element, 208V 21kW, 62
20 61290 Ring heating element, 235V 21kW, 62
20 61291 Ring heating element, 254V 21kW, 62
Ref. Part
No. No. Description
21 60666 Ring heating element, Ø470 208V 9kW,
101,102
21 60876 Ring heating element, Ø470 240V 9kW,
101,102
21 61292 Ring heating element, Ø470 254V 9kW,
101,102
21 61257 Ring heating element, Ø470 277V 9kW,
101,102
22 60223 Ring heating element, Ø540 208V 9kW,
102
22 60877 Ring heating element, Ø540 240V 9kW,
102
22 61293 Ring heating element, Ø540 254V
7.5kW, 102
22 61258 Ring heating element, Ø540 277V 9kW,
102
23 60323 Temperature sensor air 350°C
24 60878 Cover for insulation 61
24 60366 Cover for insulation 101
24 61294 Cover for insulation 62
24 60879 Cover for insulation 102
25 61295 Thermoswitch 350°C
26 61296 Wire 4mm², blue
26 61297 Wire 4mm², red/black/white
27 61298 Revolution sensor for motor
28 60200 Washer, copper Ø12.5xØ27x1.5
29 61299 Impeller for Fan Motor
30 61300 Puller for fan wheel
NOVEMBER 23, 2015 19 BCM & BCP & BCT COMBI OVENS
MOTOR, HEATING ELEMENTS - 202 OVENS
23
28
7
3
13
2
15
27
5
22
21
4
20
16
18
12
11
17
9
8
26
6
1
10
25
24
14
29
30
Ref. Part
No. No. Description
1 61284 Gasket for motor
2 60016 Bolt M8 x 45
3 61285 Hose nipple, elbow Ø10x1/8"
4 60066 Screw, set M5 x 12
5 60053 Screw, set M6 x 12
6 60063 Screw, set M10 x 20
7 60078 Nut M8
8 60085 Washer, spring 5mm
9 60084 Washer, 5mm
10 60091 Washer 8mm
11 60092 Washer Ø10.5 x 20
12 M0417 Washer, 6mm
13 60116 Nozzle, elbow
14 60123 Fan motor 3x200-240 V
15 60126 Fan wheel reversing, straight blades
16 60158 Distance tube for lter housing
17 60159 Distance tube for lter housing
18 60216 Gasket for ring heating element
Ref. Part
No. No. Description
20 60255 Ring heating element Ø400 208V 12kW
20 61301 Ring heating element Ø400 240V 12kW
20 61256 Ring heating element Ø400 254V 12kW
20 61460 Ring heating element Ø400 277V 12kW
21 60666 Ring heating element Ø470 208V 9kW
21 60876 Ring heating element Ø470 240V 9kW
21 61292 Ring heating element Ø470 254V 9kW
21 61257 Ring heating element Ø470 277V 9kW
22 60223 Ring heating element Ø540 208V 9kW
22 60877 Ring heating element Ø540 240V 9kW
22 61293 Ring heating element Ø540 254V 9kW
22 61258 Ring heating element Ø540 277V 9kW
23 60365 Cover for insulation 2.20
24 61295 Thermoswitch 350°C
25 61296 Wire 4mm², blue
25 61297 Wire 4mm², red/black/white
26 60323 Temperature sensor air 350°C
27 61298 Revolution sensor for motor
28 60200 Washer, copper Ø12.5xØ27x1.5
29 61299 Impeller for Fan Motor
30 61300 Puller for fanwheel
NOVEMBER 23, 2015 20 BCM & BCP & BCT COMBI OVENS
FILTER HOUSING
6
9
1
10
3
DETAIL A
2
5
4
11
SEE DETAIL A
8
7
Ref. Part
No. No. Description
1 60055 Screw, M6 x 20
2 60072 056500 Nut M5
3 60074 056600 Nut M6
4 60084 057500 Washer 5mm
5 60085 057501 Washer, spring 5mm
6 60088 057600 Washer 6mm
7 60095 058031 Lock pin
8 60096 Clip for lock pin
9 60151 Filter housing 61
9 60147 Filter housing 101
9 61302 Filter housing 62
9 60149 Filter housing 102
10 60153 Cover plate, upper 1/1GN
10 60006 Cover plate, upper 2/1GN
11 60161 Stop plate for lter housing 1/1GN
11 60017 Stop plate for lter housing 2/1GN
12
Ref. Part
No. No. Description
12 61303 Grating for drain
61304 Pin for rack sup-port, lower L=25
60987 Pin for rack support, lower L=26,5
60988 Pin for rack support, lower L=28
60989 Pin for rack support, lower L=29.5
61305 Pin for rack support top short L=28
61306 Pin for rack supporttop L=31
61307 Pin for rack supporttop L=34
61308 Pin for rack support, long L=37
NOVEMBER 23, 2015 21 BCM & BCP & BCT COMBI OVENS
FILTER HOUSING - 202 OVENS
14
8
5
17
15
3
10
9
1
2
12
13
11
Ref. Part
No. No. Description
1 60007 Flap for reinforcement
2 60044 Screw FRH M5 x 10
3 60055 Screw, set M6 x 20
4 60072 Nut M5
5 60074 Nut M6
6 60085 Washer, spring 5mm
7 60087 Washer 5mm
8 60088 Washer 6mm
9 60089 Washer, spring 6mm
10 60090 Washer 6mm
11 60095 Lock pin
12 60096 Clip for lock pin
13 60363 Filter housing 202
13 60363 Filter housing 202
14 60153 Cover plate, upper 1/1GN
16
18
4
6
7
Ref. Part
No. No. Description
14 60006 Cover plate, upper 2/1GN
15 60364 Flap for reinforcement 2.20
16 60017 Stop plate for lter housing 2/1GN
17 60373 Reinforcement, interior 2.20
18 61303 Grating for drain
61304 Pin for rack sup-port, lower L=25
60987 Pin for rack support, lower L=26,5
60988 Pin for rack support, lower L=28
60989 Pin for rack support, lower L=29.5
61305 Pin for rack support top short L=28
61306 Pin for rack supporttop L=31
61307 Pin for rack supporttop L=34
61308 Pin for rack support, long L=37
NOVEMBER 23, 2015 22 BCM & BCP & BCT COMBI OVENS
DAMPER WITH MOTOR & EXHAUST
1
2
4
Ref. Part
No. No. Description
1 61309 Exhaust w. damper motor
2 60881 Differential Pres-sure Transmitter
3 60108 Hose silicon Ø6/Ø8
4 60245 Transition piece for CombiOptima
3
NOVEMBER 23, 2015 23 BCM & BCP & BCT COMBI OVENS
BCM CONTROL
5
6
1
3
17
14
11
7
19
18
20
13
9
8
4
12
10
2
2a
2b
Ref. Part
No. No. Description
1 60033 Screw M3 x 10
2 61101 Rceptacle
2a 61310 Lockwasher
2b 61100 Fastener 1/4 turn
3 60068 Nut M3
4 60071 Distance tube M3 x 12
5 60077 Nut M5
6 60087 Washer 5mm
7 60088 Washer 6mm
8 61120 Computer B/C/K s/n 4
8 61121 Computer B/C/K s/n 5
9 60337 Shaft, lead-in Ø6
10 60338 Shaft, coupling Ø6/ Ø6
11 60340 Gasket for control
12 60341 Encoder
15
16
Ref. Part
No. No. Description
13 60342 Plastic brace for turn knob
14 60344 Turn switch
15 60406 Front panel, 61
15 60405 Front panel, 101
15 61311 Front panel, 62
15 60414 Front panel, 102
15 60418 Front panel, 202
16 60417 Suction lter
17 60582 Buzzer
18 60891 Intermediate plate for display BCM
19 60600 Abutment plate w/operation panel BCM
20 61312 Communication cable
61122 Conversion kit BCM to BCP
61123 Conversion kit BCP to BCM
NOVEMBER 23, 2015 24 BCM & BCP & BCT COMBI OVENS
19
BCM-SE CONTROL
16
5
2
4
13
7
11
14
10
8
6
1
12
9
15
3
20
17
18
Ref. Part
No. No. Description
1 60033 Screw M3 x 10
2 60068 Nut M3
3 60088 Washer 6mm
4 60336 Computer B/C/K
5 60337 Shaft, lead-in Ø6
6 60338 Shaft, coupling Ø6/Ø6
7 60341 Encoder
8 60342 Plastic brace for turn button
9 60344 Turn button
10 61461 Receptacle
11 61310 Lock washer
12 61462 Intermediate plate for display B/C/K SE
13 60071 Distance tube M3 x 12
Ref. Part
No. No. Description
14 61086 Front panel 61 VC SE Kpl.
14 61087 Front panel 101 VC SE Kpl.
14 61325 Front panel 62 VC SE Kpl.
14 61088 Front panel 102 VC SE Kpl.
14 61089 Front panel 202 VC SE Kpl.
15 60563 Nut M5
16 61463 Abutment plate w/operation panel
Blodgett BCM SE
17 61100 Fastener ¼ turn
18 60417 Suction lter
19 60582 Buzzer for Visual Cooking II
20 61312 Communication cable
NOVEMBER 23, 2015 25 BCM & BCP & BCT COMBI OVENS
BCP CONTROL
8
10
6
15
1
11
12
5
14
3
13
4
17
2
2a
2b
Ref. Part
No. No. Description
1 60032 Screw M3 x 6
2 61101 Receptacle
2a 61310 Lock washer
2b 61100 Fastener 1/4 turn
3 60071 Distance tube M3 x 12
4 60077 Nut M5
5 60087 Washer 5mm
6 60894 Gasket BCP
7 60343 USB connector, chassis mounted
8 60406 Front panel 61
8 60405 Front panel 101
8 61311 Front panel 62
8 60414 Front panel 102
8 60418 Front panel 202
7
16
9
Ref. Part
No. No. Description
9 60417 Suction lter
10 60582 Buzzer for Visual Cooking II
11 60587 Display for Visual Cooking II TFT 5.7"
12 60893 Intermediate plate for display E-model
13 61118 Computer VCII TFT Display, s/n 4xxx
13 61119 Computer VC II electric and gas, s/n 5xxx
13 61124 Control, programmed Fresh Market s/n 5xxx
13 61240 Control, programmed Fresh Market s/n 4xxx
14 60591 Staybolt brass M3x18 with threaded pin
15 60601 Abutment plate w/operation panel
16 60847 Cable for display
17 61312 Communication cable
61123 Conversion kit BCP to BCM
61122 Conversion kit BCM to BCP
NOVEMBER 23, 2015 26 BCM & BCP & BCT COMBI OVENS
14
BCT-SE CONTROL
7
9
6
1
12
8
4
5
13
2
3
10
Ref. Part
No. No. Description
1 60069 Nut M3
2 61101 Receptacle
3 61310 Lock washer
4 61086 Front panel 61 VC SE Kpl.
4 61087 Front panel 101 VC SE Kpl.
4 61325 Front panel 62 VC SE Kpl.
4 61088 Front panel 102 VC SE Kpl.
4 61089 Front panel 202 VC SE Kpl.
5 60563 Nut M5
6 61326 Touch display 7" with cabel and bracket
7 61838 Kit, CPU replacement (general market)
11
Ref. Part
No. No. Description
8 61327 Staybolt brass M3x20 with threaded pin
9 61328 Abutment plate w/operation panel BCT SE
10 61100 Fastener ¼ turn
11 60417 Suction lter
12 61329 Cover f. IO-Board Touch
13 61312 Communication cable
14 61260 Speaker with cord
NOVEMBER 23, 2015 27 BCM & BCP & BCT COMBI OVENS
CORE TEMPERATURE PROBE, 3 POINT
4
8
5
1
7
3
6
2
Ref. Part
No. No. Description
1 60002 Cover
2 60066 Screw, M5 x 12 A2
3 60895 Rubber plug, Ø9.5 x Ø6.4, black
4 60896 Rubber plug, Ø20 x Ø14.9, black
5 60897 Bracket for core temp. probe
6 60898 Cable support for core temp. probe
7 60583 Core temp. probe, outside, 3-point, L=1125, 61
7 60584 Core temp. probe, outside, 3-point, L=1625,
60571 101, 62 102 & 202
8 60899 Socket for core temp. probe, 500 mm assy
NOVEMBER 23, 2015 28 BCM & BCP & BCT COMBI OVENS
STEAM GENERATOR - 61 OVENS
11
13
18
16
9
4
8
15
22
23
24
25
19
20
12
10
21
Ref. Part
No. No. Description
1 60054 Screw, set M6x16
2 60088 Washer 6mm
3 M0417 Washer, spring 6mm
4 61313 Hose clamp Ø50-65 mm
5 60113 Hose nipple, elbow Ø10x1/4"
6 52753 Silicone hose Ø8x12 mm transparent per ft.
7 60209 Drain pump with bush
8 60210 Gasket for heating element
9 60211 Blind plate for heating element
10 60212 Locking pin
11 61315 Heating element 240/400-415V+0 7,5 kW
11 61316 Heating element 200-208V 7,5 kW
11 61317 Heating element 400V 7,5 kW
11 61318 Heating element 440V 7,5 kW
11 61228 Heating element 480V 7,5 kW
11 61317 Heating element 240/400-415V+ 0 9 kW
11 61319 Heating element 200-208V 9 kW
11 61320 Heating element 400V 9 kW
14
6
5
1
3
2
17
Ref. Part
No. No. Description
11 61321 Heating element 440V 9 kW
11 61229 Heating element 480V 9 kW
12 60324 Sensor for steam generator
13 60325 Earth connection for steam generator 9kW
14 60515 Hose for drain pump
15 60516 Exhausttube 9-18 kW
16 60518 Hose L=50
17 60534 Hose clamp Ø35
18 60563 Nut M5 A2 w/ange, serrated
19 60565 Steam generator 7.5-15 kW
20 60868 Level sensor steam generator assy.
21 60572 Thermoswitch 135°C
21a 61322 Cooling paste SSR
22 61064 Blind ange
23 61066 Gasket
24 61065 Mating ange
25 61323 Nut M6 w/ange
7
NOVEMBER 23, 2015 29 BCM & BCP & BCT COMBI OVENS
STEAM GENERATOR - 62 & 101 OVENS
17
12
10
15
4
8
11
1
14
3
21
22
23
24
18
19
6
9
13
20
Ref. Part
No. No. Description
1 6054 Screw M6 x 16
2 60088 Washer 6mm
3 60089 Washer, spring 6mm
4 61313 Hose clamp Ø50-65 mm
5 60113 Hose nipple, elbow Ø10x1/4"
6 61314 Silicone hose Ø8x12 mm
7 60209 Drain pump with bush
8 60210 Gasket for heating element
9 60212 Locking pin
10 61315 Heating element 240/400-415V+0 7,5kW
10 61316 Heating element 200-208V 7,5 kW
10 61317 Heating element 400V 7,5 kW
10 61318 Heating element 440V 7,5 kW
10 61228 Heating element 480V 7,5 kW
10 61317 Heating element 240/400-415V+ 0 9 kW
10 61319 Heating element 200-208V 9 kW
10 61320 Heating element 400V 9 kW
10 61321 Heating element 440V 9 kW
2
5
7
16
Ref. Part
No. No. Description
10 61229 Heating element 480V 9 kW
11 60324 Sensor for steam generator
12 60326 Earthconnection f for steam generator 18kW
13 60515 Hose for drain pump
14 60516 Exhaust tube 9-18 kW
15 60518 Hose steam generator L=50
16 60534 Hose clamp Ø35 mm
17 60563 Nut M5 A2 w/ange, serrated
18 60565 Steam generator 7.5-15 kW
19 60868 Level sensor steam generator assy.
20 60985 Thermoswitch 135°C
20a 61322 Cooling paste SSR
21 61064 Blind ange
22 61066 Gasket
23 61065 Mating ange
24 61323 Nut M6 w/ange
NOVEMBER 23, 2015 30 BCM & BCP & BCT COMBI OVENS
13
4
STEAM GENERATOR - 102 OVENS
23
24
25
26
20
15
16
9
11
18
12
10
14
22
Ref. Part
No. No. Description
1 60054 Screw M6 x 16
2 60088 Washer 6mm
3 M0417 Washer, spring 6mm
4 61313 Hose clamp Ø50-65 mm
5 60113 Hose nipple, elbow Ø10x1/4"
6 52753 Silicone hose Ø8x12 mm
7 60193 Hose for drain pump
8 60209 Drain pump with bush
9 60210 Gasket for heating element
10 60212 Locking pin
11 61315 Heating element 240/400-415V+ 0 7,5 kW
12 61316 Heating element 200-208V 7,5 kW
13 61317 Heating element 400V 7,5 kW
13 61318 Heating element 440V 7,5 kW
13 61228 Heating element 480V 7,5 kW
13 61317 Heating element 240/400-415V+ 0 9 kW
13 61319 Heating element 200-208V 9 kW
13 61320 Heating element 400V 9 kW
7
1
21
19
6
2
5
3
17
Ref. Part
No. No. Description
13 61321 Heating element 440V 9 kW
13 61229 Heating element 480V 9 kW
13 60324 Sensor for steam generator
13 60327 Earth connection for steam generator 27kW
14 60515 Hose for drain pump
15 60518 Hose steam generator L=50
16 60524 Exhaust tube 27 kW
17 60534 Hose clamp Ø35 mm
18 60563 Nut M5 A2 w/ange, serrated
19 60564 Bracket for Drain pump
20 60566 Steam generator 22.5 kW
21 60868 Level sensor steam generator assy.
22 60985 Thermoswitch 135°C
22a 61322 Cooling paste SSR
23 61064 Blind ange
24 61066 Gasket
25 61065 Mating ange
26 61323 Nut M6 w/ange
8
NOVEMBER 23, 2015 31 BCM & BCP & BCT COMBI OVENS
STEAM GENERATOR - 202 OVENS
23
24
4
15
16
25
26
20
13
18
10
11
22
9
14
7
12
21
6
1
19
3
5
2
8
17
Ref. Part
No. No. Description
1 60054 Screw, M6x16
2 60088 Washer 6mm
3 M0417 Washer, spring 6mm
4 61313 Hose clamp Ø50-65 mm
5 60113 Hose nipple, elbow Ø10x1/4"
6 52753 Silicone hose Ø8x12 mm
7 60193 Hose for drain pump
8 60209 Drain pump with bush
9 60210 Gasket for heating element
10 60212 Locking pin
11 61315 Heating element 240/400-415V+ 0 7,5 kW
11 61316 Heating element 200-208V 7,5 kW
11 61317 Heating element 400V 7,5 kW
11 61318 Heating element 440V 7,5 kW
11 61228 Heating element 480V 7,5 kW
11 61317 Heating element 240/400-415V+ 0 9 kW
11 61319 Heating element 200-208V 9 kW
11 61320 Heating element 400V 9 kW
Ref. Part
No. No. Description
11 61321 Heating element 440V 9 kW
11 61229 Heating element 480V 9 kW
12 60324 Sensor for steam generator
13 60328 Earth connection for steam generator 36kW
14 60515 Hose for drain pump
15 60518 Hose steam generator L=50
16 60525 Exhaust tube 36 kW
17 60534 Hose clamp Ø35 mm
18 60563 Nut M5 A2 w/ange, serrated
19 60564 Bracket for Drain pump
20 60567 Steam generator 30 kW welded
21 60868 Level sensor steam generator assy.
22 60985 Thermoswitch 135°C
22a 61322 Cooling paste SSR
23 61064 Blind ange
24 61066 Gasket
25 61065 Mating ange
26 61323 Nut M6 w/ange
NOVEMBER 23, 2015 32 BCM & BCP & BCT COMBI OVENS
DELIMING
9
12
6
2
3
4
5
11
Ref. Part
No. No. Description
1 60034 Screw FRH M4 x 12
2 60900 Nut M4
3 60083 Washer, spring 4mm
4 60902 Washer 4mm
5 60824 Hose pump 24VDC
6 54048 Level sensor only
7 60563 Nut M5 A2 w/ange, serrated
8 60905 Suspension bracket for delime pump
9 60908 T-piece PP Ø10xØ10xØ6
10 52753 Silicone hose Ø8x12 mm transparent
11 60907 Suction lter
12 61330 Hose nipple, elbow Ø6x1/4"
61331 Wiring harness for deliming
10
7
8
1
NOVEMBER 23, 2015 33 BCM & BCP & BCT COMBI OVENS
2
6
5
ELECTRICAL COMPONENTS
7a
7
32
7a
1
31
19
20
26
4
29
34
24
35
28
SEE DETAIL A
Ref. Part
No. No. Description
1 60032 Screw, M3 x 6
2 60043 Screw, M5 x 10
4 60071 Distance tube M3 x 12
5 60084 Washer 5mm
6 60085 Washer, spring 5mm
7 60124 Fan Ø120
7 60819 Fan Ø175
7a 61332 Screw Ø4.8x13 (Drilling)
8 60127 Contactor A16 24V 50/60Hz
8 60128 Contactor A26 24V 50/60Hz
8 60129 Contactor A30 24V 50/60Hz
10 60261 Jumper
11 60262 End stop, 6mm
12 60265 End plate for Terminal 2.5Q, 4-pole
13 60266 End plate for Terminal 4Q, 2-pole
14 60268 End plate for Terminal 4Q, 4-pole
15 60276 Terminal, 2,5Q, 4-pole, blue
16 60277 Terminal, 4Q, 2-pole, grey
17 60279 Terminal, 4Q, 2-pole, yellow/gree
18 60281 Terminal, 4Q, 4-pole, grey
19 60330 Frequency changer 0,37kW
19 60307 Frequency changer 0,75kW, 115V
20 60309 Thermoswitch 120° C
8
30
18
23
27
25
15
10
12
14
22
21
16
DETAIL A
Ref. Part
No. No. Description
21 60313 Scarf joint 4Q 32A
22 60317 Fuse carrier
23 60320 Terminal, 4-conductor, for fuse carrier
24 60321 Cooling plate for solid state relay 1.06
24 60322 Cooling plate for solid state relay
25 60329 Transformer 480-440-400/230
26 60335 I/O-Board Visual Cooking I, S/N 3xx - 4xx
26 61027 I/O-Board Visual Cooking II electric,
SS/N 5xx & 6xx
26 60592 I/O-Board Visual Cooking II el / gas
27 60569 Retaining bracket for console
28 60585 Trafo 200-230-240/2x24-12
28 60911 Trafo 400-415-440-480/2x24-12-230
29 60579 Solid state relay 2x50A
30 60580 Suspension for transformer
31 60581 Retainer for circuit
32 60586 Console for DIN slide
34 60591 Staybolt brass M3x18 with threaded pin
35 60593 Console
17
11
13
NOVEMBER 23, 2015 34 BCM & BCP & BCT COMBI OVENS
SOLENOID VALVES
2
8
3
1
5
4
10
Ref. Part
No. No. Description
1 60130 Pressure sensitive switch, break, 1-10 bar 1/8" outside
2 60145 Quantity limiter, white, MB 1.2ltr.
3 60917 Solenoid valve 1-way
4 60828 Solenoid valve 2-way w/1 spool
5 60827 Solenoid valve 2-way w/2 spools
6 60825 Solenoid valve 3-way w/2 spools
7 60826 Solenoid valve 4-way w/3 spools
8 60929 Hose Ø10x17 mm 15 NL
9 61333 Hose clamp Ø10 - 17 mm
10 60539 Plastic clip for solenoid valve
6
7
9
7
3
Ref. Part
No. No. Description
1 60066 Screw, M5 x 12 A2
2 60918 Water lter 3/4"
3 60919 Hose 3/4" elbow
4 60920 Suspension bracket
5 60921 Adapter 3/4"RG-3/4"GHT
6 60922 Connector 3/4x3/4 in male/male
7 60923 Adapter 3/4"RG-3/4"GHT
WATER/GAS INLET
6
2
7
1
4
5
NOVEMBER 23, 2015 35 BCM & BCP & BCT COMBI OVENS
2
HAND SHOWER
5
4
3
1
Ref. Part
No. No. Description
1 60066 Screw M5 x 12
2 60121 Hand shower
3 60533 Hose clamp Ø17.3 mm
4 60514 Roll-up hose
5 60562 Threaded branch with hose for roll-up hose
6 61334 Hand shower complete
6
NOVEMBER 23, 2015 36 BCM & BCP & BCT COMBI OVENS
COMBIWASH
8
4
2
6
3
5
7
1
9
19
18
10
13
14
15
12
11
16
17
Ref. Part
No. No. Description
1 61335 Nozzle arm Complete
2 60062 Screw, set M6 x 8
3 M0417 Washer, spring 6mm
4 60090 Washer 6mm
5 60099 Bearing Ø6xØ8x10
6 61097 Gasket for motor bearing
7 60196 Bearing ange
8 60200 Washer, copper Ø12.5 x Ø27 x 1.5
9 60545 Tube for CombiWash 61
9 60544 Tube for CombiWash 101
9 61336 Tube for CombiWash 62
9 60549 Tube for CombiWash 102
9 60540 Tube for CombiWash 202
10 61337 Plug 1/8" (No cleaning nozzle)
Ref. Part
No. No. Description
11 61338 Blank-off plate for top, welded
12 61097 Gasket for bearing
13 60072 Nut M5
14 60085 Washer, spring 5mm
15 60087 Washer 5mm
16 61339 Cover no detergent/rinse pumps
17 60046 Screw FRH M5 x 12
18 60085 Washer, spring 5mm
19 60087 Washer 5mm
NOVEMBER 23, 2015 37 BCM & BCP & BCT COMBI OVENS
COMBIWASH PUMPS AND SOLENOID VALVES
22
13
7
2
20
8
9
15
11
10
14
16
18
19
6
4
17
12
3
Ref. Part
No. No. Description
1 60009 Suction tube
2 60066 Screw, M5 x 12
3 60079 Nut M5 Clips
4 60088 Washer 6mm
5 60097 Locking ring Ø6
6 60102 Clip 13.8mm
7 60112 Quick action coupling Ø6x1/8"
8 60117 Lightning tting 90° 1/8 Ø6
9 60139 Lead-in Ø14/Ø20x1.5
10 60141 Lead-in Ø16/Ø22x1.5
11 60194 Pump for detergent/rinse aid, 24 V
12 61340 Screw cap for oven detergent, CombiClean
13
5
1
21
Ref. Part
No. No. Description
13 60517 Bracket for pumps for detergent
14 60526 Hose Ø10x17 mm 15 NL
15 60533 Hose clamp Ø17.3 mm
16 60540 Y-peice
17 60570 Console for pump for detergent
18 60010 Suction hose, red, for detergent
19 60011 Suction hose, blue, for rinse aid
20 60106 Tube Ø6mm
21 61136 CombiWash hoses 1200 mm
22 61341 Distribution junction for CombiWash,
61, 101, 62, 102
22 61342 Distribution junction for CombiWash, 202
NOVEMBER 23, 2015 38 BCM & BCP & BCT COMBI OVENS
COMBIWASH CANISTER STORAGE
9
7
8
11
10
4
3
6
5
2
1
Ref. Part
No. No. Description
1 60012 Bracket for suspension of CombiClean canisters
2 60023 Holder for CombiClean canisters
3 60054 Screw, set M6 x 16
4 60074 Nut M6
5 60089 Washer, spring 6mm
6 60090 Washer 6mm
7 60202 Oven detergent, CombiWash, 2 x 5 ltr (245290)
8 60203 Rinsing agent, CombiWash, 2 x 5 ltr (245291)
9 60352 Tray for CombiWash canisters
10 60360 Trolley for canisters, foldable
11 60361 Bracket for trolley
NOVEMBER 23, 2015 39 BCM & BCP & BCT COMBI OVENS
OPTIONAL EXTRACTION HOOD
9
4
1
10
11
5
13
3
12
9
8
14
Ref. Part
No. No. Description
1 60018 Fat lter for ex-traction hood 1/1GN
1 60359 Fat lter for ex-traction hood 2/1GN
2 60022 Tube
3 60044 Screw M5 x 10
4 60046 Screw M5 x 12
5 60048 Screw M5 x 25
6 60069 Nut M3
7 60086 Washer 3mm
8 60143 Hose Ø12x3
9 60355 Front part for ex-traction hood 1/1
9 60358 Front part for ex-traction hood 2/1
10 60603 Roof for extraction hood 1/1
10 60608 Roof for extraction hood 2/1
11 60604 Roof for con-densing extraction hood 1/1
11 60609 Roof for con-densing extraction hood 2/1
12 60605 Rear plate for extraction hood 1/1
12 60607 Rear plate for extraction hood 1/1
13 60610 Extraction Hood 1/1GN
13 60611 Extraction Hood 2/1GN
14 60612 Front plate for extraction hood 1/1GN
14 60614 Front plate for extraction hood 1/1GN
7
6
2
NOVEMBER 23, 2015 40 BCM & BCP & BCT COMBI OVENS
CONDENSER FOR EXTRACTION HOOD - BAKING MODELS
3
9
2
8
4
10
7
6
5
1
Ref. Part
No. No. Description
1 60031 Elbow Ø50 x 90°
2 60046 Screw FRH M5 x 12
3 60053 Screw, set M6 x 12
4 60088 Washer 6mm
5 60100 Hose clamp Ø58-61 mm
6 60192 Hose L=155
7 61344 Fan motor for extraction hood
8 60354 Air shield for motor
9 60357 Spiral tube Ø50x600x2900
10 60556 Tube for exhaust condensing for double stack ovens
60616 Mounting kit for extraction hood with condensation
NOVEMBER 23, 2015 41 BCM & BCP & BCT COMBI OVENS
CONDENSER FOR EXTRACTION HOOD - COOKING MODELS
9
2
7
3
5
4
8
6
10
1
Ref. Part
No. No. Description
1 60031 Elbow Ø50 x 90°
2 60046 Screw FRH M5 x 12
3 60053 Screw, M6 x 12
4 60088 Washer 6mm
5 60100 Hose clamp Ø58-61 mm
6 60192 Hose L=155
7 61344 Fan motor for extraction hood
8 60354 Air shield for motor
9 60356 Spiral tube Ø50 x 600 x 4500
10 60556 Tube for exhaust condensing CombiPlus
60616 Mounting kit for extraction hood with condensation
NOVEMBER 23, 2015 42 BCM & BCP & BCT COMBI OVENS
2
WATER SEAL FOR CONDENSER
4
1
1
2
6
5
3
3
5
4
SINGLE OVENS DOUBLE STACKED OVENS
Ref. Part
No. No. Description
1 60035 Screw FRH M4 x8
2 60103 O-ring Ø47.2x5.7
3 60109 Nipple Ø6x1/4
4 60195 Gasket for water seal
5 60206 Container for water seal
6 60207 Cover for water seal
Ref. Part
No. No. Description
1 60035 Screw FRH M4 x8
2 60103 O-ring Ø47.2x5.7
3 60538 Gasket for siphon, double stack
4 60557 Housing for siphon welded
5 60558 Cover for container welded
NOVEMBER 23, 2015 43 BCM & BCP & BCT COMBI OVENS
BOOSTER PUMP, COMBIWASH
3
10
6
13
11
12
5
8
17
2
18
4
15
16
14
Ref. Part
No. No. Description
1 60027 Plate for pump
2 60028 Cover for pump
3 60042 Screw, set M5 x 6
4 60044 Screw FRH M5 x 10
5 60047 Screw, set M5 x 16
6 60058 Screw, set M5 x 25
7 60072 Nut M5
8 60084 Washer 5mm
9 60085 Washer, spring 5mm
10 60093 Cable clamp
11 60119 Reduction nipple 1x1/2
1
9
7
Ref. Part
No. No. Description
12 60120 Hexagon nipple ½"
13 60125 Booster pump CombiClean
14 60131 DIN-base, S411
15 60132 Pin relay 24V
16 60138 Cable socket for earth
17 60139 Lead-in Ø14/Ø20x1.5
18 60140 Membrane grommet Ø47
61345 Booster pump CombiClean
NOVEMBER 23, 2015 44 BCM & BCP & BCT COMBI OVENS
OPTIONAL FAT SEPARATOR
6
10
1
7
2
9
7
8
5
4
9
7
Ref. Part
No. No. Description
1 60014 Elbow 87,5° for fat
2 60016 Bracket for fat
3 60024 Suspension bracket for fat container
4 60025 Plug for fat
5 60026 Pipe for drain for fat
6 60029 Container 1/1GN 100mm
6 60030 Container 1/1GN 150mm
7 60045 Schraube, Satz
8 60073 Nut
9 60087 Washer
10 60559 Cover for fat container, Ø50/Ø50
3
NOVEMBER 23, 2015 45 BCM & BCP & BCT COMBI OVENS
1
3
INTERCEPTOR TRAYS
2
4
5
Ref. Part
No. No. Description
1 61346 Interceptor tray for rack, cassette 400x600
2 61347 Interceptor tray for rack, cassette 400x600, PassThrough
3 61348 Interceptor tray for 1/1GN 2-piece rack
4 61349 Interceptor tray for 1/1GN 2-piece rack with extension front and back
5 61350 Interceptor tray for rack, cassette 1/1GN
6 61351 Interceptor tray for rack, cassette 1/1GN, PassThrough
6
NOVEMBER 23, 2015 46 BCM & BCP & BCT COMBI OVENS
RACKS
1
TWO PIECE RACK RACK CASSETTE
Ref. Part
No. No. Description
1 60663 Rack. two-piece 61, 1/1 GN, 65 mm,
1/2 size US sheet pans
1 60748 Rack. two-piece 61, 1/1 GN, 85 mm,
1/2 size US sheet pans
1 60692 Rack. two-piece 101, 1/1 GN, 65 mm,
1/2 size US sheet pans
1 60745 Rack. two-piece 101, 1/1 GN, 85 mm,
1/2 size US sheet pans
60683 12-3/4" x 20-7/8" wire rack
R1013 21" x 26" wire rack
3
1
Ref. Part
No. No. Description
1 61365 Rack, cassette 62, 65 mm U runners
1 61366 Rack, cassette 62, 85 mm U-runners
1 60750 Rack, cassette 102, GN, 65mm,
U-runner
1 60751 Rack, cassette 102, GN, 85mm,
U-runner
2 61367 Guide for rack, right, 2/1GN
3 61368 Guide for rack, left, 2/1GN
2
NOVEMBER 23, 2015 47 BCM & BCP & BCT COMBI OVENS
ROLL-IN RACKS
4
3
4
1
5
7
13
12
11
8
9
2
6
14
10
Ref. Part
No. No. Description
1 M0417 Washer, spring 6mm
2 61127 Trolley for 202 roll-in, without rack.
3 61369 Rack, Roll-in 202 spacing 67mm, U-runner
3 61370 Rack, Roll-in 202 spacing 85mm, U-runner
4 61371 Brace for rack 2/1GN
5 61372 Screw, unbrako, CH M6 x10, A2
6 61373 Handle for roll-in trolley 2.20
7 61374 Drip tray 2/1 Roll-in
Ref. Part
No. No. Description
8 61375 Shim washer
9 61376 Wheel excl. brake, ss Ø100
10 61377 Wheel with brake, ss, Ø100
11 61378 Screw M10x25
12 61379 Washer 10mm
13 61380 Nut M10
14 61239 Preheat Bridge
NOVEMBER 23, 2015 48 BCM & BCP & BCT COMBI OVENS
STACKING KIT, 61-61 & 61-101
5
10
8
4
17
2
16
11
6
19
14
1
13
15
1
12
20
7
3
9
18
Ref. Part
No. No. Description
1 60044 Screw FRH M5 x 10
2 60047 Screw, set M5 x 16
3 60048 Screw M5 x 25
4 60084 Washer 5mm
5 60085 Washer, spring 5mm
6 60103 O-ring Ø49.2x5.7
7 60374 Adapter RH
8 60383 Adapter LH
9 60395 Top panel 1/1 w/2 exhaust valves
10 60396 Adapter front LH
10 60396 Adapter front RH
11 61456 Exhaust tube 61 stacked upper, with O-ring
12 60529 Cover for tubing 61-101
12 60530 Cover for tubing 61-61
Ref. Part
No. No. Description
13 60536 Cover for housing for exhaust
14 60537 Gasket
15 60543 Housing for exhaust welded
16 60552 Exhaust tube for roof welded
17 61352 Connector for exhaust welded
18 60554 Exhaust tube 61 lower
18 60555 Exhaust tube 101 lower
19 60606 Cover for exhaust for stacked ovens
20 61353 Suction cover for front panel
See page 51 for complete stacking kit including stand.
NOVEMBER 23, 2015 49 BCM & BCP & BCT COMBI OVENS
18
STACKING KIT, 62-62 & 62-102
4
3
9
2
10
1
11
Ref. Part
No. No. Description
5
13
6
16
8
12
17
7
14
15
Ref. Part
No. No. Description
1 60044 Screw FRH M5 x 10
2 60066 Hexagonal Serrated Screw M5 x 12
3 60103 O-ring Ø49.2x5.7
4 61354 Exhaust tube C/P 1.06 upper
5 61335 Exhaust tube for roof 2/1
6 61356 Housing for exhaust CP 2/1
7 60048 Screw M5 x 25
8 61357 Adapter 2/1 RH
9 61358 Adapter 2/1 LH
10 61359 Adapter front 2/1 LH
10 61360 Adapter front 2/1 RH
11 61353 Suction cover for front panel
12 61361 Suspension plate
13 61362 Cover for tubing 62-62
13 61363 Cover for tubing 62-102
14 60554 Exhaust tube 62 lower
14 60555 Exhaust tube 102 lower
15 60923 Adapter 3/4" RG-3/4" GHT
16 61352 Elbow Ø50/Ø50
17 61364 Roof 1/1 w/2 exhaust valves 62-62 & 62-102
18 60386 Roof 2/1 w/2 exhaust valves
See page 51 for complete stacking kit including stand.
NOVEMBER 23, 2015 50 BCM & BCP & BCT COMBI OVENS
COMPLETE STACKING KITS (INCLUDES STAND)
Part
No. Description
61413 Stacking kit, gas, 61/61 LH (stand w/feet)
61414 Stacking kit, gas, 61/61 LH (stand w/casters)
61415 Stacking kit, gas, 61/61 RH (stand w/feet)
61416 Stacking kit, gas, 61/61 RH (stand w/casters)
61417 Stacking kit, gas, 62/62 LH (stand w/feet)
61418 Stacking kit, gas, 62/62 LH (stand w/casters)
61419 Stacking kit, gas, 62/62 RH (stand w/feet)
61420 Stacking kit, gas, 62/62 RH (stand w/casters)
61421 Stacking kit, gas, 61/101 LH (stand w/feet)
61422 Stacking kit, gas, 61/101 LH (stand w/casters)
61423 Stacking kit, gas, 61/101 RH (stand w/feet)
61424 Stacking kit, gas, 61/101 RH (stand w/casters)
61425 Stacking kit, gas, 62/102 LH (stand w/feet)
61426 Stacking kit, gas, 62/102 LH (stand w/casters)
61427 Stacking kit, gas, 62/102 RH (stand w/feet)
61428 Stacking kit, gas, 62/102 RH (stand w/casters)
STANDS FOR DOUBLE OVENS
Part
No. Description
61430 Stacking kit, electric, 61/61 LH (stand w/feet)
61431 Stacking kit, electric, 61/61 LH (stand w/casters)
61432 Stacking kit, electric, 61/61 RH (stand w/feet)
61433 Stacking kit, electric, 61/61 RH (stand w/casters)
61434 Stacking kit, electric, 62/62 LH (stand w/feet)
61435 Stacking kit, electric, 62/62 LH (stand w/casters)
61436 Stacking kit, electric, 62/62 RH (stand w/feet)
61437 Stacking kit, electric, 62/62 RH (stand w/casters)
61438 Stacking kit, electric, 61/101 LH (stand w/feet)
61439 Stacking kit, electric, 61/101 LH (stand w/casters)
61440 Stacking kit, electric, 61/101 RH (stand w/feet)
61441 Stacking kit, electric, 61/101 RH (stand w/casters)
61442 Stacking kit, electric, 62/102 LH (stand w/feet)
61443 Stacking kit, electric, 62/102 LH (stand w/casters)
61444 Stacking kit, electric, 62/102 RH (stand w/feet)
61445 Stacking kit, electric, 62/102 RH (stand w/casters)
2
3
4
Ref. Part
No. No. Description
1 61381 Adjust.screw cpl. Ø50-M12x50
2 61382 Nut 30x30mm
3 61387 Stand 1/1-GN CombiPlus, standard
4 61383 Cover
3
2
1
1
Ref. Part
No. No. Description
1 61384 Stand 1/1-GN stacked ovens
with castors
2 61385 Castor, adjustable w/brake
3 61386 Castor, adjustable without brake
NOVEMBER 23, 2015 51 BCM & BCP & BCT COMBI OVENS
STANDS FOR SINGLE OVENS
1
3
Ref. Part
No. No. Description
1 60655 31.5" stand with legs and shelf for 61 ovens
1 60723 21.5" stand with legs and shelf for 101 ovens
1 60733 21.5" stand with legs and shelf for 102 ovens
2 60656 31.5" stand with casters and shelf for 61 ovens
2 60724 21.5" stand with casters and shelf for 101 ovens
2 60734 21.5" stand with casters and shelf for 102 ovens
3 60657 31.5" stand with legs and pan racks for 61 ovens
3 61140 31.5" stand with legs and pan racks for 62 ovens
3 60725 21.5" stand with legs and pan racks for 101 ovens
3 60735 21.5" stand with legs and pan racks for 102 ovens
4 60658 31.5" stand with casters and pan racks for 61 ovens
4 61143 31.5" stand with casters and pan racks for 62 ovens
4 60726 21.5" stand with casters and pan racks for 101 ovens
4 60736 21.5" stand with casters and pan racks for 102 ovens
5 60791 31.5" stand with seismic legs and pan racks for 61 ovens
5 60792 21.5" stand with seismic legs and pan racks for 101 ovens
5 60793 21.5" stand with seismic legs and pan racks for 102 ovens
4
2
5
NOVEMBER 23, 2015 52 BCM & BCP & BCT COMBI OVENS
1
2
GAS, HEATING COIL
7
8
3
1
10
Ref. Part
No. No. Description
1 60047 Screw, set M5 x 16 A2
2 60084 Washer 5 mm A2
3 60563 Nut M5 A2 w/ange, serrated
4 61098 Gasket, inside 1.06
4 61099 Gasket, inside
5 60618 Gasket for pre-mix burner
6 60621 Retainer for burner
7 60622 Retainer for oven chamber roof, Ø50
8 60623 Gasket for oven chamber roof, Ø50
9 60968 Pre-mix burner 13 kW
9 60969 Pre-mix burner 21 kW, 101 & 102
9 60970 Pre-mix burner 24 kW, 102 & 202
9 61857 Pre-mix burner, 62
10 61388 Heat exchanger 61
10 60635 Heat exchanger 101
10 61391 Heat exchanger 62
10 61392 Heat exchanger 102
10 61393 Heat exchanger 202, upper
10 91394 Heat exchanger 202, bottom
5
9
6
4
Ref. Part
No. No. Description
60619 Electrode, 18-27 kW
60629 Electrode, 9 kW
61082 Electrode, 13kW (61)
61083 Electrode, 21/24kW (101, 202, 102)
61858 62 Spark Electrode
61856 Burner w/electrode & gasket, 62
NOVEMBER 23, 2015 53 BCM & BCP & BCT COMBI OVENS
GAS COMPONENTS, INSULATION
4
6
19
13
11
15
16
1
3
14
7
17
5
Ref. Part
No. No. Description
1 60064 Allen screw CH M4x10 A2
2 60066 Screw w/ange, serrated, M5 x 12 A2
3 60067 Allen Screw, CH M4 x 25 A2
4 60371 Cover, insulation, 1.06/5 gas
4 60369 Cover, insulation, 1.10/8 gas
4 61395 Cover, insulation, 2.06 gas
4 60372 Cover, insulation, 2.20 gas
5 60563 Nut M5 A2 w/ange, serrated
6 60915 Bracket for DIN rail, gas,
7 60620 Gasket for gas-air control unit
8 60624 Manifold, two connections, gas
9 60625 Cover ange, gas, manifold
10 60626 O-ring, Ø21.89 x 2.62
2
18
12
20
8
9
10
Ref. Part
No. No. Description
11 60631 Differential pressure sensitive switch,
AA-C2-4-1
12 61396 Ventilation hose Ø46/Ø40 500mm
12 61397 Ventilation hose Ø46/Ø40 1500mm
13 60939 Burner control 115V
14 61078 Ignition trafo 115V
15 61080 Solenoid for gasbox 115V
16 61398 Gas valve 115V
17 60638 Adapter
18 61077 Gas-air control unit 13kW 115VAC (black)
18 60972 Gas-air control unit 21/24kW
115VAC (red)
19 60107 Hose plastic Ø6 / Ø9 mm
20 60642 Gas hose, ½" x 500
NOVEMBER 23, 2015 54 BCM & BCP & BCT COMBI OVENS
VENILATION - GAS OVENS
5
1
2
4
Ref. Part
No. No. Description
1 60044 Screw M5 x 10 A2
2 60399 Top panel 1/1 gas
2 60400 Top panel 2/1 gas
2 60401 Top panel 1/1 61 gas
2 60402 Top panel 202 gas
3 60627 Sleeve for vent tube, Ø44.5
4 60633 Bottom plate for ventilation
5 60640 Hot-air safety device, Ø125
3
NOVEMBER 23, 2015 55 BCM & BCP & BCT COMBI OVENS
ELECTRICAL COMPONENTS - GAS OVENS
6a
31
30
27
6
5
4
2
3
1
26
28
24
32
14
25
29
13
20
15
7
8
10
23
16
22
12
19
21
17
18
9
11
SEE DETAIL A
Ref. Part
No. No. Description
1 60032 Screw M3 x 6
2 60043 Screw, set M5 x 10
3 60071 Distance tube M3 x 12
4 60084 Washer 5mm
5 60085 Washer, spring 5mm
6 60124 Fan Ø120
6 60819 Fan Ø175
6a 61332 Screw Ø4.8x13 (Drilling)
7 60127 Contactor A16 24V 50/60Hz
8 60261 Jumper WAGO 280-402
9 60262 End stop, 6mm WAGO 249-116
10 60265 End plate for Terminal 2.5Q, 4-pole
WAGO 280-314
11 60266 End plate for Terminal 4Q, 2-pole
WAGO 281-328
12 60268 End plate for Terminal 4Q, 4-pole
WAGO 281-334
13 60274 Terminal, 2.5Q, 2-pole, grey WAGO\
280-901
14 60912 Terminal, 2,5Q, 2-pole, blue
15 60913 Terminal, 2.5Q, 2-pole, yellow/green
16 60276 Terminal, 2,5Q, 4-pole, blue WAGO
280-834
DETAIL A
Ref. Part
No. No. Description
17 60277 Terminal, 4Q, 2-pole, grey WAGO
281-901
18 60279 Terminal, 4Q, 2-pole, yellow/green
WAGO 281-907
19 60281 Terminal, 4Q, 4-pole, grey WAGO
281-652
20 61225 Frequency changer 0,37kW
21 60313 Scarf joint 4Q 32A WAGO 281-402
22 60317 Fuse carrier WAGO 281-511
23 60320 Terminal, 4-conductor, for fuse carrie
WAGO 281-656
24 60569 Retaining bracket for console
25 61399 2-polet wago relay 24VAC
26 60581 Retainer for circuit board, double
nylon 11.1
27 60585 Transformer 200-230-240/2x24-12
28 61400 2-polet wago relay 230VAC
29 60586 Console for DIN slide welded
30 60591 Staybolt brass M3x18 with threaded pin
31 60592 Computer I/O gas
32 60593 Console welded
NOVEMBER 23, 2015 56 BCM & BCP & BCT COMBI OVENS
Loading...
