SAFFIRE SERIES
SECTIONAL RANGE
REPLACEMENT PARTS LIST
Model B36A-BBB
Model B36A-TTT
Model B36A-BBB-SU
Model B36A-HHH
Model B36A-CCC
Model B36A-GRAD
BLODGETT OVEN COMPANY , 44 Lakeside Avenue, Burlington, Vermont 05401 USA
Telephone: (802) 860-3700 (800) 331-5842 Fax: (802) 860-3732
www.blodgett.com
Superseding All Previous Parts Lists.
The Company reserves the right to make substitution in the event that items specified are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.
www.blodgett.com
JUNE 14, 2004 2 SECTIONAL RANGES
IMPORTANT: When ordering parts, please provide the model, gas
type and serial number of the unit. The identification plate is located
on the back center of the unit.
Location of Serial Plate
MODELS COVERED
Flush 35K-Open-Burner Models:
B12N-B, B12C-B, B24N-BB, B24C-BB, B36N-BBB, B36C-BBB, B36D-BBB, &
B36A- BBB45K-
Open-Burner Models:
B36N-XX, B36C-XX, B36D-XX, & B36A-XXStep-Up 35K-
Open-Burner Models:
B24N-BB-SU, B24C-BB-SU, B36N-BBB-SU, B36C-BBB-SU, B36D-BBB-SU, &
B36A-BBB-SU
Charbroiler Models:
B24N-CC, B24C-CC, B36N-CCC, B36C-CCC, B36D-CCC, B36A-CCC, B48N-CCCC,
B48D-CCCC, & B48A-CCCC
Standard Griddle Models:
B12N-G, B12C-G, B24N-GG, B24C-GG, B36N-GGG, B36C-GGG, B36D-GGG,
B36A-GGG, B48N-GGGG, B48D-GGGG, & B48A-GGGG
Thermostatic Griddle Models:
B24N-TT, B24C-TT, B36N-TTT, B36C-TTT, B36D-TTT, B36A-TTT, B48N-TTTT, B48D-TTTT,
& B48A-TTTT
Hot-Top Models:
B12N-H, B12C-H, B24N-HH, B24C-HH, B36N-HHH, B36C-HHH, B36D-HHH, & B36A-HHH
Graduated Hot-Top Models:
B36N-GRAD, B36C-GRAD, B36D-GRAD, & B36A-GRAD
TO OBTAIN LITERATURE:
Blodgett Literature Department
800-331-5842, x2035
Fax: 802-860-3755
Email: literature@blodgett.com
or
www.blodgett.com
JUNE 14, 2004 3 SECTIONAL RANGES
TABLE OF CONTENTS
FRONT RAIL PARTS ...................................................................................... PAGE 4
LEG AND CASTER PARTS........................................................................... PAGE 5
35K OPEN BURNER EXTERNAL AND STRUCTURAL PARTS............. PAGE 6 & 7
35K OPEN BURNER GAS TRAIN PARTS ................................................. PAGE 8 & 9
45K OPEN BURNER PARTS......................................................................... PAGE 10 & 11
CHARBROILER EXTERNAL AND STRUCTURAL PAR TS ..................... PAGE 12 & 13
CHARBROILER AND ST ANDARD GRIDDLE GAS TRAIN PARTS ..... PAGE 14

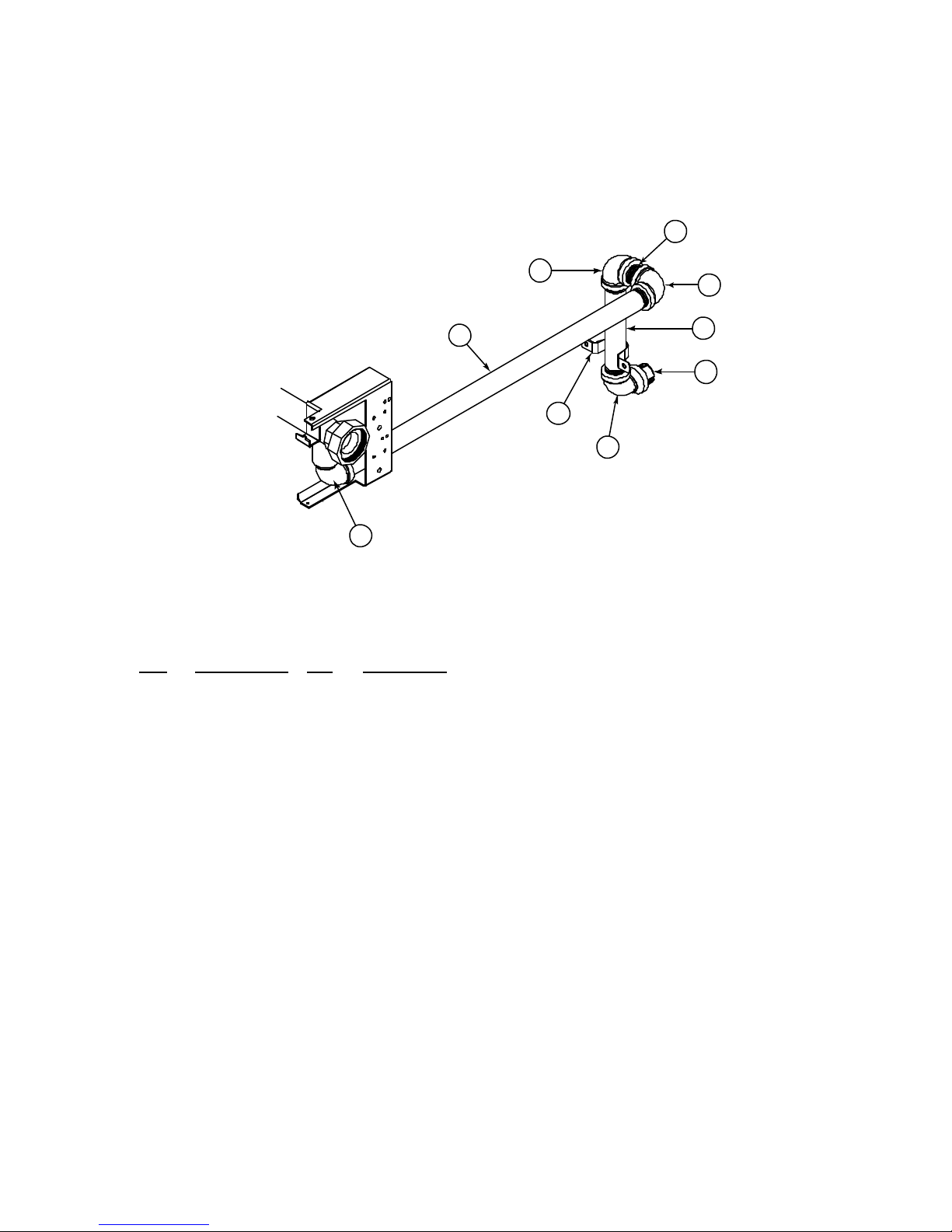

GAS CONNECTION PARTS.......................................................................... PAGE 15
GRIDDLE EXTERNAL AND STRUCTURAL PARTS ................................ PAGE 16 & 17
THERMOSTATIC GRIDDLE GAS TRAIN PARTS .................................... PAGE 18 & 19
UNIFORM HOT TOP PARTS......................................................................... PAGE 20 & 21
GRADUATED HOT TOP PARTS.................................................................. PAGE 22 & 23
OVEN BASE PARTS....................................................................................... PAGE 24 & 25

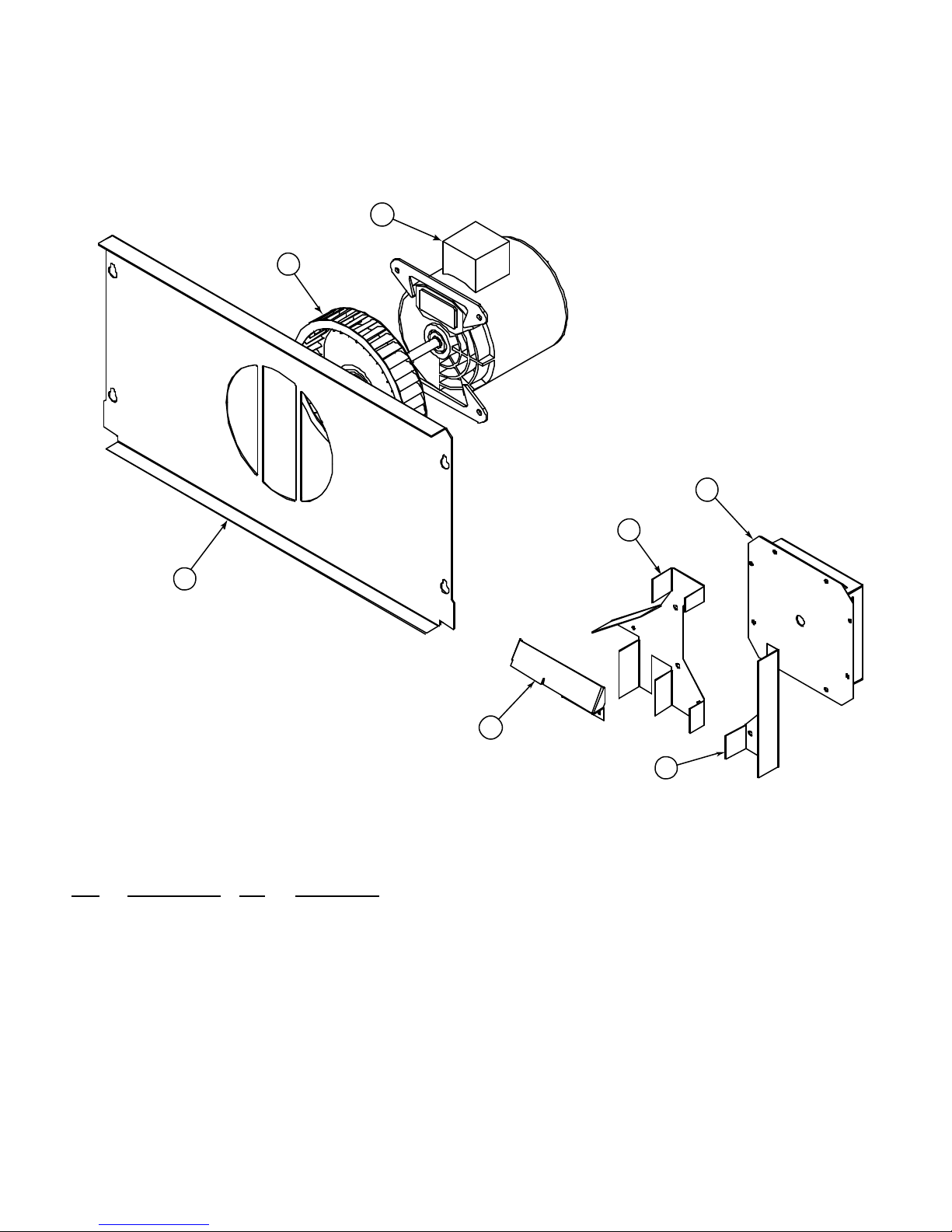

CONVECTION OVEN BLOWER PARTS .................................................... PAGE 26
MODULAR COUNTERTOP BASE PARTS................................................. PAGE 27
CABINET BASE PARTS ................................................................................ PAGE 28
FLUE RISER PARTS....................................................................................... PAGE 29 & 30
SIDE PANEL AND BATTERY ASSEMBLY PARTS.................................. PAGE 31
EXCLUSIVE TO ST ANDING PILOT OVENS.............................................. PAGE 32
JUNE 14, 2004 4 SECTIONAL RANGES
FRONT RAIL PARTS
Models Key Part Number Description
B12-B, B12-B-SU, B12-H 1 Z1184889 ASM, RAIL, 12" OPN.GRAD TOP
(with belly bar)
Z1184767 ASM, RAIL, 12" OPN.GRAD TOP
(with slot for sauce pans)
B24-BB, B24-BB-SU, B24-HH 1 Z1184890 ASM, RAIL, 24" OPN.GRAD TOP
(with belly bar)
Z1184765 ASM, RAIL, 24" OPN.GRAD TOP
(with slot for sauce pans)
B36-BBB, B36-BBB-SU, B36-GRAD, B36-HHH, B36-XX
1 Z1184891 ASM, RAIL, 36" OPN.GRAD TOP
(with belly bar)
Z1184763 ASM, RAIL, 36" OPN.GRAD TOP
(with slot for sauce pans)
B12-G 2 Z1184402 ASM, RAIL, 12" GRI/CHR
(with belly bar)
B24-CC, B24-GG, B24-TT 2 Z1184403 ASM, RAIL, 24" GRI/CHR
(with belly bar)
B36-CCC, B36-GGG, B36-TTT 2 Z1184404 ASM, RAIL, 36" GRI/CHR
(with belly bar)
B48-CCCC, B48-GGGG, B348-TTTT 2 Z1184405 ASM, RAIL, 48" GRI/CHR
(with belly bar)
NO DRAWING AVAILABLE
JUNE 14, 2004 5 SECTIONAL RANGES
LEG & CASTER PARTS
1
2
3
4
5
Key Part Number Qty Description
1 Z1172650 4 LEG PAD (3/4 X 10 HOLE)
2 Z1146500 16 1/4 LOCK WASHER
3 Z1146201 16 1/4 X 30 X 3/4 HEX HEAD
4 Z1174260 1 LEG PACKAGE
(set of four legs, not including bolts, leg pads, or lock washers)
Z1174262 1 EARTHQUAKE LEGS SS (set of four)
5 Z1174265 1 CASTER PACKAGE
(two casters with brake and two without brake)
NOTE: Does not include bolts, lock washers, or leg pads
Step-Up 35K-Open-
JUNE 14, 2004 6 SECTIONAL RANGES
35K-OPEN-BURNER EXTERNAL AND STRUCTURAL PARTS
9
Flush 35K-Open-Burner Models
6
2
3
10
8
7
4
5
4
14
4
11
12
13
15
17
16
1
18
Burner Models
36"-Wide Models Shown
JUNE 14, 2004 7 SECTIONAL RANGES
35K-OPEN-BURNER EXTERNAL AND STRUCTURAL PARTS
Key Part Number Quantity* Description
FOR MODELS: 12" 24" 36"
1 Z1183978 1 - - TRAY ASSEMBLY, 12" CRUMB
Z1183974 - 1 - TRAY ASSEMBLY, 24" CRUMB
Z1183972 - - 1 TRAY ASSEMBLY, 36" CRUMB
2 Z1184192 2 4 6 KNOB
3 Z1184729 1 - - VALVE PANEL, 12C-B (cabinet base)
Z1184730 1 - - VALVE PANEL, 12N-B (modular-countertop base)
Z1184727 - 1 - VALVE PANEL, 24C-BB (cabinet base)
Z1184728 - 1 - VALVE PANEL, 24N-BB (modular-countertop base)
Z1183614 - - 1 VALVE PANEL, 36A/D-BBB (oven base)
Z1184610 - - 1 VALVE PANEL, 36C-BBB (cabinet base)
Z1184609 - - 1 VALVE PANEL, 36N-BBB (modular-countertop base)
4 Z1184760 2 - - BURNER REST, 12
Z1184759 - ** - BURNER REST, 24
Z1184758 - - ** BURNER REST, 36
5 Z1183883 1 - - SUPPORT, 12 PILOT (for flush-top models)
Z1183882 - 1 - SUPPORT, 24 PILOT (for flush-top models)
Z1183601 - - 1 SUPPORT, 36 PILOT (for flush-top models)
6 Z1180872 1 2 3 BRACKET, PILOT SUPPORT (for flush-top models)
7 Z1183888 1 - - TRIM, 12 FLUE RISER
Z1183886 - 1 - TRIM, 24 FLUE RISER
Z1183531 - - 1 TRIM, 36 FLUE RISER
8 Z1183900 1 - - TRIM, 42 DEEP 12 FLUE RISER
Z1183898 - 1 - TRIM, 42 DEEP 24 FLUE RISER
Z1183589 - - 1 TRIM, 42 DEEP 36 FLUE RISER
9 Z1183500 1 2 3 CAST IRON GRATE, SECTIONAL
10 Z1184847 1 2 3 WELDED GRATE, SECTIONAL
11 Z1183501 - 4 6 CAST IRON GRATE, SECTIONAL HALF
(for step-up models)
2 Z1184870 - 4 6 WELDED GRATE, SECTIONAL HALF (for step-up models)
13 Z1184672 - 1 - SUPPORT W/A, STEP-UP 24" GRATE
JUNE 14, 2004 8 SECTIONAL RANGES
35K-OPEN-BURNER GAS TRAIN PARTS
Flush 35K-Open-Burner Models
1
6
8
2
7
5
9
10
1
2
3
4
3
12
8
12
4
10
5
Step-Up 35K-Open-Burner Models
7
13
11
36"-Wide Models Shown
JUNE 14, 2004 9 SECTIONAL RANGES
35K-OPEN-BURNER GAS TRAIN PARTS
Key Part Number Quantity* Description
FOR MODELS: 12" 24" 36"
1 Z1183923 1 - - MANIFOLD W/A, 2 BURNER OPEN TOP
Z1183922 - 1 - MANIFOLD W/A, 4 BURNER OPEN TOP
Z1183593 - - 1 MANIFOLD W/A, 6 BURNER OPEN TOP
2 Z1179222 2 4 6 NIPPLE, EXTENSION
3 Z1178202 2 4 6 VALVE, HI-OFF, NAT/LP
4 Z1179188 1 2 3 EXTENSION, ORIFICE
Z1008737 2 4 6 ORIFICE, NAT GAS
NOTE: If operating above 2000 ft, contact Blodgett Technical Service for appropriate orifice size
Z1008752 2 4 6 ORIFICE, PROPANE
NOTE: If operating above 2000 ft, contact Blodgett Technical Service for appropriate orifice size
5 Z1182193 2 4 6 BURNER ASSEMBLY, OPEN TOP
(shutter - Z1182157, screen- Z1146237)
Z1182195 1 2 3 FITTING, 1/2" COMP 1/4" NPT
connects rear-burner gas tube to valve
6 Z1182192 1 2 3 TUBE, REAR BURNER
7 Z1182191 1 2 3 ORIFICE FITTING
8 Z1166004 1 2 3 FITTING, DOUBLE PILOT, 3/16" TUBE
9 Z1183605 1 2 3 PILOT TUBE W/A REAR
10 Z1183603 1 2 3 PILOT TUBE W/A FRONT
11 Z1177106 - 2 3 TUBE ASM, REAR BURNER PILOT
or rear pilots of step-up models
12 Z1184646 - 1 2 TUBE, REAR BURNER STEP-UP
for left rear burner of step-up models, and center rear
burner of 36"-wide step-up model
13 Z1184647 - 1 1 TUBE, REAR BURNER STEP-UP
for right rear burner of step-up models
NOTE: *Quantity of part used may depend on width of section (12", 24", or 36").
JUNE 14, 2004 10 SECTIONAL RANGES
45K-OPEN-BURNER PARTS
8
15
13
14
12
7
6
16
10
11
9
1
2
17
18
4
3
5
4
JUNE 14, 2004 11 SECTIONAL RANGES
45K-OPEN-BURNER PARTS
Key Part Number Qty Description
1 Z1184689 4 KNOB
2 Z1184415 1 VALVE PANEL, 36A/D-XX (oven base)
Z1184407 1 VALVE PANEL, 36C -XX (cabinet base)
Z1184406 1 VALVE PANEL, 36N-XX (modular-countertop base)
3 Z1183972 1 TRAY ASSEMBLY, 36" CRUMB
4 Z1185008 2 BURNER SUPPORT
5 Z1179229 2 SUPPORT, PILOT
6 Z1183531 1 TRIM 36 DEEP 36 FLUE RISER
7 Z1183589 1 TRIM 42 DEEP 36 FLUE RISER
8 Z1184499 2 CAST IRON GRATE
* Z1184846 2 WELDED GRATE
9 Z1184883 1 MANIFOLD W/A
10 Z1179222 4 NIPPLE, EXTENSION
11 Z1178202 4 VALVE, HI-OFF, NAT/LP
* Z1008735 4 ORIFICE, NAT GAS
NOTE: If operating above 2000 ft, contact Blodgett Technical Service for appropriate orifice size
Z1008750 4 ORIFICE, PROPANE
NOTE: If operating above 2000 ft, contact Blodgett Technical Service for appropriate orifice size
12 Z1179240 2 BURNER, VENTURI (for front burners)
13 Z1179241 2 BURNER, VENTURI (for rear burners)
14 Z1179230 4 BURNER HEAD, 40
15 Z1177043 4 COVER, BURNER DRIP
16 Z1166004 2 FITTING, DOUBLE PILOT, 3/16" TUBE
17 Z1179246 2 PILOT W/A, REAR
18 Z1179244 2 PILOT W/A, FRONT
NOTE: *Quantity of part used may depend on width of section (12", 24", or 36").
JUNE 14, 2004 12 SECTIONAL RANGES
CHARBROILER EXTERNAL & STRUCTURAL PARTS
18
17
16
14
11
15
6
5
4
3
13
12
8
7
10
9
1
2
JUNE 14, 2004 13 SECTIONAL RANGES
CHARBROILER EXTERNAL & STRUCTURAL PARTS
Key Part Number Quantity* Description
FOR MODELS: 12" 24" 36"
1 Z1184689 2 3 4 KNOB
2 Z1184519 1 - - VALVE PANEL, 24C-CC, SS
Z1184521 1 - - VALVE PANEL, 24N-CC, SS
Z1183641 - 1 - VALVE PANEL, 36A/D-CCC, SS
Z1183643 - 1 - VALVE PANEL, 36C-CCC, SS
Z1183642 - 1 - VALVE PANEL, 36N-CCC, SS
Z1185396 - - 1 VALVE PANEL, 48A/D-CCCC, SS
Z1185397 - - 1 VALVE PANEL, 48C-CCCC, SS
Z1185398 - - 1 VALVE PANEL, 48N-CCCC, SS
3 Z1184773 2 3 4 COVER, VALVE SHIELD
4 Z1184523 1 - - SHIELD, 24" VALVE HEAT
Z1184522 - 1 - SHIELD, 36" VALVE HEAT
Z1185379 - - 1 SHIELD, 48" VALVE HEAT
5 Z1183896 1 - - BURNER REST, 24 CHAR/GRI
Z1183524 - 1 - BURNER REST, 36 CHAR/GRI
Z1183895 - - 1 BURNER REST, 48 CHAR/GRI
6 Z1183901 1 - - SHIELD, 24" CHARBROILER HEAT
Z1184543 - 1 - SHIELD, 36" CHARBROILER HEAT
Z1185388 - - 1 SHIELD, 48" CHARBROILER HEAT
7 Z1183974 2 - - TRAY W/A, 24 CHARBROILER CRUMB
Z1184772 - 2 - TRAY W/A, 36 CHARBROILER CRUMB
Z1185401 - - 1 TRAY W/A, 48 CHARBROILER CRUMB LT
Z1185486 - - 1 TRAY W/A, 48 CHARBROILER CRUMB RT
8 Z1184994 2 3 4 BRACKET, RADIANT STOP
9 Z1183890 1 - - TRIM, CHAR/GRI 24 FLUE RISER
Z1183635 - 1 - TRIM, CHAR/GRI 36 FLUE RISER
Z1183889 - - 1 TRIM, CHAR/GRI 48 FLUE RISER
10 Z1183893 1 - - TRIM, 42 DEEP CHAR/GRI 24 FLUE RISER
Z1183590 - 1 - TRIM, 42 DEEP CHAR/GRI 36 FLUE RISER
Z1183892 - - 1 TRIM, 42 DEEP CHAR/GRI 48 FLUE RISER
11 Z1183541 1 1 1 SHIELD, LEFT DRIP
12 Z1183542 1 1 1 SHIELD, RIGHT DRIP
13 Z1183610 1 - - SUPPORT, 24" CHRBRLR GRATE
Z1183609 - 1 - SUPPORT, 36" CHRBRLR GRATE
Z1183649 - - 1 SUPPORT, 48" CHRBRLR GRATE
14 Z1183926 1 - - SHIELD, 24" REAR DRIP
Z1183525 - 1 - SHIELD, 36" REAR DRIP
Z1183928 - - 1 SHIELD, 48" REAR DRIP
15 Z1183786 1 - - CHARBROILER W/A, 24
Z1183646 - 1 - CHARBROILER W/A, 36
Z1183789 - - 1 CHARBROILER W/A, 48
16 Z1183676 2 3 4 RADIANT W/A
17 Z1182657 4 6 8 GRATE, LAVA ROCK
Z1173193 4 6 8 LAVA ROCK BRIQUETTES, BAG
18 Z1178976 4 6 8 CHARBROILER GRID
Z1182838 4 6 8 PLATED FISH GRID
NOTE: *Quantity of part used may depend on width of section (12", 24", or 36").
JUNE 14, 2004 14 SECTIONAL RANGES
CHARBROILER AND STANDARD-GRIDDLE GAS TRAIN PARTS
Pilot Parts for Charbroiler Models
8
10
6
5
4
7
Pilot Parts for Standard-Griddle Models
12
9
16
3
36"-Wide Model Shown
2
1
11
13
15
14
Key Part Number Quantity* Description
FOR MODELS: 12" 24" 36"
1 Z1183920 1 - - - MANIFOLD W/A, 12, CHAR/GRI SECT
Z1183919 - 1 - - MANIFOLD W/A, 24, CHAR/GRI SECT
Z1183675 - - 1 - MANIFOLD W/A, 36, CHAR/GRI SECT
Z1183921 - - - 1 MANIFOLD W/A, 48, CHAR/GRI SECT
2 Z1179222 1 2 3 4 NIPPLE, EXTENSION
3 Z1176008 1 2 3 4 VALVE, BURNER, NAT
4 Z1183503 1 2 3 4 TUBE, 3/8" X 9" FLEXIBLE
5 Z1183680 1 2 3 4 MANIFOLD, DUAL BURNER ORIFICE
** Z1008748 2 4 6 8 ORIFICE, NAT GAS
NOTE: If operating above 2000 ft, contact Blodgett Technical Service for appropriate orifice size
Z1008756 2 4 6 8 ORIFICE, PROPANE
NOTE: If operating above 2000 ft, contact Blodgett Technical Service for appropriate orifice size
6 Z1182762 2 4 6 8 BURNER ASSEMBLY, CHARBROILER
7 Z1166004 1 2 3 4 FITTING, DOUBLE PILOT, 3/16" TUBE
8 Z1184505 1 2 3 4 TUBE W/A, CHAR. LEFT PILOT
9 Z1184506 1 2 3 4 TUBE W/A, CHAR. RIGHT PILOT
10 Z1182821 2 4 6 8 BRACKET, PILOT
11 Z1099002 1 1 1 1 PILOT ADJUST
Z1184541 1 1 1 2 PILOT GAS TUBE
12 Z1183686 1 1 1 2 ASSEMBLY, PILOT, NAT
13 Z1185651 1 1 1 2 BRACKET, PILOT (use both pieces)
Z1185652 1 1 1 2 BRACKET, PILOT (use both pieces)
14 Z1183573 - 1 2 2 TUBE, RUNNER TUBE ORIFICE
15 Z1183584 - 1 2 2 FITTING, NAT 3/8 REDUCER
16 Z1183536 - 1 2 2 TUBE ASSEMBLY, PILOT RUNNER
NOTE: *Quantity of part used may depend on width of section (12", 24", or 36").
JUNE 14, 2004 15 SECTIONAL RANGES
GAS CONNECTION PARTS
5
2
6
4
7
Key Part Number Qty Description
1 Z1147005 1 1" PIPE CAP
2 Z1146905 2 1" 90 DEGREE ELBOW
3 Z1163489 1 REAR GAS STUB
4 Z1184777 1 STRAP, 1-1/4" PIPE
5 Z1146808 1 1" PIPE NIPPLE
6 Z1174747 1 TAIL PIPE
7 Z1146911 1 ELBOW, ST., BLK, 1" 90 DEGREE
Z4450009 * PRESSURE REGULATOR 1-1/4" 2,500,000 BTU NAT
Z4450010 * PRESSURE REGULATOR 1-1/4" 2,500,000 BTU LP
Z1167782 * PRESSURE REGULATOR 1" 600,000 BTU NAT
Z1167783 * PRESSURE REGULATOR 1" 600,000 BTU LP
Z4450008 * 1-1/4" GAS SHUT OFF VALVE
Z4450007 * 1" GAS SHUT OFF VALVE
Z1130195 * 1" QUICK DISCONNECT, 48" FLEX HOSE
Z1130194 * 1" QUICK DISCONNECT, 60" FLEX HOSE
2
3
1
2
NOTE: *Quantity of part used may depend on width of section (12", 24", or 36").
JUNE 14, 2004 16 SECTIONAL RANGES

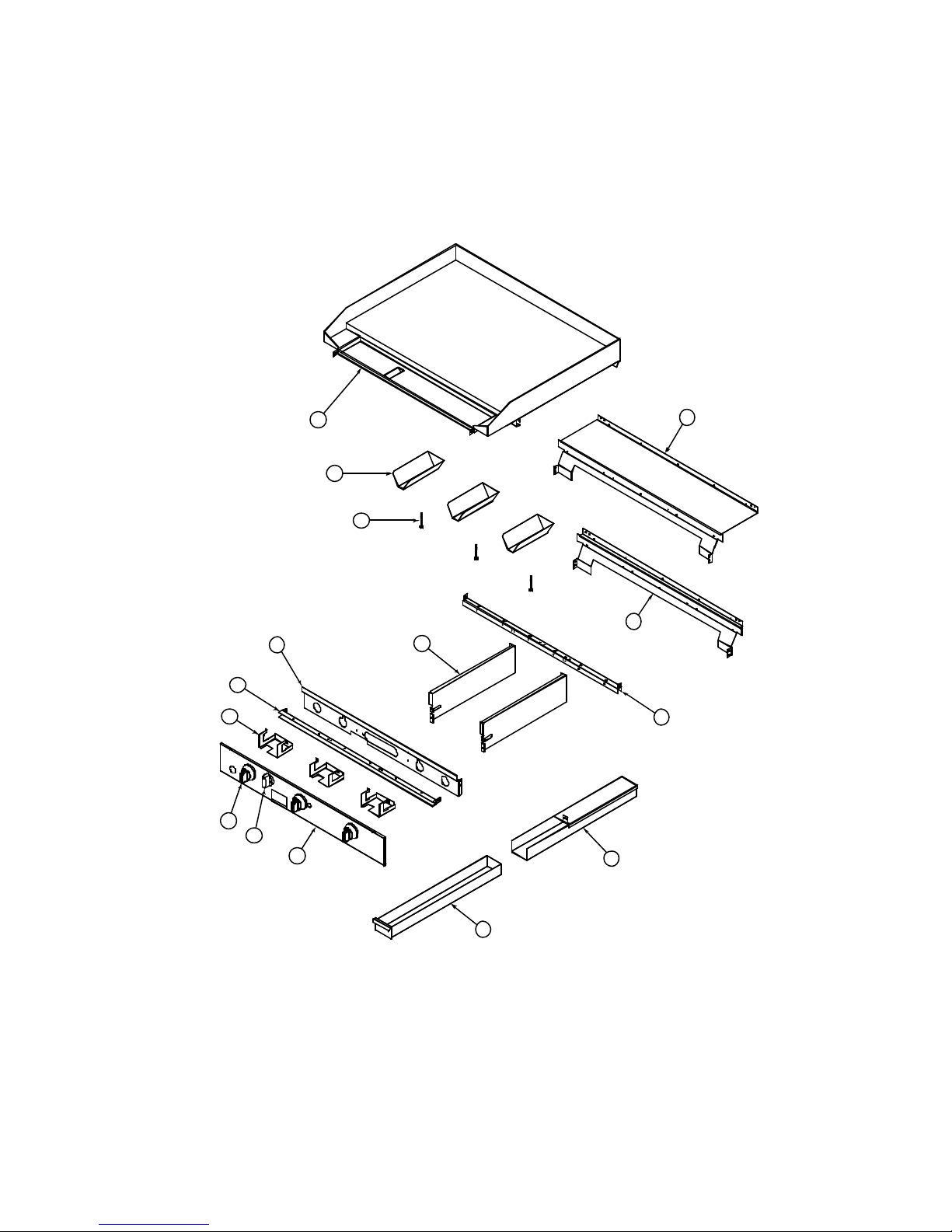

GRIDDLE EXTERNAL & STRUCTURAL PARTS
14
13
12
10
8
7
6
1
2
3
9
5
11
7
4
JUNE 14, 2004 17 SECTIONAL RANGES
GRIDDLE EXTERNAL & STRUCTURAL PARTS
Key Part Number Quantity* Description
FOR MODELS: 12" 24" 36"
1 Z1184192 1 2 3 4 KNOB
2 Z1073497 1 2 3 4 KNOB ASM, VALVE
3 Z1184653 1 - - - VALVE PANEL, 12C-G, SS
Z1184657 1 - - - VALVE PANEL, 12N-G, SS
Z1184651 - 1 - - VALVE PANEL, 24C-GG, SS
Z1184518 - 1 - - VALVE PANEL, 24C-TT, SS
Z1174655 - 1 - - VALVE PANEL, 24N-GG, SS
Z1184516 - 1 - - VALVE PANEL, 24N-TT, SS
Z1184601 - - 1 - VALVE PANEL, 36A/D-GGG, SS
Z1183963 - - 1 - VALVE PANEL, 36A/D-TTT, SS
Z1184602 - - 1 - VALVE PANEL, 36C-GGG, SS
Z1183962 - - 1 - VALVE PANEL, 36C-TTT, SS
Z1184600 - - 1 - VALVE PANEL, 36N-GGG, SS
Z1183961 - - 1 - VALVE PANEL, 36N-TTT, SS
Z1185380 - - - 1 VALVE PANEL, 48A/D-GGGG, SS
Z1185393 - - - 1 VALVE PANEL, 48A/D-TTTT, SS
Z1185385 - - - 1 VALVE PANEL, 48C-GGGG, SS
Z1185393 - - - 1 VALVE PANEL, 48C-TTTT, SS
Z1185386 - - - 1 VALVE PANEL, 48N-GGGG, SS
Z1185395 - - - 1 VALVE PANEL, 48N-TTTT, SS
4 Z1183696 1 1 1 1 GREASE DRAWER W/A
5 Z1183691 1 1 1 1 GREASE DRAWER BASE W/A
6 Z1184773 1 2 3 4 COVER, VALVE SHIELD
7 Z1183897 2 - - - BURNER REST, 12 CHAR/GRI
Z1183896 - 2 - - BURNER REST, 24 CHAR/GRI
Z1183524 - - 2 - BURNER REST, 36 CHAR/GRI
Z1183895 - - - 2 BURNER REST, 48 CHAR/GRI
8 Z1183903 1 - - - SHIELD, 12" GRIDDLE HEAT
Z1183902 - 1 - - SHIELD, 24" GRIDDLE HEAT
Z1183653 - - 1 - SHIELD, 36" GRIDDLE HEAT
Z1185387 - - - 1 SHIELD, 48" GRIDDLE HEAT
9 Z1183685 - 1 2 3 BURNER BOX DIVIDER
10 Z1183891 1 - - - TRIM, CHAR/GRI 12 FLUE RISER
Z1183890 - 1 - - TRIM, CHAR/GRI 24 FLUE RISER
Z1183635 - - 1 - TRIM, CHAR/GRI 36 FLUE RISER
Z1183889 - - - 1 TRIM, CHAR/GRI 48 FLUE RISER
11 Z1183894 1 - - - TRIM, 42 DEEP CHAR/GRI 12 FLUE RISER
Z1183893 - 1 - - TRIM, 42 DEEP CHAR/GRI 24 FLUE RISER
Z1183590 - - 1 - TRIM, 42 DEEP CHAR/GRI 36 FLUE RISER
Z1183892 - - - 1 TRIM, 42 DEEP CHAR/GRI 48 FLUE RISER
12 Z1146383 - 2 3 4 BOLT, HEX, 5/16-18X5LG. (thermostatic griddles only)
13 Z1183692 - 2 3 4 SHIELD, T’STAT BULB (thermostatic griddles only)
14 Z1184944 1 - - - GRIDDLE W/A, 12 STANDARD
Z1183784 - 1 - - GRIDDLE W/A, 24 STANDARD
Z1183785 - - 1 - GRIDDLE W/A, 36 STANDARD
Z1185378 - - - 1 GRIDDLE W/A, 48 STANDARD
Z1183783 - 1 - - GRIDDLE W/A, 24 T-STAT
Z1183656 - - 1 - GRIDDLE W/A, 36 T-STAT
Z1185464 - - - 1 GRIDDLE W/A, 48 T-STAT
NOTE: *Quantity of part used may depend on width of section (12", 24", or 36").
JUNE 14, 2004 18 SECTIONAL RANGES
THERMOSTA TIC GRIDDLE GAS TRAIN PARTS
13
12
11
7
22
21
20
17
8
9
1
5
2
6
10
3
18
19
4
14
15
16
JUNE 14, 2004 19 SECTIONAL RANGES
THERMOSTA TIC GRIDDLE GAS TRAIN PARTS
Key Part Number Quantity* Description
FOR MODELS: 12" 24" 36"
1 Z1183919 1 - - MANIFOLD W/A, 24, CHAR/GRI SECT
Z1183675 - 1 - MANIFOLD W/A, 36, CHAR/GRI SECT
Z1183921 - - 1 MANIFOLD W/A, 48, CHAR/GRI SECT
2 Z1183925 1 - - SUPPORT, 24 THERMOSTAT
Z1183545 - 1 - SUPPORT, 36 THERMOSTAT
Z1185392 - - 1 SUPPORT, 48 THERMOSTAT
3 Z1183549 1 1 2 VALVE, 200K BURNER
4 Z1183550 1 1 2 TUBE, ON/OFF VALVE GAS
5 Z1160008 1 1 2 ELBOW, BRASS
6 Z1182594 1 1 2 SAFETY VALVE SINGLE
7 Z1185389 1 - - MANIFOLD, T’STAT GRIDDLE FEEDER 24
Z1183682 - 1 - MANIFOLD, T’STAT GRIDDLE FEEDER 36
Z1185390 - - 1 MANIFOLD, T’STAT GRIDDLE FEEDER 48
8 Z1176385 2 3 4 FITTING, STRAIGHT
9 Z1174542 2 3 4 TUBE, T-GRID MANIFOLD TO T’STAT
10 Z1182553 2 3 4 SNAP ACTION GRIDDLE THERMOSTAT
11 Z1183503 2 3 4 TUBE, 3/8" X 9" FLEXIBLE
12 Z1183680 2 3 4 MANIFOLD, DUAL BURNER ORIFICE
Z1008748 4 6 8 ORIFICE, NAT GAS
NOTE: If operating above 2000 ft, contact Blodgett Technical Service for appropriate orifice size
Z1008756 4 6 8 ORIFICE, PROPANE
NOTE: If operating above 2000 ft, contact Blodgett Technical Service for appropriate orifice size
13 Z1182762 4 6 8 BURNER ASSEMBLY, CHARBROILER
14 Z1184540 1 1 2 TUBE, T-GRID LT PILOT ADJUST
15 Z1164085 1 1 2 VALVE ASM, PILOT
16 Z1184541 1 1 2 TUBE, T-GRID RT PILOT ADJUST
17 Z1183686 1 1 2 ASSEMBLY, PILOT w/SHIELD
18 Z1185651 1 1 2 BRACKET, PILOT (use both pieces)
18 Z1185652 1 1 2 BRACKET, PILOT (use both pieces)
19 Z1182580 1 1 2 THERMOCOUPLE, 24 IN
20 Z1183573 1 2 2 TUBE, RUNNER TUBE ORIFICE
21 Z1183584 1 2 2 FITTING, NAT 3/8 REDUCER
22 Z1183536 1 2 2 TUBE ASSEMBLY, PILOT RUNNER
Z1181536 1 2 2 RUNNER TUBE BRACKETS
NOTE: *Quantity of part used may depend on width of section (12", 24", or 36").
JUNE 14, 2004 20 SECTIONAL RANGES

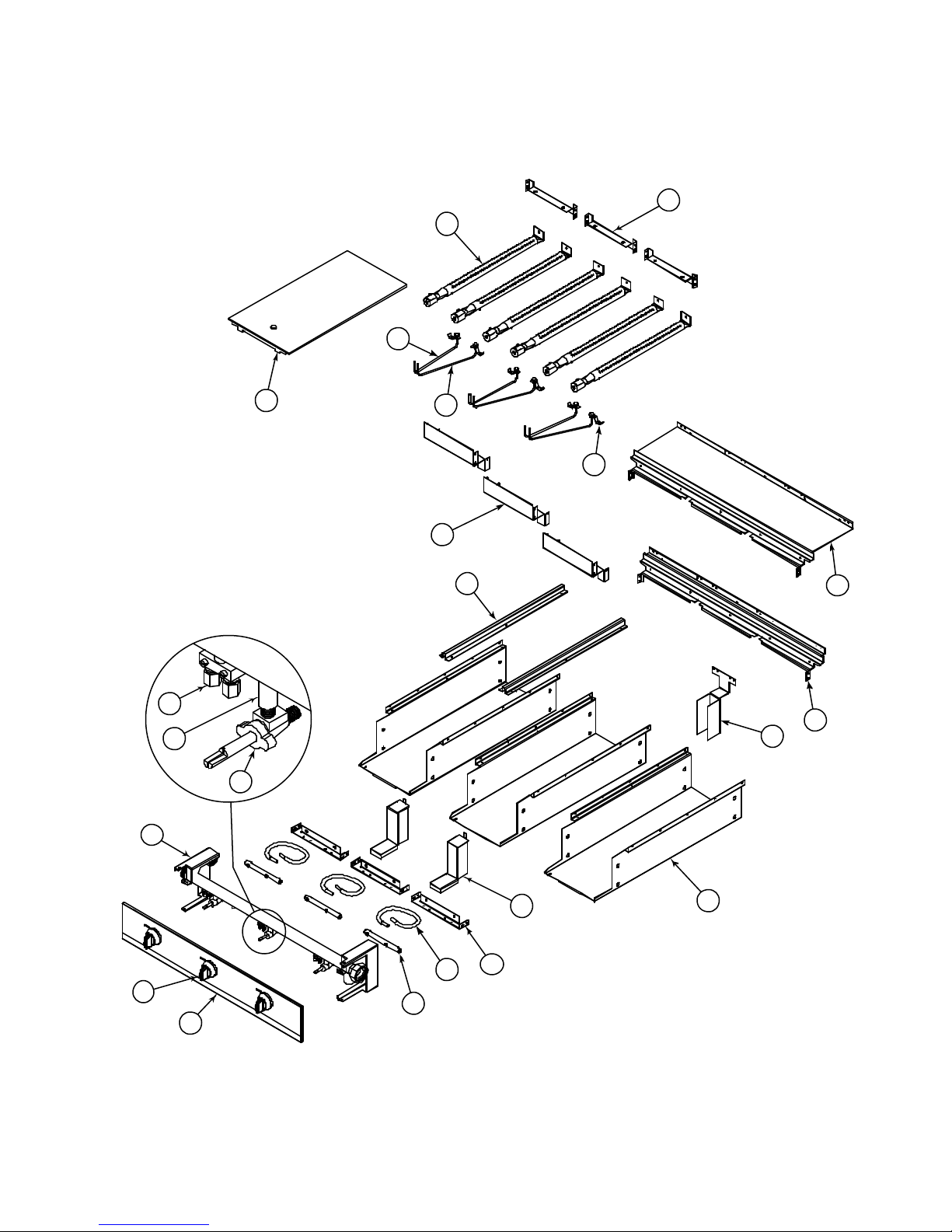

UNIFORM HOT TOP PARTS
3
17
19
11
18
13
14
12
20
21
10
9
6
8
7
1
2
4
16
15
3
5
JUNE 14, 2004 21 SECTIONAL RANGES
UNIFORM HOT TOP PARTS
Key Part Number Quantity* Description
FOR MODELS: 12" 24" 36"
1 Z1184689 1 2 3 KNOB
2 Z1184737 1 - - VALVE PANEL, 12C-H, SS
Z1184739 1 - - VALVE PANEL, 12N-H, SS
Z1184933 - 1 - VALVE PANEL, 24C-HH, SS
Z1184735 - 1 - VALVE PANEL, 24N-HH, SS
Z1184611 - - 1 VALVE PANEL, 36A/D-HHH, SS
Z1184612 - - 1 VALVE PANEL, 36C-HHH, SS
Z1184613 - - 1 VALVE PANEL, 36N-HHH, SS
3 Z1184546 2 4 6 BURNER REST, HOT TOP
4 Z1184551 - 1 2 COVER, BATTERY CENTER
5 Z1183505 1 2 3 BURNER BOX BOTTOM, 12
6 Z1184545 - 1 2 COVER, HOT TOP DIVIDER REAR
7 Z1183888 1 - - TRIM, HOT TOP 12 FLUE RISER
Z1184555 - 1 - TRIM, HOT TOP 24 FLUE RISER
Z1184544 - - 1 TRIM, HOT TOP 36 FLUE RISER
8 Z1183900 1 - - TRIM, HOT TOP 42 DEEP 12 FLUE RISER
Z1184567 - 1 - TRIM, HOT TOP 42 DEEP 24 FLUE RISER
Z1184566 - - 1 TRIM, HOT TOP 42 DEEP 36 FLUE RISER
9 Z1183563 - 1 2 TRIM, CENTER
10 Z1184547 1 2 3 SHIELD, HOT TOP HEAT
11 Z1183515 1 2 3 PLATE, UNIFORM HEATED TOP
12 Z1183920 1 - - MANIFOLD W/A, 12 UNIFORM H/TOP
Z1183919 - 1 - MANIFOLD W/A, 24 UNIFORM H/TOP
Z1183675 - - 1 MANIFOLD W/A, 36 UNIFORM H/TOP
13 Z1179222 1 2 3 NIPPLE, EXTENSION
14 Z1176008 1 2 3 VALVE, BURNER, NAT
15 Z1183680 1 2 3 MANIFOLD, DUAL BURNER ORIFICE
16 Z1183503 1 2 3 TUBE, 3/8" X 9" FLEXIBLE
Z1008750 2 4 6 ORIFICE, NAT GAS
NOTE: If operating above 2000 ft, contact Blodgett Technical Service for appropriate orifice size
Z1008756 2 4 6 ORIFICE, PROPANE
NOTE: If operating above 2000 ft, contact Blodgett Technical Service for appropriate orifice size
17 Z1182762 2 4 6 BURNER ASSEMBLY, CHARBROILER
18 Z1166004 1 2 3 FITTING, DOUBLE PILOT, 3/16" TUBE
19 Z1184505 1 2 3 TUBE W/A, CHAR. LEFT PILOT
20 Z1184506 1 2 3 TUBE W/A, CHAR. RIGHT PILOT
21 Z1182821 2 4 6 BRACKET, PILOT
NOTE: *Quantity of part used may depend on width of section (12", 24", or 36").
JUNE 14, 2004 22 SECTIONAL RANGES
GRADUATED HOT TOP PARTS
10
9
8
7
15
14
5
6
19
17
11
16
12
1
2
6
4
3
18
13
JUNE 14, 2004 23 SECTIONAL RANGES
GRADUATED HOT TOP PARTS
Key Part Number Qty Description
1 Z1184192 1 KNOB
2 Z1184617 1 VALVE PANEL, 36A/D-GRAD, SS (oven base)
Z1184618 1 VALVE PANEL, 36C-GRAD, SS (cabinet base)
Z1184619 1 VALVE PANEL, 36N-GRAD, SS (modular-countertop base)
3 Z1183531 1 TRIM, 36 FLUE RISER
4 Z1183589 1 TRIM, 42 DEEP 36 FLUE RISER
5 Z1183957 2 BURNER REST, GRADUATED
6 Z1183959 2 BRACKET, BURNER HOLD DOWN
7 Z1183956 1 SHIELD, GRADUATED BURNER
8 Z1183516 2 PLATE, GRADUATED HEAT TOP
9 Z1018997 1 PS, GRIDDLE, CSTIR, RING, GRAD.
10 Z1018996 1 PS, GRIDDLE, CSTIR, LID.GRAD.
11 Z1183675 1 MANIFOLD W/A, GRADUATED H/TOP
12 Z1176008 1 BURNER VALVE, NAT
13 Z1183960 1 BRACKET, BURNER ORFICE
* Z1006425 1 ORIFICE, NAT GAS
NOTE: If operating above 2000 ft, contact Blodgett Technical Service for appropriate orifice size
Z1006443 1 ORIFICE, PROPANE
NOTE: If operating above 2000 ft, contact Blodgett Technical Service for appropriate orifice size
14 Z1884 1 HOT TOP BRNR ASM
15 Z1160293 1 BAFFLE, TOP BURNER AIR
16 Z1099002 1 PILOT ADJUST
17 Z1164199 1 TUBE, PILOT
18 Z1183964 1 BRACKET, PILOT ASSEMBLY
19 Z1038099 1 ASSEMBLY, PILOT
NOTE: *Quantity of part used may depend on width of section (12", 24", or 36").
JUNE 14, 2004 24 SECTIONAL RANGES
OVEN BASE PARTS
17
4
5
6
7
8
9
11
2
1
10
3
22
231312 1514
24
16 2021
25
18
19
JUNE 14, 2004 25 SECTIONAL RANGES
OVEN BASE PARTS
Key Part Number Qty Description
1 Z1180776 1 OVEN BOTTOM\FLAME
2 Z1180528 2 RACK_GUIDE CO BASE
3 Z6660 8 CLIP, RACK SUPPORT
* Z1173545 1 OVEN RACK (for standard oven)
Z1179920 1 OVEN RACK (for convection oven)
4 Z1177541 1 POWER SWITCH
5 Z1177790 1 ON/OFF FAN SWITCH (for convection oven)
6 Z1176650 1 LIGHT
7 Z1174749 1 KNOB
* Z1173542 1 THERMOSTAT
8 Z1184622 1 CONTROL PANEL W/A
9 Z1184102 1 ASSEMBLY, OVEN DOOR
* Z1180861 2 DOOR HINGE ASSEMBLY (for 48” only- for 36” use 2537)
* Z1183575 1 KICK PANEL
10 Z1183756 1 SPRING, OVEN DOOR (9/26/02 to present)
11 Z1183551 1 BRACKET ASSEMBLY, ROLLER ASM
12 Z1177567 1 DOOR SWITCH
13 Z1183619 1 DOOR SWITCH BRACKET
14 Z1168262 1 SWITCH, FLAME
15 Z1165708 1 FLM SW MNT BRKT
16 Z1164809 1 SPARK MODULE
* Z1184997 1 SPARK MODULE SHIELD
17 Z1185495 1 KNOB, ON/OFF
18 Z1176099 1 VALVE, BURNER (4/7/03 to present)
19 Z1006299 1 ELBOW, 1/2CC X 3/8M F
20 Z1184417 1 TUBE, OVEN GAS SUPPLY
21 Z4440534 1 KIT, OVEN SAFETY VALVE converts from old style valve to new style valve for safety
Z1185773 1 OVEN SAFETY VALVE ASM use after unit is converted
22 Z1183633 1 SOLENOID TO ORIFICE TUBE
23 Z1183568 1 BRACKET, ORIFICE
Z1008730 1 ORIFICE, NAT GAS
NOTE: If operating above 2000 ft, contact Blodgett Technical Service for appropriate orifice size
Z1008748 1 ORIFICE, PROPANE
NOTE: If operating above 2000 ft, contact Blodgett Technical Service for appropriate orifice size
24 Z1165733 1 BURNER
Z1164807 1 ELECTROBE
Z1168263 1 PILOT .014 FOR NAT AND LP
25 Z1182072 1 BRACKET, OVEN BURNER
Z1183634 1 BRACKET SWITCH ACTUATOR
Z1146373 1 SCREWS FOR BRACET SWITCH ACT.
JUNE 14, 2004 26 SECTIONAL RANGES
CONVECTION OVEN BLOWER PARTS
3
2
4
1
7
Key Part Number Qty Description
1 Z1180834 1 OVEN BAFFLE CO
2 Z1177581 1 BLOWER WHEEL ASSEMBLY
3 Z1177452 1 MOTOR, 1/3 HP, 115 VOLT
4 Z1180821 1 POCKET W/A, BLOWER, 500 SERIES
5 Z1181747 1 SHIELD, RT BLOWER, 500 SERIES
6 Z1181748 1 SHIELD, LT BLOWER, 500 SERIES
7 Z1184703 1 AIR DIVERTER
5
6
JUNE 14, 2004 27 SECTIONAL RANGES

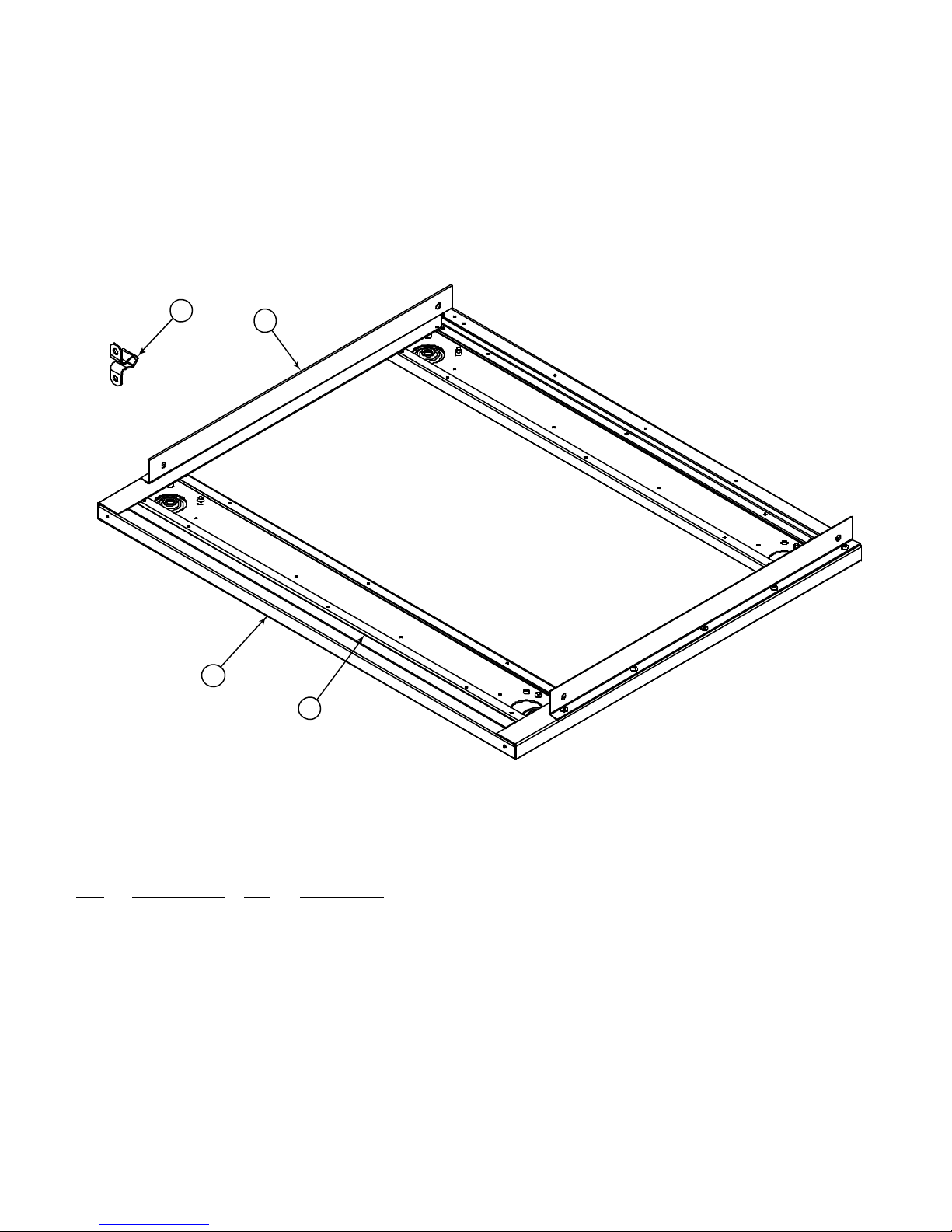

MODULAR-COUNTERTOP BASE PARTS
4
1
3
2
Key Part Number Qty Description
1 Z1183863 1 BASE. 12 COUNTERTOP
Z1183859 1 BASE. 24 COUNTERTOP
Z1183523 1 BASE. 36 COUNTERTOP
Z1185418 1 BASE. 48 COUNTERTOP
JUNE 14, 2004 28 SECTIONAL RANGES
CABINET BASE PARTS
7
5
3
6
4
1
2
Key Part Number Quantity* Description
FOR MODELS: 12" 24" 36" 48”
1 Z1184954 1 - - - CABINET LINING ASM, 12" LT FT
Z1184952 - 1 - 2 CABINET LINING ASM, 24" LT FT
Z1183598 - - 1 - CABINET LINING ASM, 36" LT FT
2 Z1184955 1 - - - CABINET LINING ASM, 12" RT FT
Z1184953 - 1 - 2 CABINET LINING ASM, 24" RT FT
Z1183599 - - 1 - CABINET LINING ASM, 36" RT FT
3 Z1183875 1 - - - CABINET LINING, 12" BOTTOM
Z1183873 - 1 - 2 CABINET LINING, 24" BOTTOM
Z1183600 - - 1 - CABINET LINING, 36" BOTTOM
4 Z1183563 - - 1 - TRIM, CENTER
5 Z1183866 1 - - - CABINET LINING, 12" LEFT
Z1183864 - 1 - 2 CABINET LINING, 24" LEFT
Z1183586 - - 1 - CABINET LINING, 36" LEFT
6 Z1183869 1 - - - CABINET LINING, 12" RIGHT
Z1183867 - 1 - 2 CABINET LINING, 24" RIGHT
Z1183587 - - 1 - CABINET LINING, 36" RIGHT
7 Z1183872 1 - - - CABINET LINING, 12" BACK
Z1183870 - 1 - 2 CABINET LINING, 24" BACK
Z1183594 - - 1 - CABINET LINING, 36" BACK
Z1183983 - 1 1 2 HINGE ASSEMBLY, UPPER RIGHT
Z1183984 - 1 1 2 HINGE ASSEMBLY, LOWER RIGHT
Z1183985 1 1 1 2 HINGE ASSEMBLY, UPPER LEFT
Z1183986 1 1 1 2 HINGE ASSEMBLY, LOWER LEFT
NOTE: *Quantity of part used may depend on width of section (12", 24", 36” or 48").
JUNE 14, 2004 29 SECTIONAL RANGES
FLUE RISER PARTS
4
5
3
1
2
Key Part Number Qty Description
1 Z1183617 1 FLUE BOX ASSEMBLY, 36" (for models with an oven base)
2 Z1183526 1 BRACKET, 36 DEEP LT FLUE RISER
Z1183527 1 BRACKET, 36 DEEP RT FLUE RISER
3 Z1183528 1 BRACKET, 42 DEEP LT FLUE RISER
Z1183529 1 BRACKET, 42 DEEP RT FLUE RISER
Z1184917 * TUBE 12 (single tube for 12"-wide tubed shelves)
Z1184918 * TUBE 24 (single tube for 24"-wide tubed shelves)
Z1184687 * TUBE 36 (single tube for 36"-wide tubed shelves)
Z1184919 * TUBE 48 (single tube for 48"-wide tubed shelves)
4 Z1183791 1 SPLASHER, 5" X 12"
Z1183793 1 SPLASHER, 5" X 24"
Z1183530 1 SPLASHER, 5" X 36"
Z1183795 1 SPLASHER, 5" X 48"
Z1183801 1 SPLASHER, 24" X 12" (without shelf)
Z1183803 1 SPLASHER, 24" X 24" (without shelf)
Z1183851 1 SPLASHER, 24" X 36" (without shelf)
Z1183805 1 SPLASHER, 24" X 48" (without shelf)
Z1184901 1 SPLASHER, 24" X 12" (with solid shelf)
Z1184902 1 SPLASHER, 24" X 24" (with solid shelf)
Z1184903 1 SPLASHER, 24" X 36" (with solid shelf)
Z1184904 1 SPLASHER, 24" X 48" (with solid shelf)
Z1184901 1 SPLASHER, 24" X 12" (with tubed shelf)
NOTE: * Each tubed shelf has seven tubes.
JUNE 14, 2004 30 SECTIONAL RANGES
FLUE RISER PARTS - CONT’D.
Key Part Number Qty Description
Z1184902 1 SPLASHER, 24" X 24" (with tubed shelf)
Z1184903 1 SPLASHER, 24" X 36" (with tubed shelf)
Z1184904 1 SPLASHER, 24" X 48" (with tubed shelf)
Z1183811 1 SPLASHER, 36" X 12" (without shelves)
Z1183813 1 SPLASHER, 36" X 24" (without shelves)
Z1183852 1 SPLASHER, 36" X 36" (without shelves)
Z1183815 1 SPLASHER, 36" X 48" (without shelves)
Z1184907 1 SPLASHER, 36" X 12" (with solid shelves)
Z1184908 1 SPLASHER, 36" X 24" (with solid shelves)
Z1184909 1 SPLASHER, 36" X 36" (with solid shelves)
Z1184910 1 SPLASHER, 36" X 48" (with solid shelves)
Z1184907 1 SPLASHER, 36" X 12" (with tubed shelves)
Z1184908 1 SPLASHER, 36" X 24" (with tubed shelves)
Z1184909 1 SPLASHER, 36" X 36" (with tubed shelves)
Z1184910 1 SPLASHER, 36" X 48" (with tubed shelves)
5 Z1183821 1 SHIELD, 5" X 12" WALL AZ
Z1184785 1 SHIELD, 5" X 12" WALL SS
Z1183823 1 SHIELD, 5" X 24" WALL AZ
Z1184786 1 SHIELD, 5" X 24" WALL SS
Z1183684 1 SHIELD, 5" X 36" WALL AZ
Z1184791 1 SHIELD, 5" X 36" WALL SS
Z1183825 1 SHIELD, 5" X 48" WALL AZ
Z1184792 1 SHIELD, 5" X 48" WALL SS
5 Z1183831 1 SHIELD, 24" X 12" WALL AZ
Z1184793 1 SHIELD, 24" X 12" WALL SS
Z1183833 1 SHIELD, 24" X 24" WALL AZ
Z1184794 1 SHIELD, 24" X 24" WALL SS
Z1183853 1 SHIELD, 24" X 36" WALL AZ
Z1184795 1 SHIELD, 24" X 36" WALL SS
Z1183835 1 SHIELD, 24" X 48" WALL AZ
Z1184796 1 SHIELD, 24" X 48" WALL SS
Z1183841 1 SHIELD, 36" X 12" WALL AZ
Z1184797 1 SHIELD, 36" X 12" WALL SS
Z1183843 1 SHIELD, 36" X 24" WALL AZ
Z1184798 1 SHIELD, 36" X 24" WALL SS
Z1183854 1 SHIELD, 36" X 36" WALL AZ
Z1184799 1 SHIELD, 36" X 36" WALL SS
Z1183845 1 SHIELD, 36" X 48" WALL AZ
Z1184900 1 SHIELD, 36" X 48" WALL SS
JUNE 14, 2004 31 SECTIONAL RANGES
SIDE PANEL & BATTERY ASSEMBLY PARTS
Part Number Description
Z1183547 TRIM, SIDE (if side is not adjacent to another section of a battery)
Z1183563 TRIM, SIDE (if side is adjacent to an open-burner section of a battery)
Z1183564 TRIM, SIDE (if side is adjacent to a griddle or charbroiler section of a battery)
Z1183532 BODY SIDE, 36 SS RT
Z1183521 BODY SIDE, 36 SS LT
Z1184558 BODY SIDE, 36 SS OPEN RT
Z1184559 BODY SIDE, 36 SS OPEN LT
Z1184573 BODY SIDE, 36 CAB SS RT
Z1184557 BODY SIDE, 36 CAB SS LT
Z1184574 BODY SIDE, 36 CAB SS OPEN RT
Z1184560 BODY SIDE, 36 CAB SS OPEN LT
Z1183671 BODY SIDE, HALF AZ RT
Z1183672 BODY SIDE, HALF AZ LT
Z1183538 BODY SIDE, SS COUNTERTOP RT
Z1183553 BODY SIDE, SS COUNTERTOP LT
Z1184564 BODY SIDE, SS OPEN COUNTERTOP RT
Z1184565 BODY SIDE, SS OPEN COUNTERTOP LT
Z1183673 BODY SIDE, HALF AZ COUNTERTOP RT
Z1183674 BODY SIDE, HALF AZ COUNTERTOP LT
Z1184778 PLATE, FT/RR BATTERY CONNECT
Z1184779 PLATE, RISER BATTERY CONNECT
Z1183657 TRIM, FRONT 36 OVN-36 OVN
Z1183658 TRIM, FRONT 36 OVN-36 CAB
Z1183661 TRIM, FRONT 36 OVN-CAB
Z1183670 TRIM, FRONT 36 CAB-36 OVN
Z1183669 TRIM, FRONT 36 CAB-36 CAB
Z1183666 TRIM, FRONT 36 CAB-CAB
Z1183662 TRIM, FRONT CAB-36 OVN
Z1183665 TRIM, FRONT CAB-CAB
NO DRAWING AVAILABLE
JUNE 14, 2004 32 SECTIONAL RANGES
PARTS EXCLUSIVE TO STANDING PILOT OVENS
Part Number Description
ZB94-00002-01 THERMOSTAT
Z1179998 KNOB, THERMOSTAT
Z1179999 BEZEL
Z1163869 PILOT, NAT
Z1163870 PILOT, LP
Z1165733 BURNER
Z1180866 SAFETY
Z1182580 THERMOCOUPLE
NO DRAWING AVAILABLE
Loading...
