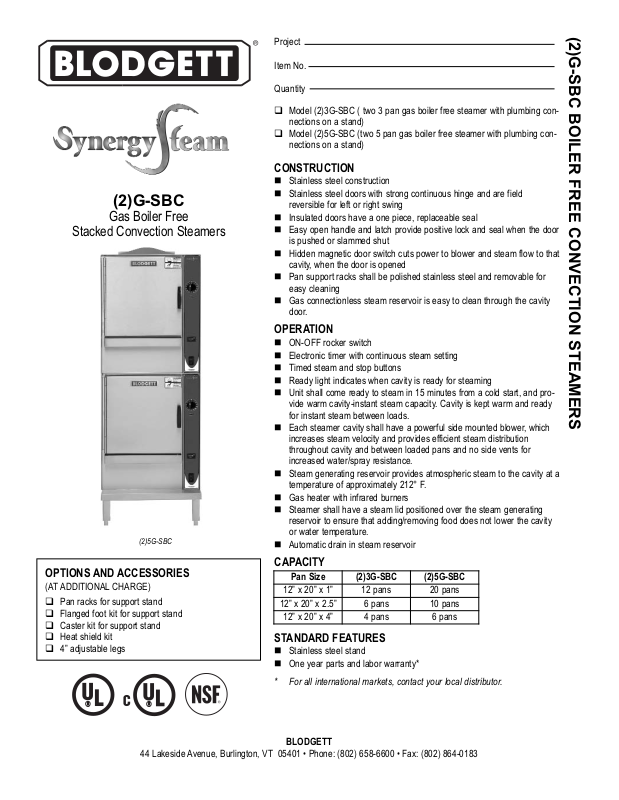

Blodgett (2)5G-SBC General Manual
Project
Item No.
Quantity
Model (2)3G-SBC ( two 3 pan gas boiler free steamer with plumbing con-
nections on a stand)
Model (2)5G-SBC (two 5 pan gas boiler free steamer with plumbing con-
nections on a stand)
CONSTRUCTION
Stainless steel construction
Stainless steel doors with strong continuous hinge and are field
reversible for left or right swing
Insulated doors have a one piece, replaceable seal
Easy open handle and latch provide positive lock and seal when the door
is pushed or slammed shut
Hidden magnetic door switch cuts power to blower and steam flow to that
cavity, when the door is opened
Pan support racks shall be polished stainless steel and removable for
easy cleaning
Gas connectionless steam reservoir is easy to clean through the cavity
door.
OPERATION
ON-OFF rocker switch
Electronic timer with continuous steam setting
Timed steam and stop buttons
Ready light indicates when cavity is ready for steaming
Unit shall come ready to steam in 15 minutes from a cold start, and pro-
vide warm cavity-instant steam capacity. Cavity is kept warm and ready
for instant steam between loads.
Each steamer cavity shall have a powerful side mounted blower, which
increases steam velocity and provides efficient steam distribution
throughout cavity and between loaded pans and no side vents for
increased water/spray resistance.
Steam generating reservoir provides atmospheric steam to the cavity at a
temperature of approximately 212° F.
Gas heater with infrared burners
Steamer shall have a steam lid positioned over the steam generating
reservoir to ensure that adding/removing food does not lower the cavity
or water temperature.
Automatic drain in steam reservoir
CAPACITY
BLODGETT
44 Lakeside Avenue, Burlington, VT 05401 • Phone: (802) 658-6600 • Fax: (802) 864-0183
OPTIONS AND ACCESSORIES
(AT ADDITIONAL CHARGE)
Pan racks for support stand
Flanged foot kit for support stand
Caster kit for support stand
Heat shield kit
4” adjustable legs
(2)G-SBC
Gas Boiler Free
Stacked Convection Steamers
(2)G-SBC BOILER FREE CONVECTION STEAMERS
Pan Size (2)3G-SBC (2)5G-SBC
12” x 20” x 1” 12 pans 20 pans
12” x 20” x 2.5” 6 pans 10 pans
12” x 20” x 4” 4 pans 6 pans
STANDARD FEATURES
Stainless steel stand
One year parts and labor warranty*
* For all international markets, contact your local distributor.
(2)5G-SBC
BLODGETT
44 Lakeside Avenue, Burlington, VT 05401 • Phone: (802) 658-6600 • Fax: (802) 864-0183
(2)G-SBC BOILER FREE STEAMERS
SHORT FORM SPECIFICATIONS
Provide Blodgett model (2)3G-SBC (6 pan) or (2)G-SBC (10 pan) boilerfree steamer with with self-contained, atmospheric, gas
heated steam generating reservoir on a stand. Construction shall be all stainless steel. Cavity shall have a powerful side-mounted blower to circulate steam. Standard operating controls shall include: an on-off rocker switch; electronic timer, with continuous
steam, timed steam and stop buttons; READY light. Door shall be field-reversible and shall be equipped with an easy-open latch
and hidden magnetic door switch. The atmospheric steam generating reservoir shall not require a pressure gauge or switches;
shall have an automatic drain and shall have an infrared burner with heating capacity of 108,000 BTU/hr for (2)3G-SBC and
124,000 BTU/hr for (2)5G-SBC. Steamer shall come up to READY in 15 minutes from a cold start and shall provide warm cavity, instant steam capability. Provide options and accessories as indicated.
Printed in U.S.A. NOTE: FOR COMMERCIAL USE ONLY
NOTE: The company reserves the right to
make substitutions of components without
prior notice.
DRAIN
Unit
6
18 (457)
5
STEAM FREE
ZONE
NOTES:
Drain connection:
Gas connection:
Water supply:
Electrical connection:
1. 2.5 (64) hose type (drain free venting). DO NOT connect directly
to drain, allow 2” air gap.
2. ½” FPT
3. 3/4” male hose connection. 30 to 60 PSIG with a flow rate of 1.5-3.0
GPM. Pressure regulation is required for water pressure over 60 PSI. DO NOT use
treated water.
4. conduit hose size = 13/16” hole.
5. If the floor drain only services this steamer, then the drain may be located within the
steam free zone. Steam free zone must be observed if other appliances cause steam
at the floor drain.
6. Do not install steamer directly above steam venting floor drains.
7. Dimensions are in inches (mm).
1
1 (25)
32.75
(832)
17.38
(441)
1.03 (26)
Steam exhaust
3
4
1.38 (35)
1.25 (32)
TOP VIEW
2 (51)
2
Exhaust flue not
shown in this view
21.75
(552)
A
B
FRONT VIEW
1.5 (38) min.
2.63 (87) max.
Exhaust Flue
Steam Exhaust
Exhaust
Flue Cover
Double stack
stand shown
with bullet feet
Electrical Supply
Electrical Supply
Gas Supply
Water Supply
Drain Connection
Flue Guard
REAR VIEW
SIDE VIEW
1
36.13 (918)
C
3
D
4
E
2
F
4
G
5 (127) with casters
(not shown)
8 (203)
APPROVAL/STAMP
P/N S00152 Rev A (6/11)
MAXIMUM INPUT:
(2)3G-SBC 108,000 BTU
(2)5G-SBC 124,000 BTU
MININUM REQUIRED CLEARANCES:
Left and right side 2” (51mm)
Rear 6” (152mm)
SHIPPING INFORMATION:
(2)3G-SBC 486 lbs. (220 kg)
(2)5G-SBC 555 lbs. (252 kg)
(2)3G-SBC (2)5G-SBC
A
63.06 (1601) 66.63 (1693)
B
61.06 (1551) 64.69 (1642)
C
14.81 (377) 6.31 (160)
D
25.75 (655) 17.44 (443)
E
32 (812) 24.50 (622)
F
50.25 (1276) 48.13 (1223)
G
53.13 (1349) 52.13 (1324)
GAS SUPPLY:
Minimum Inlet Pressure:
Natural 4.3" W.C. static to unit
Propane 10.5" W.C. static to unit
POWER SUPPLY (per cavity):
115 volt, single phase, 60 cycle 15 AMP electric
service, 4 AMP maximum load
