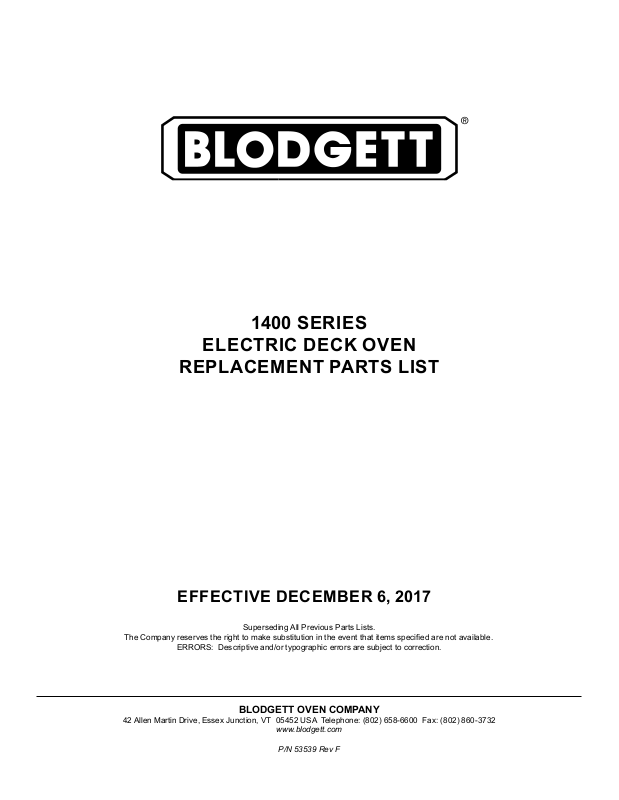

1400 SERIES
ELECTRIC DECK OVEN
REPLACEMENT PARTS LIST
EFFECTIVE DECEMBER 6, 2017
The Company reserves the right to make substitution in the event that items specied are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.
42 Allen Martin Drive, Essex Junction, VT 05452 USA Telephone: (802) 658-6600 Fax: (802) 860-3732
Superseding All Previous Parts Lists.
BLODGETT OVEN COMPANY
www.blodgett.com
P/N 53539 Rev F
IMPORTANT: When ordering parts, please provide the
model, gas type and serial number of the oven. The
identication plate is located on the left side of the
combustion compartment and, also, above the control
panel under the ledge.
ASAP Distributor Required Stocking Parts
Doors Are Not Returnable
ELECTRICAL COMPONENTS
Ref. Part
No. No. Description
1 53666 Element Assy., Bottom 208V, 3 ph
1 53668 Element Assy., Bottom 240V, 3 ph
53667 Element Assy., Top 208V, 3 ph
53669 Element Assy., Top 240V, 3 ph
53580 Element Assy., Middle 208V, after 4/27/10
53581 Element Assy., Middle 240V, after 4/27/10
53582 Element Kit, Middle upgrade to
non-removeable 208V, 3 phase
53583 Element Kit, Middle upgrade to
non-removeable 240V, 3 phase
53660 Element Kit, Bottom, 208V, 1 phase
53661 Element Kit, Top, 208V, 1 phase
53662 Element Kit, Bottom, 240V, 1 phase
53663 Element Kit, Top, 240V, 1 phase
53664 Element Kit, Middle upgrade to
non-removeable 208V, 1 phase
53665 Element Kit, Middle upgrade to
non-removeable 240V, 1 phase
INTERIOR COMPONENTS
Ref. Part
No. No. Description
19955 Deck, Steel
31144 Deck, Cordierite (3/4" x 19-1/2" x 19-1/2")
EXTERIOR COMPONENTS
Ref. Part
No. No. Description
20095 Door Assy., S/S, Drop Down (After 2/10/89)
21556 Brackets, Door Arm Roll-Up
20139 Bearing, Door Roll-Up (Set of 2)
21552 Hinge Pin, Door Roll-Up (Set of 2)
20734 Microswitch Assy., Door Roll-Up
21528 Bearing, Door Drop-Down (Set of 2)
17559 Bushing, Roll-Up
21527 Hinge Pin, Door Drop-Down (Set of 2)
23009 Handle, Door Conversion Kit
(Before 11/15/91)
20140 Handle, Door (w/rod), (After 11/15/91)
35184 Window Bracket (L & R) (for handles)
(For units after 11/15/91)
**NOTE This Kit 35184 replaces 20533 & 20534
single brackets.
20527 Catch, Door (Pressure Latch)
57628 Catch, Door (Striker Plate)
20535 Gasket, Top Door S/S
19556 Nameplate, Blodgett 4"
20557 Back Panel, Louvered
20536 Body Top & Sides, S/S
21109 Stacking Kit, 1400 on 1400
20435 Legs, 4" Painted (Set of 4)
24934 Stand, 19" S/S w/ Casters
32298 Heat Shield (1405/1415)
19806 Bodyback (before 4/27/2010)
53530 Bodyback (after 4/27/2010)
20431 Lower Deck Seal (crumb catcher)
20524 Angle, Door Seal (upper)
DECEMBER 6, 2017 2 1400 SERIES
19619 6
16686 22
MECHANICAL CONTROLS
20546
28
27
18353
16686 22
4
21553
Ref. Part
No. No. Description
30 15956 Timer, 60 Minute
16686 Knob, Timer
31 21554 Buzzer, Timer 240V
28 20546 Thermostat w/ Terminal, Mechanical
22 16686 Knob, Thermostat
27 18353 Terminal Adapter, Thermostat
6 19619 Rocker Switch, DPST, Black
29 20436 Indicator Light, 250V, Clear, Rectangular
20547 Contactor, 30 Amp., 3 Pole (For Solid State Thermostat)
17556 Terminal Block, 90 Amp., 3 Pole
23086 Suppressor Assy., RC
21430 Axial Fan, 230V, 34 CFM, 3"
24 21553 Cable Assy., Strain Relief
2043629
30
15956
2155431
DECEMBER 6, 2017 3 1400 SERIES
SOLID STATE INFINITE CONTROLS
19619 6
44
16037 41
16686 22
16686 22
18234
34
18268
47
48
51
49
18578
50
18226
Ref. Part
No. No. Description
50 18578 Control, Temperature
18588 Probe, Temperature
34 18234 Potentiometer, Remote
41 16037 Light, Ind. 250V Red, Round
48 18226 Timer, 60 Minute 240V
6 19619 Switch, Rocker DPST, Black
35886 Buzzer, 240V
20547 Contactor, 3Pole 30 AMP
19751 Clip, Bulb Thermistor
22 16686 Knob, Control
47 18268 Nylon Spacer
DECEMBER 6, 2017 4 1400 SERIES
19619 6
8
24181
SOLID STATE DIGITAL CONTROLS
2 Buttons, 2 Knobs
11
36755
31192
9
10
56760
3 Buttons, 2 Knobs
21553 4
Ref. Part
No. No. Description
13 51584 Controller, For ovens manufactured after 4/27/08
8 24181 Knob, Control (2), For ovens manufactured before 4/27/08
23392 Probe, Temperature RTD
6 19619 Rocker Switch, DPST, Black
4 21553 Cable Assy., Strain Relief
24193 Wiring Harness, Solid State Control Module
5 32472 Control Panel & Decal Assy. 3 Button (Includes the Controller)
9 31192 Decal Only (For 2 Button)
51392 Decal Only (For 3 Button)
12 36617 Knob, control (1) For ovens manufactured after 4/27/08
51700 Kit, upgrade from 2 button to 3 button
10 56760 High Limit Switch, For ovens manufactured after 5/27/13
11 36755 Thermal Switch, Cooking Fan, For ovens manufactured after 5/27/13
21430 Axial Fan, 230V, 34 CFM, 3"
14
13
12
9
NOTE: If you do not have a 32472 in stock, you can use the the 24448 conversion kit in its place.
DECEMBER 6, 2017 5 1400 SERIES
19619 6
SOLID STATE DIGITAL CONTROLS
12 Key
1823434
16686 22
20436
29
4
21553
Ref. Part
No. No. Description
24448 Conversion Kit, 12 Button to Current Control with 3 Button Decal (Complete Module Assy.) (See Note)
22 16686 Knob, Control
36 19735 Probe, Temperature Controller RTD
34 18234 Potentiometer, Remote
21 19619 Rocker Switch, DPST, Black
29 20436 Indicator Light, 250V, Clear, Rectangular
24 21553 Cable Assy., Strain Relief
24193 Wiring Harness, Solid State Control Module
19735
36
NOTE: If you need either the timer or the control panel and decal assy. for the 12 button control, you need to order
part number 24448 conversion kit to update to the current control with 3 button decal.
