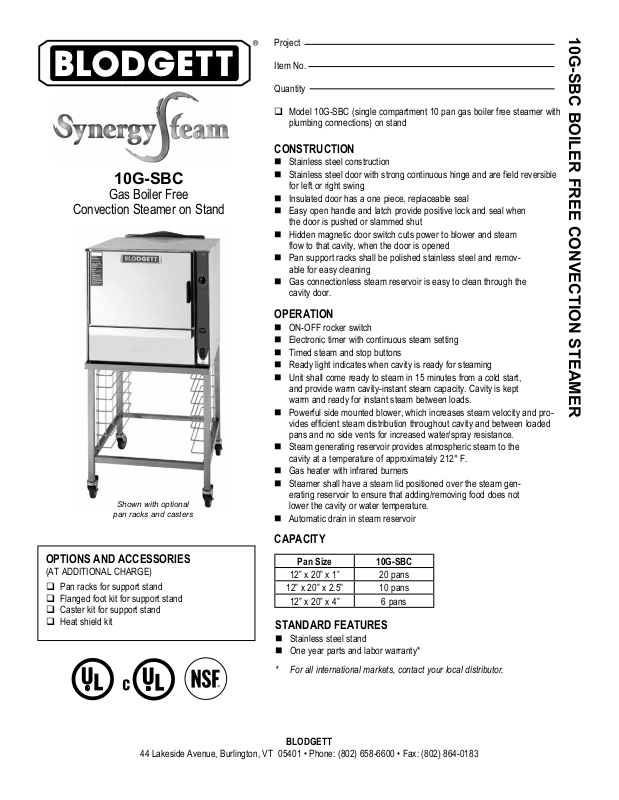

10G-SBC BOILER FREE COnvECtIOn StEamER
Item No.
Quantity
q Model 10G-SBC (single compartment 10 pan gas boiler free steamer with
plumbing connections) on stand
CONSTRUCTION
n Stainless steel construction
n Stainless steel door with strong continuous hinge and are field reversible
for left or right swing
n Insulated door has a one piece, replaceable seal
n Easy open handle and latch provide positive lock and seal when
the door is pushed or slammed shut
n Hidden magnetic door switch cuts power to blower and steam
flow to that cavity, when the door is opened
n Pan support racks shall be polished stainless steel and remov-
able for easy cleaning
n Gas connectionless steam reservoir is easy to clean through the
cavity door.
OPERATION
n ON-OFF rocker switch
n Electronic timer with continuous steam setting
n Timed steam and stop buttons
n Ready light indicates when cavity is ready for steaming
n Unit shall come ready to steam in 15 minutes from a cold start,
and provide warm cavity-instant steam capacity. Cavity is kept
warm and ready for instant steam between loads.
n Powerful side mounted blower, which increases steam velocity and pro-
vides efficient steam distribution throughout cavity and between loaded
pans and no side vents for increased water/spray resistance.
n Steam generating reservoir provides atmospheric steam to the
cavity at a temperature of approximately 212° F.
n Gas heater with infrared burners
n Steamer shall have a steam lid positioned over the steam gen-
erating reservoir to ensure that adding/removing food does not
lower the cavity or water temperature.
n Automatic drain in steam reservoir
OPTIONS AND ACCESSORIES
(AT ADDITIONAL CHARGE)
q Pan racks for support stand
q Flanged foot kit for support stand
q Caster kit for support stand
q Heat shield kit
44 Lakeside Avenue, Burlington, VT 05401 • Phone: (802) 658-6600 • Fax: (802) 864-0183
CAPACITY
Pan Size 10G-SBC
12” x 20” x 1” 20 pans
12” x 20” x 2.5” 10 pans
12” x 20” x 4” 6 pans
STANDARD FEATURES
n Stainless steel stand
n One year parts and labor warranty*
* For all international markets, contact your local distributor.
BLODGETT
10G-SBC BOILER FREE StEamER
Exhaust flue not shown
in this view
1.13 (29)
Steam exhaust
1.31 (34)
Mounting holes in base use
3/8”-16 bolts which must
not extend into steamer by
more than 3/8” (10).
25.19
(639)
NOTES:
Drain connection:
1. 2 (51) hose type (drain
free venting). DO NOT connect directly to
drain, allow 2” air gap.
Gas connection:
2. 3/4” NPT
Water supply:
3. 3/4” male hose connection.
30 to 60 PSIG withaflow rate of 0.75-1.50
GPM. Pressure regulation is required for
water pressure over 60 PSI. DO NOT use
treated water.
Electrical connection:
4. conduit hose size =
13/16” hole.
5. If the floor drain only services this steamer,
then the drain may be located within the
steam free zone. Steam free zone must be
observed if other appliances cause steam at
the floor drain.
6. Do not install steamer directly above steam
venting floor drains.
26 (660)
4
3
2
1
TOP VIEW
29.56
(751)
1.25 (32)
0.88 (22)
2 (51)
1.56 (40)
24.75
(628)
27.56
(700)
31.06
(79)
min.
DIMENSIONS ARE IN INCHES (MM)
Flue guard
4.81 (122)
Electrical
35.19
(894)
supply
Gas supply
Water
supply
Drain
30.63 (778)
6 (152)
FRONT VIEW
1.5 (38) min.
2.63 (87) max.
5 (127)
w/casters
(not shown)
APPROVAL/STAMP
REAR VIEW
40.44 (1026)
SIDE VIEW
Flue
Steam
exhaust
Flue cover
1
32.19
(818)
Optional racks
Drain
6
Unit
STEAM FREE
ZONE
3
39.8
(1011)
2
42.13
(1069)
6
18 (457)
4
46.06
(1170)
SHORT FORM SPECIFICATIONS
Provide Blodgett model 10G-SBC (10 pan) boilerfree steamer with with self-contained, atmospheric, gas-heated steam generating reservoir. Construction shall be
all stainless steel. Cavity shall have a powerful side-mounted blower to circulate steam and ability to accommodate 18 x 26” bake pans. Standard operating controls shall include: an on/off rocker switch; electronic timer, with continuous steam, timed steam and stop buttons; READY light. Door shall be field-reversible and
shall be equipped with an easy-open latch and hidden magnetic door switch. The atmospheric steam generating reservoir shall not require a pressure gauge or
switches; shall have an automatic drain and shall have an infrared burner with 100,000 BTU hr of heating capacity. Steamer shall come up to READY in 15 minutes
from a cold start and shall provide warm cavity, instant steam capability. Provide options and accessories as indicated.
MAXIMUM INPUT:
10G-SBC 100,000 BTU
MININUM REQUIRED CLEAR-
GAS SUPPLY:
Minimum Inlet Pressure:
Natural 4.3” W.C. static to unit
Propane 10.5” W.C. static to unit
NOTE: The company
reserves the right to make
substitutions of components
without prior notice.
ANCES:
Left and right side 2” (51mm)
Rear 6” (152mm)
POWER SUPPLY:
120 volt, single phase, 60 cycle 15 AMP
electric service
SHIPPING INFORMATION:
10G-SBC 452 lbs. (206 kg)
BLODGETT
44 Lakeside Avenue, Burlington, VT 05401 • Phone: (802) 658-6600 • Fax: (802) 864-0183
Printed in U.S.A.
NOTE: FOR COMMERCIAL USE ONLY
P/N S00142 Rev C (11/12)
