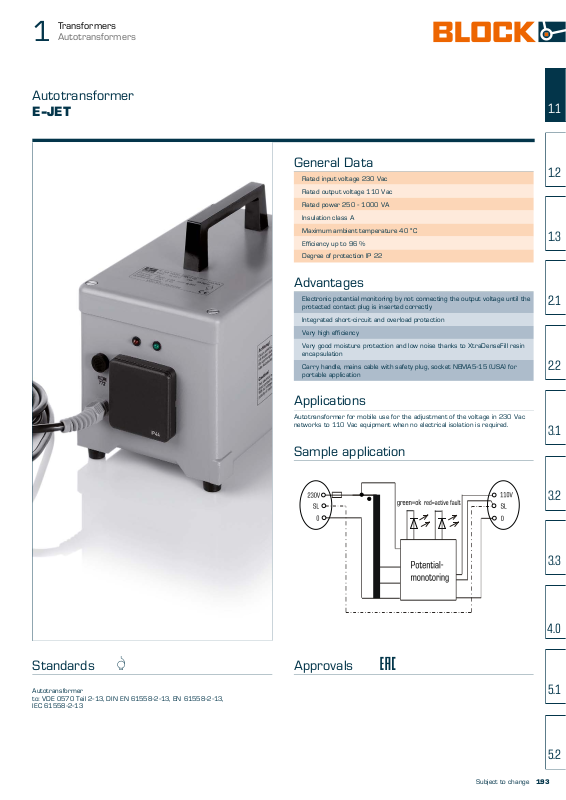

Block E-JET Catalog Page
Transformers
1.2
5.1
1.3
2.1
2.2
3.1
3.2
3.3
5.2
4.0
Autotransformers
1
Autotransformer
E-JET
1.1
General Data
Rated input voltage 230 Vac
Rated output voltage 110 Vac
Rated power 250 - 1000 VA
Insulation class A
Maximum ambient temperature 40 °C
Efficiency up to 96 %
Degree of protection IP 22
Advantages
Electronic potential monitoring by not connecting the output voltage until the
protected contact plug is inserted correctly
Integrated short-circuit and overload protection
Very high efficiency
Very good moisture protection and low noise thanks to XtraDenseFill resin
encapsulation
Carry handle, mains cable with safety plug, socket NEMA5-15 (USA) for
portable application
Applications
Autotransformer for mobile use for the adjustment of the voltage in 230 Vac
networks to 110 Vac equipment when no electrical isolation is required.
Standards t Z
Autotransformer
to: VDE 0570 Teil 2-13, DIN EN 61558-2-13, EN 61558-2-13,
IEC 61558-2-13
Sample application
Approvals J Z
Subject to change
193
+
-
30
Autotransformer
JET
General Data
Rated input voltage 110 Vac
Rated output voltage 230 Vac
Rated power 250 - 1000 VA
Insulation class A
Maximum ambient temperature 40 °C
Efficiency up to 96 %
Degree of protection IP 22
Advantages
Integrated short-circuit and overload protection
Very high efficiency
Very good moisture protection and low noise thanks to XtraDenseFill resin
encapsulation
Carrying handle, mains connecting lead NEMA5-15 (USA) and socket for
portable application
Applications
Autotransformer for portable application for the adjustment of the voltage
in 110 Vac networks to 230 Vac equipment when no electrical isolation is
required.
Sample application
Standards t Z
Approvals J Z
Autotransformer
to: VDE 0570 Teil 2-13, DIN EN 61558-2-13, EN 61558-2-13,
IEC 61558-2-13
Transformers
Autotransformers
1
Autotransformer
E-JET
Typ E-JET 250 E-JET 500 E-JET 1000
Input
Rated input voltage 230 Vac 230 Vac 230 Vac
Frequency range 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Output
Rated output voltage 110 Vac 110 Vac 110 Vac
Rated Power 250 VA 500 VA 1.000 VA
No-load voltage (app. x factor) 1.04 1.04 1.03
Efficiency 94.0 % 94.0 % 96.0 %
Environment
Ambient temperature max. 40 °C 40 °C 40 °C
Safety and protection
Type
Insulation class
Protection index
Safety class
Short circuit strength
Order numbers
Order Number E-JET 250 E-JET 500 E-JET 1000
Terminal and mounting
Terminals Input Connecting cable with
Terminals Output NEMA5-15 socket (USA) NEMA5-15 socket (USA) NEMA5-15 socket (USA)
Measures and weights
Weight 3.10 kg 6.80 kg 9.90 kg
Dimension (W x H x D) 95 x 155 x 160 mm 126 x 192 x 180 mm 143 x 197 x 244 mm
Resin encapsulated
transformer
A A A
IP 22 IP 22 IP 22
I I I
non-inherently short-circuit
proof
safety plug
Resin encapsulated
transformer
non-inherently short-circuit
proof
Connecting cable with
safety plug
Resin encapsulated
transformer
non-inherently short-circuit
proof
Connecting cable with
safety plug
