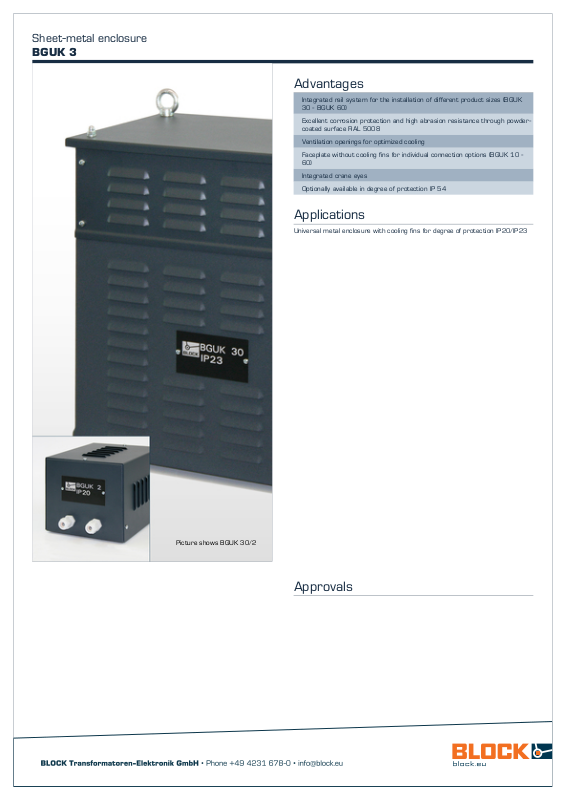

Block BGUK3 Catalog Page

Sheet-metal enclosure

BGUK 3

Advantages

Integrated rail system for the installation of different product sizes (BGUK
30 - BGUK 60)

Excellent corrosion protection and high abrasion resistance through powder­coated surface RAL 5008

Ventilation openings for optimized cooling

Faceplate without cooling fins for individual connection options (BGUK 10 -

60)

Integrated crane eyes

Optionally available in degree of protection IP 54

Applications

Universal metal enclosure with cooling fins for degree of protection IP20/IP23

Picture shows BGUK 30/2

Approvals Z

Sheet-metal enclosure

250.0

208.5

25.0

200.0

166.6

4.5

+

-

30

BGUK 3

Type BGUK 3

Operating data

For power (single-phase)
For power (three-phase)
Max. Power loos (at 40 °C ambient temperature)
Enclosure suitable for protection index

Order numbers

Order Number

500 VA
400 VA
48 W
IP 20

BGUK 3

Type BGUK 3

Terminal and mounting

Floor mounting
Wall mounting
Cable glanding type
Cable glanding Ø

Measures and weights

Dimension (W x H x D)
Weight
Effective inside dimension (W)
Effective inside dimension (D)
Effective inside dimension (H)
Fixing hole Ø

Accessory

Front plate (optional)

No
Yes
2x PG 11
5 - 10 mm

230 x 250 x 210 mm

4.0 kg
210 mm
195 mm
220 mm

5.5 mm

-

Subject to change.
