Sheet-metal enclosure
BG
Typ BG 240 BG 270 BG 300 BG 450
Operating data
Enclosure suitable for protection
index
IP 23 IP 23 IP 23 IP 23
Max. Power loos (at 40 °C
ambient temperature)
800 W 1200 W 1700 W 2500 W
For power (single-phase) 17 kVA 36 kVA 53 kVA 100 kVA
For power (three-phase) 25 kVA 60 kVA 80 kVA 150 kVA
Order numbers
+
-
Order Number BG 240 BG 270 BG 300 BG 450
Terminal and mounting
Cable glanding type 2 x M50 2 x M63 2 Universal entries 2 Universal entries
Cable glanding Ø 23 - 32 mm 37 - 44 mm 30 - 66 mm 30 - 66 mm
Measures and weights
Effective inside dimension (W) 560 mm 670 mm 735 mm 1170 mm
Effective inside dimension (H) 700 mm 760 mm 850 mm 980 mm
Effective inside dimension (D) 480 mm 550 mm 650 mm 850 mm
Fixing hole Ø 11 x 22 mm 11 x 22 mm 11 x 22 mm 11 x 22 mm
Dimension (W x H x D) 798 x 699 x 620 mm 858 x 809 x 690 mm 940 x 898 x 792 mm 1260 x 1141 x 991 mm
Weight 45 kg 60 kg 110 kg 160 kg
Dimension picture (in mm)
3 3 4 4
A 698.5 809 898 1140.5
B 726 786 878 1198
C 554 615 716 916
D 798 858 940 1260
E 620 690 792 991
F 627 687 699 1019
G 464 534 610 809
H 760 820 904 1224
I 676 736 779 1099
J 582 652 756 955
K 502 572 660.5 859.5
30
Dimension pictures
Enclosures & Accessories
Sheet-metal enclosures
4

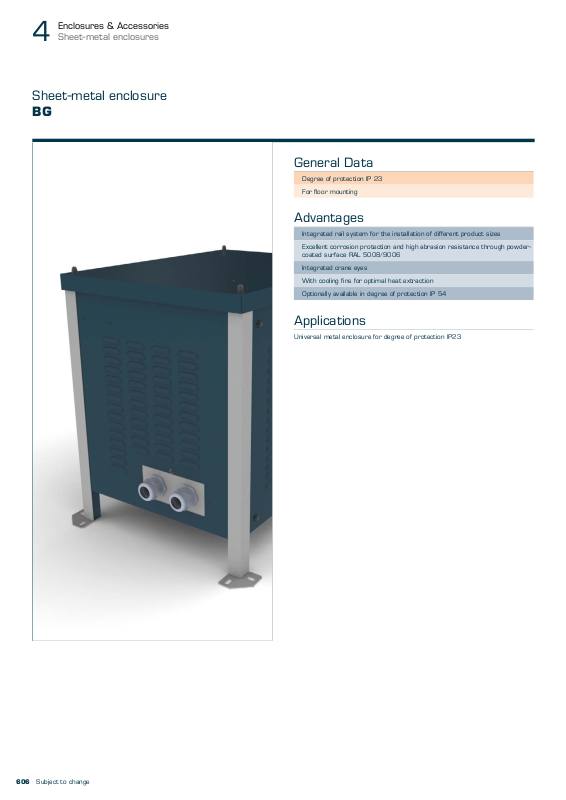

Sheet-metal enclosure
BG
General Data
Degree of protection IP 23
For floor mounting
Advantages
Integrated rail system for the installation of different product sizes
Excellent corrosion protection and high abrasion resistance through powdercoated surface RAL 5008/9006
Integrated crane eyes
With cooling fins for optimal heat extraction
Optionally available in degree of protection IP 54
Applications
Universal metal enclosure for degree of protection IP23
606
Subject to change
+
-
30
Enclosures & Accessories
1.1
1.2
5.1
1.3
2.1
2.2
3.1
3.2
3.3
5.2
4.0
Sheet-metal enclosures
4
Sheet-metal enclosure
BG
Typ BG 240 BG 270 BG 300 BG 450
Operating data
Enclosure suitable for protection
index
Max. Power loos (at 40 °C
ambient temperature)
For power (single-phase) 17 kVA 36 kVA 53 kVA 100 kVA
For power (three-phase) 25 kVA 60 kVA 80 kVA 150 kVA
Order numbers
Order Number BG 240 BG 270 BG 300 BG 450
Terminal and mounting
Cable glanding type 2 x M50 2 x M63 2 Universal entries 2 Universal entries
Cable glanding Ø 23 - 32 mm 37 - 44 mm 30 - 66 mm 30 - 66 mm
Measures and weights
Effective inside dimension (W) 560 mm 670 mm 735 mm 1170 mm
Effective inside dimension (H) 700 mm 760 mm 850 mm 980 mm
Effective inside dimension (D) 480 mm 550 mm 650 mm 850 mm
Fixing hole Ø 11 x 22 mm 11 x 22 mm 11 x 22 mm 11 x 22 mm
Dimension (W x H x D) 798 x 699 x 620 mm 858 x 809 x 690 mm 940 x 898 x 792 mm 1260 x 1141 x 991 mm
Weight 45 kg 60 kg 110 kg 160 kg
Dimension picture (in mm)
A 698.5 809 898 1140.5
B 726 786 878 1198
C 554 615 716 916
D 798 858 940 1260
E 620 690 792 991
F 627 687 699 1019
G 464 534 610 809
H 760 820 904 1224
I 676 736 779 1099
J 582 652 756 955
K 502 572 660.5 859.5
IP 23 IP 23 IP 23 IP 23
800 W 1200 W 1700 W 2500 W
3 3 4 4
Dimension pictures
Subject to change
607
