Electronic circuit breaker with current
limiting
BASIC SMART
Typ PM-0824-120-0 PM-0824-240-0 PM-0824-240-2 PC-0824-480-0
Input
Input rated voltage 24 Vdc 24 Vdc 24 Vdc 24 Vdc
Input voltage range 18 - 30 Vdc 18 - 30 Vdc 18 - 30 Vdc 18 - 30 Vdc
Maximal residual ripple of supplied input voltage 3 % 3 % 3 % 3 %
Required input voltage for turning-on of outputs 19.5 V (Turn-off Threshold 18 V) 19.5 V (Turn-off Threshold 18 V) 19.5 V (Turn-off Threshold 18 V) 19.5 V (Turn-off Threshold 18 V)
Max. total input current 12 A 24 A 24 A 48 A
Max. input current for each pole of terminal 40 A 40 A 40 A 40 A
Over voltage protection Suppressor diode 33 V Suppressor diode 33 V Suppressor diode 33 V Suppressor diode 33 V
Stand-by current 32 mA @ 24 V 32 mA @ 24 V 22.7 mA @ 24 V 48 mA @ 24 V
Power losses in stand-by mode 0.77 W @ 24 V 0.77 W @ 24 V 0.55 W @ 24 V 1.15 W @ 24 V
Output
Output rated voltage 24 Vdc 24 Vdc 24 Vdc 24 Vdc
Output rated current 2 x 0.5 - 6 A 4 x 0.5 - 6 A 2 x 2 - 12 A 8 x 0.5 - 6 A
Maximum voltage drop between input and output 145 mV @ 2 x 6 A 145 mV @ 4 x 6 A 210 mV @ 2 x 12 A 155 mV @ 8 x 6 A
Initialization time of module 250 ms 250 ms 250 ms 250 ms
Turn-on delay of outputs Load dependent, min. 50 ms / max. 5 s Load dependent, min. 50 ms / max. 5 s Load dependent, min. 50 ms / max. 5 s Load dependent, min. 50 ms / max. 5 s
Waiting periode after switch-off of an output 500 ms (short circuit) … 10 s (overload) 500 ms (short circuit) … 10 s (overload) 500 ms (short circuit) … 10 s (overload) 500 ms (short circuit) … 10 s (overload)
Max. power losses 2.5 W @ 2 x 6 A 4.3 W @ 4 x 6 A 5.58 W @ 2 x 12 A 8.6 W @ 8 x 6 A
Efficiency 99.0 % 99.0 % 99.0 % 99.0 %
Internal output fuse 15 A 15 A 15 A 15 A
Resistance to reverse feed max. 35 Vdc 35 Vdc 35 Vdc 35 Vdc
Parallel use of outputs Not allowed Not allowed Not allowed Not allowed
Serial use of outputs Not allowed Not allowed Not allowed Not allowed
Signaling
Status indicator LED (red, green, orange) LED (red, green, orange) LED (red, green, orange) LED (red, green, orange)
Signal input S1 24 Vdc (On/Off/Reset) 24 Vdc (On/Off/Reset) 24 Vdc (On/Off/Reset) 24 Vdc (On/Off/Reset)
Signal output S2 24 Vdc, max. 25mA
(status output channels)
24 Vdc, max. 25mA
(status output channels)
24 Vdc, max. 25mA
(status output channels)
24 Vdc, max. 25mA
(status output channels)
Signal output S3 24 Vdc, max 25mA
(Common signalling output)
24 Vdc, max 25mA
(Common signalling output)
24 Vdc, max 25mA
(Common signalling output)
24 Vdc, max 25mA
(Common signalling output)
Approvals
Approvals cURus, cULus, GL cURus, cULus, GL cURus, cULus, GL cURus, cULus, GL
Environment
Storage temperature -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C
Ambient temperature -25° C to +70° C -25° C to +70° C -25° C to +70° C -25° C to +70° C
Derating - - - -
Type of cooling Natural convection Natural convection Natural convection Natural convection
Required minimum spacing (left/right) 0 mm 0 mm 0 mm 0 mm
Required minimum spacing (over/under) 40 mm 40 mm 40 mm 40 mm
Safety and protection
Protection index
IP 20 IP 20 IP 20 IP 20
Safety class
III, without PE connection III, without PE connection III, without PE connection III, without PE connection
Degree of pollution 2 2 2 2
Order numbers
Order Number PM-0824-120-0 PM-0824-240-0 PM-0824-240-2 PC-0824-480-0
+
-
Power supplies
Electronic circuit breakers
2

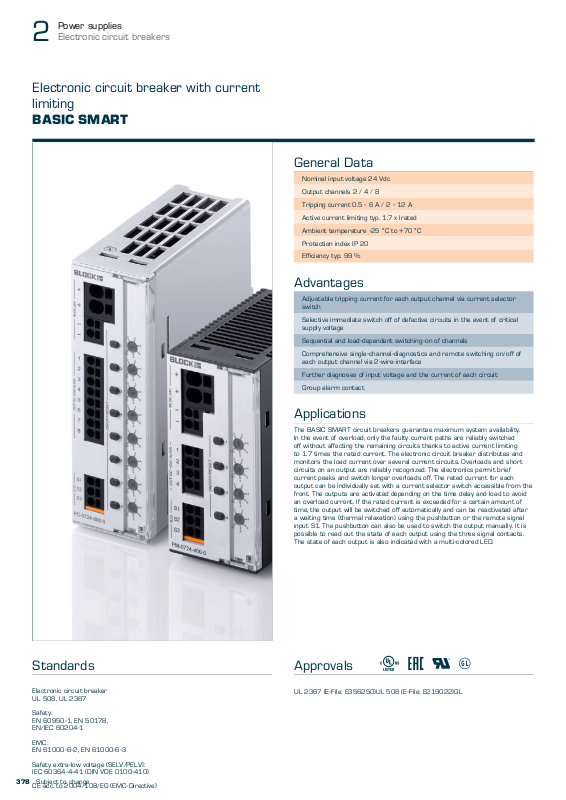

Electronic circuit breaker with current
limiting
BASIC SMART
StandardsZ
General Data
Nominal input voltage 24 Vdc
Output channels 2 / 4 / 8
Tripping current 0.5 - 6 A / 2 - 12 A
Active current limiting typ. 1,7 x Irated
Ambient temperature -25 °C to +70 °C
Protection index IP 20
Efficiency typ. 99 %
Advantages
Adjustable tripping current for each output channel via current selector
switch
Selective immediate switch off of defective circuits in the event of critical
supply voltage
Sequential and load-dependent switching-on of channels
Comprehensive single-channel-diagnostics and remote switching on/off of
each output channel via 2-wire-interface
Further diagnoses of input voltage and the current of each circuit
Group alarm contact
Applications
The BASIC SMART circuit breakers guarantee maximum system availability.
In the event of overload, only the faulty current paths are reliably switched
off without affecting the remaining circuits thanks to active current limiting
to 1.7 times the rated current. The electronic circuit breaker distributes and
monitors the load current over several current circuits. Overloads and short
circuits on an output are reliably recognized. The electronics permit brief
current peaks and switch longer overloads off. The rated current for each
output can be individually set with a current selector switch accessible from the
front. The outputs are activated depending on the time delay and load to avoid
an overload current. If the rated current is exceeded for a certain amount of
time, the output will be switched off automatically and can be reactivated after
a waiting time (thermal relaxation) using the pushbutton or the remote signal
input S1. The pushbutton can also be used to switch the output manually. It is
possible to read out the state of each output using the three signal contacts.
The state of each output is also indicated with a multi-colored LED.
Approvals o J U # Z
Electronic circuit breaker
UL 508, UL 2367
Safety:
EN 60950-1, EN 50178,
EN/IEC 60204-1
EMC:
EN 61000-6-2, EN 61000-6-3
Safety extra-low voltage (SELV/PELV):
IEC 60364-4-41 (DIN VDE 0100-410)
Subject to change
378
CE acc. to 2004/108/EG (EMC-Directive)
UL 2367 (E-File: E356250)UL 508 (E-File: E219022)GL
+
-
Power supplies
1.1
1.2
5.1
1.3
2.1
2.2
3.1
3.2
3.3
5.2
4.0
Electronic circuit breakers
2

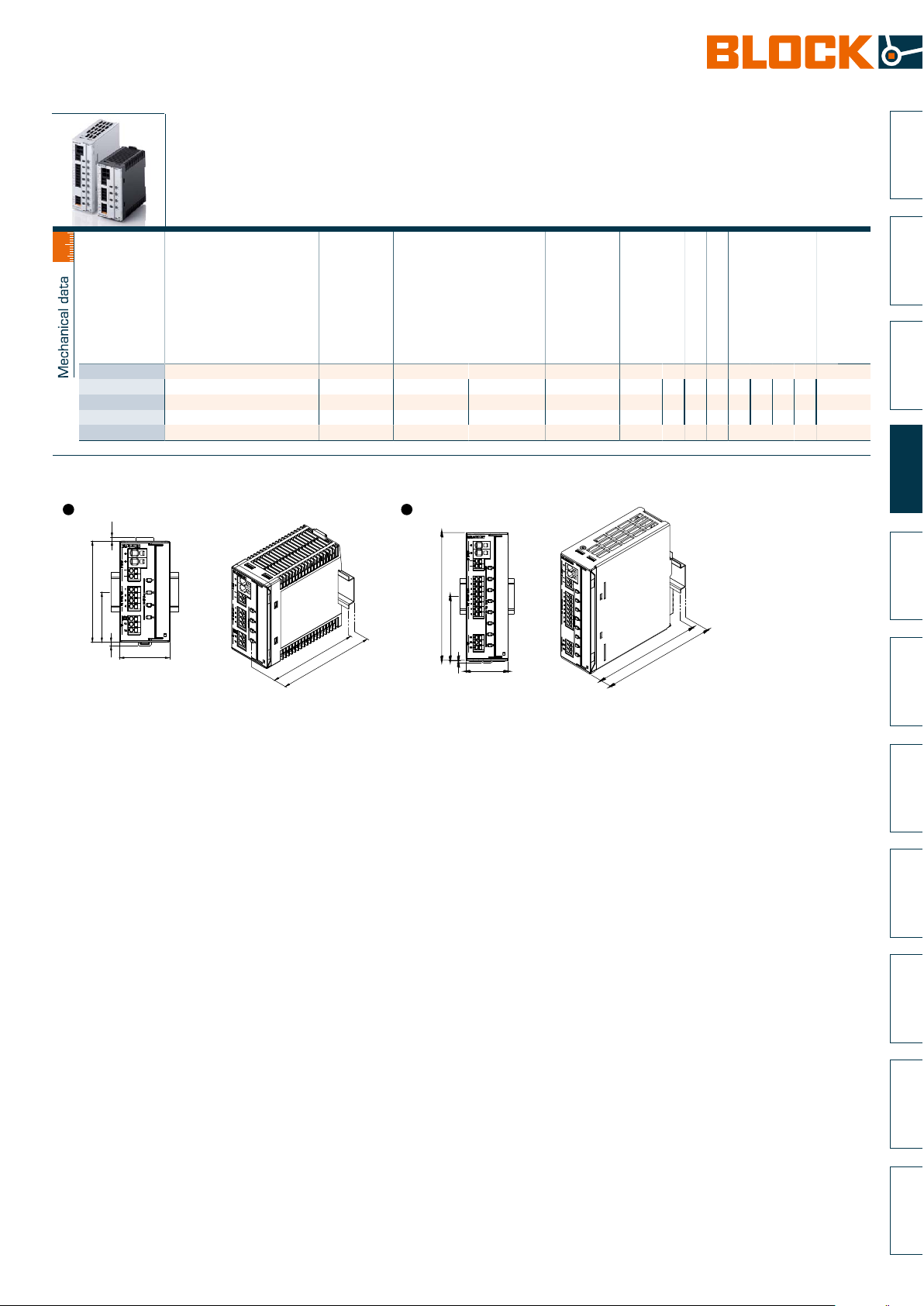

Electronic circuit breaker with current
limiting
BASIC SMART
Typ PM-0824-120-0 PM-0824-240-0 PM-0824-240-2 PC-0824-480-0
Input
Input rated voltage 24 Vdc 24 Vdc 24 Vdc 24 Vdc
Input voltage range 18 - 30 Vdc 18 - 30 Vdc 18 - 30 Vdc 18 - 30 Vdc
Maximal residual ripple of supplied input voltage 3 % 3 % 3 % 3 %
Required input voltage for turning-on of outputs 19.5 V (Turn-off Threshold 18 V) 19.5 V (Turn-off Threshold 18 V) 19.5 V (Turn-off Threshold 18 V) 19.5 V (Turn-off Threshold 18 V)
Max. total input current 12 A 24 A 24 A 48 A
Max. input current for each pole of terminal 40 A 40 A 40 A 40 A
Over voltage protection Suppressor diode 33 V Suppressor diode 33 V Suppressor diode 33 V Suppressor diode 33 V
Stand-by current 32 mA @ 24 V 32 mA @ 24 V 22.7 mA @ 24 V 48 mA @ 24 V
Power losses in stand-by mode 0.77 W @ 24 V 0.77 W @ 24 V 0.55 W @ 24 V 1.15 W @ 24 V
Output
Output rated voltage 24 Vdc 24 Vdc 24 Vdc 24 Vdc
Output rated current 2 x 0.5 - 6 A 4 x 0.5 - 6 A 2 x 2 - 12 A 8 x 0.5 - 6 A
Maximum voltage drop between input and output 145 mV @ 2 x 6 A 145 mV @ 4 x 6 A 210 mV @ 2 x 12 A 155 mV @ 8 x 6 A
Initialization time of module 250 ms 250 ms 250 ms 250 ms
Turn-on delay of outputs Load dependent, min. 50 ms / max. 5 s Load dependent, min. 50 ms / max. 5 s Load dependent, min. 50 ms / max. 5 s Load dependent, min. 50 ms / max. 5 s
Waiting periode after switch-off of an output 500 ms (short circuit) … 10 s (overload) 500 ms (short circuit) … 10 s (overload) 500 ms (short circuit) … 10 s (overload) 500 ms (short circuit) … 10 s (overload)
Max. power losses 2.5 W @ 2 x 6 A 4.3 W @ 4 x 6 A 5.58 W @ 2 x 12 A 8.6 W @ 8 x 6 A
Efficiency 99.0 % 99.0 % 99.0 % 99.0 %
Internal output fuse 15 A 15 A 15 A 15 A
Resistance to reverse feed max. 35 Vdc 35 Vdc 35 Vdc 35 Vdc
Parallel use of outputs Not allowed Not allowed Not allowed Not allowed
Serial use of outputs Not allowed Not allowed Not allowed Not allowed
Signaling
Status indicator LED (red, green, orange) LED (red, green, orange) LED (red, green, orange) LED (red, green, orange)
Signal input S1 24 Vdc (On/Off/Reset) 24 Vdc (On/Off/Reset) 24 Vdc (On/Off/Reset) 24 Vdc (On/Off/Reset)
Signal output S2 24 Vdc, max. 25mA
Signal output S3 24 Vdc, max 25mA
(status output channels)
(Common signalling output)
Approvals
Approvals cURus, cULus, GL cURus, cULus, GL cURus, cULus, GL cURus, cULus, GL
Environment
Storage temperature -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C
Ambient temperature -25° C to +70° C -25° C to +70° C -25° C to +70° C -25° C to +70° C
Derating - - - -
Type of cooling Natural convection Natural convection Natural convection Natural convection
Required minimum spacing (left/right) 0 mm 0 mm 0 mm 0 mm
Required minimum spacing (over/under) 40 mm 40 mm 40 mm 40 mm
Safety and protection
Protection index
Safety class
Degree of pollution 2 2 2 2
IP 20 IP 20 IP 20 IP 20
III, without PE connection III, without PE connection III, without PE connection III, without PE connection
Order numbers
Order Number PM-0824-120-0 PM-0824-240-0 PM-0824-240-2 PC-0824-480-0
24 Vdc, max. 25mA
(status output channels)
24 Vdc, max 25mA
(Common signalling output)
24 Vdc, max. 25mA
(status output channels)
24 Vdc, max 25mA
(Common signalling output)
24 Vdc, max. 25mA
(status output channels)
24 Vdc, max 25mA
(Common signalling output)
Subject to change
379
