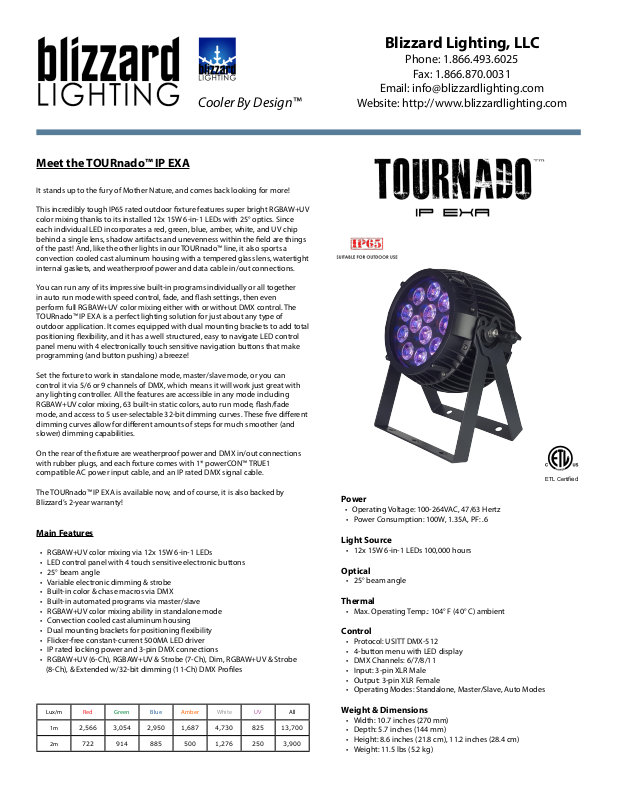

Blizzard TOURnado IP EXA Datasheet

Cooler By Design™

Meet the TOURnado™ IP EXA

It stands up to the fury of Mother Nature, and comes back looking for more!

This incredibly tough IP65 rated outdoor xture features super bright RGBAW+UV
color mixing thanks to its installed 12x 15W 6-in-1 LEDs with 25° optics. Since
each individual LED incorporates a red, green, blue, amber, white, and UV chip
behind a single lens, shadow artifacts and unevenness within the eld are things
of the past! And, like the other lights in our TOURnado™ line, it also sports a
convection cooled cast aluminum housing with a tempered glass lens, watertight
internal gaskets, and weatherproof power and data cable in/out connections.

You can run any of its impressive built-in programs individually or all together
in auto run mode with speed control, fade, and ash settings, then even
perform full RGBAW+UV color mixing either with or without DMX control. The
TOURnado™ IP EXA is a perfect lighting solution for just about any type of
outdoor application. It comes equipped with dual mounting brackets to add total
positioning exibility, and it has a well structured, easy to navigate LED control
panel menu with 4 electronically touch sensitive navigation buttons that make
programming (and button pushing) a breeze!

Blizzard Lighting, LLC

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Website: http://www.blizzardlighting.com

Set the xture to work in standalone mode, master/slave mode, or you can
control it via 5/6 or 9 channels of DMX, which means it will work just great with
any lighting controller. All the features are accessible in any mode including
RGBAW+UV color mixing, 63 built-in static colors, auto run mode, ash/fade
mode, and access to 5 user-selectable 32-bit dimming curves. These ve dierent
dimming curves allow for dierent amounts of steps for much smoother (and
slower) dimming capabilities.

On the rear of the xture are weatherproof power and DMX in/out connections
with rubber plugs, and each xture comes with 1* powerCON™ TRUE1
compatible AC power input cable, and an IP rated DMX signal cable.

The TOURnado™ IP EXA is available now, and of course, it is also backed by
Blizzard’s 2-year warranty!

Main Features

• RGBAW+UV color mixing via 12x 15W 6-in-1 LEDs

• LED control panel with 4 touch sensitive electronic buttons

• 25° beam angle

• Variable electronic dimming & strobe

• Built-in color & chase macros via DMX

• Built-in automated programs via master/slave

• RGBAW+UV color mixing ability in standalone mode

• Convection cooled cast aluminum housing

• Dual mounting brackets for positioning exibility

• Flicker-free constant-current 500MA LED driver

• IP rated locking power and 3-pin DMX connections

• RGBAW+UV (6-Ch), RGBAW+UV & Strobe (7-Ch), Dim, RGBAW+UV & Strobe

iiiii(8-Ch), & Extended w/32-bit dimming (11-Ch) DMX Proles

ETL Certied

Power

• Operating Voltage: 100-264VAC, 47/63 Hertz

• Power Consumption: 100W, 1.35A, PF: .6

Light Source

• 12x 15W 6-in-1 LEDs 100,000 hours

Optical

• 25° beam angle

Thermal

• Max. Operating Temp.: 104° F (40° C) ambient

Control

• Protocol: USITT DMX-512

• 4-button menu with LED display

• DMX Channels: 6/7/8/11

• Input: 3-pin XLR Male

• Output: 3-pin XLR Female

• Operating Modes: Standalone, Master/Slave, Auto Modes

Lux/m Red Green Blue Amber White UV All

1m

2,566 3,054 2,950 1,687 4,730 825 13,700

2m

722 914 885 500 1,276 250 3,900

Weight & Dimensions

• Width: 10.7 inches (270 mm)

• Depth: 5.7 inches (144 mm)

• Height: 8.6 inches (21.8 cm), 11.2 inches (28.4 cm)

• Weight: 11.5 lbs (5.2 kg)
