Page 1
Ice & Water Dispenser
Installation, Operation and Maintenance Manual
12.1.0085-00 A
Page 2
Page 3
Installation, Operation and Maintenance Manual of Ice & Water Dispenser
Table of Contents
Illustrations ................................................................................................................................................................................ 1
Warnings and safety instructions ............................................................................................................................................... 2
Overview ................................................................................................................................................................................... 3
Installation ................................................................................................................................................................................. 3
Requirements on installation location ............................................................................................................................... 3
Typical installation diagram .............................................................................................................................................. 4
Installation steps ................................................................................................................................................................ 5
Start-up and operation ....................................................................................................................................................... 1
Operating instructions for the water chiller ............................................................................................................................... 6

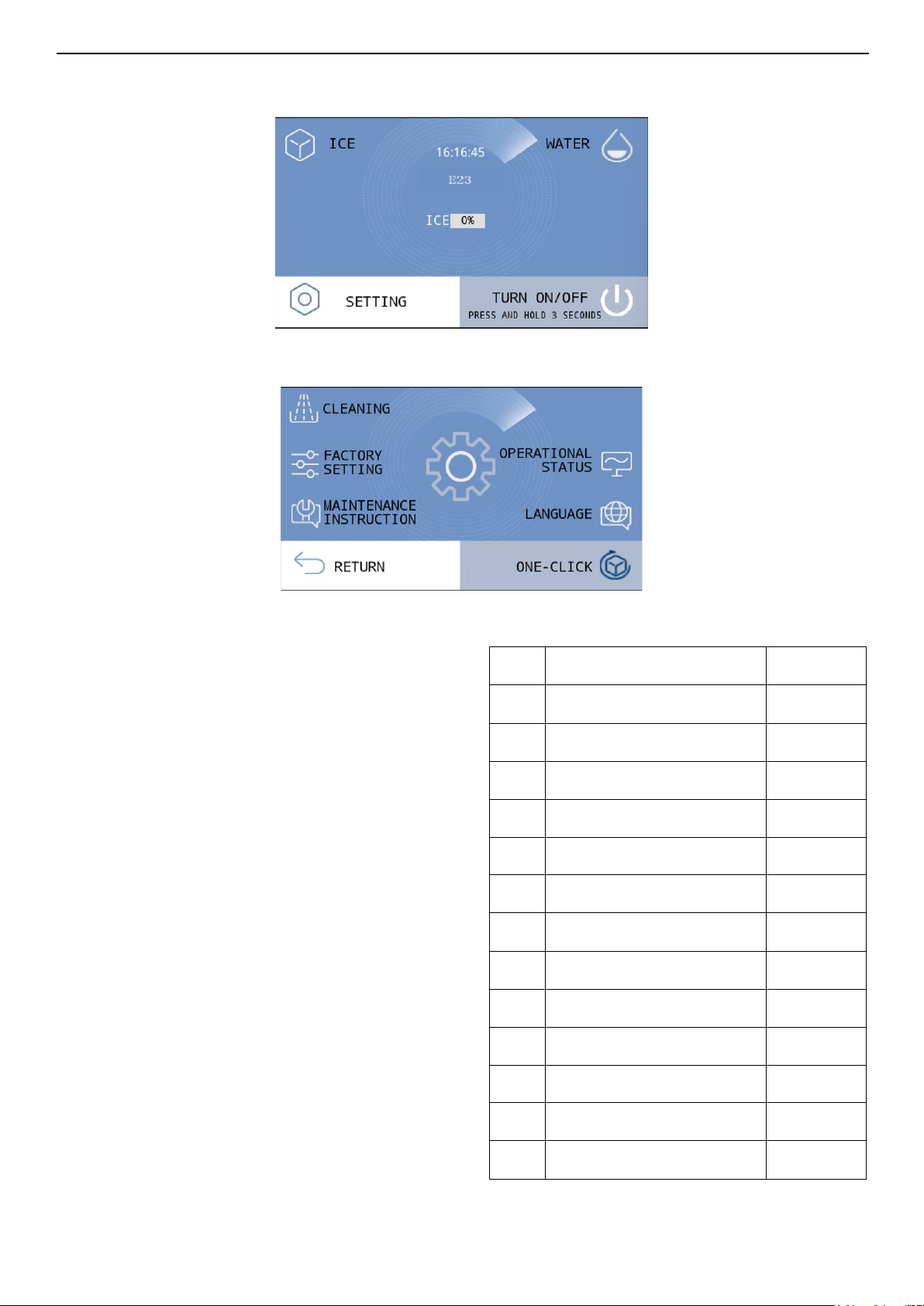

Instructions for water chiller control panel ................................................................................................................................ 7
Maintenance and service ........................................................................................................................................................... 8
Automatic cleaning steps ........................................................................................................................................................... 9
Call for service ........................................................................................................................................................................ 10
Common faults and possible causes ........................................................................................................................................ 10
Warranty terms ........................................................................................................................................................................ 11
Notes: Always keep this manual in a place accessible to the user at any time.
Page 4
Page 5
1
Illustrations
Installation, Operation and Maintenance Manual of Ice & Water Dispenser

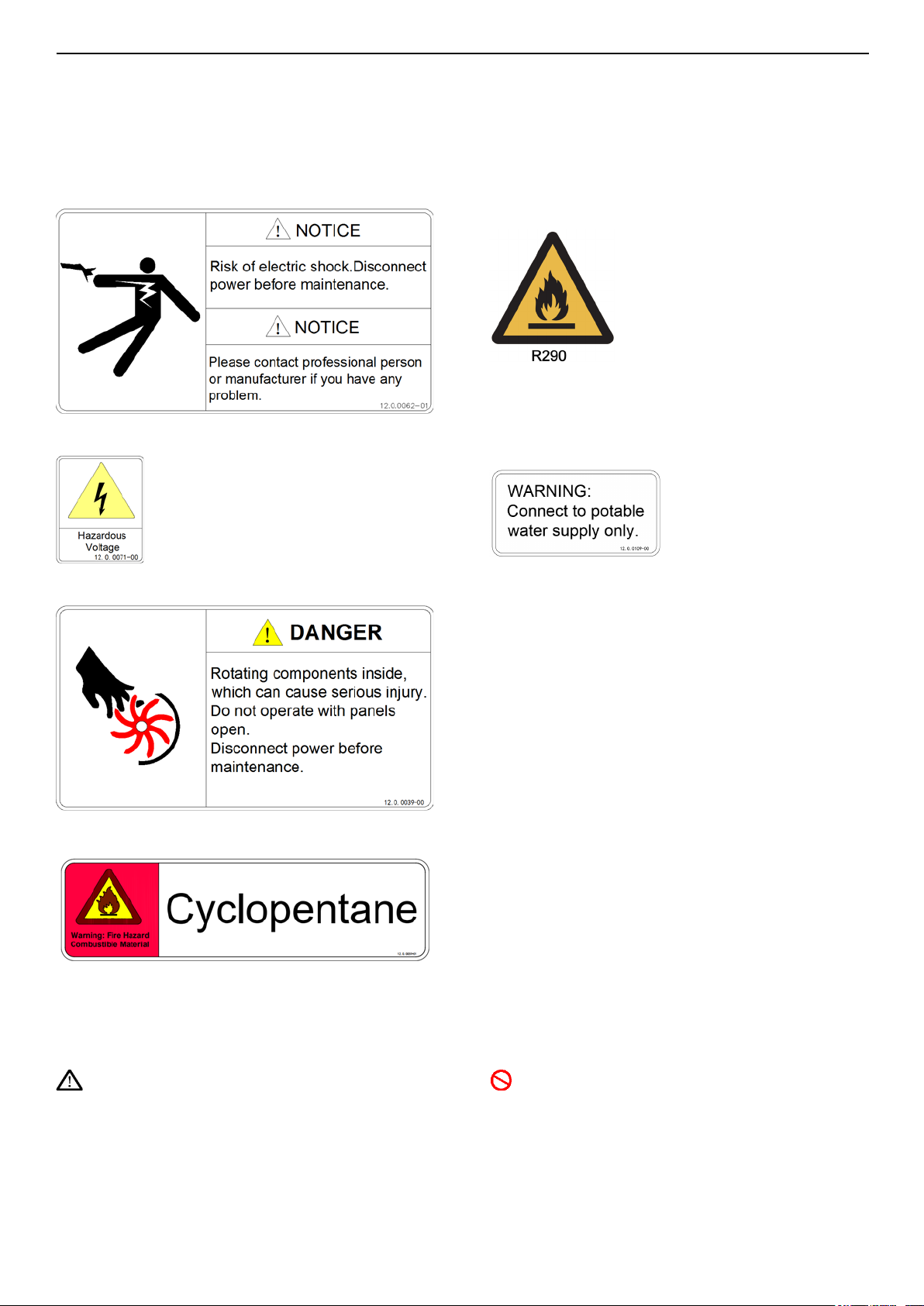

The following risk warnings are given on various
parts of the water chiller. Please be cautious!
Warning of dangerous voltage that leads to risks of
electric shocks
Warning of dangerous voltage that leads to risks of
electric shocks
Warning of rotating parts that lead to mechanical
injury
Warning that flammable foaming agent
Illustrations in this manual
cyclopentane is employed for the insulation
material inside the machine, and caution should be
taken for risks of fire.
Warning that the machine is filled with flammable
refrigerant R290, and caution should be taken for
risks of fire.
Warning that the inlet of the cold water for ice
making to the ice maker can only be connected to
drinking water, instead of groundwater or other
non-potable water sources.
Warning mark, indicating that special caution
should be taken
Warning mark, indicating special caution should
be taken that the operation is prohibited
Page 6
Installation, Operation and Maintenance Manual of Ice & Water Dispenser
Warnings and safety instructions
This product cannot be used outdoors.
This water chiller is not intended for use by
children or those with physical weakness,
mental retardance, or mental disorder.
The installation, repair, or maintenance of this ice
maker must be carried out by professional and
qualified personnel. Unqualified personnel
performing such work may result in electric shocks,
fire, or personal injury.
After the ice maker is delivered, please keep the
machine upright and leave it to stand for more than
24 hours to allow full settlement of the lubricating oil
in the compressor before starting, otherwise the
compressor might be damaged.
In case that the power cord of this ice maker is
damaged, to avoid electric shock, fire, or personal
injury, it must be replaced by the manufacturer or
professional, qualified personnel.
This ice maker must use the water pipe components
from the accessory box of the machine. To ensure
food hygiene and safety, do not use water pipe
components removed from old machines.
During handling, try to keep the box upright. The
maximum tilt should not exceed 45 degrees. Do not
place it upside down or lay it down horizontally.
This ice maker should not be placed in places that are
damp or susceptible to water splashes.
The grounding of this ice maker should not be
connected to gas pipes, water pipes, telephone lines,
or lightning rods.
The ice maker contains rotating parts in it. Do not
insert slender objects into the vents or exhaust outlets,
as this may cause mechanical injury.
Volatile or flammable substances should not be stored
inside the ice maker, as storing such substances may
cause an explosion or fire.
Do not store any unrelated objects, or even freeze or
refrigerate any food in the ice bin of this ice maker.
This ice maker must be placed on a countertop that
can adequately support its weight. An unstable
countertop may cause the equipment to tip over,
resulting in injury.
Sufficient ventilation space should be provided
around the ice maker to ensure smooth airflow.
Only the power supply specified on the machine
nameplate should be employed for the ice maker.
The ice maker should not be connected to hot water.
The ice maker must be grounded reliably and
provided with a socket with Earth-leakage protection.
Before manual cleaning, maintenance, or servicing,
the power supply to the ice maker must be cut off.
Before cleaning, maintenance, or servicing, any
remaining ice in the ice bin should be removed to
prevent ice contamination during these processes.
Never directly splash water on the surface of the ice
maker for washing purpose, as this may cause short
circuits, electric leakage, or other faults.
The insulation material of this ice maker employs a
flammable foaming agent, and hence its discarding
should be handled by qualified personnel and
institutions for disposal and recycling.
The ice maker should be managed appropriately to
prevent access by children.
In case of a malfunction, the power supply should be
cut off, and a professional should be contacted for
repair.

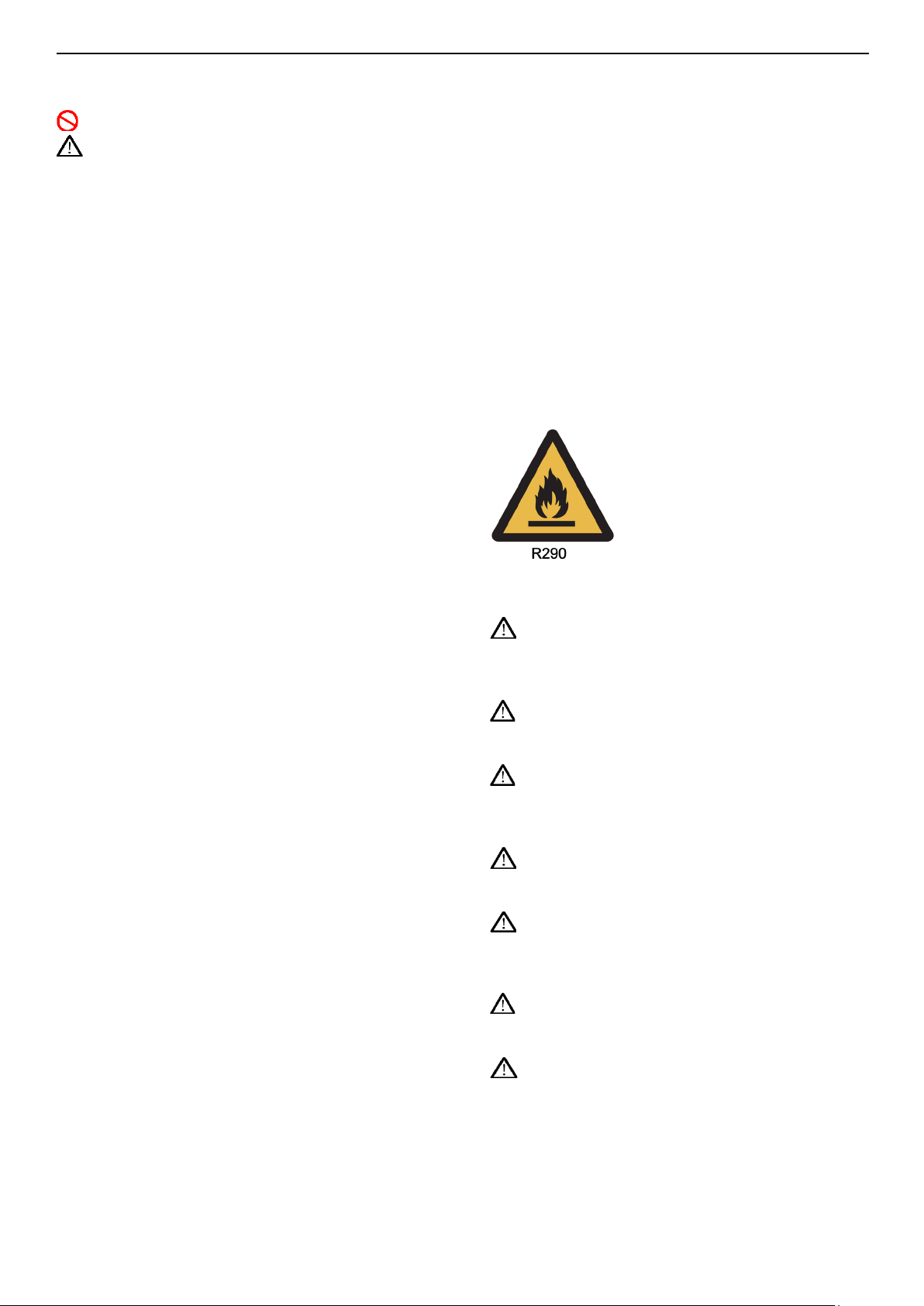

This product is filled with either R404a or R290
refrigerants.
For machines filled with the flammable refrigerant
R290, please pay special attention:
Danger - Flammable refrigerants are used, and hence
fire or explosion risks are involved. Sufficient ventilation
space must be maintained around the ice maker to ensure
smooth airflow.
Danger - Flammable refrigerants are used, and hence
fire or explosion risks are involved. Do not defrost the
machine with mechanical devices or other means.
Danger - Flammable refrigerants are used, and hence
fire or explosion risks are involved. Only trained service
personnel should perform the repairs, and refrigerant lines
must not be punctured.
Danger - Flammable refrigerants are used, and hence
fire or explosion risks are involved. Do not use any
electrical appliances in the ice bin of the ice maker.
Caution - Flammable refrigerants are used, and hence
fire or explosion risks are involved. Refer to the service
manual/user guide before attempting any repairs, and
always follow all safety precautions.
Caution - Flammable refrigerants are used, and hence
fire or explosion risks are involved. Disposal must be
performed properly according to regulations.
Caution - Flammable refrigerants are used, and hence
fire or explosion may arise from leakage of a leak in the
refrigerant pipeline. Please follow strictly the operating
instructions.
2
Page 7
Overview
Installation, Operation and Maintenance Manual of Ice & Water Dispenser
This water chiller is a fully automatic ice maker.
After connecting the drinking water source and
power supply and completing correct installation,
turn on the water chiller, and you can start ice
making normally. When the ice bin is full of icy
water, the machine shuts down automatically. This
water chiller is generally intended for the following
and similar scenarios:
Kitchen areas in shops, offices, or other
workplaces;
Installation
Requirements on installation location
The installation location of this water chiller should
meet the following:
Indoors, at an altitude no greater than 2,000
meters;
Ambient temperature: ranging from 5 - 40°C;
Power supply: Rated voltage as indicated on
the machine nameplate ±6%;
Water source: Connected to a drinking water
source only; the water pressure is no less than
0.13 MPa and no more than 0.55 MPa; and the
water temperature falls in 5 - 35°C;
The water chiller should be kept away from
any heat sources, and is strictly prohibited
from use in high or low temperatures. Direct
sunlight should be avoided for it affects the
Fresh-keeping areas of supermarkets and
seafood;
Storage areas of laboratories and
pharmaceutical industry;
Preservation and cooling during long-distance
transportation;
The catering industry and similar non-retail
settings;
This water chiller is generally not intended for
home use.
heat dissipation and lifespan of the machine;
Sufficient ventilation space should be provided
around the ice maker to ensure smooth airflow.
The clearance should be at least 30 cm in the
front, 4 cm at the back, and 30 cm at the top;
The water chiller must be placed on a
countertop that can adequately support its
weight;
The water chiller must be grounded reliably
and provided with a socket with Earth-leakage
protection.
A suitable floor drain must be installed in the
vicinity of the installation location of the water
chiller.
3
Page 8
Installation, Operation and Maintenance Manual of Ice & Water Dispenser

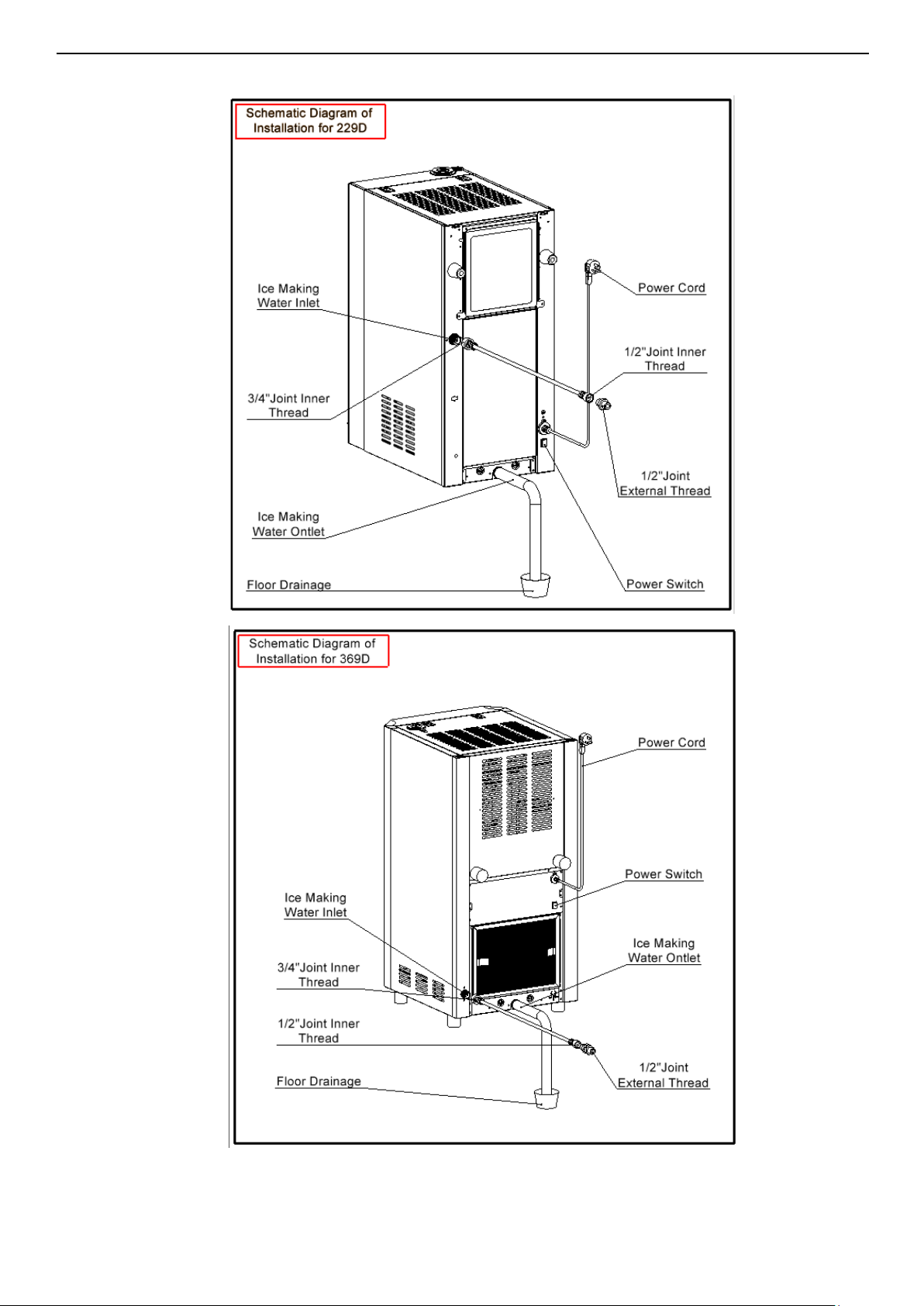

Typical installation diagram
Installation steps
4
Page 9
Installation, Operation and Maintenance Manual of Ice & Water Dispenser
1. Check if the water chiller is in good conditions
and if the accessories are complete; and verify
the machine model and check the machine
nameplate.
2. Use a sponge soaked in warm water and baking
soda to clean the ice bin and the interior of the
machine, and then rinse it with clean water and
dry it.
3. Place the water chiller in the area of use and
ensure the machine is laid down level.
4. Air-cooled water chillers need good ventilation
to ensure excellent performance. Therefore, at
least 30 cm of ventilation space must be
maintained above the machine.
5. The bottom of the water chiller is equipped
with adjustable legs for easy leveling and
countertop cleaning.
6. The water chiller needs to be connected to
drinking water (this machine does not come
with a filter).
7. Connect the machine to the water supply
pipeline with the supplied 1/2” inlet water pipe.
It is recommended to install a water valve (not
a standard accessory of this product) on the
water supply pipeline.
8. Connect the supplied drain pipe to the drainage
connection. For easier drainage, it is
recommended that the drainage pipe is
provided with a drop of over 3 cm per meter.
Make sure that the drain pipe is not blocked as
well. It is recommended to have the drainage
pipe lead to an open drain.
9. No point in the drainage pipeline should ever
be higher than the drainage outlet of the
machine or the previous point.
10. Confirm the power supply requirements
specified on the machine nameplate, and ensure
the power supply meets the requirements.
11. A circuit breaker or switch should be installed
on the power supply line of the machine, and an
Earth-leakage protection device must be
installed and properly grounded.
12. Turn off the switch on the power supply line,
and connect the machine to the power supply.
Start-up and operation
13. Pre-startup confirmation
Accessories or items inside the water
chiller have been removed;
The water chiller has been leveled;
The water pipes have been connected, and
the water valve opened;
The plug has been connected to the power
supply, and the power switch is off;
Confirm that the ambient temperature,
water temperature, and pressure of water
supplied to the water chiller are within the
required ranges.
14. Start-up and operation: Turn on the power
switch of the power supply line. After powering
on, press and hold the "TURN ON/OFF" button
on the LCD for 3 seconds, and the machine will
enter ice-making mode.
15. Normal operation confirmation
Check if ice can be got properly after 10
minutes of starting the machine;
For air-cooled water chillers, check if the
fan operates normally;
Check if there is no abnormal noise from
the water chiller;
Check if there is no abnormal vibration
from the water chiller.
4
Page 10
Installation, Operation and Maintenance Manual of Ice & Water Dispenser
Operating instructions for the water chiller
Start-up: After proper installation, open the
water and power supplies, turn on the power
switch at the back of the machine, and, after
the display screen lights up, press and hold the
"TURN ON/OFF" button on the LCD for 3
seconds, and the machine will enter normal
working mode. The machine operates
automatically throughout the entire process
and does not require constant supervision. For
the first startup, please confirm that the
machine operates normally.
Notes: If there is a thunderstorm or the
machine will not be used for an extended period,
please cut off the power and water supplies!
Preparation: After the display screen lights
up, press and hold the "TURN ON/OFF" button
on the LCD screen for 3 seconds. The machine
will run for 3 minutes, and then the reducer,
compressor, and fan will start in sequence.
Ice making: Continuous water flow is stored
on the inner wall of the evaporator, where it
freezes. The ice so made is then cut by the ice
drill driven by the reducer and brought out of
the evaporator by the spiral ice blade.
Water shortage restart: When the water
supply is insufficient to meet the needs of
normal ice-making, the LCD displays E05.
Shutdown: While the machine is running,
press and hold the "TURN ON/OFF" button on
the LCD for 3 seconds. The compressor will
then stop immediately, and the LCD will
continue to work for 3 minutes. After that, the
reducer and fan will stop, completing the
shutdown process.
Automatic shutdown when ice bin is full:
During operation, when ice accumulates in the
ice bin to a certain height and reaches the set
level for a full bin, and such state has been
detected and lasted for a period (60 seconds),
the machine will believe the ice bin is full and
automatically stop working.
Resuming ice making when ice bin is full:
When ice is taken from the bin and the
accumulation height decreases as a result, the
machine will detect that the level is below the
set value after 2 minutes, and re-enter the
normal ice-making mode.
6
Page 11
Installation, Operation and Maintenance Manual of Ice & Water Dispenser
Machine
actions
Defensive
shutdown
Defensive
shutdown
Defensive
shutdown
Open circuit fault of condenser
sensor
No
shutdown
Short circuit fault of condenser
sensor
No
shutdown
Open circuit fault of
evaporator sensor
Defensive
shutdown
Short circuit fault of
evaporator sensor
Defensive
shutdown
No
shutdown
Defensive
shutdown
Defensive
shutdown
Defensive
shutdown
Defensive
shutdown
Defensive
shutdown
Instructions for water chiller control panel
↑ LCD main screen (ice retrieval screen)
↑ LCD settings screen
1. Press and hold the TURN ON/OFF button for three
seconds to activate the ice-making mode from the
standby mode.
a) Preparation cycle: 3 minutes.
b) Ice making cycle: The main screen displays ice
making process.
c) Full ice bin cycle: The main screen shows a full
bin when the ice storage reaches 100%.
2. LCD main screen displays: water chiller status, ice
storage percentage, operation time, and ice retrieval
operation button.
3. LCD settings screen displays: cleaning settings, ice
production time settings, voice display options, and
maintenance instructions.
4. Switch: While the machine is powered, press and
hold the "TURN ON/OFF" button for 3 seconds to
toggle the produce between shutdown and running.
5. If the water chiller is to be left unused for an extended
period after use, it should be powered on and run for
2 - 4 hours every 2 months.
Other special protection shutdowns
The water chiller will shut down for protection if the
ambient temperature detected is too high.
The water chiller will shut down for protection if an
anomaly is detected in the water inlet path.
Code Annotation
E02 Reducer overload
E04 High temperature fault
E05 Water shortage fault
E07
E08
E09
E10
E11 Refrigeration system fault
E16 Low evaporation temperature
E19 Reducer current is 0
E21 Ice-making overtime fault
E22 Full ice bin fault
When a malfunction occurs, a fault code will be displayed,
whose explanation is as follows:
E23 Communication fault
7
Page 12
Installation, Operation and Maintenance Manual of Ice & Water Dispenser
Maintenance and service
Notes: Maintenance and service must be
performed by qualified professionals.
Warni ng: Before maintenance and manual
cleaning, always be sure to cut off the water and
power supplies and unplug the machine. Liveline working is prohibited.
Appearance cleaning
Regularly clean the area around the water chiller
to keep it clean, and do not block the vent.
The enclosure can be cleaned with neutral
detergent, followed by wiping with a soft cloth. If
necessary, a commercial stainless steel cleaner
and polisher can be used.
Notes: Without proper maintenance,
stainless steel can also rust.
Water inlet filter
The filter cartridge should be checked regularly.
Interior cleaning of ice bin
The interior of the ice bin can be rinsed with a hose
directly.
Notes: Do not use water with excessive
pressure, or water may invade the electrical
parts.
Condenser
For air-cooled water chillers, the condenser should
be cleaned every three weeks. To do this, use a
soft brush or a vacuum cleaner with a brush and
do the cleaning along the direction of the fins to
avoid damaging the fins and affecting the cooling
effect.
The stainless steel strainer should be cleaned once
every two weeks.

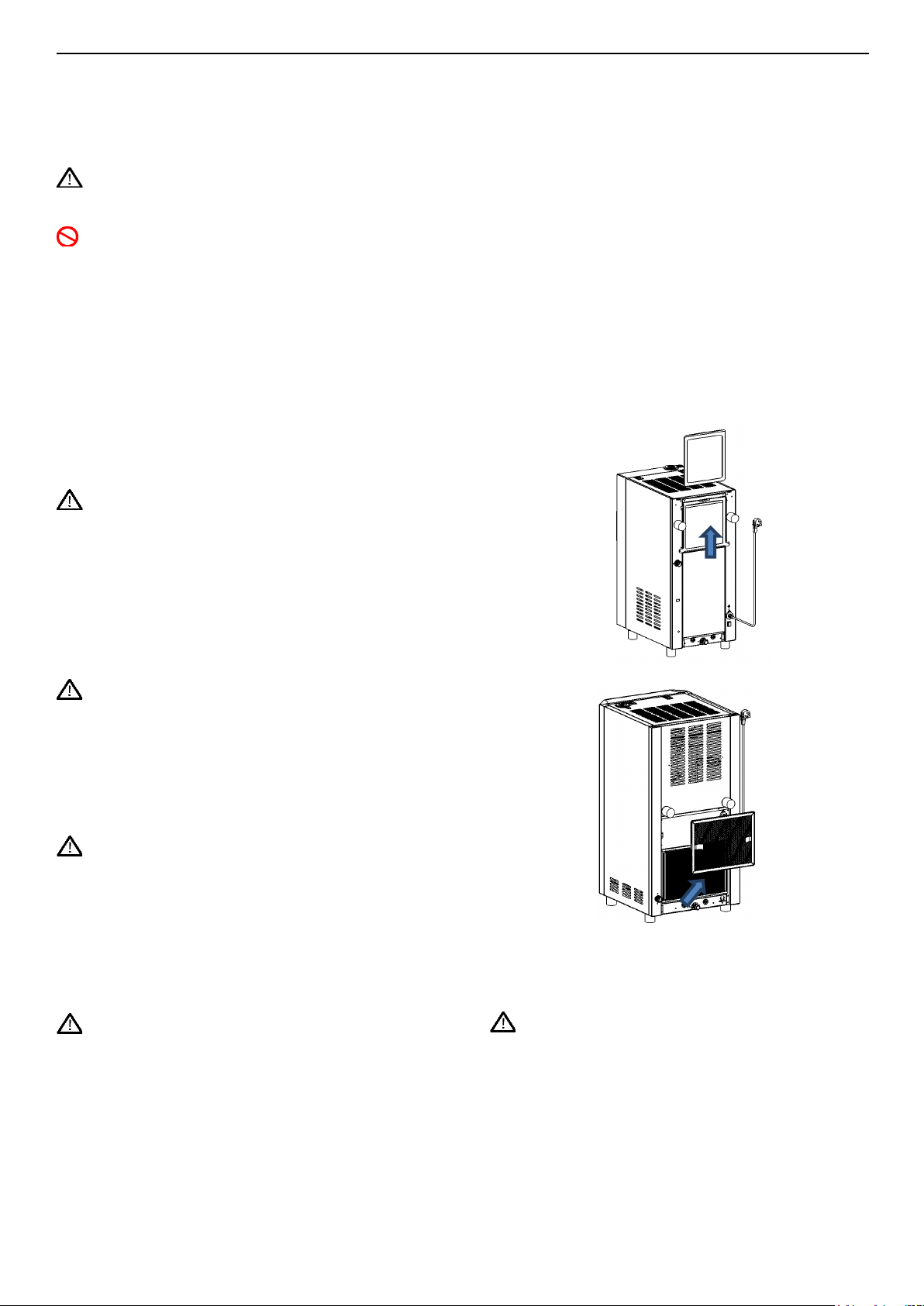

Diagram of stainless steel strainer removal:
Remove the strainer by pulling it upwards from
the filter bracket at the back of the machine.
Ice full switch
It’s recommended to wipe the mirror surface of
the ice full switch every 1 to 3 months.
Notes: The edges of the air-cooling
condenser fins are sharp. Please be careful when
cleaning!
Display panel
The LCD panel and buttons should be wiped once
a week using a sponge or towel soaked in warm
water and baking soda.
Notes: The sponge or towel must be wrung
out. Do not rinse directly with water!
Water system
To ensure food hygiene, the water system of the
chiller should be cleaned regularly.
Winterization
Cut off the water and power supplies, and drain
the residual water from the water tank and inlet
pipe of the water chiller.
The maintenance and service of the water
chiller are not covered under the
manufacturer's warranty!
8
Page 13
Installation, Operation and Maintenance Manual of Ice & Water Dispenser
2
• Automatic cleaning steps
Notes: Before automatic cleaning and sterilization, remove the ice from the bin to avoid contamination.
Notes: Please manually clean and disinfect the ice bin, and rinse it thoroughly.
Cleaning process:
a) Power on the machine, switch it to standby mode, tap the "Clean" button or key, and perform Step C;
b) In ice-making mode, tap "Clean". When a prompt pops up to ask if you would like to shut down the
machine, perform Step C;
c) After shutdown, a prompt pops up to ask if you would like one-tap ice removal;
d) Tap the "OK" button or key to perform the one-tap ice removal action, after which perform Step E. Tap
Back and perform Step E;
e) The drain valve opens, and closes after a delay of 30 s;
f) The display screen prompts "Have you added the scale remover?" (0.6 L < the proportioned scale remover
mixture ≤ 0.8 L);
g) Tap the "Confirm" button or key;
h) The cleaning pump runs for 15 minutes;
i) The drain valve opens, and closes after a delay of 30 s;
j) The inlet valve opens for 3 minutes;
k) Concurrently, the cleaning pump runs for 3 minutes;
l) The drain valve opens, and closes after a delay of 30 s;
m) Repeat steps j - i for 2 cycles;
n) The display screen prompts "Have you added the disinfectant?" (0.6 L < the proportioned disinfectant
mixture ≤ 0.8 L);
o) Tap the "Confirm" button or key;
p) Repeat steps g - m;
q) Jump to the ice-making cycle.
9
Page 14
Call for service
Faults and phenomena
Possible causes
Inspection and troubleshooting
The power switch is not turned
Loose plug
The ambient temperature is too
The fan did not start normally
The machine can’t make ice
properly
The ambient temperature is too
low
The normal working temperature
range is 5 - 40°C
Clean the condenser and strainer
temperature falls in 5 - 35°C
The water chiller is not well
suspended
Installation, Operation and Maintenance Manual of Ice & Water Dispenser
If the water chiller incurs an anomaly, please
confirm the following before making a call:
1. Confirm if the water supply is normal.
Check if the LCD displays any faults;
Ensure the pressure of water entering the water
chiller is no less than 0.13 MPa and no more
than 0.55 MPa; and the water temperature falls
in 5 - 35°C;
Ensure the water valve is open;
Ensure there are no leaks.
2. Check if the power is on.
Notes: On-site service will result in a service fee if the faults are caused by the user instead of the
product itself, e.g. no water, no electricity, environmental factors, etc.
Check if the LCD is lit;
Ensure the LCD does not indicate standby
mode;
If the LCD is not lit, check if the plug and
socket of the power supply line are working
properly, and the power switch at the back of
the machine is on.
3. Check the nameplate and machine number
Check the nameplate on the side of the water
chiller, and record its model and number.
Common faults and possible causes
The water chiller can’t be
started
LCD is not lit
Water chiller stops
automatically after 3 minutes of
start-up, and the LCD shows
E04 high-temperature protection
Insufficient ice production
Excessive noise
on
The power switch at the back
of the machine is not turned on
high
The condenser is dirty or
blocked
The condenser or strainer is
dirty
High ambient temperature
Poor ventilation
High water temperature
leveled or the footing is
Turn on the power switch
Turn on the power switch at the
back of the machine
Check the plug and socket
The normal working temperature
range is 5 - 40°C
Clean the condenser
Check and correct the fan
The normal working temperature
range is 5 - 40°C
Check the ambience of the water
chiller
Check if the supplied water
Place the water chiller stably
10
Page 15
Warranty terms
Installation, Operation and Maintenance Manual of Ice & Water Dispenser
The following situations are not covered by the
warranty of the water chiller:
Normal cleaning, maintenance, adjustment,
and servicing;
Unauthorized modifications to the water
chiller or use of non-original parts;
Damage caused by improper power supply,
water supply, or drainage;
Notes: Warranty service should be performed by agents or service organizations approved by
us.
Damage due to installation, cleaning, or
maintenance of the water chiller not in
accordance with the manual requirements;
Damage caused by water scale arising from the
water source;
Act-of-man damage.
Note: In case of any technical changes, the actual product shall prevail, and no separate notice will be provided.
We appreciate your understanding!
11
Page 16
Loading...
