HONDA PLUG & PLAY
2-WAY COMPONENT SPEAKER UPGRADE
GTx 1662 CHN
2-WAY COAXIAL SPEAKER UPGRADE
GTx 1662 HN
GTx 1662 CHN
GTx 1662 HN
Operating and Installation Instructions
INTRODUCTION
Proper system planning is vital in order to maximize the
device’s performance and road safety. Plan your installation carefully to avoid compromising performance reliability of the system. Consult an authorized Blaupunkt
delaler for installation or reparation. Read the manual
carefullt before operating the device for the rst time.
Safety Notes
Ensure to folow below safety notes during installation
and wiring connection: -
•
Disconnect the negative terminal of the battery. Refer
to the safety notes of the vehcle manufacturer.
•
Ensure positions of the holes are nowhere near the
vehicle component to avoid any damage during
drilling.
•
Ensure cross section of the cable is no less than
2.5mm if the positive and negative cables are too
long.
•
Incorrect installation may result in malfunction of the
device or the car sound system.
Installation and Connection Instructions
•
Select a dry and well-ventilated location to install the
device.
•
The device must not be installed in overly exposed
location such on therear shelf, rear seat etc.
•
The installation location must be suitable for screw
holes and have stable ground support.
Disclaimer
In no event shall Blaupunkt be liable for any direct,
indirect, punitive, incidental, special consequential
damages to property or life and whatsoever arising out
of or connected with the use or misuse of our products.
USA & CANADA: This product is not intended for sale in
the United States and Canada. If purchased in the U.S. or
Canada, this product is purchased on as-is basis. No
warranty, whether expressed or implied is provided in
the U.S. or Canada.
Voltage Supply
•
Use the supplied power extension cable to connect to
the positive battery terminal.
•
Firmly and carefully connect the ground lead to a bare
metal point on the vehicle chassis.
•
The control of the device should be a two-channel
control, either via the preamplier output of the car
sound system.
•
A control solely via the right or left channel is also
possible since the low-frequency portion of the music
is generally identical on both channels.
Recycling and Disposal
Do not dispose of your old unit in the
household trash!
Use the return and collection systems
available to dispose of the old device.
This manual may be updated from time to time without
any notice.
1

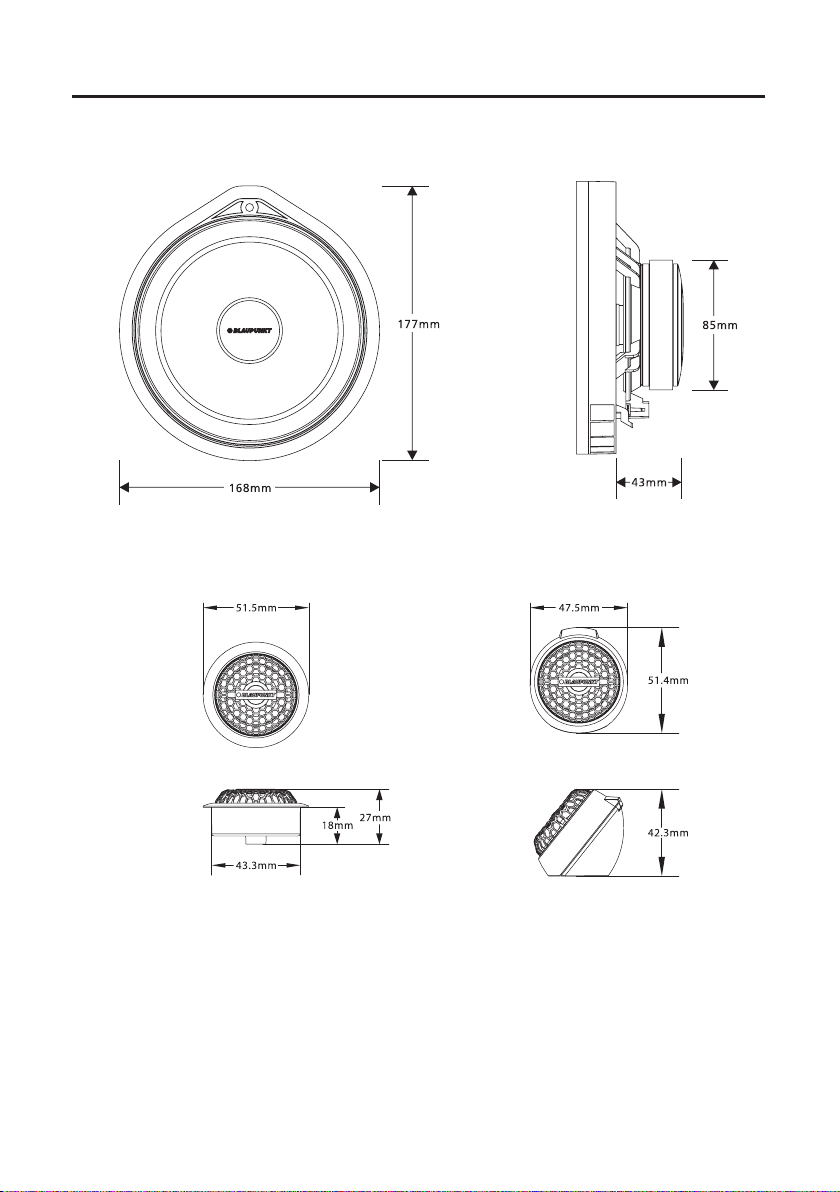

SPECIFICATION
GTx 1662 CHN
Woofer
Tweeter
Pair of 6.5” Honda plug & play 2-way component speaker to upgrade OE speaker for selected models with Synthetic
Fiberglass Cone including mounting hardware
•
Max. Power Handling : 80W
•
Normal Output Power (RMS) : 40W
•
Voice Coil : 25.5mm
•
Tweeter Size : 25.4mm
•
Impedence : 4ohms
•
Frequency Response : 61Hz - 22,000Hz
•
Sensitivity : 89dB
•
Mounting Depth : 43mm
•
Mounting Hole Diameter : 117mm
2
SPECIFICATION
GTx 1662 HN
Pair of 6.5” Honda plug & play 2-way coaxial speaker to upgrade OE speaker for selected models with Synthetic Fiberglass Cone including mounting hardware
•
Max. Power Handling : 80W
•
Normal Output Power (RMS) : 40W
•
Voice Coil : 25.5mm
•
Tweeter Size : 13.28mm
•
Impedence : 4ohms
•
Frequency Response : 61Hz - 20,000Hz
•
Sensitivity : 88dB
•
Mounting Depth : 43mm
•
Mounting Hole Diameter : 117mm
3
INSTALLATION
Connect to Tweeter
Input
Connect to Woofer
TweeterTweeter
WooferWoofer
TROUBLESHOOTING
If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt
authorized dealer if problem persist.
Problems
Speaker does not
work
Distorted and hissing
sound
Possible Causes
Incorrect or loose wiring connection.
Fraying or broken cables.
Speaker is damaged.
Voice coil or speaker cone is damaged.
Solutions
Ensure proper wiring connections of speaker.
Repair or replace if the cables are damaged.
Replace with a new speaker.
Replace with a new speaker.
4
COMPATIBILITY LIST
GTx 1662 CHN & GTx 1662 HN can be installed in the following list of car models :
Model
Fit
City
Greiz
Gienia
Crider
Civic
Insight
Accord
Spirior
Inspire
Civic Type-R
XR-V
VEZEL
HR-V
CR-V
UR-V
Pilot
Avancier
Jade
Odyssey
Elysion
Mounting Position
Front/rear door
Front/rear door
Front/rear door
Front/rear door
Front/rear door
Front/rear door
Front/rear door
Front/rear door
Front/rear door
Front/rear door
Front/rear door
Front/rear door
Front/rear door
Front/rear door
Front/rear door
Front/rear door
Front/rear door
Front/rear door
Front/rear door
Front/rear door
Front/rear door
5
GTx 1662 CHN
1 111 20 024 02 01
Designed and engineered by Blaupunkt Competence Centre
GTx 1662 HN
1 111 20 026 02 01
