Product Name: CG5010
Languages: Polish, English
Product Type: Angle Grinder
Model Variants: Szlifierka ktowa, Kotni brusilnik, Polizor unghiular
Components:
1. Main handle
2. Auxiliary handle
3. Spindle lock
4. Spindle
5. Safety guard
6. Switch with a locking function
7. Air vent
8. Battery charge indicator
9. Guard quick-release lever
10. Spindle removal wrench
11. State of charge indicator button
12. Battery pack latch release button
Product Usage Instructions
1. Read the user manual for detailed instructions.
2. Use ear protection while operating the angle grinder.
3. Wear protective gloves to avoid injuries.
4. Avoid fire hazards by wearing protective clothing.
5. Be cautious of electric shock hazards and wear protective gear.
6. Use a protective mask to prevent inhalation of dust particles.
7. Wear safety glasses to protect your eyes.
8. If necessary, use respiratory protection for additional safety.
9. To install the battery pack, align it with the device’s edge and push until you hear a locking sound.
IMPORTANT INFORMATION
To achieve the highest satisfaction, enjoy the product’s performance and learn about all its features and functions,
please read this manual before using the product. Before using the device, read the Operating Instructions and
comply to its contents. The manufacturer shall not be liable for any damage caused by the use of the device other
than for its intended purpose or by improper handling.
Keep these Operating Instructions for future reference.
This device is for domestic use only. Do not use for any other purposes.
The device should only be connected to an socket with values corresponding to the values on the rating label.
It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed
the fuse in the circuit.
If you are using an extension cord, make sure that the total power consumption of the equipment plugged into
the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in
such a way as to avoid tripping hazards.
Page 3
Do not let cord hang over edge of counter, or touch any hot surface.
The device is not designed to be controlled via an external timer, separate remote control, or other equipment
that can turn the device on automatically.
Before maintenance work always disconnect the unit from the power supply.
When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully.
Never pull the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can
lead to an electrocution hazard.
Never put the power cable, the plug or the whole device into the water or any other liquids.
The device should be cleaned regularly complying with the recommendations described in the section on
cleaning and maintenance.
Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on
any other device.
The appliance must not be used by children. Keep the appliance and its cord out of the reach of children.
The appliance may be used by individuals with limited physical, sensory or mental capability as well as those
without knowledge of or previous experience in the use of similar appliances, provided such individuals are
supervised or instructed with regard to the safe operation of the appliance and are informed about the potential
hazards.
Additional precautions should be taken when using this device in the presence of children or pets. Do not allow
children to play with the device.
Never use the product close to combustibles.
Never expose the product to atmospheric conditions such as direct sun light or rain, etc… Never use the
product in humid conditions (like bathroom or camping house).
The power cable should be periodically checked for damage. If the power cable is damaged the product should
be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.
Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it
does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock.
Always return the damaged device to a professional service in order to repair it.
All the repairs should only be performed by authorized service professionals. Any attempted unauthorised
repairs performed can be a hazard to the user.
Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using
accessories which are not recommended by the manufacturer may result in damage of the device and may
render the device unsafe for use.
Keep your workplace tidy and well lit.
Disorder and insufficient lighting lead to accidents.
Do not use power tools in explosive atmospheres, i.e. in the presence of flammable liquids, gases or dust.
A moment of carelessness may cause losing control of your tool.
If it is possible to fit power tools for dust extraction or collection, check that they are fitted and working correctly.
Using such power tools reduces the risk posed by the presence of dust.
Do not lean out too far when working with your power tool. Maintain a stable posture and balance. This allows
you to keep better control of your power tool in unforeseen situations.
Avoid starting the power tool unintentionally. Make sure the power switch is in the OFF position before
connecting the power tool to the mains. Carrying a power tool with your finger on its trigger or plugging in a
power tool after switching it on can lead to accidents.
Page 4
Wear appropriate clothing. Do not work in loose clothing and do not wear jewellery while working. Keep your
hair, clothing and gloves away from moving parts. The moving parts of a power tool can catch and pull in loose
pieces of clothing, jewellery or long hair.
Remove any spanners or tools from the power tool before starting it. A tool or spanner still connected to the
rotating part of the power tool may cause personal injury.
Be careful when working with power tools, concentrate on your work and use common sense. Do not use a
power tool when tired or under the influence of drugs, alcohol or medication. Even a moment of carelessness
while working with a power tool can lead to a serious accident.
Keep children away from the work area and DO NOT allow children to pull on the power cord – this can cause
serious injury.
Before making any adjustments, changing accessories or storing the power tool, move the switch to the off
position to disconnect the power tool from the power supply. Such precautions reduce the risk of accidentally
starting the power tool.
Ensure that the vents are free from debris.
The device may only be used in a dry, well-lit environment.
This tool should not be used by anyone under the age of 16.
When carrying out work where the tool or clamping attachment could come into contact with concealed electric
wires, hold the power tool only by insulated surfaces. Contact of the tool or clamping attachment with a live
electrical conductor may cause voltage to be transmitted to non- insulated metal parts of the power tool,
causing a risk of electric shock.
Loss of control of the power tool may result in personal injury.
Use only clean and sharp cutting tools (such as drill bits). Using blunted tools reduces work efficiency and
increases the risk of accidents.
Select the operating mode and the work tool according to the type of the workpiece.
Check the condition of the dust cover. In the event of damage, replace it with a new one or send the device to
a professional service centre.
Working on some materials generates dust that may pose health risks, cause allergic reactions or respiratory
diseases, and contribute to developing cancer. Ensure good ventilation at the work station and use dust masks
with an appropriate protection rating.
Materials containing asbestos must be handled by properly trained personnel.
The machine can only be used in indoors with a functioning ventilation system.
Take special care when changing the work tool. It can be very hot and/or sharp immediately after use. It is
recommended to use protective gloves.
Charger and battery pack safety instructions
To connect the battery pack for charging, insert the battery pack into the charger dock and plug the charger to a
power source.
Page 5
Keep the charger away from rain and moisture. The charger may only be used indoors.
Keep the charger clean.
Do not operate the charger on readily combustible objects and surfaces (e.g. paper) or areas with
flammable/explosive atmospheres.
Always ensure adequate ventilation when charging; fumes or battery acid can be released from the battery
pack if the latter is compromised by poor handling or damage.
When charging is complete, unplug the charger from the power source. Do not leave it connected to a power
source for longer than necessary.
Store and charge the battery pack in a dry place and make sure it will not be flooded by water.
Keep the battery pack terminals clean and free of dirt.
Protect the battery pack from shocks and moisture; never open the battery pack or expose it to any damage.

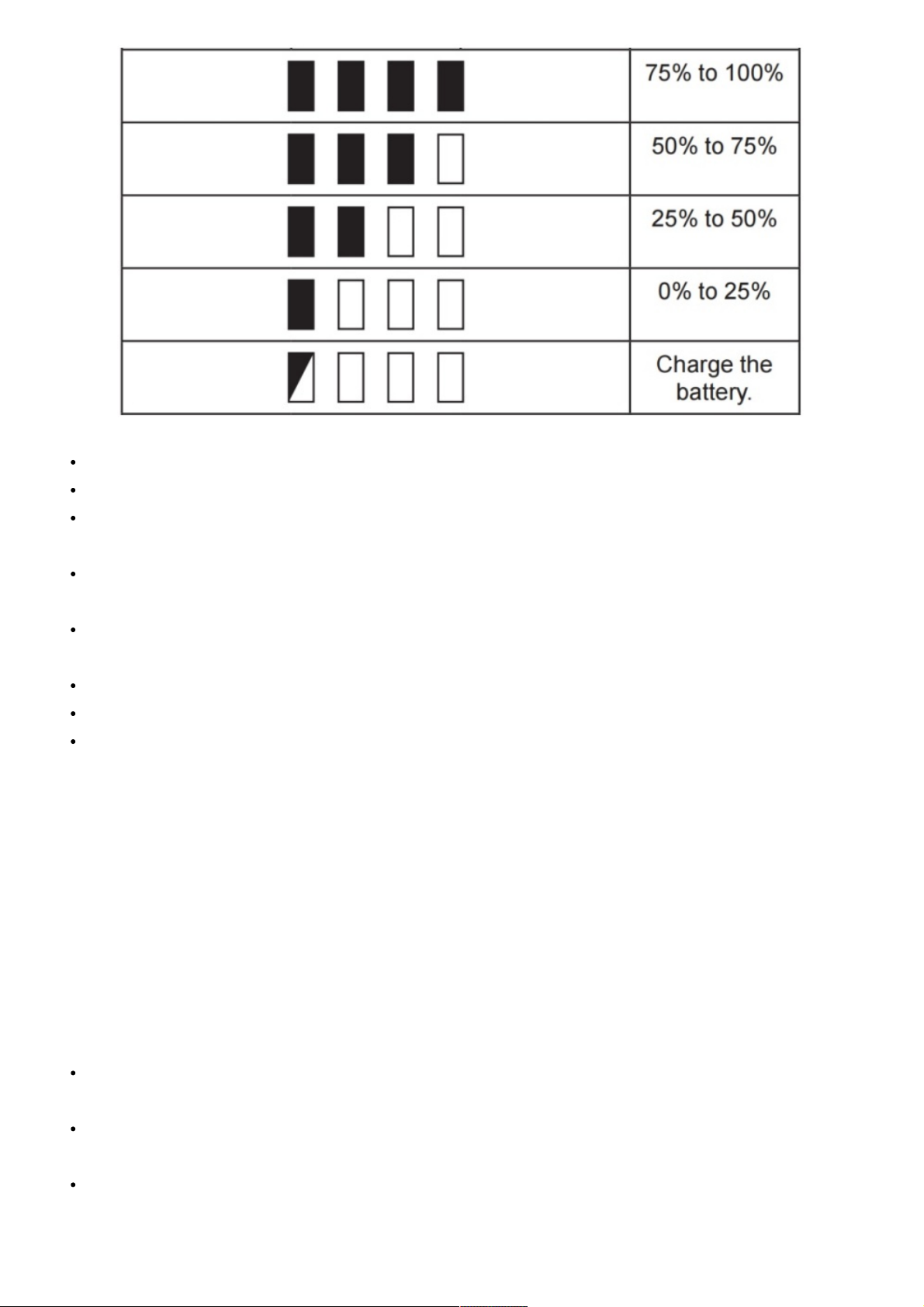

The battery pack charge level can be displayed with the number of charge indicator LEDs by pressing the state of
charge indicator button on the pack; if required, charge the battery pack for as long as required to reach the
desired charge level and the expected operating time of the cordless power tool.
Kickback:
The kickback is sudden and uncontrollable, the device reacts to the jamming or blockage of the cutting device.
Jamming or blocking results in a sudden jerk, in the direction opposite to the rotation of the disc. Kickback is the
result of not reading the safety instruction. To avoid kickback, follow the safety instructions and use methods to
prevent it
Methods to prevent kickback.
Hold the device by the two handles firmly and securely. Always use the additional handle. – The operator can
control the torque and the resultant kickback forces if appropriate precautions are taken.
Keep hands away from the cutting part of the device. CAUTION: The device may injure the user if used
improperly.
The user should stand in such a position that, in the event of a kickback, they are not within reach of the grinder
disc.
Page 6
SYMBOLS
The following symbols may appear in the operating instructions or on the tool’s nameplate.
These signs contain important information about the product and instructions on how to use it.
When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the
European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical
and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous
components, which may affect the environment. Do not dispose this appliance in the common waste bin. Your
products is designed a manufactured with high quality materials and components, which can be recycled and
reused.

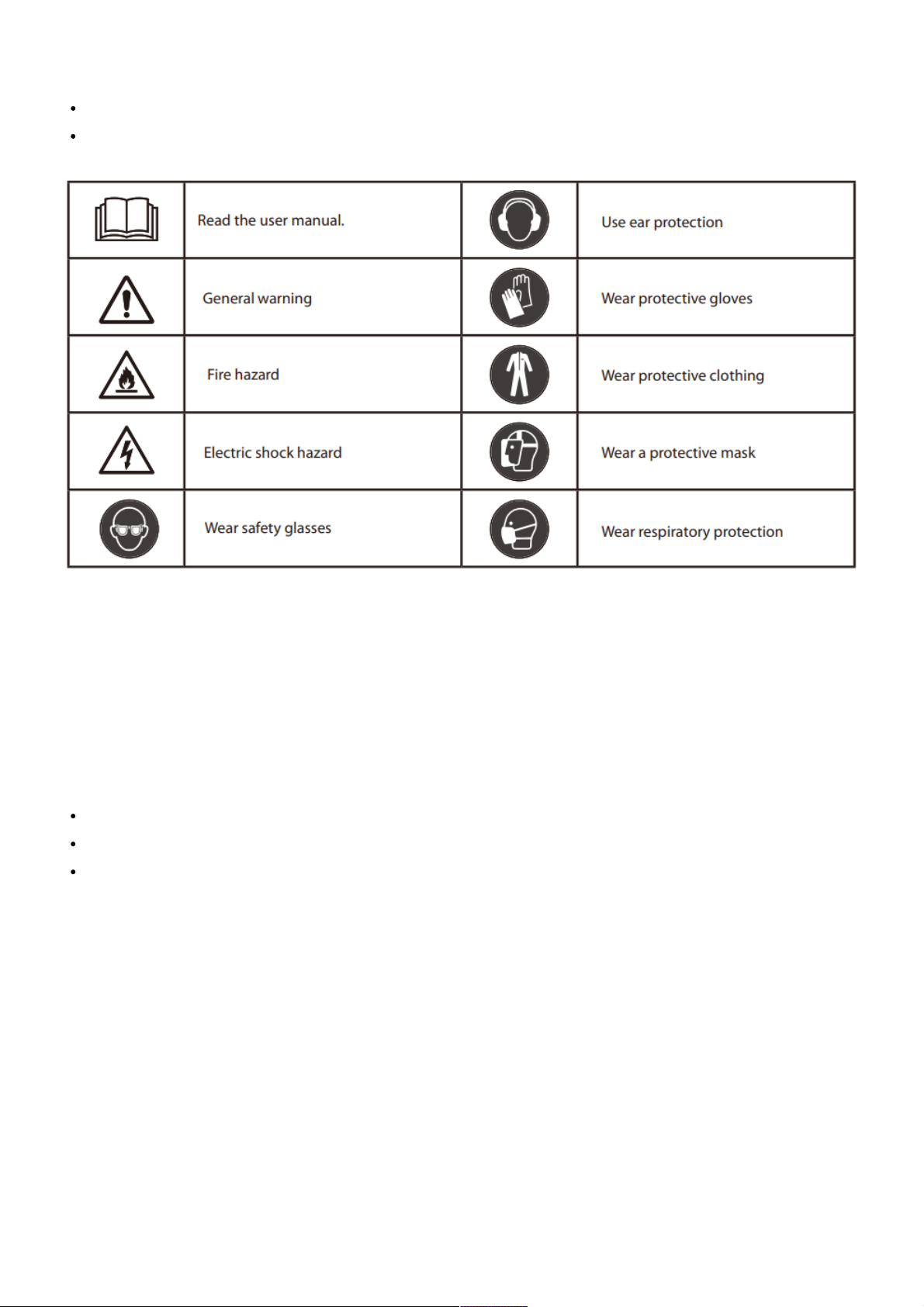

WEAR PERSONAL PROTECTIVE EQUIPMENT
Wear safety glasses according to En166
Use protective masks in accordance with En149
Use other types of proper personal protective equipment, depending on the type of work involved.
Description of the device
Page 7
1. Main handle
2. Auxiliary handle
3. Spindle lock
4. Spindle
5. Safety guard
6. Switch with a locking function
Page 8
7. Air vent
8. Battery charge indicator
9. Guard quick-release lever
10. Spindle removal wrench
11. State of charge indicator button
12. Battery pack latch release button
Storage
Store cordless tools in a dry place and out of the reach of children. For safety concerns, remove the battery pack
from the cordless tool before storage. When left connected to a cordless tool, the battery pack is drained faster.
Protect the battery pack and power tools from frost, high temperatures, moisture and water. Do not attempt to
repair a failed battery pack. Only the original manufacturer or an authorised service may repair the battery pack.
Recharge the battery packs using only the chargers specified by the manufacturer. Storage or operation of the
battery pack in unsuitable conditions may result in a battery acid leak. Never attempt to use a damaged or
modified battery pack. Damaged or modified battery packs may cause unpredictable effects during operation,
resulting in health hazards. Keep the battery pack away from open flames and high temperature. If exposed to fire
or temperatures above 130°C, the battery pack may explode.
Installing the battery pack
Tip: Using a battery pack incompatible with the power tool may result in abnormal performance or failure of the
power tool.

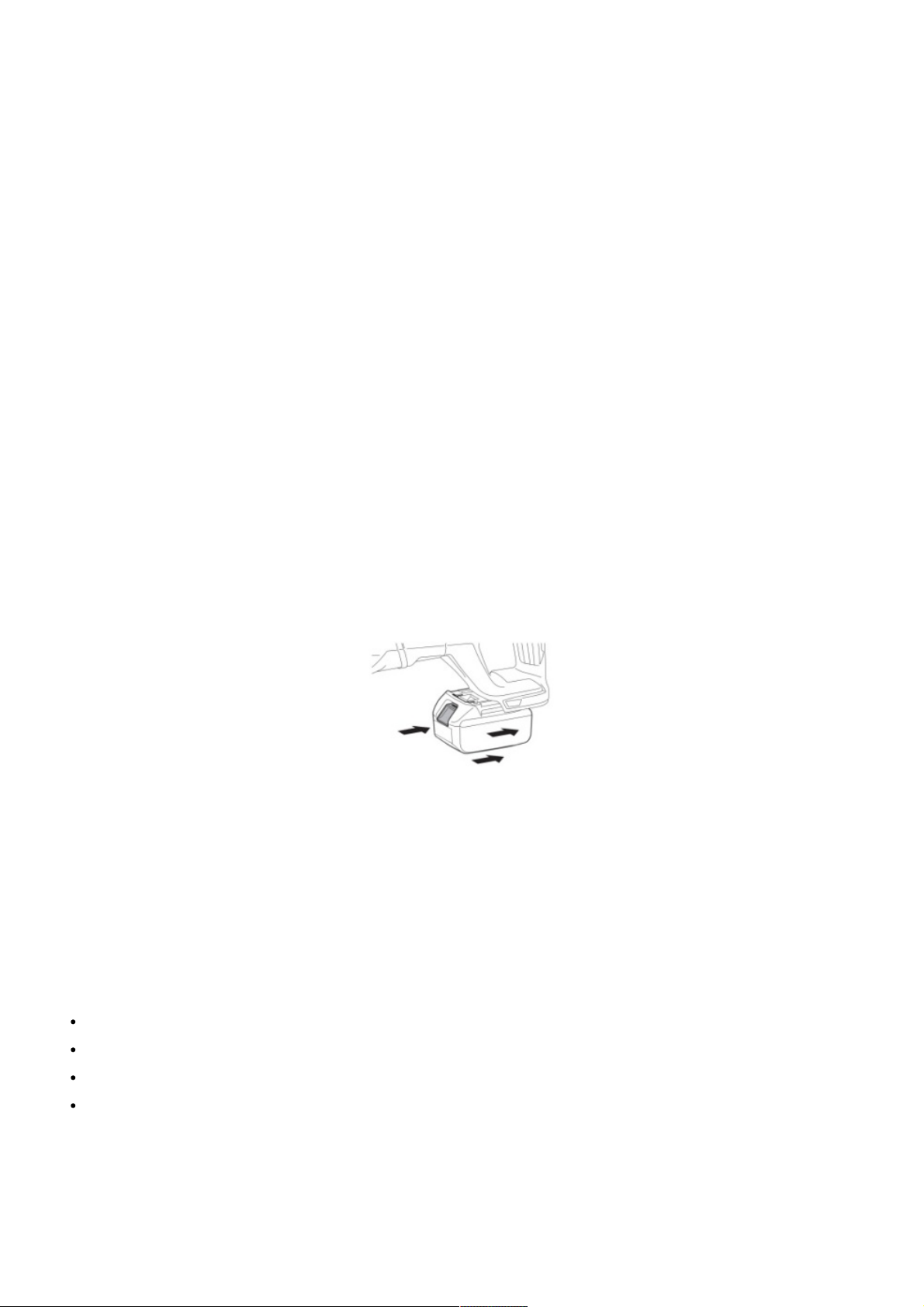

Insert the battery pack into the handle until the battery pack latch clicks (the battery pack should be flush with the
receptacle edges on the power tool).
Installing the additional handle:
The handle can be mounted on either side of the device.
Using of safety guard:
The disc guard should be firmly attached to the device and set so that the user is safe when cutting, i.e. it should
be mounted in such a way that its covered part is on the user’s side
Device operation:
The device is equipped with a switch lock.
The lock reduces the risk of turning the device on or off.
To turn the device on, move the button to the upper position until it hits the locking tab
To turn the device off, press the lower part of the button, it will pop out of the lock.
Replacing the grinding disc:
Before replacing the disc, disconnect the device from the power source. To replace the grinding disc, use the
included hole wrench for the front bolts.
Page 9
Press the spindle lock to lock the chuck rotation.
Use the spanner to loosen the bolts securing the discs.
Remove the spanner from the flanged nut.
Grinding discs:
The disc must not exceed the diameter specified.
Check that the disc has the appropriate technical specification. Use only discs with a minimum permissible
rotational speed of 12000 rpm and a peripheral speed of 80 m/s.
Tips for working with the device:
Before starting to work with the device, check that the disc is tightened and properly installed, the disc guard is
tightened and set in the right direction.
While cutting or grinding the grinder should be guided at a constant speed, depending on the material.
Do not push the device too hard against the workpiece.
Do not change the cutting angle and bend the disc in the workpiece when cutting.
CLEANING AND MAINTENANCE
Before cleaning and maintenance, make sure the device is disconnected from the power source. Keep the
ventilation apertures (air inlets and outlets) of the device free of dirt. Wipe the device with a dry cloth or blow it with
compressed air. Keep the work tool chuck free of dust. It is recommended to clean the device after each use. Do
not immerse in water or other liquids. Do not use aggressive cleaning agents or solvents.
Noise
Typical A-weighted noise level measured in accordance with En62841: Sound pressure level (LpA): 77 dB (A)
Measurement uncertainty (K): 3.0 dB (A)
Noise level during operation may exceed: 88 dB (A).
Wear hearing protection!
Vibrations
Total vibration value measured in accordance with En62841:
Vibration emission: ah, AG=5.1 m/s ;
Measurement uncertainty (K): 1.5 m/s
Permissible Operating Time: 15 minutes of operation, 30 minutes off.
The declared vibrations has been measured according to the standard test method and can be used to
compare tools.
The declared vibrations can also be used in the initial exposure assessment.
Cordless Angle Grinder
Voltage: 18 V
Page 10
Maximum wheel diameter: ø 125 mm
Spindle thread: M14
No-load speed: 8000 rpm
Smooth start
Battery type: 18 V Li-Ion; BP1840 4.0 Ah recommended (not included)
Accessories: 1 x side handle, 1 x tool change wrench, 1 x grinding disc
Dimensions: 34.5 x 14 x 10 cm
Weight: 1.8 Kg
EU – DECLARATION OF CONFORMITY
01/2023/CG5010
MANUFACTURER: BLAUPUNKT COMPETENCE CENTER
2N-Everpol Sp. z o.o. ul. Pulawska 403A 02-801 Warsaw, Poland
Authorized person to prepare the technical documentation:
Tomasz Jak6bczyk
ul. Pulawska 403A
02-801 Warsaw, Poland
We declare under our sole responsibility that our product:
Type of device: Cordless Angle Grinder 18V
Name: CG5010
If used for its intended use complies with the essential protection requirements relating to the:
2014/30/EU (EMC Directive)
2006/42/EC (MD Machinery Directive)
2011/65/EU (RoHS Directive) and its Annex II amending directive 2015/863/EU
The assessment of this product has been based on the following standards:
EMC standards;
EN 55014-1:2017+A11:2020 I EN IEC 55014-1:2021
EN 55014-2:1997+Al:2001+A2:2008 I EN IEC 55014-2:2021
MD and LVD standards:
ISO 12100:2010
EN 62841-1:2015
EN 62841-2-3:2021+A11:2021
EN 62233:2008
RoHS standards:
IEC EN 63000:2018
Competence Center
2N-Everpol Sp. z o.o.
ul. Pulawska 403A
02-801 Warsaw, Poland
phone: + 48 22 688 08 00
e-mail: info@everpol.pl
www.blaupunkt.com
W przypadku pytar’i lub problem6w prosimy o kontakt z naszym serwisem. In case of questions or problems
please contact our service.
Tel. 00 48 22 688 08 33
Page 11
Email: tools@blaupunkt.pl
All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are
subject to change without prior notice.
Documents / Resources
BLAUPUNKT CG5010 Angle Grinder [pdf] Instruction Manual
CG5010 Angle Grinder, CG5010, Angle Grinder, Grinder
Manuals+,
Loading...
