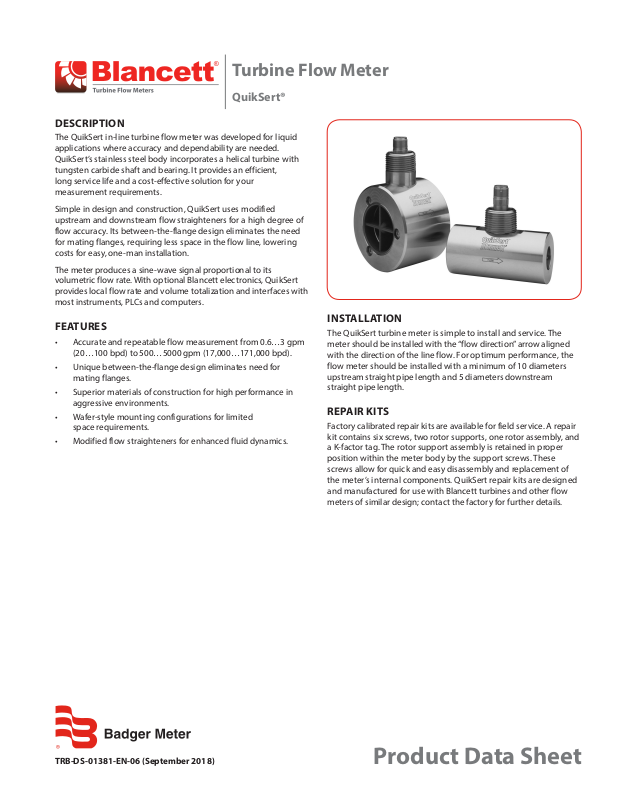

Blancett Quiksert Specifications

Page 1

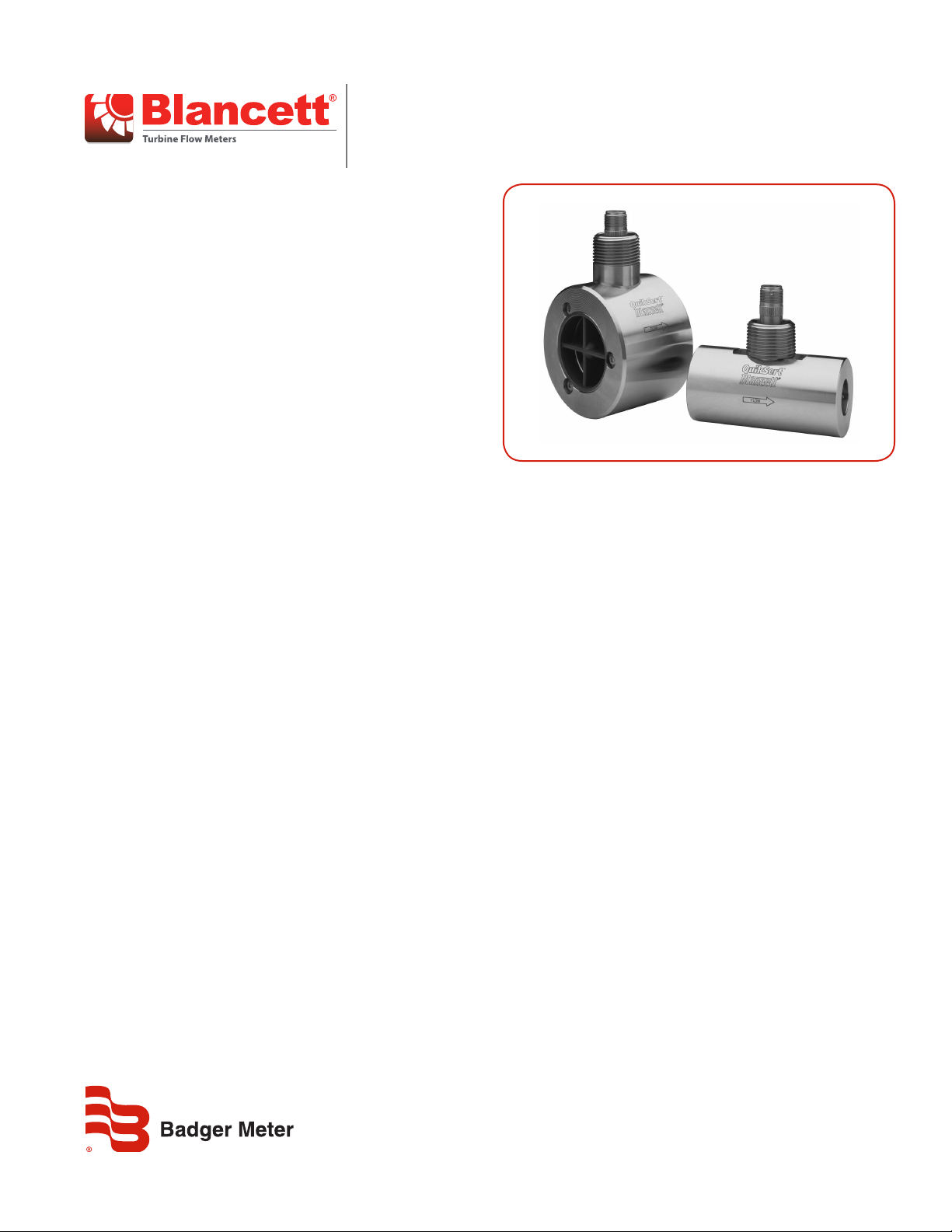

Turbine Flow Meter

QuikSert®

DESCRIPTION

The QuikSert in-line turbine flow meter was developed for liquid applications where accuracy and dependability are needed. QuikSert’s stainless steel body incorporates a helical turbine with tungsten carbide shaft and bearing. It provides an efficient, long service life and a cost-effective solution for your measurement requirements.

Simple in design and construction, QuikSert uses modified upstream and downstream flow straighteners for a high degree of flow accuracy. Its between-the-flange design eliminates the need for mating flanges, requiring less space in the flow line, lowering costs for easy, one-man installation.

The meter produces a sine-wave signal proportional to its volumetric flow rate. With optional Blancett electronics, QuikSert provides local flow rate and volume totalization and interfaces with most instruments, PLCs and computers.

FEATURES

• Accurate and repeatable flow measurement from 0.6…3 gpm (20…100 bpd) to 500…5000 gpm (17,000…171,000 bpd).

• Unique between-the-flange design eliminates need for mating flanges.

• Superior materials of construction for high performance in aggressive environments.

• Wafer-style mounting configurations for limited space requirements.

• Modified flow straighteners for enhanced fluid dynamics.

INSTALLATION

The QuikSert turbine meter is simple to install and service. The meter should be installed with the “flow direction” arrow aligned with the direction of the line flow. For optimum performance, the flow meter should be installed with a minimum of 10 diameters upstream straight pipe length and 5 diameters downstream straight pipe length.

REPAIR KITS

Factory calibrated repair kits are available for field service. A repair kit contains six screws, two rotor supports, one rotor assembly, and a K-factor tag. The rotor support assembly is retained in proper position within the meter body by the support screws. These screws allow for quick and easy disassembly and replacement of the meter’s internal components. QuikSert repair kits are designed and manufactured for use with Blancett turbines and other flow meters of similar design; contact the factory for further details.

TRB-DS-01381-EN-06 (September 2018)

Product Data Sheet

Page 2

Operating Principle

+1%

AVG. K-FACTOR (K)

STANDARD TURNDOWN APPROX. 10:1

OPERATING PRINCIPLE

Fluid entering the meter first passes through an inlet flow straightener that reduces its turbulent flow pattern. Fluid then passes through the turbine, causing the turbine to rotate at a speed proportional to fluid velocity. As each turbine blade passes through the magnetic field generated by the meter’s magnetic pickup, an AC voltage pulse is generated. These pulses provide an output frequency that is proportional to volumetric flow.

Magnetic Pickup

Other Frequency

Output Device

Output

Turbine Rotor

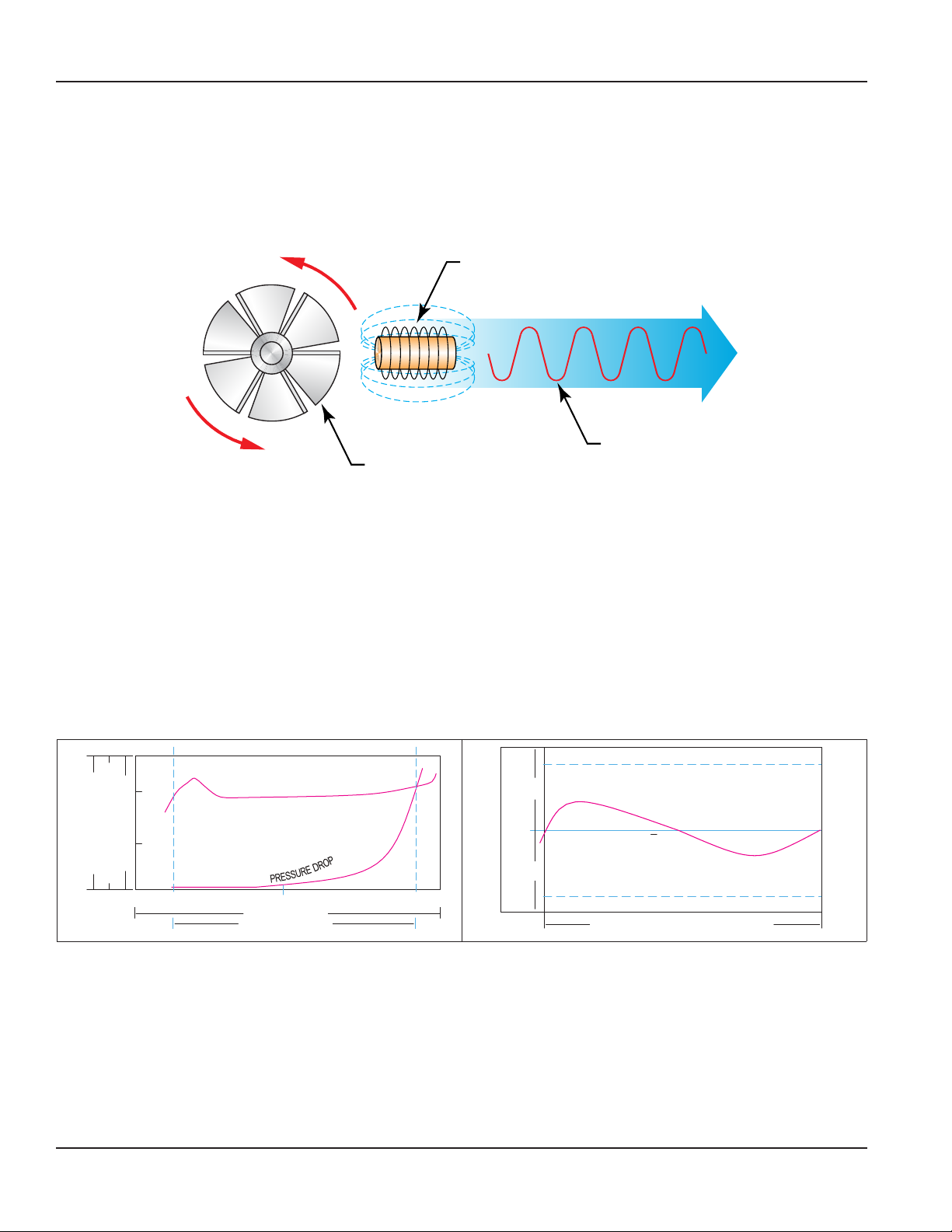

Figure 1: Schematic illustration of electric signal generated by rotor movement

Signal

KFACTOR

The K-factor represents the number of output pulses transmitted per gallon of fluid passing through the turbine meter. Each turbine has a unique K-factor. However, turbine meters are not functionally consistent throughout the full flow range of the meter.

There are several forms of friction inherent in turbine meters that slow down the rotational movement of the turbine rotor. These frictional forces include: magnetic drag, created by electromagnetic force of pickup transducers; mechanical drag, due to bearing friction; and viscous drag, produced by flowing fluid. See charts below.

As flow increases, the frictional forces are minimized and the free-wheeling motion of the turbine rotor becomes more linear (proportional to flow). The K-factor becomes relatively constant and linear throughout the balance of the linear flow range. This is approximately a 10:1 turndown ratio from the maximum flow rate down to the minimum flow rate.

Typical K-factor Curve (Pulse per US Gallon)

(CYCLES/GALLON)

CTOR A

K-F

RATE

(CYCLES/SEC)

FLOW AT

LUE A

FREQUENCY

OF %

OUTPUT

100%

50%

0% 10%

K-FACTOR (PULSES/GALLON)

50%

FULL FLOW RANGE

LINEAR FLOW RANGE

100%

LINEARITY (DESIGN DEVIATION)

-1%

(

)

TRB-DS-01381-EN-06Page 2 September 2018

Page 3

SPECIFICATIONS

(Not included with explosin-proof)

Diameter

FLOW

Length

Diameter

FLOW

Length

Materials of Construction

Operating Temperature

Pressure Rating

End Connections

Turndown Ratio

Accuracy

Repeatability Calibration Pickup

Certification

Pressure Rating

Body Rotor Bearings Rotor Shaft Rotor Support

316L stainless steel CD4MCU stainless steel Tungsten carbide Tungsten carbide

—

–150…350° F (–101…177° C) standard Temperatures to 450° F (232° C) with high-temp pickup, consult factory for details

See pressure rating table below Wafer-style ASME/ANSI B16.5-1996

—

±1% of reading for 7/8 in. and larger meters ±1% of reading over the upper 70% of the measuring range for 3/8 in., 1/2 in. and 3/4 in. meters

±0.1% Water; NIST Traceable Calibration Certificate available, consult factory for details B111109, B220111, B220210, B220243, B111126 For Explosion proof models only: Class l Div 1 Groups C,D; Complies to UL 1203 and CSA 22.2 No. 30

Met Labs File No. E112860

Specications

The pressure rating of the meter is dependent upon the class of ANSI flanges between which the meter is to be mounted. The pressure rating chart below is based on Carbon Steel at 100o F (37.8o C).

Flange Class (ANSI) 150 300 600 900

Working Pressure (psi) 285 740 1480 2220

Working Pressure (MPa) 1.97 5.10 10.20 15.31

* Test Pressure (psi) 427.5 1110 2220 3330

* Test Pressure (MPa) 2.95 7.65 15.31 22.98

* Test pressure based on 1.5 safety factor

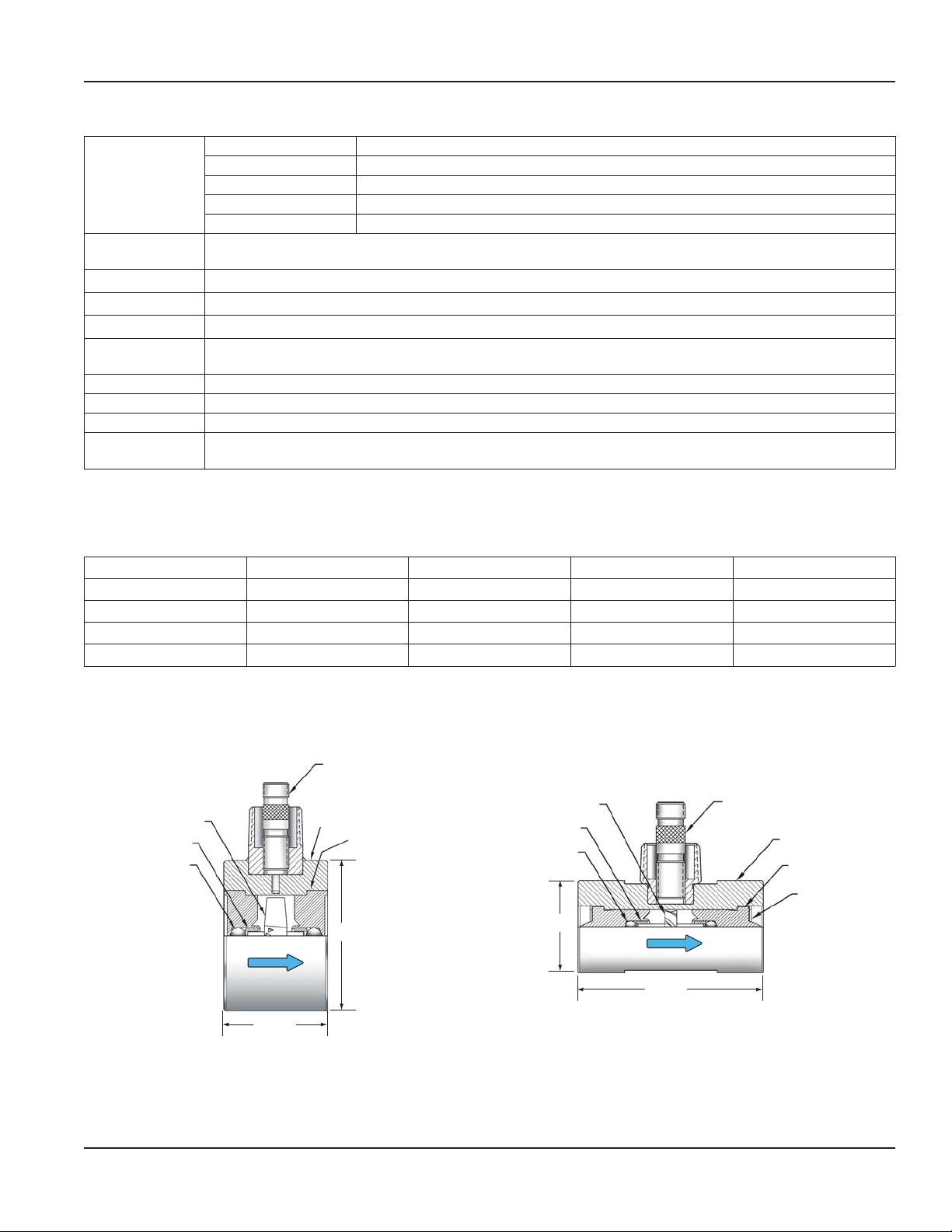

DIAGRAMS

Models B132-050…B139-900 Models B131-038…B131-100

Magnetic pickup

Meter body

Rotor support

Retaining ring

Rotor assembly

Bushing

Thrust ball

Meter body

Rotor support

Rotor assembly

Bushing

Thrust ball

TRB-DS-01381-EN-06 Page 3 September 2018

Page 4

Part Number Information

PART NUMBER INFORMATION

Part

Number

B131-038 3/8 × 1 — —

B131-050 1/2 × 1 — —

B131-075 3/4 × 1 — —

B131-088 7/8 × 1 — —

B131-100 1 × 1 — —

B132-050 1/2 × 2 — —

B132-075 3/4 × 2 — —

B132-088 7/8 × 2 — —

B132-100 1 × 2 — —

B132-150 1-1/2 × 2 — —

B132-200 2 × 2 — —

B132-250 2 × 3 — —

B133-300 3 × 3 — —

B133-380 3 × 3 — —

B134-400 4 × 4 — —

B136-600 6 × 6 — —

B138-800 8 × 8 — —

B139-900 10 × 10 — —

 Part number includes turbine meter and standard magnetic pickup. For other pickup options, see “Pickup Options” on page 5. For larger sizes, consult factory. Note: Insert a “C” before dash for turbine meters with explosion proof rating. No pickup included. Example: B131C-100

Meter Bore

Size × Line

Size (in.)

End

Connections

Max.

PSI

(11.36…113.56)

(18.93…189.27)

(11.36…113.56)

(18.93…189.27)

15.00…180.00

(56.78…681.37)

40.00…400.00

(151.42…1514.16)

40.00…400.00

(151.42…1514.16)

60.00…600.00

(227.12…2271.25)

80.00…800.00

(302.833…3028.33)

100.00…1200.00

(378.54…4542.49)

200.00…2500.00

(757.08…9463.53)

350.00…3500.00

(1324.89…13248.94)

500.00…5000.00

(1892.71…18927.06)

gpm (lpm) bpd m3/d

0.60…3.00

(2.27…11.36)

0.75…7.50

(2.84…28.39)

2.00…15.00

(7.57…56.78)

3.00…30.00

5.00…50.00

0.75…7.50

(2.84…28.39)

2.00…15.00

(7.57…56.78)

3.00…30.00

5.00…50.00

Flow Ranges

20…100 3.3…16 60 18,000 — 3.75

25…250 4.1…41 60 13,000 — 6.5

68…515 10.9…81.75 60 3300 — 18

100…1000 16…160 60 3100 — 20

170…1700 27.25…272.5 60 870 — 20

25…250 4.1…41 60 13,000 — 12

68…515 10.9…81.75 60 3300 — 18

100…1000 16…160 60 3100 — 20

170…1700 27.25…272.5 40 870 — 20

515…6000 82…981 20 330 — 16

1300…13,000 218…2180 20 52 — 9

1300…13,000 218…2180 20 52 — 10

2100…21,000 327…3270 10 57 — 10

2750…27,500 430…4300 10 57 — 10

3400…41,000 545…6540 10 29 — 10

6800…86,000 1,090…13,626 4 7 — 10

12,000…120,000 1,363…19,076 4 3 — 10

17,000…171,000 2,725…27,252 4 1.6 — 10

Strainer

Mesh

Approx. K-Factor

pulses/US gal

Weight

Pressure

Drop (psi)

OTE:N For PSI, see “Pressure Rating” on page 3.

Max.

TRB-DS-01381-EN-06Page 4 September 2018

Page 5

DIMENSIONS TABLE

INSTALLATION KITS

Part Number Diameter Length

B131-038 B131-050 B131-075 B131-088 B131-100

B132-050 B132-075 B132-088 B132-100 B132-150 B132-200

B132-250

B133-300 B133-380

B134-400

B136-600

B138-800

B139-900

3.62 2.5

3.62 4.25

5 4.25

6.18 5

8.5 5.75

10.62 6.25

12.75 6.75

Dimensions Table

QuikSert Installation Kits are offered to make set up trouble-free and to ensure the proper fit. Each kit includes: studs, nuts, gaskets, and spacer rings. See table below for ordering information.

Size 150# 300# 600# 900#

1 in. (25.4 mm) B253-1HK-150 B253-1HK-300 B253-1HK-600 B253-1HK-900

2 in. (50.8 mm) B253-2HK-150 B253-2HK-300 B253-2HK-600 B253-2HK-900

3 in. (76.2 mm) B253-3HK-150 B253-3HK-300 B253-3HK-600 B253-3HK-900

4 in. (101.6) B253-4HK-150 B253-4HK-300 B253-4HK-600 B253-4HK-900

6 in. (152.4 mm) B253-6HK-150 B253-6HK-300 B253-6HK-600 B253-6HK-900

8 in. (203.2 mm) B253-8HK-150 B253-8HK-300 B253-8HK-600 B253-8HK-900

10 in. (254.0 mm) B253-9HK-150 B253-9HK-300 B253-9HK-600 B253-9HK-900

PICKUP OPTIONS

Part Number Magnetic Pickup Temperature Range

B111109 Standard –150…330° F (–101…165° C)

B220111 High temperature –450…450° F (–26…232° C)

B220210 With preamplifier –40…250° F (–40…121° C)

B220243 Intrinsically safe, FM rated –40…250° F (–40…21° C)

B111126

ATEX II 1G; EEx ia IIC T5

–58…248° F (–50…120° C)

TRB-DS-01381-EN-06 Page 5 September 2018

Page 6

Repair Kits

REPAIR KITS

Part Number Repair Kit Part Number

B131-038 B253-102

B131-050 B253-105

B131-075 B253-108

B131-088 B253-109

B131-100 B253-112

B132-050 B253-205

B132-075 B253-208

B132-088 B253-209

B132-100 B253-212

B132-150 B253-216

B132-200 B253-220

B132-250 B253-220

B133-300 B253-330

B133-380 B253-330

B134-400 B253-440

B136-600 B253-660

B138-800 B253-880

B139-900 B253-990

TRB-DS-01381-EN-06Page 6 September 2018

Page 7

INTENTIONAL BLANK PAGE

Product Data Sheet

Page 7 September 2018 TRB-DS-01381-EN-06

Page 8

Turbine Flow Meter, QuikSert®

Control. Manage. Optimize.

Blancett and QuikSert are registered trademarks of Badger Meter, Inc. Other trademarks appearing in this document are the property of their respective entities. Due to continuous research, product improvements and enhancements, Badger Meter reserves the right to change product or system specications without notice, except to the extent an outstanding contractual obligation exists. © 2018 Badger Meter, Inc. All rights reserved.

www.badgermeter.com
