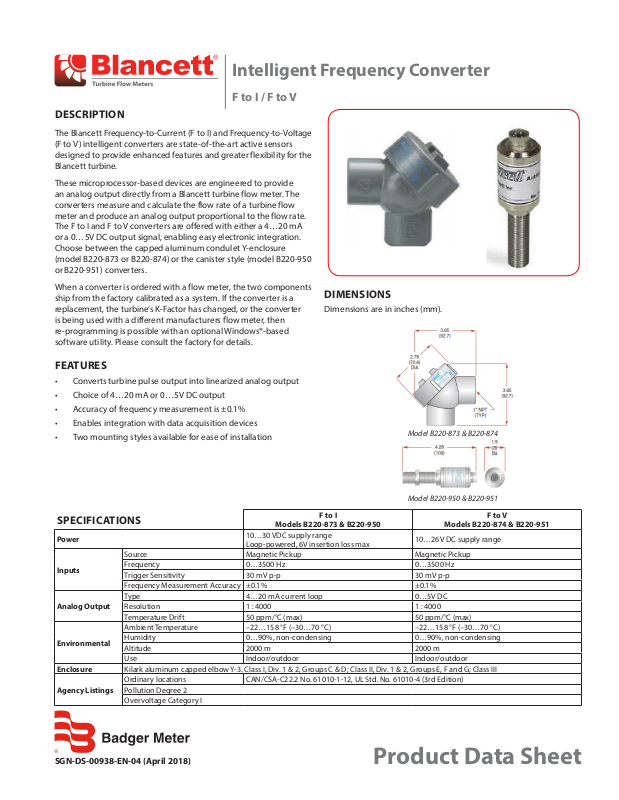

Blancett F-to-V, F-to-I Specifications

Intelligent Frequency Converter

F to I / F to V

DESCRIPTION

The Blancett Frequency-to-Current (F to I) and Frequency-to-Voltage (F to V) intelligent converters are state-of-the-art active sensors designed to provide enhanced features and greater flexibility for the Blancett turbine.

These microprocessor-based devices are engineered to provide an analog output directly from a Blancett turbine flow meter. The converters measure and calculate the flow rate of a turbine flow meter and produce an analog output proportional to the flow rate. The F to I and F to V converters are offered with either a 4…20 mA or a 0…5V DC output signal, enabling easy electronic integration. Choose between the capped aluminum condulet Y-enclosure (model B220-873 or B220-874) or the canister style (model B220-950 or B220-951) converters.

When a converter is ordered with a flow meter, the two components ship from the factory calibrated as a system. If the converter is a replacement, the turbine’s K-Factor has changed, or the converter is being used with a different manufacturers flow meter, then re-programming is possible with an optional Windows®-based software utility. Please consult the factory for details.

FEATURES

• Converts turbine pulse output into linearized analog output

• Choice of 4…20 mA or 0…5V DC output

• Accuracy of frequency measurement is ±0.1%

• Enables integration with data acquisition devices

• Two mounting styles available for ease of installation

DIMENSIONS

Dimensions are in inches (mm).

Model B220-873 & B220-874

Model B220-950 & B220-951

SPECIFICATIONS

Power

Source Magnetic Pickup Magnetic Pickup

Inputs

Analog Output

Environmental

Enclosure Kilark aluminum capped elbow Y-3. Class I, Div. 1 & 2, Groups C & D; Class II, Div. 1 & 2, Groups E, F and G; Class III

Agency Listings

SGN-DS-00938-EN-04 (April 2018)

Frequency 0…3500 Hz 0…3500 Hz Trigger Sensitivity 30 mV p-p 30 mV p-p Frequency Measurement Accuracy ±0.1% ±0.1% Type 4…20 mA current loop 0…5V DC Resolution 1 : 4000 1 : 4000 Temperature Drift 50 ppm/°C (max) 50 ppm/°C (max) Ambient Temperature –22…158 °F (–30…70 °C) –22…158 °F (–30…70 °C) Humidity 0…90%, non-condensing 0…90%, non-condensing Altitude 2000 m 2000 m Use Indoor/outdoor Indoor/outdoor

Ordinary locations CAN/CSA-C22.2 No. 61010-1-12, UL Std. No. 61010-4 (3rd Edition) Pollution Degree 2 Overvoltage Category I

Models B220-873 & B220-950

10…30 VDC supply range Loop-powered, 6V insertion loss max

F to I

Models B220-874 & B220-951

10…26V DC supply range

Product Data Sheet

F to V

Intelligent Frequency Converter, F to I / F to V

MODELS

Model Intelligent Converter Output

B220-873 F to I 4…20 mA

B220-874 F to V 0…5V DC

B220-950 F to I 4…20 mA

B220-951 F to V 0…5V DC

WIRING DIAGRAMS

F to I Converter, B220-873

1 32

F to V Converter, B220-874

1 32

4-20 mA (+)

4-20 mA (-)

No Connection

10…26V DC Input

0…5V DC Output

Ground

Turbine

Pickup

Turbine

Pickup

Connecting Cables

Model Length Description

B220952-6 6 ft 5-pin cable assembly

B220952-15 15 ft 5-pin cable assembly

Male Connector

4 5

F to I Converter, B220-950

F to V Converter, B220-951

Control. Manage. Optimize.

BLANCETT is a registered trademark of Badger Meter, Inc. Other trademarks appearing in this document are the property of their respective entities. Due to continuous research, product improvements and enhancements, Badger Meter reserves the right to change product or system specications without notice, except to the extent an outstanding contractual obligation exists. © 2018 Badger Meter, Inc. All rights reserved.
