DR600GW-HD 3
Introduction to the Manual
Thank you for purchasing a BlackVue by Pittasoft Co., Ltd.
This instruction manual contains information on how to operate your BlackVue.
Before using the product, make sure to read through this manual so as to use
the product in the correct way.
To enhance the performance of the product, the contents of this instruction
manual may be changed without prior notice.
Warranty & Support
yThis product records and saves videos of vehicle accidents, but it is not
guaranteed to record all accidents. Accidents with light impact that is not
enough to activate the impact detection sensor may not be recorded.
yIn accordance with Personal Information Security Law & related legislation,
Pittasoft Co., Ltd. will not be held responsible for any problem due to illegal
use of this product.
yThe recorded video produced by this product constitutes the secondary
data that may help to determine the circumstances of an accident. Pittasoft
Co., Ltd. will not be held responsible for any loss or damage caused by any
accident.
Copyright & Trademark
yThis instruction manual is protected by Copyright Law, and all rights to it
are protected by law.
yIt is prohibited to reproduce, copy, modify, or translate this instruction
manual without permission.
y
Pittasoft Co., Ltd. reserves the rights regarding all works related to the BlackVue brand such as product design, trademarks, and product-promotional
videos. It is prohibited to reproduce, copy, modify, or use related works
without permission. Any violation may be penalized in accordance with the
relevant regulations.
BlackVue is the registered trademark of Pittasoft Co., Ltd.
Caution
yA formatted microSD card is provided when you purchase the
product. Insert the microSD card into BlackVue, and turn on the
power. The microSD card will be initialized, and programs such as
BlackVue Viewer will be installed.
4
Getting Started
Cautions for Safety
The purpose of these cautions is to maintain user safety and avoid damage to
property.
Please make sure to read through this manual so as to use the product in the
correct way.
DANGER
yDo not disassemble, repair, or modify the product yourself.
It can cause re, electric shock, or malfunction. For internal inspection and
repair, call the sales headquater.
yIf any foreign matter gets inside the product, detach the power cord
straightaway.
Call the sales headquater for repair.
yDo not operate the product while driving.
It can cause an accident. Stop or park your car in a safe place to operate it.
yDo not install the product where it can interfere with the driver's vision.
It can cause an accident.
yDo not use a damaged or modied power cord. Use the cords provided
by the manufacturer.
Otherwise it can cause explosion, re, or malfunction.
yDo not operate the product with wet hands.
It can cause electric shock.
yDo not install it in an environment with high humidity, or combustible
gases or liquids.
It can cause explosion & re.
Death or property damage can be caused for users if
the following directions are not followed:
DR600GW-HD 5
WARNING
yDo not leave the product where infants, children, or pets can reach it.
They might swallow small components, or their saliva could get into it and
cause an explosion due to a short circuit.
yWhile cleaning the inside of the car, do not spray water or wax directly
onto the product.
It can cause re, electric shock, or malfunction.
yIf smoke or an unsual smell is emitted from the power cord, detach it
immediately.
Call the sales headquater or the dealer.
yKeep the terminal of the power cord clean.
A dirty terminal can cause excessive heat and re.
yUse the correct input voltage.
Otherwise it can cause explosion, re, or malfunction.
yConnect the power cord rmly so that it cannot easily be disconnected.
Othersise it can cause re.
yDo not cover the product with any material.
It can cause external deformation of the product or re. Use the product
and peripherals where ventilation is ensured.
Death or serious injury can be caused for users if the
following directions are not followed:
6
CAUTION
yDo not spray cleaning products directly onto the outside of the prod-
uct.
It can cause discoloration, cracks, or malfunction.
yDo not press the RESET button with a sharp object such as an awl.
It can cause damage or malfunction.
yIf the product is used outside the optimal temperature range (0°C ~
60°C), performance can decline or malfunction can be caused.
yMake sure that the product is installed properly.
The product can fall as a result of vibration, and may cause physical injury.
yWhile entering or exiting a tunnel, during daytime in the face of bright
sunlight, or at night with no light, the quality of recorded video can
deteriorate.
yIf the product is damaged or the power supply is cut due to an accident,
video may not be recorded.
yExcessively tinted windshield glass can distort the recorded video or
cause it to be indistinct.
yProlonged use of the product can increase the interior temperature
and cause burns.
ymicroSD cards are a consumable so replace them after prolonged use.
They may not record video correctly after a long time in use, so check their
recording capability periodically and replace it as necessary.
yClean the lens regularly.
Foreign material attached to the lens can aect the recording quality.
yDo not remove the microSD card while it is saving or reading data.
The data can be damaged or malfunction caused.
yDo not use the BlackVue, while cover is open.
Injury or property damage can be caused for users if
the following directions are not followed:
DR600GW-HD 7
Checks for GPS
Even if the GPS isn't working, video is recorded, but position coordinates and
driving speed are not recorded. When used for the rst time, or when the product is not used for 3 consecutive days, it will take some time for the GPS to nd
the current position.
If there is an error with the GPS time when checking recorded video with a
viewer program or the BlackVue application, turn the GPS o and on after a
signal is received.
Make sure to observe the following for an uninterrupted GPS signal.
yDo not place any objects on the GPS.
yDo not have the windshield glass tinted with a metallic component.
y Be careful with the installation of devices that may interfere with GPS recep-
tion (e.g. some wireless starters & alarms and MP3/CD players).
y Do not use it simultaneously with other devices that use GPS signal.
y Cloudy weather can interfere with GPS reception.
y GPS reception can be poor in tunnels, underpasses, or streets with may
Skyscrapers or high rise buildings, and generating stations, military bases,
or broadcasting transmitters etc.
Checks for the microSD Card
Refer to the followings for trouble-free use of your microSD card.
yIt is recommended to format it once a week.
y If the recorded video suers from break-up, format the microSD card.
yFor stable function, format it with programs recommended by the SD card as-
sociation. For more details, refer to the BlackVue website (www.blackvue.com).
y Before formatting it, copy important les to other storage media to store
them.
yPress the Wi-Fi button on the side for 10 seconds
without using a PC.
y Insert the formatted microSD card into the product so that the microSD
card is automatically initialized and the rmware is installed on it.
yInsert or remove the microSD card only when the product is turned o.
ymicroSD cards are a consumables and they are guaranteed for 6 months.
yOther manufacturer's microSD cards can cause compatibility problems so it
is recommended to use a Pittasoft microSD card.
yIf a 64GB microSD card needs to be used, format it using BlackVue Viewer
and insert it into the product. (24 Page)
8
to format a microSD card
Product Features
Ultra-high quality and smooth video
Full HD(1920x1080) 30 frame ultra-high quality video
High-class design with functionality
Simple but classy all black design with the functionality of a
360-degree revolution to set any angle.
Support 64GB microSD card
Maximize the capacity of microSD card which allows clearer footage and recording for longer time
133° Wide-angle lens supporting high quality image as default
Support Full HD resolution with 133° lens which allows to show
clearer and detailed playback of an accident and prevent video
distortion
2M-pixel CMOS sensor
Clearer vision with high-resolution megapixel lens during both
day and night-time driving
G-sensor & highly-sensitive GPS
Detailed driving record such as vehicle speed and recording location information can be checked with BlackVue software
VOD & real-time live view function
With built-in Wi-Fi and the BlackVue App, video can be played
regardless of place and time
DR600GW-HD 9
BlackVue App
Watch recorded videos and live view through BlackVue App (support Android, iOS)
Diverse recording options (Normal/Event/Parking)
Event recording and automatic conversion & deactivation of
parking mode
High-compression recording mode to extend microSD card life
Ecient memory usage with high-compression storage method
Support BlackVue Viewer program for Windows PC and Mac
BlackVue Viewer program which allows you to congure various
settings including resolution, voice recording and Wi-Fi and play
back the recorded video
10
Package Components
BlackVue Manual
Power Cord Cable Clips (5 EA)
Double-sided Tape for the Mounting
Bracket
microSD Card Reader
Note
yPictures of the components may dier from the actual ones.
y To enhance the performance of the product, components may be
changed without prior notice.
microSD Card
(Including BlackVue Software)
DR600GW-HD 11
Names of Each Part
Lock Button
Mounting Bracket Security LED
Recording LED
GPS LED Speaker
Wi-Fi LED
Voice on/o Button Wi-Fi Button
Power Socket
(Format Button: Press for 10 seconds
for Formatting)
Camera Lens
microSD Card Slot
Cover
12
Note
yTap the Voice on/o button to turn the voice recording function on or
o.
yPress the Wi-Fi button on the side for 10 seconds
croSD card without using a PC.
to format the mi-
How to Attach & Detach the Mounting Bracket
Pull the unit out of the mounting bracket with the LOCK button pressed.
1
Insert the unit into the mounting bracket until you hear clicking sound,
2
to attach it.
DR600GW-HD 13
How to Install the BlackVue
Checking Installation Position
It is recommended to install it at the back of rear view mirror. Clean any
1
foreign matter and moisture from the place where the product will be
installed.
Note
yDo not install the product where it can interfere with the driver's vi-
sion.
How to Insert & Remove the microSD Card
Open the cover on the side of the product.
1
Insert the microSD card into the microSD card slot, as shown in the pic-
2
ture.
To remove the microSD card, press the microSD card once and then pull
3
it out. Make sure that the microSD card doesn't pop out while trying to
remove it.
14
Caution
yDo not remove the microSD card while it is saving or reading data.
The data may be damaged or malfunction caused.
y Copy important data to other storage media to store. Pittasoft Co.,
Ltd. will not be held responsible for data loss due to user negligence.
Note
yInsert or remove the microSD card only when the product is turned
o.
ymicroSD cards are consumables. Replace them after prolonged use.
Installation
Stop the engine where there is some light and in a safe place, and then
1
remove the key.
Attach the product to the windshield glass with the double-sided tape.
2
Set the camera lens to point directly forwards to the center when installing it. After installing the product, remove the lens cap.
Use the power cord to connect the DC IN of the product to car's power
3
socket.
Note
yIt is recommended to use Power Magic (the Battery Discharge Pre-
vention Device) to record video while the car is parked.
y To use the BlackVue at the same time as other equipment, purchase
and use a two-way adaptor.
DR600GW-HD 15
Use the cable clip to organize the power cord so that it doesn't interfere
4
with the driver's vision.
Adjust the lens angle of the camera.
5
Note
yAfter adjusting the angle of the camera lens, remember the angle of
the mounting bracket so that it can be installed at the same angle
next time.
yWith smartphone and Wi-Fi connections, it is possible to adjust the
angle of the camera lens while watching real-time video. (22 Page)
Start the engine and check if the product works properly.
6
Caution
yDo not remove the microSD card while it is saving or reading data.
The data may be damaged or malfunction caused.
ySet the time (time zone) when you use BlackVue for the rst time.
(33 Page)
Note
yAfter a test drive, check if video was correctly recorded.
yRecorded video is saved in the MP4 format.
16
Video Recording
Normal Recording
When the engine is started, the BlackVue is turned on automatically.
1
When the BlackVue is turned on, normal recording is automatically
2
started.
Note
yIf Power Magic (the Battery Discharge Prevention Device) is connected,
the BlackVue is not turned o.
yThe normal recording function can be disabled in the BlackVue soft-
ware conguration. (33 Page)
Parking Mode Recording
If the car doesn't move for 10 min or longer when in normal mode, it is
1
automatically converted to parking mode recording.
In parking mode recording, if movement or impact is detected by the
2
camera, video is recorded.
Note
yTo use parking mode recording while the engine is stopped, connect
Power Magic (the Battery Discharge Prevention Device).
yAutomatic conversion function of parking mode recording can be
disabled in the BlackVue software conguration. (33 Page)
yWhen the car is converted to parking mode recording, the GPS is
automatically turned o.
DR600GW-HD 17
Event Recording
If an impact is detected in normal or parking mode recording, event
1
recording is started.
It records video for 5 seconds before and 55 seconds after the impact.
2
Note
ySensitivity to impact can be adjusted in the BlackVue software con-
guration. (35 Page)
yEvent recording time can be adjusted in the BlackVue software
configuration. (33 Page) If you set the event recording time for 2
minute, it records video for 5 seconds before and 115 seconds after
the impact.
18
Simple Video Playback
How to Playback using a microSD Card
Playback Using a Smartphone
With a smartphone that supports microSD cards video can be played back.
Turn o the BlackVue and remove the microSD card.
1
Note
y For the details on how to remove the microSD card, refer to How to
Insert & Remove the microSD Card. (14 Page)
Insert the microSD card into the smartphone.
2
Open an application to play back recorded videos and select the
3
movie you want to play back.
Note
yHow to play back recorded videos may dier between smartphones,
so refer to your instruction manual for the details.
y If there are many recorded videos in the microSD card, it may take a
long time to load the le.
y Some smartphones don't support full HD video playback. For smart-
phones that support full HD video playback, refer to the BlackVue
website (www.blackvue.com).
yWith the BlackVue application, it's easy to play back videos and the
Live View function can be used. For details of the BlackVue application,
refer to How to Playback using the BlackVue Application. (22
Page)
DR600GW-HD 19

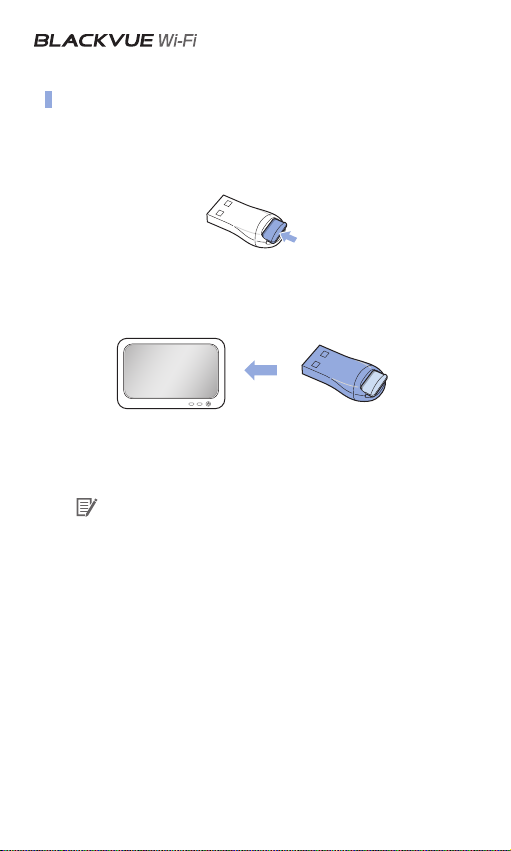

Watching with a GPS navigation
Recorded videos can be played back using a GPS navigation.
Insert the provided microSD card into a microSD card reader.
1
Connect the microSD card reader to the GPS navigation.
2
Open an application to play back recorded videos and select the movie
3
you want to play back from the removable drive.
Note
yHow to play back recorded videos may dier between navigators, so
refer to your instruction manual for the details.
y If there are many recorded videos in the microSD card, it may take a
long time to load the le.
y Some stanav don't support full HD video playback.
20
How to Playback using a PC
Recorded videos can be played back with a PC.
Insert the provided microSD card into a microSD card reader.
1
Connect the microSD card reader to the PC.
2
Open an application to play back recorded videos and select the movie
3
you want to play back from the removable drive.
Note
y When trying to play back a recorded video with a movie playback
program on a PC, install the H.264 and AAC audio codecs.
yFor how to play back using the BlackVue software, refer to Video
Playback. (26 Page)
DR600GW-HD 21
How to Playback using the BlackVue Application
Install the BlackVue application and open it in the smartphone. The
1
BlackVue application can be downloaded from the Google Play store,
Apple App Store, and Windows store.
Note
yThe BlackVue application can be used with Android 2.3 or later, iOS
5.0 or later, and Windows 8.0.
yDepending on your smartphone, some of the BlackVue application
functions might not be supported.
Press the Wi-Fi button on the side of the product, to turn on Wi-Fi.
2
Tap the Wi-Fi button in the BlackVue application. Select the device you
3
want to connect and, enter the password. (e.g. DR600GW-A682DE) Tap
the OK button to connect it to the selected device. The initial password
is blackvue, but the user can change it.
22
Note
yIf you save the connection information when connecting using
Wi-Fi, you can tap the Wi-Fi button in the BlackVue application to
connect it without turning on the Wi-Fi function of the smartphone.
yFor the Live View function, Wi-Fi can be used within a 10m range,
although the range may vary in some circumstances.
yFor playback of recorded videos using Wi-Fi, reception may vary
according to the data transfer rate.
yFor details about how to congure Wi-Fi, refer to How to Congure
Wi-Fi etc. (38 Page)
Select the recorded video you want to play back.
4
Note
y Tap the Live View button to check the video in real time.
yIf the Live View or VOD playback & copy function is used while it is con-
nected via Wi-Fi and recording Full HD (1920x1080) @30fps, the recording frame is reduced to 20 fps.
yFor the details about the BlackVue App, please refer to the BlackVue
App manual. You can download the BlackVue App manual from the
BlackVue website (www.blackvue.com).
DR600GW-HD 23
How to use the BlackVue Software
Screen Description
Double-click the BlackVue Viewer icon in the microSD card to run BlackVue
Viewer. In order to install BlackVue Viewer on the PC, connect to the BlackVue
website (www.blackvue.com) and download it.
2 3
4
5
1
6
8
7
No. Name Description
Playback Screen
for Recorded
1
Videos
Language
2
Setting
microSD Card
3
Formatting
Videos can be played back using this screen. The
mouse can be used to zoom in/out.
If you change the language on playback screen, the language for BlackVue Viewer can be changed. For details
about language conguration for BlackVue, refer to the
Basic Conguration. (33 Page)
The microSD card connected to the PC can be
formatted.
24
No. Name Description
G-Sensor
4
Information
GPS
5
Information
Recorded Video
6
List
Timeline
7
Playback
8
Option Button
G-sensor information can be checked, at the time
the video was recorded.
GPS information can be checked, at the time the
video was recorded.
Using the le list and map tab, the recorded video
list, and where a video was recorded can be checked.
: This is an normal recording le and marked
with green in the timeline.
: This is an event recording le and marked
with orange in the timeline.
: This is a parking mode recording le and
marked with blue in the timeline.
Video can be explored with the date, hr, min, and
sec of when a video was recorded.
The playing-back window can be extended to full
screen and be reversed upside down. With the
playback control button, video playback, speed,
and volume can be controlled.
DR600GW-HD 25
Video Playback

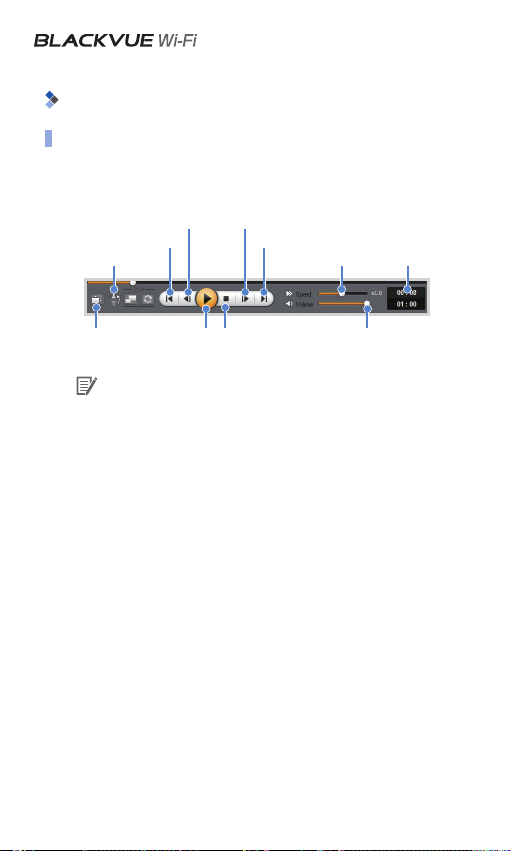

How to Control the Playback of Recorded Video
The recorded video can be played back in full screen mode and be reversed
upside down. The playback speed can be adjusted.
Frame Move (Previous) Frame Move (Next)
Play Previous File Play Next File
View Upside-Down
Playback/Pause StopFull Screen View Volume Control
Playback Speed Control
Note
yWhile a recorded video is played back, double-click the screen to
switch to full screen view. Double-click the screen again or press ESC
to return to default view.
yWhile playing back a recorded video, use the mouse wheel to zoom
in/out.
yWhile playing back a recorded video, right-click the screen to view
100 % zoom-in screen.
Playback Time
26
Magnifying Glass
Some parts of a recorded video can be zoomed in while playing back.
Left-click the screen while a recorded video is being played back to see a partial
zoom-in window and
to use it to identify the number plate of a car while moving it.
Note
yYou can use the Magnier function only in BlackVue Viewer for
Windows.
Timeline
Video can be explored with the date, hr, min, and sec of when a video was recorded.
Year Selection
Month Selection
Timeline for Hr Selection
Timeline for Min Selection Timeline for Sec Selection
Note
yIn the date selection area, the date with a recorded video is marked
by a red circle and the currently-selected date is marked by a yellow
circle.
DR600GW-HD 27

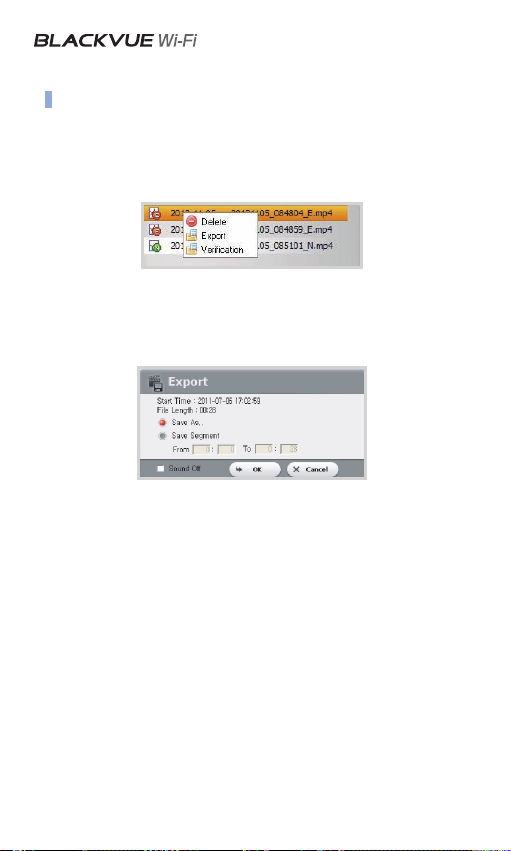

How to Manage Files
With the recorded video list, a file can be deleted or saved with a different
name.
Select a le from the recorded video list and right-click it.
1
To delete a le, click Delete.
2
To save it with dierent name, click Export and select the option you
3
want.
Press the OK button and select the le name you want, together with
4
the path.
Press the Save button to nish.
5
28

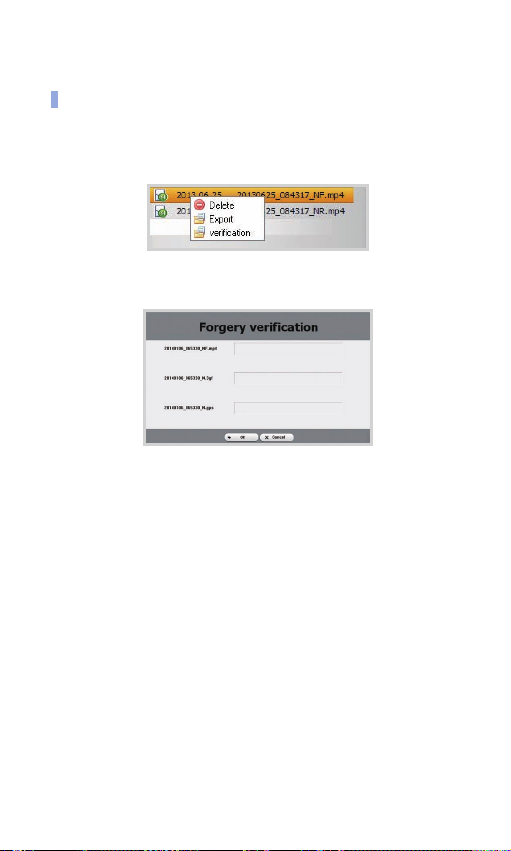

How to Verify Files
With the recorded video list, a le can be veried forgery.
Select a le from the recorded video list and right-click it.
1
Click Verify and click OK button.
2
DR600GW-HD 29

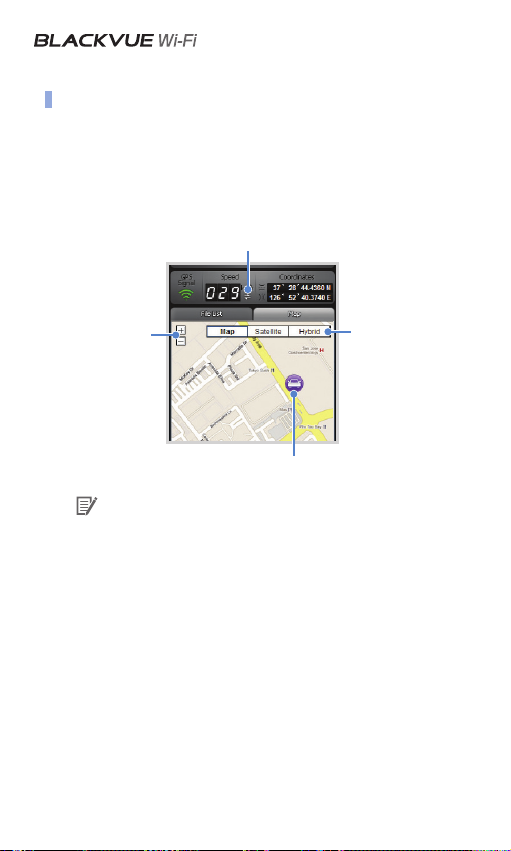

How to Check the Map
Where a video was recorded can be checked with the map.
Select a le from the recorded video list and play it back.
1
Press the Map tab.
2
With the +/- button or mouse wheel, the map can be zoomed in/out.
3
Speed Unit Change
Map Zoom-
In/Out
Car Location
Note
yTo use the map service, an Internet connection is required.
y Only for the recorded file with GPS information, the data can be
checked.
30
Map Type
Selection
How to Check MyWay Viewer
The driving route of a recorded video can be checked.
Select a le from the recorded video list and play it back.
1
Press the button. The driving route will be displayed on the map.
2
Double-click the map to play back the recorded video of the nearest
3
driving route from the clicked point.
Speed Unit Change
Latitude & Longitude Car Location
Map Type
Select
Record
Starting
Point
Driving Route Currently-Played File
Note
yTo use the map service, an Internet connection is required.
y Only for the recorded file with GPS information, the data can be
Car Location
checked.
DR600GW-HD 31
How to Save as an Image
While playing back a recorded video, some parts can be saved as images if you
want.
Select a le from the recorded video list and play it back.
1
From the image to be saved, press the button.
2
Note
yUsing the timeline or press the
images.
Press the G button.
3
Select the le name you want, together with the path, and click the Save
4
button.
Note
yJPG and BMP formats are supported for image les.
How to Print Out an Image
While playing back a recorded video, some parts can be printed out as images
if you want.
Select a le from the recorded video list and play it back.
1
From the image to be saved, press the button.
2
Note
yUsing the timeline or press the
images.
Press the button.
3
Select the printer and click the OK button.
4
/ button to explore detailed
/ button to explore detailed
32
Conguration

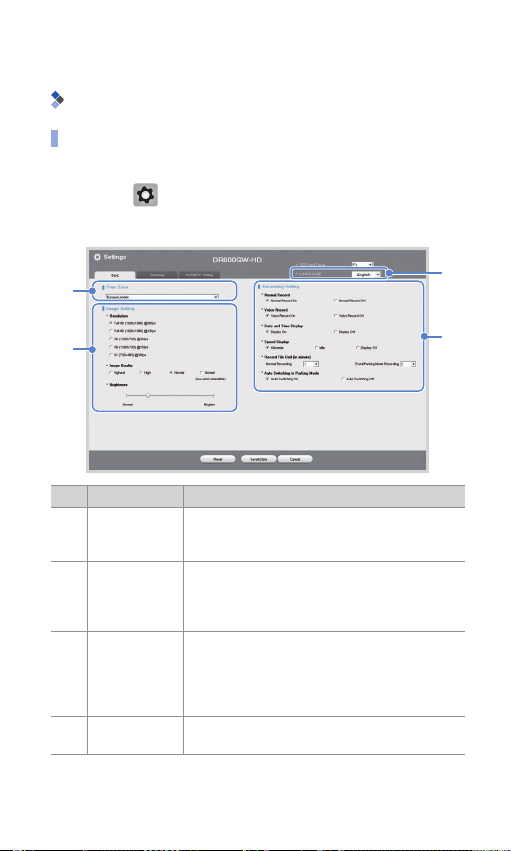

Basic Conguration
Time, video, and recording congurations can be changed.
Click the G button and click the Basic tab.
1
After changing the conguration, click Save & Close.
2
1
2
No. Function Description
1
2
3
4
Time Zone
(Timezone
Conguration)
Image Setting
Recording
Setting
Language
Setting
The time zone can be configured for where it is
used. The congured time zone is used as information for recorded video.
Resolution, quality, and the brightness of the recorded video can be configured. According to the
resolution, recording time varies: for the details, refer
to the Recording Time. (43 Page)
Normal Record, Voice Record, Date and Time
Display and Auto Switching to Parking Mode
function can be turned on/o.
Speed Display and recording mode, Record File
Unit can be changed.
The language of BlackVue voice directions can be
changed.
DR600GW-HD 33
4
3
Note
yWith the normal recording function disabled, only event and
parking mode recording videos are saved.
y With the speed display unit disabled, the vehicle speed is not dis-
played when the recorded videos are played back.
y On microSD cards, older files are deleted first to mark space for
newly-recorded videos. Copy and store important les such as even
recording les to other storage media.
yTap the Voice on/o button to turn the voice recording function on
or o.
yIf you use a low-end device for playing a recorded video, please set
Image Quality to Normal (low-end compatible).
yImage Quality is set to Highest as a default. The size of recorded
video can shorten the microSD card lifespan.
How to Congure Time
If the model is not equipped with GPS, set the time manually for use. If you do
not set the time, the time of the recorded video may not be saved correctly.
Format the microSD card and perform the rmware upgrade.
1
Access the BlackVue website (www.blackvue.com) and download the
2
time setting program.
Run the time setting program before setting the time.
3
Note
yThe time should be set to the time BlackVue turns on. Booting time
for BlackVue is about 15 seconds after power is connected.
34

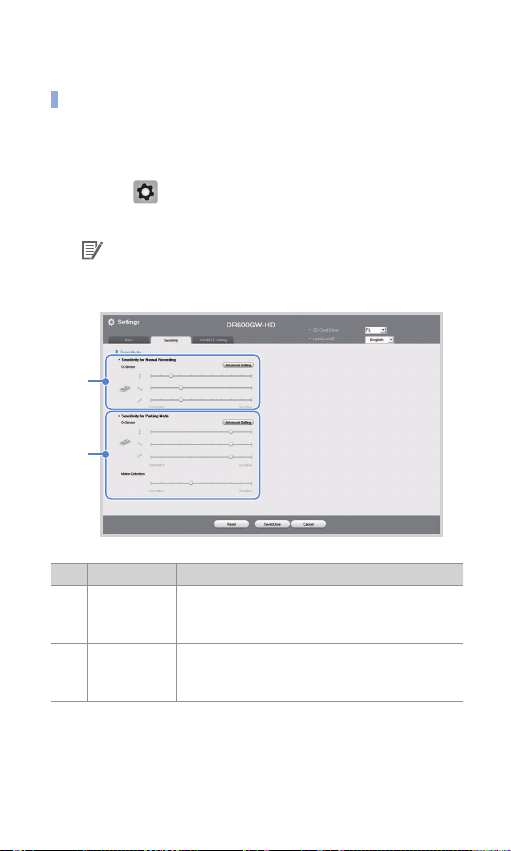

How to Congure Sensitivity
It is possible to congure the G-sensor sensitivity to start event recording during normal recording and the G-sensor & motion detection sensitivity to start
event recording during parking mode recording, respectively.
Click the G button and click the Sensitivity tab.
1
After changing the conguration, click Save & Close.
2
Note
yFor details about advanced sensitivity configuration, refer to Ad-
vanced Conguration of Sensitivity. (36 Page)
1
2
No. Function Description
1
2
Sensitivity
for Normal
Recording
Sensitivity for
Parking Mode
It is possible to congure the G-sensor sensitivity to
start event recording during normal recording.
It is possible to congure the G-sensor and motion
detection sensitivity to start event recording during
parking mode recording.
DR600GW-HD 35
Advanced Sensitivity Conguration
The sensitivity can be congured while watching a recorded video.
Click the G button and click the Sensitivity tab.
1
Click the Advanced Setting button of the conguration you want.
2
Play back a recorded video. Saved G-sensor information is displayed at
3
the bottom of the recorded video which is played back.
36
Move the control bar up/down to adjust the sensitivity range. If the
4
range is wide, it is less sensitive, and if the range is narrow, it is more sensitive.
It is recorded as an event. It is not recorded as an event.
Note
yIf an event recording is started due to the sensitivity configured
while a recorded video is being played back, the edge of the playback screen blinks in orange.
After changing the conguration, click Save & Close.
5
DR600GW-HD 37
Wi-Fi & Other Conguration
Congurations for Wi-Fi, LED indication, and voice direction can be changed.
1
No. Function Description
With Login Setting, Wi-Fi access privilege can be
1
2
Wi-Fi Setting
Etc.
congured. SSID and password may be changed by
the user. The BlackVue application can be accessed
with the SSID and password chosen by the user.
For video recording status, normal recording mode,
and parking mode recording, the LED indicators can
be turned on/o.
Voice direction item or the volume can be changed.
2
38
How to Apply Conguration
The user's conguration can be applied to the product.
Insert the microSD card into the product. For details on how to insert the
1
microSD card, refer to How to Insert & Remove the microSD Card.
(14 Page)
When the power is turned on, the user's conguration is automatically
2
applied.
Note
yInsert the microSD card only when the product is turned o.
DR600GW-HD 39
Firmware Upgrade
You can upgrade the rmware version by connecting the microSD card into the
PC. You can also upgrade the rmware version with the BlackVue App, and for
details, refer to the BlackVue App manual.
Connect the microSD card to the PC. For details on how to connect, refer
1
to How to Playback using a PC. (21 Page)
Format the microSD card, and connect to BlackVue website (www.blackvue.
2
com). Then, download the rmware upgrade le, in the form of a zip le.
Unzip the le, and copy the BlackVue folder to the microSD card.
3
Insert the microSD card in BlackVue, and turn on the power. Then,
4
upgrade will automatically occur.
Note
yAfter rmware upgrade, the user's conguration is initiated.
yFor detailes on how to insert the microSD card, refer to How to
Insert & Remove the microSD Card. (14 Page)
yInsert the microSD card only when the product is turned o.
Caution
yMake sure that the power is never turned off while firmware up-
grade is in progress.
40
Product Specications & Standards
Product Specications
Model Name
Color/Size/Weight
Memory
Recording Mode
Camera
Viewing Angle
Resolution/Frame
Video Compression
Mode
Wi-Fi
GPS
Microphone
Speaker
LED Indicators
Sensor
Button
Backup Battery
Input Power
Current Consumption
Operation Temperature
Certicates
Software
Application
DR600GW-HD
Black / Width 118.5mm x Height 36mm / 114g
microSD Card (16GB / 32GB / 64GB)
Normal Recording, Event Recording (Impact Detection), and
Parking Mode Recording (Motion+Impact Detection)
For parking mode recording, a battery discharge prevention
❈
device is required.
CMOS Sensor (Approx. 2M Pixel)
Opposite Angle 133, Horizontal 107°, Vertical 80°
Full HD(1920x1080)@30fps, Full HD(1920x1080)@15fps,
HD(1280x720)@30fps, HD(1280x720)@15fps, D1(720x480)@30fps
Resolution/frame can be changed
❈
MP4
Built-in (802.11b/g/n(2.4~2.4835GHz)
Built-in
Built-in
Built-in
Voice Directions
❈
Recording LED, GPS LED, Wi-Fi LED, Security LED
3-Axis Acceleration Sensor
Wi-Fi on/o Button
Self-format Function: Press it for 10 seconds to format the
❈
microSD card
Voice on/o Button
The proximity sensor is built-in so that voice recording
❈
can be turned on/o by approaching it with a hand
Touch the button or it recognizes when a hand
❈
approaches to within about 2 cm
Built-in Super Capacitor
DC 12V-24V
Max. 3.3 W
Varies depending on Wi-Fi usage
❈
-20°C ~ 70°C
KC, FCC, CE, RoHS, Telec, WEEE
BlackVue Viewer Program (Windows XP or later & Mac
Leopard OS (10.5) or later)
BlackVue App (Android 2.3 or later & iOS 5.0 or later &
Windows 8.0 or later)
DR600GW-HD 41
LED Indicators
State
Boot-up
Normal
Re-
cord-
Event
ing
Parking
Wi-Fi ON
Wi-Fi ON/OFF
Change
GPS ON
Software Control
LED
Recording
(REC)
Orange
Blinking
Red Blinking
Green Blinking
Available Unavailable Unavailable Available
GPS Wi-Fi Security
Blinking
Light White Blinking
Blinking
Blue Light White Blinking
White Blinking
Fast White Blinking
White Blinking
42
Recording Time
Memory
Capacity
16GB
32GB
64GB
Bit rate
Quality
Highest
Normal
Normal
(low-end
compatible)
Highest
Normal
Normal
(low-end
compatible)
Highest
Normal
Normal
(low-end
compatible)
Highest
Normal
Normal
(low-end
compatible)
Full HD
(1920x1080)
3 HR 20 MIN 4 HR 10 MIN 4 HR 10 MIN 5 HR 40 MIN 8 HR 30 MIN
High
4 HR 30 MIN 5 HR 40 MIN 5 HR 40 MIN 8 HR 30 MIN 11 HR 20 MIN
6 HR 50 MIN 8 HR 30 MIN 8 HR 40 MIN 11 HR 20 MIN 17 HR 10 MIN
4 HR 30 MIN 6 HR 50 MIN 6 HR 50 MIN 11 HR 20 MIN 17 HR 10 MIN
6 HR 40 MIN 8 HR 20 MIN 8 HR 20 MIN 11 HR 10 MIN 16 HR 50 MIN
High
13 HR 30 MIN 16 HR 50 MIN 17 HR 22 HR 30 MIN 33 HR 50 MIN
9 HR 10 MIN 13 HR 30 MIN 13 HR 40 MIN 22 HR 40 MIN 33 HR 50 MIN
13 HR 20 MIN 16 HR 40 MIN 16 HR 40 MIN 22 HR 20 MIN 33 HR 40 MIN
High
18 HR 20 MIN 27 HR 27 HR 43 HR 20 MIN 67 HR 40 MIN
10 Mbps 8 Mbps 8 Mbps 6 Mbps 4 Mbps
High
7.5 Mbps 6 Mbps 6 Mbps 4 Mbps 3 Mbps
5 Mbps 4 Mbps 4 Mbps 3 Mbps 2 Mbps
7.5 Mbps 5 Mbps 5 Mbps 3 Mbps 2 Mbps
Note
yThere may be some variation with actual recording time.
yDepending on the image quality, the microSD card lifespan can be
shorten.
Full HD
(1920x1080)
30fps
18 HR 22 HR 20 MIN 22 HR 20 MIN 33 HR 40 MIN 43 HR
27 HR 33 HR 40 MIN 33 HR 40 MIN 43 HR 67 HR 40 MIN
15fps
9 HR 11 HR 10 MIN 11 HR 10 MIN 16 HR 50 MIN 22 HR 30 MIN
HD
(1280x720)
30fps
HD
(1280x720)
15fps
D1
(720x480)
30fps
DR600GW-HD 43
Before Requesting A/S Service
It is required for users to back up important data regularly from
the storage device (to other separate media). Depending on the
situation, it will be necessary to delete the data from the internal
storage device (component). It might be necessary to delete all
the data from the product for A/S Service. So it is required for users to back up important data by themselves before requesting
A/S Service. For all A/S services, it is assumed that the user has
already backed up their data, so there is no additional back-up
process. Therefore, it is important to note that we will not be held
responsible for any data lost during A/S service.
FCC Compliance Information
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
Operation is subject to the following two conditions;
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
CAUTION : Changes or modications not expressly approved by
the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can
be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
yReorient or relocate the receiving antenna.
yIncrease the separation between the equipment and receiver.
yConnect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
yConsult the dealer or an experienced radio/TV technician for
help.
Modications not expressly approved by the manufacturer could
void the user's authority to operated the equipment under FCC
rules.
FCC ID: YCK-DR500GW-HD
Product Warranty
The term of this product warranty is 1 year from the purchase date. (Accessories
such as Battery/microSD Card : 6 Months)
We, Pittasoft Co., Ltd., provide the product warranty according to Consumer Dispute
Settlement Regulations (drawn up by the Fair Trade Commission). Pittasoft or designated
partners will provide the service upon request.
Product Name
(Model Name)
Purchased When Purchased Where
Customer Information Address / Call Number
Serial No.
Consumer Injury
For serious repair required within 10 days of purchase
For serious repair required within 1 month of purchase Exchange
For serious repair required within 1 month of exchange
When not exchangeable Refund
For performance/
functional
problems
under normal
use conditions
1) Malfunction due to customer fault
- Malfunction & damage caused by user negligence (fall, shock, damage, unreasonable operation, etc) or careless use
- Malfunction & damage after the customer or a third party repaired
or modied the product.
- Malfunction & damage due to used of unauthorized components,
consumables, or separately sold parts
2) Other Cases
- Malfunction due to natural disasters (re, ood, earthquake, etc)
- Expired life span of a consumable part
- Malfunction due to external reasons
This warranty is only valid in the country where you purchased the product.
For Defect Free Repair
Repair
Repeated problem with the same defect (up to 3
If Avail-
times)
able
Repeated problem with dierent parts (up
to 5 times)
For the loss of a product while in A/S Refund with
When repair is unavailable due to lack of
Repair
spare parts within the component holding
If Un-
period
available
When repair is unavailable even with spare
parts
Within the
Term
Exchange/
Refund
Exchange/
Refund
Exchange/
Refund
Paid Repair Paid Repair
Warranty
Out of the Term
N/A
Paid Repair/
Paid Product
Exchange
10% added to the
valuation of the
product taking
depreciation into
account
(Upper Limit:
Purchase Price)
Exchange/
Refund after
depreciation
To check the BlackVue viewer,
Please turn on the device first!
KCC-CMM-PTA-DR500GW-HD
YCK-DR500GW-HD
Loading...
