Introduction to the Manual
Thank you for purchasing a BlackVue by PittaSoft Co., Ltd.
This instruction manual contains information on how to operate your BlackVue.
Before using the product, make sure to read through this manual so as to use the product in the correct way.
To enhance the performance of the product, the contents of this instruction manual may be changed without
prior notice.
Warranty & Support
yThis product records and saves videos of vehicle accidents, but it is not guaranteed to record all
accidents. Accidents with light impact that is not enough to activate the impact detection sensor may
not be recorded.
yIn accordance with Personal Information Security Law & related legislation, PittaSoft Co., Ltd. will not be held
responsible for any problem due to illegal use of this product.
yThe recorded video produced by this product constitutes the secondary data that may help to determine the
circumstances of an accident. PittaSoft Co., Ltd. will not be held responsible for any loss or damage caused by
any accident.
Copyright & Trademark
yThis instruction manual is protected by Copyright Law, and all rights to it are protected by law.
yIt is prohibited to reproduce, copy, modify, or translate this instruction manual without permission.
y
rights regarding all works related to the BlackVue brand such as product design, trademarks, and productpromotional videos. It is prohibited to reproduce, copy, modify, or use related works without permission. Any
violation may be penalized in accordance with the relevant regulations.
Caution
yA formatted microSD card is provided when you purchase the product. Insert the microSD card into
BlackVue is the registered trademark of PittaSoft Co., Ltd. PittaSoft Co., Ltd. reserves the
BlackVue, and turn on the power. The microSD card will be initialized, and programs such as BlackVue
Viewer will be installed.
4 BLACKVUE Wi-Fi 2CH
Getting started
Cautions for Safety
The purpose of these cautions is to maintain user safety and avoid damage to property.
Please make sure to read through this manual so as to use the product in the correct way.
DANGER
yDo not disassemble, repair, or modify the product yourself.
It can cause re, electric shock, or malfunction. For internal inspection and repair, call your customer service
center.
yIf any foreign matter gets inside the product, detach the power cord straightaway.
Call the customer service center for repair.
yDo not operate the product while driving.
It can cause an accident. Stop or park your car in a safe place to operate it.
yDo not install the product where it can interfere with the driver's vision.
It can cause an accident.
yDo not use a damaged or modied power cord. Use the cords provided by the manufacturer.
Otherwise it can cause explosion, re, or malfunction.
yDo not operate the product with wet hands.
It can cause electric shock.
yDo not install it in an environment with high humidity, or combustible gases or liquids.
It can cause explosion & re.
Death or property damage can be caused for users if the following directions are
not followed:
DR550GW-2CH 5
WARNING
yDo not leave the product where infants, children, or pets can reach it.
They might swallow small components, or their saliva could get into it and cause an explosion due to a short
circuit.
yWhile cleaning the inside of the car, do not spray water or wax directly onto the product.
It can cause re, electric shock, or malfunction.
yIf smoke or an unusual smell is emitted from the power cord, detach it immediately.
Call the customer service center or the dealer.
yKeep the terminal of the power cord clean.
A dirty terminal can cause excessive heat and re.
yUse the correct input voltage.
Otherwise it can cause explosion, re, or malfunction.
yConnect the power cord rmly so that it cannot easily be disconnected.
Otherwise it can cause re.
yDo not cover the product with any material.
It can cause external deformation of the product or re. Use the product and peripherals where ventilation is
ensured.
Death or serious injury can be caused for users if the following directions are not
followed:
6 BLACKVUE Wi-Fi 2CH
CAUTION
yDo not spray cleaning products directly onto the outside of the product.
It can cause discoloration, cracks, or malfunction.
yIf the product is used outside the optimal temperature range (0°C ~ 60°C), performance can decline or
malfunction can be caused.
yMake sure that the product is installed properly.
The product can fall as a result of vibration, and may cause physical injury.
yWhile entering or exiting a tunnel, during daytime in the face of bright sunlight, or at night with no
light, the quality of recorded video can deteriorate.
yIf the product is damaged or the power supply is cut due to an accident, video may not be recorded.
yExcessively tinted windshield glass can distort the recorded video or cause it to be indistinct.
yProlonged use of the product can increase the interior temperature and cause burns.
ymicroSD cards are a consumable so replace them after prolonged use.
They may not record video correctly after a long time in use, so check their recording capability periodically
and replace it as necessary.
yClean the lens regularly.
Foreign material attached to the lens can aect the recording quality.
yDo not remove the microSD card while it is saving or reading data.
The data may be damaged or malfunction caused.
yDo not use the product with its cover opened.
yIt is recommended to install the product at the BlackVue installation center. You can check the the
BlackVue installation center from the BlackVue homepage (www.blackvue.com).
yIt is recommended to remove the power cord if the product (BlackVue/Battery Discharge Prevention
Device) is not used for a long time.
Injury or property damage can be caused for users if the following directions are
not followed:
DR550GW-2CH 7
Checks for GPS
Even if the GPS isn't working, video is recorded, but position coordinates and driving speed are not recorded.
When used for the rst time, or when the product is not used for 3 consecutive days, it will take some time for the
GPS to nd the current position.
If there is an error with the GPS time when checking recorded video with a viewer program or the BlackVue App, turn
the GPS o and on after a signal is received.
Make sure to observe the following for an uninterrupted GPS signal.
yDo not have the windshield glass tinted with a metallic component.
y Be careful with the installation of devices that may interfere with GPS reception (e.g. some wireless starters &
alarms and MP3/CD players).
y Do not use it simultaneously with other devices that use GPS signal.
y Cloudy weather can interfere with GPS reception.
y GPS reception can be poor in tunnels, underpasses, or streets with may Skyscrapers or high rise buildings, and
generating stations, military bases, or broadcasting transmitters etc.
Checks for the microSD Card
Refer to the followings for trouble-free use of your microSD card.
yIt is recommended to format it once a week.
y If the recorded video suers from break-up, format the microSD card.
y For stable function, format it with programs recommended by the SD card association. For more details, refer
to the BlackVue web site (www.blackvue.com).
y
Before formatting it, copy important les to other storage media to store them.
yPress the Wi-Fi button on the side for 10 seconds to format the microSD card without using a PC.
y Insert the formatted microSD card into the product so that the microSD card is automatically initialized and the
rmware is installed on it.
yInsert or remove the microSD card only when the product is turned o.
ymicroSD cards are a consumables and they are guaranteed for 6 months.
yOther manufacturer's microSD cards can cause compatibility problems so it is recommended to use a PittaSoft
microSD card.
yThe use of the Power Magic (the Battery Discharge Prevention Device) can shorten the microSD card lifespan.
8 BLACKVUE Wi-Fi 2CH
Product Features
Ultra-high quality and smooth video
1080p
Full HD (1920x1080) 30-frame ultra-high quality front video
HD (1280x720) 30-frame high quality rear video
High-class design with functionality
Simple but luxurious design with the functionality of a 360-degree revolution to set any angle freely
and simple but luxurious design
2CH Wi-Fi Video Shooting
Checking the front video as well as rear video through the built-in Wi-Fi
SONY Exmor CMOS Sensor, Megapixel Lens
Clearer vision with high image quality Sony image sensor and high-resolution megapixel lens
during both day/night-time driving
VOD & real-time live view function
With the BlackVue app, video can be played regardless of place and time (iOS/Android supported)
G-sensor & highly-sensitive GPS
Detailed driving record such as vehicle speed and recording loca tion information can be checked
with BlackVue viewer
High-quality wide-angle lens (146°)
Maximized viewing angle to record accurate video of any accident
DR550GW-2CH 9
Diverse recording options (Normal/Event/Parking)
Event recording and automatic conversion & deactivation of parking mode
High-compression recording mode to extend microSD card life
Ecient memory usage with high-compression storage method
Support of viewer programs for Windows PC and Mac
BlackVue viewer program which allows you to congure various settings including resolution,
voice recording and Wi-Fi and play back the recorded video
10 BLACKVUE Wi-Fi 2CH
Package Components
Front Camera Quick Start Guide
Power Cord Cable Clips (8 EA)
Double-sided Tape for
the Mounting Bracket
microSD Card Reader Rear Camera
Rear Camera
Connection Cable
Note
yPictures of the components may dier from the actual ones.
y To enhance the performance of the product, components may be changed without prior notice.
yThe package components can be purchased additionally from the BlackVue homepage (www.blackvue.
com).
microSD Card
(Including BlackVue
Viewer and Manual)
DR550GW-2CH 11
Names of Each Part
Front Camera
Lock Button
Camera Lens
LED Indicators for Recording
Mounting Bracket Front Security LED
Wi-Fi LED
Voice On/O Button
DC in (Power Socket)
AV in (Rear camera connection port)
microSD Card Slot
Wi-Fi Button
(Format Button: Press for 10 seconds for Formatting)
GPS LED Speaker
Cover
Note
yTap the voice On/O button to turn the voice recording function on or o.
yPress the Wi-Fi button on the side for 10 seconds to format the microSD card without using a PC.
12 BLACKVUE Wi-Fi 2CH
Rear Camera
Mounting Bracket Camera Lens
AV out
(Front camera
connection port)
Rear Security LED
DR550GW-2CH 13
How to Attach & Detach the Mounting Bracket of the Front Camera
Pull the the front camera out of the mounting bracket with the Lock button pressed.
1
Insert the front camera into the mounting bracket until you hear clicking sound, to attach it.
2
How to Attach & Detach the Mounting Bracket of the Rear Camera
Hold the mounting bracket and pull the the front camera out of the mounting bracket.
1
Insert the rear camera into the Mounting Bracket until you hear clicking sound, to attach it.
2
14 BLACKVUE Wi-Fi 2CH
How to Install the BlackVue
Checking Installation Position
It is recommended to install the front camera at the back of rear view mirror. Clean any foreign matter and moisture
1
from the place where the product will be installed.
It is recommended to install the rear camera at the top of the rear window of the vehicle.
2
Note
yDo not install the product where it can interfere with the driver's vision.
yIt is recommended to install the product at the designated BlackVue installation center.
DR550GW-2CH 15
How to Insert & Remove the microSD Card
Open the cover on the side of the front camera.
1
Insert the microSD card into the microSD card slot, as shown in the picture.
2
To remove the microSD card, press the microSD card once and then pull it out. Make sure that the microSD
3
card doesn't pop out while trying to remove it.
Caution
yDo not remove the microSD card while it is saving or reading data. The data may be damaged or
malfunction caused.
y Copy important data to other storage media to store. PittaSoft Co., Ltd. will not be held responsible for
data loss due to user negligence.
Note
yInsert or remove the microSD card only when the product is turned o.
ymicroSD cards are consumables. Replace them after prolonged use.
16 BLACKVUE Wi-Fi 2CH
Installation
Stop the engine where there is some light and in a safe place, and then remove the key.
1
Attach the front camera to the windshield glass with the camera lens located in the middle of the vehicle
2
using the double-sided tape. After installing the product, remove the lens cap.
Use the power cord to connect the DC in of the front camera to car's power socket.
3
Note
yIt is necessary to use Power Magic (the Battery Discharge Prevention Device) to record video while the
car is parked.
y To use BlackVue with other equipment that uses a power cable, purchase and use a dual power outlet
adaptor.
Attach the rear camera to the rear window glass with the camera lens located in the middle of the vehicle
4
using the double-sided tape.
Use the rear camera connection cable to connect the AV in of the front camera to the AV Out of the rear
5
camera.
Use the cable clip to organize the cable so that it doesn't interfere with the driver's vision.
6
DR550GW-2CH 17

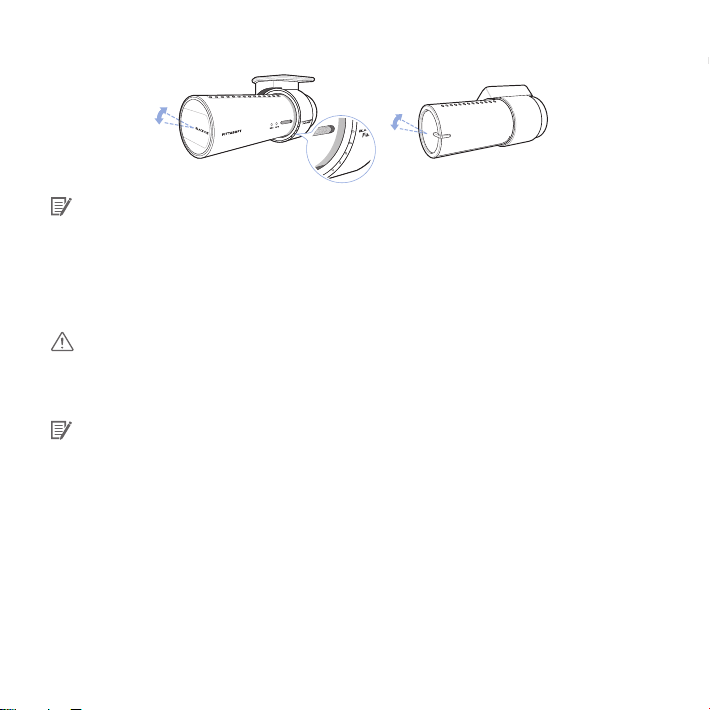

Adjust the lens angle of the camera.
7
Note
yAfter adjusting the angle of the camera lens, remember the angle of the mounting bracket so that it can
be installed at the same angle next time.
yWith smartphone and Wi-Fi connections, it is possible to adjust the angle of the camera lens while
watching real-time video. (24 page)
Start the engine and check if the product works properly.
8
Caution
yDo not remove the microSD card while it is saving or reading data. The data may be damaged or
malfunction caused.
ySet the time (time zone) rst before using the BlackVue for the rst time. (38 page)
Note
yAfter a test drive, check if video was correctly recorded.
yRecorded video is saved in the MP4 format.
18 BLACKVUE Wi-Fi 2CH
Video Recording
Normal Recording
When the engine is started, the BlackVue is turned on automatically.
1
When the BlackVue is turned on, normal recording is automatically started.
2
Note
yIf Power Magic (Battery Discharge Prevention Device) is connected, the BlackVue is not turned o.
yThe normal recording function can be disabled in the BlackVue viewer conguration. (38 page)
Parking Mode Recording
If the car doesn't move for 5 min or longer when in normal mode, it is automatically converted to parking
1
mode recording.
In parking mode recording, if movement or impact is detected by the camera, video is recorded.
2
Note
yTo use parking mode recording while the engine is stopped, connect Power Magic (Battery Discharge
Prevention Device).
yAutomatic conversion function of parking mode recording can be disabled in the BlackVue viewer
conguration. (38 page)
yWhen switch to parking mode recording, the GPS feature will turn o automatically.
yIn parking mode recording, the recording frame is reduced to 15 fps.
DR550GW-2CH 19
Event Recording
If an impact is detected in normal or parking mode recording, event recording is started.
1
It records video for 5 seconds before and 55 seconds after the impact.
2
Note
ySensitivity to impact can be adjusted in the BlackVue viewer conguration. (40 page)
yEvent recording time can be adjusted in the BlackVue viewer conguration. (38 page) If you set the
event recording time for 2 minute, it records video for 5 seconds before and 115 seconds after the
impact.
20 BLACKVUE Wi-Fi 2CH
Simple Video Playback
How to Playback using a microSD Card
Playback Using a Smartphone
With a smartphone that supports microSD cards video can be played back.
Turn o the BlackVue and remove the microSD card.
1
Note
y For the details on how to remove the microSD card, refer to How to Insert & Remove the microSD
Card. (16 page)
Insert the microSD card into the smartphone.
2
Open an App to play back recorded videos and select the movie you want to play back.
3
Note
yHow to play back recorded videos may dier between smartphones, so refer to your instruction manual
for the details.
y If there are many recorded videos in the microSD card, it may take a long time to load the le.
yNot all smartphones support full HD video playback. For a list of smartphones that support full HD
video playback, refer to the BlackVue website (www.blackvue.com).
yWith the BlackVue App, it's easy to play back videos and the Live View function can be used. For details
of the BlackVue App, refer to How to Playback using the BlackVue App. (24 page)
DR550GW-2CH 21
Watching with a GPS navigation
Recorded videos can be played back using a GPS navigation
Insert the provided microSD card into a microSD card reader.
1
Connect the microSD card reader to the GPS navigation.
2
Open an application to play back recorded videos and select the movie you want to play back from the
3
removable drive.
Note
yHow to play back recorded videos may dier between navigators, so refer to your instruction manual for
the details.
y If there are many recorded videos in the microSD card, it may take a long time to load the le.
y Some navigation systems don't support full HD video playback.
22 BLACKVUE Wi-Fi 2CH
How to Playback using a PC
Recorded videos can be played back with a movie playback program on a PC.
Insert the provided microSD card into a microSD card reader.
1
Connect the microSD card reader to the PC.
2
Open an application to play back recorded videos and select the movie you want to play back from the
3
removable drive.
Note
yFor how to play back using the BlackVue viewer, refer to Video Playback. (30 page)
DR550GW-2CH 23
How to Playback using the BlackVue App
Install the BlackVue App and open it in the smartphone. The BlackVue App can be downloaded from the
1
Google Play store, Apple App Store, and Windows store.
Note
yThe BlackVue application can be used with Android 2.3 or later, iOS 5.0 or later, and Windows 8.0.
ySome functions may not be supported depending on the smartphone.
Press the Wi-Fi button on the side of the product, to turn on Wi-Fi.
2
Tap the Wi-Fi button in the BlackVue App. Select the device you want to connect and, enter the password.
3
(e.g. DR550GW-A682DE). Tap the OK button to connect it to the selected device. The initial password is
blackvue, but the user can change it.
24 BLACKVUE Wi-Fi 2CH
Note
yIf you save the connection information when connecting using Wi-Fi, you can tap the Wi-Fi button in
the BlackVue App to connect it without turning on the Wi-Fi function of the smartphone.
yFor the Live View function, Wi-Fi can be used within a 10 m range, although the range may vary in some
circumstances.
yFor playback of recorded videos using Wi-Fi, reception may vary according to the data transfer rate.
yFor details about how to congure Wi-Fi, refer to Wi-Fi & Other Conguration. (42 page)
yIf you do not use the Wi-Fi function for 10 minutes, it turns o automatically. And, you cannot change
the time.
Select the recorded video in the video list you want to play back.
4
Note
y Tap the Live View button to check the video in real time.
yIf the Live View or VOD playback & copy function is used while it is connected via Wi-Fi and recording Full HD
(1920x1080) @30fps, the recording frame is reduced to 20 fps.
yFor details of the BlackVue App, refer to the BlackVue App manual. Access the BlackVue website (www.
blackvue.com) and download the BlackVue App manual.
DR550GW-2CH 25
How to use the BlackVue Viewer
Installation & Execution
How to Install
Dedicated BlackVue viewer can be installed in a PC.
Insert the provided microSD card into a microSD card reader.
1
Connect the microSD card reader to the PC.
2
Execute the 'BlackVueSetup(HD).exe' le in the 'BlackVue\Software' folder.
3
Install the program according the installation program instruction. When the installation is nished, the
4
BlackVue viewer icon is displayed on the desktop.
Double-click the BlackVue Viewer icon to execute the program.
5
Note
yOnly the English version of BlackVue viewer is available for Mac, and the functions & screen may be
dierent from the BlackVue viewer for Windows.
26 BLACKVUE Wi-Fi 2CH
How to Execute Without Installation
It is possible to execute the dedicated BlackVue viewer without installation.
Insert the provided microSD card into a microSD card reader.
1
Connect the microSD card reader to the PC.
2
Double-click 'BlackVue.exe' in the 'BlackVue\Application' folder.
3
DR550GW-2CH 27
Screen Description
1
7
No. Name Description
Playback Screen
for Recorded
1
Videos
Language Setting
2
G-Sensor
3
Information
GPS Information GPS information can be checked, at the time the video was recorded.
4
Videos can be played back using this screen. The mouse can be used to zoom in/out.
If you change the language on playback screen, the language for BlackVue Viewer
can be changed. For details about language conguration for BlackVue, refer to the
Basic Conguration. (28 page)
G-sensor information can be checked, at the time the video was recorded.
2
3
4
5
6
28 BLACKVUE Wi-Fi 2CH
No. Name Description
Using the le list and map tab, the recorded video list, and where a video was recorded can be
checked.
You can display only the rear camera les in the recorded video list by clicking Front,
Recorded Video
5
List
Timeline
6
Playback Option
7
Button
and You can display only the front camera les in the recorded video list by clicking
Rear.
: This is an normal recording le and marked with green in the timeline.
: This is an event recording le and marked with orange in the timeline.
: This is a parking mode recording le and marked with blue in the timeline.
Video can be explored with the date, hr, min, and sec of when a video was recorded.
For details on the timeline, refer to the Timeline. (32 page)
You can adjust the screen, playback speed or volume while a recorded video is played
back. For the details on the playback option buttons, refer to How to Control the
Playback of Recorded Video. (30 page)
DR550GW-2CH 29
Video Playback
How to Control the Playback of Recorded Video
The recorded video can be played back in full screen mode and be reversed upside down. The playback speed can
be adjusted.
Play Previous File
View Upside-Down
Frame Move (Previous)
Frame Move (Next)
Playback Speed Control
Full Screen View
Front/Rear Screen Mode
Front/Rear Reverse View
Playback/
Pause
Stop
Play Next File
Volume Control
Playback Time
Note
yWhile a recorded video is played back, double-click the screen to switch to full screen view. Double-click
the screen again or press ESC to return to default view.
yWhile playing back a recorded video, use the mouse wheel to zoom in/out.
yWhile playing back a recorded video, right-click the screen to view 100 % zoom-in screen.
30 BLACKVUE Wi-Fi 2CH
Magnifying Glass
Some parts of a recorded video can be zoomed in while playing back.
Left-click the screen while a recorded video is being played back to see a partial zoom-in window and to use it to identify
the number plate of a car while moving it.
Note
yTo use the Magnier function, you should enable only either front video display or rear video display by
pressing Front or Rear on the recorded video list.
yYou can use the Magnier function only in BlackVue Viewer for Windows.
DR550GW-2CH 31

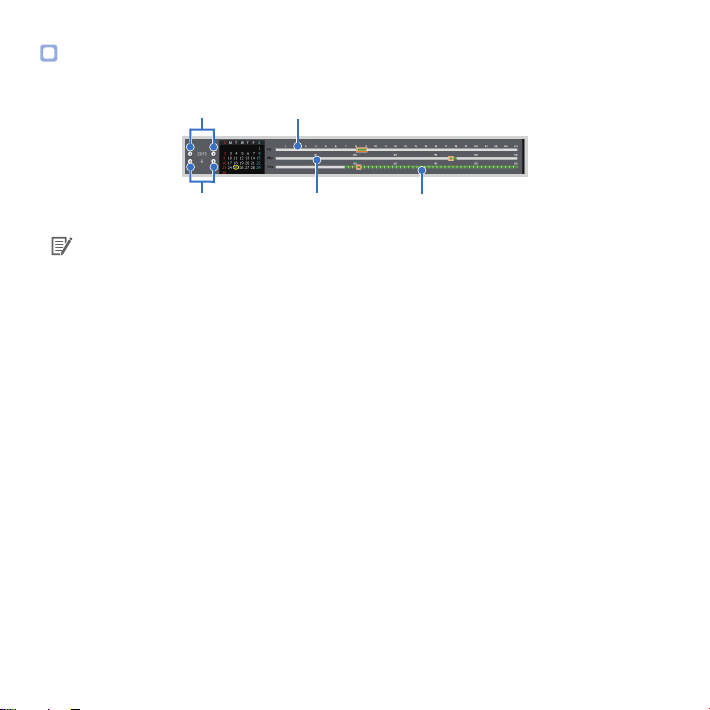

Timeline
Video can be explored with the date, hr, min, and sec of when a video was recorded.
Year Selection
Timeline for Hr Selection
Month Selection
Timeline for
Min Selection
Timeline for Sec
Selection
Note
yIn the date selection area, the date with a recorded video is marked by a red circle and the currently-
selected date is marked by a yellow circle.
32 BLACKVUE Wi-Fi 2CH
How to Manage Files
With the recorded video list, a le can be deleted or saved with a dierent name.
Select a le from the recorded video list and right-click it.
1
To delete a le, click Delete.
2
To save it with dierent name, click Export and select the option you want.
3
Note
yWhen you select Sound O, the voice is removed from the recorded video to be saved.
Press the OK button and select the le name you want, together with the path.
4
Press the Save button to nish.
5
DR550GW-2CH 33

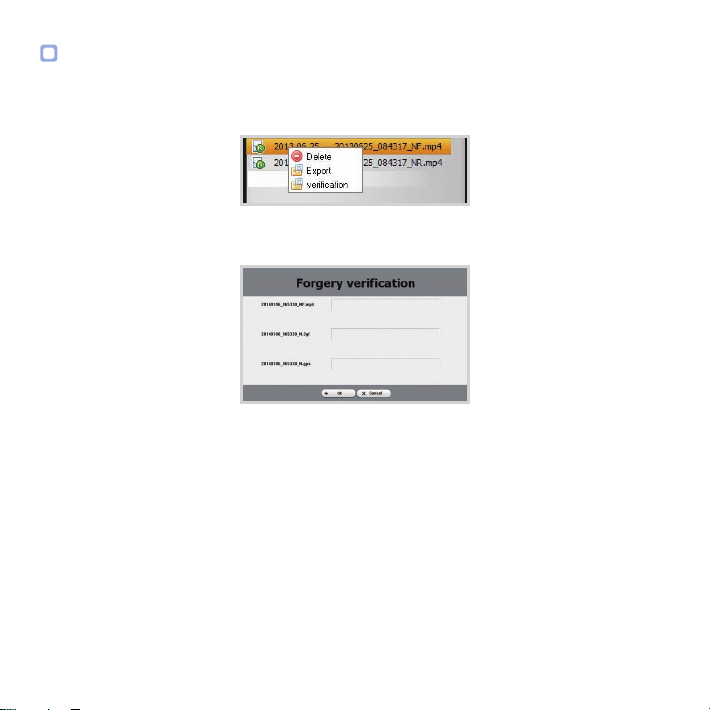

How to Verify Files
With the recorded video list, a le can be veried forgery.
Select a le from the recorded video list and right-click it.
1
Click Verication and click OK button.
2
34 BLACKVUE Wi-Fi 2CH
How to Check the Map
Where a video was recorded can be checked with the map.
Select a le from the recorded video list and play it back.
1
Press the Map tab.
2
With the +/- button or mouse wheel, the map can be zoomed in/out.
3
Speed Unit Change
Map
Zoom-In/Out
Car Location
Note
yTo use the map service, an Internet connection is required.
y Only for the recorded le with GPS information, the data can be checked.
Map Type
Selection
DR550GW-2CH 35
How to Check MyWay Viewer
The driving route of a recorded video can be checked.
Select a le from the recorded video list and play it back.
1
Press the button. The driving route will be displayed on the map.
2
Double-click the map to play back the recorded video of the nearest driving route from the clicked point.
3
Speed Unit Change
Latitude & Longitude Car Location
Map Type
Selection
Record
Starting Point
Driving Route Currently-Played File
Note
yTo use the map service, an Internet connection is required.
y Only for the recorded le with GPS information, the data can be checked.
36 BLACKVUE Wi-Fi 2CH
Car Location
How to Save as an Image
While playing back a recorded video, some parts can be saved as images if you want.
Select a le from the recorded video list and play it back.
1
From the image to be saved, click the button.
2
Note
yUse the timeline or press the
Press the G button.
3
Select the le name you want, together with the path, and click the Save button.
4
Note
yJPG and BMP formats are supported for image les.
How to Print Out an Image
While playing back a recorded video, some parts can be printed out as images if you want.
Select a le from the recorded video list and play it back.
1
From the image to be saved, click the button.
2
Note
y Use the timeline or press the
Press the button.
3
Select the printer and click the OK button.
4
/ button to explore detailed images.
/ button to explore detailed images.
DR550GW-2CH 37
Conguration
Basic Conguration
Time, video, and recording congurations can be changed.
Click the G button and click the Basic tab.
1
After changing the conguration, click Save & Close.
2
1
2
No. Function Description
1
2
3
38 BLACKVUE Wi-Fi 2CH
Time
Conguration
Image Setting
Recording
Conguration
The time zone can be congured for where it is used. The congured time zone is used
as information for recorded video.
The quality and brightness of the recorded front/rear video can be configured. For
details on the recording time, refer to microSD Card Standard. (48 page)
Normal Record, Voice Record, Date and Time Display and Auto Switching to Parking
Mode function can be turned on/o.
Speed Display and Record File Unit can be changed.
4
3
No. Function Description
Language
4
Setting
Note
yWith the normal recording function disabled, only event and parking mode recording videos are
saved.
y With the speed display unit disabled, the vehicle speed is not displayed when the recorded videos are
played back.
y On microSD cards, older les are deleted rst to mark space for newly-recorded videos. Copy and store
important les such as even recording les to other storage media.
yTap the voice On/O button to turn the voice recording function on or o.
The language of BlackVue voice directions can be changed.
DR550GW-2CH 39
How to Congure Sensitivity
It is possible to configure the G-sensor sensitivity to start event recording during normal recording and the
G-sensor & motion detection sensitivity to start event recording during parking mode recording, respectively.
Click the G button and click the Sensitivity tab.
1
After changing the conguration, click Save & Close.
2
Note
yFor details about advanced sensitivity configuration, refer to Advanced Sensitivity Configuration.
(41 page)
1
2
No. Function Description
Apply to Always-
1
Apply to Parking
2
on Recording
Mode
It is possible to congure the G-sensor sensitivity to start event recording during
always-on recording.
It is possible to configure the G-sensor and motion detection sensitivity to start
event recording during parking mode recording.
40 BLACKVUE Wi-Fi 2CH
Advanced Sensitivity Conguration
The sensitivity can be congured while watching a recorded video.
Click the G button and click the Sensitivity tab.
1
Click the Advanced Setting button of the conguration you want.
2
Play back a recorded video. Saved G-sensor information is displayed at the bottom of the recorded video
3
which is played back.
Move the control bar up/down to adjust the sensitivity range. If the range is wide, it is less sensitive, and if
4
the range is narrow, it is more sensitive.
It is recorded as an event. It is not recorded as an event.
DR550GW-2CH 41
Note
yIf an event recording is started due to the sensitivity congured while a recorded video is being played
back, the edge of the playback screen blinks in orange.
After changing the conguration, click Save & Close.
5
Wi-Fi & Other Conguration
Congurations for Wi-Fi, LED indication, and voice direction can be changed.
1
2
No. Function Description
You can change Autorun Wi-Fi feature, SSID and your password for the Wi-Fi connection.
The BlackVue App can be accessed with the SSID and password chosen by the user and
you can also reset the password if you have forgotten it.
For video recording status, normal recording mode, and parking mode recording, the
LED indicators can be turned on/o.
Voice direction item or the volume can be changed.
1
2
Wi-Fi Setting
Etc.
42 BLACKVUE Wi-Fi 2CH
How to Apply Conguration
The user's conguration can be applied to the product.
Insert the microSD card into the product. For details on how to insert the microSD card, refer to How to
1
Insert & Remove the microSD Card. (16 page)
When the power is turned on, the user's conguration is automatically applied.
2
Note
yInsert the microSD card only when the product is turned o.
DR550GW-2CH 43
Firmware Upgrade
You can upgrade the rmware version by connecting the microSD card into the PC. You can also upgrade the
rmware version with the BlackVue App, and for details, refer to the BlackVue App manual.
Connect the microSD card to the PC. For details on how to connect, refer to How to Playback using a PC.
1
(23 page)
Access the BlackVue web site (www.blackvue.com) and download the rmware upgrade le.
2
Double-click the rmware upgrade le to execute it and perform the upgrade according to instructions
3
provided in the program.
Note
yAfter rmware upgrade, all the user's congurations including the Wi-Fi setting are initiated.
y When the rmware upgrade is nished, the BlackVue viewer is automatically installed. If you don't want
it to be installed, click the Cancel button.
44 BLACKVUE Wi-Fi 2CH
After the rmware upgrade is nished, insert the microSD card into the BlackVue.
4
Note
yFor details on how to insert the microSD card, refer to How to Insert & Remove the microSD Card. (16
page)
yInsert the microSD card only when the product is turned o.
When the power is turned on, it is automatically upgraded.
5
Caution
yMake sure that the power is never turned o while rmware upgrade is in progress
DR550GW-2CH 45
Product Specications & Standards
Product Specications
Model Name
Color/Size/Weight
Memory
Recording Mode
Camera
Viewing Angle
Resolution/Frame
Video Compression Mode
Wi-Fi
GPS
Microphone
Speaker
DR550GW-2CH
Front: Pearl Black / Length 118.5mm x Diameter 36mm / 120g
Rear: Pearl Black / Length 67.4mm x Diameter 27.6mm / 30g
microSD Card (16GB/ 32GB)
Normal Recording, Event Recording (Impact Detection), and Parking mode Recording
(Motion+Impact Detection)
※
For Parking mode recording, a battery discharge prevention device is required.
Front: CMOS Sensor (Approx. 2.4M Pixel)
Rear: CMOS Sensor (Approx. 1M Pixel)
Front: Opposite Angle 146°, Horizontal 115°, Vertical 85°
Rear: Opposite Angle 129°, Horizontal 108°, Vertical 57°
Full HD(1920x1080)@30Fps HD(1280x720)@30Fps
Full HD(1920x1080)@15Fps HD(1280x720)@15Fps
HD(1280x720)@30Fps HD(1280x720)@30Fps
HD(1280x720)@15Fps HD(1280x720)@15Fps
※
R esolution/frame can be changed
MP4
Built-in (802.11b/g/n(2.4~2.4835GHz), Max150Mbps, OFDM/CCK/16-QAM/64-QAM)
Built-in
Built-in
Built-in
※
Voice Directions
Front Rear
46 BLACKVUE Wi-Fi 2CH
LED Indicators
Sensor
Button
Backup Battery
Input Power
Current Consumption
Operation Temperature
Storage Temperature
Certicates
Software
Application
Front: Recording LED, GPS LED, Wi-Fi LED, Front Security LED
Rear: Rear Security LED
3-Axis Acceleration Sensor
Wi-Fi On/O Button
※
Self-format Function: Press it for 10 seconds to format the microSD card
Voice On/O Button
※
The proximity sensor is built-in so that voice recording can be turned on/off by
approaching it with a hand
※
Touch the button or it recognizes when a hand approaches to within about 2 cm
Built-in super capacitor
DC 12V-24V
Max. 4.8W
※
Varies depending on Wi-Fi usage
-20°C ~ 60°C
-20°C ~ 70°C
KC, FCC, CE, RoHS, Telec, WEEE
BlackVue Viewer
※
Windows XP or later (Up to Windows 8), Mac Leopard OS X(10.5) or later
BlackVue App (Android 2.3 or later & iOS 5.0 or later & Windows 8.0 or later)
DR550GW-2CH 47
LED Indicators
LED
State
Boot-up Blinking
Normal Orange Blinking White Blinking
Recording
Wi-Fi ON/OFF Change Blinking
Software Control Available Unavailable Unavailable Available Unavailable
Event
Parking
Wi-Fi ON Lighting White Blinking
GPS ON Blue Light White Blinking
Recording State
(REC)
Red
Blinking Fast White Blinking
Green
Blinking White Blinking
GPS Wi-Fi Front Security Rear Security
microSD Card Standard
Resolution
(Front+Rear)
Memory Capacity
16GB 4 HR 5 HR 40 MIN 5 HR 20 MIN 7 HR
32GB 8 HR 10 MIN 11 HR 20 MIN 10 HR 30 MIN 14 HR
bit rate
Front 6Mbps 4Mbps 4Mbps 3Mbps
Rear 2Mbps 1.5Mbps 2Mbps 1.5Mbps
Note
yThere may be some variation with actual recording time depending on the user's environment.
yDepending on the image quality, the microSD card lifespan can be shorten.
Full HD + HD
@30fps
Full HD + HD
@15fps
HD + HD
@30fps
White Light
HD + HD
@15fps
48 BLACKVUE Wi-Fi 2CH
Before Requesting A/S Service
yIt is required for users to back up important data regularly from storage device (to other separate
media). Depending on the situation, it will be necessary to delete the data from the internal storage
device (component). It might be needed to delete all the data from the product for A/S. So it is required
for users to back up important data by themselves before requesting A/S. For all the A/S products, it is
regarded that the user already backed up the data so there is no additional back-up process. Therefore, it
is important to note that we are not responsible for any data lost during A/S.
FCC Compliance Information
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
Operation is subject to the following two conditions;
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
CAUTION : Changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
yReorient or relocate the receiving antenna.
yIncrease the separation between the equipment and receiver.
yConnect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
yConsult the dealer or an experienced radio/TV technician for help.
Modications not expressly approved by the manufacturer could void the user's authority to operated the
equipment under FCC rules.
Product Warranty
The term of this product warranty is 2 year from the purchase date.
(Accessories such as Battery/microSD Card : 6 Months)
We, PittaSoft Co., Ltd., provide the product warranty according to Consumer Dispute Settlement Regulations (drawn up by the Fair
Trade Commission). PittaSoft or designated partners will provide the service upon request.
Product Name (Model Name) Serial No.
Purchased When Purchased Where
Customer Information Address / Call Number
Consumer Injury
For serious repair required within 10 days of purchase Exchange/Refund
For serious repair required within 1 month of purchase
For serious repair required within 1 month of exchange
For
performance/
functional
problems
under normal
use conditions
1) Malfunction due to customer fault
- Malfunction & damage caused by user negligence (fall, shock, damage, unreasonable operation,
- Malfunction & damage occurred after a repair conducted by the consumer of the third person, not
- Malfunction & damage due to used of unauthorized components, consumables, or separately sold
2) Other Cases
- Malfunction due to natural disasters (re, ood, earthquake, etc)
- Expired life span of a consumable part
- Malfunction due to external reasons
This warranty is only valid in the country where you purchased the product.
When not exchangeable Refund
For Defect Free Repair
Repair
Repeated problem with the same defect (up to 3 times)
If Available
Repeated trouble with dierent parts (up to 5 times)
For the loss of a product while in A/S
Repair
When repair is unavailable due to lack of spare parts within the
If
component holding period
Unavailable
When repair is unavailable even with spare parts
etc) or careless use
our A/S engineer.
parts
Refund
Warranty
N/A
Paid Repair/
Paid Product Exchange
Refund after depreciation
plus an additional 10%
Maximum: purchase price)
Exchange/
Refund after depreciation
Within the Term Out of the Term
Exchange
Exchange/Refund
Exchange/
Paid Repair Paid Repair
|
Name
Car Dashcam Manufacturer
| (Gasan-dong, BYC HIGHCITY), A-7th oor, 131, Gasan digital 1-ro, Geumcheon-gu, Seoul, 153-718,
Address
Sales Headquater
Republic of Korea
Tel: +82-2-6947-4670(#3)
e-mail: sales@pittasoft.com
|
PittaSoft Co., Ltd. / Korea
| Fax: +82-2-6947-4699
www.blackvue.com
Loading...
