G7
Technical User Manual
CONTENTS
OVERVIEW
Real-time connected safety ............................................................................................................... 4
Blackline Safety Network .................................................................................................................... 4
Blackline Live web portal .................................................................................................................... 5
G7 models .................................................................................................................................................. 6
Device comparison ................................................................................................................................. 7
What’s in the box .................................................................................................................................... 8
Hardware details ...................................................................................................................................... 9
INTERACTION
How it works ............................................................................................................................................... 10
NOTIFICATIONS
SureSafe .........................................................................................................................................................11
Yellow pending alarm ........................................................................................................................... 12
Yellow warning alarm ............................................................................................................................ 13
Red alert ........................................................................................................................................................ 14
LiveResponse ............................................................................................................................................. 15
OPERATING
Charging ...................................................................................................................................................... 16
Wearing ........................................................................................................................................................ 16
Power on ..................................................................................................................................................... 17
Power o ..................................................................................................................................................... 17
SAFETY MONITORING FEATURES
Yellow pending alarm features ........................................................................................................ 18
Potential Fall detected ............................................................................................................... 18
Potential no-motion detected ...............................................................................................19
Check-in request ........................................................................................................................... 19
Yellow warning alarm features .........................................................................................................20
Messages ........................................................................................................................................... 20
Speaker phone ............................................................................................................................... 21
Network connection interruption ....................................................................................... 21
Low battery ...................................................................................................................................... 21
Red alert features ..................................................................................................................................... 22
Fall detected .................................................................................................................................... 22
No-motion detected ................................................................................................................... 22
Missed check-in ............................................................................................................................. 23
SOS alert ............................................................................................................................................. 23
GAS DETECTION
Bump test ....................................................................................................................................................24
Calibration .................................................................................................................................................. 26
Zero sensors ................................................................................................................................................27
GAS DETECTION FEATURES
Yellow warning alarm gas features ................................................................................................28
Low warning alarm for gas ...................................................................................................... 28
Under limit ..................................................................................................................................... 29
Sensor error ..................................................................................................................................... 29
Calibration ....................................................................................................................................... 29
Bump test .......................................................................................................................................... 29
Red alert gas features ............................................................................................................................ 30
High alert for gas ........................................................................................................................... 30
STEL (short term exposure limit) alert ............................................................................... 30
TWA (time weighted average) alert ....................................................................................31
OL (over limit) alert ...................................................................................................................... 31
CARTRIDGES
Gas Cartridge replacement program ............................................................................................ 32

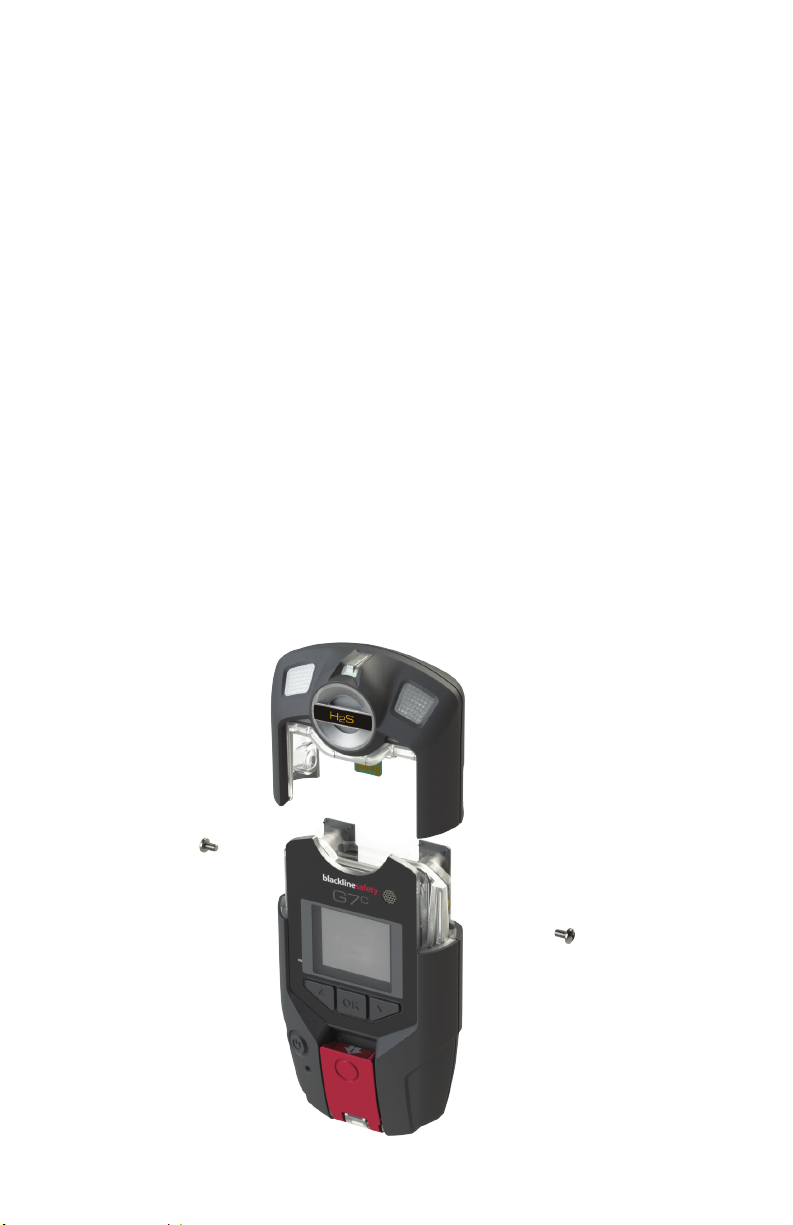

Changing cartridges .............................................................................................................................. 32
Cartridge care ............................................................................................................................................ 33
Cartridge safety precautions ............................................................................................................. 33
Caution ............................................................................................................................................... 33
FIRMWARE UPDATES
Over-the-air (OTA) rmware updates ........................................................................................... 34
SUPPORT
Learn more .................................................................................................................................................. 35
Customer Care ........................................................................................................................................... 35
SPECIFICATIONS
Detailed specications .......................................................................................................................... 36
LEGAL NOTICES AND CERTIFICATIONS
Legal notices .............................................................................................................................................. 38
Intrinsically safe ......................................................................................................................................... 39
OVERVIEW
REALTIME CONNECTED SAFETY
What is G7?
G7 is the rst true work-everywhere, wearable, personal safety monitor. It keeps you
connected — whether it’s a gas leak, a health incident or an intruder.
Your G7 can trigger a facility evacuation, accounting for your location on a real-time
map. Should you require help, G7 delivers the instant situational awareness needed to
manage the fastest possible response to make a dierence.
G7 has your back at all times.
BLACKLINE SAFETY NETWORK
How am I connected?
The Blackline Safety Network is the cloud-hosted system used to monitor your safety.
It includes 2G/3G cellular networks, satellite networks, our Blackline Live™ web portal
application, your monitoring account and your personal safety monitoring device.
Each G7 device requires an active service plan in order to connect to the Blackline Safety
Network. Depending on your needs and requirements, there are various service plan
options available such as 24/7 safety monitoring by Blackline’s Safety Operations Center
and two-way voice communication. Contact your organization’s safety professional for
more information regarding the details of your service plan.
4 || G7 TECHNICAL USER MANUAL
BLACKLINE LIVE WEB PORTAL
What is Blackline Live?
G7 utilizes the cloud-hosted Blackline Live web portal to monitor and manage all your
workers and devices.
With Blackline Live’s real-time alerting and live map with employee locations, you can
quickly locate and respond to a worker in distress. Real-time alerts show the employees
location on the map with the type of alert, enabling your team to eciently send the
help they need.
Blackline Live also allows you to create and customize conguration proles that
determine how a device or a group of devices operates in the eld. Similarly, alert
proles are set up to determine what contacts should be notied in the event of an
incident and what response protocol monitoring personnel will follow to ensure your
team gets the help it needs.
Blackline Live keeps track of alert history, calibrations and bump tests eliminates the need
to manually retrieve data logs from the eld. All G7 data is communicated in real-time.
G7 is capable of receiving text messages from Blackline Live, with the option of
receiving voice communications.
Blackline Live allows you to tailor user access depending on employee roles: employee,
supervisor, administrator and monitoring team. This ensures that everyone has access to
the right tools to accommodate their role in a comprehensive monitoring program.
G7 TECHNICAL USER MANUAL || 5
G7 MODELS
G7
C
G7
X
What G7 model do I have?
There are two G7 models: G7c and G7x. The main dierence between them is how they
connect to the Blackline Safety Network.
If you are unsure of which G7 model you have, refer to the logo on the front of your G7.
G7c works anywhere with 2G/3G
cellular coverage in over 200 countries
to connect you directly to the Blackline
Safety Network. Depending on your
service plan, your G7c may have
two-way voice capabilities.
6 || G7 TECHNICAL USER MANUAL
G7x works in conjunction with Blackline’s
G7 Bridge — a portable satellite base
station that keeps you connected in
remote locations outside cellular coverage.
G7x uses a 900 MHz radio to communicate
with G7 Bridge up to 2km away. One G7
Bridge can link up to ve G7x devices
to the Blackline Safety Network through
Iridium satellite or cellular data.
DEVICE COMPARISON
G7
C
G7
X
What features does my G7 have?
G7c and G7x are customized with one of three cartridge types. Cartridge selections
include Standard, Single-gas and Quad-gas cartridges. The following comparison chart
summarizes the features of each cartridge.
G7 MODEL
Standard StandardSingle SingleQuad Quad
Text messaging
Fall detection
No-motion detection
SOS alert
Check-in
Receive voice calls
Single gas detection
Multi gas detection
Low warning alarm for gas
Under limit alarm for gas
High alert for gas
STEL alert for gas
TWA alert for gas
Over limit alert for gas
l l l l l l
l l l l l l
l l l l l l
l l l l l l
l l l l l l
l l l
l l
l l
l l l l
l l l l
l l l l
l l l l
l l l l
l l l l
G7 TECHNICAL USER MANUAL || 7
WHAT’S IN THE BOX
Your G7 device comes with the following components:
G7 personal safety monitoring device
Pre-installed cartridge (Standard, Single-gas or Quad-gas cartridge)
Quick start guide

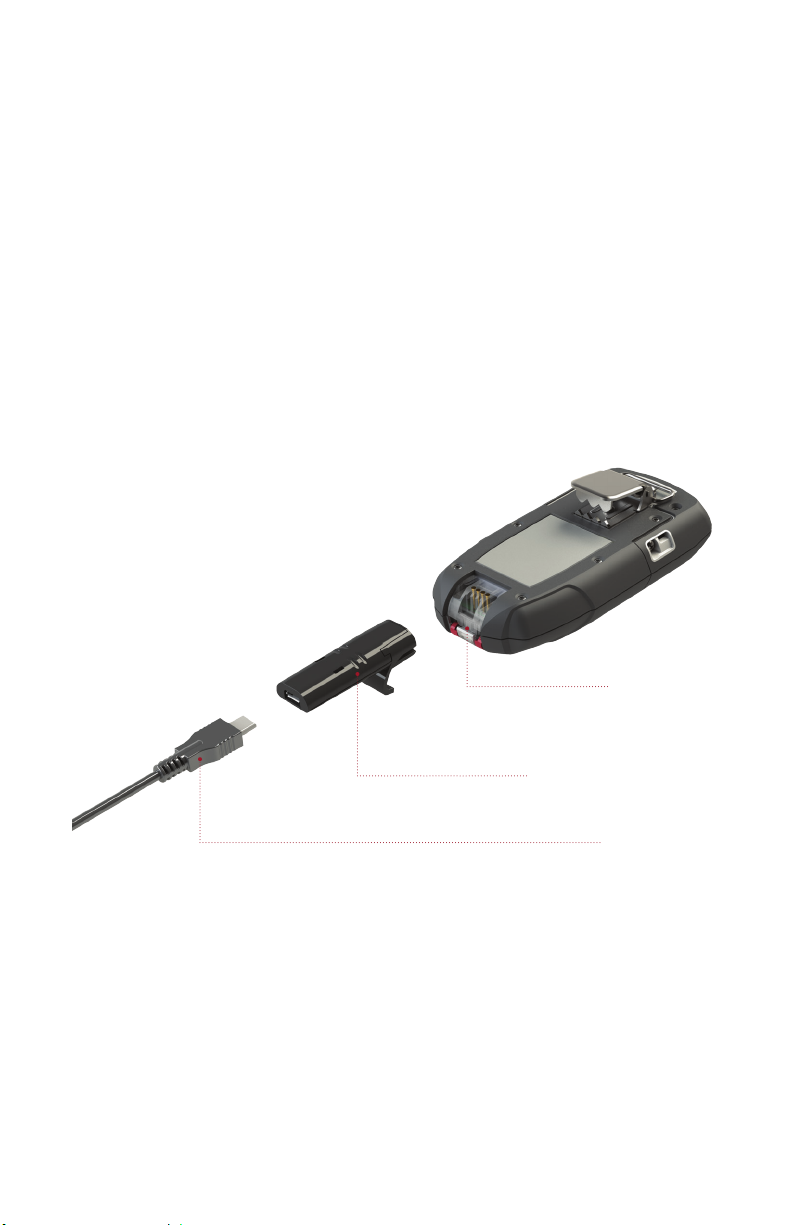

Charging system
• Removable charging clip
• USB cable
• USB power adapter
Certication and support card
If you have a Single-gas or Quad-gas cartridge you will also receive:
Gas detection guide

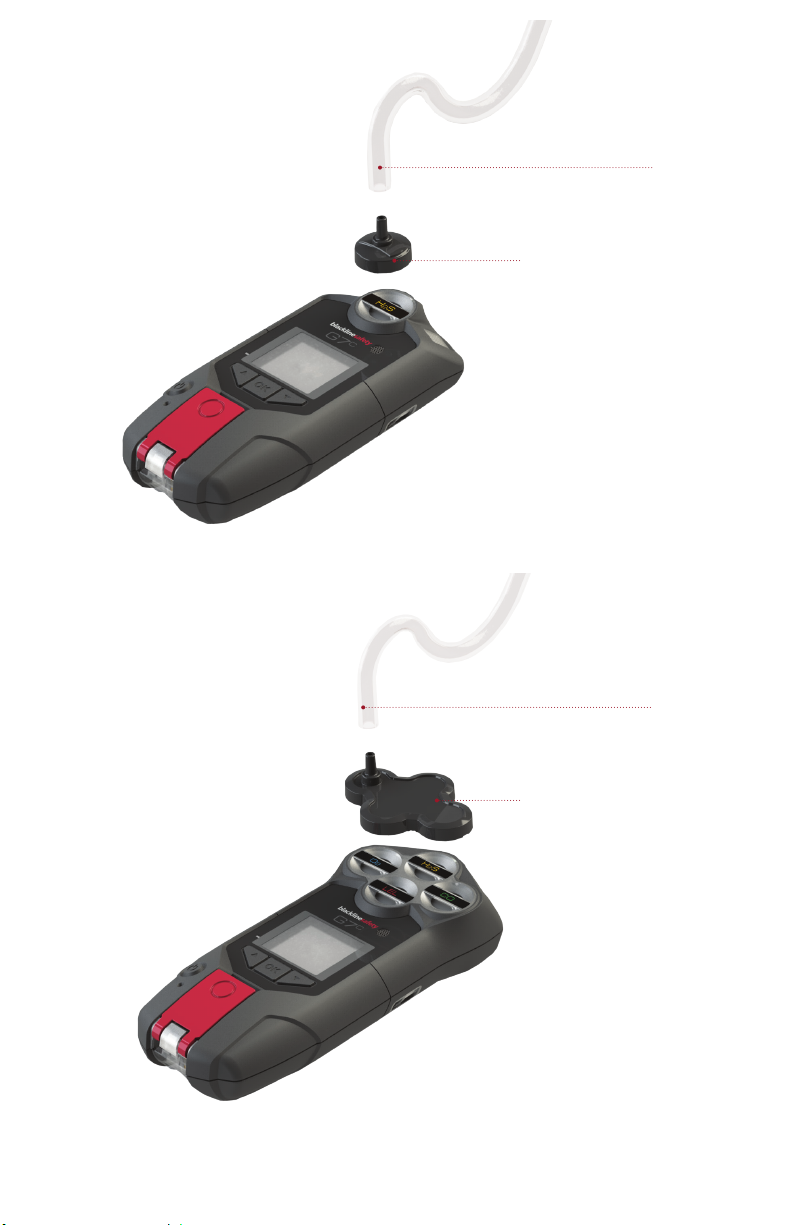

Single or Quad calibration cap (depending on your cartridge)
Calibration gas tubing
8 || G7 TECHNICAL USER MANUAL
HARDWARE DETAILS
OK
Cartridge (Standard,
Single-gas or Quad-gas)
Top lights
Pending and
warning
Alerts
LiveResponse
SureSafe
LCD screen
Up button
OK button
Power button
Microphone (G7c only)
Metal belt clip
Speaker
Down button
Latch pull
Latch push button
Charging light
Cartridge label
Product label
Charging port
G7 TECHNICAL USER MANUAL || 9
INTERACTION
HOW IT WORKS
Interacting with G7 is easy with it’s high-visibility LCD display and three-button
menu system.
OK button
Press OK to enter the main menu on
the LCD screen and to conrm a
menu selection.
Latch pull
Pull down the latch to call for help when
assistance is required.

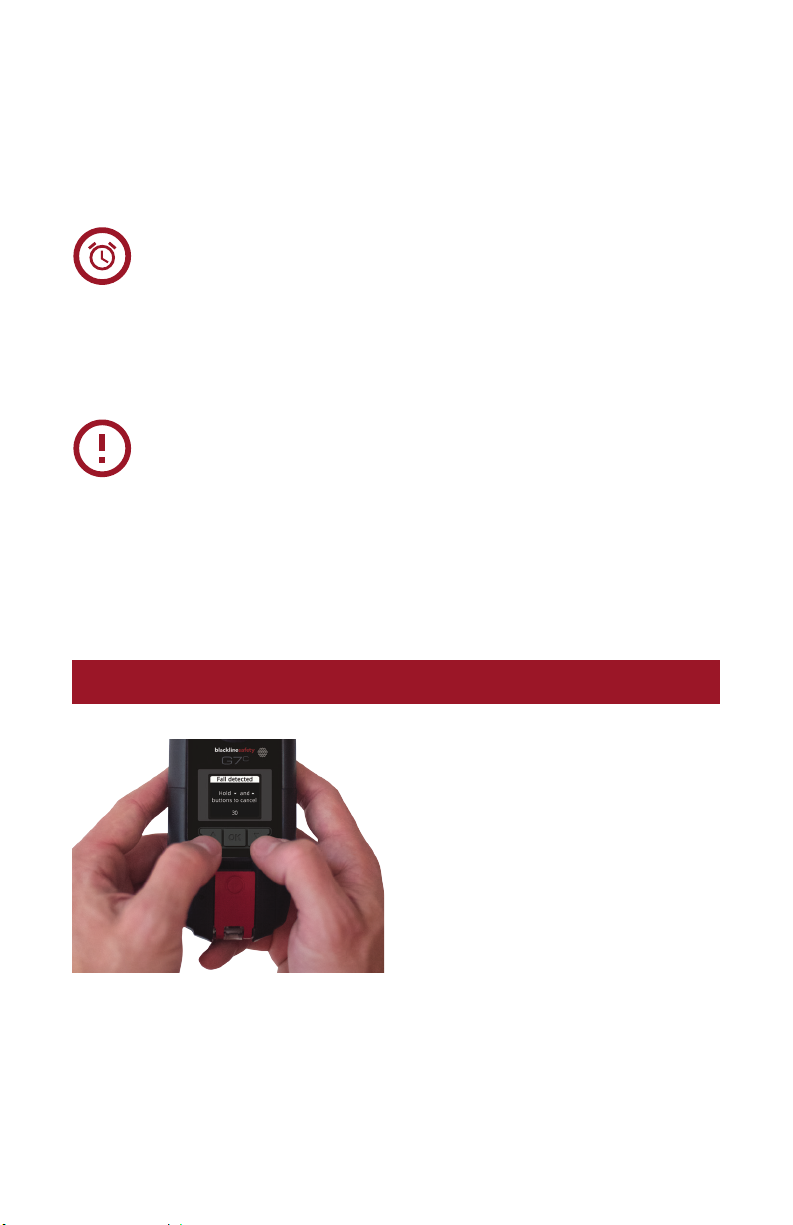

Up and down arrow buttons
Press up or down to navigate the menu.

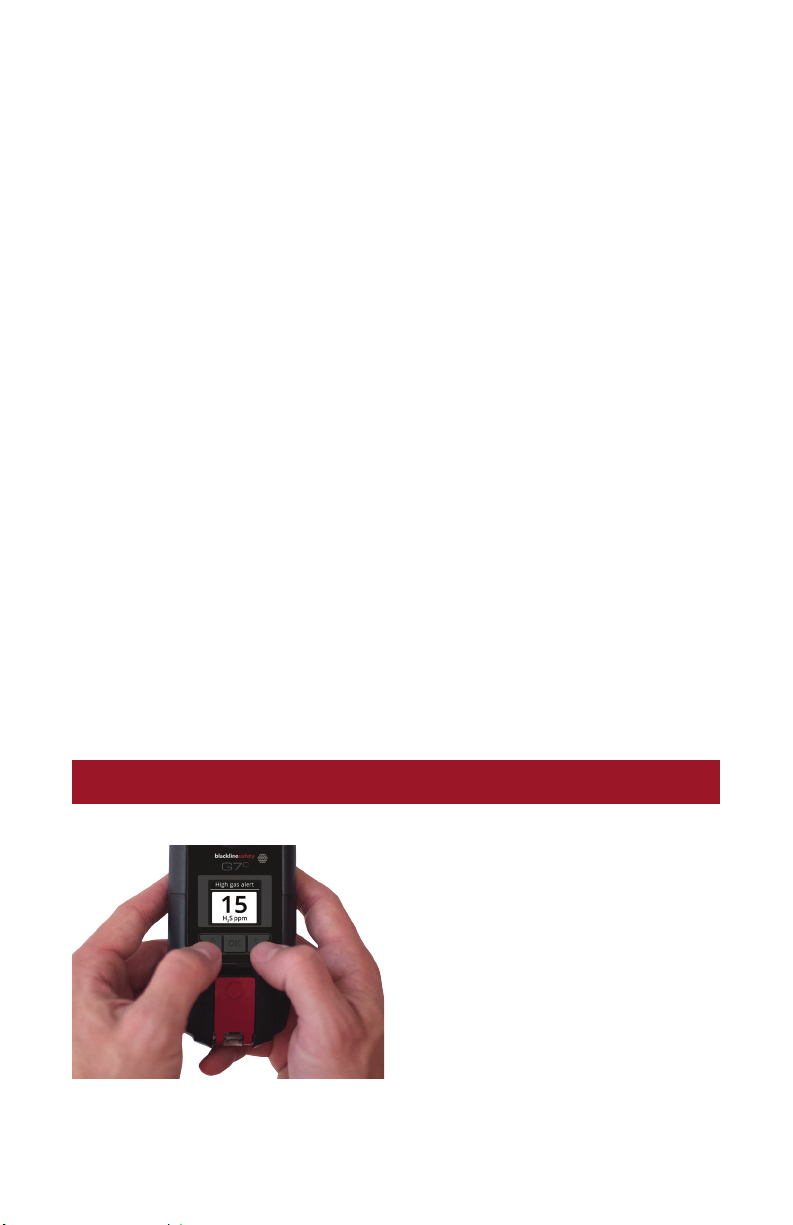

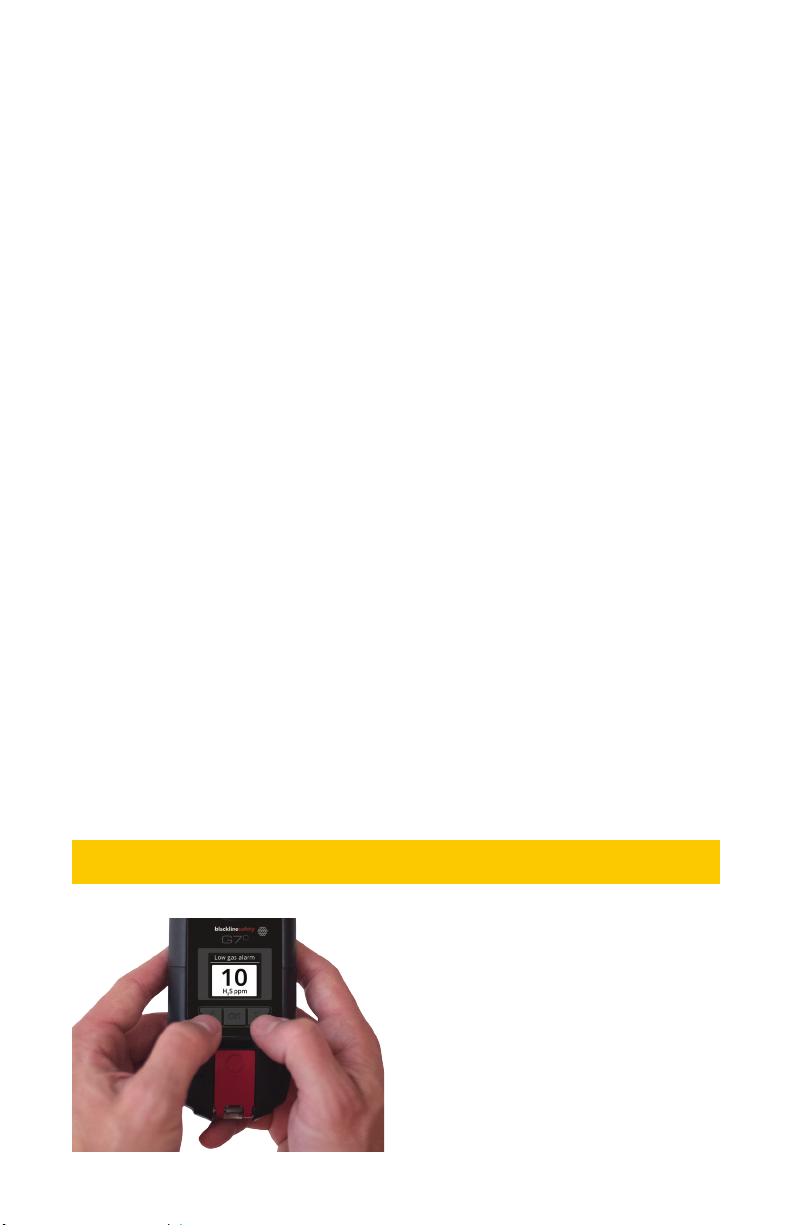

Press and hold both simultaneously to mute
a yellow warning alarm or red alert.
Latch push button
Push the latch in to check in and tell your
G7 that you are safe.
10 || G7 TECHNICAL USER MANUAL
NOTIFICATIONS
When G7 has something to tell you it uses color, vibration, sound and on-screen messages.
SureSafe
Are you Connected?
G7 lets you know your connection status.
Green
SureSafe
Blinking/Solid
Blinking green light
A blinking green SureSafe® light indicates your device is connecting to the Blackline
Safety Network and your safety is not yet monitored.
Solid green light
A solid green SureSafe light indicates you’re connected and being monitored by the
Blackline Safety Network.
Sound and vibration
Congurable to sound an alarm if connection is lost after 5 minutes.
G7 TECHNICAL USER MANUAL || 11
YELLOW PENDING ALARM
Are you safe?
G7 is asking you to conrm that you are safe.
Yellow
Pending
Alarm
Blinking

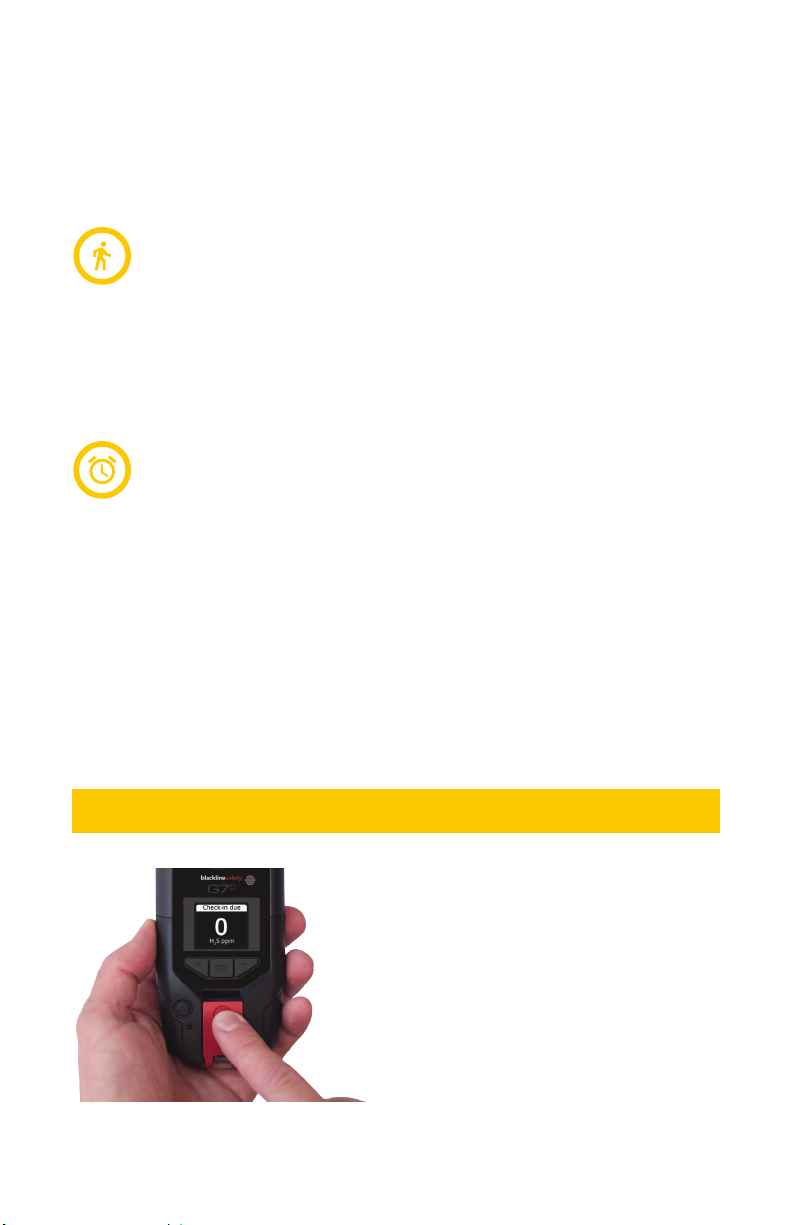

Push the red latch button within a set period of time to confirm you are safe.
If you don’t push the latch button your G7 will communicate a red alert to
monitoring personnel.
Sound and Vibration
Beeping alarm sound — an alarm sound and vibration, a pause, then an alarm sound
and vibration and another pause, etc.
Yellow Pending Alarms:
Potential fall detected
Potential no-motion detected
Check-in request
12 || G7 TECHNICAL USER MANUAL
