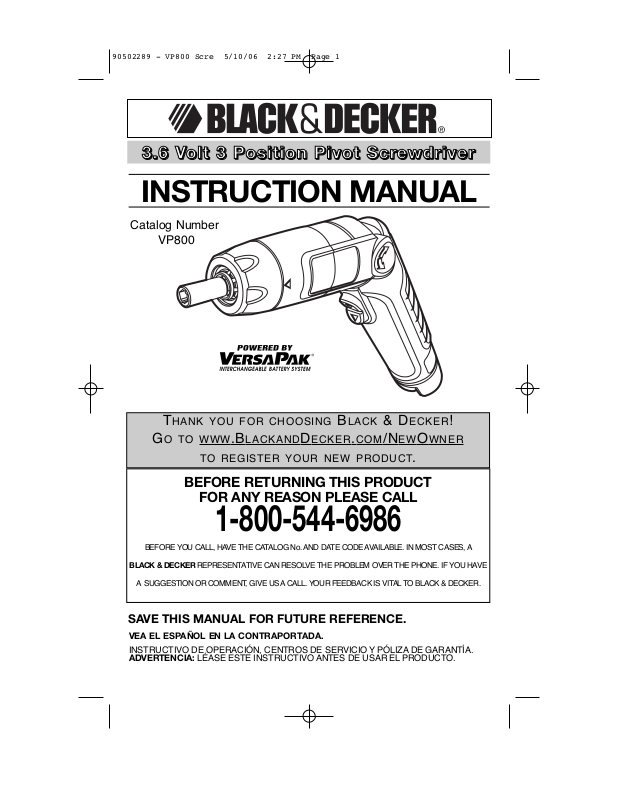

Black & Decker VP800 User Manual

VEA EL ESPAÑOL EN LA CONTRAPORTADA.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZADE GARANTÍA.

ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

INSTRUCTION MANUAL

BEFORE RETURNING THIS PRODUCT

FOR ANY REASON PLEASE CALL

1-800-544-6986

BEFORE YOU CALL, HAVE THE CATALOG No. AND DATE CODE AVAILABLE. IN MOST CASES, A

BLACK & DECKER REPRESENTATIVE CAN RESOLVE THE PROBLEM OVER THE PHONE. IF YOU HAVE

A SUGGESTION OR COMMENT, GIVE US ACALL. YOUR FEEDBACK IS VITAL TO BLACK & DECKER.

HANK

YOU

FOR

CHOOSING

LACK

&&D

ECKER

OOTTOOWWW

WWW

LACKAND

ECKER

COM

WNER

TTOOREGISTER

YOUR

NEW

PRODUCT

Catalog Number

VP800

3333....6666 VVVVoooolllltttt 3333 PPPPoooossssiiiittttiiiioooonnnn PPPPiiiivvvvooootttt SSSSccccrrrreeeewwwwddddrrrriiiivvvveeeerr

90502289 - VP800 Scre 5/10/06 2:27 PM Page 1

General Safety Rules

WARNING! Read all instructions. Failure to follow all instructions listed below

may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

SAVE THESE INSTRUCTIONS

1) Work area safety a) Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence

of flammable liquids, gases or dust

. Power tools create sparks which may ignite

the dust or fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions

can cause you to lose control

2) Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any way. Do

not use any adapter plugs with earthed (grounded) power tools.

Unmodified

plugs and matching outlets will reduce risk of electric shock

b) Avoid body contact with earthed or grounded surfaces such as pipes,

radiators, ranges and refrigerators.

There is an increased risk of electric shock if

your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool

will increase the risk of electric shock

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging

the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for

outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric

shock.

3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a

power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tool

may result in serious personal injury.

b) Use safety equipment. Always wear eye protection.

Safety equipment such as

dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Avoid accidental starting. Ensure the switch is in the off-position before

plugging in.

Carrying power tools with your finger on the switch or plugging in power

tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables

better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing

and gloves away from moving parts.

Loose clothes, jewelry or long hair can be caught in moving parts. Air vents often cover moving parts and should also be avoided.

g) If devices are provided for the connection of dust extraction and collection

facilities, ensure these are connected and properly used.

Use of these devices

can reduce dust-related hazards.

90502289 - VP800 Scre 5/10/06 2:27 PM Page 2

4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power

tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the

power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power

tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons

unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts,

breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use.

Many accidents

are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp

cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these

instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care a) Ensure the switch is in the off position before inserting battery pack.

Inserting

the battery pack into power tools that have the switch on invites accidents.

b) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

c) Use power tools only with specifically designated battery packs.

Use of any

other battery packs may create a risk of injury and fire.

d) When battery pack is not in use, keep it away from other metal objects like

paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.

Shorting the battery terminals

together may cause burns or a fire.

e) Under abusive conditions, liquid may be ejected from the battery, avoid contact.

If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation

or burns.

6) Service a) Have your power tool serviced by a qualified repair person using only identical

replacement parts.

This will ensure that the safety of the power tool is maintained.

b) If the replacement of the supply cord is necessary,

this has to be done by the

manufacturer or his agent in order to avoid a safety hazard.

SPECIFIC SAFETY RULES

• Hold tool by insulated gripping surfaces when performing an operation where the

cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will

make exposed metal parts of the tool "live" and shock the operator.

• Use clamps or another practical way to secure and support the workpiece to a

stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and

other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,

90502289 - VP800 Scre 5/10/06 2:27 PM Page 3

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber (CCA). Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling,

and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the

skin may promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA

approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

The label on your tool may include the following symbols.

V ..........................volts A..........................amperes

Hz ........................hertz W ........................watts

min........................minutes ......................alternating

current

......................direct current

o ........................no load speed

..........................

Class II Construction

........................earthing terminal

........................safety alert symbol .../min ..................revolutions or

reciprocations per minute

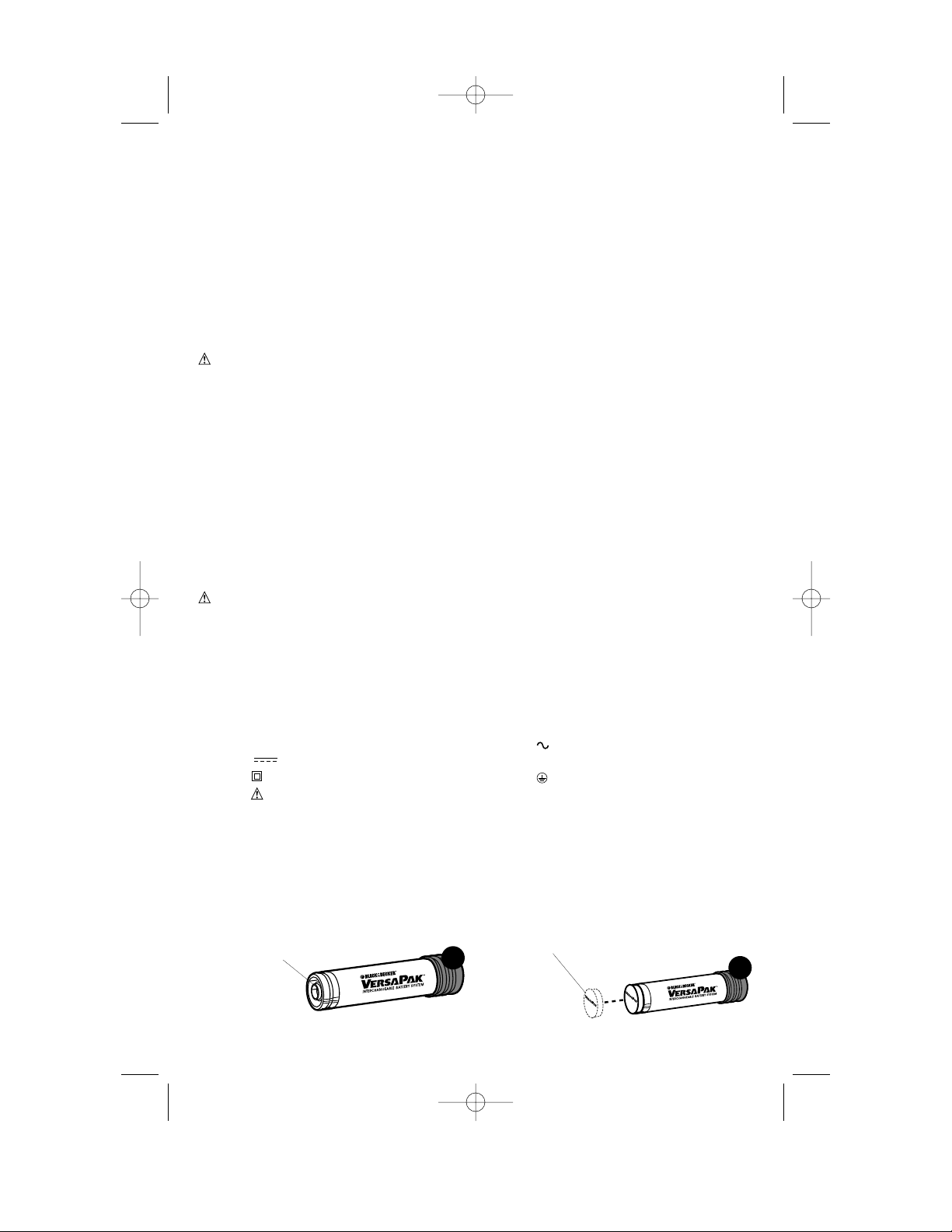

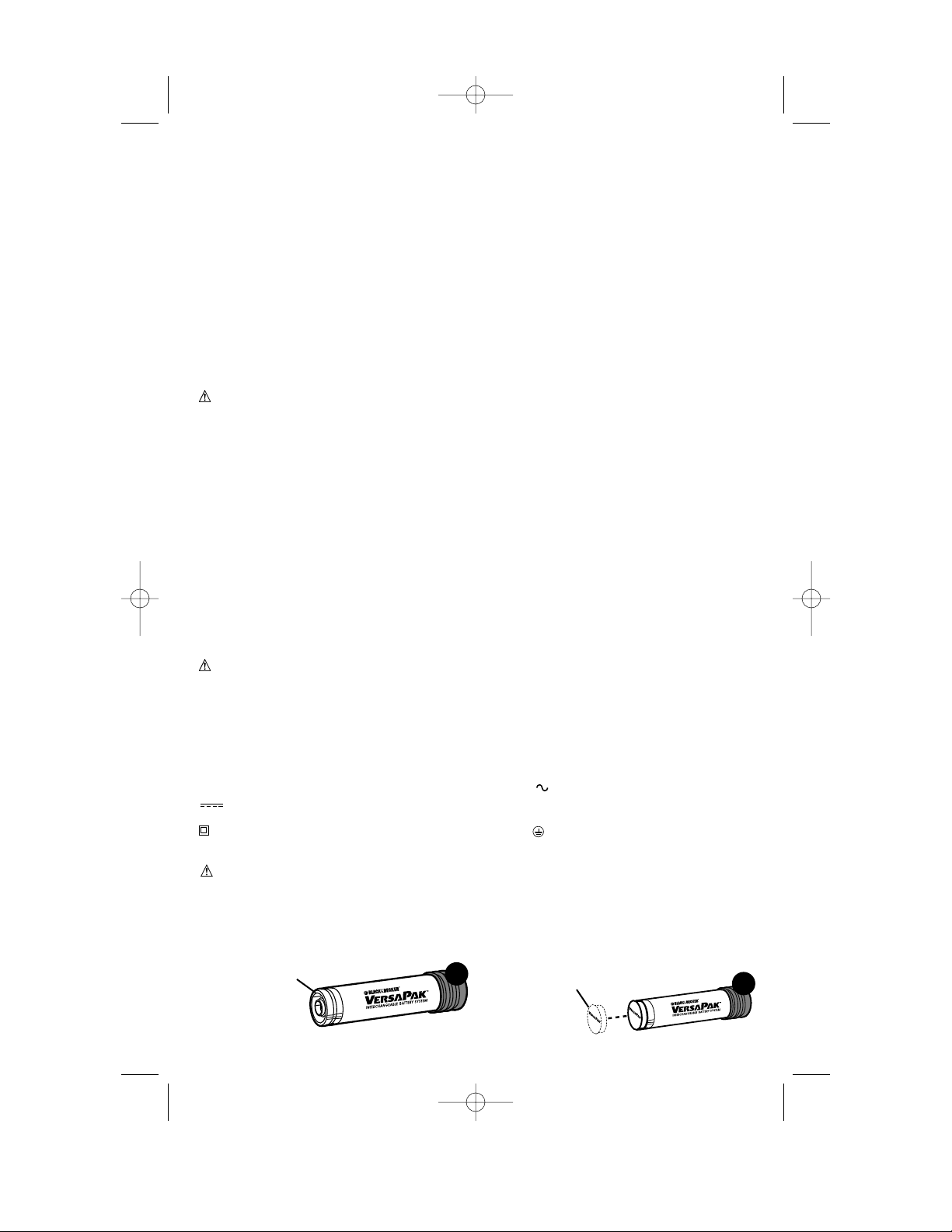

BATTERY CAP INFORMATION

Battery storage and carrying caps are provided for use whenever the battery is out of the tool or charger. Remove cap before placing battery in charger or tool.

WARNING! Do not store or carry battery so that metal objects can contact exposed battery terminals (1). For example, do not place battery in aprons, pockets, tool boxes, product kit boxes, drawers, etc. with loose nails, screws, keys, etc. without battery cap (2). Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the like. The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes (i.e. packed in suitcases and carryon luggage) UNLESS they are properly protected from short circuits. So when transporting individual batteries, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit.

Safety Warnings and Instructions: Charging

IMPORTANT SAFETY INSTRUCTIONS (FOR BATTERY AND CHARGER)

• Never attempt to open the battery for any reason. If the housing of the battery breaks or

cracks, immediately discontinue use and do not recharge.

• Do not incinerate the batteries. They can explode in a fire. A small leakage of liquid from

the battery cells may occur under extreme usage, charging or temperature conditions. This does not indicate a failure. However, if the outer seal is broken and this leakage gets on your skin:

a.Wash quickly with soap and water. b.Neutralize with a mild acid such as lemon juice or vinegar. c.If the battery liquid gets in your eyes, flush them with clean water for a minimum of 10

minutes and seek immediate medical attention.

Battery Cap

Metal End

Extrémité métallique

Extremo metalico

90502289 - VP800 Scre 5/10/06 2:27 PM Page 4

STOR CARRYING

AGE &

STORAGE & CARRYING

CAP

MEDICAL NOTE: The liquid is a 25-35% solution of potassium hydroxide.

• Charge batteries only with VersaPak battery charger.

• Do not use charger in wet or damp conditions. It is intended for indoor use only. Do not use near sinks, tubs, or the like. Do not immerse in water.

• Do not use charger for any uses other than charging VersaPak batteries. Other batteries may explode.

• Do not operate charger with damaged cord or plug — have them replaced immediately.

• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified Black & Decker service center.

• Do not disassemble charger; take it to a qualified Black & Decker service center when service or repair is required. Incorrect reassembly may result in risk of electric shock or fire. There are no consumer serviceable parts inside.

• For best results, do not charge batteries when they or air temperature is BELOW +40°F or ABOVE +105°F.

• The charger is designed to operate on standard household electrical power. Do not attempt to use it on any other voltage. Be sure your power supply agrees with the nameplate marking.

• Unplug charger when not in use.

• Do not abuse charger cord. To reduce the risk of damage to electric plug and cord, never carry charger by cord or yank it to disconnect from receptacle.Keep charger cord from heat, oil, and sharp edges.

• Use only charger supplied by the manufacturer to recharge.

• Use only under adult supervision, keep out of the reach of children.

• Ensure outlet is secured and completely intact. Do not plug charger into a loose wall outlet.

IMPORTANT CHARGING NOTES

• While charging, the charger transformer may hum and batteries and charger become warm. This is a normal condition and does not indicate a problem.

• If a battery does not charge properly— (1) Check current at receptacle by plugging in a lamp or other appliance. (2) Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights. (3) Move charger and batteries to a surrounding air temperature of +40°F to +105°F. (4) If the receptacle and temperature are oK, and you do not get proper charging, take or send the batteries and charger to your local Black & Decker service center. See “Tools Electric” in yellow pages.

• The batteries should be recharged when they fail to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use the tool with its batteries in a depleted condition.

• Before using battery charger, read all instructions and cautionary markings on battery charger, battery and product using battery.

CAUTION: To reduce the risk of injury, charge only nickel cadmium rechargeable

batteries. Other types of batteries may burst causing personal injury and damage.

SAVE THESE INSTRUCTIONS

CHARGING PROCEDURE

Insert the metal end of the VersaPak battery into the charger. The indicator light will glow indicating that charging is taking place and will remain on as long as the battery is in the charger. Continuous charging is not a safety concern.

NOTE: Your VersaPak battery was sent from the factory in an uncharged condition.

Before attempting to use it for the first time, it must be charged for 6 hours. Subsequent charging for most fix up jobs will require 3-6 hours.

Safety Warnings and Instructions: Drilling

• Hold tool firmly to control its twisting action.

WARNING: Tool may stall (if overloaded or improperly used) causing a twist. To

reduce the risk of injury always expect the stall. Grip the tool firmly to control the

twisting action and prevent loss of control which could cause personal injury. If a stall does occur, release the trigger immediately and determine the reason for the stall before re-starting.

90502289 - VP800 Scre 5/10/06 2:27 PM Page 5

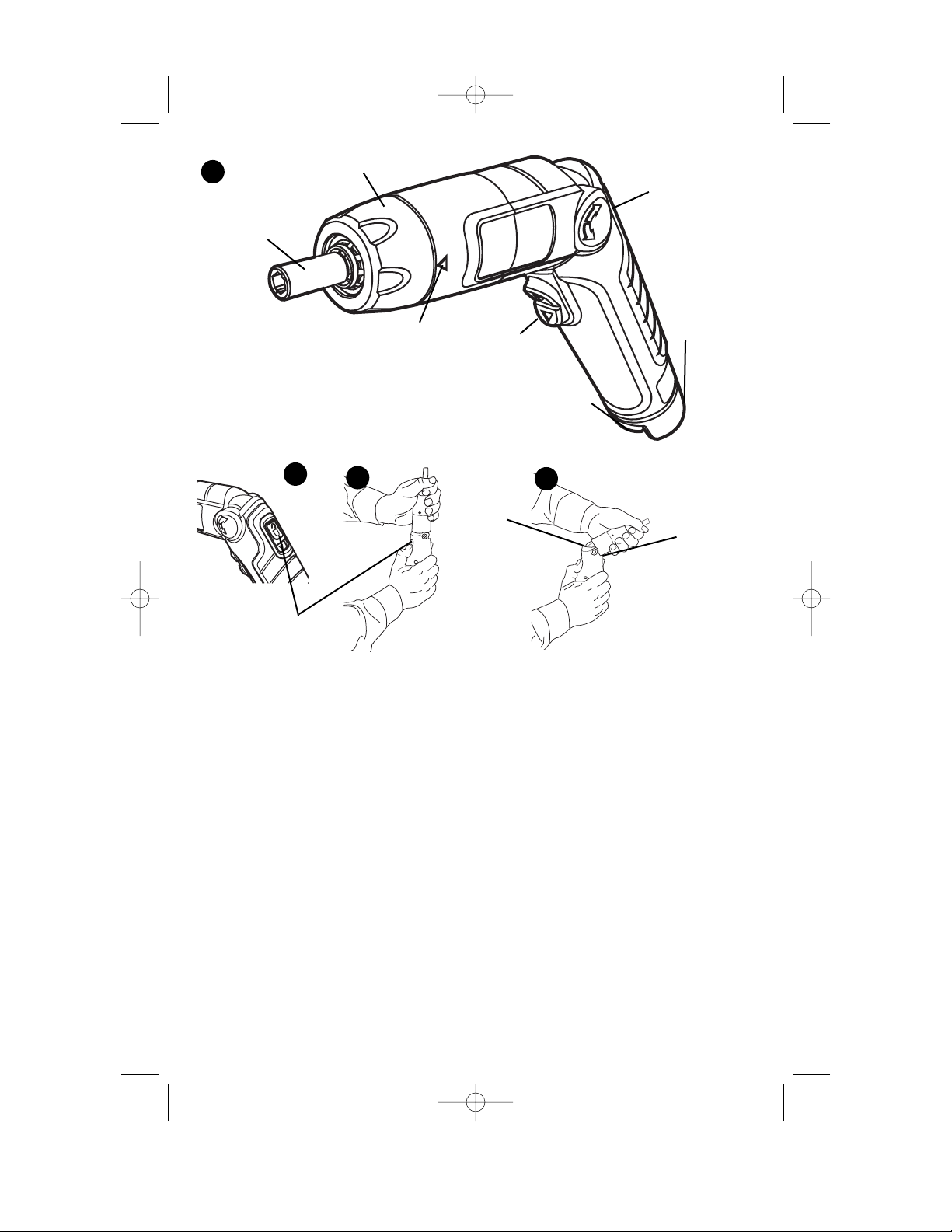

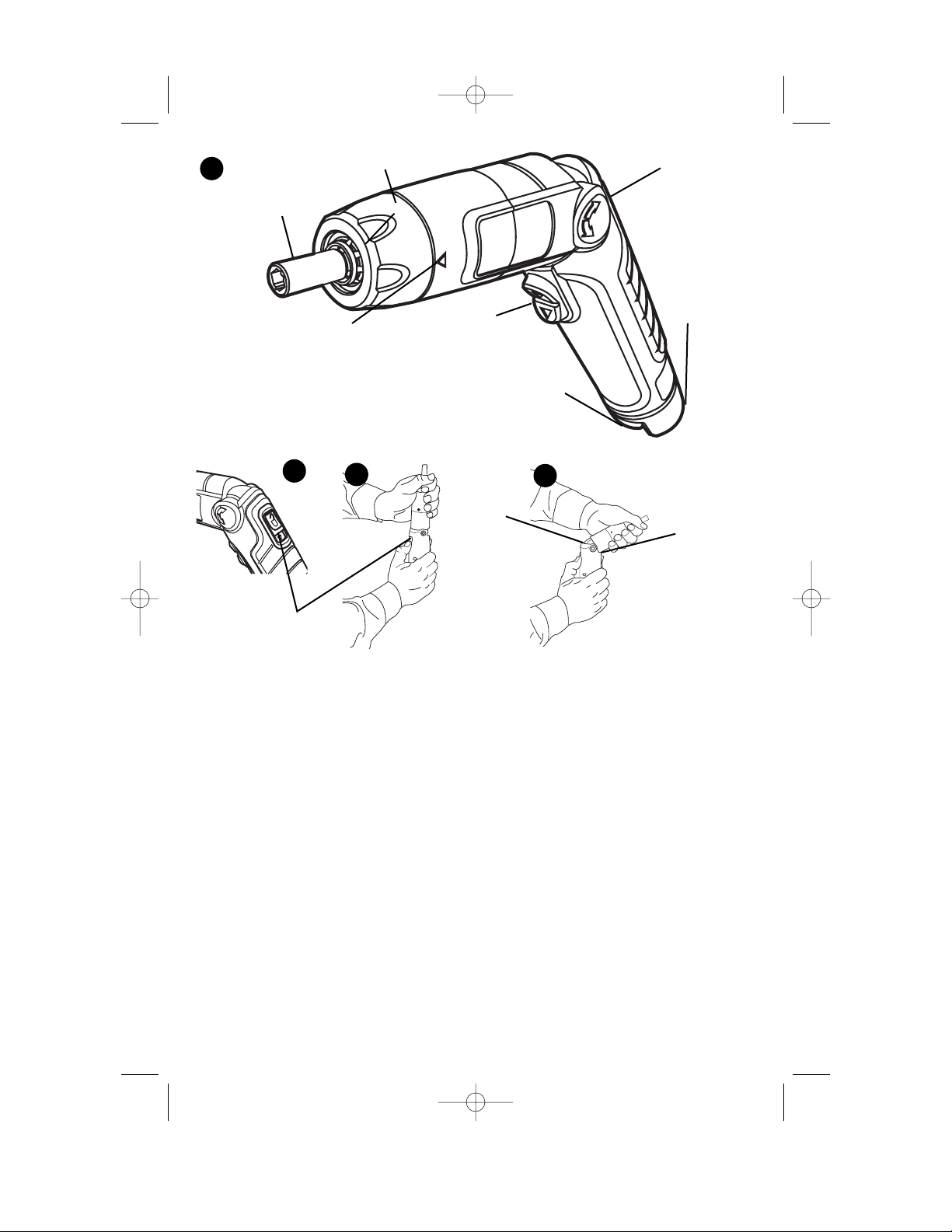

Release button

Clutch collar

Switch

Spindle

Clutch Locator (triangle)

Release button

Pinch Point

Battery Cavity

Battery Release Button

90502289 - VP800 Scre 5/10/06 2:27 PM Page 6

Operating Instructions

REMOVING AND INSTALLING BITS

To install a bit simply insert it into the cavity in the spindle. To remove bit, pull straight out.

REMOVING AND INSTALLING THE BATTERY

NOTE: VERSAPAK™ BATTERIES ARE NOT FULLY CHARGED AT THE FACTORY.

To install the battery into the tool, slide it into the handle until it clicks into place. To remove the VersaPak™ battery from the tool, press the release button, (Fig. 3), and pull

the battery out of the tool. NOTE: Battery caps are provided for use when carrying batteries or while battery is stored

in a pocket, tool box, etc. Remove cap before placing battery in charger or tool. Install the battery cap, (Fig. 2), by snapping it in place. To remove the cap, simply pull it off.

SWITCH

To turn the tool ON in a forward direction, press the top section of the rocker switch and the tool will run. To operate in reverse, press the bottom section of the rocker switch and the tool will run. Without depressing the rocker switch the tool is locked and will act as any conventional, non-powered screwdriver.

TORQUE CONTROL

Your screwdriver is equipped with an adjustable clutch control feature. When the tool reaches the preselected torque setting the clutch slips, thus limiting how tightly a screw is driven.

NOTE: The tool’s motor will continue to run as long as the switch button is depressed. To set the tool’s torque, rotate the adjustable clutch collar (Fig. 3) clockwise or

counterclockwise as required. The higher the number, the higher the torque. Each click in a clockwise direction (facing the spindle) means an increase in the torque produced.

TWO POSITION SCREWDRIVER

To convert the tool to an angled screwdriver pull back on the release button shown in Fig. 4 and rotate the top portion of the tool as shown in Figures 5 and 6.

TWO POSITION SCREWDRIVER WARNINGS:

• To avoid being pinched, hold the screwdriver as shown in Figures 5 and 6 when changing positions.

• Do not use screwdriver as a pry bar in either position.

• To avoid screwdriver being turned on accidentally, do not carry in your pocket.

MAINTENANCE

Use only mild soap and damp cloth to clean the tool. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (other than those listed in this manual) should be performed by authorized service centers or other qualified service personnel, always using identical replacement parts.

ACCESSORIES

Recommended accessories for use with your tool are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call:

1-800-544-6986.

WARNING: The use of any accessory not recommended for use with this tool could be

hazardous.

THE RBRC™ SEAL

The RBRC™ (Rechargeable Battery Recycling Corporation) Seal on the nickel-cadmium battery (or battery pack) indicates that the costs to recycle the battery (or battery pack) at the end of its useful life have already been paid by Black & Decker. In some areas, it is illegal to place spent nickel-cadmium batteries in the trash or municipal solid waste stream and the RBRC program provides an environmentally conscious alternative.

RBRC in cooperation with Black & Decker and other battery users, has established programs in the United States and Canada to facilitate the collection of spent nickelcadmium batteries. Help protect our environment and conserve natural resources by returning the spent nickel-cadmium battery to an authorized Black & Decker service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery, or call 1-800-BATTERY.

90502289 - VP800 Scre 5/10/06 2:27 PM Page 7

Troubleshooting

Problem Possible Cause Possible Solution

• Battery will not charge. • Charger not plugged into. • Plug charger into a a working outlet. working outlet. Refer to

“Important Charging Notes” for more details.

• Check current at receptacle by plugging in a lamp or other appliance.

• Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights.

• Surrounding air temperature • Move charger and tool too hot or too cold. to a surrounding air

temperature of above 40 degree F (4,5°C) or below 105 degree F (+40,5°C).

• Tool will not drill. • Torque adjustment collar in • Move collar position to wrong position “2” drill mode.

• Screws stripping • Torque adjustment collar • Move collar position to setting too high. a lower setting.

• Screws not fully seated. • Torque adjustment collar • Move collar position to setting too low. a higher setting.

For assistance with your product, visit our website www.blackanddecker.com for the location of the service center nearest you or call the BLACK & DECKER help line at

1-800-544-6986. SERVICE INFORMATION

All Black & Decker Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the Black & Decker location nearest you. To find your local service location, refer to the yellow page directory under "Tools—Electric" or call: 1-800-544-6986 or visit www.blackanddecker.com

FULL TWO-YEAR HOME USE WARRANTY

Black & Decker (U.S.) Inc. warrants this product for two years against any defects in material or workmanship. The defective product will be replaced or repaired at no charge in either of two ways.

The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer’s policy for exchanges (usually 30 to 90 days after the sale). Proof of purchase may be required. Please check with the retailer for their specific return policy regarding returns that are beyond the time set for exchanges.

The second option is to take or send the product (prepaid) to a Black & Decker owned or authorized Service Center for repair or replacement at our option. Proof of purchase may be required. Black & Decker owned and authorized Service Centers are listed under "Tools-Electric" in the yellow pages of the phone directory and on our website www.blackanddecker.com.

This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state. Should you have any questions, contact the manager of your nearest Black & Decker Service Center. This product is not intended for commercial use.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-544-6986 for a free replacement.

See ‘Tools-Electric’

– Yellow Pages –

for Service & Sales

Black & Decker (U.S.) Inc.,

701 E. Joppa Rd.

Towson, MD 21286 U.S.A.

90502289 - VP800 Scre 5/10/06 2:27 PM Page 8

N° de catalogue

VP800

MODE D’EMPLOI

CONSERVER CE MANUEL POUR UN USAGE ULTÉRIEUR.

AVANT DE RETOURNER CE PRODUIT POUR QUELQUE

RAISON QUE CE SOIT, COMPOSER LE

1-800-544-6986

AVANT D’APPELER, AYEZ EN MAIN LE N° DE CATALOGUE ET LE CODE DE DATE. DANS LA PLUPART

DES CAS, UN REPRÉSENTANT DE BLACK & DECKER PEUT RÉSOUDRE LE PROBLÈME PAR

TÉLÉPHONE. SI VOUS AVEZ UNE SUGGESTION OU UN COMMENTAIRE, APPELEZ-NOUS. VOS

IMPRESSIONS SONT CRUCIALES POUR BLACK & DECKER.

ERCI

ERCIDD

’

AAVOIR

VOIR

CHOISI

LACK

& D

ECKER

ISITEZ

WWW

LACKAND

ECKER

COM

WNER

POUR

ENREGISTRER

VOTRE

NOUVEAU

PRODUIT

Utilise le système interchangeable de pile VersaPak.

TTTToooouuuurrrrnnnneeeevvvviiiissss aaaavvvveeeecccc mmmmééééccccaaaannnniiiissssmmmmeeee ddddee

ppppiiiivvvvooootttteeeemmmmeeeennnntttt àààà 2222 ppppoooossssiiiittttiiiioooonnnnssss ddddeeee 3333,,,,6666 vvvvoooollllttttss

90502289 - VP800 Scre 5/10/06 2:27 PM Page 9

+ 19 hidden pages
