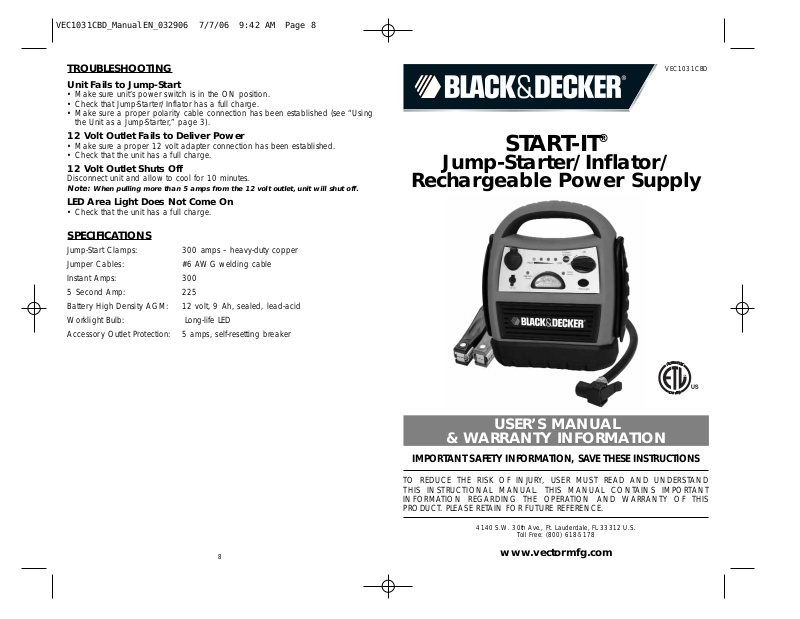

Black & Decker VEC1031CBD User Manual

VEC1031CBD

USER’S MANUAL

& WARRANTY INFORMATION

IMPORTANT SAFETY INFORMATION, SAVE THESE INSTRUCTIONS

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND
THIS INSTRUCTIONAL MANUAL. THIS MANUAL CONTAINS IMPORTANT
INFORMATION REGARDING THE OPERATION AND WARRANTY OF THIS
PRODUCT. PLEASE RETAIN FOR FUTURE REFERENCE.

www.vectormfg.com

4140 S.W. 30th Ave., Ft. Lauderdale, FL 33312 U.S.

Toll Free: [phone]

8

TROUBLESHOOTING

Unit Fails to Jump-Start

• Make sure unit’s power switch is in the ON position.

• Check that Jump-Starter/Inflator has a full charge.

• Make sure a proper polarity cable connection has been established (see “Using
the Unit as a Jump-Starter,” page 3).

12 Volt Outlet Fails to Deliver Power

• Make sure a proper 12 volt adapter connection has been established.

• Check that the unit has a full charge.

12 Volt Outlet Shuts Off

Disconnect unit and allow to cool for 10 minutes.

Note:

When pulling more than 5 amps from the 12 volt outlet, unit will shut off.

LED Area Light Does Not Come On

• Check that the unit has a full charge.

SPECIFICATIONS

Jump-Start Clamps: 300 amps – heavy-duty copper
Jumper Cables: #6 AWG welding cable
Instant Amps: 300
5 Second Amp: 225
Battery High Density AGM: 12 volt, 9 Ah, sealed, lead-acid
Worklight Bulb: Long-life LED
Accessory Outlet Protection: 5 amps, self-resetting breaker

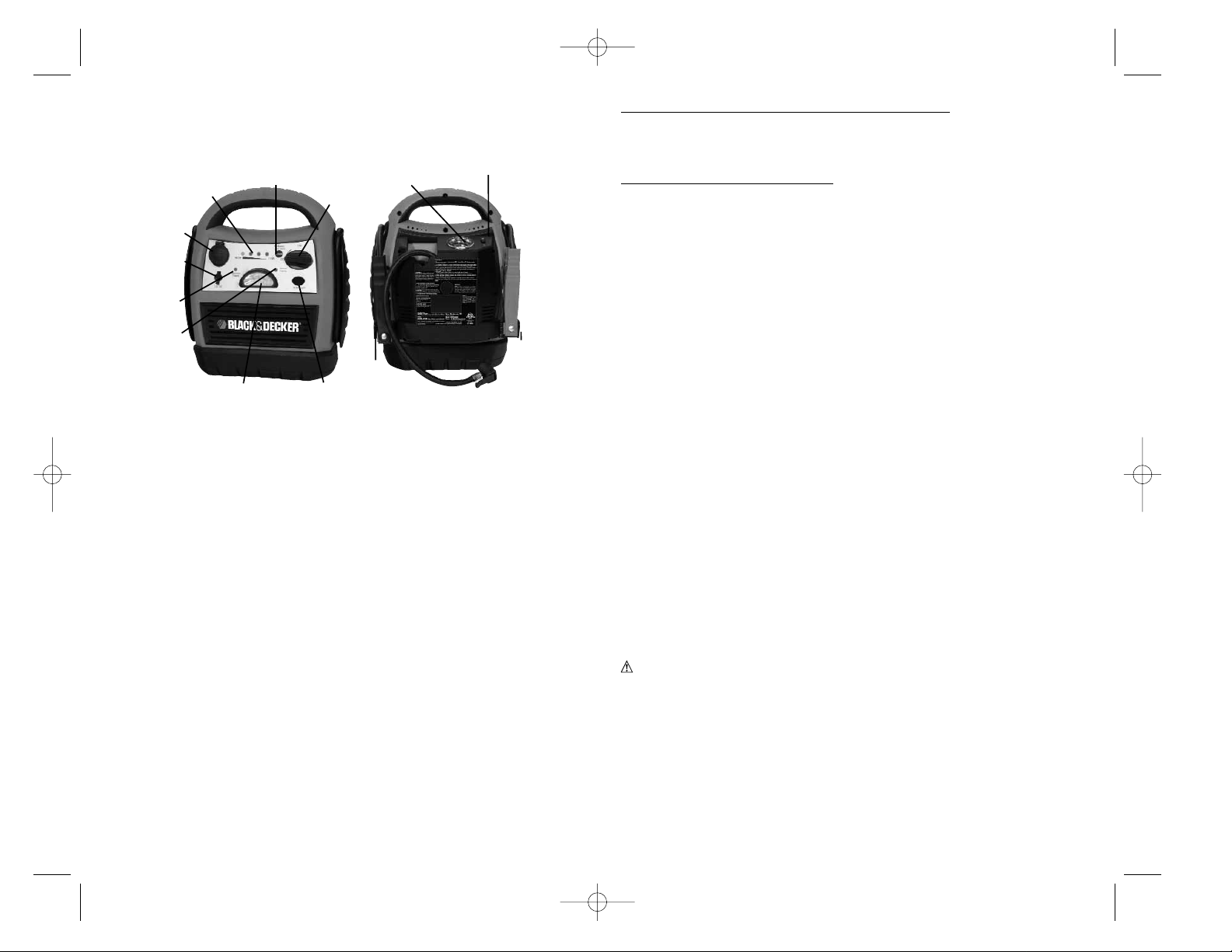

START-IT

®

Jump-Starter/Inflator/

Rechargeable Power Supply

VEC1031CBD_ManualEN_032906 7/7/06 9:42 AM Page 8

Compressor/Inflator Safety

1. Never attempt to disable or block the inflation and deflation ports while pump is operating.

2. Never cover unit at any time.

3. Never leave the pump unattended while in use.

4. Never allow sand, small rocks or other debris to be sucked into the inflation or deflation ports.

5. Never look into or point the inflator port opening toward anyone’s eyes.

6. Do not use the compressor continuously for longer than 15 minutes. Extended use will cause it to
overheat and can damage the product. After 15 minutes of continuous use, turn the unit OFF and
wait 15 minutes before resuming operation of the compressor.

7. DO NOT over-inflate objects or exceed manufacturer’s recommendations for pressure on objects to
be inflated.

Personal Safety

FIRST AID
SKIN: If battery acid comes in contact with skin, rinse immediately with water, then wash thoroughly with

soap and water. If redness, pain or irritation occurs, seek immediate medical attention.

EYES: If batter y acid comes in contact with eyes, flush eyes immediately for a minimum of 15 minutes

and seek immediate medical attention.

CAUTIONS

• THIS UNIT IS DELIVERED IN A PARTIALLY CHARGED STATE – YOU MUST FULLY CHARGE IT USING
THE 120 VOLT AC CHARGING METHOD FOR A MINIMUM OF 40 HOURS BEFORE USING IT FOR
THE FIRST TIME.

• Do not overcharge this unit using the 12 volt DC charging method. Charge for no longer than 4 hours
using this method.

• All ON/OFF switches should be in the OFF position when the unit is charging or not in use. Make sure
all switches are in the OFF position before connection to a power source or load.

• Never insert anything other than the supplied power/recharging cords or recommended appliance
power/recharging cords into the 12 volt DC charging/power outlet on this unit. Do not use any
accessory that is not recommended or provided by the manufacturer.

• Do not use this unit to operate appliances that need more than 5 amps to operate from the 12 volt DC
accessory outlet.

• This system is designed to be used only on vehicles with a 12 volt DC battery system. Do not connect
to a 6 volt or 24 volt battery system.

• This system is not designed to be used as a replacement for a vehicle battery. Do not attempt to operate
a vehicle that does not have a battery installed.

• Excessive engine cranking can damage a vehicle’s starter motor. If the engine fails to start after the
recommended number of attempts, discontinue jump-start procedures and look for other problems that
may need to be corrected.

• Although this unit contains a non-spillable battery, it is recommended that unit be kept upright during
storage, use and recharging. T o avoid possible damage that may shorten the unit’s working life, protect
it from direct sunlight, direct heat and/or moisture.

• Check unit periodically for wear and tear. Contact the Customer Service Department at
[phone] to replace worn or defective parts.

• Do not drop this unit as it may damage the product. If unit is dropped or damaged, please discontinue
using it.

• Never submerge this unit in water.

• Store indoors. Do not operate unit in rain or snow, or use when wet.

• Do not operate this unit in a closed area or restrict ventilation in any way.

• Never insert a vehicle cigarette lighter into the unit’s 12 Volt DC Accessor y Outlet.

THIS UNIT IS NOT FOR USE BY CHILDREN AND SHOULD ONLY BE OPERATED BY ADULTS.

Read This User’s Manual Before Using This Unit.

SAVE THESE INSTRUCTIONS

IMPORT ANT SAFETY INSTRUCTIONS

WARNINGS

1. RISK OF EXPLOSIVE GAS MIXTURES — WORKING IN THE VICINITY OF A LEAD-ACID
BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING
NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE
THAT EACH TIME BEFORE USING THIS UNIT, YOU READ THIS MANUAL AND FOLLOW
THE INSTRUCTIONS EXACTLY.

2. To reduce risk of battery explosion, follow these instructions and those published by
the battery manufacturer and manufacturer of any equipment you intend to use in
vicinity of battery. Review cautionary markings on these products and on engine.

3. This equipment employs parts (switches, relays, etc.) that produce arcs or sparks.
Therefore, if used in a garage or enclosed area, the unit MUST be placed not less
than 18 inches above the floor.

Battery Safety

1. When working with lead-acid batteries, always make sure immediate assistance is available in
case of accident or emergency.

2. Always use protective eyewear when using this product: contact with battery acid may cause
blindness and/or severe burns. Be aware of first aid procedures in case of accidental contact with
battery acid.

3. There is a risk of releasing explosive gases when lead acid batteries are charged or discharged.
Failure to follow instructions may cause property damage and/or personal injury.

4. When connecting the battery clamps to a discharged battery and an alarm sounds — the clamp
connections are incorrect and need to be reversed.

5. Jump-start procedures should only be performed in a safe, dry, well-ventilated area.

6. Always store battery clamps on the clamp tabs on the back of the unit when not in use. Never touch
battery clamps together. This can cause dangerous sparks, power arcing and/or explosion.

7. When using this unit close to the vehicle’s battery and engine, stand the unit on a flat, stable surface,
and be sure to keep all clamps, cords, clothing and body parts away from moving vehicle parts.

8. Do not wear vinyl clothing when jump-starting a vehicle, friction can cause dangerous static­electrical sparks. Remove all jewelry or metal objects that could cause short circuits or react with
battery acid.

9. Never allow RED and BLACK clamps to touch each other or another common metal conductor —
this could cause damage to the unit and/or create a sparking/explosion hazard.

10. a. For negative-grounded systems (most common), connect the POSITIVE (RED) clamp to the
POSITIVE ungrounded battery post and the NEGATIVE (BLACK) clamp to the vehicle chassis or
engine block away from the battery. Do not connect the clamp to the carburetor, fuel lines or
sheet-metal body parts. Connect to a heavy gauge metal part of the frame or engine block.

b. For positive-grounded systems, connect the NEGATIVE (BLACK) clamp to the NEGATIVE

ungrounded battery post and the POSITIVE (RED) clamp to the vehicle chassis or engine block
away from the battery. Do not connect the clamp to the carburetor , fuel lines or sheet-metal body
parts. Connect to a heavy gauge metal part of the frame or engine block.

11. Always disconnect the NEGATIVE (BLACK) jumper cable first, followed by the POSITIVE (RED)

jumper cable, except for positive grounded systems.

12. Do not expose battery to fire or intense heat since it may explode. Before disposing of the battery,

protect exposed terminals with heavy-duty electrical tape to prevent shorting (shorting can result in
injury or fire).

13. Do not smoke or use flammable items (matches, cigarette lighters, etc.) while working on a vehicle’s

battery system.

14. DO NOT ATTEMPT TO JUMP-START A FROZEN BATTERY.

15. Place this unit as far away from the battery as DC cables permit.

16. Never allow battery acid to come in contact with this unit.

17. Vehicles that have on-board computerized systems may be damaged if vehicle battery is jump-

started. Before jump-starting, read the vehicle’s owners manual to confirm that external-starting
assistance is suitable.
