Black & Decker VEC027BD User Manual

Electromate™Plus 300

AC/DC Portable Power Supply

Jump-Starter/Inflator

Cordless • Rechargeable

VEC027BD

USER’S MANUAL

& WARRANTY INFORMATION

IMPORTANT SAFETY INFORMATION, SAVE THESE INSTRUCTIONS

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND
THIS INSTRUCTIONAL MANUAL. THIS MANUAL CONTAINS IMPORTANT
INFORMATION REGARDING THE OPERATION AND WARRANTY OF THIS
PRODUCT. PLEASE RETAIN FOR FUTURE REFERENCE.

www.vectormfg.com

4140 S.W. 30th Ave., Ft. Lauderdale, FL 33312 U.S.

Toll Free: [phone]

12

TWO YEAR LIMITED W

ARRANTY PROGRAM

This limited warranty program is the only one that applies to this product, and it sets forth all the
responsibilities of Vector Manufacturing, regarding this product. There is no other warranty, other than
those described herein. Any implied warranty of merchantability or fitness for a particular purpose on
this product is limited in duration to the duration of this warranty.

This Vector Manufacturing product is warranted, to the original purchaser only, to be free of defects in
materials and workmanship for two years from the date of purchase without additional charge. The
warranty does not extend to subsequent purchasers or users. Manufacturer will not be responsible for
any amount of damage in excess of the retail purchase price of the product under any circumstances.
Incidental and consequential damages are specifically excluded from coverage under this warranty.

This product is not intended for commercial use. This warranty does not apply to damage to units from
misuse or incorrect installation/connection. Misuse includes wiring or connecting to improper polarity
power sources.

RETURN/REPAIR POLICY: Defective products may be returned to manufacturer. Any defective product
that is returned to manufacturer within 30 days of the date of purchase will be replaced free of charge.
If such a product is returned more than 30 days but less than two years from the purchase date,
manufacturer will repair the unit or, at its option, replace it, free of charge.

If the unit is repaired, new or reconditioned replacement parts may be used, at manufacturer’s option.
A unit may be replaced with a new or reconditioned unit of the same or comparable design. The
repaired or replaced unit will then be warranted under the terms of the remainder of the warranty
period. The customer is responsible for the shipping charges on all returned items. During the warranty
period, manufacturer will be responsible for the return shipping charges to the customer in the United
States.

LIMITATIONS: This warranty does not cover accessories, such as charging adapters, bulbs, fuses and
batteries, damage or defects resulting from normal wear and tear (including chips, scratches, abrasions,
discoloration or fading due to usage or exposure to sunlight), accidents, damage during shipping to our
service facility, alterations, unauthorized use or repair, neglect, misuse, abuse, failure to follow
instructions for care and maintenance, fire, flood and Acts of God.

If your problem is not covered by this warranty, call our Technical Support Department toll free at (800)
618-5178 for general repair information and charges if applicable. You may also contact us through
our website at www.vectormfg.com.

STATE LAW RIGHTS: This warranty gives you specific legal rights. Some states do not allow limitations
on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential
damages, so the exclusions or limitations stated herein may not apply. This warranty gives the purchaser
specific legal rights; other rights, which vary from state to state, may apply.

TO REQUEST WARRANTY SERVICE FOR THIS PRODUCT: Contact Technical Support by telephone, fax
or mail (see below). We suggest that you keep the original packaging in case you need to ship the unit.
When returning a product, include your name, address, phone number, dated sales receipt (or copy)
and a description of the reason for return and product serial number. After repairing or replacing the
unit, we will make every effort to return it to you within four weeks.

WARRANTY ACTIVATION: Please complete Warranty Activation Card and mail to Vector
Manufacturing. Enter “VEC027BD” as Model and “Electromate

™

Plus 300” as Product Type. All Vector
products must be registered within 30 days of purchase to activate this warranty. Mail the completed
registration form, along with a copy of the original sales receipt, to:

ATTN.: CUSTOMER SERVICE

4140 SW 30th Ave., Ft. Lauderdale, FL 33312

• TOLL FREE: [phone] • FAX: [phone] •

WARRANTY IS NON-TRANSFERABLE.

BD122805

© 2006 VECTOR MANUFACTURING

MADE IN CHINA

VEC027BD_ManualEN_122805 12/28/05 2:37 PM Page 12

IMPORT

ANT SAFETY INSTRUCTIONS

WARNINGS

1. RISK OF EXPLOSIVE GAS MIXTURES — WORKING IN VICINITY OF A LEAD-ACID
BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING
NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE
THAT EACH TIME BEFORE USING YOUR CHARGER, YOU READ THIS MANUAL AND
FOLLOW THE INSTRUCTIONS EXACTLY.

2. To reduce risk of battery explosion, follow these instructions and those published by
the battery manufacturer and manufacturer of any equipment you intend to use in
vicinity of battery. Review cautionary markings on these products and on engine.

3. This equipment employs parts (switches, relays, etc.) that produce arcs or sparks.
Therefore, if used in a garage or enclosed area, the unit MUST be placed not less
than 18 inches above the floor.

Battery Safety

1. When working with lead acid batteries, always make sure immediate assistance is available in
case of accident or emergency.

2. Always use protective eyewear when using this product: contact with battery acid may cause
blindness and/or severe burns. Be aware of first aid procedures in case of accidental contact with
battery acid.

3. There is a risk of releasing explosive gases when lead acid batteries are charged or discharged.
Failure to follow instructions may cause property damage and/or personal injury.

4. When connecting the battery clamps to a discharged battery and an alarm sounds — the clamp
connections are incorrect and need to be reversed.

5. Jump-start procedures should only be performed in a safe, dry, well-ventilated area.

6. Always store battery clamps detached from unit when not in use. Never touch battery clamps
together. This can cause dangerous sparks, power arcing and/or explosion.

7. When using this unit close to the vehicle’s battery and engine, stand the unit on a flat, stable surface,
and be sure to keep all clamps, cords, clothing and body parts away from moving vehicle parts.

8. Do not wear vinyl clothing when jump-starting a vehicle, friction can cause dangerous static­electrical sparks. Remove all jewelry or metal objects that could cause short circuits or react with
battery acid.

9. Never allow RED and BLACK clamps to touch each other or another common metal conductor —
this could cause damage to the unit and/or create a sparking/explosion hazard.

10. a. For negative-grounded systems, connect the POSITIVE (RED) clamp to the POSITIVE ungrounded
battery post and the NEGATIVE (BLACK) clamp to the vehicle chassis or engine block away from
the battery. Do not connect the clamp to the carburetor, fuel lines or sheet-metal body parts.
Connect to a heavy gauge metal part of the frame or engine block.

b. For positive-grounded systems, connect the NEGATIVE (BLACK) clamp to the NEGATIVE

ungrounded battery post and the POSITIVE (RED) clamp to the vehicle chassis or engine block
away from the battery. Do not connect the clamp to the carburetor , fuel lines or sheet-metal body
parts. Connect to a heavy gauge metal part of the frame or engine block.

11. Always disconnect the NEGATIVE (BLACK) jumper cable first, followed by the POSITIVE (RED)

jumper cable, except for positive grounded systems.

12. Do not expose battery to fire or intense heat since it may explode. Before disposing of the battery,

protect exposed terminals with heavy-duty electrical tape to prevent shorting (shorting can result in
injury or fire).

13. Do not smoke or use flammable items (matches, cigarette lighters, etc.) while working on a vehicle’s

battery system.

14. Whether stored or in use, keep this unit out of reach of children.

15. Do not operate charger in rain or snow, nor use when wet.

16. DO NOT ATTEMPT TO JUMP-START A FROZEN BATTERY.

17. When using an extension cord, make sure it has the same configuration as the plug of the unit and

the cord is properly wired and in good electrical condition. This cord needs to be suitable for 120
volt AC and have a minimum 2 amp rating.

18. Place this unit as far away from the battery as DC cables permit.

19. Never allow battery acid to come in contact with this unit.

20. Do not operate this unit in a closed area or restrict ventilation in any way.

Personal Safety

FIRST AID
SKIN: If battery acid comes in contact with skin, rinse immediately with water, then wash thoroughly with

soap and water. If redness, pain, or irritation occurs, seek immediate medical attention.

EYES: If battery acid comes in contact with eyes, flush eyes immediately, for a minimum of 15 minutes

and seek immediate medical attention.

IMPORTANT

This unit is delivered in a partially charged state. Fully charge unit with the supplied 120 volt AC charger
for a full 40 hours before using for the first time. You cannot overcharge the unit using the AC charger
method.

1. Use a common household extension cord for charging (not supplied).

2. Do not recharge for more than 5-6 hours maximum using the 12 volt DC method. Recharge unit
after each use.

3. All ON/OFF switches should be in the OFF position when the unit is charging or not in use. Make
sure all switches are in the OFF position before connection to a power source or load.

4. Never insert anything other than the supplied power/recharging cords or recommended appliance
power/recharging cords into the 12 volt DC charging/power outlet on this unit. Do not use any
accessory that is not recommended or provided by the manufacturer.

5. Do not use this unit to operate appliances that need more than 5 amps to operate from the 12 volt
DC accessory outlet.

6. This system is designed to be used only on vehicles with a 12 volt DC battery system. Do not
connect to a 6 volt or 24 volt battery system.

7. This system is not designed to be used as a replacement for a vehicular battery. Do not attempt to
operate a vehicle that does not have a battery installed.

8. Vehicles that have on-board computerized systems may be damaged if vehicle battery is jump­started. Before jump-starting, read the vehicle’s owners manual to confirm that external-starting
assistance is suitable.

9. Excessive engine cranking can damage a vehicle’s starter motor. If the engine fails to start after the
recommended number of attempts, discontinue jump-start procedures and look for other problems
that may need to be corrected.

10. Although this unit contains a non-spillable battery, it is recommended that unit be kept upright
during storage, use and recharging. To avoid possible damage that may shorten the unit’s working
life, protect it from direct sunlight, direct heat and/or moisture.

11. Check unit periodically for wear and tear. Take to a qualified technician for replacement of worn
or defective parts immediately.

12. NEVER submerge this unit in water.

13. DO NOT overinflate tires.

SAVE THESE INSTRUCTIONS

This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

• Consult the dealer or an experienced radio/TV technician for help.

VEC027BD_ManualEN_122805 12/28/05 2:37 PM Page ii

1

TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

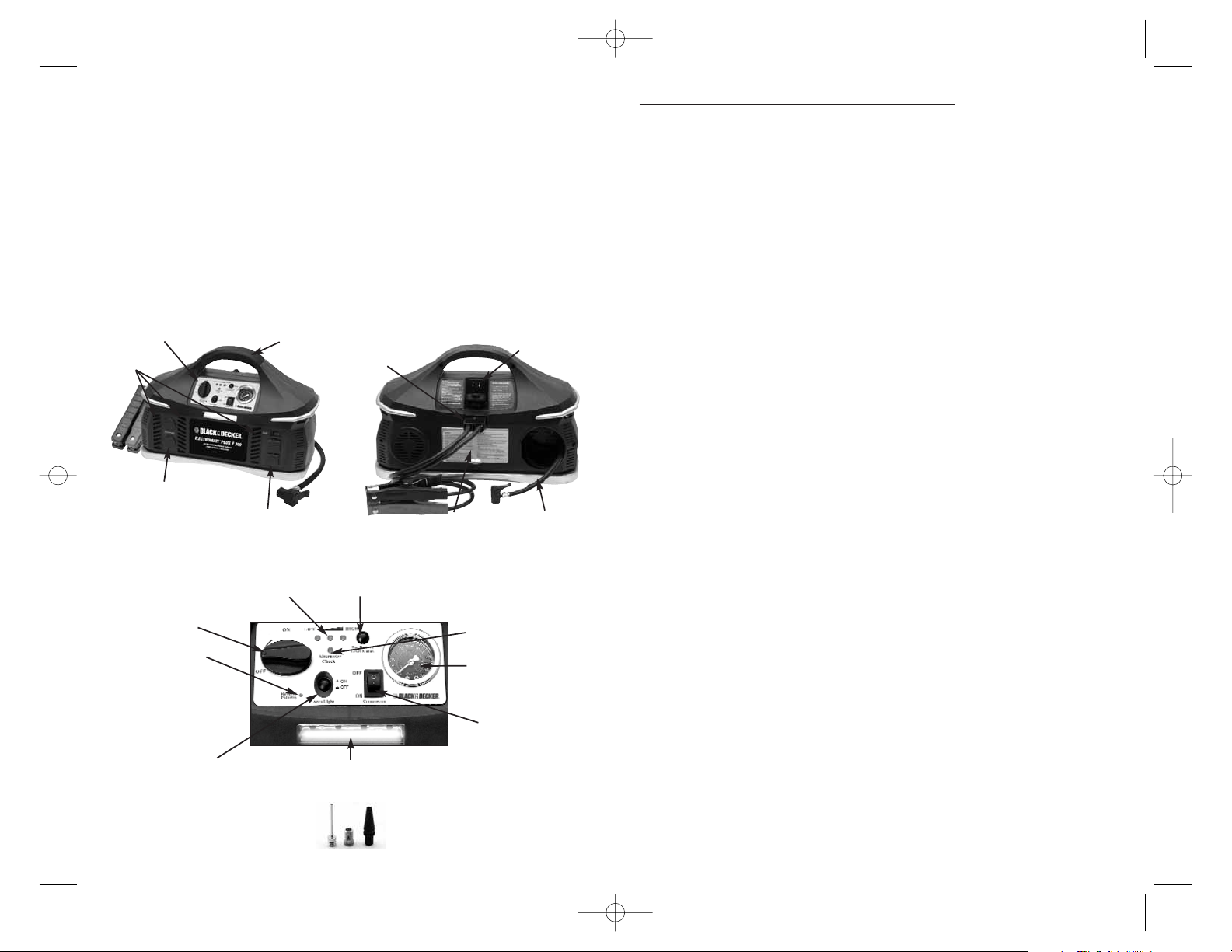

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

AC and DC Charging/Recharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Viewing Battery Charge Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

120 Volt AC Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

12 Volt DC Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Using the Electromate Plus as a Jump-Starter . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Using the Alternator Check Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Using the 12 Volt Portable Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Using the 120 Volt AC Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Using the Emergency Area Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Using the Tire Inflator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Inflating Products With a Valve Stem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Inflating Products Without a Valve Stem . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Battery Replacement/Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Fuse Replacement (DC Accessory Adapter) . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

INTRODUCTION

Thank you for purchasing the

Black & Decker VEC027BD Electromate™Plus

300.

Please read this guide carefully before use to ensure optimum performance

and avoid damage to the unit.

FEATURES

• Powers 110/120 volt AC appliances

• Powers 12 volt DC appliances

• Jump-starts vehicle engines

• Built-in inflator

• Built-in 300 watt inverter

• Includes non-spillable, maintenance-free, heavy-duty, sealed battery

• Safe to use, transport and store

• Alternator check

• Reverse polarity connection warning

• Detachable jumper cables

• Requires no maintenance (other than recharging) for optimum operation

• Rechargeable with built-in AC charger

• Unique compact design provides completely portable 12 volt DC power

• Molded high-impact case is tough and durable

• Built-in area light for night time roadside repairs and use in remote locations
without utility power

• Battery charge level indicators

VEC027BD_ManualEN_122805 12/28/05 2:37 PM Page iv
