Black & Decker 90550871, VEC012CBD User Manual

START-IT®450 AMP JUMP-STARTER/

AIR COMPRESSOR

INSTRUCTION MANUAL

VEA EL ESPAÑOL EN LA CONTRAPORTADA.

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA.

ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

Thank you for choosing Black & Decker!

Go to www.BlackandDecker.com/NewOwner

to register your new product.

PLEASE READ BEFORE RETURNING THIS

PRODUCT FOR ANY REASON:

If you have a question or experience a problem with your Black & Decker purchase, go to

HTTP://WWW.BLACKANDDECKER.COM/INSTANTANSWERS

If you canʼt find the answer or do not have access to the internet,

call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. -- Fri. to speak with an agent.

Please have the catalog number available when you call.

for instant answers 24 hours a day.

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.

90550871 Vec012CBD EN SP.qxp:VEC012CBD_ManualEN_080907 8/21/09 11:04 AM Page i

GENERAL SAFETY WARNINGS AND INSTRUCTIONS FOR ALL APPLIANCES

READ ALL INSTRUCTIONS

WARNING: Read all instructions before operating product. Failure to follow all instructions listed below

may result in electric shock, fire and/or serious injury.

• AVOID DANGEROUS ENVIRONMENTS: Don’t use appliances in damp or wet locations. Don’t use appliances in

the rain.

• KEEP CHILDREN AWAY. All visitors should be kept at a distance from work area.

• STORE IDLE APPLIANCES INDOORS. When not in use, appliances should be stored indoors in dry, and high or

locked-up place – out of reach of children.

• DON’T FORCE APPLIANCE. It will do the job better and with less likelihood of a risk of injury at the rate for

which it was designed.

• USE RIGHT APPLIANCE. Do not use the appliance for any job except that for which it is intended.

• DRESS PROPERLY. Do not wear loose clothing or jewelry. They can be caught in moving parts. Rubber gloves

and substantial, non-skid footwear are recommended when working outdoors. Wear protective hair covering to contain long hair.

• USE SAFETY GLASSES AND OTHER SAFETY EQUIPMENT. Use safety goggles or safety glasses with side shields,

complying with applicable safety standards and, when needed, a face shield. Also use face or dust mask if operation is dusty. This applies to all persons in the work area. Also use a hard hat, hearing protection, gloves, safety shoes and dust collection systems when specified or required. Safety glasses or the like are available at extra cost at your local dealer or Black & Decker Service Center.

• DON’T ABUSE CORD. Never carry appliance by cord or yank it to disconnect from receptacle. Keep cord from heat, oil,

and sharp edges.

• DON’T OVERREACH. Keep proper footing and balance at all times.

• DISCONNECT APPLIANCES. Disconnect the appliance from the power supply when not in use, before

servicing, and when changing accessories such as blades and the like.

• AVOID UNINTENTIONAL STARTING. Don’t carry plugged-in appliance with finger on switch. Be sure switch is off

when plugging in.

• GROUND FAULT CIRCUIT INTERRUPTER (GFCI) protection should be provided on the circuits or outlets to be

used. Receptacles are available having built in GFCI protection and may be used for this measure of safety.

• USE OF ACCESSORIES AND ATTACHMENTS. The use of any accessory or attachment not recommended for

use with this appliance could be hazardous.

Note: Refer to the accessory section of this manual for further details.

• STAY ALERT. Watch what you are doing. Use common sense. Do not operate tool when you are tired.

• CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should be

carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless otherwise indicated elsewhere in this instruction manual. Have defective switches replaced by authorized service center. Do not use tool if switch does not turn it on and off.

• DO NOT OPERATE portable electric tools near flammable liquids or in gaseous or explosive atmospheres.

Motors in these tools normally spark, and the sparks might ignite fumes.

• OUTDOOR USE EXTENSION CORDS. When tool is used outdoors, use only extension cords intended for use outdoors

and so marked.

Minimum Gauge for Cord Sets

Volts Total Length of Cord in Feet

120V 0-25 26-50 51-100 101-150

(0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m)

240V 0-50 51-100 101-200 201-300

(0-15,2m) (15,2-30,4m) (30,4-60,9m) (60,9-91,4m)

Ampere Rating

More Not more American Wire Gage Than Than 0 - 6 18 16 16 14 6 -101816 14 12 10 -121616 14 12 12 - 16 14 12 Not Recommended

90550871 Vec012CBD EN SP.qxp:VEC012CBD_ManualEN_080907 8/21/09 11:04 AM Page 1

• EXTENSION CORDS. Make sure your extension cord is in good condition. When using an extension cord, be

sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.

SAFETY GUIDELINES / DEFINITIONS

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

CAUTION: Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may result in

property damage. RISK OF UNSAFE OPERATION. When using tools or equipment, basic safety precautions should always be followed to

reduce the risk of personal injury. Improper operation, maintenance or modification of tools or equipment could result in serious injury and property damage. There are certain applications for which tools and equipment are designed. Black & Decker strongly recommends that this product NOT be modified and/or used for any application other than for which it was designed. Read and understand all warnings and operating instructions before using any tool or equipment.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: This product or its power cord contains lead, a chemical known to the State of California to

cause cancer and birth defect or other reproductive harm. Wash hands after handling.

WARNING: BURST HAZARD: Do not use the unit for charging dry-cell batteries that are commonly used

with home appliances. These batteries may burst and cause injury to persons and damage property. Use the unit for charging/boosting a LEAD-ACID battery only. It is not intended to supply power to a low-voltage electrical system other than in a starter-motor application.

WARNING: SHOCK HAZARD:

• If an extension cord is used, make sure that: a) the pins of extension cord are the same number, size and shape as those in the charger, b) the extension cord is properly wired and in good electrical condition, c) the wire size is large enough for the AC rating of the charger as indicated in the table on page 1.

• Do not operate unit with damaged cord or plug; or if the unit has received a sharp blow, been dropped, or otherwise damaged in any way. Do not disassemble the unit; take it to a qualified service technician when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire, and will void warranty.

• Use of an attachment not supplied, recommended or sold by manufacturer specifically for use with this unit may result in a risk of electrical shock and injury to persons.

• NEVER submerge this unit in water; do not expose it to rain, snow or use when wet.

• To reduce risk of electric shock, disconnect the unit from any power source before attempting maintenance or cleaning. Turning off controls without disconnecting will not reduce this risk.

WARNING: RISK OF EXPLOSIVE GASES

• Working in the vicinity of a lead acid battery is dangerous. Batteries generate explosive gases during normal battery operation. For this reason, it is of the utmost importance that each time before using the jump-starter you read this manual and follow instructions exactly.

• To reduce the risk of battery explosion, follow these instructions and those published by the battery manufacturer and manufacturer of any equipment you intend to use in the vicinity of the battery. Review cautionary markings on these products and on the engine.

• This equipment employs parts (switches, relays, etc.) that produce arcs or sparks. Therefore, if used in a garage or enclosed area, the unit MUST be placed not less than 18 inches above the floor.

• THIS UNIT IS NOT FOR USE BY CHILDREN AND SHOULD ONLY BE OPERATED BY ADULTS.

CAUTION: TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE:

• Pull cord by plug rather than cord when disconnecting the 120V AC Charging Adapter from the unit.

90550871 Vec012CBD EN SP.qxp:VEC012CBD_ManualEN_080907 8/21/09 11:04 AM Page 2

• NEVER ATTEMPT TO JUMP-START OR CHARGE A FROZEN BATTERY.

• To recharge this unit, use only the supplied AC Charging Adapter.

• Vehicles that have on-board computerized systems may be damaged if vehicle battery is jump-started. Before jump-starting, read the vehicle’s owner’s manual to confirm that external-starting assistance is suitable.

• When working with lead acid batteries, always make sure immediate assistance is available in case of accident or emergency.

• Always have protective eyewear when using this product: contact with battery acid may cause blindness and/or severe burns. Be aware of first aid procedures in case of accidental contact with battery acid.

• Have plenty of fresh water and soap nearby in case battery acid contacts skin.

• If battery acid contacts skin or clothing, wash immediately with soap and water for at least 10 minutes and get medical attention immediately.

• Never smoke or allow a spark or flame in vicinity of vehicle battery, engine or power station

• Remove personal metal items such as rings, bracelets, necklaces and watches when working with a lead acid battery. A lead acid battery can produce a short circuit current high enough to weld a ring, or similar metal object, to skin, causing a severe burn.

• Do not wear vinyl clothing when jump-starting a vehicle when jump-starting a vehicle, friction can cause dangerous static-electrical sparks.

• Jump-start procedures should only be performed in a safe, dry, well-ventilated area.

• Always store battery clamps when not in use. Never touch battery clamps together. This can cause dangerous sparks, power arcing and/or explosion.

• When using this unit close to the vehicle’s battery and engine, stand the unit on a flat, stable surface, and be sure to keep all clamps, cords, clothing and body parts away from moving vehicle parts.

• Never allow RED and BLACK clamps to touch each other or another common metal conductor — this could cause damage to the unit and/or create a sparking/explosion hazard.

a) For negative-grounded systems, connect the POSITIVE (RED) clamp to the POSITIVE ungrounded battery

post and the NEGATIVE (BLACK) clamp to the vehicle chassis or engine block away from the battery. Do not connect the clamp to the carburetor, fuel lines or sheet-metal body parts. Connect to a heavy gauge metal part of the frame or engine block.

b) For positive-grounded systems, connect the NEGATIVE (BLACK) clamp to the NEGATIVE ungrounded battery

post and the POSITIVE (RED) clamp to the vehicle chassis or engine block away from the battery. Do not connect the clamp to the carburetor, fuel lines or sheet-metal body parts. Connect to a heavy gauge metal part of the frame or engine block.

• If the connections to the battery’s POSITIVE and NEGATIVE terminals are incorrect, the Reverse Polarity Indicator will light (red) and the unit will sound a beep. Disconnect clamps and reconnect to battery with correct polarity.

• Always disconnect the NEGATIVE (BLACK) jumper cable first, followed by the POSITIVE (RED) jumper cable, except for positive grounded systems.

• Do not expose battery to fire or intense heat since it may explode. Before disposing of the battery, protect exposed terminals with heavy-duty electrical tape to prevent shorting (shorting can result in injury or fire).

• Place this unit as far away from the battery as cables permit.

• Never allow battery acid to come in contact with this unit.

• Do not operate this unit in a closed area or restrict ventilation in any way.

• FIRST AID – SKIN: If battery acid comes in contact with skin, rinse immediately with water, then wash thoroughly with soap and water. If redness, pain, or irritation occurs, seek immediate medical attention.

EYES: If battery acid comes in contact with eyes, flush eyes immediately, for a minimum of 15 minutes and seek immediate medical attention.

• IMPORTANT: This unit is delivered in a partially charged state. Fully charge unit with a household extension chord (not supplied) for a full 48 hours before using for the first time. You cannot overcharge the unit using the AC charging method.

• All On/Off switches should be in the OFF position when the unit is charging or not in use. Make sure all switches are in the OFF position before connection to a power source or load.

90550871 Vec012CBD EN SP.qxp:VEC012CBD_ManualEN_080907 8/21/09 11:04 AM Page 3

• Do not use any accessory that is not recommended or provided by the manufacturer.

• This system is designed to be used only on vehicles with a 12 volt DC battery system. Do not connect to a 6 volt or 24 volt battery system.

• This system is not designed to be used as a replacement for a vehicular battery. Do not attempt to operate a vehicle that does not have a battery installed.

• Excessive engine cranking can damage a vehicle’s starter motor. If the engine fails to start after the recommended number of attempts, discontinue jump-start procedures and look for other problems that may need to be corrected.

• Do not use this jump-starter on a watercraft. It is not qualified for marine applications.

• Although this unit contains a non-spillable battery, it is recommended that unit be kept upright during storage, use and recharging. To avoid possible damage that may shorten the unit’s working life, protect it from direct sunlight, direct heat and/or moisture.

• Read And Understand This Instruction Manual Before Using This Unit.

SAVE THESE INSTRUCTIONS

THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR THE START-IT®450 AMP JUMPSTARTER/ AIR COMPRESSOR MODEL VEC012CBD.

WARNING: TO REDUCE THE RISK OF INJURY:

• Follow these instructions and those published by the battery manufacturer and manufacturer of any equipment you intend to use with this unit. Review cautionary markings on these products and on engine.

INTRODUCTION

Thank you for choosing the

Black and Decker®Start-It®450 Amp Jump-Starter/ Air Compressor

. This compact jump-starter is unique in the amount of energy it can supply for its size. The internal battery is a high density sealed, lead-acid battery that stores and delivers energy comparable to full sized ordinary jump-starters. Please read this guide carefully before use to ensure optimum performance and avoid damage to the unit or items that you are using it with.

The

Black and Decker®Start-It®450 Amp Jump-Starter/ Air Compressor

is a compact, durable, portable jumpstart system for vehicles that have a standard 12 volt battery system. This self-contained, rechargeable system will start most vehicles without the need for a host vehicle or 12 volt DC power supply.

FEATURES

• 450 instant starting amps

• Keyless ON/OFF Power Switch

• Built-in non-spillable, maintenance-free, heavy duty, 17 amp/hour, sealed, lead-acid battery

• Easy-to-read LED battery charge status indicators

• Reverse polarity connection warning indicator

• Built-in portable inflator for vehicle tires and recreational inflatables

• Cordless/rechargeable, includes 120 Volt AC Charging Adapter

• Requires no maintenance (other than recharging) for optimum operation

• Heavy duty cables and clamps

• Exclusive cable storage channels keep jumper cables out of the way until needed

90550871 Vec012CBD EN SP.qxp:VEC012CBD_ManualEN_080907 8/21/09 11:04 AM Page 4

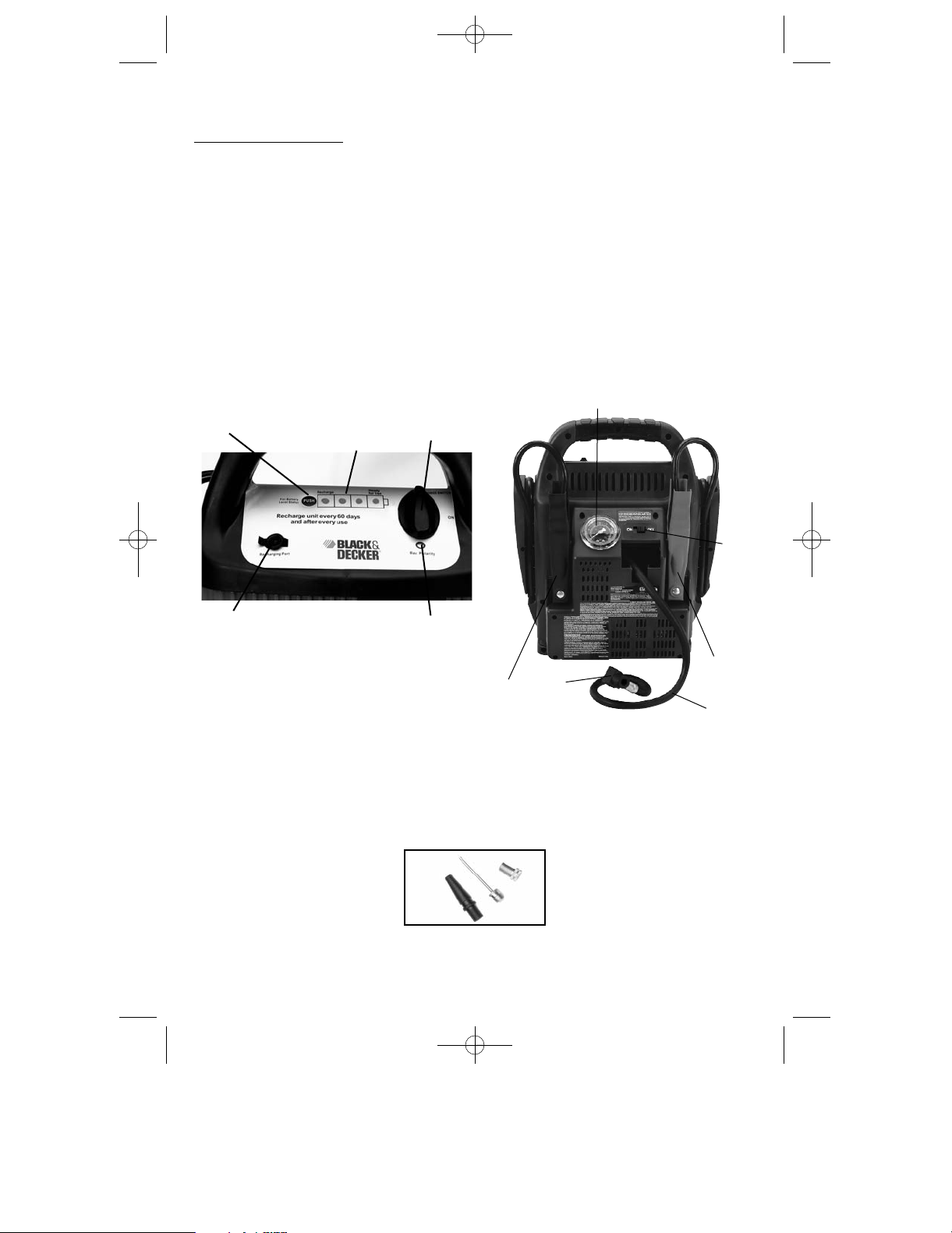

Controls and Indicators

Applications

• Jump-start most vehicle batteries with a standard 12 volt DC system: small truck, car, RV, tractor, etc.

• Inflate (using inflator) tires, air mattresses, basketballs, volley balls, and more.

CHARGING/RECHARGING

Lead-acid batteries require routine maintenance to ensure a full charge and long battery life. All batteries lose energy from self-discharge over time and more rapidly when they are at higher temperatures. Therefore, batteries need periodic charging to replace energy lost through self-discharge. When the unit is not in frequent use, Black & Decker recommends the battery be recharged at least every 60 days.

Check the battery charge level by pressing the battery status button. The LED charge status display will indicate the level of battery charge. When only one red LED lights, recharge the unit.

When the battery is overly discharged and if the green LED is lit when the charger is plugged in, this indicates the battery is at a high impedance stage.

In this event, recharge the unit and leave the unit on charge for a period of 48hrs before using the unit.

120 VOLT AC

CHARGING ADAPTER

1. CHARGING PORT FOR 120 VOLT AC CHARGING ADAPTER

2. BATTERY CHARGE LEVEL PUSHBUTTON

3. LED BATTERY STATUS INDICATORS

4. JUMP-STARTER POWER SWITCH

5. REVERSE POLARITY INDICATOR

6. AIR PRESSURE GAUGE

7. INFLATOR POWER SWITCH

8. NEGATIVE (–) BLACK CLAMP

9. POSITIVE (+) RED CLAMP

10. CONNECTOR (CHUCK)

11. AIR HOSE

Front View Back View

NOZZLES

90550871 Vec012CBD EN SP.qxp:VEC012CBD_ManualEN_080907 8/21/09 11:04 AM Page 5
