Black & Decker QP260 Instruction Manual

• Use only accessories that are recommended by the manufacturer for your model.

Accessories that may be suitable for one tool, may become hazardous when used on
another tool.

SERVICE

• Tool service must be performed only by qualified repair personnel. Service or

maintenance performed by unqualified personnel could result in a risk of injury.

• When servicing a tool, use only identical replacement parts. Follow instructions in
the Maintenance section of this manual. Use of unauthorized parts or failure to follow
Maintenance Instructions may create a risk of electric shock or injury.

SPECIFIC SAFETY RULES

• Hold tool by insulated gripping surfaces when performing an operation where the
cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will

make exposed metal parts of the tool "live" and shock the operator.

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber. (CCA)
Your risk from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling,

and other construction activities. Wear protective clothing and wash exposed areas
with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may

promote absorption of harmful chemicals.
WARNING: Use of this tool can generate and/or disburse dust, which may cause serious
and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory
protection appropriate for the dust exposure. Direct particles away from face and body.

CAUTION: Wear appropriate hearing protection during use. Under some conditions
and duration of use, noise from this product may contribute to hearing loss.

WARNING: This product contains chemicals, including lead, known to the State of

California to cause cancer, and birth defects or other reproductive harm. Wash hands after
handling.

The label on your tool may include the following symbols.

V ..........................volts A..........................amperes

Hz ........................hertz W ........................watts

min ........................minutes ......................alternating current

......................direct current

n

o ........................no load speed

..........................

Class II Construction

........................

earthing terminal

........................safety alert symbol .../min ..................revolutions or

reciprocations per minute

SAFETY WARNINGS AND INSTRUCTIONS: DRILLS

• When drilling or driving into walls, floors or wherever live electrical wires may be
encountered, DO NOT TOUCH ANY METAL PARTS OF THE TOOL! Hold the tool only
by the plastic handle(s) to prevent shock.

• Do not lock the tool ON when drilling by hand. Refer to Operating Instructions-Switch.

• Hold drill firmly to control the twisting action of the drill. If your drill is equipped with

a side handle, always use the side handle.

WARNING: Drill may stall (if overloaded or improperly used) causing a twist. Always

expect the stall. Grip the drill firmly to control the twisting action and prevent loss of control
which could cause personal injury. If a stall does occur, release the trigger immediately and
determine the reason for the stall before re-starting.

• Always unplug the drill when attaching or removing accessories. When attaching
accessories in the drill chuck, it is important to securely tighten the chuck using all three
holes to prevent slippage. When using a keyless chuck, hand tighten firmly.

MOTOR

Be sure your power supply agrees with nameplate marking. 120 Volts AC only means your

drill will operate on standard 60 Hz household power. Do not operate AC tools on DC. A
rating of 120 volts AC/DC means that your tool will operate on standard 60 Hz AC or DC
power. This information is printed on the nameplate. Lower voltage will cause loss of power
and can result in over-heating. All Black & Decker tools are factory-tested; if this tool does
not operate, check the power supply.

USE OF EXTENSION CORDS

Make sure the extension cord is in good condition before using. Always use the proper size
extension cords with the tool – that is, proper wire size for various lengths of cord and heavy
enough to carry the current the tool will draw. Use of an undersized cord will cause a drop in
line voltage resulting in loss of power and overheating. For proper size cords see chart.

General Safety Rules

WARNING: Read and understand all instructions. Failure to follow all instructions listed

below may result in electric shock, fire and/or serious personal injury.

SAVE THESE INSTRUCTIONS

WORK AREA

• Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.

• Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or
fumes.

• Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control.

ELECTRICAL SAFETY

• Double insulated tools are equipped with a polarized plug (one blade is wider than
the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit
fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician
to install a polarized outlet. Do not change the plug in any way. Double insulation

eliminates the need for the three wire grounded power cord and grounded power supply
system.

• Avoid body contact with grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is grounded.

• Don’t expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.

• Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an

outlet. Keep cord away from heat, oil, sharp edges or moving parts. Replace
damaged cords immediately. Damaged cords increase the risk of electric shock.

• When operating a power tool outside, use an outdoor extension cord marked "W-A"
or "W." These cords are rated for outdoor use and reduce the risk of electric shock.

PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use tool while tired or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating power tools may result in serious

personal injury.

• Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your
hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair
can be caught in moving parts. Air vents cover moving parts and should be avoided.

• Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with
your finger on the switch or plugging in tools that have the switch on invites accidents.

• Remove adjusting keys or wrenches before turning the tool on. A wrench or key that is
left attached to a rotating part of the tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. Proper footing and
balance enables better control of the tool in unexpected situations.

• Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes,
hard hat, or hearing protection must be used for appropriate conditions.

TOOL USE AND CARE

• Use clamps or other practical way to secure and support the workpiece to a stable
platform. Holding the work by hand or against your body is unstable and may lead to loss

of control.

• Do not force tool. Use the correct tool for your application. The correct tool will do the
job better and safer at the rate for which it is designed.

• Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled
with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source before making any adjustments,
changing accessories, or storing the tool. Such preventative safety measures reduce
the risk of starting the tool accidentally.

• Store idle tools out of reach of children and other untrained persons. Tools are
dangerous in the hands of untrained users.

• Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained
tools, with sharp cutting edges are less likely to bind and are easier to control.

• Check for misalignment or binding of moving parts, breakage of parts, and any

other condition that may affect the tools operation. If damaged, have the tool
serviced before using. Many accidents are caused by poorly maintained tools.

VEA EL ESPAÑOL EN LA CONTRAPORTADA.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y
PÓLIZA DE GARANTÍA. ADVERTENCIA: LÉASE ESTE
INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

Catalog # QP260 Form No. 632625-00 MAY ‘05 (REV.1)
Copyright © 2005 Black & Decker Printed in China

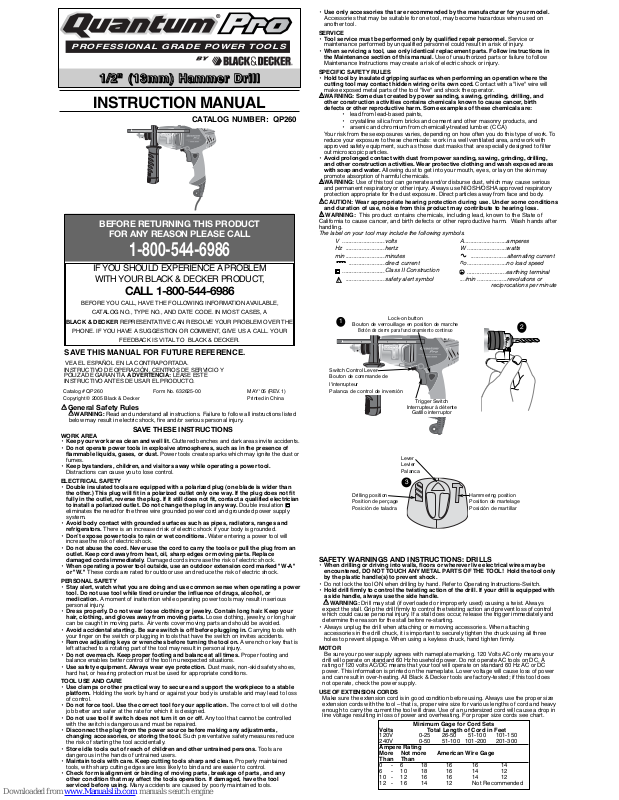

CATALOG NUMBER: QP260

INSTRUCTION MANUAL

1111////2222"""" ((((11113333mmmmmmmm)))) HHHHaaaammmmmmmmeeeerrrr DDDDrrrriiiillllll

ll

BEFORE RETURNING THIS PRODUCT

FOR ANY REASON PLEASE CALL

1-800-544-6986

IF YOU SHOULD EXPERIENCE APROBLEM

WITH YOUR BLACK & DECKER PRODUCT,

CALL 1-800-544-6986

BEFORE YOU CALL, HAVE THE FOLLOWING INFORMATION AVAILABLE,

CATALOG NO., TYPE NO., AND DATE CODE. IN MOST CASES, A

BLACK & DECKER REPRESENTATIVE CAN RESOLVE YOUR PROBLEM OVER THE

PHONE. IF YOU HAVE A SUGGESTION OR COMMENT, GIVE US A CALL. YOUR

FEEDBACK IS VITAL TO BLACK & DECKER.

®

2

Hammering position
Position de martelage

Posición de martillar

Drilling position
Position de perçage

Posición de taladra

Lever
Levier

Palanca

3

PROFESSIONAL GRADE POWER TOOLS

®

®

Lock-on button

Bouton de verrouillage en position de marche

Botón de cierre para funcionamiento continuo

Switch Control Lever
Bouton de commande de

l'interrupteur
Palanca de control de inversión

1

Minimum Gage for Cord Sets

Volts Total Length of Cord in Feet

120V 0-25 26-50 51-100 101-150
240V 0-50 51-100 101-200 201-300

Ampere Rating
More Not more American Wire Gage
Than Than

0-6 18 16 16 14
6 - 10 18 16 14 12
10 - 12 16 16 14 12
12 - 16 14 12 Not Recommended

Trigger Switch

Interrupteur à détente

Gatillo interruptor

ASSEMBLY/ADJUSTMENT SET-UP

WARNING: Always unplug drill from power supply before any of the following operations.

SIDE HANDLE

• If your drill is equipped with a side handle, it must be installed properly to control the drill

• Insert bolt into recessed hole with molded hex shape, making sure that hex head is seated
fully to prevent bolt from turning.

• Place circular opening over drill chuck and onto front of drill gear case.

• Place the drill on its side and holding the bolt head with your finger, thread handle onto bolt.
The handle now has a full range of 360 degrees around the drill.

OPERATING INSTRUCTIONS

WARNING: To reduce the risk of serious personal injury, read, understand and follow all

important safety warnings and instructions prior to using tool.

WARNING: It is important to support the work properly and to hold the drill firmly to prevent
loss of control which could cause personal injury If you have any questions on how to
properly operate tool, call: 1-800-544-6986.

WARNING: Do not attempt to tighten drill bits (or any other accessory) by gripping the front
part of the chuck and turning the tool on. Damage to the chuck and personal injury may
occur when changing accessories.

FORWARD/REVERSE

To select forward rotation push the switch control lever to the RIGHT(when viewed from the
chuck end) (Fig.1). To select reverse push the lever to the LEFT (when viewed from the chuck
end). After all reversing operations, switch the tool to the forward running mode.
NOTE: WHEN THE SWITCH CONTROL LEVER IS IN THE CENTER POSITION THE DRILL
WILL NOT OPERATE. DO NOT FORCE TRIGGER. SELECT FORWARD OR REVERSE
BEFORE TURNING DRILL ON.

CHUCK & KEY OPERATION

Turn chuck collar to open chuck jaws. Place bit in chuck as far as it will go. Tighten chuck
collar by hand. Place chuck key in each of the three holes, and tighten in clockwise direction
(Fig. 2). Tighten chuck with all three holes to prevent slippage.

SWITCH

To turn the drill ON squeeze the trigger switch. The farther the trigger is depressed, the higher
the speed of the drill. To turn the tool OFF release the trigger switch. The drill can be locked
ON (maximum RPM only) for continuous use by squeezing the trigger while pushing in on the
locking button (Fig .1). Hold the locking button in while you release the trigger switch and then
release the locking button. The drill will continue to run. To turn the drill OFF from a locked ON
condition, squeeze and release the trigger.

WARNING: The drill should only be locked ON when it is held stationary in a drill press
stand or other means; NOT BY HAND! Never unplug the tool with the locking feature
engaged. To do so will cause the tool to start immediately the next time it is plugged in.

DRILLING

• Always unplug the drill when attaching or removing accessories. When attaching
accessories in the drill chuck, it is important to securely tighten the chuck using all three
holes to prevent slippage. When using a keyless chuck, hand tighten firmly.

• Use sharp drill bits only.

• Support and secure work properly, as instructed in the Safety Instructions.

• Use appropriate and required safety equipment, as instructed in the safety instructions.

• Secure and maintain work area, as instructed in the safety instructions.

• Run the drill very slowly, using light pressure, until the hole is started enough to keep the drill
bit from slipping out of it.

• Apply pressure in a straight line with the bit. Use enough pressure to keep the bit biting but
not so much as to stall the motor or deflect the bit.

• Hold the drill firmly to control its twisting action..

• DO NOT CLICK THE TRIGGER OF ASTALLED DRILL OFF AND ON IN AN ATTEMPT TO
START IT. DAMAGE TO THE DRILL CAN RESULT.

• Minimize stalling on breakthrough by reducing pressure and slowly drilling through the last
part of the hole.

• Keep the motor running while pulling the bit out of a drilled hole. This will help reduce
jamming.

• Use a cutting lubricant when drilling metals. The exceptions are cast iron and brass which
should be drilled dry. The lubricants that work best are sulphurized cutting oil or lard oil.
Bacon grease will also serve.

• When using twist drill bits to drill holes in wood, it will be necessary to pull the bits out
frequently to clear chips from the flutes.

• Plug in drill. Make sure switch turns drill on and off.

KEYED CHUCK REMOVAL

UNPLUG DRILL. NOTE: Before attempting to remove chuck, shift the drill into the drilling
mode (not hammer).
Place chuck key in any one of the three holes in the chuck. Using a soft hammer, strike the
key in a clockwise direction. This will loosen the torx screw inside the chuck. Open chuck jaws
fully, insert a torx screwdriver into front of chuck between jaws to engage screw head.
Remove screw by turning clockwise (left-hand-thread). Place key in chuck. Using a soft
hammer, strike key sharply in a counterclockwise direction. This will loosen the chuck so that
it can be unscrewed by hand.

DRILLING IN WOOD

Holes in wood can be made with the same twist drill bits used for metal or with spade bits.
These bits should be sharp and should be pulled out frequently when drilling to clear chips
from the flutes.

DRILLING IN METAL

Use a cutting lubricant when drilling metals. The exceptions are cast iron and brass which
should be drilled dry. The cutting lubricants that work best are sulfurized cutting oil or lard oil;
bacon grease will also serve the purpose.

HAMMER ACTION

Your drill has hammer action which is engaged by rotating the hammer/drill selector lever on
the top of the unit. To select hammering, turn off the drill and rotate the lever shown in
Figure 3 so that the arrow on the lever points to to the hammer symbol on the drill housing. To
select drilling, turn off the drill and rotate the lever so that the arrow on the lever points to the
drill symbol.

DRILLING IN MASONRY (Shift drill into hammer mode, see Fig. 3)

Use carbide tipped masonry bits. Refer to

Drilling

section. Keep even force on the drill but
not so much that you crack the brittle material. A smooth, even flow of dust indicates the
proper drilling rate.

CAUTION: Hold drill firmly to control the twisting action of the drill. If your drill is equipped

with a side handle, always use the side handle.
Under some conditions, when removing the drill bit from a masonry workpiece (with the drill
running) while drilling in the hammer mode, the transmission can be temporarily shifted into
the lower speed, higher torque drill mode. To control the unit in this condition, hold the drill
firmly, using both the main handle of the tool and the side handle. The unit is designed to
return to the hammer mode automatically as soon as the drill bit is cleared from the
workpiece; no change of the hammer drill/drill selector lever position by the user is required.

MAINTENANCE

Use only mild soap and damp cloth to clean the tool. Never let any liquid get inside the tool;
never immerse any part of the tool into a liquid.
IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and
adjustment should be performed by authorized service centers or other qualified service
personnel, always using identical replacement parts.

ACCESSORIES

Recommended accessories for use with your tool are available from your local dealer or
authorized service center. If you need assistance regarding accessories, please call:

1-800-544-6986.

WARNING: The use of any accessory not recommended for use with this tool could be

hazardous.

SERVICE INFORMATION

Black & Decker offers a full network of company-owned and authorized service locations
throughout North America. All Black & Decker Service Centers are staffed with trained
personnel to provide customers with efficient and reliable power tool service.
Whether you need technical advice, repair, or genuine factory replacement parts, contact the
Black & Decker location nearest you. To find your local service location, refer to the
yellow page directory under "Tools—Electric" or call: 1-800-54-HOW TO (544-6986).

LIMITED TWO YEAR WARRANTY

Black & Decker (U.S.) Inc. warrants this product for two years against any defects in material
or workmanship. The defective product will be replaced or repaired at no charge in either of
two ways.
The first, which will result in exchanges only, is to return the product to the retailer from
whom it was purchased (provided that the store is a participating retailer). Returns should be
made within the time period of the retailer’s policy for exchanges (usually 30 to 90 days after
the sale). Proof of purchase may be required. Please check with the retailer for their specific
return policy regarding returns that are beyond the time set for exchanges.
The second option is to take or send the product (prepaid) to a Black & Decker owned or
authorized Service Center for repair or replacement at our option. Proof of purchase may be
required. Black & Decker owned and authorized Service Centers are listed under "Tools­Electric" in the yellow pages of the phone directory.
This warranty does not apply to accessories. This warranty gives you specific legal rights
and you may have other rights which vary from state to state. Should you have any
questions, contact the manager of your nearest Black & Decker Service Center.

Free warning label replacement: If your warning labels become illegible or are missing,
call 1-800-544-6986 for a free replacement.

MAXIMUM RECOMMENDED CAPACITIES

Cat. # Type Steel Soft Wood Hard Wood Masonry

QP260 1/2"Hammer Drill 1/2"(12.7mm) Twist Bit 1-1/2"(38.1mm) 1-1/4"(31.7mm) 1/2"(12.7mm)

See ‘Tools-Electric’

– Yellow Pages –

for Service & Sales

Black & Decker (U.S.) Inc.,

701 E. Joppa Rd.

Towson, MD 21286 U.S.A.

AVANT DE RETOURNER CE PRODUIT POUR QUELQUE

RAISON QUI SOIT, VEUILLEZ APPELER AU

1-800-54-HOW-TO (544-6986)

MESURES DE SÉCURITÉ

AVERTISSEMENT : Lire et comprendre toutes les directives. Le non-respect de

toutes les directives suivantes présente des risques de secousses électriques, d'incendie
ou de blessures graves.

CONSERVER CES MESURES.

ZONE DE TRAVAIL

• S'assurer que la zone de travail est propre et bien éclairée. Des établis encombrés et

des endroits sombres présentent des risques d'accidents.

• Ne pas utiliser des outils électriques en présence de vapeurs explosives (comme
celles dégagées par des liquides, des gaz ou des poussières inflammables). Les

étincelles générées par le moteur des outils électriques peuvent enflammer les poussières
ou les vapeurs.

• Éloigner les curieux, les enfants et les visiteurs de la zone de travail lorsqu'on utilise
un outil électrique. Une distraction peut entraîner la perte de maîtrise de l'outil.

MESURES DE SÉCURITÉ RELATIVES À L'ÉLECTRICITÉ

• Les outils à double isolation comportent une fiche polarisée (une lame plus large que
l'autre). La fiche n'entre que d'une façon dans une prise polarisée. Lorsque la fiche
n'entre pas à fond dans la prise, essayer de nouveau après avoir inversé les broches
de la fiche. Si la fiche n'entre toujours pas dans la prise, communiquer avec un
électricien certifié afin de faire installer une prise polarisée. Ne modifier en aucune
façon la fiche. La double isolation élimine le besoin d'un cordon trifilaire mis à la terre et

d'un système d'alimentation mis à la terre.

• Éviter de toucher à des surfaces mises à la terre comme des tuyaux, des radiateurs,
des cuisinières et des réfrigérateurs. Les risques de secousses électriques sont plus

élevés si le corps de l'utilisateur est mis à la terre.

• Protéger les outils électriques de la pluie ou des conditions mouillées. Une infiltration
d'eau dans l'outil augmente les risques de secousses électriques.

• Manipuler le cordon avec soin. Ne jamais se servir du cordon afin de transporter
l'outil ni tirer sur le cordon pour débrancher l'outil. Éloigner le cordon des sources
de chaleur, des flaques d'huile, des arêtes tranchantes et des pièces mobiles.
Remplacer immédiatement les cordons endommagés. Les cordons endommagés

augmentent les risques de secousses électriques.

• Lorsqu'on utilise un outil électrique à l'extérieur, se servir d'un cordon de rallonge
prévu pour l'extérieur, portant la mention "W-A" ou "W". Ces cordons sont conçus pour

servir à l'extérieur et minimisent les risques de secousses électriques.

SÉCURITÉ PERSONNELLE

• Demeurer vigilant, prendre soin et faire preuve de jugement lorsqu'on utilise un outil
électrique. Ne pas s'en servir lorsqu'on est fatigué ou affaibli par des drogues, de
l'alcool ou des médicaments. De graves blessures peuvent résulter d'un moment

d'inattention lors de l'utilisation d'un outil électrique.

• Porter des vêtements appropriés. Éviter de porter des vêtements amples ou des
bijoux. Recouvrir la chevelure si elle est longue. Éloigner les cheveux, les
vêtements et les gants des pièces en mouvement qui peuvent les happer.

• Éviter les démarrages accidentels. S'assurer que l'interrupteur est en position hors
tension avant de brancher l'outil. Afin d'éviter les risques de blessures, ne pas

transporter l'outil avec le doigt sur l'interrupteur ni brancher un outil dont l'interrupteur est en
position sous tension.

• Enlever les clés de réglage avant de mettre l'outil sous tension. Une clé qui est laissée
sur une pièce rotative de l'outil présente des risques de blessures.

• Ne pas dépasser sa portée. Garder son équilibre en tout temps. On s'assure d'une
meilleure maîtrise de l'outil dans des situations imprévues grâce à une position stable et un
bon équilibre.

• Porter de l'équipement de sécurité. Toujours porter des lunettes de sécurité. Dans
certaines conditions, il faut porter des masques respiratoires, des chaussures
antidérapantes, un casque de sécurité ou des protège-tympans.

UTILISATION ET ENTRETIEN DE L'OUTIL

• Utiliser des pinces de serrage ou de tout autre moyen pratique afin de fixer et de
soutenir la pièce à ouvrer sur une plate-forme stable. La pièce est instable lorsqu'elle

est retenue par la main ou le corps de l'utilisateur. Cela présente des risques de perte de
maîtrise de l'outil.

• Ne pas forcer l'outil. Utiliser l'outil approprié à la tâche. L'outil approprié fonctionne
mieux et sûrement lorsqu'on s'en sert à son rendement nominal.

• Ne pas se servir de l'outil lorsque l'interrupteur est défectueux. Le cas échéant, l'outil
est dangereux et il faut le réparer.

• Débrancher l'outil de la source d'alimentation avant de le régler, d'en remplacer les
accessoires ou de le ranger. On minimise de la sorte le risque de démarrage accidentel

de l'outil.

• Ranger l'outil hors de portée des enfants et de toute autre personne qui n'en connaît
pas le fonctionnement. L'outil est dangereux entre les mains de ces personnes.

• Prendre soin des outils. S'assurer que les outils de coupe sont tranchants et
propres. Des outils bien entretenus à arêtes tranchantes ont moins tendance à se coincer

et ils se maîtrisent mieux.

• Vérifier l'alignement et les attaches des pièces mobiles, le degré d'usure des pièces
ainsi que tout autre facteur susceptible de nuire au bon fonctionnement de l'outil.
Faire réparer un outil endommagé avant de s'en servir. Des outils mal entretenus sont

la cause de nombreux accidents.

• Utiliser seulement les accessoires recommandés par le fabricant. Des accessoires qui
conviennent à un outil peuvent présenter des risques avec un autre outil.
