Black & Decker MZ2000P User Manual

Microwave Oven

First Use Safety Recommendation

Please read through this booklet for safe and efficient use of the appliance.
We urge you to read the "Hint's" section and also follow all detailed
instructions even if you are familiar with using this appliance.

Keep this guide handy for future reference.

English Page 02

Farsi Page 17

Arabic Page 25

MZ2000P

English

Fig A

Power

Med.

M.Low

Low High

M.High

Time(min)

35

30

25

Defrost(kg)

0

0

1

•

•

2

•

0.2

3

•

4

•

5

•

6

•

20

15

1.0

0.8

0.4

•

7

•

•

8

10

9

0.6

4

2

3

6

5

10

8

P
o

we

r

M

e
d

M

.
L
o

w

M
.

H
i

g
h

L
o

w

Hi
gh

T
i

m

e
r

(M
in

)

0

D

e

f
r
os

t

(
k

g
)

0

•

1

•

2

35

•

0

2

3
3
0

•

4
2
5

•

5

•

20

•

6

15

0

4

•

1
0

•

7

•

10

8

9

08

0
6

7

9

1

-2-

English

Fig B

7

8

Fig C

6

5

Intended use

Your Black & Decker microwave oven is
designed to heat appropriate foods &
beverages using electromagnetic radiation.
Always check the suitability of ingredients
before cooking.

Do not use this appliance for any other
purpose. This product is intended for
indoor household use only.

Safety instructions

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR

FUTURE REFERENCE

• While using electrical appliances, in
order to reduce the risk of fire, electric
shock, and / or injury to persons, basic
safety precautions should be followed,
including the following:

WARNING: If the door or door seals are
damaged, the oven must not be operated
until it has been repaired by a competent
person

WARNING: It is hazardous for anyone other
than a competent person to carry out any
service or repair operation that involves the
removal of a cover which gives protection
against exposure to microwave energy

WARNING: Liquids and other foods must
not be heated in sealed containers since
they are liable to explode

WARNING: Only allow children to use the
oven without supervision when adequate
instructions have been given so that the
child is able to use the oven in a safe way
and understands the hazards of improper
use

-3-

English

• This microwave oven is a free-standing
unit & must not be built-in or placed in a
cabinet.

• The oven must have sufficient air flow.
To ensure good ventilation, a gap of 10
centimetres is required at the back, 15
centimetres at one side, 30 centimetres
at the other side and 30 centimetres
above.

• Only use utensils that are suitable for
use in microwave ovens

• When heating food in plastic or paper
containers, keep an eye on the oven due
to the possibility of ignition

• If smoke is observed, switch off or
unplug the appliance and keep the door
closed in order to stifle any flames

• Microwave heating of beverages can
result in delayed eruptive boiling
therefore care must be taken when
handling the container

• The contents of feeding bottles and
baby food jars shall be stirred or shaken
and the temperature checked before
consumption, in order to avoid burns

• Eggs in their shell and whole hard-boiled
eggs should not be heated in microwave
ovens since they may explode, even
after microwave heating has ended

• The oven should be cleaned regularly
and any food deposits removed

• Failure to maintain the oven in a clean
condition could lead to deterioration of
the surface that could adversely affect
the life of the appliance and possibly
result in a hazardous situation

• To protect against the risk of electric
shock, DO NOT IMMERSE the
appliance, cord set or plug in water or
other liquids.

• Do not remove the feet from this product.

• Do not cook food directly on the glass
tray. Always use a bowl or other container
that is suitable for use in a microwave
oven

Using your appliance

• Do not operate any appliance with a
damaged cord or plug, or after the
appliance malfunctions, or is dropped or
damaged in any manner. Return the
complete appliance to your nearest
authorised service facility for
examination, electrical repair, mechanical
repair or adjustment to avoid any hazard.

• Do not attempt to repair the appliance
yourself; instead, take it to your Black &
Decker-owned or Authorised Service
Centre for repair.

• The use of attachments or accessories
not recommended or sold by this
appliance manufacturer may result in fire,
electric shock or personal injury.

• Do not let the cord hang over the edge of
a table, counter, or touch hot surfaces.

• Avoid touching hot surfaces, use handles
and knobs.

• Do not operate or place any part of this
appliance on or near any hot surfaces
(such as gas or electric burner or in a
heated oven) or any appliance that
generates steam.

• Do not abuse the cord. Never carry the
appliance by the cord or yank it to
disconnect it from the outlet; instead,
grasp the plug and pull to disconnect.

• When using an extension cord with your
appliance, make sure the extension cord
is correctly wired, and rated for its use.

-4-

English

• The microwave oven should be placed
on a flat stable surface which can hold
the weight of the appliance and the
heaviest of food likely to be cooked
inside.

• Do not place any item on top of the
oven.

• Do not operate the microwave oven
without the glass tray or roller support in
their proper positions.

• Make sure that the power supply cord is
undamaged and does not run under the
microwave oven or over any hot or sharp
surfaces.

• Do not operate the appliance when
empty. This could damage the oven.

• Do not use the oven to store any items.

• Food surrounded by a membrane, such
as egg yolks, potatoes, chicken livers,
etc. must be pierced several times with a
fork before cooking.

• Do not use metal pans or dishes with
metal handles.

• Never place any item with a metal trim
inside a microwave.

• Always remove twist-ties from any foods
before operating the microwave.

• Some plastics are not suitable for use in
a microwave. Always check the
suitability of any item before use.

• Do not cook in a container with a
restricted opening as they may explode
if heated in a microwave oven.

• Conventional meat or candy
thermometers must not be used in the
oven. Only thermometers that are
specifically made for microwaves should
be used.

• Microwave utensils should be used only
in accordance with the manufacturer's
instructions.

• Do not attempt to deep-fry foods in this
oven.

• Microwave ovens heat the food in a
container and not the container itself. It is
always necessary to check the
temperature of the food to ensure it is
correctly cooked.

• Always stir food to distribute the heat
evenly and allow it to stand for a few
minutes before consumption.

• Containers used for cooking can become
hot because of heat transferred from the
heated food. Always use oven gloves
when removing items from the oven.

• If steam accumulates inside or around
the outside of the oven door, wipe with a
soft cloth. This may occur when the
microwave oven is operated under high
humidity conditions and in no way
indicates malfunction of the unit.

Safety of others

This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.

Children should be supervised to ensure
that they do not play with the appliance.

Close supervision is necessary when any
appliance is used by or near children.

Never leave an appliance unattended when
in use.

-5-

English

After use

Switch off and remove the plug from the
power outlet when not in use, before
assembling or disassembling parts,
cleaning or carrying out any maintenance
of the appliance. Never pull the cord while
removing it from the power outlet.

Keep children and animals away from the
unit and cord set.

Inspection and repairs

If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard.

Electrical safety

This product must be earthed.
Always check that the power supply
corresponds to the voltage on the

rating plate

Power plugs must match the outlet. Never
modify the plug in any way. Do not use any
adaptor plugs with earthed (Class l)
appliances. Unmodified plugs and
matching outlets will reduce the risk of
electric shock.

Never operate an appliance directly below
the socket-outlet it is connected to.

Do not insert any object into the openings
on the outer case.

Extension cables & Class l product

• A 3-core cable must be used as your
appliance is earthed and of Class l
construction.

• Up to 30m (100 ft) can be used without
loss of power.

• If the supply cord is damaged, it must
be replaced by the manufacturer or an
authorised Black & Decker Service
Centre in order to avoid a hazard.

Features (Fig. A)

1 Door safety lock

2 Door

3 Window

4 Control panel

5 Timer control / Weight Defrost

6 Power control

7 Roller support

8 Glass tray

9 Stem

10 Door release

Unpacking

• Remove all packaging from the
appliance.

• Inspect the oven after unpacking for any
damage such as a misaligned or
damaged door, dents or holes in the
door window and screen, and any dents
in the cavity. If any of these are seen, DO
NOT use the oven.

• Clean the appliance before first use.

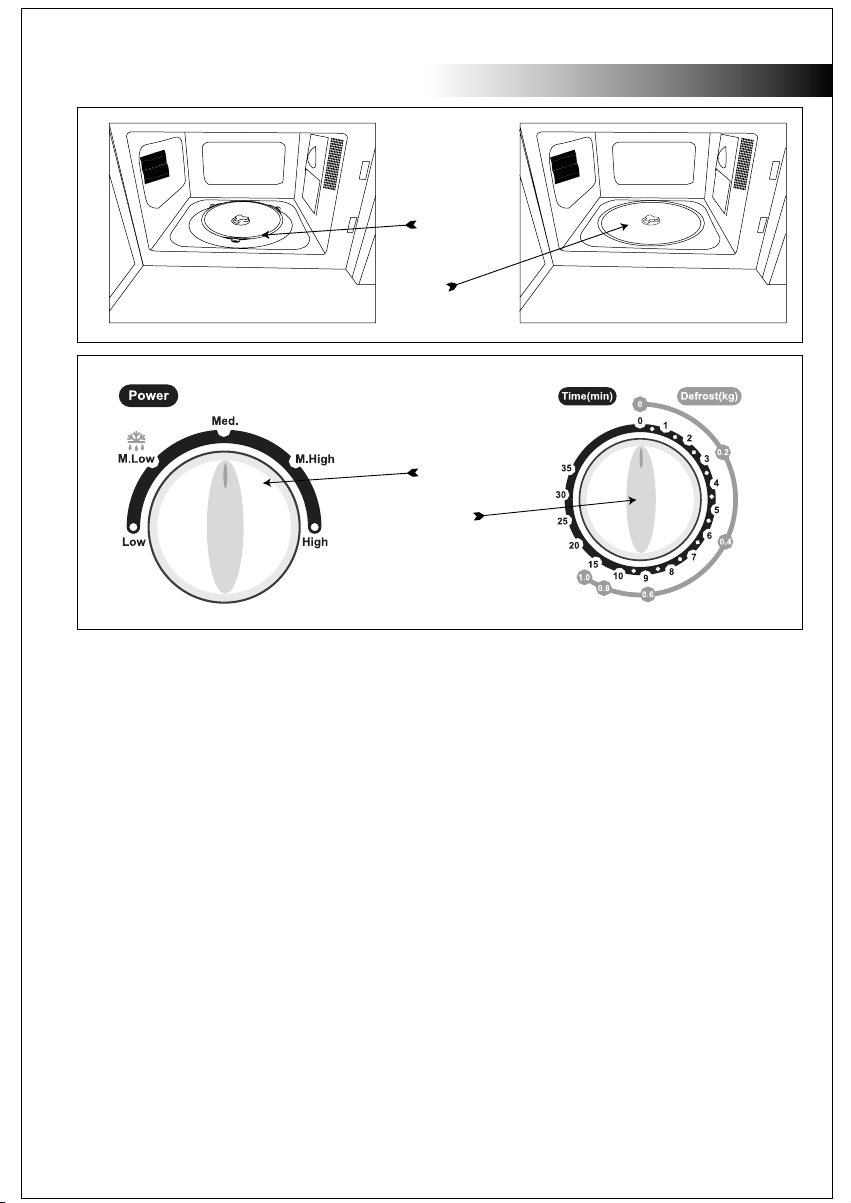

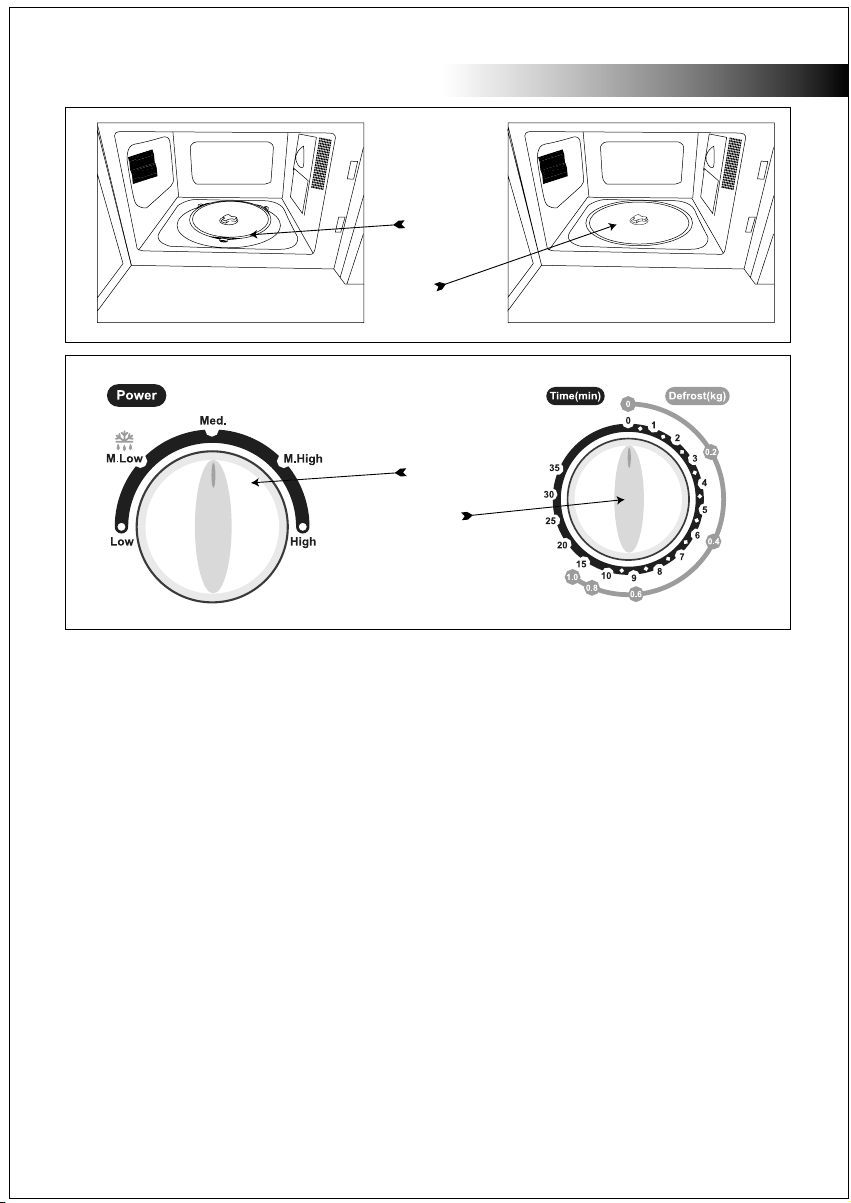

Assembly (Fig. B)

Warning! Before assembly, make sure that
the appliance is switched off and
unplugged.

• Place the appliance on a flat, even
surface.

• Open the door (2) & place the stem (9)
into the hole in the cavity base. The door
is opened by pressing the door release
(10).

• Place the roller support (7) into the hole
in the cavity.

• Align the glass tray (8) on top of the
roller support.

• Connect the appliance to a suitable
electrical supply.

-6-

English

Use (Fig. C)

Place the food to be cooked onto a
suitable container. Press the door release
(10) to open the oven door then place the
container onto the glass tray (8).

Close the door (2) & rotate the power
control (6) to select the required power
setting.

The power settings available are:

1 17%

2 33%

3 55%

4 77%

5 100%

Rotate the timer / weight defrost control (5)
to the required cooking time.

If a cooking time less than 5 minutes is
required, turn the timer past 5 minutes, and
rotate it anti-clockwise to the actual time
required.

Once cooking has completed, an audible
signal will be heard. Open the door &
remove the cooked food.

Always use oven gloves when removing
items from the oven.

If the door of the oven is opened during
cooking, the microwave oven will automati­cally stop working. Cooking will continue
after re-closing the door.

If the remaining cooking time is not
required, rotate the timer back to “0” (Off)
before closing the door to prevent the oven
operating when empty.

Operating the oven when empty could
damage the oven.

To stop the oven during operation, return

the timer to the “0” (Off) position.

To defrost frozen items, first check the
weight of the item.
Rotate the power control (6) to select the
“M.Low” setting. The defrost cycle will start
once the timer is turned.

Rotate the Timer / Weight Defrost control (5)
to the weight of the item.

Always check that food is thoroughly
defrosted before cooking.

Operating times and preparations

Follow directions on food packaging.

Switching on and off

The microwave will start to cook once the
timer / weight (5) defrost is turned.

To stop the oven during operation, return
the timer to the “0” (Off) position.

Cleaning and maintenance

The oven should be cleaned regularly and
any food deposits removed

Failure to maintain the oven in a clean
condition could lead to deterioration of the
surface that could adversely affect the life of
the appliance and possibly result in a
hazardous situation

Turn the oven off and disconnect from the
power supply before cleaning.

The outside oven surface & control panel
should be cleaned with a damp cloth.

When cleaning surfaces of door, door seal,
cavity of the oven, use only mild,
non-abrasive soaps, or detergents applied
with a sponge or soft cloth.

The glass tray can be washed in warm
sudsy water or in a dishwasher & dried with
a clean cloth.

-7-

English

The roller support and oven cavity should
be cleaned regularly. The cavity should be
cleaned with a damp cloth & a mild
detergent & dried thoroughly. The roller ring
should be washed in warm sudsy water or
in a dish washer.

Note: To prevent damage to the operating
parts inside the oven, water should not be
allowed to enter the ventilation slots.

Do not use detergents, abrasives or
spray-on cleaners on the control Panel.

Do not allow the Control Panel to become
wet.

Detergents or abrasives must never be
used.

Odours can be removed from the oven by
combining a cup of water with the juice
and skin of one lemon in a deep microwave-

Technical data

MZ2000P:

able bowl. Microwave for 5 minutes, and
dry the cavity thoroughly with a soft cloth.

Radio Interference

A microwave oven may interfere with the
normal operation of radio, TV, or similar
equipment. Should such interference
occur, the following steps should be
followed:

• Clean the door and sealing surface of
the oven.

• Place the radio, TV, etc. as far away
from the microwave oven as possible.

• Ensure the antenna fitted to the radio,
TV, etc is correctly fitted & receiving a
strong signal.

• Plug the microwave oven into a different
socket outlet

Rating : 240V~50Hz 1250W

Microwave Power Output : 700W

Operation Frequency : 2,450MHz

External Dimensions : 258mm x 340mm x 440mm (HxDxW)

Cavity Dimensions : 209.2mm x 291.6mm x 306mm (HxDxW)

Oven Capacity : 20 litres

Unit weight : 10.0 kg

-8-
