Black & Decker MY23PG User Manual
MY23PG Microwave Oven
First Use Safety Recommendation
Please read through this booklet for safe and efficient use of the appliance.
We urge you to read all the sections and also follow all detailed instructions
even if you are familiar with a similar appliance.
Keep this guide handy for future reference.
MY23PG
IMPORTANT SAFEGUARDS
While using electrical appliances, in order to reduce the risk of fire, electric shock,
and / or injury to persons, basic safety precautions should be followed, including the
following:
• Read all instructions carefully, even if you are familiar with the appliance.
• To protect against the risk of electric shock, DO NOT IMMERSE the appliance,
cord set or plug in water or other liquids.
• To clean, wipe the exterior with a damp cloth.
• Close supervision is necessary when any appliance is used by or near children.
Never leave an appliance unattended when in use.
• Switch off and remove the plug from the power outlet when not in use, before
assembling or disassembling parts, cleaning or carrying out any maintenance of
the appliance. Never pull the cord while unplugging out from power outlet.
• Do not operate any appliance with a damaged cord or plug, or after the appliance
malfunctions, or is dropped or damaged in any manner. Return the complete
appliance to your nearest authorised service facility for examination, electrical
repair, mechanical repair or adjustment to avoid any hazard.
• The use of attachments or accessories not recommended or sold by this
appliance manufacturer may result in fire, electric shock or personal injury.
• Do not let the cord hang over the edge of a table, counter, or touch hot surfaces.
• Avoid touching hot surfaces, use handles and knobs.
• Do not operate or place any part of this appliance on or near any hot surfaces
(such as gas or electric burner or in a heated oven).
• Do not abuse the cord. Never carry the appliance by the cord or yank it to
disconnect it from the outlet; instead, grasp the plug and pull to disconnect.
• When using an extension cord with your appliance, make sure the extension cord
is correctly wired, and rated for its use.
• This product is intended for household use only.
• Do not attempt to repair the appliance yourself; instead, take it to your Black &
Decker-owned or Authorised Service Centre for repair.
• Keep children and animals away from the unit and cord set.
SAVE THESE INSTRUCTIONS

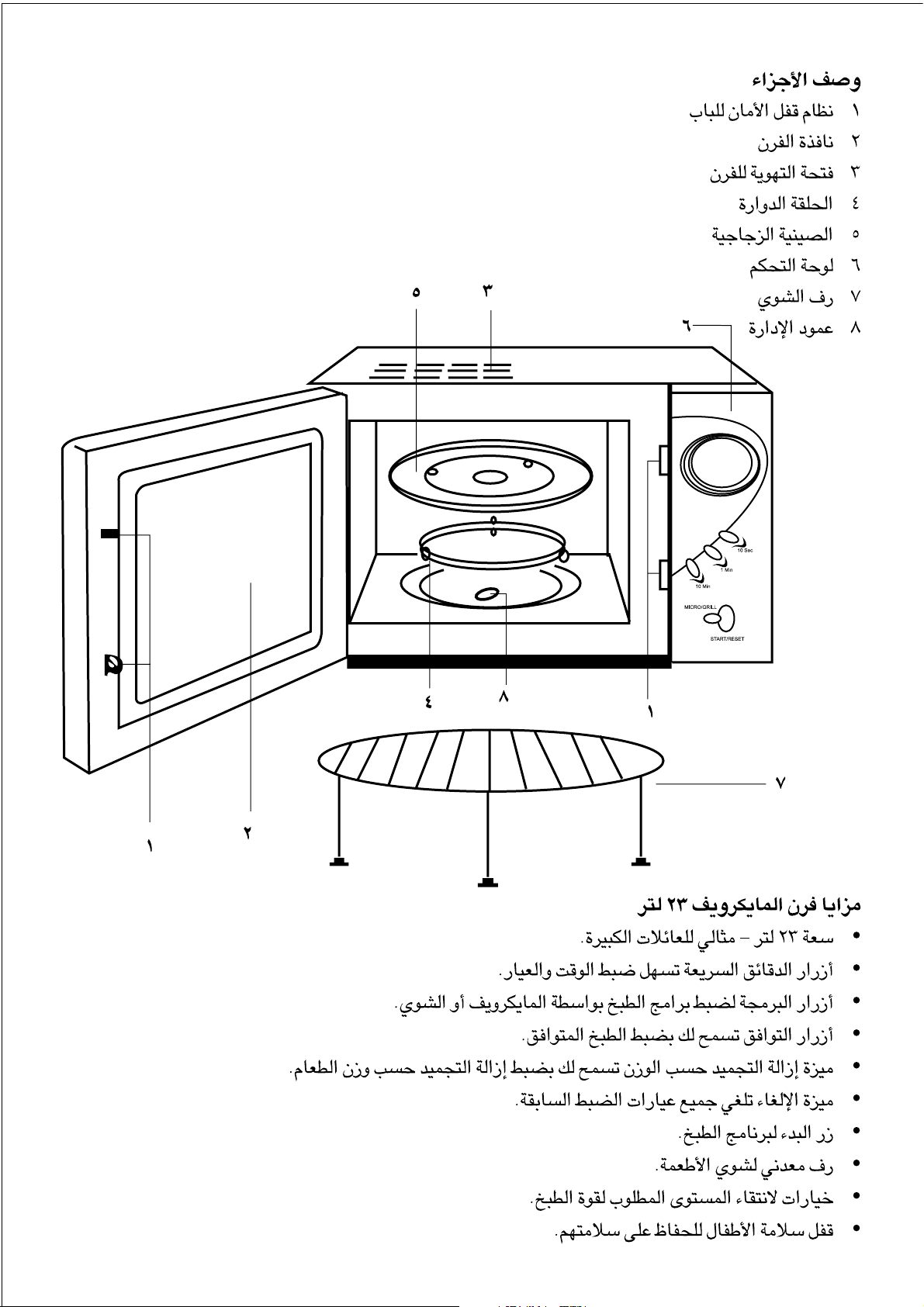

Parts Identification
1. Door Safety Lock System
2. Oven Window
3. Oven Air Vent
4. Roller Ring
5. Glass Tray
6. Control Panel
7. Grill Rack
8. Shaft
53 6
10 Sec
1Min
10 Min
MICRO/GRILL
START/RESET
8
4
1
1
Your 23 Litre Microwave Oven Features
• 23 Litre capacity ideal for a large family
• Quick Minute Buttons facilitates easy setting of time and power.
• Programming buttons to set cooking programs for either microwave or grill functions
2
7
• Combination buttons allows you to set a combination cooking session.
• Weight defrost function allows you to set the defrosting cycle depending
upon the weight of food.
• Cancel function overrides all previous settings
• Start button begins the cooking program
• Metal rack for grilling of foods
• Options for selecting the desired power level for cooking
• Child safety lock for safety of kids
How to install your Microwave Oven:-
Make sure that the packaging material is removed from the inside of the door.
WARNING: Check the microwave oven for any damage, such as misaligned or bent door,
damaged door seals and sealing surface, broken or loose door hinges and latches and
dents inside the cavity or on the door. The door should fit squarely, securely and close
smoothly. The door seals must be free from food and have no burn marks. If there is any
damage, please do not operate the microwave oven and contact a qualified service person.
Practical Hints:-
• The microwave oven should be placed on a flat stable surface which can hold the weight
of the microwave oven and the heaviest of food likely to be cooked inside.
• Do not place the microwave oven where heat, moisture, or high humidity are generated
or near combustible materials.
• For correct operation, the microwave oven must have sufficient airflow. This requires a
gap of 30 cms above, 10 cms at the back and 15 cms on both the sides. Do not cover
or block any openings.
• Do not remove the feet.
• Do not place anything on top of the oven.
• Do not operate the microwave oven without the glass tray, roller support & the shaft in
their proper positions.
• Make sure that the power supply cord is undamaged and does not run under the
microwave oven or over any hot or sharp surfaces.
• Ensure that the socket is readily accessible so that it can be easily unplugged in case of
emergency.
• Do not use the microwave oven outdoors.
• The appliance must be grounded. The oven is equipped with a cord having a grounding
wire with a grounding plug. It must be plugged into a wall socket that is properly installed
and grounded as it reduces the risk of electric shock in case of short circuit. Using a high
voltage is dangerous and may result in a fire or other accidents causing the oven
damage.
NOTE: Improper use of the grounding plug can result in a risk of electric shock. The
microwave oven should be operated on a separate circuit from other appliances. Failure to
do so may cause the power board fuse to blow, and or food to cook slower.
How to use your Microwave Oven :-
The appliance is intended to heat, cook or dry food for indoor household use only.
• Arrange the food carefully. Place the thickest area towards the outside of the dish.
• Watch the cooking time. Cook for the shortest amount of time and add more as required.
Food severely overcooked can smoke or ignite thereby causing damage.
• Ensure that you cover your food while cooking. Covers prevent splattering and the food
cooks evenly.
• Turn the food over once
during the cycle to speed
cooking of foods such as
chicken and burgers. Large
items like roasts must be
turned over at least once.
• Rearrange foods such as
meat balls halfway through
the cooking cycle both from

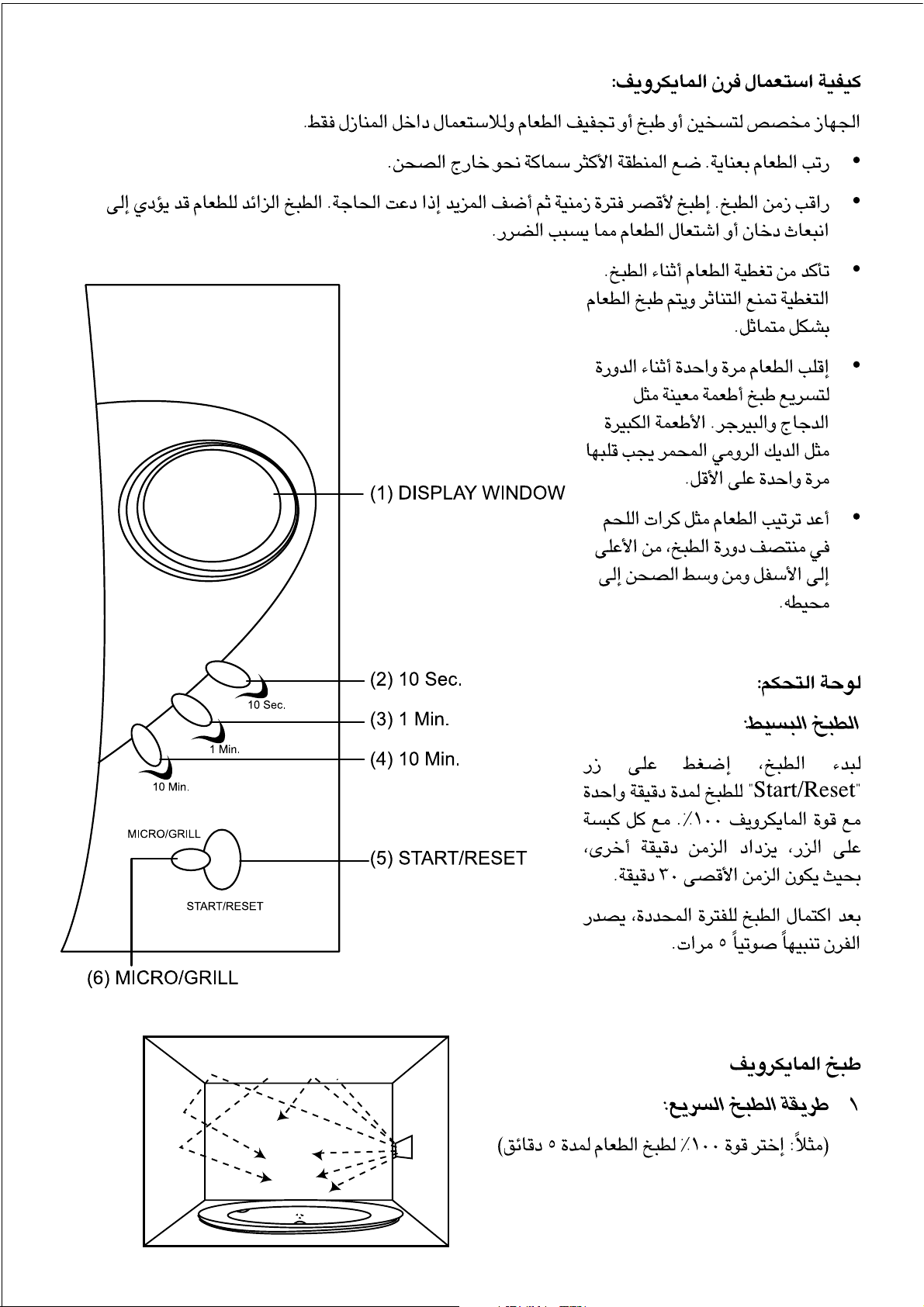

(1) DISPLAY WINDOW
top to bottom and center of
the dish to the outside.
CONTROL PANEL:-
Simple Cooking:
To start cooking press
Start/Reset button to start
cooking for 1 min. with 100%
microwave power. With each
press of the button the time
increases by another minute,
the maximum time being 30
minutes.
After cooking is complete for
the specified time then the oven
will sound 5 beeps as a
reminder.
Microwave Cooking
1Min.
10 Min.
MICRO/GRILL
START/RESET
(6) MICRO/GRILL
(2) 10 Sec.
10 Sec.
(3) 1 Min.
(4) 10 Min.
(5) START/RESET
1. Fast Cooking Method:-
( eg : Select 100% power to cook
foods for 5 minutes)
a. Set the time to "5:00" by pressing the 1 min. button five times.
b. Press the Start/reset button.

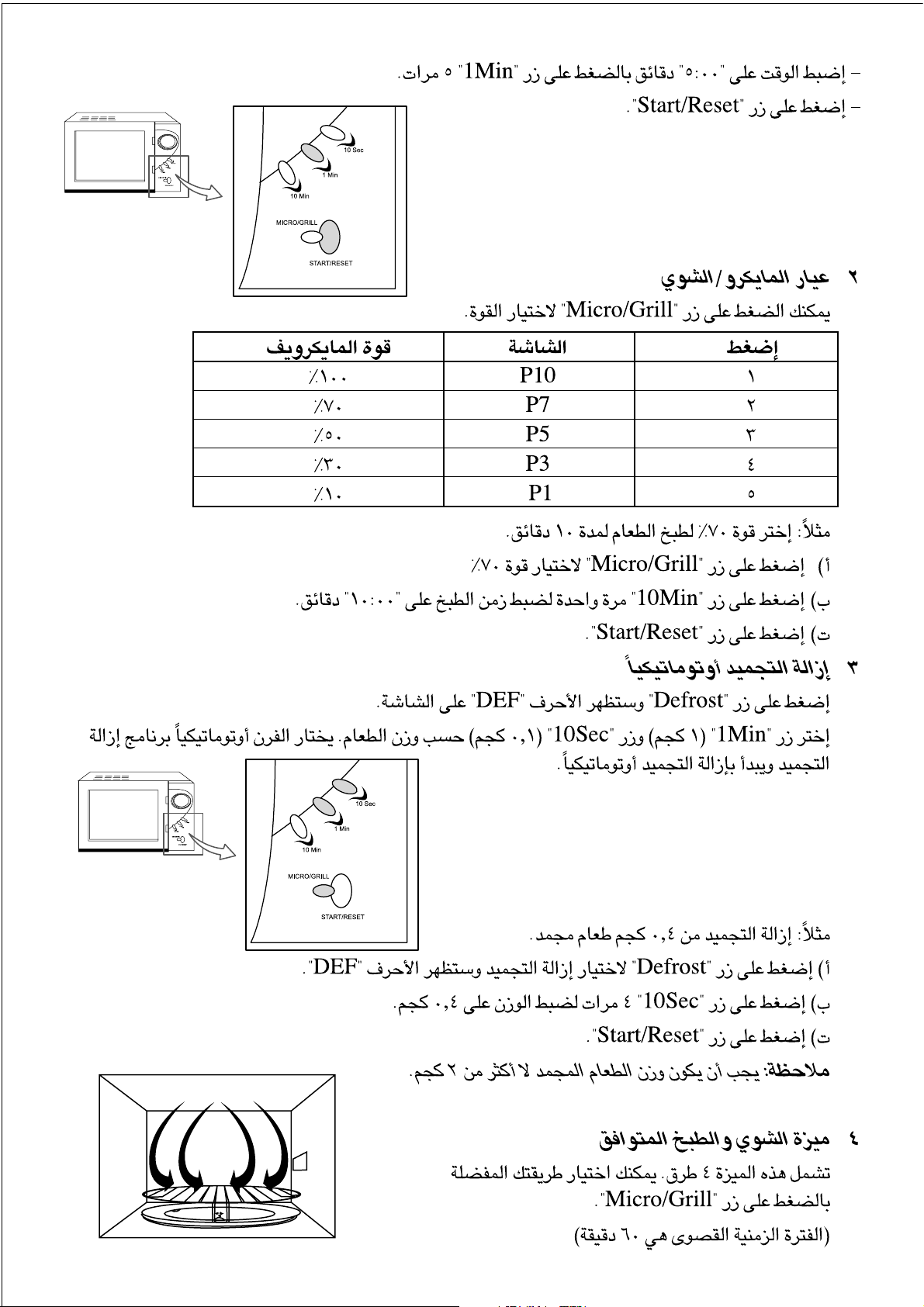

2. Micro/Grill setting:-
You can press Micro/Grill button to select power.
Press Display Micro Power
1 P10 100%
2 P7 70%
3 P5 50%
4 P3 30%
5 P1 10%
Eg : Select 70% power to cook foods for 10 minutes
a. press "Micro/Grill" button to select 70% power
b. press 10 min. time button once to set cooking time "10:00"
10Sec
1Min
10Min
MICRO/GRILL
START/RESET
10 Min
MICRO/GRILL
10 Sec
1Min
START/RESET
c. Press "Start/Reset" Button.
3. Auto Defrost Function:-
Press the Micro/Grill button till it displays "DEF" on the display screen.
Please select the "1min" button ( 1Kg) and 10 sec button (0.1 Kg) according to the weight of the
food. The oven will automatically select the defrosting program and auto start defrosting.
10Sec
1Min
10Min
MICRO/GRILL
START/RESET
10 Min
MICRO/GRILL
10 Sec
1Min
Eg : defrost 0.4Kg frozen foods
a. Press "Micro/Grill" button to choose defrost function,
START/RESET
display will show "DEF".
b. Press "10 Sec" button four times to set the weight as 0.4kg
c. Press Start/Reset Button.
Note: The Oven is programmed for a maximum weight of 2Kgs.

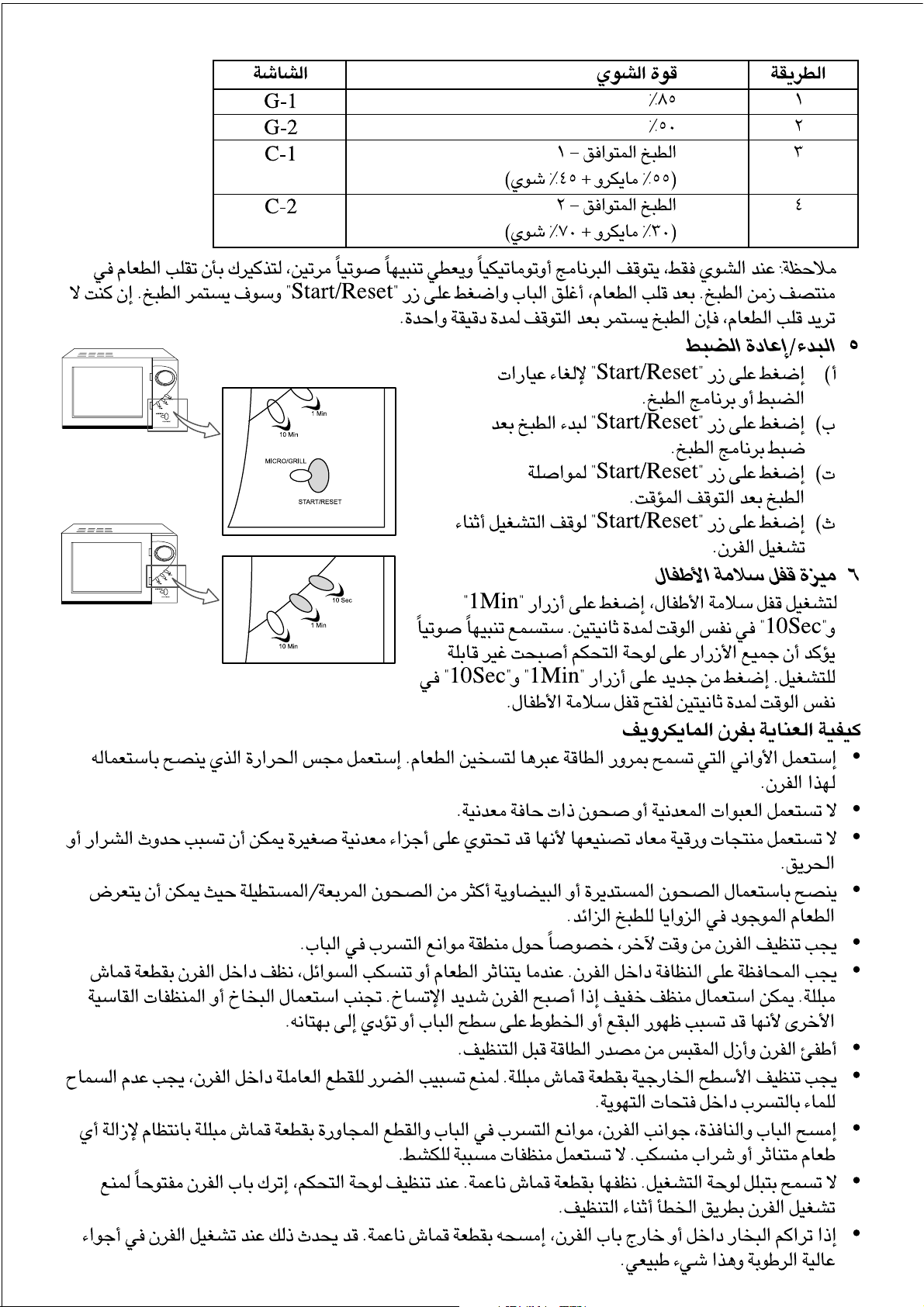

4. Grill & Combination Cooking function:-
This function has four modes. You can choose the favourite
mode by pressing the "Micro/Grill" button.
(The maximum time limit is 60 minutes)
