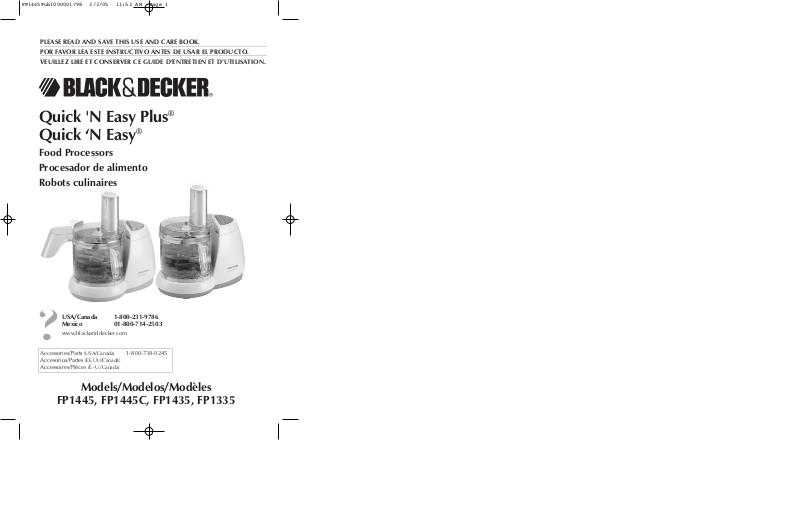

Black & Decker FP1445 User Manual 2

Models/Modelos/Modèles

FP1445, FP1445C, FP1435, FP1335

USA/Canada 1-800-231-9786 Mexico 01-800-714-2503

www.blackanddecker.com

Accessories/Parts

(USA/Canada) 1-800-738-0245

Accesorios/Partes

(EE.UU/Canadá)

Accessoires/Pièces (É.-U./Canada)

PLEASE READ AND SAVE THIS USE AND CARE BOOK. POR FAVOR LEA ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO. VEUILLEZ LIRE ET CONSERVER CE GUIDE D’ENTRETIEN ET D’UTILISATION.

Quick 'N Easy Plus

Quick ‘N Easy

Food Processors Procesador de alimento Robots culinaires

FP1445Pub1000001798 3/3/05 11:53 AM Page 1

When using electrical appliances, basic safety precautions should always be followed, including the following.

❑

Read all instructions.

❑

To protect against risk of electrical shock, do not put base, cord, or plug in water or other liquid.

❑

Close supervision is necessary when any appliance is used by or near children.

❑

Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.

❑

Avoid contacting moving parts.

❑

Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment. Or, call the appropriate toll-free number listed on the cover of this manual.

❑

The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.

❑

Do not use outdoors.

❑

Do not let cord hang over edge of table or counter.

❑

Keep hands and utensils away from moving blades or discs while processing food to prevent the possibility of severe personal injury or damage to the food processor. A scraper may be used, but it must be used only when the food processor is not running.

❑

Blades are sharp. Handle carefully.

❑

To reduce the risk of injury, never place cutting blade or discs on base without first putting bowl properly in place.

❑

Be certain cover is securely locked in place before operating appliance.

❑

Never feed food into chute by hand. Always use food pusher.

❑

Do not attempt to defeat the cover interlock mechanism.

❑

Do not use appliance for other than intended use.

IMPORTANT SAFEGUARDS

SAVE THESE INSTRUCTIONS.

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way

TAMPER-RESISTANT SCREW Warning : This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should

be done only by authorized service personnel.

ELECTRICAL CORD

The cord of this appliance was selected to reduce the possibility of tangling in or tripping over a longer cord. If more length is needed, use an extension cord rated no less than 15 amperes. (For 220 volts rated products, use an extension cord rated no less than 6 amperes.) When using an extension cord, do not let it drape over the working area or dangle where someone could accidentally trip over it. Handle cord carefully for longer life; avoid jerking or straining it at outlet and appliance connections.

NOTE: If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

FP1445Pub1000001798 3/3/05 11:53 AM Page 2

†1.Continuous flow side chute

Models FP1445, FP1445C, FP1435 (Part# FP1445-01)

†2.Continuous flow stopper,

Models FP1445, FP1445C, FP1435 (Part# FP1445-02) †3.Food pusher (Part# FP1445-03) †4.Food fingers (Part# FP1445-04)

5. Food chute

†6.Cover with continuous food chute

Models FP1445, FP1445C, FP1435 (Part# FP1445-05 )

Cover without continuous food chute Model FP1335 (Part# FP1335-05)

7. Tab †8.Slice/shred disc (Part# FP1445-10) †9.Continuous flow discharge disc

Models FP1445, FP1445C, FP1435 (Part# FP1445-06)

†10. Chopping blade (Part# FP1445-07)

11. Hi and Lo speed control

12. Off/Pulse control

13. Center post

14. Base †15. 8-Cup (1920 ml) container (Part# FP1445-08) †16. Disc stem (Part# FP1445-09) †17. Storage lid

Models FP1445, 1445C (Part# FP1445-11)

†Consumer replaceable

Product may vary slightly from what is illustrated.

How to Use

This product is for household use only.

• Before first use, unpack the product and remove packing material. Handle sharp chopping blade and slice/shred disc carefully.

•Wash all parts except base.

Note: Do not attempt to chop ice in this food processor; it will damage container and dull chopping blade. This unit will not whip cream, beat egg whites to a desirable volume, grind coffee beans or spices with a high oil content, or slice or shred hard-cooked eggs, marshmallows, or soft cheeses.

CONTROLS HI or LO — When these buttons are pressed, unit runs continuously until OFF

button is pressed.

OFF — Processor should always be left in OFF position when unit is not in use. PULSE — PULSE position must be pressed and held for unit to operate. When

released, unit will stop. Use PULSE for short processing tasks, such as chopping nuts, raw meats, or vegetables. This lets you check processed results and control the fineness.

Important: For your protection, this unit has an Interlock system. The processor won't operate unless container is properly locked onto base (see illustration on the base). The tab on cover must be correctly locked into the slot on base. Be sure cover is turned fully into slot toward LOCK until you hear it click into place. Do not attempt to operate unit without container and cover correctly locked in place. Be sure base is on a flat, dry, clean surface before you begin processing.

TO SLICE OR SHRED

1. Place container over center post in base with handle at left. Turn container towards base until it drops down into place. Snap container in towards base and be sure the locking tab locks into place (A).

2. To process into a serving/mixing bowl using continuous flow food chute (Models FP1445, FP1445C, FP1435), place disc stem onto center post in container (B) and slip the continuous flow discharge disc onto the stem.

Note: Be sure you have the appropriate side of discharge disc up for leafy or other vegetables. The tabs on the disc should be up for leafy vegetables.

To process directly into included container, place the disc stem onto the center post in the container, then grasp the slice/shred disc by its hub with the (slice or shred) up and push it down onto the disc stem.

3. Place food chute/cover onto container so that its tab is facing down towards base. Twist food chute/cover in toward base to LOCK until you hear it click into place.

4. For models FP1445, FP1445C and FP1435 make sure food stopper is in place.

5. Plug cord into an electrical outlet.

6. Fill food chute with food and position the pusher over food.

7. Select HI or LO speed, then press down lightly but firmly on food pusher. For pulse control push the PULSE button.



































FP1445Pub1000001798 3/3/05 11:53 AM Page 4

Note: Let processor do the work. Heavy pressure will not speed up operation

8. After processing food, press the control to OFF or release pulse control. Allow disc to stop rotating. Twist food chute/cover toward UNLOCK to remove.

9. Carefully pull slice/shred disc and discharge disc if used, off the stem, remove stem, unlock container by turning it away from its base, and lift container off.

TO USE THE CHOPPING BLADE

1. Place container over center post in base with handle at the left. Turn container towards base until it drops down into place. Snap bowl in towards base and be sure locking tab locks into place (A).

2. Grasp chopping blade by its center shaft and slide it down onto center post (B).

3. Place food chute/cover onto container so that its tab is facing base. Twist food chute/cover in toward base to LOCK until you hear it click into place.

4. Plug cord into an electrical outlet.

5. Place food into container.

6. Press HI, LO or PULSE. When pulsing, hold pulse position for about 2-3 seconds. Check results and repeat for desired consistency. It is better to use several short operations rather than a single long one unless mixing ingredients that require longer processing times.

7. After processing food, press control to OFF or release PULSE button. Allow chopping blade to stop rotating. Twist food chute/cover toward UNLOCK to remove cover.

8. Grasp blade by its shaft and remove. Unlock container by turning it away from its base, and lift it off. Empty the processed food.

FOOD PROCESSING TIPS Liquids

• Hot liquids (not boiling) and hot foods can be processed in container.

• Be sure to process small amounts of liquids — 3 cups or less at a time. Larger amounts may leak from container.

Meat

• When using the chopping blade for processing meat, cut the meat into 1" (25.4mm) cubes. Do not put more than 10.5 ounces (300g) of meat into the container at a time.

Food Size, Preparation and Loading

• When using different foods in a recipe, process dry ingredients first and moist ingredients later. This reduces the number of times container must be washed and dried.

•You can use the disc in combination with the chopping blade. Just position chopping blade in bowl and press slice/shred disc with desired side (slice or shred) down onto hub of chopping blade. Using the 2 parts together can eliminate having to pre-cut foods into cubes — perfect when shredding and chopping cheese such as parmesan to get a finer grated result.

Clogging in the continuous flow side chute (Models FP1445, FP1445C, FP1435)

Occasionally sliced or shredded food may clog in the side chute. Follow these tips to avoid clogging:

• Be sure the stopper is removed entirely when using continuous flow side chute. It is normal for some pieces to fall into processor container.

• Use a large serving bowl to help catch spatter from side chute and turn bowl as it fills to prevent food buildup in the exit chute.

• Be sure to use correct side of discharge disc — for leafy vegetables (lettuce, cabbage, etc.) use tall tab side up; For slicing and shredding other foods, use short tab side up.

• Clip the food fingers inside the food chute to keep food from tilting and help achieve even slices.

• If clogging does occur, never stick anything up chute to try to dislodge food. Shut off and unplug unit. Then unscrew cover/food chute to clear a blockage.

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

Note: Do not attempt to sharpen the cutting edges of the blades or discs. They are permanently sharpened at the factory and will be ruined by attempted sharpening.

CLEANING

1. Before cleaning, be sure unit is off and cord is unplugged.

2. Whenever possible, rinse parts immediately after processing for easy cleanup.

3. Wipe base and feet with a damp cloth and dry thoroughly. Stubborn spots can be removed by rubbing with a damp cloth and a mild, non-abrasive cleaner. Do not immerse base in liquid.

4. All removable parts can be washed by hand or in a dishwasher. To remove food fingers, pull up on clip portion.

• If washing by hand, wash in sudsy water, rinse, and dry thoroughly. If necessary, use a small nylon bristle brush to thoroughly clean container and food chute, continuous flow side chute /cover.

• If washing in a dishwasher, place removable parts on top rack only — not in or near utensil basket.

• Some staining of parts may occur. Use a paste of 2 tablespoons baking soda/ 1 tablespoon water. Then apply to stains and let stand overnight. Rinse and dry.

5. Do not use rough scouring pads or cleansers on any plastic or metal parts.

6. Do not allow blades, or discs to soak in water for long periods of time.

Storage

For keeping just processed foods fresh use the included storage lid (models FP1445 and FP1445C).

FP1445Pub1000001798 3/3/05 11:53 AM Page 6

Cuando se usan aparatos eléctricos, se debe de tomar ciertas precauciones incluyendo las siguientes:

❑

Por favor lea todas las instrucciones.

❑

A fin de protegerse contra el riesgo de un choque eléctrico, no coloque la base, el cable, ni el enchufe en agua ni en ningún otro líquido.

❑

El uso de todo aparato eléctrico utilizado por o en la presencia de los niños requiere la supervisión de un adulto.

❑

Desconecte el aparato de la toma de corriente cuando no esté en uso, cuando le quite o le ponga piezas y antes de limpiarlo.

❑

Evite el contacto con las piezas móviles.

❑

No utilice ningún aparato eléctrico si el cable o el enchufe están dañados, si el aparato no funciona, si este se ha dejado caer o presenta cualquier daño. Devuelva el producto al centro de servicio autorizado más cercano a fin de que lo examinen, reparen o realicen cualquier ajuste electrónico o mecánico. Puede también llamar al número gratis correspondiente que aparece en la portada de este manual.

❑

El uso de accesorios no recomendados ni a la venta por el fabricante puede ocasionar incendio, choque eléctrico o lesiones personales.

❑

No utilice este aparato a la intemperie.

❑

No permita que el cable cuelgue del borde de la mesa o del mostrador.

❑

Mantenga las manos y los utensilios alejados de las cuchillas o de los discos en movimiento mientras procesa los alimentos, a fin de prevenir serias lesiones personales o daño al mismo procesador. Uno puede utilizar utensilios siempre que el aparato no se encuentre en funcionamiento.

❑

Las cuchillas tienen filo y uno debe manejarlas con cuidado.

❑

A fin de reducir el riesgo de lesiones, nunca coloque la cuchilla de cortar ni los discos sobre la base, sin antes haber instalado bien el recipiente en su lugar.

❑

Asegúrese que la tapa esté cerrada debidamente antes de utilizar el aparato.

❑

Nunca introduzca los alimentos adentro del conducto con la mano. Utilice el empujador de alimentos.

❑

No trate de alterar el mecanismo de entrecierre de la tapa.

❑

Este aparato se deberá utilizar solamente con el fin previsto.

INSTRUCCIONES IMPORTANTES

DE SEGURIDAD

CONSERVE ESTAS

INSTRUCCIONES.

ENCHUFE POLARIZADO

Este aparato cuenta con un enchufe polarizado (un contacto es más ancho que el otro). A fin de reducir el riesgo de un choque eléctrico, este enchufe encaja en una toma de corriente polarizada en un solo sentido. Si el enchufe no entra en la toma de corriente, inviértalo y si aun así no encaja, consulte con un electricista. Por favor no trate de alterar esta medida de seguridad.

TORNILLO DE SEGURIDAD

Advertencia: Este aparato cuenta con un tornillo de seguridad para evitar la

remoción de la cubierta exterior del mismo. A fin de reducir el riesgo de incendio o de choque eléctrico, por favor no trate de remover la cubierta exterior. Este producto no contiene piezas reparables por el consumidor. Toda reparación se debe llevar a cabo únicamente por personal de servicio autorizado.

CABLE ELÉCTRICO

El cable de este aparato fue escogido a fin de evitar el riesgo de enredarse o de tropezar con un cable de mayor longitud. Cualquier cable de extensión que se deba emplear, deberá estar calificado para nada menor de 15 amperios. (Para aquellos productos de 220 voltios, se deberá utilizar un cable de extensión no menor de 6 amperios.) Cuando utilice un cable de extensión, asegúrese que no interfiera con la superficie de trabajo ni que cuelgue de manera que alguien se pueda tropezar. A fin de aumentar la vida útil del cable, no tire de él ni maltrate las uniones del cable con el enchufe ni con el aparato.

NOTA: Si el cordón de alimentación es dañado, éste debe ser reemplazado por el fabricante o su agente de servicio o por personal calificado para evitar el riesgo.

FP1445Pub1000001798 3/3/05 11:53 AM Page 8
