Black & Decker BWE15A, BWE25A, BWE18A User Manual

Please Read and Save this Use & Care Book Por favor Jea este instructivo antes de usar el producto

VeuiJJez Jire et conserver ce guide d'entrefien et d'ufilisafion

ROOM AIR CONDITIONER

BWE15A _ BWE18A _ BWE25A

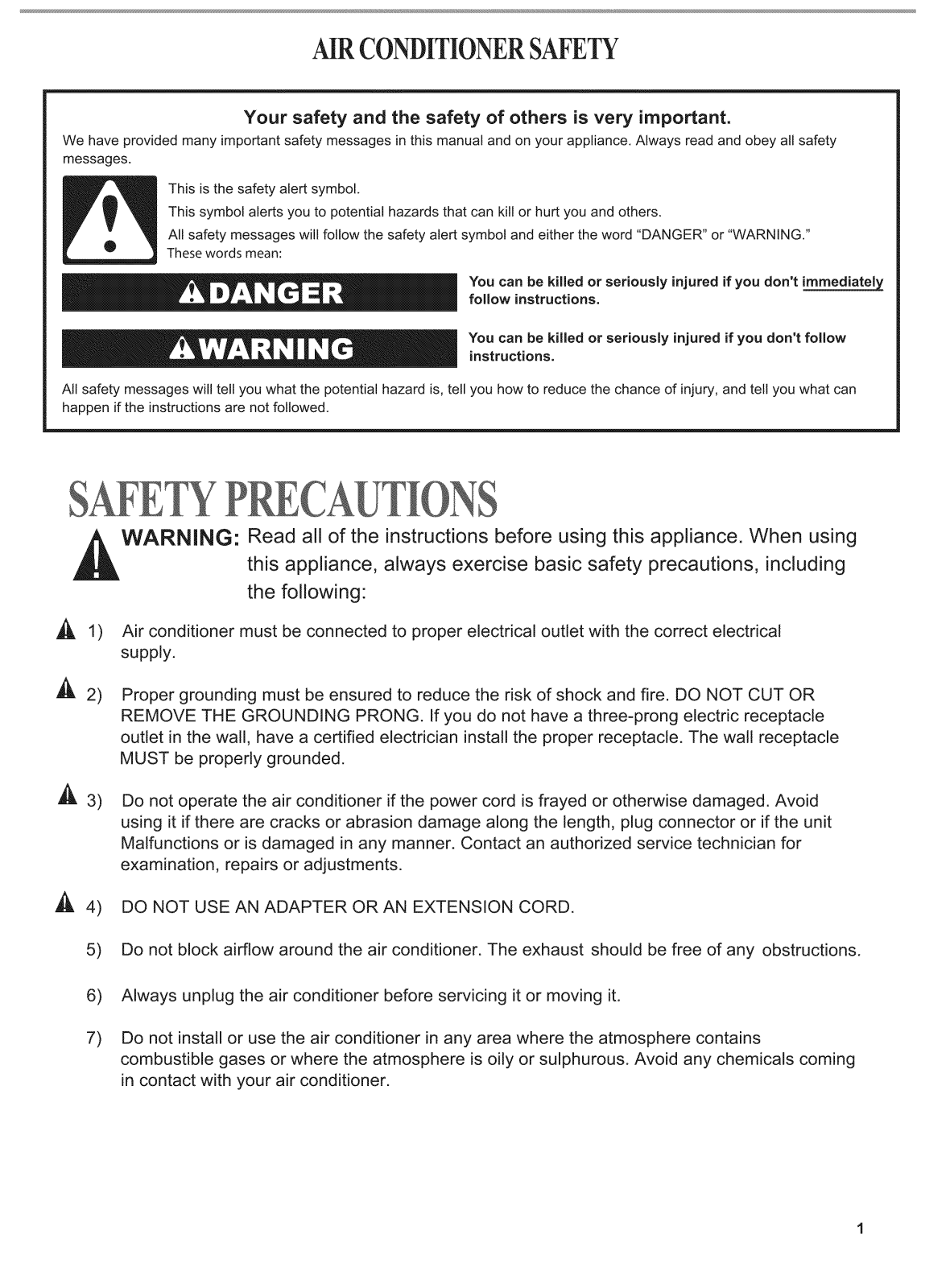

AIRCONDITIONERSAFETY

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately follow instructions,

You can be killed or seriously injured if you don't follow

instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

WARNING: ead all of the instructions before using this appliance. When using

this appliance, always exercise basic safety precautions, including the following:

1) Air conditioner must be connected to proper electrical outlet with the correct electrical supply.

Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR

REMOVE THE GROUNDING PRONG. If you do not have a three=prong electric receptacle

outlet in the wall, have a certified electrician install the proper receptacle. The wall receptacle MUST be properly grounded.

Do not operate the air conditioner if the power cord is frayed or otherwise damaged. Avoid

using it if there are cracks or abrasion damage along the length, plug connector or if the unit Malfunctions or is damaged in any manner. Contact an authorized service technician for

examination, repairs or adjustments.

_IL 4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD.

5) Do not block airflow around the air conditioner. The exhaust should be free of any obstructions.

6) Always unplug the air conditioner before servicing it or moving it.

7) Do not install or use the air conditioner in any area where the atmosphere contains combustible gases or where the atmosphere is oily or sulphurous. Avoid any chemicals coming

in contact with your air conditioner.

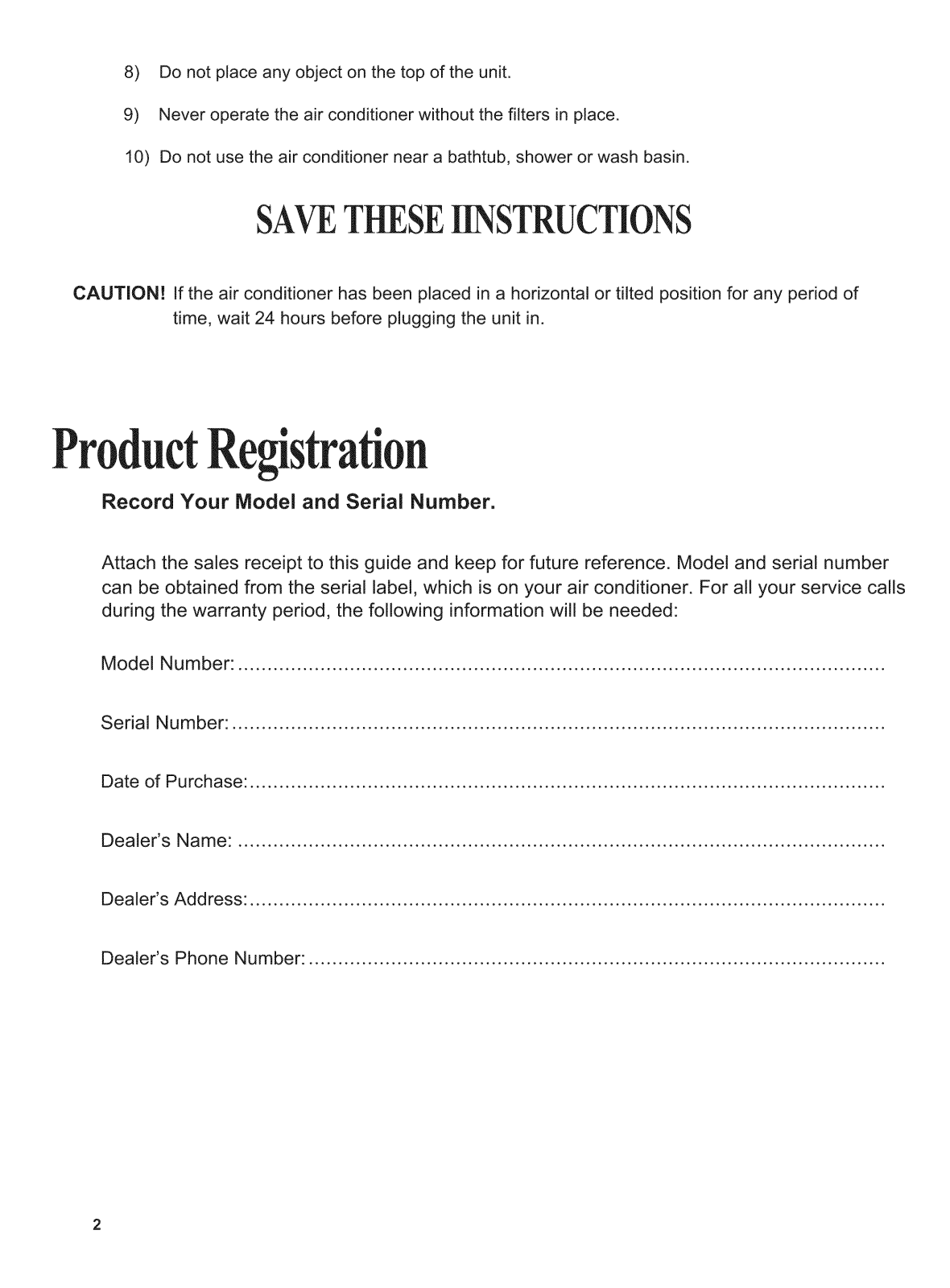

8) Donotplaceanyobjectonthetopoftheunit.

9) Neveroperatetheairconditionerwithoutthefiltersin place.

10) Donotusetheairconditionerneara bathtub,showerorwashbasin.

SAVETHESEHNSTRUCTIONS

CAUTION! If the air conditioner has been placed in a horizontal or tilted position for any period of

time, wait 24 hours before plugging the unit in.

ProductRegistration

Record Your Model and Serial Number.

Attach the sales receipt to this guide and keep for future reference. Model and serial number

can be obtained from the serial label, which is on your air conditioner. For all your service calls during the warranty period, the following information will be needed:

Model Number: ..............................................................................................................

Serial Number: ...............................................................................................................

Date of Purchase: ............................................................................................................

Dealer's Name: ..............................................................................................................

Dealer's Address: ............................................................................................................

Dealer's Phone Number: ..................................................................................................

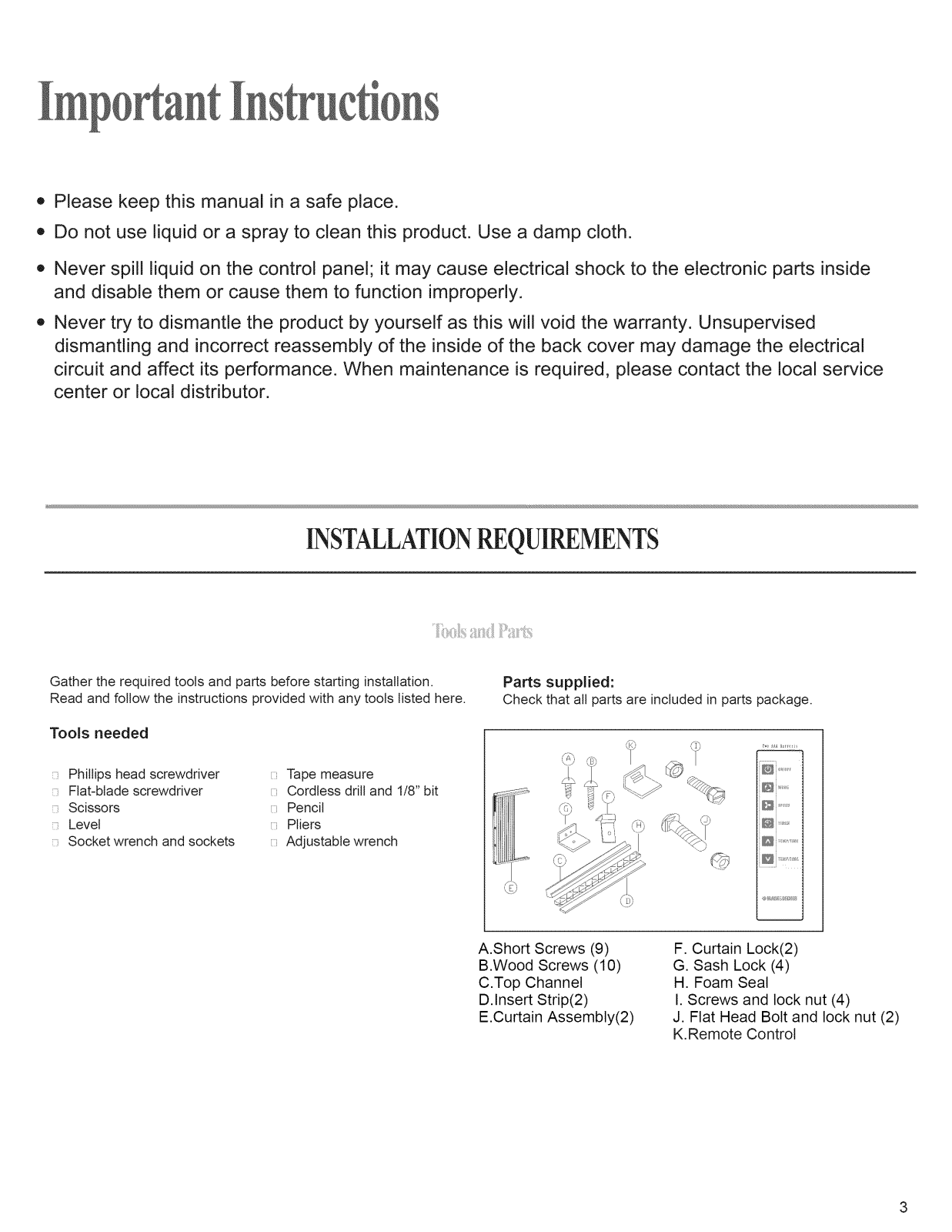

Please keep this manual in a safe place,

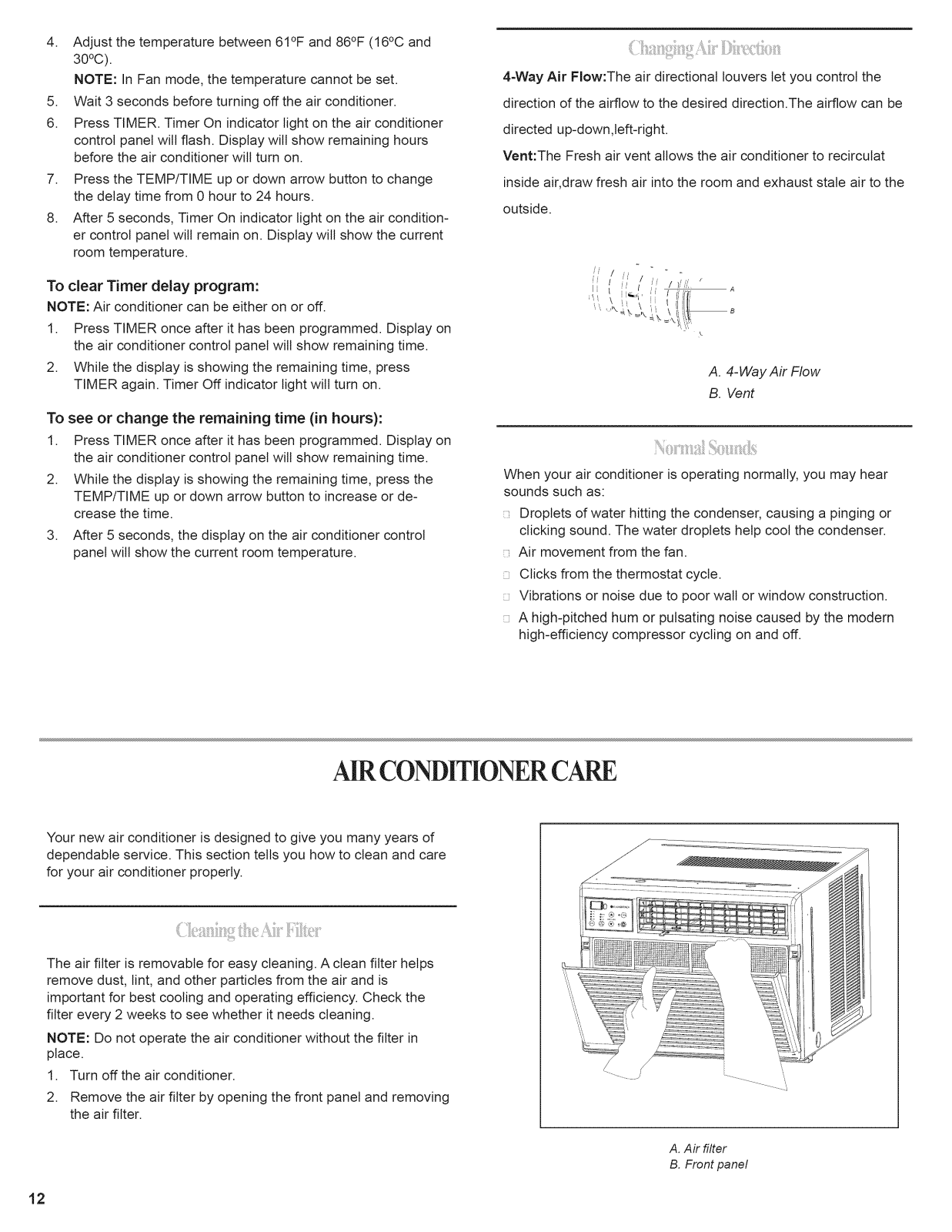

Do not use liquid or a spray to clean this product. Use a damp cloth.

Never spill liquid on the control panel; it may cause electrical shock to the electronic parts inside and disable them or cause them to function improperly.

Never try, to dismantle the product by yourself as this will void the warranty. Unsupervised dismantling and incorrect reassembly of the inside of the back cover may damage the electrical

circuit and affect its performance. When maintenance is required, please contact the local service center or local distributor.

INSTALLATIONREQUIREMENTS

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

Phillips head screwdriver Tape measure Flat-blade screwdriver Cordless drill and 1/8" bit

Scissors : Pencil Level : Pliers

Socket wrench and sockets Adjustable wrench

Parts supplied:

Check that all parts are includedin partspackage.

A.Short Screws (9)

B.Wood Screws (10) C.Top Channel D.Insert Strip(2) E.Curtain Assembly(2)

F. Curtain Lock(2)

G. Sash Lock (4) H. Foam Seal

I. Screws and lock nut (4)

J. Flat Head Bolt and lock nut (2)

K.Remote Control

iB.......i

@........i

, J

! @i?ili:ii;i:i()!:i!::ii!::,i:=!:(:iiili:iiiii_;!)i%ii!%_L!!!i;

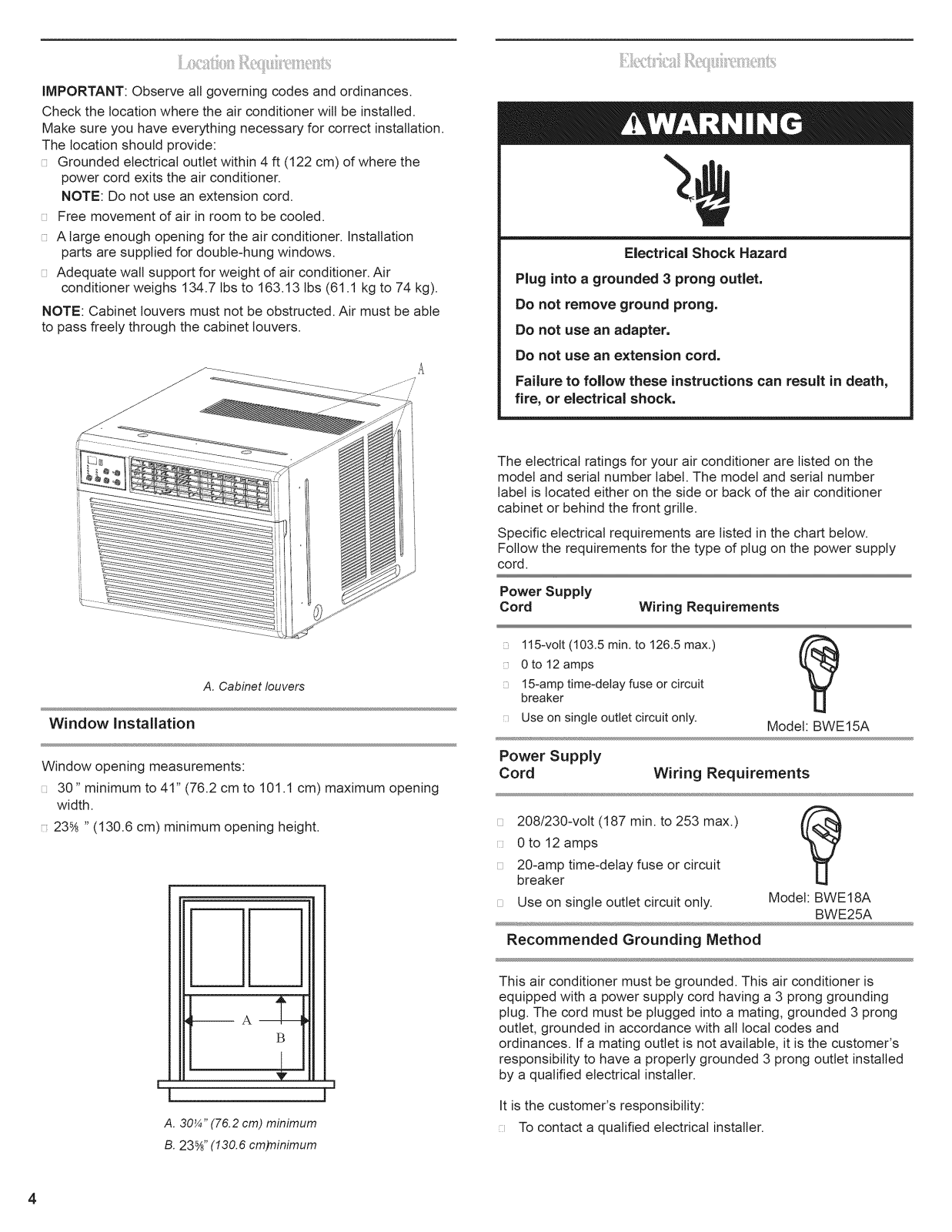

IMPORTANT: Observe all governing codes and ordinances. Check the location where the air conditioner will be installed. Make sure you have everything necessary for correct installation.

The location should provide:

Grounded electrical outlet within 4 ft (122 cm) of where the

power cord exits the air conditioner.

NOTE: Do not use an extension cord.

Free movement of air in room to be cooled.

A large enough opening for the air conditioner. Installation

parts are supplied for double-hung windows.

Adequate walt support for weight of air conditioner. Air

conditioner weighs 134.7 lbs to 163.13 lbs (61.1 kg to 74 kg).

NOTE: Cabinet louvers must not be obstructed. Air must be able to pass freely through the cabinet louvers.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong. Do not use an adapter.

Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

The electrical ratings for your air conditioner are listed on the model and serial number label, The model and serial number label is located either on the side or back of the air conditioner

cabinet or behind the front grille, Specific electrical requirements are listed in the chart below.

Follow the requirements for the type of plug on the power supply cord.

A. Cabinetlouvers

Window Installation

Window opening measurements:

30" minimum to 41" (76.2 cm to 101.1 cm) maximum opening

width.

23% " (130.6 cm) minimum opening height.

__A__t_

[

A. 30_" (76.2 cm) minimum

B. 23s/8"(130.6 cm)*ninimum

Power Supply

Cord Wiring Requirements

115-volt (103,5 min. to 126.5 max,)

0 to 12 amps

15-amp time-delay fuse or circuit

breaker Use on single outlet circuit only.

Model: BWE15A

Power Supply Cord

208/230-volt (187 min. to 253 max.) _'/'_,,1_

0 to 12 amps

:: 20-amp time-delay fuse or circuit

breaker

Use on single outlet circuit only.

Recommended Grounding Method

This air conditioner must be grounded. This air conditioner is equipped with a power supply cord having a 3 prong grounding plug. The cord must be plugged into a mating, grounded 3 prong outlet, grounded in accordance with all local codes and ordinances. If a mating outlet is not available, it is the customer's responsibility to have a properly grounded 3 prong outlet installed by a qualified electrical installer.

It is the customer's responsibility:

To contact a qualified electrical installer.

Wiring Requirements

Model: BWE18A

BWE25A

Power Supply Cord

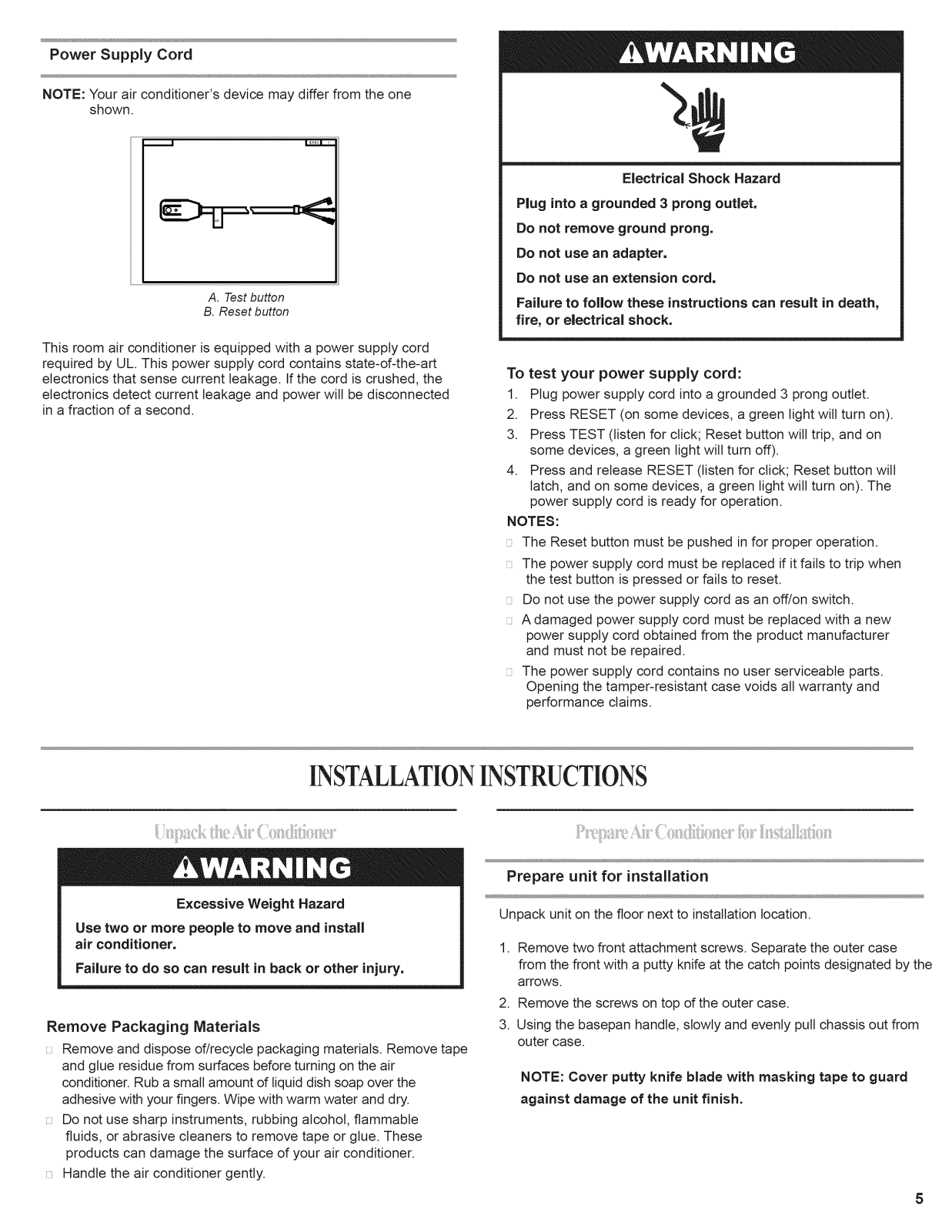

NOTE: Your air conditioner's device may differ from the one

shown,

A. Test button

B. Reset button

This room air conditioner is equipped with a power supply cord required by UL. This power supply cord contains state-of-the-art electronics that sense current leakage. If the cord is crushed, the electronics detect current leakage and power will be disconnected

in a fraction of a second.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet, Do not remove ground prong, Do not use an adapter,

Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

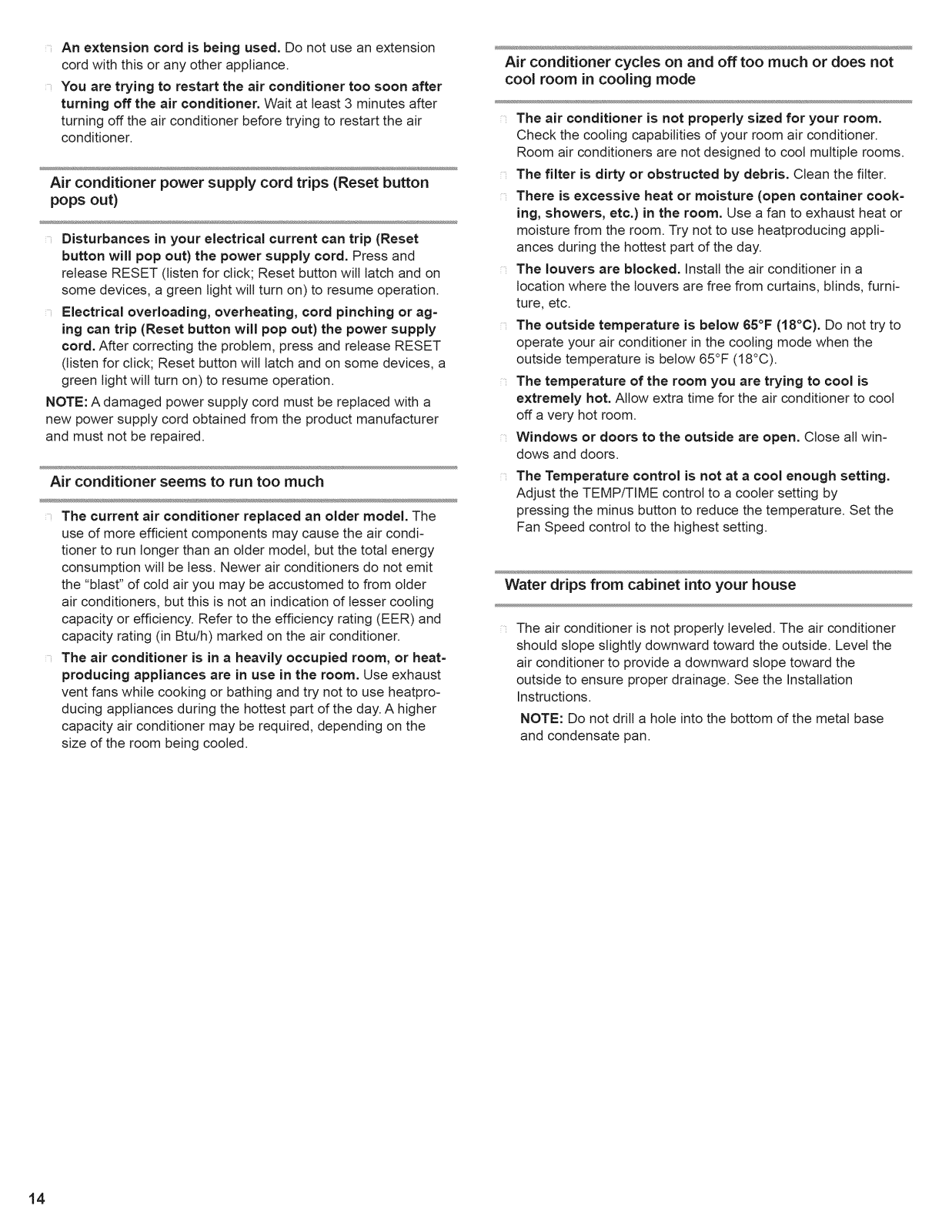

To test your power supply cord:

1. Plug power supply cord into a grounded 3 prong outlet.

2. Press RESET (on some devices, a green light will turn on).

3. Press TEST (listen for click; Reset button will trip, and on some devices, a green light will turn off).

4. Press and release RESET (listen for click; Reset button wilt latch, and on some devices, a green light will turn on). The

power supply cord is ready for operation.

NOTES:

The Reset button must be pushed in for proper operation. The power supply cord must be replaced if it fails to trip when

the test button is pressed or fails to reset.

Do not use the power supply cord as an off/on switch.

A damaged power supply cord must be replaced with a new

power supply cord obtained from the product manufacturer and must not be repaired.

The power supply cord contains no user serviceable parts.

Opening the tamper-resistant case voids all warranty and performance claims.

INSTALLATIONINSTRUCTIONS

Excessive Weight Hazard

Use two or more people to move and install air conditioner.

Failure to do so can result in back or other injury,

Remove Packaging Materials

Remove and dispose of/recycle packaging materials. Remove tape and glue residue from surfaces before turning on the air

conditioner. Rub a small amount d liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your air conditioner.

Handle the air conditioner gently.

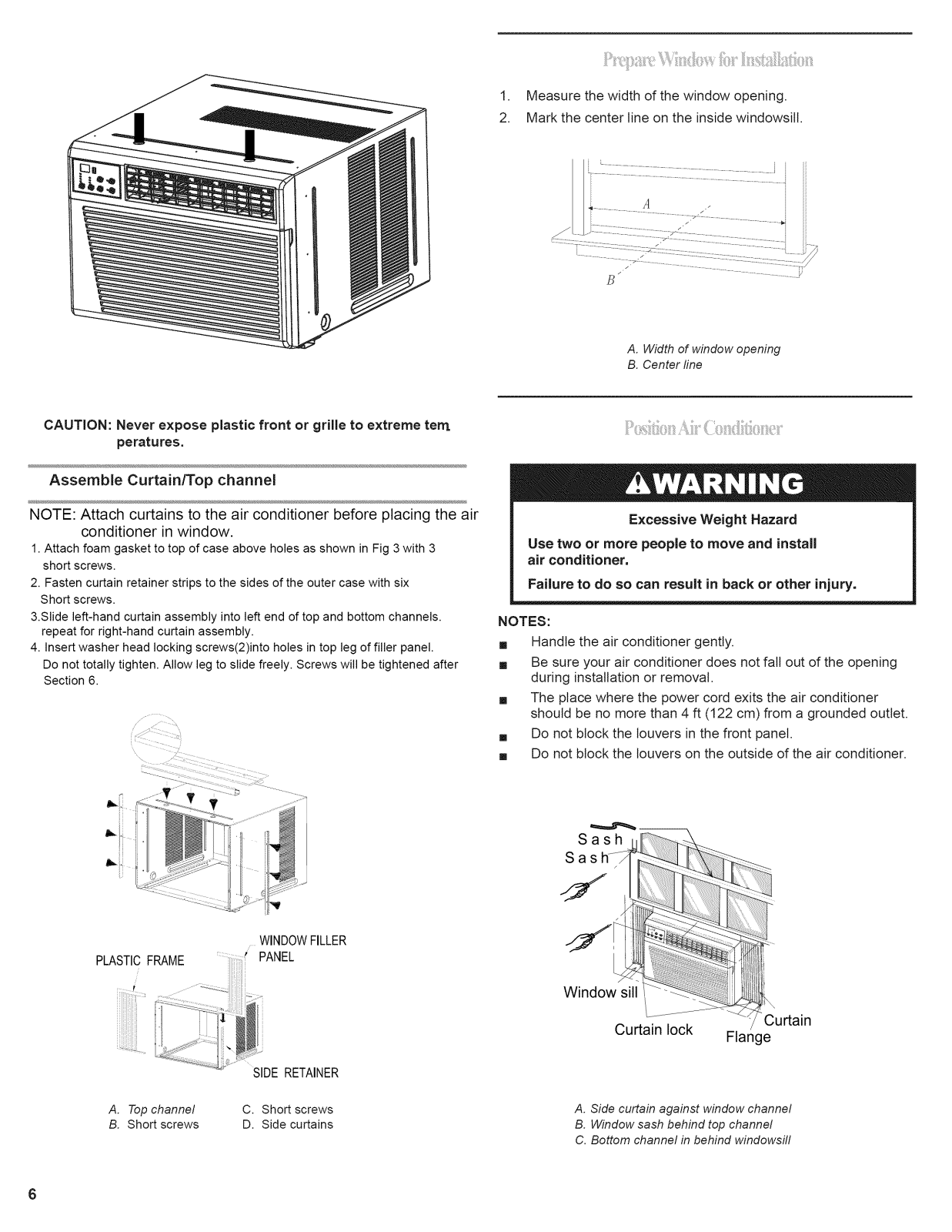

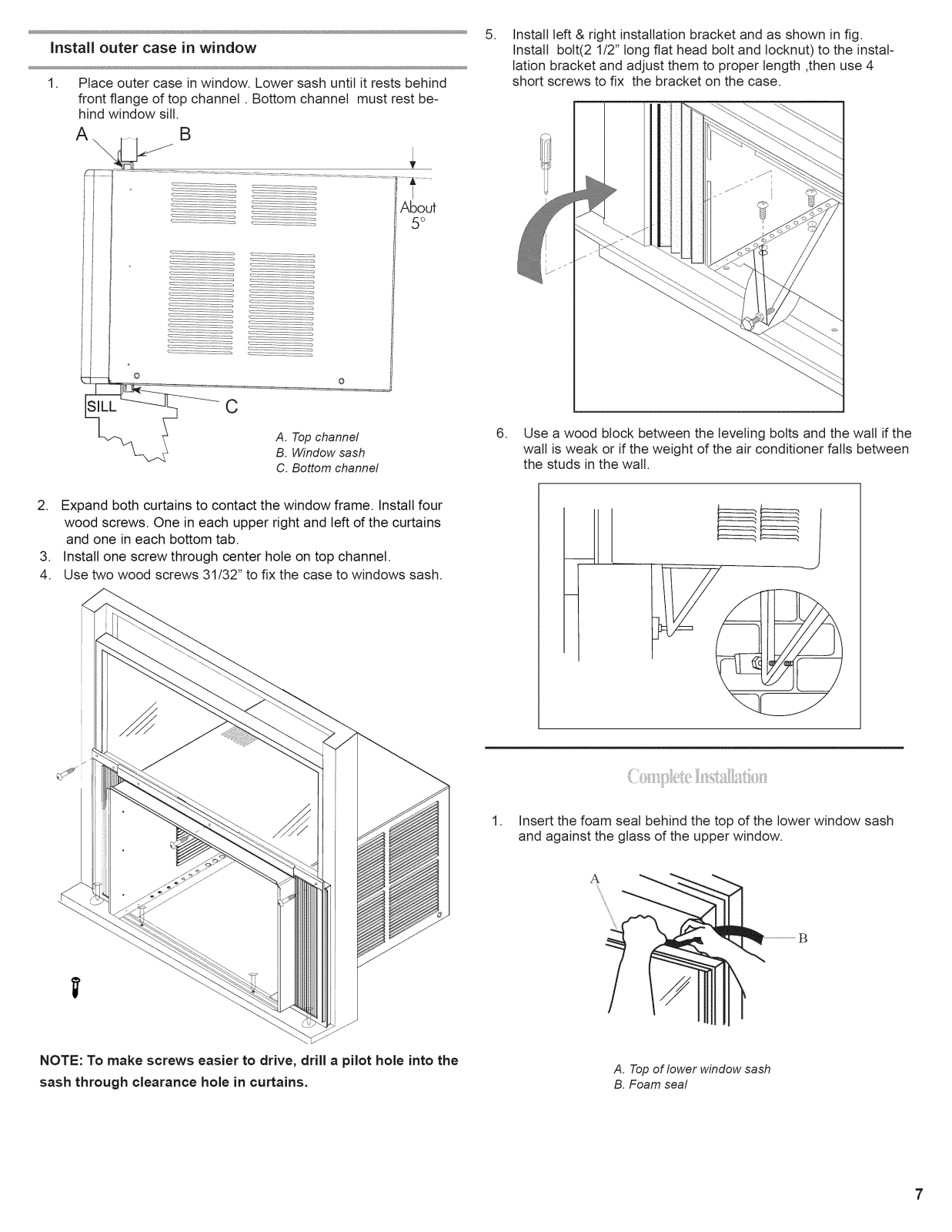

Prepare unit for installation

Unpackunit on thefloor next to installationlocation.

Remove two front attachment screws. Separate the outer case from the front with a putty knife at the catch points designated by the

arrows.

2. Remove the screws on top of the outer case.

3. Using the basepan handle, slowly and evenly pull chassis out from outer case.

NOTE: Cover putty knife blade with masking tape to guard

against damage of the unit finish.
