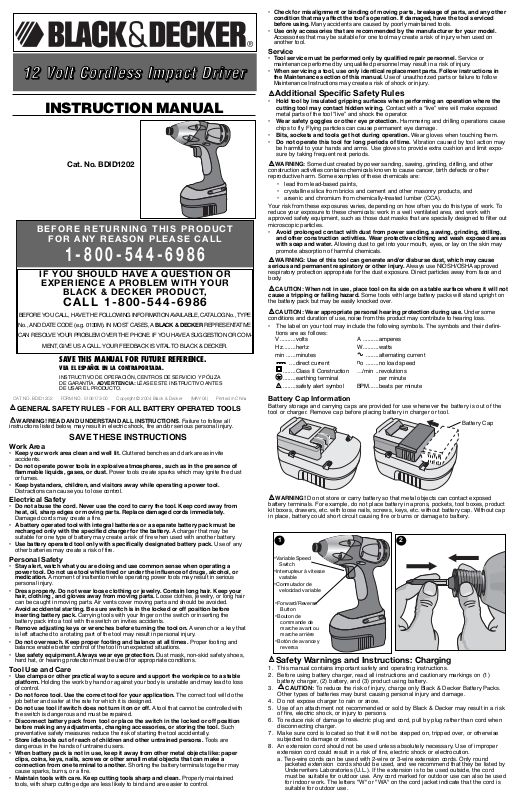

Black & Decker BDID1202, 5106173-00 User Manual

GENERAL SAFETY RULES - FOR ALL BATTERY OPERATED TOOLS

WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all

instructions listed below, may result in electric shock, fire and/or serious personal injury.

SAVE THESE INSTRUCTIONS

Work Area

• Keep your work area clean and well lit. Cluttered benches and dark areas invite

accidents.

• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust

or fumes.

• Keep bystanders, children, and visitors away while operating a power tool.

Distractions can cause you to lose control.

Electrical Safety

• Do not abuse the cord. Never use the cord to carry the tool. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately.

Damaged cords may create a fire.

• A battery operated tool with integral batteries or a separate battery pack must be recharged only with the specified charger for the battery. Acharger that may be

suitable for one type of battery may create a risk of fire when used with another battery.

• Use battery operated tool only with specifically designated battery pack. Use of any other batteries may create a risk of fire.

Personal Safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious

personal injury.

• Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing , and gloves away from moving parts. Loose clothes, jewelry, or long hair

can be caught in moving parts. Air vents cover moving parts and should be avoided.

• Avoid accidental starting. Be sure switch is in the locked or off position before inserting battery pack. Carrying tools with your finger on the switch or inserting the

battery pack into a tool with the switch on invites accidents.

• Remove adjusting keys or wrenches before turning the tool on. Awrench or a key that is left attached to a rotating part of the tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enable better control of the tool in unexpected situations.

• Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions.

Tool Use and Care

• Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss

of control.

• Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.

• Do not use tool if switch does not turn it on or off. Atool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect battery pack from tool or place the switch in the locked or off position before making any adjustments, changing accessories, or storing the tool. Such

preventative safety measures reduce the risk of starting the tool accidentally.

• Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.

• When battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may

cause sparks, burns, or a fire.

• Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools, with sharp cutting edge are less likely to bind and are easier to control.

• Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool’s operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools.

• Use only accessories that are recommended by the manufacturer for your model.

Accessories that may be suitable for one tool may create a risk of injury when used on another tool.

Service

• Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel may result in a risk of injury.

• When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow

Maintenance Instructions may create a risk of shock or injury.

Additional Specific Safety Rules

• Hold tool by insulated gripping surfaces when performing an operation where the

cutting tool may contact hidden wiring. Contact with a “live” wire will make exposed

metal parts of the tool “live” and shock the operator.

• Wear safety goggles or other eye protection. Hammering and drilling operations cause

chips to fly. Flying particles can cause permanent eye damage.

• Bits, sockets and tools get hot during operation. Wear gloves when touching them.

• Do not operate this tool for long periods of time. Vibration caused by tool action may

be harmful to your hands and arms. Use gloves to provide extra cushion and limit exposure by taking frequent rest periods.

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other

construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber (CCA).

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling,

and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may

promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/or disburse dust, which may cause

serious and permanent respiratory or other injury.Always use NIOSH/OSHA approved

respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

CAUTION: When not in use, place tool on its side on a stable surface where it will not

cause a tripping or falling hazard. Some tools with large battery packs will stand upright on

the battery pack but may be easily knocked over.

CAUTION: Wear appropriate personal hearing protection during use. Under some

conditions and duration of use, noise from this product may contribute to hearing loss.

• The label on your tool may include the following symbols. The symbols and their defini-

tions are as follows:

V..........volts A ..........amperes

Hz........hertz W ..........watts

min ......minutes ........alternating current

....direct current

o ........no load speed

........Class II Construction …/min ..revolutions

........earthing terminal ..............per minute

........safety alert symbol BPM......beats per minute

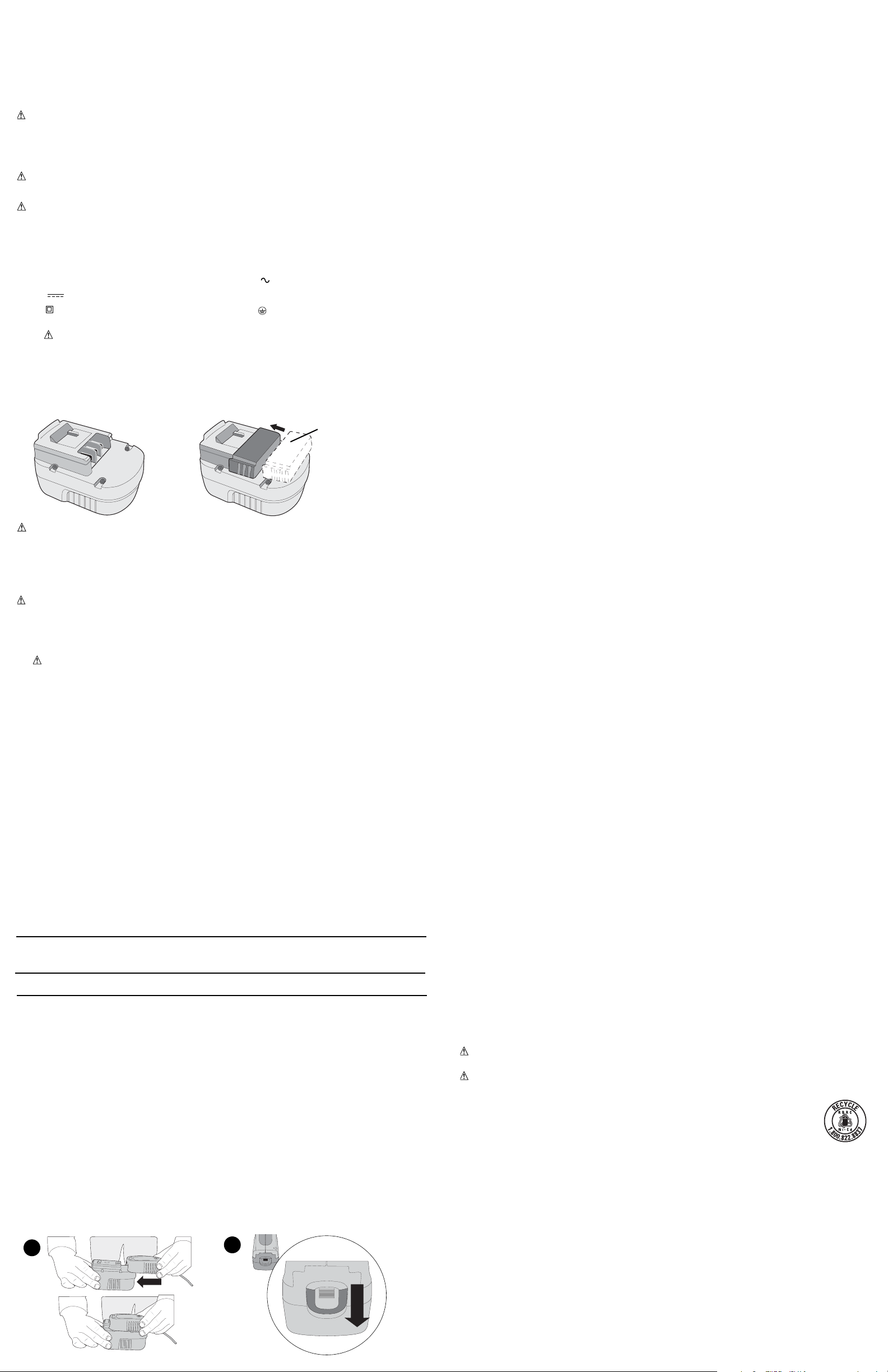

Battery Cap Information

Battery storage and carrying caps are provided for use whenever the battery is out of the tool or charger. Remove cap before placing battery in charger or tool.

WARNING! Do not store or carry battery so that metal objects can contact exposed

battery terminals. For example, do not place battery in aprons, pockets, tool boxes, product kit boxes, drawers, etc. with loose nails, screws, keys, etc. without battery cap. Without cap in place, battery could short circuit causing fire or burns or damage to battery.

INSTRUCTION MANUAL

VEA EL ESPAÑOL EN LA CONTRAPORTADA.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

11112222 VVVVoooolllltttt CCCCoooorrrrddddlllleeeessssssss IIIImmmmppppaaaacccctttt DDDDrrrriiiivvvveeeerr

BEFORE RETURNING THIS PRODUCT

FOR ANY REASON PLEASE CALL

1-800-544-6986

IF YOU SHOULD HAVE A QUESTION OR

EXPERIENCE A PROBLEM WITH YOUR

BLACK & DECKER PRODUCT,

CALL 1-800-544-6986

BEFORE YOU CALL, HAVE THE FOLLOWING INFORMATION AVAILABLE, CATALOG No., TYPE No., AND DATE CODE (e.g. 0130M). IN MOST CASES, A BLACK & DECKER REPRESENTATIVE

CAN RESOLVE YOUR PROBLEM OVER THE PHONE. IF YOU HAVE A SUGGESTION OR COM-

MENT, GIVE US A CALL. YOUR FEEDBACK IS VITAL TO BLACK & DECKER.

Cat. No. BDID1202

•Variable Speed

Switch

•Interrupteur à vitesse

variable

•Conmutador de

velocidad variable

•Forward/Reverse

Button

•Bouton de

commande de marche avant ou marche arrière

•Botón de avance y

reversa

Safety Warnings and Instructions: Charging

1. This manual contains important safety and operating instructions.

2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

3. CAUTION: To reduce the risk of injury, charge only Black & Decker Battery Packs. Other types of batteries may burst causing personal injury and damage.

4. Do not expose charger to rain or snow.

5. Use of an attachment not recommended or sold by Black & Decker may result in a risk of fire, electric shock, or injury to persons.

6. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting charger.

7. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.

8. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire, electric shock or electrocution.

a. Two-wire cords can be used with 2-wire or 3-wire extension cords. Only round

jacketed extension cords should be used, and we recommend that they be listed by Underwriters Laboratories (U.L.). If the extension is to be used outside, the cord must be suitable for outdoor use. Any cord marked for outdoor use can also be used for indoor work. The letters "W" or "WA" on the cord jacket indicate that the cord is suitable for outdoor use.

Battery Cap

IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (other than those listed in this manual) should be performed by authorized service centers or other qualified service organizations, always using identical replacement parts.

Accessories

Recommended accessories for use with your tool are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call:

1-800-54-HOW-TO (544-6986).

WARNING: The use of any accessory not recommended for use with this tool could be

hazardous.

CAUTION: Use only impact sockets. Non-impact sockets may break and cause a

hazardous condition. Inspect sockets prior to use to ensure that it contains no cracks.

The RBRC™ Seal

The RBRC™ (Rechargeable Battery Recycling Corporation) Seal on the nickel-cadmium battery (or battery pack) indicates that the costs to recycle the battery (or battery pack) at the end of its useful life have already been paid by Black & Decker. In some areas, it is illegal to place spent nickel-cadmium batteries in the trash or municipal solid waste stream and the RBRC program provides an environmentally conscious alternative.

RBRC in cooperation with Black & Decker and other battery users, has established programs in the United States and Canada to facilitate the collection of spent nickelcadmium batteries. Help protect our environment and conserve natural resources by returning the spent nickel-cadmium battery to an authorized Black & Decker service center or to your local retailer for

recycling. You may also contact your local recycling center for information on where to drop off the spent battery, or call 1-800-8-BATTERY.

Service Information

All Black & Decker Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the Black & Decker location nearest you. To find your local service location, refer to the yellow page directory under "Tools—Electric" or call:

1-800-544-6986 or visit www.blackanddecker.com

Full Two-Year Home Use Warranty

Black & Decker (U.S.) Inc. warrants this product for two years against any defects in material or workmanship. The defective product will be replaced or repaired at no charge in either of two ways.

The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer’s policy for exchanges (usually 30 to 90 days after the sale). Proof of purchase may be required. Please check with the retailer for their specific return policy regarding returns that are beyond the time set for exchanges.

The second option is to take or send the product (prepaid) to a Black & Decker owned or authorized Service Center for repair or replacement at our option. Proof of purchase may be required. Black & Decker owned and authorized Service Centers are listed under "ToolsElectric" in the yellow pages of the phone directory and available on our website www.blackanddecker.com.

This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state. Should you have any questions, contact the manager of your nearest Black & Decker Service Center. This product is not intended for commercial use.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-544-6986 for a free replacement.

b. An extension cord must have adequate wire size (AWG or American Wire Gauge) for

safety, and to prevent loss of power and overheating. The smaller the gauge number of the wire, the greater the capacity of the cable; that is, 16 gauge has more capacity than 18 gauge. When using more than one extension to make up the total length, be sure each extension contains at least the minimum wire size.

RECOMMENDED MINIMUM WIRE SIZE FOR EXTENSION CORDS

NAMEPLATE RATING AMPS – 0 – 10.0

TOTAL LENGTH OF CORD

25 FT. 50 FT. 75 FT. 100 FT. 125 FT. 150 FT. 175 FT.

7.6 M 15.2 M 22.9 M 30.5 M 38.1 M 45.7 M 53.3 M

WIRE SIZE AWG

18 18 16 16 14 14 12

9. Use only the supplied charger when charging your tool. The use of any other charger could damage the drill or create a hazardous condition.

10. Use only one charger when charging.

11. Do not attempt to open the charger. There are no customer serviceable parts inside. Return to any authorized Black & Decker service center.

12. DO NOT incinerate the battery packs even if they are severely damaged or completely worn out. The batteries can explode in a fire.

13. A small leakage of liquid from the battery cells may occur under extreme usage, charging or temperature conditions. This does not indicate a failure. However, if the outer seal is broken and this leakage gets on your skin:

a. Wash quickly with soap and water. b. Neutralize with a mild acid such as lemon juice or vinegar. c. If the battery liquid gets in your eyes, flush them with clean water for a minimum of

10 minutes and seek immediate medical attention. MEDICAL NOTE: The liquid is a 25-35% solution of potassium hydroxide.

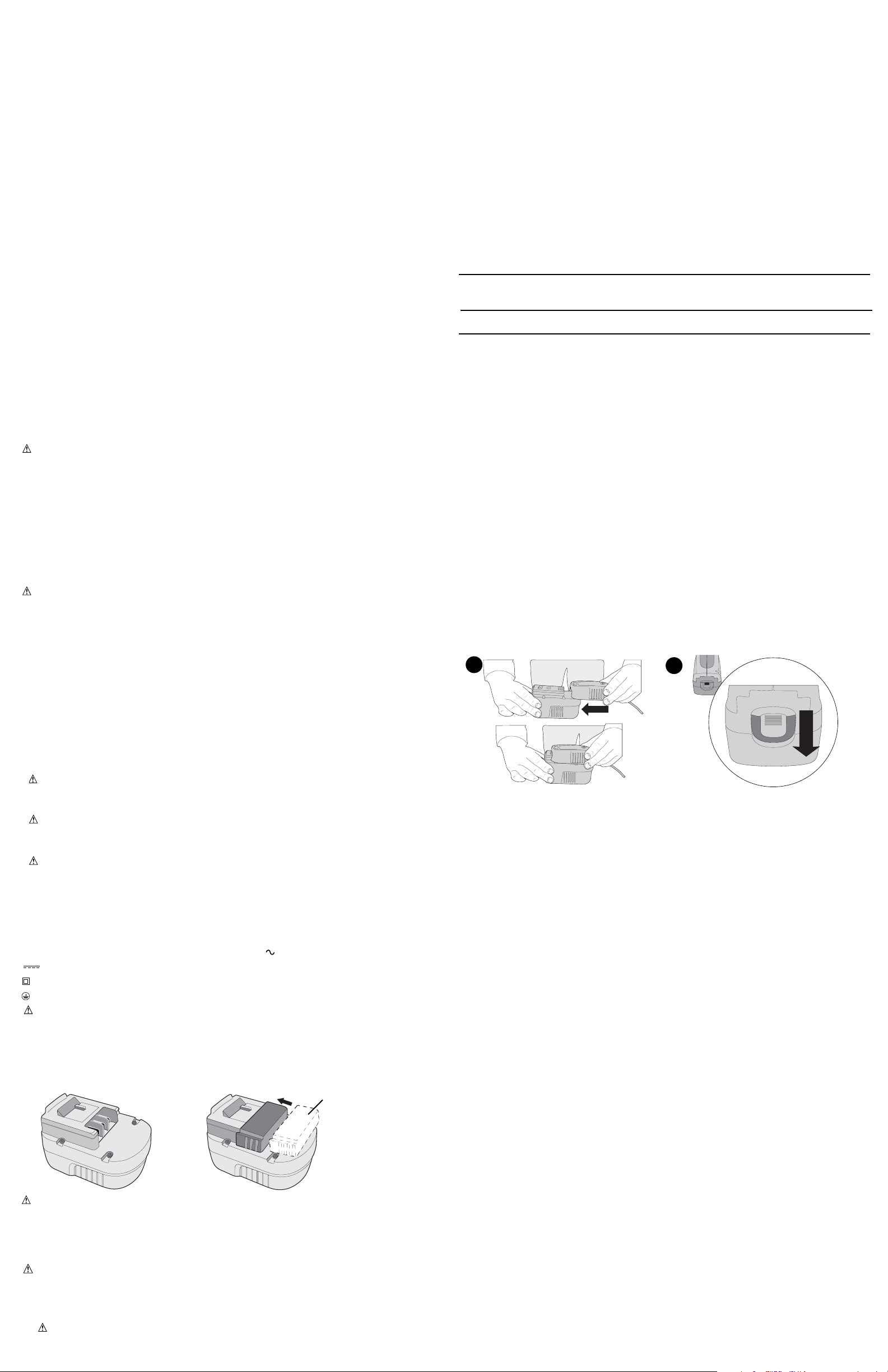

Charging the Battery Pack

THE BATTERY PACK IS NOT FULLY CHARGED AT THE FACTORY. BEFORE ATTEMPTING TO CHARGE THE BATTERY PACK, THOROUGHLY READ ALL OF THE SAFETY INSTRUCTIONS.

The charger is designed to use standard household 120 volt 60 Hz power.

1. Plug the charger into any standard 120 Volt 60 Hz electrical outlet. NOTE: Do not

charge by means of an engine generator or DC power source. Use only 120V AC

2. Slide the charger onto the battery pack as shown in Figure A and let the battery charge initially for 9 hours. After the initial charge, under normal usage, your battery pack should be fully charged in 3 to 6 hours.

3. Unplug charger, and remove the battery pack. Place the battery in the tool and be

certain that it is inserted fully into the tool cavity until it “clicks” into place. NOTE: To remove the battery from the tool, press down on the release button on the

back of the battery (Figure B) and slide out.

Important Charging Notes

1. After normal usage, your battery pack should be fully charged in 3 to 6 hours. If the battery pack is run-down completely, it may take up to 6 hours to become fully charged. Your battery pack was sent from the factory in an uncharged condition. Before attempting to use it, it must be charged for at least 9 hours.

2. DO NOT charge the battery pack in an air temperature below 40°F (4,5 °C) or above 105°F.(40,5 °C) This is important and will prevent serious damage to the battery pack. Longest life and best performance can be obtained if battery pack is charged when air temperature is about 75°F.(24°C).

3. While charging, the charger may hum and become warm to touch. This is a normal condition and does not indicate a problem.

4. If the battery pack does not charge properly—(1) Check current at receptacle by plugging in a lamp or other appliance. (2) Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights. (3) Move charger and battery pack to a surrounding air temperature of 40°F (4,5 °C) to 105°F.(40,5 °C) (4) If the receptacle and temperature are OK, and you do not get proper charging, take or send the battery pack and charger to your local Black & Decker service center. See Tools Electric in yellow pages.

5. The battery pack should be recharged when it fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE using product with its battery pack in a depleted condition.

6. To prolong battery pack life, avoid leaving the battery pack on charge for extended periods of time (over 30 days without use). Although overcharging is not a safety concern, it can significantly reduce overall battery pack life.

7. The battery pack will reach optimum performance after being cycled 5 times during normal usage. There is no need to run the batteries down completely before recharging. Normal usage is the best method of discharging and recharging the batteries.

Maintenance Stage

The trickle charge feature of the charger allows the battery pack to remain in the charger and ready for use. With the charger connected to standard household current, the red charging indicator light will glow constantly. The charger will keep the power pack fully charged. A battery pack will slowly lose its charge when kept out of the charger.

SAVE THESE INSTRUCTIONS

Operation

Variable Speed Trigger Switch (Fig. 1)

To turn the tool on, squeeze the trigger switch. To turn the tool off, release the trigger switch. Your tool is equipped with a brake. The chuck will stop as soon as the trigger switch is fully released. The variable speed switch enables you to select the best speed for a particular application. The more you squeeze the trigger, the faster the tool will operate. Use lower speeds for starting holes without a center punch, drilling in metals or plastics, or driving screws. For maximum tool life, use variable speed only for starting holes or fasteners.

NOTE: Continuous use in variable speed range is not recommended. It may damage the switch and should be avoided.

Forward/Reverse Control Button (FIG. 1)

A forward/reverse control button determines the direction of the tool and also serves as a lock off button. To select forward rotation, release the trigger switch and depress the forward/reverse control button on the right side of the tool. To select reverse, depress the forward/reverse control button on the left side of the tool. The center position of the control button locks the tool in the off position. When changing the position of the control button, be sure the trigger is released.

Quick Release Chuck – (FIG. 2)

NOTE: The chuck accepts 1/4" (6.35 mm) hex accessories only. Place the switch in the locked off (center) position or remove battery pack before changing

accessories. To install an accessory, pull the chuck collar away from the front of the tool, insert the

accessory, and release the collar. The accessory is locked in place. To remove an accessory, pull the chuck collar away from the front of the tool, remove the

accessory and release the collar.

Maintenance

Cleaning

With the motor running, blow dirt and dust out of all air vents with dry air. Wear safety glasses when performing this procedure. Exterior plastic parts may be cleaned with a damp cloth and mild detergent. Although these parts are highly solvent resistant, NEVER use solvents.

See ‘Tools-Electric’

– Yellow Pages –

for Service & Sales

Imported by

Black & Decker (U.S.) Inc.,

701 E. Joppa Rd.

Towson, MD 21286 U.S.A.

RÈGLES DE SÉCURITÉ CONCERNANT LES OUTILS À

PILE – GÉNÉRALITÉS

AVERTISSEMENT! LIRE, COMPRENDRE ET SUIVRE TOUTES LES DIRECTIVES

précisées ci-dessous, y compris les consignes de sécurité, afin d’éviter les risques de choc électrique, d’incendie ou de blessure grave.

CONSERVER CES DIRECTIVES

Aire de travail

• L’aire de travail doit être propre et bien éclairée. Les établis encombrés et les endroits

sombres peuvent entraîner des accidents.

• Ne pas utiliser les outils électriques dans une atmosphère explosive, comme à proximité de liquides, de gaz ou de poussières inflammables; le moteur peut créer des étincelles et enflammer les vapeurs ou les poussières environnantes.

• Tenir les enfants, les visiteurs ou toute autre personne éloignés lorsqu’on utilise un outil électrique; les distractions peuvent faire perdre la maîtrise de ce dernier.

Mesures de sécurité – Électricité

• Ne pas utiliser le cordon de manière abusive, ni transporter l’outil en le tenant par le cordon. On doit tenir le cordon éloigné des sources de chaleur, de l’huile, des bords tranchants ou des pièces mobiles. Remplacer immédiatement les cordons endommagés, car ces derniers augmentent les risques d’incendie.

• Un outil à piles intégrées ou à bloc-pile externe doit être rechargé seulement au moyen du chargeur approprié, car un chargeur destiné à une pile particulière pourrait

entraîner un risque d’incendie lorsqu’il est utilisé avec une autre.

• N’utiliser l’outil à piles qu’avec le bloc-pile désigné, car l’utilisation d’un autre type de piles peut entraîner un risque d’incendie.

Sécurité personnelle

• Rester vigilant en tout temps et faire preuve de jugement lorsqu’on utilise un outil électrique; ne pas utiliser l’outil lorsqu’on est fatigué ou sous l’influence de drogues, d’alcool ou de médicaments, car un moment d’inattention pourrait entraîner des

blessures graves.

• Porter des vêtements appropriés; ne pas porter de vêtements amples ni de bijoux. Couvrir ou attacher les cheveux longs. Garder les cheveux, les vêtements, les bijoux et les gants éloignés des pièces mobiles, car ceux-ci peuvent s’y coincer. Se tenir éloigné des évents puisque ces derniers pourraient camoufler des pièces mobiles.

• Éviter les démarrages accidentels; s’assurer que l’interrupteur est en position de verrouillage ou d’arrêt avant d’insérer un bloc-pile dans l’outil. Ne pas transporter l’outil en laissant le doigt sur l’interrupteur ni y insérer un bloc-pile lorsque l’interrupteur est en position de marche, car cela pourrait causer un accident.

• Retirer les clés de réglage avant de démarrer l’outil; une clé laissée sur une pièce rotative pourrait entraîner des blessures.

• Ne pas trop étendre les bras; les pieds doivent rester ancrés fermement au sol afin de maintenir son équilibre en tout temps et de mieux maîtriser l’outil dans des situations imprévues.

• Utiliser le matériel de sécurité approprié; toujours porter des lunettes de protection. Porter un masque anti-poussières, des chaussures antidérapantes, un casque de sécurité ou des protecteurs auditifs lorsque la situation le requiert.

AAAAVVVVAAAANNNNTTTT DDDDEEEE RRRREEEETTTTOOOOUUUURRRRNNNNEEEERRRR LLLLEEEE PPPPRRRROOOODDDDUUUUIIIITT

PPPPOOOOUUUURRRR QQQQUUUUEEEELLLLQQQQUUUUEEEE RRRRAAAAIIIISSSSOOOONNNN QQQQUU

UUEEEE CCCCEEEE SSSSOOOOIIIITTTT,,,,

CCCCOOOOMMMMPPPPOOOOSSSSEEEERRRR LLLLEE

1111 888800000000 555544444444----66669999888866

Nº de catalogue BDID1202

GUIDE D’UTILISATION

UUUUIIIIDDDDEE

DDDD’’’’UU

TTTTIIIILLLLIIIISSSSAAAATTTTIIIIOOOONN

+ 4 hidden pages
