RM5000A-R3 RM5009A
RM5005A-R3 RM5010A-R3
RM5007A-R3 RM5011A
ClimateCab NEMA 12 Server and Data Cabinet
Protect your sensitive electronic equipment in
dusty and dirty indoor environments with this
sealed cabinet.
Guards against dripping water and dust.
Prevents air exchange.
Customer
Support
Information
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) •
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 •
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 •
Web site: www.blackbox.com • E-mail: info@blackbox.com
ClimateCab NEMA 12 Server and Data Cabinet
TRADEMARKS USED IN THIS MANUAL
Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc.
UL is a registered trademark of Underwriters Laboratories Inc.
Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
NOTE: The ClimateCabs ship with the AC cutout on the right-hand side of the cabinet. You can remove the side panel and
mount it on the left-hand side of the cabinet if needed.
Page 2
724-746-5500 | blackbox.com
Chapter 1: Specifications
1. Specifications
AC Cutout: RM5000A-R3, RM5005A-R3, RM5007A-R3, RM5010A-R3: 5000/8000 BTU;
RM5009A, RM5011A: 12,000 BTU
Compliance: EIA RS-310-D, UL® 508A, cUL C22.2 No. 94, NEMA/EEMAC Type 12 File Number E61997
Construction: Welded 12-gauge steel frame with integral struts;
Front window door: 14-gauge steel and safety glass window;
Back door: Solid 16-gauge steel;
Sides: Solid 16-gauge steel
Finish: Phosphatized steel coated with RAL 9005 black textured, low-gloss polyester powder paint
Hole Type: RM5000A-R3, RM5005A-R3, RM5007A-R3, RM5009A: M6;
RM5010A-R3, RM5011A: 10-32
Load Rating: 1500 lb. (680.4 kg)
Rack Units: RM5000A-R3, RM5010A-R3, RM5009A, RM5011A: 42U;
RM5005A-R3, RM5007A-R3: 24U
Page 3
ClimateCab NEMA 12 Server and Data Cabinet
2. Overview
2.1 Introduction
The ClimateCab NEMA 12 Server & Data Cabinet houses data equipment in dusty and dirty environments. It’s sealed against
dripping water and dust and prevents air exchange. Use the cabinet to house and protect sensitive electronic equipment in an
uncontrolled indoor environment.
2.2 Features
• Three-point locking handles on all doors provide easy but controlled access. Four keys are included.
• Fully welded frame safely supports sensitive equipment.
• Fully gasketed to keep contaminants away from equipment, reducing maintenance costs.
• Two sets of 19-inch rack angles support both front and rear of equipment.
• Rack angles are infinitely adjustable from front to rear for positioning flexibility.
• Mobile base provides easy placement of cabinet.
• Levelers and anti-tip bracket are included to secure cabinet to the floor.
2.3 What’s Included
• ClimateCab NEMA 12 Cabinet
• (2) pairs of keys
• (1) anti-tip angle
• (4) bolts (for installing the anti-tip angle)
• This user’s manual
Page 4
724-746-5500 | blackbox.com

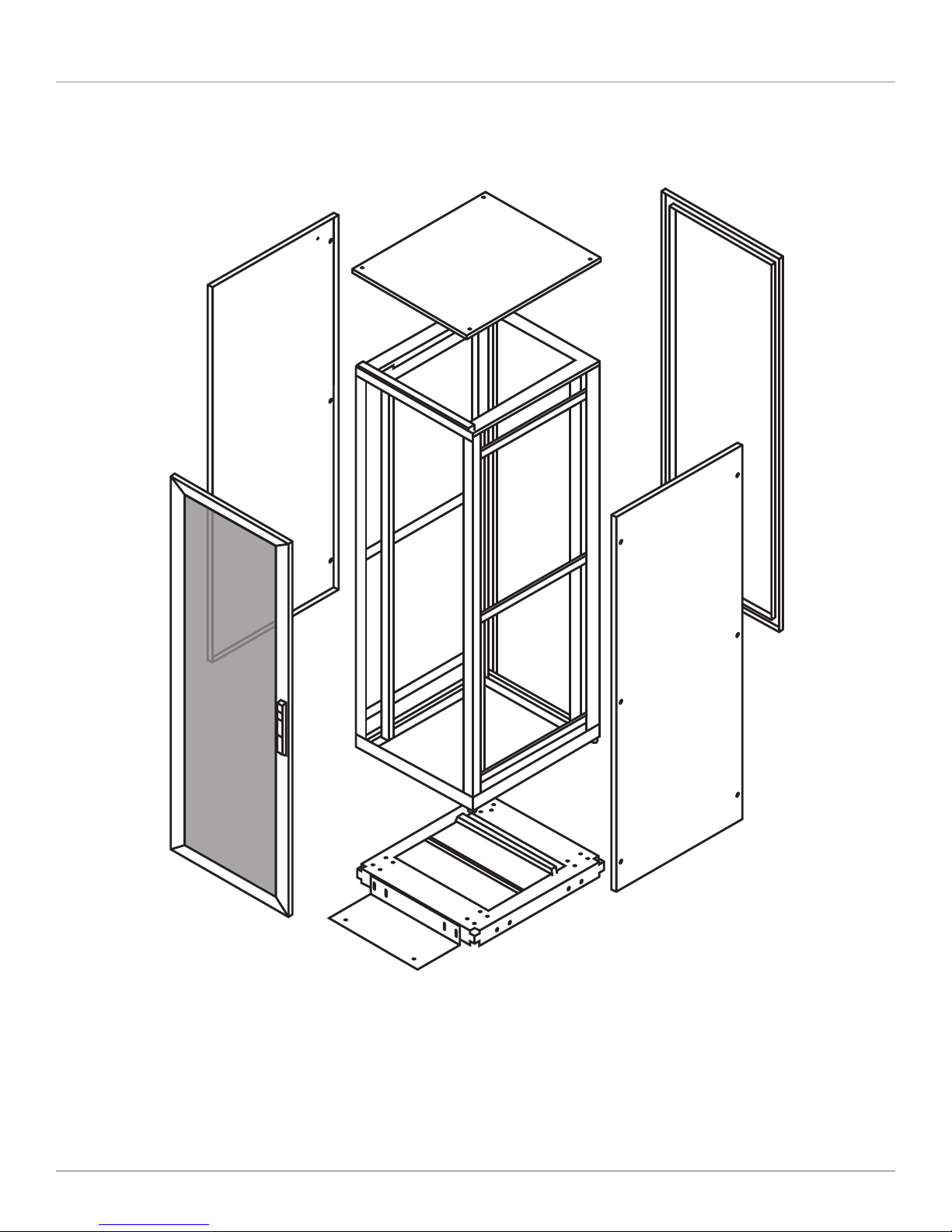

3. Assembly
Side
Top
Chapter 3: Assembly
Rear
door
Window
door
Anti-tip
angle
Rack
angles
(4)
NOTE: An AC
cutout is not
shown on this
panel in this
manual. Actual
cutout size and
location will
depend on the
AC unit ordered.
Side
Mobile
base
Figure 3-1. Assembling the cabinet.
Page 5
ClimateCab NEMA 12 Server and Data Cabinet

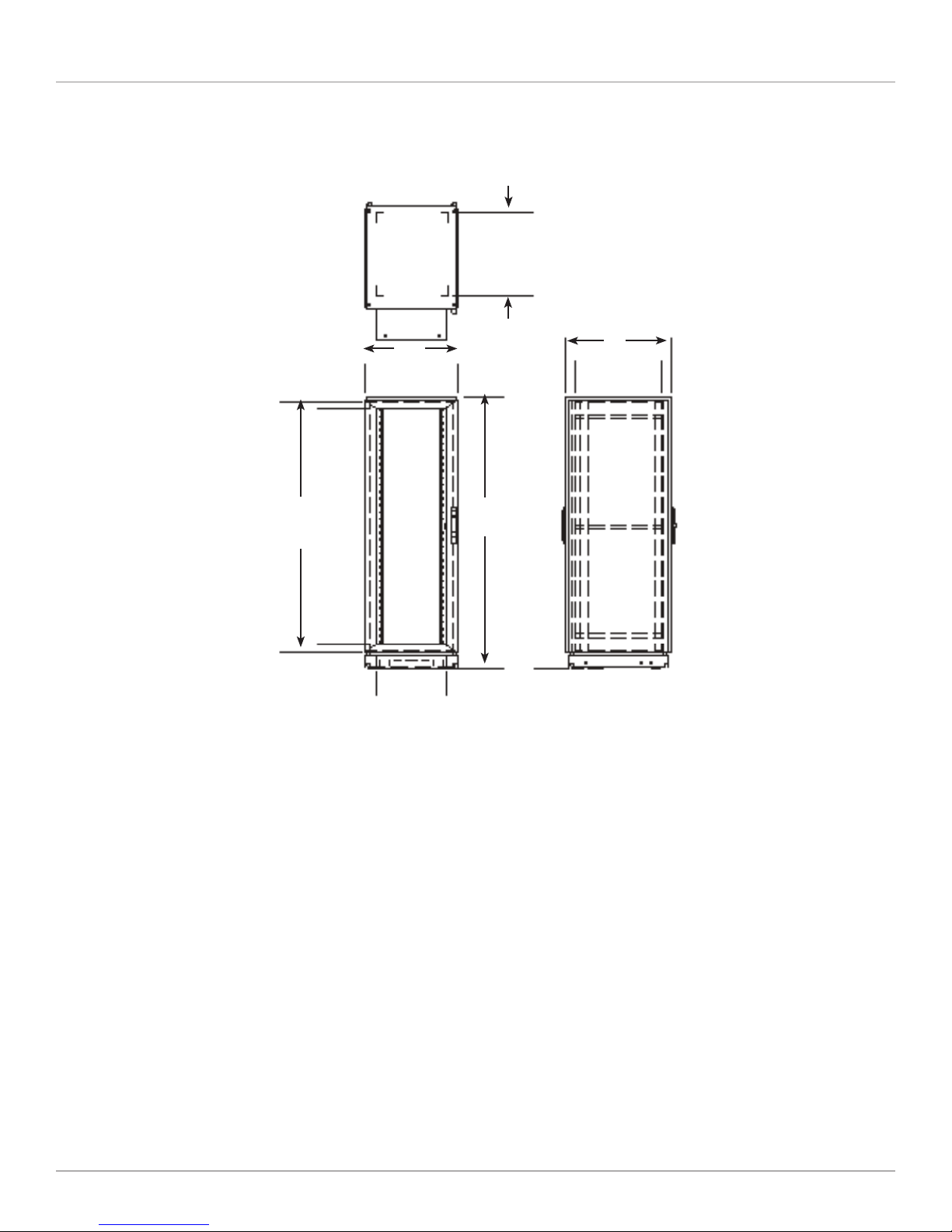

RM5000A-R3 and RM5009A
maximum outside
distance of rack angles
Width
608 mm
23.94"
64 mm
2.5"
C
Depth
1003 mm
39.5"
Door
opening
1911 mm
75.24"
Height
2134 mm
84"
Figure 3-2. RM5000A-R3 and RM5009A dimensions.
Page 6
724-746-5500 | blackbox.com
RM5005A-R3
Width
704.8 mm
27.75"
64 mm
2.5"
maximum outside
distance of rack angles
C
Depth
800 mm
31.5"
Chapter 3: Assembly
Door
opening
1137 mm
44.75"
Height
1295 mm
51"
Figure 3-3. RM5005A-R3 dimensions.
Page 7
ClimateCab NEMA 12 Server and Data Cabinet
RM5007A-R3
maximum outside
distance of rack angles
Width
609.6 mm
24"
64 mm
2.5"
C
Depth
1016 mm
40"
Door
opening
1137 mm
44.75"
Height
1295 mm
51"
Figure 3-4. RM5007A-R3 dimensions.
Page 8
724-746-5500 | blackbox.com
RM5010A-R3 and RM5011A
Width
708 mm
27.87"
64 mm
2.5"
maximum outside
distance of rack angles
C
Depth
846 mm
33.31"
Chapter 3: Assembly
Door
opening
1911 mm
75.24"
Height
2085 mm
82.10"
Figure 3-5. RM5010A-R3 and RM5011A dimensions.
Page 9
