Black Box Corporation • 1000 Park Drive • Lawrence, PA 15055-1018 • Tech Support: 724-746-5500 • www.blackbox.com • e-mail: info@blackbox.com
Gasketed doors and
filtered air intake
system for high
resistance to dust and
water.
Three fans generate a
cool 225 CFM to keep
your hardware healthy.
T

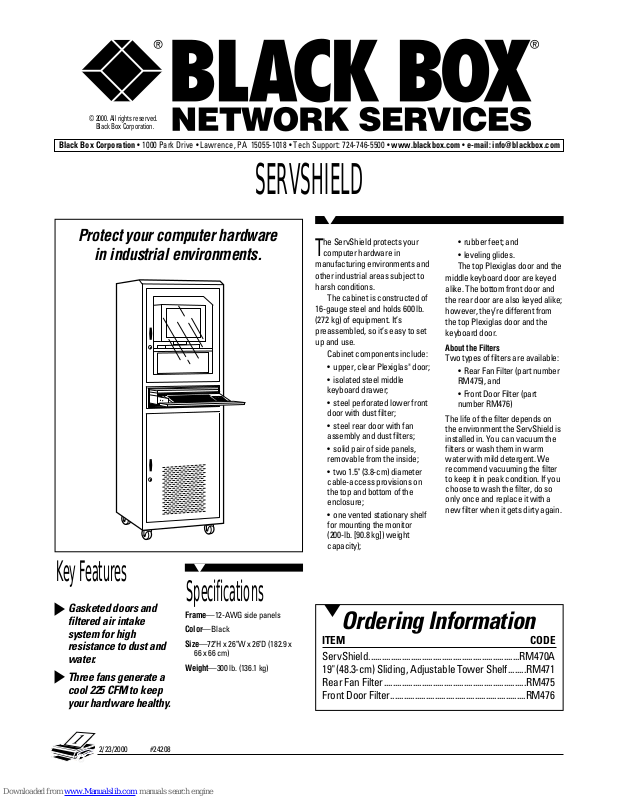

he ServShield protects your
computer hardware in
manufacturing environments and
other industrial areas subject to
harsh conditions.
The cabinet is constructed of
16-gauge steel and holds 600 lb.
(272 kg) of equipment. It’s
preassembled, so it’s easy to set
up and use.
Cabinet components include:
• upper, clear Plexiglas
®
door;
• isolated steel middle
keyboard drawer;
• steel perforated lower front
door with dust filter;
• steel rear door with fan
assembly and dust filters;
• solid pair of side panels,
removable from the inside;
• two 1.5" (3.8-cm) diameter
cable-access provisions on
the top and bottom of the
enclosure;
• one vented stationary shelf
for mounting the monitor
(200-lb. [90.8 kg]) weight
capacity);
Key Features
SERVSHIELD
2/23/2000 #24208
Ordering Information
ITEM CODE
ServShield....................................................................RM470A
19" (48.3-cm) Sliding, Adjustable Tower Shelf........RM471
Rear Fan Filter................................................................RM475
Front Door Filter.............................................................RM476
• rubber feet; and
• leveling glides.
The top Plexiglas door and the
middle keyboard door are keyed
alike. The bottom front door and
the rear door are also keyed alike;
however, they’re different from
the top Plexiglas door and the
keyboard door.
About the Filters
Two types of filters are available:
• Rear Fan Filter (part number
RM475), and
• Front Door Filter (part
number RM476)
The life of the filter depends on
the environment the ServShield is
installed in. You can vacuum the
filters or wash them in warm
water with mild detergent. We
recommend vacuuming the filter
to keep it in peak condition. If you
choose to wash the filter, do so
only once and replace it with a
new filter when it gets dirty again.
Frame—12-AWG side panels
Color—Black
Size—72"H x 26"W x 26"D (182.9 x
66 x 66 cm)
Weight—300 lb. (136.1 kg)
Specifications
© 2000. All rights reserved.
Black Box Corporation.
Protect your computer hardware
in industrial environments.
