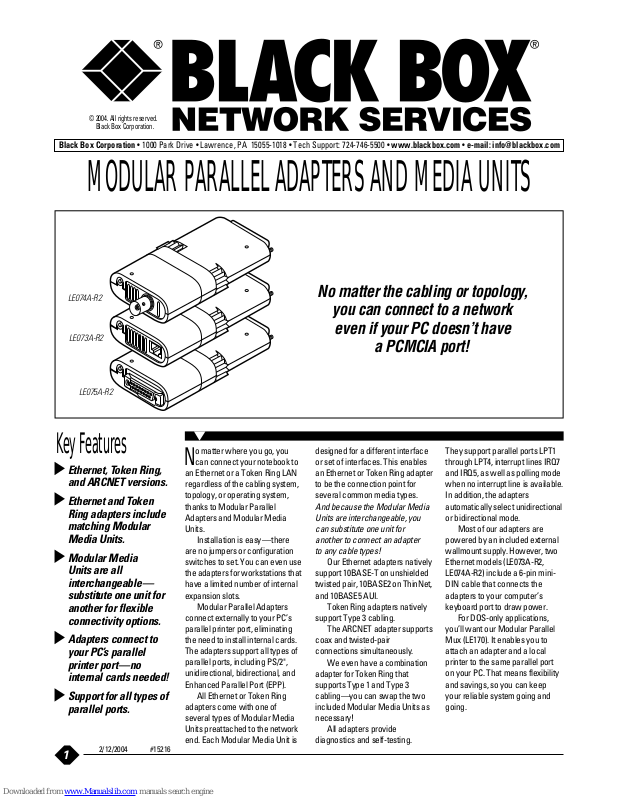

Page 1
1
Black Box Corporation • 1000 Park Drive • Lawrence, PA 15055-1018 • Tech Support: 724-746-5500 • www.blackbox.com • e-mail: [email protected]
© 2004. All rights reserved.
Black Box Corporation.
2/12/2004 #15216
Ethernet, Token Ring,
and ARCNET versions.
Ethernet and Token
Ring adapters include
matching Modular
Media Units.
Modular Media
Units are all
interchangeable—
substitute one unit for
another for flexible
connectivity options.
Adapters connect to
your PC’s parallel
printer port—no
internal cards needed!
Support for all types of
parallel ports.
N
o matter where you go, you
can connect your notebook to
an Ethernet or a Token Ring LAN
regardless of the cabling system,
topology, or operating system,
thanks to Modular Parallel
Adapters and Modular Media
Units.
Installation is easy —there
are no jumpers or configuration
switches to set. You can even use
the adapters for workstations that
have a limited number of internal
expansion slots.
Modular Parallel Adapters
connect externally to your PC’s
parallel printer port, eliminating
the need to install internal cards.
The adapters support all types of
parallel ports, including PS/2
®
,
unidirectional, bidirectional, and
Enhanced Parallel Port (EPP).
All Ethernet or Token Ring
adapters come with one of
several types of Modular Media
Units preattached to the network
end. Each Modular Media Unit is
No matter the cabling or topology,
you can connect to a network
even if your PC doesn’t have
a PCMCIA port!
Key Features
MODULAR PARALLEL ADAPTERS AND MEDIA UNITS
designed for a different interface
or set of interfaces. This enables
an Ethernet or Token Ring adapter
to be the connection point for
several common media types.
And because the Modular Media
Units are interchangeable, you
can substitute one unit for
another to connect an adapter
to any cable types!
Our Ethernet adapters natively
support 10BASE-T on unshielded
twisted pair, 10BASE2 on ThinNet,
and 10BASE5 AUI.
Token Ring adapters natively
support Type 3 cabling.
The ARCNET adapter supports
coax and twisted-pair
connections simultaneously.
We even have a combination
adapter for Token Ring that
supports Type 1 and Type 3
cabling—you can swap the two
included Modular Media Units as
necessary!
All adapters provide
diagnostics and self-testing.
They support parallel ports LPT1
through LPT4, interrupt lines IRQ7
and IRQ5, as well as polling mode
when no interrupt line is available.
In addition, the adapters
automatically select unidirectional
or bidirectional mode.
Most of our adapters are
powered by an included external
wallmount supply. However, two
Ethernet models (LE073A-R2,
LE074A-R2) include a 6-pin miniDIN cable that connects the
adapters to your computer’s
keyboard port to draw power.
For DOS-only applications,
you’ll want our Modular Parallel
Mux (LE170). It enables you to
attach an adapter and a local
printer to the same parallel port
on your PC. That means flexibility
and savings, so you can keep
your reliable system going and
going.
LE075A-R2
LE073A-R2
LE074A-R2
Page 2
2
Data Rate: LE073A-R2–LE075A-R2,
LE171–LE172: 10 Mbps;
LT097A, LT099A, LT199:
4 or 16 Mbps;
LA099A: 2.5 Mbps
Legacy Drivers of NOS Support:
LE073A-R2–LE075A-R2,
LE171–LE172, LT097A, LT099A,
LT199: NDIS 2.0.1, NDIS 3, Novell
®
ODI, OS/2®, Packet, Windows
®
3.1, 3.5, 95 (support via Web
download of Windows 95
driver self-extracting zip),
WFWG, Windows NT
®
3.5+,
Lantastic, LAN Manager;
LA099A: ODI
Protocol: IP, IPX™, NetBIOS
Standards: LE073A-R2–LE075A-R2,
LE171–LE172: IEEE 802.3
Ethernet v.2;
LT097A, LT099A, LT199: IEEE 802.5
Token Ring;
LA099A: ARCNET
Temperature Tolerance:
Operating: 32 to 122°F (0 to 50°C);
Storage: 32 to 158°F (0 to 70°C)
Interfaces and Connectors:
All Modular Parallel Adapters
for Ethernet: (1) IBM
®
PC
parallel (DB25 M);
LE073A-R2, LE171: (1) 10BASE-T
(RJ-45);
LE074A-R2, LE172: (1) 10BASE2
(ThinNet, BNC F);
LE075A-R2: (1) 10BASE5
AUI (DB15 F);
All Modular Parallel Adapters
for Token Ring: (1) IBM PC
parallel (DB25 M);
LT097A: Either (1) Type 1 (DB9 F)
or (1) Type 3 (RJ-45), user-
selectable;
LT099A, LT199: (1) Type 3 (RJ-45);
LA099A: (1) BNC (coax),
(1) RJ-11 (twisted pair)
Indicators: LE073A-R2–LE075A-R2:
Power, Network Activity;
LT097A, LT099A: Power, Link
Power: LE073A-R2–LE074A-R2,
LE171–LE172: 5 VDC at up to
500 mA from PC’s keyboard or
mouse port through interface-
power cable;
LE075A-R2: Included AC power
supply that outputs between
4 and 20 VDC at 500 mA on a
center-positive barrel plug;
LT097A, LT099A, LT199: From the
included 110-VAC, 60-Hz
power supply
Size: Ethernet or Token Ring
Adapter with Modular Media
Unit installed: 1"H x 2.4"W x 4"D
(2.5 x 6.1 x 10.2 cm)
Weight: Ethernet or Token Ring
Adapter with Modular Media
Unit installed: 0.2 lb. (0.1 kg)
Specifications
Ordering Information
ITEM CODE
Modular Parallel Adapters (Includes one or more
Modular Media Units)
Ethernet
10BASE-T (RJ-45) ..........................................LE073A-R2
10BASE2 (BNC) ..............................................LE074A-R2
10BASE5 (AUI)................................................LE075A-R2
Token Ring
Token Ring Combo (Type 1/Type 3)...................LT097A
Type 3 (RJ-45) ........................................................LT099A
ARCNET
®
BNC/RJ-11.............................................................LA099A
Optional Modular Media Units
Ethernet
10BASE-T (RJ-45)....................................................LE171
10BASE2 (BNC)........................................................LE172
Token Ring
Type 3 (RJ-45) ...........................................................LT199
Y
ou may also need…
Modular Parallel Mux ....................................................LE170
(Designed for DOS-only applications)
You’ll certainly need one or more of these Modular Parallel Adapters
if you’re going on the road any time soon. They’re particularly handy for
trade-shows demonstrations or conducting on-site consultations or
training.
