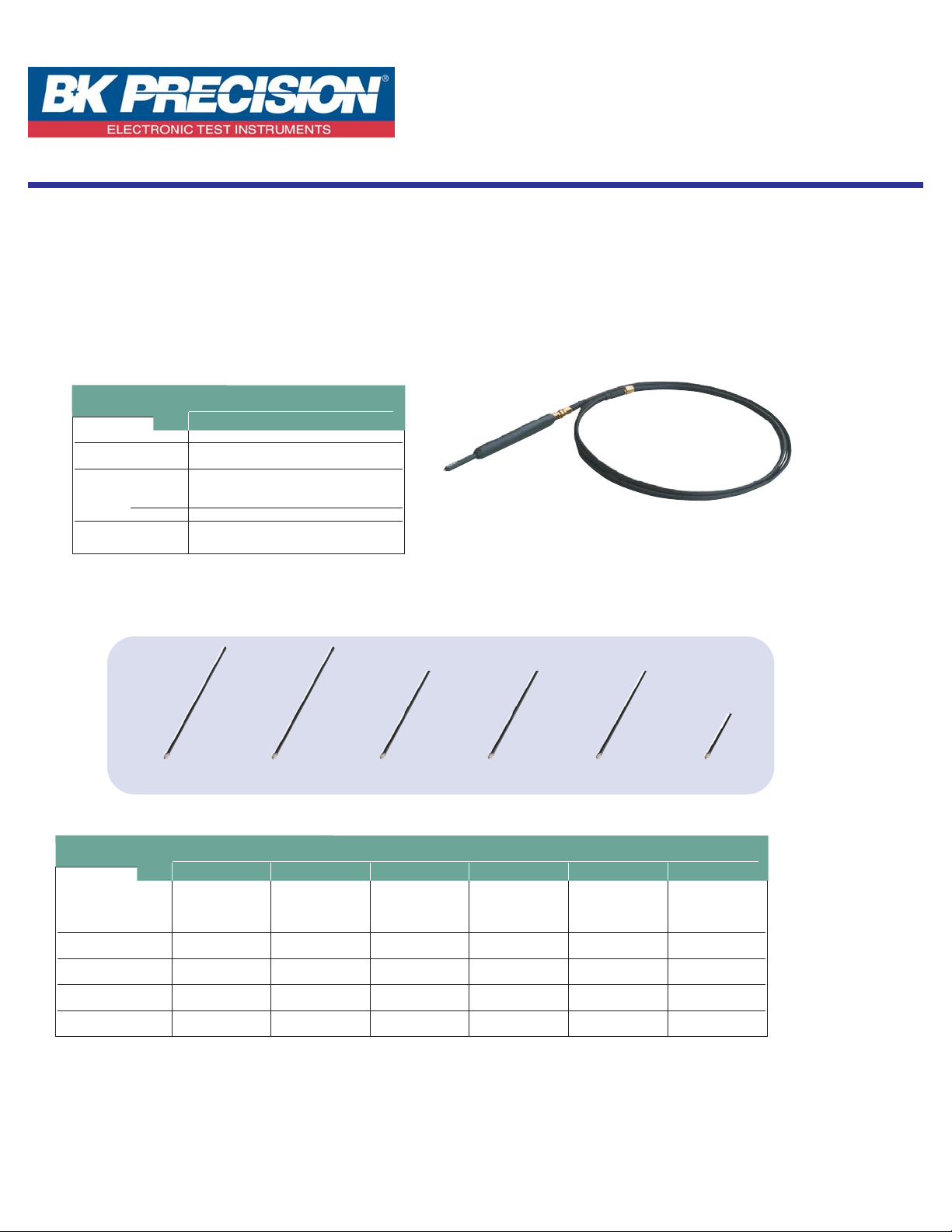

BK Precision AN 301 Data Sheet

B&K Precision Corporation

22820 Savi Ranch Parkway, Yorba Linda, CA 92887
Tel: [phone], Fax: [phone]
www.bkprecision.com

Specifications subject to change without notice

Data Sheet

Models PR 26M,
AN 301 - AN 306

Dipole Antennas & Field Probe

Frequency Range 10MHz to 3 GHz

Space Resolution approx. 0.25mm( depending on objects)

Dimensions

Outside 12ø x 135mm
Probe Tip 12mm(W) x 100(T)

Connector S M A (P)

Antenna gain VSWR are specified at a center of frequency range.

Model PR 26M with a dedicated double shielded coaxial cable.

Dipole Antennas & Magnetic Field Probe

Specifications

model

Model PR 26M

Frequency Range 0.8 to 1GHz 1.25 to 1.65 GHZ 1.7 to 2.2 GHz 2.25 to 2.65 GHz 390 to 410 MHz 4.7 to 6.2 GHz

(300 to 500 MHZ
@ antenna only)

Antenna Gain >1 dBi >1 dBi >1 dBi >1 dBi >1 dBi >1 dBi

VSWR <1.5 <1.5 <1.5 <1.5 <1.5 <1.5

Dimensions 75ø x 250mm 75ø x 250mm 75ø x 180mm 75ø x 180mm 80ø x 180mm 75ø x 100mm

Weight approx. 20g approx. 20g approx. 15g approx. 15g approx. 50g approx. 10g

Specifications

models

AN 301 AN 302 AN 303 AN304 AN 305 AN306

AN 301 AN 302 AN 303 AN 304 AN 305 AN 306

PR 26M
