Accessories
For your nearest distributor, call 800-462-9832 or www.bkprecision.com
65

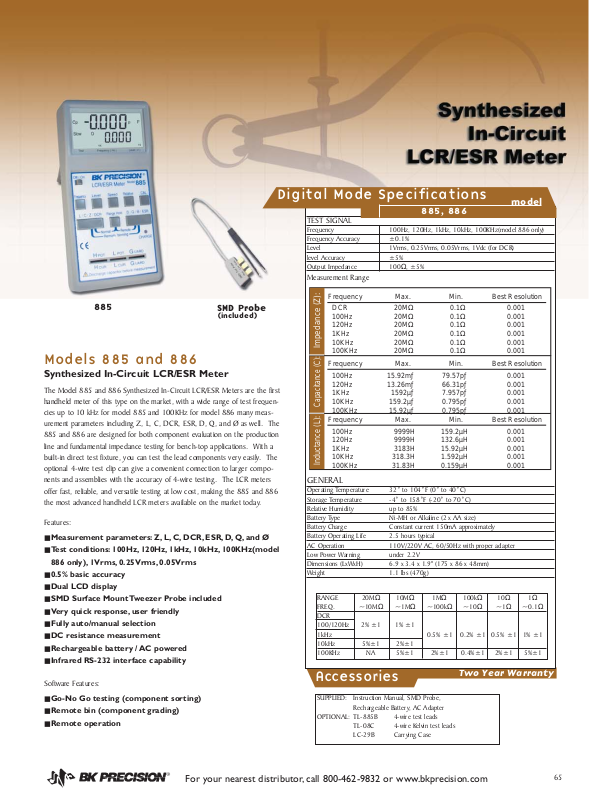

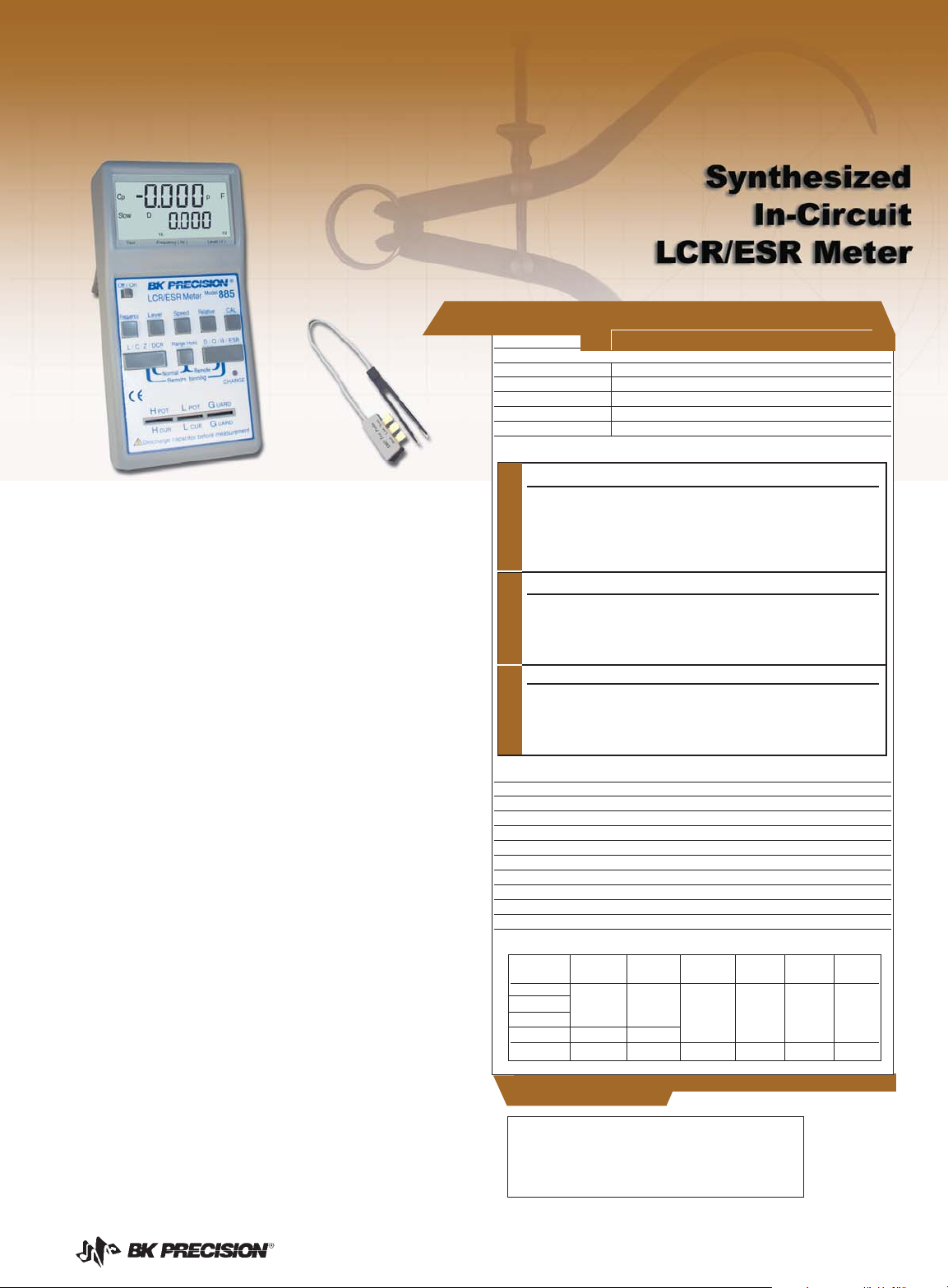

Models 885 and 886
Synthesized In-Circuit LCR/ESR Meter
The Model 885 and 886 Synthesized In-Circuit LCR/ESR Meters are the first
handheld meter of this type on the market, with a wide range of test frequencies up to 10 kHz for model 885 and 100KHz for model 886 many measurement parameters including Z, L, C, DCR, ESR, D, Q, and Ø as well. The
885 and 886 are designed for both component evaluation on the production
line and fundamental impedance testing for bench-top applications. With a
built-in direct test fixture, you can test the lead components very easily. The
optional 4-wire test clip can give a convenient connection to larger components and assemblies with the accuracy of 4-wire testing. The LCR meters
offer fast, reliable, and versatile testing at low cost, making the 885 and 886
the most advanced handheld LCR meters available on the market today.
Features:
■ Measurement parameters: Z, L, C, DCR, ESR, D, Q, and Ø
■ Te st conditions: 100Hz, 120Hz, 1kHz, 10kHz, 100KHz(model
886 only), 1Vrms, 0.25Vrms, 0.05Vrms
■ 0.5% basic accuracy
■ Dual LCD display
■ SMD Surface Mount Tweezer Probe included
■ Ve ry quick response, user friendly
■ Fully auto/manual selection
■ DC resistance measurement
■ Rechargeable battery / AC powered
■ Infrared RS-232 interface capability
Software Features:
■ Go-No Go testing (component sorting)
■ Remote bin (component grading)
■ Remote operation
TEST SIGNAL
Frequency 100Hz, 120Hz, 1kHz, 10kHz, 100KHz(model 886 only)
Frequency Accuracy ±0.1%
Level 1Vrms, 0.25Vrms, 0.05Vrms, 1Vdc (for DCR)
level Accuracy ±5%
Output Impedance 100Ω, ±5%
Measurement Range
GENERAL
Operating Temperature 32˚ to 104˚F (0˚ to 40˚C)
Storage Temperature -4˚ to 158˚F (-20˚ to 70˚C)
Relative Humidity up to 85%
Battery Type Ni-MH or Alkaline (2 x AA size)
Battery Charge Constant current 150mA approximately
Battery Operating Life 2.5 hours typical
AC Operation 110V/220V AC, 60/50Hz with proper adapter
Low Power Warning under 2.2V
Dimensions (LxWxH) 6.9 x 3.4 x 1.9" (175 x 86 x 48mm)
Weight 1.1 lbs (470g)
RANGE 20MΩ 10MΩ 1MΩ 100kΩ 10Ω 1Ω
FREQ. ~10MΩ ~1MΩ ~100kΩ ~10Ω ~1Ω ~0.1Ω
DCR
100/120Hz 2% ±1 1% ±1
1kHz 0.5% ±1 0.2% ±1 0.5% ±1 1% ±1
10kHz 5%±1 2%±1
100KHz NA 5%±1 2%±1 0.4%±1 2%±1 5%±1
885
SMD Probe
(included)
Digital Mode Specifications
model
885, 886
SUPPLIED: Instruction Manual, SMD Probe,
Rechargeable Battery, AC Adapter
OPTIONAL: TL-885B 4-wire test leads
TL-08C 4-wire Kelvin test leads
LC-29B Carrying Case
Two Year Warranty
Frequency Max. Min. Best Resolution
DCR 20MΩ 0.1Ω 0.001
100Hz 20MΩ 0.1Ω 0.001
120Hz 20MΩ 0.1Ω 0.001
1KHz 20MΩ 0.1Ω 0.001
10KHz 20MΩ 0.1Ω 0.001
100KHz 20MΩ 0.1Ω 0.001
Impedance (Z):
Capacitance (C):
Inductance (L):
Frequency Max. Min. Best Resolution
100Hz 15.92mƒ 79.57pƒ 0.001
120Hz 13.26mƒ 66.31pƒ 0.001
1KHz 1592µƒ 7.957pƒ 0.001
10KHz 159.2µƒ 0.795pƒ 0.001
100KHz 15.92µƒ 0.795pƒ 0.001
Frequency Max. Min. Best Resolution
100Hz 9999H 159.2µH 0.001
120Hz 9999H 132.6µH 0.001
1KHz 3183H 15.92µH 0.001
10KHz 318.3H 1.592µH 0.001
100KHz 31.83H 0.159µH 0.001
