B&K Precision 830C User Manual
Model 830C, 890C
Dual Display
Capacitance Met er
INSTRUCTION MANUAL
Safety Summary
The following safety precautions apply to both
operating and maintenance personnel and
must be observed during all phases of
operation, service, and repair of this
instrument.
DO NOT OPERATE IN AN EXPLOSIVE
ATMOSPHERE
Do not operate the instrument in the presence
of flammable gases or fumes. Operation of
any electrical instrument in such an
environment constitutes a definite safety
hazard.
KEEP AWAY FROM LIVE CIRCUITS
Instrument covers must not be removed by
operating personnel. Component
replacement and internal adjustments must be
made by qualified maintenance personnel.
DO NOT SUBSTITUTE PARTS OR MODIFY
THE INSTRUMENT
Do not install substitute parts or perform any
unauthorized modifications to this instrument.
Return the instrument to B&K Precisi on for
1
service and repair to ensure that safety
features are maintained.
WARNINGS AND CAUTIONS
WARNING and CAUTION statements, such
as the following examples, denote a hazard
and appear throughout this manual. Follow all
instructions contained in these statements.
A WARNING statement calls attention to an
operating procedure, practice, or condition,
which, if not followed correctly, could result in
injury or death to personnel.
A CAUTION statement calls attention to an
operating procedure, practice, or condition,
which, if not followed correctly, could result in
damage to or destruction of part or all of the
product.
2
SAFETY GUIDELINES
To ensure that you use this device safely,
follow the safety guidelines listed below:
This meter is for indoor use, altitude up to
2,000 m.
The warnings and precautions should be
read and well understood before the
instrument is used.
When measuring in-circuit components, first
de-energize the circuits before connecting to
the test leads.
Never attempt to measure voltage with this
instrument.
Do not use the device if it appears damaged
in form.
Inspect the leads for damaged insulation or
exposed metal. Replace damaged leads if
necessary.
Disconnect power and discharge all
capacitors prior to testing.
The meter is safety-certified in compliance
with EN61010 (IEC 1010-1) Installation
3
Category II (CAT. II) 50 V, Pollution Degree
2 environment.
Use the meter only as specified in this
manual. Otherwise, the protection provided
by the meter may be impaired.
The power for the meter is supplied with a
single standard 9V battery. It can also
operate from AC line using a 12V AC to DC
adaptor. If a power adaptor is selected,
please be sure to use one with correct AC
line input voltage and fulfills the safety
requirements of a relevant IEC standard.
Use only battery specified by the meter. See
“
Installing Battery
” section for details.
4
outside is negative (-)
Safety Symbols
This symbol is a warning and
indicates that the user should refer to
the operating instructions located in
the manual.
DC Current
Indicates inside pin is positive (+),
Compliance Statements
Disposal of Old Electrical & Electronic Equipment
(Applicable in the European
Union and other European countries with separate
collection systems)
5
This product is subject
Council of the European
electrical and electronic
equipment (WEEE) , and
waste. Please
requirements.
to Directive 2002/96/EC
of the European
Parliament and the
Union on waste
in jurisdictions
adopting that Directive,
is marked as being put
on the market after
August 13, 2005, and
should not be disposed
of as unsorted
municipal
utilize your local WEEE
collection
facilities in the
disposition of this
product and otherwise
observe all applicable
6
Operating Environment
Storage Humidity
0 – 80% R.H.
Storage Environment
-20 °C to +50 °C
Pollution degree
Pollution degree 2
Environmental Con diti ons
0 °C to 40 °C
7
TABLE OF CONTENTS
SAFETY GUIDELINES ............................................... 3
INTRODUCTION ....................................................... 11
PACKAGE CONTENTS ........................................... 13
FRONT PANEL OVERVIEW .................................... 14
Front Panel Display Descriptions .................................. 15
Front Panel Buttons ...................................................... 16
LCD DISPLAY OVERVIEW ...................................... 18
LCD Display Descriptions ............................................. 18
PUSH BUTTONS OVERVIEW ................................. 20
POWERING INSTRUMENT ..................................... 22
Installing Battery ........................................................... 22
Connecting External Power Source .............................. 24
Low Battery Indication .................................................. 27
Backlit Display .............................................................. 27
POWER ON OPTIONS ............................................. 29
Reset HI/LO Limits ........................................................ 29
View Firmware Version ................................................. 30
Setup Menu .................................................................. 30
SETUP OPTIONS ..................................................... 31
8
Baud Rate (bAUd) ........................................................ 33
Parity (PArt) .................................................................. 35
Data Bits (Data) ............................................................ 36
Echo (ECHO) ................................................................ 37
Print Only (Prnt) ............................................................ 38
Key Beeper (bEEP) ...................................................... 39
Lock Buttons (LbUt) ...................................................... 40
Auto Power Off (AOFF)................................................. 41
Backlit Display Time (bLIt) ............................................ 44
Bright Level Off State (bOFF) ....................................... 44

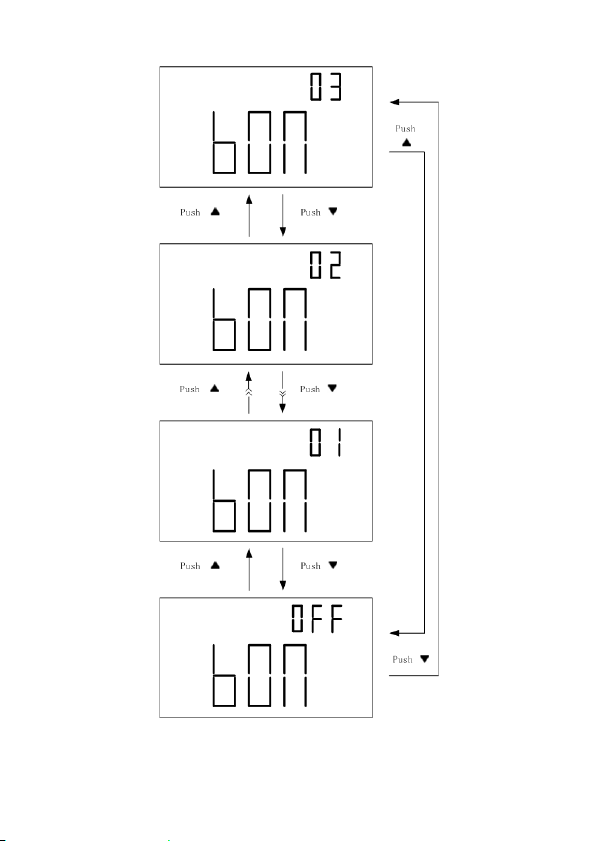

Brightness Level On State (bON) ................................. 47
Reset to Default (dEFA) ................................................ 49
OPERATION INSTRUCTIONS ................................. 51
Data Hold/Trigger Hold ................................................. 51
Static Recording ........................................................... 53
Relative Mode ............................................................... 57
Tolerance ...................................................................... 60
Compare Mode ............................................................. 65
REMOTE COMMUNICATION .................................. 75
Connecting Instrument to PC ........................................ 75
USB (Virtual COM) Configuration ................................. 76
9
Remote Mode ............................................................... 76
Command Protocols ..................................................... 77
MEASUREMENT TIPS ............................................. 97
SUPPLEMENTAL INFORMATION .......................... 99
Guard Terminal ............................................................. 99
SPECIFICATIONS .................................................. 100
General specification .................................................. 101
Electrical specifications ............................................... 103
MAINTENANCE ...................................................... 105
Service ........................................................................ 105
Troubleshoot Tips ....................................................... 105
Cleaning...................................................................... 106
SERVICE INFORMATION ...................................... 108
LIMITED WARRANTY ............................................ 109
INDEX ..................................................................... 110
10
INTRODUCTION
B&K Precision ’s 830C and 890C 11,000-count handheld capacitance meters measure capacitance and
include a capacitance sorting function. Simple to
operate, the instruments can make quick
measurements and simplify the capacitance sorting
process.
Capacitance is measured by using a sm all D C vo ltag e
signal that slightly charges the c onn ec ted cap ac itor f or
a s hort time. Unlike other handheld instrum ents such
as LCR meters, it does not use an AC signal with a
specific test frequency to make measurements.

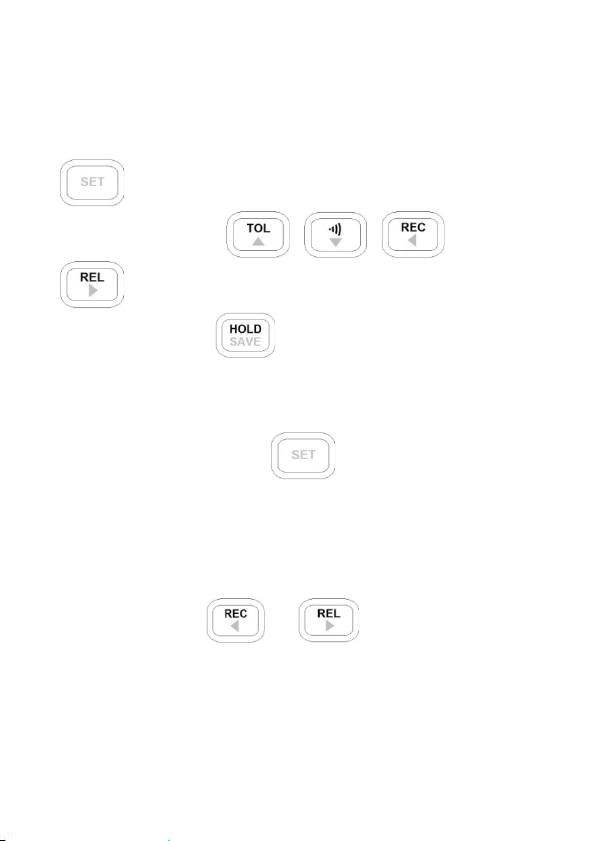

Front panel push buttons maximize the convenience
of function and feat ure selection. T he meters support
the following modes: Tolerance sorting mode,
relative mode, data hold, manual and auto range
mode, min/max/avg recording, and high/low limit
setting.
Test data can be trans ferred to a PC throug h a Mini
USB connection, which is useful for data logging
applications.
A tilt stand provides position flexibility for viewing and
operating the meter. The over-molding rubber case
11
protects the meter for better durability. Additionally,
the top rubber visor molding above the screen is
designed to prevent scratches on the display when
the meter is positioned upside down.
A single 9V battery or the included DC 12V power
adaptor (included with model 830C only) can be used
to power the meter. This gives user flexibility for
portable or bench-top us e.
12
PACKAGE CONTENTS
Each 830C and 890C capacitance meters are shipped
with the following contents.
• 830C or 890C capacitance meter
• Instruction Manual
• Mini USB Interface Cable
• Red & Black Banana to Alligator Test Leads
• 9V Batt ery
• *AC Ad apter (m odel 830C only)
*This can be purchased as an optional accessory for
model 890C. There are two versions of this adapter
available. One version is for 110 V AC line voltage
input, and the other for 220 V AC line voltage input.
Please locate each item from the original packaging
and contact B&K Precision im mediately if something
is missing.
13
FRONT PANEL OVERVIEW
Figure 1 - Front Panel Display (model 830C shown)
14
Front Panel Display Descriptions
1. Power ON/OFF Button
2. Relative mode / right arrow selection button
3. Input sleeve terminals for positive (+),
negative (-), and guard (see “Guard Terminal”
in “SUPPLEMENTAL INFORMATION” section
for details)
4. Input sockets (banana jack inputs)
5. LCD Display
6. Set HI/LO limit / Back light button
7. Manual and Auto range button
8. Set button for entering HI/LO limit set function
menu
9. Tolerance mode / up arrow selection button
10. Data Hold / Save HI/LO limit settings button
11. Record mode selection button
12. Compare mode button
13. Standard mini USB port (for remote
controllability)
14. 12V DC adapter input (use with an ext erna l
power adapter (rated 12VDC, 150mA, 4mm
power plug))
Note: Use with included power adapter only.
Use with improper power adapters may
damage instrument.
15
WARNING: Before connecting an external
power adapter, please check the battery
compartment in the rear side of the uni t. If
a battery is installed, be sure that the
polarity matches the (+) and (-) labels as
indicated inside the battery compartment.
If it is not installed correctly, please
remove the battery and install i t with
correct matching polarity as indicated in
the compartment. See “Installing Battery
section for details. DO NOT, at any time,
connect an external power adapter when a
battery is installed incorrectly. Doing so
will damage the instrument and void its
warranty.
Front Panel Buttons
All front panel buttons have specific colored labels on
them. They are all marked in white, blue, or yellow
color. Each color has a specific representation, as
described below:
”
White – With the exception of the
button, all white colored labels
represent the primary function of that
16
button; meaning that function will be
set or configured upon pressing it. To
escape out of the functions, hold and
press the corresponding button for
two seconds.
Blue – Some of the buttons have a blue label
underneath a white label. This means
the function indicated by the blue
label will be set if that button is
pressed and held for 2 seconds.
Yellow – There are total of 6 buttons with
yellow labels. They are
. These functions are
exclusively for use when entering the
SET menu for configuring setup menu
items as well as compare function.
See “Setup Menu” and “Compare
Mode” sections respectively for
details.
17
LCD DISPLAY OVERVIEW
Figure 2 - LCD Indicator Display
LCD Display Descriptions
1. MAX AVG MIN – Static Recording mode,
indicates present reading
2. C – Reading indicator
3. AUTO – Auto range
4. REL – Relative mode indicator
5. DH – Data Hold
6. – Secondary display
18
7. – Beep tone indicator for tolerance and
compare mode
8. % - Tolerance percentage indicator
9. kHz – Frequency units indicator
10. – Capacitance units (Farad) indicator
(Actual display will show pF, mF, or µF)
11. RMT – Remote mode indicator
12. – Primary display
13. – Low battery indicator
14. – Reading out of the LO limit
15. – Reading out of the HI limit
16. @OFF – Enable Auto Power off indicator
17. TOL 1%5%10%20% - Tolerance mode
percentage for sorting capacitance
19
PUSH BUTTONS OVERVIEW
Figure 3 - Front Panel Buttons
1. Power ON or OFF
2. Tolerance Mode
3. HI/LO Limits for compare mode and to enable
backlight
4. Auto or Manual range
20
5. Data hold and save setting for compare mode
6. Relative mode and right arrow key
7. Compare mode and down arrow key
8. Record mode and left arrow key
9. Set HI/LO limits for compare mode
21
POWERING INSTRUMENT
Before operating the instrument, make sure to
connect it to a power source, which could be either a
battery or an external AC adapter.
Installing Battery
The 830C and 890C capacitance meters can be
powered by a battery, thus making it portable.
The meters use a standard 9V size battery (or
NEDA 1604, JIS006P, IEC6F22 carbon-zinc or
alkaline battery).
To install the battery:
1. Place the meter upside down. Open up the
back-flip stand, and locate the screw that
tightens the battery compartment cover as
indicated in Figure 4. Use a screwdriver to
unscrew and remove the cover.
22
Figure 4 - Back Cover
2. Insert 9V battery into compartment. Note the
positive (+) and negative (-) terminals as
indicated inside the battery compartment (See
Figure 5). Be sure to insert the batter y with
matching polarity.
23
Figure 5 - Battery Compartment
3. Place the battery compartment cover piece by
sliding it into the top slid first. Place screw at
the bottom of the cover piece and tighten
down with a screw driver.
4. Push and hold down the button for 2
seconds to turn on the instrument.
Connecting External Power Source
The 830C and 890C can also be powered using an
external AC adapter. The model 830C comes with
this adapter includ ed in the pac kage, while it is
optional for model 890C. There are two types
available. One with 110 V AC line voltage input, and
one with 220 V AC li ne volt age input. Be sure to use
24
one that has the correct AC line voltage input for use
in your country.
For external power, use AC adapter rated for
output 12VDC, 150mA, with a standard 4mm
connector only.
WARNING: Use of incorrect adapters may damage
the instrument. Please use B&K Precision’s adapter
only. Be sure to use one with the correct AC line input
voltage.
To connect the adapter, do the following:
1. If a battery is installed, please check the
battery compartment again that the polarity of
the battery matches the polarity as indicated
by the labels inside the compartment. If it is
not, please remove and insert the battery with
matching polarity. If a battery is not installed,
continue to the next step.
WARNING: DO NOT, at any time, connect
an external power adapter when a battery
is installed incorrectly (reverse polarity or
non-matching polarity to indicator of
battery compartment). Doing so will
damage the instrument and void its
warranty.
25
12VDC Input
AC Adapter
Figure 6 - Connecting AC Adapter to Meter
2. Connect the AC adapter connector into the
right side panel of the instrument. See Figure
6 below.
3. Now, connect the AC Adapter socket into an
electrical outlet.
4. Push and hold down the button for 2
seconds to turn on the instrument.
Note: The meter can be operated with a battery
installed while an AC adapter is plugged in at the
same time (As long as the battery is inserted properly
with correct polarity). In this event, the meter will
automatically switch to consume power from the AC
adapter instead of the battery to preserve battery life.
26
Low Bat tery Indication
The capacitance meter has a low battery indicator to
notify the user when to replace the battery. When the
display starts flashing the indicator, the battery
voltage is below normal working voltage. In this case,
accuracy of the meter will also decrease. It is
recommended that the battery be replaced as soon as
possible before continuing operation. See “Installing
Battery” for instructions.
Backlit Display
The capacitance meter has a backlit display that
allows you to see the LCD display in dark conditions.
To turn on the back light, press and hold the
button for 2 seconds. Back light will turn on and
brighten the LCD display.
To turn off the back light at any time, press and hold
the button for 2 seconds again. Back light will
turn off and return to normal display.
27
When Using Battery Power
When the meter is powered using 9V battery, the back
light display will turn on upon holding the
button for 2 seconds. It will stay at maximum
brightness for 15 seconds if backlight settings are set
to default value.
When Using External Power
When the meter is powered using an external AC
adapter, the back light display will turn on upon
pressing and holding the button for 2 seconds.
It will stay at maximum brightness continuously until
the user presses and holds the button for 2
seconds again.
Note: If a battery is installed while using an AC
adapter simultaneously, un plu ggi ng the AC ada pter
will automatically start the back light timer configured
under “SETUP OPTIONS” and back light will turn off
once the time is up.
28
Loading...
