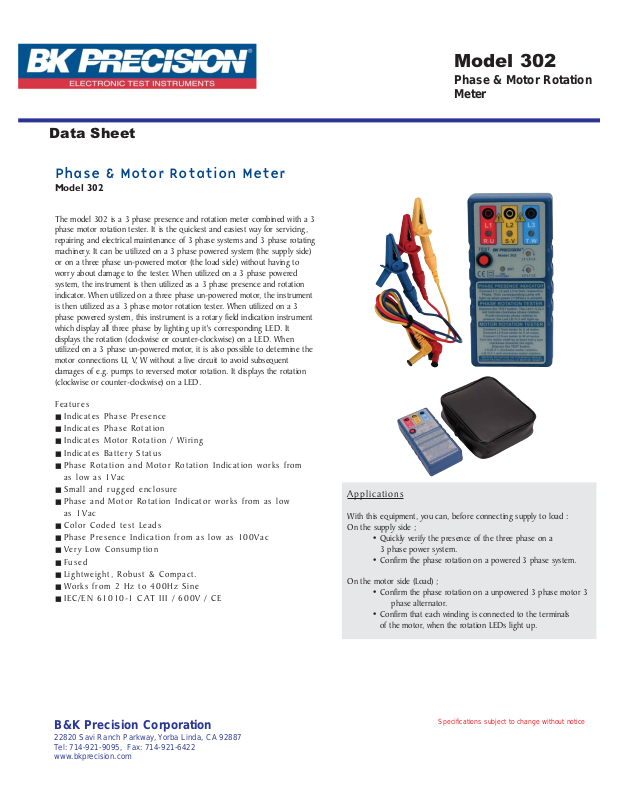

B&K Precision 302 Datasheet

B&K Precision Corporation

22820 Savi Ranch Parkway, Yorba Linda, CA 92887
Tel: [phone], Fax: [phone]
www.bkprecision.com

Specifications subject to change without notice

Data Sheet

Model 302

Phase & Motor Rotation
Meter

Phase & Motor Rotation Meter

Model 302

The model 302 is a 3 phase presence and rotation meter combined with a 3
phase motor rotation tester. It is the quickest and easiest way for servicing,
repairing and electrical maintenance of 3 phase systems and 3 phase rotating
machinery. It can be utilized on a 3 phase powered system (the supply side)
or on a three phase un-powered motor (the load side) without having to
worry about damage to the tester. When utilized on a 3 phase powered
system, the instrument is then utilized as a 3 phase presence and rotation
indicator. When utilized on a three phase un-powered motor, the instrument
is then utilized as a 3 phase motor rotation tester. When utilized on a 3
phase powered system, this instrument is a rotary field indication instrument
which display all three phase by lighting up it's corresponding LED. It
displays the rotation (clockwise or counter-clockwise) on a LED. When
utilized on a 3 phase un-powered motor, it is also possible to determine the
motor connections U, V, W without a live circuit to avoid subsequent
damages of e.g. pumps to reversed motor rotation. It displays the rotation
(clockwise or counter-clockwise) on a LED.

Features

■ Indicates Phase Presence

■ Indicates Phase Rotation

■ Indicates Motor Rotation / Wiring

■ Indicates Battery Status

■ Phase Rotation and Motor Rotation Indication works from

as low as 1Vac

■ Small and rugged enclosure

■ Phase and Motor Rotation Indicator works from as low

as 1Vac

■ Color Coded test Leads

■ Phase Presence Indication from as low as 100Vac

■ Very Low Consumption

■ Fused

■ Lightweight, Robust & Compact.

■ Works from 2 Hz to 400Hz Sine

■ IEC/EN 61010-1 CAT III / 600V / CE

Applications

With this equipment, you can, before connecting supply to load :
On the supply side ;

• Quickly verify the presence of the three phase on a
3 phase power system.

• Confirm the phase rotation on a powered 3 phase system.

On the motor side (Load) ;

• Confirm the phase rotation on a unpowered 3 phase motor 3

phase alternator.

• Confirm that each winding is connected to the terminals

of the motor, when the rotation LEDs light up.
