CAST IRON
THREE PHASE
S08C-F
S15C-F
S22C-F
S37C-F
S55C-F
S75C-F
316 STAINLESS STEEL
THREE PHASE
SX08CSS-F
SX15CSS-F
SX22CSS-F
SX37CSS-F
SX55CSS-F
SX75CSS-F

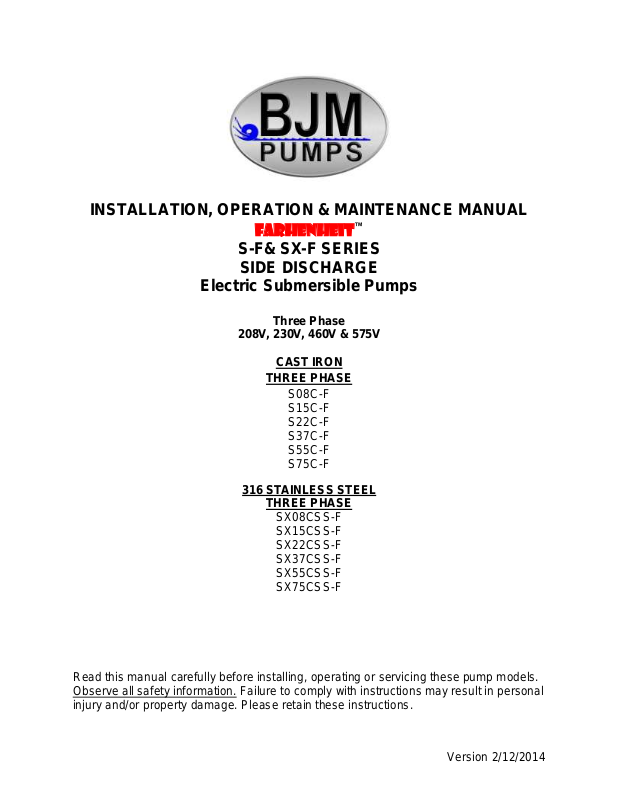

INSTALLATION, OPERATION & MAINTENANCE MANUAL
FARHENHEIT
™
S-F& SX-F SERIES
SIDE DISCHARGE
Electric Submersible Pumps
Three Phase
208V, 230V, 460V & 575V
Read this manual carefully before installing, operating or servicing these pump models.
Observe all safety information. Failure to comply with instructions may result in personal
injury and/or property damage. Please retain these instructions.
Version 2/12/2014
TABLE OF CONTENTS
INTRODUCTION ........................................................................................................................................... 4
SAFETY ........................................................................................................................................................ 5
INSPECTION ................................................................................................................................................ 5
PRE-INSTALLATION INSPECTION ........................................................................................................ 6
OIL FILL QUANTITY/TYPE ...................................................................................................................... 6
PUMP INSTALLATION ............................................................................................................................. 7
POSITIONING THE PUMP ....................................................................................................................... 7
PUMP ROTATION .................................................................................................................................... 8
TYPICAL MANUAL WASTEWATER INSTALLATION ................................................................................. 9
STOPPING ............................................................................................................................................. 10
TYPICAL AUTOMATIC WASTEWATER INSTALLATION ......................................................................... 10
STOPPING ............................................................................................................................................. 12
INTENDED METHODS OF CONNECTION ............................................................................................... 12
THREE PHASE WIRING INSTRUCTIONS ............................................................................................ 12
TROUBLE SHOOTING ............................................................................................................................... 13
PUMP WILL NOT RUN ........................................................................................................................... 13
PUMP RUNS BUT DOES NOT DELIVER RATED CAPACITY ............................................................. 14
SERVICING YOUR SUBMERSIBLE PUMP .......................................................................................... 14
MAINTAINING YOUR PUMP ................................................................................................................. 14
CHANGING SEAL OIL ........................................................................................................................... 15
EXPLODED VIEW OF S08C-F, SX08CSS-F, S15C-F, SX15CSS-F ......................................................... 16
EXPLODED VIEW OF S22C-F, SX22CSS-F, S37C-F, SX37CSS-F ......................................................... 17
EXPLODED VIEW OF S55C-F, SX55CSS-F, S75C-F, SX75CSS-F ......................................................... 18
S-F SERIES PARTS LIST ........................................................................................................................... 19
SX-F SERIES PARTS LIST ........................................................................................................................ 20
THREE PHASE WIRING DIAGRAMS ........................................................................................................ 21
208V ........................................................................................................................................................ 21
MODELS S08C-F, SX08CSS-F, S15C-F, SX15CSS-F, S22C-F, SX22CSS-F, S37C-F, SX37CSS-F,
S55C-F, SX55CSS-F, S75C-F, SX75CSS-F ..................................................................................... 21
230V ........................................................................................................................................................ 22
MODELS S08C-F, SX08CSS-F, S15C-F, SX15CSS-F, S22C-F, SX22CSS-F, S37C-F, SX37CSS-F,
S55C-F, SX55CSS-F, S75C-F, SX75CSS-F ..................................................................................... 22
460V ........................................................................................................................................................ 23
MODELS S08CF, SX08CSS-F, S15C-F, SX15CSS-F, S22C-F, SX22CSS-F, S37C-F, SX37CSS-F,
S55C-F, SX55CSS-F, S75C-F, SX75CSS-F ..................................................................................... 23
575V ........................................................................................................................................................ 24
MODELS S08C-F, SX08CSS-F, S15C-F, SX15CSS-F, S22C-F, SX22CSS-F, S37C-F, SX37CSS-F,
S55C-F, SX55CSS-F, S75C-F, SX75CSS-F ..................................................................................... 24
SEAL MINDER® - THERMAL MOTOR SENSOR SWITCH ....................................................................... 25
WARRANTY AND LIMITATION OF LIABILITY .......................................................................................... 27
START-UP REPORT FORM ....................................................................................................................... 28
NOTES: ....................................................................................................................................................... 31
4
INTRODUCTION
This Installation, Operation and Maintenance manual provides important information on
safety and the proper inspection, disassembly, assembly and testing of the BJM
Pumps® S-F & SX-F Series submersible pump. This manual also contains information
to optimize performance and longevity of your BJM Pumps submersible pump. The F
Series FARHRENHEIT™ pumps are engineered to pump water based liquids up to 200°
Fahrenheit (93°C).
The submersible S-F Series pumps are designed to pump water and wastewater.
The SX-F Series pumps are designed to pump corrosive liquids in concentrations
chemically compatible with 316SS and FKM. The S-F & SX-F Series pumps are not
explosion-proof. They are not designed to pump volatile or flammable liquids.
Note: Consult chemical resistance chart for compatibility between pump
materials and liquid before operating pump. Consult BJM engineering if there is a
question on chemical compatibility.
If you have any questions regarding the inspection, disassembly, assembly or testing
please contact your BJM Pumps distributor, or BJM Pumps, LLC.
BJM Pumps, LLC
123 Spencer Plain Rd
Old Saybrook, CT 06475, USA
Phone: 877-256-7867
Phone: 860-399-5937
Fax: 860-399-7784
Information, including pump data sheets and performance curves, is also available on our web
site: www.bjmpumps.com
For assistance with your electric power source, please contact a certified electrician.
Please pay attention to the following alert notifications. They are used to notify operators and
maintenance personnel to pay special attention to procedures, to avoid causing damage to the
equipment, and to avoid situations that could be dangerous to personnel.
NOTE: Instructions to aid in installation, operation, and maintenance or which clarify a
procedure.
Immediate hazards that WILL result in severe personal injury or death.
These instructions describe the procedure required and the injury which will result from failure
to follow the procedure.
Hazards or unsafe practices that COULD result in severe personal injury
or death. These instructions describe the procedure required, and the injury which could result
from failure to follow the procedure.
Hazards or unsafe practices which COULD result in personal injury or
product or property damage. These instructions describe the procedure required and the
possible damage which could result from failure to follow the procedure.
5
SAFETY
Pump installations are seldom identical. Each installation and application can vary due to many
different factors. It is the owner/service mechanics responsibility to repair, service, and test to
ensure that the pump integrity is not compromised according to this manual.
Risk of electric shock – this pump has not been investigated for use in
swimming pool areas.
Do not pump flammable or volatile liquids. Death or serious injury
will result.
Before attempting to open or service the pump:
1) Familiarize yourself with this manual.
2) Unplug or disconnect the pump power cable to ensure that the pump will remain
inoperative.
3) Allow the pump to cool if overheated.
Do not operate the pump with a worn or damaged electric power cable.
Death or serious injury could occur.
Never attempt to alter the length or repair any power cable with a splice.
The pump motor and pump motor and cable must be completely waterproof. Damage to the
pump or personal injury may result from alterations.
After the pump has been installed, make sure that the pump and all piping
are secure before operation.
Do not lift the pump by the power cable piping or discharge hose. Attach
proper lifting equipment to the lifting handle (or lifting rings) fitted to the pump. Do not suspend
the pump by the power cable.
Obtain the services of a qualified electrician to troubleshoot, test and/or
service the electrical components of this pump.
Pumps and related equipment must be installed and operated according
to all national, local and industry standards.
INSPECTION
Review all safety information before servicing pump.
6
OIL IN SEAL CHAMBER
MODEL
U.S. FL. OZ.
CC.
TYPE OF OIL
S08C-F
7.8
230
ISO 32 NSF Food Grade Mineral Oil
S15C-F
7.8
230
ISO 32 NSF Food Grade Mineral Oil
S22C-F
11.8
350
ISO 32 NSF Food Grade Mineral Oil
S37C-F
11.8
350
ISO 32 NSF Food Grade Mineral Oil
S55C-F
35.5
1050
ISO 32 NSF Food Grade Mineral Oil
S75C-F
35.5
1050
ISO 32 NSF Food Grade Mineral Oil
OIL IN SEAL CHAMBER
MODEL
U.S. FL. OZ.
CC.
TYPE OF OIL
SX08CSS-F
10.1
300
ISO 32 NSF Food Grade Mineral Oil
SX15CSS-F
10.1
300
ISO 32 NSF Food Grade Mineral Oil
SX22CSS-F
13.5
400
ISO 32 NSF Food Grade Mineral Oil
SX37CSS-F
13.5
400
ISO 32 NSF Food Grade Mineral Oil
SX55CSS-F
35.5
1050
ISO 32 NSF Food Grade Mineral Oil
SX75CSS-F
35.5
1050
ISO 32 NSF Food Grade Mineral Oil
The following are recommended installation practices/procedures for the pump. If there are
questions in regards to your specific application, contact your local BJM Pumps distributor or
BJM Pumps, LLC.
PRE-INSTALLATION INSPECTION
1) Check the pump for damage that may have occurred during shipment.
2) Inspect the pump for any cracks, dents, damaged threads, etc.
3) Check power cord and sensor cable for any cuts or damage.
4) Check for, and tighten any hardware that appears loose.
5) Carefully read all tags, decals and markings on the pump.
6) Important: Always verify that the pump nameplate, amps, voltage, phase, and HP
ratings match your control panel and power supply.
Warranty does not cover damage caused by connecting pumps and controls to an incorrect
power source (voltage/phase supply). Record the model numbers and serial numbers from the
pumps and control panel on the front of this instruction manual for future reference. Give it to
the owner or affix it to the control panel when finished with the installation.
If anything appears to be abnormal, contact your BJM Pumps distributor or BJM Pumps, LLC.
If damaged, the pump may need to be repaired before use. Do not install or use the pump until
appropriate action has been taken.
Lubrication:
No additional lubrication is necessary. The shaft seal and bearings are fully lubricated from the
factory. Seal oil should be checked once per year. See table below.
OIL FILL QUANTITY/TYPE
NOTE: The stator on this model is oil filled. This needs to be changed annually when the seal oil is
changed. With the power cable entry removed, fill the motor chamber with oil to a level that insures the oil
is covering the motor windings by ½”, and that will be above the upper bearing. Do not overfill, an air gap
of 10-15% must be maintained for heat expansion.
7
PUMP INSTALLATION
S-F & SX-F Series pumps have been evaluated for use with water or water based solutions.
Please contact the manufacturer for additional information.
Risk of electric shock. Three phase pumps do not come with electric
plug connectors. To reduce the risk of electric shock, be certain that it is connected only to a
properly grounded, grounding-type receptacle.
Lifting:
Attach a rope or lifting chain (not included) to the handle (or lifting rings) on the top of the
pump.
Do not lift the pump by the power cable or discharge hose/piping. Proper
lifting equipment (rope/chain) must be used.
POSITIONING THE PUMP
BJM Pumps, S-F & SX-F Series pumps are designed to operate fully submerged. Data sheets
can be obtained online at www.bjmpumps.com or by calling BJM Pumps, LLC at 860-399-
5937.
Do not run the pump dry.
Pump liquid should not exceed a maximum temperature of 200°F (93°C).
Never place the pump on loose or soft ground. The pump may sink, preventing water
from reaching the impeller. Place on a solid surface or suspend the pump with a lifting
rope/chain. The S-F & SX-F Series pumps are provided with a suction strainer to
prevent large solids from clogging the impeller. Any spherical solids which pass through
the strainer should pass through the pump.
For maximum pumping capacity, use the proper size non-collapsible hose or rigid
piping. A check valve may be installed after the discharge to prevent back flow when the
pump is shut off.
8
PUMP ROTATION
Two ways to check the correct pump rotation:
1. By looking at the impeller; the rotation of the impeller should be counter clockwise as
shown in the picture below.
2. By looking from the top of the pump. Since the impeller cannot be seen, the best way to
check the rotation is to check the kick back motion of the pump when the pump just
starts. The kick back motion of the pump should be counter clockwise as shown in the
picture below.
9
PUMP OPERATION
This pump is designed to handle dirty water that contains some solids. It is
not designed to pump volatile or flammable liquids. Do not attempt to pump any liquids which
may damage the pump or endanger personnel as a result of pump failure.
Do not operate this pump where explosive vapors or flammable
material exist. Death or Serious injury will result.
TYPICAL MANUAL WASTEWATER INSTALLATION
NOTE: Maximum recommended starts should not exceed 10 times per hour.
All S-F & SX-F models are provided with a 33’ (10 m) power cord. NEVER splice the power
cable due to safety and warranty considerations. Always keep the lead end dry.
Note: 208V, 230V, 460V & 575V three phase units do not have a plug and have to be provided
separately.
Do not alter the length or repair any power cable with a splice. The pump
motor and cable must be completely waterproof. Damage to the pump or personal injury may
result from alterations.
For manual operation: 208, 230, 460 & 575 volt: Connect directly to the power source or
control box. Check the direction of the rotation. Tilt the pump and start it. It should twist in the
opposite direction of the arrow (on pump).
10
STOPPING
To stop the pump (manual and automatic mode), turn off the breaker, or turn the power
source off (generator).
Typical 3 Phase Manual Control 1
TYPICAL AUTOMATIC WASTEWATER INSTALLATION
NOTE: Maximum recommended starts should not exceed 10 times per hour.
Three phase pumps need a separate control box with float(s) for automatic operation.
11
12
STOPPING
To stop the pump (manual and automatic mode), unplug it from the power source, turn off the
breaker, or turn the power source off (generator).
INTENDED METHODS OF CONNECTION
Use with approved motor control that matches motor input in full load
amperes. “UTILLISER UN DÉMARREAR APPROUVÉ CONVENANT AU COURANT Á
PLEINE CHARGE DU MOTEUR.”
BJM Pumps has been evaluated for use with water or water based solutions. Please contact
the manufacturer for additional information.
THREE PHASE WIRING INSTRUCTIONS
FOR YOUR PROTECTION, ALWAYS DISCONNECT PUMP FROM ITS
POWER SOURCE BEFORE HANDLING.
Typical 3 Phase Auto Control 1
13
“Risk of electrical shock” Do not remove power supply cord and strain
relief.
Installation and checking of electrical circuits and hardware should be
performed by a qualified licensed electrician.
To automatically operate a non-automatic three phase pump, a control panel is required.
Follow the instructions provided with the panel to wire the system. For automatic three phase
pumps see automatic three phase wiring diagram.
Before installing a pump, make sure both of the ground leads and the power leads have been
connected properly. Once the power connections have been confirmed, then check the pump
rotation. Momentarily energize the pump, observing the directions of kick back due to starting
torque. Rotation is correct if kick back is in the opposite direction of rotation arrow on the pump
casing. If rotation is not correct, switching of any two power leads other than ground will
provide the proper rotation.
DO NOT PLACE HANDS IN PUMP SUCTION WHILE CHECKING
MOTOR ROTATION. TO DO SO WILL CAUSE SEVERE PERSONAL INJURY.
Three phase pumps DO NOT have integral motor overload protection. Pumps must be
installed in accordance with the National Electrical Code and all applicable local codes and
ordinances. Pumps are not to be installed in locations classified as hazardous in accordance
with National Electrical Code, ANSI/NFPA 70.
Connect pump to a junction box, outlet box, control box, enclosure with a wiring compartment
that meets NEC and local codes. The provision for supply connection shall reduce the risk of
water entry during temporary, limited submersion and shall comply with the applicable
requirements of the Standard for Enclosures for Electrical Equipment, UL 50, or the standard
for Metallic Outlet Boxes, UL 514A, and the standard for Motor-Operated Water Pumps. UL
778.
TROUBLE SHOOTING
Disconnect the power source to the pump BEFORE attempting any
type of trouble shooting, service or repair.
PUMP WILL NOT RUN
1. Check power supply (fuses, breaker). Reset power.
2. Blocked impeller. Remove strainer, check and clean.
3. Defective cable or incorrect wiring.
4. Strainer clogged. Check and clean as necessary.
14
5. Float switch tangled/obstructed. Clean and free float switch from obstruction.
6. Float switch defective. Replace float switch.
PUMP RUNS BUT DOES NOT DELIVER RATED CAPACITY
1. Discharge line clogged, restricted or hose kinked. Check discharge hose/pipe.
2. Worn impeller and/or suction cover. Inspect and replace as necessary.
3. Pump overloaded due to liquid pumped being too thick.
4. Pumping air. Check liquid level and position of pump.
5. Excessive voltage drops due to long cables.
6. Three phase only; pump running backwards, check rotation.
SERVICING YOUR SUBMERSIBLE PUMP
Pump should be disconnected from the electric power supply before proceeding to do any
service or maintenance.
To service or repair your pump, please contact your local BJM Pumps distributor. Service
should only be performed by a qualified electrician. The design of the “F” series high
temperature pump models is unique and requires specific knowledge to perform the proper
assembly. BJM Pumps recommends that all electrical service work be performed at the
factory, or by a factory trained and certified repair technician, to insure that the materials and
assembly methods meet BJM standards.
MAINTAINING YOUR PUMP
Pump should be disconnected from the electric power supply before proceeding to do
any service or maintenance.
Pump should be inspected at regular intervals.
More frequent inspections are required if the pump is used in a harsh environment.
Preventative maintenance should be performed to reduce the chance of premature
failure.
Worn impellers and lip seals should be replaced.
Cut or cracked power cords must be replaced. (Never operate a pump with a cut,
cracked or damaged power cord.)
Seal oil should be checked once per year.
Maintenance should always be done when taking a pump out of service before storage.
1) Clean pump of dirt and other build up.
2) Check condition of oil around the shaft seals.
3) Check hydraulic parts: check for wear.
4) Inspect power cable. Make sure that it is free of nicks or cuts.
15
STATOR REPLACEMENT OR ELECTRICAL REPAIR
The BJM Pumps “F” Series designed pumps utilize unique construction methods and
materials. The inner connection of all wiring requires use of a BJM wire connection kit.
Included in this kit are specific instructions on how a qualified factory trained and certified
repair technician can perform this work properly. No other materials or methods should be
used on this product.
CHANGING SEAL OIL
Changing the seal oil in the S-F & SX-F Series pumps is very easy.
1) Make sure that the pump is de-energized and locked out for service.
2) Lay the pump down on its side.
3) Remove the screws that hold the bottom plate in place.
4) Remove bottom plate.
5) Remove screws holding the suction cover.
6) Remove the suction cover.
7) Remove the impeller.
8) Remove the inspection screw for the oil chamber (pos#50-08). Pour out a
small sample of the oil. If it is milky white, or contains water, then the oil and
possible, the mechanical seal, should be changed. If an oil change is needed:
9) Remove the screws that hold the oil chamber cover in place & remove the oil.
10) Replace the mechanical seal if necessary.
11) Replace the oil.
12) Assemble the pump.
16
EXPLODED VIEW OF S08C-F, SX08CSS-F, S15C-F, SX15CSS-F
17
EXPLODED VIEW OF S22C-F, SX22CSS-F, S37C-F, SX37CSS-F
18
EXPLODED VIEW OF S55C-F, SX55CSS-F, S75C-F, SX75CSS-F
19
Pump Model S08CF S15CF S22CF S37CF S55CF S75CF
Pos. No. Part Description
Item # Item # Item # Item # Item # Item #
01-2 Stand 203843 201986 201990 201992 201996 201996
02
Bottom Plate - - - - 202020 202020
03 Impeller Nut 202894 202894 202894 202894 202897 202897
04 Impeller Washer 202907 202907 202907 202907 202917 202917
05 Impeller 202099 202103 202105 202107 202109 202112
06 Impeller Key 202140 202140 202140 202140 202142 202142
07 Pump Housing 202173 203008 203011 203014 203022 203022
08 Oil Chamber Cover 202213 202213 202218 202218 203044 203044
08-1 O-Ring (Kit Only) Kit Kit Kit Kit Kit Kit
09 Lip Seal FKM 202232 202232 202235 202235 202241 202241
09A Lower Lip Seal FKM - - - - 202241 202241
13 Mechanical Seal FKM** 200500 200500 200301 200301 200304 200304
14 Lower Ball Bearing 200958 200958 200958 200959 200960 200961
14-1 Lower Ball Bearing - - - - 200960 200961
14-2 Lower Bearing Retainer Clip 202279 202279 202279 202279 202279 202279
17 Rotor w/ Shaft, 3PH 204031 204032 204033 204034 204039 204040
18 Stator w/ Casing 208V, 3 PH 200525 200529 200533 200537 200666 -
18 Stator w/ Casing 230/460V, 3PH 200547 200551 200555 200559 200563 200567
18 Stator w/ Casing 575V, 3PH 200589 200593 200597 200601 200606 200610
19 Wire Connection Kit* 204202 204202 204203 204203 204203 204203
20 Upper Ball Bearing 200967 200967 200958 200958 200959 200959
20-1 O-Ring (Kit Only) - - - - Kit Kit
21A Oil Chamber/Motor Housing 202196 202196 203030 203030 202180 203004
21A-1 O-Ring (Kit Only) Kit Kit Kit Kit Kit Kit
26 Pump Top Cover (W/ Sensor opening) 202435 202435 202437 202437 202439 202439
26-1 O-Ring (Kit Only) Kit Kit Kit Kit Kit Kit
27 Power Cable w/ Gland-3PH(high temp) 201733 201733 203776 203776 203776 203776
27-1 O-Ring (Kit Only) Kit Kit Kit Kit Kit Kit
27-2 Seal Minder/Temp. Sensor Cord (High Temp) 2736BF 2736BF 2736BF 2736BF 2736BF 2736BF
27-2-1 O-Ring Kit Only Kit Kit Kit Kit Kit Kit
31D Seal Minder Sensor w/ wire 202408 202408 203999 203999 204000 204000
31E Ground Wire w/Ring Term. 203145 203145 203145 203145 203145 203145
32 Power Cord Line Clip / Strain Relief 203161 203161 202497 202497 202497 202497
33 Seal Minder Sensor Cord Line Clip 203163 203163 203163 203163 203163 203163
34 Handle / Chain Handle 202517 202517 202509 202509 202515 202515
35 Rod Bolts 202669 202670 202671 202672 202673 202674
38 Discharge Nippple 2" 202531 - - - - -
38 Discharge Nipple 3" 202534 202534 202534 202534 - -
38E Bolt - Suction Cover 202570 202558 202558 202558 202560 202560
38E-1 Gasket, Discharge Elbow Viton 203213 203209 203209 203209 203211 203211
38F Discharge Flange 2" 202562 - - - - -
38F Discharge Flange 3" - 202545 202545 202545 - -
38F Discharge Flange 4" - - 202552 202552 202818 202537
38F-1 Gasket, Discharge Flange FKM 203207 202660 202660 202660 203211 203211
50-01-2 Bolt for Strainer/Stand 203228 203228 203228 203228 203229 203229
50-02 Bolt for Suction Cover - - - - 203229 203229
50-07 Screw for Oil Chamber/Motor Housing 203228 203228 203228 203228 203229 203229
50-08 Screw for Oil Chamber Cover 203219 203219 203219 203219 203246 203246
50-11 Screw for Oil Fill 203218 203218 203218 203218 203218 203218
50-11-1 O-Ring (Kit Only) Kit Kit Kit Kit Kit Kit
50-12 Screw for Pressure Check 203218 203218 203218 203218 203218 203218
50-12-1 O-Ring (Kit Only) Kit Kit Kit Kit Kit Kit
50-14-2 Screw 203219 203219 203219 203219 203219 203219
50-27 Screw for Power Cord 203216 203216 203246 203246 203246 203246
50-27-2 Screw for Oil Sensor Cord 203216 203216 203216 203216 203216 203216
50-31E Screw for Ground Wire 202692 202692 202692 202692 202692 202692
50-32/50-33 Screw for Line Clip 203214 203214 - - - -
50-34 Screw for Handle 203219 203219 - - - -
50-34-3 Lock Washer - - - - 202902 202902
50-38E Bolt for Discharge Elbow 203253 203255 203255 203255 203286 203286
50-38F Bolt for Discharge Flange 203289 203289 203289 203253 203287 203287
202646 202646 202641 202641 202644 202644
O-Ring Kit - FKM
* "F" Series High Temperature Pumps Only
S-F SERIES PARTS LIST
20
Pump Model SX08CSSF SX15CSSF SX22CSSF SX37CSSF SX55CSSF SX75CSSF
Pos. No. Part Description
Item # Item # Item # Item # Item # Item #
01-2 Stand 201985 201987 201991 201993 201997 201997
02
Bottom Plate - - - - 202022 202022
03 Impeller Nut 202894 202894 202894 202894 202897 202897
04 Impeller Washer 202907 202907 202907 202907 202917 202917
05 Impeller 202101 202104 202106 202108 202111 202113
06 Impeller Key 202140 202140 202140 202140 202142 202142
07 Pump Housing 202176 202172 202177 202181 202189 202189
07-1 O-Ring (Kit Only) Kit Kit Kit Kit - -
08 Oil Chamber Cover 202214 202214 202219 202219 202217 202217
08-1 O-Ring (Kit Only) Kit Kit Kit Kit Kit Kit
09 Lip Seal FKM 202232 202232 202235 202235 202241 202241
09A Lower Lip Seal FKM - - - - 202241 202241
13 Mechanical Seal FKM** 200500 200500 200301 200301 200304 200304
14 Lower Ball Bearing 200958 200958 200959 200959 200960 200961
14-1 Lower Ball Bearing - - - - 200960 200961
14-2 Lower Bearing Retainer 202279 202279 202279 202279 202279 202279
17 Rotor w/ Shaft, 3PH 204021 204022 204023 204024 204025 204026
18 Stator w/ Casing 208V, 3PH 200527 200531 200535 200539 200668 -
18 Stator w/ Casing 230/460V, 3PH 200549 200553 200557 200561 200565 200569
18 Stator w/ Casing 575V, 3PH 200591 200595 200599 200603 200608 200612
19 Wire Connection Kit* 204202 204202 204203 204203 204203 204203
20 Upper Ball Bearing 200967 200967 200958 200958 200959 200959
20-1 O-Ring (Kit Only) - - - - Kit Kit
21A Oil Chamber/Motor Housing 202197 202197 202198 202198 203013 203005
21A-1 O-Ring (Kit Only) Kit Kit Kit Kit Kit Kit
26 Pump Top Cover (W/ Sensor opening) 202436 202436 202438 202438 202440 202440
26-1 O-Ring (Kit Only) Kit Kit Kit Kit Kit Kit
27 Power Cable w/ Gland- 3PH(high temp) 201733 201733 203777 203777 203777 203777
27-1 O-Ring (Kit Only) Kit Kit Kit Kit Kit Kit
27-2 Seal Minder/Temp. Sensor Cord (high temp) 201741 201741 201741 201741 201741 201741
27-2-1 O-Ring Kit Only Kit Kit Kit Kit Kit Kit
31D Seal Minder Sensor w/Wire and Ring Term. 202408 202408 203999 203999 204000 204000
31E Ground Wire w/Ring Term. 203145 203145 203145 203145 203145 203145
32 Power Cord Line Clip / Strain Relief 203161 203161 202499 202499 202499 202499
33 Oil Sensor Cord Line Clip 203163 203163 203163 203163 203163 203163
34 Handle / Chain Handle 202517 202517 202510 202510 202516 202516
35 Rod Bolts 202684 202685 202686 202687 202673 202674
38 Discharge Nippple 2" 202532 - - - - -
38 Bolt - Suction Cover - 202535 202535 202535 - -
38E Discharge Elbow 202571 202559 202559 202559 202561 202561
38E-1
O-Ring, Discharge Elbow FKM
203326 203327 203327 203327 - -
38E-1 Gasket, Discharge Elbow FKM - - - - 203211 203211
38F Discharge Flange 2" 202563 - - - 202818 -
38F Discharge Flange 3" - 202546 202546 202546 - -
38F Discharge Flange 4" - - 202553 202553 202540 202540
38F-1 O-Ring, 2" Discharge Flange FKM 202723 - - - - -
38F-1 O-Ring, 3" Discharge Flange FKM - 202724 202724 202724 - -
38F-1 O-Ring, 4" Discharge Flange FKM - - 203328 203328 - -
38F-1 Gasket, 4" Discharge Flange FKM - - - - 203211 203211
50-01-2 Bolt for Strainer/Stand 203228 203228 203228 203228 203229 203229
50-02 Bolt for Suction Cover - - - - 203229 203229
50-07 Screw for Oil Chamber/Motor Housing 203296 203296 203296 203296 203229 203229
50-08 Screw for Oil Chamber Cover 203219 203219 203219 203219 203246 203246
50-11 Screw for Oil Fill 203218 203218 203218 203218 203218 203218
50-11-1 O-Ring (Kit Only) Kit Kit Kit Kit Kit Kit
50-12 Screw for Pressure Check 203218 203218 203218 203218 203218 203218
50-12-1 O-Ring (Kit Only) Kit Kit Kit Kit Kit Kit
50-14-2 Screw for Bearing Retainer 203219 203219 203219 203219 203219 203219
50-27 Screw for Power Cord 203295 203295 203246 203246 203246 203246
50-27-2 Screw for Oil Sensor Cord 203295 203295 203295 203295 203295 203295
50-31E Screw for Ground Wire 202692 202692 202692 202692 202692 202692
50-32/50-33 Screw for Line Clip 203214 203214 - - - -
50-34 Screw for Handle 203219 203219 - - - -
50-34-3 Lock Washer - - - - 202902 202902
50-38E Bolt for Discharge Elbow 203294 203271 203271 203271 203286 203286
50-38F Bolt for Discharge Flange 203229 203294 203294 203294 203287 203287
202647 202647 202642 202642 202644 202644
O-Ring Kit - FKM
* "F" Series High Temperature Pumps Only
SX-F SERIES PARTS LIST
21
THREE PHASE WIRING DIAGRAMS
208V
MODELS S08C-F, SX08CSS-F, S15C-F, SX15CSS-F, S22C-F, SX22CSS-F, S37C-F, SX37CSS-F,
S55C-F, SX55CSS-F, S75C-F, SX75CSS-F
22
230V
MODELS S08C-F, SX08CSS-F, S15C-F, SX15CSS-F, S22C-F, SX22CSS-F, S37C-F, SX37CSS-F,
S55C-F, SX55CSS-F, S75C-F, SX75CSS-F
23
460V
MODELS S08CF, SX08CSS-F, S15C-F, SX15CSS-F, S22C-F, SX22CSS-F, S37C-F, SX37CSS-F,
S55C-F, SX55CSS-F, S75C-F, SX75CSS-F
24
575V
MODELS S08C-F, SX08CSS-F, S15C-F, SX15CSS-F, S22C-F, SX22CSS-F, S37C-F, SX37CSS-F,
S55C-F, SX55CSS-F, S75C-F, SX75CSS-F
25
SEAL MINDER® - THERMAL MOTOR SENSOR SWITCH
(For high temperature pump models)
Seal Minder:
Also known as a seal failure circuit (or moisture detection circuit) is designed to inform the pump
operator that there is moisture within the oil chamber. This early warning can allow the operator to
schedule repair & inspection on the pump. The Seal Minder sensor probe is inside the oil chamber.
(The oil chamber houses the mechanical seals that are cooled & lubricated by oil). The Seal Minder,
when properly connected to a control panel, can help indicate seal failure. The Seal Minder cord
requires a seal fail circuit in control panel for warning signal.
Along, with the Seal Minder, the Fahrenheit™ Series high temperature pumps also feature
thermal temperature sensor switches that are imbedded into the motor stator windings. Three
switches are imbedded into the stator windings and wired in series. The leads are connected to the
pump control panel through the sensor cable. If the windings would see a temperature above 300
degrees F, then the switch(s) would open and cut power to the pump. Once the temperature dropped
below 300 degrees F, the switch(s) would reset, and the pump would be returned to a state of
operation. This feature is designed to prevent damage to the stator winding and allow for longer pump
life.
The sensor cable consists of four leads, two are connected to the Seal Minder, and two are
connected to the thermal sensor switches located in the stator windings. These four leads run to the
pump control panel and connect to the proper connections points for seal alarm and thermal cut off.
The black and white wires are for the Seal Minder connections and the thermal sensors will be
connected to the yellow and red wires. The three phase automatic wiring diagram shown earlier in the
manual will give a guide to the connections in the control panel. The manual for the control panel
should be consulted for the exact connections.
The sensor cable with Seal Minder and thermal sensor switch connections is standard on all
Fahrenheit™ Series high temperature pumps. The cable is designed for a high temperature
environment. The proper replacement part can be found parts list found in this manual. BJM Pumps,
can supply a control with the Seal Minder and Thermal sensor switch option. Separate stand alone
Seal Minder alarm panels are also available. Consult your BJM Pumps representative for part
numbers and ordering details. BJM Pumps requires the Seal Minder and thermal sensor switches be
used. Failure to connect or misuse of these devices will void warranty.
26
27
BJM PUMPS, LLC
123 Spencer Plain Road
Old Saybrook, CT 06475, U.S.A.
WARRANTY AND LIMITATION OF LIABILITY
Unless otherwise expressly authorized in writing, specifying a longer or shorter period, BJM
Pumps, LLC warrants for a period of eighteen (18) months from the date of shipment from the
Point of Shipment, or one (1) year from the date of installation, whichever occurs first, that all
products or parts thereof furnished by BJM Pumps, LLC under the brand name BJM Pumps,
hereinafter referred to as the “Product” are free from defects in materials and workmanship and
conform to the applicable specification.
BJM Pumps, LLC’s liability for any breach of this warranty shall be limited solely to replacement
or repair, at the sole option of BJM Pumps, LLC, of any part or parts of the Product found to be
defective during the warranty period, provided the Product is properly installed and is being
used as originally intended. Any breach of this warranty must be reported to BJM Pumps, LLC
or BJM Pumps, LLC’s authorized service representative within the aforementioned warranty
period, and defective Product or parts thereof must be shipped to BJM Pumps, LLC or BJM
Pumps, LLC’s authorized representative, transportation charges prepaid. Any cost associated
with removal or installation of a defective Product or part is excluded.
IT IS EXPRESSLY AGREED THAT THIS SHALL BE THE SOLE AND EXCLUSIVE REMEDY
OF BJM PUMPS, LLC’S DISTRIBUTORS AND CUSTOMERS. UNDER NO CIRCUMSTANCES
SHALL BJM PUMPS, LLC BE LIABLE FOR ANY COSTS, LOSS, EXPENSE, DAMAGES,
SPECIAL DAMAGES, INCIDENTAL DAMAGES OR CONSEQUENTIAL DAMAGES ARISING
DIRECTLY OR INDIRECTLY FROM THE DESIGN, MANUFACTURE, SALE, USE OR REPAIR
OF THE PRODUCT, WHETHER BASED ON WARRANTY, CONTRACT, NEGLIGENCE, OR
STRICT LIABILITY. IN NO EVENT WILL LIABILITY EXCEED THE PURCHASE PRICE OF
THE PRODUCT.
THE WARRANTY AND LIMITS OF LIABILITY CONTAINED HEREIN ARE IN LIEU OF ALL
OTHER WARRANTIES AND LIABILITIES, EXPRESSED OR IMPLIED. ALL IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
HEREBY DISCLAIMED BY BJM PUMPS, LLC AND EXCLUDED FROM THIS WARRANTY.
BJM Pumps, LLC neither assumes, nor authorizes any person to assume for it, any other
warranty obligation in connection with the sale of the Product. This warranty shall not apply to
any Product or parts of Product which have (a) been repaired or altered outside of BJM Pumps,
LLC’s facilities unless such repair was authorized in advance by BJM Pumps, LLC or by its
authorized representative; or (b) have been subject to misuse, negligence or accident; or (c)
have been used in a manner contrary to BJM Pumps, LLC’s instruction.
In any case of products not manufactured and sold under the BJM Pumps, LLC brand name,
there is no warranty from BJM Pumps, LLC; however BJM Pumps, LLC will extend any warranty
received from BJM Pumps, LLC’s supplier of such products.
START-UP REPORT FORM
Pump Owner’s Name
Location of Installation
Date of Installation:
Dealer
Dealer Phone ( )
Date of Purchase
Model
Serial No
Voltage
Phase
Hertz
HP
Does impeller turn freely by hand?
Yes No
Condition of Equipment
New Good Fair Poor
Condition of Cable Jacket
New Good Fair Poor
Rotation: Direction of Impeller Rotation (viewed from bottom)
(Use C/W for clockwise, CC/W for counterclockwise):
Resistance of cable and Pump Motor (measured at pump control)
Red-Black ohms
Red-White ohms
White-Black ohms
Resistance of ground circuit between control panel and outside of pumps
Ohms
MEG OHM CHECK OF INSULATION
Red to ground White to ground Black to ground
Condition of location at start-up
Dry Wet Muddy
Was equipment stored
If YES, length of storage:
Yes No.
Liquid being pump
Debris in bottom of station?
Yes No
START-UP REPORT FORM
This form is designed to record the initial installation, and to serve as a guide for troubleshooting at a
later date (if needed).
BJM Pumps, LLC
123 Spencer Plain Road
Old Saybrook, CT. 06475
START-UP REPORT FORM
Are guide rails vertical?
Yes No
Is base elbow installed level?
Yes No
Liquid level controls: Model
Is control installed away from turbulence?
Yes No
Float Operation Check
Tip lowest float (stop float), all pumps should remain off.
Tip second float (and stop float), one pump comes on.
Tip third float (and stop float), both pumps on (alarm on simplex).
Tip fourth float (and stop float), high level alarm on (omit on simplex).
Check here if using manual on/off only.
Does liquid level ever drop below volute top?
Yes No
Control Panel MFG & model no.
Number of pumps operated by control panel
NOTE: At no time should hole be made in top of control panel, unless proper sealing
devices are utilized.
Short Circuit protection:
Type:
Number and size of short circuit device(s)
Amp rating:
Overload type:
Size:
Amp rating:
Do protective devices comply with pump motor amp
rating?
Yes No
Are all pump connections tight?
Yes No
Is the interior of the panel dry?
Yes No
If No, correct moisture problem.
SINGLE PHASE
Voltage supply at panel line connection, pump off
L1
L2
Voltage supply at panel line connection, pump on
L1
L2
Amperage load connection, pump on
L1
L2
THREE PHASE
Voltage supply at panel line connection, pump off
L1-L2
L2-L3
L3-L1
Voltage supply at panel line connection, pump on
START-UP REPORT FORM
L1-L2
L2-L3
L3-L1
Amperage load connection, pump on
L1
L2
L3
FINAL CHECK
Is pump secured properly?
Yes No
Was pump checked for leaks?
Yes No
Do check valves operate properly?
Yes No
Flow: Do pumps appear to operate at proper rate?
Yes No
Noise level:
Acceptable
Unacceptable
Comments:
Installed by:
Company:
Person:
Date:
NOTES:
BJM Pumps, LLC
123 Spencer Plain Road • PO Box 1138 • Old Saybrook, CT 06475, USA
• Phone: (860) 399-5937 • Fax: (860) 399-7784
Email: sales@bjmpumps.com • Web Site: www.bjmpumps.com
FARHENHEIT
BJM Pumps & Seal Minder is a registered trademark of BJM Pumps, LLC
Copyright © 2009-2013 BJM Pumps, LLC. All rights reserved
™
is a trademark of BJM Pumps, LLC.
Loading...
