Updated November 22, 2012
SuperSpeed USB 3.0 Card Reader Flash Guide
Contents
Overview ....................................................................................................................................................... 2
System Requirements ................................................................................................................................... 2
Installation Guide .......................................................................................................................................... 2
Step 1: Download the flash software ........................................................................................................ 2
Step 2: Unzip the file to your desktop ...................................................................................................... 2
Step 3: Browse to the flash_tool folder and double-click RCC_2010 ....................................................... 2
Step 4: Click "Setting" "RCC Config" ..................................................................................................... 3
Step 5: Under the 2nd tab, check "Update Flash" and browse for the
RTS5301_DL_V30_2012092814.bin file .................................................................................................... 3
Step 6: Under the Firmware Information tab, ensure nothing is checked .............................................. 4
Step 7: Under "Card and Device" tab, remove all options from the left side box using the arrow
buttons and then click OK ......................................................................................................................... 4
Step 8: Set up will inform you either Update Flash Pass or Update Flash Fail ......................................... 5
Additional Resources .................................................................................................................................... 5
SuperSpeed USB 3.0 Card Reader support page ...................................................................................... 5
BitFenix support email .............................................................................................................................. 5
BitFenix official website ............................................................................................................................ 5
1
Overview
This update is for SuperSpeed USB 3.0 Card Reader users who are experiencing compatibility issues
under Windows 8.
System Requirements
• BitFenix SuperSpeed USB 3.0 Card Reader
• Windows XP/Vista/7 PC
Installation Guide
Step 1: Download the flash software
http://files.bitfenix.com/product_software/cardreader_flash_tool.zip

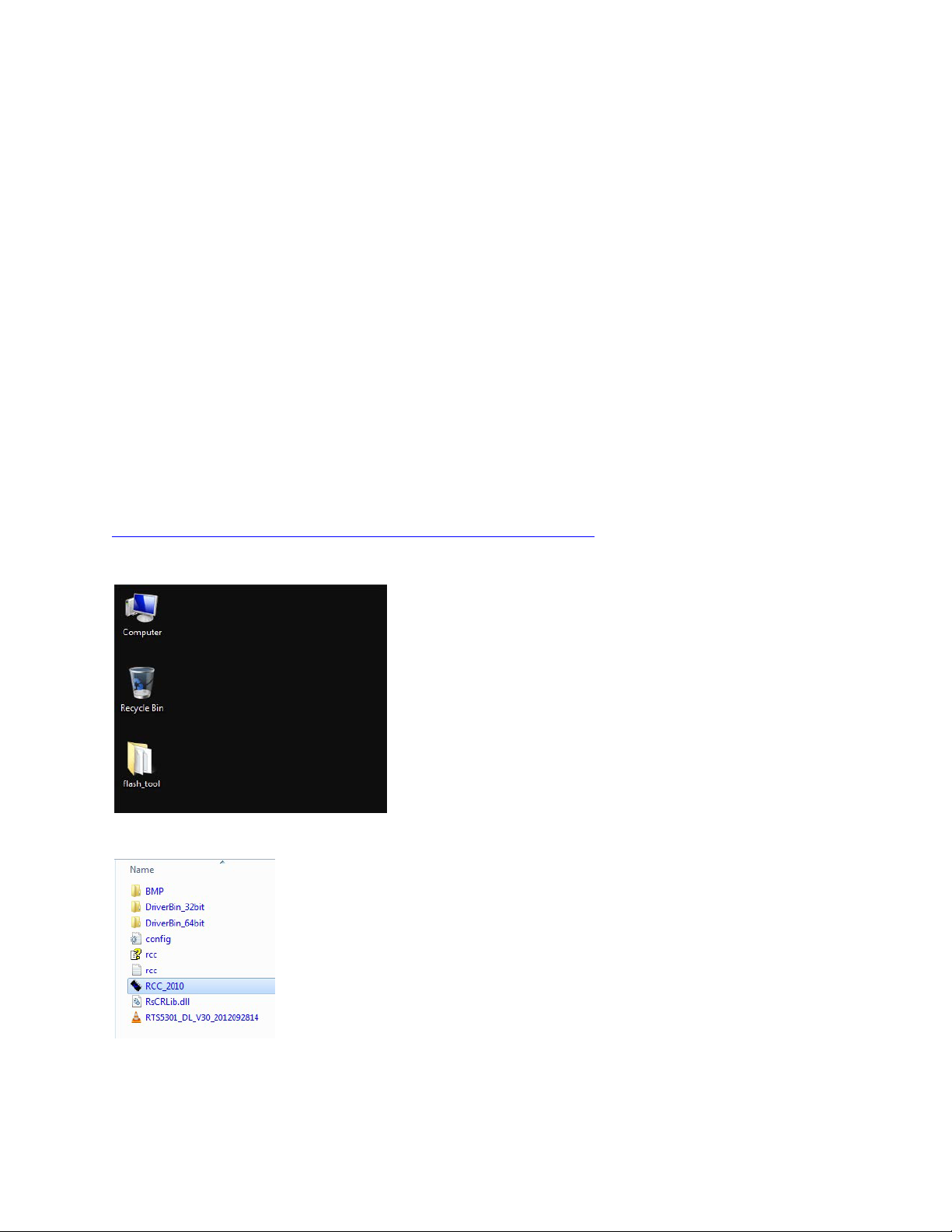

Step 2: Unzip the file to your desktop
Step 3: Browse to the flash_tool folder and double-click RCC_2010
2
