6+6 Controller Introduction
6+6 Controller
•Rated voltage DC12V/DC5V
•With 6 ARGB 3Pin 5V sockets, 6 12-volt fan sockets and a ARGB header connected to Motherboard
•A single ARGB socket can bear 80 LEDs
•A single fan socket can withstand 6 12-volt fans
•A total of 60 lighting illumination modes
•If you connect the controller to the Motherboard, long press the switch for the first time to enter the Motherboard follow mode and long press the switch again, the fan will flash white light then turn off.
•If you only use the controller, long press the switch and the LED will flash white light then turn off.
•This controller compatible with Asus AURA SYNC, MSI Mystic Light, Gigabyte RGB Fusion 2.0 and Asrock Poloychrome SYNC
6+6 Controller
Addressable RGB 3pin socket |
Front RGB switch |
|
|
||
|
|
|
SATA power cable (Connect to Power supply )
Connect to Fan
Connect to Gigabyte Motherboard
Addressable RGB 3pin socket
Connect to Motherboard Addressable RGB 3pin socket
6+6 Controller

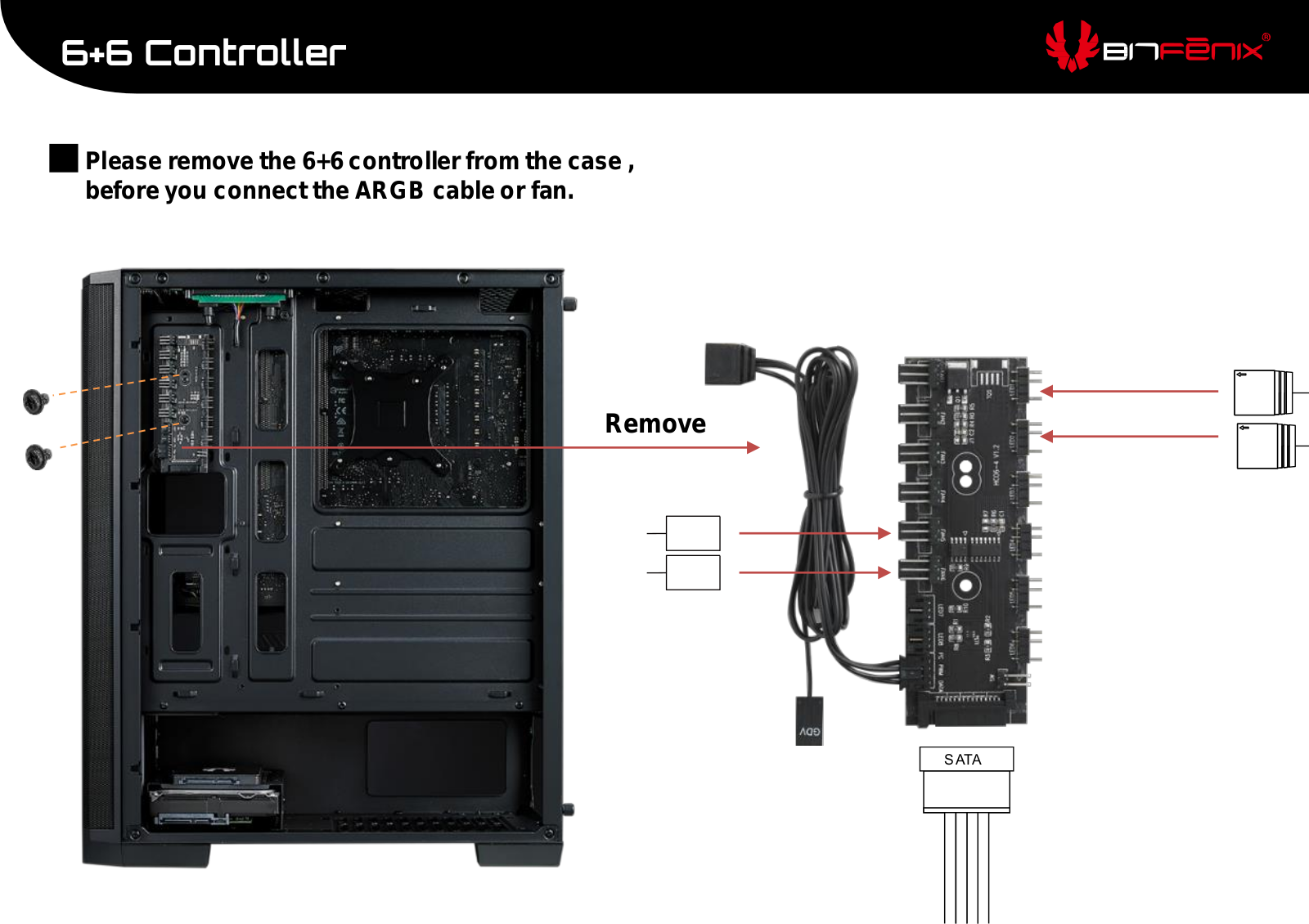

Please remove the 6+6 controller from the case , before you connect the ARGB cable or fan.
Remove
6+6 Controller
Fan power header
Connect to fan header on motherboard or controller for power.
ARGB LED connector
Connect to ARGB LED connector on motherboard or controller with 3 pin.
6+6 Controller
How to connect ARGB header on 6+6 controller Each socket support up to 80 LEDs
