Introduction
With the input from some of the
world’s renowned enthusiasts, we have
developed the BitFenix Shogun be an
extremely desirable chassis with many
novel features. Carrying on the theme
of simplicity from our famous Shinobi,
Shogun is the newest flagship design
model from BitFenix. May it be
performance or looks, Shogun is the
best of both worlds. With the top level
aesthetics, novel features and extreme
compatibility BitFenix Shogun is one of
the most advance and user friendly
chassis in the market.

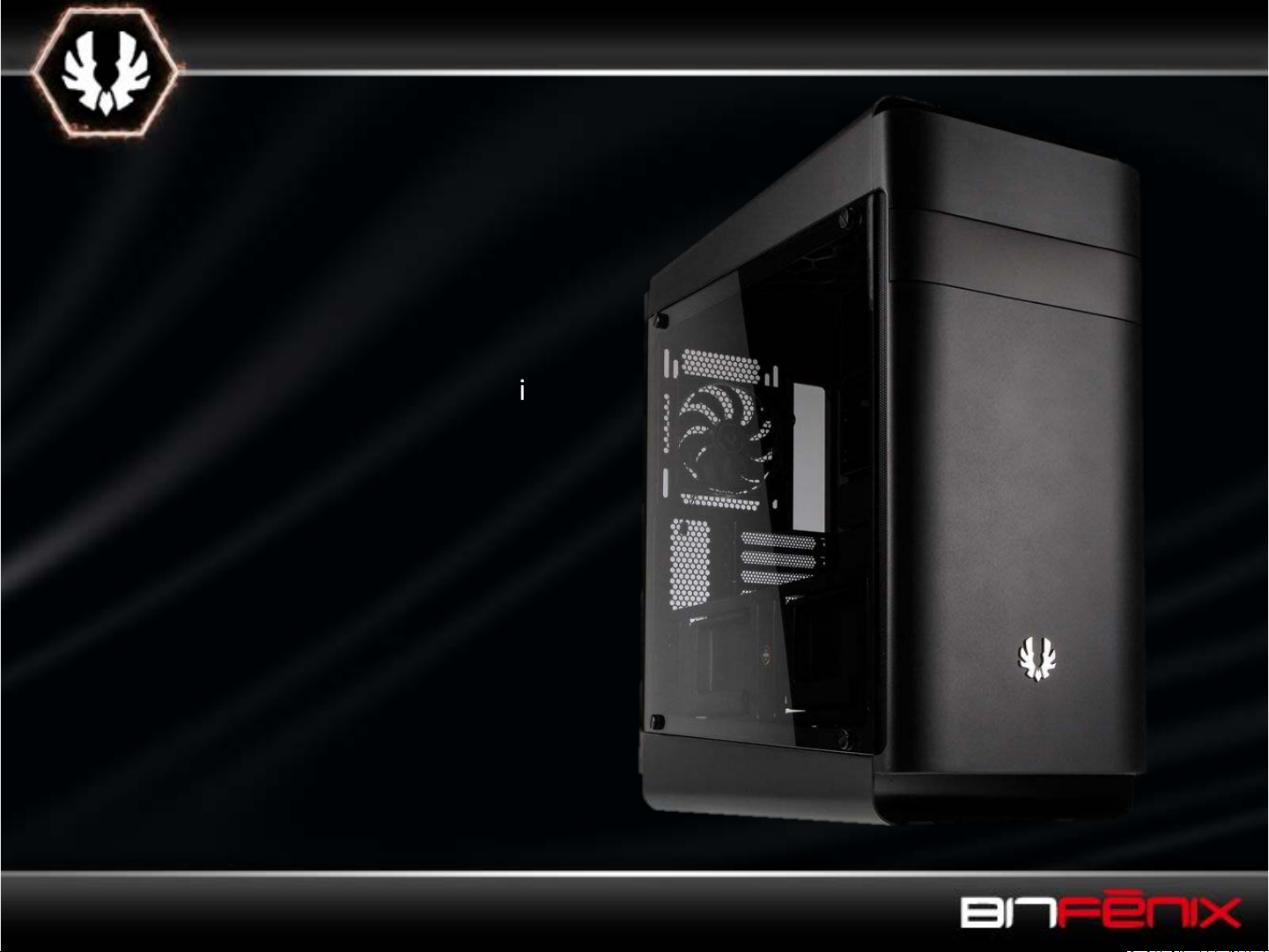

Dual Tempered Glass
BitFenix Shogun features two
high-quality tempered glass on
either sides to showcase the
beautiful components. With semi
tinted and fully tinted tempered
glass you can hide the cables
behind the motherboard tray.
The semi tinted glass can
showcase the components while
giving it a lite shade to
emphasize the premium looks.
Thick Aluminum Panels
To add to the premium elegant
look of the Shogun, the top and
bottom is wrapped around with
thick curved aluminum panels.
This gives strength as well as
clean look while keeping the
dust away from the PSU as well
as the top ventilation mesh.
BitFenix Quick Custom EATX
Thanks to ‘BitFenix Quick Custom
Design Technology’ Shogun sports
modular design for high end
hardware. BitFenix Shogun supports
up to EATX motherboards with
customizable Motherboard tray for
easy cable routing. The included
Quick Custom EATX Shield can be
used only when a EATX
motherboard installed to route
cables neatly. The chassis is
designed with 25mm of space
behind motherboard tray and
plenty of cable tie spots for cable
management.
Extreme Cooling Capacity
Shogun can host up to radiators of size 360mm or 280mm on the top panel, 280mm
or 240mm on the front and 140mm or 120mm on the rear panel. These can be easily
accessed with snappy front and top panels that also comes with dust filtered
ventilations that can be easily washed along with the panel itself.
Quick Custom HDD
With the ‘Quick Custom Design’, the hard drive cages
supporting up to 6 HDDs or 8 SSDs (+2 Chroma SSDs) can
be easily removed to accommodate any other
component or moved to any location on the mounting
rails to satisfy your needs.
GPU Safe
BitFenix Shogun comes with three new ‘GPU Safe’ Graphic card supports. They can
be easily configured to support various GPU models. This removes any possible
damage that could happen to the electronic components due to bending.
Quick Custom SSD Chroma
Along with the Shogun comes two all
new SSD Chroma Modules certified by
“ASUS Aura”. Thanks to quick custom
design, the LED strip inside the Chroma
modules can be easily adjusted to light
up the SSD from side or bottom. The
whole bracket can be easily and quickly
removed thanks to ‘BitFenix Quick
Custom Design’.
Specifications
Shogun
Chassis Type Super Mid-Tower
Motherboard E-ATX/ ATX/ M-ATX/ Mini-ITX
CPU Cooler Up to 175mm height
Graphic Card Length Up to 410mm
Power Supply Length Up to 250mm
5.25" ODD 0
Storage Capacity
Cooling Capacity
Radiator Capacity
Front I/O port USB 3.0 x 2, USB 2.0 x 2, HD Audio MIC & Headphone
Dimensions(WxHxD) 250 x 565 x 525mm
• Elegant Aluminum Design
• Dual Tempered Glass Side Panel
• Quick Custom storage design
• Quick Custom SSD Chroma
• Quick Custom EATX Shield
• BitFenix Chroma Control and SSD Chroma
• Advance design GPU Safe
• Support Graphic Card Length up to 410mm
• Up to 25mm Cable management Space
• 360mm Radiator Support at Top
• 3 pre-installed Fans
3.5" HDD 6
2.5" HDD 6+5
Front Up to 140mm x 2 or 120mm x 3 (2x120mm Included)
Rear 120mm x 1 (Included)/ 140mm x 1
Top Up to 140mm x 2 or 120mm x 3
Front Up to 280mm x 1 or 240mm x 1
Rear 120mm x 1/ 140mm x 1
Top Up to 360mm x 1 or 280mm x 1
Extras
• Aluminum
• Tempered Glass
• SECC Steel
• ABS
Materials
