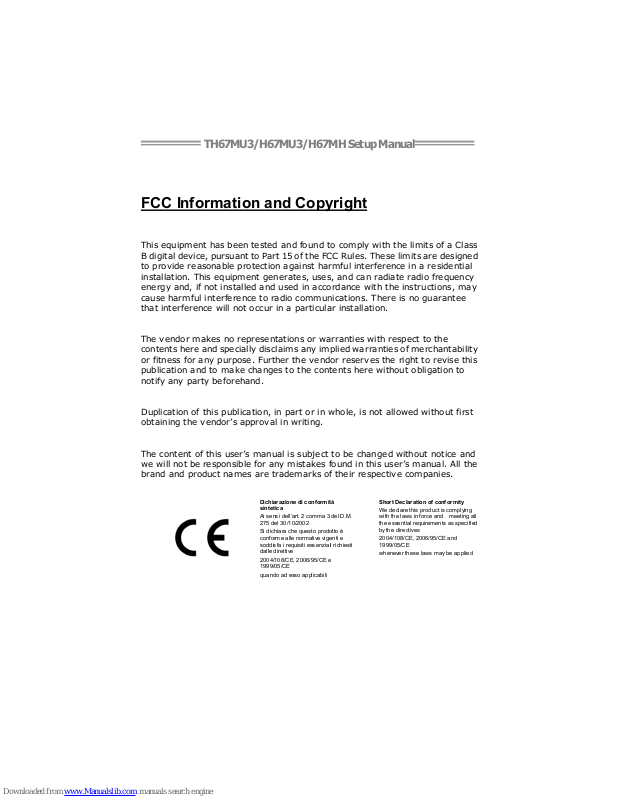

TH67MU3/H67MU3/H67MH Setup Manual
FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment ge nerates, uses, and can radiate radio frequency
energy and, if not i nstalled and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee
that interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the
contents here and specially disclaims any implied warranties of merchantability
or fitness for any purpose. Further the vendor reserves the right to revise this
publication and to make changes to the contents here without obligation to
notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.
The content of this user’s manual is subject to be changed without notice and
we will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective companies.
Dichiar azione di confor mit à
sintetica
Ai sensi dell’art. 2 comma 3 del D.M.
275 del 30/10/2002
Si dichiara che questo prodotto è
conforme alle normative vigenti e
soddisfa i requisiti essenziali richiesti
dalle direttive
2004/108/CE, 2006/95/CE e
1999/05/CE
quando ad esso applicabili
Short De clarat ion of conf ormity
We declare this product is complying
with the laws in force and meeting all
the essential requirements as specified
by the directives
2004/108/CE, 2006/95/CE and
1999/05/CE
whenever these laws may be applied
Page 2
Table of Contents
Chapter 1: Introduction ........................................ 1
1.1 Before You Start ................................................................................ 1
1.2 Package Checklist............................................................................. 1
1.3 Motherboard Features...................................................................... 2
1.4 Rear Panel Connectors ..................................................................... 3
1.5 Motherboard Layout......................................................................... 4
Chapter 2: Hardware Installation .......................... 5
2.1 Installing Central Processing Unit (CPU)....................................... 5
2.2 FAN Headers...................................................................................... 7
2.3 Installing System Memory ................................................................ 8
2.4 Connectors and Slots....................................................................... 10
Chapter 3: Headers & Jumpers Setup .................. 13
3.1 How to Setup Jumpers .................................................................... 13
3.2 Detail Settings.................................................................................. 13
Chapter 4: RAID Functions.................................. 17
4.1 Operating System............................................................................ 17
4.2 Raid Arrays...................................................................................... 17
4.3 How RAID Works............................................................................. 17
Chapter 5: Useful Help ........................................ 21
5.1 Driver Installation Note.................................................................. 21
5.2 Software............................................................................................ 22
5.3 Extra Information............................................................................ 26
5.4 AMI BIOS Beep Code....................................................................... 27
5.5 Troubleshooting............................................................................... 28
Appendix: SPEC In Other Languages ................... 29
German.................................................................................................................. 30
French .................................................................................................................... 32
Ita lian..................................................................................................................... 34
Spanish ................................................................................................................... 36
Portugue se ............................................................................................................ 38
Polish...................................................................................................................... 40
Russian ................................................................................................................... 42
Arabic..................................................................................................................... 44
Japanese ................................................................................................................ 46
Page 3
TH67MU3/H67MU3/H67MH
1
CHAPTER 1: INTRODUCTION
1.1 B
EFORE YOU START
Thank you for choosing our product. Before you start installing the
motherboard, please make sure you follow the instructions below:
Prepare a dry and stable working environment with
sufficient lighting.
Always disconnect the computer from power outlet
before operation.
Before you take the motherboard out from anti-static
bag, ground yourself properly by touching any safely
grounded appliance, or use grounded wrist strap to
remove the static charge.
Avoid touching the components on motherboard or the
rear side of the board unless necessary. Hold the board
on the edge, do not try to bend or flex the board.
Do not leave any unfastened small parts inside the
case after installation. Loose parts will cause short
circuits which may damage the equipment.
Keep the computer from dangerous area, such as heat
source, humid air and water.
The operating temperatures of the computer should be
0 to 45 degrees Celsius.
1.2 PACKAGE CHECKLIST
Serial ATA Cable X 2
Rear I/O Panel for ATX Case X 1
User’s Manual X 1
Fully Setup Driver CD X 1
USB 2.0 Cable X1 (optional)
Serial ATA Power Cable X 1 (optional)
Note: The package contents may be different due to area or your motherboard version.
Page 4
Motherboard Manual
2
1.3 MOTHERBOARD FEATURES
TH67M U3 / H67 MU3 H67 MH
CPU
Socket 1155
Int e l Co re i7 / i5 / i3 / Pen tium p rocessor
Supports Execute Disab le B it / Enhanced Inte l
Speed St ep® / Intel Ar chitecture-64 / Extended
Memory 64 Technology / Virtualization
Technology
Socket 1155
Int e l Co re i7 / i5 / i3 / Pen tium p rocessor
Supports Execute Disab le B it / Enhanced Inte l
Speed St ep® / Intel Ar chitecture-64 / Extended
Memory 64 Technology / Virtualization
Technology
Chipset
Intel H67 Intel H67
Super I/O
ITE 8728
Prov ides th e mos t common ly used leg acy Super
I/O functionality.
Low Pin Count Interface
En v ironm en t Cont r ol in it iatives ,
Hardware Monitor Controller
Fan Sp eed Controller
ITE's "S mart Guard ian" function
ITE 8728
Prov ides th e mos t common ly used leg acy Super
I/O functionality.
Low Pin Count Interface
En v ironm en t Cont r ol in it iatives ,
Hardware Monitor Controller
Fan Sp eed Controller
ITE's "S mart Guard ian" function
Main Memory
DIMM Slots x 2
Each DIMM supports 512MB / 1GB / 2GB / 4GB
DDR3
Max Memory Capacity 8GB
Dual Channel Mode DDR3 me mory mo du le
Supports DDR3 1333/1066
Register ed DIMM and ECC D IMM is not
supported
DIMM Slots x 2
Each DIMM supports 512MB / 1GB / 2GB / 4GB
DDR3
Max Memory Capacity 8GB
Dual Channel Mode DDR3 me mory mo du le
Supports DDR3 1333/1066
Register ed DIMM and ECC D IMM is not
supported
SATA 2 & 3
Integrated Serial ATA Controller
Data transfer rates up to 3.0 Gb/s / 6.0 Gb/s.
SATA Version 2.0 / 3.0 specification compliant
Integrated Serial ATA Controller
Data transfer rates up to 3.0 Gb/s / 6.0 Gb/s.
SATA Version 2.0 / 3.0 specification compliant
LAN
Realtek RTL8111E
10 / 100 Mb/s / 1Gb/s auto negot iation
Realtek RTL8111E
10 / 100 Mb/s / 1Gb/s auto negot iation
Sound Codec
ALC662
5.1 channels audio out
High Definition Audio
ALC662
5.1 channels audio out
High Definition Audio
USB3.0
Asmedia ASM1042
PCI Express Gen2 x16 Slot x1 PCI Express Gen2 x16 Slot x1
PCI Express Gen2 x1 Slot x1 PCI Express Gen2 x1 Slot x1
Slots
PCI Slot x2 PC I S lot x 2
Printer Port Connecto r x1 Printer Port Connecto r x1
Serial Port Connector x1 Serial Port Connector x1
SATA 3 Connector x2 SATA 3 Connector x2
SATA 2 Connector x4 SATA 2 Connector x4
Front Panel Connector x1 Front Panel Connector x1
Front Audio Connector x1 Front Audio Connector x1
S/PDIF out Connector x1 S/PDIF out Connector x1
On Board
Connectors
CPU Fan Header x1 CPU Fan Header x1
Page 5
TH67MU3/H67MU3/H67MH
3
TH67M U3 / H67 MU3 H67 MH
System Fan Header x1 System Fan Header x1
Clear CMOS Header x1 Clear C MOS H ead er x1
USB 2.0 Connector x2 USB 2.0 Connector x2
Consumer IR Connector x1 Consumer IR Connector x1
Power Connector (24pin) x1 Power Conn ector (24pin) x1
Power Connector (4pin) x1 Power Conn ector (4pin) x1
Back Panel
I/O
PS/2 Keybo ard / Mous e x1
HDMI Port x1
VGA Port x1
DVI-D Port x1
LAN Port x1
USB2.0 Port (by H67) x2
USB3.0 Port (by ASM1042) x2
Audio Jack x3
PS/2 Keybo ard / Mous e x1
HDMI Port x1
VGA Port x1
DVI-D Port x1
LAN Port x1
USB2.0 Port x4
Audio Jack x3
Board Size
200 (W) x 244 (L) mm 200 (W) x 244 (L) mm
OS Support
Windows XP / Vista / 7
Biostar reserves the right to add or remove
support for any OS with or without notice
Windows XP / Vista / 7
Biostar reserves the right to add or remove
support for any OS with or without notice
1.4 REAR PANEL CONNECTORS
USB3.0X2
LAN
HDMI VGADVI-D
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
PS/2
Keyboard / Mouse
US B2.0X 2
(For TH67MU3 & H67MU3)
USB2.0X2
(For H67M)
NOTE: HDM I / DV I-D / VGA Outp ut req uire an Inte l Core family processor wi th Intel Graphics
Te c h no lo g y.
NOTE: Maximum resolution:
HDMI: 1920 x 1200 @60Hz
DVI: 1920 x 1200 @60Hz
VGA: 2048 x 1536 @75Hz
NOTE: This motherboard supports Multiple VGA output, and the configuration is as below:
(HDMI is not supported under DOS and B IOS setup.)
Display Devices
VGA + HDMI
VGA + DVI-D HDMI + DVI-D
Enabled O O O
Page 6
Motherboard Manual
4
1.5 MOTHERBOARD LAYOUT
USBKB1
HDMI1
VGA 1
DVI1
RJ 45USB 1
AUDIO1
ATXPWR2
LAN
CODEC
F_ AUDI O1 J_ PRIN T1 J_C OM1
CIR1
JSPDIFOUT1
F_USB1 F_U SB2
PAN EL1
SYS_FAN1
JCMOS1
BIOS
SATA6
SATA4
SATA5
SATA3
BAT1
PCI1
PCI2
PEX16_1
PEX1_1
Super
I/O
ATXPWR1
DDR3_B1
DDR3_A1
CPU_FAN1
Socket 1155
CPU1
H67
SATA2 SATA1
Note: ■ represents the 1st pin.
Page 7
TH67MU3/H67MU3/H67MH
5
CHAPTER 2: HARDWARE INSTALLATION
2.1 I
NSTALLING CENTRAL PROCESSING UNIT (CPU)
Special Notice:
Remove Pin Cap before installation, and make good preservation
for future use. When the CPU is removed, cover the Pin Cap on the
empty socket to ensure pin legs won’t be damaged.
Step 1: Pull the socket locking lever out from the socket and then raise
the lever up.
Step 2: Remove the Pin Cap.
Page 8
Motherboard Manual
6
Step 3: Look for the triangular cut edge on socket, and the golden dot on
CPU should point forwards this triangular cut edge. The CPU will
fit only in the correct orientation.
Step 4: Hold the CPU down firmly, and then lower the lever to locked
position to complete the installation.
Step 5: Put the CPU Fan and heatsink assembly on the CPU and buckle it
on the retention frame. Connect the CPU FAN power cable into
the CPU_FAN1 to complete the installation.
Page 9
TH67MU3/H67MU3/H67MH
7
2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different due to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
CPU_FAN1: CPU Fan Header
Pin
Assignment
1 Ground
2 Power
3 FAN RPM rate sense
14
4 Smart Fan Control
SYS_FAN1: System Fan Header
Pin
Assignment
1 Ground
2 +12V
1
3
3 FAN RPM rate sense
Note:
CPU_FAN1 supports 4-pin head connector; SYS_FAN1, 3-pin head one. When
connecting with wires onto connectors, please note that the red wire is the positive and
should be co nnected to pin#2, and the black wire is Ground and should be connected to
GND.
Page 10
Motherboard Manual
8
2.3 INSTALLING SYSTEM MEMORY
A. DDR3 module
DDR3_A1
DDR3_B1
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.
Page 11
TH67MU3/H67MU3/H67MH
9
B. Memory Capacity
DIMM Socket
Location
DDR3 Module
Total Mem o ry
Size
DDR3_A1 512MB/1GB/2GB/4GB
DDR3_B1 512MB/1GB/2GB/4GB
Max is 8GB.
C. Dual Channel Memory Installation
Please refer to the following requirements to activate Dual Channel function:
Install memory module of the same density in pairs, shown in the table.
Dual Channel Status
DDR3_A1
DDR3_B1
Disabled O X
Disabled X O
Enabled O O
(O means memory installed; X, not installed.)
The DRAM bus width of the memory module must be the same(x8 or
x16)
Page 12
Motherboard Manual
10
2.4 CONNECTORS AND SLOTS
SATA1/SATA2: Serial ATA Connecto rs
The motherboard has a PCI to SATA Controller with 4channels SATA interface, it
satisfies the SATA 3.0 spec and with transfer rate of 6Gb/s.
Pin Assignment
1 Ground
2 TX+
3 TX4 Ground
5 RX6 RX+
1
4
7
SATA1
SATA2
7 Ground
SATA3~SATA6: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 4channels SATA interface, it
satisfies the SATA 2.0 spec and with transfer rate of 3Gb/s.
Pin Assignment
1 Ground
2 TX+
3 TX4 Ground
5 RX6 RX+
1
4
7
SATA3 SATA5
SATA4 SATA6
7 Ground
Page 13
TH67MU3/H67MU3/H67MH
11
ATXP W R1: AT X P ower Source Connector
This connector is for 24-pin power connector on the ATX power supply.
1
12
13
24
Pin Assignment Pin Assignment
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V
ATXP W R2: AT X P ower Source Connector
This connector provides +12V to CPU power circuit.
Pin
Assignment
1 +12V
2 +12V
3 Ground
12
34
4 Ground
Note:
Before you power on the system, please make sure that both ATXPWR1 and ATXPWR2
connectors have been plugged-in.
Page 14
Motherboard Manual
12
PCI1/PCI2: Peripheral Component Interconnect Slots
This motherboard is equipped with 2 standard PCI slots. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for expansion
cards. This PCI slot is designated as 32 bits.
PCI2
PCI1
PEX16_1: PCI-Express Gen2 x16 Slot
- PCI-Express 2.0 compliant.
- Maximum theoretical realized bandwidth of 8GB/s simultaneously per
direction, for an aggregate of 16GB/s totally.
- PCI-Express Gen2 supports a raw bit-rate of 5.0Gb/s on the data pins.
- 2X bandwidth over the PCI-Express 1.1 architecture.
PEX1_1: PCI-Express Gen2 x1 Slot
- PCI-Express 1.1 compliant.
- Data transfer bandwidth up to 250MB/s per direction; 500MB/s in total.
- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.
PEX16_1
PEX1_1
Page 15
TH67MU3/H67MU3/H67MH
13
CHAPTER 3: HEADERS & JUMPERS SETUP
3.1 H
OW TO SETUP JUMPERS
The illustration shows how to set up jumpers. When the jumper cap is
placed on pins, the jumper is “close”, if not, that means the jumper is
“open”.
Pin opened Pin closed Pin1-2 closed
3.2 DETAIL SETTINGS

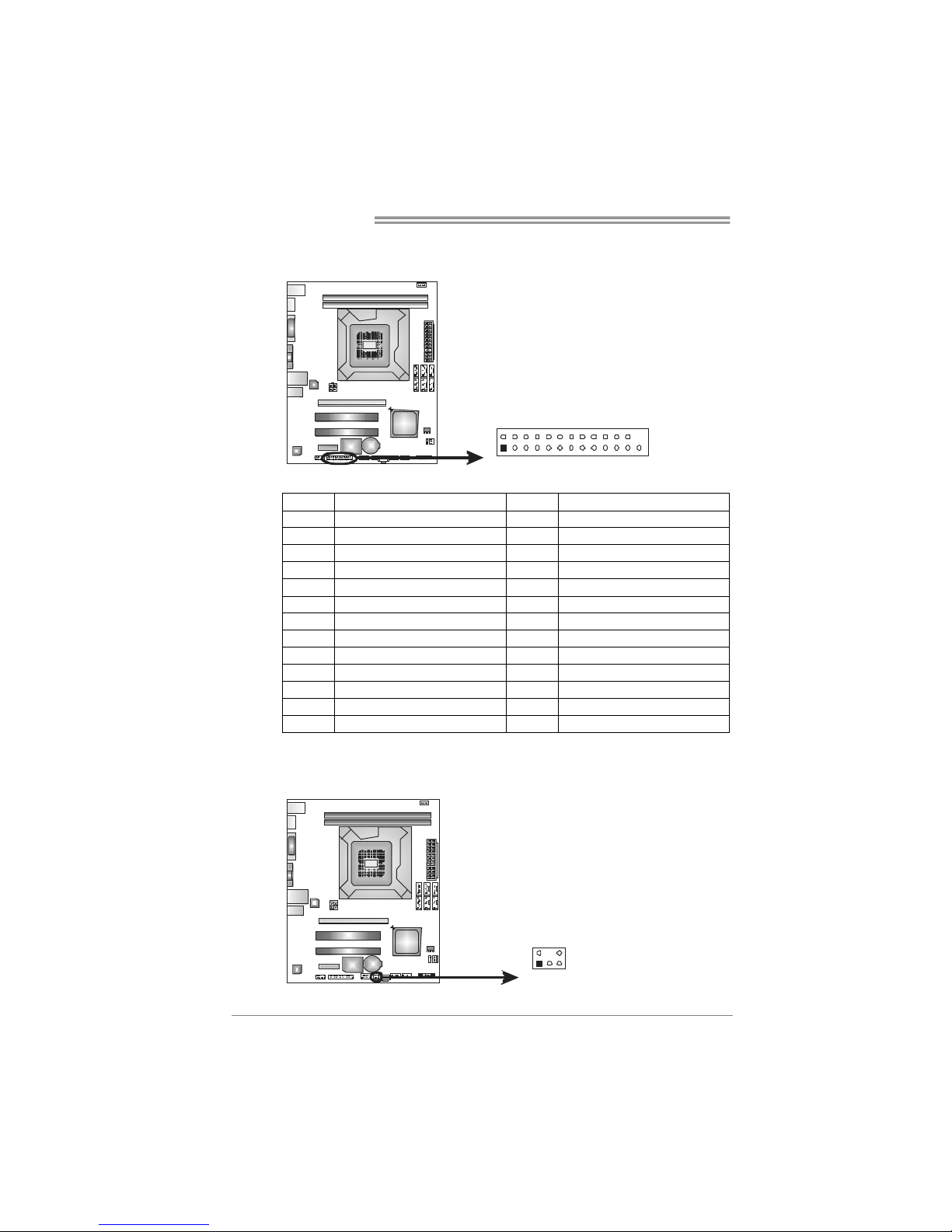

PANEL1: Front Panel Header
This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and
speaker connection. It allows user to connect the PC case’s front panel switch
functions.
1
9
8
16
POW _LED
On/Off
RST
HLED
SPK
++
+
-
-
Pin Assignment Function Pin Assignment Function
1 +5V 9 N/A
2 N/A 10 N/A
N/A
3 N/ A 1 1 N/A N/A
4 Speaker
Speaker
Connector
12 Power LED (+)
5 HDD LED (+) 13 Power LED (+)
6 HDD LED (-)
Hard drive
LED
14 Power LED (-)
Power LED
7 Ground 15 Power button
8 Reset control
Reset button
16 Ground
Power-on button
Page 16
Motherboard Manual
14

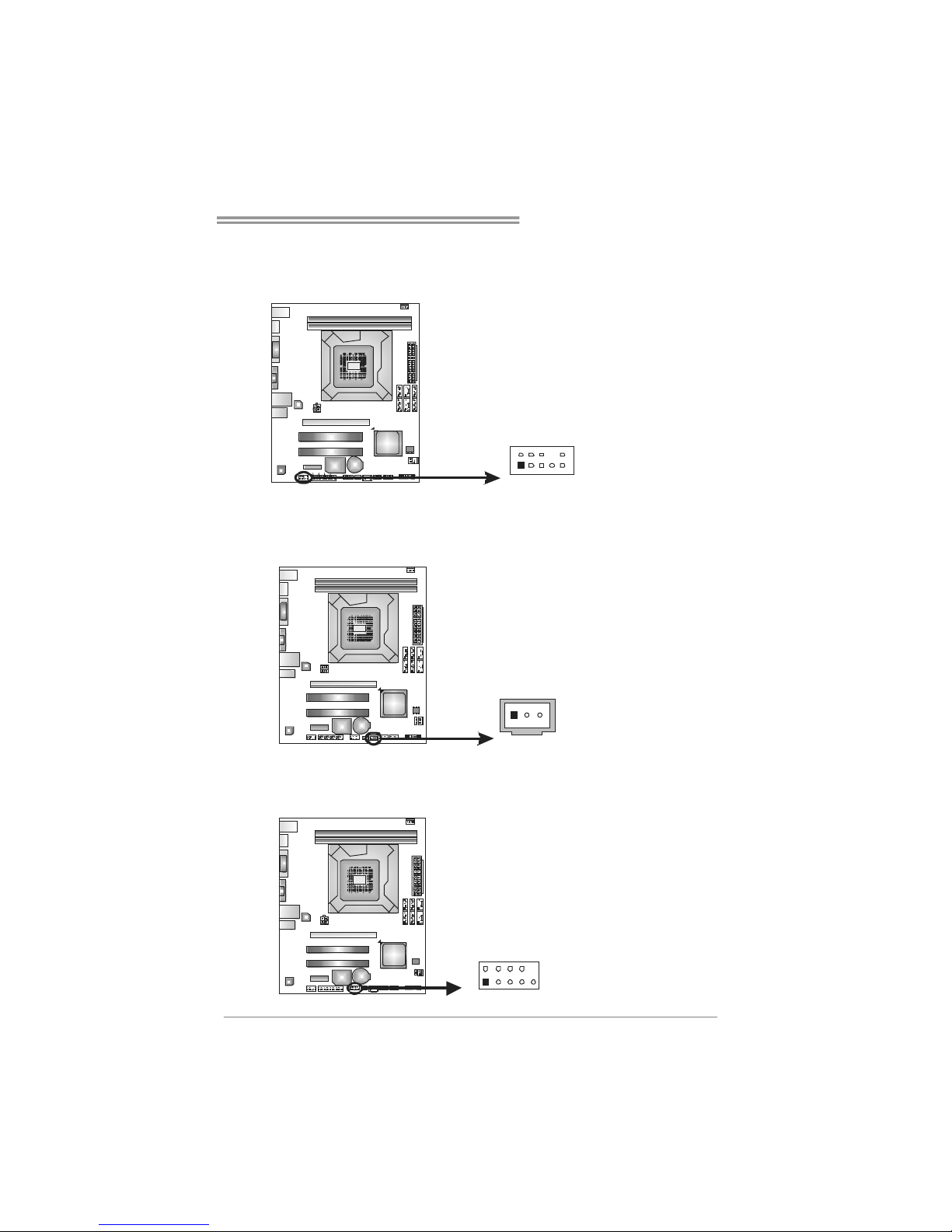

F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel
This motherboard provides 2 USB 2.0 headers, which allows user to connect
additional USB cable on the PC front panel, and also can be connected with
internal USB devices, like USB card reader.
Pin Assignment
1 +5V (fused)
2 +5V (fused)
3 USB4 USB5 USB+
6 USB+
7 Ground
8 Ground
9 Key
19
210
F_USB1 F_USB2
10 NC

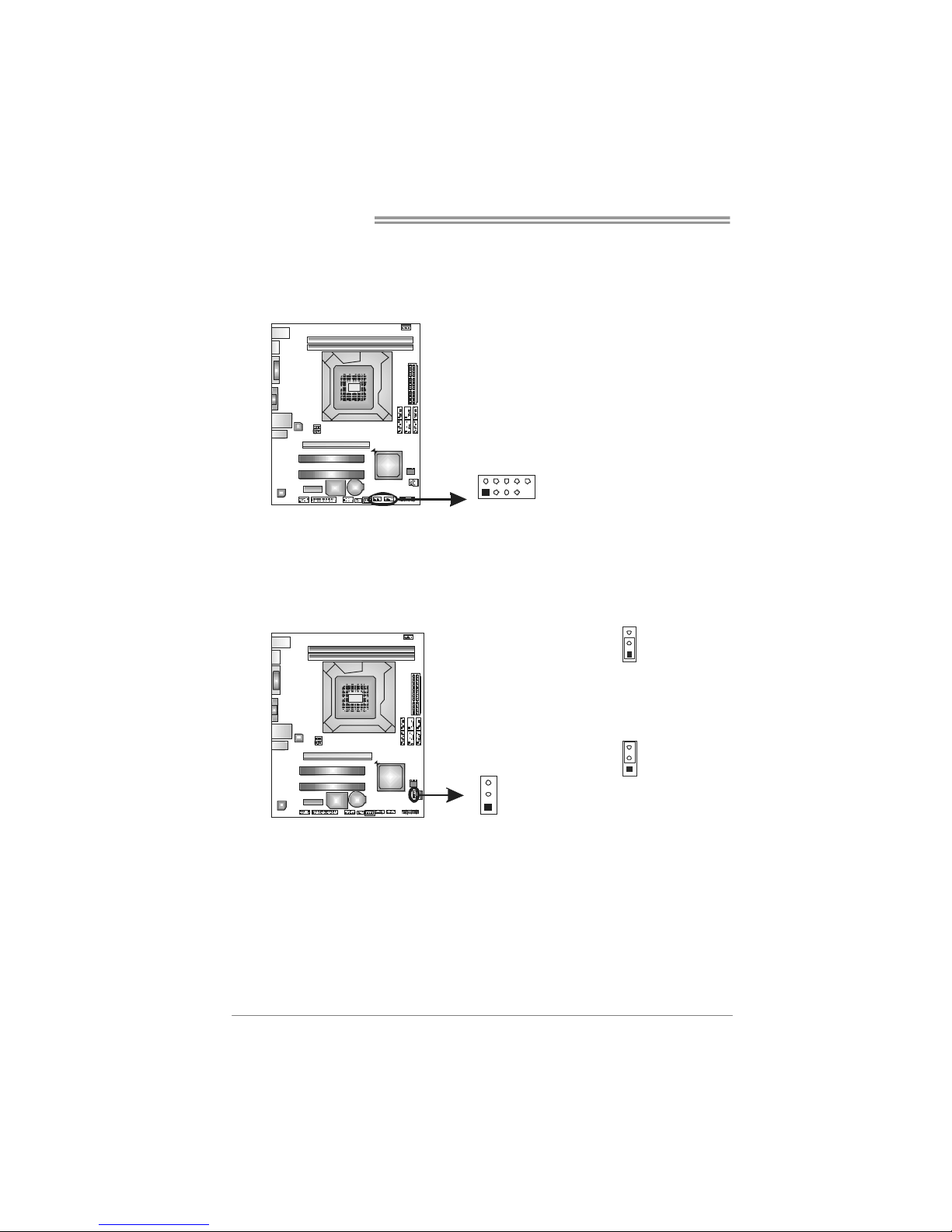

JCMOS1: Clear CMOS Header
Placing the jumper on pin2-3 allows user to restore the BIOS safe setting and
the CMOS data. Please carefully follow the procedures to avoid damaging the
motherboard.
1
3
Pin 1-2 Close:
Normal Operation
(Default).
1
3
1
3
Pin 2-3 Close:
Clear CMOS data.
※ Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.
Page 17
TH67MU3/H67MU3/H67MH
15
F_AUDIO1: Front Panel Audio Header
This header allows user to connect the front audio output cable with the PC front
panel. This header allows only HD audio front panel connector, not AC’97.
Pin Assignment
1 Mic Left in
2 Ground
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7 Front Sense
8 Key
9 Left line in
10 Jack Sense
19
210
JSPDIFOUT1: Digital Audio-out Connector
This connector allows user to connect the PCI bracket SPDIF output header.
Pin
Assignment
1 +5V
2 SPDIF_OUT
31
3 Ground
J_COM1: Serial port Connector
The motherboard has a Serial Port Connector for connecting RS-232 Port.
Pin
Assignment
1 Carrier detect
2 Received data
3 Transmitted data
4 Data terminal ready
5 Signal ground
6 Data set ready
7 Request to send
8 Clear to send
9 Ring indicator
19
210
10 NC
Page 18
Motherboard Manual
16
J_PRINT1: Printer Port Connector
This header allows you to connector printer on the PC.
1
2
25
26
Pin Assignment Pin Assignment
1 -Strobe 14 Ground
2 -ALF 15 Data 6
3 Data 0 16 Ground
4 -Error 17 Data 7
5 Data 1 18 Ground
6 -Init 19 -ACK
7 Data 2 20 Ground
8 -Scltin 21 Busy
9 Data 3 22 Ground
10 Ground 23 PE
11 Data 4 24 Ground
12 Ground 25 SCLT
13 Data 5 26 Key
CIR1: Consumer IR Connector
This header is for infrared remote control and communication.
Pin Assignment
1 IrDA serial input
2 Ground
3 Ground
4 Key
5 IrDA serial output
6 IR Power
125
6
Page 19
TH67MU3/H67MU3/H67MH
17
CHAPTER 4: RAID FUNCTIONS
4.1 O
PERATING SYSTEM
Supports Windows XP, Windows Vista, and Windows 7.
4.2 RAID ARRAYS
RAID supports the following types of RAID arrays:
RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write times for
many applications.
RAID 1: RAID 1 defines techniques for mirroring data.
RAID 10: RAID 10 combines the techniques used in RAID 0 and RAID 1.
RAID 5: RAID 5 provides fault tolerance and better utilization of disk capacity.
4.3 HOW RAID WORKS

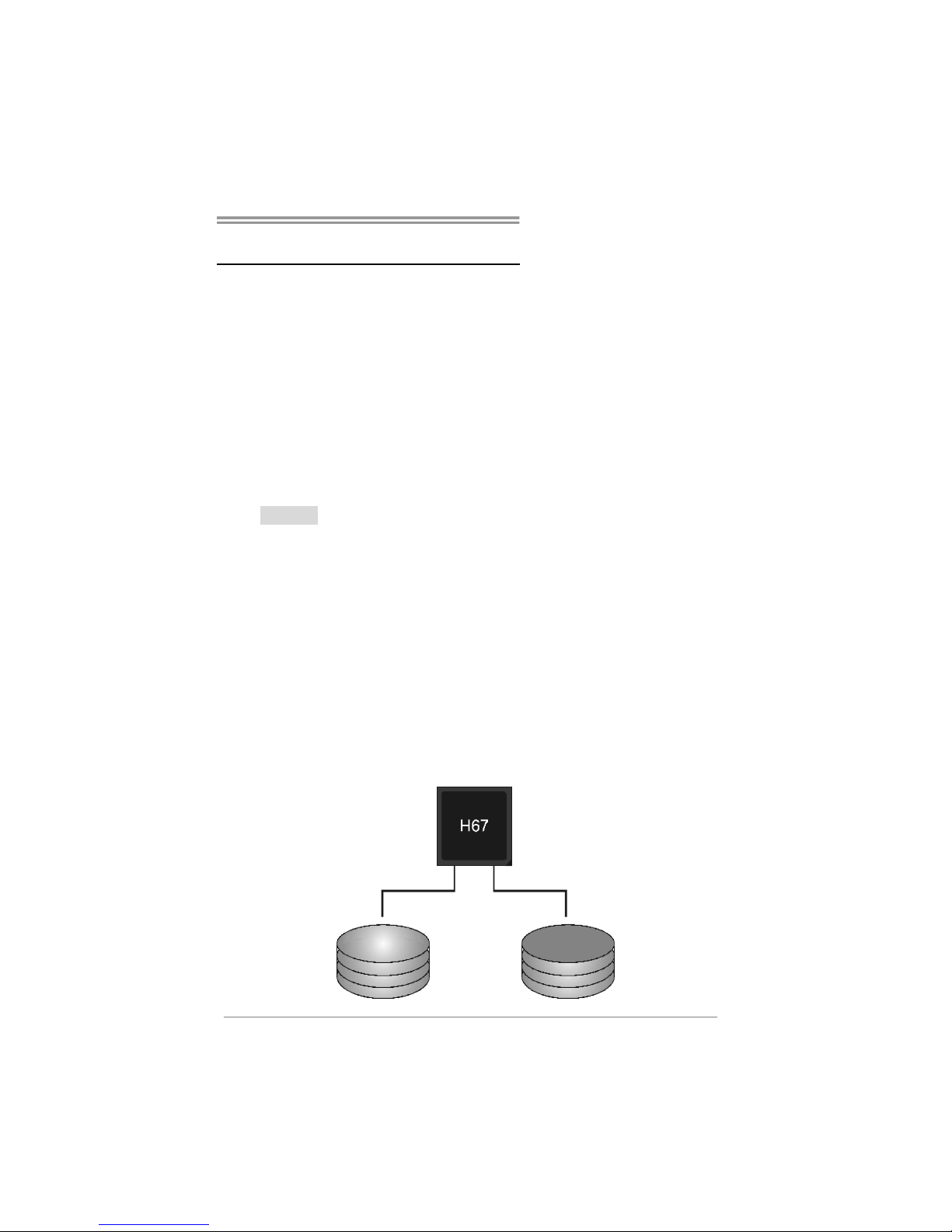

RAID 0:
The controller “stripes” data across multiple drives in a RAID 0 array system. It breaks
up a large f i le into sma ller bloc ks an d pe rfo rms d isk r ead s and wr ites acr oss m ultip le
drives in parallel. The size of each block is determined by the stripe size parameter,
which you set during the creation of the RAID set based on the system environment. This
technique reduces overall disk access time and offers high bandwidth.
Features and Benefits
Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the
platform.
Uses: Intended for non-critical data requiring high data throughput, or any
environment that does not require fault tolerance.
Benefits: provides increased data throughput, especially for large files. No
capacity loss penalty for parity.
Drawbacks: Does not deliver any fault tolerance. If any drive in the array
fails, all data is lost.
Fault Tolerance: No.
Block 1
Blo ck 3
Blo ck 5
Block 2
Blo ck 4
Blo ck 6
Page 20
Motherboard Manual
18

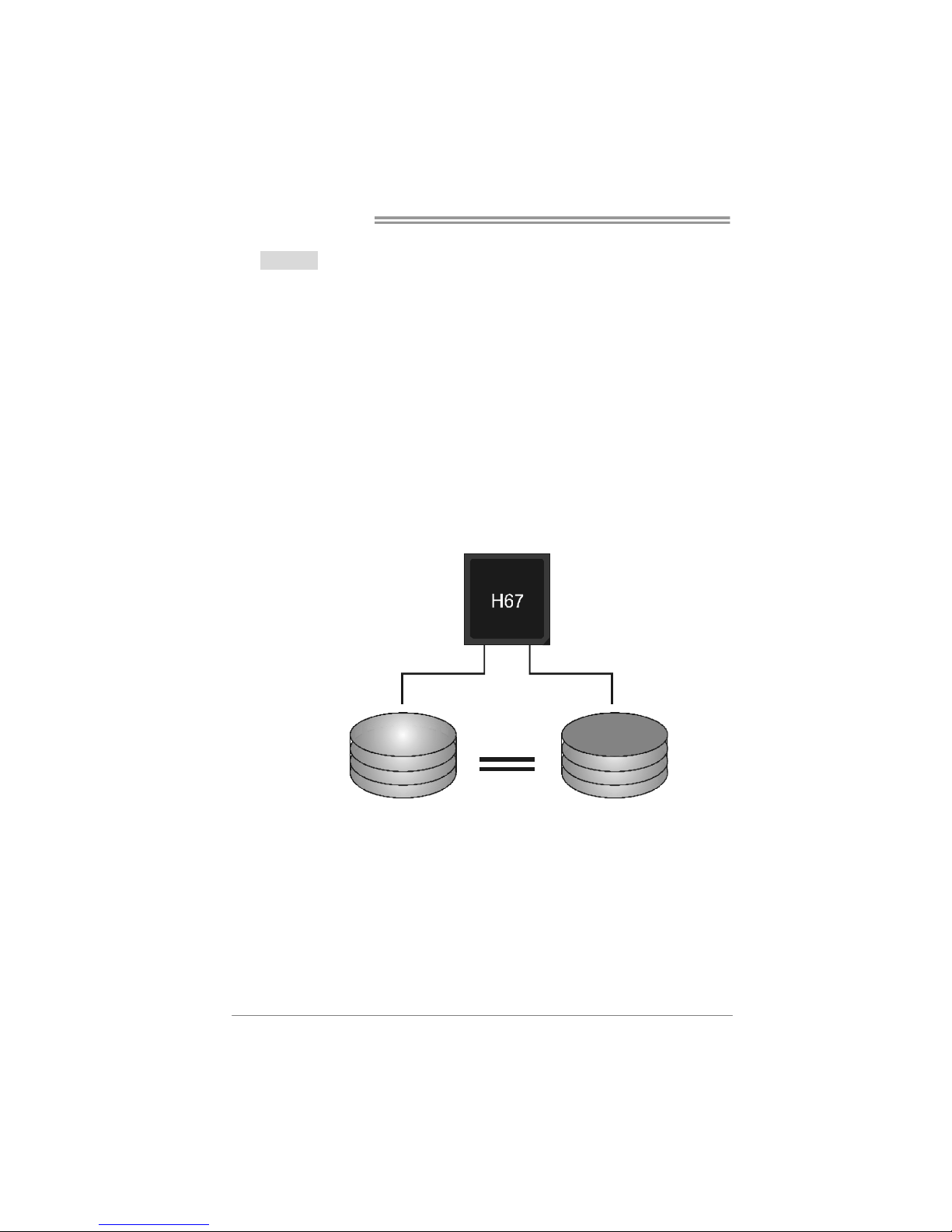

RAID 1:
Every read and write is actually carried out in parallel across 2 disk drives in a RAID 1
array system. The mirrored (backup) copy of the data can reside on the same disk or on a
second redundant drive in the array. RAID 1 provides a hot-standby copy of data if the
active volume or drive is corrupted or becomes unavailable because of a hardware failure.
RAID techniques can be applied for high-availability solutions, or as a form of automatic
backup that eliminates tedious manual backups to more expensive and less reliable
media.
Features and Benefits
Drives: Minimum 2, and maximum is 2.
Uses: RAID 1 is ideal for small databases or any other application that
requires fault tolerance and minimal capacity.
Benefits: Provides 100% data redundancy. Should one drive fail, the
controller switches to the other drive.
Drawbacks: Requires 2 drives for the storage space of one drive.
Performance is impaired during drive rebuilds.
Fault Tolerance: Yes .
Block 1
Block 2
Block 3
Block 1
Block 2
Block 3
Page 21
TH67MU3/H67MU3/H67MH
19

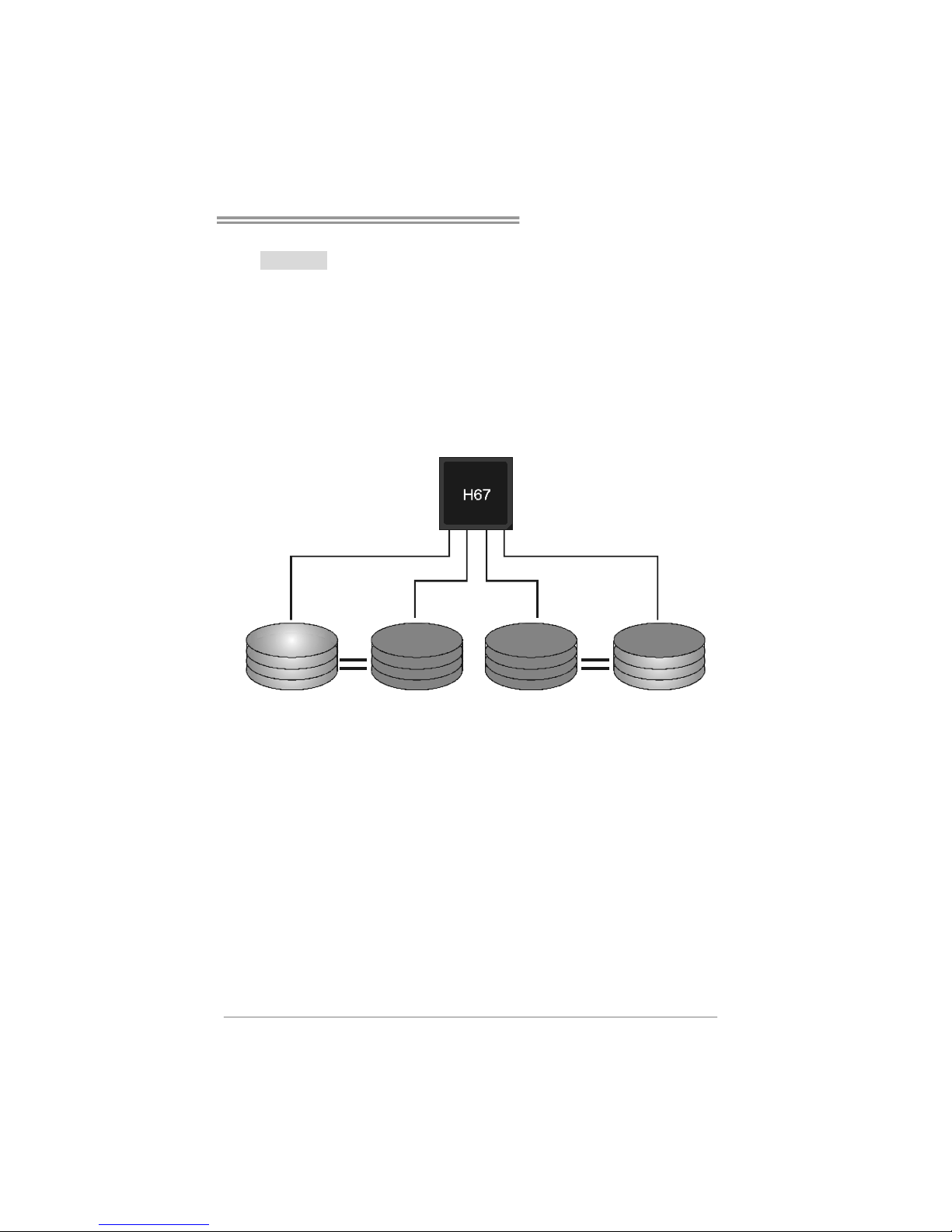

RAID 10:
RAID 1 drives can be stripped using RAID 0 techniques. Resulting in a RAID 10
solution for improved resiliency, performance and rebuild performance.
Features and Benefits
Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.
Benefits: Optimizes for both fault tolerance and performance, allowing for
automatic redundancy. May be simultaneously used with other RAID levels
in an array, and allows for spare disks.
Drawbacks: Requires twice the available disk space for data redundancy,
the same as RAID level 1.
Fault Tolerance: Yes .
Block 1
Block 3
Block 5
Block 2
Block 4
Block 6
Block 1
Block 3
Block 5
Block 2
Block 4
Block 6
Page 22
Motherboard Manual
20

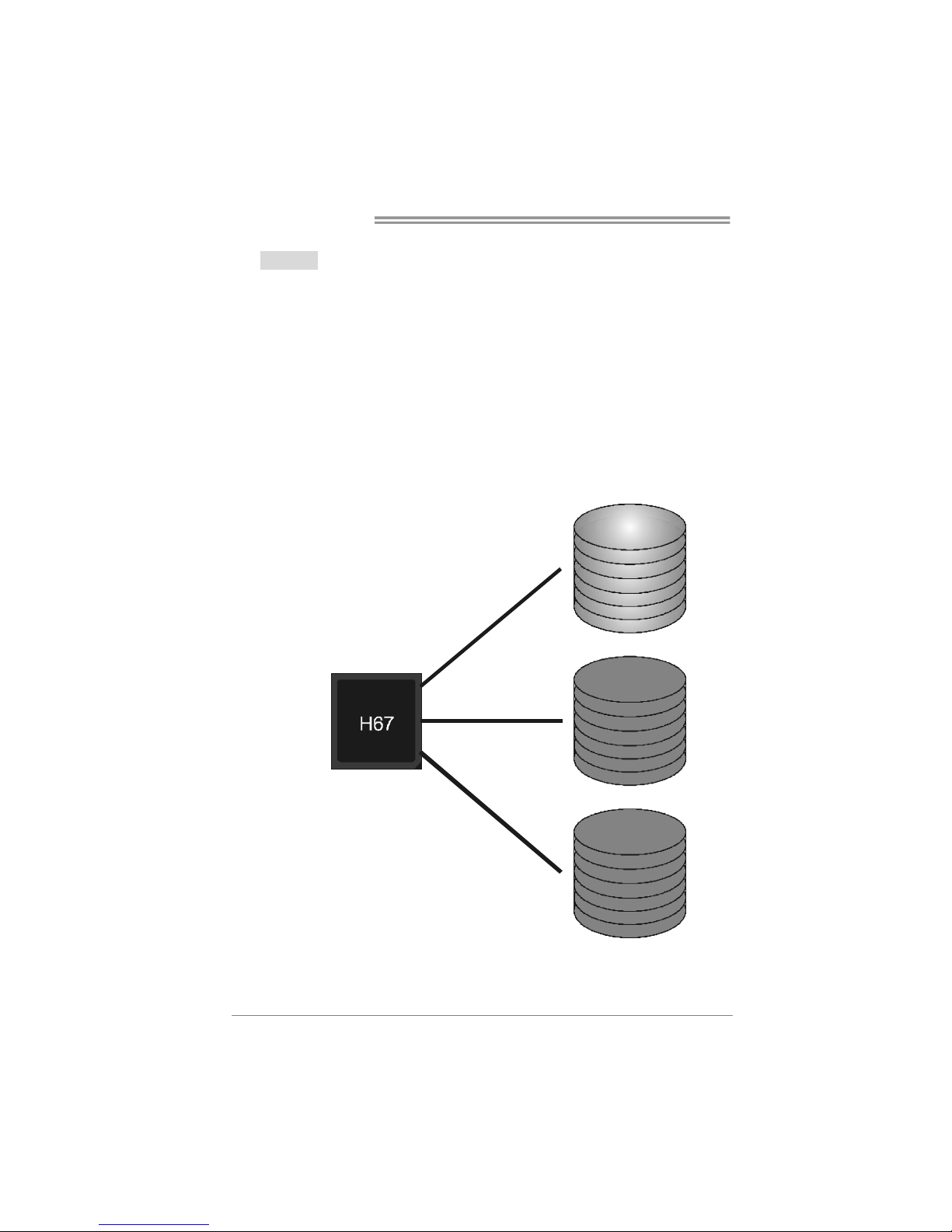

RAID 5:
RAID 5 stripes both data and parity information across three or more drives. It writes
data and parity blocks across all the drives in the array. Fault tolerance is maintained by
ensuring that the parity information for any given block of data is placed on a different
drive from those used to store the data itself.
Features and Benefits
Drives: Mini mu m 3.
Uses: RAID 5 is recommended for transaction processing and general
purpose service.
Benefits: An ideal combination of good performance, good fault tolerance,
and high capacity and storage efficiency.
Drawbacks: Individual block data transfer rate same as a single disk. Write
performance can be CPU intensive.
Fault Tolerance: Yes.
Disk 1
DATA 3
PA RI T Y
DATA 7
DATA 1
DATA 9
PA RI T Y
Disk 2
PA RI T Y
DATA 5
DATA 8
DATA 2
PA RI T Y
DATA 11
Disk 3
DATA 4
DATA 6
PA RI T Y
PA RI T Y
DATA 10
DATA 12
Page 23
TH67MU3/H67MU3/H67MH
21
CHAPTER 5: USEFUL HELP
5.1 D
RIVER INSTALLATION NOTE
After you installed your operating system, please insert the Fully Setup
Driver CD into your optical drive and install the driver for better system
performance.

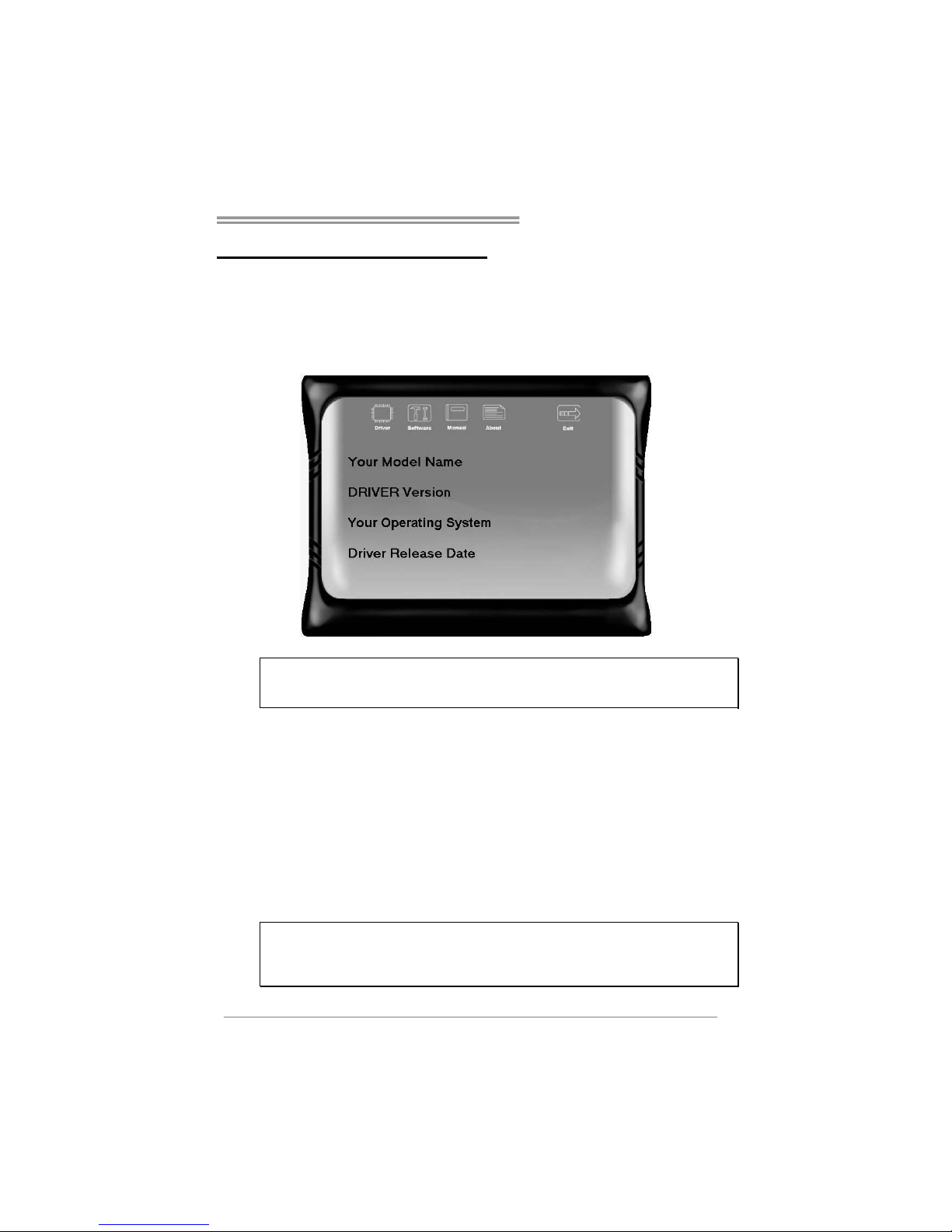

You will see the following window after you insert the CD
The setup guide will auto detect your motherboard and operating system.
Note:
If this window didn’t show up after you insert the Driver CD, please use file browser to
locate and execute the file SETUP.EXE under your optical drive.
A. Driver Installation
To install the driver, please click on the Driver icon. The setup guide will
list the compatible driver for your motherboard and operating system.
Click on each device driver to launch the installation program.
B. Software Installation
To install the software, please click on the Software icon. The setup guide
will list the software available for your system, click on each software title
to launch the installation program.
C. Manual
Aside from the paperback manual, we also provide manual in the Driver
CD. Click on the Manual icon to browse for available manual.
Note:
Yo u will need Acrobat Reader to open the manual file. Please download the latest version
of Acrobat Reader software from
http://www.adobe.com/products/acrobat/readstep2.html
Page 24
Motherboard Manual
22
5.2 SOFTWARE
Installing Software
1. Insert the Setup CD to the optical drive. The drivers installation program
would appear if the Autorun function has been enabled.
2. Select Software Installation, and then click on the respective software
title.
3. Follow the on-screen instructions to complete the installation.
Launching Software
After the installatio n process, you will see the software icon “eHOT Line” /
“BIOS Update” appears on the desktop. Double-click the icon to launch the
utility.
eHot-Line (Optional)

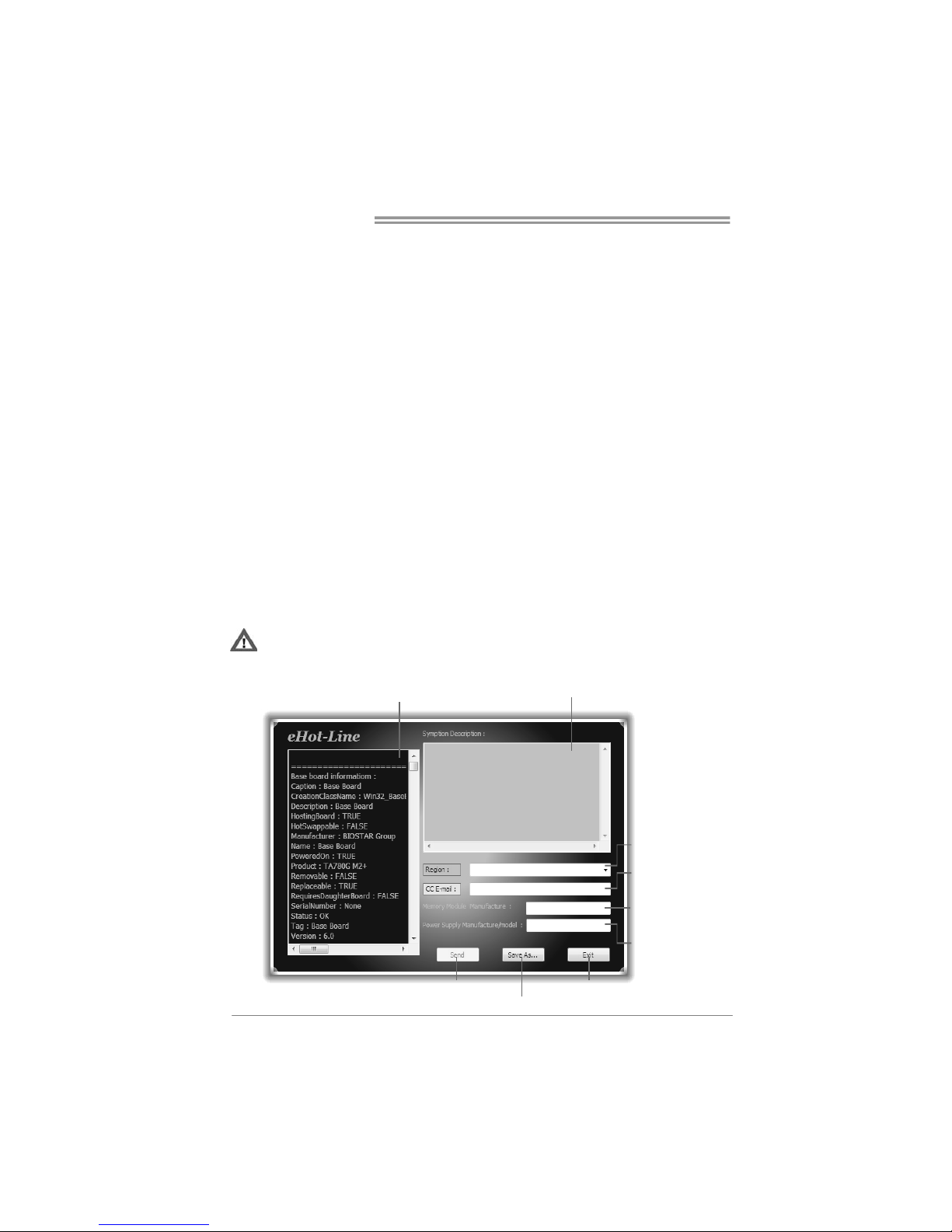

eHot-Line is a convenient utility that helps you to contact with our
Tech-Support system. This utility will collect the system information which is
useful for analyzing the problem you may have encountered, and then send
these information to our tech-support department to help you fix the problem.
Before you use this uti lity, please set Outlook E xpress as your default e-mail client application program.
This block will show
the information which
would be collected in
the mail.
Provide the e-mail
address that you would
like to send the copy to.
Provide the name of
th e powe r su ppl y
manufacturer and the
model no.
Se nd th e mai l out .
Sav e the se in for ma tion to a .t xt fi l
e
Exit this dialog.
Select your area or
the area close to you.
*
Pr ovid e th e name of
the memory module
manufacturer.
*
Describe condition
of your system.
*
*
re pres ent s im port ant
information that you
must provide. Without
this information, y ou may
not be able to send out
the mail.
Page 25
TH67MU3/H67MU3/H67MH
23

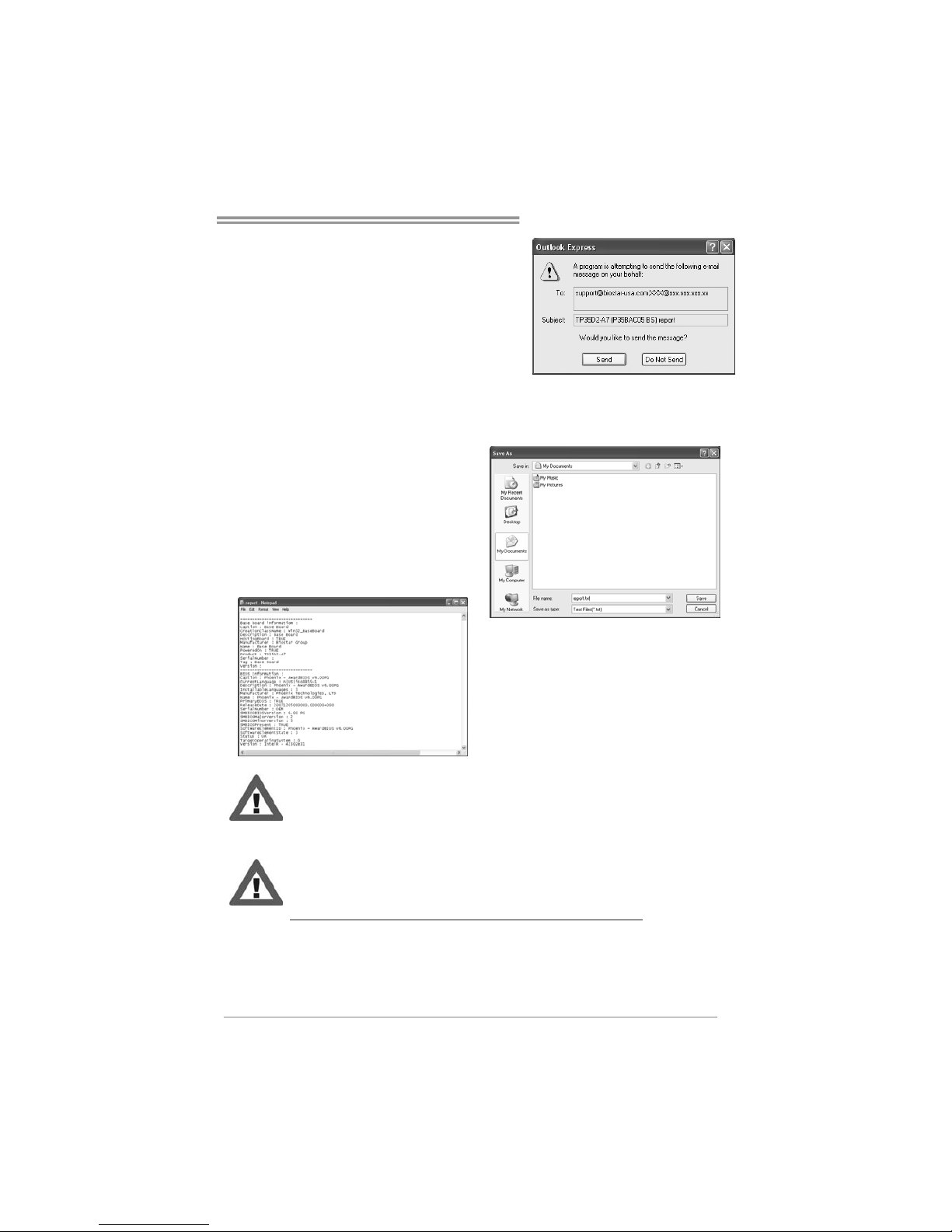

After filling up this information, click “Send”
to send the mail out. A warning dialog would
appear asking for your confirmation; click
“Send” to confirm or “Do Not Send” to cancel.
If you want to save this information to a .txt file, click “Save As…” and then you
will see a saving dialog appears asking you to enter file name.
Enter the file name and then click
“Save”. Your system information
will be saved to a .txt file.
Open the saved .txt file, you will see
your system information including
motherboard/BIOS/CPU/video/
device/OS information. This
information is also concluded in the
sent mail.
We will not share customer’s data with any other third parties,
so please feel free to provide your system information while using
eHot-Line service.
If you are not using Outlook Express as your default e-mail client
application, you may need to save the system information to a .txt file
and send the file to our tech support with other e-mail application.
Go to the following web
http://www.biostar.com.tw/app/en-us/about/contact.php for getting
our contact information.
Page 26
Motherboard Manual
24
BIOS Update

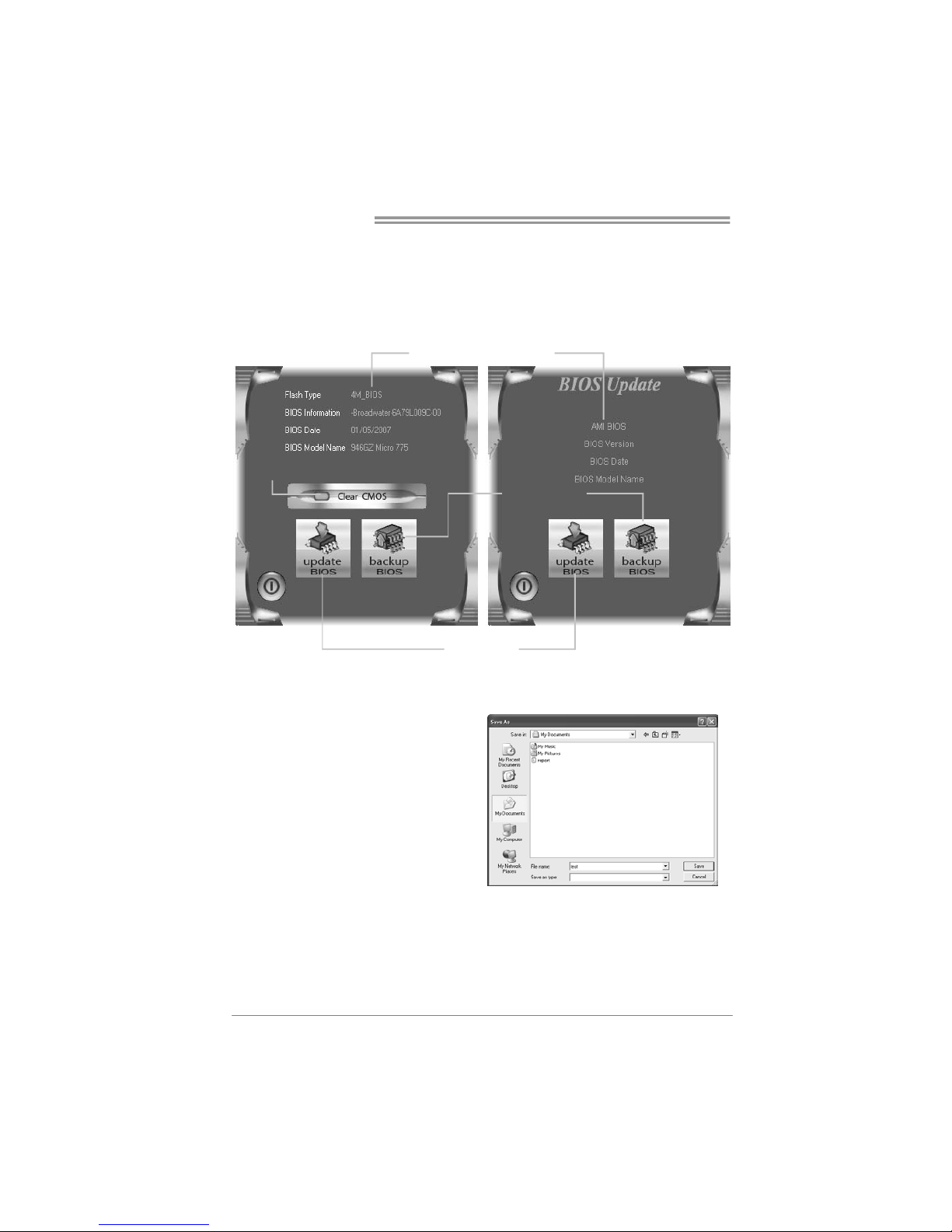

BIOS Update is a convenient utility which allows you to update your
motherboard BIOS under Windows system.
Update BIOS
with a BIOS file
Clear CMOS function
(Only for AWARD BIOS)
Show current BIOS information
Save cur rent B IOS
to a .bin file
AWARD BIOS AMI BIOS
<Backup BIOS>
Once click on this button, the saving
dialog will show. Choose the
position to save file a nd enter file
name. (We recommend that the file
name should be English/number
and no longer than 7 characters.)
Then click Save.
Page 27
TH67MU3/H67MU3/H67MH
25

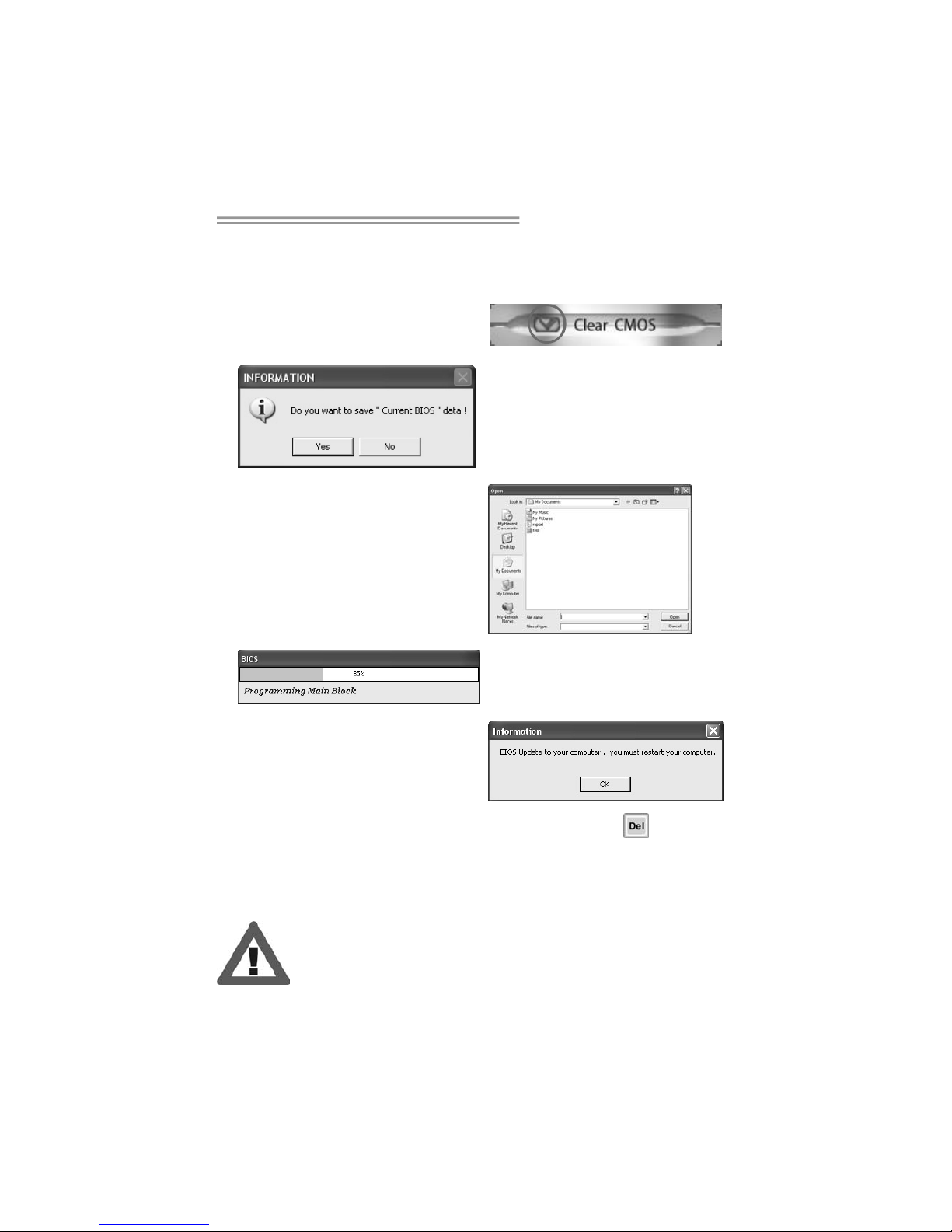

<Update BIOS>
Before doing this, please download the proper BIOS file from the website.
For AWARD BIOS, update BIOS procedure
should be run with Clear CMOS function, so
please check on Clear CMOS first.
Then click Update BIOS button, a
dialog will show for asking you backup
current BIOS. Click Yes for BIOS
backup and refer to the Backup BIOS
procedure; or click No to skip this
procedure.
After the BIOS Backup procedure, the
open dialog will show for requesting the
BIOS file which is going to be updated.
Please choose the proper BIOS file for
updating, then click on Open.
The utility will update BIOS with the
proper BIOS file, and this process may
take minutes. Please do not open any
other applications during this process.
After the BIOS Update process, click on
OK to restart the system.
While the system boots up and the full screen logo shows, press <Delete>
key to enter BIOS setup.
In the BIOS setup, use the Load Optimized Defaults function and then Save and
Exit Setup to exit BIOS setup. B IOS Update is completed.
All the information and content above about the software are subject to be changed
without notice. For better performance, the software is being continuously updated.
The information and pictures described above are for your reference only. The actual
information and settings on board may be slightly different from this manual.
Page 28
Motherboard Manual
26
5.3 EXTRA INFORMATION
CPU Overheated
If the system shuts down automatically after system is powered on for
seconds, the phenomenon means the CPU protection function has
been activated.
When the CPU is over heated, the motherboard will shutdow n
automatically to avoid a damage of the CPU, and the system may not
power on again.
In this case, please double check:
1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.
After confirmed, please follow steps below to relief the CPU protection
function.
1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.
Or you can:
1. Clear the CMOS data.
(See “Close CMOS Header: JCMOS1” section)
2. Wait for seconds.
3. Power on the system again.
Page 29
TH67MU3/H67MU3/H67MH
27
5.4 AMI BIOS BEEP CODE
Boot Block Beep Codes
Number of Beeps De scription
1 No media present. (Insert diskette in floppy drive A:)
2
“AMIBOOT.ROM” file not found in root directory of diskette in
A:
3 Insert next diskette if multiple diskettes are used for recovery
4 Flash Programming successful
5 File read error
7 No Flash EPROM detected
10 Flash Erase error
11 Flash Program error
12 “ AMIBOOT.ROM” file size error
13
BIOS ROM image mismatch (file layout does not match
image present in flash device)
POST BIOS Beep Codes
Number of Beeps De scription
1 Memory refresh timer error
3 Base memory read/write test error
6 Keyboard controller BAT command failed
7 General exception error (processor exception interrupt error)
8 Display memory error (system video adapter)
Troubleshooting POST BIOS Beep Codes
Number of Beeps Troubleshooting Action
1, 3 Reseat the memory, or replace with known good modules.
6, 7
Fatal error indicating a serious problem with the system.
Consult your system manufacturer. Before declaring the
motherboard beyond all hope, eliminate the possibility of
interference by a malfunctioning add-in card. Remove all
expansion cards except the video adapter.
z If beep codes are generated when all other expansion
cards are absent, consult your system manufacturer’s
technical support.
z If beep codes are not generated when all other expansion
cards are absent, one of the add-in cards is causing the
malfunction. Insert the cards back into the system one at a
time until the problem happens again. This will reveal the
malfunctioning card.
8
If the system video adapter is an add-in card, replace or
reseat the
video adapter. If the video adapter is an integrated part of the
system board, the board may be faulty.
Page 30
Motherboard Manual
28
5.5 TROUBLESHOOTING
Probable Solution
1. There is no power in the system.
Power LED does not shine; the
fan of the power supply does not
work
2. Indicator light on keyboard does
not shine.
1. Make sure power cable is
securely plugged in.
2. Replace cable.
3. Contact technical support.
System is inoperative. Keyboard lights
are on, power indicator lights are lit,
and hard drives are running.
Using even pressure on both ends of
the DIMM, press down firmly until the
module snaps into place.
System does not boot from a hard disk
drive, but can be booted from optical
drive.
1. Check cable running from disk to
disk controller board. Make sure
both ends are securely plugged
in; check the drive type in the
standard CMOS setup.
2. Backing up the hard drive is
extremely important. All hard
disks are capable of breaking
down at any time.
System only boots from an optical
drive. Hard disks can be read,
applications can be used, but system
fails to boot from a hard disk.
1. Back up data and applications
files.
2. Reformat the hard drive.
Re-install applications and data
using backup disks.
Screen message shows “Invalid
Configuration” or “CMOS Failure.”
Review system’s equipment. Make sure
correct information is in setup.
System cannot boot after user installs a
second hard drive.
1. Set master/slave jumpers
correctly.
2. Run SETUP program and select
correct drive types. Call the drive
manufacturers for compatibility
with other drives.
Page 31
TH67MU3/H67MU3/H67MH
29
This page is intentionally left blank.
Page 32
Motherboard Manual
30
APPENDIX: SPEC IN OTHER LANGUAGES
G
ERMAN
T H67M U3 / H67 MU3 H67 MH
CPU
Socket 1155
Int e l Co re i7 / i5 / i3 / Pen tium Pro z essoren
Unterstützt Execute Disable Bit / Enhanced Intel
Speed St ep® / Intel Ar chitecture-64 / Extended
Memory 64 Technology / Virtualization
Technology
Socket 1155
Int e l Co re i7 / i5 / i3 / Pen tium Pro z essoren
Unterstützt Execute Disable Bit / Enhanced Intel
Speed St ep® / Intel Ar chitecture-64 / Extended
Memory 64 Technology / Virtualization
Technology
Chipsatz
Intel H67 Intel H67
Super E/A
ITE 8728
Biet et die h äuf ig verwend eten alten Sup er
E/A-Funktionen.
Low Pin Count-Schnittstelle
Umgebungskontrolle,
Hardware-Überwachung
Lüfterdrehzahl-Controller/-Überwachung
"Smart Guardian"-Funktion von ITE
ITE 8728
Biet et die h äuf ig verwend eten alten Sup er
E/A-Funktionen.
Low Pin Count-Schnittstelle
Umgebungskontrolle,
Hardware-Überwachung
Lüfterdrehzahl-Controller/-Überwachung
"Smart Guardian"-Funktion von ITE
Arbeitsspeich
er
DDR3 DIMM-Steckplätze x 2
Jeder DIMM unterstützt 512MB / 1GB / 2GB /
4GB DDR3.
Max. 8GB Arbeitsspeicher
Dual-Kanal DDR3 Speichermodul
Unterstützt DDR3 1333/1066
registrierte DIMMs. ECC DIMMs werden nicht
unterstützt.
DDR3 D IMM-Steckplätze x 2
Jeder DIMM unterstützt 512MB / 1GB / 2GB /
4GB DDR3.
Max. 8GB Arbeitsspeicher
Dual-Kanal DDR3 Speichermodul
Unterstützt DDR3 1333/1066
registrierte DIMMs. ECC DIMMs werden nicht
unterstützt.
SATA 2 & 3
Integrierter Serial ATA-Controller
Datentransferrate bis zu 3.0Gb/s / 6.0 Gb/s
Konform mit der SATA-Spezifikation Version 2.0
/ 3.0.
Integrierter Serial ATA-Controller
Datentransferrate bis zu 3.0Gb/s / 6.0 Gb/s
Konform mit der SATA-Spezifikation Version 2.0
/ 3.0.
LAN
Realtek RTL8111E
10 / 100 / 1000 Mb/s Auto-Negotiation
Realtek RTL8111E
10 / 100 / 1000 Mb/s Auto-Negotiation
HD
Audio-Unters
tützung
ALC662
Unterstützt High-Definition Audio
5.1-Kanal-Audioausgabe
ALC662
Unterstützt High-Definition Audio
5.1-Kanal-Audioausgabe
USB3.0
Asmedia ASM1042
PCI Express Gen2 x16 Steckplatz x1 PCI Express Gen2 x16 Steckplatz x1
PCI Express Gen2 x1 Steckplatz x1 PCI Express Gen2 x1 Steckplatz x1
Steckplätze
PCI Steckplatz x2 PC I St ec kp latz x2
Page 33
TH67MU3/H67MU3/H67MH
31
T H67M U3 / H67 MU3 H67 MH
Druckeranschluss Anschluss x1 Druckeranschluss Anschluss x1
Serieller Anschluss x1 Serieller Anschluss x1
SATA 3-Anschluss x2 SATA 3-Anschluss x2
SATA 2-Anschluss x4 SATA 2-Anschluss x4
Fronttafelanschluss x1 Fronttafelanschluss x1
Front-Audioanschluss x1 Front-Audioanschluss x1
S/PDIF- Ausgangsanschluss x1 S/PDIF- Ausgangsanschluss x1
CPU-Lüfter-Sockel x1 CPU-Lüfter-Sockel x1
System-Lüfter-Sockel x1 System-Lüfter-Sockel x1
"CMOS löschen "-So cke l x1 "CMOS löschen "- So cke l x1
USB 2.0-Anschluss x2 USB 2.0-Anschluss x2
Verbraucher-IR Anschluss x1 Verbraucher- IR Ansch luss x1
Stromanschluss (24-polig) x1 Stromanschluss (24-polig) x1
Onboard-Ans
chluss
St romans ch luss (4 - polig ) x1 St romansch luss (4-pol ig ) x1
Rückseiten-E
/A
PS/2-Tastatur / Maus x1
HDMI-Anschluss x1
VGA-Anschluss x1
DVI-D-Anschluss x1
LAN-Anschluss x1
USB 2.0-Anschluss (durch H67) x2
USB 3.0-Anschluss
(durch ASM1042) x2
Audioanschluss x3
PS/2-Tastatur / Maus x1
HDMI-Anschluss x1
VGA-Anschluss x1
DVI-D-Anschluss x1
LAN-Anschluss x1
USB 2.0-Anschluss x4
Audioanschluss x3
Plat inengröße
200mm (B) X 244 mm (L) 200mm (B) X 244 mm (L)
OS-Unterstüt
zung
Windows XP / V ista / 7
Biostar behält sich das Recht vor, ohne
Ankündigung die Unterstützung für ein
Betriebssystem hinzuzufügen oder zu
entfern en.
Windows XP / V ista / 7
Biostar behält sich das Recht vor, ohne
Ankündigung die Unterstützung für ein
Betriebssystem hinzuzufügen oder zu
entfern en.
Page 34
Motherboard Manual
32
FRENCH
TH67M U3 / H67 MU3 H67 MH
UC
Socket 1155
Pro c es s eu rs Intel Co r e i7 / i5 / i3 / Pentiu m
Prend en ch arge les techno log ies d'ex écution de
bit de désactivation / Intel SpeedStep®
op t im is é e/ d' ar chitect ure In t el 64 / d e m émo ir e
étendue 64 / de v irtualisat ion
Socket 1155
Pro c es s eu rs Intel Co r e i7 / i5 / i3 / Pentiu m
Prend en ch arge les techno log ies d'ex écution de
bit de désactivation / Intel SpeedStep®
op t im is é e/ d' ar chitect ure In t el 64 / d e m émo ir e
étendue 64 / de v irtualisat ion
Chipset
Intel H67 Intel H67
Super E/S
ITE 8728
Fournit la fonctionnalité de Super E/S
patrimoniales la plus utilisée.
Int e rfa ce à f aib le co mpt e d e b roches
Initiatives de contrôle environnementales,
Mon iteur d e mat ériel
Contrôleur /moniteur de vitesse de ventilateur
Fonction "Gardien intelligent" de l'ITE
ITE 8728
Fournit la fonctionnalité de Super E/S
patrimoniales la plus utilisée.
Int e rfa ce à f aib le co mpt e d e b roches
Initiatives de contrôle environnementales,
Mon iteur d e mat ériel
Contrôleur /moniteur de vitesse de ventilateur
Fonction "Gardien intelligent" de l'ITE
Mémoire
principale
Fentes DDR3 DIMM x 2
Chaque DIMM prend en charge des DDR3 de
512Mo / 1Go / 2Go / 4Go
Capacité mé mo ire max imale de 8Go
Module de mémoire DDR3 à mo de à double voie
Prend en charge la DDR3 1333/1066
Les DIMM à registres et DIMM avec code
correcteurs d'err eurs ne s ont pas prises en
charg e
Fentes DDR3 DIMM x 2
Chaque DIMM prend en charge des DDR3 de
512Mo / 1Go / 2Go / 4Go
Capacité mé mo ire max imale de 8Go
Module de mémoire DDR3 à mo de à double voie
Prend en charge la DDR3 1333/1066
Les DIMM à registres et DIMM avec code
correcteurs d'err eurs ne s ont pas prises en
charg e
SATA 2 & 3
Contrô leur Serial ATA int é gr é
Taux de transfert jusqu'à 3.0Go/s / 6.0 Gb/s.
Co nfor me à l a s pécif icat ion SATA Vers ion 2. 0 /
3.0
Contrô leur Serial ATA int é gr é
Taux de transfert jusqu'à 3.0Go/s / 6.0 Gb/s.
Co nfor me à l a s pécif icat ion SATA Vers ion 2. 0 /
3.0
LAN
Realtek RTL8111E
10 / 100 / 1000 Mb/s négociation automatique
Realtek RTL8111E
10 / 100 / 1000 Mb/s négociation automatique
Prise en
charg e au d io
HD
ALC662
Prise en ch arg e de l' audio haut e déf inition
Sortie aud io à 5.1 vo ies
ALC662
Prise en ch arg e de l' audio haut e déf inition
Sortie aud io à 5.1 vo ies
USB3.0
Asmedia ASM1042
Fente PCI Express Gen2 x16 x1 Fente PCI Express Gen2 x16 x1
Fente PCI Express Gen2 x1 x1 Fente PCI Express Gen2 x1 x1
Fentes
Fente PCI x2 Fente PCI x2
Page 35
TH67MU3/H67MU3/H67MH
33
TH67M U3 / H67 MU3 H67 MH
Connecteur de Port d'imprimante x1 Connecteur de Port d'imprimante x1
Port série x1 Port série x1
Connecteur SATA 3 x 2 Connecteur SATA 3 x2
Connecteur SATA 2 x 4 Connecteur SATA 2 x4
Connecteur du panneau avant x1 Connecteur du panneau avant x1
Connecteur Audio du panneau avant x1 Connecteur Audio du panneau avant x1
Connecteur de sortie S/PDIF x1 Connecteur de sortie S/PD IF x1
Embase de ventilateur UC x1 Embase de ventilateur UC x1
Embase de ventilateur système x1 Embase de ventilateur système x1
Embase d'effacement CMOS x1 Embase d'effacement CMOS x1
Connecteur USB 2.0 x2 Connecteur USB 2.0 x2
Connecteur de IR du consommateur x1 Connecteur de IR du consommateur x1
Connecteur d'aliment ation x1
(24 broches)
Connecteur d'aliment ation x1
(24 broches)
Connecteur
embarqu é
Connecteur d'aliment ation x1
(4 broch es )
Connecteur d'aliment ation x1
(4 broch es )
E/S du
panneau
arrière
Clavier / Souris PS/2 x1
Port HD MI x1
Port VGA x1
Port DVI-D x1
Port LAN x1
Port USB 2.0 (par H67) x2
Port USB 3.0 (par AS M1042) x2
Fiche aud io x3
Clavier / Souris PS/2 x1
Port HD MI x1
Port VGA x1
Port DVI-D x1
Port LAN x1
Port US B 2.0 x 4
Fiche aud io x3
Dimensions
de la carte
200mm (l) X 244 mm (H) 200mm (l) X 244 mm (H)
Support SE
Windows XP / V ista / 7
Biostar se réserve le droit d'ajouter ou de
supprimer le support de SE avec ou sans
préavis.
Windows XP / V ista / 7
Biostar se réserve le droit d'ajouter ou de
supprimer le support de SE avec ou sans
préavis.
Page 36
Motherboard Manual
34
ITALIAN
TH67M U3 / H67 MU3 H67 MH
CPU
Socket 1155
Pro ces s o re Intel C ore i7 / i5 / i3 / Pentiu m
Supporto di Execute Disable Bit / Enhanced
Intel SpeedStep® / Architettura Intel 64 /
Tecnologia Extended Memory 64 /
Tecnologia Virtualization
Socket 1155
Pro ces s o re Intel C ore i7 / i5 / i3 / Pentiu m
Supporto di Execute Disable Bit / Enhanced
Intel SpeedStep® / Architettura Intel 64 /
Tecnologia Extended Memory 64 /
Tecnologia Virtualization
Chipset
Intel H67 Intel H67
Super I/O
ITE 8728
Fo rnis ce le funzionalit à lega cy S uper I/O
usate più comunemente.
Interfaccia LPC (Low Pin Count)
Funzioni di controllo dell’ambiente:
Monitoraggio hardware
Co ntroller / Monit o raggio veloc ità ven t o lin a
Funzione "Smart Guardian" di ITE
ITE 8728
Fo rnis ce le funzionalit à lega cy S uper I/O
usate più comunemente.
Interfaccia LPC (Low Pin Count)
Funzioni di controllo dell’ambiente:
Monitoraggio hardware
Co ntroller / Monit o raggio veloc ità ven t o lin a
Funzione "Smart Guardian" di ITE
Memoria
principale
Alloggi DIMM DDR3 x 2
Ciascun DIMM supporta DDR3 512MB /
1GB / 2GB / 4GB
Capacità massima della memoria 8GB
Modulo di memoria DDR3 a canale doppio
Supporto di DDR3 1333/1066
DIMM registrati e DIMM ECC non sono
supportati
Alloggi DIMM DDR3 x 2
Ciascun DIMM supporta DDR3 512MB /
1GB / 2GB / 4GB
Capacità massima della memoria 8GB
Modulo di memoria DDR3 a canale doppio
Supporto di DDR3 1333/1066
DIMM registrati e DIMM ECC non sono
supportati
SATA 2 & 3
Co ntroller Ser ia l ATA in t eg rat o
Velocità di trasferimento dei dati fino a
3.0Gb/s / 6.0 Gb/s.
Co mp at ib i le s p ecif iche SATA Ver s io ne 2.0 /
3.0.
Co ntroller Ser ia l ATA in t eg rat o
Velocità di trasferimento dei dati fino a
3.0Gb/s / 6.0 Gb/s.
Co mp at ib i le s p ecif iche SATA Ver s io ne 2.0 /
3.0.
LAN
Realtek RTL8111E
Negoziazione automatica 10 / 100 / 1000Mb/s
Realtek RTL8111E
Negoziazione automatica 10 / 100 / 1000Mb/s
Supporto
audio HD
ALC662
Supporto audio High-Definition (HD)
Uscita audio 5.1 canali
ALC662
Supporto audio High-Definition (HD)
Uscita audio 5.1 canali
USB3.0
Asmedia ASM1042
Alloggio PCI Express Gen2 x16 x1 Alloggio PCI Express Gen2 x16 x1
Alloggio PCI Express Gen2 x1 x1 Alloggio PCI Express Gen2 x1 x1
Allo g g i
Allo g g io PC I x 2 A llo ggio PC I x2
Page 37
TH67MU3/H67MU3/H67MH
35
TH67M U3 / H67 MU3 H67 MH
Connettore Porta stampante x1 Connettore Porta stampante x1
Porta seriale x1 Porta seriale x1
Connettore SATA 3 x2 Connettore SATA 3 x2
Connettore SATA 2 x4 Connettore SATA 2 x4
Connettore pannello frontale x1 Connettore pannello frontale x 1
Connettore audio frontale x1 Connettore audio frontale x1
Connettore output SPDIF x1 Connettore output SPDIF x1
Co llett o r e ventolina C PU x1 Co llet t o re vent o lin a C PU x1
Co llett o r e ventolina sistema x 1 Collettore ven t o lina s is t em a x1
Co llett o r e cance llaz ione CMOS x1 Collettore can ce l laz ione CMO S x1
Connettore USB 2.0 x2 Connettore USB 2.0 x2
Connettore IR del consumatore x1 Connettore IR del consumatore x1
Connettore alimentaz ione x1
(24 pin)
Connettore alimentaz ione x1
(24 pin)
Connettori
su scheda
Connettore alimentaz ione x1
(4 pin)
Connettore alimentaz ione x1
(4 pin)
I/O pannello
posteriore
Tastiera / Mouse PS/2 x1
Port a HDMI x1
Port a VGA x1
Port a DVI-D x1
Port a LAN x1
Porta USB 2.0 (da H67) x2
Porta USB 3.0 (da ASM1042) x2
Connettore audio x3
Tastiera / Mouse PS/2 x1
Port a HDMI x1
Port a VGA x1
Port a DVI-D x1
Port a LAN x1
Port a USB 2.0 x4
Connettore audio x3
Dimensioni
scheda
200mm (larghezza) x 244 mm (altezza) 200mm (larghezza) x 244 mm (altezza)
Sistemi
op erat ivi
supportati
Windows XP / Vista / 7
Biostar si riserva il diritto di aggiungere o
rimuovere il supporto di qualsiasi sistema
operativo senza preavviso.
Windows XP / Vista / 7
Biostar si riserva il diritto di aggiungere o
rimuovere il supporto di qualsiasi sistema
operativo senza preavviso.
Page 38
Motherboard Manual
36
SPANISH
TH67M U3 / H67 MU3 H67 MH
CPU
Socket 1155
Pro c esad o r Int e l Co r e i7 / i5 / i3/ Pent ium
Admite Bit de deshabilitación de ejecución / Intel
Speed St ep® Mejorado / Intel Arch itecture-64 /
Tecnología Extended Memory 64 / Tecnología de
virtualización
Socket 1155
Pro c esad o r Int e l Co r e i7 / i5 / i3/ Pent ium
Admite Bit de deshabilitación de ejecución / Intel
Speed St ep® Mejorado / Intel Arch itecture-64 /
Tecnología Extended Memory 64 / Tecnología de
virtualización
Conjunto de
chips
Intel H67 Intel H67
Súper E/S
ITE 8728
Le ofrece las funcionalidades heredadas de uso
más común Súper E/S.
Interfaz de cuenta Low Pin
In iciat ivas de cont rol d e ent o rno ,
Monitor hardware
Controlador/monitor de velocidad de ventilador
Función "Guardia inteligente" de ITE
ITE 8728
Le ofrece las funcionalidades heredadas de uso
más común Súper E/S.
Interfaz de cuenta Low Pin
In iciat ivas de cont rol d e ent o rno ,
Monitor hardware
Controlador/monitor de velocidad de ventilador
Función "Guardia inteligente" de ITE
Memoria
principal
Ranuras DIMM DDR3 x 2
Cada DIMM admite DDR de 512MB / 1GB / 2GB /
4GB
Capacidad máxima de memoria de 8GB
Módulo de memoria DDR3 de canal Doble
Admite DDR3 de 1333/1066
No admite DIMM registrados o DIMM
comp atib les con ECC
Ranuras DIMM DDR3 x 2
Cada DIMM admite DDR de 512MB / 1GB / 2GB
/ 4GB
Capacidad máxima de memoria de 8GB
Módulo de memoria DDR3 de canal Doble
Admite DDR3 de 1333/1066
No admite DIMM registrados o DIMM
comp atib les con ECC
SATA 2 & 3
Controlador ATA Serie Integrado
Tasas de transferencia de hasta 3.0 Gb/s / 6.0 Gb/s.
Co mp at ible co n la versión S ATA 2. 0 / 3.0 .
Controlador ATA Serie Integrado
Tasas de transferencia de hasta 3.0 Gb/s / 6.0 Gb/s.
Co mp at ible co n la versión S ATA 2. 0 / 3.0 .
Red Local
Realtek RTL8111E
Negociación de 10 / 100 / 1000 Mb/s
Realtek RTL8111E
Negociación de 10 / 100 / 1000 Mb/s
Soporte de
sonido HD
ALC662
Soporte de sonido de Alta Definición
Salida de sonido de 5.1 canales
ALC662
Soporte de sonido de Alta Definición
Salida de sonido de 5.1 canales
USB3.0
Asmedia ASM1042
Ranura PCI Express Gen2 x16 X1 Ranura PCI Express Gen2 x16 X1
Ranura PCI express Gen2 x1 X1 Ranura PCI express Gen2 x1 X1
Ranuras
Ranura PCI X2 Ranura PCI X2
Page 39
TH67MU3/H67MU3/H67MH
37
TH67M U3 / H67 MU3 H67 MH
Conector Puerto de impresora X1 Conector Puerto de impresora X1
Puert o ser ie X1 Pu ert o ser ie X1
Conector SATA 3 X2 Conector SATA 3 X2
Conector SATA 2 X4 Conector SATA 2 X4
Conector de panel frontal X1 Conector de panel frontal X1
Conector de sonido frontal X1 Conector de sonido frontal X1
Conector de salida S/PDIF X1 Conector de salida S/PDIF X1
Cabecera de ventilador de CPU X1 Cabecera de ventilador de CPU X1
Cabecera de ventilador de sistema X1 Cabecera de ventilador de sistema X1
Cabecera de borrado de CMOS X1 Cabecera de borrado de CMOS X1
Conector USB 2.0 X2 Conector USB 2.0 X2
Conector de IR del consumidor X1 Conector de IR del consumidor X1
Conector de alimentación X1
(24 patillas)
Conector de alimentación X1
(24 patillas)
Conectores
en p laca
Conector de alimentación X1
(4 patillas)
Conector de alimentación X1
(4 patillas)
Panel trasero
de E/S
Teclado / R atón PS/2 X 1
Ratón HDMI X1
Puert o VGA X1
Puerto DV I-D X1
Puerto de red local X1
Puerto USB 2.0 (por H67) X2
Puerto USB 3.0 (por AS M1042 ) X2
Conector de sonido X3
Teclado / R atón PS/2 X 1
Ratón HDMI X1
Puert o VGA X1
Puerto DV I-D X1
Puerto de red local X1
Puert o USB 2. 0 X 4
Conector de sonido X3
Ta maño de la
plac a
200mm. (A) X 244 Mm. (H) 200mm. (A) X 244 Mm. (H)
Soporte de
sistema
operativo
Windows XP / V ista / 7
Biostar se reserva el derecho de añadir o retirar
el soporte de cualquier SO con o sin aviso
previo.
Windows XP / V ista / 7
Biostar se reserva el derecho de añadir o retirar
el soporte de cualquier SO con o sin aviso
previo.
Page 40
Motherboard Manual
38
PORTUGUESE
TH67M U3 / H67 MU3 H67 MH
CPU
Socket 1155
Pro c es s ad o r Intel Co r e i7 / i5 / i3 / Pent iu m
Suporta as tecno log ias Execute D isable Bit /
Enhanced Inte l SpeedStep ®
/
Int e l Ar qu it ectur e
-64 / Extended Memory 64 / Virtualization
Socket 1155
Pro c es s ad o r Intel Co r e i7 / i5 / i3 / Pent iu m
Suporta as tecno log ias Execute D isable Bit /
Enhanced Inte l Speed Step ® / Int el Arqu itect ure
-64 / Extended Memory 64 / Virtualization
Chipset
Intel H67 Intel H67
Especificação
Super I/O
ITE 8728
Proporciona as funcionalidades mais utilizadas
em t ermos da especificação Super I/O.
Interface LPC (Low Pin Count).
In iciat ivas par a cont r o lo do a mbient e
Monitorização do hardware
Contro lador/Monitor d a velocidade d a vento inha
Função "S mart Gu ardian" d a ITE
ITE 8728
Proporciona as funcionalidades mais utilizadas
em t ermos da especificação Super I/O.
Interface LPC (Low Pin Count).
In iciat ivas par a cont r o lo do a mbient e
Monitorização do hardware
Contro lador/Monitor d a velocidade d a vento inha
Função "S mart Gu ardian" d a ITE
Memória
principal
Ranhuras DIMM DDR3 x 2
Cada módulo DIMM suporta uma memória
DDR3 de 512 MB / 1GB / 2GB / 4GB
Capacidad e máxima d e me mór ia:8GB Módu lo
de memória DDR3 de canal duplo
Suporta módulos DDR3 1333/1066
Os módulos DIMM registados e os DIMM ECC
não são suportados
Ranhuras DIMM DDR3 x 2
Cada módulo DIMM suporta uma memória
DDR3 de 512 MB / 1GB / 2GB / 4GB
Capacidad e máxima d e me mór ia:8GB Módu lo
de memória DDR3 de canal duplo
Suporta módulos DDR3 1333/1066
Os módulos DIMM registados e os DIMM ECC
não são suportados
SATA 2 & 3
Controlador Serial ATA integrado
Velocidades de transmissão de dados até 3.0 Gb/s
/ 6.0 Gb/s.
Co mpat ib ilidad e co m a es pecifica ção S ATA
versão 2.0 / 3.0.
Controlador Serial ATA integrado
Velocidades de transmissão de dados até 3.0 Gb/s
/ 6.0 Gb/s.
Co mpat ib ilidad e co m a es pecifica ção S ATA
versão 2.0 / 3.0.
LAN
Realtek RTL8111E
Auto negociação de 10 / 100 / 1000 Mb/s
Realtek RTL8111E
Auto negociação de 10 / 100 / 1000 Mb/s
Suporte para
áud io d e alta
definição
ALC662
Suporta a especificação High-Definition Audio
Saída de áudio de 5.1 canais
ALC662
Suporta a especificação High-Definition Audio
Saída de áudio de 5.1 canais
USB3.0
Asmedia ASM1042
Ranhura PCI Express Gen2 x16 x1 Ranhura PCI Express Gen2 x16 x1
Ranhura PCI Express Gen2 x1 x1 Ranhura PCI Express Gen2 x1 x1
Ranhuras
Ranhura PCI x2 Ranhura PCI x2
Page 41
TH67MU3/H67MU3/H67MH
39
TH67M U3 / H67 MU3 H67 MH
Conector da para impressora x1 Conector da para impressora x1
Port a s ér ie x1 Porta série x1
Conector SATA 3 x2 Conector SATA 3 x2
Conector SATA 2 x4 Conector SATA 2 x4
Conector do painel frontal x1 Conector do painel frontal x1
Conector de áudio frontal x1 Conector de áudio frontal x1
Conector de saída S/PDIF x1 Conector de saída S/PDIF x1
Conector da ventoinha da CPU x1 Conector da ventoinha da CPU x1
Conector da ventoinha do sistema x1 Conector da ventoinha do sistema x1
Conector para limpeza do CMOS x1 Conector para limpeza do CMOS x1
Conector USB 2.0 x2 Conector USB 2.0 x2
Conector de IR do consumidor x1 Conector de IR do consumidor x1
Conector de alimentação x1
(24 pinos)
Conector de alimentação x1
(24 pinos)
Conectores
na placa
Conector de alimentação x1
(4 p inos)
Conector de alimentação x1
(4 p inos)
Entradas/S aí
das no painel
traseiro
Teclado / R ato PS/2 x1
Port a HD MI x1
Porta VGA x1
Port a DVI-D x 1
Port a LAN x1
Porta USB 2.0 (por H67) x2
Porta USB 3.0 (por ASM1042) x2
Tomada de áudio x3
Teclado / R ato PS/2 x1
Port a HD MI x1
Porta VGA x1
Port a DVI-D x 1
Port a LAN x1
Port a USB 2.0 x4
Tomada de áudio x3
Tamanho da
plac a
200mm (L) X 244 mm (A) 200mm (L) X 244 mm (A)
Sistemas
operativos
suportados
Windows XP / V ista / 7
A Biostar reserva-se o direito de ad icionar ou
remover suporte para qualquer sistema
operativo com ou sem aviso prévio.
Windows XP / V ista / 7
A Biostar reserva-se o direito de ad icionar ou
remover suporte para qualquer sistema
operativo com ou sem aviso prévio.
Page 42
Motherboard Manual
40
POLISH
T H67M U3 / H67 MU3 H67MH
Procesor
Socket 1155
Pro c es or Int e l Co re i7 / i5 / i3 / Penti um
Obsługa Execute D isable Bit / Enhanced Int el
Speed St ep® / Intel Ar chitecture-64 / Extended
Memory 64 Technology / Virtualization
Technology
Socket 1155
Pro c es or Int e l Co re i7 / i5 / i3 / Penti um
Obsługa Execute D isable Bit / Enhanced Int el
Speed St ep® / Intel Ar chitecture-64 / Extended
Memory 64 Technology / Virtualization
Technology
Chipset
Intel H67 Intel H67
Pamięć
główna
Gniazda DDR3 DIMM x 2
Każde gniazdo DIMM obsługuje moduły 512MB
/ 1GB / 2GB / 4GB
Maks. wielkość pamięci 8GB Moduł pamięci
DDR3 z trybem podwójnego kanału
Obsługa DDR3 1333/1066
Brak obsług i Register ed DIMM oraz ECC D IMM
Gniazda DDR3 DIMM x 2
Każde gniazdo DIMM obsługuje moduły 512MB
/ 1GB / 2GB / 4GB
Maks. wielkość pamięci 8GB Moduł pamięci
DDR3 z trybem podwójnego kanału
Obsługa DDR3 1333/1066
Brak obsług i Register ed DIMM oraz ECC D IMM
Super I/O
ITE 8728
Zapewnia najbardziej powszechne funkcje
Super I/O.
Interfejs Low Pin Count
Funkcje kontroli warunków pracy,
Mon itor H /W
Kontroler/Monitor prędkości wenty lato ra
Funkcja ITE "S mart Guardian"
ITE 8728
Zapewnia najbardziej powszechne funkcje
Super I/O.
Interfejs Low Pin Count
Funkcje kontroli warunków pracy,
Mon itor H /W
Kontroler/Monitor prędkości wenty lato ra
Funkcja ITE "S mart Guardian"
SATA 2 & 3
Zintegrowany kontroler Serial ATA
Transfer danych do 3.0 Gb/s / 6.0 Gb/s.
Zgodność ze specyfikacją SATA w wers j i 2. 0 /
3.0.
Zintegrowany kontroler Serial ATA
Transfer danych do 3.0 Gb/s / 6.0 Gb/s.
Zgodność ze specyfikacją SATA w wers j i 2. 0 /
3.0.
LAN
Realtek RTL8111E
10 / 100 / 1000 Mb/s z automatyczną
negocjacją szybkości
Realtek RTL8111E
10 / 100 / 1000 Mb/s z automatyczną
negocjacją szybkości
Obsługa
aud io HD
ALC662
Obsługa H ig h-Def in it io n Aud io
5.1 kanałowe wyjście audio
ALC662
Obsługa H ig h-Def in it io n Aud io
5.1 kanałowe wyjście audio
USB3.0 Asmedia AS M1042
Gniazdo PCI Express Gen2 x16 x1 Gniazdo PCI Express Gen2 x16 x1
Gniazdo PCI Express Gen2 x1 x1 Gniazdo PCI Express Gen2 x1 x1
Gniazda
Gniazdo PCI x2 Gniazdo PCI x2
Page 43
TH67MU3/H67MU3/H67MH
41
T H67M U3 / H67 MU3 H67MH
Złącze Port drukarki x1 Złącze Port drukarki x1
Port szeregowy x1 Port sz eregowy x1
Złącze SATA 3 x 2 Złącze SATA 3 x2
Złącze SATA 2 x 4 Złącze SATA 2 x4
Złącze panela przedniego x1 Złącze panela przedniego x1
Przedn ie złącze aud io x1 Przedn ie złącze aud io x 1
Złącze wyjścia S/PDIF x1 Złącze wyjścia S/PDIF x1
Złącze główkow e wenty lat ora
procesora x1
Złącze główkow e wenty lat ora
procesora x1
Złącze główkow e wenty lat ora
systemowego x1
Złącze główkow e wenty lat ora
systemowego x1
Złącze główkowe kasowan ia CMOS x 1 Złącze g łówkowe kasowania CMOS x 1
Złącze USB 2.0 x2 Z łącze USB 2.0 x2
Złącze Konsument IR x1 Złącze Konsument IR x1
Złącze zasilania (24 pinowe) x1 Złącze zasilania (24 pinowe) x1
Złącza
wbud owane
Złącze zas ilania (4 p ino we) x1 Złącze zas ilania (4 p ino we) x 1
Back Panel
I/O
Klaw iatura / Mys z PS/2 x1
Port HD MI x 1
Port VGA x1
Port DVI-D x1
Port LAN x1
Port USB 2.0 (przez H67) x2
Port USB 3.0 (przez AS M1042) x2
Gniazdo audio x3
Klaw iatura / Mys z PS/2 x1
Port HD MI x1
Port VGA x1
Port DVI-D x1
Port LAN x1
Port US B 2.0 x 4
Gniazdo audio x3
Wymiary
płyty
200mm (S) X 244 mm (W) 200mm (S) X 244 mm (W)
Obsluga
systemu
operacyjnego
Windows XP / V ista / 7
Biostar zastrzega sobie prawo dodawania lub
odwoływania obsług i dowo lneg o s ystemu
operacyjnego b ez powiado mienia.
Windows XP / V ista / 7
Biostar zastrzega sobie prawo dodawania lub
odwoływania obsług i dowo lneg o s ystemu
operacyjnego b ez powiado mienia.
Page 44
Motherboard Manual
42
RUSSIAN
TH67M U3 / H67 MU3 H67 MH
CPU
(центральны
й процессор)
Socket 1155
Процессор Inte l Cor e i7 / i5 / i3 / Pent iu m
Поддержка технологий Execut e D isab le Bit /
Enhanced Intel SpeedStep® / Int e l
Architecture-64 / Extend ed Memory 64
Technology / технологии виртуализация
Socket 1155
Процессор Inte l Cor e i7 / i5 / i3 / Pent iu m
Поддержка технологий Execut e D isab le Bit /
Enhanced Intel SpeedStep® / Int e l
Architecture-64 / Extend ed Memory 64
Technology / технологии виртуализация
Набо р
микросхем
Intel H67 Intel H67
Основная
память
Слоты DDR3 DIMM x 2
Каждый модуль DIMM поддерживает 512 МБ /
1ГБ / 2ГБ / 4ГБ DDR3
Максимальная ёмкость памяти 8ГБ
Мод уль памяти с двух кан альным режимом
DDR3
Поддержка DDR3 1333/1066
Не поддерживает зарегистрированные
модули DIMM and ECC DIMM
Слоты DDR3 DIMM x 2
Каждый модуль DIMM поддерживает 512 МБ /
1ГБ / 2ГБ / 4ГБ DDR3
Максимальная ёмкость памяти 8ГБ
Мод уль памяти с двух кан альным режимом
DDR3
Поддержка DDR3 1333/1066
Не поддерживает зарегистрированные
модули DIMM and ECC DIMM
Super I/O
ITE 8728
Обеспечивает наиболее используемые
действующие фун кцио нальн ы е возможности
Super I/O.
Интерфейс с низким количес твом выводов
Инициативы по охране окружающей среды,
Аппаратный монитор
Регул ятор скорости вентилятора/ монитор
Функция ITE "Sm art Guard ian "
(Интеллектуальная защита)
ITE 8728
Обеспечивает наиболее используемые
действующие фун кцио нальн ы е возможности
Super I/O.
Интерфейс с низким количес твом выводов
Инициативы по охране окружающей среды,
Аппаратный монитор
Регул ятор скорости вентилятора/ монитор
Функция ITE "Sm art Guard ian "
(Интеллектуальная защита)
SATA 2 & 3
Встроенное последовательное устройство
управления ATA
скорость передачи данных до 3.0 гигабит/с /
6.0 гигабит/с.
Соответствие специфик ации SATA версия 2.0
/ 3.0.
Встроенное последовательное устройство
управления ATA
скорость передачи данных до 3.0 гигабит/с /
6.0 гигабит/с.
Соответствие специфик ации SATA версия 2.0
/ 3.0.
Локальная
сеть
Realtek RTL8111E
Автоматическое согласо ван ие 10 / 100 / 1000
Мб/с
Realtek RTL8111E
Автоматическое согласо ван ие 10 / 100 / 1000
Мб/с
Звуко вая
поддержка
жесткого
диска
ALC662
Звуко вая поддержка High- Def in it io n
5.1канальный звуковой вых од
ALC662
Звуко вая поддержка High- Def in it io n
5.1канальный звуковой вых од
USB3.0
Asmedia ASM1042
Слот PCI Express Gen2 x16 x1 Слот PCI Express Gen2 x16 x1
Слот PCI Express Gen2 x1 x1 Слот PCI Express Gen2 x1 x1
Слоты
Слот PCI x2 Слот PC I x2
Page 45
TH67MU3/H67MU3/H67MH
43
TH67M U3 / H67 MU3 H67 MH
Разъ ём Порт подключения
принтера x1
Разъ ём Порт подключения
принтера x1
Последоват ельны й порт x1 Последоват ельны й порт x1
Разъ ём SATA 3 x2 Разъ ём SATA 3 x2
Разъ ём SATA 2 x4 Ра зъ ём SATA 2 x4
Разъ ём на лицевой панели x1 Разъ ём на лицевой панели x1
Входной звуковой разъём x1 Входной звуковой разъём x1
Разъ ём вывода для S/PDIF x1 Разъём вывода для S/PDIF x1
Контактирующее приспособление
вентил ятора центрального процессора x1
Контактирующее приспособление
вентил ятора центрального процессора x1
Контактирующее приспособление
вентил ятора системы x1
Контактирующее приспособление
вентил ятора системы x1
Открытое контактир ующ ее
приспособление CMOS x1
Открытое контактир ующ ее
приспособление CMOS x1
USB 2.0-разъём x2 USB 2.0-разъём x2
Разъ ём едок а ИКЫЙ x1 Ра зъ ём едока ИКЫЙ x1
Разъ ем питания (24 вы вод) x1 Разъем питания (24 вы вод) x1
Встроенный
разъём
Разъ ем питания (4 вывод ) x1 Разъ ем питания (4 вы вод) x1
Задняя
панель
средств
ввода-вывод
а
Клавиатура / Мышь PS /2 x1
Порт HD MI x1
Порт VGA x1
Порт DVI-D x1
Порт LAN x1
USB 2.0-порт (по H67) x2
USB 3.0-порт (по ASM1042) x2
Гнездо для подключения
наушников x3
Клавиатура / Мышь PS /2 x1
Порт HD MI x1
Порт VGA x1
Порт DVI-D x1
Порт LAN x1
USB 2.0-порт x4
Гнездо для подключения
наушников x3
Размер
панели
200мм (Ш) X 244 мм (В) 200мм (Ш) X 244 мм (В)
Поддержка
OS
Windows XP / V ista / 7
Biostar сохраняет за собой право добавлять
или удалять средства обеспечения для OS с
или без предварительного уведо млени я.
Windows XP / V ista / 7
Biostar сохраняет за собой право добавлять
или удалять средства обеспечения для OS с
или без предварительного уведо млени я.
Page 46
Motherboard Manual
44
ARABIC
H67 MH TH67M U3 / H67 MU3
Socket 1155
تﺎﺠﻟﺎﻌﻣIntel Cor e i7 / i5 / i3 / Pe ntiu m ﺑ ددﺮﺘ ﻳ ﻰﻟإ ﻞﺼ
تﺎﻴﻨﻘﺕ ﻢﻋﺪﺕExecute D isab le Bit / Enh anced Inte l
Speed St ep® / Intel Arch itectur e- 64 / Extended
Memory 64 Technology / Virtualization
Technology
Socket 1155
تﺎﺠﻟﺎﻌﻣIntel Cor e i7 / i5 / i3 / Pe ntiu m ﺑ ددﺮﺘ ﻳ ﻰﻟإ ﻞﺼ
تﺎﻴﻨﻘﺕ ﻢﻋﺪﺕExecute D isab le Bit / Enh anced Inte l
Speed St ep® / Intel Ar chitecture-64 / Ex tend ed
Memory 64 Technology / Virtualization
Technology
ةﺪﺣو ﺔﺠﻟﺎﻌﻤﻟا
ﺔﻳﺰآﺮﻤﻟا
Intel H67 Intel H67
ﺔﻋﻮﻤﺠﻣ ﺢﺋاﺮﺸﻟا
ﺔﺤﺘﻓDDR3 DIM M دﺪﻋ2
ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR3 ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕ ﺔﻌﺳ
DIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR3 ﺔﻌﺳ 512 و ﺖﻳﺎﺑ ﺎﺠﻴﻣ 1/و 2/
و4 ﺎﺠﻴﺝﺖﻳﺎﺑ
ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ8 ﺝﺖﻳﺎﺑ ﺎﺠﻴ
ةﺮآاذ ةﺪﺣوDDR3 ﻘﻟا ﺔﺝودﺰﻣةﺎﻨ
عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺕDDR3 تﺎﻌﺳ 1066/1333ﺖﻳﺎﺑ ﺎﺠﻴﻣ
ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺕ ﻻDIMM ﻊﻣ ﻖﻓاﻮﺘﺕ ﻻ ﻲﺘﻟا ﻚﻠﺕو ECC
ﺔﺤﺘﻓDDR3 DIM M دﺪﻋ2
ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR3 ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕ ﺔﻌﺳ
DIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR3 ﺔﻌﺳ 512 و ﺖﻳﺎﺑ ﺎﺠﻴﻣ 1/و 2/
و4 ﺎﺠﻴﺝﺖﻳﺎﺑ
ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ8 ﺖﻳﺎﺑ ﺎﺠﻴﺝ
ةﺮآاذ ةﺪﺣوDDR3 ﻘﻟا ﺔﺝودﺰﻣةﺎﻨ
عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺕDDR3 تﺎﻌﺳ 1066/1333ﺖﻳﺎﺑ ﺎﺠﻴﻣ
ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺕ ﻻDIMM ﻊﻣ ﻖﻓاﻮﺘﺕ ﻻ ﻲﺘﻟا ﻚﻠﺕو ECC
ةﺮآاﺬﻟا ﺔﻴﺴﻴﺋﺮﻟا
ITE 8728
ﺔﻔﻴﻇ و ﺮﻓﻮﺕSuper I/O اﺪﺨﺘﺳا ﺮﺜآﻷا ًﺎ ﻣ.
ﺕﻢﻋﺪ ﺔﻴﻨﻘ ﺕ Low Pi n Count Interface
ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:
ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻣ
ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻣ
ﺔﻔﻴﻇو"S mart Gu ard ian" ﻦﻣ IT E
ITE 8728
ﺔﻔﻴﻇ و ﺮﻓﻮﺕSuper I/O ًﺎ ﻣا ﺪﺨ ﺘ ﺳ ا ﺮﺜآﻷا .
ﺕﻢﻋﺪ ﺔﻴﻨﻘ ﺕ Low Pi n Count Interface
ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:
ﺐﻗاﺮﻣةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ
ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻣ
ﺔﻔﻴﻇو"S mart Gu ard ian" ﻦﻣ IT E
Super I/O
ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣﺎﻜﺘﻣ
ﻞﻘﻧ تﺎﻧﺎﻴﺒﻟا تﺎﻋﺮﺴﺏ ﻞﺼﺕ ﻰﻟإ 3.0 ﺖﺏﺎﺠﻴﺟ/ ﺔﻴﻧﺎﺛ /
6.0 ﺖﺏﺎﺠﻴﺟ/ ﺔﻴﻧﺎﺛ
ﺔﻘﺏﺎﻄﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0 / 3.0.
ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣﺎﻜﺘﻣ
ﻞﻘﻧ تﺎﻧﺎﻴﺒﻟا تﺎﻋﺮﺴﺏ ﻞﺼﺕ ﻰﻟإ 3.0 ﺖﺏﺎﺠﻴﺟ/ ﺔﻴﻧﺎﺛ /
6.0 ﺖﺏﺎﺠﻴﺟ/ ﺔﻴﻧﺎﺛ
ﺔﻘﺏﺎﻄﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0 / 3.0.
SATA 2 & 3
Realtek RTL8111E
ﻲﺋﺎﻘﻠﺕ ضو ﺎﻔﺕ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /و ﺔﻴﻥﺎﺙ1ﺖﺑ ﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ
Realtek RTL8111E
ﻲﺋﺎﻘﻠﺕ ضو ﺎﻔﺕ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /و ﺔﻴﻥﺎﺙ1ﺖﺑ ﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ
ﺔﻜﺒﺷ ﺔﻴﻠﺧاد
ALC662
ﻦﻣ ﻒﻳﺮﻌﺘﻟا ﻲﻟ ﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺕ ﻢﻋﺪﺕ
5.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ
ALC662
ﻦﻣ ﻒﻳﺮﻌﺘﻟا ﻲﻟ ﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺕ ﻢﻋﺪﺕ
5.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ
ﻢﻋد تﻮﺼﻟا ﻲﻟ ﺎﻋ
ﻒیﺮﻌﺘﻟا
Asmedia ASM1042
USB3.0
ﺔﺤﺘﻓGen2 x16 PCI Express دﺪﻋ1 ﺔﺤﺘﻓGen2 x16 PCI Express دﺪﻋ1
ﺔﺤﺘﻓPCI Express Gen2 x1 دﺪﻋ1 ﺔﺤﺘﻓPCI Express Gen2 x1 دﺪ ﻋ1
ﺔﺤﺘﻓPCI ﺪﻋ2 ﺔﺤﺘﻓPCI ﺪﻋ2
تﺎﺤﺘﻔﻟا
Page 47
TH67MU3/H67MU3/H67MH
45
H67 MH TH67M U3 / H67 MU3
ﺔﻌﺑﺎﻃ ﺬﻔ ﻨﻣ دﺪﻋ1 ﺔﻌﺑﺎﻃ ﺬﻔ ﻨﻣ دﺪﻋ1
ﻲﻠﺴﻠﺴﺕ ﺬﻔﻨﻣ دﺪﻋ1 ﻲﻠﺴﻠﺴﺕ ﺬﻔﻨﻣ دﺪﻋ1
ﺬﻔﻨﻣSATA 3 دﺪﻋ2 ﺬﻔﻨﻣSATA 3 دﺪﻋ2
ﺬﻔﻨﻣSATA 2 دﺪﻋ4 ﺬﻔﻨﻣSATA 2 دﺪﻋ4
ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮ ﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1 ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮ ﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1
ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1 ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1
جﺮﺥ ﺬﻔﻨﻣS/PDIF دﺪﻋ1 جﺮﺥ ﺬﻔﻨﻣS/PDIF دﺪﻋ1
ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1 ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1
ا ﺔﺣوﺮﻣ ﺔﻠﺹومﺎﻈﻨﻟ دﺪﻋ1 مﺎﻈﻨﻟا ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1
ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1 ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1
ﺬﻔﻨﻣUSB 2.0 دﺪﻋ2 ﺬﻔﻨﻣUSB 2.0 دﺪﻋ2
ﺬﻔﻨﻣ ﺔﻜﻠﻬﺘﺴﻣ ﺖﺤﺕ ﺮﻤﺣﻷا دﺪﻋ1 ﺬﻔﻨﻣ ﺔﻜﻠﻬﺘﺴﻣ ﺖﺤﺕ ﺮﻤﺣﻷا دﺪﻋ1
ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)24سﻮﺑد( ع دد1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)24سﻮﺑد( ع د د1
ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)4ﺲﻴﺑﺎﺑد( دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)4ﺲﻴﺑﺎﺑد( دﺪﻋ1
ﺬﻓﺎﻨﻤﻟا ﻰﻠﻋ ﺢﻄﺱ
ﺔﺡﻮﻠﻟا
ﺢﻴﺕﺎﻔﻣ ﺔﺣﻮﻟ / سوﺎﻣPS/2 دﺪﻋ1
ﺬﻓﺎﻨﻣHDMI دﺪﻋ1
ﺬﻓﺎﻨﻣVG A دﺪﻋ1
ﺬﻓﺎﻨﻣDVI- D دﺪﻋ1
ﺔﻴﻠﺤﻣ لﺎﺼﺕا ﺔﻜﺒﺵ ﺬﻔ ﻨﻣ دﺪﻋ 1
ﺬﻓﺎﻨﻣUSB 2.0 دﺪﻋ4
تﻮﺹ ﺲﺒﻘﻣ دﺪﻋ3
ﺢﻴﺕﺎﻔﻣ ﺔﺣﻮﻟ / سوﺎﻣPS/2 دﺪﻋ1
ﺬﻓﺎﻨﻣHDMI دﺪﻋ1
ﺬﻓﺎﻨﻣVG A دﺪﻋ1
ﺬﻓﺎﻨﻣDVI- D دﺪﻋ1
ﺔﻴﻠﺤﻣ لﺎﺼﺕا ﺔﻜﺒﺵ ﺬﻔ ﻨﻣ دﺪﻋ 1
ﺬﻓﺎﻨﻣ2.0US B(H67 ﻦﻣ ﻞﺒﻗ ) دﺪﻋ2
ﺬﻓﺎﻨﻣSB3.0U(ASM1042 ﻦﻣ ﻞﺒﻗ ) دﺪﻋ2
تﻮﺹ ﺲﺒﻘﻣ دﺪﻋ3
ﺬﻓﺎﻨﻣ ﻞﺧد/جﺮﺧ
ﺔﺡﻮﻠﻟا ﺔﻴﻔﻠﺨﻟا
200 ﻢﻣ)ضﺮﻋ (X 244 ﻢﻣ)عﺎﻔﺕرا( 200 ﻢﻣ)ضﺮﻋ (X 244 ﻢﻣ)اعﺎﻔﺕر(
ﻢﺠﺡ ﺔﺡﻮﻠﻟا
Windows XP / Vista / 7
ﻆﻔﺘﺤﺕ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓ ﺎﺿإ وأ ﺔﻟازإ ﻢﻋﺪﻟا يﻷ مﺎﻈﻧ ﻞﻴﻐﺸﺕ رﺎﻄﺧﺈﺏ
وأ نو ﺪﺏ رﺎﻄﺧإ.
Windows XP / Vista / 7
ﻆﻔﺘﺤﺕ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓ ﺎﺿإ وأ ﺔﻟازإ ﻢﻋﺪﻟا يﻷ مﺎﻈﻧ ﻞﻴﻐﺸﺕ رﺎﻄﺧﺈﺏ
وأ نو ﺪﺏ رﺎﻄﺧإ.
ﻢﻋد ﺔﻤﻈﻧأ ﻞﻴﻐﺸﺘﻟا
Page 48
Motherboard Manual
46
JAPANESE
TH67M U3 / H67 MU3 H67 MH
CPU
Socket 1155
Int e l Co re i7 / i5 / i3 / Pen tium プ ロセッサ
Execute D isab le Bit / Enh anced Inte l
Speed St ep® / Intel Ar chitecture-64 / Extended
Memory 64 Technology / Virtualization
Technologyをサ ポートしま す
Socket 1155
Int e l Co re i7 / i5 / i3 / Pen tium プ ロセッサ
Execute D isab le Bit / Enh anced Inte l
Speed St ep® / Intel Ar chitecture-64 / Extended
Memory 64 Technology / Virtualization
Technologyをサ ポートしま す
チップセット
Intel H67 Intel H67
メインメモリ
DDR3 DIMMスロット x 2
各DIMMは 512 MB / 1GB / 2GB / 4GB DDR3をサ
ポート
最大メモリ容 量8GB
デュアル チ ャン ネルモードDDR3メモリモジ ュール
DDR3 1333/1066をサ ポート
登録済みDIMMとECC DIMMはサポ ート されません
DDR3 DIMMスロット x 2
各DIMMは 512 MB / 1GB / 2GB / 4GB DDR3をサ
ポート
最大メモリ容 量8GB
デュアル チ ャン ネルモードDDR3メモリモジ ュール
DDR3 1333/1066をサ ポート
登録済みDIMMとECC DIMMはサポ ート されません
Super I/O
ITE 8728
もっとも一般 に使用され るレ ガシーSuper I/O機能を
採用していま す。
低ピンカウン トインター フェ イス
環境コントロ ールイニシ アチ ブ、
H/Wモニター
ファン速度コ ントローラ / モニター
ITE の「スマート ガー ディアン」 機能
ITE 8728
もっとも一般 に使用され るレ ガシーSuper I/O機能を
採用していま す。
低ピンカウン トインター フェ イス
環境コントロ ールイニシ アチ ブ、
H/Wモニター
ファン速度コ ントローラ / モニター
ITE の「スマート ガー ディアン」 機能
SATA 2 & 3
統合シリアルATA コントロー ラ
最高3.0 Gb/秒 / 6.0 Gb/秒のデー タ転送 速度
SATAバージョン2.0 / 3.0仕様に準拠 。
統合シリアルATA コントロー ラ
最高3.0 Gb/秒 / 6.0 Gb/秒のデー タ転送 速度
SATAバージョン2.0 / 3.0仕様に準拠 。
LAN
Realtek RTL8111E
10 / 100 / 1000 Mb/秒のオート ネゴシ エーション
Realtek RTL8111E
10 / 100 / 1000 Mb/秒のオート ネゴシ エーション
HDオ ーディオ
のサポート
ALC662
ハイデフィニ ションオー ディ オのサポー ト
5.1 チ ャンネルオ ーディ オアウト
ALC662
ハイデフィニ ションオー ディ オのサポー ト
5.1 チ ャンネルオ ーディ オアウト
USB3.0
Asmedia ASM1042
PCI Express Gen2 x16スロット x1 PCI Express Gen2 x16スロット x1
PCI Express Gen2 x1スロット x1 PCI Express Gen2 x1スロット x1
スロット
PCIスロット x2 PCIスロット x2
Page 49
TH67MU3/H67MU3/H67MH
47
TH67M U3 / H67 MU3 H67 MH
プリンタポー トコネクタ x1 プリン タポー トコネクタ x1
シリアルポー ト x1 シリア ルポート x1
SATA 3コネクタ x2 SATA 3コネクタ x2
SATA 2コネクタ x4 SATA 2コネクタ x4
フロントパネ ルコネクタ x1 フロン トパネ ルコネクタ x1
フロントオー ディオコネ クタ x1 フロン トオーディ オコネ クタ x1
S/PDIFアウトコネ クタ x1 S/PDIFアウトコネ クタ x1
CPUファンヘッダ x1 CPUファンヘッダ x1
システムファ ンヘッダ x1 システムファ ンヘ ッダ x1
CMOSクリアヘッダ x1 CMOSクリアヘッダ x1
USB 2.0コネ クタ x2 USB 2.0コネクタ x2
消費者IR コネクタ x1 消費者 IR コネクタ x1
電源コネクタ (24 ピン) x1 電源コ ネクタ(24ピン) x1
オンボードコ
ネクタ
電源コネクタ (4ピン) x1 電源コ ネクタ(4ピン) x1
背面パネル I/O
PS/2キーボード / マウス x1
HDMIポート x1
VGAポート x1
DVI-Dポート x1
LANポート x1
USB 2.0ポー ト(で H6 7 ) x2
USB 3.0ポー ト(で ASM1042) x2
オーディオジ ャック x3
PS/2キーボード / マウス x1
HDMIポート x1
VGAポート x1
DVI-Dポート x1
LANポート x1
USB 2.0ポー ト x4
オーディオジ ャック x3
ボードサイズ
200mm (幅) X 244 mm (高さ ) 200mm (幅) X 244 mm (高さ )
OSサポー ト
Windows XP / V ista / 7
Biostarは事前の サポートな しにOSサ ポートを追 加ま
たは削除する 権利を留保 しま す。
Windows XP / V ista / 7
Biostarは事前の サポートな しにOSサ ポートを追 加ま
たは削除する 権利を留保 しま す。
2011/01/20
Loading...
