Biostar TH61M U3 Setup Manual

TH61MU3/H61MU3/H61MH/H61ML Setup Manual

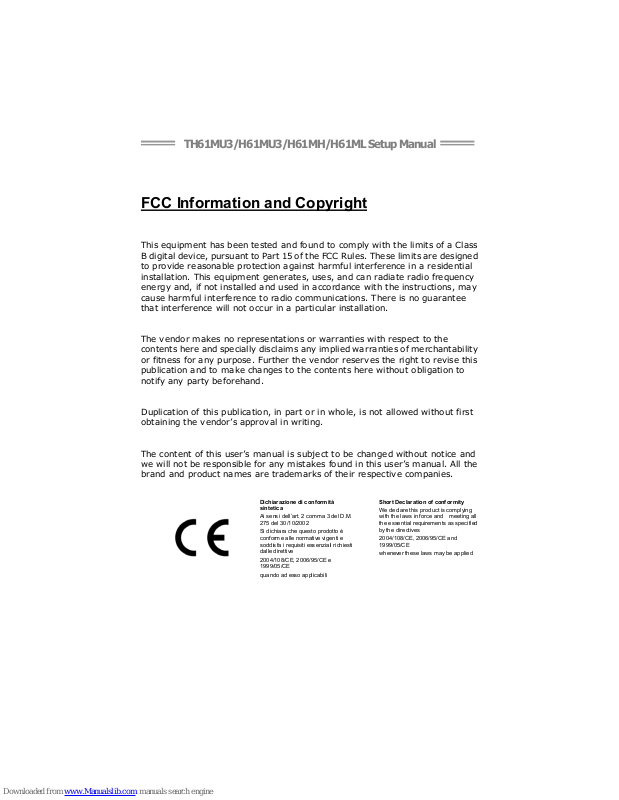

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment ge nerates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents here and specially disclaims any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right to revise this publication and to make changes to the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and we will not be responsible for any mistakes found in this user’s manual. All the brand and product names are trademarks of their respective companies.

Dichiar azione di confor mit à sintetica

Ai sensi dell’art. 2 comma 3 del D.M. 275 del 30/10/2002

Si dichiara che questo prodotto è conforme alle normative vigenti e soddisfa i requisiti essenziali richiesti dalle direttive

2004/108/CE, 2006/95/CE e 1999/05/CE

quando ad esso applicabili

Short De clarat ion of conf ormity

We declare this product is complying with the laws in force and meeting all the essential requirements as specified by the directives

2004/108/CE, 2006/95/CE and 1999/05/CE

whenever these laws may be applied

Table of Contents

Chapter 1: Introduction ........................................ 1

1.1 Before You Start ................................................................................ 1

1.2 Package Checklist............................................................................. 1

1.3 Motherboard Features...................................................................... 2

1.4 Rear Panel Connectors ..................................................................... 3

1.5 Motherboard Layout......................................................................... 4

Chapter 2: Hardware Installation .......................... 5

2.1 Installing Central Processing Unit (CPU)....................................... 5

2.2 FAN Headers...................................................................................... 7

2.3 Installing System Memory ................................................................ 8

2.4 Connectors and Slots....................................................................... 10

Chapter 3: Headers & Jumpers Setup .................. 13

3.1 How to Setup Jumpers .................................................................... 13

3.2 Detail Settings.................................................................................. 13

Chapter 4: Useful Help ........................................ 17

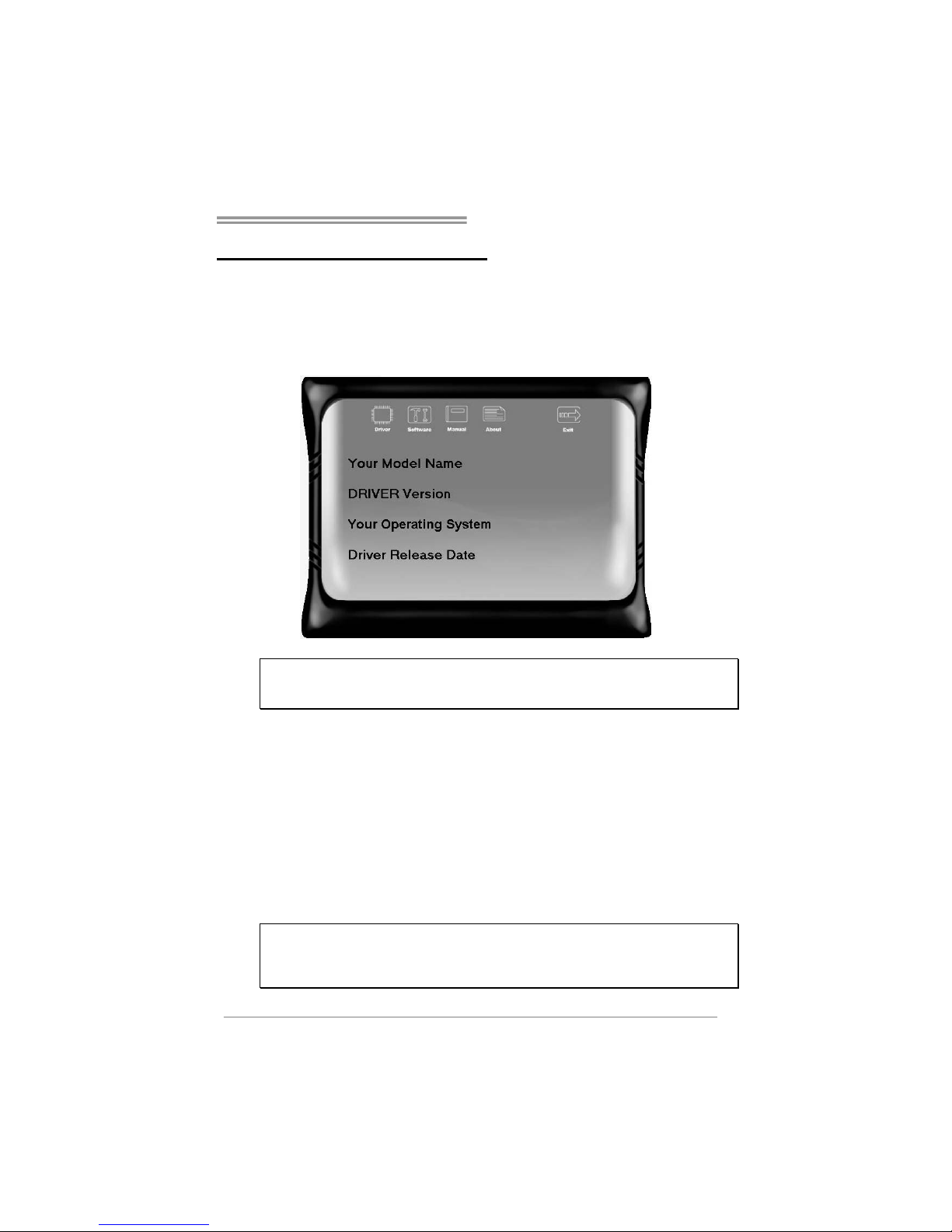

4.1 Driver Installation Note.................................................................. 17

4.2 Software ............................................................................................ 18

4.3 Extra Information............................................................................ 22

4.4 AMI BIOS Beep Code....................................................................... 23

4.5 Troubleshooting............................................................................... 24

Appendix: SPEC In Other Languages ................... 26

German.................................................................................................................. 26

French .................................................................................................................... 28

Ita lian..................................................................................................................... 30

Spanish ................................................................................................................... 32

Portugue se ............................................................................................................ 34

Polish...................................................................................................................... 36

Russian ................................................................................................................... 38

Arabic..................................................................................................................... 40

Japanese ................................................................................................................ 42

TH61MU3/H61MU3/H61MH/H61ML

1

CHAPTER 1: INTRODUCTION

1.1 B

EFORE YOU START

Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with

sufficient lighting.

 Always disconnect the computer from power outlet

before operation.

 Before you take the motherboard out from anti-static

bag, ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.

 Avoid touching the components on motherboard or the

rear side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the

case after installation. Loose parts will cause short circuits which may damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

 The operating temperatures of the computer should be

0 to 45 degrees Celsius.

1.2 PACKAGE CHECKLIST

Serial ATA Cable X 2 Rear I/O Panel for ATX Case X 1 User’s Manual X 1 Fully Setup Driver CD X 1 USB 2.0 Cable X1 (optional) Serial ATA Power Cable X 1 (optional)

Note: The package contents may be different due to area or your motherboard version.

Motherboard Manual

2

1.3 MOTHERBOARD FEATURES

TH61M U3 / H61 MU3 H61 M H / H 61 ML

CPU

Socket 1155 Int e l Core i7 / i5 / i3 / Pentiu m p roces s or Supports Execute Disab le B it / Enhanced Inte l Speed St ep® / Intel Ar chitecture-64 / Extended Memory 64 Technology / Virtualization Technology

Chipset

Intel H61 Intel H61

Super I/O

ITE 8728 Prov ides th e mos t common ly used leg acy Super I/O functionality. Low Pin Count Interface En v iron m en t Cont rol in itiatives , Hardware Monitor Controller Fan Sp eed Controller ITE's "S mart Guard ian" funct ion

Main Memory

DIMM Slots x 2 Each DIMM supports 512MB / 1GB / 2GB / 4GB DDR3 Max Memory Capacity 8GB Dual Channel Mo de DD R3 me mory mo du le Supports DDR3 1333/1066 Register ed DIMM and ECC D IMM is not supported

SATA 2

Integrated Serial ATA Controller Data transfer rates up to 3.0 Gb/s. SATA Version 2 .0 s p e c if icat ion co mpl ian t

LAN

Realtek RTL8111E 10 / 100 Mb/s / 1Gb/s auto negot iation

Realtek RTL8111E (H61MH) 10 / 100 Mb/s / 1Gb/s auto negot iation Realtek RTL8105E (H61ML) 10 / 100 Mb/s auto negot iation

Sound Codec

ALC662

5.1 channels audio out High Definition Audio

ALC662

5.1 channels audio out High Definition Audio

USB3.0

Asmedia ASM1042

PCI Express Gen2 x16 Slot x1 PCI Express Gen2 x16 Slot x1 PCI Express Gen2 x1 Slot x1 PCI Express Gen2 x1 Slot x1

Slots

PCI Slot x2 PC I S lot x 2 Printer Port Connecto r x1 Printer Port Connecto r x1 Serial Port Connector x1 Serial Port Connector x1 SATA Connector x4 SATA Connector x4 Front Panel Connector x1 Front Panel Connector x1 Front Audio Connector x1 Front Audio Connector x1

On Board

Connectors

S/PDIF out Connector x1 S/PDIF out Connector x1

TH61MU3/H61MU3/H61MH/H61ML

3

TH61M U3 / H61 MU3 H61 M H / H 61 ML

CPU Fan Header x1 CPU Fan Header x1 System Fan Header x1 System Fan Header x1 Clear CMOS Head er x1 Clear C MOS H ead er x1 USB 2.0 Connector x2 USB 2.0 Connector x2 Consumer IR Connector x1 Consumer IR Connector x1 Power Connector (24pin) x1 Power Conn ector (24pin) x1 Power Connector (4pin) x1 Power Connector (4pin) x1

Back Panel

I/O

PS/2 Keyboard / Mous e x1 HDMI Port x1 VGA Port x1 DVI-D Port x1 LAN Port x1 USB2.0 Port (by H61) x2 USB3.0 Port (by ASM1042) x2 Audio Jack x3

PS/2 Keyboard / Mous e x1 HDMI Port (H61MH) x1 VGA Port x1 DVI-D Port x1 LAN Port x1 USB2.0 Port x4 Audio Jack x3

Board Size

200 (W) x 244 (L) mm 200 (W) x 244 (L) mm

OS Support

Windows XP / Vista / 7 Biostar reserves the right to add or remove support for any OS with or without notice

1.4 REAR PANEL CONNECTORS

USB3.0X2

LAN

HDMI VGADVI-D

Line In/ Surround

Line Out

Mic In 1/ Bass/ Center

PS/2

Keyboard / Mouse

US B2.0X 2

(Fo r TH61M U3 & H61MU3 & H61MH)

(For TH61MU3 & H61MU3)

USB2.0X2

(For H61MH & H61ML)

NOTE: HDM I / DV I-D / VGA Outp ut req uire an Inte l Core famil y processor with Intel Graphics

Te c h no lo g y.

NOTE: Maximum resolution:

HDMI: 1920 x 1200 @60Hz DVI: 1920 x 1200 @60Hz VGA: 2048 x 1536 @75Hz

NOTE: This motherboard supports Multiple VGA output, and the configuration is as below:

(HDMI is not supported under DOS and B IOS setup.)

Display Devices

VGA + HDMI

VGA + DVI-D HDMI + DVI-D

Enabled O O O

Motherboard Manual

4

1.5 MOTHERBOARD LAYOUT

USBKB1

HDMI1

VGA 1

DVI1

RJ 45USB 1

AUDIO1

ATXPWR2

LAN

CODEC

F_ AUDI O1 J_ PRIN T1 J_C OM1

CIR1

JSPDIFOUT1

F_USB1 F_U SB2

PAN EL1

SYS_FAN1

JCMOS1

BIOS

SATA4

SATA2

SATA3

SATA1

BAT1

PCI1

PCI2

PEX16_1

PEX1_1

Super

I/O

ATXPWR1

DDR3_B1

DDR3_A1

CPU_FAN1

Socket 1155

CPU1

H61

Note: ■ represents the 1st pin.

TH61MU3/H61MU3/H61MH/H61ML

5

CHAPTER 2: HARDWARE INSTALLATION

2.1 I

NSTALLING CENTRAL PROCESSING UNIT (CPU)

Special Notice:

Remove Pin Cap before installation, and make good preservation for future use. When the CPU is removed, cover the Pin Cap on the empty socket to ensure pin legs won’t be damaged.

Step 1: Pull the socket locking lever out from the socket and then raise

the lever up.

Step 2: Remove the Pin Cap.

Motherboard Manual

6

Step 3: Look for the triangular cut edge on socket, and the golden dot on

CPU should point forwards this triangular cut edge. The CPU will fit only in the correct orientation.

Step 4: Hold the CPU down firmly, and then lower the lever to locked

position to complete the installation.

Step 5: Put the CPU Fan and heatsink assembly on the CPU and buckle it

on the retention frame. Connect the CPU FAN power cable into the CPU_FAN1 to complete the installation.

TH61MU3/H61MU3/H61MH/H61ML

7

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan cable and connector may be different due to the fan manufacturer. Connect the fan cable to the connector while matching the black wire to pin#1.

CPU_FAN1: CPU Fan Header

Assignment

1 Ground 2 Power 3 FAN RPM rate sense

14

4 Smart Fan Control

SYS_FAN1: System Fan Header

Assignment

1 Ground 2 +12V

1

3

3 FAN RPM rate sense

Note:

CPU_FAN1 supports 4-pin head connector; SYS_FAN1, 3-pin head one. When connecting with wires onto connectors, please note that the red wire is the positive and should be co nnected to pin#2, and the black wire is Ground and should be connected to GND.

Motherboard Manual

8

2.3 INSTALLING SYSTEM MEMORY

A. DDR3 module

DDR3_A1

DDR3_B1

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining chip snap back in place and the DIMM is properly seated.

TH61MU3/H61MU3/H61MH/H61ML

9

B. Memory Capacity

DIMM Socket

Location

DDR3 Module

Total Mem o ry

Size

DDR3_A1 512MB/1GB/2GB/4GB

DDR3_B1 512MB/1GB/2GB/4GB

Max is 8GB.

C. Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function:

Install memory module of the same density in pairs, shown in the table.

Dual Channel Status

DDR3_A1

DDR3_B1

Disabled O X

Disabled X O

Enabled O O

(O means memory installed; X, not installed.)

The DRAM bus width of the memory module must be the same(x8 or x16)

Motherboard Manual

10

2.4 CONNECTORS AND SLOTS

SATA1~SATA4: Serial ATA Connectors

The motherboard has a PCI to SATA Controller with 4channels SATA interface, it satisfies the SATA 2.0 spec and with transfer rate of 3Gb/s.

Pin Assignment

1 Ground 2 TX+ 3 TX4 Ground 5 RX6 RX+

1

4

7

SATA 1 S ATA 3 SATA 2 S ATA 4

7 Ground

ATXP W R2: AT X P ower Source Connector

This connector provides +12V to CPU power circuit.

Assignment

1 +12V 2 +12V 3 Ground

12

34

4 Ground

TH61MU3/H61MU3/H61MH/H61ML

11

ATXP W R1: AT X P ower Source Connector

This connector is for 24-pin power connector on the ATX power supply.

1

12

13

24

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V 14 -12V 2 +3.3V 15 Ground 3 Ground 16 PS_ON 4 +5V 17 Ground 5 Ground 18 Ground 6 +5V 19 Ground 7 Ground 20 NC 8 PW_OK 21 +5V 9 Standby Voltage+5V 22 +5V 10 +12V 23 +5V 11 +12V 24 Ground 12 +3.3V

Note:

Before you power on the system, please make sure that both ATXPWR1 and ATXPWR2 connectors have been plugged-in.

Motherboard Manual

12

PCI1/PCI2: Peripheral Component Interconnect Slots

This motherboard is equipped with 2 standard PCI slots. PCI stands for Peripheral Component Interconnect, and it is a bus standard for expansion cards. This PCI slot is designated as 32 bits.

PCI2

PCI1

PEX16_1: PCI-Express Gen2 x16 Slot

- PCI-Express 2.0 compliant.

- Maximum theoretical realized bandwidth of 8GB/s simultaneously per

direction, for an aggregate of 16GB/s totally.

- PCI-Express Gen2 supports a raw bit-rate of 5.0Gb/s on the data pins.

- 2X bandwidth over the PCI-Express 1.1 architecture.

PEX1_1: PCI-Express Gen2 x1 Slot

- PCI-Express 1.1 compliant.

- Data transfer bandwidth up to 250MB/s per direction; 500MB/s in total.

- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.

PEX16_1

PEX1_1

TH61MU3/H61MU3/H61MH/H61ML

13

CHAPTER 3: HEADERS & JUMPERS SETUP

3.1 H

OW TO SETUP JUMPERS

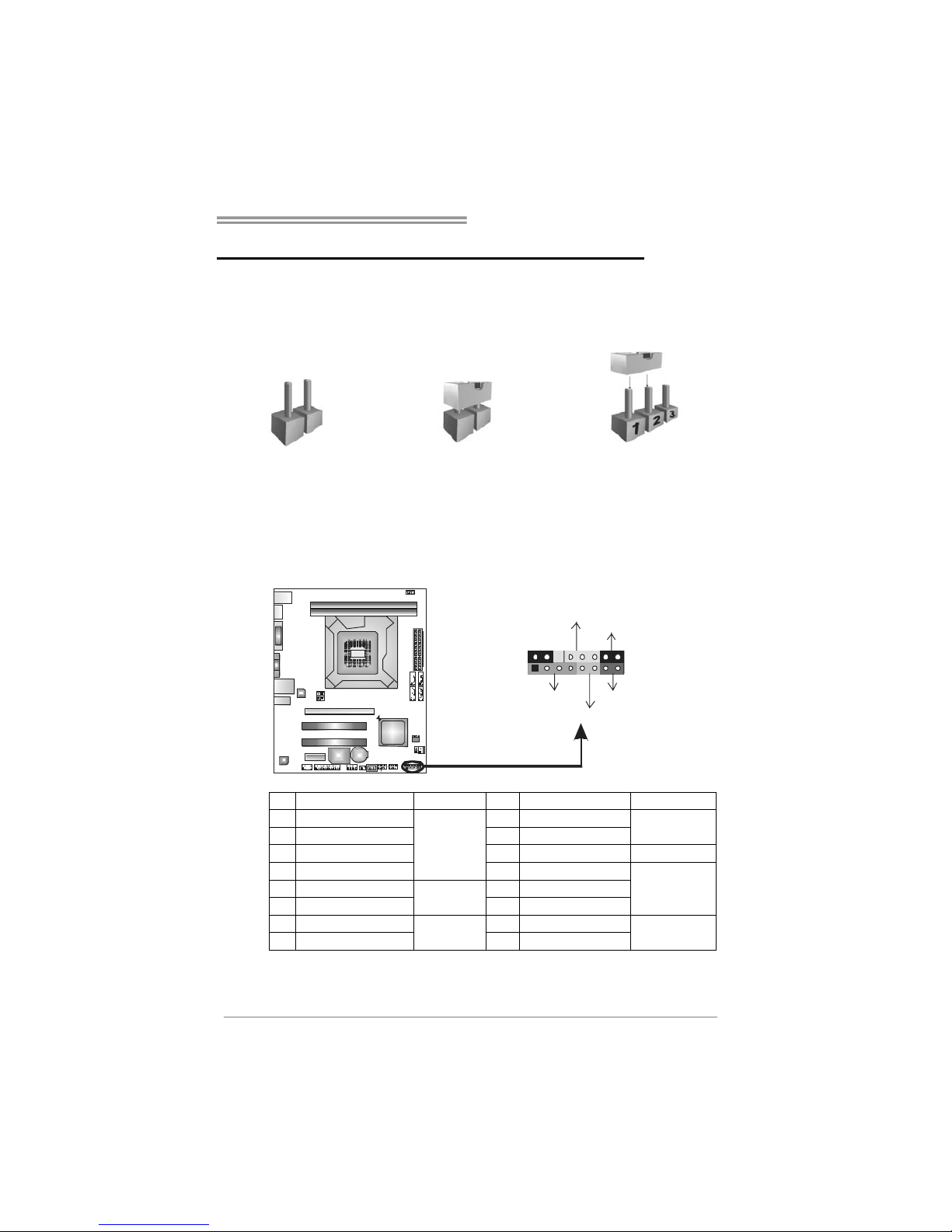

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is “close”, if not, that means the jumper is “open”.

Pin opened Pin closed Pin1-2 closed

3.2 DETAIL SETTINGS

PANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and speaker connection. It allows user to connect the PC case’s front panel switch functions.

1

9

8

16

POW _LED

On/Off

RST

HLED

SPK

++

+

-

Pin Assignment Function Pin Assignment Function

1 +5V 9 N/A

2 N/A 10 N/A

N/A

3 N/ A 1 1 N/ A N/A

4 Speaker

Speaker Connector

12 Power LED (+)

5 HDD LED (+) 13 Power LED (+)

6 HDD LED (-)

Hard drive LED

14 Power LED (-)

Power LED

7 Ground 15 Power button

8 Reset control

Reset button

16 Ground

Power-on button

Motherboard Manual

14

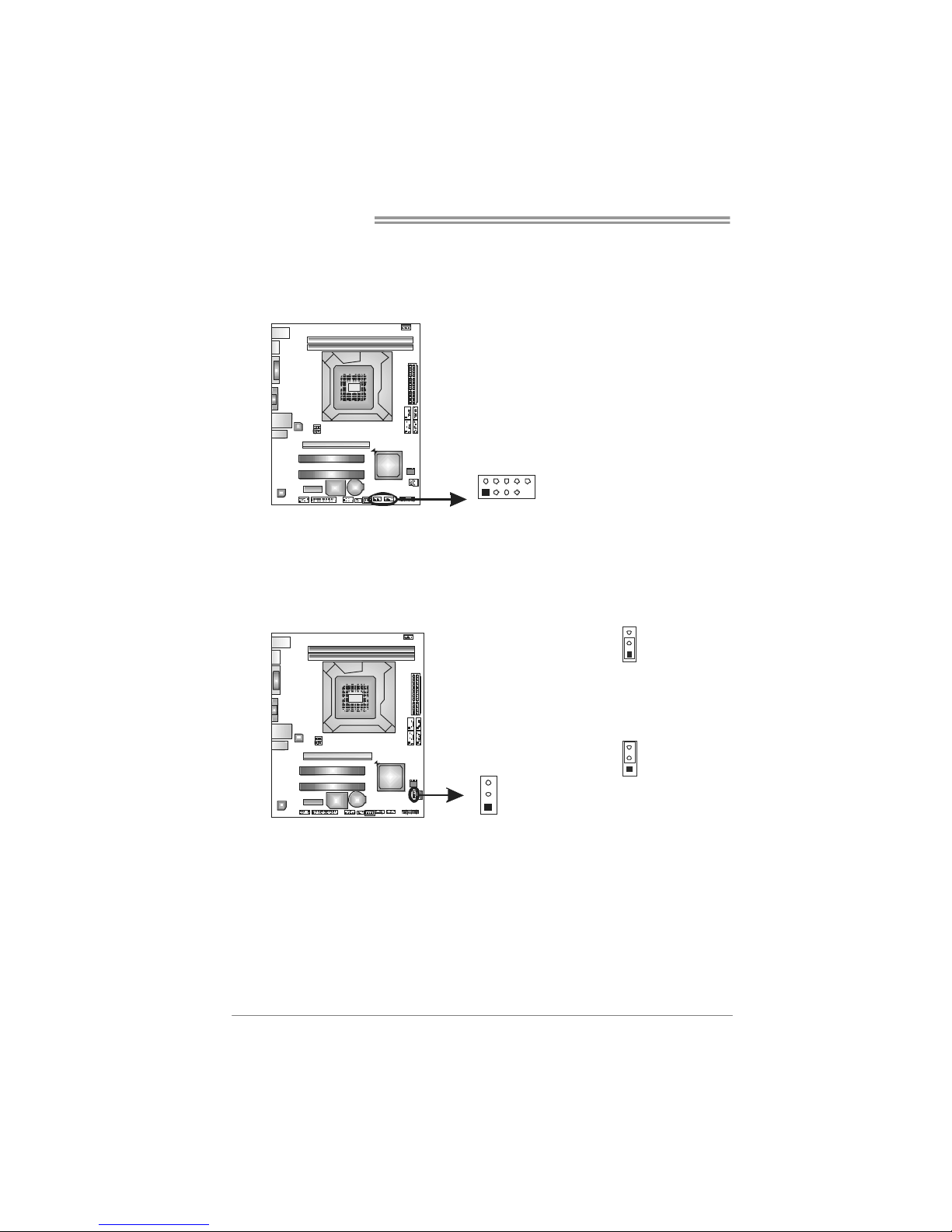

F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel

This motherboard provides 2 USB 2.0 headers, which allows user to connect additional USB cable on the PC front panel, and also can be connected with internal USB devices, like USB card reader.

Pin Assignment

1 +5V (fused) 2 +5V (fused) 3 USB4 USB5 USB+ 6 USB+ 7 Ground 8 Ground 9 Key

19

210

F_USB1 F_USB2

10 NC

JCMOS1: Clear CMOS Header

Placing the jumper on pin2-3 allows user to restore the BIOS safe setting and the CMOS data. Please carefully follow the procedures to avoid damaging the motherboard.

1

3

Pin 1-2 Close:

Normal Operation (Default).

1

3

1

3

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Reset your desired password or clear the CMOS data.

TH61MU3/H61MU3/H61MH/H61ML

15

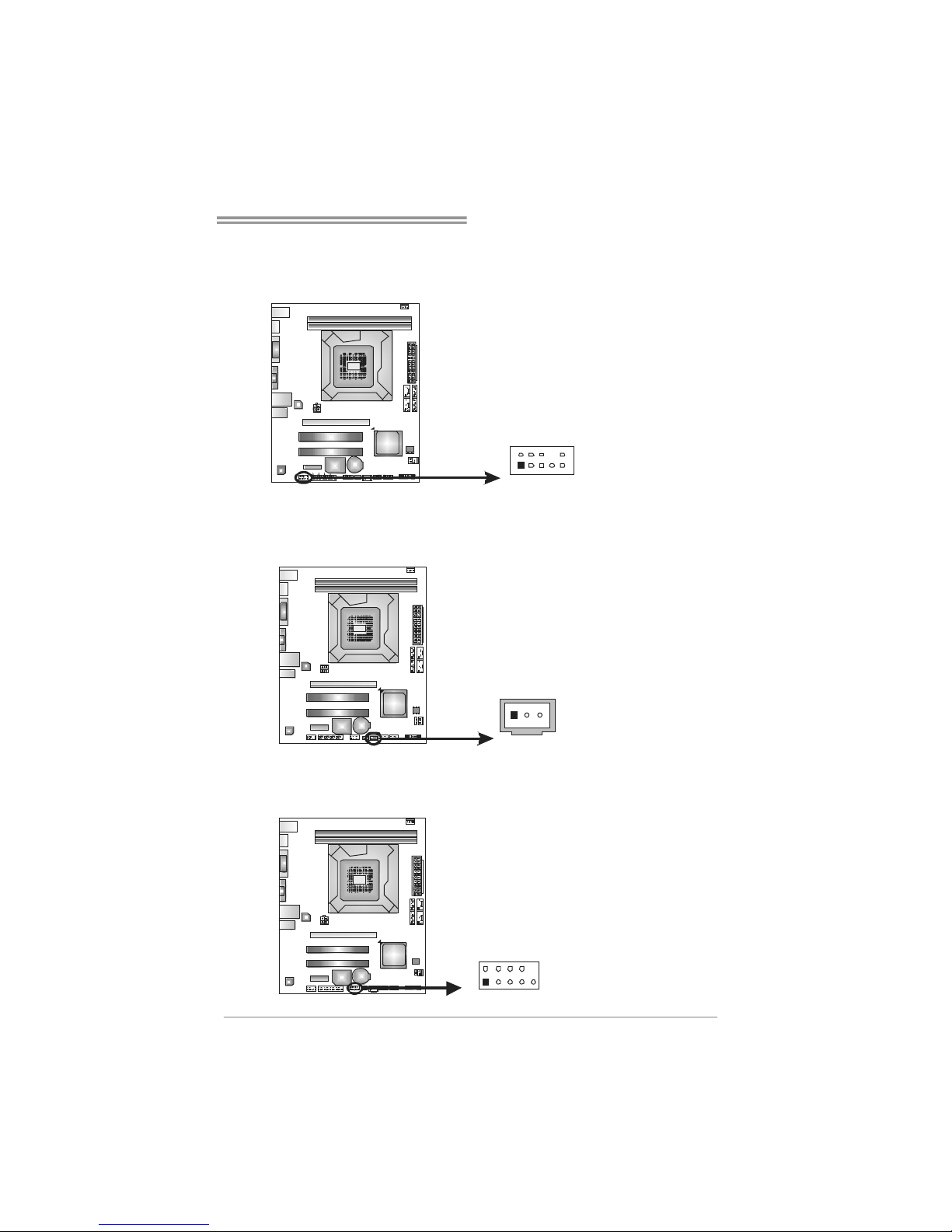

F_AUDIO1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front panel. This header allows only HD audio front panel connector, not AC’97.

Pin Assignment

1 Mic Left in 2 Ground 3 Mic Right in 4 GPIO 5 Right line in 6 Jack Sense 7 Front Sense 8 Key 9 Left line in

10 Jack Sense

19

210

JSPDIFOUT1: Digital Audio-out Connector

This connector allows user to connect the PCI bracket SPDIF output header.

Assignment

1 +5V 2 SPDIF_OUT

31

3 Ground

J_COM1: Serial port Connector

The motherboard has a Serial Port Connector for connecting RS-232 Port.

Assignment

1 Carrier detect 2 Received data 3 Transmitted data 4 Data terminal ready 5 Signal ground 6 Data set ready 7 Request to send 8 Clear to send 9 Ring indicator

19

210

10 NC

Motherboard Manual

16

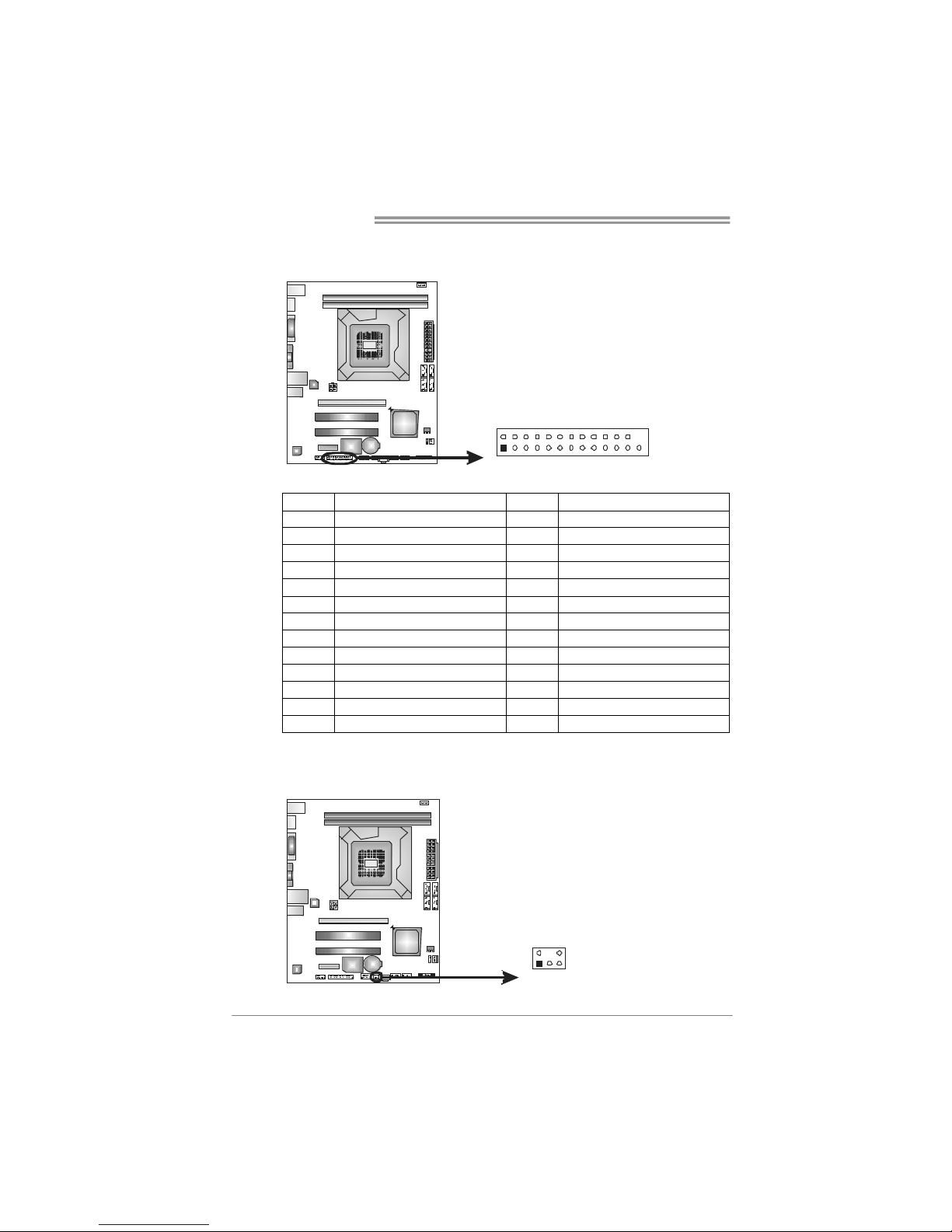

J_PRINT1: Printer Port Connector

This header allows you to connector printer on the PC.

1

2

25

26

Pin Assignment Pin Assignment

1 -Strobe 14 Ground 2 -ALF 15 Data 6 3 Data 0 16 Ground

4 -Error 17 Data 7 5 Data 1 18 Ground

6 -Init 19 -ACK 7 Data 2 20 Ground 8 -Scltin 21 Busy

9 Data 3 22 Ground 10 Ground 23 PE 11 Data 4 24 Ground

12 Ground 25 SCLT 13 Data 5 26 Key

CIR1: Consumer IR Connector

This header is for infrared remote control and communication.

Pin Assignment

1 IrDA serial input 2 Ground 3 Ground 4 Key 5 IrDA serial output 6 IR Power

125

6

TH61MU3/H61MU3/H61MH/H61ML

17

CHAPTER 4: USEFUL HELP

4.1 D

RIVER INSTALLATION NOTE

After you installed your operating system, please insert the Fully Setup Driver CD into your optical drive and install the driver for better system performance.

You will see the following window after you insert the CD

The setup guide will auto detect your motherboard and operating system.

Note:

If this window didn’t show up after you insert the Driver CD, please use file browser to locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the compatible driver for your motherboard and operating system. Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list the software available for your system, click on each software title to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver CD. Click on the Manual icon to browse for available manual.

Note:

Yo u will need Acrobat Reader to open the manual file. Please download the latest version of Acrobat Reader software from http://www.adobe.com/products/acrobat/readstep2.html

Motherboard Manual

18

4.2 SOFTWARE

Installing Software

1. Insert the Setup CD to the optical drive. The drivers installation program would appear if the Autorun function has been enabled.

2. Select Software Installation, and then click on the respective software title.

3. Follow the on-screen instructions to complete the installation.

Launching Software

After the installatio n process, you will see the software icon “eHOT Line” / “BIOS Update” appears on the desktop. Double-click the icon to launch the utility.

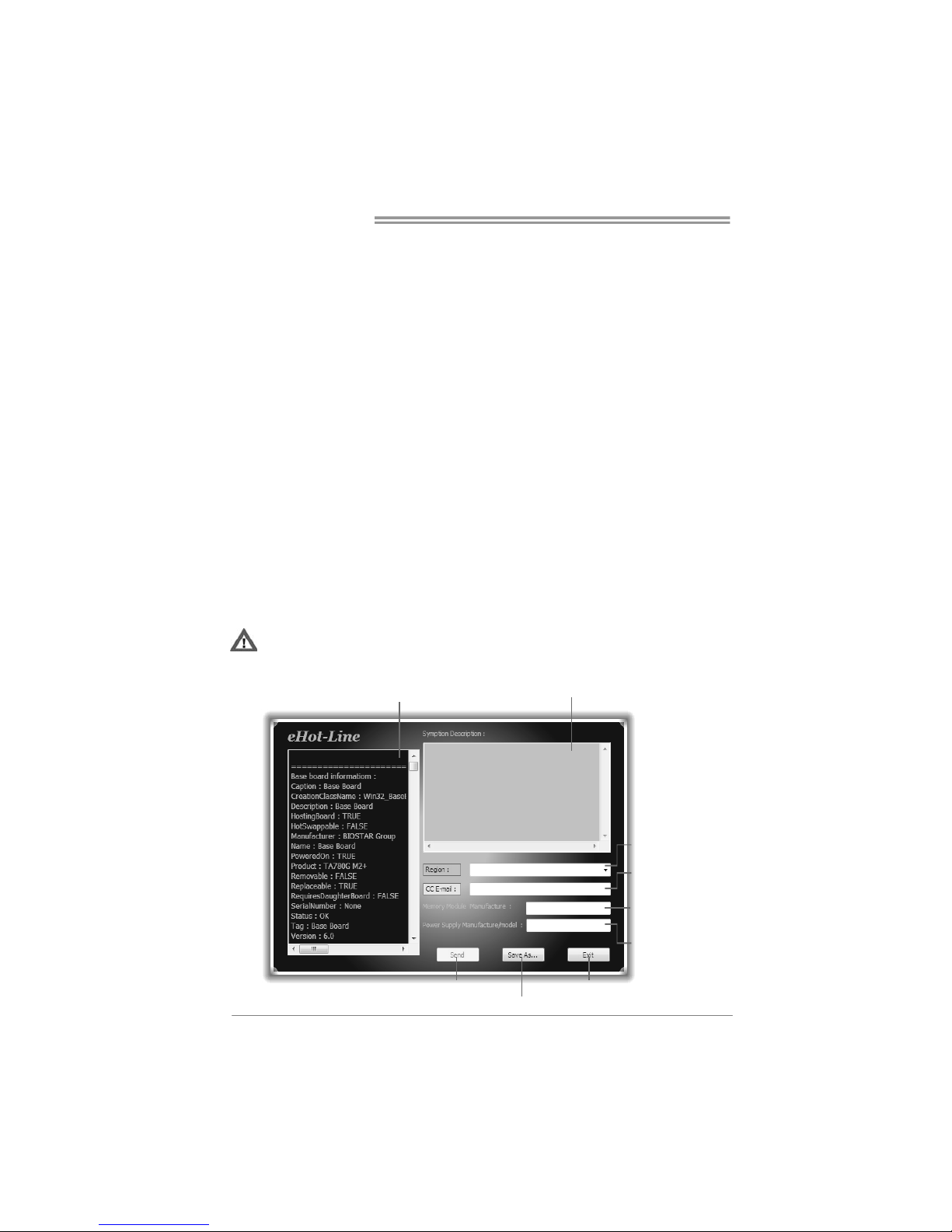

eHot-Line (Optional)

eHot-Line is a convenient utility that helps you to contact with our Tech-Support system. This utility will collect the system information which is useful for analyzing the problem you may have encountered, and then send these information to our tech-support department to help you fix the problem.

Before you use this uti lity, please set Outlook E xpress as your default e-mail client application program.

This block will show the information which would be collected in the mail.

Provide the e-mail address that you would like to send the copy to.

Provide the name of th e powe r su ppl y manufacturer and the model no.

Se nd th e mai l out .

Sav e the se in for ma tion to a .t xt fil

e

Exit this dialog.

Select your area or the area close to you.

*

Pr ovid e th e name of the memory module manufacturer.

*

Describe condition of your system.

*

re pres ent s im port ant information that you must provide. Without this information, y ou may not be able to send out the mail.

TH61MU3/H61MU3/H61MH/H61ML

19

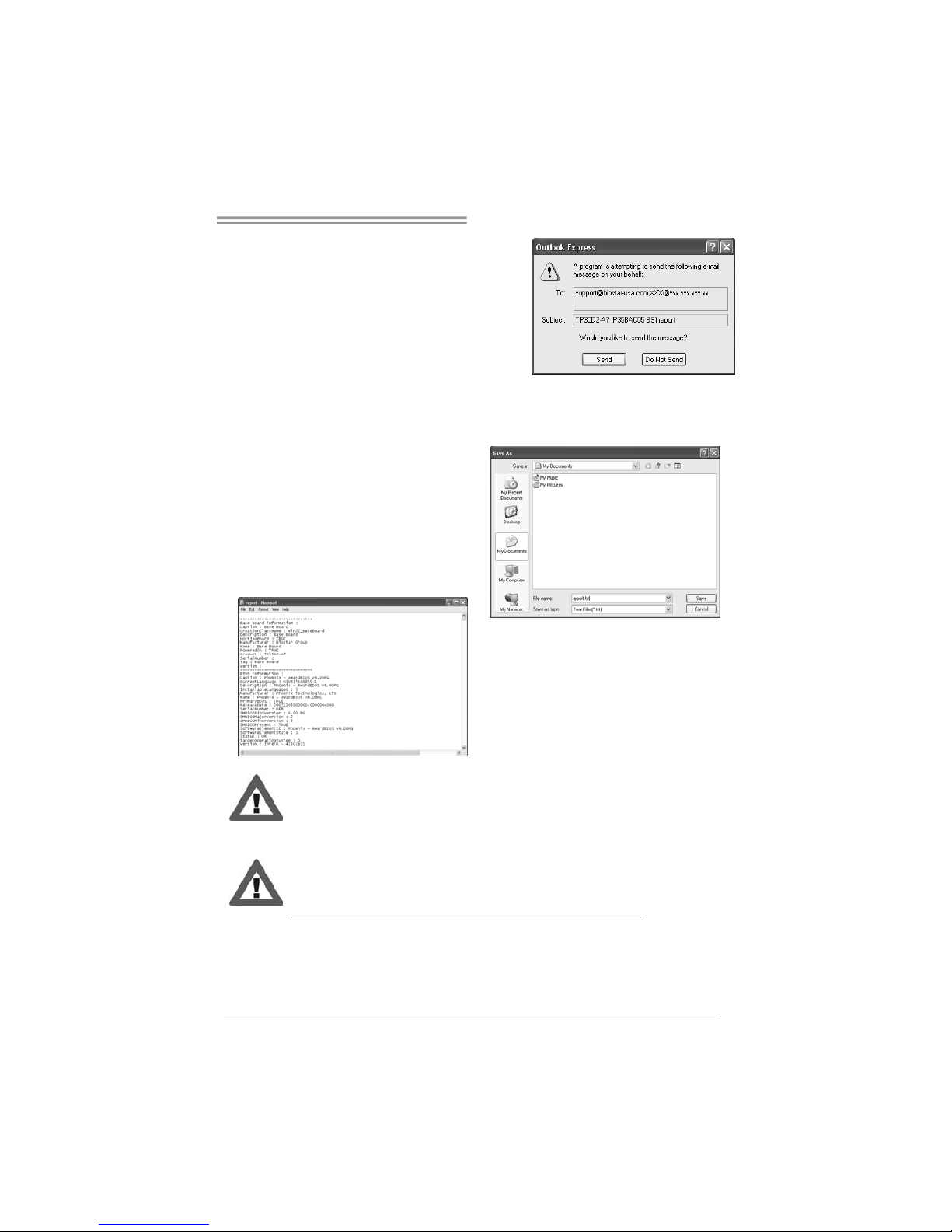

After filling up this information, click “Send” to send the mail out. A warning dialog would appear asking for your confirmation; click “Send” to confirm or “Do Not Send” to cancel.

If you want to save this information to a .txt file, click “Save As…” and then you will see a saving dialog appears asking you to enter file name.

Enter the file name and then click “Save”. Your system information will be saved to a .txt file.

Open the saved .txt file, you will see your system information including motherboard/BIOS/CPU/video/ device/OS information. This information is also concluded in the sent mail.

We will not share custo mer’s data with any other third parties, so please feel free to provide your system information while using eHot-Line service.

If you are not using Outlook Express as your default e-mail client application, you may need to save the system information to a .txt file and send the file to our tech support with other e-mail application. Go to the following web

http://www.biostar.com.tw/app/en-us/about/contact.php for getting

our contact information.

Motherboard Manual

20

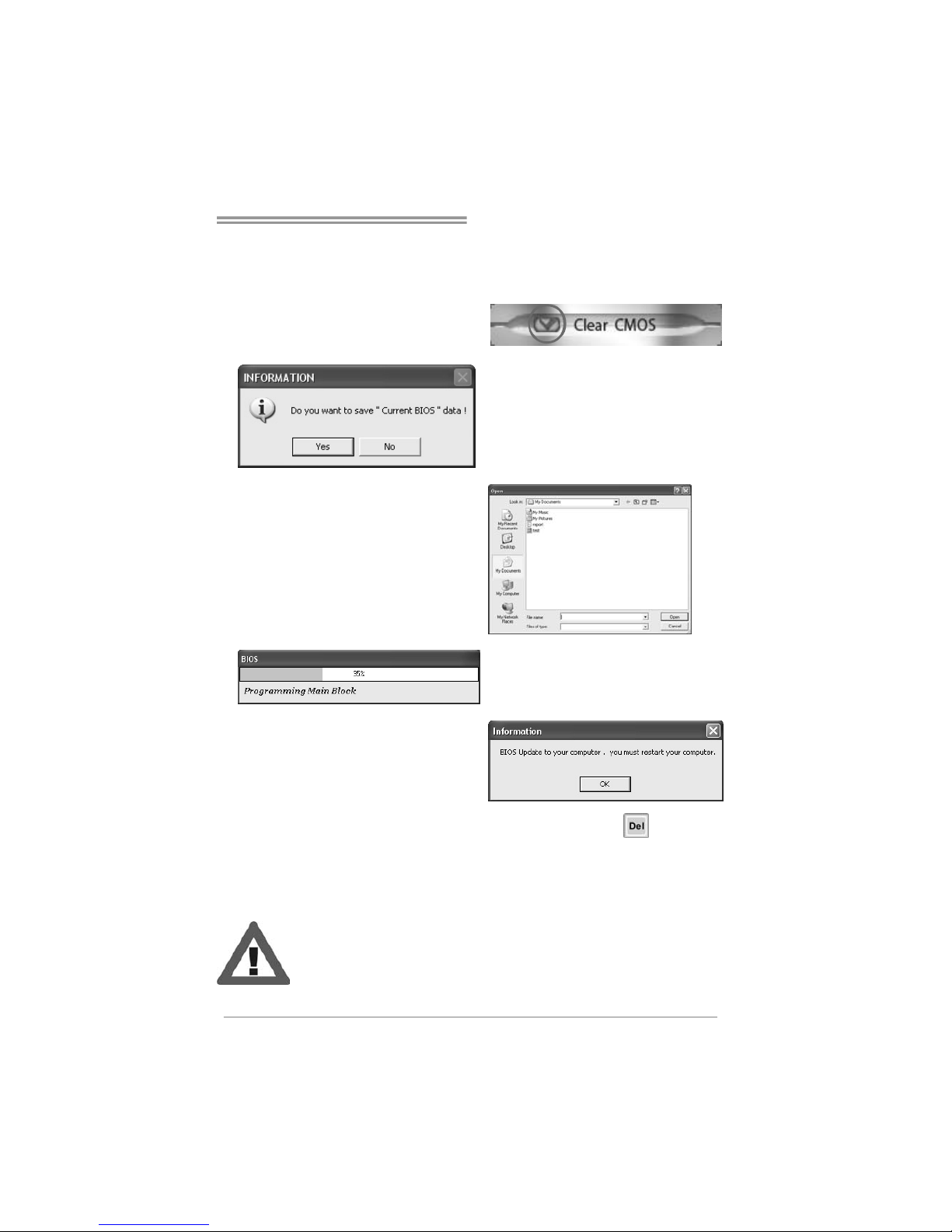

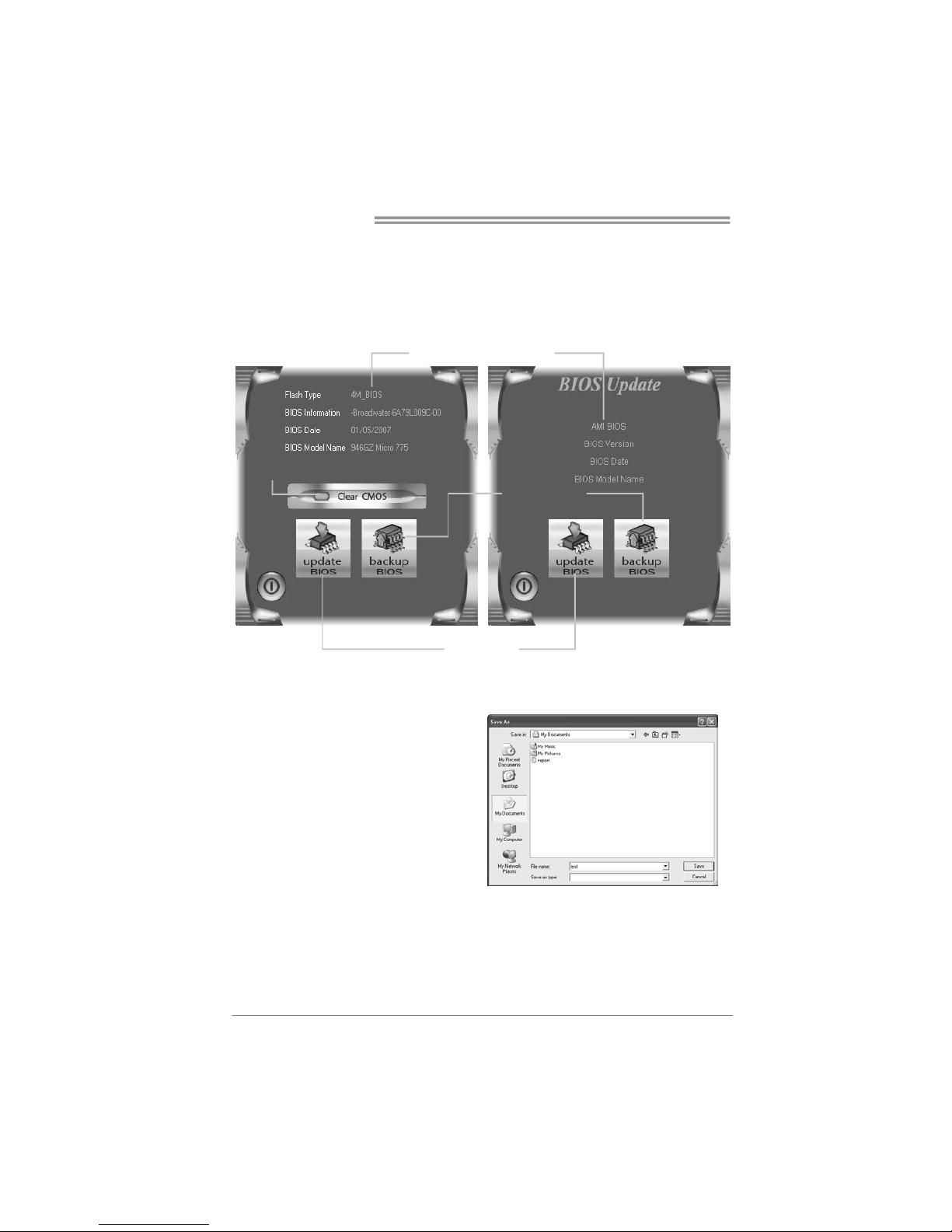

BIOS Update

BIOS Update is a convenient utility which allows you to update your motherboard BIOS under Windows system.

Update BIOS

with a BIOS file

Clear CMOS function

(Only for AWARD BIOS)

Show current BIOS information

Save cur rent B IOS

to a .bin file

AWARD BIOS AMI BIOS

Once click on this button, the saving

dialog will show. Choose the

position to save file a nd enter file

name. (We recommend that the file

name should be English/number

and no longer than 7 characters.)

Then click Save.

TH61MU3/H61MU3/H61MH/H61ML

21

Before doing this, please download the proper BIOS file from the website.

For AWARD BIOS, update BIOS procedure should be run with Clear CMOS function, so please check on Clear CMOS first.

Then click Update BIOS button, a dialog will show for asking you backup current BIOS. Click Yes for BIOS backup and refer to the Backup BIOS procedure; or click No to skip this procedure.

After the BIOS Backup procedure, the open dialog will show for requesting the BIOS file which is going to be updated. Please choose the proper BIOS file for updating, then click on Open.

The utility will update BIOS with the proper BIOS file, and this process may take minutes. Please do not open any other applications during this process.

After the BIOS Update process, click on OK to restart the system.

While the system boots up and the full screen logo shows, press <Delete> key to enter BIOS setup.

In the BIOS setup, use the Load Optimized Defaults function and then Save and Exit Setup to exit BIOS setup. B IOS Update is completed.

All the information and content above about the software are subject to be changed without notice. For better performance, the software is being continuously updated. The information and pictures described above are for your reference only. The actual information and settings on board may be slightly different from this manual.

Motherboard Manual

22

4.3 EXTRA INFORMATION

CPU Overheated

If the system shuts down automatically after system is powered on for seconds, the phenomenon means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdow n automatically to avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data. (See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

TH61MU3/H61MU3/H61MH/H61ML

23

4.4 AMI BIOS BEEP CODE

Boot Block Beep Codes

Number of Beeps Description

1 No media present. (Insert diskette in floppy drive A:)

2

“AMIBOOT.ROM” file not found in root directory of diskette in

A: 3 Insert next diskette if multiple diskettes are used for recovery 4 Flash Programming successful 5 File read error 7 No Flash EPROM detected

10 Flash Erase error 11 Flash Program error 12 “ AMIBOOT.ROM” file size error

13

BIOS ROM image mismatch (file layout does not match

image present in flash device)

POST BIOS Beep Codes

Number of Beeps Description

1 Memory refresh timer error 3 Base memory read/write test error 6 Keyboard controller BAT command failed 7 General exception error (processor exception interrupt error) 8 Display memory error (system video adapter)

Troubleshooting POST BIOS Beep Codes

Number of Beeps Troubleshooting Action

1, 3 Reseat the memory, or replace with known good modules.

6, 7

Fatal error indicating a serious problem with the system.

Consult your system manufacturer. Before declaring the

motherboard beyond all hope, eliminate the possibility of

interference by a malfunctioning add-in card. Remove all

expansion cards except the video adapter.

z If beep codes are generated when all other expansion

cards are absent, consult your system manufacturer’s technical support.

z If beep codes are not generated when all other expansion

cards are absent, one of the add-in cards is causing the malfunction. Insert the cards back into the system one at a time until the problem happens again. This will reveal the malfunctioning card.

8

If the system video adapter is an add-in card, replace or

reseat the

video adapter. If the video adapter is an integrated part of the

system board, the board may be faulty.

Motherboard Manual

24

4.5 TROUBLESHOOTING

Probable Solution

1. There is no power in the system. Power LED does not shine; the fan of the power supply does not work

2. Indicator light on keyboard does not shine.

1. Make sure power cable is securely plugged in.

2. Replace cable.

3. Contact technical support.

System is inoperative. Keyboard lights are on, power indicator lights are lit, and hard drives are running.

Using even pressure on both ends of the DIMM, press down firmly until the module snaps into place.

System does not boot from a hard disk drive, but can be booted from optical drive.

1. Check cable running from disk to disk controller board. Make sure both ends are securely plugged in; check the drive type in the standard CMOS setup.

2. Backing up the hard drive is extremely important. All hard disks are capable of breaking down at any time.

System only boots from an optical drive. Hard disks can be read, applications can be used, but system fails to boot from a hard disk.

1. Back up data and applications files.

2. Reformat the hard drive. Re-install applications and data using backup disks.

Screen message shows “Invalid Configuration” or “CMOS Failure.”

Review system’s equipment. Make sure correct information is in setup.

System cannot boot after user installs a second hard drive.

1. Set master/slave jumpers correctly.

2. Run SETUP program and select correct drive types. Call the drive manufacturers for compatibility with other drives.

TH61MU3/H61MU3/H61MH/H61ML

25

This page is intentionally left blank.

Motherboard Manual

26

APPENDIX: SPEC IN OTHER LANGUAGES

G

ERMAN

T H61M U3 / H61 MU3 H61 M H / H 61 ML

CPU

Socket 1155 Int e l Core i7 / i5 / i3 / Pentiu m Pro z essoren Unterstützt Execute Disable Bit / Enhanced Intel Speed St ep® / Intel Ar chitecture-64 / Extended Memory 64 Technology / Virtualization Technology

Chipsatz

Intel H61 Intel H61

Super E/A

ITE 8728 Biet et die h äufig ver wend eten alten Sup er E/A-Funktionen. Low Pin Count-Schnittstelle Umgebungskontrolle, Hardware-Überwachung Lüfterdrehzahl-Controller/-Überwachung "Smart Guardian"-Funktion von ITE

Arbeitsspeich

er

DDR3 DIMM-Steckplätze x 2 Jeder DIMM unterstützt 512MB / 1GB / 2GB / 4GB DDR3. Max. 8GB Arbeitsspeicher Dual-Kanal DDR3 Speichermodul Unterstützt DDR3 1333/1066 registrierte DIMMs. ECC DIMMs werden nicht unterstützt.

DDR3 D IMM-Steckplätze x 2 Jeder DIMM unterstützt 512MB / 1GB / 2GB / 4GB DDR3. Max. 8GB Arbeitsspeicher Dual-Kanal DDR3 Speichermodul Unterstützt DDR3 1333/1066 registrierte DIMMs. ECC DIMMs werden nicht unterstützt.

SATA 2

Integrierter Serial ATA-Controller Datentransferrate b is zu 3.0Gb /s Konform mit der SATA-Spezifikation Version 2.0.

LAN

Realtek RTL8111E 10 / 100 / 1000 Mb/s Auto-Negotiation

Realtek RTL8111E (H61MH) 10 / 100 / 1000 Mb/s Auto-Negotiation Realtek RTL8105E (H61ML) 10 / 100 Mb/s Auto-Negotiation

HD

Audio-Unters

tützung

ALC662 Unterstützt High-Definition Audio

5.1-Kanal-Audioausgabe

ALC662 Unterstützt High-Definition Audio

5.1-Kanal-Audioausgabe

USB3.0

Asmedia ASM1042

PCI Express Gen2 x16 Steckplatz x1 PCI Express Gen2 x16 Steckplatz x1 PCI Express Gen2 x1 Steckplatz x1 PCI Express Gen2 x1 Steckplatz x1

Steckplätz e

PCI Steckplatz x2 PC I St eckp latz x2

TH61MU3/H61MU3/H61MH/H61ML

27

T H61M U3 / H61 MU3 H61 M H / H 61 ML

Druckeranschluss Anschluss x1 Druckeranschluss Anschluss x1 Serieller Anschluss x1 Serieller Anschluss x1

SATA-Anschluss x4 SATA-Anschluss x4

Fronttafelanschluss x1 Fronttafelanschluss x1 Front-Audioanschluss x1 Front-Audioanschluss x1 S/PDIF- Ausgangsanschluss x1 S/PDIF- Ausgangsanschluss x1 CPU-Lüfter-Sockel x1 CPU-Lüfter-Sockel x1 System-Lüfter-Sockel x1 System-Lüfter-Sockel x1 "CMOS lösch en "-So cke l x1 "CMOS lösch en "-So cke l x1 USB 2.0-Anschluss x2 USB 2.0-Anschluss x2 Verbraucher-IR Anschluss x1 Verbraucher- IR Ansch luss x1 Stromanschluss (24-polig) x1 Stromanschluss (24-polig) x1

Onboard-Ans

chluss

St romans ch luss (4-polig ) x1 Stro mansch luss (4-po lig) x 1

Rückseiten-E

/A

PS/2-Tastatur / Maus x1 HDMI-Anschluss x1 VGA-Anschluss x1 DVI-D-Anschluss x1 LAN-Anschluss x1 USB 2.0-Anschluss (durch H61) x2 USB 3.0-Anschluss (durch ASM1042) x2 Audioanschluss x3

PS/2-Tastatur / Maus x1 HDMI-Anschluss (H61MH) x1 VGA-Anschluss x1 DVI-D-Anschluss x1 LAN-Anschluss x1 USB 2.0-Anschluss x4 Audioanschluss x3

Plat inengröße

200mm (B) X 244 mm (L) 200mm (B) X 244 mm (L)

OS-Unterstüt

zung

Windows XP / V ista / 7 Biostar behält sich das Recht vor, ohne Ankündigung die Unterstützung für ein Betriebssystem hinzuzufügen oder zu entfern en.

Motherboard Manual

28

FRENCH

TH61M U3 / H61 MU3 H61 MH / H6 1M L

UC

Socket 1155 Pro c ess eu rs Intel Co r e i7 / i5 / i3 / Pentiu m Prend en ch arge les techno log ies d'ex écut ion de bit de désactivation / Intel SpeedStep® op t im is é e/ d' ar chitect ure In t el 64 / d e m émo ire étendue 64 / de v irtualisat ion

Chipset

Intel H61 Intel H61

Super E/S

ITE 8728 Fournit la fonctionnalité de Super E/S patrimoniales la plus utilisée. Int e rfa ce à f aib le co mpt e d e b roches Initiatives de contrôle environnementales, Mon iteur d e mat ériel Contrôleur /moniteur de vitesse de ventilateur Fonction "Gardien intelligent" de l'ITE

Mémoire

principale

Fentes DDR3 DIMM x 2 Chaque DIMM prend en charge des DDR3 de 512Mo / 1Go / 2Go / 4Go Capacité mé mo ire max imale de 8Go Module de mémoire DDR3 à mo de à double voie Prend en charge la DDR3 1333/1066 Les DIMM à registres et DIMM avec code correcteurs d'err eurs ne s ont p as prises en charg e

SATA 2

Contrô leur Serial ATA int é gr é Taux de transfert jusqu'à 3.0Go/s. Co nfo rme à l a s péc if i cat io n SATA Ver s ion 2.0

LAN

Realtek RTL8111E 10 / 100 / 1000 Mb/s négociation automatique

Realtek RTL8111E (H61MH) 10 / 100 / 1000 Mb/s négociation automatique Realtek RTL8105E (H61ML) 10 / 100 Mb/s négociation automat ique

Prise en

charg e aud io

HD

ALC662 Prise en charg e de l' audio haute déf in it ion Sortie aud io à 5.1 vo ies

USB3.0

Asmedia ASM1042

Fente PCI Express Gen2 x16 x1 Fente PCI Express Gen2 x16 x1 Fente PCI Express Gen2 x1 x1 Fente PCI Express Gen2 x1 x1

Fentes

Fente PCI x2 Fente PCI x2

TH61MU3/H61MU3/H61MH/H61ML

29

TH61M U3 / H61 MU3 H61 MH / H6 1M L

Connecteur de Port d'imprimante x1 Connecteur de Port d'imprimante x1 Port série x1 Port série x1

Connecteur SATA x4 Connecteur SATA x4 Connecteur du panneau avant x1 Connecteur du panneau avant x1

Connecteur Audio du panneau avant x1 Connecteur Audio du panneau avant x1

Connecteur de sortie S/PDIF x1 Connecteur de sortie S/PDIF x1 Embase de ventilateur UC x1 Embase de ventilateur UC x1

Embase de ventilateur système x1 Embase de ventilateur système x1 Embase d'effacement CMOS x1 Embase d'effacement CMOS x1

Connecteur USB 2.0 x2 Connecteur USB 2.0 x2

Connecteur de IR du consommateur x1 Connecteur de IR du consommateur x1 Connecteur d'aliment ation x1 (24 broches)

Connecteur d'aliment ation x1 (24 broches)

Connecteur

embarqu é

Connecteur d'aliment ation x1 (4 broch es )

E/S du

panneau

arrière

Clavier / Souris PS/2 x1 Port HD MI x1 Port VGA x1 Port DVI-D x1 Port LAN x1 Port USB 2.0 (par H61) x2 Port USB 3.0 (par AS M1042) x2 Fiche aud io x3

Clavier / Souris PS/2 x1 Port HDMI (H61MH) x1 Port VGA x1 Port DVI-D x1 Port LAN x1 Port USB 2.0 x 4 Fiche aud io x3

Dimensions

de la carte

200mm (l) X 244 mm (H) 200mm (l) X 244 mm (H)

Support SE

Windows XP / V ista / 7 Biostar se réserve le droit d'ajouter ou de supprimer le support de SE avec ou sans préavis.

Motherboard Manual

30

ITALIAN

TH61M U3 / H61 MU3 H61 MH / H6 1M L

CPU

Socket 1155 Pro ces s o re Intel Core i7 / i5 / i3 / Pent iu m Supporto di Execute Disable Bit / Enhanced Intel SpeedStep® / Architettura Intel 64 / Tecnologia Extended Memory 64 / Tecnologia Virtualization

Chipset

Intel H61 Intel H61

Super I/O

ITE 8728 Fo rnis ce le f unz ionalit à leg a cy S uper I/O usate più comunemente. Interfaccia LPC (Low Pin Count) Funzioni di controllo dell’ambiente: Monitoraggio hardware Co ntroller / Mon it o raggio velo c it à vento lina Funzione "Smart Guardian" di ITE

Memoria

principale

Alloggi DIMM DDR3 x 2 Ciascun DIMM supporta DDR3 512MB / 1GB / 2GB / 4GB Capacità massima della memoria 8GB Modulo di memoria DDR3 a canale doppio Supporto di DDR3 1333/1066 DIMM registrati e DIMM ECC non sono supportati

SATA 2

Co ntroller Ser ia l ATA in teg rato Velocità di trasferimento dei dati fino a

3.0Gb/s. Co mp at ib ile s p ec if iche S ATA Vers io n e 2 .0.

Co ntroller Ser ia l ATA in teg rato Velocità di trasferimento dei dati fino a

3.0Gb/s. Co mp at ib ile s p ec if iche S ATA Vers io n e 2 .0.

LAN

Realtek RTL8111E Negoziazione automatica 10 / 100 / 1000Mb/s

Realtek RTL8111E (H61MH) Negoziazione automatica 10/100/1000Mb/s Realtek RTL8105E (H61ML) Negoziaz ione aut omatica 10/1 00 Mb/s

Supporto

audio HD

ALC662 Supporto audio High-Definition (HD) Uscita audio 5.1 canali

USB3.0

Asmedia ASM1042

Alloggio PCI Express Gen2 x16 x1 Alloggio PCI Express Gen2 x16 x1 Alloggio PCI Express Gen2 x1 x1 Alloggio PCI Express Gen2 x1 x1

Allo g gi

Allo g gio PC I x2 Allo ggio PC I x2

TH61MU3/H61MU3/H61MH/H61ML

31

TH61M U3 / H61 MU3 H61 MH / H6 1M L

Connettore Porta stampante x1 Connettore Porta stampante x1

Porta seriale x1 Porta seriale x1

Connettore SATA x 4 Con netto re SATA x4

Connettore pannello frontale x1 Connettore pannello frontale x1

Connettore audio frontale x1 Connettore audio frontale x1

Connettore output SPDIF x1 Connettore output SPDIF x1

Co llett o r e ventolin a C PU x1 Co llet t o re vent o lin a C PU x1

Co llett o r e ventolin a s istema x 1 C o llet t o re vento lin a s is tema x 1

Co llett o r e cance llaz ione CMOS x1 C o llet t o re cance llaz ione CMO S x1

Connettore USB 2.0 x2 Connettore USB 2.0 x2

Connettore IR del consumatore x1 Connettore IR del consumatore x1

Connettore alimentaz ione x1 (24 pin)

Connettori

su scheda

Connettore alimentaz ione x 1 (4 pin)

I/O pannello

posteriore

Tastiera / Mouse PS/2 x1 Port a HDMI x1 Port a VGA x1 Port a DVI-D x1 Port a LAN x1 Porta USB 2.0 (da H61) x2 Porta USB 3.0 (da ASM1042) x2 Connettore audio x3

Tastiera / Mouse PS/2 x1 Port a HDMI (H6 1 MH ) x 1 Port a VGA x1 Port a DVI-D x1 Port a LAN x1 Port a USB 2.0 x4 Connettore audio x3

Dimensioni

scheda

200mm (larghezza) x 244 mm (altezza) 200mm (larghezza) x 244 mm (altezza)

Sistemi

op erat ivi

supportati

Windows XP / Vista / 7 Biostar si riserva il diritto di aggiungere o rimuovere il supporto di qualsiasi sistema operativo senza preavviso.

Motherboard Manual

32

SPANISH

TH61M U3 / H61 MU3 H61 MH / H6 1M L

CPU

Socket 1155 Pro c esad or In t e l Co r e i7 / i5 / i3/ Pen t ium Admite Bit de deshabilitación de ejecución / Intel Speed St ep® Mejorado / Intel Architecture-64 / Tecnología Extended Memory 64 / Tecnología de virtualización

Conjunto de

chips

Intel H61 Intel H61

Súper E/S

ITE 8728 Le ofrece las funcionalidades heredadas de uso más común Súper E/S. Interfaz de cuenta Low Pin In iciat ivas de cont rol d e ent o rno , Monitor hardware Controlador/monitor de velocidad de ventilador Función "Guardia inteligente" de ITE

Memoria

principal

Ranuras DIMM DDR3 x 2 Cada DIMM admite DDR de 512MB / 1GB / 2GB / 4GB Capacidad máxima de memoria de 8GB Módulo de memoria DDR3 de canal Doble Admite DDR3 de 1333/1066 No admite DIMM registrados o DIMM comp atib les con ECC

SATA 2

Controlador ATA Serie Integrado Tasas de transferencia de hasta 3.0 Gb/s. Co mp at ible co n la versión S ATA 2 .0.

Red Local

Realtek RTL8111E Negociación de 10 / 100 / 1000 Mb/s

Realtek RTL8111E (H61MH) Negociación de 10 / 100 / 1000 Mb/s Realtek RTL8105E (H61ML) Negociación de 10 / 100 Mb/s

Soporte de

sonido HD

ALC662 Soporte de sonido de Alta Definición Salida de sonido de 5.1 canales

USB3.0

Asmedia ASM1042

Ranura PCI Express Gen2 x16 X1 Ranura PCI Express Gen2 x16 X1 Ranura PCI express Gen2 x1 X1 Ranura PCI express Gen2 x1 X1

Ranuras

Ranura PCI X2 Ranura PCI X2

TH61MU3/H61MU3/H61MH/H61ML

33

TH61M U3 / H61 MU3 H61 MH / H6 1M L

Conector Puerto de impresora X1 Conector Puerto de impresora X1 Puert o ser ie X1 Puert o ser ie X1 Conector SATA X4 Conector SATA X4 Conector de panel frontal X1 Conector de panel frontal X1 Conector de sonido frontal X1 Conector de sonido frontal X1 Conector de salida S/PDIF X1 Conector de salida S/PDIF X1 Cabecera de ventilador de CPU X1 Cabecera de ventilador de CPU X1 Cabecera de ventilador de sistema X1 Cabecera de ventilador de sistema X1 Cabecera de borrado de CMOS X1 Cabecera de borrado de CMOS X1 Conector USB 2.0 X2 Conector USB 2.0 X2 Conector de IR del consumidor X1 Conector de IR del consumidor X1 Conector de alimentación X1 (24 patillas)

Conector de alimentación X1 (24 patillas)

Conectores

en p laca

Conector de alimentación X1 (4 patillas)

Panel trasero

de E/S

Teclado / R atón PS/2 X 1 Ratón HDMI X1 Puert o VGA X1 Puerto DV I-D X1 Puerto de red local X1 Puerto USB 2.0 (por H61) X2 Puerto USB 3.0 (por AS M1042 ) X2 Conector de sonido X3

Teclado / R atón PS/2 X 1 Ratón HDMI (H61MH) X1 Puert o VGA X1 Puerto DV I-D X1 Puerto de red local X1 Puert o USB 2. 0 X4 Conector de sonido X3

Ta maño d e la

plac a

200mm. (A) X 244 Mm. (H) 200mm. (A) X 244 Mm. (H)

Soporte de

sistema

operativo

Windows XP / V ista / 7 Biostar se reserva el derecho de añadir o retirar el soporte de cualquier SO con o sin aviso previo.

Motherboard Manual

34

PORTUGUESE

TH61M U3 / H61 MU3 H61 MH / H6 1M L

CPU

Socket 1155 Pro c ess ad o r Inte l Cor e i7 / i5 / i3 / Pent iu m Suporta as tecno log ias Execute D isab le B it / Enhanced Inte l SpeedS tep® / Intel Ar quit ectur e

-64 / Extended Memory 64 / Virtualization

Socket 1155 Pro c ess ad o r Inte l Cor e i7 / i5 / i3 / Pent iu m Suporta as tecno log ias Execute D isab le B it / Enhanced Inte l SpeedS tep® / Intel Ar quit ectur e

-64 / Extended Memory 64 / Virtualization

Chipset

Intel H61 Intel H61

Especificação

Super I/O

ITE 8728 Proporciona as funcionalidades mais utilizadas em t ermos da especificação Super I/O. Interface LPC (Low Pin Count). In iciat ivas par a cont ro lo do amb ient e Monitorização do hardware Contro lador/Monitor d a velocidade d a vento inha Função "S mart Gu ardian" d a ITE

Memória

principal

Ranhuras DIMM DDR3 x 2 Cada módulo DIMM suporta uma memória DDR3 de 512 MB / 1GB / 2GB / 4GB Capacidad e máxima de me mória:8GB Mó du lo de memória DDR3 de canal duplo Suporta módulos DDR3 1333/1066 Os módulos DIMM registados e os DIMM ECC não são suportados

SATA 2

Controlador Serial ATA integrado Velocidades de transmissão de dados até 3.0 Gb/s. Co mpat ib ilidad e co m a es pecif icação S ATA versão 2.0 .

LAN

Realtek RTL8111E Auto negociação de 10 / 100 / 1000 Mb/s

Realtek RTL8111E (H61MH) Auto negociação de 10 / 100 / 1000 Mb/s Realtek RTL8105E (H61ML) Auto negociação de 10 / 100 Mb/s

Suporte para

áud io de alta

definição

ALC662 Suporta a especificação High-Definition Audio Saída de áudio de 5.1 canais

USB3.0

Asmedia ASM1042

Ranhura PCI Express Gen2 x16 x1 Ranhura PCI Express Gen2 x16 x1 Ranhura PCI Express Gen2 x1 x1 Ranhura PCI Express Gen2 x1 x1

Ranhuras

Ranhura PCI x2 Ranhura PCI x2

TH61MU3/H61MU3/H61MH/H61ML

35

TH61M U3 / H61 MU3 H61 MH / H6 1M L

Conector da para impressora x1 Conector da para impressora x1

Port a s ér ie x1 Port a série x 1

Conector SATA x4 Conector SATA x4

Conector do painel frontal x1 Conector do painel frontal x1

Conector de áudio frontal x1 Conector de áudio frontal x1

Conector de saída S/PDIF x1 Conector de saída S/PDIF x1

Conector da ventoinha da CPU x1 Conector da ventoinha da CPU x 1

Conector da ventoinha do sistema x1 Conector da ventoinha do sistema x 1

Conector para limpeza do CMOS x1 Conector para limpeza do CMOS x1

Conector USB 2.0 x2 Conector USB 2.0 x2

Conector de IR do consumidor x1 Conector de IR do consumidor x1

Conector de alimentação x1 (24 pinos)

Conectores

na placa

Conector de alimentação x1 (4 p inos)

Entradas/S aí

das no painel

traseiro

Teclado / R ato PS/2 x 1 Port a HD MI x1 Porta VGA x1 Port a DVI-D x 1 Port a LAN x1 Porta USB 2.0 (por H61) x2 Porta USB 3.0 (por ASM1042) x2 Tomada de áudio x3

Teclado / R ato PS/2 x 1 Porta HDMI (H61MH) x1 Porta VGA x1 Port a DVI-D x 1 Port a LAN x1 Port a USB 2.0 x4 Tomada de áudio x3

Tamanho da

plac a

200mm (L) X 244 mm (A) 200mm (L) X 244 mm (A)

Sistemas

operativos

suportados

Windows XP / V ista / 7 A Biostar reserva-se o direito de ad icionar ou remover suporte para qualquer sistema operativo com ou sem aviso prévio.

Motherboard Manual

36

POLISH

T H61M U3 / H61 MU3 H61 M H / H6 1M L

Procesor

Socket 1155 Pro c esor Int e l Co re i7 / i5 / i3 / Pen t ium Obsługa Execute D is able Bit / Enhanced Int el Speed St ep® / Intel Ar chitecture-64 / Extended Memory 64 Technology / Virtualization Technology

Chipset

Intel H61 Intel H61

Pamięć

główna

Gniazda DDR3 DIMM x 2 Każde gniazdo DIMM obsługuje moduły 512MB / 1GB / 2GB / 4GB Maks. wielkość pamięci 8GB Moduł pamięci DDR3 z trybem podwójnego kanału Obsługa DDR3 1333/1066 Brak obsług i Register ed DIMM oraz ECC D IMM

Super I/O

ITE 8728 Zapewnia najbardziej powszechne funkcje Super I/O. Interfejs Low Pin Count Funkcje kontroli warunków pracy, Mon itor H /W Kontroler/Monitor prędkości wenty lato ra Funkcja ITE "S mart Gu ardian"

SATA 2

Zintegrowany kontroler Serial ATA Transfer danych do 3.0 Gb/s. Zgodność ze specyfikacją SATA w wers j i 2. 0.

LAN

Realtek RTL8111E 10 / 100 / 1000 Mb/s z automatyczną negocjacją szybkości

Realtek RTL8111E (H61MH) 10 / 100 / 1000 Mb/s z automatyczną negocjacją szybkości Realtek RTL8105E (H61ML) 10 / 100 Mb/s z automatyczną negocjacją szybkości

Obsługa

aud io HD

ALC662 Obsługa H ig h-Def in it io n Aud io

5.1 kanałowe wyjście audio

ALC662 Obsługa H ig h-Def in it io n Aud io

5.1 kanałowe wyjście audio

USB3.0

Asmedia ASM1042

Gniazdo PCI Express Gen2 x16 x1 Gniazdo PCI Express Gen2 x16 x1 Gniazdo PCI Express Gen2 x1 x1 Gniazdo PCI Express Gen2 x1 x1

Gniazda

Gniazdo PCI x2 Gniazdo PCI x2

TH61MU3/H61MU3/H61MH/H61ML

37

T H61M U3 / H61 MU3 H61 M H / H6 1M L

Złącze Port drukarki x1 Złącze Port drukarki x1 Port szeregowy x1 Port s zeregowy x 1 Złącze SATA x4 Złącze SATA x 4 Złącze panela przedniego x1 Złącze panela przedniego x1 Przedn ie złącze aud io x1 Przedn ie złącze aud io x 1 Złącze wyjścia S/PDIF x1 Złącze wyjścia S/PDIF x1 Złącze główkow e wenty lat ora procesora x1

Złącze główkow e wenty lat ora procesora x1

Złącze główkow e wenty lat ora systemowego x1

Złącze główkowe kasowan ia CMOS x 1 Złącze g łówkow e kasowania CMOS x 1 Złącze USB 2.0 x2 Złącze USB 2.0 x2 Złącze Konsument IR x1 Złącze Konsument IR x1 Złącze zasilania (24 pinowe) x1 Złącze zasilania (24 pinowe) x1

Złącza

wbud owane

Złącze zas ilania (4 p ino we) x1 Złącze zas ilania (4 p ino we) x1

Back Panel

I/O

Klaw iatura / Mysz PS/2 x1 Port HD MI x 1 Port VGA x1 Port DVI-D x1 Port LAN x1 Port USB 2.0 (przez H61) x2 Port USB 3.0 (przez AS M1042) x2 Gniazdo audio x3

Klaw iatura / Mysz PS/2 x1 Port HDMI (H61MH) x1 Port VGA x1 Port DVI-D x1 Port LAN x1 Port USB 2.0 x 4 Gniazdo audio x3

Wymiary

płyty

200mm (S) X 244 mm (W) 200mm (S) X 244 mm (W)

Obsluga

systemu

operacyjnego

Windows XP / V ista / 7 Biostar zastrzega sobie prawo dodawania lub odwoływania obsług i dowo lneg o s ystemu operacyjnego bez powiado mien ia.

Motherboard Manual

38

RUSSIAN

TH61M U3 / H61 MU3 H61 MH / H6 1M L

CPU (центральны й процессор)

Socket 1155

Процессор Inte l Cor e i7 / i5 / i3 / Pent iu m Поддержка технологий Execut e D isab le Bit /

Enhanced Inte l SpeedStep® / Int e l Architecture-64 / Extend ed Memory 64 Technology / технологии виртуализация

Socket 1155

Процессор Inte l Cor e i7 / i5 / i3 / Pent iu m Поддержка технологий Execut e D isab le Bit /

Enhanced Inte l SpeedStep® / Int e l Architecture-64 / Extend ed Memory 64 Technology / технологии виртуализация

Набо р микросхем

Intel H61 Intel H61

Основная память

Слоты DDR3 DIMM x 2 Каждый модуль DIMM поддерживает 512 МБ / 1ГБ / 2ГБ / 4ГБ DDR3 Максимальная ёмкость памяти 8ГБ Мод уль памяти с двух кан альн ым режимом

DDR3

Поддержка DDR3 1333/1066 Не поддерживает зарегистрированные модули DIMM and ECC DIMM

Слоты DDR3 DIMM x 2 Каждый модуль DIMM поддерживает 512 МБ / 1ГБ / 2ГБ / 4ГБ DDR3 Максимальная ёмкость памяти 8ГБ Мод уль памяти с двух кан альн ым режимом

DDR3

Поддержка DDR3 1333/1066 Не поддерживает зарегистрированные модули DIMM and ECC DIMM

Super I/O

ITE 8728

Обеспечивает наиболее используемые действующие фун кцио нальн ы е во змо жно сти

Super I/O.

Интерфейс с низким количес твом выводов Инициативы по охране окружающей среды, Аппаратный монитор Регул ятор скорости вентилятора/ монитор Функция ITE "Sm art Guard ian "

(Интеллектуальная защита)

ITE 8728

Обеспечивает наиболее используемые действующие фун кцио нальн ы е во змо жно сти

Super I/O.

Интерфейс с низким количес твом выводов Инициативы по охране окружающей среды, Аппаратный монитор Регул ятор скорости вентилятора/ монитор Функция ITE "Sm art Guard ian "

(Интеллектуальная защита)

SATA 2

Встроенное последовательное ус тройс тво управления ATA скорость передачи данных до 3.0 гигабит/с. Соответствие специ фикации SATA версия

2.0.

Встроенное последовательное ус тройс тво управления ATA скорость передачи данных до 3.0 гигабит/с. Соответствие специ фикации SATA версия

2.0.

Локальная сеть

Realtek RTL8111E

Автоматическое согласо ван ие 10 / 100 / 1000 Мб/с

Realtek RTL8111E (H61MH) Автоматическое согласование 10/100/1000Мб/с Realtek RTL8105E (H61ML)

Автоматическое согласовани е 10/100Мб /с

Звуко вая поддержка жесткого диска

ALC662 Звуко вая поддержка High- Def in it io n

5.1канальный звуковой выход

ALC662 Звуко вая поддержка High- Def in it io n

5.1канальный звуковой выход

USB3.0

Asmedia ASM1042

Слот PCI Express Gen2 x16 x1 Слот PCI Express Gen2 x16 x1 Слот PCI Express Gen2 x1 x1 Слот PCI Express Gen2 x1 x1

Слоты

Слот PCI x 2 Слот PCI x 2

TH61MU3/H61MU3/H61MH/H61ML

39

TH61M U3 / H61 MU3 H61 MH / H6 1M L

Разъ ём Порт подключения принтера x1

Разъ ём Порт подключения

принтера x1 Последоват ельны й порт x1 Последоват ельны й порт x1 Разъ ём SATA x4 Разъ ём SATA x4 Разъ ём на лицевой панели x1 Разъ ём на лицевой панели x1 Входной звуковой разъём x1 Входной звуковой разъём x1 Разъ ём вывода для S/PDIF x1 Разъ ём вывода для S/PDIF x1 Контактирующее приспособление вентил ятора центрального процессора x1

Контактирующее приспособление

вентил ятора центрального процессора x1 Контактирующее приспособление вентил ятора системы x1

Контактирующее приспособление

вентил ятора системы x1 Открытое контактир ующ ее приспособление CMOS x1

Открытое контактир ующ ее

приспособление CMOS x1 USB 2.0-разъём x2 USB 2.0-разъём x2 Разъ ём едок а ИКЫЙ x1 Ра зъ ём едока ИКЫЙ x1 Разъ ем питания (24 вы вод) x1 Разъ ем питания (24 вы вод) x1

Встроенный разъём

Разъ ем питания (4 вывод) x1 Разъ ем питания (4 вывод) x1

Задняя панель средств ввода-вывод а

Клавиатура / Мышь PS /2 x1 Порт HD MI x1 Порт VGA x1 Порт DVI-D x1 Порт LAN x1

USB 2.0-порт (по H61) x2 USB 3.0-порт (по ASM1042) x2

Гнездо для подключения наушников x3

Клавиатура / Мышь PS /2 x1

Порт HDMI (H61MH) x1

Порт VGA x1

Порт DVI-D x1

Порт LAN x1

USB 2.0-порт x4

Гнездо для подключения

наушников x3

Размер панели

200мм (Ш) X 244 мм (В) 200мм (Ш) X 244 мм (В)

Поддержка

OS

Windows XP / V ista / 7 Biostar сохраняет за собой право добавлять

или удалять средства обеспечения для OS с или без предварительного уведо млени я.

Windows XP / V ista / 7

Biostar сохраняет за собой право добавлять

или удалять средства обеспечения для OS с

или без предварительного уведо млени я.

Motherboard Manual

40

ARABIC

H61 M H / H 61 ML TH61M U3 / H61 MU3

Socket 1155

تﺎﺠﻟﺎﻌﻣIntel Cor e i7 / i5 / i3 / Pe ntiu m ﺑ ددﺮﺘ ﻳ ﻰﻟإ ﻞﺼ

تﺎﻴﻨﻘﺕ ﻢﻋﺪﺕExecute D isab le Bit / Enh anced Int el

Speed St ep® / Intel Arch itectur e- 64 / Extended

Memory 64 Technology / Virtualization

Technology

Socket 1155

تﺎﺠﻟﺎﻌﻣIntel Cor e i7 / i5 / i3 / Pe ntiu m ﺑ ددﺮﺘ ﻳ ﻰﻟإ ﻞﺼ

تﺎﻴﻨﻘﺕ ﻢﻋﺪﺕExecute D isab le Bit / Enh anced Int el

Speed St ep® / Inte l Ar ch itectur e-64 / Ex tended

Memory 64 Technology / Virtualization

Technology

ةﺪﺣو ﺔﺠﻟﺎﻌﻤﻟا

ﺔﻳﺰآﺮﻤﻟا

Intel H61 Intel H61

ﺔﻋﻮﻤﺠﻣ ﺢﺋاﺮﺸﻟا

ﺔﺤﺘﻓDDR3 DIM M دﺪﻋ2

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR3 ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕ ﺔﻌﺳ

DIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR3 ﺔﻌﺳ

512 و ﺖﻳﺎﺑ ﺎﺠﻴﻣ 1/و 2/

و4 ﺎﺠﻴﺝﺖﻳﺎﺑ

ﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ ى8 ﺖﻳﺎﺑ ﺎﺠﻴﺝ

ةﺮآاذ ةﺪﺣوDDR3 ﻘﻟا ﺔﺝودﺰﻣةﺎﻨ

عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺕDDR3 تﺎﻌﺳ 1066/1333ﺖﻳﺎﺑ ﺎﺠﻴﻣ

ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺕ ﻻDIMM ﻊﻣ ﻖﻓاﻮﺘﺕ ﻻ ﻲﺘﻟا ﻚﻠﺕو ECC

ﺔﺤﺘﻓDDR3 DIM M دﺪﻋ2

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR3 ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕ ﺔﻌﺳ

DIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR3 ﺳ ﺔﻌ

512 و ﺖﻳﺎﺑ ﺎﺠﻴﻣ 1/و 2/

و4 ﺎﺠﻴﺝﺖﻳﺎﺑ

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ8 ﺖﻳﺎﺑ ﺎﺠﻴﺝ

ةﺮآاذ ةﺪﺣوDDR3 ﻘﻟا ﺔﺝودﺰﻣةﺎﻨ

عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺕDDR3 تﺎﻌﺳ 1066/1333ﺖﻳﺎﺑ ﺎﺠﻴﻣ

ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺕ ﻻDIMM ﻊﻣ ﻖﻓاﻮﺘﺕ ﻻ ﻲﺘﻟا ﻚﻠﺕو ECC

ةﺮآاﺬﻟا ﺔﻴﺴﻴﺋﺮﻟا

ITE 8728

ﺔﻔﻴﻇ و ﺮﻓﻮﺕSuper I/O ا ﺮﺜآﻷا ًﺎ ﻣا ﺪﺨ ﺘ ﺳ.

ﺕﻢﻋﺪ ﺔﻴﻨﻘ ﺕ Low Pi n Count Interface

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻣ

ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻣ

ﺔﻔﻴﻇو"S mart Gu ard ian" ﻦﻣ IT E

ITE 8728

ﺔﻔﻴﻇ و ﺮﻓﻮﺕSuper I/O ًﺎ ﻣا ﺪﺨ ﺘ ﺳ ا ﺮﺜآﻷا .

ﺕﻢﻋﺪ ﺔﻴﻨﻘ ﺕ

Low Pin Co unt Interface

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ﻣةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮ

ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻣ

ﺔﻔﻴﻇو"S mart Gu ard ian" ﻦﻣ IT E

Super I/O

ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣﺎﻜﺘﻣ

ﻞﻘﻧ تﺎﻧﺎﻴﺒﻟا تﺎﻋﺮﺴﺏ ﻞﺼﺕ ﻰﻟإ 3.0 ﺖﺏﺎﺠﻴﺟ/ﺔﻴﻧﺎﺛ.

ﺔﻘﺏﺎﻄﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0.

ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣﺎﻜﺘﻣ

ﻞﻘﻧ تﺎﻧﺎﻴﺒﻟا تﺎﻋﺮﺴﺏ ﻞﺼﺕ ﻰﻟإ 3.0 ﺖﺏﺎﺠﻴﺟ/ﺔﻴﻧﺎﺛ.

ﺔﻘﺏﺎﻄﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0.

SATA 2

Realtek RTL8111E (H61MH)

ﻲﺋﺎﻘﻠﺕ ضو ﺎﻔﺕ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /و ﺔﻴﻥﺎﺙ1ﺖﺑ ﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ

Realtek RTL8105E (H61ML)

ﻲﺋﺎﻘﻠﺕ ضو ﺎﻔﺕ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /ﺔﻴﻥﺎﺙ

Realtek RTL8111E

ﻲﺋﺎﻘﻠﺕ ضو ﺎﻔﺕ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /و ﺔﻴﻥﺎﺙ1ﺑ ﺎﺠﻴﺝﺖ/ﺔﻴﻥﺎﺙ

ﺔﻜﺒﺷ ﺔﻴﻠﺧاد

ALC662

ﻦﻣ ﻒﻳﺮﻌﺘﻟا ﻲﻟ ﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺕ ﻢﻋﺪﺕ

5.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ

ALC662

ﻦﻣ ﻒﻳﺮﻌﺘﻟا ﻲﻟ ﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺕ ﻢﻋﺪﺕ

5.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ

ﻢﻋد تﻮﺼﻟا ﻲﻟﺎﻋ

ﻒیﺮﻌﺘﻟا

Asmedia ASM1042

USB3.0

ﺔﺤﺘﻓGen2 x16 PCI Express دﺪﻋ1 ﺔﺤﺘﻓGen2 x16 PCI Express دﺪﻋ1 ﺔﺤﺘﻓPCI Express Gen2 x1 دﺪﻋ1 ﺔﺤﺘﻓPCI Express Gen2 x1 دﺪﻋ1 ﺔﺤﺘﻓPCI ﺪﻋ2 ﺔﺤﺘﻓPCI ﺪﻋ2

تﺎﺤﺘﻔﻟا

TH61MU3/H61MU3/H61MH/H61ML

41

H61 M H / H 61 ML TH61M U3 / H61 MU3

ﺔﻌﺑﺎﻃ ﺬﻔ ﻨﻣ دﺪﻋ1 ﺔﻌﺑﺎﻃ ﺬﻔ ﻨﻣ دﺪﻋ1

ﻲﻠﺴﻠﺴﺕ ﺬﻔﻨﻣ دﺪﻋ1 ﻲﻠﺴﻠﺴﺕ ﺬﻔﻨﻣ دﺪﻋ1

ﺬﻔﻨﻣSATA دﺪﻋ4 ﺬﻔﻨﻣSATA دﺪﻋ4

ﺎﻣﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻣﺔﻴﻣ دﺪﻋ1 ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮ ﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1

ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1 ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1

جﺮﺥ ﺬﻔﻨﻣS/PDIF دﺪﻋ1 جﺮﺥ ﺬﻔﻨﻣS/PDIF دﺪﻋ1

ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1 ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1

مﺎﻈﻨﻟا ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1 ﻣ ﺔﻠﺹومﺎﻈﻨﻟا ﺔﺣوﺮ دﺪﻋ1

ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1 ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1

ﺬﻔﻨﻣUSB 2.0 دﺪﻋ2 ﺬﻔﻨﻣUSB 2.0 دﺪﻋ2

ﺬﻔﻨﻣ ﺔﻜﻠﻬﺘﺴﻣ ﺖﺤﺕ ﺮﻤﺣﻷا دﺪﻋ1 ﺬﻔﻨﻣ ﺔﻜﻠﻬﺘﺴﻣ ﺖﺤﺕ ﺮﻤﺣﻷا دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)24سﻮﺑد( ع دد1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)24سﻮﺑد( ع دد1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)4ﺲﻴﺑﺎﺑد( دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)4ﺲﻴﺑﺎﺑد( دﺪﻋ1

ﺬﻓﺎﻨﻤﻟا ﻰﻠﻋ ﺢﻄﺱ

ﺔﺡﻮﻠﻟا

ﺢﻴﺕﺎﻔﻣ ﺔﺣﻮﻟ / سوﺎﻣPS/2 دﺪﻋ1

ﺬﻓﺎﻨﻣHDMI (H61 MH) دﺪﻋ1 ﺬﻓﺎﻨﻣVG A دﺪﻋ1 ﺬﻓﺎﻨﻣDVI- D دﺪﻋ1

ﺔﻴﻠﺤﻣ لﺎﺼﺕا ﺔﻜﺒﺵ ﺬﻔ ﻨﻣ دﺪﻋ 1

ﺬﻓﺎﻨﻣUSB 2.0 دﺪﻋ4

تﻮﺹ ﺲﺒﻘﻣ دﺪﻋ3

ﺢﻴﺕﺎﻔﻣ ﺔﺣﻮﻟ / سوﺎﻣPS/2 دﺪﻋ1

ﺬﻓﺎﻨﻣHDMI دﺪﻋ1 ﺬﻓﺎﻨﻣVG A دﺪﻋ1 ﺬﻓﺎﻨﻣDVI- D دﺪﻋ1

ﺔﻴﻠﺤﻣ لﺎﺼﺕا ﺔﻜﺒﺵ ﺬﻔ ﻨﻣ دﺪﻋ 1

ﺬﻓﺎﻨﻣ2.0US B(H61 ﻦﻣ ﻞﺒﻗ ) دﺪﻋ2 ﺬﻓﺎﻨﻣSB3.0U(ASM1042 ﻦﻣ ﻞﺒﻗ ) دﺪﻋ2

تﻮﺹ ﺲﺒﻘﻣ دﺪﻋ3

ﺬﻓﺎﻨﻣ ﻞﺧد/جﺮﺧ

ﺔﺡﻮﻠﻟا ﺔﻴﻔﻠﺨﻟا

200 ﻢﻣ)ضﺮﻋ (X 244 ﻢﻣ)عﺎﻔﺕرا( 200 ﻢﻣ)ضﺮﻋ (X 244 ﻢﻣ)عﺎﻔﺕرا(

ﻢﺠﺡ ﺔﺡﻮﻠﻟا

Windows XP / Vista / 7

ﻆﻔﺘﺤﺕ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓﺎﺿإ وأ ﺔﻟاز إ ﻢﻋﺪﻟا يﻷ مﺎﻈﻧ ﻞﻴﻐﺸﺕ رﺎﻄﺧﺈﺏ

وأ نو ﺪﺏ رﺎﻄﺧإ.

Windows XP / Vista / 7

ﻆﻔﺘﺤﺕ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓﺎﺿإ وأ ﺔﻟاز إ ﻢﻋﺪﻟا يﻷ مﺎﻈﻧ ﻞﻴﻐﺸﺕ رﺎﻄﺧﺈﺏ

وأ نو ﺪﺏ رﺎﻄﺧإ.

ﻢﻋد ﺔﻤﻈﻧأ ﻞﻴﻐﺸﺘﻟا

Motherboard Manual

42

JAPANESE

TH61M U3 / H61 MU3 H61 MH / H6 1M L

CPU

Socket 1155

Int e l Core i7 / i5 / i3 / Pentiu m プロセッサ

Execute D isab le Bit / Enh anced Inte l

Speed St ep® / Intel Ar chitecture-64 / Extended

Memory 64 Technology / Virtualization

Technologyをサポートします

Socket 1155

Int e l Core i7 / i5 / i3 / Pentiu m プロセッサ

Execute D isab le Bit / Enh anced Inte l

Speed St ep® / Intel Ar chitecture-64 / Extended

Memory 64 Technology / Virtualization

Technologyをサポートします

チップセット

Intel H61 Intel H61

メインメモリ

DDR3 DIMMスロット x 2

各DIMMは 512 MB / 1GB / 2GB / 4GB DDR3をサ

ポート

最大メモリ容量8GB

デュアルチャンネルモードDDR3 メモリモジュール

DDR3 1333/1066をサポート

登録済みDIMMとECC DIMMはサポートされません

DDR3 DIMMスロット x 2

各DIMMは 512 MB / 1GB / 2GB / 4GB DDR3をサ

ポート

最大メモリ容量8GB

デュアルチャンネルモードDDR3 メモリモジュール

DDR3 1333/1066をサポート

登録済みDIMMとECC DIMMはサポートされません

Super I/O

ITE 8728

もっとも一般に使用されるレガシーSuper I/O機能を

採用しています。

低ピンカウントインターフェイス

環境コントロールイニシアチブ、

H/Wモニター

ファン速度コントローラ/ モニター

ITE の「スマートガーディアン」機能

ITE 8728

もっとも一般に使用されるレガシーSuper I/O機能を

採用しています。

低ピンカウントインターフェイス

環境コントロールイニシアチブ、

H/Wモニター

ファン速度コントローラ/ モニター

ITE の「スマートガーディアン」機能

SATA 2

統合シリアルATA コントローラ

最高3.0 Gb/秒のデータ転送速度

SATAバージョン2.0仕様に準拠。

統合シリアルATA コントローラ

最高3.0 Gb/秒のデータ転送速度

SATAバージョン2.0仕様に準拠。

LAN

Realtek RTL8111E

10 / 100 / 1000 Mb/秒のオートネゴシエーション

Realtek RTL8111E (H61MH)

10 / 100 / 1000 Mb/秒のオートネゴシエーション

Realtek RTL8105E (H61ML)

10 / 100 Mb/秒のオートネゴシエーション

HDオーディオ

のサポート

ALC662

ハイデフィニションオーディオのサポート

5.1 チャンネルオーディオアウト

ALC662

ハイデフィニションオーディオのサポート

5.1 チャンネルオーディオアウト

USB3.0

Asmedia ASM1042

PCI Express Gen2 x16スロット x1 PCI Express Gen2 x16スロット x1

PCI Express Gen2 x1スロット x1 PCI Express Gen2 x1スロット x1

スロット

PCIスロット x2 PCIスロット x2

TH61MU3/H61MU3/H61MH/H61ML

43

TH61M U3 / H61 MU3 H61 MH / H6 1M L

プリンタポートコネクタ x1 プリンタポートコネクタ x1

シリアルポート x1 シリアルポート x1

SATAコネクタ x4 SATAコネクタ x4

フロントパネルコネクタ x1 フロントパネルコネクタ x1

フロントオーディオコネクタ x1 フロントオーディオコネクタ x1

S/PDIFアウトコネクタ x1 S/PDIFアウトコネクタ x1

CPUファンヘッダ x1 CPUファンヘッダ x1

システムファンヘッダ x1 システムファンヘッダ x1

CMOSクリアヘッダ x1 CMOSクリアヘッダ x1

USB 2.0コネクタ x2 USB 2.0コネクタ x2

消費者IR コネクタ x1 消費者IR コネクタ x1

電源コネクタ(24 ピン) x1 電源コネクタ(24 ピン) x 1

オンボードコ

ネsクタ

電源コネクタ(4ピン) x1 電源コネクタ(4ピン) x1

背面パネルI/O

PS/2キーボード / マウス x1

HDMIポート x1

VGAポート x1

DVI-Dポート x1

LANポート x1

USB 2.0ポート(で H61) x2

USB 3.0ポート(で ASM1042) x2

オーディオジャック x3

PS/2キーボード / マウス x1

HDMIポート(H61MH) x1

VGAポート x1

DVI-Dポート x1

LANポート x1

USB 2.0ポート x4

オーディオジャック x3

ボードサイズ

200mm (幅) X 244 mm (高さ) 200mm (幅) X 244 mm (高さ)

OSサポート

Windows XP / V ista / 7

Biostarは事前のサポートなしにOSサポートを追加ま

たは削除する権利を留保します。

Windows XP / V ista / 7

Biostarは事前のサポートなしにOSサポートを追加ま

たは削除する権利を留保します。

2011/01/20

Biostar TH61MU3 Setup Manual [en, it, ru, pt, fr +3]
