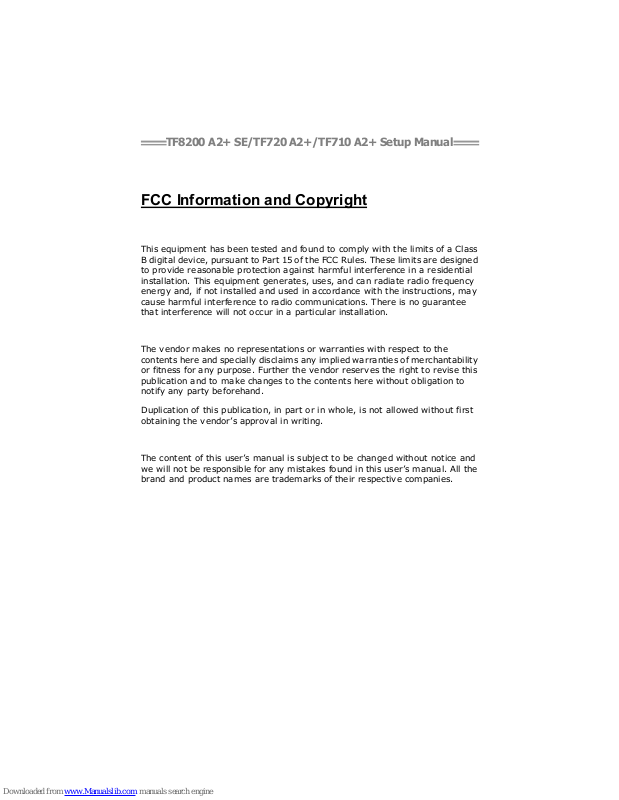

TF8200 A2+ SE/TF720 A2+/TF710 A2+ Setup Manual

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents here and specially disclaims any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right to revise this publication and to make changes to the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and we will not be responsible for any mistakes found in this user’s manual. All the brand and product names are trademarks of their respective companies.

Page 2

Table of Contents

Chapter 1: Introduction ............................................................ 1

1.1 Before You Start ................................................................................ 1

1.2 Package Checklist............................................................................. 1

1.3 Motherboard Features...................................................................... 2

1.4 Rear Panel Connectors ..................................................................... 3

1.5 Motherboard Layout......................................................................... 4

Chapter 2: Hardware Installation ............................................. 5

2.1 Installing Central Processing Unit (CPU)....................................... 5

2.2 FAN Headers...................................................................................... 7

2.3 Installing System Memory ................................................................ 8

2.4 Connectors and Slots....................................................................... 10

Chapter 3: Headers & Jumpers Setup ..................................... 12

3.1 How to Setup Jumpers .................................................................... 12

3.2 Detail Settings.................................................................................. 12

Chapter 4: NVIDIA RAID Functions ........................................ 20

4.1 Operation System............................................................................ 20

4.2 Raid Arrays...................................................................................... 20

4.3 How RAID Works............................................................................. 20

Chapter 5: T-Series BIOS & Software ..................................... 24

5.1 T-Series BIOS..................................................................................... 24

5.2 T-Series Software............................................................................. 32

Chapter 6: Useful Help ............................................................ 41

6.1 Driver Installation Note.................................................................. 41

6.2 Extra Information............................................................................ 42

6.3 AMI BIOS Beep Code....................................................................... 43

6.4 Troubleshooting............................................................................... 44

Appendencies: SPEC In Other Language ................................ 46

German.................................................................................................................. 46

France .................................................................................................................... 48

Ita lian ..................................................................................................................... 50

Spanish ................................................................................................................... 52

Portuguese ............................................................................................................ 54

Polish...................................................................................................................... 56

Russian ................................................................................................................... 58

Arabic..................................................................................................................... 60

Japane se ................................................................................................................ 62

Page 3

TF8200 A2+ SE/TF720 A2+/TF710 A2+

CHAPTER 1: INTRODUCTION

1.1 B

EFORE YOU START

Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with

sufficient lighting.

 Always disconnect the computer from power outlet

before operation.

 Before you take the motherboard out from anti-static

bag, ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.

 Avoid touching the components on motherboard or the

rear side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the

case after installation. Loose parts will cause short circuits which may damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

1.2 PACKAGE CHECKLIST

HDD Cable X 1 Serial ATA Cable X 2 Serial ATA Power Cable X 1 Rear I/O Panel for ATX Case X 1 User’s Manual X 1 Fully Setup Driver CD X 1 FDD Cable X 1 (optional) USB 2.0 Cable X1 (optional) S/PDIF out Cable X 1 (optional) DVI to HDMI Adapter X 1 (optional)

Note: The package contents may differ by area or your motherboard version.

Page 4

Motherboard Manual

1.3 MOTHERBOARD FEATURES

TF8200 A2+ SE TF720 A2+/TF710 A 2+

CPU

Socket AM2+ AMD Athlon 64 / Athlon 64 FX / Athlon 64 x2 / Sempron / Pheno m process ors AMD 64 Architecture enables 32 and 64 b it computing Supports Hyper Transport 3.0 and PowerNow

FSB

Support HyperTransport 3.0 Supports up to 5.2 GT/s Bandwidth

Chipset GeForce 8200

GeForce 8100 (TF720 A2+) nForce 710a (TF710 A2+)

Super I/O

ITE 8718F Prov ides the most common ly used legacy Super I/O functionality. Low Pin Count Interface En viro nmen t Co ntrol in itiatives , H/W Mon ito r Fan Sp eed Contro ller ITE's "S mart Guard ian " funct ion

Main Memory

DIMM Slots x 4 Each DIMM supports 256/512MB & 1/2/4GB DDR2 Max Memory Capicity 16GB Dual Cha nnel Mode DDR2 memo ry module Supports DDR2 533 / 667 / 800 Supports DDR2 1066 (by AM2+ CPU) Register ed D IMM and ECC DIMM is not supported

Graphics

For TF8200A2+

SE / T F720 A2+

Only

Integrated in GeForce 8200 Ch ipset Max S hared V ideo Memory is 51 2 MB DX10 / HDC P / PureVideo HD support

Integrated in GeForce 8100 Ch ipset Max S hared V ideo Memory is 51 2 MB DX10 / HDC P / PureVideo suppo rt

IDE

Int eg r at ed IDE Co n tro lle r Ultra DMA 33 / 66 / 100 / 133 Bus Master Mode supports PIO Mode 0~4

SATA II

Integrated Serial ATA Controller Data transfer rates up to 3 Gb/s. SATA Vers ion 2 .0 spe c if ic at ion co mpl iant.

LAN

Realtek RTL 8111C 10 / 100 / 1000 Mb/s auto negotiation Half / Full duplex capability

Sound

ALC662

5.1 channels audio out Supports HD Audio

ALC662

5.1 channels audio out Supports HD Audio

Page 5

TF8200 A2+ SE/TF720 A2+/TF710 A2+

TF8200 A2+ SE TF720 A2+/TF710 A 2+

PCI slot x3 PCI slot x3 PCI Express Gen2 x16 slot x1 PCI Express Gen2 x16 slot x1

Slots

PCI Express x1 slot x2 PCI Express x1 slot x2 Floppy connector x1 Floppy connect or x1 Printer Po rt connector x1 Printer Port connector x1 IDE Con n ector x1 ID E C o nn ector x 1 SATA Connector x6 SATA Connector x6 Front Panel Connector x1 Front Panel Connector x1 Front Audio Connector x1 Front Audio Connector x1 CD-in Connector x1 CD-in Connector x1 S/PD IF out connector x1 S/PDIF out connector x1 CPU Fan header x1 CPU Fan header x1 System Fan head er x2 System Fan h eader x2 CMOS clear header x1 CMOS clear header x1 USB co nnector x4 USB connector x4 Serial port Connector x1 Serial port Connector x1 Power Connector (24pin) x1 Power Connector (24p in) x1

On Board Connector

Power Connector (4pin) x2 Power Connector (4p in) x2

Back Panel I/O

PS/2 Keyboard x1 PS/2 Mous e x1 LAN port x1 USB Port x4 Audio Jack x3 DVI port x1 VGA port x1

PS/2 Keyboard x1 PS/2 Mous e x1 LAN port x1 USB Port x4 Audio Jack x3 DVI port (for TF720 A2+) x1 VGA port (for TF720 A2+) x1

Board Size 220 mm (W) x 305 mm (L) 220 mm (W) x 305 mm (L)

Special Features

RAID 0 / 1 / 5 / 0+1 support Hyb r id SL I supp o rt (b y nVID IA d r iver)

RAID 0 / 1 / 5 / 0+1 support Hybrid SLI support (by nVIDIA driver) (for TF720 A2+)

OS Support

Windows XP / VISTA Biostar Reserves the right to add or remove support for any OS With or without notice.

1.4 REAR PANEL CONNECTORS

PS/2 Mou se

PS/2 Keyboard

USB X2USBX2

LAN

VGA

Line I n/ Surr ound

Line Out

Mic In 1/ Bass/ Center

DVI-D

(For TF8200 A2+ SE/TF720 A2+ Only)

Page 6

Motherboard Manual

1.5 MOTHERBOARD LAYOUT

JKBMS1

JAUDIO1

FDD1

BAT1

JCDIN1

Codec

JSPDIF_OUT1

JATXPWR2

JPRNT1

Super I/O

JUSB3

JCMOS1

JPANEL1

IDE1

JATXPWR1

JCFAN1

JNFAN1

DIMMA 1

DIMMB 1

DIMMB 2

DIMMA 2

Socket AM2+

PCI3

PCI2

GeFo rce

8200/8100

nForce 71 0a

JAUDIOF1

PWRSW1

RSTSW1

JUSBLAN1

JSFAN1

PCI-EX1

JUSB1

JUSB4

BI O S

LAN

PCI1

SATA6

SATA3

SATA5

SATA2

SATA4

SATA1

JCOM2

LED1

LE D 2

PCI-EX1_2

PCI-EX1_1

JUSB2 JUSB5

JPSPW1

JUSBPW1

VGA

DVI

JUSBPW2

(For TF8200 A2 + SE/T F720 A2+ O nly)

Note: represents the 1■

pin.

Page 7

TF8200 A2+ SE/TF720 A2+/TF710 A2+

CHAPTER 2: HARDWARE INSTALLATION

2.1 I

NSTALLING CENTRAL PROCESSING UNIT (CPU)

Step 1: Remove the socket protection cap.

Step 2: Pull the lever toward direction A from the socket and then raise the

lever up to a 90-degree angle.

Step 3: Look for the white triangle on socket, and the gold triangle on

CPU should point tow ards this white triangle. The CPU will fit only in the correct orientation.

Page 8

Motherboard Manual

Step 4: Hold the CPU down firmly, and then close the lever toward direct

B to complete the installation.

Step 5: Put the CPU Fan on the CPU and buckle it. Connect the CPU

FAN power cable to the JCFAN1. This completes the installation.

Note: Please update the BIOS to the latest version while using AM2+ CPUs. Due to the latest CPU

transition, you may encounte r the situation that the new system failed to boot while using new AM2+ CPUs. In this case, please install one standard AM2 CPU to boot your system, and update the latest BIOS from our website for AM2+ CPUs support.

Page 9

TF8200 A2+ SE/TF720 A2+/TF710 A2+

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufact urer. Connect the fan cable to the connector while matching the black wire to pin#1.

JCFAN1: CPU Fan Header

Assignment

1 Ground 2 +12V 3

FAN RPM r at e sense

4 Smart Fan

Control (By Fan)

JSFAN1: System Fan Header

JNFAN1: Chipset Fan Header

Pin Assignment

1 Ground 2 +12V

JNFAN1

JSFAN1

FAN RPM r at e sense

Note:

The JCFAN1 and JSFAN1/JNFAN1 support 4-pin and 3-pin head connectors. When connecting with wires onto connectors, please note that the red wire is the positive and should be co nnected to pin#2, and the black wire is Ground and should be connected to GND.

Page 10

Motherboard Manual

2.3 INSTALLING SYSTEM MEMORY

A. Memory Modules

DIMMA1

DIMMB1

DIMMB2

DIMMA2

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining chip snap back in place and the DIMM is properly seated.

Page 11

TF8200 A2+ SE/TF720 A2+/TF710 A2+

B. Memory Capacity

DIMM Socket

Location

DDR2 Module

Total M emory

Size

DIMMA1 256MB/512MB/1GB/2GB/4GB

DIMMB1 256MB/512MB/1GB/2GB/4GB

DIMMA2 256MB/512MB/1GB/2GB/4GB

DIMMB2 256MB/512MB/1GB/2GB/4GB

Max is 16GB.

C. Dual Channel Memory installation

To trigger the Dual Channel function of the motherboard, the memory module must meet the following requirements:

Install memory module of the same density in pairs, shown in the following table.

Dual Channel Status

DIMMA1

DIMMB1 DIMMA2 DIMMB2

Enabled O O X X

Enabled X X O O

Enabled O O O O

(O means memory installed, X means memory not installed.)

The DRAM bus width of the memory module must be the same (x8 or x16)

Page 12

Motherboard Manual

2.4 CONNECTORS AND SLOTS

FDD1: Floppy Disk Connector

The motherboard provides a standard floppy disk connector that supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the provided floppy drive ribbon cables.

IDE1: Hard Disk Connector

The motherboard has a 32-bit Enhanced IDE Controller that provides PIO Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 functionality.

The IDE connector can connect a master and a slave drive, so you can connect up to two hard disk drives.

Page 13

TF8200 A2+ SE/TF720 A2+/TF710 A2+

PCI-EX1: PCI-Express Gen2 x16 Slot

- PCI-Express 2.0 compliant.

- Maximum theoretical realized bandwidth of 8GB/s simultaneously per

direction, for an aggregate of 16GB/s totally.

- PCI-Express Gen2 supports a raw bit-rate of 5.0Gb/s on the data pins.

- 2X bandwidth over the PCI-Express 1.1 architecture.

PCI-EX1_1/PCI-EX1_2: PCI-Express x1 Slots

- PCI-Express 1.1 compliant.

- Data transfer bandwidth up to 250MB/s per direction; 500MB/s in total.

- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.

- 2X bandwidth over the PCI architecture.

PCI-EX1_1

PCI-E X1

PCI-EX1_2

PCI1~PCI3: Peripheral Component Interconnect Slots

This motherboard is equipped with 3 standard PCI slots. PCI stands for Peripheral Component Interconnect, and it is a bus standard for expansion cards. This PCI slot is designated as 32 bits.

PCI 2

PCI 1

PCI 3

Page 14

Motherboard Manual

CHAPTER 3: HEADERS & JUMPERS SETUP

3.1 H

OW TO SETUP JUMPERS

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is “close”, if not, that means the jumper is “open”.

Pin opened Pin closed Pin1-2 closed

3.2 DETAIL SETTINGS

JPANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and speaker connection. It allows user to connect the PC case’s front panel switch functions.

916

Pin Assignment Function Pin Assignment Function

1 +5V 9 N/A 2 N/A 10 N/A

N/A

3 N/ A 11 N/A N/A 4 Speaker

Speaker Connector

12 Power LED (+) 5 HDD LED (+) 13 Power LED (+) 6 HDD LED (-)

Hard drive LED

14 Power LED (-)

Power LED

7 Ground 15 Power button 8 Reset control

Reset button

16 Ground

Power-on button

Page 15

TF8200 A2+ SE/TF720 A2+/TF710 A2+

JATXPWR1: ATX Power Source Connector

This connector allows user to connect 24-pin power connector on the AT X power supply.

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V 14 -12V 2 +3.3V 15 Gro und 3 Gro und 16 PS_ON 4 +5V 17 Gro und 5 Gro und 18 Ground 6 +5V 19 Gro und 7 Gro und 20 NC 8 PW_OK 21 +5V 9 Standb y Voltage+5V 22 +5V 10 +12V 23 +5V 11 +12V 24 Ground 12 +3.3V

JATXPWR2: ATX Power Source Connector

By connecting this connector, it will provide +12V to CPU power circuit.

Assignment

1 +12V 2 +12V 3 Ground 4 Ground

Note:

Before power on the system, please make sure that both JATXPWR1 and JATXPWR2 connectors have been plugged-i n.

Page 16

Motherboard Manual

JUSB2~JUSB5: Headers for USB 2.0 Ports at Front Panel

This header allows user to connect additional USB cable on the PC front panel, and also can be connected with internal USB devices, like USB card reader.

Assignment

1 +5V (fused) 2 +5V (fused) 3 USB4 USB5 USB+ 6 USB+ 7 Ground 8 Ground 9 Key

210

JUSB2

JUSB3

JUSB4

JUSB 5

10 NC

JAUDIOF1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front panel. This header allows only HD audio front panel connector; AC’97 connector is not acceptable.

Pin Assignment

1 Mic Left in 2 Ground 3 Mic Right in 4 GPIO 5 Right line in 6 Jack Sense 7 Front Sense 8 Key 9 Left line in

210

10 Jack Sense

Page 17

TF8200 A2+ SE/TF720 A2+/TF710 A2+

JCDIN1: CD-ROM Audio-in Connector

This connector allows user to connect the audio source from the variaty devices, like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc.

Assignment

1 Left Channel Input 2 Ground 3 Ground

4 Right Channel Input

JCMOS1: Clear CMOS Header

By placing the jumper on pin2-3, it allows user to restore the BIOS safe setting and the CMOS data, please carefully follow the procedures to avoid damaging the motherboard.

Pin 1-2 Close:

Normal Operation (default).

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Reset your desired password or clear the CMOS data.

Page 18

Motherboard Manual

JPRNT1: Printer Port Connector

This header allows you to connector printer on the PC.

125

Pin Assignment Pin Assignment

1 -Strobe 14 Ground 2 -ALF 15 Data 6 3 Data 0 16 Ground

4 -Error 17 Data 7 5 Data 1 18 Ground

6 -Init 19 -ACK 7 Data 2 20 Ground 8 -Scltin 21 Busy

9 Data 3 22 Ground 10 Ground 23 PE

11 Data 4 24 Ground 12 Ground 25 SCLT 13 Data 5 26 Key

JCOM2: Serial port Connector

The motherboard has a Serial Port Connector for connecting RS-232 Port.

Assignment

1 Carrier detect 2 Received data 3 Transmitted data 4 Data terminal ready 5 Signal ground 6 Data set ready 7 Request to send 8 Clear to send 9 Ring indicator

210

10 NC

Page 19

TF8200 A2+ SE/TF720 A2+/TF710 A2+

SATA1~SATA6: Serial AT A Connectors

The motherboard has a PCI to SATA Controller with 6 channels SATA interface, it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.

Assignment

1 Ground 2 TX+ 3 TX4 Ground 5 RX6 RX+

SATA1 SATA4

SATA2 SATA5

SATA3 SATA6

7 Ground

Note:

Due to the chipset's specification, SATA5 and SATA6 do not support SATA mode, only support AHC I+RAID mode.

On-Board LED Indicators

There are 2 LED indicators on the motherboard to show system status.

LED1 LED2

LED1 and LED2:

These 2 LED indicate system power on diagnostics. Please refer to the table below for different messages:

LED1 LED2 Message

ON ON Normal

ON OFF Memory Error OFF ON VGA Error OFF OFF Abnormal: CPU / Chipset error.

Page 20

Motherboard Manual

On-Board Buttons

There are 2 on-board buttons.

PWRSW1

RSTSW1

PWRSW1:

This is an on-board Power Switch button.

RSTSW1:

This is an on-board Reset button.

JSPDIF_OUT1: Digital Audio-out Connector

This connector allows user to connect the PCI bracket SPDIF output header.

Assignment

1 +5V 2 SPDIF_OUT

3 Ground

J1: Auxiliary Power for Graphics

This connector is an auxiliary power connection for graphics cards. Exclusive power for the graphics card provides better graphics performance.

Assignment

1 +12V 2 Ground 3 Ground 4 VCC

Page 21

TF8200 A2+ SE/TF720 A2+/TF710 A2+

JUSBPW1/JUSBPW2: Power Source Headers for USB Ports

Pin 1-2 Close:

JUSBPW1: +5V for USB ports at JUSB1/JUSBLAN1.

JUSBPW2: +5V for USB ports at front panel (JUSB2~JUSB5).

Pin 2-3 Close:

JUSBPW1: +5V STB for USB ports at JUSB1/JUSBLAN1.

JUSBPW2: +5V STB for USB ports at front panel (JUSB2~JUSB5).

Pin 1-2 close

JUSBPW1

JUSBPW2

Pin 2-3 close

JPSPW1: Power Source Header for PS/2 Keyboard and Mouse

Pin 1-2 close

+5V for PS/2 keyboard and mouse.

Pin 2-3 close

+5V STB for PS/2 keyboard and mouse.

Page 22

Motherboard Manual

CHAPTER 4: NVIDIA RAID FUNCTIONS

4.1 O

PERATION SYSTEM

Supports Windows XP and Windows VISTA.

4.2 RAID ARRAYS

NVRAID supports the following types of RAID arrays:

RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write times for

many applicat ions.

RAID 1: RAID 1 defines techniques for mirroring data. RAID 0+1: RAID 0+1 combines the techniques used in R AID 0 and RAID 1. RAID 5: RAID 5 provides fault tolerance and better utilization of disk capacity.

4.3 HOW RAID WORKS

RAID 0:

The controller “stripes” data across multiple drives in a RAID 0 array system. It breaks up a lar ge file int o smaller blocks an d perfor ms disk re ads and writ es acros s multip le drives in parallel. The size of each block is determined by the stripe size parameter, which you set durin g the creation of the RAID set based on the system environment. This technique reduces overall disk access time and offers high bandwidth.

Features and Benefits

 Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the

platform.

 Uses: Intended for non-critical data requiring high data throughput, or any

environment that does not require fault tolerance.

 Benefits: provides increased data throughput, especially for large files. No

capacity loss penalty for parity.

 Drawbacks: Does not deliver any fault tolerance. If any drive in the array

fails, all data is lost.

 Fault Tolerance: No.

Block 1 Block 3 Block 5

Block 2 Block 4 Block 6

Page 23

TF8200 A2+ SE/TF720 A2+/TF710 A2+

RAID 1:

Every read and write is actua lly carried out in parallel across 2 disk drives in a RAID 1 array system. The mirrored (backup) copy of the data can reside on the same disk or on a second redundant drive in the array. RAID 1 provides a hot-standby copy of data if the active volume or drive is corrupted or becomes unavailable because of a hardware failure.

RAID techniques can be applied for high-availability solut ions, or as a form of automatic backup that eliminates tedious manual backups to more expensive and less reliab le media.

Features and Benefits

 Drives: Minimum 2, and maximum is 2.  Uses: RAID 1 is ideal for small databases or any other application that

requires fault tolerance and minimal capacity.

 Benefits: Provides 100% data redundancy. Should one drive fail, the

controller switches to the other drive.

 Drawbacks: Requires 2 drives for the storage space of one drive.

Performance is impaired during drive rebuilds.

 Fault Tolerance: Yes.

Block 1 Block 2 Block 3

Page 24

Motherboard Manual

RAID 0+1:

RAID 0 drives can be mirrored us ing RAID 1 techniques. Resulting in a RAID 0+1 solution for improved performance plus resiliency.

Features and Benefits

 Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.  Benefits: Optimizes for both fault tolerance and performance, allowing for

automatic redundancy. May be si multaneously used with other RAID levels in an array, and allows for spare disks.

 Drawbacks: Requires twice the available disk space for data redundancy,

the same as RAID level 1.

 Fault Tolerance: Yes.

Block 2 Block 4 Block 6

Block 1 Block 3 Block 5

Block 2 Block 4 Block 6

Block 1 Block 3 Block 5

Page 25

TF8200 A2+ SE/TF720 A2+/TF710 A2+

RAID 5:

RAID 5 stripes both data and parity information across three or more drives. It writes data and parity blocks across all the drives in the array. Fault tolerance is maintained by ensuring that the parity information for any given block of data is placed on a different drive from those used to store the data itself.

Features and Benefits

 Drives: Mini mu m 3.  Uses: RAID 5 is recommended for transaction processing and general

purpose service.

 Benefits: An ideal combination of good performance, good fault tolerance,

and high capacity and storage efficiency.

 Drawbacks: Individual block data transfer rate same as a single disk. Write

performance can be CPU intensive.

 Fault Tolerance: Yes.

Disk 1

DATA 3

PA RI T Y

DATA 7

DATA 1

DATA 9

PA RI T Y

Disk 2

PA RI T Y DATA 5 DATA 8

DATA 2

PA RI T Y

DATA 11

Disk 3

DATA 4 DATA 6

PA RI T Y

DATA 10 DATA 12

※ For more detailed setup information, ple ase refer to the Driver CD, or go to

http://www.nvidia.com/object/IO_28159.html to download the NVIDIA RAID User’s Guide.

Page 26

Motherboard Manual

CHAPTER 5: T-SERIES BIOS & SOFTWARE

5.1 T-S

ERIES BIOS

T-Series BIOS Features

Overclocking Navigator Engine (O.N.E.)

Memory Integration Test (M.I.T., under Overclock Navigator Engine)

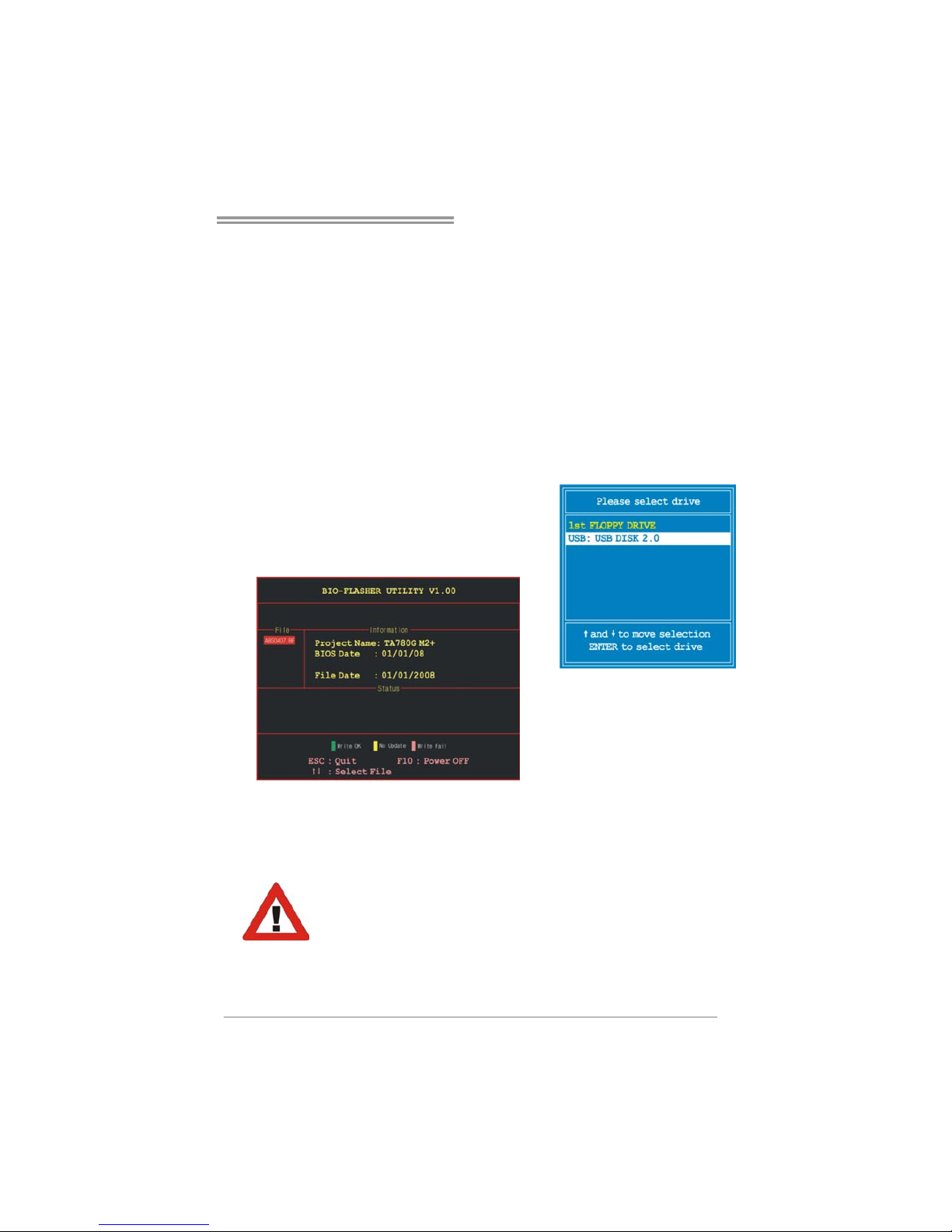

BIO-Flasher: Update BIOS file from USB Flash Drive or FDD

Self Recovery System (S.R.S)

Smart Fan Function

CMOS Reloading Program

A. Overclocking Navigator Engine (O.N.E.)

ONE provides two powerful overclocking engines: MOS and AOS for both Elite and Casual overclockers.

BIOS SETUP UTILITY

Main Advanced

PCIPnP Boot

Chipset T-Series

Select Screen Select Item Go to Sub Screen General Help Save and Exit Exit

Enter F1 F10 ESC

T-Series Settings

WARNING: Setting wrong values in below sections may cause system to malfunction.

=========== Automate OverClock System ===========

============ Manual OverClock System ============

OverClock Navigator [Normal]

Integrated Memory Test [Disabled]

Auto OverClock System [V6-Tech Engine]

CPU Frequency, MHz [200]

> Over-Voltage Configuration > DRAM Timing Configuration > Spread Spectrum Configuration

Processor Frequency Multiplier [Auto] SB to K8(CPU) Freq Auto [Enabled] SB to K8(CPU) LinkWidth [16 16 ] Memory Clock Mode [Auto] MCP PCI-Express Frequency, MH [100]

Exit

Options

Normal Automate OverClock Manual OverClock

!! WARNING !!

For better system performance, the BIOS firmware is being continuously updated. The BIOS information described below in this manual is for your reference only and the actual BIOS information and settings on board may be different from this manual. For further information of setting up the BIOS, please refer to the BIOS Manual in the Setup CD.

Page 27

TF8200 A2+ SE/TF720 A2+/TF710 A2+

Manual Overclock System (M.O.S.)

MOS is designed for experienced overclock users. It allows users to customize personal overclock settings.

BIOS SE TUP UTILI TY

Main Advan ced P CIPnP Boot Chipset T -Ser ies

vxx.xx (C )Copyri ght 19 85-200x , America n Megatr ends, Inc.

Select Sc reen Select It em Go to Sub Screen General H elp Save and Exit Exit

Enter F1 F10 ESC

T-Ser ies Settings

WARNI NG: Set ting w rong va lues in be low sec tions may cause system to malfun ction.

===== ====== Automa te Over Clock System ==== =======

===== ======= Manua l OverC lock Syste m ===== ====== =

OverC lock Na vigato r [Nor mal]

Integ rated M emory Test [Dis abled]

Auto OverClo ck Sys tem [V6- Tech En gine]

CPU F requenc y, MHz [200 ]

> Ove r-Volta ge Con figurat ion > DRA M Timin g Conf igurati on > Spread Spe ctrum Configu rati on

Proce ssor Fr equenc y Multi plier [Aut o] SB to K8(CPU ) Freq Auto [Ena bled] SB to K8(CPU ) Link Width [16 16 ] Memor y Clock Mode [Aut o] MCP P CI-Expr ess Fr equency , MH [100 ]

Exit

Op tions

Normal Automate Ove rClock Manual Ov erClock

Op tions Normal Automat e OverClo ck

Manual OverC lock

↓

BIOS SE TUP UTILI TY

Main Advan ced PCIPnP Boot Chipset T -Series

vxx.xx (C )Copyri ght 19 85-200x , America n Megatr ends, Inc .

Select Sc reen Select It em Go to Sub Screen General H elp Save and Exit Exit

Enter F1 F10 ESC

T-Ser ies Settings

WARNI NG: Set ting w rong va lues in be low sec tions may cause system to malfun ction.

===== ====== Automa te Over Clock System ==== =======

===== ======= Manua l OverC lock Syste m ===== =======

OverC lock Na vigato r [Man ual Ove rClock]

CPU F requenc y, MHz [200 ]

> Ove r-Volta ge Con figurat ion > DRA M Timin g Conf igurati on > Spread Spe ctrum Configu rati on

Proce ssor Fr equenc y Multi plier [Aut o] SB to K8(CPU ) Freq Auto [Ena bled] SB to K8(CPU ) Link Width [16 16 ] Memor y Clock Mode [Aut o] MCP P CI-Expr ess Fr equency , MH [100 ] Integ rated M emory Test [Dis abled]

Auto OverClo ck Sys tem [V6- Tech En gine]

Exit

Op tions

Normal Automate Ove rClock Manual Ov erClock

Over-Voltage Configuration

Enter this function for advanced CPU/chipset/memory/Hyper Transport over-voltage settings.

DRAM Timing Co nfiguratio n

Enter this function for more advanced DRAM clock settings.

Spread Spectrum Configuration

Enter this function for more advanced spread spectrum settings.

CPU Frequency, MHz

CPU Frequency is directly in proportion to system performance. To maintain the system stability, CPU voltage needs to be increased also when raising CPU frequency.

Page 28

Motherboard Manual

Processor Frequency Miltiplier

This function allows you to adjust the frequency ratio of CPU.

SB to K8(CPU) Freq Auto

This function allows you to set the SB to K8 frequency.

SB to K8(CPU) LinkWidth

This function allows you to choose the SB to K8 link width.

Memory Clock Mode

This function allows you to control the Memory Clock.

MCP PCI-Express Frequency, MHz

It helps to increase VGA card perfor mance.

Automatic Overclock System (A.O.S.)

For beginners in overclock field, BET had developed an easy, fast, and powerful feature to increase the system performance, named A.O.S. Based on many tests and experiments, A.O.S. provides 3 ideal overclock configurations that are able to raise the system performance in a single step.

BIOS SE TUP UTILI TY

Main Advan ced PCIPnP Boot Chipset T -Series

vxx.xx (C )Copyri ght 19 85-200x , America n Megatr ends, Inc .

Select Sc reen Select It em Go to Sub Screen General H elp Save and Exit Exit

Enter F1 F10 ESC

T-Ser ies Settings

WARNI NG: Set ting w rong va lues in be low sec tions may cause system to malfun ction.

===== ====== Automa te Over Clock System ==== =======

===== ======= Manua l OverC lock Syste m ===== =======

OverC lock Na vigato r [Nor mal]

Integ rated M emory Test [Dis abled]

Auto OverClo ck Sys tem [V6- Tech En gine]

CPU F requenc y, MHz [200 ]

> Ove r-Volta ge Con figurat ion > DRA M Timin g Conf igurati on > Spread Spe ctrum Configu rati on

Proce ssor Fr equenc y Multi plier [Aut o] SB to K8(CPU ) Freq Auto [Ena bled] SB to K8(CPU ) Link Width [16 16 ] Memor y Clock Mode [Aut o] MCP P CI-Expr ess Fr equency , MH [100 ]

Exit

Op tions

Normal Automate Ove rClock Manual Ov erClock

Op tions Normal

Manual OverC lock

Automat e OverClo ck

NOTE

Overclock is an optional process, but not a “must-do” process; it is not recommended for inexperienced users. Therefore, we will not be responsible for any hardware damage which may be caused by overclocking. We also would not guarantee any overclocking performance.

Page 29

TF8200 A2+ SE/TF720 A2+/TF710 A2+

V6 Tech Engine

This engine will make a good over-clock performance.

BIOS SE TUP UTILI TY

Main Advan ced PCIPnP Boot Chipset T -Series

vxx.xx (C )Copyri ght 19 85-200x , America n Megatr ends, Inc .

Select Sc reen Select It em Go to Sub Screen General H elp Save and Exit Exit

Enter F1 F10 ESC

T-Ser ies Settings

WARNI NG: Set ting w rong va lues in be low sec tions may cause system to malfun ction.

===== ====== Automa te Over Clock System ==== =======

===== ======= Manua l OverC lock Syste m ===== =======

OverC lock Na vigato r [Aut omate O verClock]

Integ rated M emory Test [Dis abled]

Auto OverClo ck Sys tem [V6- Tech En gine]

> Ove r-Volta ge Con figurat ion > DRA M Timin g Conf igurati on > Spread Spe ctrum Configu rati on

Proce ssor Fr equenc y Multi plier [Aut o] SB to K8(CPU ) Freq Auto [Ena bled] SB to K8(CPU ) Link Width [16 16 ] Memor y Clock Mode [Aut o] MCP P CI-Expr ess Fr equency , MH [100 ]

CPU F requenc y, MHz [200 ]

Exit

Op tions

Normal Automate Ove rClock Manual Ov erClock

V8 Tech Engine

This engine will make a better over-clock performance.

BIOS SE TUP UTILI TY

Main Advan ced PCIPnP Boot Chipset T -Series

vxx.xx (C )Copyri ght 19 85-200x , America n Megatr ends, Inc .

Select Sc reen Select It em Go to Sub Screen General H elp Save and Exit Exit

Enter F1 F10 ESC

T-Ser ies Settings

WARNI NG: Set ting w rong va lues in be low sec tions may cause system to malfun ction.

===== ====== Automa te Over Clock System ==== =======

===== ======= Manua l OverC lock Syste m ===== =======

OverC lock Na vigato r [Aut omate O verClock]

Integ rated M emory Test [Dis abled]

Auto OverClo ck Sys tem [V8- Tech En gine]

> Ove r-Volta ge Con figurat ion > DRA M Timin g Conf igurati on > Spread Spe ctrum Configu rati on

Proce ssor Fr equenc y Multi plier [Aut o] SB to K8(CPU ) Freq Auto [Ena bled] SB to K8(CPU ) Link Width [16 16 ] Memor y Clock Mode [Aut o] MCP P CI-Expr ess Fr equency , MH [100 ]

CPU F requenc y, MHz [200 ]

Exit

Op tions

Normal Automate Ove rClock Manual Ov erClock

V12 Tech Engine

This engine will make a best over-clock performance.

BIOS SE TUP UTILI TY

Main Advan ced PCIPnP Boot Chipset T -Series

vxx.xx (C )Copyri ght 19 85-200x , America n Megatr ends, Inc .

Select Sc reen Select It em Go to Sub Screen General H elp Save and Exit Exit

Enter F1 F10 ESC

T-Ser ies Settings

WARNI NG: Set ting w rong va lues in be low sec tions may cause system to malfun ction.

===== ====== Automa te Over Clock System ==== =======

===== ======= Manua l OverC lock Syste m ===== =======

OverC lock Na vigato r [Aut omate O verClock]

Integ rated M emory Test [Dis abled]

Auto OverClo ck Sys tem [V12 -Tech E ngine]

> Ove r-Volta ge Con figurat ion > DRA M Timin g Conf igurati on > Spread Spe ctrum Configu rati on

Proce ssor Fr equenc y Multi plier [Aut o] SB to K8(CPU ) Freq Auto [Ena bled] SB to K8(CPU ) Link Width [16 16 ] Memor y Clock Mode [Aut o] MCP P CI-Expr ess Fr equency , MH [100 ]

CPU F requenc y, MHz [200 ]

Exit

Op tions

Normal Automate Ove rClock Manual Ov erClock

Page 30

Motherboard Manual

Notice s:

1. Not all types of AMD CPU perform above overclock setting ideally; the difference will be based on the selected CPU model.

B. Memory Integration Test (M.I.T.)

This function is under “Overclocking Navigator Engine” item. MIT allows users to test memory compatibilities, and no extra devices or software are needed.

Step 1

The default setting under this item is “Disabled”; the condition parameter should be changed to “Enable” to proceed this test.

BIOS SE TUP UTILI TY

Main Advan ced PCIPnP Boot Chipset T -Series

vxx.xx (C )Copyri ght 19 85-200x , America n Megatr ends, Inc .

Select Sc reen Select It em Go to Sub Screen General H elp Save and Exit Exit

Enter F1 F10 ESC

T-Ser ies Settings

WARNI NG: Set ting w rong va lues in be low sec tions may cause system to malfun ction.

===== ====== Automa te Over Clock System ==== =======

===== ======= Manua l OverC lock Syste m ===== =======

OverC lock Na vigato r [Nor mal]

Auto OverClo ck Sys tem [V6- Tech En gine]

CPU F requenc y, MHz [200 ]

> Ove r-Volta ge Con figurat ion > DRA M Timin g Conf igurati on > Spread Spe ctrum Configu rati on

Proce ssor Fr equenc y Multi plier [Aut o] SB to K8(CPU ) Freq Auto [Ena bled] SB to K8(CPU ) Link Width [16 16 ] Memor y Clock Mode [Aut o] MCP P CI-Expr ess Fr equency , MH [100 ]

Integ rated M emory Test [Dis abled]

Exit

Op tions

Normal Automate Ove rClock Manual Ov erClock

↓

BIOS SE TUP UTILI TY

Main Advan ced PCIPnP Boot Chipset T -Series

vxx.xx (C )Copyri ght 19 85-200x , America n Megatr ends, Inc .

Select Sc reen Select It em Go to Sub Screen General H elp Save and Exit Exit

Enter F1 F10 ESC

T-Ser ies Settings

WARNI NG: Set ting w rong va lues in be low sec tions may cause system to malfun ction.

===== ====== Automa te Over Clock System ==== =======

===== ======= Manua l OverC lock Syste m ===== =======

OverC lock Na vigato r [Nor mal]

Auto OverClo ck Sys tem [V6- Tech En gine]

CPU F requenc y, MHz [200 ]

> Ove r-Volta ge Con figurat ion > DRA M Timin g Conf igurati on > Spread Spe ctrum Configu rati on

Proce ssor Fr equenc y Multi plier [Aut o] SB to K8(CPU ) Freq Auto [Ena bled] SB to K8(CPU ) Link Width [16 16 ] Memor y Clock Mode [Aut o] MCP P CI-Expr ess Fr equency , MH [100 ]

Integ rated M emory Test [Ena bled]

Exit

Op tions

Normal Automate Ove rClock Manual Ov erClock

Step 2

Save and Exit from CMOS setup and reboot the system to activate this test. Run this test for 5 minutes (minimum) to ensure the memory stability.

Step 3

When the process is done, change the setting back from “Enable” to “Disable” to complete the test.

Page 31

TF8200 A2+ SE/TF720 A2+/TF710 A2+

C. BIO-Flasher

BIO-Flasher is a BIOS flashing utility providing you an easy and simple way to update your BIOS via USB pen drive or floppy disk.

The BIO-Flasher is built in the BIOS chip. To enter the utility, press <F12> during the Power-On Self Tests (POST) procedure while booting up.

Updating BIOS with BIO-Flasher

1. Go to the website to download the latest BIOS file for the motherboard.

2. Then, save the BIOS file into a USB pen drive or a floppy disk.

3. Insert the USB pen drive or the floppy disk that contains the BIOS file to the USB port or the floppy disk drive.

4. Power on or reset the computer and then press <F12> during the POST process. A select dialog as the picture on the right appears. Select the device contains the BIOS file and press <Enter> to enter the utility.

5. T he utility will show the BIOS files and their respective information. Select the proper BIOS file and press <Enter> then <Y> to perform the BIOS update process.

6. After the update process, the utility will ask you to reboot the system. Press <Y> to proceed. BIOS update completes.

z This utility only allows storage device with FAT32/16 format and single

parti tion.

z Shutting down or resetting the system while updating the B IOS will lead to

system boot failure.

Page 32

Motherboard Manual

D. Self Recovery System (S.R.S.)

This function can’t be seen under BIOS setup; and is always on whenever the system starts up. However, it can prevent system hang-up due to inappropriate overclock actions. When the system hangs up, S.R.S. will automatically log in the default BIOS setting, and all overclock settings will be re-configured.

E. Smart Fan Function

Smart Fan Function is under “Smart Fan Configuration” in “Advanced Menu”. This is a brilliant feature to control CPU/System Temperature vs. Fan speed. When enabling Smart Fan function, Fan speed is controlled automatically by CPU/System temperature. This function will protect CPU/System from overheat problem and maintain the system temperature at a safe level.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset T-Series

Select Screen Select Item Go to Sub Screen General Help Save and Exit Exit

Enter F1 F10 ESC

Configure CPU.Advanced Settings

WARNING: Setting wrong values in below sections may cause system to malfunction.

> CPU Configuration

> USB Configuration > AUDIO Configuration > Onboard LAN Configuration

> SuperIO Configuration > Hardware Health Configuration

> Power Configuration

> Smart Fan Configuration

Exit

↓

BIOS SETUP UTILITY

Advanced

Select Screen Select Item Change Option General Help Save and Exit Exit

+F1 F10 ESC

When you choice [Auto] ,[3Pin] or [4Pin], please run the calibration to define the Fan parameters for Smart Fan control

Smart Fan Configuration

CPU Smart Fan [Disabled]

Smart Fan Calibration Control Mode Fan Ctrl OFF( C)

Fan Ctrl On( C) Fan Ctrl Start value Fan Ctrl Sensitive

Page 33

TF8200 A2+ SE/TF720 A2+/TF710 A2+

Smart Fan Calibration

Choose this item and then the BIOS will automatically test and detect the CPU/System fan functions and show CPU/System fan speed.

Control Mode

This item provides several operation modes of the fan.

Fan Ctrl OFF(℃)

If the CPU/System temperature is lower than the set value, the CPU/ System fan will turn off. The range is from 0~127, with an interval of 1.

Fan Ctrl On(℃)

The CPU/System fan starts to work when CPU/System temperature arrives to this set value. The range is from 0~127, with an interval of 1.

Fan Ctrl Start Value

When CPU/System temperature arrives to the set value, the CPU/System fan will work under Smart Fan Function mode. The range is from 0~127, with an interval of 1.

Fan Ctrl Sensitive

Increasing the value of slope PWM will raise the speed of CPU/System fan. The range is from 1~127, with an interval of 1.

F. CMOS Reloading Program

It allows users to save different CMOS settings into BIOS-ROM. Users are able to reload any saved CMOS setting for customizing system configurations. Moreover, users are able to save an ideal overclock setting during overclock operation. There are 10 sets of record addresses in total, and users are able to name the CMOS data according to personal preference.

BIOS SETUP UTILITY

Main Advanced

PCIPnP Boot

Chipset T-Series

Select Screen Select Item Go to Sub Screen General Help Save and Exit Exit

Enter F1 F10 ESC

Exit Options

ReloadCMOS Settings

Security Settings

Save Changes and Exit Discard Changes and Exit Discard Changes

Load Optimal Defaults

> Security

CMOS Backup Function

Exit

CMOS Backup Func

CMOS Data

CMOS Data Reload

Save

Page 34

Motherboard Manual

5.2 T-SERIES SOFTWARE

Installing T-Series Software

1. Insert the Setup CD to the optical drive. The drivers installation program would appear if the Auto-run function has been enabled.

2. Select Software In stallation, and then click on the respective software title.

3. Follow the on-screen instructions to complete the installation.

Launching T-Series Software

After the installation process, you will see the software icon “T-Utility OverClock III” / “HW Monitor” / “eHOT Line” / “Tseries BIOS Update” appears on the desktop. Double-click the icon to launch T-Series utility.

OverClock 3

OverClock 3 is equipped with friendly interface and solid over-clock features, and it will help you easily do over-clocking under windows environment.

Double-click the desktop ico n, OverClock 3 will be launched; the first window you will see is Main Panel. In this panel you will see current CPU Speed and

CPU/Memory/PCI-E/PCI Clock.

Open Over Voltage Panel

Open

Over Clock

Panel

ON/OFF

Ope n a s ave d setti ng / Save curr ent settings

Open Over Voltage Panel

Open

Ab ou t Pane

Page 35

TF8200 A2+ SE/TF720 A2+/TF710 A2+

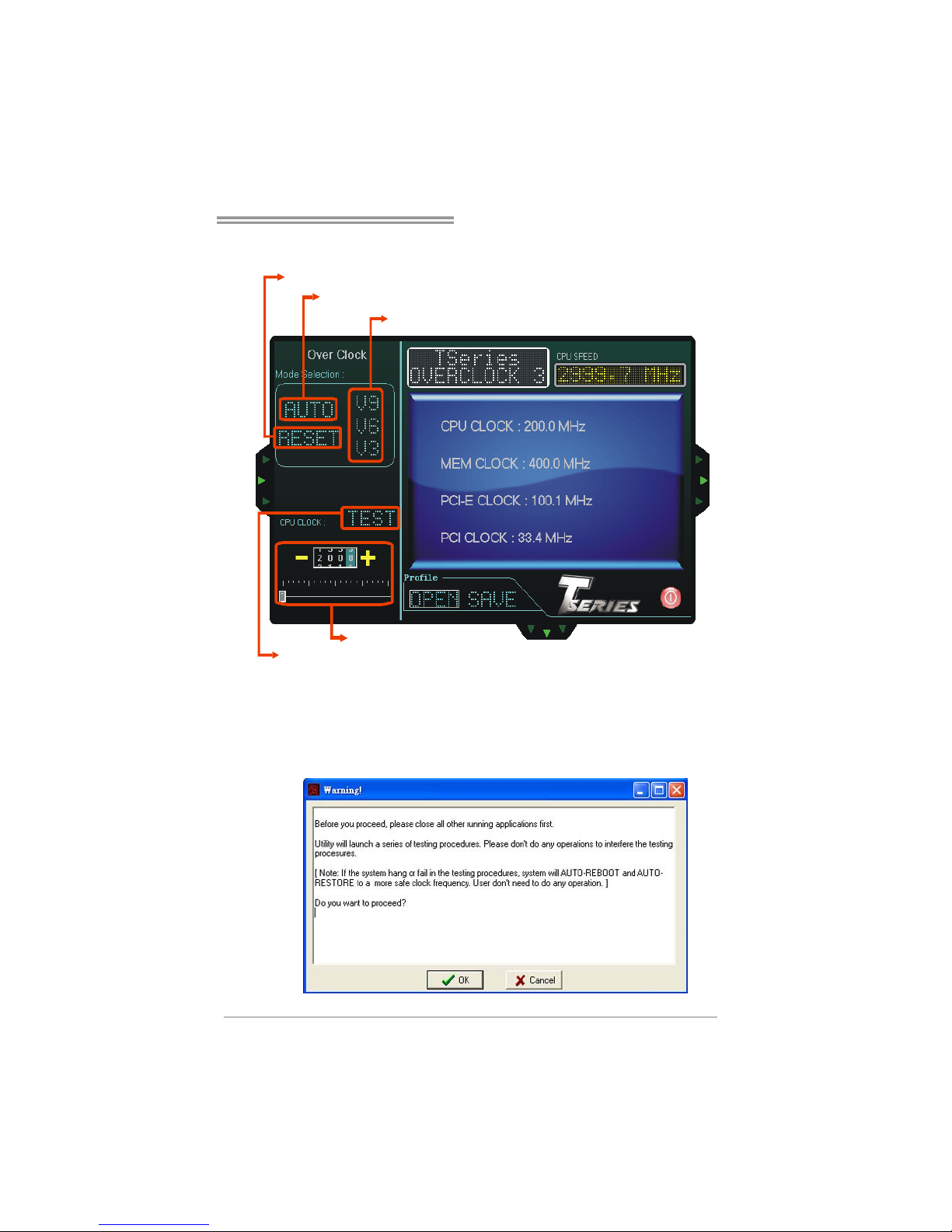

Over Clock Panel

V3/V6/V 9 Eng i ne Real-time Over-clock

AUTO Over-Clock

Restore Default Settings

Test & Apply Manual Settings

Manual Adj ust CPU Clock

AUTO

User can click t his b utton and the utility will set the best and stable performance and frequency automatically. A warning dialog as below will show up to notify you that the system may become unstable, click on “OK” to continue.

Page 36

Motherboard Manual

Then the utility will exec ute a series of testing until system fail. Then system will do fail-safe reboot by using Watchdog function. After reboot, launch the utility again and the utility will load the pre viously verified best and stable frequency.

V3 / V6 / V9

Provide user the ability to do real-time over-clock adjustment. For beginners in over-clock field, this is a powerful feature to increase system performance.

 V3 Engine

This engine will make a good over-clock performance.

 V6 Engine

This engine will make a better over-clock performance.

 V9 Engine

This engine will make a best over-clock performance.

TEST

You can also manually adjust CPU clock by pressing +/- button or moving the level bar. After manually adjust the CPU clock, you should click

TEST button and the utility will proceed a testing for current frequency. If the testing is ok, then the current frequency will be saved into system registry. If the testing fails, system will do a fail-safe rebooting. After reboot, the utility will restore to the hardware default setting.

Warning

Manually over-clock is potentially dangerous, especially when the over-clocking percentage is over 110 %. We strongly recommend you test every speed you over-clock by click the TEST button. Or, you can just click AUTO over-clock button and let the Utility automatically get the best result for you.

RESET

Click t his button and the utility will restore all values to the hardware default setting.

Page 37

TF8200 A2+ SE/TF720 A2+/TF710 A2+

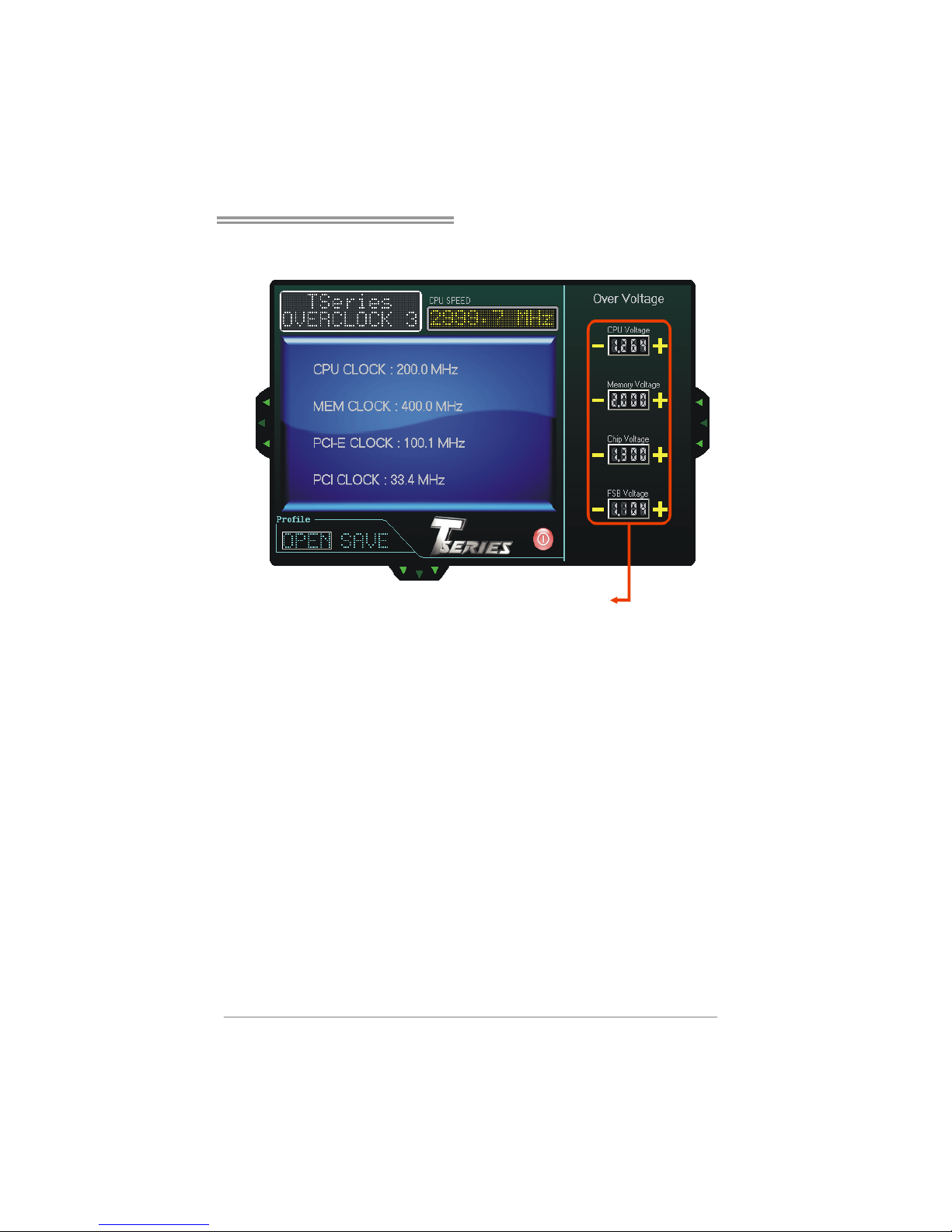

Over Voltage Panel

Manual Adj ust CPU/Memo ry/Chipset/FSB Voltage

CPU Voltage

This function allows user to adjust CPU voltage. Click on “+” to increase or “-“ to decrease the CPU voltage.

Memory Voltage

This function allows user to adjust Memory voltage. Click on “+” to increase or “-“ to decrease the Memory voltage.

Chip Voltage

This function allows user to adjust Chipset voltage. Click on “+” to increase or “-“ to decrease the Chipset voltage.

FSB Voltage

This function allows user to adjust FSB voltage. Click on “+” to increase or “-“ to decrease the FSB voltage.

Page 38

Motherboard Manual

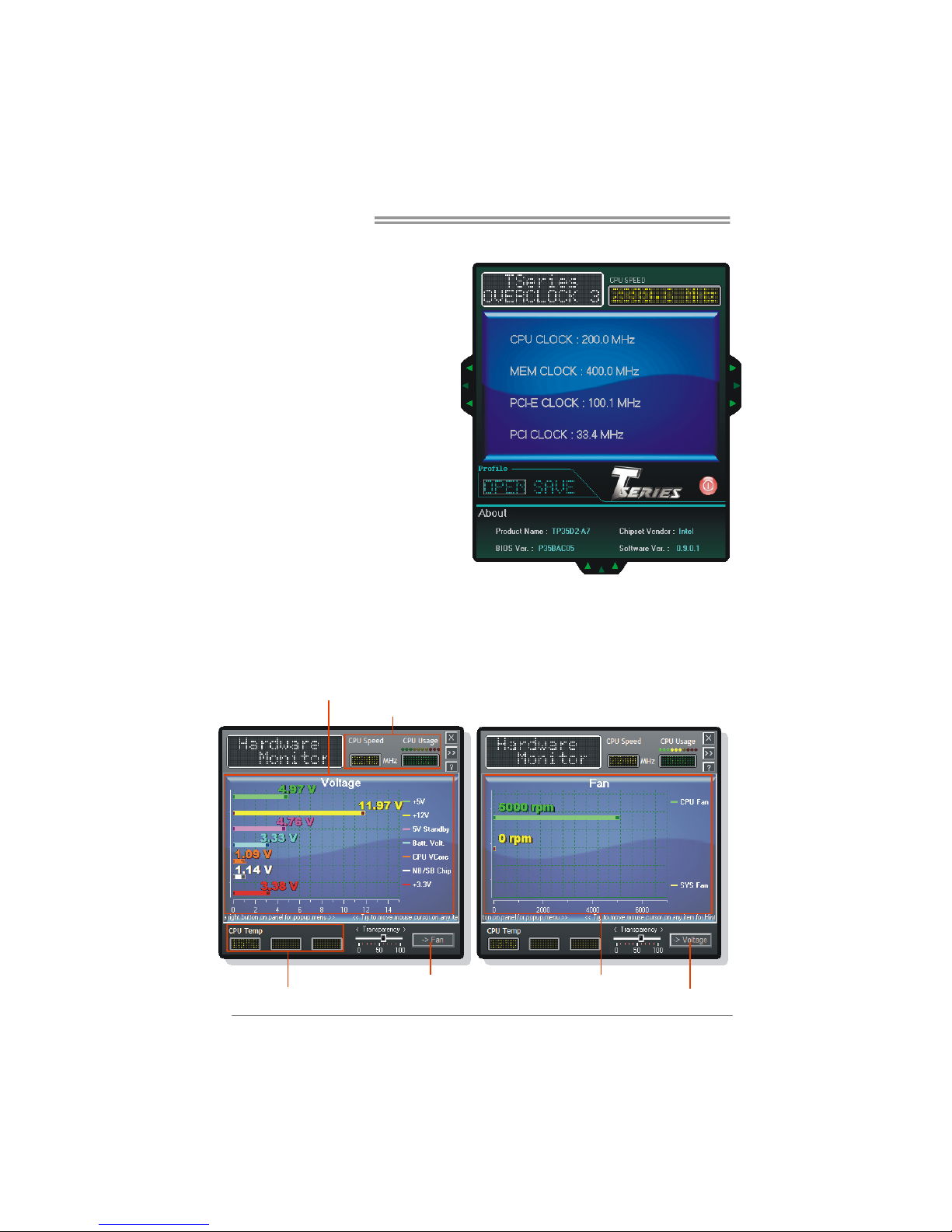

About Panel

In this panel, you can get model name and other system information that may related to over-clocking. You can also get the version number of this software.

Note

Because the Over Clock and Over Voltage features are controlled by several separate chipset, the utility divides these features to separate panels. If one chipset is not on board, the correlative button in Main panel will be disabled, but it will not interfere with other panels’ functions. This property can make the utility more robust.

Hardware Monitor

HW Monitor is a monitor utility that helps you to maintain the healt h of the PC. It provides real-time information of CPU/GPU/System temperat ure, fan speed, and voltage.

Thi s area s hows CPU/ Syst em t emper atur e

Vol tag e Pa nel Fan Pa nel

Tu rn t o Fa n Pa nel

Thi s area sh ows vol tage i nforma tion

Thi s area sh ows CPU in fo rmati on

Turn to Voltage Panel

Thi s area sh ows CPU/ Syst em f an spee d

Page 39

TF8200 A2+ SE/TF720 A2+/TF710 A2+

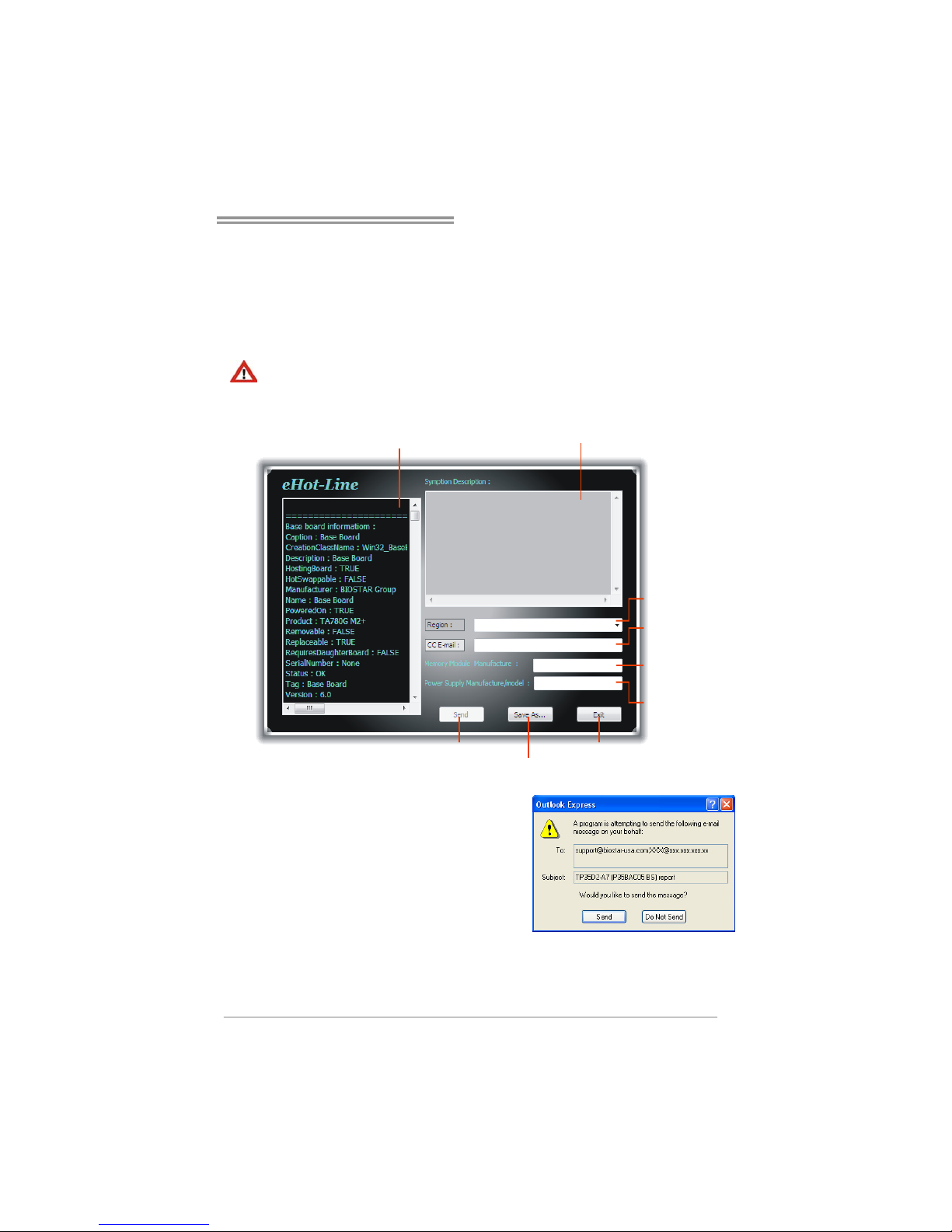

eHot-Line (Optional)

eHot-Line is a convenient utility that helps you to contact with our Tech-Support system. This utility will collect the system information which is useful for analyzing the problem you may have encountered, and then send these information to our tech-support department to help you fix the problem.

Before you use this uti lity, please set Outlook E xp ress as your default e-mail client applicatio n program.

This block will show the infor mation which would be collect ed in the mail.

Provid e the e-ma il addres s that you woul d like t o send the copy to.

Provid e the name of the power s upply manufac turer and the model no .

Send the mail ou t.

Save these information to a .txt fil

Exit this dialog.

Select your area or the area clos e to yo u.

Provide t he name of the memory module manufa cturer.

Describe co ndition of your syst em.

rep resents import ant information that you must provi de. Withou t this i nformat ion, you may not be able to send ou t the mail.

After filling up this information, click “Send” to send the mail out. A warning dialog would appear asking for your confirmation; click “Send” to confirm or “Do Not Send” to cancel.

If you want to save this information to a .txt file, click “Save As…” and then you will see a saving dialo g appears asking you to enter file name.

Page 40

Motherboard Manual

Enter the file name and then click “Save”. Your system information will be saved to a .txt file.

Open the saved .txt file, you will see your system information including motherboard/BIOS/CPU/video/ device/OS information. This information is also concluded in the sent mail.

We will not share customer’s data with any other third parties, so please feel free to provide your system information while using eHot-Line service.

If you are not using Outlook Express as your default e-mail client application, you may need to save the system information to a .txt file and send the file to our tech support with other e-mail application. Go to the following web

http://www.biostar.com.tw/app/en-us/about/contact.php for getting

our contact information.

Page 41

TF8200 A2+ SE/TF720 A2+/TF710 A2+

BIOS Update

BIOS Update is a convenient utility which allows you to update your motherboard BIOS under Windows system.

Update BIOS

with a BIOS file

Clear CMOS function

(Only for AWARD BIOS)

Show current BIOS information

Save cur rent BIOS

to a .bin file

AWARD BIOS AMI BIOS

Once click on this button, the saving dialog will show. Choose t he position to save file and enter file name. (We recommend that the file name should be English/number and no longer than 7 characters.) Then click Save.

After the saving process, finish dialog will show. Click on OK to complete the BIOS Backup procedure.

Page 42

Motherboard Manual

Before doing this, please download the proper BIOS file from the website.

For AWARD BIOS, update BIOS procedure should be run with Clear CMOS function, so please check on Clear CMOS first.

Then click Update BIOS button, a dialog will show for asking you backup current BIOS. Click Yes for BIOS backup and refer to the Backup BIOS procedure; or click No to skip this procedure.

After the BIOS Backup procedure, the open dialog will show for requesting the BIOS file which is going to be updated. Please choose the proper BIOS file for updating, then click on Open.

The utility will update BIOS with the proper BIOS file, and this process may take minutes. Please do not open any other applications during this process.

After the BIOS Update process, click on OK to restart the system.

While the system boots up and the full screen logo shows, press <Delete> key to enter BIOS setup.

In the BIOS setup, use the Load Optimized Defaults function and then Save and Exit Setup to exit BIOS setup. BIOS Update is completed.

All the information and content above about the T-Series software are subject to be changed without notice. For better performance, the software is being continuously updated. The information and pictures described above are for your reference only. The actual i nformation and settings on board may be slightly different from this manual.

Page 43

TF8200 A2+ SE/TF720 A2+/TF710 A2+

CHAPTER 6: USEFUL HELP

6.1 D

RIVER INSTALLATION NOTE

After you installed your operating system, please insert the Fully Setup Driver CD into your optical drive and install the driver for better system performance.

You will see the following window after you insert the CD

The setup guide will auto detect your motherboard and operating system.

Note:

If this window didn’t show up after you insert the Driver CD, please use file browser to locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the compatible driver for your motherboard and operating system. Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list the software available for your system, click on each software title to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver CD. Click on the Manual icon to browse for available manual.

Note:

You will need Acrobat Reader to open the manual file. Please download the latest version of Acrobat Reader so ftware from http://www.adobe.com/produ cts/a crobat/readstep2 .html

Page 44

Motherboard Manual

6.2 EXTRA INFORMATION

CPU Overheated

If the system shutdown automatically after power on system for seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data. (See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

Page 45

TF8200 A2+ SE/TF720 A2+/TF710 A2+

6.3 AMI BIOS BEEP CODE

Boot Block Beep Codes

Number of Beeps Description

1 No media present. (Insert diskette in floppy drive A:)

“AMIBOOT.ROM” file not found in root directory of diskette in

A: 3 Insert next diskette if multiple diskettes are used for recovery 4 Flash Programming successful 5 File read error 7 No Flash EPROM detected

10 Flash Erase error 11 Flash Program error 12 “AMIBOOT.ROM” file size error

BIOS ROM image mismatch (file layout does not match

image present in flash device)

POST BIOS Beep Codes

Number of Beeps Description

1 Memory refresh timer error 3 Base memory read/write test error 6 Keyboard controller BAT command failed 7 General exception error (processor exception interrupt error) 8 Display memory error (system video adapter)

Troubleshooting POST BIOS Beep Codes

Number of Beeps Troubleshooting Action

1, 3 Reseat the memory, or replace with known good modules.

6, 7

Fatal error indicating a serious problem with the system.

Consult your system manufacturer. Before declaring the

motherboard beyond all hope, eliminate the possibility of

interference by a malfunctioning add-in card. Remove all

expansion cards except the video adapter.

z If beep codes are generated when all other expansion

cards are absent, consult your system manufacturer’s technical support.

z If beep codes are not generated when all other expansion

cards are absent, one of the add-in cards is causing the malfunction. Insert the cards back into the system one at a time until the problem happens again. This will reveal the malfunctioning card.

If the system video adapter is an add-in card, replace or

reseat the

video adapter. If the video adapter is an integrated part of the

system board, the board may be faulty.

Page 46

Motherboard Manual

6.4 TROUBLESHOOTING

Probable Solution

1. No power to the system at all Power light don’t illuminate, fan inside power supply does not turn on.

2. Indicator light on keyboard does not turn on.

1. Make sure power cable is securely plugged in.

2. Replace cable.

3. Contact technical support.

System inoperative. Keyboard lights are on, power indicator lights are lit, and hard drive is spinning.

Using even pressure on both ends of the DIMM, press down firmly until the module snaps into place.

System does not boot from hard disk drive, can be booted from optical drive.

1. Check cable running from disk to disk controller board. Make sure both ends are securely plugged in; check the drive type in the standard CMOS setup.

2. Backing up the hard drive is extremely important. All hard disks are capable of breaking down at any time.

System only boots from optical drive. Hard disk can be read and applications can be used but booting from hard disk is impossible.

1. Back up data and applications files.

2. Reformat the hard drive. Re-install applications and data using backup disks.

Screen message says “Invalid Configuration” or “CMOS Failure.”

Review system’s equipment. Make sure correct information is in setup.

Cannot boot system after installing second hard drive.

1. Set master/slave jumpers correctly.

2. Run SETUP program and select correct drive types. Call the drive manufacturers for compatibility with other drives.

Page 47

TF8200 A2+ SE/TF720 A2+/TF710 A2+

This page is intentionally left blank

Page 48

Motherboard Manual

APPENDENCIES: SPEC IN OTHER LANGUAGE

ERMAN

TF8200 A2+ SE TF720 A2+/TF710 A2+

CPU

Sockel AM2+ AMD Athlon 64 / Ath lon 64 FX / Althlon 64 X2 / Sempron / Pheno m Prozess oren Die AMD 64-Archit ektur unt erstützt eine 32-Bitund 64-Bit-Datenverarbeitung Unterstützt Hyper Transport 3.0 und PowerNow

FSB

Unterstützt HyperTransport 3.0 mit einer Bandbreite von bis zu 5.2 GT/s

Chipsatz GeForce 8200

GeForce 8100 (TF720 A2+) nForce 710a (TF710 A2+)

Super E/A

ITE 8718F Biet et die h äuf ig verwend eten a lten S up er E/A-Funktionen. Low Pin Count-Schnittstelle Umgebungskontrolle, Hardware-Überwachung Lüfterdrehzah l-Controller "Smart Guardian"-Funktion von ITE

Arbeitsspeich er

DDR2 DIMM-Steckplätze x 4 Jeder DIMM unterstützt 256MB/512MB/1GB/ 2GB/4GB DDR2. Max. 16GB Arbeitsspeicher Dual-Kanal DDR2 Speichermodul Unterstützt DDR2 533 / 667 / 800 Unterstützt DDR2 1066 (by AM2+ CPU) registrierte DIMMs. ECC DIMMs werden nicht unterstützt.

Grafik

For TF8200A2+ SE / TF7 20 A2+ O nly

Integrierter GeForce 8200 –Ch ipsatz Max. 512MB gemeinsam benutzter Videospeicher Unterstützt DX10 / HDCP / PureVideo HD

Integrierter GeForce 8100 –Ch ipsatz Max. 512MB gemeinsam benutzter Videospeicher Unterstützt DX10 / HDCP / PureVideo

IDE

Int eg r iert er IDE - Co n tro ller Ultra DMA 33 / 66 / 100 / 133 Bus Master-Modus Unterstützt PIO-Modus 0~4

SATA II

Integrierter Serial ATA-Controller Datentransferrate b is zu 3Gb/s Konform mit d er SATA-Spezifikation Version 2.0.

Page 49

TF8200 A2+ SE/TF720 A2+/TF710 A2+

TF8200 A2+ SE TF720 A2+/TF710 A2+

LAN

Realtek RTL 8111C 10 / 100 / 1000 Mb/s Auto-Negotiation Halb-/ Vollduplex-Funktion

Audio-Codec

ALC662

5.1-Kanal-Audioausgabe Unterstützt High-Definit ion Audio

ALC662

5.1-Kanal-Audioausgabe

Unterstützt High-Definit ion Audio PCI-St eckp latz x3 PC I-S teckplatz x3 PCI Express Gen2 x16 Steckplatz x1 PCI Express Gen2 x16 Steckplatz x1

Steckplätze

PCI Express x1 Steckplatz x2 PCI Express x1 Steckplatz x2 Diskettenlaufwerkanschluss x1 Diskettenlaufwerkanschluss x1 Druckeranschluss Anschluss x1 Druckeranschluss Anschluss x1 IDE-Anschluss x1 IDE-Anschluss x1

SATA-Anschluss x6 SATA-Anschluss x6 Fronttafelanschluss x1 Fronttafelanschluss x1 Front-Audioanschluss x1 Front-Audioanschluss x1 CD-IN-Anschluss x1 CD-IN-Anschluss x1 S/PDIF Ausgangsanschluss x1 S/PDIF Ausgangsanschluss x1 CPU-Lüfter-Sockel x1 CPU-Lüfter-Sockel x1 System-Lüfter-Sockel x2 System-Lüfter-Sockel x2 "CMOS lös chen"- So ckel x 1 "C MOS löschen"-Socke l x 1 USB-Anschluss x4 USB-Anschluss x4 Serieller Anschluss x1 Serieller Anschluss x1 Stromanschluss (24-polig) x1 Stromanschluss (24-polig) x1

Onboard-Ans chluss

St romans ch luss (4- polig ) x2 St romans ch luss (4- polig ) x2

Rückseiten-E /A

PS/2-Tastatur x 1 PS/2-Maus x1 LAN-Anschluss x1 USB-Anschluss x4 Audioanschluss x3 DVI-Anschluss x1 VGA-Anschluss x1

PS/2-Tastatur x 1

PS/2-Maus x1

LAN-Anschluss x1

USB-Anschluss x4

Audioanschluss x3

DVI-Anschluss (for TF720 A2+) x1

VGA-Anschluss (for TF720 A2+) x1

Plat inengröße 220 mm (B) X 305 mm (L) 220 mm (B) X 305 mm (L)

Sonderfunkti onen

Unterstützt RAID 0 / 1 / 5 / 0+1 Unterstützt Hybrid SLI (by nVIDIA driver)

Unterstützt RAID 0 / 1 / 5 / 0+1

Unterstützt Hybrid SLI (by nVIDIA driver) (for

TF720 A2+)

OS-Unterstüt zung

Windows XP / VISTA Biostar behält sich das Recht vor, ohne Ankündigung die Unterstützung für ein Betriebssystem hinzuzufügen oder zu entfernen.

Windows XP / VISTA

Biostar behält sich das Recht vor, ohne

Ankündigung die Unterstützung für ein

Betriebssystem hinzuzufügen oder zu

entfernen.

Page 50

Motherboard Manual

FRANCE

TF8200 A2+ SE TF720 A2+/TF710 A 2+

Socket AM2+ Processeurs AMD Athlon 64 / Athlon 64 FX / Althlon 64 X2 / Sempron / Phenom L'architecture AMD 64 permet le calcul 32 et 64 bits Prend en charge Hyp er Transport 3.0 et Power Now

Bus frontal

Prend en ch arge Hype r Transp ort 3.0

usqu'à une

bande passante de 5.2 GT/s

Prend en ch arge Hype r Transp ort 3.0

usqu'à une

bande passante de 5.2 GT/s

Chipset GeForce 8200

GeForce 8100 (TF720 A2+) nForce 710a (TF710 A2+)

Super E/S

ITE 8718F Fournit la fonctionnalité de Super E/S patrimoniales la plus utilisée. Int e rf ace à f aib le co mpt e de b roches Initiatives de contrôle environnementales, Mon iteur d e mat ériel Contrôleur de vitess e de ventilateur Fonction "Gardien intelligent" de l'ITE

Mémoire principale

Fentes DDR2 D IMM x 4 Chaque DIMM prend en charge des DDR2 de 256 Mo /512 Mo/1 Go/2 Go /4 Go Capac ité mémo ire max imale de 16 Go Module de mémoire DDR2 à mode à double voie Prend en charge la DDR2 533 / 667 / 800 Prend en charge la DDR2 1066 (by AM2+ CPU) Les DIMM à registres et DIMM avec code correcteurs d'err eurs ne so nt pas prises en charg e

Graphiques

For TF8200A2+

SE / T F720 A2+ Only

Integré dans la chipset GeForce 8200 Mémoire vidéo partagée maximale de 512 Mo Prise en charge DX10 / HDCP / Pur eV ideo HD

Integré dans la chipset GeForce 8100 Mémoire vidéo partagée maximale de 512 Mo Prise en charge DX10 / HDCP / Pur eV ideo

IDE

Contrôleur IDE integer Mode principale de Bus Ultra DMA 33 / 66 / 100 / 133 Prend en charge le mode PIO 0~4

SATA II

Contrô leur Serial ATA int égr é Taux de transfert jusqu'à 3 Go/s. Co nfo rme à la s pécificat ion S ATA Ver s ion 2 .0

Page 51

TF8200 A2+ SE/TF720 A2+/TF710 A2+

TF8200 A2+ SE TF720 A2+/TF710 A 2+

LAN

Realtek RTL 8111C 10 / 100 / 1000 Mb/s négociation auto matique Half / Full duplex capability

Codec audio

ALC662 Sortie aud io à 5 .1 voies Prise en charge de l'aud io haut e déf inition

ALC662 Sortie aud io à 5 .1 voies

Prise en charge de l'aud io haut e déf inition Fente PCI x3 Fente PCI x3 Slot PCI Express Gen2 x16 x1 Slot PCI Express Gen2 x16 x1

Fentes

Slot PCI Express x1 x2 Slot PCI Express x1 x2 Connecteur de disquette x1 Connecteur de disquette x1 Connecteur de Port d'imprimante x1 Connecteur de Port d'imprimante x1 Connecteur IDE x1 Connecteur IDE x1 Connecteur SATA x6 Connecteur SATA x6 Connecteur du panneau avant x1 Connecteur du panneau avant x1 Connecteur Audio du panneau avant x1 Connecteur Audio du p anneau avant x1 Connecteur d' ent rée CD x1 Connecteur d' entrée CD x1 Connecteur de sortie S/PDIF x1 Connecteur de sortie S/PDIF x1 Embase de ventilateur UC x1 Embase de ventilateur UC x1 Embase de ventilateur système x2 Embase de ventilateur système x2 Embase d'effacement CMOS x1 Embase d'effacement CMOS x1 Connecteur USB x4 Connecteur USB x4 Connecteur de Port série x1 Connecteur de Port série x1 Connecteur d' aliment ation x1 (24 broches)

Connecteur d' aliment ation x1

(24 broches)

Connecteur embarqu é

Connecteur d' aliment ation x 2 (4 broch es)

Connecteur d' aliment ation x 2

(4 broch es)

E/S du panneau arrière

Clavier PS/2 x1 Souris PS/2 x1 Port LA N x1 Port USB x4 Fiche aud io x3 Port DV I x1 Port VGA x1

Clavier PS/2 x1

Souris PS/2 x1

Port LA N x1

Port USB x4

Fiche aud io x3

Port DVI (for TF720 A2 +) x1

Port VGA (for TF720 A2+) x1

Dimensions de la carte

220 mm (l) X 305 mm (H) 220 mm (l) X 305 mm (H)

Fonctionnali tés spéciales

Prise en charge RAID 0 / 1 / 5 / 0+1 Pr is e en ch ar g e H ybr id SL I (by nV ID IA driver )

Prise en charge RAID 0 / 1 / 5 / 0+1

Pr is e en ch ar g e H ybr id SL I (by nV ID IA driver )

(for TF720 A2+)

Support SE

Windows XP / VISTA Biostar se réserve le droit d'ajouter ou de supprimer le support de SE avec ou sans préavis.

Windows XP / VISTA

Biostar se réserve le droit d'ajouter ou de

supprimer le support de SE avec ou sans préavis.

Page 52

Motherboard Manual

ITALIAN

TF8200 A2+ SE TF720 A2+/TF710 A 2+

CPU

Socket AM2+ Processori AMD Athlon 64 / Athlon 64 FX / Althlon 64 X2 / Sempron / Phenom L’arch itettu ra AMD 64 ab ilita la computazione 32 e 64 bit Supporto di Hyper Transport 3.0 e PowerNow

Socket AM2+

Processori AMD Athlon 64 / Athlon 64 FX /

Althlon 64 X2 / Sempron / Phenom

L’arch itettu ra AMD 64 ab ilita la

computazione 32 e 64 bit

Supporto di Hyper Transport 3.0 e

PowerNow

FSB

Supporto di HyperTransport 3.0 fino a 5.2 GT/s di larghezza di banda

Supporto di HyperTransport 3.0 fino a 5.2

GT/s di larghezza di banda

Chipset GeForce 8200

GeForce 8100 (TF720 A2+)

nForce 710a (TF710 A2+)

Super I/O

ITE 8718F Fo rn is ce le fu nz io nalit à leg acy S uper I/O usate più comunemente. Interfaccia LPC (Low Pin Count) Funzioni di controllo dell’ambiente: Monitoraggio hardware Co ntro ller velocità ven tol ina Funzione "Smart Guardian" di ITE

ITE 8718F

Fo rn is ce le fu nz io nalit à leg acy S uper I/O

usate più comunemente.

Interfaccia LPC (Low Pin Count)

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Co ntro ller velocità ven tol ina

Funzione "Smart Guardian" di ITE

Memor ia principale

Alloggi DIMM DDR2 x 4 Ciascun DIMM supporta DDR2 256MB/ 512MB/1GB/2GB/4GB Capacità massima della memoria 16GB Modulo di memoria DDR2 a canale doppio Supporto di DDR2 533 / 667 / 800 Supporto di DDR2 1066 (by AM2+ CPU) DIMM r egistrati e DIMM ECC non sono supportati

Alloggi DIMM DDR2 x 4

Ciascun DIMM supporta DDR2 256MB/

512MB/1GB/2GB/4GB

Capacità massima della memoria 16GB

Modulo di memoria DDR2 a canale doppio

Supporto di DDR2 533 / 667 / 800

Supporto di DDR2 1066 (by AM2+ CPU)

DIMM r egistrati e DIMM ECC non sono

supportati

Grafica

For TF8200A2+ SE / TF720 A2+ Only

Integrata nel Chipset GeForce 8200 La memo ria video condivisa mas s ima è di 512 MB Supporto DX10 / HDCP / PureV ideo HD

Integrata nel Chipset GeForce 8100

La memo ria video condivisa mas s ima è di

512 MB

Supporto DX10 / HDCP / PureV ideo

IDE

Co ntro ller IDE int egrato Modalità Bus Master Ultra DMA 33 / 66 / 100 / 133 Supporto modalità PIO Mode 0-4

Co ntro ller IDE int egrato

Modalità Bus Master Ultra DMA 33 / 66 /

100 / 133

Supporto modalità PIO Mode 0-4

SATA II

Co ntro ller Ser ial ATA int eg rato Velocità di trasferimento dei dati fino a 3 Gb/s. Co mp at ibi le s p ec ifich e S ATA Ver sione 2 .0 .

Co ntro ller Ser ial ATA int eg rato

Velocità di trasferimento dei dati fino a 3

Gb/s.

Co mp at ibi le s p ec ifich e S ATA Ver sione 2 .0 .

Page 53

TF8200 A2+ SE/TF720 A2+/TF710 A2+

TF8200 A2+ SE TF720 A2+/TF710 A 2+

LAN

Realtek RTL 8111C Negoziazione automatica 10 / 100 / 1000 Mb/s Capacità Half / Full Dup lex

Realtek RTL 8111C

Negoziazione automatica 10 / 100 / 1000

Mb/s

Capacità Half / Full Dup lex

Codec audio

ALC662 Uscita audio 5.1 canali Supporto audio High-Definition (HD)

ALC662

Uscita audio 5.1 canali

Supporto audio High-Definition (HD) Allo g gio PC I x 3 A llogg io PC I x3 Alloggio PCI Express Gen2 x16 x1 Alloggio PCI Express Gen2 x16 x1

Allo g gi

Alloggio PCI Express x1 x2 Alloggio PCI Express x1 x2 Connettore floppy x1 Connettore floppy x1 Connettore Porta stampante x1 Connettore Porta stampante x1 Connettore IDE x1 Connettore IDE x1 Connetto re SATA x 6 Connettore SATA x6 Connettore pannello frontale x1 Connettore pannello frontale x1 Connettore audio frontale x1 Connettore audio frontale x1 Connettore CD-in x1 Connettore CD-in x1 Connettore output SPDIF x1 Connettore output SPDIF x1 Co llet t ore vento lina C PU x 1 Co llet t ore vento lina C PU x 1 Co llet t ore vento lina sistema x 2 C olletto re vent olina s is t em a x2 Co llet t ore cancellaz ione CMOS x1 Co llet tore cancellaz ione CMOS x1 Connettore USB x4 Connettore USB x4 Connettore Po rta seriale x1 Connettore Po rta seriale x1 Connetto re aliment azione x 1 (24 pin)

Connetto re aliment azione x 1

(24 pin)

Connettori su scheda

Connetto re aliment azione x2 (4 pin)

Connetto re aliment azione x2

(4 pin)

I/O pannello posteriore

Tas t ier a PS/2 x 1 Mou s e PS /2 x1 Port a LA N x1 Port a USB x 4 Connettore audio x3 Port a DV I x 1 Port a VGA x1

Tas t ier a PS/2 x 1

Mou s e PS /2 x1

Port a LA N x1

Port a USB x 4

Connettore audio x3

Porta DVI (for TF720 A2+) x1

Porta VGA (for TF720 A2+) x1

Dimension i scheda

220 mm (larghezza) x 305 mm (altezza) 220 mm (larghezza) x 305 mm (altezza)

Caratterist iche speciali

Supporto RAID 0 / 1 / 5 / 0+1 Su pporto Hybrid S LI (by nVID IA d river )

Supporto RAID 0 / 1 / 5 / 0+1

Su pporto Hybrid S LI (by nV IDIA dr iver) (f or

TF720 A2+)

Sistemi op er at ivi supportati

Windows XP / VISTA Biostar si riserva il diritto di aggiungere o rimuovere il supporto di qualsiasi sistema operativo senza preavviso.

Windows XP / VISTA

Biostar si riserva il diritto di aggiungere o

rimuovere il supporto di qualsiasi sistema

operativo senza preavviso.

Page 54

Motherboard Manual

SPANISH

TF8200 A2+ SE TF720 A2+/TF710 A 2+

CPU

Conector AM2+ Procesadores AMD Athlon 64 / Athlon 64 FX / Athlon 64 X2 / Sempron / Phenom La arquitectura AMD 64 permite el procesado de 32 y 64 bits Soporta las tecnologías Hyper Transport 3.0 y Power Now

Conector AM2+

Procesadores AMD Athlon 64 / Athlon 64 FX /

Athlon 64 X2 / Sempron / Phenom

La arquitectura AMD 64 permite el procesado de

32 y 64 bits

Soporta las tecnologías Hyper Transport 3.0 y

Power Now

FSB

Admite HyperTransport 3.0 con un ancho de banda de hasta 5.2 GT/s

Admite HyperTransport 3.0 con un ancho de

banda de hasta 5.2 GT/s

Conjunto de chips

GeForce 8200

GeForce 8100 (TF720 A2+)

nForce 710a (TF710 A2+)

Súper E/S

ITE 8718F Le ofrece las funcionalidades heredadas de uso más común Súper E/S. Interfaz de cuenta Low Pin In ic iativas de co ntr ol d e en torno, Monitor hardware Controlador de velocidad de ventilador Función "Guardia inteligente" de ITE

ITE 8718F

Le ofrece las funcionalidades heredadas de uso

más común Súper E/S.

Interfaz de cuenta Low Pin

In ic iativas de co ntr ol d e en torno,

Monitor hardware

Controlador de velocidad de ventilador

Función "Guardia inteligente" de ITE

Memoria principal

Ranuras DIMM DDR2 x 4 Cada DIMM admite DDR de 256MB/512 MB/ 1GB/2GB/4GB Capacidad máxima de memoria de 16GB Módulo de memoria DDR2 de canal Doble Admite DDR2 de 533 / 667 / 800 Admite DDR2 de 1066 (by AM2+ CPU) No admite DIMM registrados o DIMM comp atib les con ECC

Ranuras DIMM DDR2 x 4

Cada DIMM admite DDR de 256MB/512 MB/

1GB/2GB/4GB

Capacidad máxima de memoria de 16GB

Módulo de memoria DDR2 de canal Doble

Admite DDR2 de 533 / 667 / 800

Admite DDR2 de 1066 (by AM2+ CPU)

No admite DIMM registrados o DIMM

comp atib les con ECC

Gráficos

For TF8200A2+

SE / T F720 A2+ Only

Integrados en e l conjunto de chips G eForce 8200 Memoria máxima de vídeo compartida de 512 MB Admite DX 10 / HDC P / PureVideo HD

Integrados en e l conjunto de chips G eForce 8100

Memoria máxima de vídeo compartida de 512

Admite DX 10 / HDC P / PureVideo

IDE

Controlador IDE integrado Modo bus maestro U ltra DMA 33 / 66 / 100 / 133 Soporte los Modos PIO 0~4

Controlador IDE integrado

Modo bus maestro U ltra DMA 33 / 66 / 100 / 133

Soporte los Modos PIO 0~4

SATA II

Controlador ATA Serie Integrado Tasas de transferencia de hasta 3 Gb/s. Co mp at ible co n la ve rsió n SATA 2.0.

Controlador ATA Serie Integrado

Tasas de transferencia de hasta 3 Gb/s.

Co mp at ible co n la ve rsió n SATA 2.0.

Red Local

Realtek RTL 8111C Negociación de 10 / 100 / 1000 Mb/s Funciones Half / Full dúplex

Realtek RTL 8111C

Negociación de 10 / 100 / 1000 Mb/s

Funciones Half / Full dúplex

Page 55

TF8200 A2+ SE/TF720 A2+/TF710 A2+

TF8200 A2+ SE TF720 A2+/TF710 A 2+

Códecs de sonido

ALC662 Salida de sonido de 5.1 canales Soporte de sonido de Alta Definición

ALC662

Salida de sonido de 5.1 canales

Soporte de sonido de Alta Definición Ranura PCI X3 Ranura PCI X3 Ranura PCI Express Gen2 x16 X1 Ranura PCI Express Gen2 x16 X1

Ranuras

Ranura PCI express x1 X2 Ranura PCI express x1 X2 Conector disco flexible X1 Conector disco flexible X1 Conector Puerto de impresora X1 Conector Puerto de impresora X1 Conector IDE X1 Conector IDE X1 Conector SATA X6 Conector SATA X6 Conector de panel frontal X1 Conector de panel frontal X1 Conector de sonido frontal X1 Conector de sonido frontal X1 Conector de entrada de CD X1 Conector de entrada de CD X1 Conector de salida S/PDIF X1 Conector de salida S/PDIF X1 Cabecera de ventilador de CPU X1 Cabecera de ventilador de CPU X1 Cabecera de ventilador de sistema X2 Cabecera de ventilador de sistema X2 Cabecera de borrado de CMOS X1 Cabecera de borrado de CMOS X1 Conector USB X4 Conector USB X4 Conector Puerto serie X1 Conector Puerto serie X1 Conector de alimentación X1 (24 patillas)

Conector de alimentación X1

(24 patillas)

Conectores en p laca

Conector de alimentación X2 (4 patillas)

Conector de alimentación X2

(4 patillas)

Panel trasero de E/S

Tec la do PS /2 X 1 Ratón PS/2 X1 Puerto de red local X1 Puert o USB X4 Conector de sonido X3 Puert o DV I X1 Puert o V GA X1

Tec la do PS /2 X 1

Ratón PS/2 X1

Puerto de red local X1

Puert o USB X4

Conector de sonido X3

Puerto DVI (for TF720 A2+) X1

Puerto VGA (for TF720 A2+) X1

Ta mañ o d e la placa

220 mm (A) X 305 mm (H) 220 mm (A) X 305 mm (H)

Funciones especiales

Admite RAID 0 / 1 / 5 / 0+1 Ad m ite Hybrid S LI (by nV ID IA dr iver )

Admite RAID 0 / 1 / 5 / 0+1

Ad mite Hybrid S L I (by n V IDIA driver ) (f or T F7 20

A2+)

Soporte de sistema operativo

Windows XP / VISTA Biostar se reserva el derecho de añadir o retirar el soporte de cualquier SO con o s in aviso previo.

Windows XP / VISTA

Biostar se reserva el derecho de añadir o retirar

el soporte de cualquier SO con o s in aviso previo.

Page 56

Motherboard Manual

PORTUGUESE

TF8200 A2+ SE TF720 A2+/TF710 A 2+

CPU

Socket AM2+ Processadores AMD Athlon 64 / Athlon 64 FX / Althlon 64 X2 / Sempron / Phenom A arq uite ctura A MD 64 p erm ite uma co mput ação de 32 e 64 bits Sup orta as tecnolog ias Hyper Trans po rt 3.0 e Power Now

Socket AM2+

Processadores AMD Athlon 64 / Athlon 64 FX /

Althlon 64 X2 / Sempron / Phenom

A arq uite ctura A MD 64 p erm ite uma co mput ação

de 32 e 64 bits

Sup orta as tecnolog ias Hyper Trans po rt 3.0 e

Power Now

FSB

Suporta a tecnologia HyperTransport 3.0 com uma largura de banda até 5.2 GT/s

Suporta a tecnologia HyperTransport 3.0 com

uma largura de banda até 5.2 GT/s

Chipset GeForce 8200

GeForce 8100 (TF720 A2+)

nForce 710a (TF710 A2+)

Especificaçã o Super I/O

ITE 8718F Proporciona as funcionalidades mais utilizadas em termos da especificação Super I/O. Interface LPC (Low Pin Count). In ic iativas para co ntr o lo do a mbient e Monitorização do hardware Controlador da velocidade da ventoinha Função "Smart Guard ian" d a ITE

ITE 8718F

Proporciona as funcionalidades mais utilizadas

em termos da especificação Super I/O.

Interface LPC (Low Pin Count).

In ic iativas para co ntr o lo do a mbient e

Monitorização do hardware

Controlador da velocidade da ventoinha

Função "Smart Guard ian" d a ITE

Memória principal

Ranhuras DIMM DDR2 x 4 Cada módulo DIMM suporta uma memória DDR2 de 256MB/512MB/1GB/2GB/4GB Capac idad e máx i ma de memó r ia: 16GB Módulo de memória DDR2 de canal duplo Suporta módulos DDR2 533 / 667 / 800 Suporta módulos DDR2 1066 (by AM2+ CPU) Os módulos DIMM registados e os DIMM ECC não são suportados

Ranhuras DIMM DDR2 x 4

Cada módulo DIMM suporta uma memória

DDR2 de 256MB/512MB/1GB/2GB/4GB

Capac idad e máx i ma de memó r ia: 16GB

Módulo de memória DDR2 de canal duplo

Suporta módulos DDR2 533 / 667 / 800

Suporta módulos DDR2 1066 (by AM2+ CPU)

Os módulos DIMM registados e os DIMM ECC

não são suportados

Placa gráf ica

For TF8200A2+

SE / T F720 A2+ Only

Integrada no chipset GeForce 8200 Memória de vídeo máxima partilhada: 512 MB Sup orta as funçõ es D X10 / HD CP / Pur eVid eo HD

Integrada no chipset GeForce 8100

Memória de vídeo máxima partilhada: 512 MB

Sup orta as funções DX10 / HDC P / PureV ideo

IDE

Controlador IDE integrado Modo Bus master Ultra DMA 33 / 66 / 100 / 133 Suporta o modo PIO 0~4

Controlador IDE integrado

Modo Bus master Ultra DMA 33 / 66 / 100 / 133

Suporta o modo PIO 0~4

SATA II

Controlador Serial ATA integrado Velocidades de transmissão de dados até 3 Gb/s. Co mpat ibilidade co m a espe cific ação SATA versão 2.0 .

Controlador Serial ATA integrado

Velocidades de transmissão de dados até 3 Gb/s.

Co mpat ibilidade co m a espe cific ação SATA

versão 2.0 .

Page 57

TF8200 A2+ SE/TF720 A2+/TF710 A2+

TF8200 A2+ SE TF720 A2+/TF710 A 2+

LAN

Realtek RTL 8111C Auto negociação de 10 / 100 / 1000 Mb/s Capacidade semi/fu ll-duplex

Realtek RTL 8111C

Auto negociação de 10 / 100 / 1000 Mb/s

Capacidade semi/fu ll-duplex

Codec de som

ALC662 Saída de áudio de 5.1 canais Suporta a especificação High-Definition Audio

ALC662

Saída de áudio de 5.1 canais

Suporta a especificação High-Definition Audio Ranhura PCI x3 Ranhura PCI x3 Ranhura PCI Express Gen2 x16 x1 Ranhura PCI Express Gen2 x16 x1

Ranhuras

Ranhura PCI Express x1 x2 Ranhura PCI Express x1 x2 Conector da unidade de disquetes x1 Conector da unidade de disquetes x1 Conector da para impressora x1 Conector da para impressora x1 Conector IDE x1 Conector IDE x1 Conector SATA x6 Conector SATA x6 Conector do painel frontal x1 Conector do painel frontal x1 Conector de áudio frontal x1 Conector de áudio frontal x1 Conecto r para entr ada d e CDs x 1 Conect or par a entrad a de CDs x1 Conector de saída S/PDIF x1 Conector de saída S/PDIF x1 Conector da ventoinha da CPU x1 Conector da ventoinha da CPU x1 Conector da ventoinha do s istema x2 Conector da ventoinha do sistema x2 Conector para limpeza do CMOS x1 Conector para limpeza do CMOS x1 Conector USB x4 Conector USB x4 Conector da Porta série x1 Conector da Porta série x1 Conector de alimentação x1 (24 pinos)

Conector de alimentação x1

(24 pinos)

Conectores na placa

Conector de alimentação x2 (4 p inos )

Conector de alimentação x2

(4 p inos )

Entradas /S aídas no painel traseiro

Tec la do PS /2 x 1 Rato PS/2 x1 Port a LA N x1 Port a USB x4 Tomada de áudio x3 Port a DV I x1 Porta VGA x1

Tec la do PS /2 x 1

Rato PS/2 x1

Port a LA N x1

Port a USB x4

Tomada de áudio x3

Porta DVI (for TF720 A2+) x1

Porta VGA (for TF720 A2+) x1

Tamanho da placa

220 mm (L) X 305 mm (A) 220 mm (L) X 305 mm (A)

Característi cas especiais

Suporta as funções RA ID 0 / 1 / 5 / 0+1 Su por ta as funções Hybrid S LI (by nV ID IA driver)

Suporta as funções RA ID 0 / 1 / 5 / 0+1

Su por ta as funções Hybrid S LI (by nV ID IA

driver) (for TF720 A2+)

Sistemas operativos suportados

Windows XP / VISTA A Biostar reserva-se o direito de adicionar ou remover suporte para qualquer sistema operativo com ou sem aviso prévio.

Windows XP / VISTA

A Biostar reserva-se o direito de adicionar ou

remover suporte para qualquer sistema

operativo com ou sem aviso prévio.

Page 58

Motherboard Manual

POLISH

TF8200 A2+ SE TF720 A2+/TF710 A 2+

Procesor

Socket AM2+ AMD Athlon 64 / Ath lon 64 FX / Althlon 64 X2 / Sempron / Pheno m Pro cesory Architektura AMD 64 umożliwia przetwarzanie 32 i 64 bitowe Obsługa Hyper Transport 3.0 oraz PowerNow

Socket AM2+

AMD Athlon 64 / Ath lon 64 FX / Althlon 64 X2 /

Sempron / Pheno m Pro cesory

Architektura AMD 64 umożliwia przetwarzanie

32 i 64 bitowe

Obsługa Hyper Transport 3.0 oraz PowerNow

FSB

Obsługa HyperTransport 3.0 o szerokości pasma do 5.2 GT/s

Obsługa HyperTransport 3.0 o szerokości pasma

do 5.2 GT/s

Chipset GeForce 8200

GeForce 8100 (TF720 A2+)

nForce 710a (TF710 A2+)

Pamięć główna

Gniazda DDR2 DIMM x 4 Każde gniazdo DIMM obsługuje moduły 256MB/512MB/1GB/2GB/4GB DDR2 Maks. wielkość pamięci 16GB Mod uł pamięci DDR2 z trybem podwójnego kana łu Obsługa DDR2 533 / 667 / 800 Obsługa DDR2 1066 (by AM2+ CPU) Brak obsług i Registered DIMM oraz ECC D IMM

Gniazda DDR2 DIMM x 4

Każde gniazdo DIMM obsługuje moduły

256MB/512MB/1GB/2GB/4GB DDR2

Maks. wielkość pamięci 16GB

Mod uł pamięci DDR2 z trybem podwójnego

kana łu

Obsługa DDR2 533 / 667 / 800

Obsługa DDR2 1066 (by AM2+ CPU)

Brak obsług i Registered DIMM oraz ECC D IMM

Super I/O

ITE 8718F Zapewnia najbardziej powszechne funkcje Super I/O. Interfejs Low Pin Count Funkcje kontroli warunków pracy, Mon itor H /W Kontroler prędkości wentylatora Funkcja ITE "Smart Guardian"

ITE 8718F

Zapewnia najbardziej powszechne funkcje Super

I/O.

Interfejs Low Pin Count

Funkcje kontroli warunków pracy,

Mon itor H /W

Kontroler prędkości wentylatora

Funkcja ITE "Smart Guardian"

Graf ika

For TF8200A2+

SE / T F720 A2+ Only

Zintegrowana w chipsecie GeForce 8200 Maks. wielkość wspó łdz ie lonej pa mięci video wynosi 512 MB Obsługa DX10 / HDC P / PureVideo HD

Zintegrowana w chipsecie GeForce 8100

Maks. wielkość wspó łdz ie lonej pa mięci video

wynosi 512 MB

Obsługa DX10 / HDC P / PureVideo

IDE

Zintegrowany kontroler IDE Ultra DMA 33 / 66 / 100 / 133 Tryb Bus Master obsługa PIO tryb 0~4

Zintegrowany kontroler IDE

Ultra DMA 33 / 66 / 100 / 133 Tryb Bus Master

obsługa PIO tryb 0~4

SATA II

Zintegrowany kontroler Serial ATA Transfer danych do 3 Gb/s. Zgodność ze specyfikacją SATA w wersj i 2. 0.

Zintegrowany kontroler Serial ATA

Transfer danych do 3 Gb/s.

Zgodność ze specyfikacją SATA w wersj i 2. 0.

LAN

Realtek RTL 8111C 10 / 100 / 1000 Mb/s z automatyczn ą nego cjacją szybkości Działanie w trybie po łowicznego / pełnego dupleksu

Realtek RTL 8111C

10 / 100 / 1000 Mb/s z automatyczn ą nego cjacją

szybkości

Działanie w trybie po łowicznego / pełnego

dupleksu

Page 59

TF8200 A2+ SE/TF720 A2+/TF710 A2+

TF8200 A2+ SE TF720 A2+/TF710 A 2+

Kodek dźwiękowy

ALC662

5.1 kanałowe wyjście audio Obsługa H igh- Def initio n Au d io

ALC662

5.1 kanałowe wyjście audio

Obsługa H igh- Def initio n Au d io Gniazdo PCI x3 Gniazdo PCI x3 Gniazdo PCI Express Gen2 x16 x1 Gniazdo PCI Express Gen2 x16 x1 Gniazda Gniazdo PCI Express x1 x2 Gniazdo PCI Express x1 x2 Złącze napędu dyskietek x1 Złącze n apędu dyskietek x1 Złącze Port drukarki x1 Złącze Port drukarki x1 Złącze IDE x1 Złącze IDE x 1 Złącze SATA x6 Złącze SATA x6 Złącze panela przedniego x1 Złącze panela przedniego x1 Przedn ie z łącze aud io x1 Przed nie złącze aud io x1 Złącze wejścia CD x1 Złącze wejścia CD x1 Złącze wyjścia S/PDIF x1 Złącze wyjścia S/PDIF x1 Złącze głó wkowe wentylatora procesora x1 Złącze główkowe wentylatora procesora x1 Złącze głó wkowe wentylatora systemowego x2 Złącze głó wkowe wentylatora systemowego x2 Złącze głó wkowe kasowania CMOS x1 Złącze główkowe kas owania CMOS x1 Złącze USB x4 Złącze USB x4 Złącze Port szeregowy x1 Złącze Po rt szeregowy x1 Złącze zasilania (24 pinowe) x1 Złącze zasilania (24 pinowe) x1

Złącza wbud owan e

Złącze zas ilania (4 p ino we) x2 Złącze zas ilania (4 p ino we) x2

Back Panel I/O

Klawiatura PS/2 x1 Mys z PS /2 x1 Port LA N x1 Port USB x4 Gniazdo audio x3 Port DV I x1 Port VGA x1

Klawiatura PS/2 x1

Mys z PS /2 x1

Port LA N x1

Port USB x4

Gniazdo audio x3

Port DVI (for TF720 A2 +) x1

Port VGA (for TF720 A2+) x1

Wymiary płyty

220 mm (S) X 305 mm (W) 220 mm (S) X 305 mm (W)

Funkcje specjaln e

Obsługa RAID 0 / 1 / 5 / 0+1 Obsługa Hybrid S LI (b y nV IDIA driver )

Obsługa RAID 0 / 1 / 5 / 0+1

Obsługa Hybrid S LI (b y nV IDIA driver ) (fo r

TF720 A2+)

Obsluga systemu operacyjne go

Windows XP / VISTA Biostar zastrzega sobie prawo dodawania lub odwoływ ania obsługi do wo lnego sys temu operacyjnego b ez powiado mienia.

Windows XP / VISTA

Biostar zastrzega sobie prawo dodawania lub

odwoływ ania obsługi do wo lnego sys temu

operacyjnego b ez powiado mienia.

Page 60

Motherboard Manual

RUSSIAN

T F8200 A2+ SE TF720 A2+/TF710 A 2+

CPU (центральный

процессор)

Гнездо AM2+ Процессоры AMD Athlon 64 / Athlon 64 FX /

Althlon 64 X2 / Sempron / Phenom

Арх итектура A MD 64 разрешать обработка данных на 32 и 64 бит Поддержка Hyper Transport 3.0 и PowerNo w

Гнездо AM2+ Процессоры AMD Athlon 64 / Athlon 64 FX /

Althlon 64 X2 / Sempron / Phenom

Арх итектура A MD 64 разрешать обработка данных на 32 и 64 бит Поддержка Hyper Transport 3.0 и PowerNo w

FSB

Поддержка HyperTransport 3.0 с пропус кной способностью до 5.2 GT/s

Поддержка HyperTransport 3.0 с пропус кной

способностью до 5.2 GT/s Набо р микросхем

GeForce 8200

GeForce 8100 (TF720 A2+)

nForce 710a (TF710 A2+)

Основная память

Слоты DDR2 DIMM x 4 Каждый модуль DIMM поддерживает 256МБ /512МБ /1ГБ/2ГБ/4ГБ DDR2 Максимальная ёмкость памяти 16ГБ Мод ул ь памяти с двухкан альн ым режимом

DDR2

Поддержка DDR2 533 / 667 / 800 Поддержка DDR2 1066 (b y AM2+ CPU) Не поддерживает зарегистрированные модули DIMM and ECC DIMM

Слоты DDR2 DIMM x 4

Каждый модуль DIMM поддерживает

256МБ /512МБ /1ГБ/2ГБ/4ГБ DDR2

Максимальная ёмкость памяти 16ГБ

Мод ул ь памяти с двухкан альн ым режимом

DDR2

Поддержка DDR2 533 / 667 / 800

Поддержка DDR2 1066 (b y AM2+ CPU)

Не поддерживает зарегистрированные

модули DIMM and ECC DIMM

Super I/O

ITE 8718F

Обеспечивает наиболее используемые действующие фун кц и онал ьн ы е возможно сти Super I/O. Интерфейс с ни зким количеством выводов Инициативы по охран е окружаю щей среды, Аппаратный монитор Регул ятор скорости Функция ITE "S mart Guard ian"

(Интеллектуальная защита)

ITE 8718F

Обеспечивает наиболее используемые

действующие фун кц и онал ьн ы е

возможно сти Super I/O.

Интерфейс с ни зким количеством выводов

Инициативы по охран е окружаю щей среды,

Аппаратный монитор

Регул ятор скорости

Функция ITE "S mart Guard ian"

(Интеллектуальная защита)

Графика

For TF8200A2+ SE / TF7 20 A2+ O nly

Встроенная в набор микросхем GeForce 8200 Максимальная совместно используемая видео память составл яет 512 МБ Поддержка DX10 / HDCP / Pur eVid eo HD

Встроенная в набор микросхем GeForce 8100

Максимальная совместно используемая

видео память составл яет 512 МБ

Поддержка DX10 / HDCP / Pur eVid eo

IDE

Встроенное устр ойс тво управл ени я встроенными интерфейсами устро йств

Режи м "хозяина" шины Ultra DMA 33 / 66 /

100 / 133

Поддержка режима PIO 0~4,

Встроенное устр ойс тво управл ени я встроенными интерфейсами устро йств

Режи м "хозяина" шины Ultra DMA 33 / 66 /

100 / 133

Поддержка режима PIO 0~4,

SATA II

Встроенное послед оват ельное устройс тво упра влени я ATA скорость передачи данных до 3 гигабит/с. Соответствие специ фикации SATA версия

2.0.

Встроенное послед оват ельное устройс тво

упра влени я ATA

скорость передачи данных до 3 гигабит/с.

Соответствие специ фикации SATA версия

2.0.

Page 61

TF8200 A2+ SE/TF720 A2+/TF710 A2+

T F8200 A2+ SE TF720 A2+/TF710 A 2+

Локальна я сеть

Realtek RTL 8111C Автоматическо е согласо вани е 10 / 100 / 1000 Мб /с Частичная / полна я дуплексная способность

Realtek RTL 8111C

Автоматическо е согласо вани е 10 / 100 /

1000 Мб /с

Частичная / полна я дуплексная способность

Звуко вой кодек

ALC662 Звуко вая поддержка High -Defin ition

5.1канальный звуковой выхо д

ALC662

Звуко вая поддержка High -Defin ition

5.1канальный звуковой выхо д

Слот PCI x3 Слот PCI x3 Слот PCI Express Gen2 x16 x1 Слот PCI Express Gen2 x16 x1

Слоты

Слот PCI Express x1 x2 Слот PCI Express x1 x2 Разъ ём НГМД x1 Разъ ём НГМД x1 Разъ ём Порт подклю чения принтера x1 Разъём Порт подключения принтер а x1 Разъ ём IDE x 1 Разъём IDE x 1 Разъ ём SATA x6 Ра зъ ём SATA x6 Разъ ём на лицевой панели x1 Разъ ём на лицевой панели x1 Входной звуковой разъём x1 Входной звуковой разъём x1 Разъ ём ввода для CD x1 Разъ ём ввода для CD x1 Разъ ём вывода для S/PDIF x1 Разъ ём вывода для S/PDIF x1 Контактирующее приспособление вентил ятора центрального процессора x1

Контактирующее приспособление

вентил ятора центрального процессора x1

Контактирующее приспособление вентил ятора системы x2

Контактирующее приспособление

вентил ятора системы x2

Открытое контактирующе е приспособление CMOS x1

Открытое контактирующе е

приспособление CMOS x1

USB- разъём x4 USB-разъём x4 Разъ ём Послед ов ательный порт x1 Разъём Последоват ельный порт x1 Разъ ем питания (24 вы вод) x1 Разъ ем питания (24 вы вод) x1

Встроенный разъём

Разъ ем питания (4 выво д) x2 Ра зъ ем питания (4 вы вод ) x2

Задняя панель средств ввода-вывода

Клавиатура PS/2 x 1 Мышь PS /2 x1 Пор т LAN x1 USB- порт x4 Гнездо для подключени я наушников x3 Пор т DVI x1 Пор т VGA x1

Клавиатура PS/2 x 1

Мышь PS /2 x1

Пор т LAN x1

USB- порт x4

Гнездо для подключени я наушников x3

Пор т DVI (for TF7 20 A2+) x1

Пор т VGA (for TF720 A2+) x1 Разм ер панели

220 мм (Ш) X 305 мм (В) 220 мм (Ш) X 305 мм (В)

Специальные технические характеристи ки

Поддержка RAID 0 / 1 / 5 / 0+1 Поддержка Hyb r id SL I (b y nV ID IA dr iver )

Поддержка RAID 0 / 1 / 5 / 0+1

Поддержка Hyb r id SL I (b y nV ID IA dr iver ) (for

TF720 A2+)

Поддержка OS

Windows XP / VISTA Biostar сохраняет за собой право добавлять

или удалять средства обеспечения для OS с или без предварительного уведомлени я.

Windows XP / VISTA

Biostar сохраняет за собой право добавлять

или удалять средства обеспечения для OS с

или без предварительного уведомлени я.

Page 62

Motherboard Manual

ARABIC

TF8200 A2+ SE TF720 A2+/TF710 A 2+

ﻟا ةﺪﺣو ﺔﺠﻟﺎﻌ ﻤ

ﺔﻳﺰآﺮﻤﻟا

ﺲﺒﻘﻡAM2+

تﺎﺠﻟﺎﻌﻡAMD Athlon 64 / Athlon 64 FX / Sempron /

Phenom / Althlon 64 X2

ﺔﻴﻨﻘﺗ ﻦﻜﻤﺗAMD 64 ﺔﻋﺮﺴﺏ ﺔﻴﺏﻮ ﺳﺎﺤﻟ ا تﺎﻴﻠﻤﻌﻟا ءاﺮﺝإ 32 و64 ﺖﺏ

ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗHyper Trans port و 3.0 PowerNow

ﺲﺒﻘﻡAM2+

تﺎﺠﻟﺎﻌﻡAMD Athlon 64 / Athlon 64 FX / Sempron /

Phenom / Althlon 64 X2

ﺔﻴﻨﻘﺗ ﻦﻜﻤﺗAMD 64 ﺔﻋﺮﺴﺏ ﺔﻴﺏﻮ ﺳﺎﺤﻟ ا تﺎﻴﻠﻤﻌﻟا ءاﺮﺝإ 32 و64 ﺖﺏ

ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗHyper Trans port و 3.0 PowerNow

ﻲﺒﻥﺎﺠﻟا ﻲﻡﺎﻡﻷا ﻞﻗﺎﻨﻟا

ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗHyperTransport ﻰﻟإ ﻞﺼﻳ ددﺮﺘﺏ 3.0 5.2 GT/s

ﺢﺋاﺮﺸﻟا ﺔﻋﻮﻤﺠﻡ

GeForce 8200

GeForce 8100(TF720 A2+)

nForce 710a(TF710 A2+)

ﺔﻴﺴﻴ ﺋﺮﻟا ةﺮآاﺬﻟا

ﺔﺤﺘﻓ DDR2 DIMM دﺪﻋ4

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMM عﻮﻥ ﻦﻡ ةﺮآاذ ﻢﻋﺪﺗ DDR2 ﺔﻌﺳ

256/512 ﺎﺠﻴﻡ

و ﺖﻳﺎﺏ1/و 2/و 4 ﺎﺠﻴﺝﺖﻳﺎﺏ

ﺔﻌﺳ ةﺮآاذ ىﻮﺼﻗ 16 ﺎﺠﻴﺝ ﺖﻳﺎﺏ

ةﺪﺣو ةﺮآاذ DDR2 ﺔﺝودﺰﻡ ﻨﻘﻟاةﺎ

ﻢﻋﺪﺗ ةﺮآاﺬﻟا ﻦﻡ عﻮﻥ DDR2 تﺎﻌﺳ 800/667/533 ﺎﺠﻴﻡ ﺖﻳﺎﺏ

ﻢﻋﺪﺗ ةﺮآاﺬﻟا ﻦﻡ عﻮﻥ DDR2 تﺎﻌﺳ 1066(By AM2+ CPU)

ﺎﺠﻴﻡ ﺖﻳﺎﺏ

ﻻ ﻢﻋﺪﺗ ﻖﺋﺎﻗر ةﺮآاﺬﻟا DIMM ﻚﻠﺗو ﻲﺘﻟا ﻻ ﻖﻓاﻮﺘﺗ ﻊﻡ ECC

ﺔﺤﺘﻓ DDR2 DIMM دﺪﻋ4

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMM عﻮﻥ ﻦﻡ ةﺮآاذ ﻢﻋﺪﺗ DDR2 ﺔﻌﺳ

256/512 ﺎﺠﻴﻡ

و ﺖﻳﺎﺏ1/و 2/ و4 ﺎﺠﻴﺝﺖﻳﺎﺏ

ﺔﻌﺳ ةﺮآاذ ىﻮﺼﻗ 16 ﺎﺠﻴﺝ ﺖﻳﺎﺏ

ةﺪﺣو ةﺮآاذ DDR2 ﺔﺝودﺰﻡ ةﺎﻨﻘﻟا

ﻢﻋﺪﺗ ةﺮآاﺬﻟا ﻦﻡ عﻮﻥ DDR2 تﺎﻌﺳ 800/667/533 ﺎﺠﻴﻡ ﺖﻳﺎﺏ

ﻢﻋﺪﺗ ةﺮآاﺬﻟا ﻦﻡ عﻮﻥ DDR2 تﺎﻌﺳ 1066(By AM2+ CPU)

ﺎﺠﻴﻡ ﺖﻳﺎﺏ

ﻻ ﻢﻋﺪﺗ ﻖﺋﺎﻗر ةﺮآاﺬﻟا DIMM ﻚﻠﺗو ﻲﺘﻟا ﻻ ﻖﻓاﻮﺘﺗ ﻊﻡ ECC

Super I/O

ITE 8718F

ﻮﺗ ﺔﻔﻴﻇ و ﺮﻓ Super I/O ًﺎﻡ ا ﺪ ﺨ ﺘ ﺳا ﺮﺜآﻷا .

ﺗﻢﻋﺪ ﺔﻴﻨﻘ ﺗ Low Pi n Count Interface

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻡ

ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻡ

ﺔﻔﻴﻇو"S mart Gu ardian" ﻦﻡ ITE

ITE 8718F

ﺔﻔﻴﻇ و ﺮﻓﻮﺗSuper I/O ًﺎ ﻡ ا ﺪ ﺨﺘﺳ ا ﺮﺜآﻷا .

ﺗﻢﻋﺪ ﺔﻴﻨﻘ ﺗ Low Pi n Count Interface

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻡ

ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻡ

ﺔﻔﻴﻇو"S mart Gu ardian" ﻦﻡ ITE

ﺔﻗﺎﻄﺏ تﺎﻡﻮﺳﺮﻟا

For T F8200A2+ SE /

TF7 20 A2+ O nly

ﻖﺋﺎﻗر ﻲﻓ ﺔﺠﻡﺪﻡ GeForce 8200

ﻰﺼﻗأ ﺔﻌﺳ ةﺮآاﺬﻟ ﻮﻳﺪ ﻴﻔﻟا ﺔآﺮﺘﺸﻤﻟا 512 ﺎﺠﻴﻡ ﺖﻳﺎﺏ

ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗDX10 / HDCP / Pur eV ideo HD

ﻖﺋﺎﻗر ﻲﻓ ﺔﺠﻡﺪﻡ GeForce 8100

ﻰﺼﻗأ ﺔﻌﺳ ةﺮآاﺬﻟ ﻮﻳﺪ ﻴﻔﻟا ﺔآﺮﺘﺸﻤﻟا 512 ﺎﺠﻴﻡ ﺖﻳﺎﺏ

ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗDX10 / HDCP / Pur eV ideo

ﺬﻔﻨﻡIDE

ﻢﻜﺤﺘﻡIDE ﻞﻡﺎﻜﺘﻡ

ﺔﻴﻨﻘ ﺘﺏ ﻞﻗﺎﻥUltra DMA 33 / 66 / 100 / 133

ﻲﺴﻴﺋر ﻊﺿو

ﻊﺿو ﻢﻋدPIO Mode 0~4

ﻢﻜﺤﺘﻡIDE ﻞﻡﺎﻜﺘﻡ

ﺔﻴﻨﻘ ﺘﺏ ﻞﻗﺎﻥUltra DMA 33 / 66 / 100 / 133

ﻲﺴﻴﺋر ﻊﺿو

ﻊﺿو ﻢﻋدPIO Mode 0~4

SATA II

ﻢﻜﺤﺘﻡSerial ATAﻞﻡﺎﻜﺘﻡ

ﻰﻟإ ﻞﺼﺗ تﺎﻋﺮﺴﺏ تﺎ ﻥﺎﻴﺒ ﻟا ﻞﻘﻥ3 ﺖﺏﺎﺠﻴﺝ/ﺔﻴﻥﺎ ﺙ.

تﺎﻔﺹاﻮﻤﻟ ﺔﻘﺏﺎﻄﻡSATA راﺪﺹﻹا 2.0.

ﻢﻜﺤﺘﻡSerial ATAﻞﻡﺎﻜﺘﻡ

ﻰﻟإ ﻞﺼﺗ تﺎﻋﺮﺴﺏ تﺎ ﻥﺎﻴﺒ ﻟا ﻞﻘﻥ3 ﺖﺏﺎﺠﻴﺝ/ﺔﻴﻥﺎ ﺙ.

تﺎﻔﺹاﻮﻤﻟ ﺔﻘﺏﺎﻄﻡ SATA راﺪﺹﻹا 2.0.

ﺔﻴﻠﺥاد ﺔﻜﺒﺵ

Realtek RTL 8111C

ﻲﺋﺎﻘﻠﺗ ضو ﺎﻔﺗ10/100/1000 ﺖﻳﺎﺏ ﺎﺠﻴﻡ /ﺔﻴﻥﺎﺙ

ﻞﻡﺎﻜﻟا جودﺰﻤﻟا ﻞﻘﻨﻟا ﺔﻴﻥﺎﻜﻡإ/ﻲﻔﺼﻨﻟا

Realtek RTL 8111C

ﻲﺋﺎﻘﻠﺗ ضو ﺎﻔﺗ10/100/1000 ﺖﻳﺎﺏ ﺎﺠﻴﻡ /ﺔﻴﻥﺎﺙ

ﻞﻡﺎﻜﻟا جودﺰﻤﻟا ﻞﻘﻨﻟا ﺔﻴﻥﺎﻜﻡإ/ﻲﻔﺼﻨﻟا

Page 63

TF8200 A2+ SE/TF720 A2+/TF710 A2+

TF8200 A2+ SE TF720 A2+/TF710 A 2+

تﻮﺼﻟا ﻚﻳدﻮآ

ALC662

ﻘﺗ ﻢﻋﺪﺗ ﻦﻡ ﻒﻳﺮﻌﺘﻟا ﻲﻟ ﺎﻋ تﻮﺼﻟا ﺔﻴﻨ

5.1 تاﻮﻨﻗ جﺮﺨﻟ تﻮﺼﻟا

ALC662

ﻦﻡ ﻒﻳﺮﻌﺘﻟا ﻲﻟ ﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗ

5.1 تاﻮﻨﻗ جﺮﺨﻟ تﻮﺼﻟا

ﺔﺤﺘﻓPCI دﺪﻋ3 ﺔﺤﺘﻓPCI دﺪﻋ3 ﺔﺤﺘﻓPCI Express Gen2 x16 دﺪﻋ1 ﺔﺤﺘﻓPCI Express Gen2 x16 دﺪﻋ1

تﺎﺤﺘﻔﻟا

ﺔﺤﺘﻓPCI Express x1 دﺪﻋ2 ﺔﺤﺘﻓPCI Express x1 دﺪﻋ2

ﺔﻥﺮﻡ صاﺮﻗأ كﺮﺤﻡ ﺬﻔ ﻨﻡ دﺪﻋ1 ﺔﻥﺮﻡ صاﺮﻗأ كﺮﺤﻡ ﺬﻔ ﻨﻡ دﺪﻋ1

ﺔﻌﺏﺎﻃ ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻌﺏﺎﻃ ﺬﻔﻨﻡ دﺪﻋ1

ﺬﻔﻨﻡIDE دﺪﻋ1 ﺬﻔﻨﻡIDE دﺪﻋ1 ﺬﻔﻨﻡSATA دﺪﻋ6 ﺬﻔﻨﻡSATA دﺪﻋ6

ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻡ دﺪﻋ1

ﻮﺼﻟا ﺬﻔﻨﻡﻲﻡﺎﻡﻷا ت دﺪﻋ1 ﻲﻡﺎﻡﻷا تﻮﺼﻟا ﺬﻔﻨﻡ دﺪﻋ1

ﺬﻔﻨﻡCD-IN دﺪﻋ1 ﺬﻔﻨﻡCD-IN دﺪﻋ1

جﺮﺥ ﺬﻔﻨﻡS/PDIF دﺪﻋ1 جﺮﺥ ﺬﻔﻨﻡS/PDIF دﺪﻋ1

ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻡ ﺔﻠﺹو دﺪﻋ1 ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻡ ﺔﻠﺹو دﺪﻋ1

مﺎﻈﻨﻟا ﺔﺣوﺮﻡ ﺔﻠﺹو دﺪﻋ2 مﺎﻈﻨﻟا ﺔﺣوﺮﻡ ﺔﻠﺹو دﺪﻋ2

و ﺢﺴ ﻡ ﺔﻠﺹCMOS دﺪﻋ1 ﺢﺴﻡ ﺔﻠﺹوCMOS دﺪﻋ1

ﺬﻔﻨﻡUS B دﺪﻋ4 ﺬﻔﻨﻡUS B دﺪﻋ4

ﻲﻠﺴﻠﺴﺗ ﺬﻔ ﻨﻡ دﺪﻋ1 ﻲﻠﺴﻠﺴﺗ ﺬﻔ ﻨﻡ دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)24سﻮﺏد( دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)24سﻮﺏد( دﺪﻋ1

ﺢﻄﺳ ﻰﻠﻋ ﺬﻓﺎﻨﻤﻟا

ﺔﺣﻮﻠﻟا

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)4ﺲﻴﺏﺎﺏد( دﺪﻋ2 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)4ﺲﻴﺏﺎﺏد( دﺪﻋ2

ﻓﺎﻨﻡﻞﺥد ﺬ/ جﺮﺥ

ﺔﻴﻔﻠﺨﻟا ﺔﺣﻮﻠﻟا

ﺢﻴﺗﺎﻔﻡ ﺔﺣﻮﻟPS/2 دﺪﻋ1

سوﺎﻡ PS/2 دﺪﻋ1

ﺔﻴﻠﺤﻡ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻡ دﺪﻋ1

ﺬﻓﺎﻨﻡUSB دﺪﻋ4

تﻮﺹ ﺲﺒﻘﻡ ﺪﻋ3

ﺬﻓﺎﻨﻡDV I دﺪﻋ1 ﺬﻓﺎﻨﻡVG A دﺪﻋ1

ﺢﻴﺗﺎﻔﻡ ﺔﺣﻮﻟPS/2 دﺪﻋ1

سوﺎﻡ PS/2 دﺪﻋ1

ﺔﻴﻠﺤﻡ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻡ دﺪﻋ1

ﺬﻓﺎﻨﻡUSB دﺪﻋ4

تﻮﺹ ﺲﺒﻘﻡ ﺪﻋ3

(for TF720 A2+) ﺬﻓﺎﻨﻡDVI دﺪﻋ1 (for TF720 A2+) ﺬﻓﺎﻨﻡVGA دﺪﻋ1

ﺔﺹﺎﺥ ﺎﻳاﺰﻡ

ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗRAID 0 / 1 / 5 / 0+1

ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗHybr id SLI (by nV IDIA dr iver )

ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗRAID 0 / 1 / 5 / 0+1

ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗHybr id SLI (by nV IDIA dr iver ) ( for TF720

A2+)

ﺔﺣﻮﻠﻟا ﻢﺠﺣ

220 ﻢﻡ)ضﺮﻋ (X 305 ﻢﻡ)عﺎﻔﺗرا( 220 ﻢﻡ)ضﺮﻋ (X 305 ﻢﻡ)عﺎﻔﺗرا(

ﻞﻴﻐﺸﺘﻟا ﺔﻤﻈﻥأ ﻢﻋد

Windows XP / VISTA

ﻆﻔﺘﺤﺗBiostar وأ رﺎﻄﺥﺈﺏ ﻞﻴﻐﺸﺗ مﺎﻈﻥ يﻷ ﻢﻋﺪﻟا ﺔﻟازإ وأ ﺔﻓﺎﺿإ ﻲﻓ ﺎﻬﻘﺤﺏ

رﺎﻄﺥإ نوﺪﺏ.

Windows XP / VISTA

ﻆﻔﺘﺤﺗBiostar وأ رﺎﻄﺥﺈﺏ ﻞﻴﻐﺸﺗ مﺎﻈﻥ يﻷ ﻢﻋﺪﻟا ﺔﻟازإ وأ ﺔﻓﺎﺿإ ﻲﻓ ﺎﻬﻘﺤﺏ

رﺎﻄﺥإ نوﺪﺏ.

Page 64

Motherboard Manual

JAPANESE

TF8200 A2+ SE TF720 A2+/TF710 A 2+

CPU

Socket AM2+ AMD Athlon 64 / Ath lon 64 FX / Althlon 64 X2 / Sempron / Phenom プロセッサ AMD 64アーキテクチャでは、32ビットと 64ビット計

算が可能ですハイパートランスポート 3.0とクールアンドクワイアットをサポートします

Socket AM2+ AMD Athlon 64 / Ath lon 64 FX / Althlon 64 X2 / Sempron / Phenom プロセッサ AMD 64アーキテクチャでは、32ビットと 64ビット計

算が可能ですハイパートランスポート 3.0とクールアンドクワイアットをサポートします

FSB

5.2 GT/sのバンド幅までハイパートランスポート3.0 をサポートします

5.2 GT/sのバンド幅までハイパートランスポート3.0

をサポートします

チップセット GeForce 8200

GeForce 8100 (TF720 A2+) nForce 710a (TF710 A2+)

メインメモリ

DDR2 DIMMスロット x 4

各DIMMは 256/512MB & 1GB/2GB/4GB DDR2をサポート最大メモリ容量16GB デュアルチャンネルモードDDR2メモリモジュール

DDR2 533 / 667 / 800をサポート DDR2 1066をサポート (by AM2+ CPU) 登録済みDIMMとECC DIMMはサポートされません

DDR2 DIMMスロット x 4

各DIMMは 256/512MB & 1GB/2GB/4GB DDR2をサポート最大メモリ容量16GB デュアルチャンネルモードDDR2メモリモジュール

DDR2 533 / 667 / 800をサポート DDR2 1066をサポート (by AM2+ CPU) 登録済みDIMMとECC DIMMはサポートされません

Super I/O

ITE 8718F

もっとも一般に使用されるレガシーSuper I/O機能を採用しています。低ピンカウントインターフェイス環境コントロールイニシアチブ、 H/Wモニターファン速度コントローラ / モニター

ITE の「スマートガーディアン」機能

ITE 8718F

もっとも一般に使用されるレガシーSuper I/O機能を採用しています。低ピンカウントインターフェイス環境コントロールイニシアチブ、 H/Wモニターファン速度コントローラ / モニター ITE の「スマートガーディアン」機能

グラフィックス

For TF8200A2+

SE / T F720 A2+ Only

GeForce 8200チップセットに統合最大の共有ビデオメモリは512MBです DX10 / HDC P / PureVideo HD のサポート

GeForce 8100チップセットに統合最大の共有ビデオメモリは512MBです DX10 / HDC P / PureVideo のサポート

IDE

統合ID Eコントローラ Ultra DMA 33 / 66 / 100 / 133バスマスタモード PIO Mode 0~4のサポート

SATA II

統合シリアルATA コントローラ最高3 Gb/秒のデータ転送速度 SATAバージョン2.0仕様に準拠。

統合シリアルATA コントローラ最高3 Gb/秒のデータ転送速度

SATAバージョン2.0仕様に準拠。

LAN

Realtek RTL 8111C 10 / 100 / 1000 Mb/秒のオートネゴシエーション半/全二重機能

Page 65

TF8200 A2+ SE/TF720 A2+/TF710 A2+

TF8200 A2+ SE TF720 A2+/TF710 A 2+

サウンド

Codec

ALC662 ハイデフィニションオーディオのサポート

5.1 チャンネルオーディオアウト

ALC662 ハイデフィニションオーディオのサポート

5.1 チャンネルオーディオアウト

PCIスロット x3 PCIスロット x3

PCI Express Gen2 x16スロット x1 PCI Express Gen2 x16スロット x1

スロット

PCI Express x1スロット x2 PCI Express x1スロット x2

フロッピーコネクタ x1 フロッピーコネクタ x1 プリンタポートコネクタ x1 プリンタポートコネクタ x1

IDE コネクタ x1 IDEコネクタ x1 SATAコネクタ x6 SATAコネクタ x6

フロントパネルコネクタ x1 フロントパネルコネクタ x1 フロントオーディオコネクタ x1 フロントオーディオコネクタ x1

CDインコネクタ x1 CDインコネクタ x1 S/PDIFアウトコネクタ x1 S/PDIFアウトコネクタ x1 CPUファンヘッダ x1 CPUファンヘッダ x1 システムファンヘッダ x2 システムファンヘッダ x2 CMOSクリアヘッダ x1 CMOSクリアヘッダ x1 USBコネクタ x4 USBコネクタ x4

シリアルポートコネクタ x1 シリアルポートコネクタ x1 電源コネクタ (24 ピン) x1 電源コネクタ(24ピン ) x1

オンボードコネクタ

電源コネクタ (4ピン) x2 電源コネクタ (4ピン) x2

背面パネル

I/O

PS/2キーボード x1 PS/2マウス x1 LANポート x1 USBポート x4 オーディオジャック x3 DVIポート x1 VGAポート x1

PS/2キーボード x1 PS/2マウス x1 LANポート x1 USBポート x4 オーディオジャック x3 DVIポート(for TF720 A2+) x1 VGAポート(for TF720 A2+) x1

ボードサイズ 220 mm (幅) X 305 mm (高さ ) 220 mm (幅) X 305 mm (高さ)

特殊機能

RAID 0 / 1 / 5 / 0+1 のサポート Hybr id S L I のサポート(b y nV IDIA driver)

RAID 0 / 1 / 5 / 0+1 のサポート Hybr id S L I のサポート(b y nV IDIA dr iver) (for TF720 A2+)

OSサポート

Windows XP / VISTA Biostarは事前のサポートなしにOSサポートを追加または削除する権利を留保します。

2008/04/11
