TA870U3+/TA870B Setup Manual

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents here and specially disclaims any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right to revise this publication and to make changes to the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and we will not be responsible for any mistakes found in this user’s manual. All the brand and product names are trademarks of their respective companies.

Dichiar azione di confor mità sintetica

Ai sensi dell’art. 2 comma 3 del D.M. 275 del 30/10/2002

Si dichiara che questo prodotto è conforme alle normative vigenti e soddisfa i requisiti essenziali richiesti dalle direttive

2004/108/CE, 2006/95/CE e 1999/05/CE

quando ad esso applicabili

Short De clarat ion of conf ormity

We declare this product is complying with the laws in force and meeting all the essential requirements as specified by the directives

2004/108/CE, 2006/95/CE and 1999/05/CE

whenever these laws may be applied

Page 2

Table of Contents

Chapter 1: Introduction ........................................ 1

1.1 Before You Start ................................................................................ 1

1.2 Package Checklist............................................................................. 1

1.3 Motherboard Features...................................................................... 2

1.4 Rear Panel Connectors ..................................................................... 2

1.5 Motherboard Layout......................................................................... 4

Chapter 2: Hardware Installation .......................... 5

2.1 Installing Central Processing Unit (CPU)....................................... 5

2.2 FAN Headers...................................................................................... 7

2.3 Installing System Memory ................................................................ 8

2.4 Connectors and Slots....................................................................... 10

Chapter 3: Headers & Jumpers Setup .................. 13

3.1 How to Setup Jumpers .................................................................... 13

3.2 Detail Settings.................................................................................. 13

Chapter 4: RAID Functions.................................. 18

4.1 Operating System............................................................................ 18

4.2 Raid Arrays...................................................................................... 18

4.3 How RAID Works............................................................................. 18

Chapter 5: T-Series BIOS & Software................... 22

5.1 T-Series BIOS..................................................................................... 22

5.2 T-Series Software............................................................................. 30

Chapter 6: Useful Help ........................................ 40

6.1 Driver Installation Note.................................................................. 40

6.2 Extra Information............................................................................ 41

6.3 AMI BIOS Beep Code....................................................................... 42

6.4 AMI BIOS Post Code ........................................................................ 43

6.5 Troubleshooting............................................................................... 45

Appendix: SPEC In Other Languages ................... 46

German.................................................................................................................. 46

French .................................................................................................................... 48

Ita lian..................................................................................................................... 50

Spanish ................................................................................................................... 52

Portuguese ............................................................................................................ 54

Polish...................................................................................................................... 56

Russian ................................................................................................................... 58

Arabic..................................................................................................................... 60

Japane se ................................................................................................................ 62

Page 3

TA870U3+/TA870B

CHAPTER 1: INTRODUCTION

1.1 B

EFORE YOU START

Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with

sufficient lighting.

 Always disconnect the computer from power outlet

before operation.

 Before you take the motherboard out from anti-static

bag, ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.

 Avoid touching the components on motherboard or the

rear side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the

case after installation. Loose parts will cause short circuits which may damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

 The operating temperatures of the computer should be

0 to 45 degrees Celsius.

1.2 PACKAGE CHECKLIST

Serial ATA Cable X 3 Serial ATA Power Cable X 1 Rear I/O Panel for ATX Case X 1 User’s Manual X 1 Fully Setup Driver CD X 1 USB 2.0 Cable X1 (optional) S/PDIF out Cable X 1 (optional)

Note : The package contents may be different due to area or your motherboard version.

Page 4

Motherboard Manual

1.3 MOTHERBOARD FEATURES

TA870U3+ TA870B

CPU

Socket AM3 AMD Phenom II/Athlon II/Sempron processors

AMD 64 Architecture enables 32 and 64 b it computing

Supports Hyper Transport 3.0 and Cool=n=Quiet (Maximum Watt: 140W)

Socket AM3 AMD Phenom II/Athlon II/Sempron processors

AMD 64 Architecture enables 32 and 64 b it computing

Supports Hyper Transport 3.0 and Cool=n=Quiet (Maximum Watt: 140W)

FSB

Support HyperTransport 3.0

Supports up to 5.2 GT/s Bandwidth

Support HyperTransport 3.0

Supports up to 5.2 GT/s Bandwidth

Chipset

AMD 870

AMD SB850

AMD 870

AMD SB850

Super I/O

ITE 8728 Prov ides the mos t co mmonly used legac y Super

I/O functionality Low Pin Count Interface

En viro nment Cont rol in it iatives H/W Mon itor ITE's "S mart Guard ian" funct ion

ITE 8728 Prov ides the mos t co mmonly us ed legacy Supe r

I/O functionality Low Pin Count Interface

En viro nment Cont rol in it iatives H/W Mon itor ITE's "S mart Guard ian" funct ion

Main Memory

DDR3 DIMM Slots x 4 Max Memory Capacity 16GB

Each DIMM supports 512MB/1GB/2GB/ 4GB DDR3 Dual Channe l Mod e DDR3 me mory modu le

Supports DDR3 800 / 1066 / 1333 Supports DDR3 1600 (OC)

DDR3 DIMM Slots x 4 Max Memory Capacity 16GB

Each DIMM supports 512MB/1GB/2GB/ 4GB DDR3 Dual Channe l Mod e DDR3 me mory modu le

Supports DDR3 800 / 1066 / 1333 Supports DDR3 1600 (OC)

SATA 3

Integrated Serial ATA Controller

Data transfer rates up to 6 Gb/s SATA Vers ion 3 .0 s pec ific at ion co mplian t

Integrated Serial ATA Controller

Data transfer rates up to 6 Gb/s SATA Vers ion 3 .0 s pec ific at ion co mplian t

LAN

Realtek RTL 8111E 10 / 100 / 1000 Mb/s auto negotiation Half / Full duplex capability

Sound

ALC662

5.1 channels audio out

High Definition Audio

ALC662

5.1 channels audio out

High Definition Audio

PCI Express Gen2 x16 slot x2 PCI Express Gen2 x16 slot x2 PCI Express Gen2 x 1 slot x2 PCI Express Gen2 x 1 slot x2 Slots

PCI slot x2 PC I slot x 2

Page 5

TA870U3+/TA870B

TA870U3+ TA870B

SATA Connector x6 SATA Connector x6 Front Panel Connector x1 Front Panel Connector x1 Front Audio Connector x1 Front Audio Connector x1 S/PDIF Out Connector x1 S/PDIF Out Connector x1 CPU Fan Header x1 CPU Fan Header x1 System Fan Header x2 System Fan Header x2 CMOS clear Header x1 CMOS clear Header x1 USB 2.0 Connector x3 USB 2.0 Connector x3 Power Connector (24pin) x1 Power Connector (24p in) x1 Power Connector (4pin) x1 Power Connector (4pin) x1 Consumer IR Connector x1 Consumer IR Connector x1

On Board Connector

Printer Port Connector x1 Print er Po rt Connector x1

Back Panel I/O

PS/2 Keyboard x1 PS/2 Mous e x1 Serial Port x1 LAN Port x1 USB 2.0 Port (by SB850) x2 USB 3.0 Port (by ASM1042) x2 Audio Jack x3

PS/2 Keyboard x1 PS/2 Mous e x1 Serial Port x1 LAN Port x1 USB 2.0 Port x4 Audio Jack x3

Board Size 220 mm(W) x 305 mm(L) 220 mm(W) x 305 mm(L) Special Features

RAID 0 / 1 / 10 / 5 support RAID 0 / 1 / 10 / 5 support

OS Support

Windows XP / Vista / 7 Biostar reserves the right to add or remove support for any OS With or without notice.

1.4 REAR PANEL CONNECTORS

PS/2 Mouse

PS/2 Keyboard

COM1

USB2 .0X2USB3.0X2

LAN

Line In/ Surround

Line Out

Mic In 1/ Bass/ Center

USB2.0X2

(TA870U3+)

(TA870B)

NOTE: Since the audio chip supports High Definition Audio Specification, the function of each

audio jack can be defi ned by software. The input / output function of each audio jack listed above represents the default setting. However, when connecting external microphone to the audio port, please use the Line In (blue) and Mic In (Pink) audio jack.

NOTE: USB3.0 ports are backward compatible with USB2.0/USB1.X devices. USB3.0 is

controlled by Asmedia ASM1042, but, USB2.0/USB1.X is controlled by SB850.

Page 6

Motherboard Manual

1.5 MOTHERBOARD LAYOUT

KBMS1

ATXPWR2

COM1

USB3_0

RJ45USB1

AUDIO1

LAN

Codec

Super

I/O

BAT1

F_AUDIO1

JSPDIFOUT1 J_PRINT1

CI R1

SYS_F AN2 F_USB3F_USB1 F_U S B2

PAN EL 1

SATA2SATA1

SATA4SATA3

SW_PWR1

SW_RS T1

JCM OS1

BIOS

SYS_FAN1

PCI2

PCI1

PEX1_1

PEX1_2

PEX16_1

PEX16_2

AMD

SB850

SATA6

SATA5

ATXPWR1

DDR3_ A1

DDR3_ A2

DB2DR3_

DDR3_ B1

CPU_FAN1

PH4_LE D

PH3_LE D

PH2_LE D

PH1_LE D NB_PH _LED

AMD

870

Socket A M 3

USB2_0

(TA8 70U3 +)

(TA8 70B)

LED_D1

LED_D2

Note: represents the 1■

pin.

Page 7

TA870U3+/TA870B

CHAPTER 2: HARDWARE INSTALLATION

2.1 I

NSTALLING CENTRAL PROCESSING UNIT (CPU)

Step 1: Pull the lever toward direction A from the socket and then raise the

lever up to a 90-degree angle.

Step 2: Look for the white triangle on socket, and the gold triangle on

CPU should point towards this white triangle. The CPU will fit only in the correct orientation.

Page 8

Motherboard Manual

Step 3: Hold the CPU down firmly, and then close the lever toward direct

B to complete the installation.

Step 4: Put the CPU Fan on the CPU and buckle it. Connect the CPU

FAN power cable to the CPU_FAN1. This completes the installation.

Page 9

TA870U3+/TA870B

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufact urer. Connect the fan cable to the connector while matching the black wire to pin#1.

CPU_FAN1: CPU Fan Header

Assignment

1 Ground 2 +12V 3

FAN RPM r at e sense

4 Smart Fan

Control (By Fan)

SYS_FAN1: System Fan Header

SYS_FAN2: NorthBridge Fan Header

Pin Assignment

1 Ground 2 +12V

SYS_FAN1

SYS_FAN2

FAN RPM rate sense

Note:

CPU_FAN1, SYS_FAN1/2 support 4-pin and 3-pin head connectors. When connecting with wires onto connectors, please note that the red wire is the positive and should be connected to pin#2, and the black wire is Ground and should be connected to GND.

Page 10

Motherboard Manual

2.3 INSTALLING SYSTEM MEMORY

A. DDR3 Modules

DDR 3_A1

DDR 3_A2

DDR 3_B1

DB2DR 3_

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining chip snap back in place and the DIMM is properly seated.

Page 11

TA870U3+/TA870B

B. Memory Capacity

DIMM Socket

Location

DDR3 Module

Total M emory

Size

DDR3_A1 512MB/1GB/2GB/4GB

DDR3_A2 512MB/1GB/2GB/4GB

DDR3_B1 512MB/1GB/2GB/4GB

DDR3_B2 512MB/1GB/2GB/4GB

Max is 16GB.

C. Dual Channel Memory installation

Please refer to the following requirements to activate Dual Channel function:

Install memory module of the same density in pairs, shown in the table.

Dual Channel Status

DDR3_A1

DDR3_A2 DDR3_B1 DDR3_B2

Enabled O X O X

Enabled X O X O

Enabled O O O O

(O: memory inst alled; X: memory not installed)

The DRAM bus width of the memory module must be the same (x8 or x16)

Page 12

Motherboard Manual

2.4 CONNECTORS AND SLOTS

SATA1~SATA6: Serial AT A Connectors

The motherboard has a PCI to SATA Controller with 6 channels SATA interface, it satisfies the SATA 3.0 spec and with transfer rate of 6.0Gb/s.

Assignment

1 Ground 2 TX+ 3 TX4 Ground 5 RX6 RX+

741

SATA3 SATA4 SATA1 SATA2

S ATA 5 SATA 6

7 Ground

ATXP W R2: AT X Power Source Conne ctor

This connector provides +12V to CPU power circuit.

Pin Assignment

1 +12V 2 +12V 3 Ground 4 Ground

Page 13

TA870U3+/TA870B

ATXP W R1: AT X Power Source Conne ctor

This connector allows user to connect 24-pin power connector on the AT X power supply.

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V 14 -12V 2 +3.3V 15 Ground 3 Ground 16 PS_ON 4 +5V 17 Ground 5 Ground 18 Ground 6 +5V 19 Ground 7 Ground 20 NC 8 PW_OK 21 +5V 9 Standby Voltage+5V 22 +5V 10 +12V 23 +5V 11 +12V 24 Ground 12 +3.3V

Note:

Before you power on the system, please make sure that both ATXPWR1 and ATXPWR2 connectors have been plugged-in.

PCI1/PCI2: Peripheral Component Inte rconnect Slots

PCI stands for Peripheral Component Interconnect, and it is a bus standard for expansion cards. This PCI slot is designated as 32 bits.

PCI2

PCI1

Page 14

Motherboard Manual

PEX16_1: PCI-Express Gen2 x16 Slot

- PCI-Express 2.0 compliant.

- Maxi mum theoretical realized bandwidth of 8GB/s simultaneously per

direction, for an aggregate of 16GB/s totally.

- PCI-Express Gen2 supports a raw bit-rate of 5.0Gb/s on the data pins.

PEX16_2: PCI-Express Gen2 x4 Slot

- PCI-Express 2.0 compliant.

- Data transfer bandwidth up to 2GB/s per direction;4GB/s in total.

- PCI-Express Gen2 supports a raw bit-rate of 2.5Gb/s on the data pins.

PEX1_1/PEX1_2: PCI-Express Gen2 x1 Slot

- PCI-Express 2.0 compliant.

- Data transfer bandwidth up to 250MB/s per direction; 500MB/s in total.

PEX16_1

PEX1_1

PEX16_2

PEX1_2

Page 15

TA870U3+/TA870B

CHAPTER 3: HEADERS & JUMPERS SETUP

3.1 H

OW TO SETUP JUMPERS

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is “close”, if not, that means the jumper is “open”.

Pin opened Pin closed Pin1-2 closed

3.2 DETAIL SETTINGS

PANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and speaker connection. It allows user to connect the PC case’s front panel switch functions.

916

Pin Assignment Function Pin Assignment Function

1 +5V 9 N/A 2 N/A 10 N/A

N/A

3 N/ A 11 N/A N/A 4 Speaker

Speaker Connector

12 Power LED (+) 5 HDD LED (+) 13 Power LED (+) 6 HDD LED (-)

Hard drive LED

14 Power LED (-)

Power LED

7 Ground 15 Power button 8 Reset control

Reset button

16 Ground

Power-on button

Page 16

Motherboard Manual

JCMOS1: Clear CMOS Header

Placing the jumper on pin2-3 allows user to restore the BIOS safe setting and the CMOS data. Please carefully follow the procedures to avoid damaging the motherboard.

Pin 1-2 Close:

Normal Operation (default).

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Reset your desired password or clear the CMOS data.

CIR1: Consumer IR Connector

This header is for infrared remote control and communication.

Pin Assignment

1 IrDA serial input 2 Ground 3 Ground 4 Key 5 IrDA serial output 6 IR Power

125

Page 17

TA870U3+/TA870B

F_AUDIO1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front panel. This header allows only HD audio front panel connector; AC’97 connector is not acceptable.

Pin Assignment

1 Mic Left in 2 Ground 3 Mic Right in 4 GPIO 5 Right line in 6 Jack Sense 7 Front Sense 8 Key 9 Left line in

10 Jack Sense

JSPDIFOUT1: Digital Audio-out Connector

This connector allows user to connect the PCI bracket SPDIF output header.

Assignment

1 +5V 2 SPDIF_OUT

3 Ground

Page 18

Motherboard Manual

J_PRINT1: Printer Port Connector

This header allows you to connector printer on the PC.

Pin Assignment Pin Assignment

1 -Strobe 14 Ground

2 -ALF 15 Data 6

3 Data 0 16 Ground

4 -Error 17 Data 7

5 Data 1 18 Ground

6 -Init 19 -ACK

7 Data 2 20 Ground

8 -Scltin 21 Busy

9 Data 3 22 Ground

10 Ground 23 PE

11 Data 4 24 Ground

12 Ground 25 SCLT

13 Data 5 26 Key

F_USB1~F_USB3: Headers for USB 2.0 Ports at Front Panel

These headers allow user to connect additional USB cable on the PC front panel, and also can be connected with internal USB devices, like USB card reader.

Assignment

1 +5V (fused) 2 +5V (fused) 3 USB4 USB5 USB+ 6 USB+ 7 Ground 8 Ground 9 Key

F_USB 1 F_

USB2

USB3

10 NC

Page 19

TA870U3+/TA870B

On-Board LED Indicators

There are 6 LED indicators showing system status.

LED_D2

LED_D1

PH1_ LED

PH2_ LED

PH3_ LED

PH4_ LED

NB _PH_ LED

LED_D1 & LED_D2: Debug Indicators

PH1_LED ~ PH4_LED/NB_PH_LED: Power Status Indicators

Please refer to the tables below for specific messages:

LED_D1 LED_D2 Message

ON ON Norma l

ON OFF Memory Error OFF ON VGA Error OFF OFF Abnormal: CPU / Chipset error.

PH1_LED~PH4_LED

NB _PH _LED

Phase Indicator

ON Phase Active

OFF Phase Disable

On-Board Buttons

There are 2 on-board buttons.

SW_RS T1

SW_PWT 1

SW_RST1: Reset button. SW_PWR1: Power Switch button.

Page 20

Motherboard Manual

CHAPTER 4: RAID FUNCTIONS

4.1 O

PERATING SYSTEM

Supports Windows XP, Windows Vista, and Windows 7.

4.2 RAID ARRAYS

RAID supports the following types of RAID arrays:

RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write times for

many applicat ions.

RAID 1: RAID 1 defines techniques for mirroring data.

RAID 10: RAID 10 combines the techniques used in RAID 0 and RAID 1.

RAID 5: RAID 5 provides fault tolerance and better utilization of disk capacity.

4.3 HOW RAID WORKS

RAID 0:

The controller “stripes” data across multiple drives in a RAID 0 array system. It breaks up a lar ge f ile into smalle r block s and p erfor ms disk rea ds a nd wr ites ac ross m ultip le drives in parallel. The size of each block is determined by the stripe size parameter, which you set durin g the creation of the RAID set based on the system environment. This technique reduces overall disk access time and offers high bandwidth.

Features and Benefits

 Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the

platform.

 Uses: Intended for non-critical data requiring high data throughput, or any

environment that does not require fault tolerance.

 Benefits: provides increased data throughput, especially for large files. No

capacity loss penalty for parity.

 Drawbacks: Does not deliver any fault tolerance. If any drive in the array

fails, all data is lost.

 Fault Tolerance: No.

Block 1 Blo ck 3 Blo ck 5

Block 2 Blo ck 4 Blo ck 6

Page 21

TA870U3+/TA870B

RAID 1:

Every read and write is actua lly carried out in parallel across 2 disk drives in a RAID 1 array system. The mirrored (backup) copy of the data can reside on the same disk or on a second redundant drive in the array. RAID 1 provides a hot-standby copy of data if the active volume or drive is corrupted or becomes unavailable because of a hardware failure.

RAID techniques can be applied for high-availability solut ions, or as a form of automatic backup that eliminates tedious manual backups to more expensive and less reliab le media.

Features and Benefits

 Drives: Minimum 2, and maximum is 2.  Uses: RAID 1 is ideal for small databases or any other application that

requires fault tolerance and minimal capacity.

 Benefits: Provides 100% data redundancy. Should one drive fail, the

controller switches to the other drive.

 Drawbacks: Requires 2 drives for the storage space of one drive.

Performance is impaired during drive rebuilds.

 Fault Tolerance: Yes .

Block 1 Block 2 Block 3

Page 22

Motherboard Manual

RAID 10:

RAID 1 drives can be stripped using RAID 0 techniques. Resulting in a RAID 10 solution for improved resiliency, performance and rebuild performance.

Features and Benefits

 Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.  Benefits: Optimizes for both fault tolerance and performance, allowing for

automatic redundancy. May be si multaneously used with other RAID levels in an array, and allows for spare disks.

 Drawbacks: Requires twice the available disk space for data redundancy,

the same as RAID level 1.

 Fault Tolerance: Yes .

Block 1 Block 3 Block 5

Block 2 Block 4 Block 6

Block 1 Block 3 Block 5

Block 2 Block 4 Block 6

Page 23

TA870U3+/TA870B

RAID 5:

RAID 5 stripes both data and parity information across three or more drives. It writes data and parity blocks across all the drives in the array. Fault tolerance is maintained by ensuring that the parity information for any given block of data is placed on a different drive from those used to store the data itself.

Features and Benefits

 Drives: Mini mu m 3.  Uses: RAID 5 is recommended for transaction processing and general

purpose service.

 Benefits: An ideal combination of good performance, good fault tolerance,

and high capacity and storage efficiency.

 Drawbacks: Individual block data transfer rate same as a single disk. Write

performance can be CPU intensive.

 Fault Tolerance: Yes.

Disk 1

DATA 3 PA RI T Y

DATA 7

DATA 1

DATA 9 PA RI T Y

Disk 2

PA RI T Y

DATA 5 DATA 8

DATA 2

PA RI T Y DATA 11

Disk 3

DATA 4 DATA 6

PA RI T Y

DATA 10 DATA 12

Page 24

Motherboard Manual

CHAPTER 5: T-SERIES BIOS & SOFTWARE

5.1 T-S

ERIES BIOS

T-Series BIOS Features

Overclocking Navigator Engine (O.N.E.)

Memory Integration Test (M.I.T., under Overclock Navigator Engine)

BIO-Flasher: Update BIOS file from USB Flash Drive or FDD

Self Recovery System (S.R.S)

Smart Fan Function

CMOS Reloading Program

A. Overclocking Navigator Engine (O.N.E.)

ONE provides two powerful overclocking engines: MOS and AOS for both Elite and Casual overclockers.

BIOS S ETUP U TIL ITY

Main Adva nce d

PCIPn P B oot

Chip set T-Ser ies

vxx.xx (C)Cop yri ght 19 85-200x , A merica n M egatre nds, In c.

Sele ct Screen Sele ct Item Chan ge Option Gene ral He lp Save and E xit Exit

+F1 F10 ESC

T-Se ries Se tti ngs

==== ======= Au tomate OverC lock Syste m = ====== ====

==== ======= = Manu al OverCl ock System ===== ====== =

Noti ce: Ple ase Clear CMOS if s ystem no displa y aft er overcl ocking .

Over Clock N avi gator [ Normal ]

> G. P.U Pha se Contro l Inte grated Mem ory Te st [ Disabl ed]

BIO- unlocKI NG [ Disabl ed]

Auto OverCl ock Syste m [ V6-Tec h E ngine]

CPU/ HT Referen ce Clo ck (MHz) [200 ] CPU Configu rat ion [ Auto] Spre ad Spec tru m [ Disabl ed] > Ov er Volt age Confi gurati on > CP U FID/V ID Contro l > Hy per Tra nsp ort Co nfigur atio n > DRAM Timi ng Config ura tion

Exit

Option s

Disable d Enabled

!! WARNING !!

For better system performance, the BIOS firmware is being continuously updated. The BIOS information described below in this manual is for your reference only and the actual BIOS information and settings on board may be different from this manual. For further information of setting up the BIOS, please refer to the BIOS Manual in the Setup CD.

Page 25

TA870U3+/TA870B

Manual Overclock System (M.O.S.)

MOS is designed for experienced overclock users. It allows users to customize personal overclock settings.

BIOS S ETUP U TIL ITY

Main Adva nce d

PCIPn P B oot

Chip set T-Ser ies

vxx.xx (C)Cop yri ght 19 85-200x , A merica n M egatre nds, In c.

Sele ct Screen Sele ct Item Chan ge Option Gene ral He lp Save and E xit Exit

+F1 F10 ESC

T-Se ries Se tti ngs

==== ======= Au tomate OverC lock Syste m = ====== ====

==== ======= = Manu al OverCl ock System ===== ====== =

Noti ce: Ple ase Clear CMOS if s ystem no displa y aft er overcl ocking .

BIO- unlocKI NG [ Disabl ed]

> G. P.U Pha se Contro l Inte grated Mem ory Te st [ Disabl ed]

Over Clock N avi gator [ Normal ]

Auto OverCl ock Syste m [ V6-Tec h E ngine]

Exit

Option s

Normal Automat e Over Clo ck Manual Ove rClock

O ptions Normal Automa te OverCl ock

Manual OverC loc k

↓

BIOS S ETUP U TIL ITY

Main Adva nced

PCIPn P B oot

Chip set T-Ser ies

vxx.xx (C)Cop yri ght 19 85-200x , A merica n Mega tre nds, In c.

Sele ct Screen Sele ct Item Chan ge Option Gene ral He lp Save and E xit Exit

+F1 F10 ESC

T-Se ries Se tti ngs

==== ======= Au tomate OverC lock Syste m ==== === ====

==== ======= = Manu al OverCl ock System ===== ====== =

Noti ce:

BIO- unlocKI NG [ Disabl ed]

Please Clear CMO S if s ystem no display

aft er overcl ocking .

CPU/ HT Referen ce Clo ck (MHZ) [200 ] CPU Configu rat ion [ Auto]

Spre ad Spec tru m [ Disabl ed] > Ov er-Volt age Confi gurati on > CP U FID/V ID Contro l > Hy per Tra nsp ort Co nfigur atio n > DRAM Timi ng Config ura tion > G. P.U Pha se Contro l Inte grated Mem ory Te st [ Disabl ed]

Over Clock N avi gator [ Manual OverC loc k]

Auto OverCl ock Syste m [ V6-Tec h Engi ne]

Exit

Option s

Disable d Enabled

BIO-unlocKING

This item allows you to activate BIO-unlocKING function.

CPU/HT Reference Clock (MHz)

CPU Frequency is directly in proportion to system performance. To maintain the system stability, CPU voltage needs to be increased also when raising CPU frequency.

CPU Configuratio n

This item provides several fixed modes of CPU configuration.

Spread Spectrum

This item allows you to control Spread Spectrum function.

Page 26

Motherboard Manual

Over-Voltage Configuration

Enter this function for more advanced voltage settings.

CPU FID/VID Control

Enter this function for more advanced CPU settings.

Hyper Transpo rt Co nf ig uratio n

Enter this function for more advanced Hyper Transport settings.

DRAM Timing Co nfiguratio n

Enter this function for more advanced DRAM clock settings.

G.P.U Phase Control

Enter this function for more power saving settings.

Automatic Overclock System (A.O.S.)

For beginners in overclock field, BET had developed an easy, fast, and powerful feature to increase the system performance, named A.O.S. Based on many tests and experiments, A.O.S. provides 3 ideal overclock configurations that are able to raise the system performance in a single step.

BIOS S ETUP U TIL ITY

Main Adva nced

PCIPn P B oot

Chip set T-Ser ies

vxx.xx (C)Cop yri ght 19 85-200x , A merica n Mega tre nds, In c.

Sele ct Screen Sele ct Item Chan ge Option Gene ral He lp Save and E xit Exit

+F1 F10 ESC

T-Se ries Se tti ngs

==== ======= Au tomate OverC lock Syste m ==== === ====

==== ======= = Manu al OverCl ock System ===== ====== =

Noti ce: Ple ase Clear CMOS if s ystem no dis pla y aft er overcl ocking .

BIO- unlocKI NG [ Disabl ed]

> G. P.U Pha se Contro l Inte grated Mem ory Te st [ Disabl ed]

Over Clock N avi gator [ Normal ]

Auto OverCl ock Syste m [ V6-Tec h Engi ne]

Exit

Option s

Normal Automat e Over Clo ck Manual Ove rClock

O ptions Normal

Manual OverC loc k

Automa te OverCl ock

NOTE

Overclock is an optional process, but not a “must-do” process; it is not recommended for inexperienced users. Therefore, we will not be responsible for any hardware damage which may be caused by overclocking. We also would not guarantee any overclocking

erformance.

Page 27

TA870U3+/TA870B

V6 Tech Engine

This engine will make a good over-clock performance.

BIOS S ETUP U TIL ITY

Main Adva nced

PCIPn P B oot

Chip set T-Ser ies

vxx.xx (C)Cop yri ght 19 85-200x , A merica n Mega tre nds, In c.

Sele ct Screen Sele ct Item Chan ge Option Gene ral He lp Save and E xit Exit

+F1 F10 ESC

T-Se ries Se tti ngs

==== ======= Au tomate OverC lock Syste m ==== === ====

==== ======= = Manu al OverCl ock System ===== ====== =

Noti ce: Ple ase Clear CMOS if s ystem no dis pla y aft er overcl ocking .

BIO- unlocKI NG [ Disabl ed] Over Clock N avi gator [ Automa te Ove rCl ock]

> G. P.U Pha se Contro l Inte grated Mem ory Te st [ Disabl ed]

Auto OverCl ock Syste m [ V6-Tec h Engi ne]

CPU/ HT Referen ce Clo ck (MHz) [200 ] CPU Configu rat ion [ Auto]

Spre ad Spec tru m [ Disabl ed] > Ov er Volt age Confi gurati on > CP U FID/V ID Contro l > Hy per Tra nsp ort Co nfigur atio n > DRAM Timi ng Config ura tion

Exit

Option s

V6-Tech Engin e V8-Tech Engin e

V12-Tec h Engi ne

V8 Tech Engine

This engine will make a better over-clock performance.

BIOS S ETUP U TIL ITY

Main Adva nced

PCIPn P B oot

Chip set T-Ser ies

vxx.xx (C)Cop yri ght 19 85-200x , A merica n Mega tre nds, In c.

Sele ct Screen Sele ct Item Chan ge Option Gene ral He lp Save and E xit Exit

+F1 F10 ESC

T-Se ries Se tti ngs

==== ======= Au tomate OverC lock Syste m ==== === ====

==== ======= = Manu al OverCl ock System ===== ====== =

Noti ce: Ple ase Clear CMOS if s ystem no dis pla y aft er overcl ocking .

BIO- unlocKI NG [ Disabl ed] Over Clock N avi gator [ Automa te Ove rCl ock]

> G. P.U Pha se Contro l Inte grated Mem ory Te st [ Disabl ed]

Auto OverCl ock Syste m [ V8-Tec h Engi ne]

CPU/ HT Referen ce Clo ck (MHz) [200 ] CPU Configu rat ion [ Auto]

Spre ad Spec tru m [ Disabl ed] > Ov er Volt age Confi gurati on > CP U FID/V ID Contro l > Hy per Tra nsp ort Co nfigur atio n > DRAM Timi ng Config ura tion

Exit

Option s

V6-Tech Engin e V8-Tech Engin e

V12-Tec h Engi ne

V12 Tech Engine

This engine will make a best over-clock performance.

BIOS S ETUP U TIL ITY

Main Adva nced

PCIPn P B oot

Chip set T-Ser ies

vxx.xx (C)Cop yri ght 19 85-200x , A merica n Mega tre nds, In c.

Sele ct Screen Sele ct Item Chan ge Option Gene ral He lp Save and E xit Exit

+F1 F10 ESC

T-Se ries Se tti ngs

==== ======= Au tomate OverC lock Syste m ==== === ====

==== ======= = Manu al OverCl ock System ===== ====== =

Noti ce: Ple ase Clear CMOS if s ystem no dis pla y aft er overcl ocking .

BIO- unlocKI NG [ Disabl ed] Over Clock N avi gator [ Automa te Ove rCl ock]

> G. P.U Pha se Contro l Inte grated Mem ory Te st [ Disabl ed]

Auto OverCl ock Syste m [ V12-Te ch Eng ine ]

CPU/ HT Referen ce Clo ck (MHz) [200 ] CPU Configu rat ion [ Auto]

Spre ad Spec tru m [ Disabl ed] > Ov er Volt age Confi gurati on > CP U FID/V ID Contro l > Hy per Tra nsp ort Co nfigur atio n > DRAM Timi ng Config ura tion

Exit

Option s

V6-Tech Engin e V8-Tech Engin e

V12-Tec h Engi ne

Page 28

Motherboard Manual

Notice s:

Not all types of AMD CPU perform above overclock setting ideally; the difference will be based on the selected CPU model.

B. Memory Integration Test (M.I.T.)

This function is under “Overclocking Navigator Engine” item. MIT allows users to test memory compatibilities, and no extra devices or software are needed.

Step 1

The default setting under this item is “Disabled”; the condition parameter should be changed to “Enable” to proceed this test.

BIOS S ETUP U TIL ITY

Main Adva nced

PCIPn P B oot

Chip set T-Ser ies

vxx.xx (C)Cop yri ght 19 85-200x , A merica n Mega tre nds, In c.

Sele ct Screen Sele ct Item Chan ge Option Gene ral He lp Save and E xit Exit

+F1 F10 ESC

T-Se ries Se tti ngs

==== ======= Au tomate OverC lock Syste m ==== === ====

==== ======= = Manu al OverCl ock System ===== ====== =

Noti ce: Ple ase Clear CMOS if s ystem no dis pla y aft er overcl ocking .

BIO- unlocKI NG [ Disabl ed] Over Clock N avi gator [ Normal ]

> G. P.U Pha se Contro l

Auto OverCl ock Syste m [ V6-Tec h Engi ne]

CPU/ HT Referen ce Clo ck (MHZ) [200 ] CPU Configu rat ion [ Auto]

Spre ad Spec tru m [ Disabl ed] > Ov er-Volt age Confi gurati on > CP U FID/V ID Contro l > Hy per Tra nsp ort Co nfigur atio n > DRAM Timi ng Config ura tion

Inte grated Mem ory Te st [ Disabl ed]

Exit

Option s

Enabled Disable d

↓

BIOS S ETUP U TIL ITY

Main Adva nced

PCIPn P B oot

Chip set T-Ser ies

vxx.xx (C)Cop yri ght 19 85-200x , A merica n Mega tre nds, In c.

Sele ct Screen Sele ct Item Chan ge Option Gene ral He lp Save and E xit Exit

+F1 F10 ESC

T-Se ries Se tti ngs

==== ======= Au tomate OverC lock Syste m ==== === ====

==== ======= = Manu al OverCl ock System ===== ====== =

Noti ce: Ple ase Clear CMOS if s ystem no dis pla y aft er overcl ocking .

BIO- unlocKI NG [ Disabl ed] Over Clock N avi gator [ Normal ]

> G. P.U Pha se Contro l

Auto OverCl ock Syste m [ V6-Tec h Engi ne]

CPU/ HT Referen ce Clo ck (MHZ) [200 ] CPU Configu rat ion [ Auto]

Spre ad Spec tru m [ Disabl ed] > Ov er-Volt age Confi gurati on > CP U FID/V ID Contro l > Hy per Tra nsp ort Co nfigur atio n > DRAM Timi ng Config ura tion

Inte grated Mem ory Te st [ Enable d]

Exit

Option s

Enabled Disable d

Step 2

Save and Exit from CMOS setup and reboot the system to activate this test. Run this test for 5 minutes (minimum) to ensure the memory stability.

Step 3

When the process is done, change the setting back from “Enable” to “Disable” to complete the test.

Page 29

TA870U3+/TA870B

C. BIO-Flasher

BIO-Flasher is a BIOS flashing utility providing you an easy and simple way to update your BIOS via USB pen drive or floppy disk.

The BIO-Flasher is built in the BIOS chip. To enter the utility, press <F12> during the Power-On Self Tests (POST) procedure while booting up.

Updating BIOS with BIO-Flasher

1. Go to the website to download the latest BIOS file for the motherboard.

2. Then, save the BIOS file into a USB pen drive or a floppy disk.

3. Insert the USB pen drive or the floppy disk that contains the BIOS file to the USB port or the floppy disk drive.

4. Power on or reset the computer and then press <F12> during the POST process. A select dialog as the picture on the right appears. Select the device contains the BIOS file and press <Enter> to enter the utility.

5. T he utility will show the BIOS files and their respective information. Select the proper BIOS file and press <Enter> then <Y> to perform the BIOS update process.

6. After the update process, the utility will ask you to reboot the system. Press <Y> to proceed. BIOS update completes.

z This utility only allows storage device with FAT32/16 format and single

parti tion.

z Shutting down or resetting the system while updating the BIOS will lead to

system boot failure.

Page 30

Motherboard Manual

D. Self Recovery System (S.R.S.)

This function can’t be seen under BIOS setup; and is always on whenever the system starts up. However, it can prevent system hang-up due to inappropriate overclock actions. When the system hangs up, S.R.S. will automatically log in the default BIOS setting, and all overclock settings will be re-configured.

E. Smart Fan Function

Smart Fan Function is under “Smart Fan Configuration” in “Advanced Menu”. This is a brilliant feature to control CPU/System Temperature vs. Fan speed. When enabling Smart Fan function, Fan speed is controlled automatically by

CPU/System temperature. This function will protect CPU/System from overheat problem and maintain the system temperature at a safe level.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset T-Series

Select Screen Select Item Go to Sub Screen General Help Save and Exit Exit

Enter F1 F10 ESC

Configure CPU.Advanced Settings

WARNING: Setting wrong values in below sections may cause system to malfunction.

> SuperIO Configuration > Smart Fan Configuration > Hardware Health Configuration > Power Configuration > USB Configuration

> CPU Configuration

Exit

↓

BIOS SETUP UTILITY

Advanced

Select Screen Select Item Change Option General Help Save and Exit Exit

+F1 F10 ESC

When you choice [Auto] ,[3Pin] or [4Pin], please run the calibration to define the Fan parameters for Smart Fan control

Smart Fan Configuration

CPU Smart Fan [Disabled]

Smart Fan Calibration Control Mode Fan Ctrl OFF( C)

Fan Ctrl On( C) Fan Ctrl Start value Fan Ctrl Sensitive

Page 31

TA870U3+/TA870B

Smart Fan Calibration

Choose this item and then the BIOS will automatically test and detect the CPU/System fan functions and show CPU/System fan speed.

Control Mode

This item provides several operation modes of the fan.

Fan Ctrl OFF(℃)

If the CPU/System temperature is lower than the set value, the CPU/ System fan will turn off. The range is from 0~127, with an interval of 1.

Fan Ctrl On(℃)

The CPU/System fan starts to work when CPU/System temperature arrives to this set value. The range is from 0~127, with an interval of 1.

Fan Ctrl Start Value

When CPU/System temperature arrives to the set value, the CPU/System fan will work under Smart Fan Function mode. The range is from 0~127, with an interval of 1.

Fan Ctrl Sensitive

Increasing the value of slope PWM will raise the speed of CPU/System fan. The range is from 1~127, with an interval of 1.

F. CMOS Reloading Program

It allows users to save different CMOS settings into BIOS-ROM. Users are able to reload any saved CMOS setting for customizing system configurations. Moreover, users are able to save an ideal overclock setting during overclock operation. There are 10 sets of record addresses in total, and users are able to name the CMOS data according to personal preference.

BIOS SETUP UTILITY

Main Advanced

PCIPnP Boot

Chipset T-Series

Select Screen Select Item Go to Sub Screen General Help Save and Exit Exit

Enter F1 F10 ESC

Exit Options

Security Settings

Save Changes and Exit Discard Changes and Exit Discard Changes

Load Optimal Defaults

> Security

CMOS Backup Function

Exit

CMOS Backup Func

CMOS Data

CMOS Data Reload

Save

Page 32

Motherboard Manual

5.2 T-SERIES SOFTWARE

Installing T-Series Software

1. Insert the Setup CD to the optical drive. The drivers installation program would appear if the Auto-run function has been enabled.

2. Select Software In stallation, and then click on the respective software title.

3. Follow the on-screen instructions to complete the installation.

Launching T-Series Software

After the installation process is completed, you will see the software icon showing on the desktop. Double-click the icon to launch it.

TOverclocker

TOverclocker presents a simple Windows-based system performance enhancement and manageability utility. It features several powerful and easy to use tools such as Overclocking for enhancing system performance, also for special enhancement on CPU and Memory. Smart-Fan management and PC health are for monitoring system status.This utility also allows you to make overclocking profiles saving unlimitedly, and pre-set OC modes are for easy OC. (The illustration below is for reference only)

Page 33

TA870U3+/TA870B

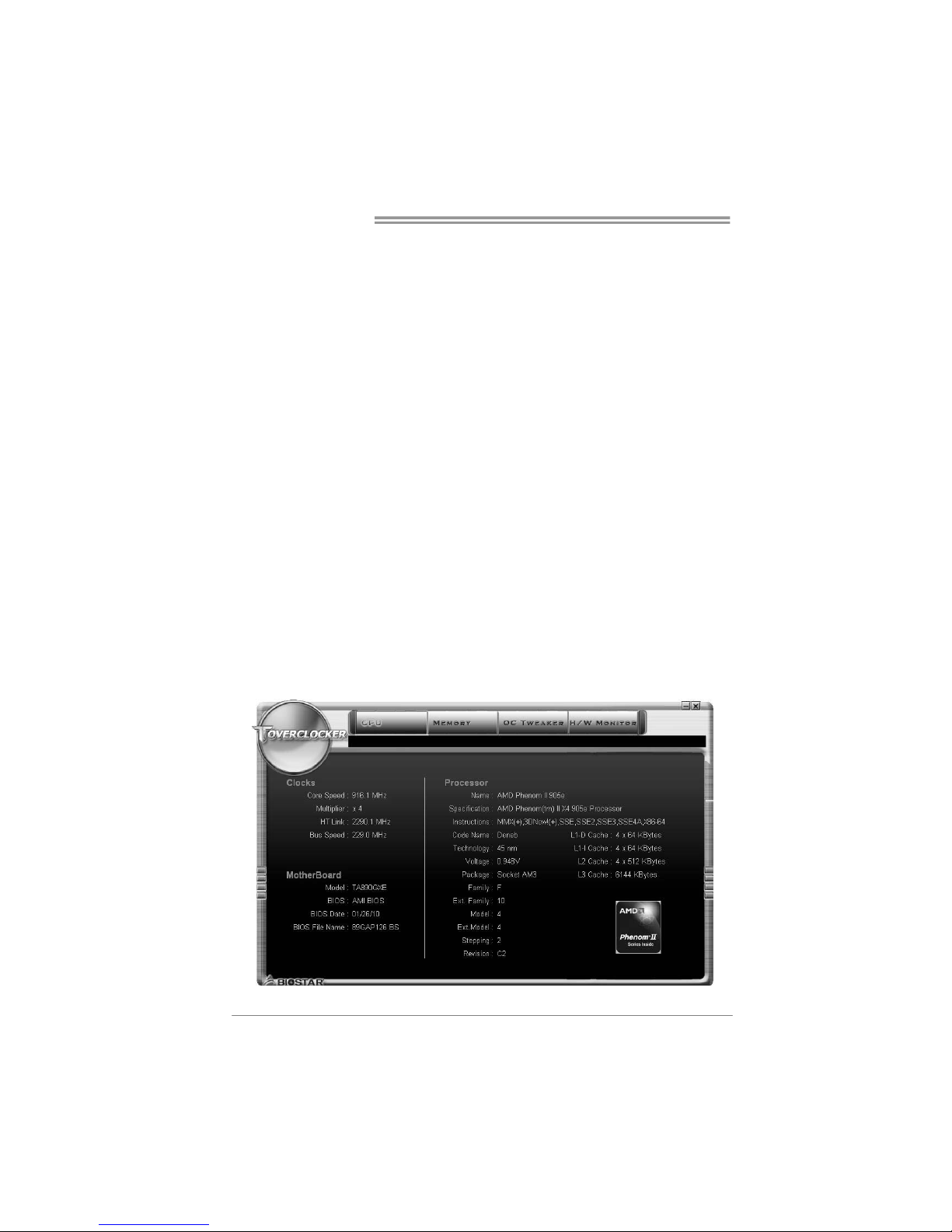

The CPU tab provides information on the CPU and motherboard.

The Memory tab provides information on the memory module(s).

You can select memory module on a specific slot to see its information.

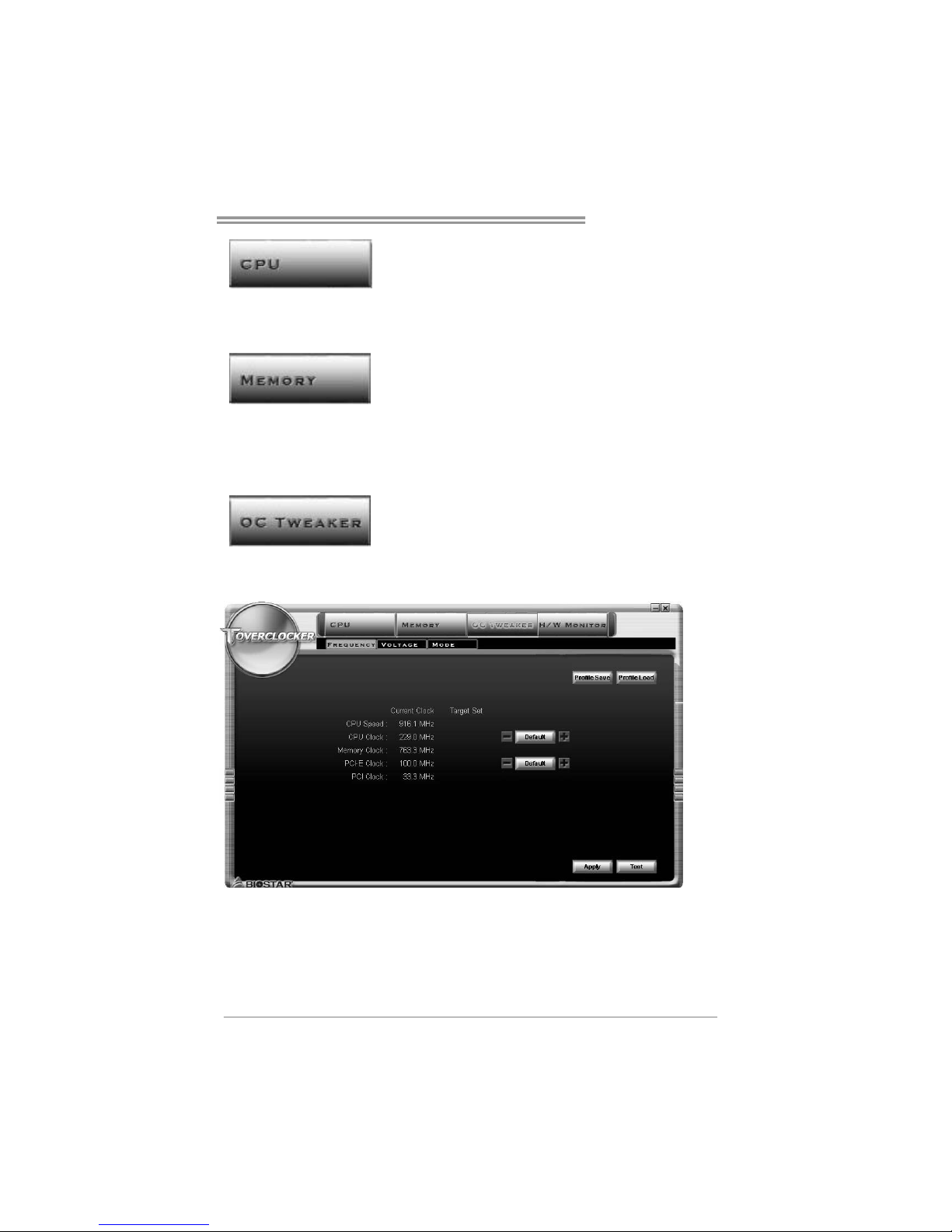

The OC Tweaker tab allows you to change system clock settings and voltages settings. It also provides six pre-set modes for you:

Page 34

Motherboard Manual

Six Pre-set Modes: V3, V6, V9, V12, V15, AUTO for different overclocking experience.

The HW Monitor tab allows you to monitor hardware voltage, fan speed, and temperature. Besides, you also can set related values for CPU Smart Fan.

Page 35

TA870U3+/TA870B

Pressing TOVERCLOCKER logo will display information about manufacturer and software version. You can updat e currnet ver sio n by clicking the button “Live Update.”

Green Power II Utility

BIOSTAR G.P.U II (Green Power Utility) is a new function. The utility enhances energy efficiency by disabling extra phases while CPU is on light loading; it features 4+1 power phases, current power saving, and toal power saving. This tool integrates a friendly GUI to monitor your CPU Usage, CPU Watt, and CPU Temperature. Moreover, it optimizes power saving and best power efficiency on your system. (The illustration below is for reference only)

Display manufacturer & software version information

Display CPU information

Re set T ime & Consum ptio n

Auto Phase Mode

Maxi-Energy Mode

Typical Mode

Medium Mode

Performance Mode

Page 36

Motherboard Manual

G.P.U Mode Setting

This utility provides five modes, upon your requirements, to improve system performance or to save power consumption.

Note: Even if the modes saving more power consumption are chosen, the system still can keep excellent performance.

 Auto Phase Mode

System switches the mode automatically according to current system loading condition.

 Performance Mode

This is the mode saving power consumptio n most. Least energy w ill be used in the system.

 Typical Mode

Compared with that in Performance Mode, energy consumption in this mode is a little bit more.

 Medium Mode

This is the standard system power saving mode.

 Maxi-Energy Mode

This is the best system performance mode.

Page 37

TA870U3+/TA870B

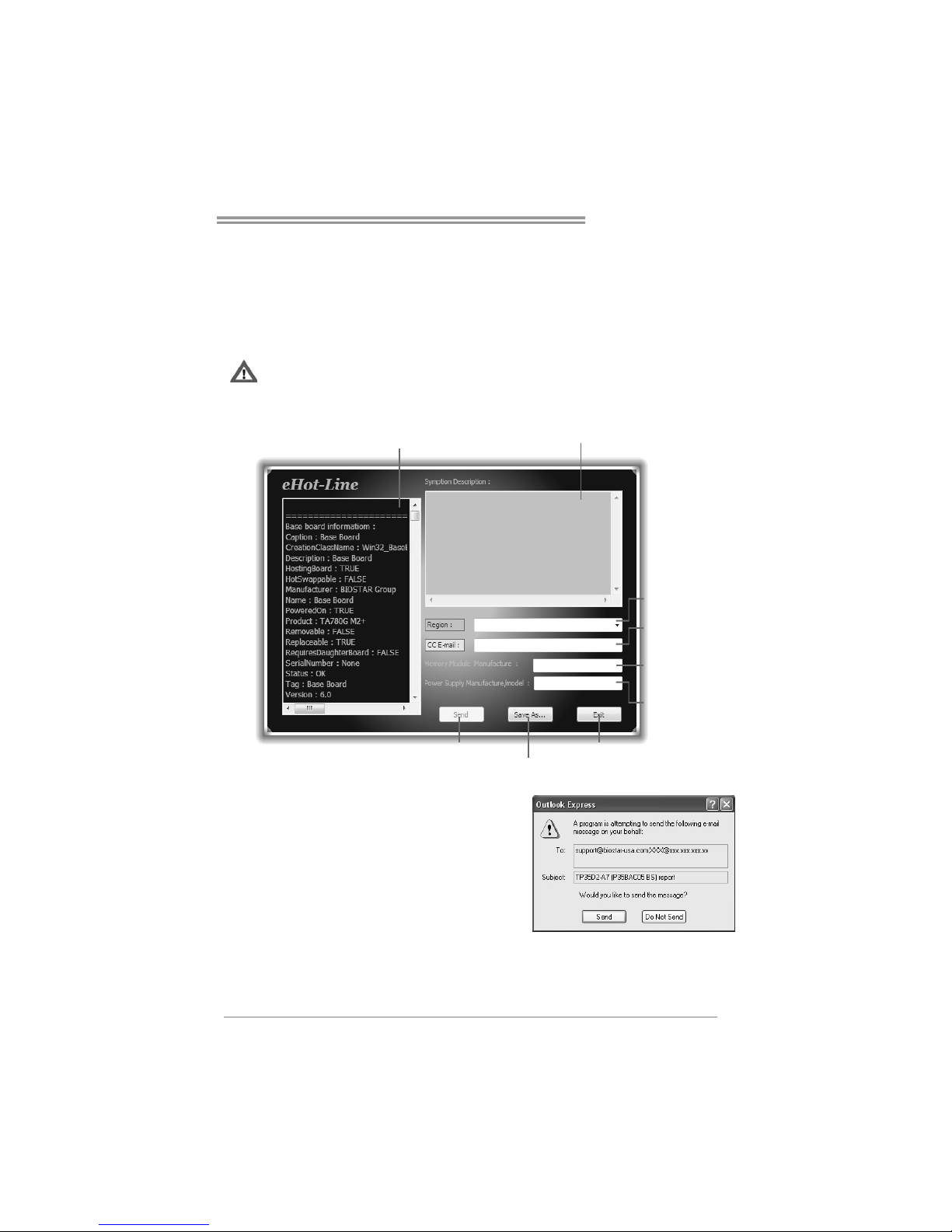

eHot-Line (Optional)

eHot-Line is a convenient utility that helps you to contact with our Tech-Support system. This utility will collect the system information which is useful for analyzing the problem you may have encountered, and then send these information to our tech-support department to help you fix the problem.

Before you use this uti lity, please set Outlook E xp ress as your default e-mail c li ent application program.

This block will show the infor mation which would be collect ed in the mail.

Provid e the e-ma il addres s that you woul d like t o send the copy to.

Provid e the name of the power s upply manufac turer and the model no .

Send the mail ou t.

Save these information to a .txt fil

Exit this dialog.

Select your area or the area clos e to yo u.

Provide t he name of the memory module manufa cturer.

Describe co ndition of your syst em.

rep resents import ant information t hat you must provi de. Withou t this i nformat ion, you may not be able to send ou t the mail.

After filling up this information, click “Send” to send the mail out. A warning dialog would appear asking for your confirmation; click “Send” to confirm or “Do Not Send” to cancel.

If you want to save this information to a .txt file, click “Save As…” and then you will see a saving dialog appears asking you to enter file name.

Page 38

Motherboard Manual

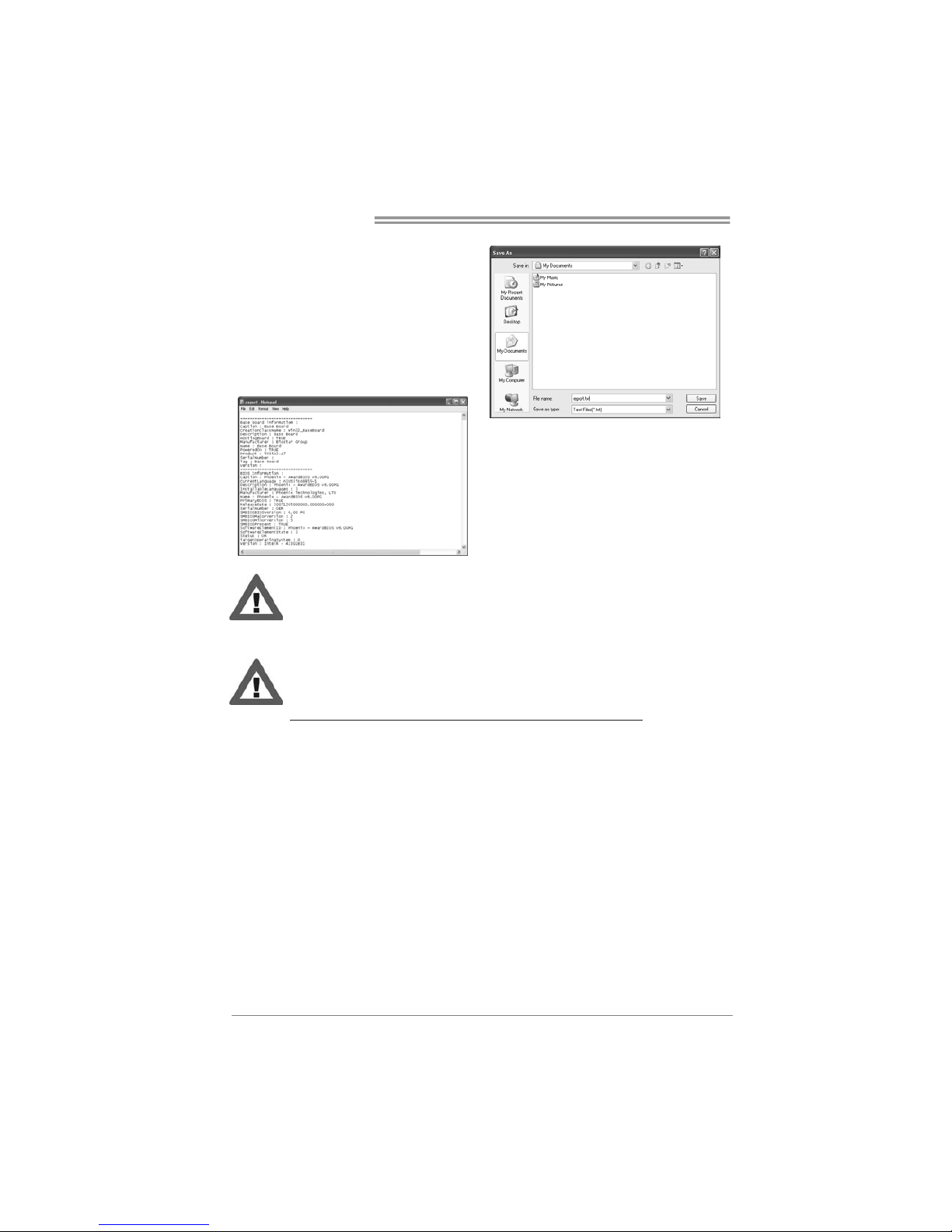

Enter the file name and then click “Save”. Your system information will be saved to a .txt file.

Open the saved .txt file, you will see your system information including motherboard/BIOS/CPU/video/ device/OS information. This information is also concluded in the sent mail.

We will not share customer’s data with any other third parties, so please feel free to provide your system information while using eHot-Line service.

If you are not using Outlook Express as your default e-mail client application, you may need to save the system information to a .txt file and send the file to our tech support with other e-mail application. Go to the following web

http://www.biostar.com.tw/app/en-us/about/contact.php for getting

our contact information.

Page 39

TA870U3+/TA870B

BIOS Update

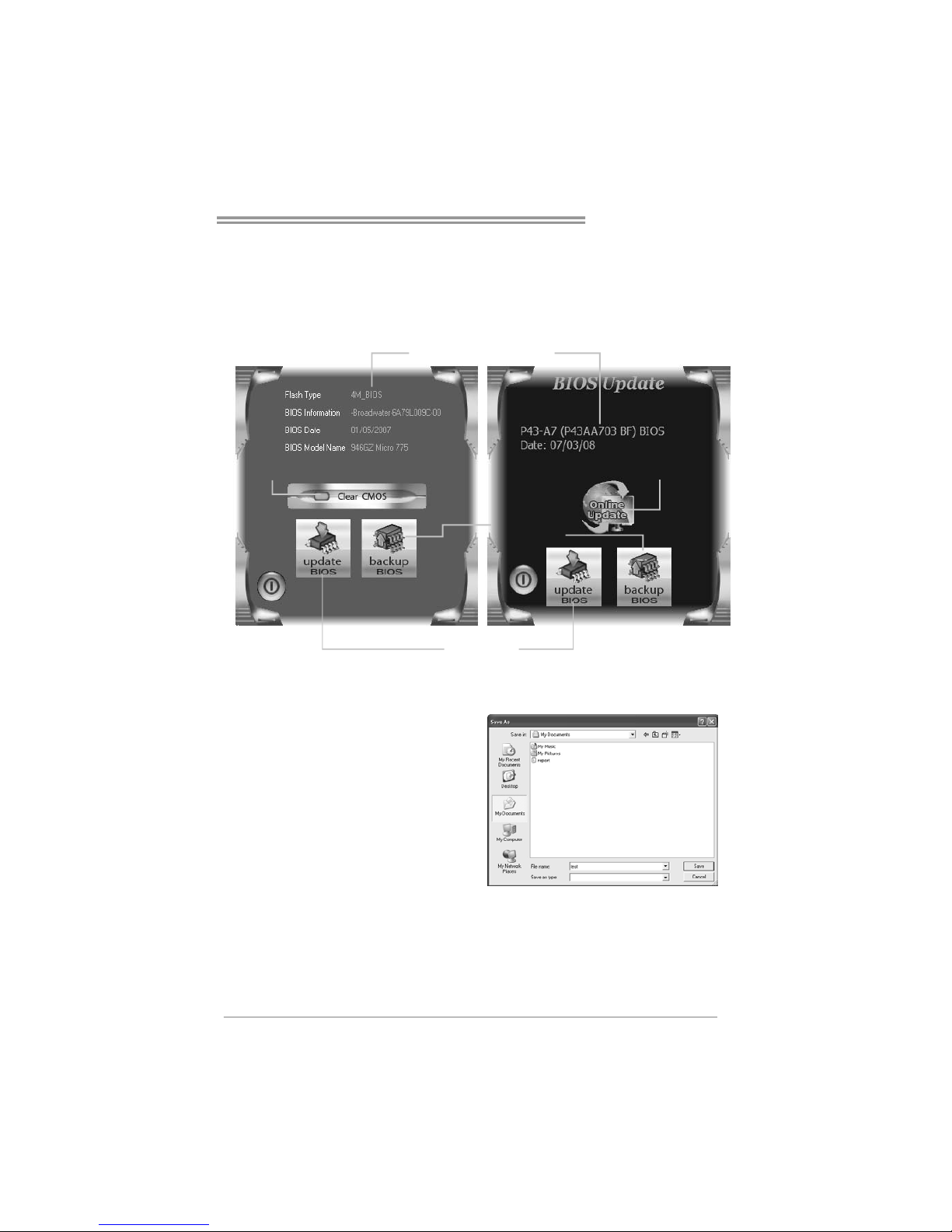

BIOS Update is a convenient utility which allows you to update your motherboard BIOS under Windows system.

Update BIOS

with a BIOS file

Clear CMOS function

(Only for AWARD BIOS)

Show current BIOS information

Save current BIOS

to a .bi n fil e

AWARD BIOS AMI BIOS

Online Update function

(Only for AMI BIOS)

Once click on this button, the saving

dialog will show. Choose the

position to save file and enter file

name. (We recommend that the file

name should be English/number

and no longer than 7 characters.)

Then click Save.

Page 40

Motherboard Manual

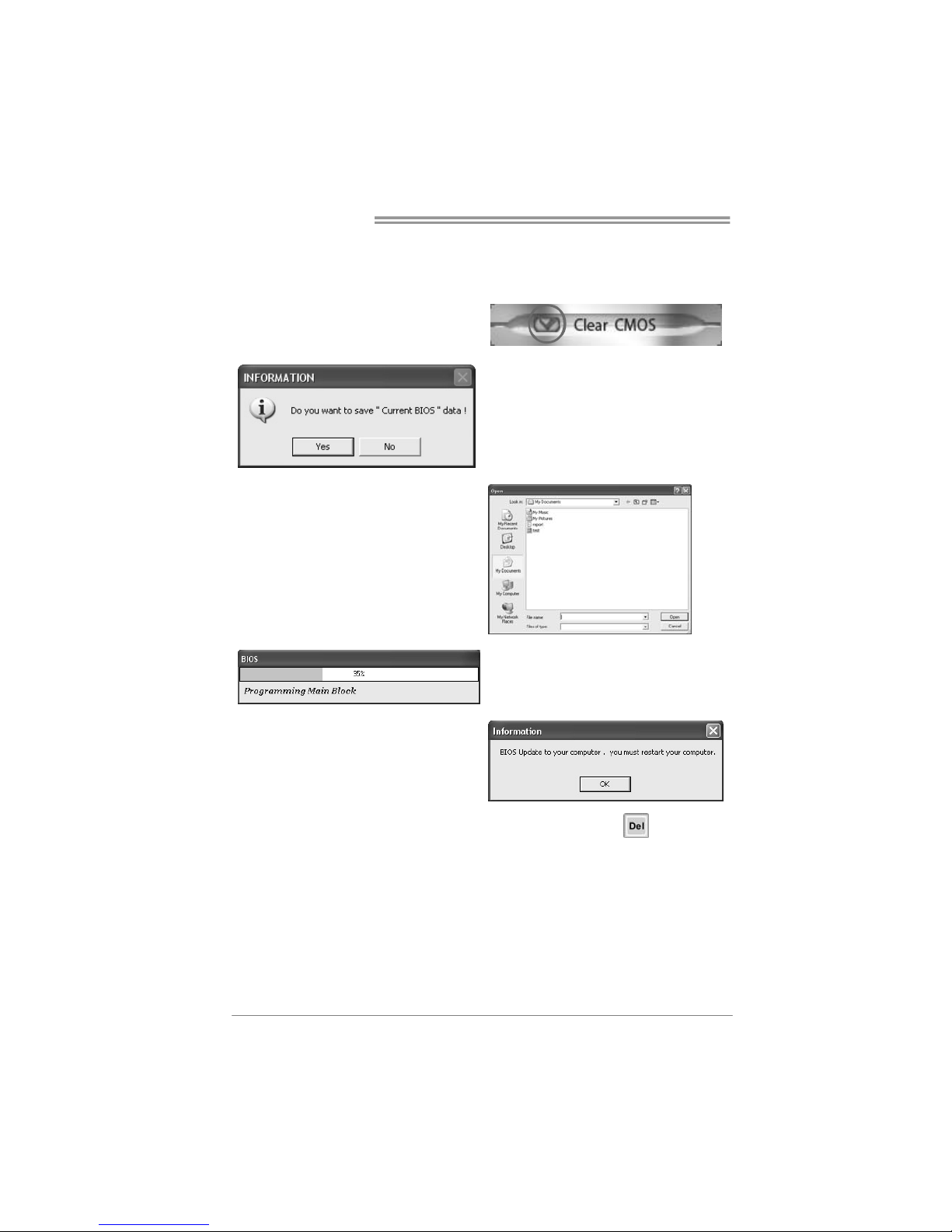

Before doing this, please download the proper BIOS file from the website.

For AWARD BIOS, update BIOS procedure should be run with Clear CMOS function, so please check on Clear CMOS first.

Then click Update BIOS button, a dialog will show for asking you backup current BIOS. Click Yes for BIOS backup and refer to the Backup BIOS procedure; or click No to skip this procedure.

After the BIOS Backup procedure, the open dialog will show for requesting the BIOS file which is going to be updated. Please choose the proper BIOS file for updating, then click on Open.

The utility will update BIOS with the proper BIOS file, and this process may take minutes. Please do not open any other applications during this process.

After the BIOS Update process, click on OK to restart the system.

While the system boots up and the full screen logo shows, press <Delete> key to enter BIOS setup.

In the BIOS setup, use the Load Optimized Defaults function and then Save and Exit Setup to exit BIOS setup. BIOS Update is completed.

Page 41

TA870U3+/TA870B

<Online Update> (for AM I BIOS only)

Automatically download and update the latest BIOS via internet; make sure that the computer is connected to the internet before using this function.

After clicking on the Onlinr Update button, the utility will search for the latest BIOS from internet. If there is a new BIOS version, the utility will ask you to download it. Click Ye s to proceed.

If there is no other newer BIOS version, the utility will also tell you that your BIOS has been the latest version.

Download completes; the utility will ask you to program (update) the BIOS. Click Yes to proceed.

The programing procedure may take minutes, please do not make any operation during the programing process.

After the updating process, the utility will ask you to reboot the system. Click OK to reboot.

While the system boots up and the full screen logo shows, press

key to enter BIOS setup.

In the BIOS setup, use the Load Optimized Defaults function and then Save and Exit Setup to exit BIOS setup. Online Update is completed.

All the information and content above about the T-Series software are subject to be changed without notice. For better performance, the software is being continuously updated. The information and pictures described above are for your reference only. The actual information and settings on board may be slightly different from this manual.

Page 42

Motherboard Manual

CHAPTER 6: USEFUL HELP

6.1 D

RIVER INSTALLATION NOTE

After you installed your operating system, please insert the Fully Setup Driver CD into your optical drive and install the driver for better system performance.

You will see the following window after you insert the CD

The setup guide will auto detect your motherboard and operating system.

Note:

If this window didn’t show up after you insert the Driver CD, please use file browser to locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the compatible driver for your motherboard and operating system. Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list the software available for your system, click on each software title to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver CD. Click on the Manual icon to browse for available manual.

Note:

You will need Acrobat Reader to open the manual file. Please download the latest version of Acrobat Reader so ftware from http://www.adobe.com/produ cts/acrobat/readstep2.html

Page 43

TA870U3+/TA870B

6.2 EXTRA INFORMATION

CPU Overheated

If the system shutdown automatically after power on system for seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data. (See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

Page 44

Motherboard Manual

6.3 AMI BIOS BEEP CODE

Boot Block Beep Codes

Number of Beeps Description

1 No media present. (Insert diskette in floppy drive A:)

“AMIBOOT.ROM” file not found in root directory of diskette in

A: 3 Insert next diskette if multiple diskettes are used for recovery 4 Flash Programming successful 5 File read error 7 No Flash EPROM detected

10 Flash Erase error 11 Flash Program error 12 “AMIBOOT.ROM” file size error

BIOS ROM image mismatch (file layout does not match

image present in flash device)

POST BIOS Beep Codes

Number of Beeps Description

1 Memory refresh timer error 3 Base memory read/write test error 6 Keyboard controller BAT command failed 7 General exception error (processor exception interrupt error) 8 Display memory error (system video adapter)

Troubleshooting POST BIOS Beep Codes

Number of Beeps Troubleshooting Action

1, 3 Reseat the memory, or replace with known good modules.

6, 7

Fatal error indicating a serious problem with the system.

Consult your system manufacturer. Before declaring the

motherboard beyond all hope, eliminate the possibility of

interference by a malfunctioning add-in card. Remove all

expansion cards except the video adapter.

z If beep codes are generated when all other expansion

cards are absent, consult your system manufacturer’s technical support.

z If beep codes are not generated when all other expansion

cards are absent, one of the add-in cards is causing the malfunction. Insert the cards back into the system one at a time until the problem happens again. This will reveal the malfunctioning card.

If the system video adapter is an add-in card, replace or

reseat the

video adapter. If the video adapter is an integrated part of the

system board, the board may be faulty.

Page 45

TA870U3+/TA870B

6.4 AMI BIOS POST CODE

Checkpoint Description

Disable NMI, Parity, video for EGA, and DMA controllers. Initialize BIOS, POST, Runtime data area. Also initialize BIOS modules on POST e ntry and GPNV area. Initialized CMOS as mentioned in the Kernel Variable "wCMOSFlags."

Check CMOS diagnostic byte to determine if battery power is OK and CMOS checksum is OK. Verify CMOS checksum manually by reading storage area. If the CMOS checksum is bad, update CMOS with power-on default values and clear passwords. Initialize status register A. Initializes data variables that are based on CMOS setup questions. Initializes both the 8259 compatible PICs in the system

Initializes the interrupt controlling hardware (generally PIC) and interrupt vector table.

Do R/W test to C H-2 cou nt reg. Initi ali ze CH -0 as s ystem ti mer. Install the POSTINT1C h handle r. E nable IRQ-0 in PIC for syste m timer interrupt. Traps INT1Ch vector to "POSTINT1ChHandlerBlock."

07 Fixes CPU POST interface calling pointer.

Initiali zes the C PU. The BA T test is bei ng done o n KBC. Program the keyboard controller command byte is being done after Auto detection of

KB/MS using AMI KB-5. C0 Early CPU Init Start -- Disable Cache – Init Local APIC. C1 Set up boot strap processor Information. C2 Set up boot strap processor for POST. C5 Enumerate and set up application processors. C6 Re-enable cache for boot strap processor. C7 Early CPU Init E xit.

0A Initializes the 8042 compatible Key Board Controller. 0B Detects the presence of PS/2 mouse.

0C Detects the presence of Keyboard in KBC port.

Testing and initializatio n of different Input Devices. Also, update the Kernel

Variables.

Traps the IN T09 h vector, so that the POST INT09 h hand ler ge ts cont rol for

IRQ1. Uncompress all available language, BIOS logo, and Silent logo

modules.

13 Early POST initialization of chipset registers. 20 Relocate System Management Interrupt vector for all CPU in the system.

Uncompress and i nitialize a ny pla tform specific B IOS mod ules . GP NV i s

initialized at this checkpoint.

Initializes different devices through DIM.

See DIM Code Checkpoints section of document for more information.

Initializes different devices. Detects and initializes the video adapter

installed in the s ystem that have optional ROMs.

2E Initializes all the output devices.

Allocate memory for A DM module and uncompress i t. Give control to AD M

module for initialization. Initialize language and font modules for ADM.

Activate ADM module.

Initializes the silent boot module. Set the window for displaying text

informa tion.

Page 46

Motherboard Manual

Checkpoint Description

Displaying sign-on message, CPU information, setup key message, and any

OEM sp eci fic informati o n.

Initializes different devices through DIM. See DIM Code Checkpoints section

of document for more information. USB controllers are initialized at this

point.

39 Initializes DMAC-1 & DMAC-2. 3A Initialize RTC date/time.

Test for total memory installed in the system. Also, Check for DEL or ESC

keys to limi t me mor y test. D isplay tota l memor y in the sys tem. 3C Mid POST initializa tion of chipset registers.

Detect different devices (Parallel ports, serial ports, and coprocessor in

CPU, etc.) successfully installed in the system and update the BDA,

EBDA…etc.

Updates CMOS memory size from memory found in memory test. Allocates

memory for Extended BIOS Data Area from base memory. Programming the

memory hole or any kind of implementation that needs an adjustment in

system RAM size if needed.

60 Initializes NUM-LOCK status and programs the KBD typematic rate. 75 Initialize Int-13 and prepare for IPL detection. 78 Initializes IPL de vices controlled by B IOS and option ROMs.

7C Generate a nd write conte nts o f ES CD in NVRam.

84 Log errors encountered d uring POST. 85 Display errors to the user and gets the user response for error.

87 Execute BIOS setup if needed / requested. Check boot password if installed. 8C Late POST initialization of chipset registers. 8D Build ACPI tables (if ACPI is supported).

8E Program the peripheral parameters. Enable/Disable NMI as selected.

Initialization of system management interrupt by invoking all handlers. Please note this checkpoint comes right after checkpoint 20h.

A1 Clean-up work needed before booting to OS.

Takes care of runtime image preparation for different BIOS modules. Fill the free area in F000h segment with 0FFh. Initializes the Microsoft IRQ Routing Table. Prepares the runtime language module. Disables the system configuration display if needed.

A4 Initialize runtime language module. Display boot option popup menu.

Displays the system configuration screen if enabled. Initialize the CPU’s before boot, which includes the programming of the MTRR’s.

A9 Wait for user i nput at config display if needed. AA Uninstall POST INT1Ch vector and INT09h vector. AB Prepare BBS for Int 19 boot. Ini t MP tables.

End of POST initialization of chipset registers. De-initializes the ADM module.

Save system context for ACPI. Prepare CPU for OS boot including final MTRR values.

00 Passes control to OS Loader (typically INT19h).

Page 47

TA870U3+/TA870B

6.5 TROUBLESHOOTING

Probable Solution

1. There is no power in the system. Power LED does not shine; the fan of the power supply does not work

2. Indicator light on keyboard does not shine.

1. Make sure power cable is securely plugged in.

2. Replace cable.

3. Contact technical support.

System is inoperative. Keyboard lights are on, power indicator lights are lit, and hard drives are running.

Using even pressure on both ends of the DIMM, press down firmly until the module snaps into place.

System does not boot from a hard disk drive, but can be booted from optical drive.

1. Check cable running from disk to disk controller board. Make sure both ends are securely plugged in; check the drive type in the standard CMOS setup.

2. Backing up the hard drive is extremely important. All hard disks are capable of breaking down at any time.

System only boots from an optical drive. Hard disks can be read, applications can be used, but system fails to boot from a hard disk.

1. Back up data and applications files.

2. Reformat the hard drive. Re-install applications and data using backup disks.

Screen message shows “Invalid Configuration” or “CMOS Failure.”

Review system’s equipment. Make sure correct information is in setup.

System cannot boot after user installs a second hard drive.

1. Set master/slave jumpers correctly.

2. Run SETUP program and select correct drive types. Call the drive manufacturers for compatibility with other drives.

Page 48

Motherboard Manual

APPENDIX: SPEC IN OTHER LANGUAGES

ERMAN

TA870U3+ TA870B

CPU

Sockel AM3 AMD Phenom II/Athlon II/Sempron Prozessoren Die AMD 64-A rchit ektur unt erstüt zt eine 32-Bitund 64-Bit-Datenverarbeitung Unterstützt Hyper Transport 3.0 und Cool’n’Quiet (Maximales Watt: 140W)

FSB

Unterstützt HyperTransport 3.0 mit einer Bandbreite von bis zu 5.2 GT/s

Chipsatz

AMD 870 AMD SB850

Super E/A

ITE 8728 Biet et die h äuf ig verwendeten alten Sup er E/A-Funktionen. Low Pin Count-Schnittstelle Umgebungskontrolle, Hardware-Überwachung "Smart Guardian"-Funktion von ITE

Arbeitsspeich er

DDR3 DIMM-Steckplätze x 4 Max. 16GB Arbeitsspeicher Jeder DIMM unterstützt 512MB/ 1GB/2GB/ 4GB DDR3. Dual-Kanal DDR3 Speichermodul Unterstützt DDR3 800 / 1066 / 1333 Unterstützt DDR3 1600 (OC) registrierte DIMMs. ECC DIMMs werden nicht unterstützt.

SATA 3

Integrierter Serial ATA-Controller Datentransferrate b is zu 6 Gb /s Konform mit d er SATA-Spezifikation Version 3.0.

LAN

Realtek RTL 8111E 10 / 100 / 1000 Mb/s Auto-Negotiation Halb-/ Vollduplex-Funktion

Realtek RTL 8111E 10 / 100 / 1000 Mb/s Auto-Negotiation

Halb-/ Vollduplex-Funktion

HD Audio-Unters tützung

ALC662

5.1-Kanal-Audioausgabe Unterstützt High-Definit ion Audio

ALC662

5.1-Kanal-Audioausgabe

Unterstützt High-Definit ion Audio PCI Express Gen2 x16 Steckplatz x2 PCI Express Gen2 x16 Steckplatz x2 PCI Express Gen2 x 1-Steckplatz x2 PCI Express Gen2 x 1-Steckplatz x2 Steckplätze PCI-Steckp latz x2 PCI-St eckp latz x2

Page 49

TA870U3+/TA870B

TA870U3+ TA870B

SATA-Anschluss x6 SATA-Anschluss x6 Fronttafelanschluss x1 Fronttafelanschluss x1 Front-Audioanschluss x1 Front-Audioanschluss x1 S/PDIF- Ausgangsanschluss x1 S/PDIF- Ausgangsanschluss x1 CPU-Lüfter-Sockel x1 CPU-Lüfter-Sockel x1 System-Lüfter-Sockel x2 System-Lüfter-Sockel x2 "CMOS lös chen"-Socke l x1 "CMOS lös chen"-Socke l x1 USB 2.0-Anschluss x3 USB 2.0-Anschluss x3 Stromanschluss (24-polig ) x1 Stromanschluss (24-polig) x1 St romans ch luss (4- pol ig ) x 1 S tro man s ch luss (4- pol ig ) x1 Verbraucher-IR Anschluss x1 Verbraucher- IR Ansch luss x1

Onboard-Ans chluss

Druckeranschluss Anschluss x1 Druckeranschluss Anschluss x1

Rückseiten-E /A

PS/2-Tastatur x1 PS/2-Maus x 1 Serieller Anschluss x1 LAN-Anschluss x1 USB 2.0-Anschluss (durch SB850) x2 USB 3.0-Anschlus (durch ASM1042) x2 Audioanschluss x3

PS/2-Tastatur x1

PS/2-Maus x 1

Serieller Anschluss x1

LAN-Anschluss x1

USB 2.0-Anschluss x4

Audioanschluss x3

Plat inengröße

220 mm (B) X 305 mm (L) 220 mm (B) X 305 mm (L)

Sonderfunkti onen

Unterstützt RAID 0 / 1 / 10 / 5 Unterstützt RAID 0 / 1 / 10 / 5

OS-Unterstüt zung

Windows XP / Vista / 7 Biostar behält sich das Recht vor, ohne Ankündigung die Unterstützung für ein Betriebssystem hinzuzufügen oder zu entfernen.

Windows XP / Vista / 7

Biostar behält sich das Recht vor, ohne

Ankündigung die Unterstützung für ein

Betriebssystem hinzuzufügen oder zu

entfernen.

Page 50

Motherboard Manual

FRENCH

TA870U3+ TA870B

Socket AM3 Processeurs AMD Phenom II/Athlon II/Sempron L'architecture AMD 64 permet le calcul 32 et 64 bits Prend en charge Hyp er Transport 3.0 et Cool’n’Quiet (Watt maximum : 140W)

Bus frontal

Prend en ch arge Hype r Transp ort 3 .0

usqu'à une

bande passante de 5.2 GT/s

Prend en ch arge Hype r Transp ort 3 .0

usqu'à une

bande passante de 5.2 GT/s

Chipset

AMD 870 AMD SB850

Super E/S

ITE 8728 Fournit la fonctionnalité de Super E/S patrimoniales la plus utilisée. Int e rfa ce à f aib le co mpt e d e b roches Initiatives de contrôle environnementales, Mon iteur d e mat ériel Fonction "Gardien intelligent" de l'ITE

Mémoire principale

Fentes DDR3 DIMM x 4 Capacit é mémo ir e max imale de 16 Go Chaque DIMM prend en charge des DDR3 de 512 Mo et 1Go/2Go/4Go Module de mémoire DDR3 à mode à double voie Prend en charge la DDR3 800 / 1066 / 1333 Prend en charge la DDR3 1600 (OC) Les DIMM à registres et DIMM avec code correcteurs d'erreurs ne s ont pas prises en charg e

SATA 3

Contrô leur Serial ATA int ég r é Taux de transfert jusqu'à 6 Go/s. Co nfo rme à l a s pécif icat ion SATA Vers ion 3. 0

LAN

Realtek RTL 8111E 10 / 100 / 1000 Mb/s n égociation automat ique Half / Full duplex capability

Prise en charg e aud io HD

ALC662 Sortie aud io à 5 .1 voies Prise en charge de l'audio haute déf inition

ALC662 Sortie aud io à 5 .1 voies

Prise en charge de l'audio haute déf inition Fente PCI Express Gen2 x16 x2 Fente PCI Express Gen2 x16 x2 Fente PCI Express Gen2 x1 x2 Fente PCI Express Gen2 x1 x 2 Fentes Fente PCI x2 Fente PCI x2

Page 51

TA870U3+/TA870B

TA870U3+ TA870B

Connecteur SATA x6 Connecteur SATA x6 Connecteur du panneau avant x1 Connecteur du panneau avant x1 Connecteur Audio du panneau avant x1 Connecteur Audio du panneau avant x1 Connecteur de sortie S/PDIF x1 Connecteur de sortie S/PDIF x1 Embase de ventilateur UC x1 Embase de ventilateur UC x1 Embase de ventilateur système x2 Embase de ventilateur système x2 Embase d'effacement CMOS x1 Embase d'effacement CMOS x1 Connecteur USB 2.0 x3 Connecteur USB 2.0 x3 Connecteur d' aliment at ion x1 (24 broches)

Connecteur d' aliment at ion x1

(24 broches) Connecteur d' aliment at ion x1 (4 broch es)

Connecteur d' aliment at ion x1

(4 broch es) Connecteur de IR du consommateur x1

Connecteur de IR du consommateur

Connecteur embarqu é

Connecteur de Port d'imprimante x1 Connecteur de Port d'imprimante x1

E/S du panneau arrière

Clavier PS/2 x1 Souris PS/2 x1 Port série x1 Port LA N x 1 Port USB 2.0 (par SB850 ) x2 Port USB 3.0 (par AS M1042) x2 Fiche aud io x3

Clavier PS/2 x1

Souris PS/2 x1

Port série x1

Port LA N x 1

Port USB 2.0 x4

Fiche aud io x3

Dimensions de la carte

220 mm (l) X 305 mm (H) 220 mm (l) X 305 mm (H)

Fonctionnali tés spéciales

Prise en charge RAID 0 / 1 / 1 0 / 5 Pr ise en ch arge RA ID 0 / 1 / 10 / 5

Support SE

Windows XP / Vista / 7 Biostar se réserve le droit d'ajouter ou de supprimer le support de SE avec ou sans préavis.

Windows XP / Vista / 7

Biostar se réserve le droit d'ajouter ou de

supprimer le support de SE avec ou sans préavis.

Page 52

Motherboard Manual

ITALIAN

TA870U3+ TA870B

CPU

Socket AM3 Pro cessori AMD Pheno m II/Athlon II/Sempron L’arch itet tura AMD 6 4 abil it a la computazione 32 e 64 bit Supporto di Hyper Transport 3.0 e Cool’n’Quiet (Watt massimo : 140W)

Socket AM3

Pro cessori AMD Pheno m II/Athlon II/Sempron

L’arch itet tura AMD 6 4 abil it a la

computazione 32 e 64 bit

Supporto di Hyper Transport 3.0 e

Cool’n’Quiet

(Watt massimo : 140W)

FSB

Supporto di HyperTransport 3.0 fino a 5.2 GT/s di larghezza di banda

Supporto di HyperTransport 3.0 fino a 5.2

GT/s di larghezza di banda

Chipset

AMD 870 AMD SB850

AMD 870

AMD SB850

Super I/O

ITE 8728 Fo rn is ce le funzion al ità legacy S uper I/O usate più comunemente. Interfaccia LPC (Low Pin Count) Funzioni di controllo dell’ambiente: Monitoraggio hardware Funzione "Smart Guardian" di ITE

ITE 8728

Fo rn is ce le funzion al ità legacy S uper I/O

usate più comunemente.

Interfaccia LPC (Low Pin Count)

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Funzione "Smart Guardian" di ITE

Memor ia principale

Alloggi DIMM DDR3 x 4 Capacità massima della memoria 16GB Ciascun DIMM supporta DDR3 512MB e 1GB/2GB/4GB Modulo di memoria DDR3 a canale doppio Supporto di DDR3 800 / 1066 / 1333 Supporto di DDR3 1600 (OC) DIMM r egistrati e DIMM ECC non sono supportati

Alloggi DIMM DDR3 x 4

Capacità massima della memoria 16GB

Ciascun DIMM supporta DDR3 512MB e

1GB/2GB/4GB

Modulo di memoria DDR3 a canale doppio

Supporto di DDR3 800 / 1066 / 1333

Supporto di DDR3 1600 (OC)

DIMM r egistrati e DIMM ECC non sono

supportati

SATA 3

Co ntro ller Ser ia l ATA integrat o Velocità di trasferimento dei dati fino a 6 Gb/s. Co mp at ibile sp ec if iche SATA Version e 3.0 .

Co ntro ller Ser ia l ATA integrat o

Velocità di trasferimento dei dati fino a 6

Gb/s.

Co mp at ibile sp ec if iche SATA Version e 3.0 .

LAN

Realtek RTL 8111E Negoz iazione automatic a 10 / 100 / 1000 Mb/s Capacità Half / Full Dup lex

Realtek RTL 8111E

Negoz iazione automatic a 10 / 100 / 1000 Mb/s

Capacità Half / Full Dup lex

Supporto audio HD

ALC662 Uscita audio 5.1 canali Supporto audio High-Definition (HD)

ALC662

Uscita audio 5.1 canali

Supporto audio High-Definition (HD)

Alloggio PCI Express Gen2 x16 x2 Alloggio PCI Express Gen2 x16 x2 Alloggio PCI Express Gen2 x1 x2 Alloggio PCI Express Gen2 x1 x2 Allo g gi

Allo g gio PC I x2 Allogg io PC I x 2

Page 53

TA870U3+/TA870B

TA870U3+ TA870B

Connetto re SATA x6 Connetto re SATA x6 Connettore pannello frontale x1 Connettore pannello frontale x1 Connettore audio frontale x1 Connettore audio frontale x1 Connettore output SPDIF x1 Connettore output SPDIF x1 Co llet t ore ven tolin a C PU x 1 Collet tore vento lina C PU x 1 Co llet t ore ven tolin a s is t em a x2 Collet tore vento lina s is tema x2 Co llet t ore cance llaz io n e CMOS x1 Co llet t ore cance llaz io ne CMOS x1 Connettore USB 2.0 x3 Connettore USB 2.0 x3 Connettore aliment azione x1 (24 pin)

Connettore aliment azione x1

(24 pin) Connettore aliment azione x1 (4 pin)

Connettore aliment azione x1

(4 pin) Connettore IR del consumatore x1 Connettore IR del consumatore x1

Connettori su scheda

Connettore Porta stampante x1 Connettore Porta stampante x1

I/O pannello posteriore

Tas tiera PS / 2 x 1 Mou s e PS /2 x1 Porta seriale x1 Port a LA N x1 Porta USB 2.0 (da SB850) x2 Porta USB 3.0 (da ASM1042) x2 Connettore audio x3

Tas tiera PS / 2 x 1

Mou s e PS /2 x1

Porta seriale x1

Port a LA N x1

Port a USB 2.0 x4

Connettore audio x3

Dimension i scheda

220 mm (larghezza) x 305 mm (altezza) 220 mm (larghezza) x 305 mm (altezza)

Caratterist iche speciali

Supporto RAID 0 / 1 / 10 / 5 Supporto RAID 0 / 1 / 10 / 5

Sistemi op er at ivi supportati

Windows X P / Vista / 7 Biostar si riserva il dir itto di aggiungere o rimuovere il supporto di qualsiasi sistema operativo senza preavviso.

Windows X P / Vista / 7

Biostar si riserva il dir itto di aggiungere o

rimuovere il supporto di qualsiasi sistema

operativo senza preavviso.

Page 54

Motherboard Manual

SPANISH

TA870U3+ TA870B

CPU

Conector AM3 Procesadores AMD Phenom II/Athlon II/Sempron La arquitectura AMD 64 permite el procesado de 32 y 64 bits Soporta las tecnologías Hyper Transport 3.0 y Cool’n’Quiet (Vatio máximo: 140W)

Conector AM3

Procesadores AMD Phenom II/Athlon

II/Sempron

La arquitectura AMD 64 permite el procesado de

32 y 64 bits

Soporta las tecnologías Hyper Transport 3.0 y

Cool’n’Quiet

(Vatio máximo: 140W)

FSB

Admite HyperTransport 3.0 con un ancho de banda de hasta 5.2 GT/s

Admite HyperTransport 3.0 con un ancho de

banda de hasta 5.2 GT/s

Conjunto de chips

AMD 870 AMD SB850

AMD 870

AMD SB850

Súper E/S

ITE 8728 Le ofrece las funcionalidades heredadas de uso más común Súper E/S. Interfaz de cuenta Low Pin In ic iativas de cont rol d e ent orn o, Monitor hardware Función "Guardia inteligente" de ITE

ITE 8728

Le ofrece las funcionalidades heredadas de uso

más común Súper E/S.

Interfaz de cuenta Low Pin

In ic iativas de cont rol d e ent orn o,

Monitor hardware

Función "Guardia inteligente" de ITE

Memoria principal

Ranuras DIMM DDR3 x 4 Capacidad máxima de memoria de 16GB Cada DIMM admite DDR de 512MB y 1GB/2GB/4GB Módulo de memoria DDR3 de canal Doble Admite DDR3 de 800 / 1066 / 1333 Admite DDR3 de 1600 (OC) No admite DIMM registrados o DIMM comp atib les con ECC

Ranuras DIMM DDR3 x 4

Capacidad máxima de memoria de 16GB

Cada DIMM admite DDR de 512MB y

1GB/2GB/4GB

Módulo de memoria DDR3 de canal Doble

Admite DDR3 de 800 / 1066 / 1333

Admite DDR3 de 1600 (OC)

No admite DIMM registrados o DIMM

comp atib les con ECC

SATA 3

Controlador ATA Serie Integrado Tasas de transferencia de hasta 6 Gb/s. Co mp at ible con la vers ión S ATA 3.0.

Controlador ATA Serie Integrado

Tasas de transferencia de hasta 6 Gb/s.

Co mp at ible con la vers ión S ATA 3.0.

Red Local

Realtek RTL 8111E Negociación de 10 / 100 / 1000 Mb/s Funciones Half / Full dúplex

Realtek RTL 8111E

Negociación de 10 / 100 / 1000 Mb/s

Funciones Half / Full dúplex

Soporte de sonido HD

ALC662 Salida de sonido de 5.1 canales Soporte de sonido Alta Definición

ALC662

Salida de sonido de 5.1 canales

Soporte de sonido Alta Definición

Ranura PCI Express Gen2 x16 X2 Ranura PCI Express Gen2 x16 X2 Ranura PCI Express Gen2 x 1 X2 Ranura PCI Express Gen2 x 1 X2

Ranuras

Ranura PCI X2 Ranura PCI X2

Page 55

TA870U3+/TA870B

TA870U3+ TA870B

Conector SATA X6 Conector SATA X6 Conector de panel frontal X1 Conector de panel frontal X1 Conector de sonido frontal X1 Conector de sonido frontal X1 Conector de salida S/PDIF X1 Conector de salida S/PDIF X1 Cabecera de ventilador de CPU X1 Cabecera de ventilador de CPU X1 Cabecera de ventilador de sistema X2 Cabecera de ventilador de sistema X2 Cabecera de borrado de CMOS X1 Cabecera de borrado de CMOS X1 Conector USB 2.0 X3 Conector USB 2.0 X3 Conector de alimentación X1 (24 patillas)

Conector de alimentación X1

(24 patillas) Conector de alimentación X1 (4 patillas)

Conector de alimentación X1

(4 patillas) Conector de IR del consumidor X1 Conector de IR del consumidor X1

Conectores en p laca

Conector Puerto de impresora X1 Conector Puerto de impresora X1

Panel trasero de E/S

Tec la do PS /2 X 1 Ratón PS/2 X1 Puert o s er ie X 1 Puerto de red local X1 Puerto USB 2.0 (por SB850) X2 Puerto USB 3.0 (por AS M1042 ) X2 Conector de sonido X3

Tec la do PS /2 X 1

Ratón PS/2 X1

Puert o s er ie X 1

Puerto de red local X1

Puert o USB 2.0 X4

Conector de sonido X3

Ta mañ o d e la placa

220 mm. (A) X 305 Mm. (H) 220 mm. (A) X 305 Mm. (H)

Funciones especiales

Admite RAID 0 / 1 / 10 / 5 Admite RAID 0 / 1 / 10 / 5

Soporte de sistema operativo

Windows XP / Vista / 7 Biostar se reserva el derecho de añadir o retirar el soporte de cualquier SO con o s in aviso previo.

Windows XP / Vista / 7

Biostar se reserva el derecho de añadir o retirar

el soporte de cualquier SO con o s in aviso previo.

Page 56

Motherboard Manual

PORTUGUESE

TA870U3+ TA870B

CPU

Socket AM3 Processadores AMD Phenom II/Athlon II/Sempron A arq uite ctura A MD 64 p erm ite uma co mput ação de 32 e 64 bits Sup orta as tecno log ias Hype r Transport 3.0 e Cool’n’Quiet (Watt máx imo: 14 0W )

Socket AM3

Processadores AMD Phenom II/Athlon

II/Sempron

A arq uite ctura A MD 64 p erm ite uma co mput ação

de 32 e 64 bits

Sup orta as tecno log ias Hype r Transport 3.0 e

Cool’n’Quiet

(Watt máx imo: 14 0W )

FSB

Suporta a tecnologia HyperTransport 3.0 com uma largura de banda até 5.2 GT/s

Suporta a tecnologia HyperTransport 3.0 com

uma largura de banda até 5.2 GT/s

Chipset

AMD 870 AMD SB850

AMD 870

AMD SB850

Especificaçã o Super I/O

ITE 8728 Proporciona as funcionalidades mais utilizadas em termos da especificação Super I/O. Interface LPC (Low Pin Count). In ic iativas par a con tro lo d o amb ien te Monitorização do hardware Função "S mart Gu ard ian" d a ITE

ITE 8728

Proporciona as funcionalidades mais utilizadas

em termos da especificação Super I/O.

Interface LPC (Low Pin Count).

In ic iativas par a con tro lo d o amb ien te

Monitorização do hardware

Função "S mart Gu ard ian" d a ITE

Memória principal

Ranhuras DIMM DDR3 x 4 Capacidad e máx ima de me mó r ia: 16 GB Cada módulo DIMM suporta uma memória DDR3 de 512 MB & 1 GB/2 GB/4 GB Módulo de memória DDR3 de canal duplo Suporta módulos DDR3 800 / 1066 / 1333 Suporta módulos DDR3 1600 (OC) Os módulos DIMM registados e os DIMM ECC não são suportados

Ranhuras DIMM DDR3 x 4

Capacidad e máx ima de me mó r ia: 16 GB

Cada módulo DIMM suporta uma memória

DDR3 de 512 MB & 1 GB/2 GB/4 GB

Módulo de memória DDR3 de canal duplo

Suporta módulos DDR3 800 / 1066 / 1333

Suporta módulos DDR3 1600 (OC)

Os módulos DIMM registados e os DIMM ECC

não são suportados

SATA 3

Controlador Serial ATA integrado Velocidades de transmissão de dados até 6 Gb/s. Co mpatibilidad e com a esp ecif icação S ATA versão 3.0 .

Controlador Serial ATA integrado

Velocidades de transmissão de dados até 6 Gb/s.

Co mpatibilidad e com a esp ecif icação S ATA

versão 3.0 .

LAN

Realtek RTL 8111E Auto negociação de 10 / 100 / 1000 Mb/s Capacidade semi/full-duplex

Realtek RTL 8111E

Auto negociação de 10 / 100 / 1000 Mb/s

Capacidade semi/full-duplex

Suporte para áudio de alta definição

ALC662 Saída de áudio de 5.1 canais Suporta a especificação High-Definition Audio

ALC662

Saída de áudio de 5.1 canais

Suporta a especificação High-Definition Audio

Ranhura PCI Express Gen2 x16 x2 Ranhura PCI Express Gen2 x16 x2 Ranhura PCI Express Gen2 x 1 x2 Ranhura PCI Express Gen2 x 1 x2

Ranhuras

Ranhura PCI x2 Ranhura PCI x2

Page 57

TA870U3+/TA870B

TA870U3+ TA870B

Conector SATA x6 Conector SATA x6 Conector do painel frontal x1 Conector do painel frontal x1 Conector de áudio frontal x1 Conector de áudio frontal x1 Conector de saída S/PDIF x1 Conector de saída S/PDIF x1 Conector da ventoinha da CPU x1 Conector da vento inha da CPU x1 Conector da ventoinha do sistema x2 Conector da vento inha do sistema x2 Conector para limpeza do CMOS x1 Conector para limpeza do CMOS x1 Conector USB 2.0 x3 Conector USB 2.0 x3 Conector de alimentação x1 (24 pinos)

Conector de alimentação x1

(24 pinos) Conector de alimentação x1 (4 p inos )

Conector de alimentação x1

(4 p inos ) Conector de IR do consumidor x1 Conector de IR do consumidor x1

Conectores na placa

Conector da para impressora x1 Conector da para impressora x1

Entradas /S aídas no painel traseiro

Tec la do PS /2 x 1 Rato PS/2 x1 Port a série x1 Port a LA N x1 Porta USB 2.0 (por SB850) x2 Porta USB 3.0 (por ASM1042) x2 Tomada de áudio x3

Tec la do PS /2 x 1

Rato PS/2 x1

Port a série x1

Port a LA N x1

Port a USB 2.0 x4

Tomada de áudio x3

Tamanho da placa

220 mm (L) X 305 mm (A) 220 mm (L) X 305 mm (A)

Característi cas especiais

Suporta as funções RA ID 0 / 1 / 10 / 5 Suporta as funções RAID 0 / 1 / 10 / 5

Sistemas operativos suportados

Windows XP / Vista / 7 A Biostar reserva-se o direito de adicionar ou remover suporte para qualquer sistema operativo com ou sem aviso prévio.

Windows XP / Vista / 7

A Biostar reserva-se o direito de adicionar ou

remover suporte para qualquer sistema

operativo com ou sem aviso prévio.

Page 58

Motherboard Manual

POLISH

TA870U3+ TA870B

Procesor

Socket AM3 AMD Phenom II/Athlon II/Sempron Procesory Architektura AMD 64 umożliwia przetwarzanie 32 i 64 bitowe Obsługa Hyper Transport 3.0 oraz Cool’n’Quiet (Maksymalny Watt: 140W)

Socket AM3

AMD Phenom II/Athlon II/Sempron Procesory

Architektura AMD 64 umożliwia przetwarzanie

32 i 64 bitowe

Obsługa Hyper Transport 3.0 oraz Cool’n’Quiet

(Maksymalny Watt: 140W)

FSB

Obsługa HyperTransport 3.0 o szerokości pasma do 5.2 GT/s

Obsługa HyperTransport 3.0 o szerokości pasma

do 5.2 GT/s

Chipset

AMD 870 AMD SB850

AMD 870

AMD SB850

Pamięć główna

Gniazda DDR3 DIMM x 4 Maks. wielkość pamięci 16GB Każde gniazdo DIMM obsługuje moduły 512MB oraz 1GB/2GB/4GB DDR3 Mod uł pamięci DDR3 z trybem podwójnego kana łu Obsługa DDR3 800 / 1066 / 1333 Obsługa DDR3 1600 (OC) Brak obsług i Regist ered D IMM oraz ECC DIMM

Gniazda DDR3 DIMM x 4

Maks. wielkość pamięci 16GB

Każde gniazdo DIMM obsługuje moduły 512MB

oraz 1GB/2GB/4GB DDR3

Mod uł pamięci DDR3 z trybem podwójnego

kana łu

Obsługa DDR3 800 / 1066 / 1333

Obsługa DDR3 1600 (OC)

Brak obsług i Regist ered D IMM oraz ECC DIMM

Super I/O

ITE 8728 Zapewnia najbardziej powszechne funkcje Super I/O. Interfejs Low Pin Count Funkcje kontroli warunków pracy, Mon itor H /W Funkcja ITE "Smart Guard ian"

ITE 8728

Zapewnia najbardziej powszechne funkcje Super

I/O.

Interfejs Low Pin Count

Funkcje kontroli warunków pracy,

Mon itor H /W

Funkcja ITE "Smart Guard ian"

SATA 3

Zintegrowany kontroler Serial ATA Transfer danych do 6 Gb/s. Zgodność ze specyfikacją SATA w wersj i 3. 0.

Zintegrowany kontroler Serial ATA

Transfer danych do 6 Gb/s.

Zgodność ze specyfikacją SATA w wersj i 3. 0.

LAN

Realtek RTL 8111E 110 / 100 / 1000 Mb/s z automatyczną negocjacją szybkości Działanie w trybie po łowicznego / pełnego dupleksu

Realtek RTL 8111E

110 / 100 / 1000 Mb/s z automatyczną

negocjacją szybkości

Działanie w trybie po łowicznego / pełnego

dupleksu

Obsługa aud io HD

ALC662

5.1 kanałowe wyjście audio Obsługa H igh- Def initio n Aud io

ALC662

5.1 kanałowe wyjście audio

Obsługa H igh- Def initio n Aud io

Gniazdo PCI Express Gen2 x16 x2 Gniazdo PCI Express Gen2 x16 x2 Gniazdo PCI Express Gen2 x 1 x2 Gniazdo PCI Express Gen2 x 1 x2 Gniazda Gniazdo PCI x2 Gniazdo PCI x2

Page 59

TA870U3+/TA870B

TA870U3+ TA870B

Złącze SATA x6 Złącze SATA x6 Złącze panela przedniego x1 Złącze panela przedniego x1 Przedn ie z łącze audio x 1 Przedn ie złącze audio x1 Złącze wyjścia S/PDIF x1 Złącze wyjścia S/PDIF x1 Złącze głó wkowe wentylatora procesora x1 Złącze g łówkowe wentylatora procesora x1 Złącze głó wkowe wentylatora systemowego x2 Złącze głó wkowe wentylatora systemowego x2 Złącze głó wko we kas owania CMOS x1 Złącze głó wko we kas owania CMOS x1 Złącze USB 2.0 x3 Złącze USB 2.0 x3 Złącze zasilania (24 pinowe) x1 Złącze zasilania (24 pinowe) x1 Złącze zas ilania (4 p ino we) x 1 Złącze z as ilania (4 p ino we) x1 Złącze Konsument IR x1 Złącze Konsument IR x1

Złącza wbud owan e

Złącze Port drukarki x1 Złącze Port drukarki x1

Back Panel I/O

Klawiatura PS/2 x1 Mys z PS /2 x1 Port sz eregowy x1 Port LA N x 1 Port USB 2.0 (przez SB850 ) x2 Port USB 3.0 (przez AS M1042) x2 Gniazdo audio x3

Klawiatura PS/2 x1

Mys z PS /2 x1

Port sz eregowy x1

Port LA N x 1

Port USB 2.0 x4

Gniazdo audio x3

Wymiary płyty

220 mm (S) X 305 mm (W) 220 mm (S) X 305 mm (W)

Funkcje specjaln e

Obsługa RAID 0 / 1 / 10 / 5 Obsługa RAID 0 / 1 / 10 / 5

Obsluga systemu operacyjne go

Windows XP / Vista / 7 Biostar zastrzega sobie prawo dodawania lub odwoływ ania obsług i dowo ln ego sys temu operacyjnego b ez powiado mienia.

Windows XP / Vista / 7

Biostar zastrzega sobie prawo dodawania lub

odwoływ ania obsług i dowo ln ego sys temu

operacyjnego b ez powiado mienia.

Page 60

Motherboard Manual

RUSSIAN

TA870U3+ TA870B

CPU (центральный

процессор)

Гнездо AM3 Процессоры AMD Phenom II/Athlon

II/Sempron

Арх итектура AMD 64 разрешать обработка данных на 32 и 64 бит Поддержка Hyper Transport 3.0 и Cool’n’Quiet (Макси маль н ый ватт: 140W)

Гнездо AM3 Процессоры AMD Phenom II/Athlon

II/Sempron

Арх итектура AMD 64 разрешать обработка данных на 32 и 64 бит Поддержка Hyper Transport 3.0 и Cool’n’Quiet

(Макси маль н ый ватт: 140W)

FSB

Поддержка HyperTransport 3.0 с пропускной способностью до 5.2 GT/s

Поддержка HyperTransport 3.0 с пропускной

способностью до 5.2 GT/s Набо р микросхем

AMD 870 AMD SB850

AMD 870

AMD SB850

Основная память

Слоты DDR3 DIMM x 4 Максимальная ёмкость памяти 16 ГБ Каждый модуль DIMM поддерживает 512МБ & 1ГБ/2ГБ /4ГБ DDR3 Мод ул ь памяти с двухкан альным режимом

DDR3

Поддержка DDR3 800 / 1066 / 1333 Поддержка DDR3 1600 (OC) Не поддерживает зарегистрированные модули DIMM and ECC DIMM

Слоты DDR3 DIMM x 4

Максимальная ёмкость памяти 16 ГБ

Каждый модуль DIMM поддерживает 512МБ

& 1ГБ/2ГБ /4ГБ DDR3

Мод ул ь памяти с двухкан альным режимом

DDR3

Поддержка DDR3 800 / 1066 / 1333

Поддержка DDR3 1600 (OC)

Не поддерживает зарегистрированные

модули DIMM and ECC DIMM

Super I/O

ITE 8728

Обеспечивает наиболее используемые действующие фун кц и онал ьны е возможно сти Super I/O. Интерфейс с ни зким количеством выводов Инициативы по охране окружающей среды, Аппаратный монитор Функция ITE "Smart Gu ard ian "

(Интеллектуальная защита)

ITE 8728

Обеспечивает наиболее используемые

действующие фун кц и онал ьны е

возможно сти Super I/O.

Интерфейс с ни зким количеством выводов

Инициативы по охране окружающей среды,

Аппаратный монитор

Функция ITE "Smart Gu ard ian "

(Интеллектуальная защита)

SATA 3

Встроенное последовательное устройство управлени я ATA скорость передачи данных до 6 гигабит/с. Соответствие специ фикации SATA версия

3.0.

Встроенное последовательное устройство

управлени я ATA

скорость передачи данных до 6 гигабит/с.

Соответствие специ фикации SATA версия

3.0.

Локальна я сеть

Realtek RTL 8111E Автоматическое согласовани е 10 / 100 / 1000 Мб /с Частичная / полная дуплексная способность

Realtek RTL 8111E

Автоматическое согласовани е 10 / 100 /

1000 Мб /с

Частичная / полная дуплексная способность Звуко вая поддержка жесткого диска

ALC662 Звуко вая поддержка High- Def in ition

5.1канальный звуковой выход

ALC662

Звуко вая поддержка High- Def in ition

5.1канальный звуковой выход

Слот PCI Express Gen2 x16 x2 Слот PCI Express Gen2 x16 x2 Слот PCI Express Gen2 x 1 x2 Слот PCI Express Gen2 x 1 x2

Слоты

Слот PCI x 2 Слот PCI x 2

Page 61

TA870U3+/TA870B

TA870U3+ TA870B

Разъ ём SATA x6 Разъ ём SATA x6 Разъ ём на лицевой панели x1 Разъём на лицевой панели x1 Входной звуковой разъём x1 Входной звуковой разъём x1 Разъ ём вывода для S/PDIF x1 Разъ ём вывода для S/PDIF x1 Контактирующее приспособление вентил ятора центрального процессора x1

Контактирующее приспособление

вентил ятора центрального

процессора x1

Контактирующее приспособление вентил ятора системы x2

Контактирующее приспособление

вентил ятора системы x2

Открытое контактирующе е приспособление CMOS x1

Открытое контактирующе е

приспособление CMOS x1

USB 2.0-разъём x3 USB 2.0-разъём x3 Разъ ем питания (24 вы вод) x1 Разъ ем питания (24 вывод) x1 Разъ ем питания (4 выво д) x1 Разъ ем питания (4 выво д) x1 Разъ ём едока ИКЫЙ x1 Ра зъ ём едока ИКЫЙ x1

Встроенный разъём

Разъ ём Порт подключения принтера x1

Разъ ём Порт подключения

принтера x1

Задняя панель средств ввода-вывода

Клавиатура PS/2 x1 Мышь PS /2 x1 Последо вательный порт x1 Порт LAN x1

USB 2.0-порт (по SB850) x2 USB 3.0-порт (по ASM1042) x2

Гнездо для подключения наушников x3

Клавиатура PS/2 x1

Мышь PS /2 x1

Последо вательный порт x1

Порт LAN x1

USB 2.0-порт x4

Гнездо для подключения

наушников x3

Размер панели

220 мм (Ш) X 305 мм (В) 220 мм (Ш) X 305 мм (В)

Специальные технические характеристи ки

Поддержка RAID 0 / 1 / 10 / 5 Поддержка RAID 0 / 1 / 10 / 5

Поддержка

Windows XP / Vista / 7 Biostar сохраняет за собой право добавлять

или удалять средства обеспечения для OS с или без предварительного уведомления.

Windows XP / Vista / 7

Biostar сохраняет за собой право добавлять

или удалять средства обеспечения для OS с

или без предварительного уведомления.

Page 62

Motherboard Manual

ARABIC

TA870B TA870U3+

ﺲﺒﻘﻣA ﺲﺒﻘﻣ AM3

تﺎﺠﻟﺎﻌﻣAMD Phenom II/Athlon II/Sempron

ﺔﻴﻨﻘﺗ ﻦﻜﻤﺗAMD 64 ﺔﻋﺮﺴﺏ ﺔﻴﺏﻮ ﺳﺎﺤﻟا تﺎﻴﻠﻤﻌﻟا ءاﺮﺝإ 32 و64 ﺖﺏ

ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗHyper Transport و 3.0 Cool’n’Quiet

(طاو ىﻮﺼﻗ: 140و)

ﺲﺒﻘﻣAM3

تﺎﺠﻟﺎﻌﻣAMD Phenom II/Athlon II/Sempron

ﺔﻴﻨﻘﺗ ﻦﻜﻤﺗAMD 64 ﺔﻋﺮﺴﺏ ﺔﻴﺏﻮ ﺳﺎﺤﻟا تﺎﻴﻠﻤﻌﻟا ءاﺮﺝإ 32 و64 ﺖﺏ

ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗHyper Transport و 3.0 Cool’n’Quiet

(طاو ىﻮﺼﻗ: 140و)

ةﺪﺡو ﺔﺠﻟﺎﻌﻤﻟا

ﻤﻟاﺔیﺰآﺮ

ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗHyperTransport ﻰﻟإ ﻞﺼی ددﺮﺘﺏ 3.0 5.2 GT/s ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗHyperTransport ﻰﻟإ ﻞﺼی ددﺮﺘﺏ 3.0 5.2 GT/s

ﻞﻗﺎﻨﻟا ﻲﻣ ﺎﻣﻷا ﻲﺒﻥﺎﺠﻟا

AMD 870

AMD SB850

AMD 870

AMD SB850

ﺔﻋﻮﻤﺠﻣ ﺢﺋاﺮﺸﻟا

ITE 8728

ﺔﻔﻴﻇ و ﺮﻓﻮﺗSuper I/O ًﺎ ﻣ ا ﺪﺨ ﺘ ﺳ ا ﺮﺜآﻷا .

ﺗﻢﻋﺪ ﺔﻴﻨﻘ ﺗ Low Pin Count Inte rface

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ةﺰﻬﺝﻷا ﺔﻟﺎﺡ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻣ

ﺔﻔﻴﻇو"S mart Guardian" ﻦﻣ IT E

ITE 8728

ﺔﻔﻴﻇ و ﺮﻓﻮﺗSuper I/O ًﺎ ﻣ ا ﺪﺨ ﺘ ﺳ ا ﺮﺜآﻷا .

ﺗﻢﻋﺪ ﺔﻴﻨﻘ ﺗ Low Pin Count Inte rface

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ةﺰﻬﺝﻷا ﺔﻟﺎﺡ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻣ

ﺔﻔﻴﻇو"S mart Guardian" ﻦﻣ IT E

Super I/O

ﺔﺤﺘﻓDDR3 DIM M دﺪﻋ4

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ16 ﺖیﺎﺏ ﺎﺠﻴﺝ

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺗ DDR3 ﺔﻌﺳ

512 ﺖیﺎﺏ ﺎﺠﻴﻣ

و1/و 2/و 4 ﺎﺠﻴﺝﺖیﺎﺏ

ةﺮآاذ ةﺪﺡوDDR3 ﻘﻟا ﺔﺝودﺰﻣةﺎﻨ

عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺗDDR3 تﺎﻌﺳ 800 / 1066 / 1333ﺖیﺎﺏ ﺎﺠﻴﻣ

عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺗDDR3 تﺎﻌﺳ 1600) OC(ﺖیﺎﺏ ﺎﺠﻴﻣ

ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺗ ﻻDIMM ﻊﻣ ﻖﻓاﻮﺘﺗ ﻻ ﻲﺘﻟا ﻚﻠﺗو ECC

ﺔﺤﺘﻓDDR3 DIM M دﺪﻋ4

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ16 ﺖیﺎﺏ ﺎﺠﻴﺝ

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺗ DDR3 ﺔﻌﺳ

512 ﺖیﺎﺏ ﺎﺠﻴﻣ

و1/و 2/و 4 ﺎﺠﻴﺝﺖیﺎﺏ

ةﺮآاذ ةﺪﺡوDDR3 ﻘﻟا ﺔﺝودﺰﻣةﺎﻨ

ﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺗ عﻮﻥ ﻦ DDR3 تﺎﻌﺳ 800 / 1066 / 1333ﺖیﺎﺏ ﺎﺠﻴﻣ

عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺗDDR3 تﺎﻌﺳ 1600) OC(ﺖیﺎﺏ ﺎﺠﻴﻣ

ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺗ ﻻDIMM ﻊﻣ ﻖﻓاﻮﺘﺗ ﻻ ﻲﺘﻟا ﻚﻠﺗو ECC

ةﺮآاﺬﻟا ﺔﻴﺴﻴﺋﺮﻟا

ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣﺎﻜﺘﻣ

ﻞﻘﻥ تﺎﻥﺎﻴﺒﻟا تﺎ ﻋﺮﺴﺏ ﻞﺼﺗ ﻰﻟإ 6 ﺖﺏﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ.

ﺔﻘﺏﺎﻄﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 3.0.

ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣﺎﻜﺘﻣ

ﻞﻘﻥ تﺎﻥﺎﻴﺒﻟا تﺎ ﻋﺮﺴﺏ ﻞﺼﺗ ﻰﻟإ 6 ﺖﺏﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ.

ﺔﻘﺏﺎﻄﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 3.0.

SATA 3

Realtek RTL 8111E

ضوﺎﻔﺗ ﻲﺋﺎﻘﻠﺗ 10/100 ﺎﺠﻴﻣ ﺖیﺎﺏ /ﺔﻴﻥﺎﺙ و1ﺎﺠ ﻴﺝ ﺖﺏ/ﺔﻴﻥﺎﺙ

ﻞﻣﺎﻜﻟا جودﺰﻤﻟا ﻞﻘﻨﻟا ﺔﻴﻥﺎﻜﻣإ/ﻲﻔﺼﻨﻟا

Realtek RTL 8111E

ضوﺎﻔﺗ ﻲﺋﺎﻘﻠﺗ 10/100 ﺎﺠﻴﻣ ﺖیﺎﺏ /ﺔﻴﻥﺎﺙ و1ﺎﺠ ﻴﺝ ﺖﺏ/ﺔﻴﻥﺎﺙ

ﻞﻣﺎﻜﻟا جودﺰﻤﻟا ﻞﻘﻨﻟا ﺔﻴﻥﺎﻜﻣإ/ﻲﻔﺼﻨﻟا

ﺔﻜﺒﺵ ﺔﻴﻠﺥاد

ALC662

5.1 تاﻮﻨﻗ جﺮﺨﻟ تﻮﺼﻟا

ﻦﻣ ﻒیﺮﻌﺘﻟا ﻲﻟﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗ

ALC662

5.1 تاﻮﻨﻗ جﺮﺨﻟ تﻮﺼﻟا

ﻦﻣ ﻒیﺮﻌﺘﻟا ﻲﻟﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗ

ﻢﻋد تﻮﺼﻟا ﻲﻟ ﺎﻋ

ﻒیﺮﻌﺘﻟا

ﺔﺤﺘﻓGen2 x16 PCI Express دﺪﻋ2 ﺔﺤﺘﻓGen2 x16 PCI Express دﺪﻋ2

ﺔﺤﺘﻓPCI Express Gen2 x 1 دﺪﻋ2 ﺔﺤﺘﻓPCI Express Ge n2 x 1 دﺪﻋ2

ﺔﺤﺘﻓPCI دﺪﻋ2 ﺔﺤﺘﻓPCI دﺪﻋ2

تﺎﺤﺘﻔﻟا

Page 63

TA870U3+/TA870B

TA870B TA870U3+

ﺬﻔﻨﻣSATA دﺪﻋ6 ﺬﻔﻨﻣSATA دﺪﻋ6

ﺔﻴﻣﺎﻣﻷا ﺔﺡﻮ ﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1 ا ﺔ ﺡﻮﻠﻟا ﺬﻔﻨﻣﺔﻴﻣﺎﻣﻷ دﺪﻋ1

ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔ ﻨﻣ دﺪﻋ1 ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔ ﻨﻣ دﺪﻋ1

جﺮﺥ ﺬﻔﻨﻣS/PDIF دﺪﻋ1 جﺮﺥ ﺬﻔﻨﻣS/PDIF دﺪﻋ1

ﺔیﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺡو ﺔﺡوﺮﻣ ﺔﻠﺹو دﺪﻋ1 ﺔیﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺡو ﺔﺡوﺮﻣ ﺔﻠﺹو دﺪﻋ1

مﺎﻈﻨﻟا ﺔﺡوﺮﻣ ﺔﻠﺹو دﺪﻋ2 مﺎﻈﻨﻟا ﺔﺡوﺮﻣ ﺔﻠﺹو دﺪﻋ2

ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1 ﺢﺴ ﻣ ﺔﻠﺹوCMOS دﺪﻋ1

ﺬﻔﻨﻣUSB 2.0 دﺪﻋ3 ﺬﻔﻨﻣUSB 2.0 دﺪﻋ3

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻣ)24سﻮﺏد( دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻣ)24سﻮﺏد( دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻣ)4سﻮﺏد( دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻣ)4سﻮﺏد( دﺪﻋ1

ﺬﻔﻨﻣ ﺔﻜﻠﻬﺘﺴﻣ ﺖﺤﺗ ﺮﻤﺡﻷا دﺪﻋ1 ﺬﻔ ﻨﻣ ﺔﻜﻠﻬﺘﺴﻣ ﺖﺤﺗ ﺮﻤﺡﻷا دﺪ ﻋ1

ﺔﻌﺏﺎﻃ ﺬﻔﻨﻣ دﺪ ﻋ1 ﺔﻌﺏﺎﻃ ﺬﻔﻨﻣ دﺪ ﻋ1

ﺬﻓﺎﻨﻤﻟا ﻰﻠﻋ ﺢﻄﺳ

ﺔﺡﻮﻠﻟا

ﺢﻴﺗﺎﻔﻣ ﺔﺡﻮﻟPS/2 دﺪﻋ1

سوﺎﻣ PS/2 دﺪﻋ1

ﻲﻠﺴﻠﺴﺗ ﺬﻔ ﻨﻣ دﺪﻋ1

ﺔﻴﻠﺤﻣ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻣ دﺪﻋ 1

ﺬﻓﺎﻨﻣUSB 2.0 دﺪﻋ4

تﻮﺹ ﺲﺒﻘﻣ دﺪﻋ3

ﺢﻴﺗﺎﻔﻣ ﺔﺡﻮﻟPS/2 دﺪﻋ1

سوﺎﻣ PS/2 دﺪﻋ1

ﻲﻠﺴﻠﺴﺗ ﺬﻔ ﻨﻣ دﺪﻋ1

ﺔﻴﻠﺤﻣ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻣ دﺪﻋ 1

ﺬﻓﺎﻨﻣ2.0US B(SB850 ﻦﻣ ﻞﺒﻗ ) دﺪﻋ2

ﺬﻓﺎﻨﻣSB3.0U(ASM1042 ﻦﻣ ﻞﺒﻗ ) دﺪﻋ2

تﻮﺹ ﺲﺒﻘﻣ دﺪﻋ3

ﺬﻓﺎﻨﻣ ﻞﺥ د/جﺮﺥ

ﺔﺡﻮﻠﻟا ﺔﻴﻔﻠﺨﻟا

220 ﻢﻣ)ضﺮﻋ (X 305 ﻢﻣ)عﺎﻔﺗرا( 220 ﻢﻣ)ضﺮﻋ (X 305 ﻢﻣ)عﺎﻔﺗرا(

ﻢﺠﺡ ﺔﺡﻮﻠﻟا

ﺔﻴﻨﻘ ﺗ ﻢﻋﺪﺗRAID 0 / 1 / 1 0 / 5

ﻣ ﺔﺹﺎﺥ ﺎیاﺰ

Windows XP / Vista / 7

ﻆﻔﺘﺤﺗBiostar وأ رﺎﻄﺥﺈﺏ ﻞﻴﻐﺸﺗ مﺎﻈﻥ يﻷ ﻢﻋﺪﻟا ﺔﻟازإ وأ ﺔﻓﺎﺿإ ﻲﻓ ﺎﻬﻘﺤﺏ

رﺎﻄﺥإ نوﺪﺏ.

Windows XP / Vista / 7

ﻆﻔﺘﺤﺗBiostar وأ رﺎﻄﺥﺈﺏ ﻞﻴﻐﺸﺗ مﺎﻈﻥ يﻷ ﻢﻋﺪﻟا ﺔﻟازإ وأ ﺔﻓﺎﺿإ ﻲﻓ ﺎﻬﻘﺤﺏ

رﺎﻄﺥإ نوﺪﺏ.

ﻢﻋد ﺔﻤﻈﻥ أ ﻞﻴﻐﺸﺘﻟا

Page 64

Motherboard Manual

JAPANESE

TA870U3+ TA870B

CPU

Socket AM3 AMD Phenom II/Athlon II/Sempron プロセッサ AMD 64アーキテクチャでは、32ビットと 64ビット計

算が可能ですハイパートランスポート 3.0とクールアンドクワイア

ットをサポートします

(最高のワット : 140W)

Socket AM3 AMD Phenom II/Athlon II/Sempron プロセッサ AMD 64アーキテクチャでは、32ビットと 64ビット計

算が可能ですハイパートランスポート 3.0とクールアンドクワイア

ットをサポートします

(最高のワット : 140W)

FSB

5.2 GT/sのバンド幅までハイパートランスポート3.0 をサポートします

5.2 GT/sのバンド幅までハイパートランスポート3.0

をサポートします

チップセット

AMD 870

AMD SB850

AMD 870

AMD SB850

メインメモリ

DDR3 DIMMスロット x 4

最大メモリ容量16GB 各DIMMは 512 MB & 1GB/2GB/4GB DDR3をサポート

デュアルチャンネルモードDDR3メモリモジュール

DDR3 800 / 1066 / 1333 をサポート DDR3 1600 (OC) をサポート登録済みDIMMとECC DIMMはサポートされません

DDR3 DIMMスロット x 4

最大メモリ容量16GB 各DIMMは 512 MB & 1GB/2GB/4GB DDR3をサポート

デュアルチャンネルモードDDR3メモリモジュール

DDR3 800 / 1066 / 1333 をサポート DDR3 1600 (OC) をサポート登録済みDIMMとECC DIMMはサポートされません

Super I/O

ITE 8728

もっとも一般に使用されるレガシーSuper I/O機能を採用しています。低ピンカウントインターフェイス環境コントロールイニシアチブ、

H/Wモニター

ITE の「スマートガーディアン」機能

ITE 8728

もっとも一般に使用されるレガシーSuper I/O機能を採用しています。低ピンカウントインターフェイス環境コントロールイニシアチブ、

H/Wモニター

ITE の「スマートガーディアン」機能

SATA 3

統合シリアルATA コントローラ最高6Gb/秒のデータ転送速度 SATAバージョン3.0仕様に準拠。

統合シリアルATA コントローラ最高6Gb/秒のデータ転送速度

SATAバージョン3.0仕様に準拠。

LAN

Realtek RTL 8111E

10 / 100 / 1000 Mb/秒のオートネゴシエーション半/全二重機能

Realtek RTL 8111E

10 / 100 / 1000 Mb/秒のオートネゴシエーション半/全二重機能

HDオーディ

オのサポート

ALC662

5.1チャンネルオーディオアウトハイデフィニションオーディオのサポート

ALC662

5.1チャンネルオーディオアウトハイデフィニションオーディオのサポート

PCI Express Gen2 x16スロット x2 PCI Express Gen2 x16スロット x2 PCI Express Gen2 x1スロット x2 PCI Express Gen2 x1スロット x2

スロット

PCIスロット x2 PCIスロット x2

Page 65

TA870U3+/TA870B

TA870U3+ TA870B

SATAコネクタ x6 SATAコネクタ x6 フロントパネルコネクタ x1 フロントパネルコネクタ x1 フロントオーディオコネクタ x1 フロントオーディオコネクタ x1

S/PDIFアウトコネクタ x1 S/PDIFアウトコネクタ x1 CPUファンヘッダ x1 CPUファンヘッダ x1 システムファンヘッダ x2 システムファンヘッダ x2 CMOSクリアヘッダ x1 CMOSクリアヘッダ x1 USB 2.0コネクタ x3 USB 2.0コネクタ x3

電源コネクタ (24 ピン) x1 電源コネクタ (24 ピン) x1 電源コネクタ (4ピン) x1 電源コネクタ (4ピン) x1 消費者IR コネクタ x1 消費者IR コネクタ x1

オンボードコ

ネクタ

プリンタポートコネクタ x1 プリンタポートコネクタ x1

背面パネル

I/O

PS/2キーボード x1 PS/2マウス x1 シリアルポート x1 LANポート x1 USB 2.0ポート(で SB850) x2 USB 3.0ポート (で ASM1042) x2 オーディオジャック x3

PS/2キーボード x1 PS/2マウス x1 シリアルポート x1 LANポート x1 USB 2.0ポート x4

オーディオジャック x3

ボードサイズ 220 mm (幅) X 305 mm (高さ) 220 mm (幅) X 305 mm (高さ)

特殊機能 RAID 0 / 1 / 10 / 5 のサポート RAID 0 / 1 / 10 / 5 のサポート

OSサポート

Windows XP / Vista / 7 Biostarは事前のサポートなしにOSサポートを追加または削除する権利を留保します。

2010/12/06
