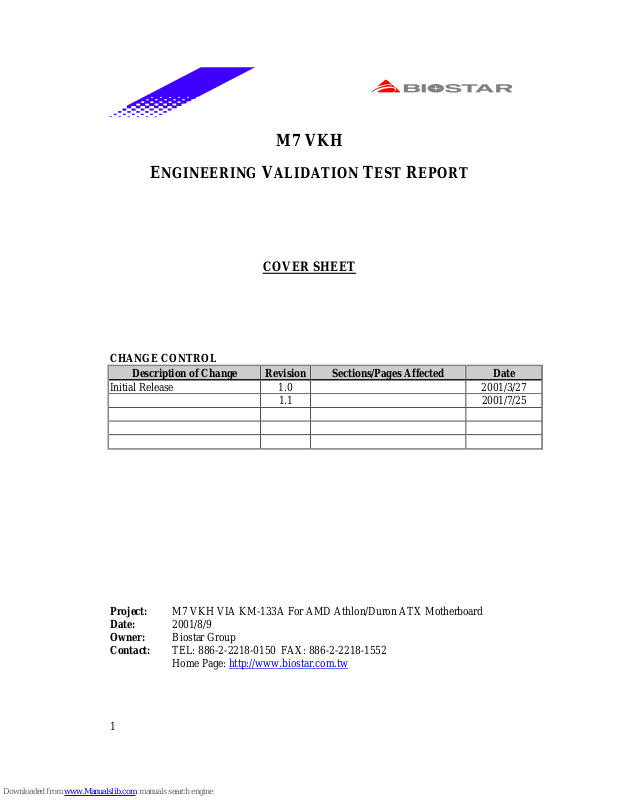

Page 1
1
M7 VKH
E
NGINEERING VALIDATION TEST REPORT
COVER SHEET
CHANGE CONTROL
Description of Change Revision Sections/Pages Affected Date
Initial Release 1.0 2001/3/27
1.1 2001/7/25
Project:
M7 VKH VIA KM-133A For AMD Athlon/Duron ATX Motherboard
Date:
2001/8/9
Owner:
Biostar Group
Contact:
TEL: 886-2-2218-0150 FAX: 886-2-2218-1552
Home Page: http://www.biostar.com.tw
Page 2
2
CONTENTS
PRODUCT INFORMATION.............. ................................... ................... 5
Motherboard General Information ..............................................................................5
Chipset Details ............................................................................................................5
BIOS Details ...............................................................................................................5
CPU Support ...............................................................................................................5
Memory Support ..... ..................... ... ..................... ..................... ..................... ... ..........5
On-board Features and Devices ............... ...... ...... ... ...... ...... ... ...... ...... ... ...... ...... ... ...... . 5
Mechanical ..................................................................................................................6
DESIGN REVIEW......................................... ................................... .........8
Mainboard Voltage Meas urement......... ..................... ... ..................... ..................... ....8
Bus Clock.................................................................................................................... 8
REQUIRED BIOS DEFAULT SETTINGS................................ ............10
BIOS FEATURES SETUP ................... ... ..................... ... ..................... ... .................10
CHIPSET FEATURES SETUP ...... ..................... ..................... ... ..................... ... .....10
POWER MANAGEMENT SETUP...... ..................... ..................... ..................... ... .. 11
PNP / PCI CONFIGURATION ................................................................................12
INTEGRATED PERIPHERALS................... ... ..................... ..................... ... ...........12
CPU FEATURES SETUP..................... ... ..................... ... ..................... ... .................13
FUNCTIONALITY.............................. ..... ................................... ............14
Setup Installation Test Of Operating System.............................................. ... ... ........14
Basic On-board Function Test...................................................................................14
Windows 98 SE Operating........................................................................................ 17
Windows2000 Operating.. ...... ...... ... ...... ...... ... ...... ...... ... ...... ...... ... ...... ...... ... ...... ...... .. 24
Windows ME Operating...... ..................... ... ..................... ... ..................... ... ..............28
Linux (Red Hat) Operating .......................................................................................32
RELIABILITY TEST.............................................. ................................ 33
Motherboard General Information ............................................................................33
Burn-in Step ..............................................................................................................33
PERFORMANCE TEST. ..... ................................... ................................ 34
Windows ME........... ... ..................... ... ..................... ..................... ... ..................... .....34
NT 4.0 Workstation............. ..................... ..................... ... ..................... .................... 35
Windows2000............................................................................................................36
OVER CLOCK TEST ............... .............................................................. 37
Windows Me (FSB:100 MHz).............. ... ..................... ... ..................... ... .................37
Windows Me (FSB:133 MHz).............. ... ..................... ... ..................... ... .................38
HARDWA RE COMPATI BI L IT Y LIS T...... ................................... .......39
CPU...........................................................................................................................39
CD-ROM...................................................................................................................39
Camera Device..........................................................................................................40
DVD-ROM................................................................................................................40
FDD...........................................................................................................................41
HDD..........................................................................................................................41
Joystick......................................................................................................................42
Page 3
3
Keyboard...................................................................................................................42
LAN Card.......... ... ..................... ... ..................... ..................... ... ..................... ...........43
Memory.....................................................................................................................43
Modem Card..............................................................................................................44
Mouse........................................................................................................................45
Power Supply ............................................................................................................45
Printer........................................................................................................................46
Scanner......................................................................................................................46
SCSI Card....... ..................... ... ..................... ... ..................... ... ..................... ... ...........46
Sound Card................................................................................................................47
LAN HUB............ ... ..................... ... ..................... ..................... ... ..................... ........47
USB HUB..................................................................................................................47
Display Card..............................................................................................................47
ZIP/LS120................................................................................................................. 48
Monitor......................................................................................................................49
SOFTW ARE CO MP A T IB IL I T Y LI S T ........................... ..... ................. 50
DOS...........................................................................................................................50
Windows....................................................................................................................50
Server ........................................................................................................................50

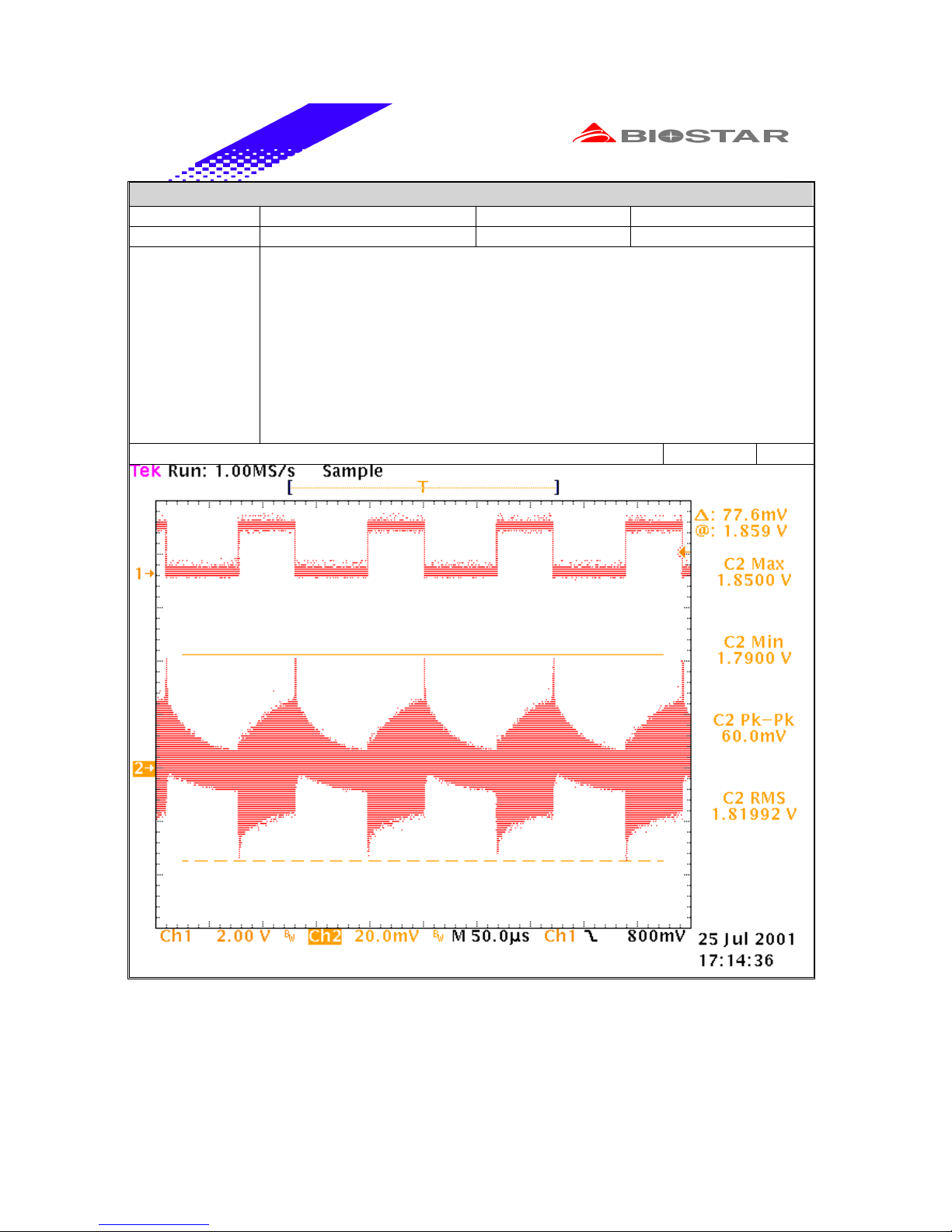

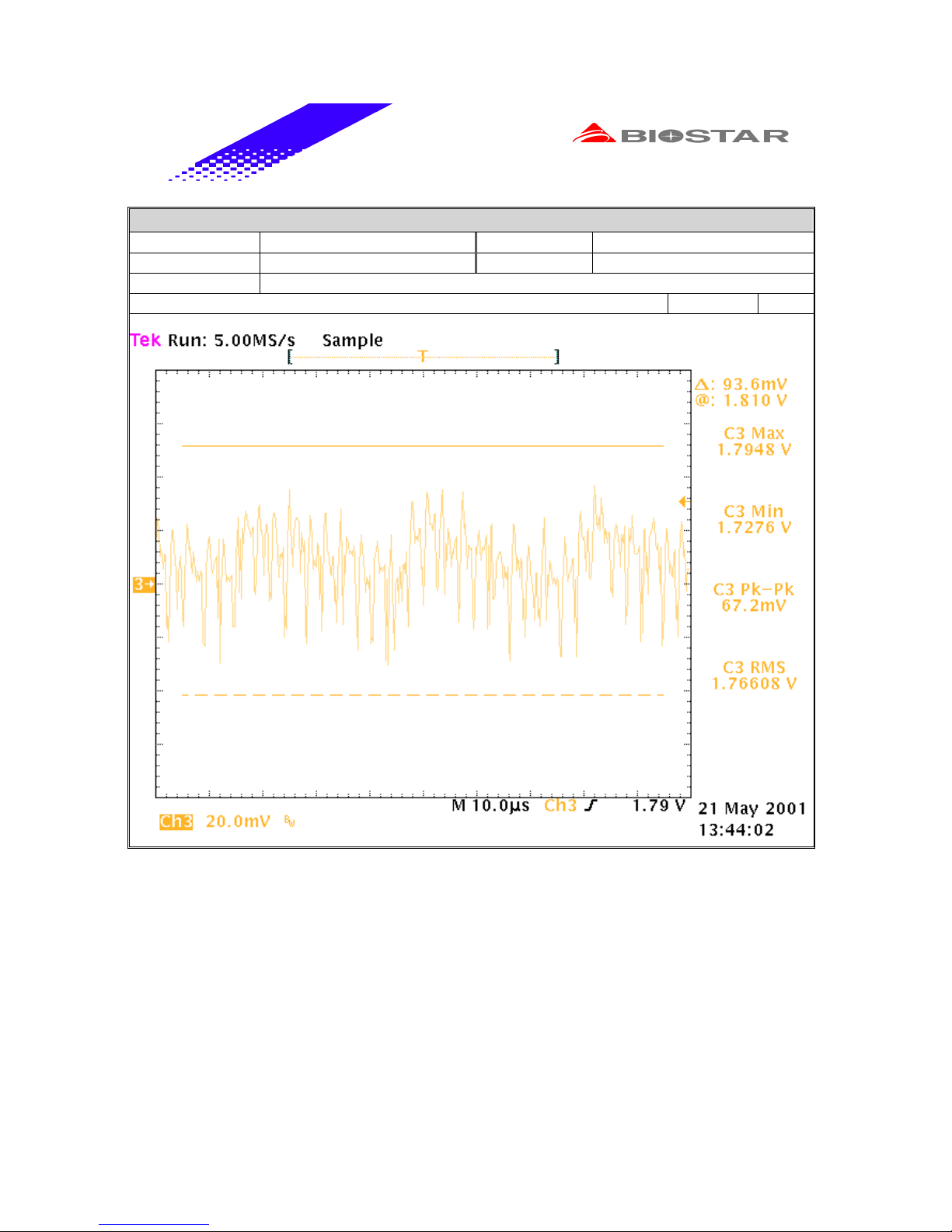

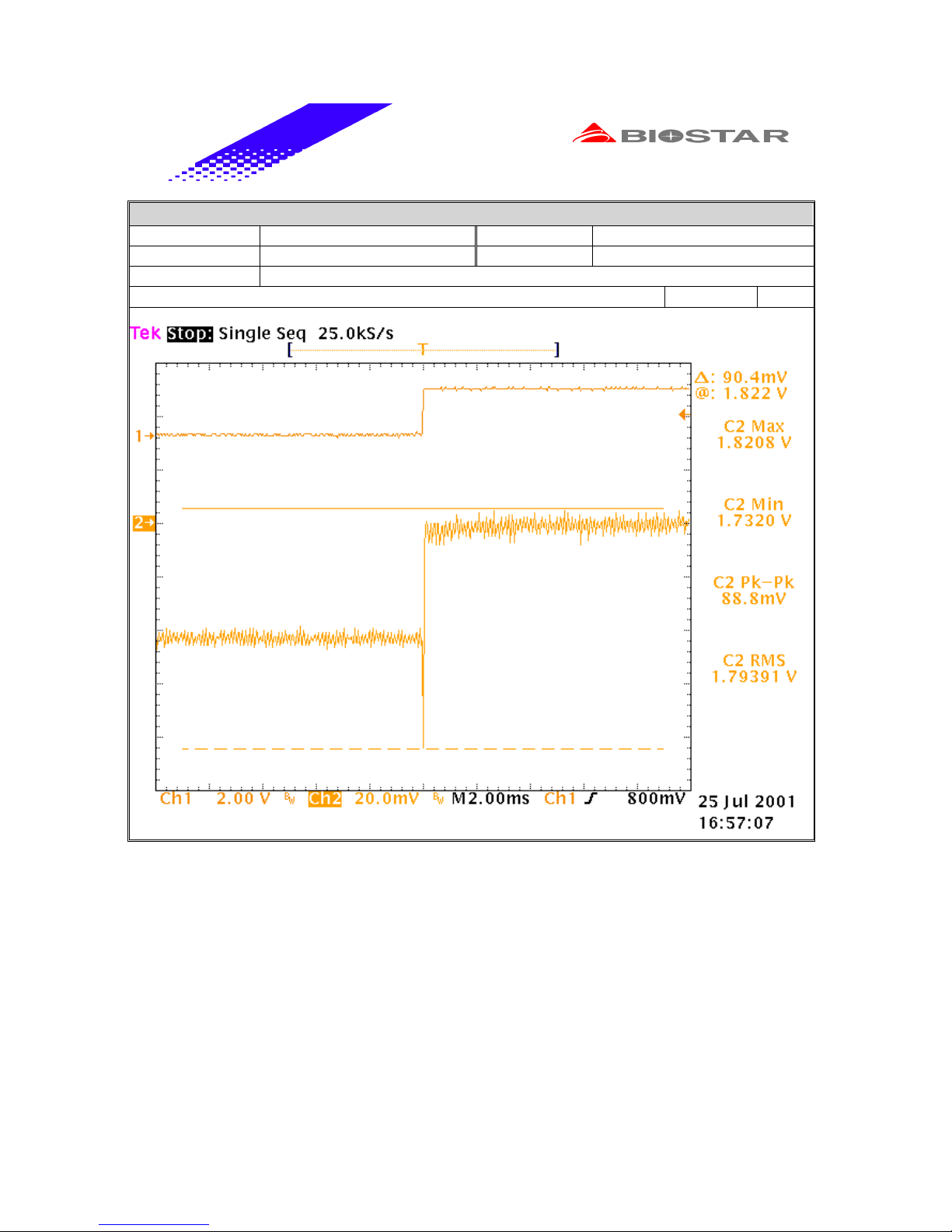

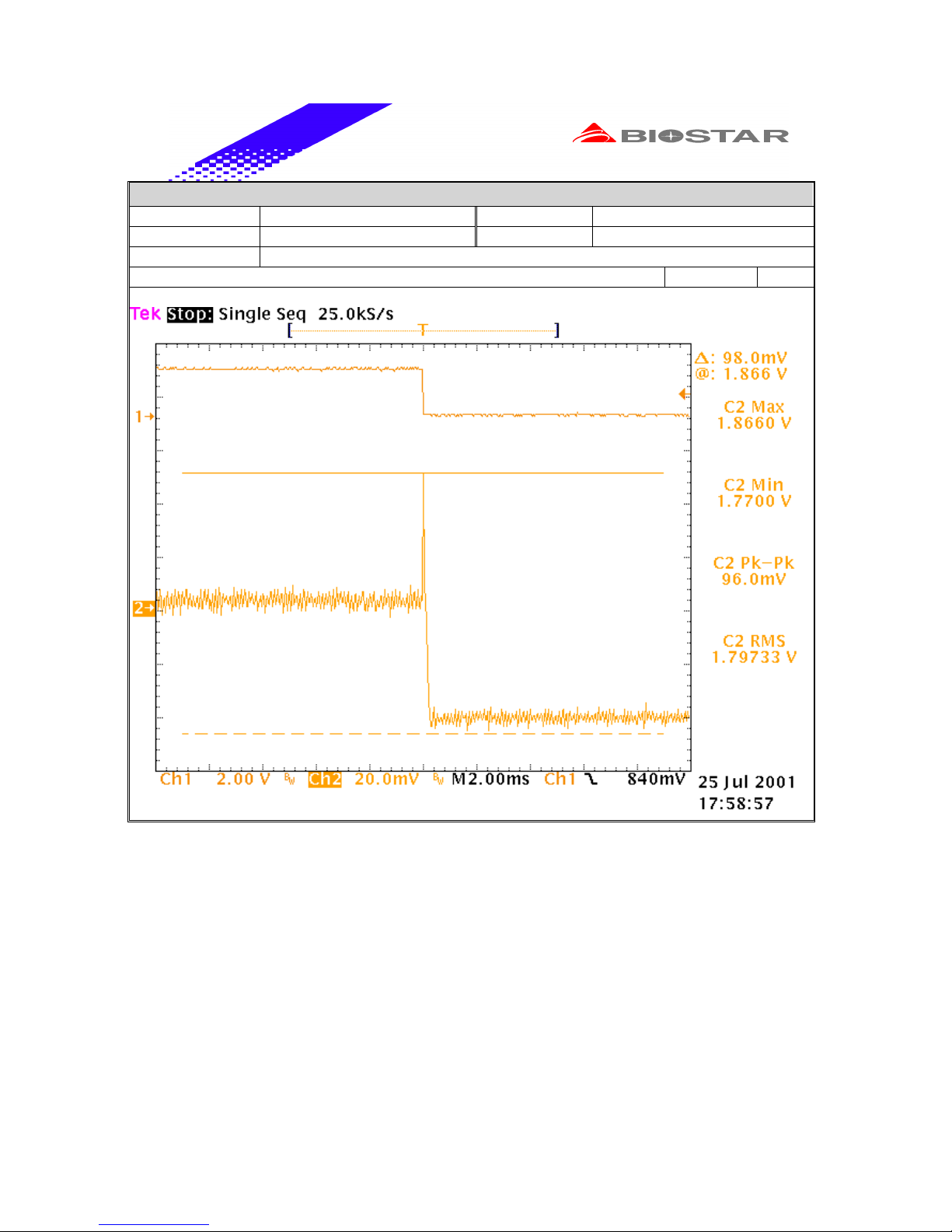

VCORE WAVEFORM MEASUREMENT Ver-1.0 ..............................51

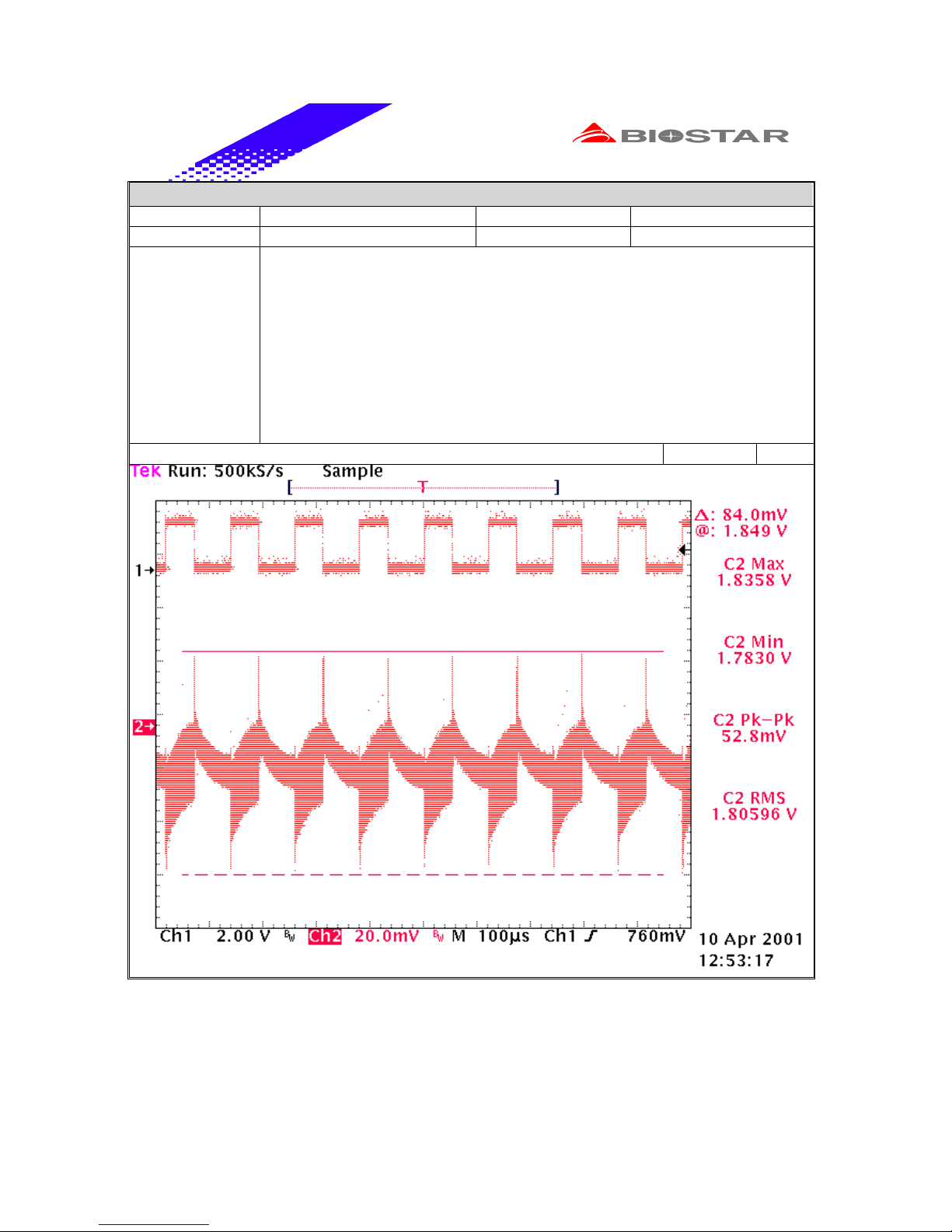

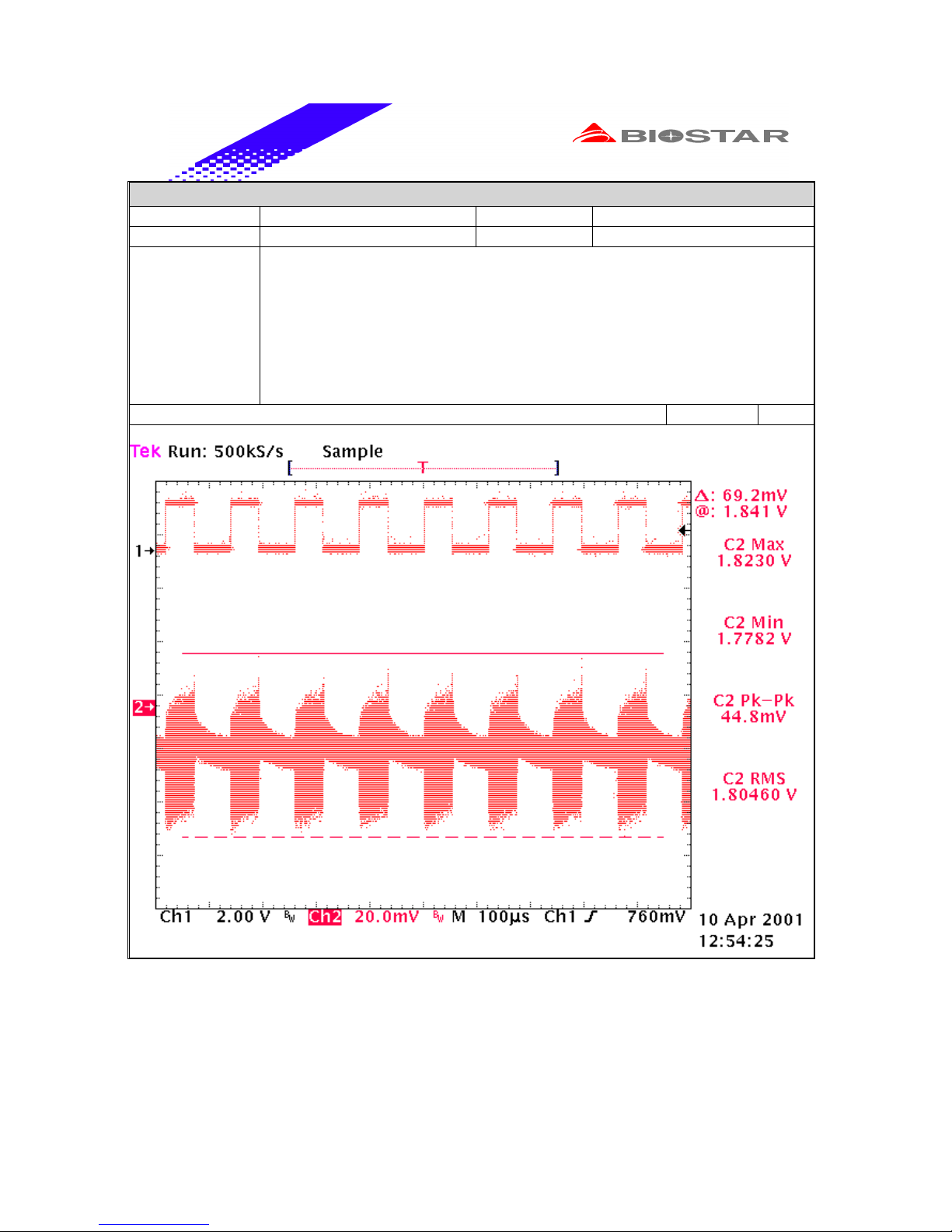

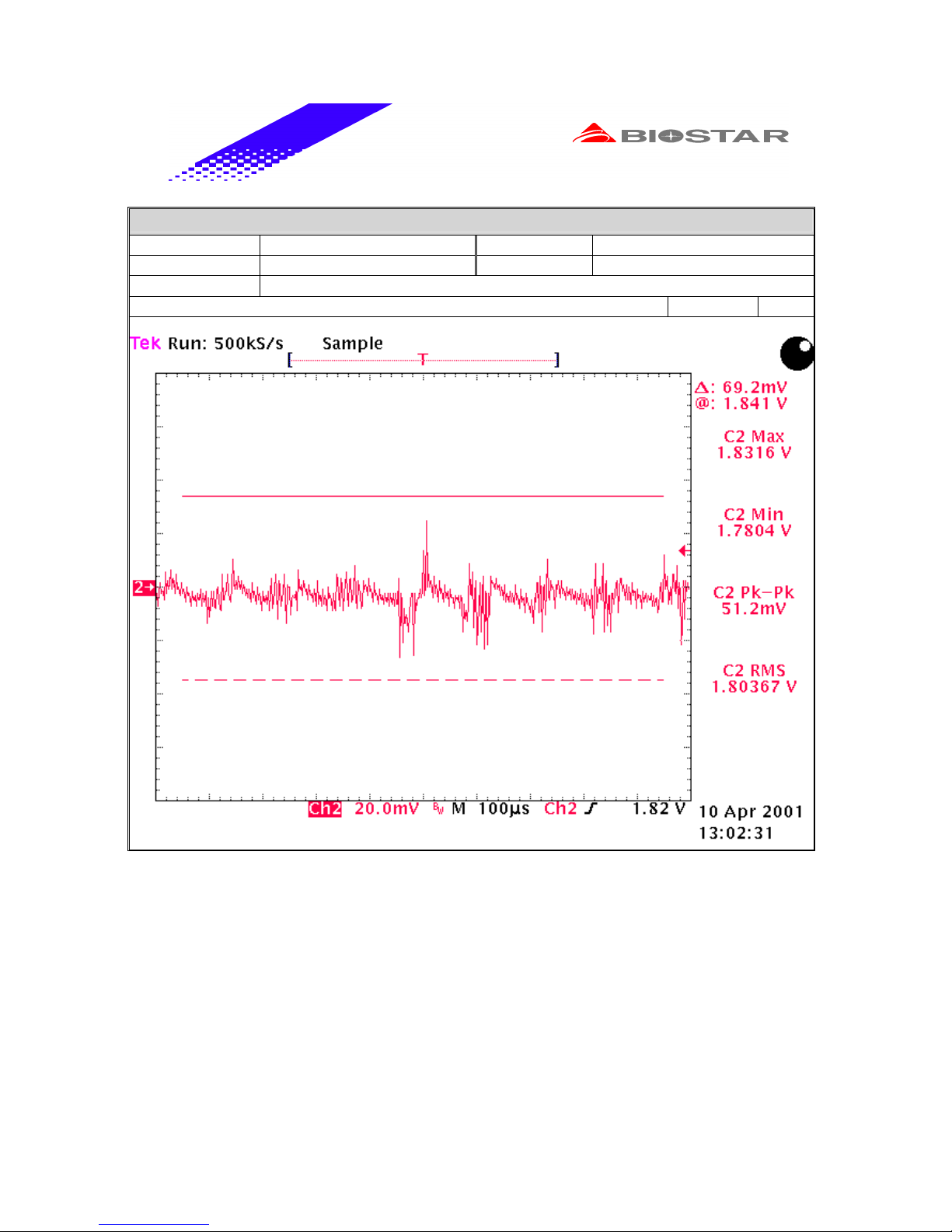

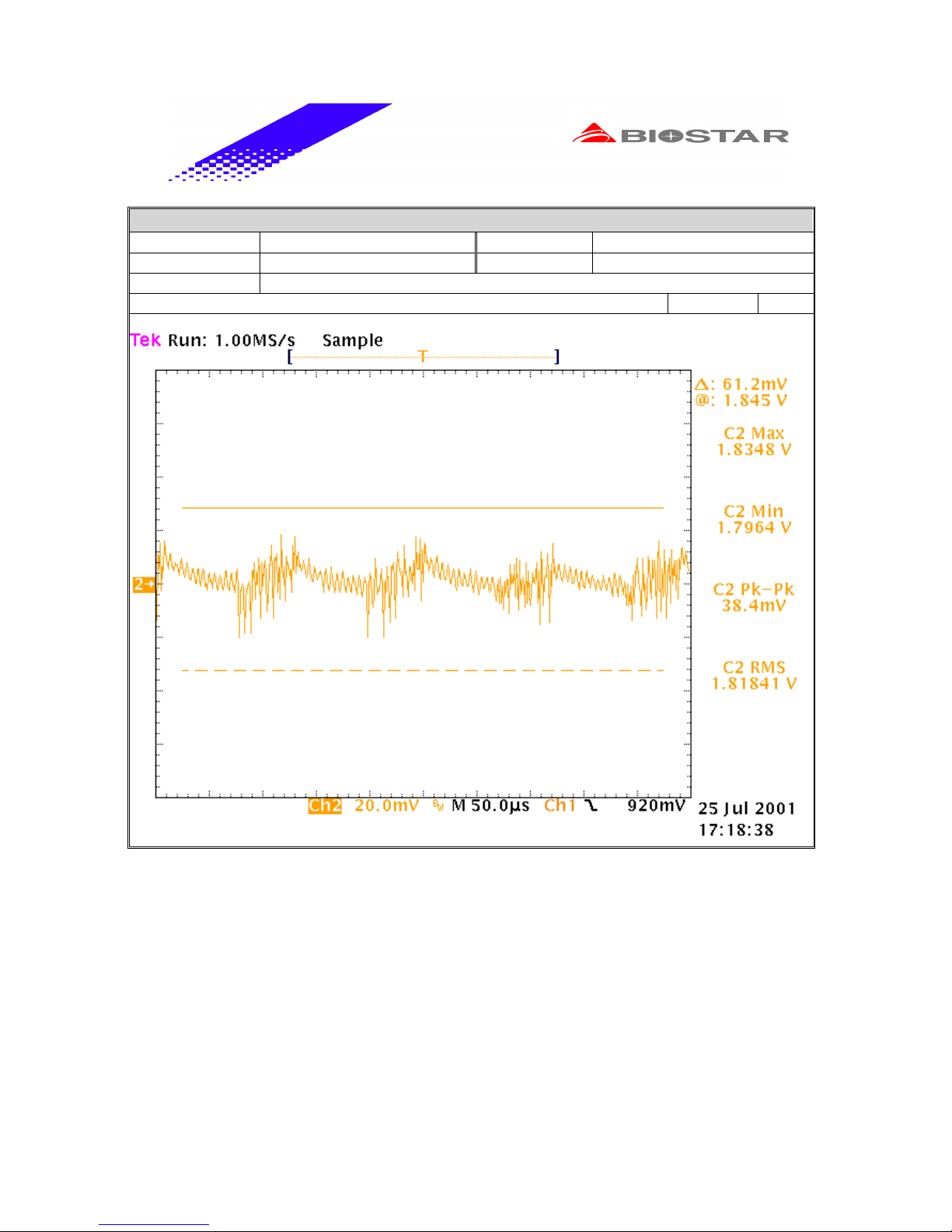

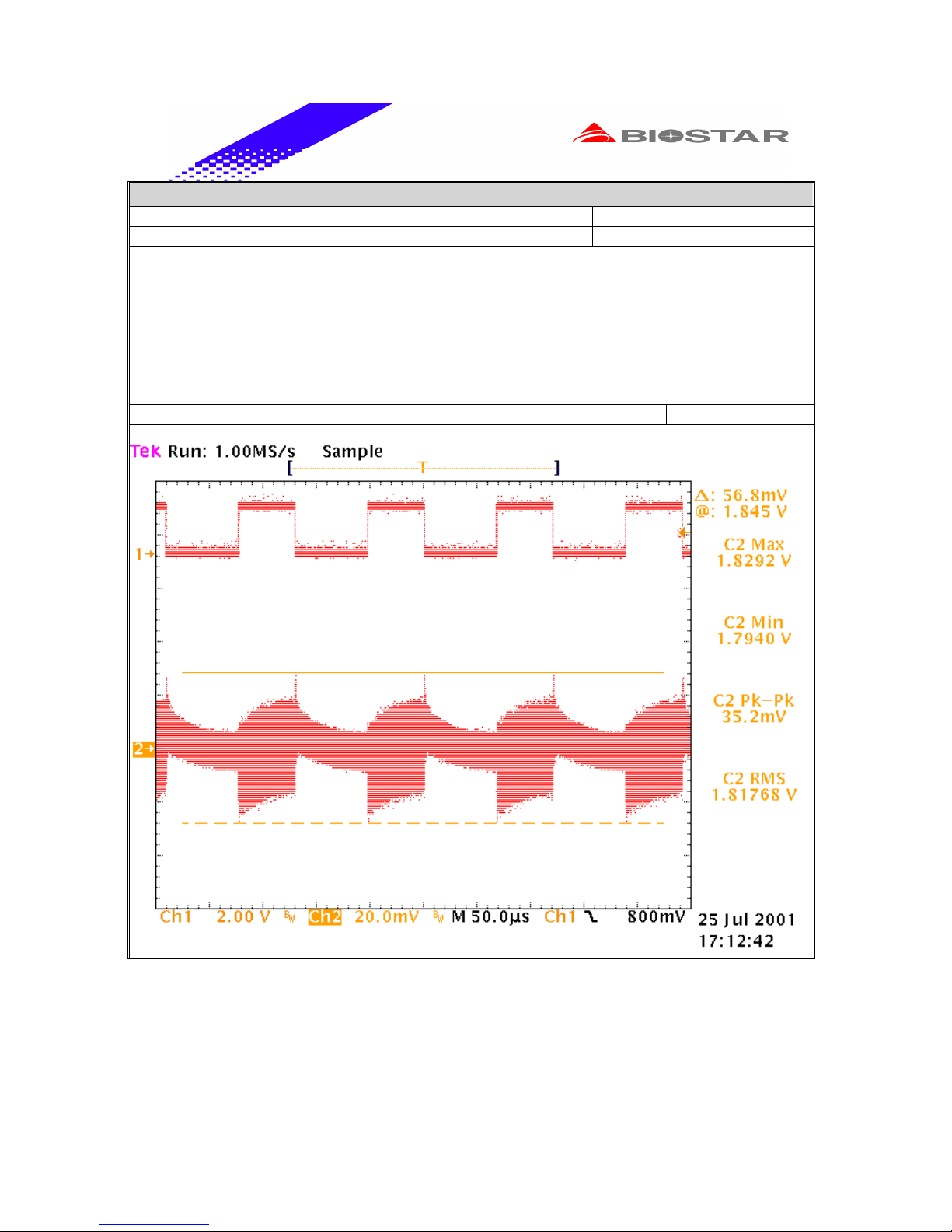

Vcore Ripple Test(Dos Mode)................................ ... ..................... ... ..................... .. 51

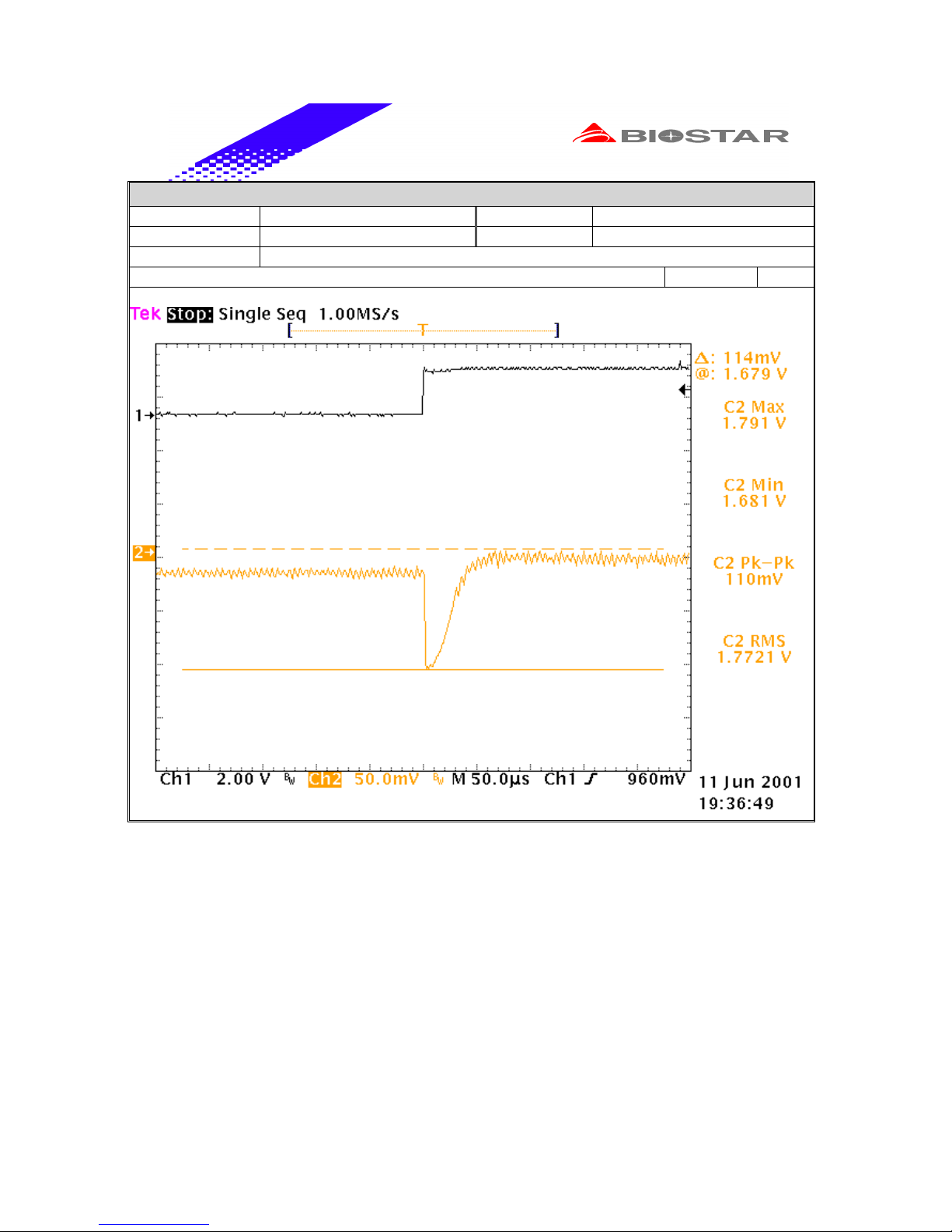

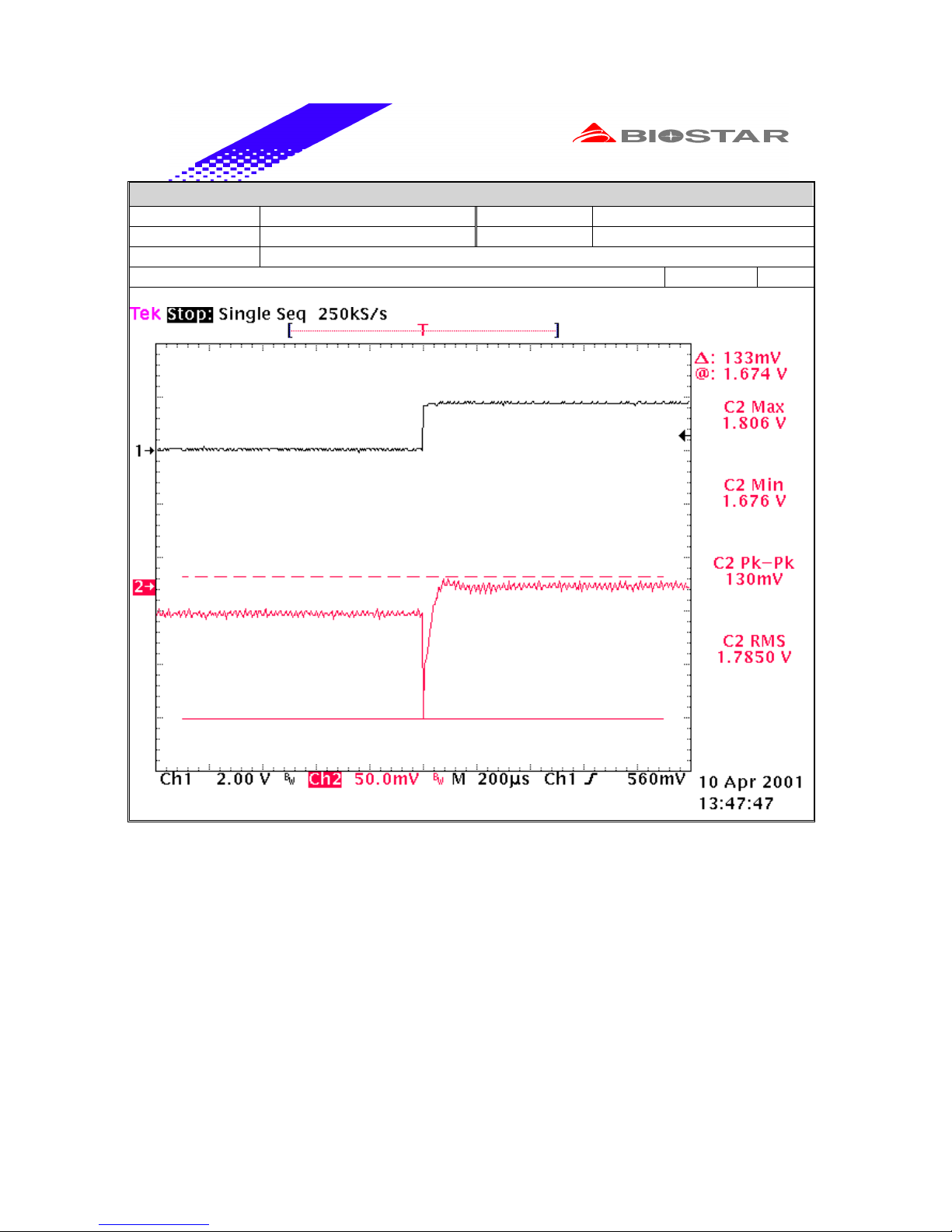

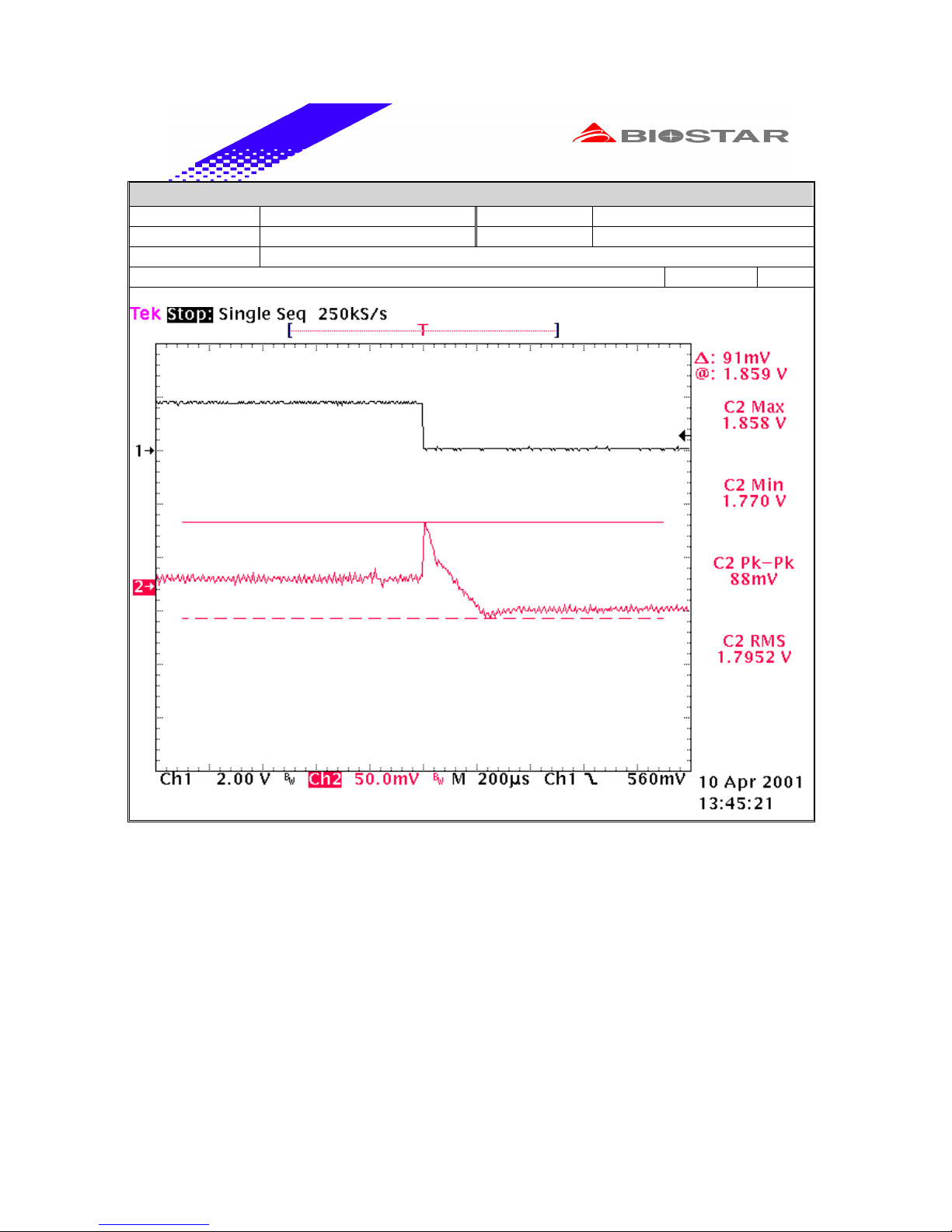

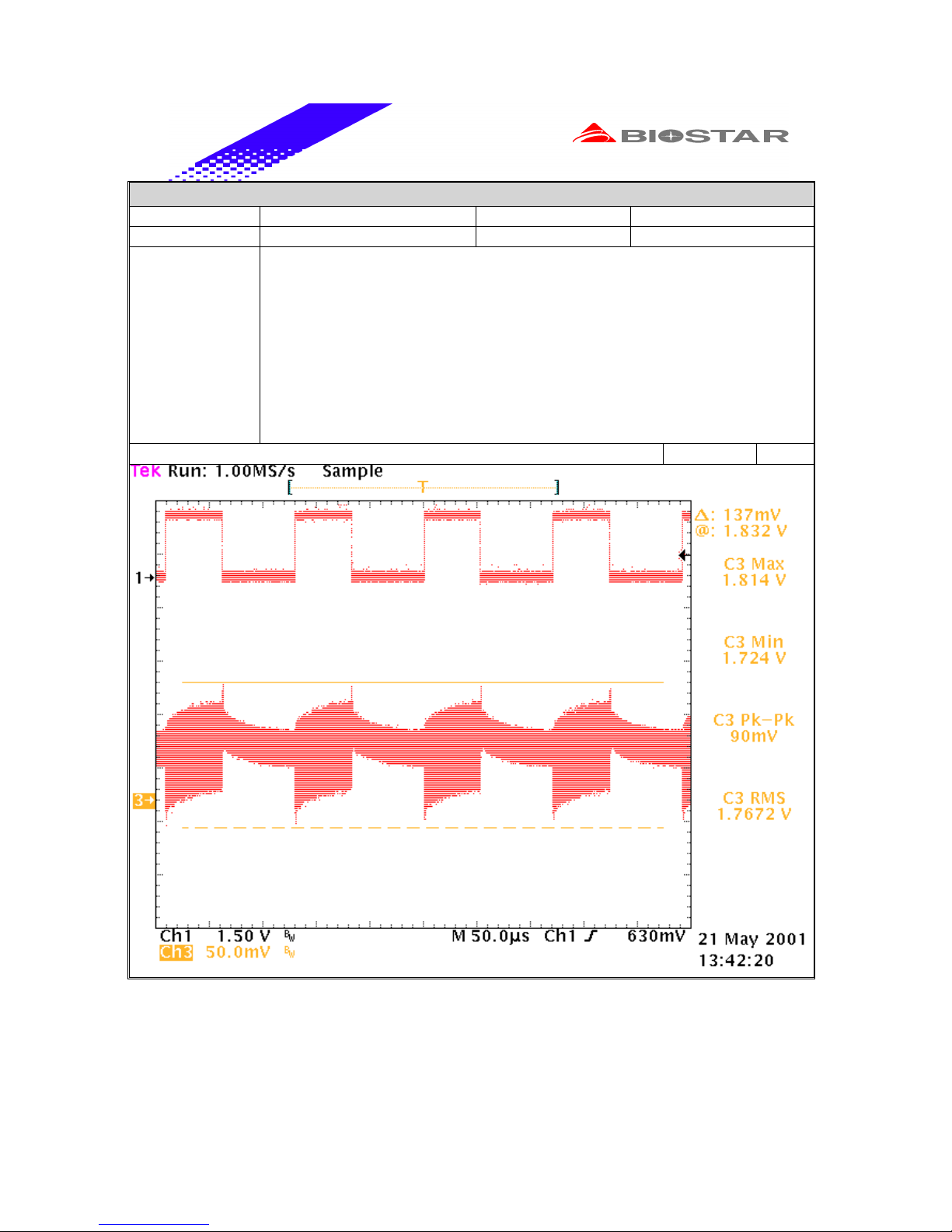

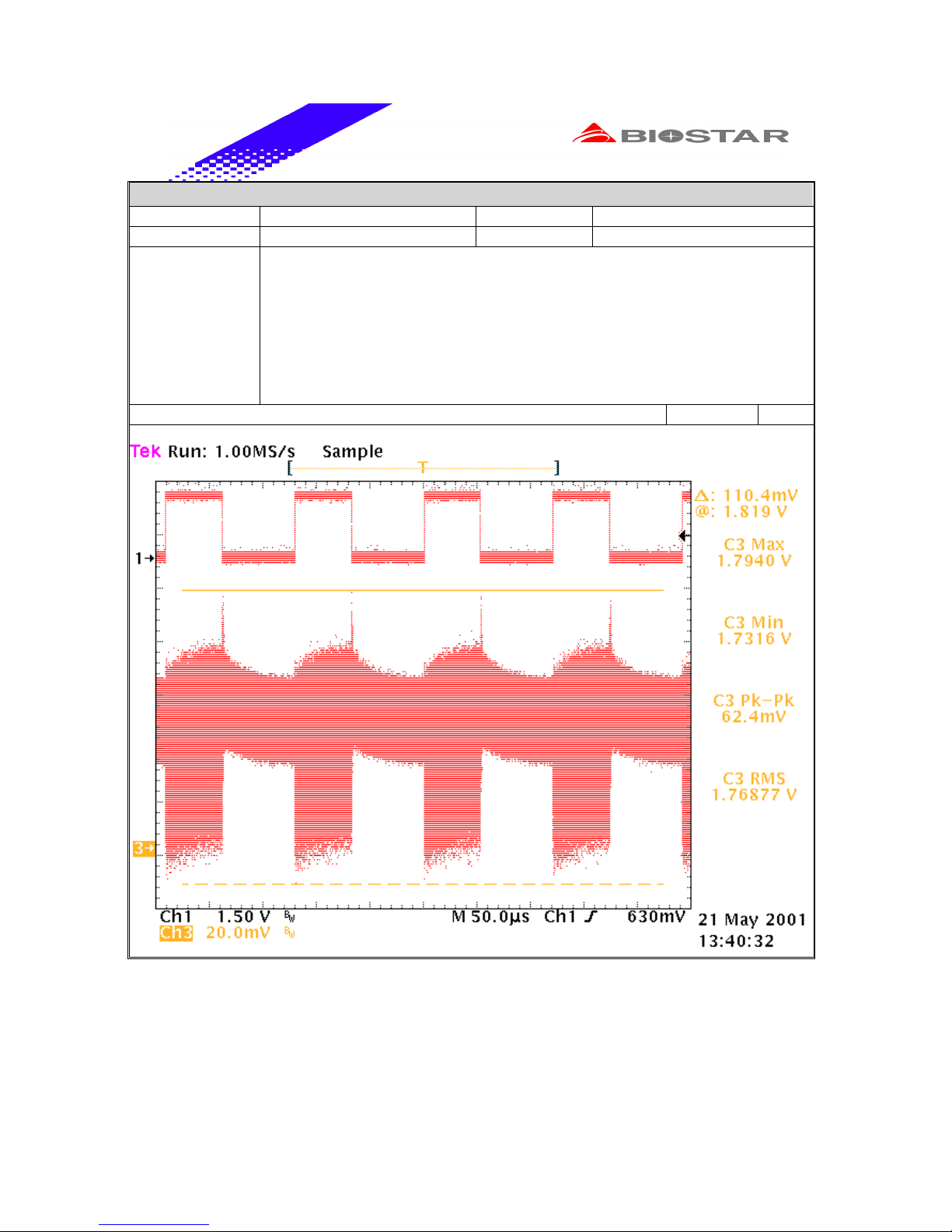

Vcore Transient Test(Dos Mode)............. ..................... ... ..................... ... .................52
Vcore Ripple Test(Open up the DOS Editor) ......... ... ... ..................... ... .................... 53
Vcore Ripple Test(Standby/Resume Mode ) .................... ... ..................... ... ..............54
Vcore Ripple Test(Standby/Resume Mode ) .................... ... ..................... ... ..............55
VCORE WAVEFORM MEASUREMENT Ver-1.0 ..............................56
Vcore Ripple Test(Dos Mode) ........ ... ..................... ... ..................... ..................... ... .. 56
Vcore Transient Test(Dos Mode)............. ..................... ... ..................... ... .................57
Vcore Ripple Test(Open up the DOS Editor) ......... ... ... ..................... ... .................... 58
Vcore Ripple Test(Standby/Resume Mode ) .................... ... ..................... ... ..............59
Vcore Ripple Test(Standby/Resume Mode ) .................... ... ..................... ... ..............60
VCORE WAVEFORM MEASUREMENT Ver-1.1
............................ .. 61
Vcore Ripple Test(Dos Mode) ........ ... ..................... ... ..................... ..................... ... .. 61
Vcore Transient Test(Dos Mode)............. ..................... ... ..................... ... .................62
Vcore Ripple Test(Open up the DOS Editor) ......... ... ... ..................... ... .................... 63
Vcore Ripple Test(Standby/Resume Mode) .................... ... ..................... ... ..............64
Vcore Ripple Test(Standby/Resume Mode ) .................... ... ..................... ... ..............65
V
CORE
STATIC LOAD TEST................................................................ .. 66
Test Environment............... ..................... ..................... ... ..................... .................... 66
V
CORE
STATIC LOAD TEST................................................................ .. 67
Test Environment............... ..................... ..................... ... ..................... .................... 67

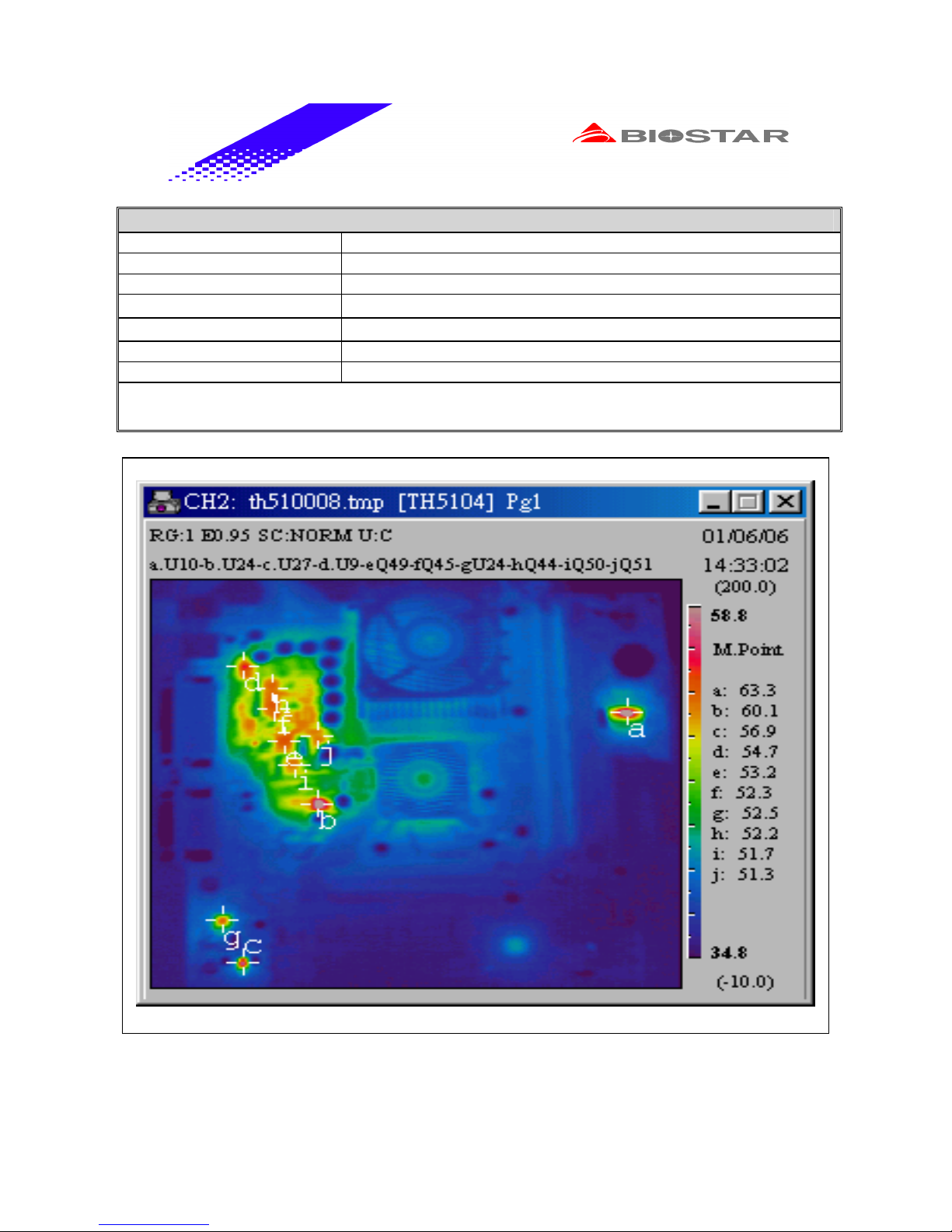

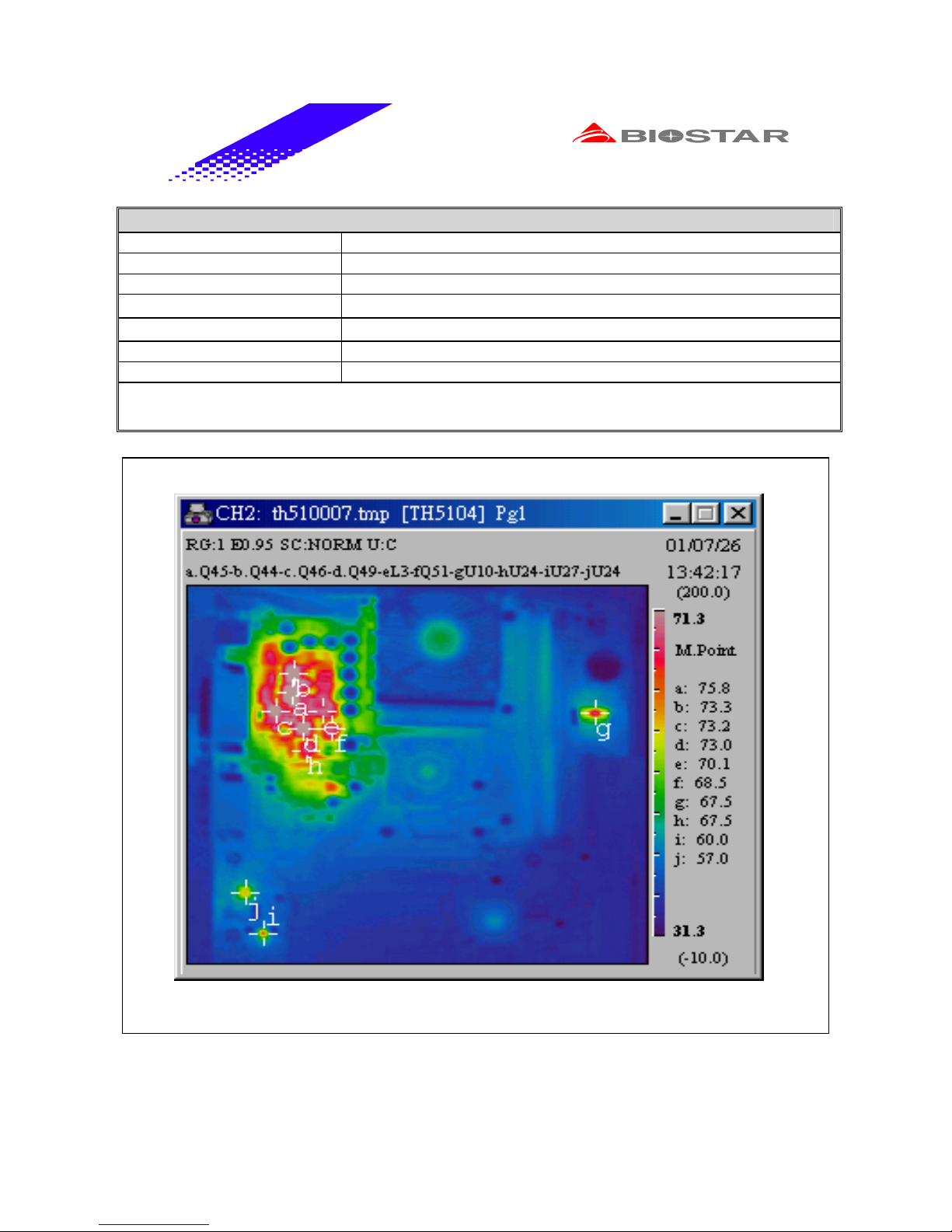

THERMAL IMAGE TEST – Ver 1.0........... ..... ................................... .. 68
Motherboard General Information ............................................................................68
THERMAL IMAGE TEST – Ver 1.1........... ..... ................................... .. 69
Page 4
4
Motherboard General Information ............................................................................69
FOUR CORNER TEST-Ver1.0.................................... ........................... 70
Page 5
5
PRODUCT INFORMATION
Motherboard General Information
Vendor
Biostar
Model Number M7 VKH
Version Number V1.0/V1.1
Platform AT ATX Micro ATX Flex ATX
Chipset Details
System Chipset Vendor
VIA
North Bridge Revision VT8365A/0108CD
South Bridge Revision VT82C686B
Clock Generato r Vendor ICW
Clock Generator Revision W310H
Audio Chipset Vendor Sigmatel
Audio Chipset Revision STAC9700T
BIOS Details
BIOS Vendor AMI Award Phoenix Others
BIOS Revision Number VKH0808x
BIOS Memory Size 1M 2M 4M
Flash EPROM BIOS Yes No
CPU Support
Type CPU Frequency FSB Speed Comments:
Socket A AMD Athlon Max=1400 MHz Max=133 MHz
Socket A AMD Athlon 4 Max=1200 MHz Max=133 MHz
Socket A AMD Duron Max=1100 MHz Max=100 MHz
Memory Support
Maximum Memory Support SDRAM 1500 (MB)
Number of Memory Slots DIMM 3 .
Type of Memory Supported VCM SDRAM RDRAM DDR RAM
Parity Support Yes No N/A
ECC Support Yes No N/A
On-board Features and Devices
No of PCI Full Length Slots 2 3 4 5
No of ISA Full Length Slots 1 2 3 4 None
AMR Slot Support Yes No
CNR Slot Support Yes No
ACR Slot Support Yes No
Number of Shared Slots 1 None
100/133 MHz Front Side Bus Supports Yes No
PCI v2.2 Compliance Yes No
ATA-3 Compliance Yes No
ATAPI Compliance Yes No
Page 6
6
Ultra DMA 33 Support Yes No
Ultra DMA 66 Support Yes No
ATA-100 Support Yes No
USB Connector Support Yes No
AGP (2X/4X) Slot Support Yes No
Support AGP SideBand Addressing Mode Yes No
Power on by LAN Support Yes No
Infrared Support Yes No
Enhanced Parallel Port Yes No
DMI Compliance Yes No
Hardware Monitor Support Yes No
ACPI v1.0/APM v1.2 Compliance Yes No
On-board Graphics Controller Yes No
On-board Network Adapter 1Mb 10Mb 100Mb No
On-board Audio Device Hardware AC97 CODEC No
Mechanical
Board Dimensions Length 30.5 cm Width 22.2 cm
Visual Inspection of Soldering Excellent Fair Poor
Visual Inspection of Layout Placement Connectors Quality
Screw Holes Line Up with Case Yes No Excellent Fair Poor
Power Connector placement in PCB Yes No Excellent Fair Poor
DIMM/RIMM Socket placement in PCB Yes No Excellent Fair Poor
CPU Socket placement in PCB Yes No Excellent Fair Poor
FAN Connector placement in PCB Yes No Excellent Fair Poor
FDD Connector placement in PCB Yes No Excellent Fair Poor
IDE Connector placement in PCB Yes No Excellent Fair Poor
Front Panel Conne ctors in PCB Yes No None Excellent Fair Poor
PS/2 Connectors Line Up in Case Yes No None Excellent Fair Poor
USB Port Connectors Li ne Up in Case Yes No None Excellent Fair Poor
COM Port Connectors L i ne U p in Ca se Yes No None Excellent Fair Poor
Printer Port Connectors L i ne Up in Case Yes No None Excellent Fair Poor
VGA Port Connectors Line Up in Case Yes No None Excellent Fair Poor
Audio Port Conn e ct ors Line Up in Case Yes No None Excellent Fair Poor
Game Port Connectors Line Up in Case Yes No None Excellent Fair Poor
AGP Slot(Card) Line Up in Case Yes No None Excellent Fair Poor
ISA Slots(Card) Line Up in Case Yes No None Excellent Fair Poor
PCI Slots(Card) Line Up in Case Yes No None Excellent Fair Poor
AMR Slot(Card) Line Up in Ca se Yes No None Excellent Fair Poor
CNR Slot(Card) Line Up in Case Yes No None Excellent Fair Poor
ACR Slot(Card) Line Up in Case Yes No None Excellent Fair Poor
Daughter Card Slot in PCB Yes No None Excellent Fair Poor
Wake-on LAN connector in PCB Yes No None Excellent Fair Poor
Wake-on Modem connector in PCB Yes No None Excellent Fair Poor
Page 7
7
CD Audio-in Connector in PCB Yes No None Excellent Fair Poor
AUX Audio-in Connector in PCB Yes No None Excellent Fair Poor
Telephony Connector in PCB Yes No None Excellent Fair Poor
Digital Video Connector Yes No None Excellent Fair Poor
Other Jumper in PCB Yes No None Excellent Fair Poor
Comments:
Page 8
8
DESIGN REVIEW
Mainboard Voltage Measurement
Voltage List Voltage SPEC Voltage Measured Result
Battery Voltage 3.0V/7uA 3.0V/3.6uA Pass
+5V 5.0V+-5% 5.05 Pass
+12V 12.0V+-5% 12.23 Pass
-5V -5.0V+-5% -5.08 Pass
-12V -12.0V+-10% -12.7 Pass
+3.3V +3.3V+-5% 3.40 Pass
Bus Clock
Clock Frequency Spec Value (MHz) Measured Value Pass/Fail
CPU and Clock Host 100.00 100.0 Pass
133.33 133.0 Pass
SDRAM Clock 100.00 100.0 Pass
133.33 133.0 Pass
PCI Clock 33 33.33 Pass
ISA Clock 8 8.306 Pass
AGP Clock 66.67 66.67 Pass
USB Clock 48 48.08 Pass
Reference Clock 14.31818 14.29 Pass
Clock Voltage Level Spec Value (v) Measured Value Pass/Fail
CPU and Host Clock Voltage Level 2.5v 2.42 Pass
SDRAM Clock Voltage Level 3.3v 3.44 Pass
ISA Clock Voltage Level 3.3v 3.44 Pass
PCI Clock Voltage Level 3.3v 3.42 Pass
AGP Clock Voltage Level 3.3v 3.44 Pass
Reference Clock Voltage Level 3.3v 3.26 Pass
Clock Timing Spec Value (v) Measured Value Pass/Fail
CPU Clock High Time 100.00 Min 2.5ns 3.96 Pass
133.33 Min 1.4ns 3.12 Pass
CPU Clock Low Time 100.00 M in 2.4 ns 4.56 Pass
133.33 Min 1.4ns 3.28 Pass
CPU Clock Rising Time 100.00 0.4ns~1.6ns 0.64 Pass
133.33 0.4ns~1.6ns 0.56 Pass
CPU Clock Falling Time 100.00 0.4ns~1.6ns 0.76 Pass
133.33 0.4ns~1.6ns 0.56 Pass
PCI Clock High Time Min.11ns 13.4 Pass
PCI Clock Low Time Min.11ns 12.2 Pass
PCI Clock Rising Time 1ns~4ns 2.2 Pass
PCI Clock Falling Time 1ns~4ns 2.2 Pass
Page 9
9
Comments:
Page 10
10
REQUIRED BIOS DEFAULT SETTINGS
Lists Specification Result
BIOS FEATURES SETUP
Boot Device select Press Enter Pass
First Boot Device Floppy Pass
Secone Boot Device HDD-0 Pass
Third Boot Device LS120 Pass
Boot Other Device Enabled Pass
Shadow Control Press Enter Pass
Video BIOS Shadow Enabled Pass
C8000-C8FFF Shadow Disabled Pass
CC000-CFFFF Shadow Disabled Pass
D0000-D3FFF Shadow Disabled Pass
D4000-D7FFF Shadow Disabled Pass
D8000-D8FFF Shadow Disabled Pass
DC000-DFFFF Shadow D i sa bled Pass
Anti-Virus Protection Enabled Pass
CPU L1 Cache Enabled Pass
CPU L2 Cache Enabled Pass
CPU L2 Chace ECC Checking Enabled Pass
Quick Power On Self Test Enabled Pass
Swap Floppy Drive Disabled Pass
Boot up Floppy Seek Enabled Pass
Boot Up Numlock Status ON Pass
Gate A20 Option Fast Pass
Typematic Rate Setting Disabled Pass
X Typematic Rate(Chars/Sec) 6 Pass
X Typematic Delay(MSEC) 250 Pass
Security Option Setup Pass
OS Select For DRAM>64MB Non-OS2 Pass
CHIPSET FEATURES SETUP
Onchip Device Control Press Enter Pass
OnChip Sound Auto Pass
OnChip Modem Auto Pass
OnChip USB Enabled Pass
OnChip USB 2 Enabled P ass
USB Keyboard Suppo rt Disabled Pass
Chipset Specific Feature Press Enter Pass
PCI Master Pipeline Req Disabled Pass
P2C/C2P Concurrency Disabled Pass
Fast R-W Turn Around Disabled Pass
CPU to PCI Write Buffer Enabled Pass
PCI Dynamic Bursting Enabled Pass
Page 11
11
PCI Master 0 WS Write Enabled Pass
PCI Delay Transaction Disabled Pass
PCI#2 Access #1 Retry Enabled Pass
AGP Device Control Press Enter Pass
AGP Mode 4X Pass
AGP Aperture Size 64M Pass
AGP Driving Control Auto Pass
X AGP Driving Value DA Pass
AGP Master 1 WS Write Disabled Pass
AGP Master 1 WS Read Disabled Pass
Frame Buffer Size 16M Pass
DRAM Timing By SPD Disabled Pass
DRAM Clock Host CLK Pass
SDRAM Cycle Le ngth 3 Pass
Bank Interleave Disabled Pass
System BIOS Cacheable Disabled Pass
Video RAM Cacheable Disabled Pass
I/O Recovery Time Enabled Pass
K7 CLK_CTL Select Default Pass
POWER MANAGEMENT SETUP
ACPI Function Enabled Pass
Power Management Press Enter Pass
Power Management User Defin e Pass
HDD Power Down Disabled Pass
Doze Mode Disabled Pass
Suspend Mode Disabled Pass
PM Control by APM YES Pa s s
Video Off Option Suspend - > off P ass
Video Off Method V/H SYNC+Blank Pass
Modem Use IRQ 3 Pass
Soft-off by PWR-BTN Instant-off Pass
Wake Up Event Press Enter Pa ss
VGA Off Pass
LPT & COM LPT / COM Pass
HDD & FDD ON Pass
PCI Master Off Pass
PowerOn by PCI Card Disabled Pass
Wake Up on LAN/Ring Disabled Pass
RTC Alarm Resume Disabled Pass
X DATE (of Mo nth ) 0 Pass
X Resume Time (hh:mm:ss) 0 0 0 Pass
Primary INTR ON Pass
IRQs Activity Monitoring Press Enter Pass
Page 12
12
IRQ3 (COM2) Enabled Pass
IRQ4 (COM1) Enabled Pass
IRQ5 (LPT2) Enabled Pass
IRQ6 (Floppy Disk) Enabled Pass
IRQ7 (LPT1) Enabled Pass
IRQ8 (RTC Alarm) Disabled Pass
IRQ9 (IRQ2 Redir) Disabled Pass
IRQ10 (Reserved ) Disabled Pass
IRQ11 (Reserved ) Disabled Pass
IRQ12 (PS/2 Mouse) Enabled Pass
IRQ13 (Coprocessor) Enabled Pass
IRQ14 (Hard Disk) Enabled Pass
IRQ15 (Reserved ) Disabled Pass
PNP / PCI CONFIGURATION
PnP OS Installed NO Pass
Reset Configuration Data Disabled Pass
Resources Controlled By Auto(ESCD) Pass
X IRQ Resources Press Enter Pass
X DMA Resources Press Enter Pass
PCI / VGA Palette Snoop Disabled Pass
Assign IRQ for VGA Enabled Pass
Assign IRQ for USB Enabled Pass
INTEGRATED PERIPHERALS
Onchip IDE Control Press Enter Pass
OnChip IDE Channel0 Enabled Pass
OnChip IDE Channel1 Enabled Pass
IDE Prefetch Mode Enabled Pass
Primary Master PIO Auto Pass
Primary Slave PIO Auto Pass
Secondary Master PIO Auto Pass
Secondary Slave PIO Auto Pass
Primary Master UDMA Auto Pass
Primary Slave UDMA Auto Pass
Secondary Master UDMA Auto Pass
Secondary Slave UDMA Auto Pass
IDE HDD Block Mode Enabled Pass
Muti-Media setting Press Enter Pass
Onboard Legacy Audio Enabled Pass
Sound Blaster Disabled Pass
SB I/O Base Address 220H Pass
SB IRQ Select IRQ 5 Pass
SB DMA Select DMA 1 Pass
MPU-401 Enable Pass
Page 13
13
MPU-401 I/O Address 330-333H Pass
Game Port (200-207H) Enabled Pass
Init Display Frist PCI Slot Pass
Onboard FDD Controller Enabled Pass
Onboard Serial Port 1 Auto Pass
Onboard Serial Port 2 Auto Pass
Onboard IR Port Disabled Pass
UART 2 Mode Standard Pass
X IR Function Duplex Half Pass
X TX,RX inverting enable No ,Yes Pass
Onboard Parallel Port 378/IRQ7 Pass
Onboard Parallel Port Normal Pass
ECP Mode Use DMA 3 Pass
Parallel Port EPP Type EPP1.9 Pass
CPU FEATURES SETUP Write Actual Values
Show H/W Monitor in POST 3 sec
Current CPU Fan 1 S pe e d 5201
Current System Fan Speed 4714
Vcore 1.83 V
VccSRAM 3.45 V
+3.3V 3.46 V
+5.0V 5.15 V
+12V 12 V
Comments:
Page 14
14
FUNCTIONALITY
Setup Installation Test O f Operating System Pass/Fail
DOS 6.22 Pass
Windows 98 S e cond Edition Pass
Windows ME Pass
Windows NT 4.0 Workstation Pass
Windows 2000 Pass
Linux (Red Hat 7.1) Pass
Basic On-boa rd Func ti on Test
Test Platform MS-DOS Operating
Comment
CPU Athlon 1.13 G
Memory Winbond 256 M *2
HDD Quantum 15G
CDROM BTC 52 X
Sound Card Onboard
Video Card Onboard
LAN Card Intel 82557 , 82559
Test Item Pass/Fail
Clear CMOS with Jumper Pass
Cold Boot (Power Turn on ) Pass
CMOS Load Default Setup Pass
Memory Size Counter Check Pass
BIOS Lock Function Pass
Warm Boot (HW/SW Reset) Pass
System Configuration Review (CPU Type/Cache/SDRAM/HDD…) Pass
Power Fail Function Test None
Prompt Into DOS Mode Pass
Typing Some DOS Comment Pass
Run Scandisk Pass
PS/2 Keyboar d Test Pass
USB Keyboa rd Legacy Support Test Pass
Boot Floppy Driver A Pass
FDISK Hard Disk Driver Pass
Format Hard Disk Driver Pass
Boot Hard Disk Driver C Pass
Power LED Check Pass
HDD LED Check Pass
Systems Speaker Pass
Buzz None
SMI Function T e st --SMI Pin Func tion Test Pass
Time Out Function Test Pass
Page 15
15
Power LED Flash Check Pass
CPU FAN Stop Check None
Power On Control --Power On By RTC Test Pass
Power On By LAN Test (Intel SPD3) Pass
Power On By Modem Test Pass
Boot Management --Boot Form CD-ROM Pass
Boot From SCSI HDD Pass
Boot From ATAP I ZIP/L S 120 Drive Pass
Boot From LAN Pass
RTC Test
---
COMS RTC Date Check Pass
Windows 98SE RTC Date Check Pass
COMS RTC Time Out Test Pass
Windows 98S E RTC Time Out Test Pa ss
Memory Comparability Test --Bmem Memory Test (15 Times) Pass
MEMTEST V2.44C Pass
Qaplus 7.0 Test ---
All Test (RTC Fail) Fail(Utility issue)
Checkit 4.0 --System Board Test Pass
Memory Tes t Pass
Hard Disk Test Pass
Floppy Test Pass
Serial Port Test Pass
Parallel Port Test Pass
Modem Test Pass
Video Card Test Pass
Printer Test Pass
Keyboard Test Pass
AMIDiag 6.0 ---
System --Processor Test Fail (Utility issue)
DMA Controller Test Pass
Interrupt Controller Test Pass
Timer Test Pass
Real Time Clock Test Pass
CMOS Validity Test Pass
Speaker Test Pass
PCI System Test Pass
Page 16
16
Plug-n-Play Te st Pass
Multimedia CPU Extensions Pass
Memory --BIOS ROM Test Fail (Utility issue)
Parity Test Pass
Pattern Test Pass
Extended Pattern Test Pass
Walking 1’s Test Pass
Walking 0’s Test Pass
Random Memory Test Pass
Address Test Pass
Refresh Test Pass
Data Bus Test Pass
Cache Memory Test Pass
IDE --IDE HDD Test Pass
IDE CD Test Pass
FDD --Drive Speed Test Pass
Random R/W Test Pass
Sequential R/W Test Pass
Elevator Seek Test Pass
Disk Change Line Test Pass
KBD --Controller Test Pass
Scan/ASCII code test Pass
Keyboard LED Test Pass
Keyboard Clock Line Test Pass
Keyboard Data L ine Test Pass
Video ---
Video Memory Test Pass
Attribute Test Pass
Page Selection Test Pass
Color Test Pass
Text Mode Test Pass
Graphics Mode Test Pass
VESA Video Mode Test Pass
VESA Video Memory Test Pass
VESA Monitor Test Pass
Misc. --Serial Port Test Pass
Parallel Port Test Pass
Page 17
17
PS/2 Mouse Test Pass
APM Functionality Test Pass
Device APM Test Pass
ACPI Test Pass
I82557 Ethernet chip Pass
Comments:
Test Platform Windows 98 SE Operating Comment
CPU Athlon 1400MHZ
Memory NEC 256M X2
HDD IBM DTL A-307030
CDROM LITEON LTN-362
Sound Card On board
Video Card On board
LAN Card Intel 82559
Test Item Pass/Fail
System Comparability Test ---
Windows 98 S e tu p Installation Test Pass
Supports Driver Installation Test Pass
Standby Mode Test Pass
Shut Down Test Pass
Restart Test Pass
Restart In MS-DOS Mode Pass
Scandisk Test Pass
Disk Defragmenter Test Pass
Disk Converter Test (FAT32 ) Pass
System Pr operties Information Review ( S ystem Devic e Manager) Pass
Setup installation Microsoft Office 2000 Test Pass
Reboot Program test for over night Pass
Memory Com parability Test ---
Running AVI Files With Multi Stress Pass
Winstone 99 Test Pass
3D Winbench 99 Test Pass
Final Reality 1.01 Test Pass
BCM Memory Test Pass
Device Comparability Test ---
PS/2 Connector Test
---
PS/2 Keyboar d Test Pass
PS/2 Mouse Test Pass
COM Port Test
---
Add Serial Mouse PnP Test Pass
Page 18
18
Add Modem PnP Test Pass
Print Port Test
---
Add Printer PnP Test Pass
Add ZIP Device Test Pass
LL5 Cable test (Data Transfer test) Pass
IrDA Function Test
---
Add IR Printer Test Pass
Peer to Peer Data Transfer Test (Ir-In/Ir-Out) Pass
FDD Connector Test
---
Create Windows98 Startup Disk Pass
Format 1.44 Floppy Driver Pass
IDE Connectors Test
---
CD-ROM Data Read Test Pass
DVD-ROM Data Read Test Pass
Format ZIP Driver With Floppy A Type Pass
Format ZIP Driver With Removable Device Type Pass
LS120 Device Driver Test Pass
PIO Mode 4 Hard Disk Test Pass
Ultra DMA 33 Hard Disk Test Pass
Ultra DMA 66 Hard Disk Test Pass
Ultra DMA 100 Hard Disk Test Pass
ZIP Device Driver Test Pass
USB Ports Test
---
Add Keyboard PnP Test Pass
Add Mouse PnP Test Pass
Add Printer PnP Test Pass
Add Scanner PnP Test Pass
Add Camera PnP Test Pass
Add Modem PnP Test Pass
Add Joystick PnP Test Pass
Add ZIP PnP Test Pass
Add LAN PnP Test Pass
LAN Card Test
---
Boot ROM Function Test None
Login Serv er Test Pass
Peer to Peer 10Mbps or 100Mbps Data Transfer Test Pass
Power On By LAN Test Pass
Playing AVI Files By The LAN Pass
Shut Down By LAN Test Pass
Shut Down To DOS Mode Then Resume Windows And Login Server Test Pass
Setup Installation Winstone 99 By The LAN Pass
Setup Installation Winbench 99 By The LAN Pass
Setup Installation 3D Winbench 99 By The LAN Pass
Page 19
19
Add Token Ring LAN Card Test Pass
Wake On LAN Test (Standby Mode) Pass
PCI Slots Test
---
Add SCSI Card Test Pass
Add LAN Card Test Pass
Power On By LAN Test (Intel 82558B) Pass
Wake O n LAN Test (Standby Mode) Pass
Shut Down By LAN Test Pass
Add Token Ring LAN Card Test Pass
Add Sound Card Test Pass
Add Modem Card Test Pass
Wake O n Modem Test (Standby Mode) Pass
Add Digital Video Card Test Pass
Add MPEG II Card Test Pass
ISA Slots Test
---
Add LAN Card Test Pass
Add Token Ring LAN Card Test Pass
Add Sound Card Test Pass
Add Modem Card Test Pass
VGA Function Test
---
VGA Drivers Setup Installation Test Pass
Display Properties Information Review Pass
Change Resolution / Color Test Pass
Run 3D Screen Saver Pass
Run 3D Games Pass
VGA Resolution Test ( Monitor : ViewSonic GF775 /AGP: on-board )
---
Resolution Color Depth Optimal 75 Hz 85 Hz 100 Hz
640x480 16 none none none none None
640x480 256
√
√
√
√
Pass
640x480 16 bit
√ √ √ √
Pass
640x480 32 bit
√
√
√
√
Pass
800x600 16 none none none none None
800x600 256
√
√
√
√
Pass
800x600 16 bit
√
√
√
√
Pass
800x600 32 bit
√ √ √ √
Pass
1024x768 16 none none none none None
1024x768 256
√
√
√
√
Pass
1024x768 16 bit
√ √ √
none Pass
1024x768 32 bit
√
none none none Pass
1152x864 16 none none none none None
1152x864 256
√
√
√
none Pass
1152x864 16 bit
√
√
√
none Pass
Page 20
20
1152x864 32 bit
none none none none None
1280x1024 16 none none none none None
1280x1024 256
√
√
none none Pass
1280x1024 16 bit
√ √
none none Pass
1280x1024 32 bit none none none none None
Check Screen Have No Any Shadow Or Garbage Pass
Playing MPEG Files Test Pass
Playing VCD Test Pass
Playing DVD Test Pass
Playing *.AVI f ile s (Stress Test for Over Night) Pass
Audio Function Test
---
Audio Drivers Setup Installation Test Pass
Audio Control Panel Function Test Pass
CD-In Function Check Pass
Game Port Test Pass
Line-In Function Check Pass
Mic-In Function Check Pass
R/L Channel Check Pass
Sound Recorder Test Pass
Run MPG Files Pass
System Pr operties Information Review Pass
Speaker Out Quality Test Pass
Telephony Function Supports Pass
Playing Audio CD Test Pass
Playing Wave Test Pass
Playing MIDI Test Pass
Playing Video Test Pass
Playing MP3 Test Pass
FF Function (Playing CD music,MIDI,WAV,AVI files using Media play e r) Pass
FW Function (Playing CD music,MIDI,WAV,AVI files using M edia player) Pass
Pause Function (P la ying CD music,MIDI,WAV,AVI files using Media player) Pass
S1 Function Supports Test Pass
Windows Utility Test ---
WinTach 1.2 Pass
Speedy 1.0 Pass
BCM Diagnostics
---
System Info Pass
DMI Info Pass
Processor Test Pass
Memory Tes t Pass
Audio Test Pass
Video Test Pass
Page 21
21
Graphics Test Pass
Hard Disk Test Pass
Floppy Disk Test Pass
CD-ROM Test Pass
Stress Test Pass
MS Mouse Pass
MS Joystick Pass
MS ScanDisk Pass
PC-Doctor For Windows
---
CPU Test Pass
Hard Driver Test Pass
Floppy Test Pass
LS-120 Driver Test Pass
CD-ROM/DVD Test Pass
ZIP Driver Test Pass
Memory Tes t Pass
PCI Test Pass
Video Test Pass
AGP Test Pass
SCSI Test Pass
COM Loopback Pass
Serial Port Internal Test Pass
Parallel Port Internal Test Pass
Parallel Port Loopback Pass
USB Test Pass
CMOS Test Pass
Keyboard Test Pass
AVI Video Test Pass
Microphone Test Pa ss
Audio Test Pass
Mouse Test Pass
Monitor Test Pass
Printer Test Pass
Joystick Test Pass
Winstone 99
---
Business Winstone 99 Pass
Winstone 2000
---
Winstone 200 0 Pass
Winstone 2001
---
Business Winstone 2001 Pass
CC Winstone 2001 Pass
Winbench 99
---
Business Disk WinMark 99 Pass
Page 22
22
Business Graphics WinMark 99 Pass
CPUmark99 Pass
DirectDraw Tests Pass
Disk Inspection Tests Pass
Disk WinMark Pass
FPU WinMark Pass
GDI/USER Inspection Tests Pass
High-End Disk WinMark 99 Pass
High-End Graphics WinMark 99 Pass
Video Tests Pass
3D Winbench 99
---
3D Performance Pass
3D Processing Pass
3D Quality Pass
3D WinMark Pass
3D WinMark 2000
---
3D Marks Pass
Demo Mode Pass
Audio Winbench99 (Based onboard Sound controller)
---
Direct Sound CPU Util 44.1 kHz 16bit Static
---
Hardware Voices 0
Voice 8 2.73
Voice 16 7.07
Voice 32 4.05
DirectSound CPU Util , 44.1 kHz , 16 bits Streaming
---
Hardware Voice 0
Voice 8 2.51
Voice 16 4.82
Voice 32 3.89
DirectSound CPU Util , 22 kHz , 8 bits Static
---
Hardware Voice 0
Voice 8 1.85
Voice 16 4
Voice 32 5.45
DirectSound CPU Util , 22 kHz , 8 bits Steaming
---
Hardware Voice 0
Voice 8 1.95
Voice 16 6.27
Voice 32 4.23
DirectSound3D CPU Util , 44.1 kHz , 16 bits Static
---
Hardware Voice 0
Voice 8 5.98
Voice 16 5.02
Page 23
23
Voice 32 8.09
DirectSound3D CPU U t il , 44 .1 kHz , 16 bits Streaming
---
Hardware Voice 0
Voice 8 5.97
Voice 16 2.96
Voice 32 5.75
DirectSound3 D CPU Util , 22 kHz , 8 bits Sta t ic
---
Hardware Voice 0
Voice 8 5.5
Voice 16 1.95
Voice 32 6.14
DirectSound3D CPU Util , 22 kHz , 8 bits Streaming
---
Hardware Voice 0
Voice 8 4.06
Voice 16 1.92
Voice 32 5.87
Others
---
BAPCo SYSmark 2000 Pass
CD Winbench 99 Pass
Final Reality Pass
Intel Media Benchmark Pass
3D Mark 99 Max Pass
Morewins Pass
Power DVD Test Pass
USBready Pass
WinDVD 2000 Pass
Wintune 98 Test Pass
CD-RW + Nero Burning ROM Pass
Game Test
---
BEYOND THIRD DIMENSION Pass
Command & Conquer Red Alert Pass
DIABLO Pass
DID F22 Pass
DESCENT3 Pass
Doom II Pass
Extreme-G2 Pass
Flight Simulator98 Pass
Forsaken Pass
Grand Prix Championship Pass
G-Police Pass
HEXEN II Pass
Incoming Pass
Interstate’76 Pass
Page 24
24
Janes WWII Fighters Pass
Janes FLEET Command Pass
Johnny Herbert’s Grand Prix Pass
LION KING Pass
Moto Racer Pass
Myst Pass
Microsoft Midtown Pass
Microsoft Motocross Pass
Microsoft Age Of Empires Pass
Microsoft Monster Truck Pass
NBA Live99 Pass
O.ZONE Pass
Quake III Pass
Red Alert Pass
Rush Hour Pass
RedLine Racer Pass
SEGA Manx TT Pass
SEGA Rally 95 Pass
SEGA Daytona USA Pass
Speed Demons Pass
The Magic School Bus Pass
Turok Pass
Tonic Trouble Pass
Tomb Raider II Pass
Worms: 2 Pass
Comments:
Test Platform Window s2000 Operating Comment
CPU AT HLON 1.2G
Memory SIEMENS 256MB (128X2) P C -133
HDD IBM DTLA-307015 AT A-100
CDROM BTC 52X
Sound Card On-Board CODEC
Video Card On-Board Pro Savage
LAN Card 3COM 3C905C-TX
Test Item Pass/Fail
System Comparability Test ---
Windows 2000 Setup Installation Test Pass
Supports Driver Installation Test Pass
Standby Mode Test Pass
Page 25
25
Shut Down Test Pass
Restart Test Pass
Restart In MS-DOS Mode Pass
Scandisk Test Pass
System Pr operties Information Review Pass
Setup installation Microsoft Office 2000 Test Pass
Memory Com parability Test ---
Winstone 99
---
Business Winstone 99 Pass
High-End Winstone 99 Pass
Device Comparability Test ---
PS/2 Connector Test
---
PS/2 Keyboar d Test Pass
PS/2 Mouse Test Pass
COM Port Test
---
Add Serial Mouse PnP Test Pass
Add Modem PnP Test Pass
Print Port Test
---
Add Printer PnP Test Pass
FDD Connector Test
---
Format 1.44 Floppy Driver Pass
IDE Connectors Test
---
PIO Mode 4 Hard Disk Test Pass
Ultra DMA 33 Hard Disk Test Pass
Ultra DMA 66 Hard Disk Test Pass
Ultra DMA 100 Hard Disk Test Pass
CD-ROM Test Pass
DVD-ROM Data Read Test Pass
ZIP Device Driver Test Pass
Format ZIP Driver With Floppy A Type Pass
Format ZIP Driver With Removable Device Type Pass
LS120 Device Driver Test Pass
LAN Card Test
---
Login Serv er Test Pass
Peer to Peer 10Mbps or 100Mbps Data Transfer Test Pass
Power On By LAN Test Pass
Wake O n LAN Test (Standby Mode) Pass
Shut Down By LAN Test Pass
PCI Slots Test
---
Add SCSI Card Test Pass
Add LAN Card Test Pass
Power On By LAN Test (Intel 82558B) Pass
Page 26
26
Wake O n LAN Test (Standby Mode) Pass
Shut Down By LAN Test Pass
Add Token Ring LAN Card Test Pass
Add Sound Card Test Pass
Add Modem Card Test Pass
Wake O n Modem Test (Standby Mode) Pass
Add Digital Video Card Test Pass
ISA Slots Test
---
Add LAN Card Test Pass
Add Token Ring LAN Card Test Pass
Add Sound Card Test Pass
Add Modem Card Test Pass
CNR Slots Test
---
Add Modem Card Test Pass
VGA Function Test --VGA Drivers Setup Installation Test Pass
Display Properties Information Review Pass
VGA Resolution All Test Pass
Screen Saver Test Pass
Check Screen Have No Any Shadow Or Garbage Pass
AGP 2X/4X Supports Verify Pass
Playing MPEG Files Test Pass
Playing VCD Test Pass
Playing DVD Test(With WinDVD 2000) Pass
Audio Function Test --Audio Drivers Setup Installation Test Pass
System Pr operties Information Review Pass
Speaker Out Quality Test Pass
R/L Channel Check Pass
CD-In Function Check Pass
Line-In Function Check Pass
Mic-In Function Check Pass
Audio Control Panel Function Test Pass
Telephony Function Supports Pass
Sound Recorder Test Pass
Run MPG Files Pass
Playing Audio CD Test Pass
Playing Wave Test Pass
Playing MIDI Test Pass
Playing Video Test Pass
Playing MP3 Test Pass
FF Function (Playing CD music,MIDI,WAV,AVI files using Media play e r) Pass
FW Function (Playing CD music,MIDI,WAV,AVI files using M edia player) Pass
Page 27
27
Pause Function (P la ying CD music,MIDI,WAV,AVI files using Media player) Pass
Play DVD title (using CineMaster 99 player) Pass
Game Port Test Pass
Playing DVD Test (With WinDVD 2000) Pass
Windows2000 Utility Test Pass/Fail
WinTach 1.2 Pass
Speedy 1.0 Pass
BCM Diagnostics
---
System Info Pass
DMI Info Pass
Processor Test Pass
Memory Tes t Pass
Audio Test Pass
Video Test Pass
Graphics Test Pass
Hard Disk Test Pass
Floppy Disk Test Pass
CD-ROM Test Pass
Stress Test –Loop 100 Pass
MS Mouse Pass
MS Joystick Pass
MS ScanDisk Pass
Winstone 99
---
Business Winstone 99 Pass
High-End Winstone 99 Pass
Winbench 99
---
Business Disk WinMark 99 Pass
Business Graphics WinMark 99 Pass
CPUmark32 Pass
DirectDraw Tests Pass
Disk Inspection Tests Pass
Disk WinMark Pass
FPU WinMark Pass
GDI/USER Inspection Tests Pass
High-End Disk WinMark 99 Pass
High-End Graphics WinMark 99 Pass
Video Tests Pass
Others
---
Wintune 98 Test Pass
SYSmark 2000 Pass
CD-RW + Nero Burning ROM Pass
S3 after, check whether the timer is working. Pass
Game Test
---
Page 28
28
3D Pinball Pass
Freecell Pass
Minesweeper Pass
Solitaire Pass
Forsaken Pass
Quake III Pass
Age Of Empire Pass
Comments:
Test Platform Windows ME Operating Comment
CPU Athlon 4 1200 MHz
Memory SIME NS (USA) 128M *2
HDD Fujitsu 30.7G
CDROM BTC 52X
Sound Card Onboard
Video Card Onboard
CNR Card WELL / FM-56CNR
LAN Card Intel 82559
Test Item Pass/Fail
System Comparability Test ---
Windows ME Setup Installation Test Pass
Supports Driver Installation Test Pass
Standby Mode Test Pass
Shut Down Test Pass
Restart Test Pass
Scandisk Test Pass
Disk Defragmenter Test Pass
System Pr operties Information Review Pass
Setup installation Microsoft Office 2000 Test Pass
Hibernate(S4) Test
---
Standby Button for S4 (Enter) Pass
Power Button for S4 (Enter and Wake up) Pass
Windows Set RTC Time out for S4 (Enter and Wake up) Pass
Enter S4 mode For 1/5/10/30/60/120 Minutes Then To Do Wake Up Test. Pass
Wake Up By LAN Test Pass
Wake Up By Ring Test Pass
Enable Scheduled Task Runs at Specified time Test (RTC wake up) Pass
CNR Slots Test
---
Add Modem Card Test Pass
Add CNR Software Modem Card Test Pass
Page 29
29
Connect Performance Check Pass
Internet Explorer Test Pass
Netscape Browser Test Pass
Connect to ISP For 12 hours Pass
Download Server Files For 12 hour Pass
Download Files using AMR Modem (Over 10MB) Pass
Send & Receive e-mail Test Pass
Modem Fax Function Test (Transmit a fax to Fax Machine) Pass
Modem Fax Function Test (Transmit a fax to Modem) Pass
Modem Fax Function Test (Recei ve a fax from Fax Machine) Pass
Modem Fax Function Test (Receive a fax from Modem) Pass
Wake on Ring Test (Standby Mode) Pass
Recording a MP3 File From Internet ISP Server Pass
Voice Pass
VGA Function Test
---
VGA Drivers Setup Installation Test Pass
Display Properties Information Review Pass
Change Resolution / Color Test Pass
Run 3D Screen Saver Pass
Run 3D Games Pass
VGA Resolution Test ( Monitor : View Sonic17PS /AGP: )
---
Resolution Color Depth Optimal 75 Hz 85 Hz 100 Hz
640x480 16 none none none none None
640x480 256
√
√
√
√
Pass
640x480 16 bit
√ √ √ √
Pass
640x480 32 bit
√
√
√
√
Pass
800x600 16 none none none none None
800x600 256
√ √ √ √
Pass
800x600 16 bit
√
√
√
√
Pass
800x600 32 bit
√ √ √ √
Pass
1024x768 16 none none none none None
1024x768 256
√
√
√
none Pass
1024x768 16 bit
√ √ √
none Pass
1024x768 32 bit
√
none none none Pass
1152x864 16 none none none none None
1152x864 256
√ √ √
none Pass
1152x864 16 bit
√
√
√
none Pass
1152x864 32 bit none none none none None
1280x1024 16 none none none none None
1280x1024 256
√
none none none Pass
1280x1024 16 bit
√
none none none Pass
1280x1024 32 bit none none none none None
Page 30
30
Check Screen Have No Any Shadow Or Garbage Pass
Playing MPEG Files Test Pass
Playing VCD Test Pass
Playing DVD Test Pass
Playing *.AVI f ile s (Stress Test for Over Night) Pass
Windows Utility Test ---
WinTach 1.2 Pass
Speedy 1.0 Pass
BCM Diagnostics
---
System Info Pass
DMI Info Pass
Processor Test Pass
Memory Tes t Pass
Audio Test Pass
Video Test Pass
Graphics Test Pass
Hard Disk Test Pass
Floppy Disk Test Pass
Stress Test –Loop 100 Pass
MS Mouse Pass
MS Joystick Pass
MS ScanDisk Pass
Winstone 2001 ---
Business Winstone 2001 Pass
Winbench 99
---
Business Disk WinMark 99 Pass
Business Graphics WinMark 99 Pass
CPUMark 99 Pass
DirectDraw Tests Pass
Disk Inspection Tests Pass
Disk WinMark Pass
FPU WinMark Pass
GDI/USER Inspection Tests Pass
High-End Disk WinMark 99 Pass
High-End Graphics WinMark 99 Pass
Video Tests Pass
3D Winbench 2000
3D Performance Pass
3D Quality Pass
3D Winbench 2000 Processor Pass
3D WinMa rk 2000 Pass
Others
---
CD Winbench 99 Pass
Page 31
31
3Dmark 2000 Pass
Final Reality Pass
Morewins Pass
WinDVD 2000 Pass
Game Test
---
BEYOND THIRD DIMENSION Pass
Command & Conquer Red Alert Pass
DIABLO Pass
DID F22 Pass
DESCENT3 Pass
Doom II Pass
Extreme-G2 Pass
Flight Simulator98 Pass
Forsaken Pass
Grand Prix Championship Pass
G-Police Pass
HEXEN II Pass
Incoming Pass
Interstate’76 Pass
Janes WWII Fighters Pass
Janes FLEET Command Pass
Johnny Herbert’s Grand Prix Pass
LION KING Pass
Moto Racer Pass
Myst Pass
Microsoft Midtown Pass
Microsoft Motocross Pass
Microsoft Age Of Empires Pass
Microsoft Monster Truck Pass
NBA Live99 Pass
O.ZONE Pass
Quake III Pass
Red Alert Pass
Rush Hour Pass
RedLine Racer Pass
SEGA Manx TT Pass
SEGA Rally 95 Pass
SEGA Daytona USA Pass
Speed Demons Pass
The Magic School Bus Pass
Turok Pass
Tonic Trouble Pass
Tomb Raider II Pass
Page 32
32
Worms: 2 Pass
Comments:
Test Platform Linux (Red Hat) Operating Comment
CPU Althon 1.33G/133
Memory Buffalo 128M pc-133 x1
HDD IBM deskstar 20G
CDROM Teac cd-540e
Sound Card Onboard
Video Card Asus 3800
LAN Card Intel 82557
Test Item Pass/Fail
System Comparability Test ---
Linux Setup Installation Test Pass
Shut Down Test Pass
Restart Test Pass
Device Comparability Test ---
PS/2 Connector Test
---
PS/2 Keyboar d Test Pass
PS/2 Mouse Test Pass
COM Port Test
---
Add Serial Mouse Test Pass
Add Modem Test Pass
FDD Connector Test
---
Read 1.44 Floppy Disk Pass
Format 1.44 Floppy Driver Pass
IDE Connectors Test
---
CD-ROM Data Read Test Pass
DVD-ROM Data Read Test Pass
LAN Ports Test
---
Peer to Peer Data Transfer Test Pass
PCI Slots Test
---
Add SCSI Card Test Pass
Add LAN Card Test Pass
Add Sound Card Test Pass
Comments:
Page 33
33
RELIABILITY TEST
Motherboard General Information
Vendor Biostar
Model Number M7VKH
Temperature rate ( ℃ ) 0 ~ 45 ℃
Humidity rate ( % )
0 ~ 60 %
Time ( hr ) 72 hr
Test Program Continuous Play DVD + Tomb2 DEMO
Burn-in Step
STEP 1
Temperature 0℃ ~ Humidity none ~ 12 hr.
STEP 2
Temperature 45℃ ~ Humidity 60% ~ 12 hr.
STEP 3
Temperature 0℃ ~ Humidity none ~ 24 hr.
STEP 4
Temperature 45℃ ~ Humidity 60% ~ 24 hr.
STEP 5 END.
Item Revision Initiation
Date
Finish
Date
CPU
( MHz )
DIMM
( MB )
VGA
Card
Pass/Fail Solution
1. 1.0 2001/5/29 2001/6/1 AMD
1.3G
Infineon
128M*2
On-
board
Pass
2. 1.1 2001/8/2 2001/8/5 AMD
1.4G
Infineon
128M*2
On-
board
Pass
Comments:
Page 34
34
PERFORMANCE TEST
Test Platform Windows ME
CPU Duron 950/100 Athlon 1400/100 Athlon 1400 /133
Memory NEC 256M X2
HDD IBM DTLA-307030
CD-ROM LITEON LTN-362
Sound Card On board
Video Card On board ( Frame buffer 32M )
Winstone 20 01 (1.0.1)
Business Winstone 2001 33.7 46.8 48.5
Comments:
Content Creation Wi nstone 2001 (1.0)
Winstone2001 37.9 51.8 50.9
Comments:
Winbench 99 (1.2)
Business Disk WinMark 99 5130 5190 5590
High-End Disk WinMark 99 17700 17600 20600
Business Graphics WinMark 99 195 233 222
Hi-End Graphics WinMar k 99 905 1190 1120
Comments:
3D Winbench 99
3D WinM ark 273 282 285
Comments:
3D WinMark 2000 (1.1)
Overall 734 764 770
Comments:
Page 35
35
Test Platform NT 4.0 Workstation
CPU Athlon-800 Athlon800
(133x6)
Athlon-950 Athlon1.2
(133x9)
Memory SIEMENS 256MB (128X2) PC-133
HDD MAXTOR 91024U3 ATA-66
CD-ROM CREATIVE DVD 1242E
Sound Card On-Board CODEC
Video Card On-Board PRO SAVAGE
Winstone 99
Business Winstone 99 35.5 40 36.9 43.5
High-End Winstone 99 40.9 44.3 42.4 52.6
Comments:
Winstone 2000
Winstone2000 38.1 43.4 40.7 51.4
Comments:
Winbench 99
CPUMark 99 2240 2280 2640 3350
FPU WinMark 4390 4390 5210 6590
Business Disk WinMark 99 9370 9380 9350 10100
High-End Disk WinMa rk 99 18000 18100 18200 18200
Business Graphics WinMark 99 122 172 170 172
Hi-End Graphics WinMar k 99 482 543 515 674
Comments:
SYSmark 2000
Overall 142 164 160 198
Comments:
Page 36
36
Test Platform Windows2000
CPU Athlon-800 Athlon800
(133x6)
Athlon-950 Athlon1.2
(133x9)
Memory SIEMENS 256MB (128X2) PC-133
HDD IBM DTLA-307020 ATA-100
CD-ROM SAMSUNG DVD SD-102S
Sound Card On-Board CODEC
Video Card On-Board PRO SAVAGE
Winstone 2001
Business Winstone 2001 31.1 35.7 34.2 44.5
Comments:
Content Creation Winstone 2001
Winstone2001 39.3 45.7 42.3 55.9
Comments:
Winbench 99
CPUMark 99 2230 2280 2610 3340
FPU WinMark 4380 4390 5210 6580
Business Disk WinMark 99 8540 8590 8700 9210
High-End Disk WinMa rk 99 23200 25900 24000 26000
Business Graphics WinMark 99 111 165 118 181
Hi-End Graphics WinMar k 99 460 561 915 712
Comments:
SYSmark 2000
Overall 137 160 148 196
Comments:
Page 37
37
OVER CLOCK TEST
Test Platform Windows Me (FSB:100 MHz)
CPU A1400
Memory APACER PC150 128M x2
HDD SAMSUNG SV4084H
CD-ROM PHILIPS 48X
Sound Card On board
Video Card On boa rd
CPU Front Side Bus Clock 100 103 105
Winstone 2001
Business Winstone 2001 38.6 39.3 39.8
Content Creation Winstone2001 48.7 49 50.2
Comments:
Winbench 99 (1.2)
Business Disk WinMark 99 3420 3550 3590
High-End Disk WinMark 99 12900 13200 13300
Business Graphics WinMark 99 220 223 229
High-End Graphics WinMark 99 1070 1100 1130
Comments:
3D Mark 2001
Overall 294 302 312
Comments:
These tests just for reference.
Page 38
38
Test Platform Windows Me (FSB:133 MHz)
CPU A1330
Memory APACER PC150 128M x2
HDD SAMSUNG SV4084H
CD-ROM PHILIPS 48X
Sound Card On board
Video Card On boa rd
CPU Front Side Bus Clock 133 136 138 140
Winstone 2001
Business Winstone 2001 38.6 38.7 39 39.8
Content Creation Wi nstone2001 42.9 49.1 49.6 49.6
Comments:
Winbench 99 (1.2)
Business Disk WinMark 99 3210 3260 3300 3250
High-End Disk WinMa rk 99 12300 13300 12600 12700
Business Graphics WinMark 99 222 224 225 230
High-End Graphics WinMark 99 1090 1110 1110 1140
Comments:
3D Mark 2001
Overall 302 309 318 320
Comments:
These tests just for reference.
Page 39
39
HARDWARE COMPATIB ILITY LIST
Hardware
CPU
Vendor Model Frequency Type Result
AMD Athlon 700 MHz Socket A Pass
AMD Athlon 750 MHz Socket A Pass
AMD Athlon 800 MHz Socket A Pass
AMD Athlon 850 MHz Socket A Pass
AMD Athlon 900 MHz Socket A Pass
AMD Athlon 950 MHz Socket A Pass
AMD Athlon 1000 MHz/ 1 GHz Socket A Pass
AMD Athlon 1100 MHz/ 1.1 GHz Socket A Pass
AMD Athlon 1133MHz/1.133GHz Socket A Pass
AMD Athlon 1200MHz/1.2GHz Socket A Pass
AMD Athlon 1300MHz/ 1.3GHz Socket A Pass
AMD Athlon 1333MHz/1.33GHz Socket A Pass
AMD Athlon 1400MHz/1.4GHz Socket A Pass
AMD Athlon 4 1200MHz/1 .2GHz Socket A Pass
AMD Duron 600 MHz Socket A Pass
AMD Duron 650 MHz Socket A Pass
AMD Duron 700 MHz Socket A Pass
AMD Duron 750 MHz Socket A Pass
AMD Duron 800 MHz Socket A Pass
AMD Duron 850 MHz Socket A Pass
AMD Duron 900 MHz Socket A Pass
AMD Duron 950 MHz Socket A Pass
AMD Duron 1100 MHz Socket A Pass
Comments:
CD-ROM
Vendor Model Transfer Rate Type Result
ASUS CD-500/A 50X ATAPI Pass
ACER 650P-072 50X ATAPI Pass
ACER 620A-004 20X ATAPI Pass
ACTIMA A-50 50X ATAPI Pass
A-OPEN CD-948E 48X ATAPI Pass
BTC BCD 40XJ 40X ATAPI Pass
BTC BCD-F562B 52X ATAPI Pass
CREATIVE CD-2421E 42X ATAPI Pass
DELTA OIP-CD4800A 48X ATAPI Pass
Page 40
40
LITE-ON LTN-362 36X ATAPI Pass
LITE-ON 40X MAX 40X ATAPI Pass
LITE-ON LTN-483L 48X ATAPI Pass
NEC CDR-3000 32X ATAPI Pass
PHILIPS PCA328CD 32X ATAPI Pass
PHILIPS PCCD048 48X ATAPI Pass
PLEXTOR PX-32TSI(SCSI) 32X SCSI Pass
SONY CDU711 32X ATAPI Pass
SONY CDU4811 48X ATA-33 Pass
SONY CRX100E ATAPI Pass
SONY CDU-5211 52X ATAPI Pass
TEAC CD-540E 40X ATAPI Pass
TEAC CD-532E 32X ATAPI Pass
TEAC CD-532S SCSI ATAPI Pass
Comments:
Camera Device
Vendor Model Type Drivers Result
3COM 3718 USB 6.6.0.21 Pass
Logitech QUICK CAM US B CD-Ver 4.1 Pass
Logitech QUICK CAM HOME USB 1.0.3.1415 Pass
O’RIT M-318 USB CD-Ver 0.91 Pass
Comments:
DVD-ROM
Vendor Model Transfer Rate Type Result
CREATIVE DVD2240E 4X ATAPI Pass
CREATIVE DVD6240E 6X ATAPI Pass
CREATIVE DVD8242E 8X ATAPI Pass
CREATIVE DVD1242E 12X ATAPI Pass
HITACHI GD-2000 2X ATAPI Pass
PIONEER DVD-113 10X ATAPI Pass
PIONEER DVD-114 12X ATAPI Pass
PIONEER DVD-115 16X ATAPI Pass
PIONEER DVD-105S 16X ATAPI Pass
TOSHIBA SM-M1102 2X ATAPI Pass
TOSHIBA SD-M1302 4X ATAPI Pass
TOSHIBA SD-M1402 6X ATAPI Pass
Page 41
41
ACTIMA AD-10S 10X ATAPI Pass
SAMSUNG SD-102S 12X ATAPI Pass
Comments:
FDD
Vendor Model Size Type Result
MITSUMI D359T5 1.44 Pass
MITSUMI D359T6 1.44 Pass
MITSUMI D353T6 1.44 Pass
MITSUMI D359M3 1.44 Pass
MITSUMI D353M3 1.44 Pass
NEC FD1231H 1.44 Pass
TEAC FD-235HF 1.44 Pass
SONY MPF920-E 1.44 Pass
Panasonic JU257A606P 1.44 Pass
SUMSUNG SFD-321B 1.44 Pass
Comments:
HDD
Vendor Model Size Type Result
FUJITSU MPD3108AT 10.8G ATAPI Pass
FUJITSU MPG3307AT 30.7G ATA-100 Pass
IBM DJNA-370910 9.1G ATA-66 Pass
IBM DPTA-372050 20G ATA-100 Pass
IBM DNES-309170 9.1G SCSI Pass
IBM DCAS-34330 4.3G WIDE SCSI Pass
IBM DHEA-36481 6.4G ATA-33 Pass
IBM DHEA-DPTA-372050 20G ATA-33 Pass
IBM DTLA-307030 30G ATA-100 Pass
IBM DTLA-307020 20G ATA-100 Pass
IBM DTLA-307015 15G ATA-100 Pass
IBM DDYS-T18350 18G SCSI3 LVD Pass
Maxtor 91360D8 Ultra33 13G ATA-33 Pass
Maxtor 86480D6 Ultra33 6.4G ATA-33 Pass
Maxtor 91190D7 Ultra33 11G ATA-33 Pass
Maxtor 91024U3 10G ATA-66 Pass
Maxtor 82560A4 2.5G 2.5G ATA-33 Pass
Maxtor 54098U8 40G ATA-66 Pass
Page 42
42
Maxtor 31536H2 15G ATA-100 Pass
Maxtor 33073H4 30G ATA-100 Pass
QUANTUM BIGFOOT 4.0G ATA-33 Pass
QUANTUM EX3200AT 3.2G ATA-33 Pass
QUANTUM E5100AT 5.1G ATA-33 Pass
QUANTUM CR6400AT 6.4G ATA-33 Pass
QUANTUM CX6400AT 6.4G ATA-33 Pass
QUANTUM 6.4G SCSI 6.4G SCSI Pass
QUANTUM KA9100AT 9.1G ATA-66 Pass
QUANTUM KA13600AT 13G ATA-66 Pass
QUANTUM KX13600AT 13G ATA-66 Pass
QUANTUM LM15000AT 15G ATA-66 Pass
QUANTUM LM20500AT 15G ATA-66 Pass
QUANTUM AS30000AT 30G ATA-100 Pass
QUANTUM AS60000AT 60G ATA-100 Pass
SEAGATE ST313032A 13G ATA-100 Pass
Comments:
Joystick
Vendor Model Type Result
Logitech Wingman USB Pass
Logitech Wingman extreme digital 3D Game Port Pass
Microsoft Side Winder Dual Strike USB Pass
Microsoft Side Winder Feedback Pro Game Port Pass
Microsoft Side Winder 3D Pro Game Port Pass
Microsoft Side Winder Joystick USB Pass
RockFire QF-606U USB Pass
RockFire QF-8800U USB Pass
Comments:
Keyboard
Vendor Model Type Result
Microsoft X03-51764 USB / PS/2 Pass
Microsoft RT9401 USB / PS/2 Pass
BTC 8110M USB Pass
LEMEL KB-5201P USB Pass
LEMEL AK-208 USB Pass
SAMPO F-21YQ (SPK-2000) USB Pass
Page 43
43
BTC 5126 PS2 Pass
BUS LOGIC BA81C15 PS2 Pass
K.A.CHEN KB-7000 PS/2 Pass
SAMPO F-21BQ PS/2 Pass
Logitech Y-SA2 PS/2 Pass
ACER 6511-TA PS/2 Pass
Logitech (IR) Y-RA1 IR Pass
WIRELESS 5110 IR Pass
Comments:
LAN Card
Vendor Model Drivers Type Result
3COM 3C529B PCI Pass
3COM 3C509B-TX PCI Pass
3COM 3C905C-TX-M PCI Pass
3COM 3C359 Token Link XL PCI Pass
AMD NE-PCI32 PCI Pass
AMD Pcnet-Home am79C978kc PCI Pass
Digital 21041pa PCI Pass
DLINK 530TX PCI Pass
DLINK DU-E10 USB Pass
GFC GFC2206 PCI Pass
Intel SB82558B PCI Pass
Intel GD82559 PCI Pass
Intel 82550EY PCI Pass
IBM Turbo 16/4 Token-Rin g ISA Pass
UMC UM9008F ISA Pass
Comments:
Memory
Vendor Model Size Type Result
BUFFALO BSV884P4CO-4 128M PC-133 Pass
Hitachi HM5264805TTB60 64M PC-100 Pass
Hitachi (Malaysia) 5264805FTT75 64M PC-133 Pass
Hitachi (Malaysia) 5264805FTT75 128M PC-133 Pass
HYUNDAI GM72V66841ET75 64M PC-133 Pass
HYUNDAI GM72V66841ET75 128M PC-133 Pass
IBM N364804CT3C-75A 128M PC-133 Pass
Page 44
44
Infineon HYB39S64800BT-7.5 64M PC-133 Pass
Infineon HYB39S128800CT-7.5 128M PC-133 Pass
KINGMAX KSV884T4A1A-07 64M PC-133 Pass
KINGMAX KSV884T4A1A-07 128M PC-133 Pass
KINGMAX KSV684T4A1A-07 256M PC-133 Pass
LGS GM72V66841CT7J 64M PC-100 Pass
MT TLC16MBT-7 128M PC-133 Pass
MOSEL V54C365804VCT7 64M PC-133 Pass
MOSEL V54C365804VCT7 128M PC-133 Pass
Nanya NT56V6610C0T-75 128M PC-133 Pass
NEC (Singapore) D4564841G5-A10-9JF 64M PC-100 Pass
NEC (Japan) D45128163G5-A75-9 J F 64M PC-100 Pass
NEC (Singapore) D4564841G5-A10-9JF 128M PC-100 Pass
NEC (Japan) D4564841G5-A75-9JF
128M
PC-133 Pass
NEC (Singapore) D45128841G 5-A75-9JF 256M PC-133 Pass
SEC KM48S8030CT-GL 64M PC-100 Pass
SEC (Korea) KM48S16030T-F10 256M PC-100 Pass
SIMENS (USA) HYB39S64800AT-7.5 64M PC-133 Pass
SIMENS (USA) HYB39S64800AT-7.5 128M PC-133 Pass
SAMSUNG K4S560832A-TC75 512M PC-133 Pass
Toshiba TC59S6408BFT-80 64M PC-100 Pass
Toshiba(Kingston) TC59SM708FT-75 64M PC-133 Pass
Winbond W981208AH-75 256M PC-133 Pass
Comments:
Modem Card
Vendor Model Drivers Type Result
AZTECH MDP 3858SP-UE vxd 2.1.2135.7.1 PCI Pass
AZTECH MDP 7800U 4.90.3000 PCI Pass
3Com U.S Robotics 0637 vxd v1.00.017 PCI Pass
Lucent I56PSP-T3 7.66-9K-03 PCI Pass
3Com U.S Robobit 56K FAX V 5.3 NAM COM Pass
ADI MDX-56KRE COM Pass
Lectron PCT303W v1.0 CNR Pass
WELL FM-56CNR vxd v2.04 CNR Pass
D-LINK CNR-LM vxd v2.04 CNR Pass
Rock MODEM V.90 vxd v2.01 USB Pass
Comments:
Page 45
45
Mouse
Vendor Model Drivers Type Result
ARTEC UM500P PS/2 Pass
Logitech M-BB48 USB Pass
Logitech M-BA47 USB Pass
Logitech M-S34 PS/2 Pass
Logitech M-M30 PS/2 Pass
Logitech M-S43 PS/2 Pass
Logitech M-CAA43 PS/2 Pass
Logitech M-CAB48A PS/2 Pass
Logitech M-MM35 Serial Pass
Logitech M-MM43 Serial Pass
Logitech M-RG45 IR Pass
Microsoft IntelliMouse X04-91790 USB/PS2 Pass
Seagate IOWCM-B700 PS/2 Pass
WINIC FDM-A50 USB Pass
Comments:
Power Supply
Vendor Model Type Result
Enlight HPC-250-101 ATX-250W Pass
Enlight HPS-300 ATX-300W Pass
Enlight ATX-725B ATX-250W Pass
iCute LC-250ATX ATX-250W Pass
Seventeam ST-250GK ATX-250W Pass
Seventeam ST-250GL ATX-250W Pass
Seventeam ST-275GL ATX-275W Pass
Seventeam ST-301HR ATX-300W Pass
Seventeam ST-350GL ATX-350W Pass
Seventeam ST-400GL ATX-400W Pass
Seventeam ST-250GK ATX-250W Pass
DELTA DPS-300KB ATX-300W Pass
HIPRO HP-250NLXAK ATX-250W Pass
USPOWER RP2-300A ATX-300W Pass
FSP FSP400-60GN ATX-400W Pass
FSP FSP300-60BT ATX-300W Pass
Comments:
Page 46
46
Printer
Vendor Model Drivers Type Result
CANON BJ-80K Ver 2.0 IR Pass
EPSON STYLUS PHOTO 750 2.00.2452 USB Pass
HP DeskJet 970Cxi 1.16.1.0 USB Pass
HP DeskJet 695C
LPT Pass
Comments:
Scanner
Vendor Model Drivers Type Result
HP Scan Jet 4200C CD-Ver 2.01 USB Pass
HP Scan Jet 5200C CD-Ver 2.0 USB Pass
MUSTEK 1200USB 4.10.1998 USB Pass
UMAX Astra 1220U CD-Ver 2.1 Pass
UMAX Astra 2000U CD-Ver 3.52u Pass
Comments:
SCSI Card
Vendor Model Drivers Type Result
ADAPTEC 2940U PCI Pass
ADAPTEC 2940UW PCI-WIDE Pass
ADAPTEC 2940U2W (LVD) PCI-WIDE Pass
ADAPTEC 3940AUW PCI-WIDE Pass
ADAPTEC 29160 PCI SCSI3 LVD Pass
AMD AM53C974AKC PCI-SCSI II Pass
ASUS PCI-SC875 REV:1.1 PCI Pass
Bus Logic PCI BT- 930R PCI Pass
DOMEX 636UW PCI Pass
INITIO INIC-950P PCI Pass
Iwill SIDE-2935UW PCI Pass
Iwill Du280 PCI SCSI3 LVD Pass
SYMBIOS 53C875 PCI Pass
SYMBIOS 53C875E PCI Pass
Tekram DC-390 5795
PCI Pass
Tekram DC-390U3W
PCI SCSI3 LVD Pass
Page 47
47
Comments:
Sound Card
Vendor Model Drivers Type Result
AVORTEX AU8820B2 4.05.0110 PCI Pass
CREATIVE Sound Blaster CT4670 Ver 2.0 PCI Pass
CREATIVE Sound Blaster SB0060 4.12.01.0905 PCI Pass
CREATIVE Sound Blaster CT2950 4.37.00.1998 ISA Pass
CREATIVE Sound Blaster CT4380 4.37.00.1998 ISA Pass
CREATIVE ES1371 4.05.1119 PCI Pass
Ensoniq ES1370 4.02.1033 PCI Pass
ESS ES1868F 4.10.2222 ISA Pass
Crystal CX4237B-XQ3 4.05.01.1998 ISA Pass
Comments:
LAN HUB
Vendor Model Transfer Rate Result
3COM 100/10 Switch office400 100/10 Pass
BUFFLO LSW 10/100-8H 100/10 Pass
D-Link DE-812TP+ 10-Base Pass
D-Link DE-805TP 10-Base Pass
D-Link DE-809TC 10-Base Pass
Comments:
USB HUB
Vendor Model Drivers Result
KOUWEL 580H Pass
SIIG UH-144 Pass
PCI UH-400 Pass
D-Link DU-H4 Pass
Comments:
Displ ay Ca rd
Vendor Model Chips Drivers Result
Page 48
48
3Dfx Voodoo3 3000 4.12.01.0638 Pass
3Dfx Voodoo3 3500 4.12.01.0638 Pass
ASUS AGP-V 3800M RIVA TNT2 M64 4.12.01.0375 Pass
ASUS AGP-V 3800 RIVA TNT2 Pass
ASUS AGP-V6800 DDR Geforce256 4.12.01.0650 Pass
ASUS AGP-V6600 PRO/64M Geforce256 4.12.01.0650 Pass
ASUS AGP-V7700 Geforce 2 GTS 4.12.01.0650 Pass
ATI Rage 128 32M 4.11.6114 Pass
ATI ALL-IN-WONDER 128 Pass
ATI Rage FURY PRO Pass
ATI XPERT 2000 Pass
ATI XPERT 2000 PRO Pass
ATI RADEON 4.13.7075 Pass
DIAMOND Viper V770 RIVA TNT2 Pass
DIAMOND Viper V770 Ultra RIVA TNT2 Ultra 4.12.01.0650 Pass
ELSA ERAZOR X Geforce25 6 4.12.01.0650 Pass
ELSA ERAZOR Geforc e 2 GTS 4.12.01.0650 Pass
ELSA
ERAZOR III LT-A32
RIVA TNT2 M64 4.12.01.0650 Pass
ELSA
GLADIAC ULTRA
Geforce 2 ULTRA 4.12.01.0650 Pass
ELSA
GLORIA II
QUADRO 4.12.01.0650 Pass
ELSA
GLORIA III
QUADRO II 4.12.01.0650 Pass
Matrox G400 32MB Pass
Matrox G450 Pass
PROLINK TNT2 M64 RIVA TNT2 M64 4.12.01.0650 Pass
Winfas t Geforce256 Geforce256 4.12.01.0650 Pass
Winfast S320 II RIVA TNT2 4.12.01.0650 Pass
Winfast S325 RIVA TNT2 M64 4.12.01.0650 Pass
Comments:
ZIP/LS120
Vendor Model Size Type Result
PANASONIC JU-811T012 100M IDE Pass
Iomega Z250ATAPI 250M IDE Pass
Iomega Z100P 100M LPT Pass
Iomega Z250P 250M LPT Pass
Iomega ZIP 100 USB 100M USB Pass
Iomega ZIP 250 USB 250M USB Pass
MATSUSHITA LKM-F734-1 (LS-120) 120M IDE Pass
Page 49
49
Comments:
Monitor
Vendor Model Size Ty pe Result
ViewSonic View Panel VPD150
15″
LCD Pass
ViewSonic 17PS
17″
CRT Pass
ViewSonic 17GA
17″
CRT Pass
ViewSonic GF775
17″
CRT Pass
View Sonic PS775 1 7” CRT Pass
SAMPO AlphaScan 511 15” CRT Pass
SAMPO AlphaScan 761 17” CRT Pass
SAMPO AlphaScan 950 21” CRT Pass
Comments:
Page 50
50
SOFTWARE COMPATIBILITY LIST
Software
DOS Version Result
MS-DOS 6.22 Pass
IBM PCDOS 7.0 Pass
Windows
--- ---
Windows 98 Original Pass
Windows 98 S E Second Edition Pass
Windows ME 4.90.3000 Pass
Windows NT Workstation 4.0 Pass
Windows 2000 Pr ofession Release Pass
Linux Red hat 7.0 Pass
Server
--- ---
NetWare 4.12 Pass
NetWare 5.0 Pass
SCO Unix 5.0 Pass
Windows NT 4.0 Pass
Windows 2000 Release Pass
Page 51
51
VCORE WAVEFORM MEASUREMENT Ver-1.0
Vcore Ripple Test(Dos Mode)
CPU Athlon 1.33G/133 M\B VKH/1.0
CH1 STP CLK CH2 Vcore
Condition Just booting on DOS mode, not running any Program
Vcore ripple waveform RESULT PASS
Page 52
52
Vcore Transient Test(Dos Mode)
CPU Athlon 1.33G/133 M\B VKH/1.0
CH 1 STPCLK pin waveform CH 2 Vcore waveform
Condition 1.Boot the system to the Win98SE environment(Command Prompt Only)
Dos mode and run the stpclk.bat
2.At the main menu ,type “U” to go to the “Utilities Submenu”
3.At the next menu , type “B” to “Enable Stop Clock Throttling”
4.At this menu , type “7” to enable Stop Clock Throttling at the rang o
f
50.0%~65.0%
5.Press <ESC> twice and then “Y” to exit the stpclk.bat program
6.Measure the Vcore waveform
Vcore Transient waveform RESULT PASS
Page 53
53
Vcore Ripple Test(Open up the DO S Edi t or)
CPU Athlon 1.33G/133 M\B VKH/1.0
CH 1 STPCLK pin waveform CH 2 Vcore waveform
Condition 1.Boot the system to the Win98SE environment(Command Prompt Only)
Dos mode and run the stpclk.bat
2.At the main menu ,type “U” to go to the “Utilities Submenu”
3.At the next menu , type “B” to “Enable Stop Clock Throttling”
1.At this menu , type “7” to enable Stop Clock Throttling at the rang o
f
50.0%~65.0%
2.Press <ESC> twice and then “Y” to exit the stpclk.bat program.
3.Type “EDIT” to enter the “EDIT” program. Press “Alt+F” to open up a
Pop-up menu.
7.Measure the Vcore waveform
Vcore Transient waveform
RESULT PASS
Page 54
54
Vcore Ripple Test(Standby/ Resume Mode)
CPU Athlon 1.33G/133 M\B VKH/1.0
CH1 STP CLK CH2 Vcore
Condition Ripple after into Standby(at STP_CLK)
Vcore ripple waveform RESULT PASS
Page 55
55
Vcore Ripple Test(Standby/ Resume Mode)
CPU Athlon 1.33G/133 M\B VKE/1. 0
CH1 STP CLK CH2 Vcore
Condition Ripple after Resume(at STP_CLK)
Vcore ripple waveform RESULT PASS
Page 56
56
VCORE WAVEFORM MEASUREMENT Ver-1.0
Vcore Ripple Test(Dos Mode)
CPU Athlon 1.4G/100 M\B VKH/1.0
CH1 STP CLK CH3 Vcore
Condition Just booting on DOS mode, not running any Program
Vcore ripple waveform RESULT PASS
Page 57
57
Vcore Transient Test(Dos Mode)
CPU Athlon 1.4G/100 M\B VKH/1.0
CH 1 STPCLK pin waveform CH 3 Vcore waveform
Condition 7.Boot the system to the Win98SE environment(Command Prompt Only)
Dos mode and run the stpclk.bat
8.At the main menu ,type “U” to go to the “Utilities Submenu”
9.At the next menu , type “B” to “Enable Stop Clock Throttling”
10. At this menu , t ype “7” to enable Stop Clock Throttling at the rang o
f
50.0%~65.0%
11. Press <ESC> twice and then “Y” to exit the stpclk.bat program
12. Measure the Vcore waveform
Vcore Transient waveform RESULT PASS
Page 58
58
Vcore Ripple Test(Open up the DO S Edi t or)
CPU Athlon 1.4G/100 M\B VKH/1.0
CH 1 STPCLK pin waveform CH 3 Vcore waveform
Condition 1.Boot the system to the Win98SE environment(Command Prompt Only)
Dos mode and run the stpclk.bat
2.At the main menu ,type “U” to go to the “ U tilities Submenu”
3.At the next menu , type “B” to “Enable Stop Clock Throttling”
4.At this menu , type “7” to enable Stop Clock Throttling at the rang o
f
50.0%~65.0%
5.Press <ESC> twice and then “Y” to exit the stpclk.bat program.
6.Type “EDIT” to enter the “EDIT” program. Press “Alt+F” to open up a
Pop-up menu.
7.Measure the Vcore waveform
Vcore Transient waveform
RESULT PASS
Page 59
59
Vcore Ripple Test(Standby/ Resume Mode)
CPU Athlon 1.4G/100 M\B VKH/1.0
CH1 STP CLK CH2 Vcore
Condition Ripple after into Standby(at STP_CLK)
Vcore ripple wavefo rm RESULT Pass
Page 60
60
Vcore Ripple Test(Standby/ Resume Mode)
CPU Athlon 1.4G/100 M\B VKH/1.0
CH1 STP CLK CH2 Vcore
Condition Ripple after Resume(at STP_CLK)
Vcore ripple wavefo rm RESULT Pass
Page 61
61
VCORE WAVEFORM MEASUREMENT Ver-1.1
Vcore Ripple Test(Dos Mode)
CPU Athlon 1.4G/133 M\B VKH/1.1
CH1 STP CLK CH2 Vcore
Condition Just booting on DOS mode, not running any Program
Vcore ripple waveform RESULT PASS
Page 62
62
Vcore Transient Test(Dos Mode)
CPU Athlon 1.4G/133 M\B VKH/1.1
CH 1 STPCLK pin waveform CH 2 Vcore waveform
Condition 13. Boot the system to the Win98SE environment(Command Prompt Only)
Dos mode and run the stpclk.bat
14. At the main menu ,type “U” to go to the “Utilities Submenu”
15. At the next menu , type “B” to “Enable Stop Clock Throttling ”
16. At this menu , t ype “7” to enable Stop Clock Throttling at the rang o
f
50.0%~65.0%
17. Press <ESC> twice and then “Y” to exit the stpclk.bat program
18. Measure the Vcore waveform
Vcore Transient waveform RESULT PASS
Page 63
63
Vcore Ripple Test(Open up the DO S Edi t or)
CPU Athlon 1.4G/133 M\B VKH/1.1
CH 1 STPCLK pin waveform CH 2 Vcore waveform
Condition 1.Boot the system to the Win98SE environment(Command Prompt Only)
Dos mode and run the stpclk.bat
2.At the main menu ,type “U” to go to the “Utilities Submenu”
3.At the next menu , type “B” to “Enable Stop Clock Throttling”
7.At this menu , type “7” to enable Stop Clock Throttling at the rang o
f
50.0%~65.0%
8.Press <ESC> twice and then “Y” to exit the stpclk.bat program.
9.Type “EDIT” to enter the “EDIT” program. Press “Alt+F” to open up a
Pop-up menu.
7.Measure the Vcore waveform
Vcore Transient waveform
RESULT PASS
Page 64
64
Vcore Ripple Test(Standby/ Resume Mode)
CPU Athlon 1.4G/133 M\B VKH/1.1
CH1 STP CLK CH2 Vcore
Condition Ripple after into Standby(at STP_CLK)
Vcore ripple wavefo rm RESULT Pass
Page 65
65
Vcore Ripple Test(Standby/ Resume Mode)
CPU Athlon 1.4G/133 M\B VKH/1.1
CH1 STP CLK CH2 Vcore
Condition Ripple after Resume(at STP_CLK)
Vcore ripple wavefo rm RESULT Pass
Page 66
66
V
CORE
STATIC LOAD TEST
Test Environment
M/B VKH/1.0 Power Supply ST-400
VID Setting 1.75V Engineer Signature K.E.Y.
Electronic Loading Chroma 63030
O.C.P test Over 60A Pass/Fail PASS O.V.P test None Pass/Fail None
AGP Slot PCI Slot Temperature
Vcore
Loading
Vcore
Voltage
PWM
Input
5V ATX
Connector
3.3V 5V 3.3V 5V
MOS(℃) Board(℃)
0A 1.769 12.20 5.09 3.37 5.06 3.37 5.06 34.7 34.5
30A 1.767 12.38 4.93 3.33 4.89 3.33 4.89 82.6 84.7
32A 1.767 12.39 4.91 3.33 4.88 3.33 4.88 92.0 90.1
34A 1.766 12.40 4.89 3.32 4.86 3.32 4.86 97.5 100.1
36A 1.766 12.41 4.88 3.31 4.84 3.31 4.84 108.5 106.0
38A 1.766 12.42 4.86 3.30 4.83 3.30 4.83 115.6 118.4
40A 1.766 12.44 4.84 3.30 4.81 3.30 4.81 124.6 127.9
42A 1.766 12.46 4.82 3.29 4.79 3.29 4.79 140.4 136.7
44A 1.766 12.48 4.80 3.29 4.77 3.29 4.77 151.7 147.7
46A 1.766 12.50 4.78 3.27 4.74 3.27 4.74 166.6 162.5
Page 67
67
V
CORE
STATIC LOAD TEST
Test Environment
M/B VKH/1.0 Power Supply ST-400
VID Setting 1.75V Engineer Signature K.E.Y.
Electronic Loading Chroma 63030
O.C.P test Over 60A Pass/Fail PASS O.V.P test None Pass/Fail None
AGP Slot PCI Slot Temperature
Vcore
Loading
Vcore
Voltage
PWM
Input
5V ATX
Connector
1.5V 5V 3.3V 5V
MOS(℃) Board(℃)
0A 1.748 12.14 5.10 1.597 5.08 3.37 5.08 34.7 34.9
30A 1.746 12.32 4.92 1.593 4.90 3.31 4.89 76.8 76.1
32A 1.746 12.33 4.90 1.593 4.88 3.30 4.88 82.1 81.3
34A 1.746 12.34 4.88 1.593 4.86 3.29 4.86 89.1 88.2
36A 1.746 12.35 4.85 1.593 4.83 3.28 4.83 96.2 94.8
38A 1.746 12.37 4.83 1.594 4.81 3.27 4.81 103.5 102.6
40A 1.746 12.38 4.81 1.594 4.79 3.26 4.79 112.5 110.8
42A 1.746 12.39 4.79 1.593 4.77 3.25 4.77 121.2 119.3
44A 1.746 12.41 4.77 1.593 4.74 3.24 4.74 130.8 128.8
Page 68
68
THERMAL IMAGE TEST – Ver 1.0
Motherboard General Information
Vendor Biostar
Model Number M7VKH
Revision 1.0
Temperature ( ℃ ) 35 ℃
Humidity rate ( % )
0 ~ 60 %
Thermo Tracer NEC TH5104
Test Program 3Dmark2000
Comments:
The component temperature measured value was based on 35℃ check in the chamber
and the system during in the 3Dmark2000 Looping testing.
Page 69
69
THERMAL IMAGE TEST – Ver 1.1
Motherboard General Information
Vendor Biostar
Model Number M7VKH
Revision 1.1
Temperature ( ℃ ) 35 ℃
Humidity rate ( % )
0 ~ 60 %
Thermo Tracer NEC TH5104
Test Program 3Dmark2000
Comments:
The component temperature measured value was based on 35℃ check in the chamber
and the system during in the 3Dmark2000 Looping testing.
Page 70
70
FOUR CORNER TEST-Ver1.0
Test Equipment & Environment
M/B TYPE M7 Vkh/1.0 CPU Level Athlon 1.4G/100
RAM TYPE Buffalo 128M pc-133 x3 VGA TYPE ELSA GeForce 2 ULTRA
Power Supply FSP-350-60BN Floppy PANASONIC JU-257
IDE1 Primary Maxtor 30G dma-100 IDE1 Second ary SEAGATE ST34321A
IDE2 Primary PIONEER DVD ROM IDE2 Second ary IOMEGA ZIP250
PCI 1 AHA 2940U2W PCI 2 AHA 2940U2W
PCI 3 3C905C-TX 3COM LAN PCI 4 Sound blaster live
PCI 5 3-com modem card BIOS Version VKH0627X
Win98 Version WINDOWS98 SE Driver CD Ver. V1.20B-1b
BCM Version 2.01 USB device 3COM HOME VIDEO
BCM Stress Test (30 min.)
Normal (Standard Power Voltage & Room Temperature)
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass
Corner 1 : 45℃ & 3.13V
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass
Corner 2 : 45℃ & 3.46V
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass
Corner 3 : 10℃ & 3.13V
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass
Corner 4 : 10℃ & 3.46V
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass
Loading...
