HIFI B75
BoardView
1 pgs246.86 Kb0
Schematics
42 pgs1.18 Mb0

Biostar HIFI B75 Schematics

Download
5
A
www.teknisi-indonesia.com
PAGE
D D
C C
17 18 19 20 21 22 23 24 25 26 27 28 29 30
B B
31 32 33 34 35 36 37 38 39 40 41 42
CONTENTS
INDEX
BLOCK DIAGRAM POWER DELIVERY
CPU PCIEX16/DMI/FDI CPU DDR CHANNEL A CPU DDR CHANNEL B CPU MISC

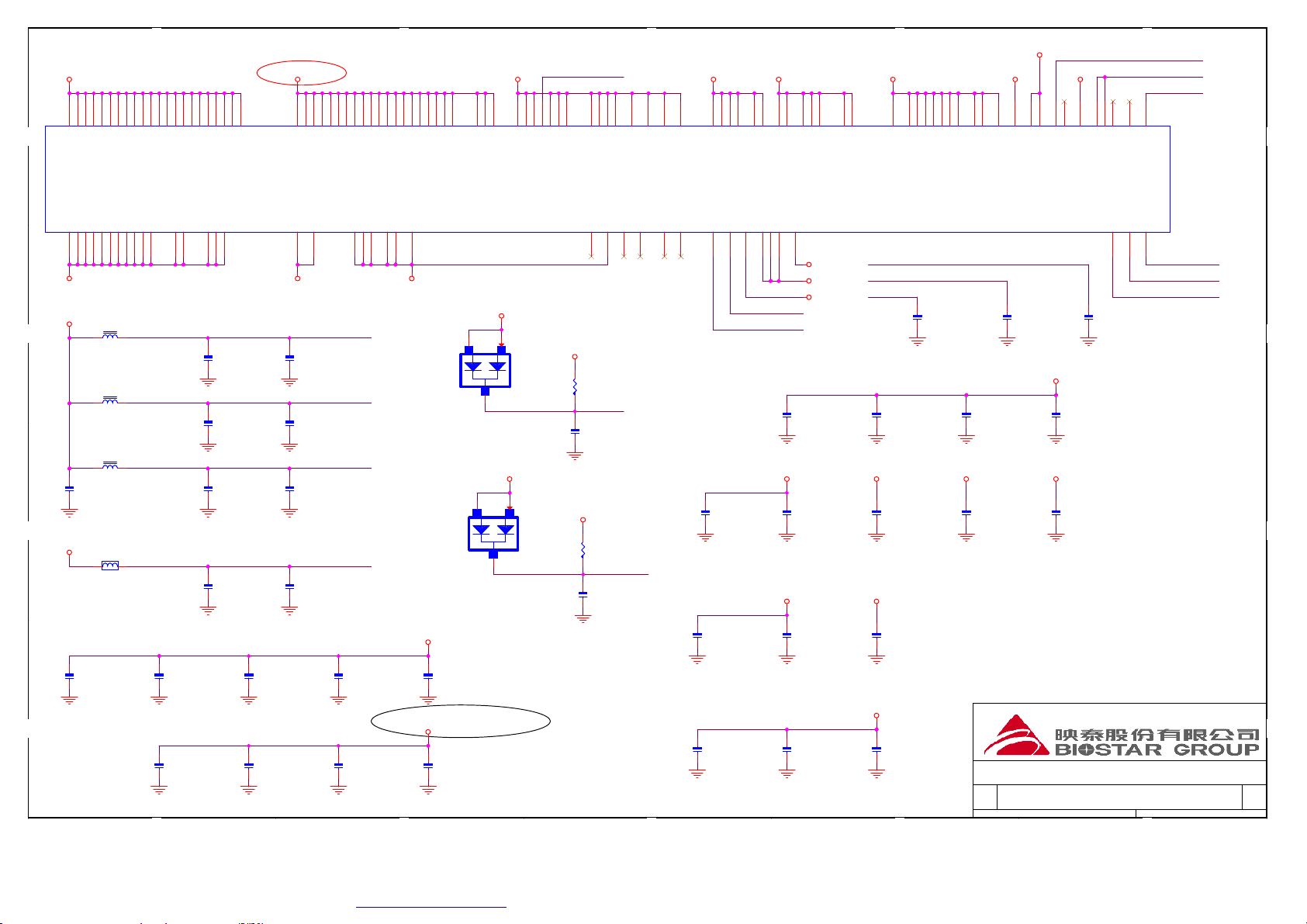

CPU POWER & GND DDR3 DIMMA1/A2 DDR3 DIMMB1/B2
PCH PCI PCH DMI/PCIE/USB PCH CLINK/SATA/CPU HOST PCH LPC/HDA/SPI/MISC PCH NVRAM & FDILINK
PCH VGA/DISPLAY PORT PCH CLOCK BUFFER PCH POWER
PCH GND
SPI ROM/BAT PCIEX16 SLOT PCI / PCIE X1 SLOT
HDMI CONNECTOR

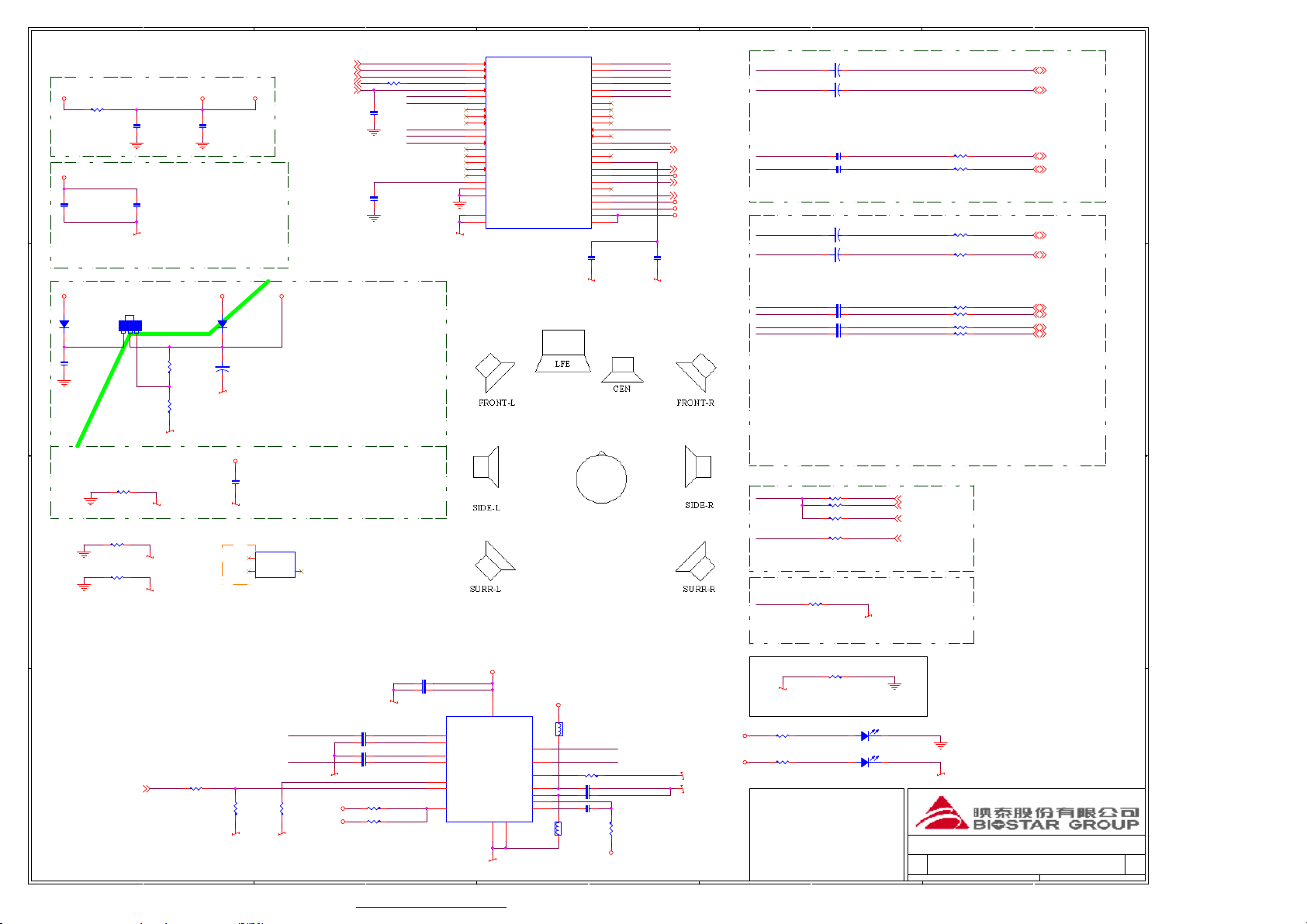

VGA/DVI CONNECTOR AUDIO CODEC ALC892 AUDIO CONNECTOR
LAN RTL8111G
SUPERIO ITE8728 SUPERIO PS2/COM/LPT SUPERIO FAN CONTROL
Front USB

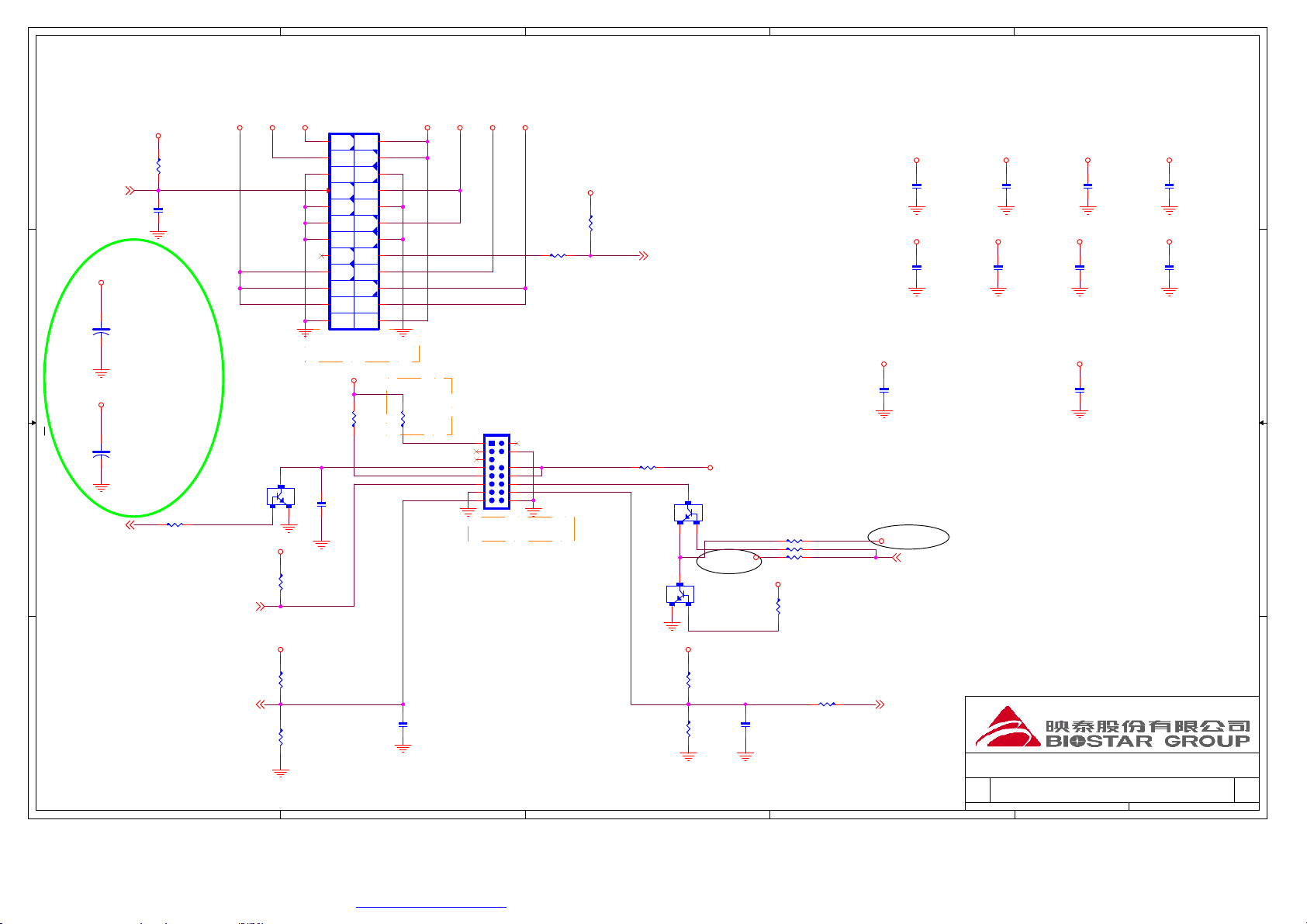

USB PORT 24PIN POWER CONN&FP RESUME RESET LOGIC ACPI POWER CONTROL
LINEAR POWER

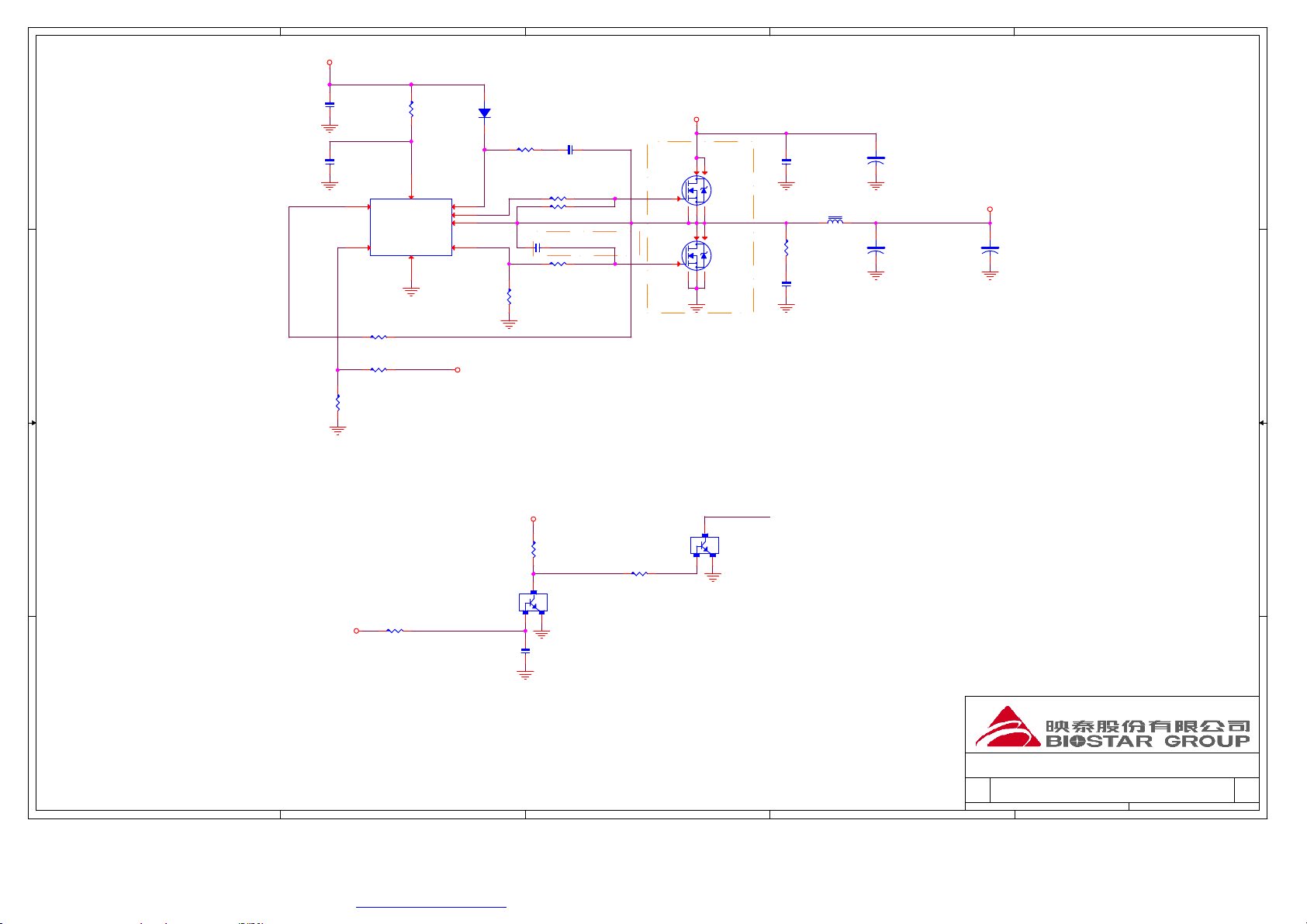

MEMORY DC-DC Conver VTT DC-DC Conver VCORE VREG1 VCORE VREG2 OVER VOLTAGE
BOM
5
4
IB75F-MHS
Hi-Fi B75網吧 1 號
3
CPU:
Intel Sandy/Ivy Bridge processors in LGA1155 Package 95W
System Chipset:
Panther Point B75
Main Memory:
Dual Channel/DDR-III*2(Max 16GB) 1066/1333
DDR3-1600 /1333 /1066
Onboard Device:
Super I/O:IT8728
LAN:Realtek 8111G
HD Codec:ALC892 3 jacks
Power solution:
CPU Voltage Regulators:2phase by ISL6363 AXG voltage Regulators:1phase by ISL6363 VTT voltage Regulators:1Phase by uP6109 DDR voltage Regulators:1Phase by uP6109
Expansion Slots:
PCI EXPRESS 16X SLOT*1 PCI EXPRESS 1X SLOT*2
PCI SLOT*1
REAR IO:
PS/2 KB/MS
DVI Port
HDMI Port
VGA Port
2 l a y e r U S B 3 . 0 P o r t s
2 layer USB2.0 + Gb RJ-45 Ports
Audio Jackets
Front I/O:
SATA2 * 5 USB Header * 2 USB3.0 Header * 1
CPU / System1 / System2 Front Audio Header / SPDIF Out Header
C O M 1
L P T 1
4
SATA3 * 1
3
HW Engineer
HW Leader1 HW Leader2
『
BIOSTAR'S PROPRIETARY INFORMATION 『Any unauthorized use, reproduction, duplication, or disclosure of this document will be subject to the applicable civil and/or criminal penalties.
』
2
REV 6.0
2
1
Date
Date
Date
』
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
INDEX
INDEX
INDEX
IB75F-MHS
IB75F-MHS
IB75F-MHS
1 43Thursday, May 16, 2013
1 43Thursday, May 16, 2013
1 43Thursday, May 16, 2013
1
6.0
6.0
6.0
A
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
5
A
www.teknisi-indonesia.com
4
3
2
1
PEG X16 PCIE GEN2/3 X16
Ivy Bridge
LGA 1155 SOCKET
1333 / 1600
Channel A DIMM X1 Channel B DIMM X1
D D
USB 3.0 PORTS
X2
USB 2.0 PORTS
DVI/HDMI
PORTS
VGA PORT
PORT B/D
C C
3 JACKS
SPDIF OUT PORT Front Audio Header
X8
SATA2.0 PORT X5 SATA3.0 PORT X1
Dispaly
SPI FLASH 64M
HDC CODEC ALC892
PCI SLOT X1
DMI
Panther Point
PCH
LPC
ITE8728
FDI
5GT/s
8 PCIE2.0 PORTS
GIGA LAN RTL8111G
PEG X1 CONN X2
CPU SMART FAN X2
B B
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
SYSTEM FAN X1
PS2 KB/MS COM Port CIR Header
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
BLOCK DIAGRAM
BLOCK DIAGRAM
BLOCK DIAGRAM
IB75F-MHS
IB75F-MHS
IB75F-MHS
2 43Thursday, May 16, 2013
2 43Thursday, May 16, 2013
2 43Thursday, May 16, 2013
A
6.0
6.0
6.0
5
DCC
A
www.teknisi-indonesia.com
www.teknisi-indonesia.com
4
3
2
1
D
B B
Title
Title
5
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
4
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
3
2
CHANGE LIST
CHANGE LIST
CHANGE LIST
IB75F-MHS
IB75F-MHS
IB75F-MHS
1
3 43Thursday, May 16, 2013
3 43Thursday, May 16, 2013
3 43Thursday, May 16, 2013
A
6.0
6.0
6.0
5
DCC
A
www.teknisi-indonesia.com
EXP_A_RX_0_DP21 EXP_A_RX_0_DN21 EXP_A_RX_1_DP21 EXP_A_RX_1_DN21 EXP_A_RX_2_DP21 EXP_A_RX_2_DN21 EXP_A_RX_3_DP21
D
V_CPU_VCCIO
PEG_ICOMPI & PEG_RCOMPO: 4mil /15mil;
B B
PEG_ICOMPO : 12mil /15mil LESS THAN 500mil
SHORT B4 & C4 TOGETHER, ROUTE AS A SINGLE 4 MIL TRACE TO R1 ROUTE B5 TO R1 AS A SEPERATE 10 MIL TRACE
V_CPU_VCCIO
EXP_A_RX_3_DN21 EXP_A_RX_4_DP21 EXP_A_RX_4_DN21 EXP_A_RX_5_DP21 EXP_A_RX_5_DN21 EXP_A_RX_6_DP21 EXP_A_RX_6_DN21 EXP_A_RX_7_DP21 EXP_A_RX_7_DN21 EXP_A_RX_8_DP21 EXP_A_RX_8_DN21 EXP_A_RX_9_DP21 EXP_A_RX_9_DN21 EXP_A_RX_10_DP21 EXP_A_RX_10_DN21 EXP_A_RX_11_DP21 EXP_A_RX_11_DN21 EXP_A_RX_12_DP21 EXP_A_RX_12_DN21 EXP_A_RX_13_DP21 EXP_A_RX_13_DN21 EXP_A_RX_14_DP21 EXP_A_RX_14_DN21 EXP_A_RX_15_DP21 EXP_A_RX_15_DN21
DMI_IT_MR_0_DP12 DMI_IT_MR_0_DN12 DMI_IT_MR_1_DP12 DMI_IT_MR_1_DN12 DMI_IT_MR_2_DP12 DMI_IT_MR_2_DN12 DMI_IT_MR_3_DP12 DMI_IT_MR_3_DN12
CR1 24.9 1% 0402
CR2 24.9 1% 0402
5
4
CPU1C
B11 B12 D12 D11 C10
C9
E10
E9 B8 B7 C6 C5 A5 A6 E2 E1 F4 F3 G2 G1 H3 H4
J1
J2 K3 K4
L1
L2 M3 M4 N1 N2
W5 W4
V3 V4 Y3 Y4
AA4 AA5
P3 P4 R2 R1 T4 T3 U2 U1
PEG_RCOMP
FDI_FSYNC_015 FDI_LSYNC_015
FDI_FSYNC_115 FDI_LSYNC_115
FDI_INT15
FDI_RCOMP
B5 C4 B4
BIOSTAR_D V1_4
PEG_RX_0 PEG_RX#_0 PEG_RX_1 PEG_RX#_1 PEG_RX_2 PEG_RX#_2 PEG_RX_3 PEG_RX#_3 PEG_RX_4 PEG_RX#_4 PEG_RX_5 PEG_RX#_5 PEG_RX_6 PEG_RX#_6 PEG_RX_7 PEG_RX#_7 PEG_RX_8 PEG_RX#_8 PEG_RX_9 PEG_RX#_9 PEG_RX_10 PEG_RX#_10 PEG_RX_11 PEG_RX#_11 PEG_RX_12 PEG_RX#_12 PEG_RX_13 PEG_RX#_13 PEG_RX_14 PEG_RX#_14 PEG_RX_15 PEG_RX#_15
DMI_RX_0 DMI_RX#_0 DMI_RX_1 DMI_RX#_1 DMI_RX_2 DMI_RX#_2 DMI_RX_3 DMI_RX#_3
PE_RX_0 PE_RX#_0 PE_RX_1 PE_RX#_1 PE_RX_2 PE_RX#_2 PE_RX_3 PE_RX#_3
PEG_ICOMPO PEG_RCOMPO PEG_COMPI
LGA 1155 SOCKET
CPU1D
AC5
FDI_FSYNC_0
AC4
FDI_LSYNC_0
AE5
FDI_FSYNC_1
AE4
FDI_LSYNC_1
AG3
FDI_INT
AE2
FDI_COMPIO
AE1
FDI_ICOMPO
LGA 1155 SOCKET
PEGDMI
GEN
BIOSTAR_D V1_4
FDI LINK
4/10
FDI_TX#_0 FDI_TX#_1 FDI_TX#_2 FDI_TX#_3
FDI_TX#_4 FDI_TX#_5 FDI_TX#_6 FDI_TX#_7
4
PEG_TX_0
PEG_TX#_0
PEG_TX_1
PEG_TX#_1
PEG_TX_2
PEG_TX#_2
PEG_TX_3
PEG_TX#_3
PEG_TX_4
PEG_TX#_4
PEG_TX_5
PEG_TX#_5
PEG_TX_6
PEG_TX#_6
PEG_TX_7
PEG_TX#_7
PEG_TX_8
PEG_TX#_8
PEG_TX_9 PEG_TX#_9 PEG_TX_10
PEG_TX#_10
PEG_TX_11
PEG_TX#_11
PEG_TX_12
PEG_TX#_12
PEG_TX_13
PEG_TX#_13
PEG_TX_14
PEG_TX#_14
PEG_TX_15
PEG_TX#_15
DMI_TX_0
DMI_TX#_0
DMI_TX_1
DMI_TX#_1
DMI_TX_2
DMI_TX#_2
DMI_TX_3
DMI_TX#_3
PE_TX_0
PE_TX#_0
PE_TX_1
PE_TX#_1
PE_TX_2
PE_TX#_2
PE_TX_3
PE_TX#_3
FDI_TX_0 FDI_TX_1 FDI_TX_2 FDI_TX_3
FDI_TX_4 FDI_TX_5 FDI_TX_6 FDI_TX_7
3
C13 C14 E14 E13 G14 G13 F12 F11 J14 J13 D8 D7 D3 C3 E6 E5 F8 F7 G10 G9 G5 G6 K7 K8 J5 J6 M8 M7 L6 L5 N5 N6
V7 V6 W7 W8 Y6 Y7 AA7 AA8
P8 P7 T7 T8 R6 R5 U5 U6
3/10
AC8 AC7 AC2 AC3 AD2 AD1 AD4 AD3
AD7 AD6 AE7 AE8 AF3 AF2 AG2 AG1
For P67,all the FDI signals FDI_TX, FDI_FSYNC, FDI_LSYNC and FDI_INT signals on the CPU and the PCH can be left as No connect for solutions not using integrated graphics./DG98
PEG : (18)16/5/5/5/16(18) 80ohm
EXP_A_TX_0_DP21 EXP_A_TX_0_DN21 EXP_A_TX_1_DP21 EXP_A_TX_1_DN21 EXP_A_TX_2_DP21 EXP_A_TX_2_DN21 EXP_A_TX_3_DP21 EXP_A_TX_3_DN21 EXP_A_TX_4_DP21 EXP_A_TX_4_DN21 EXP_A_TX_5_DP21 EXP_A_TX_5_DN21 EXP_A_TX_6_DP21 EXP_A_TX_6_DN21 EXP_A_TX_7_DP21 EXP_A_TX_7_DN21 EXP_A_TX_8_DP21 EXP_A_TX_8_DN21 EXP_A_TX_9_DP21 EXP_A_TX_9_DN21 EXP_A_TX_10_DP21 EXP_A_TX_10_DN21 EXP_A_TX_11_DP21 EXP_A_TX_11_DN21 EXP_A_TX_12_DP21 EXP_A_TX_12_DN21 EXP_A_TX_13_DP21 EXP_A_TX_13_DN21 EXP_A_TX_14_DP21 EXP_A_TX_14_DN21 EXP_A_TX_15_DP21 EXP_A_TX_15_DN21
DMI_MT_IR_0_DP12 DMI_MT_IR_0_DN 12 DMI_MT_IR_1_DP12 DMI_MT_IR_1_DN 12 DMI_MT_IR_2_DP12 DMI_MT_IR_2_DN 12 DMI_MT_IR_3_DP12 DMI_MT_IR_3_DN 12
DMI : (15)12/4/5/4/12(15) 85ohm
PCIE X4 LANES ARE NOT SUPPORTED ON DT CPU SKUS
FDI_TX_0_DP15 FDI_TX_0_DN 15 FDI_TX_1_DP15 FDI_TX_1_DN 15 FDI_TX_2_DP15 FDI_TX_2_DN 15 FDI_TX_3_DP15 FDI_TX_3_DN 15
FDI_TX_4_DP15 FDI_TX_4_DN 15 FDI_TX_5_DP15 FDI_TX_5_DN 15 FDI_TX_6_DP15 FDI_TX_6_DN 15 FDI_TX_7_DP15 FDI_TX_7_DN 15
3
2
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
CPU PCIEX16/DMI/FDI
CPU PCIEX16/DMI/FDI
CPU PCIEX16/DMI/FDI
IB75F-MHS
IB75F-MHS
IB75F-MHS
2
1
6.0
6.0
6.0
4 43Thursday, May 16, 2013
4 43Thursday, May 16, 2013
4 43Thursday, May 16, 2013
1
A
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
5
DCC
A
www.teknisi-indonesia.com
www.teknisi-indonesia.com
4
3
2
1
M_DATA_A[0..63]9
D
B B
5
M_DATA_A[0..63]
M_DQS_A_DP09 M_DQS_A_DP19 M_DQS_A_DP29 M_DQS_A_DP39 M_DQS_A_DP49 M_DQS_A_DP59 M_DQS_A_DP69 M_DQS_A_DP79
M_DQS_A_DN09 M_DQS_A_DN19 M_DQS_A_DN29 M_DQS_A_DN39 M_DQS_A_DN49 M_DQS_A_DN59 M_DQS_A_DN69 M_DQS_A_DN79
4
M_DATA_A0 M_DATA_A1 M_DATA_A2 M_DATA_A3 M_DATA_A4 M_DATA_A5 M_DATA_A6 M_DATA_A7 M_DATA_A8 M_DATA_A9 M_DATA_A10 M_DATA_A11 M_DATA_A12 M_DATA_A13 M_DATA_A14 M_DATA_A15 M_DATA_A16 M_DATA_A17 M_DATA_A18 M_DATA_A19 M_DATA_A20 M_DATA_A21 M_DATA_A22 M_DATA_A23 M_DATA_A24 M_DATA_A25 M_DATA_A26 M_DATA_A27 M_DATA_A28 M_DATA_A29 M_DATA_A30 M_DATA_A31 M_DATA_A32 M_DATA_A33 M_DATA_A34 M_DATA_A35 M_DATA_A36 M_DATA_A37 M_DATA_A38 M_DATA_A39 M_DATA_A40 M_DATA_A41 M_DATA_A42 M_DATA_A43 M_DATA_A44 M_DATA_A45 M_DATA_A46 M_DATA_A47 M_DATA_A48 M_DATA_A49 M_DATA_A50 M_DATA_A51 M_DATA_A52 M_DATA_A53 M_DATA_A54 M_DATA_A55 M_DATA_A56 M_DATA_A57 M_DATA_A58 M_DATA_A59 M_DATA_A60 M_DATA_A61 M_DATA_A62 M_DATA_A63
AJ3 AJ4 AL3 AL4 AJ2 AJ1 AL2
AL1 AN1 AN4 AR3 AR4 AN2 AN3 AR2 AR1 AV2
AW3
AV5
AW5
AU2 AU3 AU5 AY5 AY7 AU7 AV9 AU9 AV7
AW7 AW9
AY9
AU35
AW37
AU39 AU36
AW35
AY36 AU38 AU37 AR40 AR37 AN38 AN37 AR39 AR38 AN39 AN40
AL40 AL37 AJ38 AJ37 AL39 AL38 AJ39
AJ40 AG40 AG37 AE38 AE37 AG39 AG38 AE39 AE40
AK3 AP3
AW4
AV8 AV37 AP38 AK38 AF38
AK2
AP2
AV4
AW8 AV36 AP39 AK39 AF39
CPU1A
BIOSTAR_D V1_4
SA_DQ_0 SA_DQ_1 SA_DQ_2 SA_DQ_3 SA_DQ_4 SA_DQ_5 SA_DQ_6 SA_DQ_7 SA_DQ_8 SA_DQ_9 SA_DQ_10 SA_DQ_11 SA_DQ_12 SA_DQ_13 SA_DQ_14 SA_DQ_15 SA_DQ_16 SA_DQ_17 SA_DQ_18 SA_DQ_19 SA_DQ_20 SA_DQ_21 SA_DQ_22 SA_DQ_23 SA_DQ_24 SA_DQ_25 SA_DQ_26 SA_DQ_27 SA_DQ_28 SA_DQ_29 SA_DQ_30 SA_DQ_31 SA_DQ_32 SA_DQ_33 SA_DQ_34 SA_DQ_35 SA_DQ_36 SA_DQ_37 SA_DQ_38 SA_DQ_39 SA_DQ_40 SA_DQ_41 SA_DQ_42 SA_DQ_43 SA_DQ_44 SA_DQ_45 SA_DQ_46 SA_DQ_47 SA_DQ_48 SA_DQ_49 SA_DQ_50 SA_DQ_51 SA_DQ_52 SA_DQ_53 SA_DQ_54 SA_DQ_55 SA_DQ_56 SA_DQ_57 SA_DQ_58 SA_DQ_59 SA_DQ_60 SA_DQ_61 SA_DQ_62 SA_DQ_63
SA_DQS_0 SA_DQS_1 SA_DQS_2 SA_DQS_3 SA_DQS_4 SA_DQS_5 SA_DQS_6 SA_DQS_7
SA_DQS#_0 SA_DQS#_1 SA_DQS#_2 SA_DQS#_3 SA_DQS#_4 SA_DQS#_5 SA_DQS#_6 SA_DQS#_7
LGA 1155 SOCKET
SA_MA_0 SA_MA_1 SA_MA_2 SA_MA_3 SA_MA_4 SA_MA_5 SA_MA_6 SA_MA_7 SA_MA_8
SA_MA_9 SA_MA_10 SA_MA_11 SA_MA_12 SA_MA_13 SA_MA_14 SA_MA_15
SA_WE# SA_CAS# SA_RAS#
SA_BS_0 SA_BS_1 SA_BS_2
SA_CS#_0 SA_CS#_1 SA_CS#_2 SA_CS#_3
SA_CKE_0 SA_CKE_1 SA_CKE_2 SA_CKE_3
SA_ODT_0 SA_ODT_1 SA_ODT_2 SA_ODT_3
SA_CK_0
SA_CK#_0
SA_CK_1
SA_CK#_1
SA_CK_2
SA_CK#_2
SA_CK_3
SA_CK#_3
SM_DRAMRST#
SA_DQS_8
SA_DQS#_8
SA_ECC_CB_0 SA_ECC_CB_1 SA_ECC_CB_2 SA_ECC_CB_3 SA_ECC_CB_4 SA_ECC_CB_5 SA_ECC_CB_6 SA_ECC_CB_7
DDR_0
1/10
3
AV27 AY24 AW24 AW23 AV23 AT24 AT23 AU22 AV22 AT22 AV28 AU21 AT21 AW32 AU20 AT20
AW29 AV30 AU28
AY29 AW28 AV20
AU29 AV32 AW30 AU33
AV19 AT19 AU18 AV18
AV31 AU32 AU30 AW33
AY25 AW25 AU24 AU25 AW27 AY27 AV26 AW26
AW18
AV13 AV12
AU12 AU14 AW13 AY13 AU13 AU11 AY12 AW12
M_MAA_A0 M_MAA_A1 M_MAA_A2 M_MAA_A3 M_MAA_A4 M_MAA_A5 M_MAA_A6 M_MAA_A7 M_MAA_A8 M_MAA_A9 M_MAA_A10 M_MAA_A11 M_MAA_A12 M_MAA_A13 M_MAA_A14 M_MAA_A15
M_MAA_A[0..15]
M_WE_A_N 9 M_CAS_A_N 9 M_RAS_A_N 9
M_SBS_A0 9 M_SBS_A1 9 M_SBS_A2 9
M_SCS_A_N0 9 M_SCS_A_N1 9
M_SCKE_A0 9 M_SCKE_A1 9
M_ODT_A0 9 M_ODT_A1 9
CK_M_DDR0_A_DP 9 CK_M_DDR0_A_DN 9 CK_M_DDR1_A_DP 9 CK_M_DDR1_A_DN 9
DDR3_DRAMRST_N 9,10
CC1
0.1UF 16V X7R 0402 /NI
M_MAA_A[0..15]9
2
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
CPU DDR CHANNEL A
CPU DDR CHANNEL A
CPU DDR CHANNEL A
IB75F-MHS
IB75F-MHS
IB75F-MHS
5 43Thursday, May 16, 2013
5 43Thursday, May 16, 2013
5 43Thursday, May 16, 2013
1
6.0
6.0
6.0
A
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
5
DCC
A
www.teknisi-indonesia.com
4
3
2
1
M_DATA_B[0..63]10
D
DQ REMAPPING IMPLEMENTED
TO IMPROVE BREAKOUT AND MINIMIZE CH-2-CH COUPLING
DQ REMAPPING IMPLEMENTED
TO IMPROVE BREAKOUT AND
B B
MINIMIZE CH-2-CH COUPLING
5
M_DATA_B[0..63]
M_DQS_B_DP010 M_DQS_B_DP110 M_DQS_B_DP210 M_DQS_B_DP310 M_DQS_B_DP410 M_DQS_B_DP510 M_DQS_B_DP610 M_DQS_B_DP710
M_DQS_B_DN010 M_DQS_B_DN110 M_DQS_B_DN210 M_DQS_B_DN310 M_DQS_B_DN410 M_DQS_B_DN510 M_DQS_B_DN610 M_DQS_B_DN710
4
M_DATA_B0 M_DATA_B1 M_DATA_B2 M_DATA_B3 M_DATA_B4 M_DATA_B5 M_DATA_B6 M_DATA_B7 M_DATA_B13 M_DATA_B9 M_DATA_B11 M_DATA_B15 M_DATA_B12 M_DATA_B8 M_DATA_B14 M_DATA_B10 M_DATA_B16 M_DATA_B17 M_DATA_B18 M_DATA_B19 M_DATA_B20 M_DATA_B21 M_DATA_B22 M_DATA_B23 M_DATA_B24 M_DATA_B25 M_DATA_B26 M_DATA_B27 M_DATA_B28 M_DATA_B29 M_DATA_B30 M_DATA_B31 M_DATA_B32 M_DATA_B33 M_DATA_B34 M_DATA_B35 M_DATA_B36 M_DATA_B37 M_DATA_B38 M_DATA_B39 M_DATA_B40 M_DATA_B41 M_DATA_B42 M_DATA_B43 M_DATA_B44 M_DATA_B45 M_DATA_B46 M_DATA_B47 M_DATA_B48 M_DATA_B52 M_DATA_B55 M_DATA_B51 M_DATA_B54 M_DATA_B49 M_DATA_B53 M_DATA_B50 M_DATA_B56 M_DATA_B57 M_DATA_B58 M_DATA_B59 M_DATA_B60 M_DATA_B61 M_DATA_B62 M_DATA_B63
CPU1B
AG7 AG8
AJ9
AJ8 AG5 AG6
AJ6
AJ7
AL7 AM7
AM10
AL10
AL6 AM6
AL9 AM9 AP7 AR7
AP10
AR10
AP6 AR6 AP9 AR9
AM12 AM13 AR13
AP13 AL12 AL13
AR12
AP12 AR28 AR29
AL28
AL29
AP28
AP29 AM28 AM29
AP32
AP31
AP35
AP34 AR32 AR31 AR35 AR34 AM32 AM31
AL35
AL32 AM34
AL31 AM35
AL34 AH35 AH34
AE34
AE35
AJ35
AJ34
AF33
AF35
AH7 AM8
AR8 AN13 AN29
AP33 AL33
AG35
AH6
AL8
AP8 AN12 AN28 AR33 AM33 AG34
LGA 1155 SOCKET
BIOSTAR_D V1_4
SB_DQ_0 SB_DQ_1 SB_DQ_2 SB_DQ_3 SB_DQ_4 SB_DQ_5 SB_DQ_6 SB_DQ_7 SB_DQ_8 SB_DQ_9 SB_DQ_10 SB_DQ_11 SB_DQ_12 SB_DQ_13 SB_DQ_14 SB_DQ_15 SB_DQ_16 SB_DQ_17 SB_DQ_18 SB_DQ_19 SB_DQ_20 SB_DQ_21 SB_DQ_22 SB_DQ_23 SB_DQ_24 SB_DQ_25 SB_DQ_26 SB_DQ_27 SB_DQ_28 SB_DQ_29 SB_DQ_30 SB_DQ_31 SB_DQ_32 SB_DQ_33 SB_DQ_34 SB_DQ_35 SB_DQ_36 SB_DQ_37 SB_DQ_38 SB_DQ_39 SB_DQ_40 SB_DQ_41 SB_DQ_42 SB_DQ_43 SB_DQ_44 SB_DQ_45 SB_DQ_46 SB_DQ_47 SB_DQ_48 SB_DQ_49 SB_DQ_50 SB_DQ_51 SB_DQ_52 SB_DQ_53 SB_DQ_54 SB_DQ_55 SB_DQ_56 SB_DQ_57 SB_DQ_58 SB_DQ_59 SB_DQ_60 SB_DQ_61 SB_DQ_62 SB_DQ_63
SB_DQS_0 SB_DQS_1 SB_DQS_2 SB_DQS_3 SB_DQS_4 SB_DQS_5 SB_DQS_6 SB_DQS_7
SB_DQS#_0 SB_DQS#_1 SB_DQS#_2 SB_DQS#_3 SB_DQS#_4 SB_DQS#_5 SB_DQS#_6 SB_DQS#_7
SB_MA_0 SB_MA_1 SB_MA_2 SB_MA_3 SB_MA_4 SB_MA_5 SB_MA_6 SB_MA_7 SB_MA_8
SB_MA_9 SB_MA_10 SB_MA_11 SB_MA_12 SB_MA_13 SB_MA_14 SB_MA_15
SA_CK(2)
SA_CK(1) SA_ODT(2)
SB_BS_0 SB_BS_1 SB_BS_2
SB_CS#_0 SB_CS#_1 SB_CS#_2 SB_CS#_3
SB_CKE_0 SB_CKE_1 SB_CKE_2 SB_CKE_3
SB_ODT_0 SB_ODT_1 SB_ODT_2 SB_ODT_3
SB_CK_0
SB_CK#_0
SB_CK_1
SB_CK#_1
SB_CK_2
SB_CK#_2
SB_CK_3
SB_CK#_3
SB_DQS_8
SB_DQS#_8
SB_ECC_CB_0 SB_ECC_CB_1 SB_ECC_CB_2 SB_ECC_CB_3 SB_ECC_CB_4 SB_ECC_CB_5 SB_ECC_CB_6 SB_ECC_CB_7
DDR_1
2/10
3
AK24 AM20 AM19 AK18 AP19 AP18 AM18 AL18 AN18 AY17 AN23 AU17 AT18 AR26 AY16 AV16
AR25 AK25 AP24
AP23 AM24 AW17
AN25 AN26 AL25 AT26
AU16 AY15 AW15 AV15
AL26 AP26 AM26 AK26
AL21 AL22 AL20 AK20 AL23 AM22 AP21 AN21
AN16 AN15
AL16 AM16 AP16 AR16 AL15 AM15 AR15 AP15
M_MAA_B0 M_MAA_B1 M_MAA_B2 M_MAA_B3 M_MAA_B4 M_MAA_B5 M_MAA_B6 M_MAA_B7 M_MAA_B8 M_MAA_B9 M_MAA_B10 M_MAA_B11 M_MAA_B12 M_MAA_B13 M_MAA_B14 M_MAA_B15
M_MAA_B[0..15]
M_WE_B_N 10 M_CAS_B_N 10 M_RAS_B_N 10
M_SBS_B0 10 M_SBS_B1 10 M_SBS_B2 10
M_SCS_B_N0 10 M_SCS_B_N1 10
M_SCKE_B0 10 M_SCKE_B1 10
M_ODT_B0 10 M_ODT_B1 10
CK_M_DDR0_B_DP 10 CK_M_DDR0_B_DN 10 CK_M_DDR1_B_DP 10 CK_M_DDR1_B_DN 10
M_MAA_B[0..15]10
2
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
CPU DDR CHANNEL A
CPU DDR CHANNEL A
CPU DDR CHANNEL A
IB75F-MHS
IB75F-MHS
IB75F-MHS
6 43Thursday, May 16, 2013
6 43Thursday, May 16, 2013
6 43Thursday, May 16, 2013
1
6.0
6.0
6.0
A
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
5
A
www.teknisi-indonesia.com
www.teknisi-indonesia.com
FROM CLK GEN.
FROM PCH
D D
VRD12 INTERFACE
H_VIDSCK39
H_VIDSOUT39
H_VIDALERT_N39
TBD
NEAR PCH
CR15 4.7K 0402
NV_CLE15
update for Ivy bridge
C C
DMI/FDI Termination Select
PUT INSIDE THE
CPU SOCKET
V_SM
NEAR CPU
B B
H_PWRGD
CR32 1K 0402 CC55 0.1UF 16V Y5V 0402 /NI
PCH NO PECI SUPPORTED
CFG5CFG6 1 1 1 0 0 1 0 0
V_1P8_SFR
CR18 1K 1% 0402
CR24 1K 1% 0402
PCIE CONFIG
1 X 16 2 X 8
RESERVED
X8,X4,X4
V_CPU_VCCIO
CR14
2.2K 0402
H_SNB_N
CC2
0.1UF 16V Y5V 0402 /NI
SNB_DDR_VREF
0.1UF 16V Y5V 0402
CR8 110 1% 0402
CR9 75 1% 0402
CR11 0 0402
12/9
H_DRAMPWRGD14
H_PM_SYNC_013
H_PROCHOT_N28,39
H_THERMTRIP_N13
H_SKTOCC_N14,34,39
H_PWRGD14,34
H_PECI28
4
3
VCCIO_SENSE
1
MTP80
VSSIO_SENSE
1
MTP81
2
VCCSA_VID
1
MTP13 MTP14
1
VCCP_SEL
1
NEAR CPU
CPU1J
BIOSTAR_D V1_4
CPU1E
CK_PE_100M_MCP_DP17 CK_PE_100M_MCP_DN17
VIDSCLK VIDSOUT VIDALERT#
H_PWRGD H_DRAMPWRGD PLTRST_CPU_N
H_PECI H_CATERR_N
H_SNB_N SNB_DDR_VREF
W2
BCLK_0
W1
BCLK#_0
C37
VIDSCLK
B37
VIDSOUT
A37
VIDALERT#
J40
UNCOREPWRGOOD
AJ19
SM_DRAMPWROK
F36
RESET#
E38
PM_SYNC
J35
PECI
E37
CATERR#
H34
PROCHOT#
G35
THERMTRIP#
AJ33
SKTOCC#
K32
PROC_SEL
AJ22
SM_VREF
H36
CFG_0
J36
CFG_1
J37
CFG_2
K36
CFG_3
L36
CFG_4
N35
CFG_5
L37
CFG_6
M36
CFG_7
J38
CFG_8
L35
CFG_9
M38
CFG_10
N36
CFG_11
N38
CFG_12
N39
CFG_13
N37
CFG_14
N40
CFG_15
G37
CFG_16
G36
CFG_17
AT14
RSVD_016
AY3
RSVD_023
H7
RSVD_028
H8
RSVD_029
LGA 1155 SOCKET
BIOSTAR_D V1_4
MISC
VCCP_SELECT
VCCSA_VID
VCCSA_SENSE
VCC_SENSE VSS_SENSE
VCCIO_SENSE
VSSIO_SENSE
VCCAXG_SENSE VSSAXG_SENSE
TDO TCK
TMS
TRST# PRDY# PREQ#
DBR# RSVD_001 RSVD_002
BPM#_0 BPM#_1 BPM#_2 BPM#_3 BPM#_4 BPM#_5 BPM#_6 BPM#_7
RSVD_024 RSVD_030 RSVD_037 RSVD_036 RSVD_033
RSVD_040 RSVD_039
RSVD_018 RSVD_020
RSVD_038 RSVD_032 RSVD_034
RSVD_035 RSVD_050
RSVD_053 RSVD_051
RSVD_052
5/10
VCCP_SEL
P33
VCCSA_VID
P34 T2
VCCIO_SENSE
A36
VSSIO_SENSE
B36 AB4
AB3 L32
M32
H_TDO
L39
H_TDI
L40
TDI
H_TCK
M40
H_TMS
L38
H_TRST_N
J39 K38 K40 E39 C40 D40
H40 H38 G38 G40 G39 F38 E40 F40
B39 J33 L34 L33 K34
N33 M34
AV1 AW2
L9 J9 K9
L31 J31
K31 AD34
AD35
VCC_SENSE 39 VSS_SENSE 39
VCCAXG_SENSE39 VSSAXG_SENSE39
CPU RESET LOGIC
PLTRST_N14,28
PLTRST_N PLTRST_CPU_N
AB7
RSVD_04
AD37
RSVD_05
AG4
RSVD_08
AJ29
RSVD_10
AJ30
RSVD_11
AJ31
RSVD_12
AV34
RSVD_19
AW34
RSVD_21
P35
RSVD_43
P37
RSVD_44
P39
RSVD_45
R34
RSVD_46
R36
RSVD_47
R38
RSVD_48
R40
RSVD_49
A38
NCTF_01
AU40
NCTF_02
AW38
NCTF_03
C2
NCTF_04
D1
NCTF_05
LGA 1155 SOCKET
H_THERMTRIP_N H_PROCHOT_N
H_CATERR_N H_PECI H_PWRGD
H_TMS H_TDI H_TDO
H_TRST_N H_TCK
H_DRAMPWRGD
CHECK : GA-IVB --> 1K
CR31 51 0402 CR25 51 0402
CR34 200 1% 0402
CR30 174 1% 0402
SPARES
CR17 51 0402 /NI CR19 51 0402
CR20 1K 0402 /NI CR22 1K 0402 /NI CR23 51 0402 /NICC3
CRN1 51 8P4R 0402
12 34 56 78
178 1%
for Ivy bridge processor support
AH1
FC_AH1
AH4
FC_AH2
AT11
RSVD_15
AP20
RSVD_14
AN20 AU10 AY10
AF4 AB6 AE6 AJ11
D38 C39 C38 J34 N34
V_SM
CC4
0.1UF 16V Y5V 0402 /NI
CC56
0.1UF 16V Y5V 0402
RSVD_13 RSVD_17 RSVD_22
RSVD_07 RSVD_03 RSVD_06 RSVD_09
RSVD_27 RSVD_26 RSVD_25 RSVD_31 RSVD_41
10/10
CR28 75 1% 0402
V_CPU_VCCIO
DQB_VREF 10 DQA_VREF 9
CC57
0.1UF 16V Y5V 0402
* *
DESCRIPTION
PEGLANE REVERSAL[0],X16NORM
SEL0 SEL1
4
CFG H L
2 5 6
RESERVED
* *
5
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
A
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
3
2
CPU MISC
CPU MISC
CPU MISC
IB75F-MHS
IB75F-MHS
IB75F-MHS
1
6.0
6.0
7 43Thursday, May 16, 2013
7 43Thursday, May 16, 2013
7 43Thursday, May 16, 2013
6.0
A
CPU1I
www.teknisi-indonesia.com
5
LGA 1155 SOCKET
AM3
AM4
AM5
AN10
AN11
AN14
AN17
AN19
AN22
AN24
AN27
AN30
AN31
AN32
AN33
AN34
AN35
AN36
AN5
AN6
AN7
AN8
AN9
AP1
AP4
AP5
AR11
AR14
AR17
VSS_091
VSS_092
VSS_093
VSS_094
VSS_095
VSS_096
VSS_097
VSS_098
VSS_099
VSS_100
VSS_101
VSS_102
VSS_103
VSS_104
VSS_105
VSS_106
VSS_107
VSS_108
VSS_109
VSS_110
VSS_111
VSS_112
VSS_113
VSS_114
VSS_115
VSS_116
VSS_117
VSS_118
VSS_119
VSS_120
VSS_121
VSS_122
VSS_123
VSS_124
VSS_125
VSS_126
VSS_127
VSS_128
VSS_129
VSS_130
VSS_131
VSS_132
VSS_133
VSS_134
VSS_135
D D
BIOSTAR_D V1_4
VSS_001
VSS_002
VSS_003
VSS_004
VSS_005
VSS_006
VSS_007
VSS_008
VSS_009
VSS_010
VSS_011
VSS_012
VSS_013
VSS_014
VSS_015
VSS_016
VSS_017
VSS_018
VSS_019
VSS_020
VSS_021
VSS_022
VSS_023
VSS_024
VSS_025
VSS_026
VSS_027
VSS_028
VSS_029
VSS_030
VSS_031
VSS_032
VSS_033
VSS_034
VSS_035
VSS_036
VSS_037
VSS_038
VSS_039
VSS_040
VSS_041
VSS_042
VSS_043
VSS_044
VSS_045
AA6
AB5
AC1
AC6
AD33
AD36
AD38
AF1
AF5
AF6
AE3
AD5
AD8
AD39
AD40
AF7
AH2
AH3
AH5
AH8
AH33
AH36
AH37
AH38
AH39
AH40
4
AR18
AR19
AR27
AR30
AR36
AR5
AT1
AT2
AT3
AT4
AT5
AT6
AT7
AT8
AT9
AU1
AU15
AU26
VSS_136
VSS_137
VSS_138
VSS_139
VSS_140
VSS_141
VSS_142
VSS_143
VSS_144
VSS_145
VSS_146
VSS_147
VSS_148
VSS_149
VSS_150
VSS_151
VSS_152
VSS_153
VSS_154
VSS_155
VSS_156
VSS_157
VSS_158
VSS_159
VSS_160
VSS_161
VSS_162
VSS_163
VSS_164
VSS_165
VSS_166
VSS_167
VSS_168
VSS_169
VSS_170
VSS_171
VSS_172
VSS_173
VSS_174
VSS_046
VSS_047
VSS_048
VSS_049
VSS_050
VSS_051
VSS_052
VSS_053
VSS_054
VSS_055
VSS_056
VSS_057
VSS_058
VSS_059
VSS_060
VSS_061
VSS_062
VSS_063
VSS_064
VSS_065
VSS_066
VSS_067
VSS_068
VSS_069
VSS_070
VSS_071
VSS_072
VSS_073
VSS_074
VSS_075
VSS_076
VSS_077
VSS_078
VSS_079
VSS_080
VSS_081
VSS_082
VSS_083
VSS_084
AJ5
AK1
AK4
AK5
AK6
AK7
AK8
AK9
AL11
AL14
AM1
AL17
AL19
AL24
AL27
AL30
AL36
3
AU34
AU4
AU6
AU8
H17
H20
H23
H26
H29
H33
H35
H37
H39
VSS_175
VSS_176
VSS_177
VSS_178
VSS_179
VSS_180
VSS_271G8VSS_272H1VSS_273
VSS_274H2VSS_275
VSS_276
VSS_277
VSS_278
VSS_279
VSS_280
VSS_281
VSS_282
VSS_283H5VSS_284H6VSS_285H9VSS_286
VSS_287
VSS_288
VSS_289
VSS_290
VSS_291
VSS_292
VSS_293K1VSS_294
VSS_295
VSS_296
VSS_297
VSS_298K2VSS_299
VSS_300
VSS_301
VSS_085
VSS_086
VSS_087
VSS_088
VSS_089
VSS_090
VSS_NCTF_01A4VSS_NCTF_02
VSS_181
VSS_182
VSS_183
VSS_184
VSS_185
VSS_186
VSS_187
VSS_188
VSS_189
VSS_190
VSS_191
VSS_192
VSS_193
VSS_194
VSS_195
VSS_196
VSS_197
VSS_198
VSS_199
VSS_200
VSS_201
VSS_202
VSS_203
VSS_204
VSS_205
VSS_206
VSS_207
VSS_208
VSS_209
VSS_210
VSS_211B6VSS_212
AV3
AM2
AV6
AY4
AY6
AY8
AW6
2
L10
L17
L20
L23
L26
L29
R33
R35
R37
VSS_302
VSS_303
VSS_304
VSS_305
VSS_306
VSS_307K5VSS_308K6VSS_309
VSS_310
VSS_311
VSS_312
VSS_313
VSS_314
VSS_315L8VSS_316M1VSS_317
VSS_318M2VSS_319
VSS_320
VSS_321
VSS_322
VSS_323
VSS_324
VSS_325
VSS_326
VSS_327M5VSS_328M6VSS_329M9VSS_330N8VSS_331P1VSS_332P2VSS_333
VSS_334
VSS_335
VSS_336P5VSS_337P6VSS_338
VSS_339
VSS_340
VSS_213
VSS_214
VSS_215
VSS_216
VSS_217
VSS_218
VSS_219
VSS_220
VSS_221C7VSS_222C8VSS_223
VSS_224D2VSS_225
VSS_226
VSS_227
VSS_228
VSS_229
VSS_230
VSS_231
VSS_232D4VSS_233D5VSS_234D9VSS_235
VSS_236
VSS_237
VSS_238
VSS_239
VSS_240
VSS_241
VSS_242
VSS_243
VSS_244E7VSS_245E8VSS_246F1VSS_247
VSS_248
VSS_249
VSS_250
C11
C12
C17
C20
C23
C26
C29
C32
C35
D17
D20
D23
D26
D29
D32
D37
D39
R39
VSS_341
VSS_342R8VSS_343T1VSS_344T5VSS_345T6VSS_346U8VSS_347V1VSS_348V2VSS_349
VSS_251F2VSS_252
VSS_253
VSS_254
VSS_255
VSS_256
1
VSS_257
VSS_258
VSS_350
VSS_259F5VSS_260F6VSS_261F9VSS_262
Y8
VSS_351
VSS_352
VSS_353
VSS_354
VSS_355
VSS_356
VSS_357V5VSS_358W6VSS_359Y5VSS_360
9/10
VSS_263
VSS_264
VSS_265
VSS_266
VSS_267
VSS_268
VSS_269
VSS_270G7VSS_NCTF_03
VSS_NCTF_04
B3
V_CPU_CORE V_CPU_CORE
C C
B B
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
CPU1F
A12
VCC_001
A13
VCC_002
A14
VCC_003
A15
VCC_004
A16
VCC_005
A18
VCC_006
A24
VCC_007
A25
VCC_008
A27
VCC_009
A28
VCC_010
B15
VCC_011
B16
VCC_012
B18
VCC_013
B24
VCC_014
B25
VCC_015
B27
VCC_016
B28
VCC_017
B30
VCC_018
B31
VCC_019
B33
VCC_020
B34
VCC_021
C15
VCC_022
C16
VCC_023
C18
VCC_024
C19
VCC_025
C21
VCC_026
C22
VCC_027
C24
VCC_028
C25
VCC_029
C27
VCC_030
C28
VCC_031
C30
VCC_032
C31
VCC_033
C33
VCC_034
C34
VCC_035
C36
VCC_036
D13
VCC_037
D14
VCC_038
D15
VCC_039
D16
VCC_040
D18
VCC_041
D19
VCC_042
D21
VCC_043
D22
VCC_044
D24
VCC_045
D25
VCC_046
D27
VCC_047
D28
VCC_048
D30
VCC_049
D31
VCC_050
D33
VCC_051
D34
VCC_052
D35
VCC_053
D36
VCC_054
E15
VCC_055
E16
VCC_056
E18
VCC_057
E19
VCC_058
E21
VCC_059
E22
VCC_060
E24
VCC_061
E25
VCC_062
E27
VCC_063
E28
VCC_064
E30
VCC_065
E31
VCC_066
E33
VCC_067
E34
VCC_068
E35
VCC_069
F15
VCC_070
F16
VCC_071
F18
VCC_072
F19
VCC_073
F21
VCC_074
F22
VCC_075
F24
VCC_076
F25
VCC_077
F27
VCC_078
F28
VCC_079
F30
VCC_080
F31
VCC_081
LGA 1155 SOCKET
BIOSTAR_D V1_4
VCC_082 VCC_083 VCC_084 VCC_085 VCC_086 VCC_087 VCC_088 VCC_089 VCC_090 VCC_091 VCC_092 VCC_093 VCC_094 VCC_095 VCC_096 VCC_097 VCC_098 VCC_099 VCC_100 VCC_101 VCC_102 VCC_103 VCC_104 VCC_105 VCC_106 VCC_107 VCC_108 VCC_109 VCC_110 VCC_111 VCC_112 VCC_113 VCC_114 VCC_115 VCC_116 VCC_117 VCC_118 VCC_119 VCC_120 VCC_121 VCC_122 VCC_123
CPU POWER
VCC_124 VCC_125 VCC_126 VCC_127 VCC_128 VCC_129 VCC_130 VCC_131 VCC_132 VCC_133 VCC_134 VCC_135 VCC_136 VCC_137 VCC_138 VCC_139 VCC_140 VCC_141 VCC_142 VCC_143 VCC_144 VCC_145 VCC_146 VCC_147 VCC_148 VCC_149 VCC_150 VCC_151 VCC_152 VCC_153 VCC_154 VCC_155 VCC_156 VCC_157 VCC_158 VCC_159 VCC_160 VCC_161
6/10
F32 F33 F34 G15 G16 G18 G19 G21 G22 G24 G25 G27 G28 G30 G31 G32 G33 H13 H14 H15 H16 H18 H19 H21 H22 H24 H25 H27 H28 H30 H31 H32 J12 J15 J16 J18 J19 J21 J22 J24 J25 J27 J28 J30 K15 K16 K18 K19 K21 K22 K24 K25 K27 K28 K30 L13 L14 L15 L16 L18 L19 L21 L22 L24 L25 L27 L28 L30 M14 M15 M16 M18 M19 M21 M22 M24 M25 M27 M28 M30
V_CPU_CORE
CC18 10UF 10V 0805 Y5V
CC13 10UF 10V 0805 Y5V
V_CPU_CORE
CC21 10UF 10V 0805 Y5V
V_CPU_CORE V_CPU_CORE V_CPU_CORE
CC26 10UF 10V 0805 Y5V
V_CPU_CORE
CC35 10UF 10V 0805 Y5V
V_CPU_CORE
CC38 10UF 10V 0805 Y5V
V_CPU_CORE
CC20 10UF 10V 0805 Y5V
MTP7 MTP8 MTP9 MTP10 MTP11 MTP12
1 1 1 1 1 1
V_CPU_CORE
V_CPU_COREV_CPU_CORE
V_CPU_CORE
V_CPU_CORE
V_CPU_CORE
V_CPU_CORE V_CPU_VCCIO V_SA V_SM V_1P8_SFR V_AXG
NEAR CPU
CC8 10UF 10V 0805 Y5V
CC14 10UF 10V 0805 Y5V
CC22 10UF 10V 0805 Y5V
CC27 10UF 10V 0805 Y5V
CC36 10UF 10V 0805 Y5V
20130429 V6.0 Kevin
CC54 10UF 10V 0805 Y5V
V_CPU_CORE
V_CPU_CORE
V_CPU_CORE
V_CPU_CORE
V_CPU_CORE
CC9 10UF 10V 0805 Y5V
CC15 10UF 10V 0805 Y5V
CC23 10UF 10V 0805 Y5V
CC28 10UF 10V 0805 Y5V
CC37 10UF 10V 0805 Y5V
BCC19 10UF 10V 0805 Y5V /NI
V_CPU_VCCIO V_CPU_VCCIO V_CPU_VCCIO
V_CPU_VCCIO
V_CPU_VCCIO
CC10 10UF 10V 0805 Y5V
CC29 10UF 10V 0805 Y5V
CC48 1UF 10V Y5V 0402
V_CPU_VCCIO
V_CPU_VCCIO
CC11 10UF 10V 0805 Y5V
CC30 10UF 10V 0805 Y5V
CC19 10UF 10V 0805 Y5V /NI
V_CPU_VCCIO
CC16 10UF 10V 0805 Y5V
CC31 1UF 10V Y5V 0402
V_1P8_SFR
V_SA
V_CPU_VCCIO
V_SA
CC45 10UF 10V 0805 Y5V
AG33
AJ16 AJ17 AJ26 AJ28
AJ32 AK15 AK17 AK19 AK21 AK23 AK27 AK29 AK30
AK11 AK12
M13
A11
A7 AA3 AB8 AF8
B9 D10
D6
E3
E4
G3
G4
J3
J4
J7
J8
L3
L4
L7
N3
N4
N7
R3
R4
R7
U3
U4
U7
V8
W3
H10 H11 H12
J10 K10 K11 L11 L12
M10 M11 M12
V_SA
CPU1H
BIOSTAR_D V1_4
VCCIO_34 VCCIO_01
VCCIO_02 VCCIO_03 VCCIO_04 VCCIO_05 VCCIO_06 VCCIO_07 VCCIO_08 VCCIO_09 VCCIO_10 VCCIO_11 VCCIO_12 VCCIO_13 VCCIO_14 VCCIO_15 VCCIO_16 VCCIO_17 VCCIO_18 VCCIO_19 VCCIO_20 VCCIO_21 VCCIO_22 VCCIO_23 VCCIO_24 VCCIO_25 VCCIO_26 VCCIO_27 VCCIO_28 VCCIO_29 VCCIO_30 VCCIO_31 VCCIO_32 VCCIO_33 VCCIO_35 VCCIO_36 VCCIO_37 VCCIO_38 VCCIO_39 VCCIO_40 VCCIO_41 VCCIO_42 VCCIO_43 VCCIO_44 VCCIO_45
VCCSA_01 VCCSA_02 VCCSA_03 VCCSA_04 VCCSA_05 VCCSA_06 VCCSA_07 VCCSA_08 VCCSA_09 VCCSA_10 VCCSA_11
VCCPLL_01 VCCPLL_02
LGA 1155 SOCKET
CC46 10UF 10V 0805 Y5V
VDDQ_01 VDDQ_02 VDDQ_04 VDDQ_05 VDDQ_06 VDDQ_07 VDDQ_08 VDDQ_09 VDDQ_10 VDDQ_11 VDDQ_12 VDDQ_13 VDDQ_14 VDDQ_15 VDDQ_16 VDDQ_17 VDDQ_18 VDDQ_19 VDDQ_20 VDDQ_21 VDDQ_22 VDDQ_23
VDDQ_03
POWER
8/10
V_1P8_SFR
V_SM
AJ13 AJ14 AJ23 AJ24 AR20 AR21 AR22 AR23 AR24 AU19 AU23 AU27 AU31 AV21 AV24 AV25 AV29 AV33 AW31 AY23 AY26 AY28
AJ20
CC25 10UF 10V 0805 Y5V
V_SM
CC5 10UF 10V 0805 Y5V
V_SM
CC12 10UF 10V 0805 Y5V
V_SM
CC17 10UF 10V 0805 Y5V
V_AXG
BCC7 10UF 10V 0805 Y5V /NI
V_AXG V_AXGV_AXG
CC42 22UF 6.3V X5R 0805
20130506 V6.0 Kevin
V_AXG
CPU1G
BIOSTAR_D V1_4
7/10
LGA 1155 SOCKET
BCC39 10UF 10V 0805 Y5V /NI
CC43 10UF 10V 0805 Y5V
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
CC40 22UF 6.3V X5R 0805
20130506 V6.0 Kevin
CC44 10UF 10V 0805 Y5V
CPU POWER
CPU POWER
CPU POWER
IB75F-MHS
IB75F-MHS
IB75F-MHS
VCCAXG_01 VCCAXG_02 VCCAXG_03 VCCAXG_04 VCCAXG_05 VCCAXG_06 VCCAXG_07 VCCAXG_08 VCCAXG_09 VCCAXG_10 VCCAXG_11 VCCAXG_12 VCCAXG_13 VCCAXG_14 VCCAXG_15 VCCAXG_16 VCCAXG_17 VCCAXG_18 VCCAXG_19 VCCAXG_20 VCCAXG_21 VCCAXG_22 VCCAXG_23 VCCAXG_24 VCCAXG_25 VCCAXG_26 VCCAXG_27 VCCAXG_28 VCCAXG_29 VCCAXG_30 VCCAXG_31 VCCAXG_32 VCCAXG_33 VCCAXG_34 VCCAXG_35 VCCAXG_36 VCCAXG_37 VCCAXG_38 VCCAXG_39 VCCAXG_40 VCCAXG_41 VCCAXG_42 VCCAXG_43 VCCAXG_44
AB33 AB34 AB35 AB36 AB37 AB38 AB39 AB40 AC33 AC34 AC35 AC36 AC37 AC38 AC39 AC40 T33 T34 T35 T36 T37 T38 T39 T40 U33 U34 U35 U36 U37 U38 U39 U40 W33 W34 W35 W36 W37 W38 Y33 Y34 Y35 Y36 Y37 Y38
V_AXGV_AXG
CC41 10UF 10V 0805 Y5V
V_AXG
CC47 10UF 10V 0805 Y5V
8 43Thursday, May 16, 2013
8 43Thursday, May 16, 2013
8 43Thursday, May 16, 2013
V_AXG
A
6.0
6.0
6.0
5
DCC
A
www.teknisi-indonesia.com
www.teknisi-indonesia.com
M_DQS_A_DN05 M_DQS_A_DP05 M_DQS_A_DN15 M_DQS_A_DP15 M_DQS_A_DN25 M_DQS_A_DP25 M_DQS_A_DN35 M_DQS_A_DP35
D
M_MAA_A[0..15]5
M_DQS_A_DN45 M_DQS_A_DP45 M_DQS_A_DN55 M_DQS_A_DP55 M_DQS_A_DN65 M_DQS_A_DP65 M_DQS_A_DN75 M_DQS_A_DP75
SMB_DATA_MAIN10,34 SMB_CLK_MAIN10,34
M_MAA_A[0..15]
B B
M_SBS_A25
M_DQS_A_DN0 M_DQS_A_DP0 M_DQS_A_DN1 M_DQS_A_DP1 M_DQS_A_DN2 M_DQS_A_DP2 M_DQS_A_DN3 M_DQS_A_DP3 M_DQS_A_DN4 M_DQS_A_DP4 M_DQS_A_DN5 M_DQS_A_DP5 M_DQS_A_DN6 M_DQS_A_DP6 M_DQS_A_DN7 M_DQS_A_DP7
SMB_DATA_MAIN SMB_CLK_MAIN
M_MAA_A0 M_MAA_A1 M_MAA_A2 M_MAA_A3 M_MAA_A4 M_MAA_A5 M_MAA_A6 M_MAA_A7 M_MAA_A8 M_MAA_A9 M_MAA_A10 M_MAA_A11 M_MAA_A12 M_MAA_A13 M_MAA_A14 M_MAA_A15 M_SBS_A2
DDR3_A1A
6
DQS0-
7
DQS0
15
DQS1-
16
DQS1
24
DQS2-
25
DQS2
33
DQS3-
34
DQS3
84
DQS4-
85
DQS4
93
DQS5-
94
DQS5
102
DQS6-
103
DQS6
111
DQS7-
112
DQS7
42
DQS8-
43
DQS8
125
DQS9
126
DQS9-
134
DQS10
135
DQS10-
143
DQS11
144
DQS11-
152
DQS12
153
DQS12-
203
DQS13
204
DQS13-
212
DQS14
213
DQS14-
221
DQS15
222
DQS15-
230
DQS16
231
DQS16-
161
DQS17
162
DQS17-
39
CB0
40
CB1
45
CB2
46
CB3
158
CB4
159
CB5
164
CB6
165
CB7
79
RSVD
238
SDA
118
SCL
188
A0
181
A1
61
A2
180
A3
59
A4
58
A5
178
A6
56
A7
177
A8
175
A9
70
A10
55
A11
174
A12
196
A13
172
A14
171
A15
52
A16/BA2
DDR3-240 PIN-B-D
20130425 V6.0 Kevin
BLACK
4
DQ63 DQ62 DQ61 DQ60 DQ59 DQ58 DQ57 DQ56 DQ55 DQ54 DQ53 DQ52 DQ51 DQ50 DQ49 DQ48 DQ47 DQ46 DQ45 DQ44 DQ43 DQ42 DQ41 DQ40 DQ39 DQ38 DQ37 DQ36 DQ35 DQ34 DQ33 DQ32 DQ31 DQ30 DQ29 DQ28 DQ27 DQ26 DQ25 DQ24 DQ23 DQ22 DQ21 DQ20 DQ19 DQ18 DQ17 DQ16 DQ15 DQ14 DQ13 DQ12 DQ11 DQ10
DQ9 DQ8 DQ7 DQ6 DQ5 DQ4 DQ3 DQ2 DQ1 DQ0
NC/PAR_IN
NC/ERR_OUT
NC/TEST4
234 233 228 227 115 114 109 108 225 224 219 218 106 105 100 99 216 215 210 209 97 96 91 90 207 206 201 200 88 87 82 81 156 155 150 149 37 36 31 30 147 146 141 140 28 27 22 21 138 137 132 131 19 18 13 12 129 128 123 122 10 9 4 3 68 53 167
M_DATA_A63 M_DATA_A62 M_DATA_A61 M_DATA_A60 M_DATA_A59 M_DATA_A58 M_DATA_A57 M_DATA_A56 M_DATA_A55 M_DATA_A54 M_DATA_A53 M_DATA_A52 M_DATA_A51 M_DATA_A50 M_DATA_A49 M_DATA_A48 M_DATA_A47 M_DATA_A46 M_DATA_A45 M_DATA_A44 M_DATA_A43 M_DATA_A42 M_DATA_A41 M_DATA_A40 M_DATA_A39 M_DATA_A38 M_DATA_A37 M_DATA_A36 M_DATA_A35 M_DATA_A34 M_DATA_A33 M_DATA_A32 M_DATA_A31 M_DATA_A30 M_DATA_A29 M_DATA_A28 M_DATA_A27 M_DATA_A26 M_DATA_A25 M_DATA_A24 M_DATA_A23 M_DATA_A22 M_DATA_A21 M_DATA_A20 M_DATA_A19 M_DATA_A18 M_DATA_A17 M_DATA_A16 M_DATA_A15 M_DATA_A14 M_DATA_A13 M_DATA_A12 M_DATA_A11 M_DATA_A10 M_DATA_A9 M_DATA_A8 M_DATA_A7 M_DATA_A6 M_DATA_A5 M_DATA_A4 M_DATA_A3 M_DATA_A2 M_DATA_A1 M_DATA_A0
M_DATA_A[0..63]
DDR3_DRAMRST_N5,10
M_SCS_A_N05 M_SCS_A_N15
CK_M_DDR1_A_DN5 CK_M_DDR1_A_DP5 CK_M_DDR0_A_DN5 CK_M_DDR0_A_DP5
3
M_DATA_A[0..63] 5
0.1UF 16V Y5V 0402
M_SCKE_A05 M_SCKE_A15
M_SBS_A05 M_SBS_A15
M_WE_A_N5 M_RAS_A_N5 M_CAS_A_N5
M_ODT_A05 M_ODT_A15
V_SM
VCC3_3
DIMM_CA_VREF DIMM_DQ_VREF_A
MC40
M_SBS_A0 M_SBS_A1
DDR3_DRAMRST_N M_WE_A_N M_RAS_A_N M_CAS_A_N
DDR3_A1B
51
VDDQ1 (P)
54
VDDQ2 (P)
57
VDDQ3 (P)
60
VDDQ4 (P)
62
VDDQ5 (P)
65
VDDQ6 (P)
66
VDDQ7 (P)
69
VDDQ8 (P)
72
VDDQ9 (P)
75
VDDQ10 (P)
78
VDDQ11 (P)
170
VDD1 (P)
173
VDD2 (P)
176
VDD3 (P)
179
VDD4 (P)
182
VDD5 (P)
183
VDD6 (P)
186
VDD7(P)
189
VDD8(P)
191
VDD9(P)
194
VDD10(P)
197
VDD11(P)
236
VDDSPD(P)
67
VREFCA
1
VREFDQ
117
SA0
237
SA1
50
CKE0
169
CKE1
71
BA0
190
BA1
168
RESET
73
WE-
192
RAS-
74
CAS-
193
S-0
76
S-1
195
ODT0
77
ODT1
64
CK-1
63
CK1
185
CK-0
184
CK0
48
FREE1
49
FREE2
187
FREE3
198
FREE4
DDR3-240 PIN-B-D
20130425 V6.0 Kevin
VSS1(P) VSS2(P) VSS3(P) VSS4(P) VSS5(P) VSS6(P) VSS7(P) VSS8(P)
VSS9(P) VSS10(P) VSS11(P) VSS12(P) VSS13(P) VSS60(P) VSS14(P) VSS15(P) VSS16(P) VSS17(P) VSS18(P) VSS19(P) VSS20(P) VSS21(P) VSS22(P) VSS23(P) VSS24(P) VSS25(P) VSS26(P) VSS27(P) VSS28(P) VSS29(P) VSS30(P) VSS31(P) VSS32(P) VSS33(P) VSS34(P) VSS35(P) VSS36(P) VSS37(P) VSS38(P) VSS39(P) VSS40(P) VSS41(P) VSS42(P) VSS43(P) VSS44(P) VSS45(P) VSS46(P) VSS47(P) VSS48(P) VSS49(P) VSS50(P) VSS51(P) VSS52(P) VSS53(P) VSS54(P) VSS55(P) VSS56(P) VSS57(P) VSS58(P) VSS59(P)
VTT VTT
2
2 5 8 11 14 17 20 23 26 29 32 35 38 41 44 47 80 83 86 92 95 98 101 104 107 110 113 116 119 121 124 127 130 133 136 139 142 145 148 151 154 157 160 163 166 199 202 205 208 211 214 217 220 223 226 229 232 235 239 89
120 240
V_SM
V_SM_VTT
VCC3_3
V_SM_VTT
Near DDR3_A1
MC2 1UF 10V Y5V 0402
MC7 1UF 10V Y5V 0402
MC6 0.1UF 16V Y5V 0402
MC14 10UF 10V 0805 Y5V
MC15 0.1UF 16V Y5V 0402
DDR3_DRAMRST_N SMB_DATA_MAIN SMB_CLK_MAIN
MC3
100P 50V NPO 0402 /NI
100P 50V NPO 0402 /NI
MC4
1
MC5
100P 50V NPO 0402 /NI
MR1 1K 1% 0402
DIMM_DQ_VREF_A
MR4 1K 1% 0402
5
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
for Ivy bridge processor support
MC11
0.1UF 16V Y5V 0402
4
V_SMV_SM
MR5 1K 1% 0402
DQA_VREF 7 DIMM_CA_VREF 10
MR6 1K 1% 0402
Near DIMM Slot
DIMM_CA_VREF
MC16
1UF 10V Y5V 0402
MC17
0.1UF 16V Y5V 0402
3
A
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
2
DDR2 DIMMA1
DDR2 DIMMA1
DDR2 DIMMA1
IB75F-MHS
IB75F-MHS
IB75F-MHS
1
6.0
6.0
6.0
9 43Thursday, May 16, 2013
9 43Thursday, May 16, 2013
9 43Thursday, May 16, 2013
5
DCC
A
www.teknisi-indonesia.com
M_DQS_B_DN06 M_DQS_B_DP06 M_DQS_B_DN16 M_DQS_B_DP16 M_DQS_B_DN26 M_DQS_B_DP26 M_DQS_B_DN36
SMB_DATA_MAIN9,34 SMB_CLK_MAIN9,34
M_DQS_B_DP36 M_DQS_B_DN46 M_DQS_B_DP46 M_DQS_B_DN56 M_DQS_B_DP56 M_DQS_B_DN66 M_DQS_B_DP66 M_DQS_B_DN76 M_DQS_B_DP76
M_MAA_B[0..15]
D
M_MAA_B[0..15]6
B B
M_SBS_B26
M_DQS_B_DN0 M_DQS_B_DP0 M_DQS_B_DN1 M_DQS_B_DP1 M_DQS_B_DN2 M_DQS_B_DP2 M_DQS_B_DN3 M_DQS_B_DP3 M_DQS_B_DN4 M_DQS_B_DP4 M_DQS_B_DN5 M_DQS_B_DP5 M_DQS_B_DN6 M_DQS_B_DP6 M_DQS_B_DN7 M_DQS_B_DP7
SMB_DATA_MAIN SMB_CLK_MAIN
M_MAA_B0 M_MAA_B1 M_MAA_B2 M_MAA_B3 M_MAA_B4 M_MAA_B5 M_MAA_B6 M_MAA_B7 M_MAA_B8 M_MAA_B9 M_MAA_B10 M_MAA_B11 M_MAA_B12 M_MAA_B13 M_MAA_B14 M_MAA_B15 M_SBS_B2
DDR3_B1A
6
DQS0-
7
DQS0
15
DQS1-
16
DQS1
24
DQS2-
25
DQS2
33
DQS3-
34
DQS3
84
DQS4-
85
DQS4
93
DQS5-
94
DQS5
102
DQS6-
103
DQS6
111
DQS7-
112
DQS7
42
DQS8-
43
DQS8
125
DQS9
126
DQS9-
134
DQS10
135
DQS10-
143
DQS11
144
DQS11-
152
DQS12
153
DQS12-
203
DQS13
204
DQS13-
212
DQS14
213
DQS14-
221
DQS15
222
DQS15-
230
DQS16
231
DQS16-
161
DQS17
162
DQS17-
39
CB0
40
CB1
45
CB2
46
CB3
158
CB4
159
CB5
164
CB6
165
CB7
79
RSVD
238
SDA
118
SCL
188
A0
181
A1
61
A2
180
A3
59
A4
58
A5
178
A6
56
A7
177
A8
175
A9
70
A10
55
A11
174
A12
196
A13
172
A14
171
A15
52
A16/BA2
DDR3-240 PIN-B-D
20130425 V6.0 Kevin
4
BLACK
DQ63 DQ62 DQ61 DQ60 DQ59 DQ58 DQ57 DQ56 DQ55 DQ54 DQ53 DQ52 DQ51 DQ50 DQ49 DQ48 DQ47 DQ46 DQ45 DQ44 DQ43 DQ42 DQ41 DQ40 DQ39 DQ38 DQ37 DQ36 DQ35 DQ34 DQ33 DQ32 DQ31 DQ30 DQ29 DQ28 DQ27 DQ26 DQ25 DQ24 DQ23 DQ22 DQ21 DQ20 DQ19 DQ18 DQ17 DQ16 DQ15 DQ14 DQ13 DQ12 DQ11 DQ10
DQ9 DQ8 DQ7 DQ6 DQ5 DQ4 DQ3 DQ2 DQ1 DQ0
NC/PAR_IN
NC/ERR_OUT
NC/TEST4
234 233 228 227 115 114 109 108 225 224 219 218 106 105 100 99 216 215 210 209 97 96 91 90 207 206 201 200 88 87 82 81 156 155 150 149 37 36 31 30 147 146 141 140 28 27 22 21 138 137 132 131 19 18 13 12 129 128 123 122 10 9 4 3 68 53 167
M_DATA_B63 M_DATA_B62 M_DATA_B61 M_DATA_B60 M_DATA_B59 M_DATA_B58 M_DATA_B57 M_DATA_B56 M_DATA_B55 M_DATA_B54 M_DATA_B53 M_DATA_B52 M_DATA_B51 M_DATA_B50 M_DATA_B49 M_DATA_B48 M_DATA_B47 M_DATA_B46 M_DATA_B45 M_DATA_B44 M_DATA_B43 M_DATA_B42 M_DATA_B41 M_DATA_B40 M_DATA_B39 M_DATA_B38 M_DATA_B37 M_DATA_B36 M_DATA_B35 M_DATA_B34 M_DATA_B33 M_DATA_B32 M_DATA_B31 M_DATA_B30 M_DATA_B29 M_DATA_B28 M_DATA_B27 M_DATA_B26 M_DATA_B25 M_DATA_B24 M_DATA_B23 M_DATA_B22 M_DATA_B21 M_DATA_B20 M_DATA_B19 M_DATA_B18 M_DATA_B17 M_DATA_B16 M_DATA_B15 M_DATA_B14 M_DATA_B13 M_DATA_B12 M_DATA_B11 M_DATA_B10 M_DATA_B9 M_DATA_B8 M_DATA_B7 M_DATA_B6 M_DATA_B5 M_DATA_B4 M_DATA_B3 M_DATA_B2 M_DATA_B1 M_DATA_B0
M_DATA_B[0..63]
DIMM_CA_VREF9
0.1UF 16V Y5V 0402
DDR3_DRAMRST_N5,9
CK_M_DDR1_B_DN6 CK_M_DDR1_B_DP6 CK_M_DDR0_B_DN6 CK_M_DDR0_B_DP6
3
M_SCKE_B06 M_SCKE_B16
M_SBS_B06 M_SBS_B16
M_WE_B_N6 M_RAS_B_N6
M_CAS_B_N6 M_SCS_B_N06 M_SCS_B_N16
M_ODT_B06 M_ODT_B16
M_DATA_B[0..63] 6
VCC3_3
DIMM_CA_VREF DIMM_DQ_VREF_B
DIMM_DQ_VREF_B
MC41
VCC3_3
M_SBS_B0 M_SBS_B1
DDR3_DRAMRST_N M_WE_B_N M_RAS_B_N M_CAS_B_N
V_SM
51 54 57 60 62 65 66 69 72 75
78 170 173 176 179 182 183 186 189 191 194 197 236
67
117 237
50 169
71 190
168
73 192
74 193
76 195
77
64
63 185 184
48
49 187 198
DDR3_B1B
VDDQ1 (P) VDDQ2 (P) VDDQ3 (P) VDDQ4 (P) VDDQ5 (P) VDDQ6 (P) VDDQ7 (P) VDDQ8 (P) VDDQ9 (P) VDDQ10 (P) VDDQ11 (P) VDD1 (P) VDD2 (P) VDD3 (P) VDD4 (P) VDD5 (P) VDD6 (P) VDD7(P) VDD8(P) VDD9(P) VDD10(P) VDD11(P) VDDSPD(P)
VREFCA
1
VREFDQ SA0
SA1
CKE0 CKE1
BA0 BA1
RESET WE­RAS­CAS­S-0 S-1
ODT0 ODT1
CK-1 CK1 CK-0 CK0
FREE1 FREE2 FREE3 FREE4
DDR3-240 PIN-B-D
20130425 V6.0 Kevin
VSS10(P) VSS11(P) VSS12(P) VSS13(P) VSS60(P) VSS14(P) VSS15(P) VSS16(P) VSS17(P) VSS18(P) VSS19(P) VSS20(P) VSS21(P) VSS22(P) VSS23(P) VSS24(P) VSS25(P) VSS26(P) VSS27(P) VSS28(P) VSS29(P) VSS30(P) VSS31(P) VSS32(P) VSS33(P) VSS34(P) VSS35(P) VSS36(P) VSS37(P) VSS38(P) VSS39(P) VSS40(P) VSS41(P) VSS42(P) VSS43(P) VSS44(P) VSS45(P) VSS46(P) VSS47(P) VSS48(P) VSS49(P) VSS50(P) VSS51(P) VSS52(P) VSS53(P) VSS54(P) VSS55(P) VSS56(P) VSS57(P) VSS58(P) VSS59(P)
VSS1(P) VSS2(P) VSS3(P) VSS4(P) VSS5(P) VSS6(P) VSS7(P) VSS8(P) VSS9(P)
VTT VTT
2
2 5 8 11 14 17 20 23 26 29 32 35 38 41 44 47 80 83 86 92 95 98 101 104 107 110 113 116 119 121 124 127 130 133 136 139 142 145 148 151 154 157 160 163 166 199 202 205 208 211 214 217 220 223 226 229 232 235 239 89
120 240
V_SM_VTT
Near DDR3_B1
V_SM
MC8 0.1UF 16V Y5V 0402
MC23 1UF 10V Y5V 0402
MC26 0.1UF 16V Y5V 0402
Near CPU
V_SM
MC19 10UF 10V 0805 Y5V
MC21 10UF 10V 0805 Y5V
MC9 0.1UF 16V Y5V 0402
MC12 0.1UF 16V Y5V 0402
V_SM_VTT
MC28 0.1UF 16V Y5V 0402
MC29 0.1UF 16V Y5V 0402
1
5
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
4
V_SM
3
MR7 1K 1% 0402
DIMM_DQ_VREF_B
MR10 1K 1% 0402
for Ivy bridge processor support
DQB_VREF 7
MC25
0.1UF 16V Y5V 0402
2
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
DDR2 DIMMB1
DDR2 DIMMB1
DDR2 DIMMB1
IB75F-MHS
IB75F-MHS
IB75F-MHS
10 43Thursday, May 16, 2013
10 43Thursday, May 16, 2013
10 43Thursday, May 16, 2013
1
A
6.0
6.0
6.0
5
www.teknisi-indonesia.com
+3V3_DUAL
D D
C C
YR1 2.7K 0402 /NI
VCC3_3
YR6 4.7K 0402 YR94 2.7K 0402
YR97 2.7K 0402 YR79 2.7K 0402 YR54 2.7K 0402 YR87 2.7K 0402 YR14 2.7K 0402 YR72 2.7K 0402 YR13 2.7K 0402
YR7 8.2K 0402 YR116 8.2K 0402 YR117 8.2K 0402 YR118 8.2K 0402
YR61 8.2K 0402 YR78 8.2K 0402 YR60 8.2K 0402 YR99 8.2K 0402 YR73 8.2K 0402 YR42 8.2K 0402 YR103 8.2K 0402 YR98 8.2K 0402
PME_N
PCIRST# DEVSEL_N
IRDY_N SERR_N STOP_N PLOCK_N TRDY_N PERR_N FRAME_N
REQ_N0 REQ_N1 REQ_N2 REQ_N3
PIRQJA PIRQJB PIRQJC PIRQJD PIRQJE PIRQJF PIRQJG PIRQJH
12/14
4
PAR DEVSEL_N
CK_PCH_33M_FB PCIRST#
IRDY_N PME_N SERR_N STOP_N PLOCK_N TRDY_N PERR_N FRAME_N
GNT_N0
REQ_N0 REQ_N1 REQ_N2 REQ_N3
PIRQJA PIRQJB PIRQJC PIRQJD PIRQJE PIRQJF PIRQJG PIRQJH
CK_PCH_33M_FB17
12/8
PAR22 DEVSEL_N22
PCIRST#22 IRDY_N22 PME_N22 SERR_N22 STOP_N22 PLOCK_N22 TRDY_N22 PERR_N22 FRAME_N22
GNT_N022
REQ_N022
PIRQJE22 PIRQJF22 PIRQJG22 PIRQJH22
3
PCH1-1
BIOSTAR-D VER:1.2
BH8
BH9 BD15 AV14
BF11
AV15
BR6 BC12 BA17
BC8
BM3 BC11
+Panther Point VER:0.5
PAR DEVSEL# CLKIN_PCILOOPBACK PCIRST# IRDY# PME# SERR# STOP# PLOCK# TRDY# PERR# FRAME#
PCI
BA15
GNT0#
AV8
GNT1#_GPIO51
BU12
GNT2#_GPIO53
BE2
GNT3#_GPIO55
BG5
REQ0#
BT5
REQ1#_GPIO50
BK8
REQ2#_GPIO52
AV11
REQ3#_GPIO54
BK10
PIRQA#
BJ5
PIRQB#
BM15
PIRQC#
BP5
PIRQD#
BN9
PIRQE#_GPIO2
AV9
PIRQF#_GPIO3
BT15
PIRQG#_GPIO4
BR4
PIRQH#_GPIO5
AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD7 AD8
AD9 AD10 AD11 AD12 AD13 AD14 AD15 AD16 AD17 AD18 AD19 AD20 AD21 AD22 AD23 AD24 AD25 AD26 AD27 AD28 AD29 AD30 AD31
C_BE0# C_BE1# C_BE2# C_BE3#
2
AD[31:0] 22
BF15 BF17 BT7 BT13 BG12 BN11 BJ12 BU9 BR12 BJ3 BR9 BJ10 BM8 BF3 BN2 BE4 BE6 BG15 BC6 BT11 BA14 BL2 BC4 BL4 BC2 BM13 BA9 BF9 BA8 BF8 AV17 BK12
BN4 BP7 BG2 BP13
AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD7 AD8 AD9 AD10 AD11 AD12 AD13 AD14 AD15 AD16 AD17 AD18 AD19 AD20 AD21 AD22 AD23 AD24 AD25 AD26 AD27 AD28 AD29 AD30 AD31
C_BE_N0 C_BE_N1 C_BE_N2 C_BE_N3
C_BE_N0 22 C_BE_N1 22 C_BE_N2 22 C_BE_N3 22
1
1/10
B B
PANTHERPOINT-B75
WEAK INTERNAL PULLOPS ON GNT*.DEFAULT SPI BOOT DEVICE
GNT1
0 0
1
A A
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
1 1
GNT0/SATA1GP
0
1 0
BOOT DEVICE
LPC
NANO
PCI
SPI
Title
Title
Title
Size
Size
Size
Date: Sheet of
Date: Sheet of
Date: Sheet of
Document Number Rev
Document Number Rev
Document Number Rev
A
A
A
PCH PCI
PCH PCI
PCH PCI
IB75F-MHS
IB75F-MHS
IB75F-MHS
11 43Thursday, May 16, 2013
11 43Thursday, May 16, 2013
11 43Thursday, May 16, 2013
6.0
6.0
6.0
5
DCC
A
www.teknisi-indonesia.com
www.teknisi-indonesia.com
D
DMI_RCOMP W/S=4/8 mils length=0.45''max
V_1P05_PCH
GBEA_RXN27
GBEA_RXP27 GBEA_TXN27 GBEA_TXP27
HSI4_DN22
HSI4_DP22 HSO4_DN22 HSO4_DP22
HSI5_DN22
HSI5_DP22 HSO5_DN22
20130403 V0.6 Kevin
B B
HSO5_DP22
H61:PCIe ports 7 and 8 are disabled.
4
DMI_MT_IR_0_DN4 DMI_MT_IR_0_DP4 DMI_IT_MR_0_DN4
DMI_IT_MR_0_DP4 DMI_MT_IR_1_DN4 DMI_MT_IR_1_DP4
DMI_IT_MR_1_DN4 DMI_IT_MR_1_DP4 DMI_MT_IR_2_DN4 DMI_MT_IR_2_DP4
DMI_IT_MR_2_DN4 DMI_IT_MR_2_DP4 DMI_MT_IR_3_DN4 DMI_MT_IR_3_DP4
DMI_IT_MR_3_DN4 DMI_IT_MR_3_DP4
YR2 49.9 1% 0402
DMI_RCOMP
CK_100M_DMI_PCH_DN CK_100M_DMI_PCH_DP
PCH1-2
D33
DMI0RXN
B33
DMI0RXP
J36
DMI0TXN
H36
DMI0TXP
A36
DMI1RXN
B35
DMI1RXP
P38
DMI1TXN
R38
DMI1TXP
B37
DMI2RXN
C36
DMI2RXP
H38
DMI2TXN
J38
DMI2TXP
E37
DMI3RXN
F38
DMI3RXP
M41
DMI3TXN
P41
DMI3TXP
B31
DMI_IRCOMP
E31
DMI_ZCOMP
P33
CLKIN_DMI_N
R33
CLKIN_DMI_P
J20
PERN1
L20
PERP1
F25
PETN1
F23
PETP1
P20
PERN2
R20
PERP2
C22
PETN2
A22
PETP2
H17
PERN3
J17
PERP3
E21
PETN3
B21
PETP3
P17
PERN4
M17
PERP4
F18
PETN4
E17
PETP4
N15
PERN5
M15
PERP5
B17
PETN5
C16
PETP5
J15
PERN6
L15
PERP6
A16
PETN6
B15
PETP6
J12
PERN7
H12
PERP7
F15
PETN7
F13
PETP7
H10
PERN8
J10
PERP8
B13
PETN8
D13
PETP8
PANTHERPOINT-B75
3
BIOSTAR-D VER:1.2
+Panther Point VER:0.5
DMI
USB
USBP10N USBP10P USBP11N USBP11P USBP12N USBP12P USBP13N USBP13P
OC0#_GPIO59 OC1#_GPIO40 OC2#_GPIO41 OC3#_GPIO42 OC4#_GPIO43
OC5#_GPIO9
OC6#_GPIO10
PCIe
OC7#_GPIO14
CLKIN_DOT_96N CLKIN_DOT_96P
2/10
USBRBIAS#
USBRBIAS
DMI2RBIAS
USBP0N USBP0P USBP1N USBP1P USBP2N USBP2P USBP3N USBP3P USBP4N USBP4P USBP5N USBP5P USBP6N USBP6P USBP7N USBP7P USBP8N USBP8P USBP9N USBP9P
BF36 BD36 BC33 BA33 BM33 BM35 BT33 BU32 BR32 BT31 BN29 BM30 BK33 BJ33 BF31 BD31 BN27 BR29 BR26 BT27 BK25 BJ25 BJ31 BK31 BF27 BD27 BJ27 BK27
BM43 BD41 BG41 BK43 BP43 BJ41 BT45 BM45
BP25 BM25
BD38 BF38
A32
2
USB_D0- 32 USB_D0+ 32 USB_D1- 32 USB_D1+ 32 USB_D2- 31 USB_D2+ 31 USB_D3- 31 USB_D3+ 31
H61:USB ports 6, 7, 12 and 13 are disabled. B75:USB ports 6 and 7 are disabled.
USB_D11- 31 USB_D11+ 31 USB_D10- 31 USB_D10+ 31 USB_D9- 32 USB_D9+ 32 USB_D13- 31 USB_D13+ 31 USB_D12- 31 USB_D12+ 31 USB_D8- 32
USB_OC0_R_N USB_OC1_R_N USB_OC2_R_N USB_OC3_R_N USB_OC4_R_N USB_OC5_R_N USB_OC6_R_N USB_OC7_R_N
USBRBIAS_PCH
CK_96M_DREF_DN CK_96M_DREF_DP
DMI2RBIAS
USB_D8+ 32
USBRBIAS_PCH W/S=4/8 mils,length=0.45''max
YR5 22.6 1% 0402
YR8 750 1% 0402
DMI2RBIAS W/S=4/8 mils,length=0.45''max
1
0.1 USB3_0 Port
2.3 JFRONT_USB3_1
USB: (15)12-7.5-4.5-7.5-12(15) 90ohm
8.9 RJ45USB1A
10.11 F_USB1
12.13 F_USB2
FOR ICC
CK_100M_DMI_PCH_DN CK_100M_DMI_PCH_DP
YR9 10K 0402
5
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
4
STUFF YR12 FOR ICC ENABLE MODE STUFF YR11 FOR NON-GRAPHICS SKUS
CK_96M_DREF_DN CK_96M_DREF_DP
YR10 10K 0402
YR11 10K 0402
YR12 10K 0402
3
USB_OC4_R_N USB_OC0_R_N USB_OC7_R_N USB_OC6_R_N
USB_OC3_R_N USB_OC1_R_N USB_OC5_R_N USB_OC2_R_N
YRN6
8.2K 8P4R 0402
12 34 56 78
YRN7
8.2K 8P4R 0402
78 56 34 12
+3V3_DUAL
A
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
2
PCH DMI/PCIE/USB
PCH DMI/PCIE/USB
PCH DMI/PCIE/USB
IB75F-MHS
IB75F-MHS
IB75F-MHS
12 43Thursday, May 16, 2013
12 43Thursday, May 16, 2013
12 43Thursday, May 16, 2013
1
6.0
6.0
6.0
5
DCC
A
www.teknisi-indonesia.com
12/6
BA50
BF50
BF49 BC46 BN21
BT21 BM20 BN19
BT17 BR19 BA22 BR16 BU16 BM18 BN17 BP15
BC43
BA53 BE54
BF55
AW53
AY20
12/12
PCH_MEPWROK42
PWRGD_3V14,28,34
YR113 0 0402
YR114 0 0402 /NI
D
11/25
VCC3_3
SST_CTRL28
VCC3_3
VCC3_3
B B
YRN8
8.2K 8P4R 0402
12 34 56 78
YRN9
8.2K 8P4R 0402
12 34 56 78
YR20 10K 0402
YR22 1K 0402 /NI
SATA0GP SATA1GP
CDC_DWN_DISABLE PCH_GP37
SATA4GP SATA5GP A20GATE
KBRST_N SER_IRQ PCH_CONFIG_JUMPER
INIT3_3VB PCH_GP37
YR21 10K 0402
YR23 1K 0402 /NI
GPIO69 GPIO1 GPIO70 GPIO17
GPIO7 GPIO68 GPIO6
YR26 8.2K 0402 YR27 8.2K 0402 /NI YR28 8.2K 0402 /NI YR29 8.2K 0402 /NI
YR31 8.2K 0402 YR32 8.2K 0402 YR33 8.2K 0402 YR34 8.2K 0402 YR36 8.2K 0402
YR37 1K 0402 /NI YR38 1K 0402 /NI
GPIO17 GPIO1 GPIO6 GPIO7 GPIO68 GPIO69 GPIO70 GPIO71
PCH_CONFIG_JUMPER GP38_CRB_DETECT GP39_GFX_CRB_DETECT GP48_CRB_DETECT
YR35 10K 0402
GP38_CRB_DETECT GP39_GFX_CRB_DETECT GP48_CRB_DETECT
YR41 1K 0402 /NI
VCC3_3
4
PCH1-3
BIOSTAR-D VER:1.2
+Panther Point VER:0.5
CLINK
CK_CLK1 CL_DATA1 CL_RST1#
APWROK PWM0
PWM1 PWM2
FAN
PWM3 TACH0_GPIO17
TACH1_GPIO1 TACH2_GPIO6 TACH3_GPIO7 TACH4_GPIO68 TACH5_GPIO69 TACH6_GPIO70 TACH7_GPIO71
SST
SCLOCK_GPIO22 SLOAD_GPIO38 SDATAOUT0_GPIO39 SDATAOUT1_GPIO48
GPIO
NC_5
PANTHERPOINT-B75
3
SATA_RXN0
TP16
A20GATE
INIT3_3V#
RCIN#
SERIRQ
PECI
AC56 AB55 AE46 AE44 AA53 AA56 AG49 AG47
AL50 AL49 AL56 AL53 AN46 AN44 AN56 AM55 AN49 AN50 AT50 AT49 AT46 AT44 AV50 AV49
AF55 AG56
BF57 AJ55 AJ53
BC54 AY52 BB55 BG53 AU56 BA56
AE54 AE52
AE50 AC52
BB57 BN56 BG56 AV52 E56 H48 F55
SATA_RXP0 SATA_TXN0 SATA_TXP0 SATA_RXN1 SATA_RXP1 SATA_TXN1 SATA_TXP1
SATA_RXN2 SATA_RXP2 SATA_TXN2 SATA_TXP2 SATA_RXN3 SATA_RXP3 SATA_TXN3 SATA_TXP3 SATA_RXN4 SATA_RXP4 SATA_TXN4 SATA_TXP4 SATA_RXN5 SATA_RXP5 SATA_TXN5 SATA_TXP5
CK_SATA_PCH_DN CK_SATA_PCH_DP
PCH_SATA_LED_N
SATARBIAS_PCH
SATA0GP SATA1GP
CDC_DWN_DISABLE PCH_GP37
SATA4GP SATA5GP
SATA3COMP_PCH
RBIAS_SATA3
A20GATE
INIT3_3VB
KBRST_N SER_IRQ H_THERMTRIP_N
H_PM_SYNC_0
CK_SATA_PCH_DP CK_SATA_PCH_DN
20130403 V0.6 Kevin
PCH_SATA_LED_N 33
YR17 37.4 1% 0402
SATARBIAS_PCH W/S=4/8 mils,length=450 mils max
SATA3COMP_PCH W/S=4/8 mils,length=450 mils max
YR18 49.9 1% 0402
YR19 750 1% 0402
A20GATE 28 KBRST_N 28
SER_IRQ 28 H_THERMTRIP_N 7
H_PM_SYNC_0 7
YR24 10K 0402 YR25 10K 0402
FOR ICC
SATA0RXN SATA0RXP SATA0TXN
SATA3
SATA2
HOST
3/10
SATA0TXP SATA1RXN SATA1RXP SATA1TXN
SATA1TXP SATA2RXN
SATA2RXP SATA2TXN
SATA2TXP SATA3RXN SATA3RXP SATA3TXN
SATA3TXP SATA4RXN SATA4RXP SATA4TXN
SATA4TXP SATA5RXN SATA5RXP SATA5TXN
SATA5TXP
CLKIN_SATA_N CLKIN_SATA_P
SATALED#
SATAICOMPI
SATAICOMPO
SATA0GP_GPIO21 SATA1GP_GPIO19 SATA2GP_GPIO36 SATA3GP_GPIO37 SATA4GP_GPIO16 SATA5GP_GPIO49
SATA3COMPI
SATA3RCOMPO
SATA3RBIAS
THRMTRIP#
PMSYNCH
Interleaved TX and RX pairs so that no RX pair is adjacent to two TX pairs
SATA 0,1 support SATA3.0,6 Gb/S,all ports supporting 3 and 1.5 Gb/s. eSATA support only at 3 & 1.5
Gb/s
2
11/25
SATA_RXP0 SSATA_RXP0 SATA_RXN0
SATA_TXN0 SATA_TXP0
C1 0.01UF 25V X7R 0402 C2 0.01UF 25V X7R 0402
C3 0.01UF 25V X7R 0402 C4 0.01UF 25V X7R 0402
SSATA_RXN0 SSATA_TXN0
SSATA_TXP0
1
SATA1 SATA CONNECTOR-B
7 6 5 4 3 2 1
G3 RX+ RX­G2 TX­TX+ G1
H2 H1
20130425 V6.0 Kevin
H2 H1
KEY
SATA1/2/3/4/5/6: 15-4.5-7.5-4.5-15 90ohm
SATA_RXP1
SATA_TXN1 SATA_TXP1
C5 0.01UF 25V X7R 0402 C6 0.01UF 25V X7R 0402
C7 0.01UF 25V X7R 0402 C8 0.01UF 25V X7R 0402YR104 8.2K 0402
SSATA_RXP1 SSATA_RXN1SATA_RXN1
SSATA_TXN1 SSATA_TXP1
SATA2 SATA CONNECTOR-B
7 6 5 4 3 2 1
G3 RX+ RX­G2 TX­TX+ G1
H2 H1
20130425 V6.0 Kevin
H2 H1
KEY
V_1P05_PCH
SATA_RXN2 SATA_TXN2
SATA_TXP2
C17 0.01UF 25V X7R 0402 C18 0.01UF 25V X7R 0402
C19 0.01UF 25V X7R 0402 C20 0.01UF 25V X7R 0402
SSATA_RXP2SATA_RXP2 SSATA_RXN2
SSATA_TXN2 SSATA_TXP2
SATA3 SATA CONNECTOR-B
7 6 5 4 3 2 1
G3 RX+ RX­G2 TX­TX+ G1
H2 H1
20130425 V6.0 Kevin
H2 H1
KEY
V_1P05_PCH
SATA_RXN3 SATA_TXN3 SSATA_TXN3
SATA_TXP3
20130403 V0.6 Kevin
SATA_RXN4 SATA_TXN4 SSATA_TXN4
SATA_TXP4
C22 0.01UF 25V X7R 0402 C21 0.01UF 25V X7R 0402
C24 0.01UF 25V X7R 0402 C23 0.01UF 25V X7R 0402
C30 0.01UF 25V X7R 0402 C25 0.01UF 25V X7R 0402
C29 0.01UF 25V X7R 0402 C31 0.01UF 25V X7R 0402
SSATA_RXP3SATA_RXP3 SSATA_RXN3
SSATA_TXP3
SSATA_RXP4SATA_RXP4 SSATA_RXN4
SSATA_TXP4
SATA4 SATA CONNECTOR-B
7 6 5 4 3 2 1
SATA5 SATA CONNECTOR-B
7 6 5 4 3 2 1
G3 RX+ RX­G2 TX­TX+ G1
G3 RX+ RX­G2 TX­TX+ G1
H2 H1
KEY
H2 H1
20130425 V6.0 Kevin
H2 H1
20130425 V6.0 Kevin
H2 H1
KEY
SATA_RXN5 SATA_TXN5 SSATA_TXN5
SATA_TXP5
C34 0.01UF 25V X7R 0402 C32 0.01UF 25V X7R 0402
C33 0.01UF 25V X7R 0402YR30 8.2K 0402 C35 0.01UF 25V X7R 0402
SSATA_RXP5SATA_RXP5 SSATA_RXN5
SSATA_TXP5
SATA6 SATA CONNECTOR-B
7 6 5 4 3 2 1
G3 RX+ RX­G2 TX­TX+ G1
20130425 V6.0 Kevin
H2
H2
H1
H1
KEY
A
5
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
4
Title
Title
Title
Size
Size
Size
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
3
2
PCH CLINK/SATA/CPU HOST
PCH CLINK/SATA/CPU HOST
PCH CLINK/SATA/CPU HOST
Document Number Rev
Document Number Rev
Document Number Rev
IB75F-MHS
IB75F-MHS
IB75F-MHS
13 43Thursday, May 16, 2013
13 43Thursday, May 16, 2013
13 43Thursday, May 16, 2013
1
6.0
6.0
6.0
5
DCC
A
www.teknisi-indonesia.com
www.teknisi-indonesia.com
BA20
D
AUD_LINK_BCLK25
AUD_LINK_RST_N25
AUD_LINK_SDI225
AUD_LINK_SDO25
AUD_LINK_SYNC25
PCH_RTCRST_PULLUP19
B B
SMB_DATA_RESUME21,22,34
RTC CRYSTAL
L_DRQ_N28
L_FRAME_N28
SPI_MOSI19 SPI_MISO19
SPI_CS0_N19
SPI_CLK19
VRTC
PWRGD_3V13,28,34
SIO_RSMRST_N28,34 PCH_DPWROK34
SMB_CLK_RESUME21,22,34
MAIN SMBUS
SML1CLK_PCH28 SML1DATA_PCH28
TO SUPER IO
YR70 10M 0402
YC8
15P 50V NPO 0402
LAD028 LAD128 LAD228 LAD328
YR43 33 0402 YR44 33 0402
YR50 33 0402 YR51 33 0402
YR55 20K 0402 YR56 1M 1% 0402 YR58 390K 1% 0402
YC47 1UF 10V X5R 0402
+3V3_DUAL
YY1
34
32.768KHZ 12.5PF 20PPM
1 2
5
AUD_LINK_BCLK_R AUD_LINK_RST_R_N
AUD_LINK_SDO_R AUD_LINK_SYNC_R
SPI_MOSI SPI_MISO SPI_CS0_N SPI_CLK
PCH_RTCX1 PCH_RTCX2 PCH_RTCRST_PULLUP PCH_SRTCRSTB_PULLUP PCH_INTRUDER_HDR_N
PWRGD_3V SIO_RSMRST_N PCH_INTVRMEN PCH_DPWROK
DSWODVREN
YR62 0 0402 /NI YR63 2.7K 0402
YR64 2.7K 0402
SMLALERT_PCH SMB_CLK_RESUME SMB_DATA_RESUME SML0ALERT_PCH SMLINK0_CLK SMLINK0_DATA SML1ALERT_PCH SML1CLK_PCH SML1DATA_PCH
PCH_RTCX1PCH_RTCX2
YC9
15P 50V NPO 0402
BK15
BJ17
BJ20 BG20 BK17 BG17
BU22 BC22 BD22 BF22 BK22
BJ22 BT23 BP23
AU53 AT55 AT57 AR54 AR56
BR39 BN39 BT41 BN37
BM38
BJ38 BK38 BN41 BT37 BR42
BN49 BT47 BR49 BU49 BT51
BM50
BR46
BJ46 BK46
5
4
PCH1-4
LDRQ1#_GPIO23 FWH0_LAD0 FWH1_LAD1 FWH2_LAD2 FWH3_LAD3 LDRQ0# FWH4_LFRAME#
HDA_BCLK HDA_RST# HDA_SDIN0 HDA_SDIN1 HDA_SDIN2 HDA_SDIN3 HDA_SDO HDA_SYNC
SPI_MOSI SPI_MISO SPI_CS0# SPI_CLK SPI_CS1#
RTCX1 RTCX2 RTCRST# SRTCRST# INTRUDER# PWROK RSMRST# INTVRMEN DPWROK DSWVRMEN
SMBALERT#_GPIO11 SMBCLK SMBDATA SML0ALERT#_GPIO60 SML0CLK SML0DATA SML1ALERT#_PCHHOT#_GPIO74 SML1CLK_GPIO58 SML1DATA_GPIO75
PANTHERPOINT-B75
PCH_GP31_PU PCH_GP27
PCH_GP34 PCH_GP20_PU
BIOSTAR-D VER:1.2
+Panther Point VER:0.5
HDA_DOCK_EN#_GPIO33
LPC
LAN_PHY_PWR_CTRL_GPIO12
HDA_DOCK_RST#_GPIO13
AUDIO
PCIECLKRQ2#_GPIO20 PCIECLKRQ5#_GPIO44 PCIECLKRQ6#_GPIO45 PCIECLKRQ7#_GPIO46
SPI
MISC
SUS_STAT#GPIO61
SUSWARN#-SUS_PWR_DN_ACK-GPIO30
4/10
YR68 8.2K 0402 YR112 8.2K 0402
YR93 8.2K 0402 YR71 8.2K 0402
4
BMBUSY#_GPIO0
CLKRUN#_GPIO32 STP_PCI#_GPIO34
GPIO35
GPIO8
GPIO15
GPIO24_MEM_LED
GPIO28
SLP_LAN#_GPIO29
GPIO57
SYS_PWROK
PLTRST#
WAKE#
SLP_A# SLP_S3# SLP_S4#
SLP_S5#_GPIO63
SUSCLK_GPIO62
BATLOW#_GPIO72
SUSACK#
DRAMPWROK
GPIO27 GPIO31
SLP_SUS#
PWRBTN#
SYS_RESET#
SPKR
PROCPWRGD
TP12
JTAG_TCK
JTAG_TDI JTAG_TDO JTAG_TMS
+3V3_STBY
RI#
VCC3_3
OD PLL VR SUPPLY SEL
1.8V SUPPLY WHEN SAMPLED LOW
1.5V SUPPLY WHEN SAMPLED HIGH
AW55
FP_AUD_DETECT
BC56 BC25
PCH_GP34
BL56 BJ57
GP8_USB3_SMI
BP51
LAN_DISABLE_N
BK50
IO_PME_N
BA25
1_WATT_CTRL_1
BM55
H_SKTOCC_R_N
BP53
V_MINI_PCIE_EN
BJ55 BH49
PCH_GP20_PU
AV43
PCH_GP44
BL54
PCH_GP45
AV44
PCH_GP46
BP55
GP57_SV_DETECT
BT53
VR_RDY
BJ53
PCH_RI
BJ48
PLTRST_N
BK48
WAKE_N
BC44
SLP_M_N
BC41
SLP_S3_N
BM53
SLP_S4_N
BN52 BH50
BN54 BA47
1_WATT_CTRL_2
AV46
SUS_PWR_ACK
BP45
SUS_WARNB
BU46
H_DRAMPWRGD
BG46
PCH_GP27
BJ43
PCH_GP31_PU
BG43
SLP_SUSB
BD43
SW_ON_N
BT43
MASTER_RST#
BE52 BE56
SPKR
H_PWRGD
D53
PCH_JTAG_RST_R
BC49
PCH_JTAG_TCK_FILTER
BA43
PCH_JTAG_TDI
BC52
PCH_JTAG_TDO
BF47
PCH_JTAG_TMS
BC50
SMLINK0_CLK PCH_GP45 SMLINK0_DATA SML0ALERT_PCH SML1ALERT_PCH
PCH_RI SML1CLK_PCH SML1DATA_PCH SMLALERT_PCH
3
AUD_LINK_SYNC_R
EXTERNAL THERMAL EVENT
CHIP_THERM 28 FP_AUD_DETECT 26
IO_PME_N 28
YR48 0 0402 /NI
PCH_RI 29 PLTRST_N 7,28
WAKE_N 21,22,27 SLP_M_N 42 SLP_S3_N 28,34,36 SLP_S4_N 28,37
YR57 0 0402
H_DRAMPWRGD 7
SLP_SUSB 34,35
SW_ON_N 28,35
MASTER_RST#28 SPKR 33
H_PWRGD 7,34
YR66 51 0402
YRN12
8.2K 8P4R 0402
1 2 3 4 5 6 7 8
YRN14
8.2K 8P4R 0402
1 2 3 4 5 6 7 8
YR59 8.2K 0402
+3V3_DUAL
3
+3V3_DUAL
12/12
2
PCH_INTVRMEN
INTEGRATED 1.05V SUS VRM ENABLE SUS VRM ENABLED WHEN SAMPLED HIGH
LAN_DISABLE_N
1_WATT_CTRL_1
V_MINI_PCIE_EN
FP_RST_N 19,28,33
YR46 1K 0402
H_SKTOCC_N 7,34,39
VCC3_3
YR40 1K 0402
YC59
0.1UF 16V Y5V 0402
+3V3_STBY
VR_RDY 34,39
11/30
MASTER_RST#
NO INTEL LAN
LOW:TLS CIPHER SUITE WITH NO CONFIDENTIALITY HIGH:TLS CIPHER SUITE WITH CONFIDENTIALITY
OD PLL VR ENABLE DISABLED WHEN SAMPLED LOW
AUD_LINK_SDO_R
NAND VCCQ PWR WELL SEL POWERRED BY CORE WHEN SAMPLED LOW.STBY WHEN SAMPLED HI CPT FLASH DESCRIPTOR OVERRIDE.HI FOR OVERRIDE
YR106 0 0402 /NI
11/30
ME FW Flash
GP27 : Hi = Disable GP27 : Low = Enable
PCH_GP27
20130409 V0.6 Kevin
PCH_GP44 PCH_GP46 GP8_USB3_SMI
1_WATT_CTRL_2 GP57_SV_DETECT IO_PME_N WAKE_N
YR69 4.7K 0402
3
11223
J1
HEADER 1X3
NAND VCCQ PWR WELL SEL POWERRED BY CORE WHEN SAMPLED LOW.STBY WHEN SAMPLED HI CPT FLASH DESCRIPTOR OVERRIDE.HI FOR OVERRIDE
YRN13
10K 8P4R 0402
1 2 3 4 5 6 7 8
YR109 8.2K 0402
YR110 8.2K 0402 YR47 8.2K 0402 YR111 1K 0402
AUD_LINK_SDO_R
+3V3_DUAL
12/9 SWAP
+3V3_STBY
4.7K 0402 YR75
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
2
YR45 390K 1% 0402
YR49 10K 0402
YR52 1K 0402 /NI
YR53 1K 0402
YR108 1K 0402 /NI
ECB
YQ1
PNP
2N3906 SOT23
YR76 1K 0402
PCH LPC/HDA/SPI/MISC
PCH LPC/HDA/SPI/MISC
PCH LPC/HDA/SPI/MISC
IB75F-MHS
IB75F-MHS
IB75F-MHS
1
+3V3_DUAL
+3V3_DUAL
YR65 20K 0402
YR67 10K 0402
+3V3_DUAL
123456
123456
78
1
VRTC
+3V3_DUAL
+3V3_DUAL
12/6
PCH_JTAG_RST_R
78
YRN10 220 8P4R 0402
PCH_JTAG_TDO
PCH_JTAG_TMS
PCH_JTAG_TDI
YRN11 100 8P4R 0402
14 43Thursday, May 16, 2013
14 43Thursday, May 16, 2013
14 43Thursday, May 16, 2013
6.0
6.0
6.0
A
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
5
DCC
A
www.teknisi-indonesia.com
www.teknisi-indonesia.com

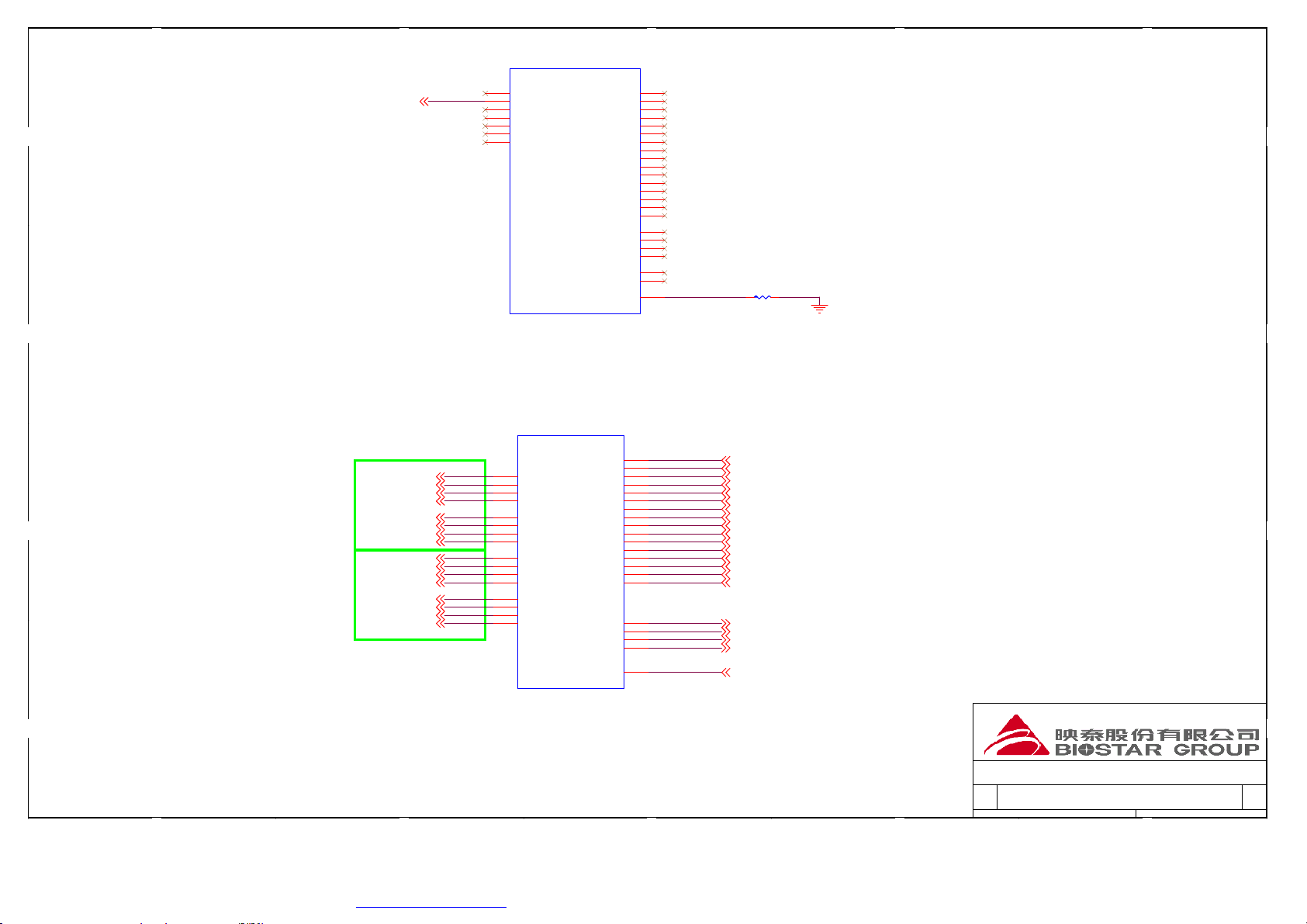

D
DMI/FDI Termination Select
H:For Sandy Bridge L:For Ivy Bridge
1.2 USB3_0 Port
B B
3.4 JFRONT_USB3_1 header
4
PCH1-5
BIOSTAR-D VER:1.2
+Panther Point VER:0.5
M48
RSVD_29
NV_CLE7
USB3_RXN132 USB3_RXP132 USB3_TXN132 USB3_TXP132
USB3_RXN232 USB3_RXP232 USB3_TXN232 USB3_TXP232
USB3_RXN331 USB3_RXP331 USB3_TXN331 USB3_TXP331
USB3_RXN431 USB3_RXP431 USB3_TXN431 USB3_TXP431
R47
DF_TVS
Y41
RSVD_6
M50
RSVD_4
M49
RSVD_3
U43
RSVD_2
J57
RSVD_1
PANTHERPOINT-B75
PCH1-7
+Panther Point VER:0.5
H31
USB3_RXN1
J31
USB3_RXP1
C29
USB3_TXN1
E29
USB3_TXP1
J27
USB3_RXN2
L27
USB3_RXP2
F28
USB3_TXN2
E27
USB3_TXP2
J25
USB3_RXN3
L25
USB3_RXP3
C26
USB3_TXN3
B27
USB3_TXP3
L22
USB3_RXN4
J22
USB3_RXP4
B25
USB3_TXN4
D25
USB3_TXP4
PANTHERPOINT-B75
NVRAM
5/10
BIOSTAR-D VER:1.2
FDI_RXN0 FDI_RXP0 FDI_RXN1 FDI_RXP1 FDI_RXN2 FDI_RXP2 FDI_RXN3 FDI_RXP3 FDI_RXN4 FDI_RXP4 FDI_RXN5 FDI_RXP5 FDI_RXN6 FDI_RXP6 FDI_RXN7 FDI_RXP7
USB3.0
PPT ONLY
FDI_FSYNC0 FDI_LSYNC0 FDI_FSYNC1 FDI_LSYNC1
FDILINK
7/10
FDI_INT
RSVD_22 RSVD_21 RSVD_14 RSVD_13 RSVD_12 RSVD_11 RSVD_10
RSVD_9 RSVD_8
RSVD_7 RSVD_20 RSVD_19 RSVD_18 RSVD_17 RSVD_16 RSVD_15
RSVD_28 RSVD_27 RSVD_26 RSVD_25
RSVD_24 RSVD_23
RSVD_5
C42 B43 F45 F43 H41 J41 C46 D47 B45 A46 B47 C49 J43 H43 M43 P43
B51 E49 C52 D51
H46
3
AB50 Y50 AB49 AB44 U49 R44 U50 U46 U44 H50 K46 L56 J55 F53 H52 E52
K50 K49 AB46 G56
Y44 L53
R50
NV_RCOMP
YR74 33 0402 /NI
FDI_TX_0_DN 4 FDI_TX_0_DP 4 FDI_TX_1_DN 4 FDI_TX_1_DP 4 FDI_TX_2_DN 4 FDI_TX_2_DP 4 FDI_TX_3_DN 4 FDI_TX_3_DP 4 FDI_TX_4_DN 4 FDI_TX_4_DP 4 FDI_TX_5_DN 4 FDI_TX_5_DP 4 FDI_TX_6_DN 4 FDI_TX_6_DP 4 FDI_TX_7_DN 4 FDI_TX_7_DP 4
FDI_FSYNC_0 4 FDI_LSYNC_0 4 FDI_FSYNC_1 4 FDI_LSYNC_1 4
FDI_INT 4
2
1
5
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
4
A
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
3
2
PCH NVRAM & FDI LINK
PCH NVRAM & FDI LINK
PCH NVRAM & FDI LINK
IB75F-MHS
IB75F-MHS
IB75F-MHS
15 43Thursday, May 16, 2013
15 43Thursday, May 16, 2013
15 43Thursday, May 16, 2013
1
6.0
6.0
6.0
5
DCC
A
www.teknisi-indonesia.com
4
3
2
1
D
PCH1-6
BIOSTAR-D VER:1.2
20130403 V0.6 Kevin
DVI PORT
HDMI PORT
20130403 V0.6 Kevin
DDSP_B_TX_0_DP24 DDSP_B_TX_0_DN24 DDSP_B_TX_1_DP24 DDSP_B_TX_1_DN24 DDSP_B_TX_2_DP24 DDSP_B_TX_2_DN24 DDSP_B_TX_3_DP24 DDSP_B_TX_3_DN24
DDSP_D_TX_0_DP23 DDSP_D_TX_0_DN23 DDSP_D_TX_1_DP23 DDSP_D_TX_1_DN23 DDSP_D_TX_2_DP23 DDSP_D_TX_2_DN23 DDSP_D_TX_3_DP23 DDSP_D_TX_3_DN23
20130403 V0.6 Kevin
DDSP_B_HPD24 DDSP_D_HPD23
B B
T1
DDPB_HPD
N2
DDPC_HPD
M1
DDPD_HPD
R8
DDPB_AUXP
R9
DDPB_AUXN
U14
DDPC_AUXP
U12
DDPC_AUXN
N6
DDPD_AUXP
R6
DDPD_AUXN
R14
DDPB_0P
R12
DDPB_0N
M11
DDPB_1P
M12
DDPB_1N
H8
DDPB_2P
K8
DDPB_2N
L5
DDPB_3P
M3
DDPB_3N
L2
DDPC_0P
J3
DDPC_0N
G2
DDPC_1P
G4
DDPC_1N
F3
DDPC_2P
F5
DDPC_2N
E4
DDPC_3P
E2
DDPC_3N
D5
DDPD_0P
B5
DDPD_0N
C6
DDPD_1P
D7
DDPD_1N
B7
DDPD_2P
C9
DDPD_2N
E11
DDPD_3P
B11
DDPD_3N
U2
SDVO_INTP
T3
SDVO_INTN
W3
SDVO_STALLP
U5
SDVO_STALLN
U8
SDVO_TVCLKINP
U9
SDVO_TVCLKINN
PANTHERPOINT-B75
+Panther Point VER:0.5
CRT_HSYNC CRT_VSYNC
CRT_RED
CRT_GREEN
CRT_BLUE
CRT_IRTN
CRT_DDC_DATA
CRT_DDC_CLK
DAC_IREF
DDPC_CTRLCLK
DDPC_CTRLDATA
DDPD_CTRLCLK
DDPD_CTRLDATA
SDVO_CTRLCLK
SDVO_CTRLDATA
6/10
TP6 TP7 TP8 TP9
AR4 AR2
AN6 AN2 AM1
AM6
AW1 AW3
VGA_DACREFSET
AT3
VGA_DACREFSET W/S=4/6 mils,length=500 mils max
Y18 Y17 AB18 AB17
AL12 AL14
AL9 AL8
AL15 AL17
YR77 1K 1% 0402
VGA_HSYNC 24 VGA_VSYNC 24
VGA_RED 24 VGA_GREEN 24 VGA_BLUE 24
VGA_PCH_DDCSDA 24 VGA_PCH_DDCSCL 24
DDPD_CTRL_CLK 23 DDPD_CTRL_DATA 23
DDPB_CTRL_CLK 24 DDPB_CTRL_DATA 24
20130403 V0.6 Kevin
PORTB PORTC
PORTD
REMOVE LEVEL SHIFTER WHEN TRACE LENGHT LESS THAN 9.25 INCHES
If DisplayPort interface is not implemented, the Main Link, aux channel differential signals and HPD signals can be left as No Connects./DG108
5
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
4
FUNCTION
DVI OR SDVO
DISPLAY PORT
HDMI/DVI/eDP
A
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
3
2
PCH VGA/DISPLAY PORT
PCH VGA/DISPLAY PORT
PCH VGA/DISPLAY PORT
IB75F-MHS
IB75F-MHS
IB75F-MHS
16 43Thursday, May 16, 2013
16 43Thursday, May 16, 2013
16 43Thursday, May 16, 2013
1
6.0
6.0
6.0
5
DCC
A
www.teknisi-indonesia.com
4
3
FOR ICC
CK_100M_CPHY_PCH_IN_DN CK_100M_CPHY_PCH_IN_DP
2
1
YR82
D
CK_CSI_PCH_IN_DN CK_CSI_PCH_IN_DP
PCH1-8
PCLK_IO28
CK_PCH_33M_FB11
IO_48MHZ28
V_1P05_PCH
B B
YR80 22 0402 YR81 22 0402
PCLK_122
YR84 22 0402
YR85 90.9 1% 0402
YR89 1M 1% 0402 YY2
25MHZ 20PF 30PPM
12
YC10 27P 50V NPO 0402
FOR ICC
YR105 22 0402
CK_14M_IN
YR90 10K 0402
CLKOUT_PCI0 CLKOUT_PCI1
XCLK_RCOMP
CK_14M_IN
XTAL_25M_PCH_OUT XTAL_25M_PCH_IN
YC11 27P 50V NPO 0402
AT11
CLKOUT_PCI0
AN14
CLKOUT_PCI1
AT12
CLKOUT_PCI2
AT17
CLKOUT_PCI3
AT14
CLKOUT_PCI4
AT9
CLKOUTFLEX0_GPIO64
BA5
CLKOUTFLEX1_GPIO65
AW5
CLKOUTFLEX2_GPIO66
BA2
CLKOUTFLEX3_GPIO67
AL2
XCLK_RCOMP
AN8
REFCLK14IN
AJ5
XTAL25_OUT
AJ3
XTAL25_IN
PANTHERPOINT-B75
BIOSTAR-D VER:1.2
+Panther Point VER:0.5
CLKOUT_ITPXDP_N CLKOUT_ITPXDP_P
CLKOUT_PCIE7N CLKOUT_PCIE7P
CLKOUT_DMI_N CLKOUT_DMI_P
CLKOUT_PCIE0N CLKOUT_PCIE0P
CLKOUT_PCIE1N CLKOUT_PCIE1P
CLKOUT_PCIE2N
8/10
CLKOUT_PCIE2P CLKOUT_PCIE3N
CLKOUT_PCIE3P CLKOUT_PCIE4N
CLKOUT_PCIE4P CLKOUT_PCIE5N
CLKOUT_PCIE5P CLKOUT_PCIE6N
CLKOUT_PCIE6P
CLKOUT_PEG_A_N CLKOUT_PEG_A_P
CLKOUT_PEG_B_N CLKOUT_PEG_B_P
CLOCK
CLKIN_GND1_N CLKIN_GND1_P
CLKIN_GND0_N CLKIN_GND0_P
CLKOUT_DP_N CKLOUT_DP_P
CK_100M_CPHY_PCH_IN_DN
R27
CK_100M_CPHY_PCH_IN_DP
P27
CK_CSI_PCH_IN_DN
W53
CK_CSI_PCH_IN_DP
V52 R52
N52 AE2
AF1
CK_PE_100M_MCP_DN
P31
CK_PE_100M_MCP_DP
R31 N56
M55 AE6
AC6 AA5
W5 AB12
AB14 AB9
AB8 Y9
Y8 AF3
AG2 AB3
AA2 AG8
AG9 AE12
AE11
10K 0402
YR86 10K 0402
CK_PE_100M_MCP_DN7 CK_PE_100M_MCP_DP7
GBE_CLKN 27 GBE_CLKP 27
CK_PE3_100M_DN22 CK_PE3_100M_DP22
CK_PE5_100M_DN22 CK_PE5_100M_DP22
20130403 V0.6 Kevin
CK_PE_100M_16A_DN21 CK_PE_100M_16A_DP21
YR83 10K 0402
YR88 10K 0402
W/I/S: 4/6/18
FOR CPU ITP PORT(0) FOR PCH PCIE DEVICE(1) FOR CPU BCLK(0)
FOR PCH PCIE DEVICE(1)
FOR CPU PCIE X 16 DEVICE(0)
5
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
4
A
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
3
2
PCH CLOCK BUFFER
PCH CLOCK BUFFER
PCH CLOCK BUFFER
IB75F-MHS
IB75F-MHS
IB75F-MHS
17 43Thursday, May 16, 2013
17 43Thursday, May 16, 2013
17 43Thursday, May 16, 2013
1
6.0
6.0
6.0
DCC
A
V_1P05_PCH
www.teknisi-indonesia.com
www.teknisi-indonesia.com
AC24
AC26
5
AC28
AC30
AC32
AE24
AE28
AE30
AE32
AE34
AE36
AG32
AG34
AJ32
AJ34
AJ36
AL32
AL34
AN32
AN34
12/12
V_1P05_ME VCC3_3 +3V3_DUAL VRTC
1310mA2520mA
AG24
AG26
AG28
AJ24
AJ26
AJ28
AL24
AR32
AR34
AL28
4
AE15
AE17
AG15
V_1P05_PCH_SRC
AC20
AE20
AE40
AJ20
AV24
AV26
V_1P05_PCH V_1P8_SFR +3V3_STBY
AU32
AV36
AN22
AN24
AN26
AN28
AR24
AR26
AR28
AR30
AR36
AU34
AR38
AU30
AU36
AY25
AY27
80mA
V36
3
185mA 197mA
Y36
AJ38
Y28
AJ1
R56
R54
R2
T55
BC17
BD17
BD20
AL38
AN38
T57
A12
2
142mA
AF57
AV30
AV32
AY31
AY33
BJ36
BK36
BM36
BT35
AT40
D
VCCIO_018
VCCIO_001
VCCIO_002
VCCIO_003
VCCIO_004
VCCIO_013
VCCIO_012
VCCIO_011
VCCSSC_01
VCCSSC_02
VCCDIFFCLKN_01
A
YD1 BAT54C SOT23
A
VCCCLKDMI
VCCDIFFCLKN_02
VCCDIFFCLKN_03
55mA
+5V_DUAL
YD2 BAT54C SOT23
105mA
VCCAPLLSATA
VCCIO_019
VCCAPLLEXP
B53
U56
BA38
INTERNAL PLL SUPPORT
VCC5
YR91 10 0402
V_REF5V
YC19
0.1UF 16V Y5V 0402
YR92 10 0402
V_REF5V_SUS
YC34
0.1UF 16V Y5V 0402
VCCASW_004
VCCASW_005
VCCASW_006
VCCASW_007
VCCASW_008
VCCASW_009
VCCASW_010
VCCASW_011
VCCASW_012
VCCASW_013
VCCASW_014
VCCASW_015
VCCASW_016
VCCASW_017
VCCASW_018
VCCASW_019
VCCIO_020
VCCIO_021
VCCIO_007
AG40
AG41
V_1P05_PCH
VCCASW_020
VCCCORE_001
VCCCORE_002
VCCCORE_003
VCCCORE_004
VCCCORE_005
VCCCORE_006
VCCCORE_007
VCCCORE_008
VCCCORE_009
VCCCORE_010
VCCCORE_011
VCCCORE_012
VCCCORE_013
VCCCORE_014
VCCCORE_015
VCCCORE_016
VCCCORE_017
VCCCORE_018
VCCCORE_019
VCCCORE_020
VCCCORE_021
VCCCORE_022
BIOSTAR-D VER:1.2
+Panther Point VER:0.5
VCCIO_024
VCCIO_025
VCCIO_026
VCCIO_027
VCCIO_028
VCCIO_029
VCCIO_030
VCCIO_031
VCCIO_032
VCCIO_033
VCCIO_034
VCCIO_022
VCCIO_023
VCCIO_035
VCCIO_036
VCCIO_037
F20
F30
V25
V27
V31
V33
Y24
Y26
Y30
Y32
Y34
V_1P05_PCH
4570mA
V_1P05_PCH
YL1 INDUCTOR 10UH 0805
YL2 INDUCTOR 10UH 0805
YL3 INDUCTOR 10UH 0805
YC24
10UF 10V 0805 Y5V
B B
VCC3_3
FB1 BEAD 60 0805 1A
AA34
AA36
V22
Y20
Y22
YC12
10UF 10V 0805 Y5V
YC17
10UF 10V 0805 Y5V
YC26
10UF 10V 0805 Y5V
YC32
10UF 10V 0805 Y5V
VCCDMI_02
B41
V_CPU_VCCIO
57mA
VCCA_DPLLA
YC13
0.1UF 16V Y5V 0402
VCCA_DPLLB
YC18
0.1UF 16V Y5V 0402
V_1P05_PCH_SRC
YC27
0.1UF 16V Y5V 0402
V_3P3_DAC_FB_R
YC33
0.1UF 16V Y5V 0402
VCCDMI_01
VCCIO_008
VCCIO_009
VCCIO_010
E41
AL40
AN40
AN41
AG38
VCCASW_021
VCCASW_022
VCCASW_023
K
VCCASW_003
VCC3_3
KA
+3V3_DUAL
K
KA
VCCASW_001
VCCASW_002
VCCIO_014
VCCVRM_01
VCCVRM_02
VCCVRM_03
VCCVRM_04
VCCPNAND_01
VCCAFDIPLL
VCCACLK
AL5
C54
V5REF
V5REF_SUS
BF1
VCCSUSHDA
BT25
AV28
V_REF5V_SUS V_REF5V
AU20
VCCAPLLDMI2
A19
1mA
V_CPU_VCCIO
YC28
1UF 10V Y5V 0402
VCC3_3_02
VCC3_3_05
VCC3_3_06
VCCPNAND_02
VCC3_3_09
VCC3_3_10
VCCSPI
VCC3_3_07
12/12
AV20
AN52
AU22
1mA
NEAR PIN AJ1 NEAR PIN R2 NEAR PIN R54/R56
YC20
1UF 10V Y5V 0402
YC29
1UF 10V Y5V 0402
+3V3_DUAL
VCC3_3_03
VCC3_3_04
20mA
V_3P3_EPW VCC3_3 +3V3_DUAL
12mA
VCC3_3_01
VCC3_3_08
20mA
+3V3_STBY
VCCSUS3_3_011
DCPSUS DCPRTC DCPSST
YC21
1UF 10V Y5V 0402
VCC3_3
YC30
0.1UF 16V Y5V 0402
VCCSUS3_3_002
VCCSUS3_3_003
VCCSUS3_3_004
VCCSUS3_3_005
VCCSUS3_3_006
VCCSUS3_3_007
VCCSUS3_3_008
YC14
0.1UF 16V Y5V 0402
YC22
1UF 10V Y5V 0402
VCC3_3 VCC3_3
YC50
0.1UF 16V Y5V 0402
2mA
AU38
VCCSUS3_3_009
VCCSUS3_3_010
2mA
V_CPU_VCCIO
AV40
D55
U31
V_PROC_IO
VCCDSW3_3
VCCSUS3_3_001
YC15
0.1UF 16V Y5V 0402
V_1P8_SFR
A39
AA32
B56
DCPSUS_03
DCPSUS_01
V_PROC_IO_NCTF
YC23
1UF 10V Y5V 0402
YC31
0.1UF 16V Y5V 0402
BU42
BR54
AT41
BT56
VCCRTC
DCPRTC
DCPSUS_02
DCPRTC_NCTF
VCCADAC
AT1
YC16
1UF 10V Y5V 0402 /NI
1
AV41
BA46
DCPSST
DCPSUSBYP
VCCADPLLA
VCCADPLLB
AB1
AC2
V_3P3_DAC_FB_R
DCPSUS DCPRTC DCPSST
PCH1-9 PANTHERPOINT-B75
9/10
VCCA_DPLLB VCCA_DPLLA
8mA 8mA 68mA
V_1P05_PCH
YC51
10UF 10V 0805 Y5V
YC35
10UF 10V 0805 Y5V
YC57
1UF 10V Y5V 0402
YC36
10UF 10V 0805 Y5V
YC56
1UF 10V Y5V 0402
5
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
YC37
10UF 10V 0805 Y5V
YC55
1UF 10V Y5V 0402
4
YC38
10UF 10V 0805 Y5V
V_1P05_ME
YC54
1UF 10V Y5V 0402
12/12
YC42
1UF 10V Y5V 0402
YC58
0.1UF 16V Y5V 0402
YC43
0.1UF 16V Y5V 0402
VCC3_3
A
YC44
0.1UF 16V Y5V 0402
3
YC45
0.1UF 16V Y5V 0402
YC46
0.1UF 16V Y5V 0402
2
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
PCH POWER
PCH POWER
PCH POWER
IB75F-MHS
IB75F-MHS
IB75F-MHS
18 43Thursday, May 16, 2013
18 43Thursday, May 16, 2013
18 43Thursday, May 16, 2013
1
6.0
6.0
6.0
5
DCC
A
www.teknisi-indonesia.com
R1 1K 0402
D
SPI_CLK14 SPI_MOSI14
SPI_CLK SPI_MOSI
V_3P3_EPW
C26
0.1UF 16V Y5V 0402
4
12/12
SPI2 SPI SOCKET 8PIN
8
VCC
7
HOLD
6
CLK
5
DI
CS#
WP# VSS
3
20130409 V0.6 Kevin
R2 1K 0402
SPI_CS0_N
1
SPI_MISOSPI_HD
2
DO
SPI_WP_N
3 4
SPI_CS0_N 14
SPI_MISO 14
SPI_WP28
+3V3_DUAL
R210 1K 0402 /NI
R211 10K 0402 /NI
2
SPI_WP_N
Q117 2N3904 SOT23 /NI
ECB
1
JCMOS
1-2 2-3
JCMOS1 HEADER 1X3
1
1
3
3
NORMAL
CLR CMOS
PCH_RTCRST_PULLUP
2
2
PCH_RTCRST_PULLUP 14
C28
1UF 10V X5R 0402
BAT1
Q1 BAT54C SOT23
K
A
VRTC
KA
R3 20K 0402
C27
1UF 10V Y5V 0402
RTCRST_PU
R5 1K 0402
+3V3_STBY
BAT_PWR RTCRST_PD
R4 1K 0402
12
BAT1 BATTERY HOLDER-1
NEAR PCH
+5V_STBY
HOLD RESET 5S TO CLEAR CMOS
D
S
G
R6 68K 0402
D
Q103 2N7002 SOT23
S
G
R15
4.7K 0402 R16 10K 0402
Q104 FDV301N SOT23
+
4
FOR EUP SUPPORT THIS FUNTION FP_RST_N SHOULD PULL UP TO STANDBY POWER
B B
FP_RST_N14,28,33
PCH_RTCRST_PULLUP
R7 10K 0402
+5V_STBY
5
PCH_RTCRST_PULLUP
D
Q101 2N7002 SOT23
S
G
CT46 100UF-S 16V 6.3X9 APAQ
3V_STBY_EN 35
Q102 2N3904 SOT23
ECB
Title
Title
Title
Size
Size
Size
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
3
2
SPI ROM/RTC CRYSTAL/BAT
SPI ROM/RTC CRYSTAL/BAT
SPI ROM/RTC CRYSTAL/BAT
Document Number Rev
Document Number Rev
Document Number Rev
IB75F-MHS
IB75F-MHS
IB75F-MHS
19 43Thursday, May 16, 2013
19 43Thursday, May 16, 2013
19 43Thursday, May 16, 2013
1
6.0
6.0
6.0
A
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
5
A
www.teknisi-indonesia.com
www.teknisi-indonesia.com
4
3
2
1
D D
C C
PCH1-10
A26
A29
A42
A49
AA20
VSS_0005
VSS_0006
VSS_0007
VSS_0008
VSS_0009A9VSS_0010
BIOSTAR-D VER:1.2
VSS_0125
VSS_0126
VSS_0127
VSS_0128
VSS_0129
VSS_0130
+Panther Point VER:0.5
BC15
BC20
BC27
BC31
BC36
BC38
AA22
AA24
VSS_0011
VSS_0012
VSS_0131
VSS_0132
BC9
BC47
AA26
AA28
VSS_0013
VSS_0133
BD25
BD33
AA30
AA38
VSS_0014
VSS_0015
VSS_0016
VSS_0134
VSS_0135
VSS_0136
BF12
BF20
AB11
AB15
VSS_0017
VSS_0137
BF25
BF33
AB40
AB41
VSS_0018
VSS_0019
VSS_0020
VSS_0138
VSS_0139
VSS_0140
BF41
BF43
AB43
AB47
VSS_0021
VSS_0022
VSS_0141
VSS_0142
BF46
BF52
AB52
AB57
VSS_0023
VSS_0143
BF6
BG22
AB6
AC22
VSS_0024
VSS_0025
VSS_0026
VSS_0144
VSS_0145
VSS_0146
BG25
BG27
AC34
VSS_0027
VSS_0147
BG31
AC36
AC38
VSS_0028
VSS_0029
VSS_0148
VSS_0149
BG33
BG36
AC4
AC54
VSS_0030
VSS_0150
BH52
BG38
AE14
AE18
VSS_0031
VSS_0032
VSS_0151
VSS_0152
BJ1
BH6
AE22
AE26
VSS_0033
VSS_0034
VSS_0035
VSS_0153
VSS_0154
VSS_0155
BJ15
BK20
AE38
AE4
VSS_0036
VSS_0156
BK41
BK52
AE47
AE8
VSS_0037
VSS_0038
VSS_0157
VSS_0158
BK6
BM10
AE9
AF52
VSS_0039
VSS_0040
VSS_0041
VSS_0159
VSS_0160
VSS_0161
BM12
BM16
AF6
AG11
VSS_0042
VSS_0162
BM22
BM23
AG14
AG20
VSS_0043
VSS_0044
VSS_0163
VSS_0164
BM26
BM28
AG22
AG30
VSS_0045
VSS_0046
VSS_0047
VSS_0165
VSS_0166
VSS_0167
BM32
BM40
AG36
AG43
VSS_0048
VSS_0168
BM42
BM48
AG44
AG46
VSS_0049
VSS_0050
VSS_0051
VSS_0169
VSS_0170
VSS_0171
BM5
BN31
AG5
AG50
VSS_0052
VSS_0172
BN6
BN47
AG53
AH52
VSS_0053
VSS_0054
VSS_0055
VSS_0173
VSS_0174
VSS_0175
BP3
BP33
AH6
AJ22
VSS_0056
VSS_0176
BP35
BR22
AJ30
AJ57
VSS_0057
VSS_0058
VSS_0059
VSS_0177
VSS_0178
VSS_0179
BR52
BU19
AK52
AK6
VSS_0060
VSS_0180
BU26
BU29
AL11
AL18
VSS_0061
VSS_0062
VSS_0063
VSS_0181
VSS_0182
VSS_0183
BU36
BU39
AL20
AL22
VSS_0064
VSS_0184
C19
C32
AL26
AL30
VSS_0065
VSS_0066
VSS_0067
VSS_0185
VSS_0186
VSS_0187C4VSS_0188
C39
AL36
AL41
VSS_0068
D15
D23
AL46
AL47
AM52
VSS_0069
VSS_0070
VSS_0071
VSS_0189
VSS_0190D3VSS_0191
D35
D43
AM3
AM57
VSS_0073
VSS_0072
VSS_0074
VSS_0192
VSS_0193
VSS_0194
E19
D45
AN11
AN12
VSS_0075
VSS_0195
E39
E54
AN15
AN17
AN18
VSS_0076
VSS_0077
VSS_0078
VSS_0079
VSS_0196
VSS_0197E6VSS_0198E9VSS_0199
F10
AN20
AN30
VSS_0080
VSS_0200
F12
F16
AN36
AN4
VSS_0081
VSS_0082
VSS_0201
VSS_0202
F22
F26
AN43
AN47
VSS_0083
VSS_0084
VSS_0085
VSS_0203
VSS_0204
VSS_0205
F32
F33
AN54
AN9
VSS_0086
VSS_0206
F35
F36
AR20
AR22
VSS_0087
VSS_0088
VSS_0207
VSS_0208
F40
F42
AR52
AR6
VSS_0089
VSS_0090
VSS_0091
VSS_0209
VSS_0210
VSS_0211
F46
F48
AT15
AT18
VSS_0092
VSS_0212
F8
F50
AT43
AT47
VSS_0093
VSS_0094
VSS_0095
VSS_0213
VSS_0104
VSS_0105
AV18
AV22
AT52
AT6
VSS_0096
VSS_0106
AV34
AV38
AT8
AU24
VSS_0097
VSS_0098
VSS_0099
VSS_0107
VSS_0108
VSS_0109
AV6
AV47
AU26
AU28
VSS_0100
VSS_0110
AY38
AW57
AU5
AV12
VSS_0101
VSS_0102
VSS_0111
VSS_0112
B23
AY6
BA49
BB1
VSS_0103
VSS_0119
VSS_0120
VSS_0113
VSS_0114
VSS_0115
BA11
BA12
BB3
BB52
VSS_0121
VSS_0116
BA31
BA41
BB6
BC14
VSS_0122
VSS_0123
VSS_0124
VSS_0214
VSS_0117
VSS_0118
G54
BA44
M33
M36
VSS_0241
VSS_0215
H15
H20
M46
M52
VSS_0242
VSS_0243
VSS_0244
VSS_0216
VSS_0217
VSS_0218
H22
H25
M57
H27
N54
VSS_0245
VSS_0246M6VSS_0247M8VSS_0248M9VSS_0249N4VSS_0250
VSS_0219
VSS_0220
VSS_0221H6VSS_0222J1VSS_0223
VSS_0224
J33
J46
H33
R11
VSS_0251
VSS_0225
J48
R15
R17
R22
VSS_0252
VSS_0253
VSS_0226J5VSS_0227
J53
K52
VSS_0254
VSS_0228
R41
R43
R46
R49
L33
AE49
BA36
TP3
TP13
VSS_0257
VSS_0258
VSS_0259
L12
TP17
VSS_0232
VSS_0233
L17
L38
VSS_0255R4VSS_0256
VSS_0229K6VSS_0230K9VSS_0231
AY36
Y14
TP18
VSS_0234
L41
L43
Y12
P22
TP1
TP19
TP20
VSS_0235
VSS_0236
VSS_0237
M20
M22
M38
P25
TP4
VSS_0296
VSS_0238
VSS_0239
M25
M27
P36
R25
VSS_0295
VSS_0240
T52
M31
L31
R36
TP2
VSS_0293
VSS_0294
VSS_0260
VSS_0261T6VSS_0262
U11
L36
AL44
TP5
VSS_0263
U15
U17
AL43
VSS_0291
VSS_0292
VSS_0264
VSS_0265
VSS_0266
U20
U22
VSS_0267
U25
U27
VSS_0268
VSS_0269
VSS_0270
U33
U36
AE41
AE43
TP14
VSS_0271
U38
U41
BA27
TP15
TP11
VSS_0272
VSS_0273
VSS_0274
U47
U53
VSS_0275
V20
V38
BM46
TP10
VSS_0276
VSS_0277V6VSS_0278W1VSS_0279
W55
VSS_0280
Y11
W57
VSS_0281
VSS_0282
VSS_0283
Y15
Y38
VSS_0284
VSS_0285
Y40
Y43
VSS_0286
Y46
Y47
VSS_0287
VSS_0288
VSS_0289
Y49
Y52
VSS_0290
Y6
VSS_NCTF_001A4VSS_NCTF_002A6VSS_NCTF_003B2VSS_NCTF_004
BM1
VSS_NCTF_005
VSS_NCTF_006
VSS_NCTF_007
VSS_NCTF_008
VSS_NCTF_009
BT2
BP1
BU4
BP57
BM57
PANTHERPOINT-B75
VSS_NCTF_010
VSS_NCTF_011
VSS_NCTF_012
VSS_NCTF_013D1VSS_NCTF_014
F1
BU6
BU52
BU54
VSS_0004
C12
AY22
VSS_0001
VSS_0002
VSS_0003
AE56
BR36
AG12
AG18
AG17
L_BKLTEN
L_BDD_EN
L_BKLTCTL
10/10
TS_VSS1
TS_VSS2
TS_VSS3
TS_VSS4
VSSADAC
F57
A54
A52
D57
AU2
B B
5
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
4
A
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
Custom
Custom
Custom
Date:
Date:
Date:
3
2
PCH GND
PCH GND
PCH GND
IB75F-MHS
IB75F-MHS
IB75F-MHS
Sheet
Sheet
Sheet
1
6.0
6.0
6.0
of
20 43Thursday, May 16, 2013
of
20 43Thursday, May 16, 2013
of
20 43Thursday, May 16, 2013
5
DCC
A
www.teknisi-indonesia.com
D
Value:180 nF - 265 nF
450 mils max to connector pin
EXP_A_TX_0_DP4 EXP_A_TX_0_DN4 EXP_A_TX_1_DP4 EXP_A_TX_1_DN4 EXP_A_TX_2_DP4 EXP_A_TX_2_DN4 EXP_A_TX_3_DP4 EXP_A_TX_3_DN4 EXP_A_TX_4_DP4 EXP_A_TX_4_DN4 EXP_A_TX_5_DP4 EXP_A_TX_5_DN4 EXP_A_TX_6_DP4 EXP_A_TX_6_DN4 EXP_A_TX_7_DP4 EXP_A_TX_7_DN4
EXP_A_TX_8_DP4 EXP_A_TX_8_DN4 EXP_A_TX_9_DP4
B B
EXP_A_TX_9_DN4 EXP_A_TX_10_DP4 EXP_A_TX_10_DN4 EXP_A_TX_11_DP4 EXP_A_TX_11_DN4 EXP_A_TX_12_DP4 EXP_A_TX_12_DN4 EXP_A_TX_13_DP4 EXP_A_TX_13_DN4 EXP_A_TX_14_DP4 EXP_A_TX_14_DN4 EXP_A_TX_15_DP4 EXP_A_TX_15_DN4
EC1 0.22UF 10V X5R 0402 EC2 0.22UF 10V X5R 0402 EC3 0.22UF 10V X5R 0402 EC4 0.22UF 10V X5R 0402 EC5 0.22UF 10V X5R 0402 EC6 0.22UF 10V X5R 0402 EC7 0.22UF 10V X5R 0402 EC8 0.22UF 10V X5R 0402 EC9 0.22UF 10V X5R 0402 EC10 0.22UF 10V X5R 0402 EC11 0.22UF 10V X5R 0402 EC12 0.22UF 10V X5R 0402 EC13 0.22UF 10V X5R 0402 EC14 0.22UF 10V X5R 0402 EC15 0.22UF 10V X5R 0402 EC16 0.22UF 10V X5R 0402
EC18 0.22UF 10V X5R 0402 EC19 0.22UF 10V X5R 0402 EC20 0.22UF 10V X5R 0402 EC21 0.22UF 10V X5R 0402 EC22 0.22UF 10V X5R 0402 EC23 0.22UF 10V X5R 0402 EC24 0.22UF 10V X5R 0402 EC25 0.22UF 10V X5R 0402 EC26 0.22UF 10V X5R 0402 EC27 0.22UF 10V X5R 0402 EC28 0.22UF 10V X5R 0402 EC29 0.22UF 10V X5R 0402 EC30 0.22UF 10V X5R 0402 EC31 0.22UF 10V X5R 0402 EC32 0.22UF 10V X5R 0402 EC33 0.22UF 10V X5R 0402
EEXP_A_TXP_0 EEXP_A_TXN_0 EEXP_A_TXP_1 EEXP_A_TXN_1 EEXP_A_TXP_2 EEXP_A_TXN_2 EEXP_A_TXP_3 EEXP_A_TXN_3 EEXP_A_TXP_4 EEXP_A_TXN_4 EEXP_A_TXP_5 EEXP_A_TXN_5 EEXP_A_TXP_6 EEXP_A_TXN_6 EEXP_A_TXP_7 EEXP_A_TXN_7
EEXP_A_TXP_8 EEXP_A_TXN_8 EEXP_A_TXP_9 EEXP_A_TXN_9 EEXP_A_TXP_10 EEXP_A_TXN_10 EEXP_A_TXP_11 EEXP_A_TXN_11 EEXP_A_TXP_12 EEXP_A_TXN_12 EEXP_A_TXP_13 EEXP_A_TXN_13 EEXP_A_TXP_14 EEXP_A_TXN_14 EEXP_A_TXP_15 EEXP_A_TXN_15
5
4
SMB_CLK_RESUME14,22,34
SMB_DATA_RESUME14,22,34
WAKE_N14,22,27
EEXP_A_TXP_0 EEXP_A_TXN_0
EEXP_A_TXP_1 EEXP_A_TXN_1
EEXP_A_TXP_2 EEXP_A_TXN_2
EEXP_A_TXP_3 EEXP_A_TXN_3
EEXP_A_TXP_4 EEXP_A_TXN_4
EEXP_A_TXP_5 EEXP_A_TXN_5
EEXP_A_TXP_6 EEXP_A_TXN_6
EEXP_A_TXP_7 EEXP_A_TXN_7
EEXP_A_TXP_8 EEXP_A_TXN_8
EEXP_A_TXP_9 EEXP_A_TXN_9
EEXP_A_TXP_10 EEXP_A_TXN_10
EEXP_A_TXP_11 EEXP_A_TXN_11
EEXP_A_TXP_12 EEXP_A_TXN_12
EEXP_A_TXP_13 EEXP_A_TXN_13
EEXP_A_TXP_14 EEXP_A_TXN_14
EEXP_A_TXP_15 EEXP_A_TXN_15
SR21 0 0402 /NI
VCC12 VCC12VCC3_3 VCC3_3+3V3_DUAL
4
PEX16_1
B1
+12V
B2
+12V
B3
+12V
B4
GND
B5
SMCLK
B6
SMDAT
B7
GND
B8
+3.3V
B9
JTAG1
B10
+3.3VAUX
B11
WAKE*
B12
RSVD
B13
GND
B14
HSOP0
B15
HSON0
B16
GND
B17
PRSNT2*
B18
GND
B19
HSOP1
B20
HSON1
B21
GND
B22
GND
B23
HSOP2
B24
HSON2
B25
GND
B26
GND
B27
HSOP3
B28
HSON3
B29
GND
B30
RSVD
B31
PRSNT2*
B32
GND
B33
HSOP4
B34
HSON4
B35
GND
B36
GND
B37
HSOP5
B38
HSON5
B39
GND
B40
GND
B41
HSOP6
B42
HSON6
B43
GND
B44
GND
B45
HSOP7
B46
HSON7
B47
GND
B48
PRSNT2*
B49
GND
B50
HSOP8
B51
HSON8
B52
GND
B53
GND
B54
HSOP9
B55
HSON9
B56
GND
B57
GND
B58
HSOP10
B59
HSON10
B60
GND
B61
GND
B62
HSOP11
B63
HSON11
B64
GND
B65
GND
B66
HSOP12
B67
HSON12
B68
GND
B69
GND
B70
HSOP13
B71
HSON13
B72
GND
B73
GND
B74
HSOP14
B75
HSON14
B76
GND
B77
GND
B78
HSOP15
B79
HSON15
B80
GND
B81
PRSNT2*
B82
RSVD
PCIEX16-164 PIN-B
3
KEY
3
PRSNT1*
+12V +12V
GND JTAG2 JTAG3 JTAG4 JTAG5
+3.3V +3.3V
PWRGD
GND
REFCLK+
REFCLK-
GND
HSIP0
HSIN0
GND
RSVD
GND
HSIP1
HSIN1
GND
GND
HSIP2
HSIN2
GND
GND
HSIP3
HSIN3
GND
RSVD RSVD
GND
HSIP4
HSIN4
GND
GND
HSIP5
HSIN5
GND
GND
HSIP6
HSIN6
GND
GND
HSIP7
HSIN7
GND
RSVD
GND
HSIP8
HSIN8
GND
GND
HSIP9
HSIN9
GND
GND
HSIP10 HSIN10
GND
GND
HSIP11 HSIN11
GND
GND
HSIP12 HSIN12
GND
GND
HSIP13 HSIN13
GND
GND
HSIP14 HSIN14
GND
GND
HSIP15 HSIN15
GND
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11
A12 A13 A14 A15 A16 A17 A18
A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32
A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49
A50 A51 A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62 A63 A64 A65 A66 A67 A68 A69 A70 A71 A72 A73 A74 A75 A76 A77 A78 A79 A80 A81 A82
PCIERST_SLOT
CK_PE_100M_16A_DP CK_PE_100M_16A_DN
EXP_A_RX_0_DP4 EXP_A_RX_0_DN4
EXP_A_RX_1_DP4 EXP_A_RX_1_DN4
EXP_A_RX_2_DP4 EXP_A_RX_2_DN4
EXP_A_RX_3_DP4 EXP_A_RX_3_DN4
EXP_A_RX_4_DP4 EXP_A_RX_4_DN4
EXP_A_RX_5_DP4 EXP_A_RX_5_DN4
EXP_A_RX_6_DP4 EXP_A_RX_6_DN4
EXP_A_RX_7_DP4 EXP_A_RX_7_DN4
EXP_A_RX_8_DP4 EXP_A_RX_8_DN4
EXP_A_RX_9_DP4 EXP_A_RX_9_DN4
EXP_A_RX_10_DP4 EXP_A_RX_10_DN4
EXP_A_RX_11_DP4 EXP_A_RX_11_DN4
EXP_A_RX_12_DP4 EXP_A_RX_12_DN4
EXP_A_RX_13_DP4 EXP_A_RX_13_DN4
EXP_A_RX_14_DP4 EXP_A_RX_14_DN4
EXP_A_RX_15_DP4 EXP_A_RX_15_DN4
2
PCIERST_SLOT22,28
CK_PE_100M_16A_DP17 CK_PE_100M_16A_DN17
2
1
For T-Series----270UF-S 16V 8X12 10X20 For NO T-Series-----470UF 16V 8X11.5
VCC12
12/6
+
ECT1 270UF-S 16V 8X12 APAQ
VCC3_3
EC17
0.1UF 16V Y5V 0402
VCC12
EC57
0.1UF 16V Y5V 0402
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
PCIEX16 SLOT1
PCIEX16 SLOT1
PCIEX16 SLOT1
IB75F-MHS
IB75F-MHS
IB75F-MHS
1
6.0
6.0
6.0
21 43Thursday, May 16, 2013
21 43Thursday, May 16, 2013
21 43Thursday, May 16, 2013
A
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
5
DCC
A
www.teknisi-indonesia.com
www.teknisi-indonesia.com
VCC12-
VCC5
D
PIRQJF11 PIRQJH11
PCLK_117 REQ_N011
C_BE_N311
C_BE_N211 IRDY_N11 DEVSEL_N11 PLOCK_N11
PERR_N11 SERR_N11 C_BE_N111
B B
VCC3_3
AD31 AD29
AD27 AD25
AD23 AD21
AD19 AD17
AD14 AD12
AD10
AD8 AD7
AD5 AD3
AD1 PU1_A64J
VCC3_3
+
CT24 560UF-S 6.3V 6.3X9 APAQ
20130506 V6.0 Kevin
PCI1 IDSEL AD17 INT ABCD GNT_REQ0 CLK1
PCI1
B1
-12V
B2
TCK
B3
GND1
B4
TDO
B5
+5V1
B6
+5V2
B7
INTB-
B8
INTD-
B9
PRSNT1-
B10
RSV1
B11
PRSNT2-
B12
GND2
B13
GND3
B14
RSV2
B15
GND4
B16
CLK
B17
GND5
B18
REQ-
B19
+5V3
B20
AD(31)
B21
AD(29)
B22
GND6
B23
AD(27)
B24
AD(25)
B25
+3.3V1
B26
C/BE-(3)
B27
AD(23)
B28
GND7
B29
AD(21)
B30
AD(19)
B31
+3.3V2
B32
AD(17)
B33
C/BE-(2)
B34
GND8
B35
IRDY-
B36
+3.3V3
B37
DEVSEL-
B38
GND9
B39
LOCK-
B40
PERR-
B41
+3.3V4
B42
SERR-
B43
+3.3V5
B44
C/BE-(1)
B45
AD(14)
B46
GND10
B47
AD(12)
B48
AD(10)
B49
GND11
H1
H1
B52
AD(8)
B53
AD(7)
B54
+3.3V6
B55
AD(5)
B56
AD(3)
B57
GND12
B58
AD(1)
B59
+5V4
B60
ACK64-
B61
+5V5
B62
+5V6
PCI-120 PIN-B
20130425 V6.0 Kevin
TRST-
GND13 GND14
RESET-
+5V10
GND15
AD(30)
+3.3V7
AD(28) AD(26)
GND16
AD(24)
+3.3V8
AD(22) AD(20)
GND17
AD(18) AD(16)
+3.3V9
FRAME-
GND18
TRDY-
GND19
STOP-
+3.3V10
SDONE
GND20
AD(15)
+3.3V11
AD(13) AD(11)
GND21
AD(09)
C/BE-(0)
+3.3V12
AD(06) AD(04)
GND22
AD(02) AD(00)
+5V11
REQ64-
+5V12 +5V13
VCC5
+12V
TMS
TDI
+5V7
INTA-
INTC-
+5V8
RSV3
+5V9
RSV4
RSV5
GNT-
RSV6
IDSEL
SBO-
PAR
H2
R208 2.7K 0402 R66 2.7K 0402
5
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49
H2 A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62
VCC12
4
VCC3_3
VCC5
AD[31:0]11
PIRQJE 11 PIRQJG 11
+3V3_DUAL
PCIRST# 11 GNT_N0 11 PME_N 11
AD30 AD28
AD26 AD24
AD17 AD22
AD20 AD18
AD16
FRAME_N 11 TRDY_N 11 STOP_N 11
SMB_CLK_RESUME14,21,34 SMB_DATA_RESUME14,21,34
PAR 11
AD15 AD13
AD11 AD9
C_BE_N0 11
AD6 AD4
AD2 AD0
PU1_R64J
PU1_R64J PU1_A64J
4
3
SMB_CLK_RESUME14,21,34
SMB_DATA_RESUME14,21,34
WAKE_N14,21,27 PCIERST_SLOT 21,28
HSO4_DP12
HSO4_DN12
SMB_CLK_RESUME14,21,34
SMB_DATA_RESUME14,21,34
WAKE_N14,21,27
HSO5_DN12
SMB_CLK_RESUME SMB_DATA_RESUME
WAKE_N PCIERST_SLOT
EC36 0.1UF 16V X7R 0402 EC37 0.1UF 16V X7R 0402
SMB_CLK_RESUME SMB_DATA_RESUME
WAKE_N PCIERST_SLOT
EC41 0.1UF 16V X7R 0402 EC39 0.1UF 16V X7R 0402
3
+3V3_DUAL
SR25 0 0402 /NI
+3V3_DUAL
SR27 0 0402 /NI
2
VCC12 VCC12 VCC3_3
VCC3_3
O4_DP O4_DN
VCC3_3 VCC12 VCC12 VCC3_3
O5_DP O5_DN
PEX1_2
B1
+12V
B2 B3 B4 B5 B6 B7 B8
B9 B10 B11
B12 B13 B14 B15 B16 B17 B18
20130425 V6.0 Kevin
B1
B2
B3
B4
B5
B6
B7
B8
B9 B10 B11
B12 B13 B14 B15 B16 B17 B18
PRSNT1* +12V +12V GND SMCLK SMDAT GND +3.3V JTAG1 +3.3VAUX WAKE*
JTAG2 JTAG3 JTAG4 JTAG5
+3.3V +3.3V
PWRGD
KEY
RSVD GND
REFCLK+
HSOP0
REFCLK­HSON0 GND PRSNT2* GND
PCIEX1-36 PIN-B
PEX1_1
+12V +12V +12V GND SMCLK SMDAT GND +3.3V JTAG1 +3.3VAUX WAKE*
HSIP0 HSIN0
PRSNT1*
JTAG2 JTAG3 JTAG4 JTAG5
+3.3V +3.3V
PWRGD
KEY
RSVD GND
REFCLK+
HSOP0
REFCLK­HSON0 GND PRSNT2* GND
PCIEX1-36 PIN-B
VCC5 VCC3_3
HSIP0 HSIN0
EC66
0.1UF 16V Y5V 0402
+
ECT4 560UF-S 6.3V 6.3X9 APAQ
20130506 V6.0 Kevin
Title
Title
Title
Size
Size
Size
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
2
1
A1 A2
+12V
A3
+12V
A4
GND
A5 A6 A7 A8 A9 A10 A11
A12
GND
A13 A14 A15
GND
A16 A17 A18
GND
A1 A2
+12V
A3
+12V
A4
GND
A5 A6 A7 A8 A9 A10 A11
A12
GND
A13 A14 A15
GND
A16 A17 A18
GND
20130425 V6.0 Kevin
EC40
0.1UF 16V Y5V 0402
+
ECT5 560UF-S 6.3V 6.3X9 APAQ /NI
PCI / PCIE X1 SLOT
PCI / PCIE X1 SLOT
PCI / PCIE X1 SLOT
Document Number Rev
Document Number Rev
Document Number Rev
IB75F-MHS
IB75F-MHS
IB75F-MHS
VCC3_3+3V3_DUALVCC12
EC38
0.1UF 16V Y5V 0402
CK_PE3_100M_DP17 CK_PE3_100M_DN17
HSI4_DP 12 HSI4_DN 12
PCIERST_SLOT 21,28
CK_PE5_100M_DP17 CK_PE5_100M_DN17HSO5_DP12
HSI5_DP 12 HSI5_DN 12
20130403 V0.6 Kevin
22 43Thursday, May 16, 2013
22 43Thursday, May 16, 2013
22 43Thursday, May 16, 2013
1
6.0
6.0
6.0
A
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
5
A
www.teknisi-indonesia.com
HDMI
D D
DDSP_D_TX_3_DP16 DDSP_D_TX_3_DN16
DDSP_D_TX_2_DP16 DDSP_D_TX_2_DN16
DDSP_D_TX_1_DP16 DDSP_D_TX_1_DN16
DDSP_D_TX_0_DP16 DDSP_D_TX_0_DN16
GC490.1UF 16V X7R 0402 GC500.1UF 16V X7R 0402
GC470.1UF 16V X7R 0402 GC480.1UF 16V X7R 0402
GC310.1UF 16V X7R 0402 GC320.1UF 16V X7R 0402
GC280.1UF 16V X7R 0402 GC300.1UF 16V X7R 0402
C C
GR75 2.2K 0402
VCC3_3
G
D
GR30 680 0402
S
4
GQ7 2N7002 SOT23
GR42 680 0402
GR61 680 0402
GR62 680 0402
GR63 680 0402
GR64 680 0402
3
GR71 680 0402
HDMI_TLC+ HDMI_TLC-
HDMI_TDC0+ HDMI_TDC0-
HDMI_TDC1+ HDMI_TDC1-
HDMI_TDC2+ HDMI_TDC2-
HDMI_TDC2-
GR74 680 0402
GR67 200 1% 0402
GR66 200 1% 0402
GR68 200 1% 0402
GR60 200 1% 0402
FOR EMI
2
+5V_DVI
0.1UF 16V Y5V 0402
GC51
HDMI_TDC2+ HDMI_TDC2-
HDMI_TDC1+ HDMI_TDC1-
HDMI_TDC0+ HDMI_TDC0-
HDMI_TLC+ HDMI_TLC-
HDMI_SCL HDMI_SDA
+5V_DVI HPDET_HDMI
1
HDMI CONNECTOR
HDMI
1
1
GND#G1
2
2
GND#G2
3
3
GND#G3
4
4
GND#G4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
HDMI
DIP HDMI CONN
G1 G2 G3 G4
GR70
2.2K 0402
GR73
2.2K 0402
VCC3_3
S
GQ15 2N7002 SOT23
VCC3_3
S
GQ14 2N7002 SOT23
VCC3_3
GC23
0.1UF 16V Y5V 0402
DDPD_CTRL_DATA16
B B
DDPD_CTRL_CLK16
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
VCC5VCC3_3
G
G
GR47
2.2K 0402
HDMI_SDA
D
GR23
VCC5VCC3_3
GR72
2.2K 0402
HDMI_SCL
D
100K 0402 /NI
HPDET_HDMI
D
GQ8
G
2N7002 SOT23
S
GR76 20K 0402
VCC3_3VCC3_3
GR65 1M 1% 0402
DDSP_D_HPD 16
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
HDMI CONNECTOR
HDMI CONNECTOR
HDMI CONNECTOR
IB75F-MHS
IB75F-MHS
IB75F-MHS
23 43Thursday, May 16, 2013
23 43Thursday, May 16, 2013
23 43Thursday, May 16, 2013
A
6.0
6.0
6.0
5
www.teknisi-indonesia.com
www.teknisi-indonesia.com
4
3
2
1
VGA_RED_D VGA_GREEN_D VGA_BLUE_D
GC1 10P 50V NPO 0402
GC2 10P 50V NPO 0402
GC3 10P 50V NPO 0402
GR4 150 0402
GR2 150 0402
FB2 BEAD 60 0603 FB4 BEAD 60 0603 FB6 BEAD 60 0603
GR3 150 0402
VGA_RED16
VGA_GREEN16
VGA_BLUE16
GR1 150 0402
D D
GR5 150 0402
FB3 BEAD 60 0603 FB5 BEAD 60 0603 FB7 BEAD 60 0603
GR6 150 0402
GC4 22P 50V NPO 0402
GC5 22P 50V NPO 0402
TRACE W/S:7.5/5 MIL TRACE W/S:4/25 MIL (4/30 BETTER)
GR11
2.2K 0402
GR15
2.2K 0402
VCC5
D
S
VCC3_3
VCC5
D
S
VCC3_3
G
G
GR8
2.2K 0402
VGA_5VDDATA
GQ1 2N7002 SOT23
GR13
2.2K 0402
VGA_5VDCLK
GQ4 2N7002 SOT23
PLACEMENT: NEAR CONNECTOR
GR9 100 0402
PLACEMENT: NEAR CONNECTOR
GR14 100 0402
DVI CONNECTOR
DVI_TDC0­DVI_TDC0+
DVI_TLC+ DVI_TLC-
20130403 V0.6 Kevin
VGA_DVIB
32 33 34 35 36 37 38 39 C3
C6 C4
VGA15P_DVI29P
PLACEMENT: NEAR R/G/B SOURCE PLACEMENT: NEAR CONNECTOR
VCC3_3
GC22
TRACE W/S:4/10 MIL PLACEMENT: NEAR CONNECTOR
VGA_HSYNC16
C C
VGA_VSYNC16
GR10 33 0402
GR12 33 0402
12/6
HSYNC_C
GC10 10P 50V NPO 0402
VSYNC_C
GC11 10P 50V NPO 0402
0.1UF 16V Y5V 0402
VGA_PCH_DDCSDA16
VGA_PCH_DDCSCL16
VCC3_3
VCC3_3
D_SUB
DVI
DDSP_B_TX_0_DP16 DDSP_B_TX_0_DN16
DDSP_B_TX_1_DP16
B B
DDSP_B_TX_1_DN16
DDSP_B_TX_2_DP16 DDSP_B_TX_2_DN16
DDSP_B_TX_3_DP16 DDSP_B_TX_3_DN16
GC13 0.1UF 16V X7R 0402 GC15 0.1UF 16V X7R 0402
GC14 0.1UF 16V X7R 0402 GC16 0.1UF 16V X7R 0402
GC17 0.1UF 16V X7R 0402 GC18 0.1UF 16V X7R 0402
GC19 0.1UF 16V X7R 0402 GC20 0.1UF 16V X7R 0402
VCC3_3
GR59 2.2K 0402
G
D
GR54 680 0402
S
GR35 680 0402
GQ13 2N7002 SOT23
GR48 680 0402
GR49 680 0402
GR50 680 0402
GR51 680 0402
DVI_TDC2+ DVI_TDC2-
DVI_TDC1+ DVI_TDC1-
DVI_TDC0+ DVI_TDC0-
DVI_TLC+ DVI_TLC-
GR52 680 0402
GR16 200 1% 0402
GR20 200 1% 0402
GR21 200 1% 0402
GR22 200 1% 0402
GR53 680 0402
C_VGA_GREEN
GC6 22P 50V NPO 0402
VGA_5VDDA
GC9 10P 50V NPO 0402
VGA_5VDDCLK
GC12 10P 50V NPO 0402
16 24 17 25 18 26 19 27 20 28 21 29 22 30 23 31 C1 C5 C2
C_VGA_RED
C_VGA_BLUE
DVI_TDC2­DVI_TDC1­DVI_TDC2+ DVI_TDC1+
DVI_SCL +5V_DVI DVI_SDA
HPDET_DVI
VCC5
+5V_DVI
IO_GND
GF1 POLY FUSE 1.1A
+5V_DVI
+5V_DVI
12
GC8
0.1UF 16V Y5V 0402
VCC3_3
GR19
GR18 100K 0402 /NI
GR7 SHORT 0805 /NI
VGA_DVIA
VGA15P_DVI29P
6
12/14
D
S
6
1
1
11
11
7
7
2
2
12
12
8
8
3
3
13
13
9
9
4
4
14
14
10
10
5
5
15
15
IO_GND
HPDET_DVI
GQ5 2N7002 SOT23
C_VGA_RED
C_VGA_GREEN VGA_5VDDA
C_VGA_BLUE HSYNC_C +5V_DVI
VSYNC_C
VGA_5VDDCLK
20130403 V0.6 Kevin
LEVEL SHIFTER HPD +5V SWITCH TO +3.3V
G
1M 1% 0402
G4
G3G3G4
G1G1G2
G2
GR45 SHORT 0805 /NI
12/14
GR17 20K 0402
DDSP_B_HPD 16
A A
2.2K 0402
5
S
GQ17 2N7002 SOT23
DDPB_CTRL_DATA16
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
VCC5VCC3_3
GR55
G
2.2K 0402
DVI_SDA
D
VCC3_3
GC21
0.1UF 16V Y5V 0402 GR58
2.2K 0402
DDPB_CTRL_CLK16
4
S
GQ18 2N7002 SOT23
VCC5VCC3_3
GR57
G
2.2K 0402GR56
DVI_SCL
D
3
2
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
VGA/DVI CONNECTOR
VGA/DVI CONNECTOR
VGA/DVI CONNECTOR
IB75F-MHS
IB75F-MHS
IB75F-MHS
1
24 43Thursday, May 16, 2013
24 43Thursday, May 16, 2013
24 43Thursday, May 16, 2013
6.0
6.0
6.0
5
www.teknisi-indonesia.com
AUDIO PART: A+Reference
VCC3_3
AR42 2.7 0805
AC26
GND_AUD
10UF 10V 0805 Y5V
AC27 22UF 6.3V X5R 0805
D D
VCC3_L
+5VA
AC18 22UF 6.3V X5R 0805
+5VA DECUPLING
VCC12
I
A
O
AR54 0 0805
GND_AUD
GND_AUD
AQ2 AZ1117H-ADJ SOT-223
GND_AUD
AD2
AK
SS12/5817 SMA
C C
AC32
4.7UF 16V Y5V 0805
AR20 0 0805
B B
AR48 0 0805
VCC3_L
AC21
0.1UF 16V Y5V 0402
22UF PER PIN (25&38)
+5V_DUAL
Digital Analog
AR52 110 1% 0402
AR53 340 1% 0402
GND_AUD
AD1
AK
SS12/5817 SMA
+ CT18
100UF-S 16V 6.3X9 APAQ
GND_AUD
LDOVDD
GND_AUD
20130506 V6.0 Kevin
AU1P9
AC24 10UF 10V 0805 Y5V
AUD_LINK_RST_N14 AUD_LINK_SYNC14 AUD_LINK_SDO14 AUD_LINK_SDI214 AUD_LINK_BCLK14
LDOVDD
for Pin 29
COVER1
1
BIOSTAR
3 2
BRACKET-AUDIO HIFI
4
AR40 33 0402
AC23 22P 50V NPO 0402
AC25 10UF 10V 0805 Y5V
LINE_IN2_L LINE_IN2_R
MIC2_L_S MIC2_R_S SENSE_A
AU1_PIN3
3
AU2
AU1_SDIN
GND_AUD
11
RESET# (I)
10
SYNC (I)
5
SDOUT (I)
8
SDIN (O)
6
BITCLK (I)
14
LINE_IN2_L (B)
15
LINE_IN2_R (B)
18
CD_L (I)
19
CD_GND (I)
20
CD_R (I)
16
MIC2_L (B)
17
MIC2_R (B)
13
SENSE_A (I)
37
LINE1_VREFO_R (O)
45
SIDESURR_L (O)
46
SIDESURR_R (O)
12
PC_BEEP (I)
2
GPIO0 (B)
3
GPIO1 (B)
4
GND1 (P)
7
GND2 (P)
26
AGND1 (P)
42
AGND2 (P)
ALC892-CG LQFP48
LQFP48-0_5
FRONT_OUT_L (B) FRONT_OUT_R (B)
LINE_IN1_L (B)
LINE_IN1_R (B)
CENTER_OUT (O)
SPDIFI/EAPD (B)
MIC1_VREFO_L (O)
LINE1_VREFO-L (O)
MIC2_VREFO (O)
LINE2_VREFO (O)
MIC1_VREFO_R (O)
MIC1_L (B)
MIC1_R (B)
LFE_OUT (O)
SURR_L (B) SURR_R (B) SENSE_B (I)
DCVOL (I)
JDREF
SPDIFO (O)
VREF (O)
VCC3_1 (P)
VCC3_2 (P) AVCC_1 (P) AVCC_2 (P)
GND_AUD
35 36 23 24 21 22 43 44 39 41 34 33 40 48 47 27 28 29 30 31 32 1 9 25 38
AC22 10UF 10V 0805 Y5V
7.1 Speaker Configuration
AU1_25REF
FRONT_OUT_L FRONT_OUT_R LINE_IN1_L LINE_IN1_R MIC1_L_S MIC1_R_S
SENSE_B
JDREF SPDIFO
GND_AUD
SPDIFO 26
MIC1_VREFO_L 26
LDOVDD
MIC2_VREFO 26
MIC1_VREFO_R 26
VCC3_L AU1P9
+5VA
AC20
0.1UF 16V Y5V 0402
2
LINE_OUT2_L
LINE_OUT2_R
MIC2_L_S MIC2_R_S
+
ACT5 100UF 10V 6.3x11 AUDIO
+
ACT3 100UF 10V 6.3x11 AUDIO
AC15 10UF 10V 0805 Y5V AC14 10UF 10V 0805 Y5V
FRONT CHANNEL
FRONT_OUT_L
FRONT_OUT_R
LINE_IN1_L LINE_IN1_R
MIC1_L_S MIC1_R_S
+
ACT1 100UF 10V 6.3x11 AUDIO
+
ACT2 100UF 10V 6.3x11 AUDIO AR15 75 1% 0204 MMF
AC11 10UF 10V 0805 Y5V AC10 10UF 10V 0805 Y5V
AC13 10UF 10V 0805 Y5V AC12 10UF 10V 0805 Y5V
REAR CHANNEL
SENSE_A
AR35 5.1K 1% 0402
SENSE_B
AR36 20K 1% 0402 AR34 10K 1% 0402
AR45 0 0402
LEFT SIDE
RIGHT SIDE
JACK SENSE
PLACE CLOSE TO CODEC
AR51 20K 1% 0402
JDREF
Hi-Fi Cap BOM
Hi-Fi Cap BOM
FRONT_JD 26 MIC1_JD 26
LINE1_JD 26
FRONT_IO_SENSE 26
GND_AUD
AR33 75 0402 AR32 75 0402
AR14 75 1% 0204 MMF
AR29 75 0402 AR28 75 0402
AR31 75 0402 AR30 75 0402
1
LINE2_L 26
LINE2_R 26
MIC2_L 26 MIC2_R 26
LINEOUT_L 26
LINEOUT_R 26
LINE1_L 26 LINE1_R 26
MIC1_L 26 MIC1_R 26
EXT_VOL_CTRL & JDREF
AC3 10UF 10V 0805 Y5V AC7 0.1UF 16V Y5V 0402
GND_AUD
LINE_IN2_L
AC17 10UF 10V 0805 Y5V AC8 1UF 10V X5R 0402
AC9 1UF 10V X5R 0402
LINE_IN2_R
AC16 10UF 10V 0805 Y5V
A A
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
AUDIO_GAIN128
5
AR25 1K 0402
GND_AUD
AR23 100K 0402
GND_AUD
AR27 100K 0402
GND_AUD
VCC5
LDOVDD
AU_GAIN0 AU_GAIN1
AR22 10K 0402 /NI AR26 10K 0402
4
SV36135 QFN16
LDOVDD
17
OUTL OUTR
HPVDD HPVSS
CPP CPN
GND
LDOVDD
AFB13 0 0805 /NI
LINE_OUT2_L
16
LINE_OUT2_R
5 15
Vref
AR24 0 0402 /NI
12
AC4 10UF 10V 0805 Y5V /NI
8
AC6 22UF 6.3V X5R 0805
11 9
AC5 1UF 10V X5R 0402 /NI
AFB14 0 0805 /NI
3
LDOVDD
AR21 10K 0402
GND_AUD GND_AUD
SR16 470 1% 0402
VCC5
SR13 470 1% 0402
LDOVDD
BI OSTAR' S PR OPRI ETARY
◇
INF ORM ATION
Any u nauth ori z ed use, r epr oducti on,
◇
dupli cation , or disclosur e o f t his document will be subject to the applicab le civil and/orcriminal pe nalt ies.
14
AU1
INL_N INL_P
INR_P INR_N
GAIN0 GAIN1
EN
VDD
PGND
10
GND_AUD
1 2
3 4
6 7
13
GND_AUD
R112 SHORT 0805 /NI
EMI
LED_D1
LED_D2
◆
◆
2
CODEC_LED_D2 RED CHIP LED 0805
CODEC_LED_D1 RED CHIP LED 0805
GND_AUD
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
20130408 V0.6 Kevin
AUDIO CODEC ALC898
AUDIO CODEC ALC898
AUDIO CODEC ALC898
IB75F-MHS
IB75F-MHS
IB75F-MHS
25 43Thursday, May 16, 2013
25 43Thursday, May 16, 2013
25 43Thursday, May 16, 2013
1
6.0
6.0
6.0
5
www.teknisi-indonesia.com
www.teknisi-indonesia.com
4
3
2
1
GND_AUD
LINE1_L LINE1_JD
LINE1_R
LINEOUT_L FRONT_JD
LINEOUT_R
AR9 22K 0402
MIC1_L MIC1_JD
MIC1_R
LINE1_L25
LINE1_JD25
LINE1_R25
D D
LINEOUT_L25
FRONT_JD25
LINEOUT_R25
MIC1_L25
MIC1_JD25
C C
MIC1_R25
REAR AUDIO JACKS
B B
AFB8 BEAD 60 0603
AFB5 BEAD 60 0603
AFB11 BEAD 60 0603
AFB12 BEAD 60 0603
AR8 22K 0402
AFB6 BEAD 60 0603
AFB7 BEAD 60 0603
C644 100P 50V NPO 0402
GND_AUD
C646 100P 50V NPO 0402
GND_AUD
C648 100P 50V NPO 0402
GND_AUD
LINE1_L2
LINE1_R2
C645 100P 50V NPO 0402
LINEOUT_L2
LINEOUT_R2
C647 100P 50V NPO 0402
MIC1_L2
MIC1_R2
C649 100P 50V NPO 0402
32
AUDIO1D
33 34 35
1
AUDIO JACK 3HD
22
AUDIO1C
23 24 25
1
AUDIO JACK 3HD
2
AUDIO1B
3 4 5 1
AUDIO JACK 3HD
PORT-C BLUE JACK
PORT-D
GREEN JACK
PORT-B
PINK JACK
PORT-E
MIC2_L25 MIC2_R25 LINE2_R25
FRONT_IO_SENSE25
LINE2_L25
PORT-F
MIC1_VREFO_R25 MIC1_VREFO_L25
MIC2_VREFO25
MIC VREF
FRONT AUDIO JUMPER
F_AUDIO1
MIC2_L MIC2_R LINE2_R
LINE2_L
AR4 22K 0402
GND_AUD
AR44 2.2K 0402 AR39 2.2K 0402
AQ1
KA
BAT54A SOT23
LINE-IN
LINE-OUT
MIC1
HEADER 2X5 N8 BLACK
1 2 3 4 5 6 7 9 10
AR5 22K 0402
MIC1_R
MIC1_L
A
AR41 4.7K 0402
K
AR43 4.7K 0402
MIC2_JD LINE2_JD
G1
G1
G3
IO_GND
MIC2_L
MIC2_R
20K 1% 0402 AR3
39.2K 1% 0402 AR2
GND_AUD
AUDIO1A
G2
AUDIO JACK 3HD
G2
G3
G4G5
G4
VCC3_3
AR38 10K 0402
FP_AUD_DETECT 14
GND_AUD
R113 SHORT 0805 /NI
EMI
VCC5
JSPDIFOUT1
1 3
WAFER 1X3 BLACK
SPDIF CONNECTOR
H1
GND_AUD
2
SPDIFO 25
AC1 0.1UF 16V Y5V 0402
IO_GND
AUDIO JACKS SHEEL
AC2 330P 50V NPO 0402
AR1 SHORT 0805 /NI
GND_AUDGND_AUD
IO_GND
20130408 V0.6 Kevin
A A
5
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
4
3
BI OSTAR' S PROPRI ET ARY
◇
INFORMATION
Any unaut hori zed use, r epr oducti on,
◇
duplication, or disclosure of this document will be subject to the applicable civil and/orcriminal penalties.
◆
◆
2
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
AUDIO CONNECTOR
AUDIO CONNECTOR
AUDIO CONNECTOR
IB75F-MHS
IB75F-MHS
IB75F-MHS
26 43Thursday, May 16, 2013
26 43Thursday, May 16, 2013
26 43Thursday, May 16, 2013
1
6.0
6.0
6.0
5
A
www.teknisi-indonesia.com

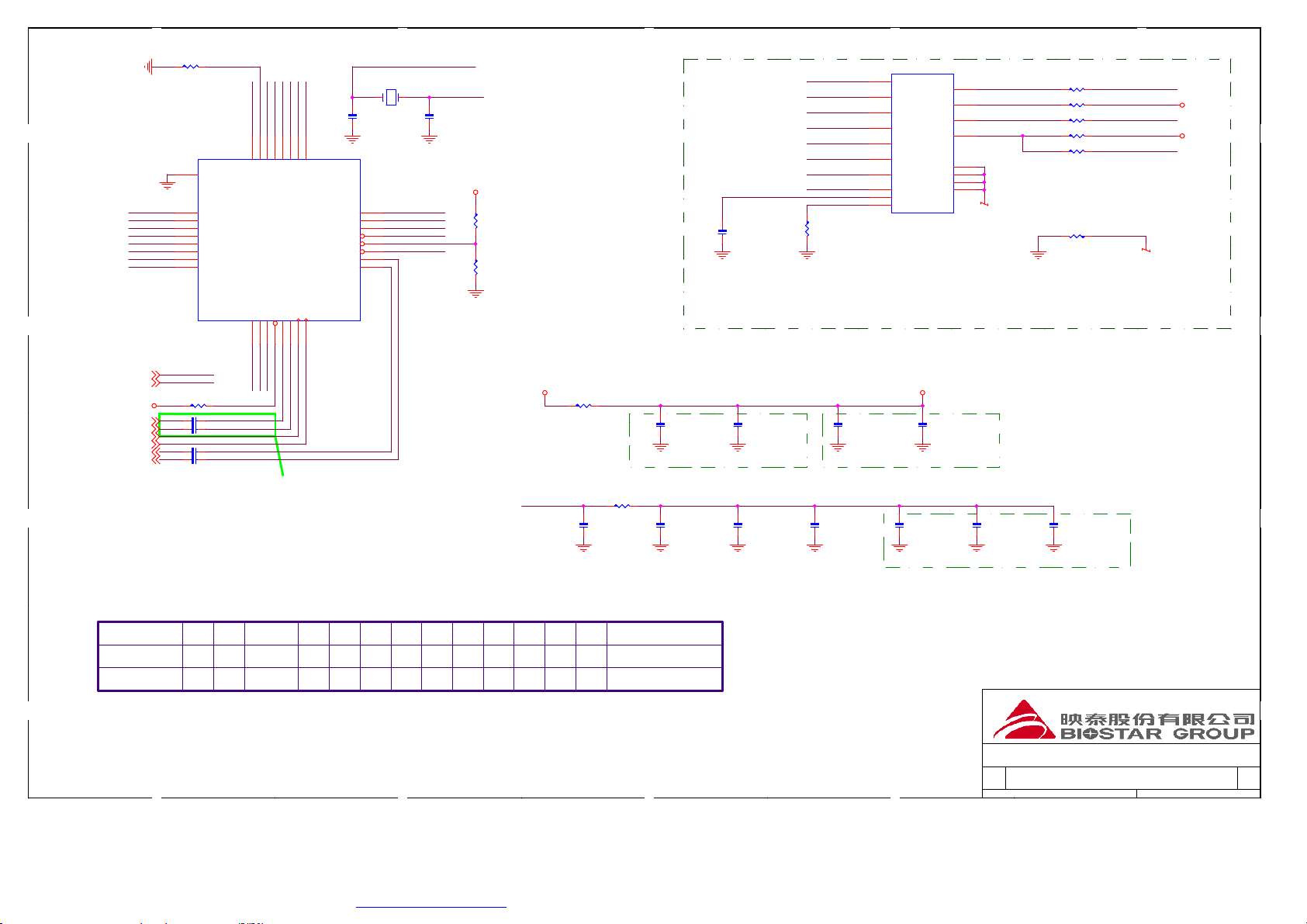

LR1 2.49K 1% 0402
VDD10
LED-LINK-A
RSET
LED-1000-A
XTAL1
XTAL2
LED-100-A
D D
33
GND
MDI0+ MDI0­VDD10 MDI1+ MDI1­MDI2+ MDI2­VDD10
1
MDIP0
2
MDIN0
3
AVDD10(NC)
4
MDIP1
5
MDIN1
6
MDIP2(NC)
7
MDIN2(NC)
8
AVDD10
C C
VDD33
32
31
AVDD33
MDIP3(NC)9MDIN3(NC)
10
30
RSET
11
AVDD10
AVDD33(NC)
12
25
28
27
26
LED0
CKXTAL229CKXTAL1
LED1/GPO
VDDREG(VDD33)
HSIP13HSIN14REFCLK_P15REFCLK_N
CLKREQB
16
LED2(LED1)
REGOUT(NC)
DVDD10(NC)
LANWAKEB
ISOLATEB
PERSTB
HSON HSOP
4
LY1 25MHZ 20PF 30PPM
LC1 33P 50V NPO 0402
LU1 RTL8111G QFN32
24
REGOUT
23
VDD33
22
VDD10 WAKE_N
21 20
ISOLATEB PCIERST_N
19 18 17
XTAL1
XTAL2
LC2 33P 50V NPO 0402
VCC3_3
LR6 1K 0402
LR10 15K 0402
3
MDI0+
MDI0-
MDI1+
MDI1-
MDI2+
MDI2-
MDI3+
MDI3-
LAN_V_DAC RJ45_GNDP
R3
LC25
0.01UF 25V X7R 0402
FOR RTL8111G,INSTALL R3 TO 0ohm
FOR RTL8106E, INSTALL R3 TO 0.01UF
FOR RTL8111G,INSTALL R2; NI R1
FOR RTL8106E, INSTALL R1;NI R2
FOR RTL8111G,RJ45USB1 VALUE IS LANUSB_GBMA
FOR RTL8106E, RJ45USB1 VALUE IS RJ45USBA CONN
LR16 0 0402
2
RJ45USB1B
2
TX0+
3
TX0-
4
TX1+
5
TX1-
6
TX2+
7
TX2-
8
TX3+ TX3-9GND4
1
V_DAC
10
GNDP
LANUSB_GBMA
GLED-
GLED+
YLED-
YLED+
GND1 GND2 GND3
11
LINK-
12
LINK+
13
LED-100 LED-100-A
14
LED-1000
G1 G2 G7 G8
IO_GND
LR4 220 0402 LR5 220 0402 LR7 220 0402 LR8 220 0402 /NI
R1
LR9 220 0402
R2
LR20 SHORT 0805 /NI
LAN CONNECTOR
1
LED-LINK-A
LED-1000-A
IO_GND
VDD33
VDD33
WAKE_N14,21,22
PCIERST_N28
GBEA_TXP12 GBEA_TXN12 GBE_CLKP17 GBE_CLKN17 GBEA_RXP12 GBEA_RXN12
WAKE_N
PCIERST_N
LR2 10K 0402
VCC3_3
LC3 0.1UF 16V X7R 0402 LC4 0.1UF 16V X7R 0402
LC5 0.1UF 16V X7R 0402 LC6 0.1UF 16V X7R 0402
CLKREQB
HSIP
REFCLK+
REFCLK-
HSIN
VDD33
MDI3+
MDI3-
HSOP
HSON
+3V3_DUAL
LFB1 0 0805
LC7
0.1UF 16V Y5V 0402
NEAR PIN11 NEAR PIN23
LC9
4.7UF 16V Y5V 0805
C1
LC8
0.1UF 16V Y5V 0402
VDD33
C2
LC17
4.7UF 16V Y5V 0805
LC3,LC4 close to PCH
REGOUT VDD10
B B
NEAR PIN24
LR11 0 0805
C9
LC10
0.1UF 16V Y5V 0402
R4
C3 C4 C5
LC11
0.1UF 16V Y5V 0402
NEAR PIN3 NEAR PIN8 NEAR PIN22NEAR PIN30
LC12
0.1UF 16V Y5V 0402
LC13
0.1UF 16V Y5V 0402
C6
LC14
0.1UF 16V Y5V 0402
C7 C8
LC16
0.1UF 16V Y5V 0402 /NI
LC15 1UF 10V Y5V 0402 /NI
COMPONENT CONTRAST LIST LAN PARTS C6 RTL8111G
RTL8106E
R1OR2 R3
O
X
O
0ohm
X
R4
O
X
C1 C2
X X
5
C3OC4
O
X
4
C5
O
O
OO
X
C7 C8
O OO
O O
RJ45 CONN
C9
O
LANUSB_GBMA
RJ45USBA CONN0.01uF
X
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
3
2
RTL8111G
RTL8111G
RTL8111G
IB75F-MHS
IB75F-MHS
IB75F-MHS
1
6.0
6.0
27 43Thursday, May 16, 2013
27 43Thursday, May 16, 2013
27 43Thursday, May 16, 2013
6.0
A
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
5
www.teknisi-indonesia.com
www.teknisi-indonesia.com
SUPERIO PART: S+Reference
VCC3_3
D D
+3V3_STBY_SIO
+3V3_STBY_SIO
C C
+3V3_DUAL
+5V_DUAL
CIRRX
CIRTX
NI if COM port buffer is exist.
SR35 4.7K 0402 /NI SR111 4.7K 0402 /NI SR15 4.7K 0402 /NI
SR29 4.7K 0402 SR34 4.7K 0402
SR3 2.2K 0402 SR26 1K 0402 SR8 2.2K 0402 SR68 2.2K 0402
SC37 0.1UF 16V Y5V 0402
SR14 2.2K 0402 SR23 2.2K 0402
SR12 2.2K 0402 /NI SC3 SR19 2.2K 0402 /NI
SR17 10K 0402 SR28 2.2K 0402 /NI SR105 10K 0402
SR20 4.7K 0402 SR51 4.7K 0402
CIR1
1
1
2
3
NC3
556
HEADER 2X3 N4 B
RTS1# SOUT1 DTR1#
DTR2# CHIP_THERM
PCIRSTIN# SIO_PWRGD_50
PWRGD_150 SIO_RSTOUT#
IO_SLP_SUS# IO_SUSWARN#
IO_SLP_SUS_FET IO_SUS_WARN
SIO_RSMRST_N IO_SUSACK# AUDIO_GAIN1
CIRTX CIRRX
2
6
+5V_DUAL
JP2 JP3 JP4
JP5
OV_AXG041
+3V3_STBY_SIO
OV_AXG141
FAN1_TACH30
FAN_CTL130
FAN2_TACH30 FAN3_TACH30
SPI_WP19
MASTER_RST#14
FP_RST_N14,19,33
SIO_PWRGD_5035
ATX_PG33
AUDIO_GAIN125
PCIERST_N27
PCIERST_SLOT21,22
+3V3_STBY_SIO
SU1_VCORE +3V3_STBY_SIO
PLTRST_N7,14 L_DRQ_N14
SR52 33 0402 SR40 33 0402
OV_VSM241 OV_VSM141 OV_VSM041
SR32 33 0402
SML1DATA_PCH14
SML1CLK_PCH14
SOUT129
DCD1#29
PCIRSTIN#
IO_SLP_SUS#
SIO_RSTOUT# SIO_RSTIN#
IO_SLP_SUS_FET IO_SUS_WARN SIO_PWRGD_50
SIO_PROCHOT# DTR2#
CIRTX IO_SUSACK#
PCIERST_N PCIRST2#
SU1_VCORE PLTRST_N
4
RTS1#29
DSR1#29 SIN129
DTR1#29 RI1#29
CTS1#29
RTS1# SOUT1 DTR1#
128
127
SU1
1
CTS1#/GP31
2
FAN_CTL5/CIRRX2/GP16
3
PCIRSTIN#/CIRTX2/GP15
4
3VSB
5
GP64
6
SLP_SUS#/GP63
7
FAN_TAC1
8
FAN_CTL1
9
FAN_TAC2/GP52
10
FAN_CTL2/GP51
11
FAN_TAC3/GP37
12
FAN_CTL3/GP36
13
RSTCONOUT/GP35
14
RSTCONIN/GP34
15
GNDD
16
SLP_SUS_FET/5VSB_CTRL#
17
SUS_WARN_5VDUAL/5VAUX_SW
18
PWRGD50ms
19
ATXPG/GP30
20
SIN2/GP27
21
SOUT2/GP26
22
FAN_TAC4/DSR2#/GP25
23
FAN_TAC5/RTS2#/GP24
24
DPWORK/CPU_PG/GP23
25
GP22
26
DCD2#/GP21
27
CTS2#/GP20
28
RI2#/GP17
29
DTR2#/JP5
30
CIRTX1
31
PCH_C1/GP14
32
SUSACK#/PWRGD30ms
33
PCIRST1#/GP12
34
PCIRST2#/GP11
35
3VSB
36
VCORE
37
LRESET#
38
LDRQ#
RI1#/GP32
120
119
118
116
125
124
126
SIN1/GP41
DTR1#/JP4
DCD1#/GP33
117
123
122
121
GP66
GP67
GNDD
RTS1#/JP2
SOUT1/JP3
DSR1#/GP45
VLDT_EN/PCH_D0/GP65
VCORE_EN/PCH_C0/FAN_CTL4
IT8728FEX
3
PDR7 29 PDR6 29 PDR5 29 PDR4 29 PDR3 29 PDR2 29 PDR1 29 PDR0 29 STROBE# 29 AFD# 29 ERROR# 29 PARINIT# 29 SLCTIN# 29 ACK# 29 BUSY 29 PE 29
114
113
112
111
110
109
108
107
106
105
104
ERR#
PD1/GP71
PD0/GP70
SMBD_M1/INIT#/GP85
SMBC_R1/AFD#/GP86
SMBC_M1/STB#/GP87
VIN0/VCORE(1.1V)
VIN1/VIDMM_STR(1.5V)
RSMRST#/CIRRX1/GP55
PWRON#/GP44/JP8
103
ACK#/GP83
BUSY/GP82
PE/GP81
SLCT/GP80
SMBD_R1/SLIN#/GP84
AVCC3
VIN2(+12V_SEN)
VIN3(+5V_SEN)
VIN4/VLDT_12
5VDUAL/VIN5
VIN6
VREF TMPIN1 TMPIN2 TMPIN3
TSD-
GNDA
PCIRST3#/GP10
MCLK/GP56 MDAT/GP57
KCLK/GP60
KDAT/GP61
3VSBSW#/GP40
PWRGD150ms
SUSC#/GP53
PSON#/GP42
PANSHW#/GP43
GNDD
PME#/GP54
SUSB#
GP47
VBAT
COPEN#
3VSB
SYS_3VSB
DSKCHG#
102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65
VCC3_SIO SVIN0
SVIN1 SVIN2 SVIN3 SVIN4 SVIN5 SVIN6 VREF
TMPIN2 TMPIN3
SIO_GNDA SIO_RSMRST_N
CIRRX
PWRGD_150
IO_PME# PWRON#
VBAT SIO_COPEN#
RSMRST_IN
115
BUSSI2/PD4/GP74
BUSSI1/PD3/GP73
BUSSI0/PD2/GP72
BUSSO0/PD5/GP75
BUSSO2/PD7/GP77
BUSSO1/PD6/GP76
SLCT# 29
1UF 10V Y5V 0402
SR22 33 0402
SR37 33 0402 SR38 33 0402
SR112 33 0402
SR30 1K 0402
SR36 100 0402
2
VCC3_3
SFB1 BEAD 60 0805 1A
SC1 10UF 10V 0805 Y5V
SFB2 BEAD 60 0805 1A
SIO_RSMRST_N 14,34 MCLK 29
MDAT 29 KCLK 29 KDAT 29 ACPI_LED 33 PWRGD_3V 13,14,34 SLP_S4_N 14,37
PS_ON_N 33 PWRBTN_ 33
IO_PME_N 14 SW_ON_N 14,35 SLP_S3_N 14,34,36 CHIP_THERM 14
+3V3_DUAL
SR39 33 0402
C38 1UF 10V Y5V 0402
VREF
TMPIN3
SC215
2200P 50V X7R 0402
SIO_GNDA
VREF
TMPIN2
SC2 2200P 50V X7R 0402
SIO_GNDA
SYSTEM TEMPERATURE
VRTC
1
PR91
NTC 10K 1% 0402 SMD
SR71 10K 1% 0402
SR106 NTC 10K 1% 0402 SMD
SR61 10K 1% 0402
CLOSE TO PL1
B B
SU1_VCORE
SC5 0.1UF 16V X7R 0402
+3V3_STBY_SIO
SC6 0.1UF 16V Y5V 0402 SC8 0.1UF 16V Y5V 0402 SC7 0.1UF 16V Y5V 0402
Close to PIN36
Close to PIN4,35,67
SER_IRQ13
L_FRAME_N14
LAD014 LAD114 LAD214
LAD314 KBRST_N13 A20GATE13 PCLK_IO17 IO_48MHZ17
HARDWARE MONITOR
CIR CONNECTOR
SR115 10K 1% 0402
SR120 2K 1% 0402
VCC5VCC12V_SM
4
SR116
14.7K 1% 0402
SR49 10K 1% 0402
SR117 1K 1% 0402
V_CPU_CORE V_1P05_PCH V_AXG V_CPU_VCCIO
SR113
SC29 1UF 10V Y5V 0402 SC30 1UF 10V Y5V 0402 SC38 1UF 10V Y5V 0402
A A
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
SC39 1UF 10V Y5V 0402 SC34 1UF 10V Y5V 0402 SC36 1UF 10V Y5V 0402 SC31 1UF 10V Y5V 0402
5
SVIN0 SVIN1 SVIN2 SVIN3 SVIN4 SVIN5 SVIN6
1K 0402
SIO_GNDA
SR114 1K 1% 0402
SERIRQ39LFRAME#40LAD041LAD142LAD243LAD344KRST#/GP6245GA2046PCICLK47GP50/JP148CLKIN49GNDD50DENSEL#51MTRA#52SUSWARN#/SST/AMDTSI_D/MTRB#/PCH_D153DRVA#54PECI/AMDTSI_C/DRVB#55WDATA#56SMBC_R2/DIR#57SMBC_M2/STEP#58SMBD_R2/HDSEL#59SMBD_M2/WGATE#60RDATA#61TRK0#62INDEX#63WPT#
IO_SUSWARN# GP50_JP1
JP1
SR118 1K 1% 0402
SR119 1K 1% 0402
PECI
3
64
SR31 33 0402 SR33 33 0402
SR24 8.2K 0402
H_PECI 7 SST_CTRL 13
VCC3_3
SR391
SR390
10K 0402
SIO_PROCHOT#
BI OSTAR' S PROPRI ETARY
◇
INFORMATION
duplica t i on, or di sclosure of this document will be su bject to the appl icable civil and/orcriminal penalties.
◆
Any un aut hori zed use, r epr oducti on,
◇
2
10K 0402
SQ1
B E
2N3904 SOT23
◆
C
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
H_PROCHOT_N 7,39
20130408 V0.6 Kevin
SUPER I/O ITE 8728FEX
SUPER I/O ITE 8728FEX
SUPER I/O ITE 8728FEX
IB75F-MHS
IB75F-MHS
IB75F-MHS
1
28 43Thursday, May 16, 2013
28 43Thursday, May 16, 2013
28 43Thursday, May 16, 2013
6.0
6.0
6.0
5
www.teknisi-indonesia.com
4
3
2
1

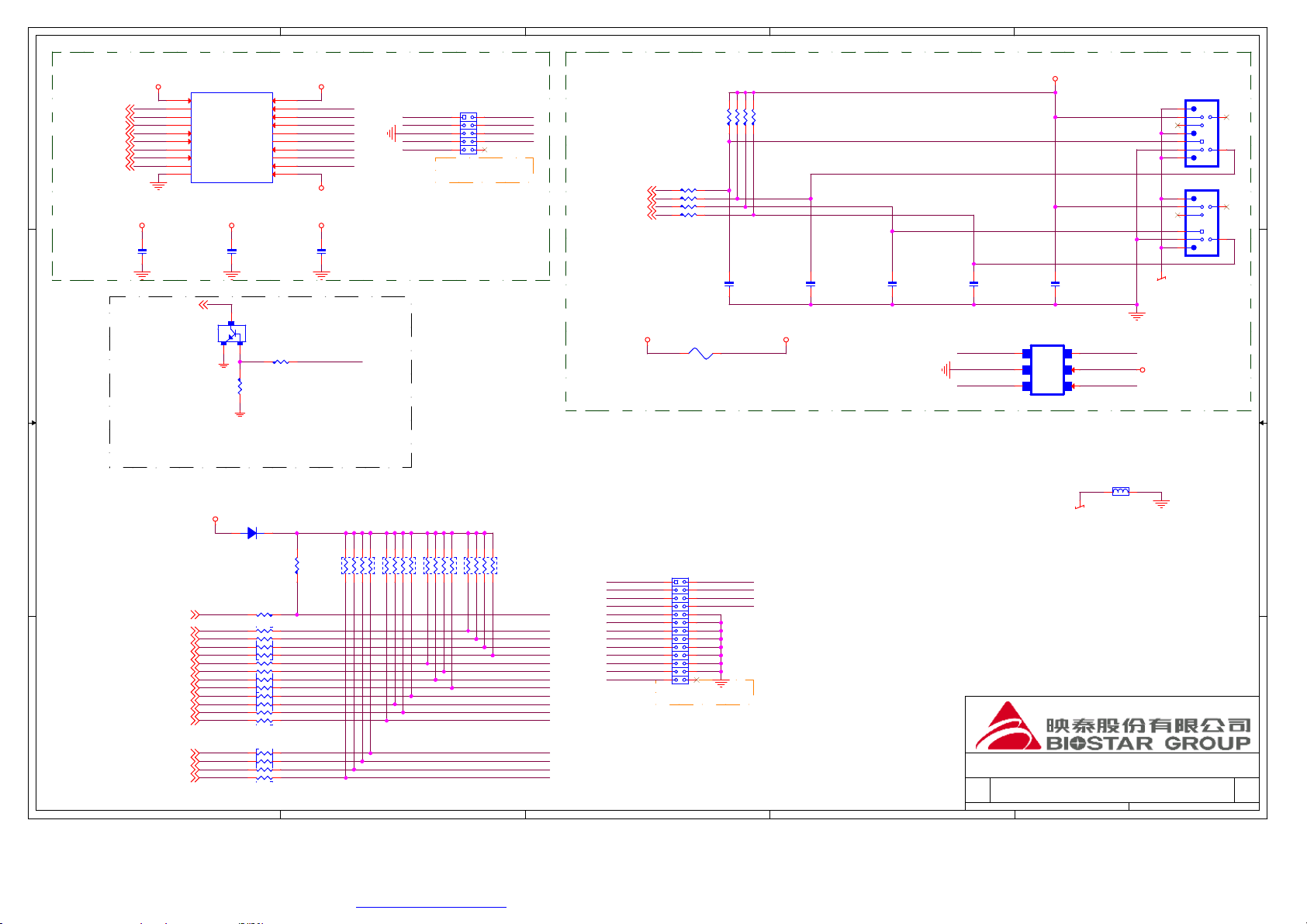

SU2
20
VCC
VCC12
SC21
0.1UF 16V Y5V 0402
PCH_RI14
19
ROUT1
18
ROUT2
17
ROUT3
16
DIN1
15
DIN2
14
ROUT4
13
DIN3
12
ROUT5
11
GND
AZ75232GTR-G1 TSSOP20P
DCD1#28 DSR1#28
SIN128
D D
C C
RTS1#28
SOUT128
CTS1#28 DTR1#28
RI1#28
RIN1 RIN2
RIN3 DOUT1 DOUT2
RIN4 DOUT3
RIN5
VCC12-
SC23
0.1UF 16V Y5V 0402
SQ6 2N3904 SOT23
ECB
SR64 10K 0402
SR65 10K 0402
V+
V-
VCC12VCC5
1 2
RIN1
3
RIN2
4
RIN3
5
DOUT1
6
DOUT2
7
RIN4
8
DOUT3
9
-XRI1
10
VCC12-
VCC5
SC32
0.1UF 16V Y5V 0402
-XRI1
J_COM1
1
RIN1 RIN3 DOUT2
DOUT1
-XRI1
2 3 4 5 6 7 8
HEADER 2X5 N10 B
20130425 V6.0 Kevin
DOUT3 RIN2 RIN4
109
COM PORT
KDAT28 KCLK28 MDAT28 MCLK28
+5V_DUAL
RN32
2.2K 0402
RN36 33 0402 RN38 33 0402 RN37 33 0402 RN39 33 0402
F2 POLY FUSE 1.1A
*
RN33
2.2K 0402
RN34
2.2K 0402
SC17 22P 50V NPO 0402
POWER_JUSB2
RN35
2.2K 0402
SC18 22P 50V NPO 0402
SC10 22P 50V NPO 0402
SC11 22P 50V NPO 0402
MS_CLK
MS_DAT
KEYBOARD & MOUSE
POWER_JUSB2
SC12
0.1UF 16V Y5V 0402
SQ4 CM1293 SOT23-6 /NI
1
B1B2
A1
2
+
­CM1293
3
A2
KB_DAT
KB_CLK
MS_DAT
MS_CLK
KB_DAT
6 5
KB_CLK
4
KBMS1A MINI DIN CONN PC99
G1
4 2
G2
1 3
G3
KBMS1B MINI DIN CONN PC99
G4
10
8 7
9 11
G5
IO_GND
POWER_JUSB2
6
5
12
12/6
WAKE ON RING
SFB5 0 0805
VCC5
D3
STROBE# AFD#
ERROR# PARINIT# SLCTIN# PDR3 PDR2 PDR1 PDR0 PDR4 PDR5 PDR6 PDR7
SS12/5817 SMA
A K
R205 33 0402
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 7 8 5 6 3 4 1 2
R130
2.7K 0402
RN23 33 8P4R 0402
RN29 33 8P4R 0402
RN30 33 8P4R 0402
B B
STROBE#28
AFD#28
ERROR#28
PARINIT#28
SLCTIN#28
PDR328 PDR228 PDR128 PDR028 PDR428 PDR528
A A
PDR628 PDR728
RN24
2.7K 8P4R 0402
246
8
135
7
RN25
2.7K 8P4R 0402
246
8
135
7
RN27
2.7K 8P4R 0402
246
8
135
7
RN26
2.7K 8P4R 0402
246
8
135
7
-STB AFD
ERRORJ
-INIT
-SLIN P_PRD3
P_PRD2 P_PRD1 P_PRD0 P_PRD4 P_PRD5 P_PRD6 P_PRD7
J_PRINT1
1
-STB AFD P_PRD0
P_PRD1 P_PRD2 P_PRD3 P_PRD4 P_PRD5 P_PRD6 P_PRD7
ACKJ BUSY_
PE_ SLCTJ
2 3 4 5 6 7 8 91110
13 14 17 18
19 20 21 23 25
HEADER 2X13 N26 B
20130425 V6.0 Kevin
ERRORJ
-INIT
-SLIN
12 1615
22 24 26
IO_GND
SLCT#28 PE28 BUSY28 ACK#28
5
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
5 6
PE BUSY ACK# ACKJ
3 4 1 2
RN31 33 8P4R 0402
4
7 8
SLCT# SLCTJ
PE_ BUSY_
LPT PORT
3
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
2
Date: Sheet of
COM / LPT / PS2 CONN
COM / LPT / PS2 CONN
COM / LPT / PS2 CONN
IB75F-MHS
IB75F-MHS
IB75F-MHS
29 43Thursday, May 16, 2013
29 43Thursday, May 16, 2013
29 43Thursday, May 16, 2013
1
6.0
6.0
6.0
5
www.teknisi-indonesia.com
www.teknisi-indonesia.com
CPU FAN/SYSTEM FAN1
VCC5
4
3
2
1
D D
FAN_CTL128
CPU
20130425 V6.0 Kevin
C C
SYSTEM1
B B
20130425 V6.0 Kevin
SR41
4.7K 0402 SR42 100 0402
CPU_FAN1
4 3 2 1
WAFER 1X4-BLACK
SYS_FAN1
3 2 1
WAFER 1X3-BLACK
CPU_FAN_IN CPU_FAN_TACH
SYS1_FAN_TACH
VCC12
SC13 1UF 16V 0805 Y5V
VCC12
SC14 1UF 16V 0805 Y5V
SR43
4.7K 0402 SR44 27K 0402
SR46
4.7K 0402 SR47 27K 0402
VCC5
VCC5
K
KA
K
KA
A
D1 BAV99 SOT23
FAN1_TACH 28
SR45 22K 0402
A
D2 BAV99 SOT23
FAN2_TACH 28
SR48 22K 0402
VCC12
SYS2_FAN_TACH
SYS_FAN2
A A
SC27 1UF 16V 0805 Y5V
5
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
3 2 1
WAFER 1X3-BLACK
20130425 V6.0 Kevin
VCC12
SR110
4.7K 0402 SR109 27K 0402
SYSTEM2
4
VCC5
A
K
SQ9 BAV99 SOT23
KA
SR108 22K 0402
20130408 V0.6 Kevin
FAN3_TACH 28
3
Title
Title
Title
Size
Size
Size
Date: Sheet of
Date: Sheet of
Date: Sheet of
Document Number Rev
Document Number Rev
Document Number Rev
A
A
A
HW MONITOR/FAN CONTROL
HW MONITOR/FAN CONTROL
HW MONITOR/FAN CONTROL
IB75F-MHS
IB75F-MHS
IB75F-MHS
30 43Thursday, May 16, 2013
30 43Thursday, May 16, 2013
2
30 43Thursday, May 16, 2013
1
6.0
6.0
6.0
5
DCC
A
teknisi indonesia
www.teknisi-indonesia.com

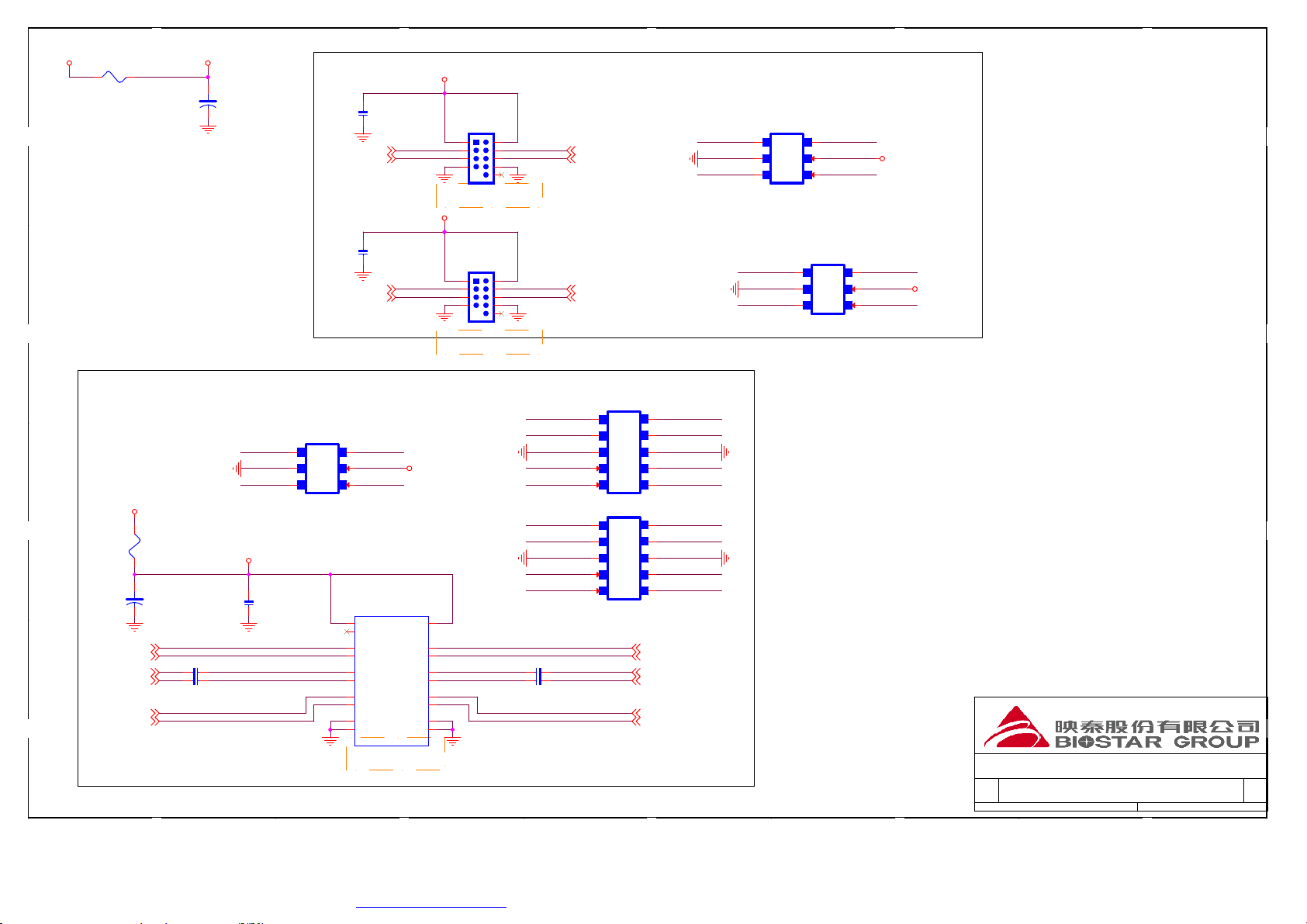

+5V_DUAL
F1 POLY FUSE 0805 2A-LR
POWER_JUSB1
*
+
CT3 560UF-S 6.3V 6.3X9 APAQ
D
USB_D11+12
4
POWER_JUSB1
C44
0.1UF 16V Y5V 0402
USB_D11+ USB_D12+
POWER_JUSB1
F_USB1
1 2 3 4 5 6 7 8
HEADER 2X5 N9 B-USB
20130425 V6.0 Kevin
3
Q6 CM1293 SOT23-6
1
USB_D12-USB_D11-
10
USB_D12- 12USB_D11-12 USB_D12+ 12
USB_D11+ USB_D11-
B1B2
2
­CM1293
3
USB_D12-USB_D12+
6
A1
5
+
4
A2
2
POWER_JUSB1
1
C45
0.1UF 16V Y5V 0402
USB_D3-
USB_D2-
VBUS0 ID
SSRX1­SSRX1+
SSTX1­SSTX1+
D1­D1+
GND_1 GND_0
USB_D8­USB_D8+
POWER_JUSB3
VBUS1
SSRX2-
SSRX2+
SSTX2-
SSTX2+
D2-
D2+
GND_3 GND_4
4
USB_D8-12
USB_D8+12 USB_D10+ 12
Q32
USB_D3+
1 2
USB_D2+
3
+5V_DUAL
B B
POLY FUSE 0805 2A-LR
*
+
CT10 560UF-S 6.3V 6.3X9 APAQ
USB3_RXN315 USB3_RXP315
USB3_TXN315 USB3_TXP315
USB_D2-12 USB_D2+12
F3
USB3_RXN3 USB3_RXP3
C113 0.1UF 16V X7R 0402 C115 0.1UF 16V X7R 0402
Near USB connector Near USB connector
USB_D2­USB_D2+
POWER_JUSB3
CM1293 SOT23-6
C112
0.1UF 16V Y5V 0402
F_USB3_TXN3 F_USB3_TXP3
B1B2
-
A1
+
CM1293
A2
6 5 4
JFRONT_USB3_1
1
10
2 3
5 6
8 9
7 4
BOX 2X10 N20-B USB3
20130425 V6.0 Kevin
5
F_USB2
1 2 3 4 5 6 7 8
HEADER 2X5 N9 B-USB
20130425 V6.0 Kevin
19
18 17
F_USB3_TXN4
15
F_USB3_TXP4
14 12
11 16
13
USB_D10­USB_D10+
10
C114 0.1UF 16V X7R 0402 C116 0.1UF 16V X7R 0402
USB_D10- 12
Q114
USB3_RXN4 USB3_RXN4
USB3_RXP3 USB3_RXP3
F_USB3_TXP4 F_USB3_TXP4 F_USB3_TXN4 F_USB3_TXN4
F_USB3_TXP3 F_USB3_TXP3 F_USB3_TXN3 F_USB3_TXN3
1 2 3
G CH1CH2CH3CH4
4
IP4284CZ10-TB
5
AZ1045 DFN2510P10E
Q116
1 2 3
G CH1CH2CH3CH4
4
IP4284CZ10-TB
5
AZ1045 DFN2510P10E
USB3_RXN4 USB3_RXP4
USB_D3­USB_D3+
USB3_RXP4USB3_RXP4
10
NCNCNC
9 8
G
7
USB3_RXN3USB3_RXN3
6
NC
10
NCNCNC
9 8
G
7 6
NC
USB3_RXN4 15 USB3_RXP4 15
USB3_TXN4 15
USB3_TXP4 15
USB_D3- 12
USB_D3+ 12
3
USB_D10- USB_D10+
Q7
1
B1B2
2
­CM1293
3
CM1293 SOT23-6
6
A1
5
+
USB_D8+USB_D8-
4
A2
2
POWER_JUSB1
Title
Title
Title
FRONT USB
FRONT USB
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
FRONT USB
IB75F-MHS
IB75F-MHS
IB75F-MHS
31 43Thursday, May 16, 2013
31 43Thursday, May 16, 2013
31 43Thursday, May 16, 2013
1
6.0
6.0
6.0
A
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
5
www.teknisi-indonesia.com
4
3
2
1
USB_D13­USB_D13+
USB_D9­USB_D9+
POWER_JUSB4
RJ45USB1A
B1
VCC0
B2
DATA0-
B3
DATA0+
B4
GND0
A1
VCC1
A2
DATA1-
A3
DATA1+
A4
GND1
LANUSB_GBMA
R22 SHORT 0805 /NI
IO_GND
USB3_0
1
VCC1
2
DM1
3
DP1
5
RX1-
6
RX1+
8
TX1-
9
TX1+
10
VCC2
11
DM2
12
DP2
14
RX2-
15
RX2+
17
TX2-
18
TX2+
USB3 CON DOUBLE short
USB3.0 PORTS
GND1 GND2 GND3 GND4
MGND1 MGND2 MGND3 MGND4
GND2 GND3 GND4 GND5
4 7 13 16
G1 G2 G3 G4
G3 G4 G5 G6
IO_GND
IO_GND
3
Q8 CM1293 SOT23-6
1
B1B2
2
-
3
Q40
1
USB3_RXP2 USB3_RXP2
USB3_RXN1 USB3_RXP1
F_USB3_TXP1 F_USB3_TXP1
F_USB3_TXN2 F_USB3_TXN2 F_USB3_TXP2 F_USB3_TXP2
USB_D1- USB_D1+
NCNCNC
2 3
G CH1CH2CH3CH4
G
4
IP4284CZ10-TB
5
1 2 3 4 5
1 2 3
NC
AZ1045 DFN2510P10E
Q41
NCNCNC
G CH1CH2CH3CH4
G
IP4284CZ10-TB
NC
AZ1045 DFN2510P10E
Q18
B1B2
A1
+
­CM1293
A2
CM1293 SOT23-6
A1
+
CM1293
A2
USB3_RXN2USB3_RXN2
10 9 8
USB3_RXN1
7
USB3_RXP1
6
F_USB3_TXN1F_USB3_TXN1
10 9 8 7 6
USB_D0+USB_D0-
6 5 4
USB_D13-USB_D13+
6 5
USB_D9-USB_D9+
4
POWER_JUSB4
POWER_JUSB4
2
Title
Title
Title
USB PORT
USB PORT
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
USB PORT
IB75F-MHS
IB75F-MHS
IB75F-MHS
1
32 43Thursday, May 16, 2013
32 43Thursday, May 16, 2013
32 43Thursday, May 16, 2013
6.0
6.0
6.0
D D
+
CT2 560UF-S 6.3V 6.3X9 APAQ /NI
USB_D13-12
USB_D13+12
C C
+5V_DUAL
B B
F4 POLY FUSE 1206 3.5A-LR
1 2
USB_D0-12 USB_D0+12
USB3_RXN115 USB3_RXP115
USB3_TXN115 USB3_TXP115
+
CT5 560UF-S 6.3V 6.3X9 APAQ
USB_D0­USB_D0+
USB3_RXN1 USB3_RXP1
C117 0.1UF 16V X7R 0402 C118 0.1UF 16V X7R 0402
POWER_JUSB4
C46
0.1UF 16V Y5V 0402
USB_D9-12
USB_D9+12
C39
0.1UF 16V Y5V 0402
F_USB3_TXN1 F_USB3_TXP1
Near USB connector
USB_D1-12
USB_D1+12
USB3_RXN215 USB3_RXP215
USB3_TXN215 USB3_TXP215
A A
5
USB_D1­USB_D1+
USB3_RXN2 USB3_RXP2
C119 0.1UF 16V X7R 0402 C120 0.1UF 16V X7R 0402
Near USB connector
F_USB3_TXN2 F_USB3_TXP2
4
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
5
www.teknisi-indonesia.com
www.teknisi-indonesia.com
4
3
2
1
24 PIN POWER CONNECTOR
JATXPWR
ATXPWR1
FQ1
VCC3_3
VCC3_3VCC12-
13
3.3V
14
-12V
15
GND
16
PSON
17
GND
18
GND
19
GND
20
NC
21
5V
22
5V
23
5V
24
GND
POWER CONN ATX 24P-B
20130425 V6.0 Kevin
FC10
ECB
1000P 50V X7R 0402
FR6 10K 0402
5VSB
VCC5
3.3V
3.3V
GND
5V
GND
5V
GND
POK
12V 12V
DET
FR1 330 0402
1 2 3 4 5 6 7 8 9 10 11 12
20130409 V0.6 Kevin
FR2 100 0402
SPK_VCC
SPK_DAT HDD_LED+
FP_RST_N
D D
PS_ON_N28
12/15 Close to ATXPOWER1
VCC3_3
C C
VCC5
B B
+5V_STBY
R8
4.7K 0402
C47 470P 50V X7R 0402
+
CT27 100UF-S 16V 6.3X9 APAQ /NI
+
CT28 100UF-S 16V 6.3X9 APAQ /NI
FR5 2.2K 0402
SPKR14
2N3904 SOT23
SPKR_B
PCH_SATA_LED_N13
+5V_STBY
VCC12VCC3_3VCC5 VCC5
VCC5
R9
R18
0 0402
1K 0402
ATX_PG 28
FRONT PANEL HEADER
PANEL1
1
9
2
10 3 4 5 6 7 8
HEADER 2X8 N11 BLACK
20130425 V6.0 Kevin
12
13
14
15
16
POWER_LED+ POWER_LED-
PWRBTN_H
FR3 200 0402
ECB
ECB
+3V3_DUAL
FQ2 2N3904 SOT23
+3V3_STBY
FQ4 2N3904 SOT23
FR14 10K 0402 FR15 10K 0402 FR16 10K 0402
V_SM
FR13 10K 0402
FOR EMI
VCC12- VCC5VCC12
FC1 470P 50V X7R 0402
+5V_STBY
FC5 470P 50V X7R 0402
VCC5 VCC5
C72
0.1UF 16V Y5V 0402
FC2 470P 50V X7R 0402
VCC3_3
FC6 470P 50V X7R 0402
VCC3_3 VCC3_3
12/9
+3V3_STBY
ACPI_LED 28
FC3 470P 50V X7R 0402
FC7
0.1UF 16V Y5V 0402
C74
0.1UF 16V Y5V 0402
VCC5
FC4
0.1UF 16V Y5V 0402
FC19
0.1UF 16V Y5V 0402
+5V_STBY
FR10
4.99K 1% 0402
A A
5
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
FP_RST_N14,19,28
FC8 FR19 10K 1% 0402
0.1UF 16V Y5V 0402 /NI
4
+5V_STBY
FR9
4.99K 1% 0402 FR12 33 0402
FR11 10K 1% 0402
3
FC9
0.1UF 16V Y5V 0402
PWRBTN_ 28
2
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
24PIN POWER CONN&FP
24PIN POWER CONN&FP
24PIN POWER CONN&FP
IB75F-MHS
IB75F-MHS
IB75F-MHS
33 43Thursday, May 16, 2013
33 43Thursday, May 16, 2013
33 43Thursday, May 16, 2013
1
6.0
6.0
6.0
5
DCC
A
www.teknisi-indonesia.com
4
3
2
1
+5V_DUAL
Q9
R10
D
SLP_S3_N14,28,36
R13 10K 0402
4.7K 0402
Q10 2N3904 SOT23
ECB
R11 10K 0402
R14 10K 0402
2N3904 SOT23
ECB
Q11 2N3904 SOT23
ECB
VR_RDY 14,39
H_PWRGD 7,14
PWRGD_3V 13,14,28
FOR POWER TEST
Q14 2N3904 SOT23
H_SKTOCC_N7,14,39
+5V_STBY
ECB
+3V3_STBY
ECB
Q12 2N3904 SOT23
R21 1K 0402
Q16 2N3904 SOT23
R17
4.7K 0402 R75 10K 0402
D
Q13 2N7002 SOT23
S
SLP_SUSB14,35
R19 10K 0402
G
12/12
B B
D_PWROK35
+5V_STBY
R20
4.7K 0402 R72 10K 0402
D
Q15 2N7002 SOT23
S
G
C50 10UF 10V 0805 Y5V
SIO_RSMRST_N 14,28
12/6
SMB_CLK_RESUME14,21,22
PCH_DPWROK 14
SMB_DATA_RESUME14,21,22
R23 10K 0402
Q118 2N7002 SOT23
S
D
G
Q119 2N7002 SOT23
S
D
G
ECB
VCC3_3
VCC3_3
R212
2.7K 0402
R213
2.7K 0402
SMB_CLK_MAIN9,10
SMB_DATA_MAIN9,10
5VDUAL_G_SYS 35
5
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
4
A
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
3
2
RESUME RESET LOGIC
RESUME RESET LOGIC
RESUME RESET LOGIC
IB75F-MHS
IB75F-MHS
IB75F-MHS
34 43Thursday, May 16, 2013
34 43Thursday, May 16, 2013
34 43Thursday, May 16, 2013
1
6.0
6.0
6.0
5
DCC
A
teknisi indonesia
www.teknisi-indonesia.com
+5V_STBY
R25
4.7K 0402
D
3V_STBY_EN19
R54
4.7K 0402 /NI
+5V_STBY
1UF 10V Y5V 0402
20130409 V0.6 Kevin
R71
10 0805
C51
C66 1UF 10V Y5V 0402
+5V_STBY
4
Max 2A
U3 UP0105 PSOP8
4
CNTL
2
EN
3
VIN
5
NC
9
Vout=Vref (0.8V) X ( R2/R1+1 )
=3.33V
GND8GND_PAD
POK
VOUT
1
6
7
FB
+3V3_STBY
R2
R1
R107 1K 0402
DPWROK
4.7K 1% 0402
3VSBY_FB
R27
1.5K 1% 0402
3
Q17 BAT54C SOT23
SW_ON_N
R98 10K 0402
+3V3_STBY
C52 22NF 16V X7R 0402
SW_ON_N 14,28
D_PWROK 34
R79 0 0805
+
CT4 100UF-S 16V 6.3X9 APAQ
20130409 V0.6 Kevin 20130409 V0.6 Kevin
+3V3_STBY_SIO
C643 10UF 10V 0805 Y5V
2
+5V_DUAL
+
CT29 100UF-S 16V 6.3X9 APAQ /NI
I O
AQ3_A
A
C70 1UF 10V Y5V 0402
AQ3 AZ1117H-ADJ SOT-223
Vout=Vref (1.25V) X ( 1+R2/R1 )=3.3V
R1
R2
R206 200 1% 0402
R207 330 1% 0402R26
1
+3V3_DUAL
1800mA
+
CT13 100UF-S 16V 6.3X9 APAQ
12/6 INTEL EUP
SLP_SUSB14,34
R30 10K 0402
+5V_STBY
D
G
R35 10K 0402
Q25 2N7002 SOT23
S
R37 10K 0402
EUP_GATE_B
ECB
PNP
Q26 2N3906 SOT23
R39 10K 0402
C56 10UF 10V 0805 Y5V
EUP_GATE
+3V3_STBY +5V_STBY+3V3_STBY
R28 10K 0402
SUSB_B
+5V_STBY
G
AK
D5 SS12/5817 SMA
5VSB_SOURCE
S
Q19 SI2301BDS SOT23
D
AK
S
D
VCC12+5V_STBY
D6 SS12/5817 SMA
Q20 SI2301BDS SOT23
G
+
CT6 560UF-S 6.3V 6.3X9 APAQ
+5V_DUAL
Q21 APM2518NU TO252
S
D
G
VCC5
C53 1UF 10V Y5V 0402
B B
R33 10K 0402
Q23 2N3904 SOT23
SIO_PWRGD_5028
5
4
R36 10K 0402
3
ECB
R34 10K 0402
5VDUAL_G_SYS
D
Q24 2N7002 SOT23
S
G
5VDUAL_G_SYS 34
12/6
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
2
ACPI POWER CONTROL
ACPI POWER CONTROL
ACPI POWER CONTROL
IB75F-MHS
IB75F-MHS
IB75F-MHS
35 43Thursday, May 16, 2013
35 43Thursday, May 16, 2013
35 43Thursday, May 16, 2013
1
6.0
6.0
6.0
A
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
5
DCC
A
www.teknisi-indonesia.com
D
4
3
VCC12
411
PWR
3
+
1
-
GND
U4A AS324MTR-G1 SO14P
V1P05PCH_EN
C60
0.1UF 16V Y5V 0402
2V5_REF
R52 3K 1% 0402
R55
2.21K 1% 0402
2
VCC12
5 6
2
411
PWR
+
-
GND
C58
0.1UF 16V Y5V 0402
VCHIP_GATE
7
U4B AS324MTR-G1 SO14P
R56 1K 0402
V_CPU_VCCIO
+
CT8 820UF-S 3V 6.3X9 APAQ /NI
V_SM
D
G
S
TDC:8.8A
V_SA
Q31 APM2518NU TO252
1
TDC:6.2A
V_1P05_PCH
VCC5
R
R59 100 0402
A
C
Q34 AM431 SOT23
3
2V5_REF
R61
1.33K 1% 0402
R63
3.48K 1% 0402
V_1P8_SFR_EN
C62
0.1UF 16V Y5V 0402
411
10
+
9
-
2
PWR
8
GND
U4C AS324MTR-G1 SO14P
VCC3_3VCC12
D
V1P8_GATE
R64 1K 0402
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
Q35
G
APM2518NU TO252
S
LINEAR POWER CONTROL
LINEAR POWER CONTROL
LINEAR POWER CONTROL
IB75F-MHS
IB75F-MHS
IB75F-MHS
+5V_DUAL
R60
B B
SLP_S3_N14,28,34
R65 10K 0402
5
10K 0402
Q36 2N3904 SOT23
ECB
C63
0.1UF 16V Y5V 0402
R62 10K 0402
R67 10K 0402
4
V1P05PCH_EN
Q33 2N3904 SOT23
ECB
V_1P8_SFR_EN
Q37 2N3904 SOT23
ECB
+
CT9 560UF-S 6.3V 6.3X9 APAQ
MAX:1A
V_1P8_SFR
+
CT11 820UF-S 3V 6.3X9 APAQ
1
6.0
6.0
6.0
36 43Thursday, May 16, 2013
36 43Thursday, May 16, 2013
36 43Thursday, May 16, 2013
A
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
5
www.teknisi-indonesia.com
www.teknisi-indonesia.com
D D
MEMORY VLOTAGE CONTROL CIRCUIT FOR INTEL PLATFORM
+5V_DUAL
MR15 10K 0402
VSM_EN_G
C C
5
MR31 10 0805
NC
ECB
7
6
VCTNL
SLP_S4_N14,28
B B
MR19 10K 0402
MC37 1UF 10V Y5V 0402
+5V_DUAL
MQ2 2N3904 SOT23
8
NC2
NC1
GND2
MR29 10K 0402
MU2
uP0109 PSOP8
9
4
+5V_STBY
MR23
2.7 0805
A
MQ5
BAT54C SOT23
KA
DDR_PWM_VCC M_VIN_5V
MC32
4.7UF 16V Y5V 0805
DDR_EN
MQ3 2N3904 SOT23
ECB
R5
MR22 20K 1% 0402
OV_VSM41
OV_VSM
R2
R1
MR24 360 1% 0402
MR25 806 1% 0402
20130507 V6.0 Kevin
VCC12
K
5
7
REFIN
6
FB
3
20130508 V6.0 Kevin
MR14 10 0805
MD2 SS12/5817 SMA
MR30 2.7 0805
BAT54C SOT23
MU1 uP1514 SOP8
BOOT
VCC
UGATE
PHASE LGATE
GND
3
20130409 V0.6 Kevin
A
MQ6
KA
1
MBOOT M_UG
2
M_PH
8
M_LG
4
K
MR28 1 0805
R4
MC34
0.1UF 16V X7R 0402 MR16 1 0805
MR17 100K 0402
MR18 0 0805
MR21
42.2K 1% 0402 /NI
2
+5V_DUAL
MUG
MLG
+
MCT2 820UF-S 3V 6.3X9 APAQ /NI
ML1 RH TYPE BEAD
MQ1 APM2518NU TO252
MQ4 APM2558NU TO252
MC33
4.7UF 16V Y5V 0805
1/4
ML2
CHOKE 1.2UH 30A 10.8X10.5-B
MR20
2.7 0805
MC36 1000P 50V X7R 0402
+
MCT3 820UF-S 3V 6.3X9 APAQ
1
+
MCT1 270UF-S 16V 8X12 APAQ
V_SM
+
MCT10 820UF-S 3V 6.3X9 APAQ
V_SM=0.8(1+R1/R2)=1.52V R5 Only For FP6326 (40uA*R5-0.4V)/Rds=Ioc FOR ONE LS MOSFET,R5=30K 1%
R4 Only For UP6109 OCP Set : 50A FOR ONE LS MOSFET,P0603BDL : R4=42.2K 1%
REFEN3GND1
2
MC39
0.1UF 16V Y5V 0402
VOUT
4
V_SM_VTT
+
MCT6 100UF-S 16V 6.3X9 APAQ
Title
Title
Title
VSM DC-DC Conver
VSM DC-DC Conver
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
4
3
2
Date: Sheet of
VSM DC-DC Conver
IB75F-MHS
IB75F-MHS
IB75F-MHS
37 43Thursday, May 16, 2013
37 43Thursday, May 16, 2013
37 43Thursday, May 16, 2013
1
VIN
V_SM
MC38 10UF 10V 0805 Y5V
A A
5
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
1
MR26 1K 1% 0402
VSMVTT_REF
MR27 1K 1% 0402
6.0
6.0
6.0
5
www.teknisi-indonesia.com
+12V_AUX
4
3
2
1
4
TUG
4
TLG
20130502 V6.0 Kevin
12V VIN
VIN
52
6
3
1
52
6
3
1
TQ2 SM4377N DFN 5X6
TQ3 SM4364N DFN 5X6
+
TC1
4.7UF 16V Y5V 0805
TL1 CHOKE 1.2UH 30A 10.8X10.5-B
TR7
2.7 0805
TC7 4700P 50V X7R 0402
TCT1 270UF-S 16V 8X12 APAQ
+
TCT2 820UF-S 3V 6.3X9 APAQ
V_CPU_VCCIO
+
TCT3 820UF-S 3V 6.3X9 APAQ
TC9 1UF 16V 0805 Y5V
D D
TC2 1UF 16V 0805 Y5V
VCCIO_EN
C C
7
6
TR11 30K 1% 0402
COMP
FB
TR1 10 0805
5
BOOT
UGATE
VCC
PHASE
LGATE
GND
3
TU1 uP1514 SOP8
1 2 8
4
TD1
AK
SS12/5817 SMA
T_UG T_PH
T_LG
R4
TR20
1 0805
TC3
0.1UF 16V X7R 0402
TR3 1 0805 TR5 100K 0402
PC61220P 50V X7R 0402
20130506 V6.0 Kevin
TR8 0 0805
TR10
42.2K 1% 0402 /NI
R1
TR12 1.24K 1% 0402
V_CPU_VCCIO
R2
TR16
3.83K 1% 0402
12/30
Vout=0.8V X(1+R1/R2)=1.05V R4 Only For UP6109 OCP Set : 50A FOR TWO LS MOSFET,P0903BDG : R4=26.1K 1%
B B
+5V_DUAL
TR19 10K 0402
VCCIO_CTRL_C
TR28 10K 0402
VCCIO_EN
TQ5 2N3904 SOT23
ECB
TQ7 2N3904 SOT23
V_1P05_PCH
A A
5
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
TR23 10K 0402
4
VCCIO_CTRL_B
ECB
TC8 1UF 10V Y5V 0402
Title
Title
Title
VTT DC-DC Conver
VTT DC-DC Conver
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
3
2
Date: Sheet of
VTT DC-DC Conver
IB75F-MHS
IB75F-MHS
IB75F-MHS
38 43Thursday, May 16, 2013
38 43Thursday, May 16, 2013
38 43Thursday, May 16, 2013
1
6.0
6.0
6.0
5
www.teknisi-indonesia.com
teknisi indonesia
www.teknisi-indonesia.com
V_CPU_VCCIO
PC2
VW_RC
VWG_RC
1UF 10V Y5V 0402
PR21
4.02K 1% 0402 /NI
PC3
PR27
2.7K 0402 /NI
PC4
PR11
249K 1% 0402
PC6 56P 50V NPO 0402
PC19
2200P 50V X7R 0402
LL=1.7mV/A
PR54 300K 0402
PR34
100K 1% 0402
PC24 56P 50V NPO 0402
LL=4mV/A
D D
VR_RDY14,34
PULL HIGH AT CPU
H_VIDSOUT7
H_VIDALERT_N7
H_VIDSCK7
H_PROCHOT_N7,28
PC11
3300P 50V X7R 0402 /NI
V_CPU_CORE
PR19 100 1% 0402
VCC_SENSE7
C C
VSS_SENSE7
OV_AXG41
VCCAXG_SENSE7
VSSAXG_SENSE7
B B
PR20 100 1% 0402
100P 50V NPO 0402 /NI
PR29 100 1% 0402
PC22
2200P 50V X7R 0402 /NI
V_AXG
PR24 100 1% 0402
PR37 100 1% 0402 PR36 3.09K 1% 0402
100P 50V NPO 0402 /NI
PR31 100 1% 0402
V6363
PR30 10K 0402 /NI
ADDR_DES_FDVID_TMAX
PR32
6.65K 1% 0402 /NI
PR7 110 1% 0402
VBOOT_SET
PC9
COMP_RC
680P 50V X7R 0402
FB_RC
PR16 226 1% 0402
PR18 4.02K 1% 0402
20130426 V6.0 Kevin
PC17
COMPG_RC
2200P 50V X7R 0402
PC20
2200P 50V X7R 0402
11/28
PR35 10K 0402 /NI
PC32
22NF 16V X7R 0402
Set ADDR
PRT2 PLACE
VCORE_EN
1
MTP82
IMON_CPUCORE
1
MTP87
IMON_VAXG
MTP88
1
A A
NEAR CONTROLLER
VCCAXG_SENSE
1
MTP85
VSSAXG_SENSE
1
MTP86
CLOSE TO PL1
PWM_TM PWM_TMG
PR25
12.7K 1% 0402
03/13 for CPU VR_HOT#
*
T
PRT2
10K 1% 0402
20130507 V6.0 Kevin
NEAR CPU
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
5
4
PR8 56 0402
FREQ=200KMHZ
PR22 10K 1% 0402 PC5 1000P 50V X7R 0402
PC14
2200P 50V X7R 0402
FREQ=200KMHZ
PR33 15.8K 1% 0402 PC18 1000P 50V X7R 0402
PR26
FBG_RC
150 0402
11/28
PR38
22.6K 1% 0402 22NF 16V X7R 0402
Set IMON
PRT1 PLACE CLOSE TO PL6
PR28
12.7K 1% 0402
*
T
PRT1
NTC 10K 1% 0402 SMD
4
VCORE_EN
VW
COMP
FB
PR15
PSI_RC
PSICOMP
470 1% 0402
VSEN
1/4
VWG
COMPG
FBG
ADDR_DES_FDVID_TMAX
PWM_TMG PWM_TM PWM_SCOMP
IMON_CPUCORE
IMON_VAXG
PR40
19.1K 1% 0402
PC31
Set IMONG
PU1
18
VR_ON
2
PGOOD
22
PGOODG
19
SDA
20
ALERT#
21
SCLK
31
VR_HOT#
20130429 V6.0 Kevin
15
VW
14
COMP
13
FB
11
PSICOMP
10
VSEN
12
RTN
24
VWG
25
COMPG
26
FBG
27
RTNG
48
ADDR_TMAX
30
NTCG
16
NTC
1
SCOMP
17
IMON
23
IMONG
PR39 10K 1% 0402 /NI
VCC5
PR5
V6363 +12V_AUX +12V_AUX
2.7 0805
PC1
VCC
PVCC
PVCCG
BOOT1 UGATE1 PHASE1 LGATE1
BOOT2 UGATE2 PHASE2 LGATE2
BOOTG UGATEG PHASEG
LGATEG
ISUMPG
ISUMNG
ISUMP
ISUMN
PWM3
PWM4
ISEN1
ISEN2
ISEN3
ISEN4
GND
ISL6363 TQFN48
BOTTOM PAD CONNECT TO GND Through 8 VIAs
10UF 10V 0805 Y5V
43
PVCC
32
PVCCG
45
BOOT1
PR41 1 0805
46 47 44
41
BOOT2
PR42 1 0805
40 39 42
34
PR43 1 0805
35 36 33
28
ISUMGP
29
ISUMGN
4
ISUMP
5
ISUMN
38
PWM3
37
PWM4
6
ISEN1
7
ISEN2
8
ISEN3
9
ISEN4
H_SKTOCC_N7,14,34
3
49
3
PR12
4.7 0805
PC7
4.7UF 16V Y5V 0805
BOOT1_C
PC8 0.1UF 16V X7R 0402
BOOT2_C
PC12 0.1UF 16V X7R 0402
V_BOOT_CV_BOOT
PC13 0.1UF 16V X7R 0402
PWM3 40
ISEN1 40
ISEN2 40
ISEN3 40
1
MTP91
3
PR14
4.7 0805
UG_1
PH1 LG_1
UG_2
PH2 LG_2
V_UG V_PH V_LG
PR45 10K 0402
2
ISL6363CRZ 3+1 Phase design
VSUM+ ISUMP
PC10
4.7UF 16V Y5V 0805
UG_1 40 PH1 40 LG_1 40
UG_2 40 PH2 40 LG_2 40
V_UG 40 V_PH 40 V_LG 40
V6363
VBOOT_G
DISABLE PHASE 4
VSUM+40
PRT3 PLACE CLOSE TO PL3
VSUM-40
VSUMG+40
PRT4 PLACE CLOSE TO PL6
VSUMG-40
D
PQ1 2N7002 SOT23
S
G
VSUM-
VSUMG-
V_CPU_VCCIO
PROG1
Vboot=1.1V
PR13 42.2K 1% 0402
PR55
42.2K 1% 0402
PR47
5.36K 1% 0402
R70 10K 0402
2
PR51
5.36K 1% 0402
VCORE_CTRL_B
PR50 0 0402 /NI
20130506 V6.0 Kevin
PC36
0.47UF 6.3V X5R 0402
PR57 0 0402 /NI
0.1UF 16V X7R 0402
CONTROL PWM
+5V_DUAL
4.7K 0402
VCORE_CTRL_C
ECB
C69 1UF 10V Y5V 0402
VBOOT_SET
PC39
0.47UF 6.3V X5R 0402
PC59
0.1UF 16V X7R 0402
PC51
68NF 10V X7R 0402
20130506 V6.0 Kevin
PC55
PC64
0.1UF 16V X7R 0402
Q38
2N3904 SOT23
R69
VCORE_EN_B
4.7K 0402 Q39 2N3904 SOT23
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
C
C
C
Date: Sheet of
Date: Sheet of
Date: Sheet of
VCORE VREG1
VCORE VREG1
VCORE VREG1
IB75F-MHS
IB75F-MHS
IB75F-MHS
1
ISUMN
PR49
1.62K 1% 0402
OCP=140A
20130426 V6.0 Kevin
ISUMGPVSUMG+ ISUMGN
PR53 649 1% 0402
OCP=50A
20130426 V6.0 Kevin
+12V_AUX
PR56 10K 0402
PR60 1K 0402R68
ECB
1
Vcore IMax=74A OCP=90A
LL=1.9mV/A
VCORE_EN
PC16
0.1UF 16V Y5V 0402
Vgt
IMax=40A OCP=49A LL=4.1mV/A
39 43Thursday, May 16, 2013
39 43Thursday, May 16, 2013
39 43Thursday, May 16, 2013
6.0
6.0
6.0
5
www.teknisi-indonesia.com
www.teknisi-indonesia.com
VIN
52
6
UG_1
UG_2
V_UG39
V_PH39
V_LG39
PH1
LG_1
PH2
LG_2
PR79 1 0805 PR80 10K 0402
PC52 220P 50V X7R 0402
20130426 V6.0 Kevin
PR85 0 0805
PR87 1 0805 PR88 10K 0402
PC54 220P 50V X7R 0402
20130426 V6.0 Kevin
PR89 0 0805
V_UG
PR119 1 0805 PR120 10K 0402
V_PH
V_LG
PR125 0 0805
20130426 V6.0 Kevin
UG_139
PH139
D D
LG_139
UG_239
PH239
LG_239
C C
B B
4
UG1
4
LG1
4
UG2
4
LG2
PC57 220P 50V X7R 0402
PQ3
3
1
SM4377N DFN 5X6
52
6
PQ5
3
1
SM4364N DFN 5X6
20130502 V6.0 Kevin
VIN
52
6
PQ6
3
1
SM4377N DFN 5X6
52
6
PQ8
3
1
SM4364N DFN 5X6
20130502 V6.0 Kevin
4
VUG
4
VLG
VIN
52
6
PQ18
3
1
SM4377N DFN 5X6
52
6
PQ19
3
1
SM4364N DFN 5X6
20130502 V6.0 Kevin
4
PC35
4.7UF 16V Y5V 0805
PR81
2.7 0805
CPU_SNB1
PC38 4700P 50V X7R 0402
20130426 V6.0 Kevin
PC41
4.7UF 16V Y5V 0805
PR92
2.7 0805
CPU_SNB2
PC43 4700P 50V X7R 0402
20130426 V6.0 Kevin
PC56
4.7UF 16V Y5V 0805
20130426 V6.0 Kevin
+
PCT9 270UF-S 16V 8X12 APAQ
PL1 CHOKE R50 40A 1.3M 11X11-B
PR82 ISEN_SHORT /NI
VSUM1+
PR94
3.74K 1% 0402
+
PCT11 270UF-S 16V 8X12 APAQ /NI
PL3 CHOKE R50 40A 1.3M 11X11-B
PR93 ISEN_SHORT /NI
VSUM2+
PR98
3.74K 1% 0402
PR121
2.7 0805
AXG_SNB
PC58 4700P 50V X7R 0402
PR101
PR100
10K 1% 0402
10K 1% 0402
ISEN2 ISEN3
PR95 10K 1% 0402
PR102
PR103
10K 1% 0402
10K 1% 0402
ISEN1 ISEN3
PR107 10K 1% 0402
+
PCT13 270UF-S 16V 8X12 APAQ
PL6 CHOKE R50 40A 1.3M 11X11-B
PR122 ISEN_SHORT /NI
VSUMG1+
PR113 10K 1% 0402
3
PR83 ISEN_SHORT /NI
VSUM1-
PR90 ISEN_SHORT /NI
VSUM2-
VSUMG1-
V_CPU_CORE
+
PR96 10 0402
PR97 10K 1% 0402 /NI
V_CPU_CORE
+
PR108 10 0402
PR99 10K 1% 0402 /NI
PR123 ISEN_SHORT /NI
PR114 10 0402
ATXPWR2
1
4
1
4
3
223
POWER CONN ATX12V 2X2-B
20130425 V6.0 Kevin
PCT10 820UF-S 3V 6.3X9 APAQ
VSUM-
PC44
0.47UF 6.3V X5R 0402
ISEN1 VSUM+
PCT16 820UF-S 3V 6.3X9 APAQ /NI
VSUM-
PC53
0.47UF 6.3V X5R 0402
ISEN2 VSUM+
V_AXG
+
PCT21 820UF-S 3V 6.3X9 APAQ
VSUMG-
VSUMG+
PL2
CHOKE R50 40A 1.3M 11X11-B
PC50
0.1UF 16V Y5V 0402
+
PCT7 820UF-S 3V 6.3X9 APAQ
VSUM- 39
ISEN1 39 VSUM+ 39
+
PCT15 820UF-S 3V 6.3X9 APAQ
VSUM- 39
ISEN2 39 VSUM+ 39
+
PCT22 820UF-S 3V 6.3X9 APAQ
VSUMG- 39
VSUMG+ 39
2
VIN+12V_AUX
1
UG3
PH3
LG3
VIN
52
6
4
PQ20
3
1
SM4377N DFN 5X6
52
6
4
PQ21
3
1
SM4364N DFN 5X6
20130502 V6.0 Kevin
PC46
4.7UF 16V Y5V 0805
3
+
PCT18 270UF-S 16V 8X12 APAQ
PR73
2.7 0805
PC45 4700P 50V X7R 0402
20130426 V6.0 Kevin
PL4 CHOKE R50 40A 1.3M 11X11-B
PR74 ISEN_SHORT /NI
PR104
PR105
10K 1% 0402
10K 1% 0402
ISEN1 ISEN2
PR78
PR84
3.74K 1% 0402
10K 1% 0402
2
V_CPU_CORE
PR75 ISEN_SHORT /NI
VSUM3-
PR77 10 0402
PR86 10K 1% 0402 /NI
+
PCT8 820UF-S 3V 6.3X9 APAQ
VSUM-
PC49
0.47UF 6.3V X5R 0402
ISEN3 VSUM+
Title
Title
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
VCORE VREG2
VCORE VREG2
VCORE VREG2
IB75F-MHS
IB75F-MHS
IB75F-MHS
+
PCT12 820UF-S 3V 6.3X9 APAQ
VSUM- 39
ISEN3 39 VSUM+ 39
1
+12V_AUX
PR68
4.7 0805
PR72 0 0402
RLV1
PC47 1UF 16V 0805 Y5V
RLV1 : 0 805 For ISL6612 RLV1 : NI For ISL6622
A A
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
PWM339
5
PR71 0 0805
PU2_VCC PU2_LVCC
PC48 1UF 16V 0805 Y5V
PU2 ISL6612ACB-SO8
2
BOOT
3
PWM
7
VCC
6
LVCC
4
GND
PC40 0.1UF 16V X7R 0402
1
UGATE
8
PHASE
5
LGATE
GND_PAD
9
UG_3
LG_3
PR69 1 0805 PR70 10K 0402
PR76 0 0805
4
PC60 220P 50V X7R 0402
20130426 V6.0 Kevin
6.0
6.0
40 43Thursday, May 16, 2013
40 43Thursday, May 16, 2013
40 43Thursday, May 16, 2013
6.0
5
www.teknisi-indonesia.com
4
3
2
1
D D
V_AXG
OV_AXG028 OV_AXG128
R77 3.01K 1% 0402 R78 1.5K 1% 0402
OV_AXG 39
DEFAULT
+5% +10% +15%
OV_AXG0
1 0 1 0
OV_AXG1
1 1 0 0
C C
VDIMM0+1.5VDIMM_FB
1.45V
OV_VSM37
B B
OV_VSM
R286 2.94K 1% 0402 R287 1.47K 1% 0402 R288 806 1% 0402
20130507 V6.0 Kevin
D
S
G
Q166 2N7002 SOT23
R872 0 0402
OV_VSM2 28 OV_VSM1 28
+3V3_DUAL
R871
4.7K 0402
OV_VSM0 28
1.35V
1.25V
1.17V
1.85V
1.71V
1.61V
1.51V (Default )
0 0 0
0 1
0 1 0
0 1 1
1 0 0
1 0 1
1 1 0
1 1 1
VDIMM1 VDIMM2
0
A A
Title
Title
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
Title
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
OVER VOLTAGE
OVER VOLTAGE
OVER VOLTAGE
IB75F-MHS
IB75F-MHS
IB75F-MHS
41 43Thursday, May 16, 2013
41 43Thursday, May 16, 2013
41 43Thursday, May 16, 2013
6.0
6.0
6.0
5
DCC
A
www.teknisi-indonesia.com
www.teknisi-indonesia.com
+5V_DUAL
12/15
R223 10K 0402
+5V_STBY
R219 10K 0402
Q121 2N3904 SOT23
ECB
C129 1UF 10V Y5V 0402 /NI
D
SLP_M_N14
D
G
12/20
R229 10K 0402
ME_EN
Q120 2N7002 SOT23
S
4
C124
12/15
1UF 10V Y5V 0402
+3V3_DUAL
10UF 10V 0805 Y5V
20130409 V0.6 Kevin
+5V_DUAL
ME_EN
3
R73 10 0805
U17 UP0105 PSOP8
4
CNTL
2
EN
3
VIN
5
NC
12/15
+3V3_DUAL
Max 2A
VOUT
GND8GND_PAD
9
POK
1
6
7
FB
R2
R1
R220 1K 0402
R222
1.2K 1% 0402
ME_FB
R224
3.6K 0402
Vout=Vref (0.8V) X ( R2/R1+1 ) =1.067V
2
PCH_MEPWROK 13
C125 22NF 16V X7R 0402
V_1P05_ME
+
CT26 560UF-S 6.3V 6.3X9 APAQC126
1.31A
YRN15 0 8P4R 0402 /NI
12/30
12 34 56 78
1
V_1P05_PCH
12/20
+3V3_DUAL
R225 10K 0402
EPW_CTL_N
B B
SLP_M_N14
R227 10K 0402
EPW_CTL
C128 1UF 10V Y5V 0402
5
Q123 2N3904 SOT23
ECB
4
+3V3_DUAL
SD
G
V_3P3_EPW
Q122 SI2301BDS SOT23
R228 0 0805 /NI
R226 0 0805 /NI
C127 1UF 10V Y5V 0402
12/15
VCC3_3
+3V3_DUAL
3
Title
Title
Title
RESERVED FOR AMT POWER
RESERVED FOR AMT POWER
RESERVED FOR AMT POWER
Size
Size
Size
Document Number Rev
Document Number Rev
Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
2
IB75F-MHS
IB75F-MHS
IB75F-MHS
1
42 43Thursday, May 16, 2013
42 43Thursday, May 16, 2013
42 43Thursday, May 16, 2013
6.0
6.0
6.0
A
PDF 檔案使用 "pdfFactory" 試用版本建立 www.pdffactory.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
