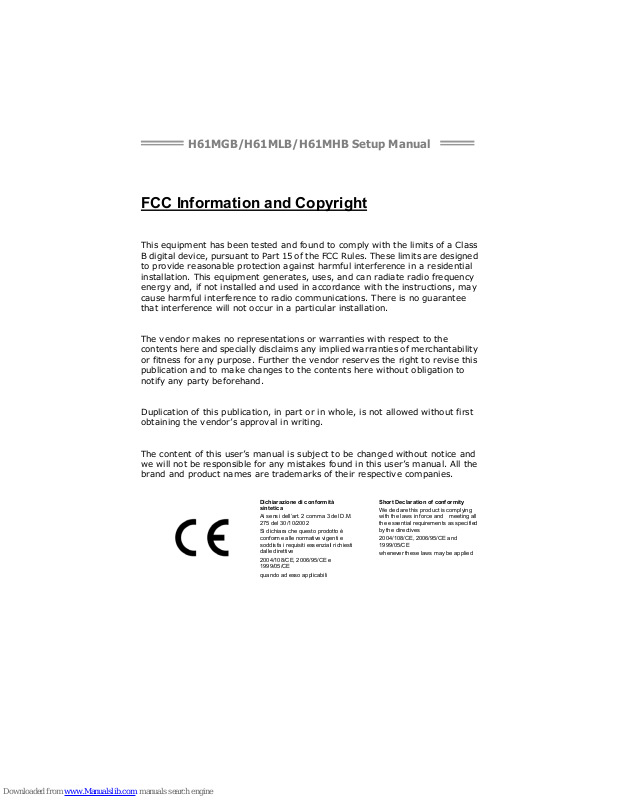

Biostar H61MGB Setup Manual

H61MGB/H61MLB/H61MHB Setup Manual

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee
that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the
contents here and specially disclaims any implied warranties of merchantability
or fitness for any purpose. Further the vendor reserves the right to revise this
publication and to make changes to the contents here without obligation to
notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and
we will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective companies.

Dichiar azione di confor mità
sintetica

Ai sensi dell’art. 2 comma 3 del D.M.
275 del 30/10/2002

Si dichiara che questo prodotto è
conforme alle normative vigenti e
soddisfa i requisiti essenziali richiesti
dalle direttive

2004/108/CE, 2006/95/CE e
1999/05/CE

quando ad esso applicabili

Short De clarat ion of conf ormity

We declare this product is complying
with the laws in force and meeting all
the essential requirements as specified
by the directives

2004/108/CE, 2006/95/CE and
1999/05/CE

whenever these laws may be applied

Table of Contents

Chapter 1: Introduction ........................................ 1

1.1 Before You Start ................................................................................ 1

1.2 Package Checklist............................................................................. 1

1.3 Motherboard Features...................................................................... 2

1.4 Rear Panel Connectors ..................................................................... 3

1.5 Motherboard Layout......................................................................... 5

Chapter 2: Hardware Installation .......................... 6

2.1 Installing Central Processing Unit (CPU)....................................... 6

2.2 FAN Headers...................................................................................... 8

2.3 Installing System Memory ................................................................ 9

2.4 Connectors and Slots....................................................................... 11

Chapter 3: Headers & Jumpers Setup .................. 14

3.1 How to Setup Jumpers .................................................................... 14

3.2 Detail Settings.................................................................................. 14

Chapter 4: Useful Help ........................................ 18

4.1 Driver Installation Note.................................................................. 18

4.2 Software ............................................................................................ 19

4.3 Extra Information............................................................................ 23

4.4 AMI BIOS Beep Code....................................................................... 24

4.5 Troubleshooting............................................................................... 25

Appendix: SPEC In Other Languages ................... 27

German.................................................................................................................. 27

French .................................................................................................................... 29

Ita lian..................................................................................................................... 31

Spanish ................................................................................................................... 33

Portugue se ............................................................................................................ 35

Polish...................................................................................................................... 37

Russian ................................................................................................................... 39

Arabic..................................................................................................................... 41

Japanese ................................................................................................................ 43

H61MGB/H61MLB/H61MHB

1

CHAPTER 1: INTRODUCTION

1.1 B

EFORE YOU START

Thank you for choosing our product. Before you start installing the
motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with

sufficient lighting.

 Always disconnect the computer from power outlet

before operation.

 Before you take the motherboard out from anti-static

bag, ground yourself properly by touching any safely
grounded appliance, or use grounded wrist strap to
remove the static charge.

 Avoid touching the components on motherboard or the

rear side of the board unless necessary. Hold the board
on the edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the

case after installation. Loose parts will cause short
circuits which may damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

 The operating temperatures of the computer should be

0 to 45 degrees Celsius.

1.2 PACKAGE CHECKLIST

Serial ATA Cable X 2
Rear I/O Panel for ATX Case X 1
User’s Manual X 1
Fully Setup Driver DVD X 1
USB 2.0 Cable X1 (optional)
Serial ATA Power Cable X 1 (optional)

Note: The package contents may be different due to area or your motherboard version.

Motherboard Manual

2

1.3 MOTHERBOARD FEATURES

H61 MGB / H61 MLB H61 MHB

CPU

Socket 1155
Int e l Core i7 / i5 / i3 / Pentium pro cessor
Supports Execute D isab le Bit / Enh anc ed Inte l
Speed St ep® / Inte l Ar ch itecture-64 / Extended
Memory 64 Technology / Virtualization
Technology

Socket 1155
Int e l Core i7 / i5 / i3 / Pentium pro cessor
Supports Execute D isab le Bit / Enh anc ed Inte l
Speed St ep® / Inte l Ar ch itecture-64 / Extended
Memory 64 Technology / Virtualization
Technology

Chipset

Intel H61 Intel H61

Super I/O

ITE 8728
Prov ides th e mos t common ly used leg acy S uper
I/O functionality.
Low Pin Count Interface
En v iro nmen t Con t rol in iti at ives ,
Hardware Monitor Controller
Fan Sp eed Contro ller
ITE's "S mart Guard ian" fu nct ion

ITE 8728
Prov ides th e mos t common ly used leg acy S uper
I/O functionality.
Low Pin Count Interface
En v iro nmen t Con t rol in iti at ives ,
Hardware Monitor Controller
Fan Sp eed Contro ller
ITE's "S mart Guard ian" fu nct ion

Main Memory

DIMM Slots x 2
Each DIMM supports
512MB/1GB/2GB/4GB/8GB DDR3
Max Memory Capacity 16GB
Dual Chan ne l Mode DDR 3 memo ry mod u le
Supports DDR3 1333/1066/1600 (depend ing
on CPU)
Register ed DIMM and ECC D IMM is not
supported

DIMM Slots x 2
Each DIMM supports
512MB/1GB/2GB/4GB/8GB DDR3
Max Memory Capacity 16GB
Dual Chan ne l Mode DDR 3 memo ry mod u le
Supports DDR3 1333/1066/1600 (depend ing
on CPU)
Register ed DIMM and ECC D IMM is not
supported

SATA 2

Integrated Serial ATA Controller
Data transfer rates up to 3.0 Gb/s.
SATA Version 2.0 spe cif ic at ion co mpliant

Integrated Serial ATA Controller
Data transfer rates up to 3.0 Gb/s.
SATA Version 2.0 spe cif ic at ion co mpliant

LAN

AR8151 (H61MGB)
10 / 100 Mb/s / 1Gb/s auto negotiation
AR8152 (H61MLB)
10 / 100 Mb/s auto negot iation

AR8151
10 / 100 Mb/s / 1Gb/s auto negotiation

Sound Codec

VT1708B

5.1 channels audio out
High Definition Audio

VT1708B

5.1 channels audio out

High Definition Audio
PCI-E Gen3x16 slot x1
(depe nd ing o n CPU)

PCI-E Gen3x16 slot x1

(depe nd ing o n CPU)
PCI Express Gen2 x1 Slot x1 PCI Express Gen2 x1 Slot x1

Slots

PCI Slot x2 PC I S lot x2
Printer Port Connect or x 1 Pr inter Port Connector x1

On Board

Serial Port Connector x1 Serial Port Connector x1

H61MGB/H61MLB/H61MHB

3

H61 MGB / H61 MLB H61 MHB

Front Panel Connector x1 Front Panel Connector x1
Front Audio Connector x1 Front Audio Connector x1
CPU Fan Header x1 CPU Fan Header x1
System Fan Header x1 System Fan Header x1
Clear CMOS Head er x1 Clear C MOS Header x1
USB 2.0 Connector x2 USB 2.0 Connector x2
Power Connector (24pin) x1 Power Connector (24p in) x1

Connectors

Power Connector (4pin) x 1 Power Conn ector (4pin) x1

Back Panel

I/O

PS/2 Keyboard / Mouse x 1
VGA Port x1
DVI-D Port x1
LAN Port x1
USB2.0 Port x4
Audio Jack x3

PS/2 Keyboard / Mouse x 1

HDMI Port x1

VGA Port x1

DVI-D Port x1

LAN Port x1

USB2.0 Port x4

Audio Jack x3

Board Size

190 (W) x 244 (L) mm 190 (W) x 244 (L) mm

OS Support

Windows XP / Vista / 7
Biostar reserves the right to add or remove
support for any OS with or without notice

Windows XP / Vista / 7

Biostar reserves the right to add or remove

support for any OS with or without notice

1.4 REAR PANEL CONNECTORS

USB2.0X2

LAN

HDMIVGA DV I-D

Line In/
Surround

Line Out

Mic In 1/
Bass/ Center

PS/2

Keyboard / Mouse

US B2.0X 2

(H6MHB)

NOTE: HDM I / DV I-D / VGA Output require an Intel Core famil y processor wit h Intel Grap hics

Te c h no l o g y.

NOTE: Maximum resolution:

HDMI: 1920 x 1200 @60Hz (H61MHB)
DVI: 1920 x 1200 @60Hz
VGA: 2048 x 1536 @75Hz

NOTE: H61MHB supports Multiple VGA output, and the configuration is as below:

(HDMI is not supported under DOS and B IOS setup.)

Motherboard Manual

4

Display Devices

VGA + HDMI

VGA + DVI-D HDMI + DVI-D

Enabled O O O

H61MGB/H61MLB/H61MHB

5

1.5 MOTHERBOARD LAYOUT

USB_
KBMS1

VGA1

DVI 1

RJ 45USB 1

AUDIO1

ATXPWR2

CODEC

LAN

Super

I/O

BAT1

PCI1

PCI 2

P EX16_1

PEX1_1

F_AUDIO1 J_PRINT1 J_COM1

F_USB1 F_USB2

SYS_FAN1

JCMOS1

PAN EL1

BIOS

H61

SATA4

SATA2

SATA3

SATA1

ATXPWR1

Socket 1155

CPU1

CPU_FAN1

DDR3_B1

DDR3_A1

HDMI1

(H61MHB)

Note: ■ represents the 1st pin.

Motherboard Manual

6

CHAPTER 2: HARDWARE INSTALLATION

2.1 I

NSTALLING CENTRAL PROCESSING UNIT (CPU)

Notice:

1. Remove Pin Cap before installation, and make good preservation for future use.
When the CPU is removed, cover the Pin Cap on the empty socket to ensure pin
legs won’t be damaged.

2. The motherboard might equip with two different types of pin cap. Please refer
below instruction to remove the pin cap.

Step 1: Pull the socket locking lever out from the socket then raise the

lever and load plate to the fully open position.

Step 2: Remove the Pin Cap.

H61MGB/H61MLB/H61MHB

7

Step 3: Hold processor with your thumb and index fingers, oriented as

shown. Align the notches with the socket. Lower the processor
straight down without tilting or sliding the processor in the socket.

Step 4: Close the load plate. Pressing down on the load plate, close and

engage the socket lever.

Step 5: Put the CPU Fan and heatsink assembly on the CPU and buckle it

on the retention frame. Connect the CPU FAN power cable into
the CPU_FAN1 to complete the installation.

Motherboard Manual

8

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different due to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.

CPU_FAN1: CPU Fan Header

Pin

Assignment

1 Ground
2 Power
3 FAN RPM rate sense

41

4 Smart Fan Control

SYS_FAN1: System Fan Header

Pin

Assignment

1 Ground
2 +12V

13

3 FAN RPM rate sense

Note:

CPU_FAN1 supports 4-pin head connector; SYS_FAN1, 3-pin head one. When
connecting with wires onto connectors, please note that the red wire is the positive and
should be co nnected to pin#2, and the black wire is Ground and should be connected to
GND.

H61MGB/H61MLB/H61MHB

9

2.3 INSTALLING SYSTEM MEMORY

A. DDR3 module

DDR3_A1

DDR3_B1

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.

Note:

If the DIMM does not go in smoothly, do not force it. Pull it all the way out
and try again.

Motherboard Manual

10

B. Memory Capacity

DIMM Socket

Location

DDR3 Module

Total Mem ory

Size

DDR3_A1 512MB/1GB/2GB/4GB/8GB

DDR3_B1 512MB/1GB/2GB/4GB/8GB

Max is 16GB.

C. Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function:

Install memory module of the same density in pairs, shown in the table.

Dual Channel Status

DDR3_A1

DDR3_B1

Disabled O X

Disabled X O

Enabled O O

(O means memory installed; X, not installed.)

The DRAM bus width of the memory module must be the same(x8 or
x16)

H61MGB/H61MLB/H61MHB

11

2.4 CONNECTORS AND SLOTS

SATA1~SATA4: Serial ATA Connectors

The motherboard has a PCI to SATA Controller with 4channels SATA interface, it
satisfies the SATA 2.0 spec and with transfer rate of 3Gb/s.

Pin Assignment

1 Ground
2 TX+
3 TX­4 Ground
5 RX­6 RX+

1

4

7

SATA 1 S ATA 3
SATA 2 S ATA 4

7 Ground

ATXP W R2: ATX Power Source Connector

This connector provides +12V to CPU power circuit.

Pin

Assignment

1 +12V
2 +12V
3 Ground

12

34

4 Ground

Motherboard Manual

12

ATXP W R1: ATX Power Source Connector

This connector is for 24-pin power connector on the ATX power supply.

1

12

13

24

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V

Note:

Before you power on the system, please make sure that both ATXPWR1 and ATXPWR2
connectors have been plugged-in.

H61MGB/H61MLB/H61MHB

13

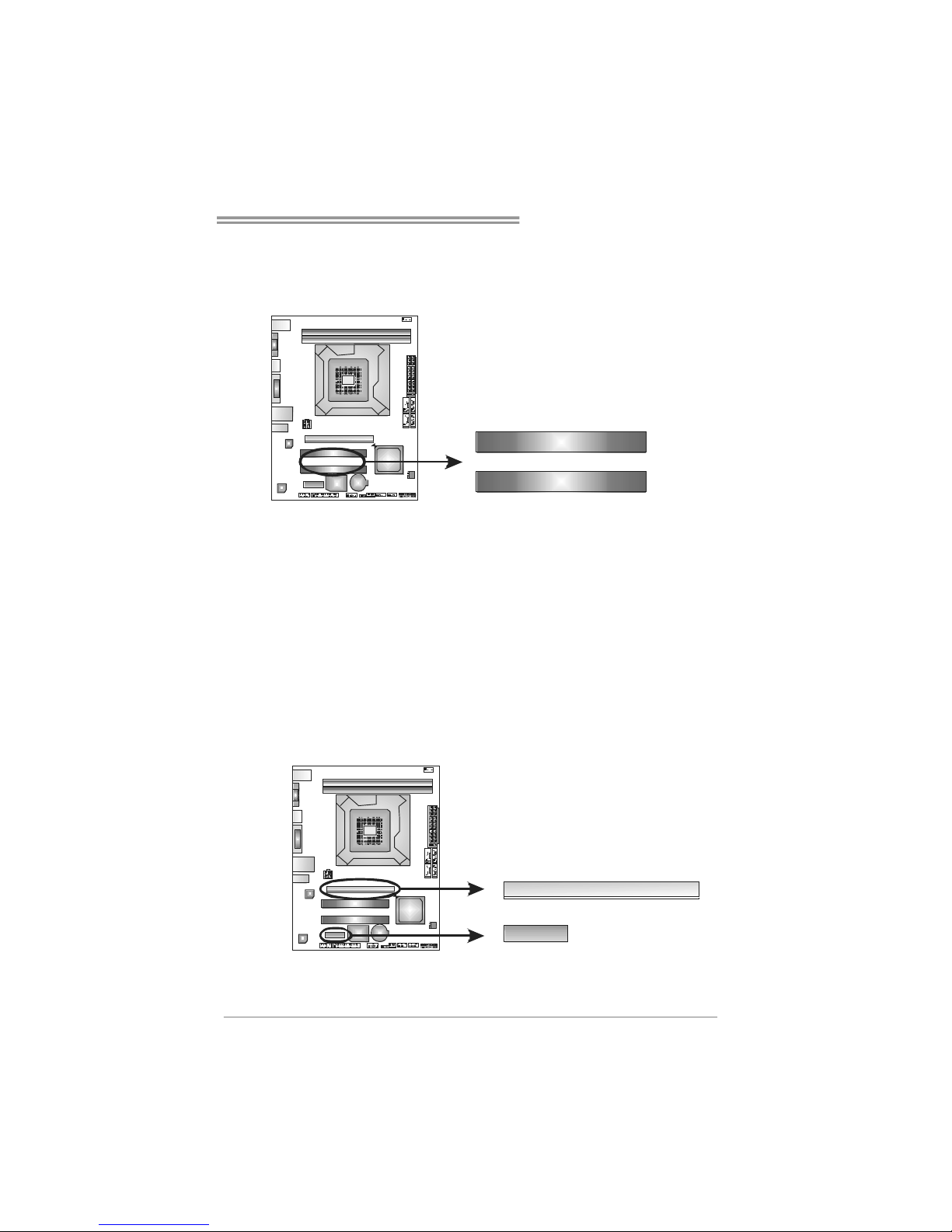

PCI1/PCI2: Peripheral Component Interconnect Slots

This motherboard is equipped with 2 standard PCI slots. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for expansion
cards. This PCI slot is designated as 32 bits.

PCI2

PCI1

PEX16_1: PCI-Express Gen3 x16 Slot

- PCI-Express 3.0 compliant.

- Maximum theoretical realized bandwidth of 16GB/s simultaneously per

direction, for an aggregate of 32GB/s totally.

- PCI-E 3.0 is supported by Core i7-3xxx / i5-3xxx CPU.

-

PEX1_1: PCI-Express Gen2 x1 Slot

- PCI-Express 1.1 compliant.

- Data transfer bandwidth up to 250MB/s per direction; 500MB/s in total.

- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.

PEX16_1

PEX1_1

Motherboard Manual

14

CHAPTER 3: HEADERS & JUMPERS SETUP

3.1 H

OW TO SETUP JUMPERS

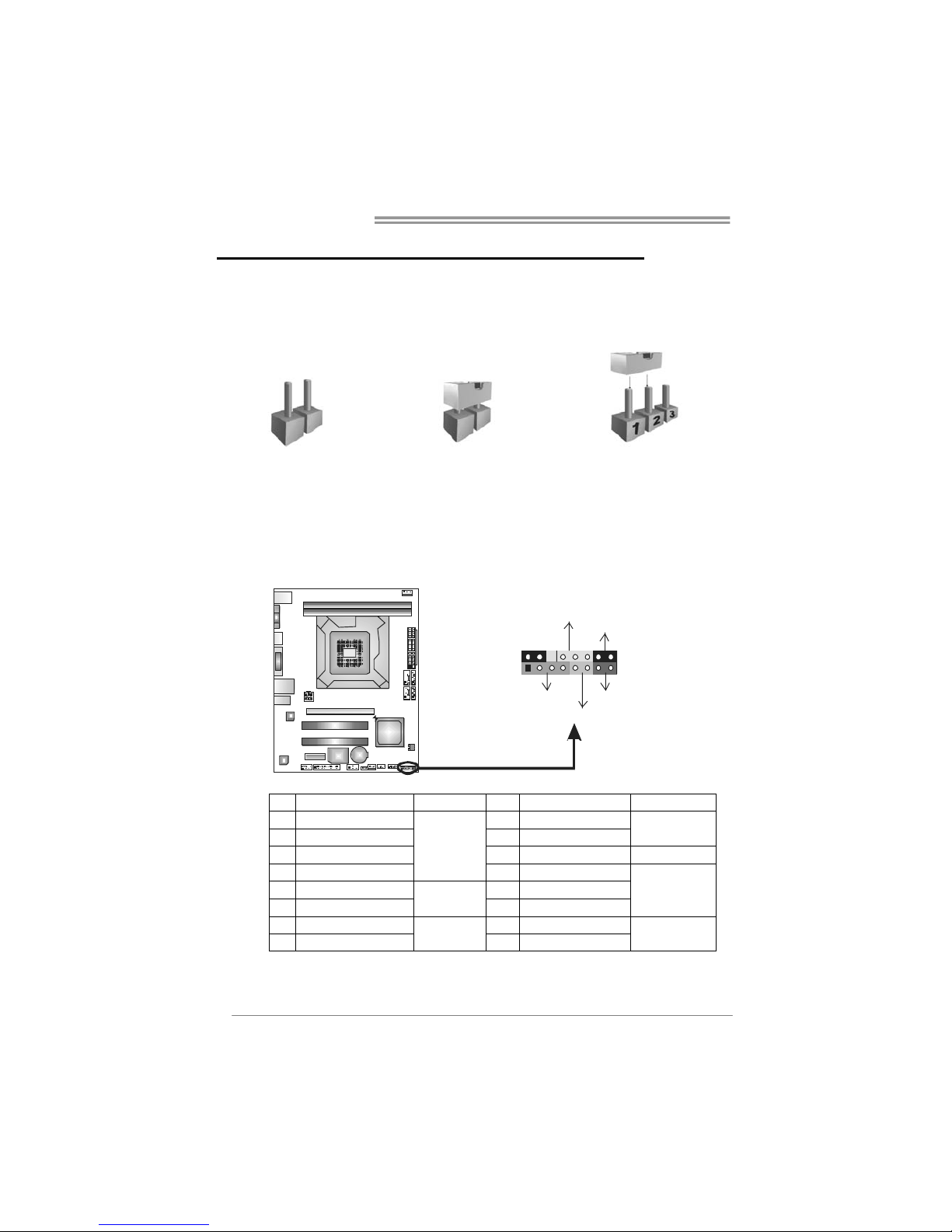

The illustration shows how to set up jumpers. When the jumper cap is
placed on pins, the jumper is “close”, if not, that means the jumper is
“open”.

Pin opened Pin closed Pin1-2 closed

3.2 DETAIL SETTINGS

PANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and
speaker connection. It allows user to connect the PC case’s front panel switch
functions.

1

9

8

16

POW _LE D

On/ Off

RST

HLED

SPK

++

+

-

-

Pin Assignment Function Pin Assignment Function

1 +5V 9 N/A

2 N/A 10 N/A

N/A

3 N/ A 11 N/ A N/A

4 Speaker

Speaker
Connector

12 Power LED (+)

5 HDD LED (+) 13 Power LED (+)

6 HDD LED (-)

Hard drive
LED

14 Power LED (-)

Power LED

7 Ground 15 Power button

8 Reset control

Reset button

16 Ground

Power-on button

H61MGB/H61MLB/H61MHB

15

F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel

This motherboard provides 2 USB 2.0 headers, which allows user to connect
additional USB cable on the PC front panel, and also can be connected with
internal USB devices, like USB card reader.

Pin Assignment

1 +5V (fused)
2 +5V (fused)
3 USB­4 USB­5 USB+
6 USB+
7 Ground
8 Ground
9 Key

19

210

F_USB1 F_USB2

10 NC

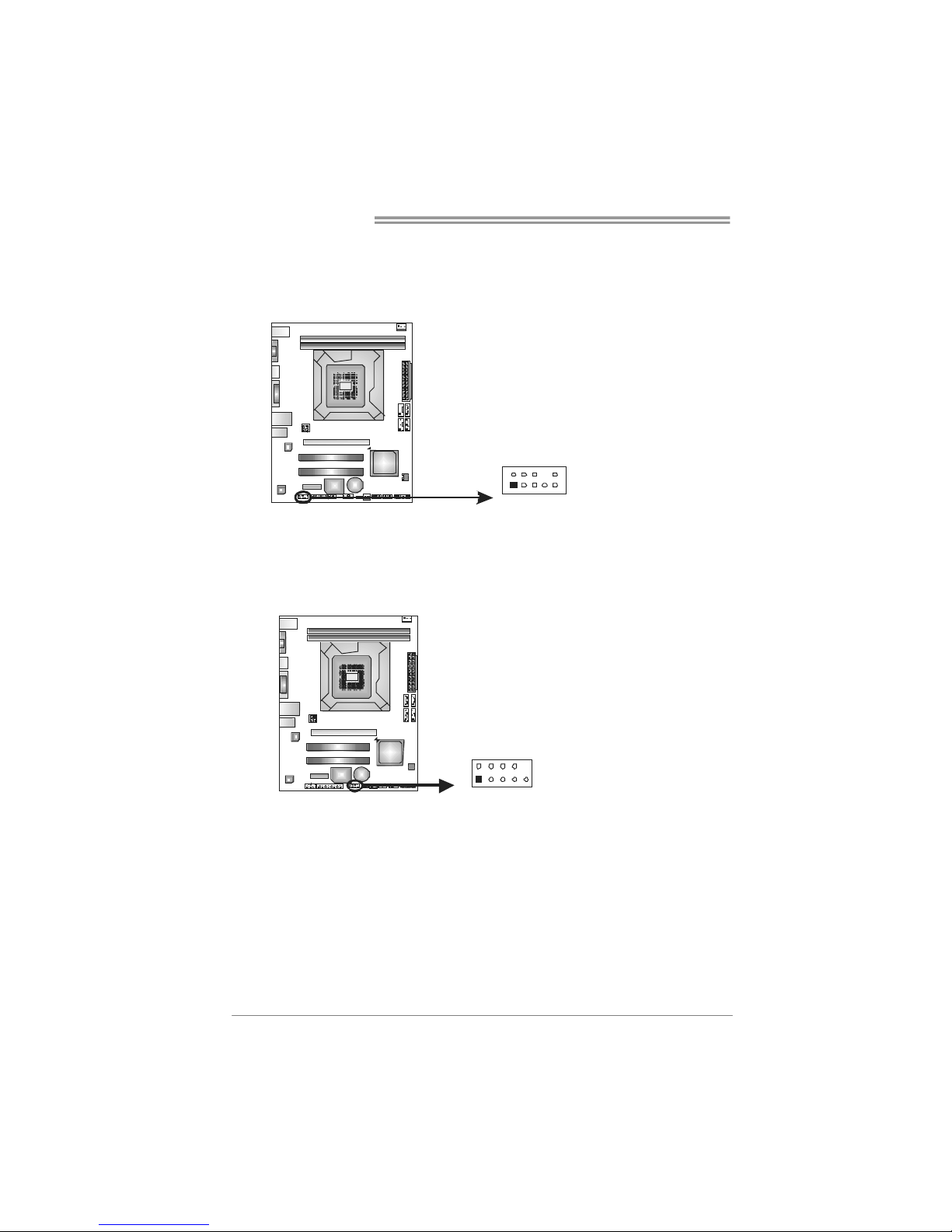

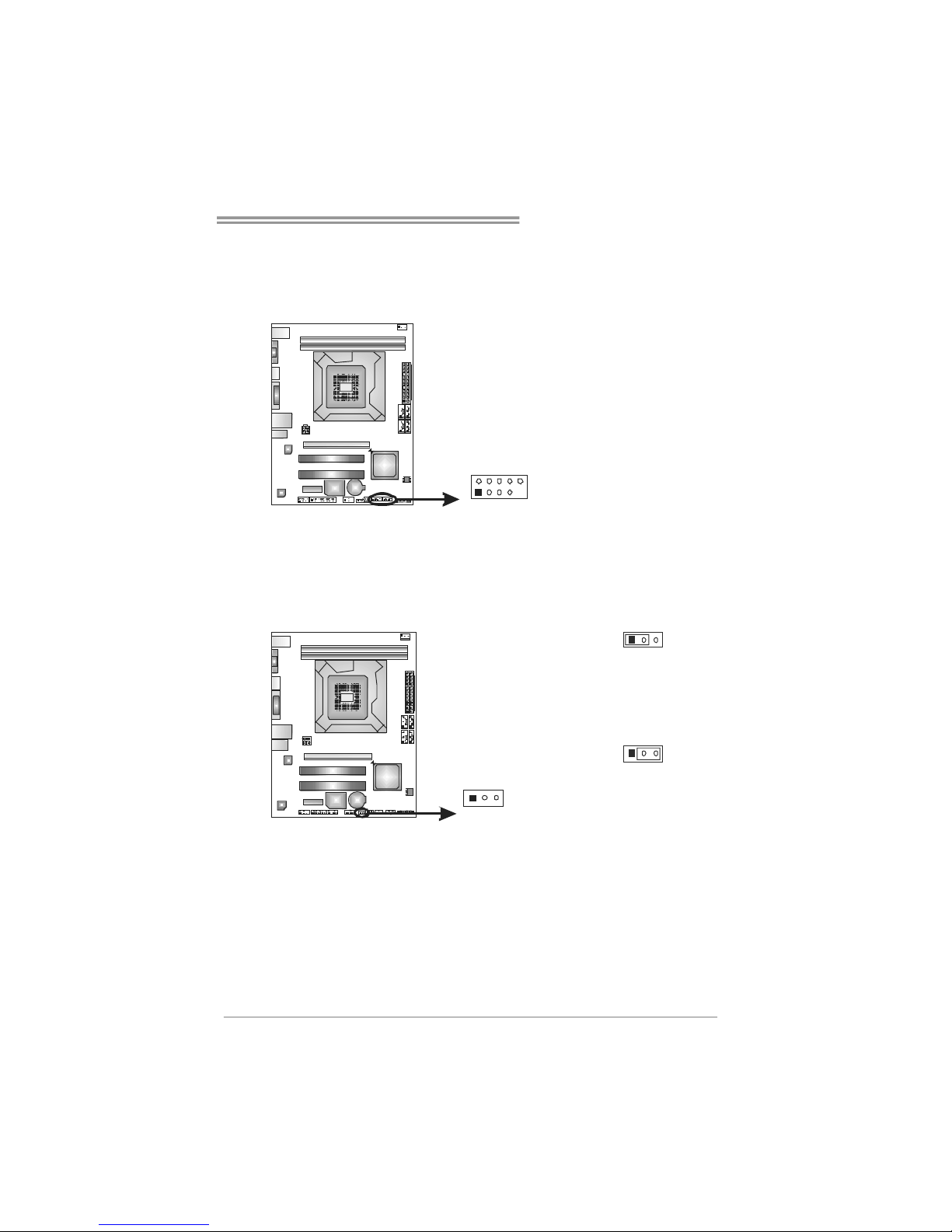

JCMOS1: Clear CMOS Header

Placing the jumper on pin2-3 allows user to restore the BIOS safe setting and
the CMOS data. Please carefully follow the procedures to avoid damaging the
motherboard.

31

Pin 1-2 Close:

Normal Operation
(Default).

13

3

1

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close” .

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close” .

5. Power on the AC.

6. Load Optimal Defaults and save settings in CMOS.

Motherboard Manual

16

F_AUDIO1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front
panel. This header allows only HD audio front panel connector, not AC’97.

Pin Assignment

1 Mic Left in
2 Ground
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7 Front Sense
8 Key
9 Left line in

10 Jack Sense

19

210

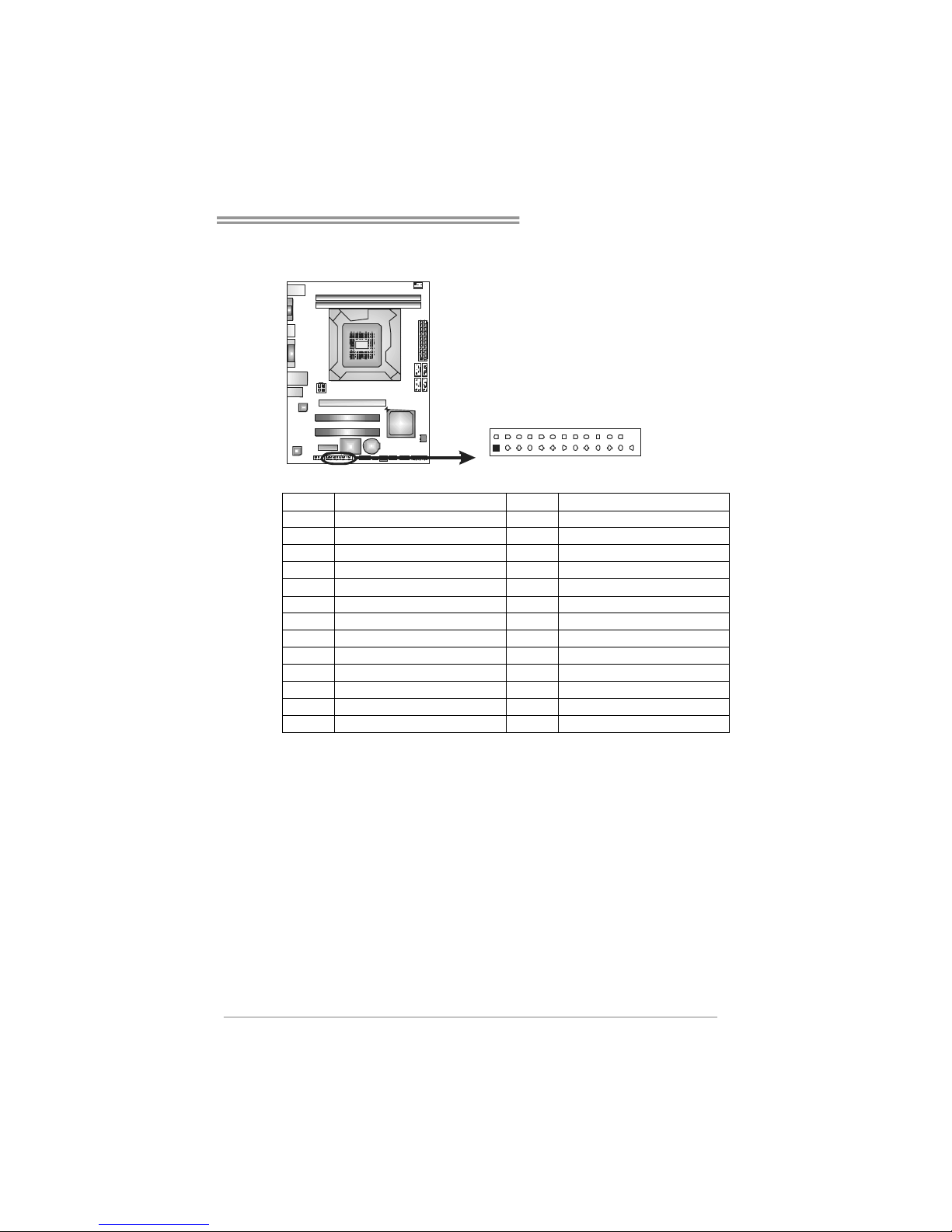

J_COM1: Serial port Connector

The motherboard has a Serial Port Connector for connecting RS-232 Port.

Pin

Assignment

1 Carrier detect
2 Received data
3 Transmitted data
4 Data terminal ready
5 Signal ground
6 Data set ready
7 Request to send
8 Clear to send
9 Ring indicator

19

210

10 NC

H61MGB/H61MLB/H61MHB

17

J_PRINT1: Printer Port Connector

This header allows you to connector printer on the PC.

1

2

25

26

Pin Assignment Pin Assignment

1 -Strobe 14 Ground
2 -ALF 15 Data 6
3 Data 0 16 Ground

4 -Error 17 Data 7
5 Data 1 18 Ground

6 -Init 19 -ACK
7 Data 2 20 Ground
8 -Scltin 21 Busy

9 Data 3 22 Ground
10 Ground 23 PE
11 Data 4 24 Ground

12 Ground 25 SCLT
13 Data 5 26 Key

Motherboard Manual

18

CHAPTER 4: USEFUL HELP

4.1 D

RIVER INSTALLATION NOTE

After you installed your operating system, please insert the Fully Setup
Driver DVD into your optical drive and install the driver for better system
performance.

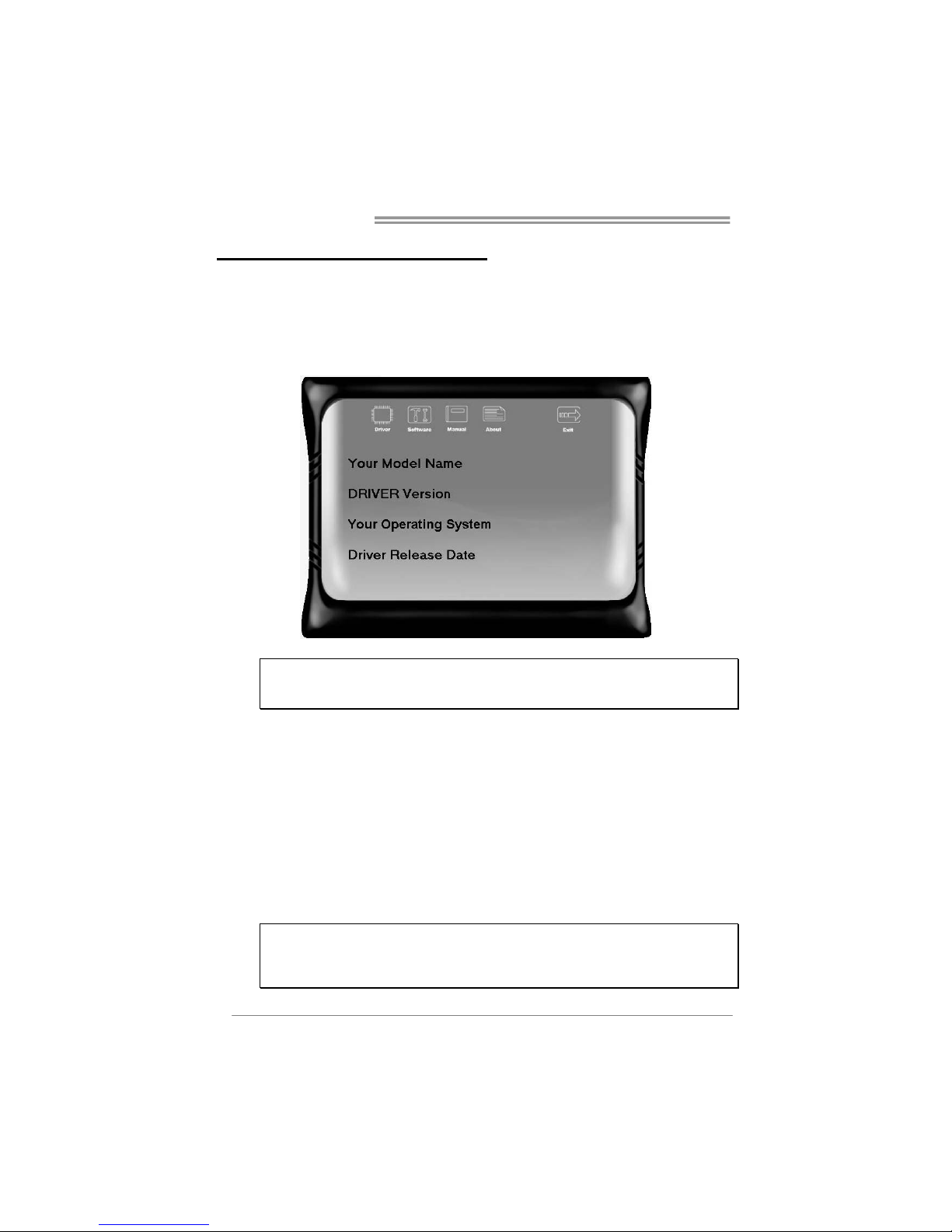

You will see the following window after you insert the DVD

The setup guide will auto detect your motherboard and operating system.

Note:

If this window didn’t show up after you insert the Driver DVD, please use file browser to
locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will
list the compatible driver for your motherboard and operating system.
Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide
will list the software available for your system, click on each software title
to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver
DVD. Click on the Manual icon to browse for available manual.

Note:

Yo u will need Acrobat Reader to open the manual file. Please download the latest version
of Acrobat Reader software from
http://www.adobe.com/products/acrobat/readstep2.html

H61MGB/H61MLB/H61MHB

19

4.2 SOFTWARE

Installing Software

1. Insert the Setup DVD to the optical drive. The drivers installation
program would appear if the Autorun function has been enabled.

2. Select Software Installatio n, and then click on the respective software
title.

3. Follow the on-screen instructions to complete the installation.

Launching Software

After the installation process, you will see the software icon “eHOT Line” /
“BIOS Update” appears on the desktop. Double-click the icon to launch the
utility.

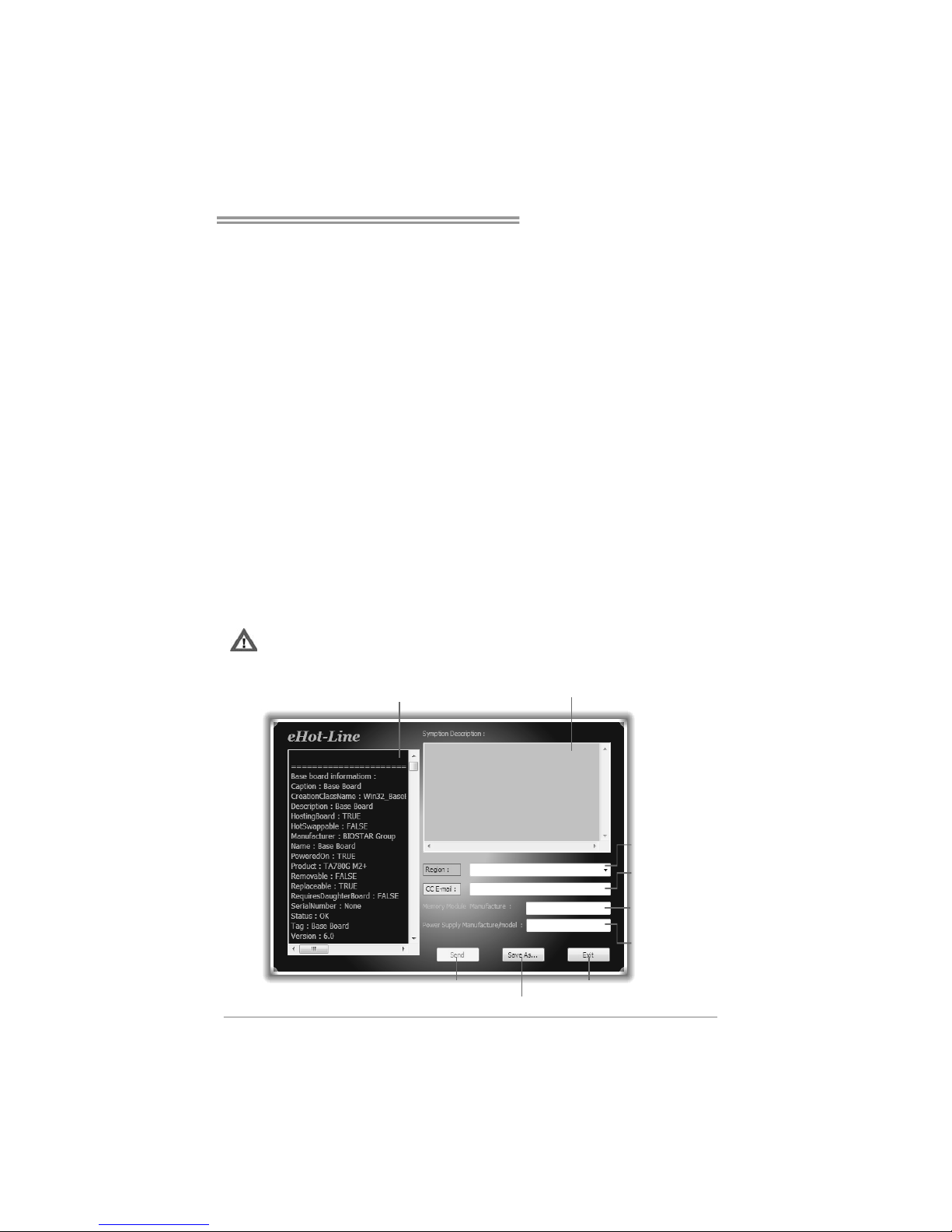

eHot-Line (Optional)

eHot-Line is a convenient utility that helps you to contact with our
Tech-Support system. This utility will collect the system information which is
useful for analyzing the problem you may have encountered, and then send
these information to our tech-support department to help you fix the problem.

Before you use this uti lity, please set Outlook E xpress as your default e-mail client application prog ram.

This block will show
the information which
would be collected in
the mail.

Provide the e-mail
address that you would
like to send the copy to.

Provide the name of
th e powe r su ppl y
manufacturer and the
model no.

Se nd th e mai l out .

Sav e the se info rma tion t o a .t xt fil

e

Exit this dialog.

Select your area or
the area close to you.

*

Pr ovid e th e name of
the memory module
manufacturer.

*

Describe condition
of your system.

*

*

re pres ent s im port ant
information that you
must provide. Without
this information, y ou may
not be able to send out
the mail.

Motherboard Manual

20

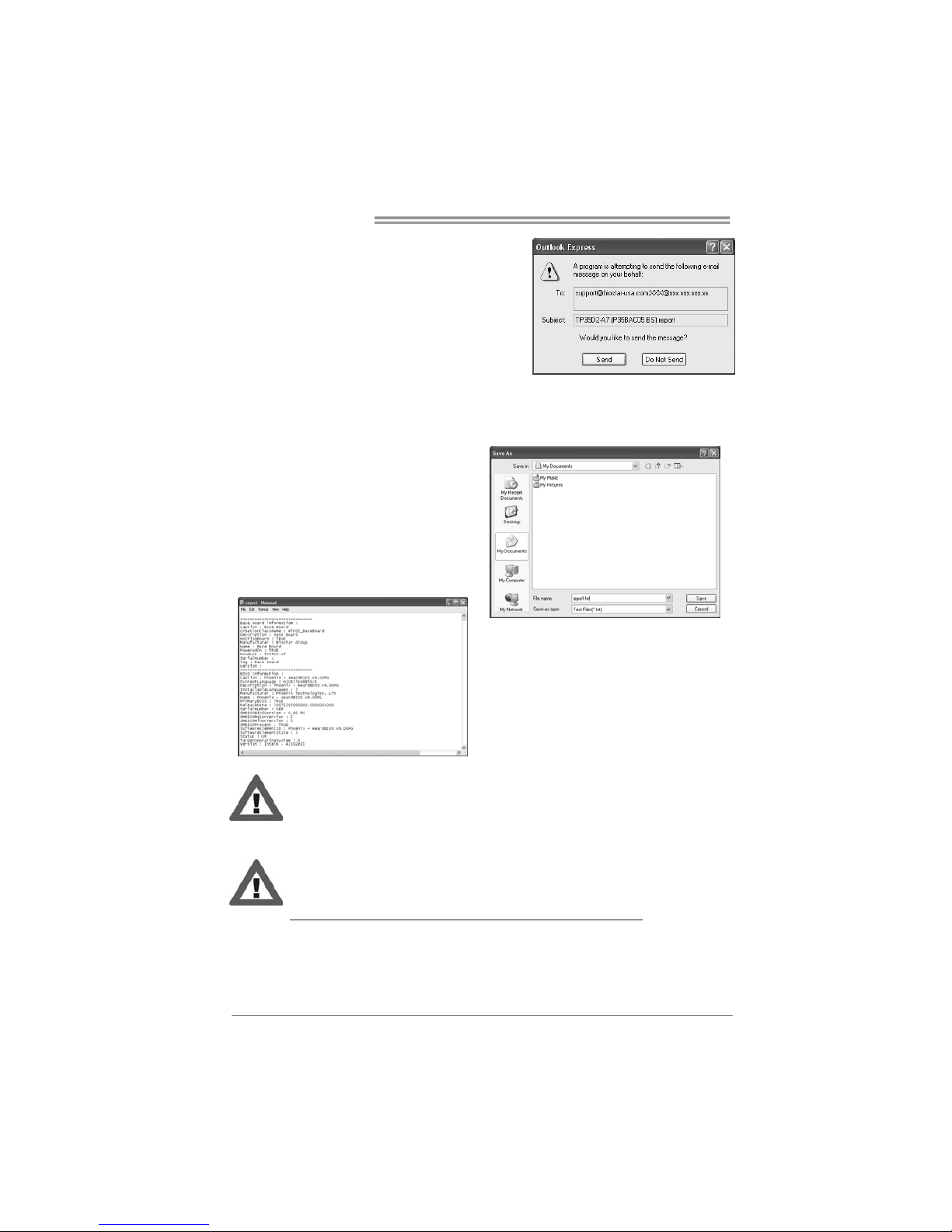

After filling up this informatio n, click “Send”
to send the mail out. A warning dialog would
appear asking for your confirmation; click
“Send” to confirm or “Do Not Send” to cancel.

If you want to save this information to a .txt file, click “Save As…” and then you
will see a saving dialog appears asking you to enter file name.

Enter the file name and then click
“Save”. Your system information
will be saved to a .txt file.

Open the saved .txt file, you will see
your system information including
motherboard/BIOS/CPU/video/
device/OS information. This
information is also concluded in the
sent mail.

We will not share customer ’s data with any other third parties,
so please feel free to provide your system information while using
eHot-Line service.

If you are not using Outlook Express as your default e-mail client
application, you may need to save the system information to a .txt file
and send the file to our tech support with other e-mail application.
Go to the following web

http://www.biostar.com.tw/app/en-us/about/contact.php for getting

our contact information.

H61MGB/H61MLB/H61MHB

21

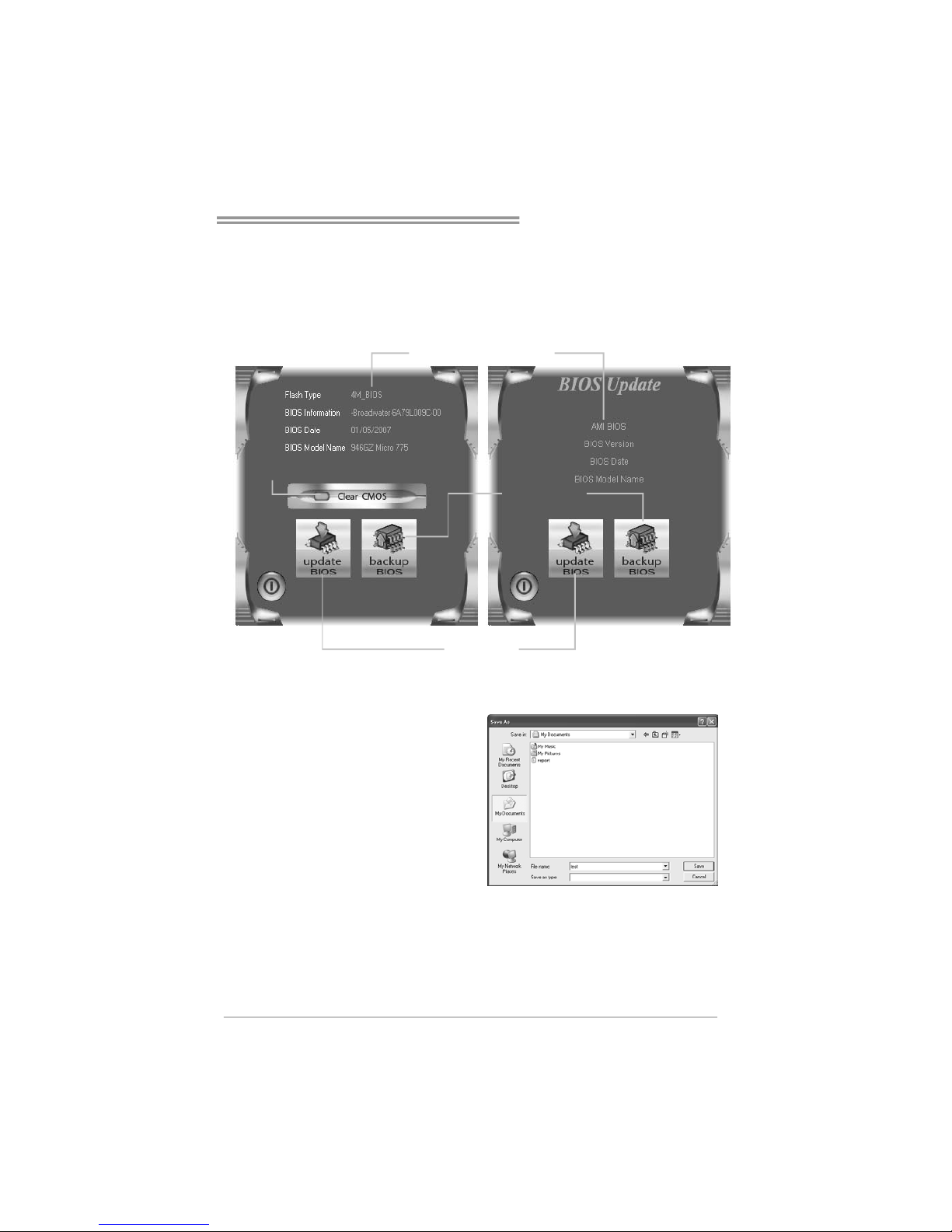

BIOS Update

BIOS Update is a convenient utility which allows you to update your
motherboard BIOS under Windows system.

Update BIOS

with a BIOS file

Clear CMOS function

(Only for AWARD BIOS)

Show current BIOS information

Save cur rent B IOS

to a .bin file

AWARD BIOS AMI BIOS

<Backup BIOS>

Once click on this button, the saving

dialog will show. Choose the

position to save file and enter file

name. (We recommend that the file

name should be English/number

and no longer than 7 characters.)

Then click Save.

Motherboard Manual

22

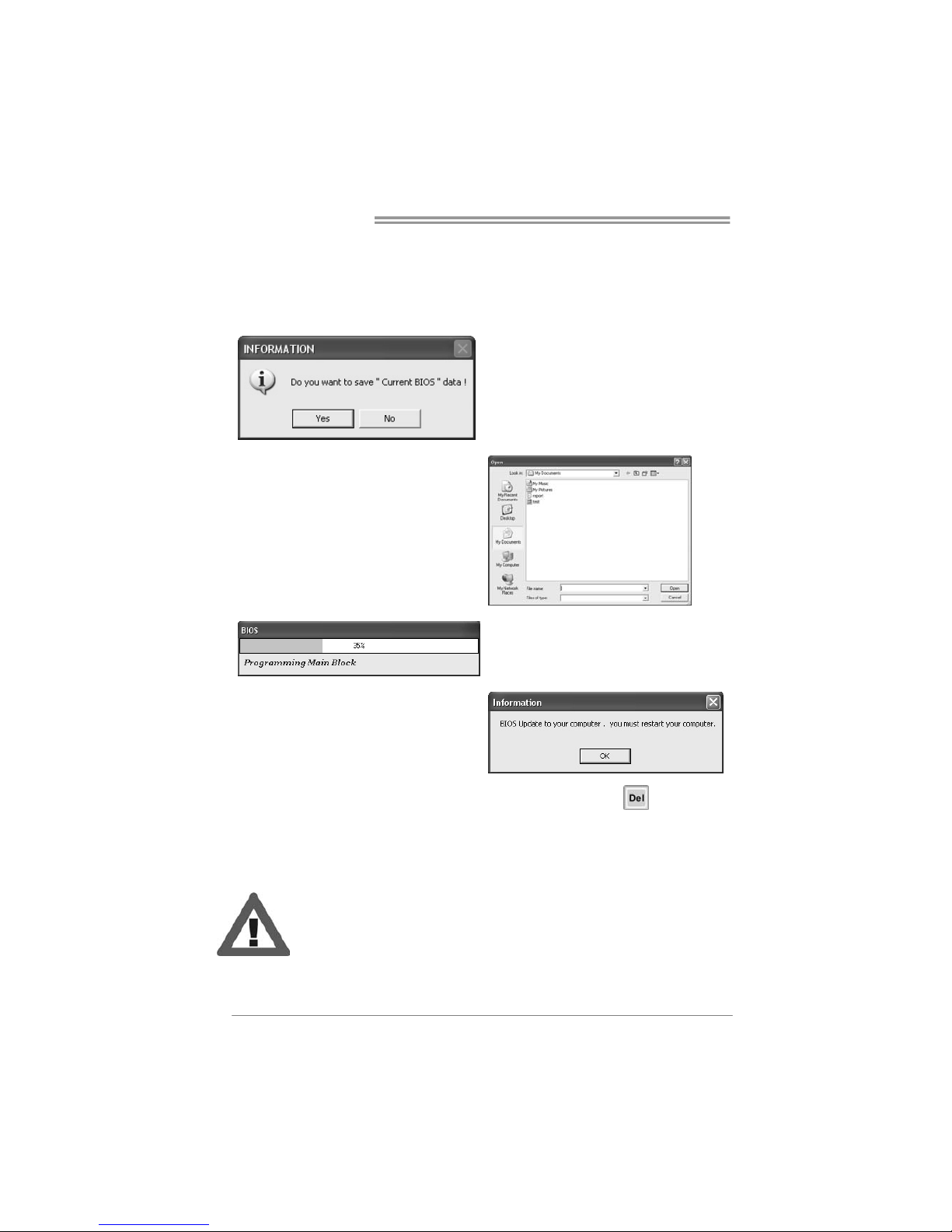

<Update BIOS>

Before doing this, please download the proper BIOS file from the website.

Click Update BIOS button, a dialog will
show for asking you backup current
BIOS. Click Yes for BIOS backup and
refer to the Backup BIOS procedure; or
click No to skip this procedure.

After the BIOS Backup procedure, the
open dialog will show for requesting the
BIOS file which is going to be updated.
Please choose the proper BIOS file for
updating, then click on Open.

The utility will update BIOS with the
proper BIOS file, and this process may
take minutes. Please do not open any
other applications during this process.

After the BIOS Update process, click on
OK to restart the system.

While the system boots up and the full screen logo shows, press <Delete>
key to enter BIOS setup.

In the BIOS setup, use the Load Optimized Defaults function and then Save and
Exit Setup to exit BIOS setup. B IOS Update is completed.

All the information and content above about the software are subject to be changed
without notice. For better performance, the software is being continuously updated.
The information and pictures described above are for your reference only. The actual
information and settings on board may be slightly different from this manual.

H61MGB/H61MLB/H61MHB

23

4.3 EXTRA INFORMATION

CPU Overheated

If the system shuts down automatically after system is powered on for
seconds, the phenomenon means the CPU protection function has
been activated.

When the CPU is over heated, the motherboard will shutdown
automatically to avoid a damage of the CPU, and the system may not
power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection
function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data.
(See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

Motherboard Manual

24

4.4 AMI BIOS BEEP CODE

Boot Block Beep Codes

Number of Beeps Description

1 No media present. (Insert diskette in floppy drive A:)

2

“AMIBOOT.ROM” file not found in root directory of diskette in

A:
3 Insert next diskette if multiple diskettes are used for recovery
4 Flash Programming successful
5 File read error
7 No Flash EPROM detected

10 Flash Erase error
11 Flash Program error
12 “ AMIBOOT.ROM” file size error

13

BIOS ROM image mismatch (file layout does not match

image present in flash device)

POST BIOS Beep Codes

Number of Beeps Description

1 Memory refresh timer error
3 Base memory read/write test error
6 Keyboard controller BAT command failed
7 General exception error (processor exception interrupt error)
8 Display memory error (system video adapter)

Troubleshooting POST BIOS Beep Codes

Number of Beeps Troubleshooting Action

1, 3 Reseat the memory, or replace with known good modules.

6, 7

Fatal error indicating a serious problem with the system.

Consult your system manufacturer. Before declaring the

motherboard beyond all hope, eliminate the possibility of

interference by a malfunctioning add-in card. Remove all

expansion cards except the video adapter.

z If beep codes are generated when all other expansion

cards are absent, consult your system manufacturer’s
technical support.

z If beep codes are not generated when all other expansion

cards are absent, one of the add-in cards is causing the
malfunction. Insert the cards back into the system one at a
time until the problem happens again. This will reveal the
malfunctioning card.

8

If the system video adapter is an add-in card, replace or

reseat the

video adapter. If the video adapter is an integrated part of the

system board, the board may be faulty.

H61MGB/H61MLB/H61MHB

25

4.5 TROUBLESHOOTING

Probable Solution

1. There is no power in the system.
Power LED does not shine; the
fan of the power supply does not
work

2. Indicator light on keyboard does
not shine.

1. Make sure power cable is
securely plugged in.

2. Replace cable.

3. Contact technical support.

System is inoperative. Keyboard lights
are on, power indicator lights are lit,
and hard drives are running.

Using even pressure on both ends of
the DIMM, press down firmly until the
module snaps into place.

System does not boot from a hard disk
drive, but can be booted from optical
drive.

1. Check cable running from disk to
disk controller board. Make sure
both ends are securely plugged
in; check the drive type in the
standard CMOS setup.

2. Backing up the hard drive is
extremely important. All hard
disks are capable of breaking
down at any time.

System only boots from an optical
drive. Hard disks can be read,
applications can be used, but system
fails to boot from a hard disk.

1. Back up data and applications
files.

2. Reformat the hard drive.
Re-install applications and data
using backup disks.

Screen message shows “Invalid
Configuration” or “CMOS Failure.”

Review system’s equipment. Make sure
correct information is in setup.

System cannot boot after user installs a
second hard drive.

1. Set master/slave jumpers
correctly.

2. Run SETUP program and select
correct drive types. Call the drive
manufacturers for compatibility
with other drives.

Motherboard Manual

26

This page is intentionally left blank.

H61MGB/H61MLB/H61MHB

27

APPENDIX: SPEC IN OTHER LANGUAGES

G

ERMAN

H6 1 MGB / H6 1 ML B H61M HB

CPU

Socket 1155
Int e l Core i7 / i5 / i3 / Pentium Prozes s oren
Unterstützt Execute Disable Bit / Enhanced Intel
Speed St ep® / Inte l Ar ch itecture-64 / Extended
Memory 64 Technology / Virtualization
Technology

Socket 1155
Int e l Core i7 / i5 / i3 / Pentium Prozes s oren
Unterstützt Execute Disable Bit / Enhanced Intel
Speed St ep® / Inte l Ar ch itecture-64 / Extended
Memory 64 Technology / Virtualization
Technology

Chipsatz

Intel H61 Intel H61

Super E/A

ITE 8728
Biet et die h äuf ig verwendeten alten S up er
E/A-Funktionen.
Low Pin Count-Schnittstelle
Umgebungskontrolle,
Hardware-Überwachung
Lüfterdrehzahl-Controller/-Überwachung
"Smart Guardian"-Funktion von ITE

ITE 8728
Biet et die h äuf ig verwendeten alten S up er
E/A-Funktionen.
Low Pin Count-Schnittstelle
Umgebungskontrolle,
Hardware-Überwachung
Lüfterdrehzahl-Controller/-Überwachung
"Smart Guardian"-Funktion von ITE

Arbeitsspeich

er

DDR3 DIMM-Steckplätze x 2
Jeder DIMM unterstützt
512MB/1GB/2GB/4GB/8GB DDR3.
Max. 16GB Arbeitsspeicher
Dual-Kanal DDR3 Speichermodul
Unterstützt DDR3 1333/1066/1600
registrierte DIMMs. ECC DIMMs werden nicht
unterstützt.

DDR3 D IMM-Steckplätze x 2
Jeder DIMM unterstützt
512MB/1GB/2GB/4GB/8GB DDR3.
Max. 16GB Arbeitsspeicher
Dual-Kanal DDR3 Speichermodul
Unterstützt DDR3 1333/1066/1600
registrierte DIMMs. ECC DIMMs werden nicht
unterstützt.

SATA 2

Integrierter Serial ATA-Controller
Datentransferrate b is zu 3.0Gb /s
Konform mit der SATA-Spezifikation Version 2.0.

Integrierter Serial ATA-Controller
Datentransferrate b is zu 3.0Gb /s
Konform mit der SATA-Spezifikation Version 2.0.

LAN

AR8151 (H61MGB)
10 / 100 / 1000 Mb/s Auto-Negotiation
AR8152 (H61MLB)
10 / 100 Mb/s Auto-Negotiation

AR8151
10 / 100 / 1000 Mb/s Auto-Negotiation

HD

Audio-Unters

tützung

VT1708B
Unterstützt High-Definition Audio

5.1-Kanal-Audioausgabe

VT1708B
Unterstützt High-Definition Audio

5.1-Kanal-Audioausgabe

PCI Express Gen3 x16 Steckplatz
(je n ach CPU) x1

PCI Express Gen3 x16 Steckplatz
(je n ach CPU) x1

Steckplätz e

PCI Express Gen2 x1 Steckplatz x1 PCI Express Gen2 x1 Steckplatz x1

Motherboard Manual

28

H6 1 MGB / H6 1 ML B H61M HB

PCI Steckp latz x2 PC I St ec kp latz x2

Druckeranschluss Anschluss x1 Druckeranschluss Anschluss x1
Serieller Anschluss x1 Serieller Anschluss x1

SATA-Anschluss x4 SATA-Anschluss x4

Fronttafelanschluss x1 Fronttafelanschluss x1
Front-Audioanschluss x1 Front-Audioanschluss x1
CPU-Lüfter-Sockel x1 CPU-Lüfter-Sockel x1
System-Lüfter-Sockel x1 System-Lüfter-Sockel x1
"CMOS löschen"-S ockel x1 "C MOS löschen "- So cke l x1
USB 2.0-Anschluss x2 USB 2.0-Anschluss x2
Stromanschluss (24-polig) x1 Stromanschluss (24-polig) x1

Onboard-Ans

chluss

St romans chlus s (4-po lig) x1 Stro man s ch luss (4-po l ig ) x 1

Rückseiten-E

/A

PS/2-Tastatur / Maus x1
VGA-Anschluss x1
DVI-D-Anschluss x1
LAN-Anschluss x1
USB 2.0-Anschluss x4
Audioanschluss x3

PS/2-Tastatur / Maus x1
HDMI-Anschluss x1
VGA-Anschluss x1
DVI-D-Anschluss x1
LAN-Anschluss x1
USB 2.0-Anschluss x4
Audioanschluss x3

Plat inengröße

190mm (B) X 244 mm (L) 190mm (B) X 244 mm (L)

OS-Unterstüt

zung

Windows XP / V ista / 7
Biostar behält sich das Recht vor, ohne
Ankündigung die Unterstützung für ein
Betriebssystem hinzuzufügen oder zu
entfern en.

Windows XP / V ista / 7
Biostar behält sich das Recht vor, ohne
Ankündigung die Unterstützung für ein
Betriebssystem hinzuzufügen oder zu
entfern en.

H61MGB/H61MLB/H61MHB

29

FRENCH

H61 MGB / H61 MLB H61MHB

UC

Socket 1155

Pro c esseurs Int e l Core i7 / i5 / i3 / Pentiu m

Prend en ch arge les technolog ies d'exécut ion de

bit de désactivation / Intel SpeedStep®

op t im is ée/ d ' arch it e ct ure In t el 64 / de mémo ire

étendue 64 / de virtua lisation

Socket 1155

Pro c esseurs Int e l Core i7 / i5 / i3 / Pentiu m

Prend en ch arge les technolog ies d'exécut ion de

bit de désactivation / Intel SpeedStep®

op t im is ée/ d ' arch it e ct ure In t el 64 / de mémo ire

étendue 64 / de virtua lisation

Chipset

Intel H61 Intel H61

Super E/S

ITE 8728

Fournit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Int e rfa ce à f a ib le co mpte d e b roches

Initiatives de contrôle environnementales,

Mon iteur d e mat ériel

Contrôleur /moniteur de vitesse de ventilateur

Fonction "Gardien intelligent" de l'ITE

ITE 8728

Fournit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Int e rfa ce à f a ib le co mpte d e b roches

Initiatives de contrôle environnementales,

Mon iteur d e mat ériel

Contrôleur /moniteur de vitesse de ventilateur

Fonction "Gardien intelligent" de l'ITE

Mémoire

principale

Fentes DDR3 DIMM x 2

Chaque DIMM prend en charge des DDR3 de

512Mo/1Go/2Go/4Go/8Go

Capacit é mé mo ir e max imal e de 16Go

Module de mémoire DDR3 à mo de à double voie

Prend en charge la DDR3 1333/1066/1600

Les DIMM à registres et DIMM avec code

correcteurs d'erreurs ne sont pas prises en

charg e

Fentes DDR3 DIMM x 2

Chaque DIMM prend en charge des DDR3 de

512Mo/1Go/2Go/4Go/8Go

Capacit é mé mo ir e max imal e de 16Go

Module de mémoire DDR3 à mo de à double voie

Prend en charge la DDR3 1333/1066/1600

Les DIMM à registres et DIMM avec code

correcteurs d'erreurs ne sont pas prises en

charg e

SATA 2

Contrô leur Serial ATA int é gr é

Taux de transfert jusqu'à 3.0Go/s.

Co nfo rme à la spécif icat ion SATA Vers ion 2 .0

Contrô leur Serial ATA int é gr é

Taux de transfert jusqu'à 3.0Go/s.

Co nfo rme à la spécif icat ion SATA Vers ion 2 .0

LAN

AR8151 (H61MGB)

10 / 100 / 1000 Mb/s négociation automatique

AR8152 (H61MLB)

10 / 100 Mb/s négociation automatique

AR8151

10 / 100 / 1000 Mb/s négociation automatique

Prise en

charg e aud io

HD

VT1708B

Prise en charg e de l'aud io haut e définit ion

Sortie aud io à 5 .1 voies

VT1708B

Prise en charg e de l'aud io haut e définit ion

Sortie aud io à 5 .1 voies

Fente PCI Express Gen3 x16

(en fonction du CPU) x1

Fente PCI Express Gen3 x16

(en fonction du CPU) x1

Fentes

Fente PCI Express Gen2 x1 x1 Fente PCI Express Gen2 x1 x1

Motherboard Manual

30

H61 MGB / H61 MLB H61MHB

Fente PCI x2 Fente PCI x2
Connecteur de Port d'imprimante x1 Connecteur de Port d'imprimante x1
Port série x1 Port série x1

Connecteur SATA x4 Connecteur SATA x4
Connecteur du panneau avant x1 Connecteur du panneau avant x1

Connecteur Audio du panneau avant x1 Connecteur Audio du panneau avant x1

Embase de ventilateur UC x1 Embase de ventilateur UC x1
Embase de ventilateur système x1 Embase de ventilateur système x1

Embase d'effacement CMOS x1 Embase d'effacement CMOS x1
Connecteur USB 2.0 x2 Connecteur USB 2.0 x2

Connecteur d' aliment ation x1
(24 broches)

Connecteur d' aliment ation x1
(24 broches)

Connecteur

embarqu é

Connecteur d' aliment ation x 1
(4 broch es)

Connecteur d' aliment ation x 1
(4 broch es)

E/S du

panneau

arrière

Clavier / Souris PS/2 x1
Port VGA x1
Port DVI-D x1
Port LAN x1
Port USB 2.0 x4
Fiche aud io x3

Clavier / Souris PS/2 x1
Port HD MI x1
Port VGA x1
Port DVI-D x1
Port LAN x1
Port USB 2.0 x4
Fiche aud io x3

Dimensions

de la carte

190mm (l) X 244 mm (H) 190mm (l) X 244 mm (H)

Support SE

Windows XP / V ista / 7
Biostar se réserve le droit d'ajouter ou de
supprimer le support de SE avec ou sans
préavis.

Windows XP / V ista / 7
Biostar se réserve le droit d'ajouter ou de
supprimer le support de SE avec ou sans
préavis.

H61MGB/H61MLB/H61MHB

31

ITALIAN

H61 MGB / H61 MLB H61MHB

CPU

Socket 1155

Pro ces s ore Int el Co re i7 / i5 / i3 / Pentiu m

Supporto di Execut e Disable Bit / Enhanced

Intel SpeedStep® / Architettura Intel 64 /

Tecnologia Extended Memory 64 /

Tecnologia Virtualization

Socket 1155

Pro ces s ore Int el Co re i7 / i5 / i3 / Pentiu m

Supporto di Execut e Disable Bit / Enhanced

Intel SpeedStep® / Architettura Intel 64 /

Tecnologia Extended Memory 64 /

Tecnologia Virtualization

Chipset

Intel H61 Intel H61

Super I/O

ITE 8728

Fo rnis ce le fun z io nalit à lega cy Sup er I/O

usate più comunemente.

Interfaccia LPC (Low Pin Count)

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Co ntroller / Mo nitor ag gio velo c ità vent o lin a

Funzione "Smart Guardian" di ITE

ITE 8728

Fo rnis ce le fun z io nalit à lega cy Sup er I/O

usate più comunemente.

Interfaccia LPC (Low Pin Count)

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Co ntroller / Mo nitor ag gio velo c ità vent o lin a

Funzione "Smart Guardian" di ITE

Memor ia

principale

Alloggi DIMM DDR3 x 2

Ciascun DIMM supporta DDR3

512MB/1GB/2GB/4GB/8GB

Capacità massima della memoria 16GB

Modulo di memoria DDR3 a canale doppio

Supporto di DDR3 1333/1066/1600

DIMM registrati e DIMM ECC non sono

supportati

Alloggi DIMM DDR3 x 2

Ciascun DIMM supporta DDR3

512MB/1GB/2GB/4GB/8GB

Capacità massima della memoria 16GB

Modulo di memoria DDR3 a canale doppio

Supporto di DDR3 1333/1066/1600

DIMM registrati e DIMM ECC non sono

supportati

SATA 2

Co ntroller S er ial ATA integr at o

Velocità di trasferimento dei dati fino a

3.0Gb/s.

Co mp at ib ile specifi ch e S ATA Vers io n e 2.0 .

Co ntroller S er ial ATA integr at o

Velocità di trasferimento dei dati fino a

3.0Gb/s.

Co mp at ib ile specifi ch e S ATA Vers io n e 2.0 .

LAN

AR8151 (H61MGB)

Negoziazione automatica 10/100/1000Mb/s

AR8152 (H61MLB)

Negoziaz ione automatica 10/1 00Mb/s

AR8151

Negoziazione automatica 10/100/1000Mb/s

Supporto

audio HD

VT1708B

Supporto audio High-Definition (HD)

Uscita audio 5.1 canali

VT1708B

Supporto audio High-Definition (HD)

Uscita audio 5.1 canali

Alloggio PCI Express Gen3 x16

(a seconda del CPU) x 1

Alloggio PCI Express Gen3 x16

(a seconda del CPU) x 1

Allo g gi

Alloggio PCI Express Gen2 x1 x1 Alloggio PCI Express Gen2 x1 x1

Motherboard Manual

32

H61 MGB / H61 MLB H61MHB

Allo g gio PC I x 2 A llo ggio PC I x 2

Connettore Porta stampante x1 Connettore Porta stampante x1

Porta seriale x1 Porta seriale x1

Connetto re SATA x 4 Co nnettor e SATA x4

Connettore pannello frontale x1 Connettore pannello frontale x1

Connettore audio frontale x1 Connettore audio frontale x1

Co llet t o re vent o lina C PU x 1 Collettor e vento lin a C PU x1

Co llet t o re vent o lina sistema x 1 C ollet t ore ven tolina sistema x1

Co llet t o re cancel laz ione CMOS x1 Collettor e cance llaz io n e C MOS x1

Connettore USB 2.0 x2 Connettore USB 2.0 x2

Connettore alimentazione x1
(24 pin)

Connettore alimentazione x1
(24 pin)

Connettori

su scheda

Connettore alimentazione x1
(4 pin)

Connettore alimentazione x1
(4 pin)

I/O pannello

posteriore

Tastiera / Mouse PS/2 x1
Port a VGA x1
Port a DV I-D x1
Port a LA N x1
Port a USB 2.0 x4
Connettore audio x3

Tastiera / Mouse PS/2 x1
Port a HDMI x1
Port a VGA x1
Port a DV I-D x1
Port a LA N x1
Port a USB 2.0 x4
Connettore audio x3

Dimensioni

scheda

190mm (larghezza) x 244 mm (altezza) 190mm (larghezza) x 244 mm (altezza)

Sistemi

op er at ivi

supportati

Windows XP / Vista / 7
Biostar si riserva il diritto di aggiungere o
rimuovere il supporto di qualsiasi sistema
operativo senza preavviso.

H61MGB/H61MLB/H61MHB

33

SPANISH

H61 MGB / H61 MLB H61MHB

CPU

Socket 1155

Pro c esador Intel Cor e i7 / i5 / i3/ Pent ium
Admite Bit de deshabilitación de ejecución / Intel

Speed St ep® Mejorado / Int e l Arch it ecture-64 /
Tecnología Extended Memory 64 / Tecnología de

virtualización

Socket 1155

Pro c esador Intel Cor e i7 / i5 / i3/ Pent ium
Admite Bit de deshabilitación de ejecución / Intel

Speed St ep® Mejorado / Int e l Arch it ecture-64 /
Tecnología Extended Memory 64 / Tecnología de

virtualización

Conjunto de

chips

Intel H61 Intel H61

Súper E/S

ITE 8728
Le ofrece las funcionalidades heredadas de uso

más común Súper E/S.
Interfaz de cuenta Low Pin

In iciat ivas de co ntro l d e ent orn o ,

Monitor hardware
Controlador/monitor de velocidad de ventilador

Función "Guardia inteligente" de ITE

ITE 8728
Le ofrece las funcionalidades heredadas de uso

más común Súper E/S.
Interfaz de cuenta Low Pin

In iciat ivas de co ntro l d e ent orn o ,

Monitor hardware
Controlador/monitor de velocidad de ventilador

Función "Guardia inteligente" de ITE

Memoria

principal

Ranuras DIMM DDR3 x 2

Cada DIMM admite DDR de

512MB/1GB/2GB/4GB/8GB
Capacidad máxima de memoria de 16GB

Módulo de memoria DDR3 de canal Doble
Admite DDR3 de 1333/1066/1600

No admite DIMM registrados o DIMM

comp atib les con ECC

Ranuras DIMM DDR3 x 2

Cada DIMM admite DDR de

512MB/1GB/2GB/4GB/8GB
Capacidad máxima de memoria de 16GB

Módulo de memoria DDR3 de canal Doble
Admite DDR3 de 1333/1066/1600

No admite DIMM registrados o DIMM

comp atib les con ECC

SATA 2

Controlador ATA Serie Integrado

Tasas de transferencia de hasta 3.0 Gb/s.
Co mp at ible con la ve rsió n SATA 2.0.

Controlador ATA Serie Integrado

Tasas de transferencia de hasta 3.0 Gb/s.
Co mp at ible con la ve rsió n SATA 2.0.

Red Local

AR8151 (H61MGB)

Negociación de 10 / 100 / 1000 Mb/s
AR8152 (H61MLB)

Negociación de 10 / 100 Mb/s

AR8151

Negociación de 10 / 100 / 1000 Mb/s

Soporte de

sonido HD

VT1708B

Soporte de sonido de Alta Definición

Salida de sonido de 5.1 canales

VT1708B

Soporte de sonido de Alta Definición

Salida de sonido de 5.1 canales

Ranura PCI Express Gen3 x16

(depe nd iendo de la C PU ) X1

Ranura PCI Express Gen3 x16

(depe nd iendo de la C PU ) X1

Ranuras

Ranura PCI express Gen2 x1 X1 Ranura PCI express Gen2 x1 X1

Motherboard Manual

34

H61 MGB / H61 MLB H61MHB

Ranura PCI X2 Ranura PCI X2

Conector Puerto de impresora X1 Conector Puerto de impresora X1
Puert o ser ie X1 Puerto s er ie X1
Conector SATA X4 Conector SATA X4
Conector de panel frontal X1 Conector de panel frontal X1
Conector de sonido frontal X1 Conector de sonido frontal X1
Cabecera de ventilador de CPU X1 Cabecera de ventilador de CPU X1
Cabecera de ventilador de sistema X1 Cabecera de ventilador de sistema X1
Cabecera de borrado de CMOS X1 Cabecera de borrado de CMOS X1
Conector USB 2.0 X2 Conector USB 2.0 X2
Conector de alimentación X1
(24 patillas)

Conector de alimentación X1
(24 patillas)

Conectores

en p laca

Conector de alimentación X1
(4 patillas)

Conector de alimentación X1
(4 patillas)

Panel trasero

de E/S

Teclado / R ató n PS/2 X 1
Puert o VGA X1
Puerto DV I-D X1
Puerto de red local X1
Puert o USB 2. 0 X4
Conector de sonido X3

Teclado / R ató n PS/2 X 1
Ratón HDMI X1
Puert o VGA X1
Puerto DV I-D X1
Puerto de red local X1
Puert o USB 2. 0 X4
Conector de sonido X3

Ta mañ o d e la

plac a

190mm. (A) X 244 Mm. (H) 190mm. (A) X 24 4 Mm. (H)

Soporte de

sistema

operativo

Windows XP / V ista / 7
Biostar se reserva el derecho de añadir o retirar
el soporte de cualquier SO con o sin aviso
previo.

Windows XP / V ista / 7
Biostar se reserva el derecho de añadir o retirar
el soporte de cualquier SO con o sin aviso
previo.

H61MGB/H61MLB/H61MHB

35

PORTUGUESE

H61 MGB / H61 MLB H61MHB

CPU

Socket 1155

Pro c essador Int e l Cor e i7 / i5 / i3 / Pen t ium

Suporta as tecno log ias Execute D isab le Bit /

Enhanced Inte l SpeedS tep® / Inte l Arqu it ectur e

-64 / Extended Memory 64 / Virtualization

Socket 1155

Pro c essador Int e l Cor e i7 / i5 / i3 / Pen t ium

Suporta as tecno log ias Execute D isab le Bit /

Enhanced Inte l SpeedS tep® / Inte l Arqu it ectur e

-64 / Extended Memory 64 / Virtualization

Chipset

Intel H61 Intel H61

Especificação

Super I/O

ITE 8728

Proporciona as funcionalidades mais utilizadas

em t ermos da especificação Super I/O.

Interface LPC (Low Pin Count).

In iciat ivas par a con tro lo d o amb ient e

Monitorização do hardware

Contro lador/Monitor d a velocidade d a vento inha

Função "S mart Gu ard ian" da ITE

ITE 8728

Proporciona as funcionalidades mais utilizadas

em t ermos da especificação Super I/O.

Interface LPC (Low Pin Count).

In iciat ivas par a con tro lo d o amb ient e

Monitorização do hardware

Contro lador/Monitor d a velocidade d a vento inha

Função "S mart Gu ard ian" da ITE

Memória

principal

Ranhuras DIMM DDR3 x 2

Cada módulo DIMM suporta uma memória

DDR3 de 512 MB/1 GB /2GB/4 GB/8GB

Capacid ad e máx ima de me mó r ia:16GB Módu lo

de memória DDR3 de canal duplo

Suporta módulos DDR3 1333/1066/1600

Os módulos DIMM registados e os DIMM ECC

não são suportados

Ranhuras DIMM DDR3 x 2

Cada módulo DIMM suporta uma memória

DDR3 de 512 MB/1 GB /2GB/4 GB/8GB

Capacid ad e máx ima de me mó r ia:16GB Módu lo

de memória DDR3 de canal duplo

Suporta módulos DDR3 1333/1066/1600

Os módulos DIMM registados e os DIMM ECC

não são suportados

SATA 2

Controlador Serial ATA integrado

Velocidades de transmissão de dados até 3.0 Gb/s.

Co mpat ib il idade co m a espe c if icação SATA

versão 2.0 .

Controlador Serial ATA integrado

Velocidades de transmissão de dados até 3.0 Gb/s.

Co mpat ib il idade co m a espe c if icação SATA

versão 2.0 .

LAN

AR8151 (H61MGB)

Auto negociação de 10 / 100 / 1000 Mb/s

AR8152 (H61MLB)

Auto negociação de 10 / 100 Mb/s

AR8151

Auto negociação de 10 / 100 / 1000 Mb/s

Suporte para

áud io de a lta

definição

VT1708B

Suporta a especificação High-Definition Audio

Saída de áudio de 5.1 canais

VT1708B

Suporta a especificação High-Definition Audio

Saída de áudio de 5.1 canais

Ranhura PCI Express Gen3 x16

(dependendo da CPU) x1

Ranhura PCI Express Gen3 x16

(dependendo da CPU) x1

Ranhuras

Ranhura PCI Express Gen2 x1 x1 Ranhura PCI Express Gen2 x1 x1

Motherboard Manual

36

H61 MGB / H61 MLB H61MHB

Ranhura PCI x2 Ranhura PCI x2

Conector da para impressora x1 Conector da para impressora x1

Port a série x1 Porta sér ie x1

Conector SATA x4 Conector SATA x4

Conector do painel frontal x1 Conector do painel frontal x1

Conector de áudio frontal x1 Conector de áudio frontal x1

Conector da ventoinha da CPU x1 Conector da ventoinha da CPU x1

Conector da ventoinha do sistema x1 Conector da ventoinha do sistema x1

Conector para limpeza do CMOS x1 Conector para limpeza do CMOS x1

Conector USB 2.0 x2 Conector USB 2.0 x2

Conector de alimentação x1
(24 pinos)

Conector de alimentação x1
(24 pinos)

Conectores

na placa

Conector de alimentação x1
(4 p inos )

Conector de alimentação x1
(4 p inos )

Entradas/Saí

das no painel

traseiro

Teclado / R ato PS/2 x1
Porta VGA x1
Port a DV I-D x1
Port a LA N x1
Port a USB 2.0 x4
Tomada de áudio x3

Teclado / R ato PS/2 x1
Port a HD MI x 1
Porta VGA x1
Port a DV I-D x1
Port a LA N x1
Port a USB 2.0 x4
Tomada de áudio x3

Tamanho da

plac a

190mm (L) X 244 mm (A) 190mm (L) X 244 mm (A)

Sistemas

operativos

suportados

Windows XP / V ista / 7
A Biostar reserva-se o direito de ad icionar ou
remover suporte para qualquer siste ma
operativo com ou sem aviso prévio.

Windows XP / V ista / 7
A Biostar reserva-se o direito de ad icionar ou
remover suporte para qualquer siste ma
operativo com ou sem aviso prévio.

H61MGB/H61MLB/H61MHB

37

POLISH

H6 1 MGB / H6 1 ML B H61 MHB

Procesor

Socket 1155

Pro c esor Int e l Cor e i7 / i5 / i3 / Penti um

Obsługa Execute D is able B it / Enhanced Intel

Speed St ep® / Inte l Ar ch itecture-64 / Extended

Memory 64 Technology / Virtualization

Technology

Socket 1155

Pro c esor Int e l Cor e i7 / i5 / i3 / Penti um

Obsługa Execute D is able B it / Enhanced Intel

Speed St ep® / Inte l Ar ch itecture-64 / Extended

Memory 64 Technology / Virtualization

Technology

Chipset

Intel H61 Intel H61

Pamięć

główna

Gniazda DDR3 DIMM x 2

Każde gniazdo DIMM obsługuje moduły

512MB/1GB/2GB/4GB/8GB

Maks. wielkość pamięci 16GB Moduł pamięci

DDR3 z trybem podwójnego kanału

Obsługa DDR3 1333/1066/1600

Brak obsług i Register ed D IMM oraz ECC DIMM

Gniazda DDR3 DIMM x 2

Każde gniazdo DIMM obsługuje moduły

512MB/1GB/2GB/4GB/8GB

Maks. wielkość pamięci 16GB Moduł pamięci

DDR3 z trybem podwójnego kanału

Obsługa DDR3 1333/1066/1600

Brak obsług i Register ed D IMM oraz ECC DIMM

Super I/O

ITE 8728

Zapewnia najbardziej powszechne funkcje

Super I/O.

Interfejs Low Pin Count

Funkcje kontroli warunków pracy,

Mon itor H /W

Kontroler/Monitor prędkości wenty latora

Funkcja ITE "Smart Gu ard ian"

ITE 8728

Zapewnia najbardziej powszechne funkcje

Super I/O.

Interfejs Low Pin Count

Funkcje kontroli warunków pracy,

Mon itor H /W

Kontroler/Monitor prędkości wenty latora

Funkcja ITE "Smart Gu ard ian"

SATA 2

Zintegrowany kontroler Serial ATA

Transfer danych do 3.0 Gb/s.

Zgodność ze specyfikacją SATA w wers j i 2. 0.

Zintegrowany kontroler Serial ATA

Transfer danych do 3.0 Gb/s.

Zgodność ze specyfikacją SATA w wers j i 2. 0.

LAN

AR8151 (H61MGB)

10 / 100 / 1000 Mb/s z automatyczną

negocjacją szybkości

AR8152 (H61MLB)

10 / 100 Mb/s z automatyczną negocjacją

szybkości

AR8151

10 / 100 / 1000 Mb/s z automatyczną

negocjacją szybkości

Obsługa

aud io HD

VT1708B

Obsługa H igh- Def in ition A ud io

5.1 kanałowe wyjście audio

VT1708B

Obsługa H igh- Def in ition A ud io

5.1 kanałowe wyjście audio

Gniazdo PCI Express Gen3 x16

(w zależności od procesora) x1

Gniazdo PCI Express Gen3 x16

(w zależności od procesora) x1

Gniazda

Gniazdo PCI Express Gen2 x1 x1 Gniazdo PCI Express Gen2 x1 x1

Motherboard Manual

38

H6 1 MGB / H6 1 ML B H61 MHB

Gniazdo PCI x2 Gniazdo PCI x2

Złącze Port drukarki x1 Złącze Port drukarki x1
Port szeregowy x 1 Port szeregowy x 1
Złącze SATA x4 Złącze SATA x 4
Złącze panela przedniego x1 Złącze panela przedniego x1
Przedn ie złącze aud io x1 Przednie złącze aud io x1
Złącze główkow e went ylatora
procesora x1

Złącze główkow e went ylatora

procesora x1
Złącze główkow e went ylatora
systemowego x1

Złącze główkow e went ylatora

systemowego x1
Złącze główkowe kasowan ia CMOS x 1 Złącze g łówkow e kasowan ia CMOS x 1
Złącze USB 2.0 x2 Złącze USB 2.0 x2
Złącze zasilania (24 pinowe) x1 Złącze zasilania (24 pinowe) x1

Złącza

wbud owan e

Złącze zas ilania (4 p ino we) x1 Złącze z as ilania (4 p ino we) x1

Back Panel

I/O

Klaw iatura / Mysz PS/2 x1
Port VGA x1
Port DVI-D x1
Port LAN x1
Port USB 2.0 x4
Gniazdo audio x3

Klaw iatura / Mysz PS/2 x1

Port HD MI x1

Port VGA x1

Port DVI-D x1

Port LAN x1

Port USB 2.0 x4

Gniazdo audio x3

Wymiary

płyty

190mm (S) X 244 mm (W) 190mm (S) X 244 mm (W)

Obsluga

systemu

operacyjnego

Windows XP / V ista / 7
Biostar zastrzega sobie prawo dodawania lub
odwoływania obsług i d owo lnego s ys temu
operacyjneg o b ez powiadomien ia.

Windows XP / V ista / 7

Biostar zastrzega sobie prawo dodawania lub

odwoływania obsług i d owo lnego s ys temu

operacyjneg o b ez powiadomien ia.

H61MGB/H61MLB/H61MHB

39

RUSSIAN

H61 MGB / H61 MLB H6 1M HB

CPU

(центральны

й процессор)

Socket 1155

Процессор Inte l Co r e i7 / i5 / i3 / Pen t iu m
Поддержка технологий Execut e D isab le Bit /

Enhanced Inte l SpeedSt ep® / Intel
Architecture-64 / Extend ed Memory 64
Technology / технологии виртуализация

Socket 1155

Процессор Inte l Co r e i7 / i5 / i3 / Pen t iu m

Поддержка технологий Execut e D isab le Bit /

Enhanced Inte l SpeedSt ep® / Intel

Architecture-64 / Extend ed Memory 64

Technology / технологии виртуализация

Набо р

микросхем

Intel H61 Intel H61

Основная

память

Слоты DDR3 DIMM x 2
Каждый модуль DIMM поддерживает 512МБ/
1ГБ/2ГБ/4ГБ /8ГБ DDR3
Максимальная ёмкость памяти 16ГБ
Мод ул ь памяти с двух канальн ым режимом

DDR3

Поддержка DDR3 1333/1066/1600
Не поддерживает зарегистрированные
модули DIMM and ECC DIMM

Слоты DDR3 DIMM x 2

Каждый модуль DIMM поддерживает 512МБ/

1ГБ/2ГБ/4ГБ /8ГБ DDR3

Максимальная ёмкость памяти 16ГБ

Мод ул ь памяти с двух канальн ым режимом

DDR3

Поддержка DDR3 1333/1066/1600

Не поддерживает зарегистрированные

модули DIMM and ECC DIMM

Super I/O

ITE 8728

Обеспечивает наиболее используемые
действующие фун кцио наль ны е во змо жно сти

Super I/O.

Интерфейс с низким количес твом выводов
Инициативы по охране окружающей среды,
Аппаратный монитор
Регул ят ор скорости вентилято ра/ монитор
Функция ITE "Smart Guardian"

(Интеллектуальная защита)

ITE 8728

Обеспечивает наиболее используемые

действующие фун кцио наль ны е во змо жно сти

Super I/O.

Интерфейс с низким количес твом выводов

Инициативы по охране окружающей среды,

Аппаратный монитор

Регул ят ор скорости вентилято ра/ монитор

Функция ITE "Smart Guardian"

(Интеллектуальная защита)

SATA 2

Встроенное последовател ьно е устро йство
упра влени я ATA
скорость передачи данных до 3.0 гигабит/с.
Соответствие специ фикации SATA версия

2.0.

Встроенное последовател ьно е устро йство

упра влени я ATA

скорость передачи данных до 3.0 гигабит/с.

Соответствие специ фикации SATA версия

2.0.

Локальна я

сеть

AR8151 (H61MGB)
Автоматическое согл асован ие 10/100/1000Мб/с
AR8152 (H61MLB)
Автоматическо е согласование 10/100Мб/с

AR8151

Автоматическое согл асован ие 10/100/1000Мб/с

Звуко ва я

поддержка

жестког о

диска

VT1708B
Звуко ва я поддержка High- Def inition

5.1канальный звуковой выход

VT1708B

Звуко ва я поддержка High- Def inition

5.1канальный звуковой выход

Слот PCI Express Gen3 x16
(в зависимости от процессора) x1

Слот PCI Express Gen3 x16

(в зависимости от процессора) x1

Слот PCI Express Gen2 x1 x1 Слот PCI Express Gen2 x1 x1

Слоты

Слот PCI x2 Слот PC I x2

Motherboard Manual

40

H61 MGB / H61 MLB H6 1M HB

Разъ ём Порт подключения
принтера x1

Разъ ём Порт подключения

принтера x1
Последо ват ельный порт x1 Последовательный порт x1
Разъ ём SATA x4 Разъ ём SATA x4
Разъ ём на лицевой панели x1 Разъ ём на лицевой панели x1
Входной звуковой разъём x1 Входной звуково й разъём x1
Контактирующее приспособление
вентил ят ора центрального процессора x1

Контактирующее приспособление

вентил ят ора центрального процессора x1
Контактирующее приспособление
вентил ят ора системы x1

Контактирующее приспособление

вентил ят ора системы x1
Открытое контактир ующее
приспособление CMOS x1

Открытое контактир ующее

приспособление CMOS x1
USB 2.0-разъём x2 USB 2.0-разъём x2
Разъ ем питания (24 вы вод) x1 Разъ ем питания (24 вы вод) x1

Встроенный

разъём

Разъ ем питания (4 вывод) x1 Разъ ем питания (4 выво д) x1

Задняя

панель

средств

ввода-вывод

а

Клавиатура / Мышь PS/2 x1
Пор т VGA x1
Пор т DVI-D x1
Пор т LAN x1
USB 2.0-порт x4
Гнездо для подключени я
наушников x3

Клавиатура / Мышь PS/2 x1

Пор т HD MI x1

Пор т VGA x1

Пор т DVI-D x1

Пор т LAN x1

USB 2.0-порт x4

Гнездо для подключени я

наушников x3

Разм ер

панели

190мм (Ш) X 244 мм (В) 190мм (Ш) X 244 мм (В)

Поддержка

OS

Windows XP / V ista / 7
Biostar сохраняет за собой право добавлять

или удалять средства обеспечения для OS с
или без предварительного уведо мления.

Windows XP / V ista / 7

Biostar сохраняет за собой право добавлять

или удалять средства обеспечения для OS с

или без предварительного уведо мления.

H61MGB/H61MLB/H61MHB

41

ARABIC

H61 MHB H61 MG B / H61 MLB

Socket 1155

تﺎﺠﻟﺎﻌﻣIntel Cor e i7 / i5 / i3 / Pen tiu m ﺑ ددﺮﺘ ﻳ ﻰﻟإ ﻞﺼ

تﺎﻴﻨﻘﺕ ﻢﻋﺪﺕExecute D isab le B it / Enh anced Inte l

Speed St ep® / Int el Ar ch itectur e-64 / Extended

Memory 64 Technology / Virtualization

Technology

Socket 1155

تﺎﺠﻟﺎﻌﻣIntel Cor e i7 / i5 / i3 / Pen tiu m ﺑ ددﺮﺘ ﻳ ﻰﻟإ ﻞﺼ

تﺎﻴﻨﻘﺕ ﻢﻋﺪﺕExecute D isab le B it / Enh anced Inte l

Speed St ep® / Inte l Ar chitecture-64 / Ex tended

Memory 64 Technology / Virtualization

Technology

ةﺪﺣو ﺔﺠﻟﺎﻌﻤﻟا

ﺔﻳﺰآﺮﻤﻟا

Intel H61 Intel H61

ﺔﻋﻮﻤﺠﻣ ﺢﺋاﺮﺸﻟا

ﺔﺤﺘﻓDDR3 DIM M دﺪﻋ2

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR3 ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕ ﺔﻌﺳ ﻢﻋﺪﺕ

ﺔﺤﺘﻓ ﻞآDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR3 ﺔﻌﺳ

/512 و ﺖﻳﺎﺑ ﺎﺠﻴﻣ 1/

و2/و 4/و 8 ﺎﺠﻴﺝﺖﻳﺎﺑ

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ16 ﺖﻳﺎﺑ ﺎﺠﻴﺝ

ةﺮآاذ ةﺪﺣوDDR3 ﺰﻣﻘﻟا ﺔﺝودةﺎﻨ

عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺕDDR3 تﺎﻌﺳ 1066/1333/16 00ﺖﻳﺎﺑ ﺎﺠﻴﻣ

ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺕ ﻻDIMM ﻊﻣ ﻖﻓاﻮﺘﺕ ﻻ ﻲﺘﻟا ﻚﻠﺕو ECC

ﺔﺤﺘﻓDDR3 DIM M دﺪﻋ2

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR3 ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺕ ﺔﻌﺳ ﻢﻋﺪﺕ

ﺔﺤﺘﻓ ﻞآDIMM عﻮﻥ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺕ DDR3 ﺔﻌﺳ

/512 ﺑ ﺎﺠﻴﻣ و ﺖﻳﺎ1/

و2/و 4/و 8 ﺎﺠﻴﺝﺖﻳﺎﺑ

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ16 ﺖﻳﺎﺑ ﺎﺠﻴﺝ

ةﺮآاذ ةﺪﺣوDDR3 ﻘﻟا ﺔﺝودﺰﻣةﺎﻨ

عﻮﻥ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺕDDR3 تﺎﻌﺳ 1066/1333/16 00ﺖﻳﺎﺑ ﺎﺠﻴﻣ

ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺕ ﻻDIMM ﻊﻣ ﻖﻓاﻮﺘﺕ ﻻ ﻲﺘﻟا ﻚﻠﺕو ECC

ةﺮآاﺬﻟا ﺔﻴﺴﻴﺋﺮﻟا

ITE 8728

ﺔﻔﻴﻇ و ﺮﻓﻮﺕSuper I/O ﺘﺳا ﺮﺜآﻷا ًﺎ ﻣ اﺪ ﺨ.

ﺕﻢﻋﺪ ﺔﻴﻨﻘ ﺕ Low Pi n Count Interface

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻣ

ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻣ

ﺔﻔﻴﻇو"S mart Guard ian" ﻦﻣ ITE

ITE 8728

ﺔﻔﻴﻇ و ﺮﻓﻮﺕSuper I/O ًﺎ ﻣ اﺪ ﺨ ﺘ ﺳ ا ﺮﺜآﻷا .

ﺕﻢﻋﺪ ﺔﻴﻨﻘ ﺕ

Low Pin Co unt Interface

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

اﺮﻣةﺰﻬﺝﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗ

ﺔﺣوﺮﻤﻟا ﺔﻋﺮﺳ ﻲﻓ ﺐﻗاﺮﻣ

ﺔﻔﻴﻇو"S mart Guard ian" ﻦﻣ ITE

Super I/O

ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣﺎﻜﺘﻣ

ﻞﻘﻧ تﺎﻧﺎﻴﺒﻟا تﺎﻋﺮﺴﺏ ﻞﺼﺕ ﻰﻟإ 3.0 ﺖﺏﺎﺠﻴﺟ/ﺔﻴﻧﺎﺛ.

ﺔﻘﺏﺎﻄﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0.

ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣﺎﻜﺘﻣ

ﻞﻘﻧ تﺎﻧﺎﻴﺒﻟا تﺎﻋﺮﺴﺏ ﻞﺼﺕ ﻰﻟإ 3.0 ﺖﺏﺎﺠﻴﺟ/ﺎﺛﺔﻴﻧ.

ﺔﻘﺏﺎﻄﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0.

SATA 2

AR8151

ﻲﺋﺎﻘﻠﺕ ضو ﺎﻔﺕ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /و ﺔﻴﻥﺎﺙ1ﺖﺑ ﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ

AR8151 (H61MGB)

ﻲﺋﺎﻘﻠﺕ ضو ﺎﻔﺕ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /و ﺔﻴﻥﺎﺙ1ﺖﺑ ﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ

AR8152 (H61MLB)

ﻲﺋﺎﻘﻠﺕ ضو ﺎﻔﺕ10/100 ﺖﻳﺎﺑ ﺎﺠﻴﻣ /ﺔﻴﻥﺎﺙ

ﺔﻜﺒﺷ ﺔﻴﻠﺧاد

VT1708B

ﺕ ﻦﻣ ﻒﻳﺮﻌﺘﻟا ﻲﻟ ﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺕ ﻢﻋﺪ

5.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ

VT1708B

ﻦﻣ ﻒﻳﺮﻌﺘﻟا ﻲﻟ ﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺕ ﻢﻋﺪﺕ

5.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ

ﻢﻋد تﻮﺼﻟا ﻲﻟ ﺎﻋ

ﻒیﺮﻌﺘﻟا

ﺔﺤﺘﻓGen3 x16 PCI Express دﺪﻋ1

(ادﺎﻤﺘﻋا ﻰﻠﻋ ةﺪﺣو ﺔﺠﻟﺎﻌﻤﻟا ﺔﻳﺰآﺮﻤﻟا)

ﺔﺤﺘﻓGen3 x16 PCI Express دﺪﻋ1

(ادﺎﻤﺘﻋا ﻰﻠﻋ وةﺪﺣ ﺔﺠﻟﺎﻌﻤﻟا ﺔﻳﺰآﺮﻤﻟا)

ﺔﺤﺘﻓPCI Express Gen2 x1 دﺪﻋ1 ﺔﺤﺘﻓPCI Express Gen2 x1 دﺪ ﻋ1

تﺎﺤﺘﻔﻟا

Motherboard Manual

42

H61 MHB H61 MG B / H61 MLB

ﺔﺤﺘﻓPCI ﺪﻋ2 ﺔﺤﺘﻓPCI ﺪﻋ2

ﺔﻌﺑﺎﻃ ﺬﻔ ﻨﻣ دﺪﻋ1 ﺔﻌﺑﺎﻃ ﺬﻔ ﻨﻣ دﺪﻋ1

ﻲﻠﺴﻠﺴﺕ ﺬﻔﻨﻣ دﺪﻋ1 ﻲﻠﺴﻠﺴﺕ ﺬﻔﻨﻣ دﺪﻋ1

ﺬﻔﻨﻣSATA دﺪﻋ4 ﺬﻔﻨﻣSATA دﺪﻋ4

ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮ ﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1 ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮ ﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1

ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1 ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1

ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1 ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1

مﺎﻈﻨﻟا ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1 مﺎﻈﻨﻟا ﺔﺣوﺮﻣ ﺔﻠﺹو دﺪﻋ1

ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1 ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1

ﺬﻔﻨﻣUSB 2.0 دﺪﻋ2 ﺬﻔﻨﻣUSB 2.0 دﺪﻋ2
ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)24سﻮ ﺑد( ع دد1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)24سﻮﺑد( ع دد1
ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)4ﺲﻴﺑﺎﺑد( دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺕ ﺬﻔﻨﻣ)4ﺲﻴﺑﺎﺑد( دﺪﻋ1

ﺬﻓﺎﻨﻤﻟا ﻰﻠﻋ ﺢﻄ ﺱ

ﺔﺡﻮﻠﻟا

ﺢﻴﺕﺎﻔﻣ ﺔﺣﻮﻟ / سوﺎﻣPS/2 دﺪﻋ1

ﺬﻓﺎﻨﻣHDMI دﺪﻋ1
ﺬﻓﺎﻨﻣVG A دﺪ ﻋ1
ﺬﻓﺎﻨﻣDVI- D دﺪﻋ1

ﺔﻴﻠﺤﻣ لﺎﺼﺕا ﺔﻜﺒﺵ ﺬﻔ ﻨﻣ دﺪﻋ 1

ﺬﻓﺎﻨﻣUSB 2.0 دﺪﻋ4

تﻮﺹ ﺲﺒﻘﻣ دﺪﻋ3

ﺢﻴﺕﺎﻔﻣ ﺔﺣﻮﻟ / سوﺎﻣPS/2 دﺪﻋ1

ﺬﻓﺎﻨﻣVG A دﺪ ﻋ1
ﺬﻓﺎﻨﻣDVI- D دﺪﻋ1

ﺔﻴﻠﺤﻣ لﺎﺼﺕا ﺔﻜﺒﺵ ﺬﻔ ﻨﻣ دﺪﻋ 1

ﺬﻓﺎﻨﻣUSB 2.0 دﺪﻋ4

تﻮﺹ ﺲﺒﻘﻣ ﺪﻋ د3

ﺬﻓﺎﻨﻣ ﻞﺧد/جﺮﺧ

ﺔﺡﻮﻠﻟا ﺔﻴﻔﻠﺨﻟا

190 ﻢﻣ)ضﺮﻋ (X 244 ﻢﻣ)عﺎﻔﺕرا( 190 ﻢﻣ)ضﺮﻋ (X 244 ﻢﻣ)عﺎﻔﺕرا(

ﻢﺠﺡ ﺔﺡﻮﻠﻟا

Windows XP / Vista / 7

ﻆﻔﺘﺤﺕ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓ ﺎﺿإ وأ ﺔﻟازإ ﻢﻋﺪﻟا يﻷ مﺎﻈﻧ ﻞﻴﻐﺸﺕ رﺎﻄﺧﺈﺏ

وأ نوﺪﺏ رﺎﻄﺧإ.

Windows XP / Vista / 7

ﻆﻔﺘﺤﺕ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓ ﺎﺿإ وأ ﺔﻟازإ ﻢﻋﺪﻟا يﻷ مﺎﻈﻧ ﻞﻴﻐﺸﺕ رﺎﻄﺧﺈﺏ

وأ نوﺪﺏ رﺎﻄﺧإ.

ﻢﻋد ﺔﻤﻈﻧ أ ﻞﻴﻐﺸﺘﻟا

H61MGB/H61MLB/H61MHB

43

JAPANESE

H61 MGB / H61 MLB H6 1M HB

CPU

Socket 1155

Int e l Core i7 / i5 / i3 / Pentium プロセッサ

Execute D isab le Bit / Enh anc ed Intel

Speed St ep® / Inte l Ar ch itecture-64 / Extended

Memory 64 Technology / Virtualization

Technologyをサポートします

Socket 1155

Int e l Core i7 / i5 / i3 / Pentium プロセッサ

Execute D isab le Bit / Enh anc ed Intel

Speed St ep® / Inte l Ar ch itecture-64 / Extended

Memory 64 Technology / Virtualization

Technologyをサポートします

チップセット

Intel H61 Intel H61

メインメモリ

DDR3 DIMMスロット x 2

各DIMMは 512MB/1GB/2GB/4GB/8GB DDR3を

サポート

最大メモリ容量16GB

デュアル チャンネルモードDDR3メモリモジュール

DDR3 1600/1333/1066をサポート

登録済みDIMMとECC DIMMはサポートされません

DDR3 DIMMスロット x 2

各DIMMは 512MB/1GB/2GB/4GB/8GB DDR3を

サポート

最大メモリ容量16GB

デュアル チャンネルモードDDR3メモリモジュール

DDR3 1600/333/1066をサポート

登録済みDIMMとECC DIMMはサポートされません

Super I/O

ITE 8728

もっとも一般に使用されるレガシーSuper I/O機能を

採用しています。

低ピンカウントインターフェイス

環境コントロールイニシアチブ、

H/Wモニター

ファン速度コントローラ/ モニター

ITE の「スマートガーディアン」機能

ITE 8728

もっとも一般に使用されるレガシーSuper I/O機能を

採用しています。

低ピンカウントインターフェイス

環境コントロールイニシアチブ、

H/Wモニター

ファン速度コントローラ/ モニター

ITE の「スマートガーディアン」機能

SATA 2

統合シリアルATA コントローラ

最高3.0 Gb/秒のデータ転送速度

SATAバージョン2.0仕様に準拠。

統合シリアルATA コントローラ

最高3.0 Gb/秒のデータ転送速度

SATAバージョン2.0仕様に準拠。

LAN

AR8151 (H61MGB)

10 / 100 / 1000 Mb/秒のオートネゴシエーション

AR8152 (H61MLB)

10 / 100 Mb/秒のオートネゴシエーション

AR8151

10 / 100 / 1000 Mb/秒のオートネゴシエーション

HDオーディオ

のサポート

VT1708B

ハイデフィニションオーディオのサポート

5.1 チャンネルオーディオアウト

VT1708B

ハイデフィニションオーディオのサポート

5.1 チャンネルオーディオアウト

PCI Express Gen3 x16スロット

(CPUに依存） x1

PCI Express Gen3 x16スロット

(CPUに依存） x1

スロット

PCI Express Gen2 x1スロット x1 PCI Express Gen2 x1スロット x1

Motherboard Manual

44

H61 MGB / H61 MLB H6 1M HB

PCIスロット x2 PCIスロット x2

プリンタポートコネクタ x1 プリンタポートコネクタ x1

シリアルポート x1 シリアルポート x1

SATAコネクタ x4 SATAコネクタ x4

フロントパネルコネクタ x1 フロントパネルコネクタ x1

フロントオーディオコネクタ x1 フロントオーディオコネクタ x1

CPUファンヘッダ x1 CPUファンヘッダ x1

システムファンヘッダ x1 システムファンヘッダ x1

CMOSクリアヘッダ x1 CMOSクリアヘッダ x1

USB 2.0コネクタ x2 USB 2.0コネクタ x2

電源コネクタ(24 ピン) x1 電源コネクタ(24ピン) x1

オンボードコ

ネsクタ

電源コネクタ(4ピン) x1 電源コネクタ(4ピン) x1

背面パネルI/O

PS/2キーボード / マウス x1

VGAポート x1

DVI-Dポート x1

LANポート x1

USB 2.0ポート x4

オーディオジャック x3

PS/2キーボード / マウス x1

HDMIポート x1

VGAポート x1

DVI-Dポート x1

LANポート x1

USB 2.0ポート x4

オーディオジャック x3

ボードサイズ

190mm (幅) X 244 mm (高さ) 190mm (幅) X 244 mm (高さ)

OSサポート

Windows XP / V ista / 7

Biostarは事前のサポートなしにOSサポートを追加ま

たは削除する権利を留保します。

Windows XP / V ista / 7

Biostarは事前のサポートなしにOSサポートを追加ま

たは削除する権利を留保します。

2012/03/13
