Binatone s2300 User Manual

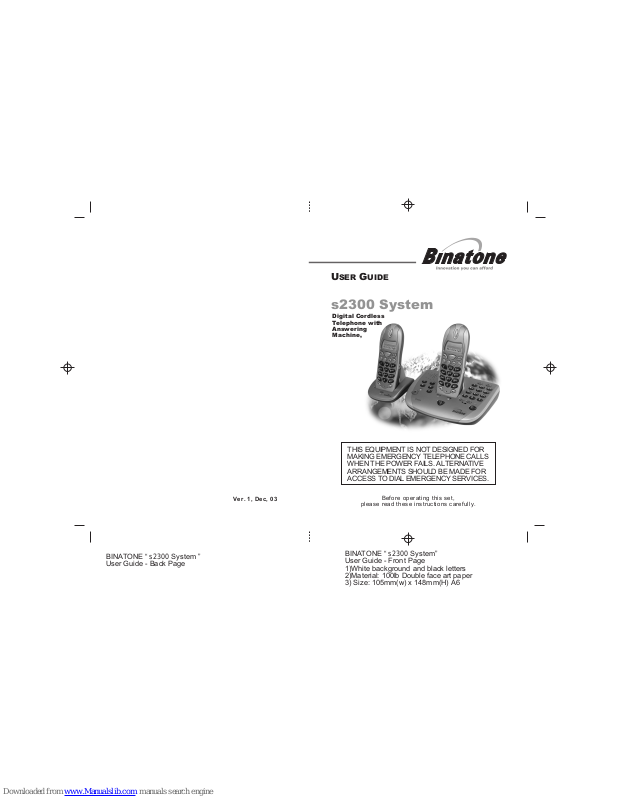

BINATONE “ s2300 System”
User Guide - Front Page

1)White background and black letters

2)Material: 100lb Double face art paper

3) Size: 105mm(w) x 148mm(H) A6

BINATONE “ s2300 System ”
User Guide - Back Page

Ver. 1, Dec, 03

USER GUIDE

Before operating this set,

please read these instructions carefully.

THIS EQUIPMENT IS NOT DESIGNED FOR
MAKING EMERGENCY TELEPHONE CALLS
WHEN THE POWER FAILS. ALTERNATIVE
ARRANGEMENTS SHOULD BE MADE FOR
ACCESS TO DIAL EMERGENCY SERVICES.

s2300 System

Digital Cordless
Telephone with
Answering
Machine,

Important note — emergency calls

The S2300 is not designed for making emergency
calls when the mains power fails. So you should
make alternative arrangements for access to
Emergency Services.

(This means that you should also have a basic
phone that does not need mains power, connected
to your line so that you can make calls during a
power failure.)

If you need help …

The Binatone Help Line is available from 9.00 am to

5.00 pm, Monday to Friday, on

01325 304 473

Unpacking your S2300

In the box are:

■

cordless handset(s) — one with a Single system; two
with a Twin system; three with a Triple system; four
with a Quad system; five with a Quin system

■

one base unit and answering machine

■

a mains power lead and adapter for the base unit

■

a telephone line cable for the base unit

■

a rechargeable battery pack and a battery
compartment cover for each handset

■

with a Twin, Triple, Quad or Quin system, up to
four charger pods, each with mains power lead and
adapter attached

Keep the packaging materials in a safe place in
case you later need to transport the unit.

Keep your sales (till) receipt, which is your

g

uarantee.

E:\Binatone2003\S_2300\s2300_UK_draft02.vp
27 November 2003 19:49:39

Color profile: Generic CMYK printer profile
Composite Default screen

Where to find it

HANDSET LOCATOR button

Press briefly to make thehandsetring,
if you’ve forgotten where youputit.

IN USE/CHARGE light

Comes on steadily when you have
a connection to the telephone
line, and when the handset’s
batteries are being charged.
Flashes when there's an incoming
call and the handset is not in the
charging cradle.

RINGER/EARPIECE VOLUME
button

Press during a call to adjust the
volume in the earpiece.
Press when the handset isidleto
adjust the ringer volume.

MEMORY button

Press to store numbers in the Phone
Book, and to make calls to stored
numbers

(Back)/RECALL button

Press to move through numbers in
the Phone Book, or through menu
options.

You may need the Recall function if
your phone is connected to a PBX, or
if you use BT’s Select Services.

RINGER ON/OFF button

Press when the handset is
idle (not busy on acall)to
turn the ringer on andoff.

PHONE button

Press to begin, answer and end a
telephone call.

SPEAKERPHONE button

Press during a call to switch to
and from speakerphone
operation.

(Caller Display)/
(Forward) button

Press to move through
numbers in the Caller
Display record or Phone
Book.

Before you can use the handset to
make calls you will need to fit and
fully charge the battery pack, as
described on pages 6 and 7. Please
read the notes on pages 4 and 5 first.

Speaker volume control
buttons

+/–

To adjust the volume while using
the base unit’s speakerphone, or
while listening to messages (the
volume levels for the speakerphone
and answering machine are set
separately).

Also, to adjust the base unit’s ringer
volume while it is ringing.

SPEAKERPHONE button and light

Press to answer or endanincomingcallusing
the base unit as a speakerphone.

Answering machine
buttons and lights

The functions of these
buttons are described
on pages 18 to 27

(Last Number Redial)/ PAUSE button

Press to make a repeat call to the last number
you dialled.
Press to generate pauses when using the
phone on a PBX.

MUTE/DELETE button

Press during a call to mute the
microphone so the other person
can’t hear you.

Press when dialling (if you dial before
pressing the button) to delete
digits from the display.

PHONE

Press briefly at any point to return the
display to standby mode.

#/ (Keypad Lock) button

Press when the handset is idle, to lock and
unlock the keypad.

(Intercom) button

Press to make a call to another handset
registered to the same base unit.

Base unit telephone keypad

(Last Number Redial)/ PAUSE

RECALL

For dialling when you make calls using the base unit as a
speakerphone. It includes a
button and a button like the ones on the handset.

FULL

D

E

L

M

E

M

O

P

L

A

Y

S

T

O

P

O

G

M

E:\Binatone2003\S_2300\s2300_UK_draft02.vp
27 November 2003 19:49:50

Color profile: Generic CMYK printer profile
Composite Default screen

Symbols on the display

Appears when you press the button to
store a number in memory or to make a call to a
stored number.

MEMORY

Memory/Store

The top line shows the handset
number.

When you make a call, it shows
dialled numbers, call duration and
other information.

This is on steadily when you are connected to the
telephone line. It flashes for an incoming call, or when
your handset is being paged from another handset.
The appears when the microphone is muted.X

Phone line/
secrecy

Battery level

Ringer/
Ringer Off

= ‘Low’

Shows how fully charged the handset’s batteries are.
When it shows ‘Low’, replace the handset on the base
unit or charger pod to charge the batteries. While the
batteries are being charged, the bars on this symbol
move continuously.

Appears when you’re setting the ringer melody and
volume.
‘Ringer Off’ is shown while the ringer is turned off.

Caller Display

Flashes when you have new Caller Display records. It
comes on steadily when you have listened to the
records but not yet deleted them from memory.

Speakerphone

Lock

Antenna

Comes on steadily when your handset is within range
of the base unit. It flashes if you go out of range.

Intercom

Arrows

Appears when you make an intercom call to another
handset.

When a number is too long for the display, these show
that you can press the or buttons to scroll.

01:46

Appears when the handset’s speakerphone is on.

Appears when the keypad is locked.

E:\Binatone2003\S_2300\s2300_UK_draft02.vp
27 November 2003 19:49:52

Color profile: Generic CMYK printer profile
Composite Default screen

Binatone Help Line: 01325 304 473 1

CONTENTS

Read these notes first 4

Choosing a site for the base unit and
charger pod, 4

Radio signals between handset and
base unit, 4

Connection and conditions for use, 4
Mains power connection, 5
Electrical safety, 5

Installation and set-up 6
Before you start 8

Interference, 8
‘Out of range’ warning, 8

Making and answering calls 9

The handset’s speakerphone, 9
Last Number Redial, 10
To mute the mouthpiece, 10
To lock the keypad, 10
Earpiece volume, 11
To page the handset from the base

unit, 11

Memory dialling 12

To store a number, 12
To make a memory call, 13
To delete a number from memory,

13
Caller Display 14

To check Caller Display records, 14
To return a call, 15

To store a Caller Display record in
memory, 15

To delete a Caller Display record, 15

Using the base unit’s
speakerphone 16

To make a call, 16
To answer a call, 16
To end a speakerphone call, 16
To adjust the volume, 16
To transfer a speakerphone call to the

handset, 17

Answering machine buttons
and lights 18

Setting up the answering
machine 19

To set the clock, 19
To check the clock, 19
Outgoing messages (OGMs), 20
To record OGM1, 20
To record OGM2, 21
To set the number of rings, 21

Using the answering machine 22

To switch on and off, 22
To switch between OGMs, 22
To record a memo, 22
To play back your messages, 23
To intercept a call, 24
To delete messages, 24
To go back to the default OGMs, 25

2

Remote operation 26

To set a remote security code, 26
To check your messages remotely, 26
Keys to press during remote

operation, 27
Switching on remotely, 27

Tones and volumes 28

Handset ringer volume, 28
Handset ringer melody, 28
Base unit ringer volume, 28

Multi-handset use 29

To make an intercom call, 30
To end an intercom call, 30
To transfer a call between handsets,

30

To shuttle between two calls, 31
Conference calls, 32
New Call tone, 32

Registering new handsets 33

To register a handset, 33
To remove

(de-register) all handsets , 34

Troubleshooting 35
Guarantee and service 41

Cleaning and care 42
Declaration of conformity 42

Technical details 43
Index 44

Contents

E:\Binatone2003\S_2300\s2300_UK_draft02.vp
27 November 2003 19:49:52

Color profile: Generic CMYK printer profile
Composite Default screen

Binatone Help Line: 01325 304 473 3

Read these notes first

Choosing a site
for the base
unit and
charger pod

The base unit and charger pod should each be placed
on a level surface, in a position where:

■

the mains adapter plug will reach an easily accessible
230-V

AC switched mains supply socket — never try

to lengthen the mains power cable

■

the base unit’s telephone cable will reach your tele

­phone line socket or extension socket (the charger
pod does not have a telephone line connection)

■

it is not close to another telephone — this can cause
radio interference

■

it is not close to a sink, bath or shower, or anywhere
else where it might get wet

■

it is not close to other electrical equipment —
fridges, washing machines, microwave ovens, fluor­escent lights, TVs etc.

The charger pod can be wall mounted if you prefer,
using the template supplied.

Radio signals
between
handset and
base unit

To use your handset and base unit together, you must
be able to establish a radio link between them. Be
aware that:

■

Any large metal object — like a refrigerator, a mirror
or a filing cabinet — between the handset and the
base unit may block the radio signal.

■

Other solid structures, like walls, may reduce the
signal strength.

Connection
and conditions
for use

You can connect your S2300 to a direct exchange line
(DEL) — a line connected to a local exchange, with its
own phone number; to an extension socket connected
to a DEL; or to an extension on an approved compatible
PBX. Do not connect the S2300 as an extension to a
payphone.

4

The ringer equivalence numbers (RENs) of all
instruments (phones, fax machines, etc.) connected to
an exchange line must not add up to more than 4 —
otherwise, one or more of them may not ring and/or
answer calls correctly. The S2300 has a REN of 1, and
most other telephones have a REN of 1 unless marked
otherwise.

Mains power
connection

IMPORTANT — the S2300 base unit and charger pod
must be used with the mains adapters supplied.

Using any other adapter will result in non-compliance
with EN60950, and will invalidate any approval given to
this apparatus.

Electrical
safety

◆ DON’T let the base unit or charger pod get wet.

Electrical equipment can cause serious injury if used
while you are wet or standing in water.

◆ If the base unit (or the charger pod) ever falls into

water, DON’T retrieve it until you have unplugged the
power lead from the mains and the telephone line plug
from the telephone socket; then pull it out by the
unplugged cables.

◆

NEVER use your S2300 outdoors during a thunderstorm
— unplug the base unit from the telephone line and the
mains socket when there are storms in your area.Damage
caused by lightning is not covered by the guarantee.

Read these notes first

E:\Binatone2003\S_2300\s2300_UK_draft02.vp
27 November 2003 19:49:53

Color profile: Generic CMYK printer profile
Composite Default screen

Binatone Help Line: 01325 304 473 5

Installation and set-up

6

DC9V

TELLINE

1

3

5

4

Choose a suitable site for the
base unit See page 3

Plug the mains adapter into a
230 V AC, 50 Hz mains socket,
with the switch on the socket
set to OFF

Plug the mains adapter into a 230 V AC,
50 Hz mains socket, with the switch on
the socket set to OFF

Switch on at the mains socket(s)

If you have one or more charger pods …

Connect the mains power
lead and the telephone line
cord into the the base unit

2

Use the telephone
line cord supplied
with your S2300
— do not use any
other telephone
line cord

See the note
on page 4

See the note
on page 4

Installation and set-up

Fit a battery pack in each handset

6

7

Charge the batteries for 15 hours

When you don’t need to use the
handset (for example, overnight or
when you go out), replace it on
the base unit or charger pod, to
keep the batteries charged.

Before you use the handset for the first
time, it is important to charge the
batteries fully.

Leave the handset on the charging cradle
for 15 hours.

C. Slide the battery
compartment cover into
place, pressing firmly to

Take care when
inserting the tab
into the slot.

A. Remove the battery
compartment cover

B. Insert the battery
pack as shown, and
tuck in the wires

BLACK

RED

The CHARGE light
comes on

The display may show

for a few
moments, and the antenna
symbol may flash.

searching

E:\Binatone2003\S_2300\s2300_UK_draft02.vp
27 November 2003 19:49:58

Color profile: Generic CMYK printer profile
Composite Default screen

Binatone Help Line: 01325 304 473 7

Before you start

Interference If the sound quality gets worse as you move around

while on a call, this is probably caused by interference
between the handset and the base unit, perhaps
because you are too near to another phone or other
electrical equipment.

Move to a different position to clear the interference.
If you do not move, your call may be cut off.

!

Radio interference in the environment may occasionally
cause a short break in the link between the handset
and the base unit while you are on a call. The
handset’s display will flash briefly, while the unit
automatically restores the link.

‘Out of range’

warning

If you hear a warning tone during a call, and/or the
sound in the earpiece becomes faint or distorted, you
may be going out of range of the base unit. Move
nearer to the base unit within 20 seconds, until the
tone stops. Otherwise, your call may be cut off.

Installation and set-up

8

Make sure the mains socket is
switched on if you want to use
the phone — it will not work
without electrical power

Connect the base unit to the telephone line

Switch off power at the mains socket
Insert the telephone line plug into

the socket as shown
Switch mains power back on

8

Use the plug to
raise the shutter
before pushing
it into the socket

NOTE: the charger pod does not have
a connection to the telephone line.

Making and answering calls

When you make or answer a call, the display shows the
call’s duration in minutes and seconds.

The handset’s
speakerphone

When you press the SPEAKERPHONE button
you can listen without holding the handset to
your ear.

You can press the SPEAKERPHONE button any
time during a call to switch the speakerphone
on and off; but you must press the PHONE
button to end a call.

To make a
call

1 Key in the telephone number

If you make a mistake, press the MUTE/DEL
button to clear digits one by one from the
display. To clear

all digits, press and hold the

MUTE/DEL button.

2 Press the PHONE or SPEAKERPHONE button

(You can dial the number

after you press the

PHONE button if you prefer, but you won’t be
able to correct any mistakes if you do it that
way.)

To answer a
call

When the handset rings:

◗

Press the PHONE or SPEAKERPHONE button

To end a call

◗

Press the PHONE button so that the
symbol disappears from the display

E:\Binatone2003\S_2300\s2300_UK_draft02.vp
27 November 2003 19:50:00

Color profile: Generic CMYK printer profile
Composite Default screen

Binatone Help Line: 01325 304 473 9
